TGD56x(en)_QG.fm Page 1 Monday, November 21, 2016 3:18 PM
KX-TGD560/KX-TGD562/KX-TGD563
KX-TG743SK/KX-TGD564/KX-TG744SK
Model No.
Quick Guide

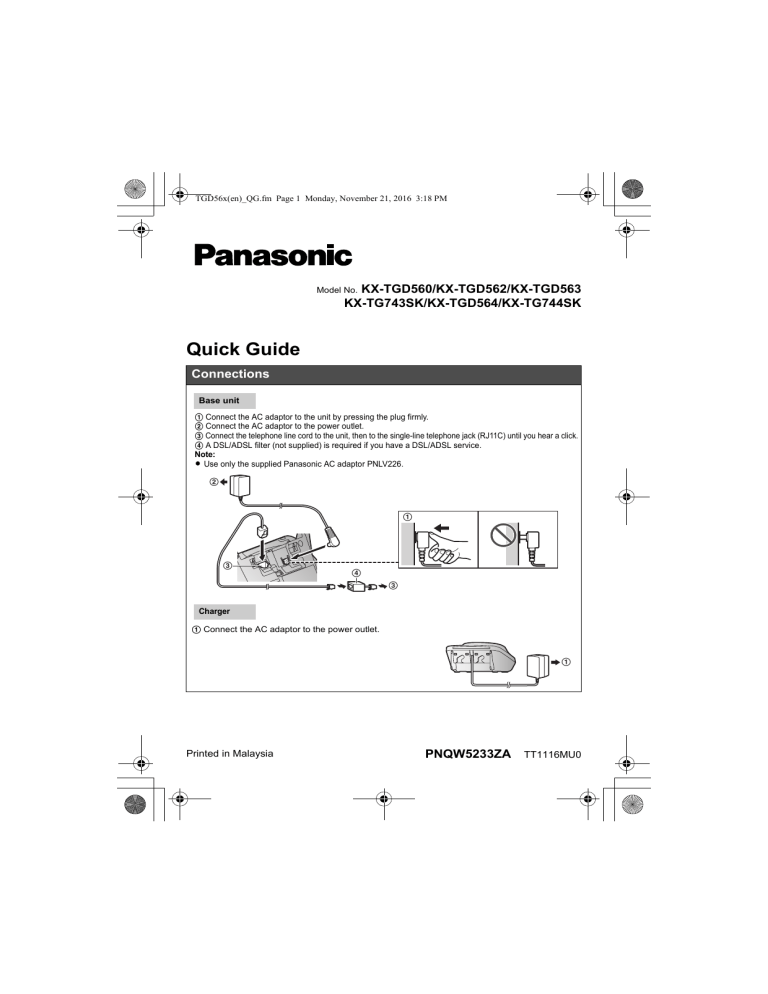

Connections
Base unit
1 Connect the AC adaptor to the unit by pressing the plug firmly.
2 Connect the AC adaptor to the power outlet.
3 Connect the telephone line cord to the unit, then to the single-line telephone jack (RJ11C) until you hear a click.
4 A DSL/ADSL filter (not supplied) is required if you have a DSL/ADSL service.
Note:
L Use only the supplied Panasonic AC adaptor PNLV226.
2
1
3
4
3
Charger
1 Connect the AC adaptor to the power outlet.
1
Printed in Malaysia
PNQW5233ZA
TT1116MU0
TGD56x(en)_QG.fm Page 2 Monday, November 21, 2016 3:18 PM
Battery installation/Battery charging
Charge for about 7 hours.
4
2
3
2
1
1
Note:
L USE ONLY rechargeable Ni-MH batteries AAA (R03) size ( 1 ).
L Do NOT use alkaline/manganese/Ni-Cd batteries.
L Confirm correct polarities (S, T).
L Follow the directions on the display to set up the unit.
L Confirm “Charging” is displayed ( 2 ).
Removing the battery
1
2
Operating tips
Soft keys
By pressing a soft key, you can select the feature shown
directly above it on the display. Pay attention to the
display to see what functions the soft keys are assigned
during operation.
Navigator key
− {^}, {V}, {<}, or {>}: Scroll through various lists and
items.
− VOL. (Volume: {^} or {V}): Adjust the receiver or
speaker volume while talking.
− {<} k: View the phonebook entry.
− {>} REDIAL: View the redial list.
− {V} CID (Caller ID): View the caller list.
{^}
{>}
{<}
{V}
–2–
TGD56x(en)_QG.fm Page 3 Monday, November 21, 2016 3:18 PM
Date and time (Handset)
1
2
3
4
{MENU}(1)1
Enter the current month, date, and year. s {OK}
Enter the current hour and minute (12-hour clock format).
*: Select “AM” or “PM”. s {SAVE} s {OFF}
Recording your greeting message of the answering system for
the landline (Handset)
You can record your own greeting message instead of using a pre-recorded greeting message.
1 {MENU}(3)2 s {r}: “Yes” s {SELECT}
2 After a beep sounds, hold the handset about 20 cm (8 inches) away and speak clearly into
the microphone (2 minutes max.).
3 Press {STOP} to stop recording. s {OFF}
Link to cell
You can connect your base unit and cellular phone using Bluetooth® wireless technology, so that
you can make or answer cellular calls using your phone system. For more details, please visit our
Web site: http://shop.panasonic.com/bluetooth-phone
L Locate your cellular phone near the base unit. If the cellular phone is too close to the base unit
during a cellular call, you may hear noise. For best performance, we recommend placing the
cellular phone between 0.6 m to 3 m (2 feet to 10 feet) away from the base unit.
1
2
1 Cell line
2 Cell phone service providers
Trademarks
L The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.,
and any use of such marks by Panasonic Corporation is under license.
L All other trademarks identified herein are the property of their respective owners.
–3–
TGD56x(en)_QG.fm Page 4 Monday, November 21, 2016 3:18 PM
Link to cell
Pairing a Bluetooth cellular phone
1
Base unit:
Press and hold {CELL 1} or {CELL 2} for about 5 seconds.
L After the corresponding CELL indicator on the base unit starts flashing, the rest of the
procedure must be completed within 5 minutes.
2 Your cellular phone:
While the corresponding CELL indicator is flashing, follow the instructions of your cellular
phone to enter the pairing mode.
L Depending on your cellular phone, it may ask you to enter the Bluetooth PIN (default:
“0000”).
L If your cellular phone prompts you to confirm the passkey, tap {OK} or otherwise to accept
the pairing request.
3 Base unit:
Wait until a long beep sounds.
L It may take more than 10 seconds to complete pairing.
L When the corresponding CELL indicator lights up, the cellular phone is connected to the
base unit. You are ready to make cellular calls.
Note:
L Make sure that your cellular phone is set to connect to this product automatically. Refer to your
cellular phone’s operating instructions.
Base unit: CELL indicators
Status
Meaning
On
A cellular phone is connected. Ready to make/receive cellular calls.
Flashing
−
−
−
−
−
−
Flashing rapidly
A cellular call is being received.
Light off
− A cellular phone is not paired to the base unit.
− A cellular phone is not connected to the base unit.
The cellular line is in use.
Phonebook entries are being copied from a cellular phone.
The base unit is searching for the paired cellular phone.
The base unit is pairing a cellular phone.
A cellular call is on hold.
The remote voice assist feature is in use.
Handset: Link to cell display items
td
− A cellular line is in use.*1
L When flashing: The cellular call is on hold.
L When flashing rapidly: A cellular call is being received.
− The remote voice assist feature is in use.
*1 Corresponding lines (1, 2: cellular line) are indicated next to the item.
xd
A cellular phone is connected.*1 Ready to make/receive cellular calls.
L When turned off: A cellular phone is not connected to the base unit.
*1 Corresponding lines (1, 2: cellular line) are indicated next to the item.
uv
− A cellular call is in progress on that line.
− The cellular line is selected for the setting.
–4–
TGD56x(en)_QG.fm Page 5 Monday, November 21, 2016 3:18 PM
Link to cell
Connecting/disconnecting the cellular phone (Handset)
Auto connection to the Bluetooth devices (cellular phones)
The unit connects to the Bluetooth devices at regular intervals if the connection is lost. To change
the interval (default: “1 min”), see the operating instructions.
L When 3 Bluetooth devices (2 cellular phones and 1 headset) are paired to the base unit, only
2 Bluetooth devices can be used with the unit at the same time, and the base unit loses its
connection from other Bluetooth devices. To automatically resume the connection to Bluetooth
devices, leave the auto connection on.
Connecting/disconnecting the cellular phone manually
If you will not be using the paired cellular phone’s link to cell feature temporarily (for example, you
do not want the unit to ring when your cellular line receives a call), you can disconnect your
cellular phone from the base unit. If you want to use it again, reconnect the cellular phone to the
base unit.
L After you disconnect a paired cellular phone from the base unit manually, it will automatically
be connected to the base unit in 30 minutes. If you do not use the link to cell feature anymore,
unpair the cellular phone.
L A disconnected cellular phone is not unpaired from the base unit, so pairing it to the base unit
again is unnecessary.
1 To connect/disconnect:
For CELL 1: {MENU}(6251
For CELL 2: {MENU}(6252
L A long beep sounds.
2 {OFF}
Cellular line only mode (If you do not use the landline) (Handset)
If you do not use the landline, we recommend setting the unit to the cellular line only mode. The
default setting is “Off”.
L If you turn on the “Cell line only mode”, disconnect the telephone line cord from the base
unit. Otherwise the “Cell line only mode” cannot be activated.
1 {MENU}(157
2 To turn on:
{r}: “On” s {SELECT} s {r}: “Yes” s {SELECT}
To turn off:
{r}: “Off” s {SELECT}
–5–
TGD56x(en)_QG.fm Page 6 Monday, November 21, 2016 3:18 PM
Basic operations
Making/Answering calls (Handset)
Making cellular calls
1
2
Dial the phone number. s {CELL}
L When the cellular line only mode is set, you can also press
{C}/{s} instead of {CELL}.
L When only 1 cellular phone is paired, the unit starts dialing.
When 2 cellular phones are paired:
{r}: Select the desired cellular phone. s {SELECT}
Making landline calls
Dial the phone number. s {C}/{s}
Answering calls
{C}/{s}
To hang up
{OFF}
To adjust the receiver/
speaker volume
Press {^} or {V} repeatedly while talking.
Making a call using the
redial list
1
2
To adjust the ringer volume
(cellular line/landline)
Press {^} or {V} repeatedly to select the desired volume while
ringing.
{>} REDIAL s {r}: Select the desired entry.
To make a cellular call:
When only 1 cellular phone is paired: {CELL}
or
When 2 cellular phones are paired:
{CELL} s {r}: Select the desired cellular phone. s
{SELECT}
To make a landline call:
{C}
Phonebook (Handset)
Adding entries
1
2
3
4
5
Making calls
1
2
{<} k s {MENU}
{r}: “Add new entry” s {SELECT}
Enter the party’s name (16 characters max.). s {OK}
Enter the party’s phone number (24 digits max.). s {OK}
{r}: Select the desired group. s {SELECT} 2 times s
{OFF}
L In step 3, you can switch the language for entering characters.
( s {r}: Select the desired language. s {OK}
{<} k s {r}: Select the desired entry.
To make a cellular call:
When only 1 cellular phone is paired: {CELL}
or
When 2 cellular phones are paired:
{CELL} s {r}: Select the desired cellular phone. s
{SELECT}
To make a landline call:
{C}
–6–
TGD56x(en)_QG.fm Page 7 Monday, November 21, 2016 3:18 PM
Basic operations
Answering system for the landline (Base unit)
Answering on/off
Press {ANSWER ON/OFF} to turn on/off the answering system.
Listening to messages
{P} (PLAY)
Answering system for the landline (Handset)
Listening to messages
To listen to new messages:
{PLAY} or {MENU}(323
To listen to all messages:
{MENU}(324
Using Bluetooth devices
Copying phonebook entries from a Bluetooth cellular phone (phonebook transfer)
You can copy phonebook entries from the paired cellular phones or other cellular phones (not
paired) to the unit’s phonebook.
1 Handset: {MENU}(618
2 Handset:
To copy from paired cellular phones:
{r}: Select the desired cellular phone. s {SELECT}
L Copied items are stored to the group (“Cell 1” or “Cell 2”) which the cellular phone is
paired to.
To copy from other cellular phones (not paired):
{r}: “Other cell” s {SELECT} s {r}: Select the group you want to copy to. s
{SELECT}
3 Handset:
When “Use the cell to transfer phone book” is displayed: Go to step 4.
When “Select mode” menu is displayed:
{r}: Select “Auto” or “Manual”. s {SELECT}
“Auto”: Download all entries from the cellular phone automatically. Go to step 5.
“Manual”: Copy entries you selected.
L “Select mode” menu is displayed only when the cellular phone supports Phone Book
Access Profile (PBAP) for Bluetooth connection.
4 Cellular phone:
Follow the instructions of your cellular phone to copy phonebook entries.
L For other cellular phones (not paired), you need to search for and select the base unit. The
Bluetooth PIN (default: “0000”) may be required.
L If your cellular phone prompts you to confirm the passkey, tap {OK} or otherwise to accept
the pairing request.
L The entries being copied are displayed on the handset.
5 Handset:
Wait until “Completed” is displayed. s {OFF}
–7–
TGD56x(en)_QG.fm Page 8 Monday, November 21, 2016 3:18 PM
Using Bluetooth devices
Using a Bluetooth headset (optional)
By pairing a Bluetooth headset to the base unit, you can enjoy hands-free conversations when
talking on landline calls.
L Only 2 Bluetooth devices can be used with the unit at the same time (for example, 2 cellular
lines, or the headset and 1 cellular line*1).
*1 You cannot use a Bluetooth headset to talk on a cellular line.
Pairing a Bluetooth headset to the base unit
1 Bluetooth headset:
Set your headset to pairing mode.
L Refer to your headset’s operating instructions.
2 Handset:
{MENU}(621
1
2
1 Pair using the handset.
2 Pairing
3
4
If your headset PIN is “0000”, go to step 4.
If your headset PIN is not “0000”, press {CLEAR}, then enter your headset’s PIN.
L Typically, default PIN is “0000”. Refer to the headset’s operating instructions.
Press {OK}, then wait until a long beep sounds. s {OFF}
L When the Bluetooth headset is ready for use, the HEADSET indicator on the base unit lights
up.
Operating a Bluetooth headset using a landline
L Refer to your headset’s operating instructions for details.
L Some features described here may not be available depending on Bluetooth headset.
N Answering landline calls with your headset
To answer a landline call, press your headset’s button.
When you finish talking, press your headset’s button.
L If you cannot hang up the call using your headset, press {P} (STOP) on the base unit.
–8–
TGD56x(en)_QG.fm Page 9 Monday, November 21, 2016 3:18 PM
Frequently asked questions
Question
Cause/solution
Why is _ displayed?
L The handset is too far from the base unit. Move closer.
L The base unit’s AC adaptor is not properly connected. Reconnect
AC adaptor to the base unit.
L The handset is not registered to the base unit. Register it.
1 Handset: {MENU}(13)
2 Base unit: Press and hold {LOCATOR} for about 5 seconds.
3 Handset: Press {OK}, then wait until a long beep sounds.
Why am I unable to pair a
cellular phone to the base
unit?
L Depending on the compatibility of the cellular phone, you may not be
able to pair it to the base unit. For more information, please visit:
http://shop.panasonic.com/bluetooth-phone
L Confirm that the Bluetooth feature of your cellular phone is turned
on. You may need to turn this feature on depending on your
cellular phone.
Why is there no dial tone?
(cellular line)
L The cellular phone has not been paired to the base unit. Pair the
cellular phone.
How can I increase the
handset volume level?
L Press the volume key {^} repeatedly while talking.
Why is the conversation
noisy or cutting off?
L Try to relocate the base unit so that distance to the handset is
minimized.
L If the same problem occurs even if the handset is next to the base unit,
please visit: http://shop.panasonic.com/support
Can I add another
accessory handset to my
base unit?
L Yes, you can add up to 6 handsets (including the handset(s) sold
with your base unit) to a single base unit.
L To purchase additional accessory handset(s) (KX-TGDA50/
KX-TGDA51), please visit: http://shop.panasonic.com/support
TTY users (hearing or speech impaired users) can call 1-877-8338855.
Can I keep the batteries
charging all the time?
L You can leave the handset on the base unit or charger anytime.
This will not harm the batteries.
How can I answer a call
waiting call (2nd call)?
L Press {FLASH} when you hear the call waiting tone.
–9–
TGD56x(en)_QG.fm Page 10 Monday, November 21, 2016 3:18 PM
Notes
– 10 –
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
