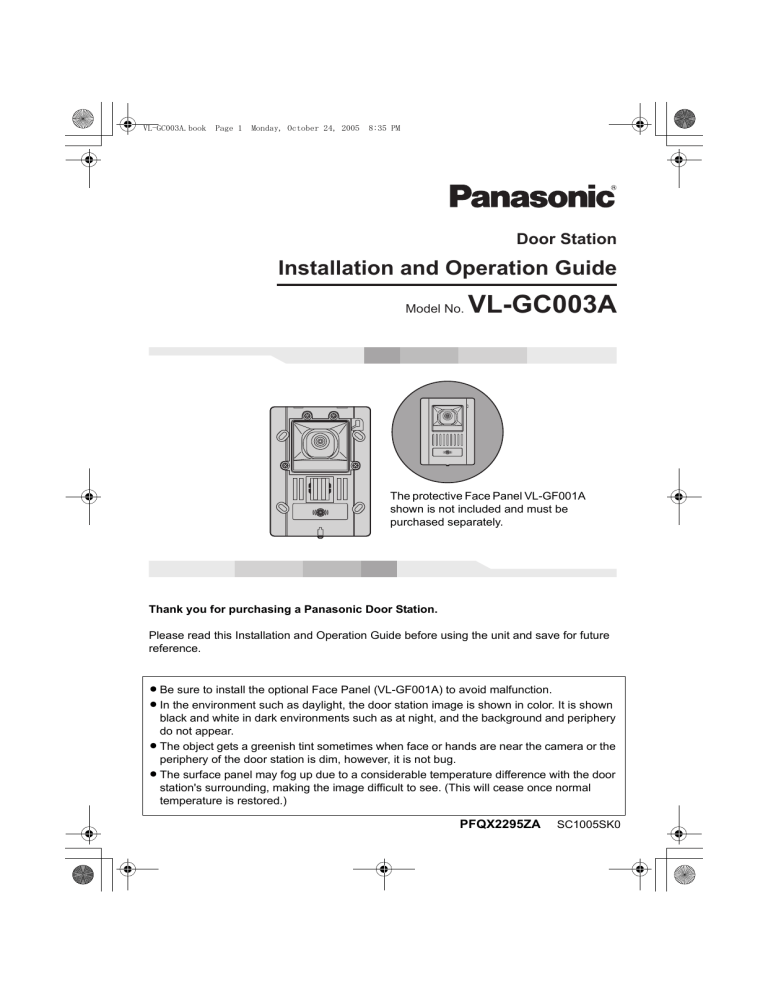

Door Station
Installation and Operation Guide
Model No.
VL-GC003A
The protective Face Panel VL-GF001A
shown is not included and must be
purchased separately.
Thank you for purchasing a Panasonic Door Station.
Please read this Installation and Operation Guide before using the unit and save for future
reference.
L Be sure to install the optional Face Panel (VL-GF001A) to avoid malfunction.
L In the environment such as daylight, the door station image is shown in color. It is shown
black and white in dark environments such as at night, and the background and periphery
do not appear.
L The object gets a greenish tint sometimes when face or hands are near the camera or the
periphery of the door station is dim, however, it is not bug.
L The surface panel may fog up due to a considerable temperature difference with the door
station's surrounding, making the image difficult to see. (This will cease once normal
temperature is restored.)
PFQX2295ZA
SC1005SK0
VL-GC003A.book
Page 2
Monday, October 24, 2005
8:35 PM
Table of Contents
Important Information
Important safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Additional safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
For best performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installation Introductions
Included items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Optional item information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Location of controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Before installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installing the door station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Help
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
General Information
Technical data about this product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
FCC and Other Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2
VL-GC003A.book
Page 3
Monday, October 24, 2005
8:35 PM
Important Information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrow
head within a triangle is
intended to tell the user that
parts inside the product are a
risk of electric shock to persons.
The exclamation point within a
triangle is intended to tell the
user that important operating
and servicing instructions are in
the papers with the appliance.
Important safety instructions
1) Read these instructions.
All the safety and operating instructions should be read before the appliance is operated.
2) Keep these instructions.
The safety and operating instructions should be retained for future reference.
3) Heed all warnings.
All warnings on the appliance and in the operating instructions should be adhered to.
4) Follow all instructions.
All operating and use instructions should be followed.
5) Do not use this apparatus near water.
For example, near a bathtub, wash bowl, kitchen sink, or laundry tub, in a wet basement,
or near a swimming pool, and the like.
6) Clean only with dry cloth.
Do not use liquid cleaners or aerosol cleaners. Use a dry cloth for cleaning.
7) Do not block any ventilation openings.
Install in accordance with the manufacturer’s instructions.
Slots and Openings in the cabinet are provided for ventilation and to ensure reliable
operation of the product and to protect it from overheating. The openings should never be
blocked by placing the product on a bed, sofa, rug, or other similar surface.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
This product should not be placed in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufacturer’s instructions have been
adhered to.
9) Only use attachments / accessories specified by the manufacturer.
10) Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power- supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
SAVE THESE INSTRUCTIONS
3
VL-GC003A.book
Page 4
Monday, October 24, 2005
8:35 PM
Important Information
Additional safety information
1. Use only the power source marked on the unit. If you are not sure of the type of power
supplied to your home, consult your dealer or local power company.
2. Use only the specified AC adaptor.
3. Do not tamper with the plug.
4. Make sure the plug is securely inserted.
5. Do not touch the plug with wet hands.
6. Do not place objects on the power cord. Install the unit where no one can step or trip on
the cord.
7. To reduce the risk of electric shock, do not disassemble this unit. Take the unit to an
authorized service center when service is required. Opening or removing covers may
expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric
shock when the unit is subsequently used.
8. Unplug the monitor station from power outlets and refer servicing to an authorized service
center when the following conditions occur:
A. If smoke rises, or an unaccustomed noise or smell is discharged from the unit.
B. If metal objects have been dropped inside the monitor station.
9. Do not put your ear(s) near the speaker, as loud sounds emitted from the speaker may
cause hearing impairment.
10. Only a qualified technician is allowed to connect a power cable to the unit.
Contact an authorized service center.
11. Do not make any wiring connections when the power supply is turned on.
12. Never install wiring during a lightning storm.
13. When existing chime wires are used, it is possible that they contain AC voltage. Electric
shock or unit damage could result. Contact an authorized service center.
14. Be sure to install the unit as specified to endure the mass.
15. If the wiring is outdoors, use a protection tube or a surge protector.
16. If the wiring is underground, do not make any connections underground.
17. WARNING – Unplug the monitor station from power outlets if it emits smoke, an abnormal
smell or makes unusual noise. These conditions can cause fire or electric shock. Confirm
that smoke has stopped and contact an authorized service center.
For best performance
L If a power failure occurs, the unit will not function.
4
VL-GC003A.book
Page 5
Monday, October 24, 2005
8:35 PM
Installation Introductions
Included items
1
2
3
No.
Item
Quantity
Notes
1
Door station
1
2
Wood screws
4
For the door station.
(3.8 mm x 20 mm, 1/8" x 3/4")
3
Inch screws
4
For the door station.
(No. 6-32 UNC x 25 mm / 1")
------
Optional item information
Available optional items
– Face panel (VL-GF001A-N, VL-GF001A-S, VL-GF001A-B)
5
VL-GC003A.book
Page 6
Monday, October 24, 2005
8:35 PM
Installation Introductions
Location of controls
Front view
Rear view
A Camera
L When a visitor presses the Call Button, the camera will turn on and an image of the
visitor will be shown on the display of the monitor station.
B Microphone
C Screw hole (for fastening the door station to the wall or switch box)
D Speaker
E Call Button
L The Call Button is lit with a blue LED light while the power is on.
L A visitor can press this button to call the monitor station.
F Screw (to fasten the optional face panel in place)
G Water drain hole
L This hole allows rain water to drain. Do not cover it.
H Camera angle control lever
L The camera angle can be adjusted when installing the door station (page 7).
I Terminal connector
6
VL-GC003A.book
Page 7
Monday, October 24, 2005
8:35 PM
Installation Introductions
Before installation
L To avoid malfunction or communication disturbances, do not install the door station in the
following locations:
– Places where vibration or any other kind of impact occurs.
– Places where echoing is frequent.
– Places where a high concentration of dust, hydrogen sulfide, phosphorus, ammonia, sulfur,
carbon, acid, or noxious fumes occur.
– Within 2 m (6'7") of a TV, microwave, personal computer, air conditioner or any other
electrical device.
Standard installation position of the door station and camera range
Rear view
Camera angle
control lever
Left direction
(maximum 15 )
Right direction
(maximum 15 )
Upward direction
(maximum 15 )
<Examples of camera angle>
<Facing the front>
<Facing upward>
<Facing the right> <Facing the upper right>
The angle can also be adjusted to the left or
upper left.
7
VL-GC003A.book
Page 8
Monday, October 24, 2005
8:35 PM
Installation Introductions
Upper/lower range
Side view of the camera facing the front
at 0 .
Left/right range
Top view of the camera facing the front
at 0 .
1810 mm
(711/4")
Center of the
door station
66
1450 mm
(573/32")
Image range:
960 mm (3713/16")
Image range:
650 mm (2519/32")
1160 mm
(4521/32")
480 mm 480 mm
(1829/32") (1829/32")
87
500 mm
(1911/16")
500 mm
(1911/16")
Side view of the camera installed lower
than the standard position and facing
upward at 15 .
1690 mm
(6617/32")
Center of the
door station
66
Image range:
710 mm (2715/16")
Top view of the camera facing the left or
right at 15 .
Image range:
1080 mm (4217/32")
810 mm
(317/8")
270 mm
(105/8")
87
1100 mm
(435/16")
500 mm
(1911/16")
980 mm
(3819/32")
<Example: 1100mm, 435/16" in height>
8
500 mm
(1911/16")
<Example: left at 15 >
VL-GC003A.book
Page 9
Monday, October 24, 2005
8:35 PM
Installation Introductions
Note:
L The measurements and angles are for reference purposes and may vary depending on the
environment.
L If a strong light is shining on the door station, the visitor’s face may not be distinguishable.
Do not place the door station in the following locations:
– Where most of the background is the sky.
– Where the background is a white wall reflecting direct sunlight.
– Where direct sunlight will shine on the door station.
– Where echoing occurs, causing the unit to beep frequently.
L Make sure the back of the door station is not subject to water exposure.
Important:
L When the camera angle is set facing the upper left or upper right, the image may be slightly
curved.
Wire type and distance
L Wire (between the monitor station and the door station):
Type: General cable CAT-3 24 AWG
Distance: Maximum 100 m (about 328 feet)
Switch box
L Switch box (to install the door station easily):
Type: Gang box with conduit knockout
Size: 3" x 2" (Depth: 1 1/2" over)
– 3 switch boxes are needed for installation.
9
VL-GC003A.book
Page 10
Monday, October 24, 2005
8:35 PM
Installation Introductions
Installing the door station
Important:
L An optional face panel must be purchased beforehand (page 5).
L On the bottom surface of the door station, there is a hole to allow water to drain. Do
not cover it up when installing.
1
Connect the wire to the terminal connector.
L See page 9 for the wire type and distance.
L You can change the camera angle using the camera angle control lever. See page 7 for
details.
Camera angle control lever
Door station
Terminal connector
Screw
Wire (Not included)
10
VL-GC003A.book
Page 11
Monday, October 24, 2005
8:35 PM
Installation Introductions
2
Attach and fix the door station.
L Before drilling, see page 7 for installation location.
83.5mm (319/64")
Door station
Wood screw
92mm (319/32")
Opening to insert
the back of door station
(73mm x 141mm, 27/8" x 51/2")
Note:
L Using the switch box (page 9) is easier to install.
Door station
Switch box
Inch screw
11
VL-GC003A.book
Page 12
Monday, October 24, 2005
8:35 PM
Installation Introductions
3
Install the optional face panel as shown.
L Be sure to install the optional face panel (VL-GF001A) to avoid malfunction.
1. Loosen the screw attached to the bottom of the door station.
2. Set the hooks (1) on the face panel into the slots (2) and cover.
3. Press and hold (3), while fasten by tightening the screw to fasten.
Slots
Hooks
Face panel
Door station
Screw
(Attached to the
door station)
12
VL-GC003A.book
Page 13
Monday, October 24, 2005
8:35 PM
Help
Cleaning
Use a soft, dry cloth when cleaning. For excessive dirt, wipe the unit with a slightly damp
cloth.
Important:
L Do not use anything containing alcohol, polish powder, powder soap, benzine, thinner, wax,
petroleum, or boiling water. Also do not spray with insecticide, glass cleaner, or hair spray.
This could cause a change in color or quality.
13
VL-GC003A.book
Page 14
Monday, October 24, 2005
8:35 PM
General Information
Technical data about this product
Power supply*1:
Dimensions:
Mass (Weight):
Operating environment:
Installation method:
External material:
Image pickup device:
Minimum subject
illumination:
Standby: Approximately 5 V DC (2 mA)
At operation: Approximately 20 V DC (180 mA)
Approximate height 165 mm x width 115 mm x depth 51 mm
(61/2" x 41/2" x 2")
Approximately 225 g (0.5 lb.)
–10 °C to 50 °C (14 °F – 122 °F),
Up to 90% RH (Relative Humidity) non condensing
Flush mount
ABS (V-0)
1/4" CCD (0.25 megapixel)
1 lux within 500 mm (19 3/4") from the door station
*1 Supplied from the monitor station.
Note:
L Design and specifications are subject to change without notice.
L The pictures and illustrations in these instructions may vary slightly from the actual
product.
14
VL-GC003A.book
Page 15
Monday, October 24, 2005
8:35 PM
General Information
FCC and Other Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this device.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the monitor station off and on,
the user is encouraged to try to correct the interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV technician for help.
15
VL-GC003A.book
Page 16
Monday, October 24, 2005
8:35 PM
For your future reference
Date of purchase
Serial number (found on the rear of the unit)
Dealer’s name and address
Dealer’s telephone number
Attach your sales receipt here.
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094, U.S.A.
Panasonic Puerto Rico, Inc.
San Gabriel Industrial Park, Ave. 65 de Infantería, Km. 9.5, Carolina, Puerto Rico 00985,
U.S.A.
Copyright:
L This material is copyrighted by Panasonic Communications Co., Ltd., and may be
reproduced for internal use only. All other reproduction, in whole or in part, is prohibited
without the written consent of Panasonic Communications Co., Ltd.
© 2005 Panasonic Communications Co., Ltd. All Rights Reserved.
Download PDF

advertising
