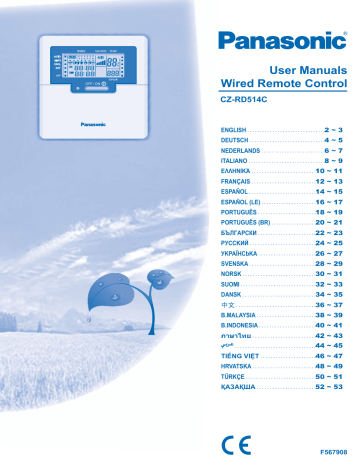

User Manuals
Wired Remote Control
CZ-RD514C
ENGLISH
2~3
DEUTSCH
4~5
NEDERLANDS
6~7
ITALIANO
8~9
EΛΛΗΝΙΚΆ
10 ~ 11
FRANÇAIS
12 ~ 13
ESPAÑOL
14 ~ 15
ESPAÑOL (LE)
16 ~ 17
PORTUGUÊS
18 ~ 19
PORTUGUÊS (BR)
20 ~ 21
БЪЛГАРСКИ
22 ~ 23
РУCCKИЙ
24 ~ 25
УKPAΪHCbKA
26 ~ 27
SVENSKA
28 ~ 29
NORSK
30 ~ 31
SUOMI
32 ~ 33
DANSK
34 ~ 35
中文
36 ~ 37
B.MALAYSIA
38 ~ 39
B.INDONESIA
40 ~ 41
ภาษาไทย
42 ~ 43
‫ﻋﺮﺑﻲ‬
44 ~ 45
TIẾNG VIỆT
46 ~ 47
HRVATSKA
48 ~ 49
TÜRKÇE
50 ~ 51
ҚАЗАҚША
52 ~ 53
F567908
WIRED REMOTE CONTROL
a
d
e
f
g
1
OFF / ON
TIMER/CLOCK
MODE
UP
OFF/ON
SELECT
DOWN
CLOCK
FAN SPEED
3
MODE
TEMP
SET
2
5
AIR
SWING
CANCEL
4
RESET
c
6
b
CHECK
AC
RC
10
9
8
7
Remote Control Display
a OPERATION LED
Press the remote control’s button
1 TO TURN ON OR OFF THE UNIT
• Please be aware of the OFF indication on the remote
control display to prevent the unit from starting/stopping
improperly.
2 TO SET TEMPERATURE
• Selection range: 16˚C ~ 30˚C.
3
4
b OFF INDICATOR
c OPERATION MODE SELECTION INDICATOR
d TIMER/CLOCK SETTING DISPLAY
Lights up if Timer operation is selected
6 different programs can
be set in a day (1 ~ 6)
Indicates the selected day
Indicates the next timer
operation day
Time to be selected
(10 minutes step)
OFF Timer. To automatically switch
“OFF” the unit.
ON Timer. To automatically switch “ON” the unit.
Day to be selected
TO SELECT FAN SPEED (5 OPTIONS)
FAN SPEED
• For AUTO, the indoor fan speed is automatically adjusted
according to the operation mode.
5 TO ADJUST AIRFLOW DIRECTION
• Keeps the room ventilated.
• In COOL/DRY mode, if AUTO is set, the louver swing
left/right and up/down automatically.
• In HEAT mode, if AUTO is set, the horizontal louver fix at
predetermined position. The vertical louver swing left/right
after the temperature rises.
• For Hide-Away models, AIR SWING buttons are not in
use. Airflow direction can not be adjusted.
6
7
Press and hold for approximately 10 seconds to
show temperature setting in °C or °F.
Press and hold for 5 seconds to dim or restore the
unit’s indicator brightness.
e FAN SPEED DISPLAY
8
Press to restore the remote control’s default setting.
f TEMPERATURE SETTING DISPLAY
g ERROR CODE DISPLAY
9
Not used in normal operations.
10
Retrieve error code.
Remote Control Preparation
1. Press
2. Press
CLOCK
UP
SET
or
DOWN
to select current day.
to confirm.
3. Press
4. Repeat steps 2 and 3 to set the current time.
2
TO SELECT OPERATION MODE
AUTO mode - For your convenience
• Unit selects operation mode during startup according to
temperature setting and room temperature.
HEAT mode - To enjoy warm air
• Unit takes a while to warm up. The power indicator blinks
during this operation.
COOL mode - To enjoy cool air
• Use curtains to screen off sunlight and outdoor heat to
reduce power consumption during cool mode.
DRY mode - To dehumidify the environment
• Unit operates at low fan speed to give a gentle cooling
operation.
• During operation, the unit stops and both a and b is
OFF indicates abnormality occurs.
1. Ensure a is OFF, press CHECK for 5 seconds.
2. Press
or
. If error code and abnormality can be
identified, a will be ON continuously, then write down
the error code.
3. Press CHECK for 5 seconds to quit checking.
4. Turn the unit off and reveal the error code to authorized
dealer.
DAILY TIMER SETTING
• To turn ON or OFF the unit at a preset time.
TIMER/CLOCK
MODE
UP
OFF/ON
DOWN
CLOCK
1 • Press once to change the
display from Clock to Timer
or vice-versa.
• Press for more than 4
seconds to change the
display from Daily Timer to
Weekly Timer or vice-versa.
3 Set the time
4 Confirm
SELECT
SET
CANCEL
2 Select ON or
OFF timer
CANCEL
.
• To cancel ON or OFF timer, press
• Timer operation is based on the clock set in the
remote control and repeats daily once set.
• The timer closest to the current time will be activated
first.
• If timer is cancelled manually or due to power failure,
SET
you can restore the previous setting by pressing .
OPERATION DETAILS
The timer setting will shown at wired remote control
only but not at indoor unit’s TIMER indicator.
Check Current Timer Program
Perform the step below to check the timer program for
a particular day.
1. Press Timer
2. Press
SELECT
MODE
to enter timer mode.
to enter day setting.
UP
3. Press Timer
shown, press
4. Press Timer
or
SELECT
UP
or
• Daily timer and weekly timer could not be set at the
same time.
• Promotes energy saving by allowing you to set up to
6 programs in any given day.
1. Press Timer
weekly timer.
MODE
for 4 seconds to change display to
1. Press Timer
2. Press
SELECT
2. Press Timer
3. Press
SELECT
or
to select your desired day.
to confirm your selection.
4. “1” will be blinking, press
5. Press Timer
OFF/ON
UP
SELECT
to set program 1.
to select ON or OFF timer.
DOWN
6. Press Timer
or
to select your desired time.
If you want to set the timer together with your desired
temperature, press
SET
TEMP
to select the temperature.
7. Press
to confirm program 1. The selected day will
be highlighted with
.
• After 2 seconds, the display will move to the next
program. Repeat steps 4 to 7 to set programs 2 to 6.
• Same timer program cannot be set in the same day.
• During timer setup, if no button is pressed within 30
SET
seconds, or if the
button is pressed, the setting at
that moment is confirmed and timer setup is ended.
to check the set programs.
MODE
to enter timer mode.
to enter day setting.
DOWN
Cancel Current Timer Program
Perform the step below to cancel the timer program for
a particular day.
SELECT
to enter day.
2. Press Timer
shown.
DOWN
DOWN
or
until your desired day is
3. Press Timer
shown.
4. Perform steps 4 to 7 of “WEEKLY TIMER SETTING”
to modify existing timer program, or add any timer
program.
1. Press
UP
until your desired day is
to confirm your selection.
Modify Current Timer Program or Add New Timer
Program
UP
WEEKLY TIMER SETTING
DOWN
3. Press
SELECT
UP
or
DOWN
until your desired day is
to enter program setting.
UP
DOWN
or
until your desired program is
4. Press Timer
shown.
CANCEL
Press
to cancel the program,
will
disappear.
Disable & Enable Weekly Timer
• To disable weekly timer setting, press
CANCEL
press
.
MODE
, then
• To enable previous weekly timer setting, press
then press
SET
MODE
,
.
NOTE
• When wired remote control is installed ECONAVI,
AUTO COMFORT, MILD DRY operation setting
from wireless remote control might be disabled.
But POWERFUL, QUIET, PATROL, e-ion operation
setting could be operate according to wireless remote
control.
• When wired remote control is in operation, the timer
setting from wireless remote control will be cancelled.
3
Panasonic Corporation
Website: http://panasonic.net/
Printed in Malaysia
F567908
SS0810-0
