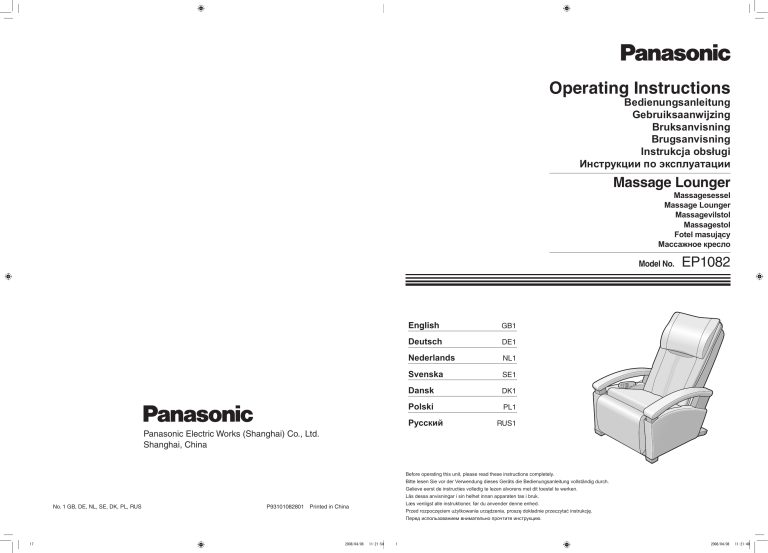

Panasonic | EP1082CL802 | Operating instructions | Panasonic EP1082CL802 Operating Instructions

Operating Instructions
Bedienungsanleitung
Gebruiksaanwijzing
Bruksanvisning
Brugsanvisning
Instrukcja obsługi
Инструкции по эксплуатации
Massage Lounger
Massagesessel
Massage Lounger
Massagevilstol
Massagestol
Fotel masujący
Массажное кресло
Model No. 17
GB1
Deutsch
DE1
Nederlands
NL1
Svenska
SE1
Dansk
DK1
Polski
PL1
Русский
Panasonic Electric Works (Shanghai) Co., Ltd.
Shanghai, China
No. 1 GB, DE, NL, SE, DK, PL, RUS
English
RUS1
Before operating this unit, please read these instructions completely.
Bitte lesen Sie vor der Verwendung dieses Geräts die Bedienungsanleitung vollständig durch.
Gelieve eerst de instructies volledig te lezen alvorens met dit toestel te werken.
Läs dessa anvisningar i sin helhet innan apparaten tas i bruk.
Læs venligst alle instruktioner, før du anvender denne enhed.
Przed rozpoczęciem użytkowania urządzenia, proszę dokładnie przeczytać instrukcję.
Перед использованием внимательно прочтите инструкцию.
P93101082801 Printed in China
2008/04/08
EP1082
11:21:54
1
2008/04/08
11:21:49
English
Basic precautions should always be followed when using an electrical unit, including the following.
WARNING: To avoid the risk of injury:
Please ensure that you read all instructions before using the Household Massage Lounger.
  1.Persons with any of the conditions listed below or who are undergoing medical treatment or suffer from medical
conditions should consult with their physicians before using the unit:
a)Pregnant women, people who are ill, in poor physical shape.
b)People suffering from back, neck, shoulder, or hip pain.
c)People who have a pacemaker, defibrillator, or other personal medical devices prone to electronic
interference.
d)People suffering from heart disease.
e)People who are prohibited from receiving massage by a physician due to thrombosis or aneurism, acute
varicose veins, or other circulatory disorders.
f) People with irregular curvatures of the spine.
  2.This unit should not be used by children. Remove the key when not in use and store out of reach of children.
  3.Sit down slowly after checking the position of the massage heads. Never put any part of your body between the
massage heads as the squeezing action of the massage heads may cause injury. Never put your fingers or feet
in the gap between the backrest and seat, the backrest and the armrest, or the seat and cover under the
armrest.
  4.Do not use the unit against bare skin. While thin clothing may increase effectiveness, exposing the skin directly
to the massager may irritate the skin.
Do not use the unit while wearing anything hard on your head like a hair accessory, etc. Do not use the unit for
massaging the head, abdomen, front neck, elbows or knees.
Do not use excessively strong massage action on the back of the neck.
  5.When using the massager, use the Neck Roller Position button to adjust the massage heads to the correct
position. You can adjust the shoulder position in this way in the pre-programs and Rolling in the manual
operation.
Failure to align the shoulder position correctly can lead to injury.
  6.Do not stretch the back muscles for more than approximately 15 minutes at a time. To avoid overstretching the
muscles which may result in discomfort, do not use the unit for more than 5 minutes when first using it. You can
gradually increase the duration and strength of the massage as you become used to it.
Do not massage any one point for more than 5 minutes at a time.
Excessive massaging can overstimulate the muscles and nerves and result in an adverse effect.
To prevent excessive massaging, do not use the massager for more than a total of 15 minutes each session.
After approximately 15 minutes, the massage heads will be retracted and stop moving.
The back cushion can be removed if you want to experience a stronger back massage. Exercise extreme care
when you use this mode in order to avoid back pain or injury. Use only for short periods of time (no more than
15 minutes). Reinstall the back cushion if you want to restore to normal massage intensity.
  7.While using the massager, if you start feeling sick or if the massage seems painful, stop using it immediately.
While using the massager, if the pressure seems too strong, the movement of the massage heads can be
stopped at any time by pressing the Quick Stop button.
  8.Do not go to sleep while using the unit. Do not use the unit after drinking alcohol.
  9.When the seat back is in a reclined position, do not sit on it or sit with your legs resting on the headrest.
10.Do not allow children or pets to play on or around the unit, especially during operation.
11.Do not unplug the unit or turn it off during operation. Unplug the unit immediately if there is a power outage.
12.Be sure to start on the gentle massage program if using the massager for the first time. The shiatsu massage is
stronger and should be enjoyed after one has gotten accustomed to the chair.
13.Do not allow children to play on this mechanized furniture or operate the mechanism. Always leave in an upright
and closed position. Keep hands and feet clear of mechanism. Only the occupant should operate it.
14.Always raise the back cushion to check that the fabric of the unit itself has not been ripped before using the unit.
Please also check other areas to ensure that the fabric has not been ripped. No matter how small the rip, if you
find one then immediately stop using the unit, unplug the power cord and have the unit repaired at an
authorized service center.
DANGER – To reduce the risk of electric shock:
  1.Always unplug this unit from the electrical outlet immediately after using and before cleaning.
WARNING – To reduce the risk of burns, fire, electric shock, or injury to persons:
  1.Always insert the power plug all the way into the outlet to reduce the risk of short-circuit and fire.
  2.The unit should never be left unattended when plugged in. Always unplug the unit when not in use.
  3.The unit is not to be used by people who cannot move or communicate on their own.
  4.Only use the unit for the purpose described in these instructions.
  5.Do not stand on the unit.
  6.Do not use any accessories other than those recommended by the manufacturer.
  7.Always return the seat to the upright position. Keep children away from the unit.
  8.Never operate the unit if it has a damaged power cord or plug. Return the unit to the nearest authorized service
center if it is not working properly, if it has been dropped or damaged, or if it has been immersed in water.
  9.Keep power cords away from heated surfaces. Do not carry the unit by the power cord.
10.Never block the air openings during operation and make sure that all air openings are kept free of lint and hair,
etc. Do not drop or insert anything into any of the openings of the unit.
11.Do not use the unit on top of heating appliances, such as electric carpets, etc. Do not operate the unit under a
blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
12.Do not use the unit in bathrooms or other damp or humid places as this may cause electric shock or cause the
unit to malfunction. Do not spill water, etc. onto the controller.
13.Do not use the unit outdoors.
14.Do not use or operate where aerosol spray products are being used or where oxygen is being administered.
15.When unplugging the unit, turn off all controls before removing the plug from power outlet. Do not use the unit
with a transformer as this may lead to malfunction or electric shock.
16.Connect this unit to a properly grounded outlet only. See Grounding Instructions.
SAVE THESE INSTRUCTIONS
GB
1-2
SAFETY PRECAUTIONS
English
IMPORTANT SAFETY INSTRUCTIONS
GB
2008/04/08
11:21:49
English
WARNING: To avoid damaging the chair, follow these precautions:
  1.The chair is designed for a maximum user weight of 120 kg. Exceeding the maximum weight may cause
permanent damage to the massage mechanism and/or other components of the unit. Any such damage is
deemed to be user abuse and is not covered under the Limited Warranty.
  2.Do not sit on or drop the controller. Do not pull the controller cord or the power cord. Be careful not to catch the
cord of the controller between the armrest and the chair back.
  3.Do not treat the chair roughly, turn the chair on its side, turn the chair over or stand on it.
  4.Do not treat the covering roughly.
• Keep sharp or pointed objects away from the covering of the chair. Be careful not to drop lit ashes, lit cigarettes
or matches on the chair.
• Exposure to direct sunlight can cause fading or a change in color of the covering.
  5.If the massager functions abnormally, immediately turn off the power and have the massager checked by an
authorized service center.
  6.Do not repeatedly operate any switch at short intervals. Such action may cause the switch to malfunction.
  7.Some noise may be heard coming from the massager while in use. This is due to the structure of the massager
and is normal.
  8.Make sure there are no obstacles behind the chair before reclining it. The chair can be reclined to a maximum
angle of 170˚. If the back hits a wall or pillar, the chair may malfunction. Be sure to have ample space behind
the chair. Recline the chair slowly in order to avoid contact with an obstacle.
  9.When excessive pressure is applied to the massage heads, they may stop moving for safety. When moving the
heads up from the lowered position, one’s body weight may stop the heads’ movement. In such a case, slightly
raise your body and allow the massage heads to move up.
10.After each massage, slide the power switch, which is located on the right side of the chair, to the “off” position
and turn its lock switch to the “lock” position.
GROUNDING INSTRUCTIONS
This product must be grounded. If it should malfunction or break down, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an
equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is
properly installed and grounded in accordance with all local codes and ordinances.
English
OPERATING PRECAUTIONS
DANGER
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with
a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not
modify the plug provided with the product – if it will not fit the outlet, have a proper outlet installed by a qualified
electrician.
This unit has a grounding plug. Make sure that the product is connected to power outlet with the same configuration
as the plug. Do not use an adaptor with this unit.
Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)
This symbol on the products and/or accompanying documents means that used electrical and electronic
products should not be mixed with general household waste.
For proper treatment, recovery and recycling, please take these products to designated collection points,
where they will be accepted on a free of charge basis.
Alternatively, in some countries you may be able to return your products to your local retailer upon the
purchase of an equivalent new product.
Disposing of this product correctly will help to save valuable resources and prevent any potential negative
effects on human health and the environment which could otherwise arise from inappropriate waste handling.
Please contact your local authority for further details of your nearest designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.
11.Do not sit on the chair with wet body or hair.
12.The unit must not be used in “wet rooms” (sauna, swimming pool) or outdoors.
13.Do not attempt to open or disassemble any part of the unit. Only use an authorized Panasonic servicer to fix
your unit.
GB
3-4
GB
2008/04/08
11:21:49
PART NAMES AND FUNCTIONS
English
MASSAGE LOUNGER
Cover Closed
8
1
4
3
29
23
16
12
13
31
25
6 Retracted Position of Massage
Heads
• The massage heads are normally
retracted to the left and right in
the upper part of the backrest.
2 Armrest
3 Controller Holder
• On both sides.
4 Pillow
• For use when watching TV or just
relaxing.
• The pillow has a height
adjustment. (See page GB10)
• The pillow is detachable, and can
also be flipped over.
5 Back Cushion
7 Fastener for securing the
controller cord
8 Back Cushion Zipper
• The back cushion is detachable.
25 Tapping OFF/ON button
33 Speed Adjustment button
• Adjusts speed of upper body
massage in 5 steps during
manual operation.
34 Speed Indicator
35 Massage Position Adjustment
button
• Adjusts position of massage
heads during manual operation.
(See page GB13)
26 Neck Roller Position button
27 Neck Roller Position Indicator
19
27
28 Quick Stop button
• Used to stop the massage
immediately.
29 Reclining button
• Use this button to adjust the angle
of the backrest.
20
13 Specification Label
30 Operation Indicator
• Displays operational status.
14 Power Cord
31 Cover
15 Power Plug
32 Manual Operation buttons
• This allows you to select the
massage action you desire.
(See page GB13)
16 Power Switch
17 Lock Switch
18 Lock Switch Key
10 Back Cover
19 Lock Switch Key Tag
• To prevent children from
accidentally swallowing the lock
switch key.
11 Backrest Latch
20 Wheels
9 Handle
23 Pre-Programs buttons
26
Cover Opened
1 Pillow Fasteners
22 Time Indicator
• Displays time remaining before
end of massage.
17
18
14
15
21 OFF/ON button
• Switches the controller on and off.
24 Massage Focus buttons
• Used to select focus of massage.
24
5
7
22
30
11
6
28
9
10
2
21
English
CONTROLLER
12 Safety Precaution Label
32
33
34
35
SPECIFICATIONS
Power Supply:
Power Consumption:
Upper Body Massage
Massage Area (Up-Down):
Massage Area (Left-Right):
Up-Down Movement Speed:
Massage Speed:
Reclining Angle:
Automatic Shut-Off:
GB
5-6
AC 230 V 50 Hz
80 W
Approx. 67.5 cm
Distance between Massage Heads during Operation
Approx. 6.0 cm – 18.0 cm
Approx. 20 – 35 sec. return.
Knead: Approx. 20 cycles/min. – 30 cycles/min.
Swedish: Approx. 30 cycles/min. – 50 cycles/min.
Compression: Approx. 20 cycles/min. – 30 cycles/min.
Hawaiian: Approx. 30 cycles/min. – 50 cycles/min.
Soft Shiatsu: Approx. 150 cycles/min. – 210 cycles/min.
Tap: Approx. 230 cycles/min. – 350 cycles/min.
Full Roll: Approx. 20 sec./cycle – 35 sec./cycle
(Movement range: Approx. 53.5 cm)
Regional Roll:Approx. 7 sec./cycle – 9 sec./cycle
(Movement range: Approx. 12 cm)
Backrest: Approx. 120° – 170°
Approx. 15 min. for both upper and lower body
Dimensions
When not reclined. (H × W × D):
When reclined. (H × W × D):
Weight of Unit:
Dimensions of Box (H × W × D):
Weight in Box:
Maximum User Weight:
Minimum Distance from Wall:
Approx. 110 cm × 74 cm × 107 cm
Approx. 61 cm × 74 cm × 155 cm
Approx. 54 kg
78 cm × 77 cm × 121 cm
Approx. 69 kg
Approx. 120 kg
40 cm
GB
2008/04/08
11:21:50
SETTING UP THE UNIT
3 HOW TO MOVE THE UNIT
• Avoid places where the unit will be exposed to direct sunlight
for long periods of time or places where it will be exposed to
high temperatures, such as in front of a heater, etc., as this
can cause discoloration or hardening of the leather.
• Placing a mat or cloth under the unit is recommended to
prevent floor damage. The size of the mat should be sufficient
(at least 107 cm × 70 cm).
• Set the unit near the electrical outlet.
See Warning No. 11 and 12 on page GB1.
Keep at least 10 cm away from the wall.
Approx. 147 cm
Approx.
30 cm
Width
approx. 70 cm
• Hold the backrest to move the unit when using the wheels.
• It is easier to move the unit with the massage heads
retracted and the backrest in the upright position.
*Place a mat or cloth on the floor and move the unit slowly
to prevent floor damage.
• Move the unit by having 2 persons hold the armrests.
*Please hold the armrests securely to avoid dropping the
unit as it may damage your floor.
Move it slowly
Mat
Wheels
4 INSTALL THE ARMRESTS ON THE UNIT
Area where the unit
touches the floor
Left
1 UNPACK THE UNIT AND RAISE THE BACKREST
Back
1 • When packed for shipping the backrest is folded forward.
Remove the top of the carton.
the packing and cushioning
2 Remove
materials and take out all accessories.
Zipper
Fastener
• When raising the backrest, be careful not to get your hands caught between the backrest and the backrest latch or
the backrest and the armrests.
Failure to follow this precaution may result in injury.
Convex
Check that there
is nothing
around the unit.
Round hole
Front
Secure with screws
Allen key
Pillow
Armrests — 2
Back Cushion
Allen Key — 1
Lock Switch Key — 1
Attachment Screws — 8
• The lock switch key has
been inserted in the
lock switch prior to
leaving the factory.
Rear
Lift up
• Hold the backrest with both hands and lift in the direction of the
arrow until it comes to a stop.
• Take care that the cords for power and controller are not caught
the backrest and seat.
2 INSPECT THE CONTENTS
3 Make sure to confirm the side (left or right) and
direction (front or back) for each armrest.
The illustration shows the left armrest. The right armrest
is stamped “Front”, “Right” and “Back”.
*The left armrest must be installed on the left hand side of
the unit.
4 Align the proper armrest with the unit and connect.
Be careful not to catch the fabric between the chair
and the armrest.
the backrest.
3 Raise
• Do not connect the power cord to an electrical outlet during setup.
Backrest latch
the armrests.
1 Install
1 Unfasten the fastener.
2 Unzip the zipper of the armrest completely.
Front
CAUTION
Massage Lounger
Lifting the Unit
English
English
Using the wheels to move the unit
WHERE TO USE THE UNIT
the armrests with attachment
2 Secure
screws.
(Total of 4 positions for a single armrest)
Lift the fabric on the side of the armrest and insert the
attachment screw onto the end of the Allen key, and
then fasten.
(Tighten the screws in the 4 positions lightly at first, and
then fasten all screws firmly.)
*If the screw does not enter into the hole, fasten the screw
while pressing the armrest down from the top.
the zipper at the bottom side of
3 Close
the armrests.
When closing the zipper, be careful not to twist the end of
the zipper.
1 Set the zipper.
2 Zip the zipper.
both ends of the zipper inside the
4 Put
armrest.
1 Turn in the edge of the zipper.
2 Fix the sliding tab of the zipper with the fastener.
GB
7-8
GB
2008/04/08
11:21:51
2 POWERING UP THE UNIT
English
Use the controller cord fasteners to secure the cord, leaving approximately 51 cm of
free wire.
* Confirm that there is a margin for the controller cord length when the backrest is reclined.
(The illustration shows that the cord is attached to the right armrest.)
See Warning No. 8 on page GB1.
English
5 FIX THE CONTROLLER CORD
sure the power plug is not damaged.
1Make
• Make sure the power plug is undamaged. Make sure the power plug is free of foreign matter and debris.
2Plug the power plug into an electrical outlet.
that the lock switch key is turned to the “open” position.
3Verify
• If in “lock” position, turn the lock switch key to “open”.
Approx. 51 cm
4Slide the power switch to the “on” position.
6 ATTACHING THE BACK CUSHION AND PILLOW
1Attach the back cushion using the zipper.
2Attach the pillow using the fasteners.
FOLDING THE BACKREST FORWARD (REPACKING)
3 CHECK THE UNIT
3
the parts of the unit.
3Make sure the massage heads are in the
• Keep hands, feet, children, objects, etc., clear of openings on the unit, including seat and armrests; gaps between
the unit and the floor; and the backrest’s range of movement when being folded forward.
Failure to do so could result in injury.
• The unit should not be turned on and the controls should not be operated on when the backrest is folded forward.
Failure to follow these instructions could result in injury.
• The unit should not be climbed on and objects should not be placed on the unit when the backrest is folded
forward.
Failure to follow these instructions could result in damage to the unit.
• In the interests of safety, the backrest should always be folded forward by two persons.
retracted position, i.e. they are parked to the
left and right in the upper part of the backrest.
If not retracted, press
retracted position.
4 ADJUSTING FOR CORRECT PILLOW HEIGHT
Adjust the pillow height so that the bottom edge
of the pillow is at ear level.
3Remove the back cushion and the pillow from the unit.
the armrest from the unit.
4Remove
Refer to “INSTALL THE ARMRESTS ON THE UNIT” on page GB8 and remove them in
• If positioned too low, the pillow can lessen the effect of massage around the
neck area.
Fasteners
reverse order.
5 ADJUSTING THE RECLINING ANGLE
7
5Insert a screwdriver into the opening for the backrest latch
approx. 4 cm from the upper edge of the opening (until the
screwdriver contacts the backrest latch).
Press reclining
6Push tip of screwdriver downward approx. 2.5 cm to
release backrest latch.
seat begins.
twice to return the massage heads to the
See Warning No. 14 on page GB2.
cord.
7Pull out screwdriver when pushing of backrest toward
tears.
2Make sure there are no obstacles between
1
CAUTION
1Press the OFF/ON button to switch off the power.
2Slide the power switch to the “off” position, lock it, and then unplug the power
1Make sure the chair cover is free of rips or
5
to adjust the angle of the backrest.
• With the button held down, movement will continue until a “beep-beep-beep” sound indicates the backrest has been raised or
lowered as far as possible.
Approx. 120˚
Approx. 170˚
6
*Be careful to avoid catching the controller or the cord between the backrest and the seat.
*It is recommended that you move the unit before folding the backrest (upright
position). When the backrest is folded, it is not fixed and is unstable.
BEFORE USING THE UNIT
*The reclining operation is a function that adjusts the angle of the backrest. Avoid using it for any other purposes, such as
continuous up/down operation etc.
1 CHECK THE SURROUNDING AREA
Check that there is nothing around the
unit.
GB
9-10
GB10
2008/04/08
11:21:52
the pre-program you want.
2Select
• Please press one of the flashing buttons.
• If you press another Pre-Program button or a manual operation button during
your selected pre-program massage, the massage will switch to the newly
selected massage.
• Pressing a Pre-Program button automatically moves the backrest into massage
position.
3Sit as far back in the seat as possible with your head
centered on the pillow.
2
the shoulder position
4Adjusting
• When the shoulder position indicator is flashing, adjust the position of the
massage heads (upper heads) so that they lightly touch the shoulders.


Persons whose height is less than 140 cm or more than 185 cm are recommended to use the unit in the manner described
below when the massage heads do not touch their shoulders.
Height is around 140 cm or less
Use by placing
a cushion on the
seat and sitting
as far back as
possible.
Height is around 185 cm or more
Use by reclining
the backrest
and sliding your
body downward.
5Customize
ASelecting an area for a focused massage
Massaging the Neck and Shoulders
Massaging the Lower Back
• The upper and lower back
will also be massaged
slightly.
Press
Too high
• The neck and shoulders
will also be massaged
slightly.
Press
*Press the button again to switch off.
Correct position
• Lightly touching the
shoulder.
Too low
4
English
English
1
USING PRE-PROGRAMS AND QUICK MASSAGE
the OFF/ON button.
1Press
• The OFF/ON indicator will come on.
Up
BRemoving tapping from pre-programs
Down
Press
Approximate Height
185 cm
Press
Press
160 cm
140 cm
• 5-Stage adjustment (up and down approx. 10 cm)
• It is possible to change the position of the massage heads during the massage.
• When it is not possible to correctly adjust the shoulder position, you may have to
slide your body and adjust it again.
*Press the button again to restore tapping to the program.
shut-off in pre-programs
6Auto
• The massage will end after approximately 15 minutes and the unit will automatically shut off.
• The massage heads will move to the retracted position and stop.
• The OFF/ON indicator will flash until the heads have stopped moving.
• If you want to continue using the unit, press the OFF/ON button. Please rest at least 10 minutes between massages.
Stopping a pre-program
Press
• Press the OFF/ON button.
• The massage heads will move to the
retracted position, and the backrest will
automatically return to its original
position.
Immediately stopping the massage
Press
• Press the Quick Stop button.
• All movement will stop immediately.
About the Time Indicator
Time Remaining
Approx. 15 min.
Approx. 9 min.
• Displays remaining massage time via flashing LED.
• Starts counting down from 15 minutes in increments of approximately 3 minutes.
• Flashing speeds up one minute before end of massage.
Approx. 3 min.
Pre-Program and Quick Massage Characteristics
Shiatsu
Uses mainly Soft Shiatsu,
Tap and Knead actions to
comfortably loosen and
provide relief from tension
held at pressure points.
Recommended for those
with severe stiffness and
who want a stimulating
massage.
GB11
11-12
Swedish
Uses mainly Swedish,
Hawaiian and Knead actions
to evenly apply musclerelaxing strokes all over.
Recommended for those
who want a gentle relaxing
massage.
Chiro
Uses Full Roll and
Compression to stretch all
your muscles. A kneading
action is applied to a stiff
back and joints to refresh the
posture and strengthen you
against fatigue.
Recommended for those
who want a fairly strong
massage due to stiff
muscles.
Quick
Covers all areas using a
variety of massage actions,
all in a span of just five
minutes.
Recommended for those
who want a quick, relaxing
massage.
GB12
2008/04/08
11:21:53
Combining Massages
Changing Massage Types
E.g. 1 Adding Tap when Knead is selected.
E.g. 1Changing massage types in the same category.
(Changing to Hawaiian when Knead is selected.)
E.g. 2 Adding Full Roll to the selection.
E.g. 2Changing to a massage type outside the category.
(Changing to Tap when Knead is selected.)
• When Knead is combined with Tap, deselecting
Knead will leave only Tap.
• It is possible to combine massage types.
• It is not possible to combine massage types in the same
category.
• All of the Manual Operation buttons will start to flash.
English
English
MANUAL OPERATION FOR THE UPPER BODY
1Open the cover of the controller.
the OFF/ON button.
2
2Press
• The OFF/ON indicator will come on.
the massage type you want.
3Select
• Press the button of the massage you require.
The button will light up and the massage will begin (See page GB14).
• The unit will automatically recline to the massage position. See page GB10 for
a fine adjustment.
adjustments
4Customized
You can adjust the position or speed of the massage heads, and you will hear
a “beep-beep-beep” sound when it reaches its limit.
AAdjusting the Vertical Position of the Massage Heads
3
Up
Down
• Press the button once to move the position
slightly (approx. 15 mm). Press and hold the
button to move the position continuously;
release the button to stop the movement.
BAdjusting the Width between the Massage Heads
• Tap, Soft Shiatsu, Full Roll, and Regional Roll
can be adjusted in 3 steps.



E.g. 3 Deselecting Full Roll.
Increasing
Decreasing
CAdjusting the Massage Speed
• Massage speed is adjustable in 5 steps.
Increasing
Decreasing
shut-off in manual operation
5Auto
• The massage will end after approximately 15 minutes and the unit will
automatically shut off.
• The massage heads will move to the retracted position and stop.
• The OFF/ON indicator will flash until the heads have stopped moving.
• If you want to continue using the unit, please press the OFF/ON button. Please
rest at least 10 minutes between massages.
NOTE:
• A built-in timer prevents overuse of the unit.
• When using manual operation, the timer automatically stops operation after 15 minutes.
*If you want to continue to use the unit, we recommend that you have a break of at least 10 minutes between massages to allow
your body to rest.
Stopping mid-way through a massage
Press
Massage Actions
GB13
13-14
Knead
Feels like the fingers and
thumbs of two hands
squeezing in unison as they
carefully work their way
upwards to loosen stiffness.
Recommended for the area
of the neck and shoulders.
Swedish
Feels like two palms gliding
over the skin as they
rhythmically knead the
muscles beneath.
Recommended for
loosening up large areas
of the back.
Soft Shiatsu
Feels like a pair of thumbs
carefully alternating between
the right and left side as they
zero in on their target.
Recommended for
loosening up knots of
tension.
Full Roll
From lower back to neck, you
can feel it move 67.5 cm up
and down the whole of the
upper body.
Recommended for overall
stretching of the back
muscles.
Compression
Applies fluent alternating
strokes to the left and right
sides as if drawing stiffness
to the outside.
Recommended for
relaxation of the whole
body.
Hawaiian
Feels like two hands moving
rhythmically in a circular
pattern to relax and refresh
the back.
Recommended for
relieving tension in the
lower back.
Tap
Feels like the edges of two
hands rhythmically tapping to
penetrate into the body and
relax muscles.
Recommended for use on
the fine muscles of the
neck or as a finishing
massage.
Regional Roll
You can feel it travel up and
down working on 10 cm
localized areas of the back.
Recommended for focused
rolling out of back
muscles.
• Press the OFF/ON button.
• The massage heads will move to the
retracted position, and the backrest will
automatically return to its original
position.
Immediately stopping the massage
Press
• Press the Quick Stop button.
• All movement will stop immediately.
GB14
2008/04/08
11:21:54
English
RETURN THE SEAT TO THE ORIGINAL POSITION
1Check that there is nothing in the vicinity of
the backrest.
the OFF/ON button twice.
2Press
• The backrest will automatically return to its original position.
3Place the controller in its holder.
4Return the pillow and the back cushion to
their original positions.
DISCONNECT THE POWER
See Warning No. 2 on page GB1.
1Slide the power switch to the “off” position.
2Turn the lock switch key to the “lock” position.
3Unplug the power cord.
4The lock switch key must be stored out of the reach of children.
CLEANING AND MAINTENANCE
See Danger No. 1 on page GB1.
LEATHER COVERING ON THE PILLOW, THE BACK CUSHION AND THE UNIT
• Wipe these areas with a soft, dry cloth.
(Do NOT use cloths containing any kind of chemical, etc.)
• If the leather is particularly dirty, dampen with liquid soap and brush the surface. Wipe with a cloth dampened with water. Allow
to dry naturally.
(Do NOT use a hair dryer to try to dry the surfaces more quickly.)
• Wearing of denim, colored, patterned or other clothing with a tendency to fade should be avoided during use, as it could lead to
discoloration of the leather.
• Please do NOT use thinners, benzine or alcohol.
PIPE AND PLASTIC AREAS
1 Wipe the unit with a cloth that has been soaked in a mild detergent and then thoroughly wring out.
2 Next wipe the unit with a cloth that has been moistened with just water and thoroughly wring out.
*Make sure you thoroughly wring out the cloth first when cleaning the controller.
3 Allow the unit to dry naturally.
• Please do NOT use thinners, benzine or alcohol.
TROUBLESHOOTING
English
AFTER COMPLETING THE MASSAGE
Problem
Cause and Remedy
Motor Noises
• It sounds and feels like the massage heads are straining to get over wrinkles in the cloth.
• The motor groans when it comes under load.
• There is excessive noise during Tapping. (The noise is greater at the top of the unit.)
• There is a creaking noise when the massage heads are in operation.
• There is a rattling sound when the massage heads move up or down.
• The belt can be heard rotating.
• There is a rubbing sound produced by the massage heads rubbing on the seat fabric.
• There is a noise when the backrest cushion moves over the armrest when the seat is reclining.
• There is a noise when I sit down.
• There is a strange sound when the massage heads move in and out.
• When the power switch is turned on there is a humming sound.
These sounds are perfectly normal and will not have any effect on the operation of the unit.
The massage heads stop during operation.
When excessive force is applied to the massage heads during operation, in the interests of safety the massage heads may
stop moving.
If all markings and buttons on the controller start to flash, which is extremely unusual, turn off the power switch, wait for
approximately 10 seconds and then turn the power switch on again. If the massage heads stop again, position yourself so
that your back is not completely in contact with the backrest.
The massage heads do not come up to the shoulder or neck.
The position of the massage heads is incorrect. (See page GB11)
The height of the left and right massage heads is different.
An alternating tapping method is employed, which means that this phenomenon will naturally occur.
There is nothing wrong with the unit.
It is not possible to recline the unit.
If the unit encounters an obstacle or if excessive force is exerted on it during operation, in the interests of safety the unit will
come to a stop.
If all markings and buttons on the controller start to flash, which is extremely unusual, turn off the power switch, wait for
approximately 10 seconds and then turn the power switch on again.
Reclining does not take place even though a massage is started in pre-programs.
(The seat does not automatically recline.)
In some cases the seat may not automatically recline depending on the position (angle) of the backrest.
The backrest does not return to the upright position.
The backrest will not return to the upright position if the timer is activated or the
button is pressed.
(Pressing
twice will return the backrest to its original position.)
(See page GB15)
It is not possible to switch from Swedish and Knead to Hawaiian and Compression.
Switching can be hindered when the user’s body weight is not resting on the massage heads. Shift your weight so that your
body is contact with the massage heads.
The unit will not operate at all.
• The power cord has been disconnected. (See page GB10)
(See page GB10)
• The power switch on the unit has not been turned on.
• A Pre-Program button or Manual Operation button hasn’t been pressed after pressing
.
(See pages GB11, GB13)
The unit has been damaged.
Stop using the unit immediately.
The power cord or power plug is abnormally hot.
Stop using the unit immediately.
See Warning No. 5 and 13 on page GB3.
COATED FABRIC
1 Wipe the seat fabric with a cloth that has been soaked in a mild detergent solution and then thoroughly wring out.
2 Use a brush to apply a mild detergent to areas where the coated fabric has become particularly soiled. Be careful not to brush
the fabric too much as this may damage it.
3 Next wipe the fabric with a cloth that has been moistened with just water and then thoroughly wring out.
4 Allow the fabric to dry naturally.
• Please do NOT use thinners, benzine or alcohol.
GB15
15-16
GB16
2008/04/08
11:21:54
Download PDF

advertising
