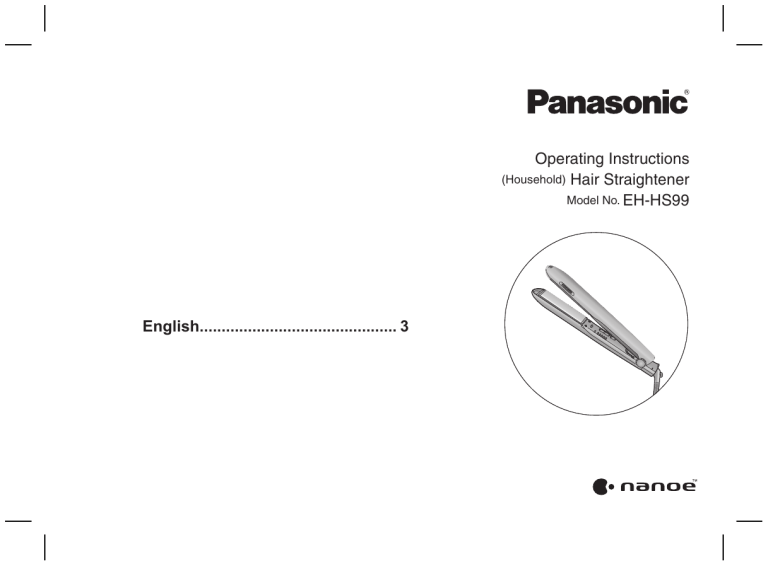

Operating Instructions
Hair Straightener
Model No. EH-HS99
(Household)
English��������������������������������������������� 3
2
English
Operating Instructions
Hair Straightener
Model No. EH-HS99
(Household)
Contents
Safety precautions..................... 6
Using the straightener.......................14
Parts identification.............................10
After use..............................................14
About the temperature control system.... 11
Cleaning..............................................15
About nanoe™.................................... 11
Troubleshooting.................................16
Tips for best straightening results....12
Specifications.....................................16
Before use...........................................13
Caution for AC Mains Lead................17
Thank you for purchasing this Panasonic product.
Before operating this unit, please read these instructions completely and save them for future use.
nanoe™ is a trademark of Panasonic Corporation.
A nanoe™ is a nano-sized ion particle coated with water particles.
3
English
Notice
••This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
••When the appliance is used in a bathroom, unplug it
after use since the proximity of water presents a hazard
even when the appliance is switched off.
4
English
••For additional protection, the installation of a residual
current device (RCD) having a rated residual operating
current not exceeding 30 mA is advisable in the
electrical circuit supplying the bathroom. Ask your
installer for advice.
••This symbol on the appliance means “Do not use this
appliance near water”. Do not use this appliance near
bathtubs, showers, basins or other vessels containing
water.
••If the supply cord is damaged, it must be replaced by
the manufacturer, its service center, or similarly
qualified persons in order to avoid a hazard.
5
Safety precautions
English
To reduce the risk of injury, loss of life, electric shock, fire, and
damage to property, always observe the following safety
precautions.
Explanation of symbols
The following symbols are used to classify and describe the
level of hazard, injury, and property damage caused when the
denotation is disregarded and improper use is performed.
Do not store within the reach of children or infants.
Do not let them use the appliance.
--Doing so may cause burn, electric shock, or injury.
Never modify, disassemble, or repair.
--Doing so may cause ignition or injury due to abnormal
operation.
Contact an authorized service center for repair.
WARNING
Denotes a potential
hazard that could result
in serious injury or
death.
Do not use in a way exceeding the rating of the
household outlet or the wiring.
--Exceeding the rating by connecting too many plugs to
one household outlet may cause fire due to overheating.
CAUTION
Denotes a hazard that
could result in minor
injury or property
damage.
Do not damage or modify, or forcefully bend, pull, or
twist the cord.
Also, do not place anything heavy on or pinch the
cord.
--Doing so may cause electric shock or fire due to a
short circuit.
The following symbols are used to classify and describe the
type of instructions to be observed.
This symbol is used to alert users to a specific
operating procedure that must not be performed.
This symbol is used to alert users to a specific
operating procedure that must be followed in order to
operate the unit safely.
Illustrations in “Safety precautions” may vary from the actual
product.
6
WARNING
Do not use with the cord bundled.
--Doing so may cause fire or electric shock.
Do not wrap the cord around the
main body when storing.
--Doing so may cause the wire in the
cord to break with the load, and
may cause electric shock or fire
due to a short circuit.
Do not use when the plug or cord is damaged or
hot.
--Doing so may cause burn, electric shock, or fire due to
a short circuit.
Never use the appliance if the plug fits loosely in a
household outlet.
--Doing so may cause burn, electric shock, or fire due to
a short circuit.
Do not apply hair spray or flammable hair product
to the main body or hair while using the appliance.
--Doing so may cause fire, electric shock, or burn.
English
WARNING
Do not immerse the appliance in water.
Do not use this appliance near water.
--Doing so may cause electric shock or fire.
Do not block or insert foreign objects such as
hairpins into the nanoe™ Outlet.
--Doing so may cause fire, electric shock, or burn.
Do not connect or disconnect the plug to a
household outlet with a wet hand.
--Doing so may cause electric shock or injury.
Do not use the appliance with a wet hand.
--Doing so may cause electric shock or fire due to a
short circuit.
Do not leave the appliance unattended with the
power connected or after use while the Iron Plate is
still hot.
--Doing so may cause fire, burn, or discoloration or
deformation of objects nearby.
Do not store the appliance in a bathroom or location
with high humidity. Also, do not place in a location
where water may spill (such as top of a vanity).
--Doing so may cause electric shock or fire.
Do not use in proximity of flammable materials
(such as alcohol, benzine, thinner, spray, hair care
product, nail polish remover).
--Doing so may cause an explosion or fire.
Immediately stop using and remove the plug if there
is an abnormality or malfunction.
--Failure to do so may cause fire, electric shock, or
injury.
<Abnormality or malfunction cases>
••The main unit stops occasionally, or the cord or
the plug is abnormally hot.
••The main unit is deformed or smells of burning.
--Immediately request inspection or repair at an
authorized service center.
Fully insert the plug.
Always ensure the appliance is operated on an
electric power source matched to the rated voltage
indicated on the appliance.
--Failure to do so may cause fire, electric shock, or burn.
7
English
WARNING
CAUTION
Always turn OFF the Power Switch and disconnect
the plug from the household outlet after use.
--Failure to do so may cause fire or burn.
Do not store the cord in a twisted state.
--Doing so may cause the wire in the cord to break with
the load, and may cause electric shock or fire due to a
short circuit.
Regularly clean the plug to prevent dust from
accumulating.
--Failure to do so may cause fire due to insulation failure
caused by humidity.
Disconnect the plug and wipe with a dry cloth.
When the appliance is used in a bathroom, unplug it
after use since the proximity of water presents a
hazard even when the appliance is switched off.
--Failure to do so may cause an accident or injury.
Do not drop or subject to shock.
--Doing so may cause electric shock or ignition.
Do not use on infants.
--Doing so may cause burn.
Do not touch the shaded areas when in use or right
after use since they will be hot.
--Doing so may cause burn.
Do not let the heated section touch the skin (ears,
forehead, neckline, etc.).
--Doing so may cause burn.
Do not forcefully open the Press Plate.
--Doing so may cause burn.
Do not use the appliance with permanent wave
liquids applied to your hair.
--Doing so may cause hair or skin trouble.
Do not use the appliance for any purpose other than
the care of human hair. (Do not use on pets, etc.)
--Doing so may cause burn.
8
Do not use the appliance on the same section of
hair for more than 2 times.
--Doing so may cause burn or damage your hair.
Disconnect the plug from the household outlet after
use.
--Failure to do so may cause electric shock or fire due to
electrical leakage resulting from insulation
deterioration.
Hold the main body so the fingers do not touch the
shaded areas during use.
--Failure to do so may pinch the fingers and cause
injury.
Disconnect the plug by holding onto it instead of
pulling on the cord.
--Failure to do so may cause the wire in the cord to
break, and may cause burn, electric shock, or fire due
to a short circuit.
Slide the appliance down entirely through of your
hair without stopping.
Only use the appliance on clean, dry and tangle-free
hair.
Recommended temperature for use depends on
each hair type of condition. (see 13 page)
--Failure to do so may cause burn or damage your hair.
9
English
CAUTION
►Notes
●●Styling will hold for 1 day only.
Hair will return to its normal condition after shampoo.
●●Effectiveness of nanoe™ and straightening may vary among
individuals.
Parts identification
English
B
A
C
APress Plate Tips
GIron Plate
Bnanoe™ Outlet
Hnanoe™ Lamp
CSteam Inlet
ITemperature Setting
Switch
DOpen/Close Lock
ECord
KTemperature Setting
Lamp
FPlug
G
D
JPower Switch
Accessory
LCleaning Brush (for the nanoe™ Outlet)
About Open/Close lock
Slide the Open/Close lock (shaded area) to lock and unlock.
H
I
E
Locked
Unlocked
F
J
K
L
10
►Note
●●Do not try to force open when locked.
This may damage the product.
About nanoe™
Standby mode
What is nanoe™?
If the temperature setting is on 230 °C, 200 °C, or 180 °C and
the straightener is left unused for approximately 10 minutes,
the temperature will automatically lower to 170 °C.
The indicator light will blink alternately
between 230 °C, 200 °C, or 180 °C
and 170 °C
nanoe™ is ion particles enveloped in water and is not visible
to the naked eye. Since nanoe™ is generated by collecting
water in the air, it may be difficult to generate in certain cases
depending on the environment. This is due to the fact that
water in the air is difficult to collect when the temperature and
humidity level is low. This is when negative ions are generated.
(nanoe™ and negative ion generation method: High-voltage
discharge)
How nanoe™ works
Once the straightener is used again, or the [-] or [+]
temperature setting switches are pressed, the temperature
will return to 230 °C, 200 °C, or 180 °C.
The 230 °C, 200 °C, or 180 °C
light will blink and then light up.
(Depending on use, it may light
up without flickering.)
►Note
●●Place hair in the center of the iron plate to use.
(If hair is placed on edge of the iron plate, the straightener
may not be able to detect it is in use.)
Automatic OFF function
Generally hair has properties which make it easy to become
positively charged with electricity. These properties attract
strongly negatively charged nanoe™ which penetrates the hair
with moisture. Furthermore, they make the hair slightly acidic,
tighten cuticles and keep your hair strong, elastic and healthy.
►Notes
●●You may notice a characteristic odor when using this
appliance. This is caused by the ozone it generates and is
not harmful to the human body.
●●A humming noise may come out of the nanoe™ Outlet, but
this is the sound of nanoe™ being discharged and is not a
malfunction.
This unit will automatically turn off when 60 minutes have
passed from the start of use.
The power will shut off even if you are using this unit, so in this
event, please turn on the power once again.
After using this unit, even if you forget to shut off the power,
after 60 minutes have passed, it will automatically turn off.
11
English
About the temperature control system
Tips for best straightening results
English
1
2
Brush your hair to ensure it is lying in the same
direction.
Bundle and pin to hold your
4 2
hair in the order shown in the
illustration.
•• If you have thick hair, separating
the hair into more blocks will make
the styling easier.
3
3
1
Practice with the power off.
•• Please practice with the power off until you get used to it.
Styling order
Start styling from the bottom on the back
of your head in the order of 1 to 2 [3
to 4 as well].
4
2
3
1
Hair types and straightening guidelines
The hair straightening effect may differ among individuals by
the degree of curliness and hair type.
Hard-to-straighten hair
12
Coarse hair, Kinked hair
About hair-straightening products
•• Do not use the straightener immediately after a home
straight perm liquid is used. Doing so may damage your
hair. (The straightener may be used 3-4 days after a
straight perm liquid. The straightener may also be used
3-4 days after having your hair treated at a beauty parlor.)
About dyeing products
•• Dyeing places great stress on the hair. After dyeing please
wait for 2 or 3 days before using the straightener. If you
use a temporary dye, wash it out and dry your hair before
use.
•• It takes some time after dyeing for the color to settle. In the
case of the temporary dye, the dye can dirty the
straightener if it is not fully washed out. Also, your hair
cannot be straightened when it is wet.
Heating the iron plate
1
Release the Open/Close
Lock.
Indicator
Release
Temperature
Hair type
Approx. 230 °C
Wavy
Hair
condition
Less
damaged
Straight
Damaged
Approx. 200 °C
Approx. 180 °C
2
3
Insert the plug into the household outlet.
Approx. 170 °C
Press the Power Switch to
turn on the straightener.
Approx. 150 °C
•• The nanoe™ Lamp glows.
•• Confirm that the Temperature
Setting Lamp for 150 is blinking.
►Note
•• Do not use the straightener if all the Temperature
Setting Lamps are blinking.
4
Set a temperature by using
the Temperature Setting
Switches according to the
characteristics and
condition of your hair.
•• Confirm that the Temperature Setting Lamp has
changed.
•• When the selected Temperature Setting Lamp stops
blinking (and glows), the straightener has reached the
selected temperature.
(Note that the time taken to reach operating temperature
may vary depending on the operating environment.)
►Notes
•• A temperature level of more than 200 is high and may
damage your hair.
We recommend that you avoid continuous lengthy use
of this level, and only use it if your hair is in a suitable
condition.
•• After switching on, the straightener reaches operating
temperature (approximately 100 °C) after about
30 seconds.
•• When you use the straightener for the first time, be sure
to set the temperature to 150 °C.
13
English
•• The temperature is raised using [+] and lowered using [–]
of the Temperature Setting Switches.
Before use
Using the straightener
English
Before use, confirm that the Temperature Setting Lamp has
stopped blinking and glows.
4
•• Please confirm that both the
nanoe™ and temperature
setting lamps are off.
Straightening
1
2
Hold a section of hair with a width of
approximately 5 cm.
•• Do not take much hair as it may be difficult to straighten
your hair.
the hair clamped, move
3 With
the straightener straight
toward the hair ends.
•• Move the straightener slowly (at a
speed slower than ordinary
brushing).
•• Repeat in turn, starting from the lower portion of your
section of hair.
•• When hair is clamped, do not hold the straightener in
the same position.
14
►Notes
•• After straightening, style your hair using hair cream,
wax, etc.
•• Avoid using flammable styling products, since they may
generate gases when heated.
Clamp the bundle of hair in
the center of the Iron Plate.
•• Use both hands and hold both
Press Plate Tips to straighten curly
hair.
•• Do not use excessive force as it
may place a strain on hair ends.
After use, press the Power
Switch to turn off the
straightener.
After use
1
2
Remove the plug from the household outlet.
Shut the Iron Plate with the
Open/Close Lock to store it.
Lock
Cleaning
Cleaning the nanoe™ outlet
●●Clean the nanoe™ Outlet about once per month.
●●This maintenance allows the straightener to sustain the
generated level of nanoe™ over a long period.
1
2
●●When this unit has become dirty or styling products, etc.
have gotten onto it, please soak a rag in soapy water, wring
it out, and wipe the unit clean.
●●Do not use alcohol, polish remover, or detergent (liquid hand
soap, etc.).
Doing so may crack or discolor the surface of the
straightener.
Shut the Iron Plate with
the Open/Close Lock.
Insert the “cleaning
brush” into the base,
towards the metal
section (a) in the
nanoeTM Outlet.
(a)
3
Rub the metal section
back and forth with the
brush 10 times.
(nanoeTM Outlets are
located on both sides.)
(On both sides)
15
English
Cleaning the straightener
Clean the straightener after it has cooled and with the plug
removed from the household outlet.
Troubleshooting
English
Problem
Possible cause
••Sparks are generated inside the nanoe™ Outlet.
••The nanoe™ Outlet emits a noise
(crackling noise).
Dust, styling products, etc. are adhered
to the pin-shaped portion where
nanoe™ is generated.
Clean the nanoe™ Outlet to
remove any adherents.
It is on standby mode.
When resuming use, press
the [+] or [-] temperature
setting switches and return
the temperature setting to
230 °C, 200 °C, or 180 °C.
When the temperature is set to [230], [200],
or [180] it blinks alternately between 230 °C,
200 °C, or 180 °C and 170 °C.
Please request an inspection or
repair from place of purchase.
All temperature setting lamps keep blinking.
It takes time to reach operating temperature.
Action
The time to reach operating temperature
(approximately 100 °C) differs depending
on the area.
100 - 120 V: about 30 seconds
220 - 240 V: about 30 seconds
If the problems still cannot be solved, contact the store where you purchased the unit or a service center authorized by Panasonic for repair.
Specifications
Power source
Power consumption
100 - 120 V
50 - 60 Hz
220 - 240 V
50 - 60 Hz
38 W
The amount of power consumption is determined as the arithmetic mean value of the power input occurring during a
representative period.
This product is intended for household use only.
16
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three pin mains
plug for your safety and convenience.
A 13‑ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the
replacement fuse has a rating of 13‑ampere and that it is
approved by ASTA or BSI to BS1363.
Check for the ASTA mark
or the BSI mark
on the body
of the fuse.
If the plug contains a removable fuse cover you must ensure
that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a
replacement cover is obtained.
A replacement fuse cover can be purchased from your local
dealer.
CAUTION!
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR
THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE
SHOULD BE REMOVED AND THE PLUG CUT OFF AND
DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK
IF THE CUT OFF PLUG IS INSERTED INTO ANY
13‑AMPERE SOCKET.
How to replace the fuse
The location of the fuse differ according to the type of AC
mains plug (figures A and B). Confirm the AC mains plug fitted
and follow the instructions below.
Illustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
Figure A
Figure B
Fuse cover
2. Replace the fuse and close or attach the fuse cover.
Figure A
Figure B
Fuse
(13 ampere)
Fuse
(13 ampere)
THIS PLUG IS NOT WATERPROOF—KEEP DRY.
Before use
Remove the connector cover.
17
English
Caution for AC Mains Lead
English
Disposal of Old Equipment
Only for European Union and countries with recycling
systems
This symbol on the products, packaging, and/or
accompanying documents means that used
electrical and electronic products must not be
mixed with general household waste.
For proper treatment, recovery and recycling of
old products, please take them to applicable
collection points in accordance with your national
legislation.
By disposing of them correctly, you will help to
save valuable resources and prevent any
potential negative effects on human health and
the environment.
For more information about collection and
recycling, please contact your local municipality.
Penalties may be applicable for incorrect
disposal of this waste, in accordance with
national legislation.
18
English
MEMO
19
Panasonic Corporation
http://www.panasonic.com
© Panasonic Corporation 2017
EN
Printed in Thailand
EH9210HS998951 Y1017-0
Download PDF

advertising
