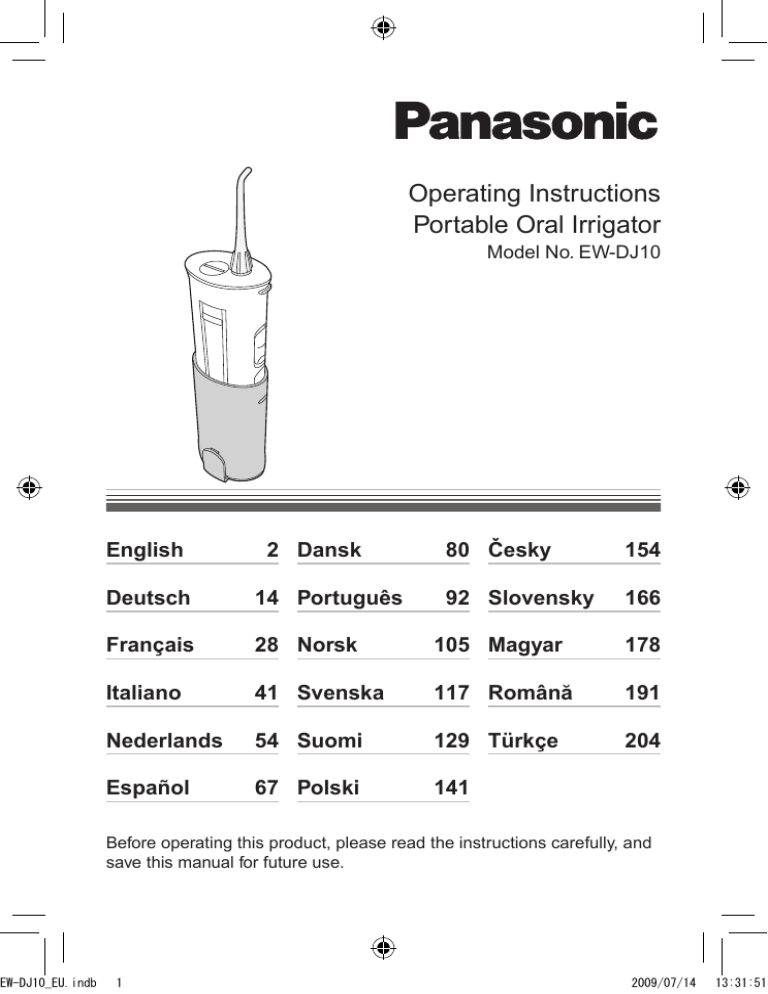

Operating Instructions
Portable Oral Irrigator
Model No. EW‑DJ10
English
2 Dansk
80 Česky
154
92 Slovensky
166
Deutsch
14 Português
Français
28 Norsk
105 Magyar
178
Italiano
41 Svenska
117 Română
191
Nederlands
54 Suomi
129 Türkçe
204
Español
67 Polski
141
Before operating this product, please read the instructions carefully, and
save this manual for future use.
1
2009/07/14
13:31:51
English
EW-DJ10_EU.indb
Safety Instructions
All information in this section is provided to instruct you in the
correct and safe operation of this appliance so that you can avoid
injuries to yourself and others as well as damage to property.
■ The harm or damage that is caused by improper use is
described in categories.
Warning
This indicates “content that may cause death or severe injury”.
Caution
This indicates “content that may cause injury or damage to
property”.
■ Content to be observed is described with the following
icons. (The following are examples of icons)
A circle and slash symbolizes prohibited actions and
behaviors.
A solid circle denotes mandatory actions and instructions to
be followed for safe operation.
Warning
Mandatory!
• Keep out of the reach of toddlers and infants.
Failure to do so could result in accidents or trouble, such as an
accidental ingestion of the accessories or the parts that can be
taken apart.
Caution
Prohibited
• Toddlers, infants, people who are unable to operate and
people with weak oral senses should not use this appliance.
Failure to do so could result in injury.
• Do not use for any purpose other than oral cleaning.
Doing so could result in injury when the stream of water is
pointed toward the eyes, nose, ears, or throat. Consult the dentist
if you are receiving oral treatments or have severe periodontal
disease.
• Do not fill the tank with water warmer than 40 °C.
2
2009/07/14
13:31:52
EW-DJ10_EU.indb
English
Doing so could result in burns.
Mandatory!
• Keep the appliance sanitized and use fresh tap water or
warm water when cleaning the mouth.
• Make sure to throw out the water inside the tank, and run
the appliance for 2 to 3 seconds to drain the water after
usage.
Failure to do so could result in damage to your health if used
without keeping it sanitized due to propagation of mold and
bacteria. It may also result in odor and malfunction.
• Observe the caution written on the batteries.
• Insert the batteries correctly checking the + and - terminals.
• Remove used batteries immediately.
• Remove the batteries when the appliance is not to be used
for a long period.
• Use the batteries by the recommended use-by date.
Failure to do so may cause overheating or explosion of the
batteries, injury or contamination of surroundings due to leakage.
Do not dismantle!
• Never alter the appliance. Also, do not disassemble or repair
it.
Doing so could result in fire, electric shock, or injury.
Caution
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure that they do not play
with the appliance.
3
2009/07/14
13:31:52
English
EW-DJ10_EU.indb
Parts identification












(Back)
(Front)
AMain unit
1Battery cover
2Nozzle socket
3Nozzle release button
4Switch
5Usage line ( mark)
6Tank
7Water supply cap
8Nozzle storage
compartment
9Water suction tube
BNozzle (x1)
CAA size alkaline battery (x2)
► Note
There may be some liquid remaining inside the main appliance
(tank, water suction tube, etc.), but this is remaining distilled water
that was used for the performance (water flow) test, so there are
no health concerns.
► Before using the appliance
Initially bleeding may occur even with healthy gums. This is caused
because the gums are not used to such stimulation. The bleeding
will normally stop within 1 or 2 weeks of use. There may be a
problem with the gums (periodontal disease, etc.) if the bleeding
continues for over 2 weeks. In such cases, stop using the
appliance and consult the dentist.
4
2009/07/14
13:31:52
EW-DJ10_EU.indb
English
Insert the alkaline batteries
• Wipe the appliance so no water goes inside.
the battery cover by turning it
1 Open
to OPEN.
two AA size alkaline
2 Insert
batteries.
• Please use Panasonic alkaline batteries
(AA size).
(It can be used for approximately 30
times full tank usage, or approximately
20 minutes of continuous usage.)
• Do not use rechargeable batteries.
Doing so may result in the leakage of
the battery leading to malfunction.
the battery cover by
3 Close
turning it to CLOSE.
5
2009/07/14
13:31:52
English
EW-DJ10_EU.indb
Using the appliance
• Use with tap water or lukewarm water.
• Do not turn the switch to ON before placing the nozzle in your
mouth.
the water supply
1 Open
cap.
out the white part
2 Pull
of main unit up to the
usage line (
3
mark).
• It may be hard to pull out
the main unit with the water
supply cap closed.
• Water pressure will not rise
unless the main unit is
pulled out to the usage line.
• Be careful since the nozzle
might pop out from the
storage compartment at
this time.
the nozzle into
3 Insert
the nozzle socket
2
4
5
1
holding onto the white
part of the main unit.
• Insert it securely until it clicks.
4
Pour in water.
• Always use fresh tap water.
• If the water feels cold, use lukewarm water of up to 40 °C.
• Do not pour in salt, toothpaste, or chemicals.
• To continuously use, make sure the switch is set to OFF.
the water supply cap.
5 Close
• Securely close after pouring in water.
6
2009/07/14
13:31:52
EW-DJ10_EU.indb
6
English
the nozzle in your mouth.
6 Place
• The water suction tube inside the tank
may come out from the water and the
flow of the water may stop when the
appliance is tilted too much.
the switch to ON.
7 Turn
• It can be used for approximately 40
seconds with a full tank.
Mode (strength) can be selected.
2 (Normal)
• For normal cleaning
1 (Soft)
• When you are worried about your gums
• When you feel 2 (Normal) is too strong
7
• Do not press the tip of the nozzle hard against the teeth or
gums.
• Be extra cautious with those who cannot operate the appliance
by themselves, such as infants or toddlers, or people with high
oral sensitivity.
• Do not drop or handle it roughly.
• Do not operate when the tank is empty except to drain the
water from the appliance.
Doing so could result in malfunction.
► Tips
• Hold the appliance vertically with the nozzle upward.
• Move your face above the sink.
• Close your mouth slightly so the water will not splatter.
• Place the nozzle in your mouth.
7
2009/07/14
13:31:53
English
EW-DJ10_EU.indb
Cleaning your mouth well
• Aim the stream as perpendicular as possible between the teeth
or the edge between the teeth and gums.
• Move slowly along the teeth.
• Take extra care between the teeth and around braces.
Front side of the teeth...
• Apply the stream perpendicular to the
teeth.
• Take extra care between the teeth and
the edge between the teeth and gums.
Back side of the teeth...
For the upper teeth
• Adjust the angle of the nozzle to face
upward, and apply the stream
perpendicular to the teeth.
For the lower teeth
• Pull your chin down, and apply the
stream perpendicular to the teeth.
• Do not apply the stream directly into the periodontal pockets.
8
2009/07/14
13:31:53
EW-DJ10_EU.indb
English
After using the appliance
• There is a risk of bacteria propagating, so wash thoroughly and
dry before storing.
the water supply cap and dispose of
1 Open
the water in the tank.
the switch to ON, and drain
2 Turn
the water inside the appliance.
• Run the appliance for 2 to 3 seconds
until no water comes out.
3 Turn the switch to OFF.
the nozzle
4 Press
release button, remove
the nozzle and place it
in the storage
compartment.
the main unit.
5 Store
• Press it in until it clicks.
4
4
• Watch out not to clamp
your fingers in the upper
part of the tank.
the water supply
6 Close
cap.
5
6
9
2009/07/14
13:31:53
English
EW-DJ10_EU.indb
• To store in a bag or similar after using the appliance, wrap it in
a towel or similar to absorb any excess water.
• To prevent bacteria propagating, take it out from a bag or
similar as soon as possible to dry.
Maintenance
aNozzle
(Remove it while pressing the nozzle
release button.)

Wash with water and wipe with a cloth.
• Please replace the nozzle about once
every 6 months. If the tip of nozzle
gets deformed, please replace with a
new nozzle. Failure to do so could
result in malfunction.
bMain unit
Remove the dirt by wiping using a cloth

with liquid soap, and wipe off using a
dry cloth.
Wash with water if it is very dirty.
• Do not wipe the appliance with
thinners, benzine, alcohol etc.
• Doing so could result in malfunction,
cracking or discoloration of the parts.

• Do not wash using hot water of over
50 °C.

• Make sure the battery cover is
securely closed.
• Do not leave the appliance
submerged in water.
• Dry after washing with water.
cWater suction tube

Wash with water and wipe with a cloth.
• Do not bend the water suction tube.
Failure to do so could result in malfunction such as disruption
in the operation of the water suction tube.
10
10
2009/07/14
13:31:53
EW-DJ10_EU.indb
English
dTank
It will come off when the body is pulled hard while the water
supply cap is removed, so perform maintenance of interior as
well.
Wash with water and wipe with a cloth.
• Wash the dirt off from inside using a brush or similar, and wipe
off with a cloth.
• Dry the tank when not using for a long period.
eWater supply cap
Wipe off any grime and dirt.
• Failure to do so could result in water leakage.
• Only use mild detergent.
• Never use thinners, benzine, or alcohol since it may cause
malfunction or cracking / discoloration of the parts.
If you think it is malfunctioning
Check the following.
Symptom
Probable Cause
Action
Batteries are not
It does not
inserted correctly
operate even
when the switch is Batteries are dead
turned on
Insert the batteries
correctly
Symptom
Probable Cause
Action
Water pressure is
low
There is dirt stuck in Replace the nozzle
the nozzle
Replace with new
batteries
Mouth of the nozzle
is squashed
11
11
2009/07/14
13:31:53
English
EW-DJ10_EU.indb
Symptom
Probable Cause
Water does not
come out
The appliance is
Use with the
tilted too much while appliance in a
in use
vertical state
The main unit is not
fully extended.
Action
Pull out the main
unit all the way
If the problem remains even after the appliance is checked and
action is taken, terminate usage to prevent any accidents, and
request checkup and repair at a store.
Specifications
Power supply: 3 V DC (two 1.5 V alkaline batteries (AA/LR6))
Battery: AA size alkaline battery (×2)
Pump frequency: 1400 pulse/minute (at normal setting)
Water Pressure:
2 (Normal): 530 kPa (5.4 Kgf/cm2)
1 (Soft): 350 kPa (3.6 Kgf/cm2)
Operating time:
approx. 40 seconds/full tank or a total of approx. 20 minutes (at
normal setting) (at using AA/LR6 alkaline batteries)
Tank volume: 165 ml
Dimensions:
218 (H) x 51 (W) x 68 (D) mm with tank pulled down
142 (H) x 51 (W) x 68 (D) mm with tank closed
Weight: approx. 210 g (without batteries)
Airborne Acoustical Noise: 71 (dB (A) re 1 pW)
Specifications to be changed without notice
Accessories
Contact the stores close to you.
Check the “appliance product number (EW-DJ10)” and the
“replacement nozzle product number” when purchasing.
Replacement nozzle (2 included)
EW0955
With identification ring
12
12
2009/07/14
13:31:53
EW-DJ10_EU.indb
13
English
Information for Users on Collection and Disposal of Old
Equipment and used Batteries
These symbols on the products, packaging, and/or
accompanying documents mean that used electrical and
electronic products and batteries should not be mixed with
general household waste.
For proper treatment, recovery and recycling of old products
and used batteries, please take them to applicable collection
points, in accordance with your national legislation and the
Directives 2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you
will help to save valuable resources and prevent any
potential negative effects on human health and the
environment which could otherwise arise from inappropriate
waste handling.
For more information about collection and recycling of old
products and batteries, please contact your local
municipality, your waste disposal service or the point of sale
where you purchased the items.
Penalties may be applicable for incorrect disposal of this
waste, in accordance with national legislation.
For business users in the European Union
Cd If you wish to discard electrical and electronic equipment,
please contact your dealer or supplier for further information.
[Information on Disposal in other Countries
outside the European Union]
These symbols are only valid in the European Union. If you wish to
discard these items, please contact your local authorities or dealer and
ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this
case it complies with the requirement set by the Directive for the chemical
involved.
13
2009/07/14
13:31:53
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
