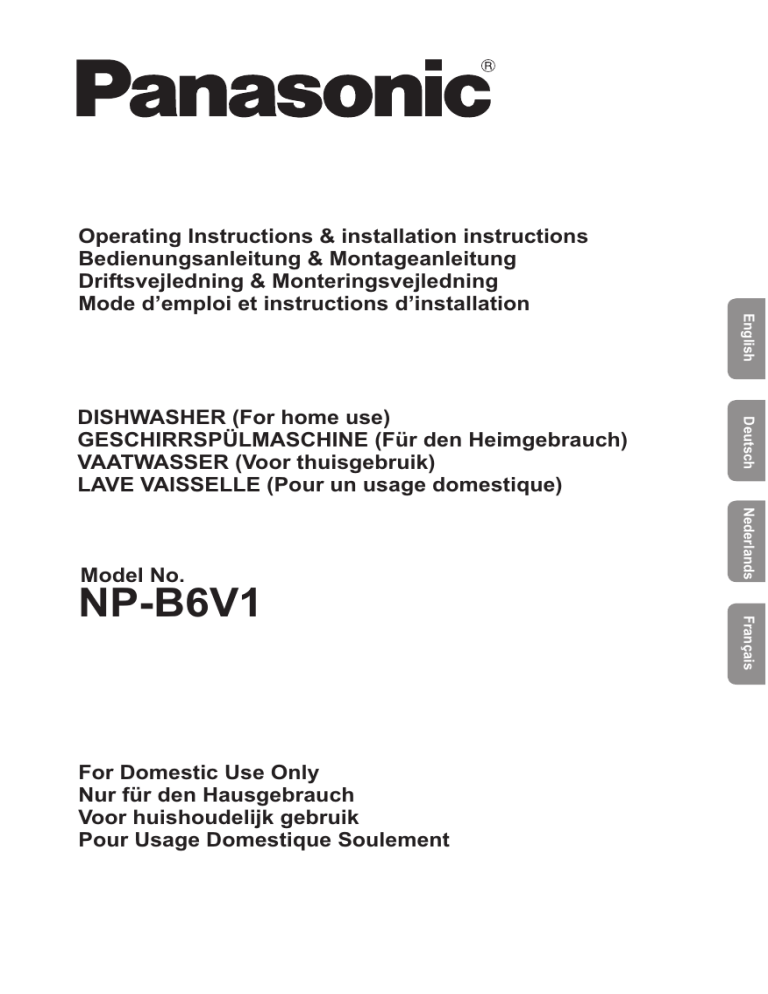

For Domestic Use Only
Nur für den Hausgebrauch
Voor huishoudelijk gebruik
Pour Usage Domestique Soulement
Français
Français
NP-B6V1
Nederlands
Nederlands
Model No.
Deutsch
Deutsch
DISHWASHER (For home use)
GESCHIRRSPÜLMASCHINE (Für den Heimgebrauch)
VAATWASSER (Voor thuisgebruik)
LAVE VAISSELLE (Pour un usage domestique)
English
English
Operating Instructions & installation instructions
Bedienungsanleitung & Montageanleitung
Driftsvejledning & Monteringsvejledning
Mode d’emploi et instructions d’installation
Contents
1.
2.
3.
4.
5.
6.
Safety and operating instructions ___________________________ 2
Installation and set-up____________________________________ 5
Description of the controls ________________________________ 8
Operating instructions ___________________________________ 15
Cleaning and maintenance _______________________________ 29
Troubleshooting _______________________________________ 33
Thank you for choosing this products.
Please read this manual carefully as it contains all the
information required concerning the right conditions for safe and proper
use of your dishwasher. Please keep this manual for future reference.
The individual sections are laid out as an easy to follow step-by-step
guide to all the appliance's functions, complete with detailed illustrations.
Recommendations are given for the correct use of the baskets, spray
arms, containers, filters, washing programs, and for operating the
controls.
Following the cleaning instructions provided here will keep your
dishwasher's performance at peak levels in the long term.
This user-friendly manual will provide answers to all your questions
about use of the dishwasher.
INSTALLATION INSTRUCTIONS: these are intended for the qualified
technician who must carry out the installation, set up and testing of
the appliance.
USER INSTRUCTIONS: these consist of recommendations for using the
appliance, a description of its controls and of the correct cleaning and
maintenance procedures.
1
Installation instructions
1. Safety and operating instructions
THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT MUST
ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER. BEFORE
USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS
CONTAINED IN THIS MANUAL.
INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN
COMPLIANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS
INTENDED FOR DOMESTIC USE AND SIMILAR APPLICATIONS SUCH AS
THE STAFF KITCHENS OF SHOPS, OFFICES AND OTHER WORKPLACES,
INSTITUTIONS, AND FOR THE USE OF GUESTS AT HOTELS, HOSTELS,
BED AND BREAKFAST ESTABLISHMENTS AND OTHER RESIDENTIAL
FACILITIES AND COMPLIES WITH DIRECTIVES 2006/95/EC AND
2004/108/EC CURRENTLY IN FORCE, INCLUDING THE PREVENTION AND
ELIMINATION OF RADIO FREQUENCY INTERFERENCE.
THE APPLIANCE IS DESIGNED FOR THE FOLLOWING PURPOSE: WASHING
AND DRYING OF DISHES; ANY OTHER USE SHALL BE CONSIDERED
IMPROPER. THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR
USES OTHER THAN THOSE DESCRIBED ABOVE.
THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL NUMBER
AND MARKINGS IS VISIBLY POSITIONED ON THE INNER EDGE OF THE
DOOR. THE NAME PLATE ON THE INNER EDGE OF THE DOOR MUST
NEVER BE REMOVED.
DO NOT LEAVE THE DISCARDED PACKAGING MATERIALS UNSUPERVISED
WITHIN THE HOME. SEPARATE THE VARIOUS MATERIALS WHICH MAKE
UP THE PACKAGING AND TAKE THEM TO THE NEAREST SORTED WASTE
COLLECTION CENTRE.
THE APPLIANCE MUST BE PROVIDED WITH AN EARTH CONNECTION IN
ACCORDANCE WITH THE ELECTRICAL SAFETY REGULATIONS IN FORCE.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGE TO
PERSONS OR PROPERTY RESULTING FROM THE FAILURE TO EARTH THE
APPLIANCE OR FROM A DEFECTIVE EARTH CONNECTION.
IF THE APPLIANCE IS INSTALLED ON A CARPETED OR COVERED FLOOR,
ENSURE THAT THE OPENINGS ON ITS UNDERSIDE ARE NOT
OBSTRUCTED.
ALWAYS SWITCH OFF THE DISHWASHER AFTER EACH USE TO SAVE
ENERGY.
IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE
ELECTRICAL POWER SUPPLY AND SHUT OFF THE WATER SUPPLY.
DO NOT USE STEAM CLEANERS TO CLEAN THE DISHWASHER.
2
Installation instructions
WARNING: SOME DISHWASHER DETERGENTS ARE STRONGLY ALKALINE.
THEY CAN BE EXTREMELY DANGEROUS IF SWALLOWED. AVOID
CONTACT WITH THE SKIN AND EYES AND KEEP CHILDREN AWAY FROM
THE DISHWASHER WHEN THE DOOR IS OPEN. CHECK THAT THE
DETERGENT RECEPTACLE IS EMPTY AFTER COMPLETION OF THE WASH
CYCLE.
OBSOLETE APPLIANCES MUST BE RENDERED UNUSABLE. CUT OFF THE
MAINS POWER CORD AFTER UNPLUGGING IT FROM THE HOUSEHOLD
MAINS SOCKET, AND MAKE SAFE ANY COMPONENTS WHICH MIGHT BE
DANGEROUS FOR CHILDREN (LOCKS, DOORS, ETC.).
THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE
2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT
(WEEE).
BY ENSURING THIS PRODUCT IS DISPOSED OF CORRECTLY, YOU WILL
HELP PREVENT POTENTIAL NEGATIVE CONSEQUENCES FOR THE
ENVIRONMENT AND HUMAN HEALTH, WHICH COULD OTHERWISE BE
CAUSED BY INAPPROPRIATE WASTE HANDLING OF THIS PRODUCT.
THE SYMBOL
ON THE PRODUCT, OR ON THE DOCUMENTS
ACCOMPANYING THE PRODUCT, INDICATES THAT THIS APPLIANCE MAY
NOT BE TREATED AS HOUSEHOLD WASTE. INSTEAD IT SHALL BE
HANDED OVER TO THE APPLICABLE COLLECTION POINT FOR THE
RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT.
DISPOSAL MUST BE CARRIED OUT IN ACCORDANCE WITH LOCAL
ENVIRONMENTAL REGULATIONS FOR WASTE DISPOSAL. FOR MORE
DETAILED INFORMATION ABOUT TREATMENT, RECOVERY AND
RECYCLING OF THIS PRODUCT, PLEASE CONTACT YOUR LOCAL CITY
OFFICE, YOUR HOUSEHOLD WASTE DISPOSAL SERVICE OR THE SHOP
WHERE YOU PURCHASED THE PRODUCT.
DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING
TRANSIT! IF IN DOUBT, CONSULT YOUR DEALER.
THE APPLIANCE MUST BE INSTALLED AND CONNECTED IN ACCORDANCE
WITH THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER OR BY A
QUALIFIED TECHNICIAN.
THIS DISHWASHER MUST BE USED BY ADULTS.
USE BY PERSONS WITH REDUCED MENTAL AND/OR PHYSICAL
CAPABILITIES IS ONLY PERMITTED UNDER THE SUPERVISION OF A
PERSON RESPONSIBLE FOR THEIR SAFETY.
KEEP CHILDREN AWAY FROM DETERGENTS AND PACKAGING MATERIALS
(PLASTIC BAGS, POLYSTYRENE, ETC.), AND NEVER ALLOW THEM TO
APPROACH OR PLAY WITH THE DISHWASHER, SINCE IT MIGHT CONTAIN
DETERGENT RESIDUES CAPABLE OF CAUSING PERMANENT DAMAGE TO
THE EYES, MOUTH AND THROAT, AND EVEN LEADING TO SUFFOCATION.
DO NOT INTRODUCE SOLVENTS SUCH AS ALCOHOL OR TURPENTINE
WHICH MAY CAUSE AN EXPLOSION.
DO NOT LOAD DISHES THAT ARE SOILED WITH ASH, WAX OR PAINTS.
3
Installation instructions
DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE
THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM
AND BEFORE THE DRYING CYCLE.
LEANING OR SITTING ON THE DISHWASHER DOOR WHEN OPEN MAY
CAUSE THE APPLIANCE TO OVERTURN, PUTTING PEOPLE AT RISK.
NEVER LEAVE THE DISHWASHER DOOR OPEN; PEOPLE MIGHT TRIP
OVER IT.
KNIVES OR OTHER SHARP-ENDED COOKING UTENSILS MUST BE PLACED
IN THE CUTLERY BASKET BLADE-DOWN, OR LAID HORIZONTAL IN THE
TOP BASKET. TAKE CARE NOT TO CUT YOURSELF AND ENSURE THAT
THEY DO NOT PROJECT FROM THE BASKET.
AQUASTOP
THE AQUASTOP DEVICE PREVENTS FLOODING IN THE EVENT OF A
WATER LEAK. WHEN THE AQUASTOP DEVICE IS TRIPPED, CALL IN A
QUALIFIED TECHNICIAN TO IDENTIFY AND REPAIR THE FAULT.
IN MODELS EQUIPPED WITH THE AQUSTOP DEVICE, THERE IS A
SOLENOID VALVE INSIDE THE WATER INTAKE HOSE. DO NOT CUT THE
HOSE AND DO NOT ALLOW THE SOLENOID VALVE TO DROP INTO
WATER. IN THE EVENT OF DAMAGE TO THE WATER INTAKE HOSE,
DISCONNECT THE APPLIANCE FROM THE ELECTRICAL POWER SUPPLY
AND FROM THE WATER SUPPLY.
IMMEDIATELY AFTER INSTALLING THE DISHWASHER, PERFORM A QUICK
TEST OF THE APPLIANCE FOLLOWING THE INSTRUCTIONS BELOW. IF
THE DISHWASHER FAILS TO OPERATE CORRECTLY, DISCONNECT IT
FROM THE ELECTRICAL POWER SUPPLY AND CALL THE NEAREST
TECHNICAL SERVICE CENTRE. DO NOT ATTEMPT TO REPAIR THE
APPLIANCE.
THE DISHWASHER MEETS ALL THE REQUIREMENTS SET OUT BY THE
REGULATIONS IN FORCE CONCERNING SAFETY AND ELECTRICAL
EQUIPMENT. ANY TECHNICAL CHECKS SHOULD BE CONDUCTED
EXCLUSIVELY BY A TRAINED AND AUTHORISED TECHNICIAN: REPAIRS
CARRIED OUT BY UNAUTHORISED PERSONS WILL INVALIDATE THE
WARRANTY, AS WELL AS POSING A POTENTIAL HAZARD TO THE USER.
THE DISHWASHER WORKS AT AMBIENT TEMPERATURES BETWEEN 5
AND 45°C. DO NOT PLACE THE DISHWASHER IN PLACES EXP OSED TO
FROST.
The manufacturer declines all responsibility for damage to persons or property
resulting from failure to observe the above precautions, from tampering with
even a single component of the appliance, or from the use of non original
spare parts.
4
Installation instructions
2. Installation and set-up
Remove the polystyrene basket retainers.
Position the appliance in the desired place of installation. The back or
sides of the dishwasher may be placed up against walls or other
furniture units. If the dishwasher is installed near a heat source, fit the
special insulating panel to prevent overheating and malfunction of the
appliance. To ensure stability, install dishwashers only under continuous
worktops, and screw them to the adjacent units. To facilitate the
installation procedure, the intake and drain hoses can be positioned in
any direction; make sure that the hoses are not kinked, crushed or pulled
too tightly. Make sure to tighten the locking ring-nut once the pipes have
been placed in the direction required. A hole at least 8 cm in diameter is
required to allow the power supply cable and pipes to pass. Before putting
the dishwasher into its final position, turn on the water tap and check that
there are no leaks from the tap connection, the dishwasher connection
or the hose.
Level the appliance on the floor using its adjustable feet. This operation
is essential for ensuring correct operation of the dishwasher.
This models is equipped with only one adjustable foot at the rear, which
can be adjusted by turning the screw on the lower front part of the
appliance.
Building-in a dishwasher underneath a hob is absolutely forbidden.
Moreover, dishwashers may not be installed directly touching
appliances which are not conventional built-in kitchen appliances (e.g.
fireplaces, stoves, etc.).
When installing the dishwasher in a compartment next to one or more
other appliances, it is essential to comply with all the recommendations
provided by the appliance’s manufacturer (minimum distances, installation
procedures, etc.).
5
Installation instructions
2.1
Water supply connection
Preventing the risk of clogging or damage: if the water pipe is new or
has not been used for a long time, before connecting to the water supply
check that the water is clear and free of impurities, to prevent damage to
the appliance.
The dishwasher must always be connected to the water system
with new hoses; old or used hoses must never be reused.
CONNECTING TO THE WATER SUPPLY
Connect the intake hose to a cold water supply with ¾”
gas thread, inserting the filter A supplied with the
dishwasher. Take care to screw the hose firmly into
place with your hands and then complete by
tightening about ¼ of a turn with pliers.
In dishwashers equipped with the AQUASTOP device,
the filter is already fitted inside the threaded ring.
The dishwasher can also be connected to a hot water supply not
exceeding 60°C . Supplying the appliance with hot water cuts down the
washing time by approximately 20 minutes, but slightly reduces its
effectiveness. Make the connection to the domestic hot water supply using
the same procedure described for connecting to the cold water supply.
DRAIN CONNECTION
Insert the dishwasher’s drain hose
into a drain pipe having a diameter
of at least 4 cm, or alternatively,
place it inside the kitchen sink
using the plastic support provided,
taking care not to crush or
excessively bend the hose. It is
important to prevent the hose from
coming loose and falling. For this
purpose, the plastic support is
equipped with a hole for tying it to
the wall or water tap.
The free end should be positioned at a height of between 30 and 100
cm, and should never be submerged in water. If a horizontal drain
extension hose is used (for a maximum of 3 m) the drain hose can be
placed at a maximum height of 85 cm from the ground.
6
Installation instructions
2.2
Electrical connection and precautions
CHECK THAT THE VOLTAGE AND THE FREQUENCY OF THE MAINS MATCH
THE RATINGS ON THE NAME PLATE OF THE APPLIANCE POSITIONED ON
THE INNER EDGE OF THE DOOR.
THE PLUG ON THE MAIND LEAD AND THE CORRESPONDING HOUSEHOLD
MAINS SOCKET MUST BE OF THE SAME TYPE AND MEET THE
REGULATIONS IN FORCE.
THE PLUG MUST BE ACCESSIBLE AFTER INSTALLATION.
NEVER DISCONNECT THE PLUG BY PULLING ON THE POWER SUPPLY
LEAD.
IN THE EVENT OF DAMAGE TO THE SUPPLY CORD, HAVE IT REPLACED
BY THE MANUFACTURER OR AN AUTHORIZED TECHNICAL SERVICE
CENTRE.
DO NOT USE ADAPTORS OR SHUNT CONNECTIONS IN ORDER TO AVOID
THE POSSIBILITY OF OVERHEATING OR BURNING.
FOR GREAT BRITAIN ONLY:
THIS APPLIANCE MUST BE EARTHED.
FUSE REPLACEMENT
If the mains lead of this appliance is fitted
with a BS 1363A 13 A fused plug, to
change a fuse in this type of plug use an
A.S.T.A. approved fuse to BS 1362 type
and proceed as follows:
1.
2.
3.
Remove the fuse cover A and fuse B.
Fit replacement 13 A fuse into fuse
cover.
Refit both into plug.
The fuse cover must be refitted when changing a fuse and if the fuse
cover is lost the plug must not be used until a correct replacement is
fitted.
Correct replacement are identified by the colour insert or the colour
embossed in words on the base of the plug.
Replacement fuse covers are available from your local electrical store.
7
User instructions
3. Description of the controls
3.1
Upper panel
All the dishwasher controls are grouped on the upper panel. Switch-on,
programming, switch-off etc. procedures are only possible when the
door is open.
1
ON/OFF BUTTON
2
PROGRAM SELECTION BUTTON and INDICATOR LIGHT
3
SALT WARNING LIGHT
4
RINSE AID WARNING LIGHT
5
EXTRA DRY OPTION BUTTON and LIGHT
6
TABLETS OPTION BUTTON and LIGHT
7
SPEED PROGRAM BUTTON and LIGHT
8
HALF LOAD BUTTON and LIGHT
9
PROGRAM DELAY BUTTON
10
INFORMATION DISPLAY
Information displayed
Scheduled program duration
Remaining program time
Delayed start
Error message
8
yes
yes
1 - 24 hours
Err01,…….Err09
User instructions
SETTING THE WASHING PROGRAM AND SWITCHING ON
To select the most suitable programme for the dishes to be washed refer
to the following table: which indicates the most appropriate program
according to dish type and degree of soiling.
After using the table to identify the most appropriate washing program:
•
•
•
press the ON/OFF button and wait for the PROGRAM INDICATOR
LIGHT to illuminate;
keep pressing the PROGRAMME SELECTION button (2)
until the desired program is selected;
close the door; after about 2 seconds the program will start. While it
is in progress, the relative LIGHT will flash (indicating that the
program is being executed).
PROGRAM IN PROGRESS INDICATOR LIGHT
When a program is running, a flashing light is projected onto the floor
under the right-hand corner of the door. At the end of the program, the
light goes out to reduce sleep mode electricity consumption.
9
User instructions
PROGRAMME,
NUMBER &
SYMBOL
1 SOAK
2 FAST
DURATION
LOAD CROCKERY AND
CUTLERY
EN 50242
5 AUTO 60-70
CONSUMPTION
MINUTES
(1)
WATER
LITRES
POWER
kWh (1)
Pans and dishes awaiting
completion of the load.
Cold prewash
15
3,5
0,02
Dishes with light dirt,
washed immediately after
use
Wash at 38°C
Rinse at 50°C
27
6,5
0,70
Delicate dishes, with light
dirt.
Wash at 45°C
Cold rinse
Rinse at 70°C
Dry
65
9,5
1,10
Dishes with normal dirt,
washed immediately after
use.
Wash at 45°C
Cold rinse
Rinse at 65°C
Dry
**
**
**
3 LIGHT
4 ECO (*)
PROGRAM
PROGRESS
When the "AUTO" program is selected, the dishwasher
recognises the type of dirt and automatically adjusts the
washing parameters as appropriate.
Dishes with normal dirt,
even with dried-on
residues.
IEC/DIN ***
6 INTENSIVE
Very dirty pans and dishes,
even with dried-on
residues.
****
Hot prewash
Wash at 70°C
2 cold rinses
Rinse at 70°C
Dry
135
15,5
1,60
The washing cycle will not take place if the dishwasher door is left open
or not properly closed.
NOTES AND REFERENCES
Only run the soak program with half loads.
Options cannot be used with the soak program.
*
**
***
****
(1)
10
Standard programme under EN 50242.
See information sheet provided
IEC/DIN reference programme.
Reference program for laboratories: Detergent: 20 g in the dispenser + 10 g
in the door or tablet. Configuration: see photo in “Using the baskets”.
The cycle duration and power consumption may vary according to the water
and room temperatures, and the type and amount of dishes.
User instructions
SPEED PROGRAMS
(see relevant section for explanation of functioning modes)
PROGRAMME
NUMBER E
SYMBOL
7 LIGHT
SPEED
DURATION
LOAD CROCKERY
AND CUTLERY
PROGRAM
PROGRESS
CONSUMPTION
MINUTES
(1)
WATER
LITRES
POWER
kWh (1)
Delicate dishes, with
light dirt.
Wash at 50°C
Cold rinse
Rinse at 70°C
60
9,5
1,00
Dishes with normal dirt,
even with dried-on
residues
Cold prewash
Wash at 60°C
Cold rinse
Rinse at 70°C
70
12,5
1,25
Pans and dishes with
normal dirt, even with
dried-on residues
Cold prewash
Wash at 70°C
Cold rinse
Rinse at 70°C
75
14
1,40
Very dirty pans and
dishes, even with driedon residues.
Hot prewash
Wash at 70°C
2 cold rinses
Rinse at 70°C
95
14,5
1,50
+
8 ECO
SPEED
+
9 NORMAL
SPEED
+
10 INTENSIVE
SPEED
+
The washing cycle will not take place if the dishwasher door is left open
or not properly closed.
REFERENCES for the ENERGY LABEL supplied with the dishwasher:
-
-
-
Annual energy consumption is based on 280 standard wash cycles with
cold water and consumption of low-energy operating modes. Actual
consumption depends on the way in which the appliance is used.
Water consumption is based on 280 standard wash cycles. Actual
consumption depends on the way in which the appliance is used.
Information refers to the EN 50242 STANDARD programme (identified in the
programmes table), which is the most effective in terms of combined energy
and water consumption. The programme is recommended for dishes with a
normal level of dirt.
Drying efficiency class on a scale from “G” (minimum efficiency) to “A”
(maximum efficiency).
11
User instructions
3.2
Washing programmes
Before starting a washing program make sure that:
•
The water supply tap/valve is open.
•
The correct amount of detergent has been added to the
dispenser.
•
The baskets have been correctly loaded.
•
The spray arms are able to rotate freely and without
obstruction.
•
The dishwasher door is securely closed.
SPEED PROGRAMMES
Select this option together with any washing program (except the soak program)
to SHORTEN the cycle by from a minimum of 10% to a maximum of 55%,
depending on the cycle selected. To activate this option, press the SPEED button
(light comes on) after selecting the program required. The option is
automatically deactivated at the end of the program.
EXTRA DRY
Function recommended for loads containing items which are difficult to
dry, such as pots, non-stick pans and plastic containers.
HALF LOAD
Suitable when there are not many dishes to be washed, it saves energy
and reduces the program duration. Place dishes in both baskets then
load the detergent dispenser than less than the normal amount for a full
load.
TABLET DETERGENTS OPTION
Ideal for multi-function detergents, this option allows washing to be
optimised, with full benefits from the combined-action tablets. When this
option is activated, no salt or rinse aid will be used from their relative
containers.
N.B.: When the salt and rinse aid containers are empty, the relative
lights will remain on even if the option is selected.
IMPORTANT:
when no longer required, the option must be deactivated by pressing
the relative button (the light goes out).
If the water hardness has been set on a value above H3, and the option
is activated, the relative light flashes, warning of a setting error.
Multifunction products are not suitable for use with very "hard" water; this
does not prevent the use of the option, but it might not give the best
washing results.
12
User instructions
DELAYED START
The start of the washing program can be delayed to program the
dishwasher to operate at the preferred time of day (e.g. overnight). Press
the PROGRAM DELAY button to activate the option. When the door is
closed, the appliance will prewash the dishes, after which the "program
delay" set will come into effect.
CANCELLING THE CURRENT PROGRAM
•
To cancel the currently selected
program, open the door and hold down
the PROGRAM SELECTION
button until the program indicator lights
goes out; “P0” appears on the display.
•
•
Close the door.
After approximately 1 minute the dishwasher will advance to the end
of cycle; “End” appears on the display.
CHANGING THE PROGRAM
To change the program in progress, simply open the door and select a
new program. When the door is closed the dishwasher will automatically
select the new program.
13
User instructions
TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT
•
•
•
•
•
Always try to run the dishwasher fully loaded.
Do not wash the dishes in running water.
Use the washing program that is most appropriate for each type of
load.
Do not carry out any preliminary rinsing.
If available, connect the dishwasher to a hot water supply up to 60°C.
TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT
THE ENVIRONMENT
The phosphates contained in dishwasher detergents are harmful to the
environment. To avoid using excessive amounts of detergent and to save
on electricity, observe the following:
•
•
separate the more delicate items from dishes that are more resistant
to aggressive detergents and high temperatures;
do not pour the detergent directly on the dishes.
If the door has to be opened while washing is in progress, the program
will be interrupted. The relative light will keep flashing and a beeper will
signal that the cycle has not been completed. You must wait about 1
minute before closing the door to restart the program. When the door is
closed the program will continue from where it was interrupted. This
operation should only be carried out if strictly necessary, because it
might cause problems in execution of the program.
END OF CYCLE
At the end of the washing cycle the
dishwasher gives a short acoustic signal
and the program indicators nos 5 and 6
blink for 5 minutes, after which the
dishwasher switches off automatically to
reduce sleep mode power consumption.
To switch the dishwasher back on, the ON/OFF button must be pressed.
REMOVING THE DISHES
At the end of the washing program, wait at least 20 minutes before
removing the dishes, to allow them to cool down. To prevent any water
droplets on the upper basket from falling on the dishes in the lower
basket, it is advisable to unload the lower basket first, and then the
upper basket.
14
User instructions
4. Operating instructions
Once the dishwasher has been correctly installed, prepare for use as
follows:
•
•
•
•
4.1
Adjust the water softening system;
Add the regenerating salt;
Adjust the rinse aid dispenser setting;
Add the rinse aid and detergent.
Using the water softening system
The amount of scale contained in the
water (water hardness index) can cause
whitish staining on the dry dishes, which
tend to become dull over time. The
dishwasher is equipped with an automatic
softening system which uses a special
regenerating salt to reduce the hardness
of the water.
The dishwasher is factory set for water
hardness level 3.
SALT
When using water of medium hardness, the regenerating salt container
should be refilled after approximately 20 washing cycles. The salt
container can hold approximately 1.7 kg of salt in grains. The container
is situated at the bottom of the dishwasher. After removing the lower
basket, unscrew the salt container cap by turning it anticlockwise and
pour in the salt using the funnel supplied with the dishwasher. Before
replacing the cap, remove any salt residues from around the opening.
•
When using the dishwasher for the first time, in addition to the salt it
is also necessary to add one litre of water to the container.
•
Each time the salt container is refilled, make sure that the cap is
securely closed. The mixture of water and detergent must never
penetrate the salt container, as this would compromise the operation
of the regeneration system. In the event of this occurring, the
warranty will be invalidated.
•
Only use regenerating salt specially formulated for domestic
dishwashers. If using salt tablets, do not fill the container
completely.
15
User instructions
•
Do not use table salt as it contains insoluble substances which,
over time, may damage the water softening system.
•
When necessary, refill the regenerating salt container before
starting the washing program. In this way, the excess saline
solution will be immediately removed by the water; the prolonged
presence of salt water inside the tank may lead to corrosion.
Be careful not to confuse the salt and detergent packages; adding
detergent to the salt container will damage the water softening system.
ADJUSTING THE WATER SOFTENING SYSTEM
(available in all programs except the soak program)
The dishwasher is equipped with an electronic device for adjusting the
water softening setting according to the hardness of the water. To adjust
the water softening setting, proceed as follows.
•
Keep the PROGRAM DELAY
button pressed for a few
seconds, until the H.- symbol, followed by the set value, appears on
the 3-FIGURE DISPLAY.
•
The PROGRAM DELAY
button can be pressed again to select
the most suitable hardness value (h.-0, h.-1, h.-2…h.-5). Refer to
the "Water hardness table" to select the value.
To exit the programming mode press one button or do not touch the
keypad for 2 seconds.
•
16
User instructions
WATER HARDNESS TABLE
WATER HARDNESS
°H German
Degrees
0-6
7 - 10
11 - 15
16 - 21
22 - 28
29 - 35
36 - 50
°F French
Degrees
0 - 11
12 - 18
19 - 27
28 - 37
38 - 50
51 - 62
63 - 90
°l English
Degrees
0-8
9 - 12
13 - 19
20 – 26
27 – 35
36 - 43
44 - 63
SETTING
h.-0 NO SALT
h.-1
h.-2
h.-3
h.-4
h.-5
h.-6
Contact your local water board for information on the hardness of your
water supply.
After adjustment or display of the current setting, simply do not touch the
button for a few seconds; the dishwasher will automatically return to
standard mode, exiting the adjustment mode.
4.2
Using the rinse aid and detergent dispensers
The detergent and rinse aid
dispensers are situated on the inner
part of the door: the detergent
dispenser is on the left, and the
rinse aid dispenser is on the right.
With the exception of the SOAK program, before every washing cycle it
is necessary to add the required amount of detergent to the detergent
dispenser. The rinse aid, on the other hand, should only be added as
required.
17
User instructions
ADDING THE RINSE AID
The rinse aid helps the dishes dry faster and
prevents the formation of scale deposits and
staining; it is automatically added to the water
during the final rinse cycle, from the container
situated on the inner side of the door.
To add rinse aid:
•
Open the door.
•
Rotate the container cap anticlockwise by ¼ of a turn and remove it.
•
Add the rinse aid until the container is full (approximately 140 cc).
The optical level indicator on the side of the cap should be
completely obscured. Refill the rinse aid when the optical level
indicator becomes clear again, or when the rinse aid warning light
illuminates.
•
Replace the cover and turn it in a clockwise direction.
•
Use a cloth to remove any spillage of rinse aid which might lead to
the formation of excess foam.
ADJUSTING THE RINSE AID DISPENSER SETTING
The dishwasher is factory set for medium water hardness. However it
possible to change the setting by turning the dispenser’s selector to the
desired position: the amount of rinse aid dispensed is proportional to the
selector position.
•
•
•
•
•
18
To adjust the rinse aid setting, rotate the dispenser cap through a
quarter turn in an anticlockwise direction and remove it.
Then use a screwdriver to rotate the rinse aid selector to the desired
position.
Replace the cap, turning it clockwise.
The amount of rinse aid must be increased if the washed dishes
appear dull or feature circular stains.
If, on the other hand, the dishes are sticky or have white streaks, it
is necessary to reduce the rinse aid setting.
User instructions
ADDING THE DETERGENT
To open the detergent dispenser cap, lightly press
the button P. Add the detergent and close the cap
carefully.
During the washing cycle, the dispenser will be
opened automatically.
•
•
•
•
•
•
When a program with hot prewash is selected (see program table),
extra detergent must be placed in the cavity G/H (depending on
models).
Use only detergents specially formulated for dishwashers. For optimal
washing results it is important to use a good quality detergent.
The detergent packs must be sealed and stored in a dry place to
prevent the formation of lumps which may negatively affect washing
results. Once opened the detergent packs should not be kept for too
long, otherwise the detergent loses its effectiveness.
Do not use detergents formulated for washing dishes by hand,
because they produce a great deal of foam and may negatively affect
the operation of the dishwasher.
Add the correct amount of detergent. An insufficient amount of
detergent will result in a partial removal of dirt from the dishes,
whereas an excessive amount is wasteful and does not improve the
washing results.
The market offers liquid and powder detergents with differing chemical
compositions, which may contain phosphates, or be phosphate-free
but contain natural enzymes.
- Detergents containing phosphates are more effective against
grease and starch at temperatures above 60°C .
- Enzyme detergents, on the other hand, are also effective at lower
temperatures (from 40 to 55°C ) and are more easily
biodegradable. With enzyme detergents it is possible to obtain at
low temperatures comparable results to those which can only be
achieved at 65°C using traditional detergents.
For the safeguarding of the environment we recommend the use of
phosphate- and chlorine free detergents.
19
User instructions
The introduction of detergent into the rinse aid dispenser, even in
liquid form, will damage the dishwasher.
4.3
General warnings and recommendations
Before using the dishwasher for the first time, it is advisable to read the
following recommendations concerning dish types to be washed and
their loading.
There are generally no constraints on the washing of domestic dishes,
but in certain cases it is necessary to take their characteristics into
account.
Before loading the dishes into the baskets it is necessary to:
•
remove coarse food remains: e.g. bones, fish-bones, etc. which
may clog the filter or damage the wash pump.
•
soak any pots or pans with burnt-on food remains on the bottom to
facilitate removal, then load them into the LOWER BASKET.
There is no need to pre-wash the dishes under running water before
loading them into the baskets since this only wastes water.
Correct loading of the dishes helps ensure optimal washing
results.
20
User instructions
WARNING!
•
•
•
•
•
•
Make sure that the dishes are securely in place so that they cannot
tip over or obstruct the rotation of the spray arms during the
washing cycle.
Do not place very small objects in the baskets as these could fall
and obstruct the spray arms or the wash pump.
Containers such as cups, bowls, glasses and pots should always
be loaded with the opening facing downwards and with any cavities
at an angle, to allow the water to drain out.
Do not stack dishes or place them in such a way that they cover
one other.
Do not place glasses too close together because they may knock
against each other and break, or there might be staining at the
point where they touch.
Do not put the dishes out of the outer frame of baskets.When
closing a door, dishes may break or a door may not be closed
completely.
MAKE SURE that the items being washed are dishwasher-safe.
Items which are not dishwasher-safe:
•
•
•
•
•
•
•
•
Wooden dishes, pots or pans: these may be damaged by the
high washing temperatures.
Handcrafted items: these are rarely suitable for washing in a
dishwasher. The relatively high water temperatures and the
detergents used may damage them.
Plastic dishes: heat resistant plastic dishes must be washed in the
upper basket.
Dishes and objects in copper, tin, zinc or brass: these tend to
stain.
Aluminium dishes: items made from anodised aluminium may
lose their colour.
Silverware: silver items may stain.
Glass and crystal: in general, glass and crystal objects can be
washed in the dishwasher. However, certain types of glass and
crystal may become dull and lose their clearness after many
washings. Therefore, for these items we recommend using the
least aggressive program available.
Decorated items: the decorated objects available on the market
are generally able to withstand washing in the dishwasher,
although the colours may fade after a great many washes. If in
doubt as to the fastness of the colours, it is advisable to wash just a
few items at a time for approximately one month.
21
User instructions
4.4
Using the baskets
The dishwasher has a capacity of 13 place-settings, including serving
dishes.
LOWER BASKET
The lower basket receives the full force of the lower spray arm, and
should therefore be used for the “toughest” items with a heavier degree
of soiling.
All types and combinations of loads are permitted, provided that the
dishes, pots and pans are arranged with all the soiled surfaces exposed
to the water jets coming from the bottom.
To make the most of the space inside the
basket when loading large items. This model
is equipped with tip-up supports for plates in 4
sections.
BOTTOM BASKET INSERTS
Some models are equipped with bottom basket inserts which improve
the drying of dishes. The inserts are supplied in the accessories bag; to
use them, simply fit them into place as shown.
22
User instructions
LOADING THE LOWER BASKET
Carefully load flat plates, soup plates, dessert and serving dishes,
positioning them vertically. Pots, pans and their covers must be loaded
upside down. When loading soup plates and dessert bowls, be sure to
leave a gap between them.
Loading examples:
Examples of loading for intensive dirt:
23
User instructions
TOP CUTLERY BASKET
The basket is designed to take cutlery, placed in the spaces provided,
long utensils, positioned lengthwise and small items. The “drawer”
extraction system makes the basket easier to load, but it can also be
taken completely off its runners by removing the retainers (as shown
here). Take great care to replace the retainers to ensure that the basket
does not come off the runners accidentally.
24
User instructions
CUTLERY BASKET
The basket has removable top grids into which items of cutlery should
be inserted to keep them properly spaced and allow water to pass
between them effectively. The top grids and central lid are in the bag of
accessories. The central lid functions as a lid only.
The top grids can be detached and used separately.
The cutlery should be arranged in an orderly manner inside the basket,
with the handles pointing downwards. Take care during loading to avoid
injury from the knife blades. The basket is suitable for all types of cutlery,
except those long enough to interfere with the upper spray arm. Ladles,
wooden spoons and cooking knives can be placed in the upper basket,
making sure that the knife blades do not protrude from the basket.
The cutlery basket slides across the dishwasher and can be placed in
any position to allow optimal use of the space in the bottom basket.
25
User instructions
UPPER BASKET
It is recommended to load the upper basket with small- or medium-sized
items such as glasses, small plates, tea or coffee cups, shallow bowls
and light objects made from heat resistant plastic. If the upper basket is
used in the lowermost position, it can also be loaded with serving dishes,
provided they are only slightly soiled.
LOADING THE UPPER BASKET
Load plates facing forward; cups, bowls etc. must always be facing
downwards. The left side of the basket can be loaded with cups and
glasses on two levels. In the centre section, plates and saucers can be
loaded vertically into the supports provided.
Loading examples:
26
User instructions
Other accessories of upper basket:
Supports for cups or long objects (ladles, spoons…), on the left;
can be tipped to the vertical position when not in use.
Long-stemmed glass holder, on the left; to use, simply lift and
fix onto the hooks provided.
Fixed or movable racks in the middle. The movable supports
can be fixed vertical, resting on the bottom of the basket when
not in use, or set in the intermediate position, as required.
27
User instructions
ADJUSTING THE UPPER BASKET
The height of the top basket can be adjusted to allow large dishes or
pans to be placed in the bottom basket.
With adjustment in three positions on both sides.
The sides of the basket must always be set at the same height.
•
Raise the basket by pulling on the top edge (1), to the first or second
catch depending on the height required.
•
To lower the basket, first release it by pulling the release lever (2).
Adjustment is also possible with the basket loaded, but in this case when
lowering the basket it should be held steady with one hand to avoid
knocking the dishes.
28
User instructions
5. Cleaning and maintenance
Before carrying out any work, always unplug the appliance from the
electrical supply or switch off the all-pole disconnection device.
5.1
General warnings and recommendations
Avoid the use of acidic or abrasive detergents.
Clean the outer surfaces and door-lining of the dishwasher regularly
using a soft cloth moistened with water or with a normal detergent
suitable for painted surfaces. Clean the door gaskets with a damp
sponge. Periodically (once or twice a year) it is advisable to clean the
tank and gaskets, using a soft cloth and water to remove any deposits.
CLEANING THE WATER INTAKE FILTER
The water intake filter A located at the outlet of the water supply needs
to be cleaned periodically.
After having closed the water supply unscrew the end of the water intake
hose, remove the filter A and clean it delicately under running water.
Reassemble filter A in its seat and carefully screw the water intake hose
back into position.
CLEANING THE SPRAY ARMS
The spray arms can be easily removed for periodic cleaning of the
nozzles, to prevent possible clogging. Wash them under running water
and carefully replace them in their seats, checking that their rotary
movement is in no way impeded.
•
To remove the upper spray arm, unscrew locking ring R.
•
To remove the lower spray arm, simply lift it up, pulling by the
central part.
29
User instructions
CLEANING THE FILTER UNIT
•
•
•
•
It is advisable to periodically inspect the centre filter C and, if
necessary, to clean it. To remove the filter, grip the tabs, turn them
anticlockwise and lift upwards;
push the centre filter D from the underside to remove it from the
micro-filter:
separate the two parts which make up the plastic filter by pressing
the body of the filter in the zone shown by the arrows;
remove the centre filter by lifting it upwards.
GENERAL WARNINGS AND RECOMMENDATIONS FOR CORRECT
MAINTENANCE:
•
The filters should be cleaned under running water using a stiff
brush.
•
When removing the filter, take care that there are no food residues
on it. If any residues fall into the washing pit they might block
hydraulic components, or foul the spray arm nozzles.
•
It is essential to thoroughly clean the filters according to the
above instructions: the dishwasher cannot function if the filters are
clogged.
•
Carefully replace the filters in their seats, to avoid damaging the
wash pump.
PROLONGED DISUSE:
•
Run the soak program twice in succession.
•
Unplug the maind lead from the socket.
•
Leave the door slightly open, in order to prevent the formation of
unpleasant odours inside the washing tank.
•
Fill the rinse aid dispenser.
•
Shut off the water supply.
30
User instructions
BEFORE STARTING THE DISHWASHER AFTER PROLONGED
DISUSE:
•
•
•
Check that there are no deposits of sludge or rust inside the water
pipe: if there are, allow the water to run from the water supply tap for
a few minutes.
Plug the mains lead back into the socket.
Reconnect the water intake hose and open up the water supply.
TROUBLESHOOTING MINOR PROBLEMS
In some cases it is possible to remedy minor problems by referring to the
following instructions:
If the program fails to start, check that:
•
•
•
•
the dishwasher is connected to the electrical power supply;
there is no power failure;
the water supply is open;
the dishwasher door is properly closed.
If water remains inside the dishwasher, check that:
•
•
•
the drain hose is not kinked;
the drain siphon is not obstructed;
the dishwasher filters are not clogged.
If the dishes are not being cleaned properly, check that:
•
•
•
•
•
•
the correct amount of detergent has been added;
there is regenerating salt inside the special container;
the dishes are being loaded correctly;
the selected program is suitable for the dish types and their degree
of soiling;
all the filters are clean and positioned correctly;
the spray arm nozzles are not obstructed by any ojects and can
rotate freely.
31
User instructions
If the dishes fail to dry or remain dull, check that:
•
•
•
there is rinse aid inside the special container;
the rinse aid dispenser setting is correct;
the detergent used is of good quality and has not lost its
effectiveness (for example, through incorrect storage, with the box
left open).
If the dishes show signs of streaking, staining, etc., check that:
•
the rinse aid dispenser setting is not too high.
If there are visible traces of rust inside the tank:
•
•
•
the tank is made of steel, and therefore any rust marks are due to
external elements (fragments of rust from the water pipes, pots,
cutlery, etc.). Special products are commercially available to remove
such marks;
check that the amount of detergent being used is correct. Certain
detergents can be more corrosive than others.
check that the cap of the salt container is securely closed, and that
the water softening setting is correct.
If after following the above troubleshooting instructions the problem
persists, call the nearest After-Sales Centre.
WARNING: any operations performed on the appliance by
unauthorised persons are not covered by the warranty and shall be
paid for by the user.
32
User instructions
6. Troubleshooting
The dishwasher is equipped with a self-diagnostics system that is capable of
detecting and signalling a number of possible faults
TABLE OF FAULTS DETECTED BY THE SELF-DIAGNOSTICS SYSTEM
FAULT
DESCRIPTION
Err01
The anti-flooding system (where present) has been tripped.
Err02
The water level limitation system has tripped.
Err03
The appliance cannot heat the water.
Err04
The temperature sensor is disconnected.
Err05
The appliance cannot take in the water.
Err06
The appliance cannot drain the water from the tank.
Err07
The dishwasher cannot measure the precise water quantity that has
been loaded.
Err08
Problem on the water distribution system to the baskets.
Err09
Water intake system malfunction
If an alarm occurs the appliance interrupts the program in progress and
signals a fault.
•
Alarms Err01, Err02, Err03, Err04, Err08 and Err09 interrupt the
current program immediately.
•
The Err05, Err06 alarms interrupt the running programme. Once the
cause is resolved, it will continue execution of the programme.
•
The alarm Err07 is visualized at the end of the cycle that comes,
however, brought to the end since the operation of the dishwasher is
not harmed.
To “reset” an alarm is necessary:
Open and close the door, or turn off and on the machine. At this
•
point is possible to program the dishwasher again.
If the malfunction persists, contact your Panasonic Service Centre.
33
User instructions
Specifications
Width
Depth measured flush with the
outer edge of the control panel
Height
Capacity
Water supply pressure
Electrical characteristics
597 ÷ 599 mm
550 mm
from 820 mm to 890 mm
13 Standard place settings
min. 0,05 - max. 0,9 MPa (min. 0.5 – max. 9 bar)
See rating plate
Sales and support information
Customer Communications Centre
· For customers within the U.K.: 0844 844 3899
· For customers within Ireland: 01289 8333
· For further support on your product,
www.panasonic.co.uk
please
visit
our
website:
Direct Sales at Panasonic U.K.
· Order accessory and consumable items for your product with ease and confidence
by phoning our Customer Communications Centre Monday - Friday 9:00am 5:00pm, (Excluding public holidays).
· Or go on line through our Internet Accessory ordering application at www.paseurope.com
· Most major credit and debit cards accepted.
· All enquiries transactions and distribution facilities are provided directly by
Panasonic U.K.
· It couldn’t be simpler!
· Also available through our Internet is direct shopping for a wide range of finished
products. Take a browse on our website for further details
34
Download PDF

advertising
