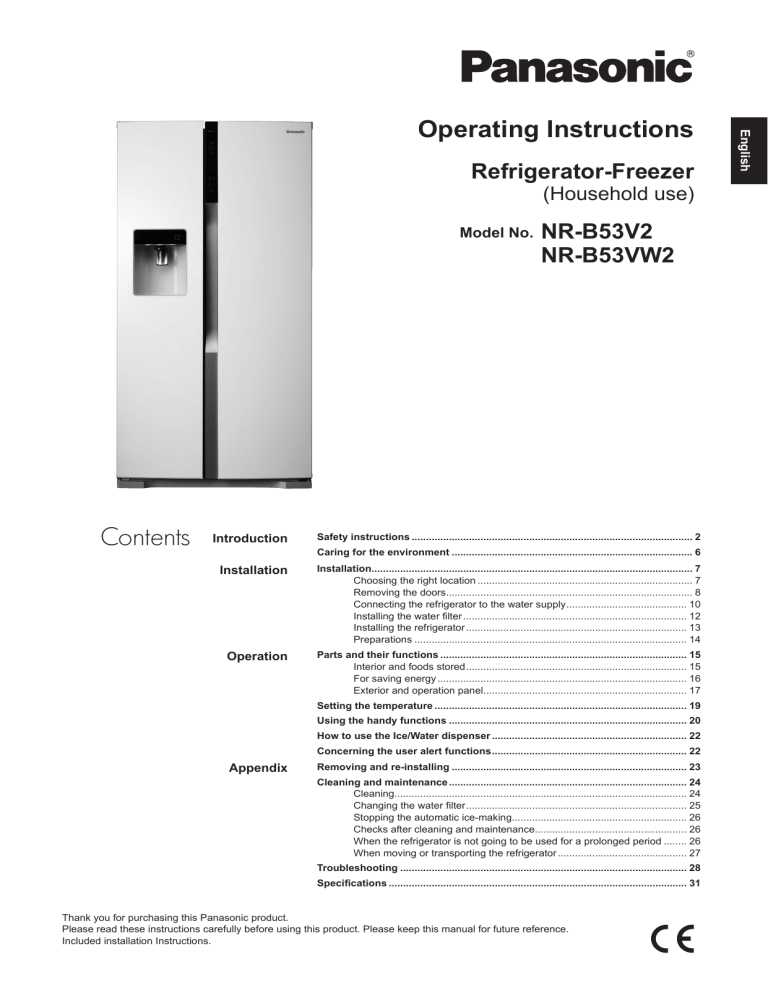

Refrigerator-Freezer
(Household use)
Model No.
Contents
Introduction
NR-B53V2
NR-B53VW2
Safety instructions................................................................................................... 2
Caring for the environment..................................................................................... 6
Installation
Installation................................................................................................................. 7
Choosing the right location............................................................................ 7
Removing the doors....................................................................................... 8
Connecting the refrigerator to the water supply........................................... 10
Installing the water filter............................................................................... 12
Installing the refrigerator.............................................................................. 13
Preparations................................................................................................ 14
Operation
Parts and their functions....................................................................................... 15
Interior and foods stored.............................................................................. 15
For saving energy........................................................................................ 16
Exterior and operation panel........................................................................ 17
Setting the temperature......................................................................................... 19
Using the handy functions.................................................................................... 20
How to use the Ice/Water dispenser..................................................................... 22
Concerning the user alert functions..................................................................... 22
Appendix
Removing and re-installing................................................................................... 23
Cleaning and maintenance.................................................................................... 24
Cleaning....................................................................................................... 24
Changing the water filter.............................................................................. 25
Stopping the automatic ice-making.............................................................. 26
Checks after cleaning and maintenance...................................................... 26
When the refrigerator is not going to be used for a prolonged period......... 26
When moving or transporting the refrigerator.............................................. 27
Troubleshooting..................................................................................................... 28
Specifications......................................................................................................... 31
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before using this product. Please keep this manual for future reference.
Included installation Instructions.
English
Operating Instructions
Introduction
Safety instructions
For your safety, please read the following text carefully.
This appliance is intended to be used in household and similar applications such as
-- staff kitchen areas in shops, offices and other working environments;
-- farm houses and by clients in hotels, motels and other residential type environments;
-- bed and breakfast type environments;
-- catering and similar non-retail applications.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
Do not
Indicates the appliance must be
earthed to prevent electric shock
Make sure you do this
Do not take apart
WARNING
Indicates risk of death or serious injury.
WARNING: Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
●●This can cause damage to the interior of the refrigerator or cause an explosion.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type recommended by
the manufacturer.
Do not store volatile or flammable substances in the refrigerator.
●●Flammable substances such as benzene, thinners, alcohol, ether and Liquid
Petroleum Gas (LPG) can cause explosions.
WARNING: Keep ventilation openings, in the appliance enclosure or in the
built-in structure, clear of obstruction.
●● The refrigerant (R600a) used in the refrigerator and the gases in the insulation
material (cyclopentane) are both flammable. They also require special disposal
procedures.
●●Before you dispose of the appliance, make sure none of the pipes on the back
are damaged. Refrigerant or gas leaks can cause fire or explosion.
WARNING: Connect potable water supply only.
The new hose – sets supplied with the appliance are to be used and that old
hose – sets should not be reused.
The ice maker in refrigerator must be installed only by the manufacture or its
service agent except ice storage box.
●●Ice maker type : EAU37119711, EAU37119712
2
Introduction
English
Make sure the supply cord and plug are not squashed or damaged.
●●A damaged power plug or cord can cause short-circuit, fire or electric shock.
●●If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
●●DO NOT ATTEMPT TO REPLACE IT YOURSELF.
If LED or LED cover is damaged or if anything appears questionable, contact
your dealer or an authorized service centre.
●●Do not attempt to repair, replace or disassemble any damaged parts, etc.
yourself.
Do not use a multiple socket adaptor and plug several appliances into the
same socket adaptor.
●●This can cause overheating, fire or short circuit.
Do not pinch, knot, or bend the supply cord, or place heavy objects on it.
●●This increases the risk of fire or electric shock. If the supply cord or plug of the
appliance is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified person in order to avoid a hazard.
Do not unplug the refrigerator by pulling on the supply cord.
●●This can damage to the supply cord. Always grip the plug and pull firmly from the
socket.
Do not place any water container on the top of the refrigerator.
●●Water can damage insulation of electrical components and cause short circuit,
fire or electric shock.
Do not spray inflammable gas near the refrigerator.
●●This can cause explosion or fire.
Do not spray water onto or into the refrigerator.
●●This can cause fire or electric shock.
Do not touch the power plug with wet hands.
●●This can cause electric shock.
Do not install the refrigerator in a damp place, or where it may come into
contact with water.
●● Deteriorated insulation of electrical parts can cause short circuit, electric shock or fire.
Do not store pharmaceuticals or other temperature-sensitive products in the
refrigerator.
●● You should not store products that require strict temperature controls in the refrigerator.
Do not let children climb, swing or hang on the refrigerator door.
●●This can cause serious injury, as well as damaging the refrigerator.
Do not operate the refrigerator in the presence of explosive fumes or
flammable gas.
●●This can cause explosion or fire.
Do not store petrol or other flammable liquids and vapours in the refrigerator,
or use them near the appliance.
●●This can cause explosion or fire.
Do not touch the crusher blades of the icebox. Do not poke your fingers into
the hole where the ice is dispensed from the Ice/Water dispenser.
●●Failure to do this may result in an injury to yourself.
3
Introduction
Do not try to disassemble, repair or modify the refrigerator yourself.
●●You may injure yourself – or others – with burns or electric shock, or damage
the refrigerator. If your appliance needs alterations or repair, please consult
authorized service centre.
Ensure that the refrigerator is plugged into an earthed mains socket. DO NOT
plug into an unearthed mains socket.
Remove any dirt or dust from the plug’s pins before connecting to the power
supply.
●● Dust build-up on the plug can cause insulation failure, especially in humid conditions. This
can cause short circuit, fire or electric shock. Unplug the supply cord and wipe it with a dry
cloth. Never use a wet or damp cloth.
Plug your appliance into the socket, making sure the connection is secure.
●●A loosely connected power plug can cause fire or electric shock.
Install the refrigerator in a well-ventilated area.
●●The more refrigerant there is in an appliance, the larger the room it should be
installed in. If there’s a refrigerant fluid leak, and the appliance is in a small room,
the build up of combustible gases is more likely. This can cause fire or explosion.
As a guide, for every 8 g of coolant, you’ll need at least 1 cubic metre of space in
the room. The data plate inside the appliance tells you how much refrigerant your
refrigerator contains.
Unplug the refrigerator before cleaning and servicing.
●●Failure to do this can cause electric shock.
If you smell burning or see smoke coming from the refrigerator, disconnect
the power immediately and please consult authorized service centre.
LED RADIATION
DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS
CLASS 1M LED PRODUCT
CAUTION
Indicates risk of injury or damage to property.
Do not put glass bottles or containers in the freezer.
●●When the contents freeze, the glass may break.
Do not touch the inside walls of the freezer or items stored in the freezer with
wet hands.
●●Your skin can become frozen onto the interior wall, or items stored in the freezer.
Do not open or close the doors by taking hold of the door handles with both
hands.
●●This may cause personal injury.
Do not touch the ice maker with your hand or a tool.
●●The ice maker rotates automatically. This may cause personal injury or trouble.
Do not put your hand or things in the ice shooter.
●●This may cause personal injury or trouble.
4
Introduction
English
If there’s a power cut, avoid opening the refrigerator
frequently or putting unchilled food in it.
●●This can cause the temperature in the refrigerator to
rise and spoil food stored inside.
If you’re not going to use the refrigerator for a long
time, unplug it from the mains.
Also, be careful of the gap between the fridge and
freezer doors, especially if they are both open at the
same time.
●●This may cause personal injury.
When opening the refrigerator, be careful not to
pinch your fingers at the “pinch point” areas.
●●This can cause personal injury.
Potential pinch point
Keep children from touching the ice maker and icebox.
●●Otherwise, they may be injured.
Stop using this ice maker and contact an authorized service centre if
discoloured ice was made during use.
This appliance is supplied with a molded three pin mains plug for your safety and
convenience.
A 13 ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the replacement fuse has a rating of
13 ampere and that it is approved by ASTA or BSI to BS1362.
or the BSI mark
on the body of the fuse.
Check for the ASTA mark
If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse
is replaced.
If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A
replacement fuse cover can be purchased from your local Panasonic dealer.
If the fitted molded plug is unsuitable for the socket outlet in your home then the fuse should
be removed and the plug cut off and disposed of safely.
There is a danger of severe electrical shock if the cut off plug is inserted into any 13-ampere
socket.
How to replace the fuse
The location of the fuse differs according to the type of AC mains plug (figures A and B).
Confirm the AC mains plug fitted and follow the instructions below. Illustrations may differ
from actual AC mains plug.
Open the fuse cover with a screwdriver and replace the fuse and close or attach the fuse
cover.
5
Introduction
Caring for the environment
Disposing of the packaging
Please recycle where possible (e.g. cardboard, plastic bags, adhesive tape and polystyrene) and make
sure you dispose of all other packing materials safely.
Keep the packaging out of the reach of babies and young children, to avoid injury or suffocation.
Before disposing of your old appliance
Please follow either the disposal instructions from the manufacturer of the old appliance, or local disposal
regulations for the appliance. Where this is not available, please follow the three step instructions below.
1. Remove the plug from the socket.
2. Cut the supply cord off, and safely dispose of it with the mains plug still attached.
3. Until the old appliance is collected, or you take it to a Recycling Centre, make sure it’s out the reach of small children.
● Remove all sealing materials from the door and leave all the shelves and drawers in place.
This way, children are less likely to climb in and become trapped.
6
Installation
Installation
Choosing the right location
●●Where there is a main water supply line nearby
●●Where the refrigerator will not be exposed to direct sunlight
●●Where the refrigerator will be at a distance from heating appliances, cooking appliances and other
sources of heat
●●A location which is well-ventilated and dry
●●Where the floor is sturdy and level
Place a solid board underneath if the refrigerator is to be installed on top of a carpet or vinyl floor.
The board will protect the floor from becoming deformed and discoloured.
Provide clearance to allow heat to dissipate
English
Install the refrigerator in a location which satisfies the following criteria:
30 mm or more
Residual heat is always being emitted from the refrigerator while
it is operating.
Provide sufficient clearance around the refrigerator to allow this
heat to dissipate so that its cooling ability is not impaired.
50 mm or more
Dimensions (mm): W915 × D710 × H1860
25 mm or more
Installing the spacers
Install the spacers on the back panel of the refrigerator to
ensure the minimum amount of space required to allow the heat
generated by the refrigerator.
Spacers
Attach to the back panel of the refrigerator
after removing the double-sided tape's
release liner.
Spacer (accessory)
When the doors are completely open
150˚
150˚
1693 mm
910 mm
388 mm
977 mm
1035 mm
322 mm
430 mm
992 mm
910 mm
947 mm
353 mm
When the inside drawers have been taken out
140˚
140˚
1620 mm
7
Installation
Removing the doors
If the refrigerator will not pass through a doorway or entrance, its doors can be removed.
CAUTION
Before removing the doors, be absolutely sure to check that the power of the refrigerator has been
turned off.
When you want to remove the doors, please contact your dealer, an authorized service centre or
access to our Web site (http://panasonic.net).
Panasonic or its Authorized agent cannot be held responsible if you remove the doors by
yourself.
Dimensions (mm): W910 × D610 × H1855 (Without Door)
Removing the front grille
When the two doors are opened and the front grille is viewed from
above, two screws – one on the left and the other on the right – will
be seen.
Turn these screws counterclockwise, and remove them.
There is a connecting area slightly to the right of the centre of the
front grille on its bottom. Take hold of this area, and pull the grille
toward you to remove it.
Disconnecting the water supply hoses
Remove the connecting ring (black) of the water supply connector,
pressing the coupler and pull the water supply hose free.
●●There are two water supply hoses, one for the Ice dispenser and
one for the Water dispenser.
Disconnect both of them.
Front grille
Water supply
connector
Connecting area
Connecting ring
Coupler
Reconnecting the water supply hoses
First insert the connecting ring (black) into the water supply
connector, and then insert the water supply hose.
Insert the water supply hose into the water supply connector until
the printed line on the hose is no longer visible.
●●Two water supply hoses connect the same colour.
8
Line
Connecting ring
Installation
Removing the freezer door
English
When removing the door
●●Ensure the door is in the closed position.
●●Take care not to bend the hinges or damage the water supply hoses.
●●Handle the removed door carefully to keep it safe from damage and impact.
1Remove the top hinge cover.
Turn the hinge cover screw counterclockwise, and remove it.
2Disconnect the connecting cable.
While pressing on the knob, pull out the cable in the direction
shown by the arrow.
3Remove the top hinge.
Turn the hinge screws and the grounding screw
counterclockwise, and remove them.
●●When removing the top hinge, take care to support the door
so that it will not topple forward.
1
3
2
Knob
4Remove the hose guide, and remove the door.
Remove the hose guide from the bottom hinge in the direction
shown by the arrow.
And then lift the door straight up from the bottom hinge, and
remove it.
●●Pull out the water supply hoses so that it is completely
disconnected.
Hose guide
Removing the fridge door
When removing the door
●●Ensure the door is in the closed position.
●●Handle the removed door carefully to keep it safe from damage and impact.
1Remove the top hinge cover.
Turn the hinge cover screw counterclockwise, and remove it.
2Disconnect the connecting cable.
While pressing on the knob, pull out the cable in the direction
shown by the arrow.
3Remove the top hinge.
Turn the hinge screws counterclockwise, and remove them.
●●When removing the top hinge, take care to support the door
so that it will not topple forward.
1
3
2
Knob
4Remove the door.
Lift the door straight up from the bottom hinge, and remove it.
9
Installation
Attaching the doors and front grille
1Follow the steps for removing the doors and grille in their reverse order.
2Tighten up fixing screws after checking that the door is parallel to the body and cold air does not
leak from around the gasket.
3Tighten up screws to fix hinges using both the screwdriver (Phillips head) and hex wrench.
4When installing the front grille and top hinge cover, be sure not to get the hoses and cord caught
in.
When attaching the front grille, insert the hoses into the guides inside the front grille.
Connecting the refrigerator to the water supply
Before connecting the refrigerator
A water pressure in the range of approx. 150 kPa to 700 kPa (22 psi to 102 psi) is must be to use the Ice/
Water dispenser. If the refrigerator is to be installed in a location where the water pressure is below approx.
150 kPa (22 psi), install a pressure pump to boost the natural water pressure.
Connect potable water supply only.
Parts required for the connection
Connection kit (accessory)
Hose connector (with strainer)
for G 3/4
Joint (with packing)
for G 1/2
Coupling hose connector
10
Water filter
Installation
Connecting the refrigerator
1Attach the hose connector to the water service pipe
opening.
Turn the hose connector clockwise to attach it.
●●After tightening up the hose connector as far as it will go by
hand, use a tool to further tighten the hose connector through
another half-turn or so.
●●Check that the strainer is fitted inside the hose connector.
Case of G 3/4
English
Before proceeding any further, be absolutely sure to check that the power plug has been disconnected
from the power outlet. And check the main water supply line has been shut off.
When you want to connecting the refrigerator to the water supply, please contact your dealer, an
authorized service centre or access to our Web site (http://panasonic.net).
We could not be held responsible if you connect the refrigerator by yourself.
Hose connector
1
Strainer
Water service pipe opening
2Insert the coupling hose connector into the water service
hose.
Coupling hose connector
3Insert the water service hose into the end of the hose
connector.
●●The water service hose is firmly inserted into the end of the
hose connector.
3
2
Water service hose
4Tighten the coupling hose connector to the hose
connector.
Turn the coupling hose connector clockwise to attach it.
●●Tighten the coupling hose connector until space is lost
between coupling hose connector and hose connector.
4
After the connection ends, turn on the main water supply line,
and check that no water is leaking.
Notes:
●●Failure to follow the steps as given above may cause water to leak.
●●Coil the excess length of the water service hose at the back of the refrigerator.
Attach the hose connector to the
G 1/2 type water service pipe
opening.
Case of G 1/2
Joint
1 -1
Packing
Water service pipe opening
Hose connector
1 -2
Strainer
11
Installation
Installing the water filter
The water filter is not installed at the time the refrigerator is purchased.
Install the water filter provided with the refrigerator.
1Remove the drawer of the Vitamin-Safe Zone.
2Remove the filter panel.
Place your fingers in the cutout at the front of the filter panel, and
remove the filter panel.
Filter panel
2
1
3Install the water filter and rotate it 90 degrees clockwise.
3
Water filter
4Push the water filter down, and put the filter panel back in place.
4
Note:
●●Run water through the Water dispenser until the water runs clear for 5 minutes. This will clean the water
supply system and remove air from the water supply hose.
12
Installation
Installing the refrigerator
English
The refrigerator comes on four casters to enable it to be moved easily.
Carefully read through the section “Choosing the right location”, and install the refrigerator in the best location.
Once the installation location has been decided upon, secure the refrigerator, and adjust it so that it is level.
Removing the front grille
When the two doors are opened and the front grille is viewed from
above, two screws – one on the left and the other on the right – will
be seen.
Turn these screws counterclockwise, and remove them.
There is a connecting area slightly to the right of the centre of the
front grille at the bottom. Take hold of this area, and pull the grille
toward you to remove it.
Securing the refrigerator
Front grille
Connecting area
Adjustable legs
Insert a flat screwdriver into a slot on the adjustable legs at the left
and right, turn them in the direction shown by the arrows to lower
the legs to the floor level, and then secure the legs firmly.
Levelling the refrigerator
Turn the adjustable legs so that the refrigerator is installed flush with the floor.
If the left and right doors are not flush with each other, turn one of the adjustable legs, and bring the doors
into alignment.
If the left door is lower than the right door
Insert a flat screwdriver into a slot on the
adjustable leg on the left, turn it in the direction
shown by the arrow, and adjust.
If the right door is lower than the left door
Insert a flat screwdriver into a slot on the
adjustable leg on the right, turn it in the direction
shown by the arrow, and adjust.
Attaching the front grille
Follow the steps for removing the grille in their reverse order.
●●Take care not to pinch or damage the water supply hose.
13
Installation
Preparations
Maintenance
Remove all the packing materials and tapes.
Wipe the inside of the refrigerator using a soft cloth which has been dipped in lukewarm water and then
wrung out.
Wash and completely dry the icebox before installing it. (Do not use a dish dryer, hair dryer or other appliance
when drying.)
Connecting the power plug to the power outlet
When the power plug is connected to the power outlet, the temperature display starts
flashing as shown in the figure on the right, and cooling starts inside the refrigerator.
The temperatures displayed at this time are not the actual temperatures.
When the temperature of the fridge reaches 8 °C, the freezer reaches -12 °C and the
Vitamin-Safe Zone reaches 5 °C, the temperature display stops flashing and lights, and it
shows the actual temperature.
It takes about half a day to reach the set temperatures (when the room temperature is
around 32 °C, there is no food inside the refrigerator, and the doors are closed).
Place the food inside the refrigerator only after it was confirmed that the refrigerator
compartment had been cooled.
Notes:
●●Cooling may take longer in the summer months or at other times when the room
temperature is higher.
●●While the temperature display is flashing, the alarm sounds to warn that the
.
temperature has risen. The alarm can be turned off by pressing
●●If you need to unplug the refrigerator, wait at least 10 minutes before you plug it back
in again. You might damage the compressor.
The Ice/Water dispenser and automatic ice maker
Ice must first be made by the automatic ice maker before the Ice/Water dispenser can start dispensing ice.
The automatic ice maker can make six cubes of ice at a time and about 60 cubes of ice a day (although this
will differ depending on the prevailing conditions).
When using the ice maker for the first time, it takes about 8 hours for ice to be made.
Automatic ice-making stops as soon as the icebox becomes full.
Note:
●●When using the Ice/Water dispenser and automatic ice maker for the first time, the water or ice may be
discoloured or smell: this is normal and not indicative of any trouble. When water goes around through
the water filter and pipes and other parts inside the refrigerator, these symptoms will disappear so keep
supplying the water and removing the ice from Ice/Water dispenser until the discolouration/smell dissipates.
In some homes, this procedure may have to be repeated a number of times.
How to remove the icebox
●●Raise the icebox slightly, and pull the bottom part out toward you. (fig 1)
How to set the icebox
●●First align its top part with the automatic ice maker, then push down its
bottom part and insert it firmly into place below as far as it will go.
●●Be sure to hold the icebox with both hands.
●●Be sure to confirm that the icebox has been set firmly
when installing.
CAUTION
(Fall of icebox may cause injury or trouble.)
When the icebox can not be installed correctly
●●Insert the icebox to the original position completely after rotating the knob
90 degrees which located in the back of icebox as indicated in fig 2.
14
fig 1
1
2
fig 2
Operation
Parts and their functions
Interior and foods stored
English
6
7 8
9
1
4
2
3
3
:
4
;
>
<
5
=
Freezer
1Automatic ice maker
2Icebox
3Glass shelves
The positions of these shelves (except for the
third shelf from the top in the freezer) can be
adjusted.
4Door shelves
The positions of these shelves (only the second
shelf from the bottom in the fridge) can be
adjusted.
Egg tray, bottle stopper provided (one each).
5Drawers
Fridge
8Hygiene active LED
Antibacterial/deodorizing filter and LED.
9Sealed case door shelf
:Suspend shelf
;0° Zone
<Vitamin-Safe Zone
Select temperature 0 °C to 5 °C and blue and
green LED lights provided.
=5° Fresh Zone
Blue and green LED lights provided.
>Bottle stopper
6Front tower LED light
7Wine rack
15
Operation
Freezer
-17 °C to -25 °C
Frozen foods, meats, fish, ice cream, etc.
Butter, dairy products, eggs, drinks, seasonings, cooked foods,
etc.
0° Zone
Fridge
1 °C to 7 °C
Vitamin-Safe Zone
5° Fresh Zone
Meats, fish, ham, sausages, etc.
Vegetables, fruits, etc. stored at low
temperatures
Vegetables, fruits, etc.
Notes:
●●The 0° Zone and 5° Fresh Zone temperatures change depending on the temperature set for the fridge.
●●A much larger space can be made available for use inside the freezer by removing the first and second drawers.
For saving energy
1.Install the refrigerator in a dry, cool and well-ventilated location. The colder the ambient temperature, the better
the efficiency. (Please refer to Page 7 for dimensions and clearance)
2.The combination of drawers and shelves that result in the largest in volume and the most efficient use of energy
for the refrigerator.
•Remove the first and second drawers from the top and icebox in the freezer.
•All shelves are the same position when you purchased.
3.Remove the icebox, then shut down the automatic ice-making function and the ice dispenser. (Please refer to
Page 26)
4.Do not over fill the refrigerator to allow the air to circulate.
5.Open the doors only when necessary and as briefly as possible.
6.Occasionally clean the ventilation openings at the bottom of the refrigerator with a vacuum cleaner, etc.
(Take care not to damage the water pipe or refrigerant pipe inside the cover)
7.When setting to “Super Freeze Mode”, power consumption will be increased.
16
Operation
Exterior and operation panel
English
Control panel
Ice/Water dispenser panel
Ice/Water dispenser
Door handle
Ice/Water dispenser panel
Display area
1Water filter change icon
This indicates that it is time to change the water
filter.
2Service engineer display
This does not appear during normal operation.
1
2
3
4
5
6
7
3Filtered water dispense icon
4Crushed ice dispense icon
5Ice cube dispense icon
6Child Lock icon
Control area
7Ice/Water dispenser button
17
Operation
Control panel
Display area
1
1Cooling power level
Cooling power by the refrigerator is indicated here.
Lowest power level
(when the compressor is shut down or running at lowest speed)
2
Low power level
(when the compressor is running at low speed)
3
Medium power level
(when the compressor is running at medium speed)
4
High power level
(when the compressor is running at high speed)
5
2Fridge temperature
6
7
8
9
:
3Freezer temperature
4Vitamin-Safe Zone temperature
5Vitamin-Safe Mode
6Super Freeze Mode
7Hygiene Active Mode
;
8Holiday Mode
9Eco Mode
:Child Lock
<
Control area
;Up button
<Set button
=
=Down button
Notes:
●●Normally the panel displays are off. Displays appear when the buttons are operated, or the doors are opened.
●●The displayed temperature may differ from the actual temperature.
●●The buttons are operated by touching them.
●●This refrigerator uses a microprocessor to control the temperature.
The temperature inside the refrigerator varies depending on such factors as changes in the room temperature,
the speed at which the compressor is operating, how frequently the doors are opened and closed, and how much
food is stored inside and how it is stored.
18
Operation
Setting the temperature
1
2
3
4
5
6
English
The temperatures of the fridge, freezer and Vitamin-Safe Zone can be changed.
At the time of purchase, the temperatures are set as shown below.
Fridge: 4 °C
Freezer: -20 °C
Vitamin-Safe Zone: 2 °C
1The control panel lights up, the temperature inside the refrigerator is displayed.
2The temperature display start flashing, indicating that the temperatures can be set.
3The temperature set for the fridge starts flashing.
4Each time the button is pressed, the flashing display changes by one step in the sequence of fridge, freezer and
Vitamin-Safe Zone.
5Adjust the temperature.
●●Press
to raise the temperature and
to lower it.
6The display stops flashing and lights up, indicating that the temperatures are now set.
●●Approximately 30 seconds later, the control panel goes off.
Note:
●●The display in 1 is restored if no operations are performed for 5 or so seconds during the setting process.
Fridge
Set the temperature for the inside of the fridge.
Any temperature within the range from 1 °C to 7 °C can be set.
Notes:
●●When the temperature is set at 1 °C for a prolonged period, some food may freeze.
●●In the Holiday Mode, the temperature is not displayed, and the temperature cannot be set.
●●In the Eco Mode, the temperature cannot be set either.
Freezer
Set the temperature for the inside of the freezer.
Any temperature within the range from -17 °C to -25 °C can be set.
Note:
●●In the Eco Mode, the temperature cannot be set.
Vitamin-Safe
Zone
Set the temperature of the Vitamin-Safe Zone.
Any temperature within the range from 0 °C to 5 °C can be set.
Notes:
●●When the temperature is set between 0 °C and 1 °C for a prolonged period, some food may freeze.
●●In the Holiday Mode, the temperature is not displayed, and the temperature cannot be set.
●●In the Eco Mode, the temperature cannot be set either.
19
Operation
Using the handy functions
This refrigerator comes with a number of useful functions for specific applications.
1
2
3
4
5
1The control panel lights up.
2The function display start flashing, indicating that the functions can be set.
3“
” starts flashing.
4Select the function to be used.
5The display corresponding to the selected function stops flashing and lights up, indicating that the function is set.
Each time the button is pressed, the display switches from “on” to “off”.
On: The function is set.
Off: The function is released.
●●Approximately 30 seconds later, the control panel goes off.
Notes:
●●The display in 1 is restored if no operations are performed for 5 or so seconds during the setting process.
●●If the temperature display is flashing, wait about 5 seconds for the display to light up before proceeding with the
operations above.
20
Operation
Setting the Vitamin-Safe Zone and 5° Fresh Zone to the Vitamin-Safe Mode helps to protect
the vitamin C contained in vegetables and fruit. The blue and green LED lights.
Super Freeze
Mode
In this mode, the freezer can be cooled rapidly, enabling the fresh foods, etc. which are
placed there to be frozen.
The Super Freeze Mode is automatically released after about 50 hours.
English
Vitamin-Safe
Mode
Notes:
●●When the Super Freeze Mode is set, the temperature inside the freezer may drop below the
set temperature.
●●The compressor operates at high speed.
●●When the Super Freeze Mode is set while the Eco Mode is established, the Eco Mode is
temporarily released. When Super Freeze Mode ends, operation in the Eco Mode will be
restored.
●●The effect on the stored food can be reduced if setting the Super Freeze Mode several
hours before storing the food in the freezer compartment.
●●The following items are recommended in order to exert the maximum freezing capacity.
1 Set the Super Freeze Mode 24 hours before storing the food.
2 Place the food on the second drawer from the top or on the glass shelf.
(A bigger freezing capacity can be exerted if placing the food directly on the glass shelf.)
●●The maximum freezing capacity within 24 hours is written in the rating label.
Hygiene Active
Mode
The hygiene active LED comes on, and food is protected from bacteria and odours.
Holiday Mode
Set this mode when the fridge is not going to be used for a prolonged period such as during a
long vacation or when only the freezer is to be used.
When this mode is set, the fridge temperature is not displayed.
When this mode is set, the Vitamin-Safe Zone temperature is not displayed.
Note:
●●When food with strong odours are to be stored, wrap it in plastic food wrap or place it inside
a tightly sealed container. Otherwise, odours may be left in the fridge even if the Hygiene
Active Mode has been set.
Notes:
●●Before using the Holiday Mode, empty out the fridge, and close its door.
●●For hygiene reason, the temperature inside the fridge is kept at about 15 °C while the
Holiday Mode is set.
●●The freezer is cooled in the usual way.
Eco Mode
Set this mode when the freezer is not going to be used much such as during the winter
months or at night.
Note:
●●The Eco Mode cannot be set while the Super Freeze Mode is set.
Child Lock
The buttons on the control panel and Ice/Water dispenser panel can be locked. When the
Child Lock is set, “
” is displayed on the control panel and Ice/Water dispenser panel.
To release this mode, hold down
on the control panel for at least 3 seconds.
21
Operation
How to use the Ice/Water dispenser
The Ice/Water dispenser can dispense water, crushed ice or ice cubes.
The Ice/Water dispenser panel lights up.
The icon corresponding to what was dispensed last appears.
Each time the button is pressed, the icon changes.
Keep pressing the button until what you want to be dispensed
is lit up.
Guide
Pad
Place a cup against the pad and push it gently in.
Water or ice is now dispensed from the Ice/Water dispenser.
●●During the dispensing, keep the cup or other container
raised near the guide to ensure that the water or ice is not to
be sprayed or spilt.
The water that comes out of the Water dispenser is chilled
to the appropriate temperature, but if water with a lower
temperature is required, first place ice in a cup or other
container before dispensing water.
To prevent water or ice from splattering, pull the cup slowly
away from the pad after all water or ice has been dispensed.
●●More ice may be dispensed for a few moments even after
the cup has been pulled away from the pad. This is normal
and not indicative of any malfunction.
●●Some ice or water that has remained into the guide may drop
or run down for a few moments after it has been dispensed.
This is normal and not indicative of any malfunction.
Notes:
●●About 10 seconds after the button is operated, the Ice/Water dispenser panel goes off. When this panel is off,
pressing the pad in has no effect.
●●In the Child Lock, “
” is displayed under the button.
●●The water that comes out of the Water dispenser at the beginning may have a slightly higher temperature.
●●Place only the ice made by this refrigerator – and no other type of ice – in the icebox.
Trouble may occur if you fail to heed this warning.
●●If the ice maker produces ice that is too small, the amount of water supplied to the ice maker can be adjusted.
Contact your dealer or an authorized service centre.
●●If you continue pushing the pad for more than 30 seconds, the Ice/Water dispenser will automatically stop
dispensing water or ice.
Concerning the user alert functions
The following user alert functions are activated when a door has been left ajar for a prolonged period of time or
when the temperature inside the refrigerator has risen.
Temperature display
Continuous for 1 minute
Door ajar
Front tower LED light
Sounds once
Blinks once
Continuous for 3 minutes Blinks
Sounds twice
Blinks twice
Continuous for 5 minutes Blinks*
Sounds continuously Blinks continuously
Freezer: -12 °C or more
Temperature rise
inside the refrigerator Fridge: 8 °C or more
22
Alarm
Blinks
Blinks*
Sounds continuously Normal operation
Blinks*
Sounds continuously Normal operation
*Blinks for 30 seconds every 30 minutes.
Appendix
Removing and re-installing
Glass shelves
1
English
Raise the back part of the shelf slightly, and pull out the shelf.
To re-install the shelf, align it with the left and right guides, and push it into
place.
2
Drawers
Pull the drawer out all the way, and while raising the back part of the drawer
slightly, and pull out the drawer.
To re-install the drawer, align it with the left and right guides, and push it into
place.
2
13
Door shelves and sealed case door shelf
Push the shelf up from below, and remove it.
To re-install the shelf, align the left and right protrusions, and insert the shelf
firmly down until it will go no further.
Wine rack
Raise the back part of the wine rack slightly, and pull out the rack.
To re-install the rack, align it with the left and right guides, and push it into
place.
1
2
Suspend shelf
Pull the suspend shelf out all the way, and while raising the back part of the
suspend shelf slightly, and pull out the suspend shelf.
To re-install the suspend shelf, align it with the left and right guides, and push
it into place.
2
13
Icebox
1
Raise the icebox slightly, and pull the bottom part out toward you.
To re-install the icebox, first align its top part with the automatic ice maker,
then push down its bottom part and insert it firmly into place below as far as
it will go.
●●When removing the icebox, take care not to spill the ice inside.
●●Before re-installing the icebox, take out the ice inside.
2
Ice/Water dispenser drain plate and water tray
Place your fingers in the cutout at the back of the drain plate, and remove
the tray.
Take hold of the protrusion in the water tray, and remove the tray.
When re-installing the trays, install the water tray first, and then install the
drain plate.
Drain plate
Water tray
23
Appendix
Cleaning and maintenance
Conduct periodic cleaning and maintenance to ensure that the refrigerator will be kept clean and that it will continue
to operate for a long time to come.
Before cleaning or conducting maintenance, be absolutely sure to disconnect the power plug from the
power outlet. Do not connect or disconnect the power plug with wet hands. Doing so may result in an
WARNING electric shock or injury.
CAUTION
Do not use the following items for cleaning:
●●Alkaline cleaning agents (these may dissolve the plastic parts)
●●Abrasive cleaners, soap powders, very hot or boiling water, brushes, acids, benzene, paint thinners,
alcohol, etc. (these may mar the surfaces, paint and plastic parts)
Cleaning
Wipe off easily removable dirt using a cloth dipped in lukewarm water.
Wipe off stubborn dirt using a cloth dipped in some diluted neutral detergent used in the kitchen.
Then take up the remaining detergent using a cloth dipped in lukewarm water.
To complete the cleaning, be absolutely sure to wipe the surfaces dry to take up the remaining moisture.
Do not use cleaning agents (containing abrasive cleaners, or chemical mixture), and wipe off food stains, seasoning
or dirt on the door as soon as possible.
Interior, drawers, glass shelves and door shelves
Be absolutely sure to wipe off edible oils, butter and other types of fats and oils on the plastic parts.
Otherwise, the plastic parts may be damaged. The drawers, glass shelves and door shelves can be removed.
If they are very dirty or smelly, remove and wash them.
Door opening seal
A dirty or damaged seal will allow the cold air inside to escape.
As soon as the seal becomes dirty, wipe off the dirt immediately.
Icebox
If the icebox contains old ice or ice cubes clumped together, remove it,
and throw out the ice.
Ice/Water dispenser
The drain plate and water tray can be removed. At periodic intervals, throw out the water which has collected
in the water tray.
Exterior of refrigerator
If the exterior becomes dirty, wipe off the dirt. Also, allowing dust to accumulate on the power plug can cause
a fire. At periodic intervals, remove the dust using a dry cloth, etc.
Control panel and Ice/Water dispenser panel
Wipe these panels using a soft cloth which has been dipped in lukewarm water and then wrung out.
The control panel and Ice/Water dispenser panel are made from delicate materials.
As such, take care not to damage their surfaces.
Note:
●●Do not wash the drawers, glass shelves, door shelves, or other parts in a dishwasher. Doing so will cause the gilt
on the parts or their plating to peel off or the parts to be damaged.
24
Appendix
Changing the water filter
English
Change the water filter periodically. As a rule of thumb, it should be changed once every six months.
When it is time to change the filter, the “ ” icon appears on the Ice/Water dispenser panel.
This time differs depending on the quantity of water used as well as the quality and pressure of the water, and it
may be much shorter than six months.
Also change the water filter under the following circumstances:
●●When the ice or water have odours or an unpleasant taste (this means that the filter capacity is reduced)
●●When the amount of water entering the refrigerator has diminished (this means that the filter is clogged)
How to change the filter
1Remove the drawer of the Vitamin-Safe Zone.
2Remove the filter panel.
Place your fingers in the cutout at the front of the filter panel, and
remove the filter panel.
2
Filter panel
1
3Tilt the water filter slightly upward.
3
Water filter
4Turn the water filter counterclockwise by 90 degrees, and pull it
toward you.
5Install the new water filter.
Follow the steps for removing the filter in reverse.
Run water through the Water dispenser until the water runs clear for 5
minutes. This will clean the water supply system and remove air from
the water supply hose.
4
6With “ ” displayed on the Ice/Water dispenser panel, hold down
on the Ice/Water dispenser for at least 3 seconds.
The “ ” icon on the Ice/Water dispenser panel goes off.
Notes:
●●When the water filter has been removed, the water inside it may spill.
If water has spilled, remove the 5° Fresh Zone drawer and wipe up the water at the bottom of the
refrigerator.
●●When a new water filter is to be purchased, ask your dealer or an authorized service centre to supply you
with one.
Water filter type : CNRAH-257760
25
Appendix
Stopping the automatic ice-making
The automatic ice-making function can be shut down when, for instance, it is
not going to be used for a prolonged period of time to dispense ice.
Remove the icebox, and set the switch on the inside of the automatic ice maker
to the OFF position.
Note:
●●After the switch has been set to the OFF position, return the icebox to its
original position. Even after the switch has been set to OFF, the ice remaining
on the ice-cube tray will be deposited in the icebox.
OFF
ON
Using the freezer with the icebox removed
When the icebox is removed, large food items can be placed on the glass shelves of the freezer.
To use the freezer with the icebox removed, take the steps below, and shut down the Ice dispenser.
1Shut down the automatic ice-making function.
2Display “
3Hold down
” on the Ice/Water dispenser panel.
1
for at least 3 seconds.
4Attach the ice shooter cover.
For safety and energy saving, please attach the ice shooter cover
provided with the refrigerator to the ice dispensing area.
The ice shooter cover consists of 2 parts. Attach 1 first and then attach 2.
Notes:
●●The Water dispenser can still be used even when the Ice dispenser has
been shut down by taking the steps described above.
●●To re-install the icebox and use it again, take the steps below.
1. Remove the ice shooter cover.
2. Set the switch of the automatic ice-making function to the ON position.
3. Install the icebox.
2
Ice shooter cover
(accessory)
Checks after cleaning and maintenance
Is the supply cord damaged?
Has the power plug become hot?
Is the power plug firmly connected to the power outlet?
If the supply cord is damaged, remove the power plug from the socket and contact your dealer or an
authorized service centre.
If LED or LED cover is damaged or if anything appears questionable, contact your dealer or an authorized service
centre. Do not attempt to repair, replace or disassemble any damaged parts, etc. yourself.
When the refrigerator is not going to be used for a prolonged period
At times like this, disconnect the power plug. Leave the refrigerator doors ajar for two or three days to dry out the
interior and prevent odours and mold.
When using it again, please supply the water (15 glass (approx. 3 litre)) and remove the ice (about 40 cubes) from
Ice/Water dispenser until the water and ice will be clear.
26
Appendix
When moving or transporting the refrigerator
English
Before moving or transporting the refrigerator
First, ensure the main water supply line has been shut off.
Remove all the food and ice inside the refrigerator, and disconnect the power plug.
1Disconnect the water service hose from the hose connector.
Have a container ready to catch the water which will spill out from inside the water service hose.
●●Also remove the hose connector attached to the water service pipe opening, and keep it in a safe
place.
2Remove the front grille.
3Disconnect the two water supply hoses, which protrude from the area underneath the freezer
door, from the water supply connectors.
Remove the connecting rings (black), and then pull out the water supply hoses.
Water will spill out from inside the water supply hoses so have a container ready to catch it.
4Raise the adjustable legs, and pull the refrigerator toward the front.
5Drain off the water from the drain outlet at the bottom of the rear
panel.
Place a container under the drain outlet, tilt the refrigerator toward the
rear, and drain off the water from the drain outlet.
6Re-install the front grille.
Follow the steps for removing the front grille in reverse.
Drain outlet
Moving or transporting the refrigerator
The refrigerator must be transported by at least four persons.
●●Each person takes hold of the refrigerator at one of its four corners.
●●Do not take hold of the doors.
●●Tape the doors completely shut so that they will not open.
Note:
●●Bear in mind that water remaining inside the refrigerator may spill out.
27
Appendix
Troubleshooting
If you feel that the refrigerator is not working properly, check out the following points first.
If the trouble persists, disconnect the power plug and contact your dealer or an authorized service centre.
General
You hear unusual sounds from the ●●Has the refrigerator been installed on a sturdy and level floor?
refrigerator.
●●Have sufficient clearances been provided around the refrigerator?
●●Is anything vibrating on the top of the refrigerator?
●●It’s normal to hear some noises when the refrigerator starts or stops
operation.
You hear a sound after the
compressor has shut down.
●●This is normal, and is often caused by refrigerant flowing back to the
compressor.
You hear a sound after you have
opened or closed the door.
●●This is normal, and is due to the difference in air pressure between the
inside and outside of the refrigerator.
You hear the sound of air or water ●●This is caused by refrigerant flowing the internal pipework.
flowing after you have opened the
door.
You hear a clicking sound each
time the refrigerator's power is
turned on.
●●This is the sound made by the activation of the three-way valve, and is
quite normal.
You hear a continuous whining
sound.
●●This sound is heard while the fan for circulating the cold air is operating.
●●Has the refrigerator been set to the Super Freeze Mode?
In the Super Freeze Mode, the fan for circulating the cold air runs at high
speed so it makes a loud noise.
●●Has the food been packed too tightly together or is the room temperature
high?
In cases like these, the fan for circulating the cold air runs at high speed
so it makes a loud noise.
Sounds are heard from the
automatic ice maker.
●●These are the sounds of the ice dropping into the icebox.
This is normal sound.
The compressor is quite loud.
●●Has the refrigerator been set to the Super Freeze Mode?
In the Super Freeze Mode, the compressor runs at high speed so it
makes a loud noise.
●●Has the food been packed too tightly together or is the room temperature
high?
In cases like these, the compressor runs at high speed so it’s normal for
the compressor to be louder.
The compressor has been running ●●When the power plug has been connected for the first time, the
for a long time.
compressor runs longer than usual in order to cool down the inside of the
refrigerator until the set temperatures are reached.
●●Has the refrigerator been set to the Super Freeze Mode?
●●Have the doors been opened and closed frequently? Are the doors
completely shut?
●●Have the food items been packed too tightly together or is the room
temperature high?
●●When many food items are placed at a time, the compressor will need to
run for a longer.
28
Condensation forms on the
outside of the refrigerator.
●●Condensation may form when the humidity in the room is high and is
normal. Wipe it off using a dry cloth.
The outside of the refrigerator
feels hot to the touch.
●●Some heat is normal as the refrigerator incorporates a heat-dissipating
pipe to prevent condensation.
Appendix
●●Is the power to the refrigerator on?
●●Has the refrigerator been set to the Child Lock?
The LED light does not come on.
●●Has the refrigerator been set to the Holiday Mode?
In the Holiday Mode, the front tower LED light of the fridge does not come
on.
●●Is the power to the refrigerator on?
English
The controls on the control panel
cannot be operated.
The alarm sounds, and the
●●One or both of the refrigerator's doors have been left ajar. Close the
temperature display of the control
doors.
panel and front tower LED light
flashes.
Fridge and freezer
The fridge is not chilling (and the
freezer is not freezing).
●●Is the power to the refrigerator on?
The fridge is not chilling (and
the freezer is not freezing)
satisfactorily.
●●Is the set temperature too high?
●●Is the refrigerator exposed to direct sunlight or positioned near a heating
appliance?
●●Have sufficient clearances been provided around the refrigerator?
●●Have the food items been packed too tightly together or is the room
temperature high?
●●Have the doors been opened and closed frequently?
Are the doors completely shut?
●●Has the refrigerator been set to the Holiday Mode?
●●When warm food is put inside the refrigerator, the temperature will rise
temporarily.
●●During the cold season or when the room temperature is low, it may feel
as if the refrigerator is not chilling.
There is a difference between
the set temperature and actual
temperature.
●●Has the refrigerator been set to the Super Freeze Mode?
●●When warm food is put inside the refrigerator, the temperature will rise
temporarily.
No ice is made.
●●Has the main water supply line been turned on?
Has the water service hose been connected properly?
●●Is the power to the refrigerator on?
●●Is the switch of the automatic ice maker at the ON position?
Food in the fridge freezes.
●●Is the set temperature for the fridge too low?
●●Has the food been placed at the back of the fridge?
The area near the back wall is where the temperatures are coldest so
avoid placing food which may freeze easily here.
Condensation forms in the fridge
and drawers.
●●The fridge maintains a high humidity to keep vegetables and other food
items fresh.
Condensation may form when the door has been opened and closed
frequently or when it has not been shut completely. Wipe off the
condensation using a dry cloth.
It is hard to open the freezer door. ●●The difference in air pressure between the inside and outside of the
freezer may sometimes make it hard to open the freezer door. Wait a few
moments, and then try opening the door.
29
Appendix
It smells inside the refrigerator.
●●Were any food items with strong odours sealed before they were placed
in the fridge?
Place the items inside a sealed container and store them or store them
on the sealed case door shelf.
●●Odours may stick to the surfaces inside the refrigerator. Wipe the
surfaces using a soft cloth which has been dipped in lukewarm water.
Ice/Water dispenser
30
The water and ice have an odour.
●●Is the water filter being used an old one?
No water comes out.
●●Has the main water supply line been turned on?
Has the water service hose been connected properly?
●●Is the power to the refrigerator on?
●●Is the “ ” icon displayed on the Ice/Water dispenser panel?
No ice comes out.
●●Is the power to the refrigerator on?
●●Is the “ ” or “ ” icon displayed on the Ice/Water dispenser panel?
●●Is there any ice in the icebox?
●●Is the ice clumped together in the icebox?
Ice may be frozen in the icebox if the ice has not been dispensed for a
long time.
Ice cannot be dispensed if ice in the icebox is frozen and clumped.
Remove the clumped ice from the icebox and the ice shooter.
●●Even if ice cannot be dispensed, few ice remains in the icebox. This is
normal.
The controls on the Ice/Water
dispenser panel cannot be
operated.
●●Is the power to the refrigerator on?
●●Has the refrigerator been set to the Child Lock?
Appendix
Specifications
Product fiche (EU Regulation 1060/2010)
MODEL
CATEGORY
ENERGY EFFICIENCY CLASS
ANNUAL ENERGY CONSUMPTION
Panasonic
NR-B53V2-XB
NR-B53VW2-WB
7 (Refrigerator-Freezer)
A++
346 kWh/year*1
NET FRIDGE VOLUME
324 L
NET FREEZER VOLUME
206 L
STAR RATING OF THE FREEZER
Four-star
'FROST FREE' COMPARTMENTS
Fridge: Frost-free / Freezer: Frost-free
TEMPERATURE RISE TIME
FREEZING CAPACITY
CLIMATE CLASS
AIRBORNE ACOUSTICAL NOISE
EMISSIONS
English
SUPPLIER'S NAME
16 hours
15 kg/24 h
SN-T*2
38 dB
Other Information
TOTAL GROSS VOLUME
615 L
TOTAL NET VOLUME
530 L
OUTSIDE DIMENSIONS
WIDTH × DEPTH × HEIGHT
NET WEIGHT
RATED VOLTAGE
RATED FREQUENCY
REFRIGERANT/CHARGE
BLOWING AGENT
915 mm x 710 mm x 1860 mm
137 kg
230 V - 240 V
50 Hz
R600a/70 g
Cyclo-Pentane
Notes:
*1 The energy consumption per year is based on the standard test results for 24 hours in accordance with
EN153.
Actual energy consumption vary depending on how the appliance is used and where it is located.
The energy consumption when in use may vary depending on where the unit is installed, the temperature
setting of each of the compartments, the ambient temperature and humidity, how often the doors are
opened/closed, the volume and temperature of the food stuffs and how the appliance is used.
*2 Permitted ambient temperature: 10 °C to 43 °C
31
Appendix
Information on Disposal for Users of Waste Electrical & Electronic Equipment
(private households)
This symbol on the products and/or accompanying documents means that used electrical and
electronic products should not be mixed with general household waste.
For proper treatment, recovery and recycling, please take these products to designated collection
points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may
be able to return your products to your local retailer upon the purchase of an equivalent new product.
Disposing of this product correctly will help to save valuable resources and prevent any potential
negative effects on human health and the environment which could otherwise arise from inappropriate
waste handling. Please contact your local authority for further details of your nearest designated
collection point.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national
legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further
information.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of
disposal.
32
Fridge-Freezer and Washing Machine
Please note, we are unable to assist with calls regarding Audio Visual and other Home Appliance
products on this line
Monday to Thursday 9:00 - 20:00, Friday 9:30 - 20:00 and
Saturday to Sunday 10:00 - 16:00 (UK Only)
0844 844 3899
Monday to Thursday 9:00 - 5:30, Friday 9:30 - 5:30
(For Republic of Ireland)
If calling from the Republic of Ireland, please call
01-630-9799
Panasonic Corporation
Website : http://panasonic.net/
Pursuant to the directive 2004/108/EC, article 9(2)
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
© Panasonic Corporation 2013
Y0813-0
AK-169740
Printed in Turkey
Download PDF

advertising
