R

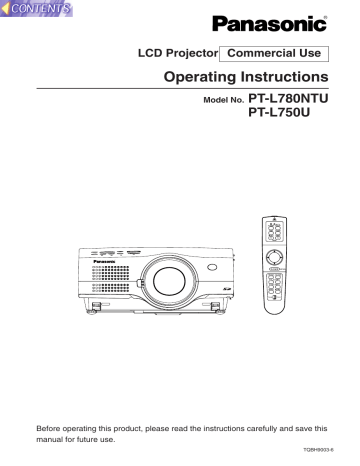

LCD Projector Commercial Use
Operating Instructions
Model No.
PT-L780NTU
PT-L750U
R
Before operating this product, please read the instructions carefully and save this
manual for future use.
TQBH9003-6
Dear Panasonic Customer:
This instruction booklet provides all the necessary operating information that
you might require. We hope it will help you to get the most performance out
of your new product, and that you will be pleased with your Panasonic LCD
projector.
The serial number of your product may be found on its back. You should
note it in the space provided below and retain this booklet in case service is
required.
Model number: PT-L780NTU / PT-L750U
Serial number:
IMPORTANT SAFETY NOTICE
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
Power Supply: This LCD Projector is designed to operate on 100 V – 240 V, 50 Hz/60
Hz AC, house current only.
CAUTION: The AC power cord which is supplied with the projector as an accessory can
only be used for power supplies up to 125 V, 10 A. If you need to use higher
voltages or currents than this, you will need to obtain a separate 250 V
power cord. If you use the accessory cord in such situations, fire may result.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the product.
2
Preparation
CAUTION: This equipment is equipped with a
three-pin grounding-type power
plug. Do not remove the grounding
pin on the power plug. This plug will
only fit a grounding-type power
outlet. This is a safety feature. If you
are unable to insert the plug into the
outlet, contact an electrician. Do not
defeat the purpose of the grounding
plug.
Do not remove
WARNING:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Any unauthorised changes or modifications to this equipment
will void the users authority to operate.
Declaration of Conformity
Model Number:
PT-L780NTU / PT-L750U
Trade Name:
Panasonic
Responsible party: Matsushita Electric Corporation of America.
Address:
One Panasonic Way Secaucus New Jersey 07094
Telephone number: 1-800-528-8601 or 1-800-222-0741
Email:
[email protected]
This device complies with Part 15 of the FCC Rules, Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
3
Contents
Preparation
IMPORTANT SAFETY NOTICE..........2
Precautions with regard to safety ....6
Accessories......................................11
Precautions on handling .................12
Location and function of each part ...14
Using the remote control unit.........20
Laser beam pointer.........................20
Wireless mouse ..............................21
Inserting the batteries .....................22
Operating range..............................22
Setting the projector IDs number for remote control unit ...23
Connections .....................................24
Notes on connections .....................24
Example of connecting to video
equipment ...................................26
Example of connecting to computer ..27
Setting-up .........................................28
Projection methods.........................28
Projector position............................28
Projection distances .......................29
Basic Operation
Starting to use..................................30
Turning on the power......................30
Turning off the power......................31
On-screen menus.............................32
Menu screens .................................32
Menu operation guide.....................35
Returning to the previous screen....35
Returning a setting to the factory default ...36
Using the freeze function ................36
Using the D.ZOOM (digital zoom) function...37
Adjusting the picture .......................38
PICTURE MODE ............................38
Color Hue Setting ...........................39
COLOR...........................................39
TINT................................................39
BRIGHT ..........................................39
CONTRAST....................................39
SHARPNESS .................................39
Noise Reduction(NR)......................39
TV SYSTEM ...................................39
WHITE BALANCE R/G/B ...............40
Projecting sRGB-compatible pictures ...40
Adjusting the position .....................41
POSITION ......................................42
DOT CLOCK...................................42
CLOCK PHASE ..............................42
KEYSTONE ....................................42
OSD POSITION..............................43
ASPECT .........................................43
RESIZING.......................................44
4 AUTO SETUP.................................44
FRAME LOCK ................................44
Audio adjustment.............................45
VOLUME ........................................45
MUTE .............................................45
Changing the display language......45
Advanced Operation
Option settings.................................46
SHUTTER.......................................46
OSD................................................46
AUTO KEYSTONE .........................46
RGB/YPbPr ....................................46
RGB2 SELECT...............................46
BACK COLOR ................................47
FRONT/REAR ................................47
DESK/CEILING ..............................47
LAMP POWER ...............................47
LAMP RUN TIME ...........................47
FAN CONTROL..............................47
WEB CONTROL.............................47
WEB STANDBY .............................47
WEB PASSWORD .........................48
CONTROL KEY..............................48
FUNC 1...........................................48
SET ID ............................................48
AUTO POWER OFF.......................48
NETWORK SETUP ...........................49
SD CARD SETUP..............................49
Lens adjustment ..............................50
Projection lens replacement ...........51
Projection distance for each
projection lens (sold separately) ..52
Slot cover replacement ...................54
Putting the power cord and
remote control unit away .............55
Using the cable cover......................56
Using the remote terminal...............57
Using the SERIAL connector ..........58
Others
Indicators..........................................60
About the automatic setup function......62
List of compatible signals...............63
Cleaning and replacing the air filter...64
Replacing the lamp unit ..................65
Before calling for service ................68
Specifications...................................70
Dimensions.......................................72
Trademark acknowledgements ......72
NOTES IMPORTANTES
CONCERNANT LA SÉCURITÉ...73
Précautions de sécurité..............74
Précautions de manipulation.............78
Remplacement du bloc de lampe...80
Other instructions .................84
Web browser control...........116
Typical applications of SD card
/ network functions ...............88
What you can do with Web
browser control ......................... 116
Settings of Web browser control.... 116
Settings of projector..................... 116
Settings of personal computer..... 116
Operation of Web browser
control ........................................ 117
Starting Web browser control ...... 117
Top screen................................... 117
Projector control .......................... 118
SD control.................................... 119
Changing password..................... 120
When using PDA......................120
Operation of PDA.....................120
Examples of use of SD card........... 88
Example of use of network
functions ...................................... 89
Fitting and removal of SD card
and wireless card ..................90
SD card ............................................ 90
Wireless card/Projector LAN card.. 91
How to use SD card...............92
Replaying from recorded SD card
using the projector only.............. 92
Setting ........................................... 92
Replay ........................................... 93
Recording directly on SD card ...... 94
Compiling on Windows .................. 94
Compilation on Macintosh machine.... 97
Network setting .....................99
Example of setting for use of the
wireless card................................ 99
To use wireless communication
for the first time .......................... 99
If wireless communication has
already been established between
PCs (in ad hoc mode) ............. 100
If wireless communication has
already been established
using an access point............... 101
If communication in ad hoc mode is
unavailable ............................... 102
Example of setting for use of the
projector LAN card .................... 103
To directly connect a personal
computer to the projector ......... 103
When connecting via a relaying
device....................................... 103
Setting up the projector ............... 104
Installing a wireless card driver .. 107
Fitting and removal of wireless card
into/from personal computer .... 107
Installing a driver ......................... 108
Settings of wireless card.............. 111
Settings of personal computer .... 112
TCP/IP setting ............................. 112
If two or more network devices
are existent............................... 114
Preparation
Contents (Network Functions, SD Card Functions)
Wireless Manager 2.0..........122
What you can do with Wireless
Manager 2.0................................ 122
Installation of Wireless Manager 2.0 ... 122
Before installation ........................ 122
Procedure of installation .............. 122
Operation of Wireless Manager 2.0.... 123
Starting/ending Wireless
Manager 2.0 ............................. 123
Registration of projector .............. 123
To capture and transfer the
image of PC screen.................. 125
Transfer of image stored in the
personal computer ................... 126
Major examples of usage ............. 129
Basic usage ................................. 129
Automatic display in predefined
sequence.................................. 129
Quick-changing presentation using
SD card .................................... 129
Conference using multiple personal
computers ................................ 129
Image Creator 1.0 ................130
What you can do with Image
Creator 1.0.................................. 130
Installation of Image Creator 1.0 ... 131
Before installation ........................ 131
Procedure of installation .............. 131
Operation of Image Creator 1.0... 131
DCF standard .............................. 136
Before Placing an repair order .... 137
Explanation of terms .................... 139
Trademark Information................. 142
Consignes de sécurité.................. 143
5
Precautions with regard to safety
WARNING
If a problem occurs (such as no image or no sound) or if you notice
smoke or a strange smell coming from the projector, turn off the power
and disconnect the power cord from the wall outlet.
B Do not continue to use the projector in such cases, otherwise fire or
electric shocks could result.
B Check that no more smoke is coming out, and then contact an Authorised
Service Center for repairs.
B Do not attempt to repair the projector yourself, as this can be dangerous.
Do not install this projector in a place which is not strong enough to
take the full weight of the projector.
B If the installation location is not strong enough, it may fall down or tip over,
and severe injury or damage could result.
Installation work (such as ceiling suspension) should only be carried
out by a qualified technician.
B If installation is not carried out correctly, there is the danger that injury or
electric shocks may occur.
If foreign objects or water get inside the projector, or if the projector is
dropped or the cabinet is broken, turn off the power and disconnect the
power cord from the wall outlet.
B Continued use of the projector in this condition may result in fire or electric
shocks.
B Contact an Authorised Service Center for repairs.
Do not overload the wall outlet.
B If the power supply is overloaded (for example, by using too many
adapters), overheating may occur and fire may result.
Do not remove the cover or modify it in any way.
B High voltages which can cause fire or electric shocks are present inside
the projector.
B For any inspection, adjustment and repair work, please contact an
Authorised Service Center.
Clean the power cord plug regularly to prevent it from becoming
covered in dust.
B If dust builds up on the power cord plug, the resulting humidity can
damage the insulation, which could result in fire. Pull the power cord out
from the wall outlet and wipe it with a dry cloth.
B If not using the projector for an extended period of time, pull the power
cord plug out from the wall outlet.
6
7
Preparation
Do not do anything that might damage the power cord or the power
cord plug.
B Do not damage the power cord, make any modifications to it, place it near
any hot objects, bend it excessively, twist it, pull it, place heavy objects on
top of it or wrap it into a bundle.
B If the power cord is used while damaged, electric shocks, short-circuits or
fire may result.
B Ask an Authorised Service Center to carry out any repairs to the power
cord that might be necessary.
Do not handle the power cord plug with wet hands.
B Failure to observe this may result in electric shocks.
Insert the power cord plug securely into the wall outlet.
B If the plug is not inserted correctly, electric shocks or overheating could
result.
B Do not use plugs which are damaged or wall outlets which are coming
loose from the wall.
Do not place the projector on top of surfaces which are unstable.
B If the projector is placed on top of a surface which is sloped or unstable, it
may fall down or tip over, and injury or damage could result.
Do not place the projector into water or let it become wet.
B Failure to observe this may result in fire or electric shocks.
Do not place liquid containers on top of the projector.
B If water spills onto the projector or gets inside it, fire or electric shocks
could result.
B If any water gets inside the projector, contact an Authorised Service
Center.
Do not insert any foreign objects into the projector.
B Do not insert any metal objects or flammable objects into the projector or
drop them onto the projector, as doing so can result in fire or electric
shocks.
Keep the remote control unit out of the reach of children, and do not
look into the laser beam or point it towards other people.
B If the laser beam which is emitted by the remote control unit transmitter is
pointed directly into the eyes, it may cause visual ability to be impaired.
Do not allow the + and - terminals of the batteries to come into contact
with metallic objects such as necklaces or hairpins.
B Failure to observe this may cause the batteries to leak, overheat, explode
or catch fire.
B Store the batteries in a plastic bag and keep them away from metallic objects.
During a thunderstorm, do not touch the projector or the cable.
B Electric shocks can result.
Do not use the projector in a bath or shower.
B Fire or electric shocks can result.
Do not look into the lens while the projector is being used.
B Strong light is emitted from the projector’s lens. If you look directly into this
light, it can hurt and damage your eyes.
Do not bring your hands or other objects close to the air outlet port.
B Heated air comes out of the air outlet port. Do not bring your hands or
face, or objects which cannot withstand heat close to this port, otherwise
burns or damage could result.
When replacing the lamp, allow it to cool for at least one hour before
handling it.
B The lamp cover gets very hot, and contact with it can cause burns.
Before replacing the lamp, be sure to unplug the power cord from the
power outlet.
B Electric shocks or explosions can result if this is not done.
Keep the SD memory card out of the reach of infants. (PT-L780NTU only)
B If the memory card is swallowed, death by suffocation may result. If you
believe that the memory card may have been swallowed, seek medical
advice immediately.
Caution
Do not cover the air inlet or the air outlet.
B Doing so may cause the projector to overheat, which can cause fire or
damage to the projector.
Do not set up the projector in humid or dusty places or in places where
the projector may come into contact with smoke or steam.
B Using the projector under such conditions may result in fire or electric
shocks.
When disconnecting the power cord, hold the plug, not the cord.
B If the power cord itself is pulled, the cord will become damaged, and fire,
short-circuits or serious electric shocks may result.
Always disconnect all cables before moving the projector.
B Moving the projector with cables still attached can damage the cables,
which could cause fire or electric shocks to occur.
Do not place any heavy objects on top of the projector.
B Failure to observe this may cause the projector to become unbalanced
and fall, which could result in damage or injury.
Do not short-circuit, heat or disassemble the batteries or place them
into water or fire.
B Failure to observe this may cause the batteries to overheat, leak, explode
or catch fire, and burns or other injury may result.
When inserting the batteries, make sure the polarities (+ and -) are
correct.
B If the batteries are inserted incorrectly, they may explode or leak, and fire,
injury or contamination of the battery compartment and surrounding area
may result.
8
Preparation
Use only the specified batteries.
B If incorrect batteries are used, they may explode or leak, and fire, injury or
contamination of the battery compartment and surrounding area may
result.
Do not mix old and new batteries.
B If the batteries are inserted incorrectly, they may explode or leak, and fire,
injury or contamination of the battery compartment and surrounding area
may result.
Do not put your weight on this projector.
B You could fall or the projector could break, and injury may result.
B Be especially careful not to let young children climb onto the projector.
Disconnect the power cord plug from the wall outlet as a safety
precaution before carrying out any cleaning.
B Electric shocks can result if this is not done.
Ask an Authorised Service Center to clean inside the projector at least
once a year.
B If dust is left to build up inside the projector without being cleaned out, it
can result in fire or problems with operation.
B It is a good idea to clean the inside of the projector before the season for
humid weather arrives. Ask your nearest Authorised Service Center to
clean the projector when required. Please discuss with the Authorised
Service Center regarding cleaning costs.
We are constantly making efforts to preserve and maintain a clean
environment. Please take non repairable units back to your dealer or a
recycling company.
9
WARNING
Keep the SD memory card out of the reach of infants.
• If the memory card is swallowed, death by suffocation may result. If you
believe that the memory card may have been swallowed, seek medical
advice immediately.
Caution
Do not insert any foreign objects into the card slot.
• Inserting foreign objects may damage the projector. If the wireless card is
inserted while some foreign object is inside the slot, it may damage the
wireless card.
Notes with regard to the wireless card
and the projector.
Caution
Before touching the wireless card or the projector LAN card,
make sure that you earth your body to dissipate any static
electric charge that might damage the card.
• Static electricity from the human body can damage the wireless card. To
prevent this, you should touch a nearby metallic object such as an
aluminium sash or a door knob to dissipate the static charge from your
body.
Do not install the accessory wireless card or projector LAN card
to any device other than the card slot of the projector.
• If this is not observed, damage to the device may result.
10
Check that all of the accessories shown below have been included with your
projector.
Remote control unit
(N2QAEA000011 x1)
AAA batteries for
remote control unit (x2)
RGB signal cable [3.0 m
(9´10˝), K1HB15FA0001
x1]
Video/Audio cable [3.0
m (9´10˝),
K2KA2FA00001 x 1]
Power coed
(K2CG3FZ00008 x 1)
Cable cover
(TXFKR01VJN1 x1)
USB cable
(3.0 m, K1HB04FD0002 x 1)
CD-ROM (TQBH9003x1)
(PT-L780NTU only)
SD memory card (8 MB,
RP-SD008BEZ0 x1)
(PT-L780NTU only)
Protective case for SD memory card
(RP-SDCC0 x1)
(PT-L780NTU only)
Slot cover (for projector LAN card)
(TKKL5243 x1)
(PT-L780NTU only)
11
Preparation
Accessories
Precautions on handling
Cautions when moving the projector
Be sure to attach the lens cover before moving the projector.
The projection lens is extremely susceptible to vibration and shocks. Be
careful not to subject it to excessive vibration and shock when moving the
projector.
Cautions regarding setting-up
Observe the following at all times when setting up the projector.
Avoid setting up in places which are subject to vibration or shocks.
If the projector is set up in locations with strong vibration, such as near a
motor, or if it is installed inside a vehicle or on board a ship, the projector
may be subjected to vibration or shocks which can damage the internal parts
and cause malfunctions or accidents. Accordingly, set up the projector in a
place which is free from such vibrations and shocks.
Do not set up the projector near high-voltage power lines or near
motors.
The projector may be subject to electromagnetic interference if it is set up
near high-voltage power lines or motors.
If installing the projector to the ceiling, ask a qualified technician to
carry out all installation work.
If the projector is to be suspended from the ceiling, you will need to purchase
the separate installation kit (Model No.: ET-PK780). Furthermore, all
installation work should only be carried out by a qualified technician.
If using this projector at high elevations (above 1 400 m), set the FAN
CONTROL to HIGH. (Refer to page 47.)
Failure to observe this may result in malfunctions.
Notes on use
In order to get the best picture quality
If outside light or light from indoor lamps is shining onto the screen, the
images projected will not have good contrast. Draw curtains or blinds over
any windows and turn off any fluorescent lights near the screen to prevent
reflection.
Do not touch the surfaces of the lens with your bare hands.
If the surface of the lens becomes dirty from fingerprints or anything else, this
will be magnified and projected onto the screen. Moreover, when not using
the projector, retract the lens and then cover it with the accessory lens cover.
12
Before carrying out cleaning and maintenance, be
sure to disconnect the power cord plug from the
wall outlet.
Wipe the cabinet with a soft, dry cloth.
If the cabinet is particularly dirty, soak the cloth in water with a small amount
of neutral detergent in it, squeeze the cloth very well, and then wipe the
cabinet. After cleaning, wipe the cabinet dry with a dry cloth.
If using a chemically-treated cloth, read the instructions supplied with
the cloth before use.
Do not wipe the lens with a cloth that is dusty or which produces lint.
If any dust or lint gets onto the lens, such dust or lint will be magnified and
projected onto the screen. Use a blower to clean any dust and lint from the
lens surface, or use a soft cloth to wipe off any dust or lint.
13
Preparation
About the screen
If the screen you are using is dirty, damaged or discolored, attractive
projections cannot be obtained. Do not apply any volatile substances to the
screen, and do not let it become dirty or damaged.
About the lamp
The lamp may need to be replaced earlier due to variables such as a
particular lamp’s characteristics, usage conditions and the installation
environment, especially when it is subjected to a continuous use for more
than 10 hours.
About the SD memory card (PT-L780NTU only)
Static electricity from the human body can damage the SD memory card. To
prevent this, you should touch a nearby metallic object such as an aluminium
sash or a door knob to dissipate the static charge from your body.
About the card slot (PT-L780NTU only)
Make sure that there are no foreign objects inside the slot when inserting the
SD memory card or an optional wireless card. Failure to observe it may
damage the card and the slot.
Location and function of each part
Projector <Top, right and front>
#
$
0
%
%
&
'
(
)
*
&
+
# Projector control panel
(page 16)
$ Focus ring
(pages 31 and 50)
% Air inlet ports
Do not cover these ports.
& Leg adjuster buttons(L/R)
(page 30)
These buttons are used to unlock
the front adjustable legs. Press to
adjust the angle of tilt of the
projector.
' Front adjustable legs(L/R)
(page 30)
( Lens release button
(page 51)
This button is used when using a
projection lens that is sold
separately.
) Projection lens
* Lens cover
+ Remote control signal receptor
(page 22)
14
'
.
,-
/
, Air filter
(page 64)
- Connector panel
(page 18)
. Power input socket (AC IN)
(page 30)
The accessory power cord is
connected here.
Do not use any power cord other
than the accessory power cord.
/ MAIN POWER switch
(pages 30 and 31)
0 Speaker
#
'
&
Preparation
Projector <Back and bottom>
%
$
# Remote control signal receptor
(page 22)
$ Security lock
This can be used to connect a
commercially-available theftprevention cable (manufactured
by Kensington). This security lock
is compatible with the Microsaver
Security System from
Kensington. Contact details for
this company are given below.
Kensington Technology Group
ACCO Brands Inc.
2855 Campus Drive
San Mateo, CA 94403 USA
Tel (650)572-2700
Fax (650)572-9675
http://www.kensington.com/
http://www.gravis.com/
NOTE:
B Information given above may be
changed in future.
% Carrying handle
& Lamp unit holder
(page 65)
' Air outlet port
Do not cover this port.
WARNING
Do not bring your hands or other
objects close to the air outlet
port.
B Heated air comes out of the air
outlet port. Do not bring your
hands or face, or objects which
cannot withstand heat close to
this port, otherwise burns or
damage could result.
NOTE:
B During projection of an image, the
cooling fan will operate, emitting
a small noise as it operates.
Turning the lamp on or off will
cause this noise to increase a
little.
B By using the OPTION menu to
set “LAMP POWER” to “LOW”,
the operating sound of the fan
can be reduced. (Refer to page
47.)
15
Remote control unit
4
(
&
3
0
1
$
% &
RGB INPUT
,
-
'
TEMP
LAMP
INPUT
POWER
AUTO SETUP VIDEO
RGB
SHUTTER
*
(
)
STANDBY(R)
ON(G)
–
FOCUS
+
MENU
ENTER
/
+
,
VIDEO
MENU
PAGE
)
5
+
R-CLICK
ENTER
FREEZE SHUTTER
FUNC1
Computer
*
:
Pro jector
;
-
# Power indicator
(pages 30, 31 and 47)
This indicator illuminates red when
the MAIN POWER switch is turned
on (standby mode), and illuminates
green when the power is turned on
and a picture starts to be projected.
(PT-L780NTU only)
When the WEB STANDBY is set
to "ON", the cooling fan operates
and the power indicator on the
projector flashes slowly in red.
$ RGB INPUT indicator
This indicator illuminates when a
signal is input into the connector
that is selected with the input
select buttons.
% LAMP indicator (page 61)
This indicator illuminates when it is
time to replace the lamp unit. It flashes
if a circuit abnormality is detected.
& Input select (RGB, VIDEO)
buttons (page 30)
' TEMP indicator (page 60)
This indicator illuminates if an
abnormally high temperature is
detected inside the projector or
16
6
7
8
9
ZOOM
LASER
+
.
–
RGB
2
Projector control panel
#
AUTO
POWER SETUP
around it. If the temperature rises
above a certain level, the power
supply will be turned off
automatically and the indicator
will illuminate or flash.
( POWER button
(pages 30 and 31)
) AUTO SETUP button
(pages 30 and 62)
If this button is pressed while a
picture is being projected, the
projection settings will be
adjusted automatically in
accordance with the signal being
input. In addition, the angle of tilt
of the projector will be
automatically detected and
adjusted in order to correct any
keystone distortion. (“AUTO
SETUP” will appear on the
screen during adjustment.) Set
“AUTO KEYSTONE” in the
OPTION menu to “OFF” to
prevent any deterioration of the
picture as a result of keystone
correction. However, keystone
distortion may not be corrected
operating mode select switch is
moved to the left (Computer).
4 Operation indicator (page 20)
This indicator illuminates while a
laser beam is being emitted
(while the LASER button is being
pressed). It flashes when any
other buttons are being pressed.
5 LASER button (page 20)
A beam of laser light is emitted while
this button is being pressed. This
laser beam can be used as a pointer
to point to something on the screen.
6 FREEZE button (page 36)
This button is used to
momentarily freeze projection so
that a still picture is displayed.
7 D.ZOOM +/- buttons (page 37)
These buttons are used to
enlarge the projected image.
8 VOLUME +/- buttons
These buttons are used to adjust
the volume of the sound output
from the projector’s built-in
speakers. Refer to page 45 for
details on how to adjust the
volume using the buttons on the
projector control panel.
9 FUNCTION (FUNC1) button
(pages 42, 45 and 48)
This button can be used for 1)
switching on and off the sound
volume and 2) entering into the
keystone distortion correction mode.
Use the FUNC1 item in the OPTION
menu to select which you wish to use.
: ID SET button (page 23)
This button is used to set the IDs
into the remote control unit when
using multiple projectors with a
single remote control unit.
; Operating mode (Computer,
Projector) select switch
(page 21)
Move this switch to the left side to
use the remote control unit to
operate a computer, and move it
to the right side to operate the
projector.
17
Preparation
properly when using a lens that is
sold separately. Refer to page 42
for details on correcting keystone
distortion manually.
* SHUTTER button (page 46)
This button is used to
momentarily turn off the picture
and sound. However, keystone
distortion may not be corrected
properly when using a lens that is
sold separately. Refer to page 42
for details on correcting keystone
distortion manually.
+ MENU button (pages 32 and 35)
This button is used to display the
menu screens. When a menu
screen is being displayed, this
button can be used to return to a
previous screen or to clear the
screen.
FGI and H) buttons
, Arrow (F
(page 35)
These buttons are used to select
and adjust items in the menu
screens.
*When in computer operating
mode, these buttons on the
remote control unit function
differently. (page 21)
- ENTER button (page 35)
This button is used to accept and
to activate items selected in the
on-screen menus.
*When in computer operating
mode, this button on the remote
control unit operates differently.
(page 21)
. FOCUS +/- buttons (page 31)
These buttons are used to adjust
the projected image focus.
/ Zoom +/- buttons (page 31)
These buttons are used to adjust
the projected image size.
0 Laser emitter (page 20)
1 Infrared emitter (page 22)
2 Click button (page 21)
This button can be used when the
operating mode select switch is
moved to the left (Computer).
3 PAGE button (page 21)
This button can be used when the
<Connector panel>
#
$
%
'
&
(
)
S-VIDEO IN
L
USB
SERIAL
RGB1 IN
DVI-D IN
RGB2 IN/RGB OUT
*
AUDIO OUT
R
RGB AUDIO IN
REMOTE
R/R-Y/PR
G/Y
B/B-Y/PB SYNC/HD
RGB3 IN
+
# USB port
(page 21)
The remote control unit can be
used as a personal computer
mouse by connecting the
projector to a personal computer
with the supplied USB cable.
(4-pin square connector)
$ SERIAL connector
(pages 26, 27 and 58)
This connector is used to connect
a personal computer to the
projector in order to externally
control the projector. (RS-232C
compatible)
% RGB1 IN connector
(pages 26 and 27)
This connector is used to input
RGB signals and YPBPR signals.
& RGB2 IN/RGB OUT connector
(pages 26 and 27)
This connector is used to input or
output RGB signals and YPBPR
signals. Use the RGB2 SELECT
item in the OPTION menu to
select whether you want input or
output with this connector.
' DVI-D IN connector
(page 27)
This connector is used to input
DVI-D signals.
( AUDIO OUT jack
18
VIDEO IN
AUDIO IN
VD
,
-
.
(pages 26 and 27)
This jack is used to output the
audio signals which are input to
the projector. If audio equipment
is connected to this jack, no
sound will be output from the
built-in speakers.
) S-VIDEO IN connector
(pages 26 and 44)
This connector is used to input
signals from a S-VIDEOcompatible equipment such as a
video deck. The connector is S1
signal compatible, and it
automatically switches between
16:9 and 4:3 aspect ratios in
accordance with the type of
signal being input.
* AUDIO IN L-R (for VIDEO/SVIDEO) jacks
(page 26)
Only one system is provided, so
connect the appropriate
connector when using VIDEO or
S-VIDEO.
+ Remote control connector
(page 57)
This connector is used to control
the projector from the Remote
Control set up in Wired mode.
, RGB3 (YPBPR) IN connector
(pages 26 and 27)
This connector is used to input
(PT-L780NTU only)
<Card slot>
RGB2 or RGB3.
. VIDEO IN jack
(page 26)
This jack is used to input video
signals from a video equipment
such as a video deck.
Preparation
RGB signals and YPBPR signals.
- RGB AUDIO IN jack
(pages 26 and 27)
Only one system is provided, so
connect the appropriate
connector when using RGB1,
<SD memory card>
#
Front
Back
LOCK
(
$
)
%'
&
# Slot cover
Covers the card slots. When
using an optional projector LAN
card, replace the slot cover (refer
to page 54).
$ Card slot
Insert an optional wireless card or
a projector LAN card into here.
% Eject switch
Use to remove an optional
wireless card or projector LAN
card from the card slot.
& Access lamp
Flashes while the projector is
being accessed for reading or
writing the data in the SD
memory card.
' SD memory card slot
Insert the SD memory card into
here.
( Metal terminals
These terminals are for
connecting the SD memory card
to the projector’s card slot. Do not
touch the metal terminals with
hands or metal objects, attach
stickers to them, or allow them to
become contaminated in any
way.
) Write-protect switch
If the write-protect switch on the
SD memory card is moved to the
LOCK position, it will not be
possible to use any file editing
functions such as deleting or
moving image files.
19
Using the remote control unit
Laser beam pointer
The laser beam emitted from the remote control can be used as a pointer by
pointing forward to the screen.
While the LASER button is being pressed, the laser beam is being emitted
and the operating indicator illuminates.
Do not look into the laser emitter of the remote control unit or point the laser
beam towards other people, otherwise damage to eyes may occur.
PUSH
N2QAEA000011
Caution
B Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
B This remote control unit cannot be repaired.
20
You can use the remote control as a personal computer mouse. Set the Mode
(Projector/Computer) switch on the remote control unit to “Computer” and
connect the projector’s USB port to a personal computer counterpart with the
Projector
Accessory USB cable
Computer equipped with a USB port
USB
SERIAL
REMOTE
RGB1 IN
R/R-Y/PR
G/Y
RGB2 IN/RGB
B/B-Y/PB SYN
RGB3 IN
BFor Windows (Versions 98SE, Me, 2000 and XP), you can use the
standard mouse driver which comes bundled with the operating
system.
Mode switch (Computer/Projector)
AUTO
POWER SETUP
RGB
LASER
VIDEO
MENU
PAGE
R-CLICK
ENTER
FREEZE SHUTTER
Page
Click button
buttons
FGIH button
R-CLICK button
FUNC1
Computer
Pro jector
Mode switch
(Computer/Projector)
Move the mode switch to the
“Computer” position.
B Page buttons
^: Functions as the Page Up button
on a personal computer keyboard.
v: Functions as the Page Down
button on a personal computer
keyboard.
FGIH) buttons
B Arrow (F
These buttons can move the cursor
on a personal computer’s screen as
the personal computer mouse.
B R-CLICK button
This button functions as the right
button on a personal computer mouse.
B Click button
This button functions as the left button
on a personal computer mouse.
NOTE:
B The optional wireless receiver
(ET-RMRC1) is needed for a personal
computer not equipped with a USB
port.
21
Preparation
Wireless mouse
Inserting the batteries
# Open the cover.
$ Insert the batteries so that the
polarities are correct, and then close the
cover.
AAA batteries
(two)
NOTE:
B Do not drop the remote control unit.
B Keep the remote control unit away from liquids.
B Remove the batteries if not using the remote control unit for long periods.
B Do not use rechargeable batteries.
Operating range
If the remote control unit is held so
that it is facing directly in front of the
remote control signal receptors on
the front or rear of the projector, the
operating range is within
approximately 7 m (23´) from the
surfaces of the receptors.
Furthermore, the remote control unit
can be operated from an angle of
±30° to the left or right and ±15°
above or below the receptors.
22
NOTE:
B If there are any obstacles in between
the remote control unit and the
receivers, the remote control unit may
not operate correctly.
B If strong light is allowed to shine onto
the remote control signal receiver,
correct remote control operation may
not be possible. Place the projector as
far away from light sources as possible.
B If facing the remote control unit
toward the screen to operate the
projector, the operating range of the
remote control unit will be limited by
the amount of light reflection loss
caused by the characteristics of the
screen used.
Preparation
Setting the projector IDs number for
remote control unit
When controlling multiple projectors individually or simultaneously with a
single remote control unit, projector IDs must be set into the remote control
unit as described in the following steps.
#Press the ID SET button on the remote control unit.
ID number “ALL” will be displayed on the screen.
$Press and hold the ID SET button for more than 2 seconds.
The ID number will change into “1”. The ID SET button will now toggle
through ID numbers “2”, “3”, “ALL” and “1” each time it is subsequently
pressed.
%Select the ID number you wish and then press the ENTER button.
When the projector ID coincides with the remote control unit
<If the MAIN POWER is ON>
The ID number will be displayed in white on the screen.
If the projector ID and ID for the remote control unit are not the same, the
projector ID is displayed in green.
<If the projector is in standby mode>
The Power indicator on the projector will flash for 5 seconds.
If the projector ID and ID for the remote control unit are not the same, the
Power indicator will stay illuminated red.
NOTE:
B The projector ID number in the remote control unit is set to “ALL” by
default. It is therefore not necessary to set a projector ID number when
only one projector is used.
B The projector can be turned ON/OFF from the remote control unit only if
the projector ID is set in the remote control unit. For more details on
projector ID setting, see page 48.
23
Connections
Notes on connections
B Read the instruction manual for each system component carefully before
connecting it.
B Turn off the power supply for all components before making any
connections.
B If the cables necessary for connecting a component to the system are not
included with the component or available as an option, you may need to
fashion a cable to suit the component concerned.
B If there is a lot of jitter in the video signal which is input from the video
source, the picture on the screen may flicker. In such cases, it will be
necessary to connect a TBC (time base corrector).
B The projector has built-in speakers. However, you will need to connect a
separate audio system to the AUDIO OUT jack if your needs specify high
sound volumes. No sound will come out of the projector’s built-in speakers
while the AUDIO OUT jack is being used.
B It may not be possible to connect some types of computer. Refer to the list
of compatible signals on page 63.
B The pin layout and signal names for the S-VIDEO IN connector are shown
below.
#
$
&
%
Pin No.
#
$
%
&
Signal
Earth (Luminance signal)
Earth (Color signal)
Luminance signal
Color signal
External view
B The pin layout and signal names for the RGB/YPBPR (RGB1 IN/RGB2 IN)
connector are shown below.
-
1
(
,
#
'
External view
Pin No.
#
$
%
.
/
0
1
Signal
R/PR
G/G·SYNC/Y
B/PB
SDA
HD/SYNC
VD
SCL
Pin + is spare.
Pins &–*, , and - are for earth.
Pins . and 1 functions are only valid when
supported by the computer.
24
:
Preparation
B The pin assignments on the DVI-D input connector are as follows
(interface with TMDS connector on a personal computer)
3
+
2
*
#
View from mating side
Pin No.
#
$
%
&
'
(
)
*
+
,
.
Signal
T.M.D.S data 2T.M.D.S data 2+
T.M.D.S data 2/4 shield
T.M.D.S data 4T.M.D.S data 4+
DDC clock
DDC data
T.M.D.S data 1T.M.D.S data 1+
T.M.D.S data1/3 shield
T.M.D.S data 3-
Pin No.
/
0
1
2
3
4
5
6
7
8
9
:
Signal
T.M.D.S data 3+
+5 V
Ground
Hot plug sense
T.M.D.S data 0T.M.D.S data 0+
T.M.D.S data 0/5 shield
T.M.D.S data 5T.M.D.S data 5+
T.M.D.S clock shield
T.M.D.S clock+
T.M.D.S clock-
25
Example of connecting to video equipments
D-sub 15 (male) - BNC5 (female)
adapter cable (sold separately)
Red (connect to PR signal connector)
Blue (connect to PB signal connector)
Green (connect to Y signal connector)
Digital broadcast
tuner or DVD player
Computer for
control use
DVD player
D-sub 9-pin
(male)
S-VIDEO IN
L
USB
SERIAL
RGB1 IN
DVI-D IN
RGB2 IN/RGB OUT
AUDIO OUT
R
RGB AUDIO IN
REMOTE
R/R-Y/PR
G/Y
B/B-Y/PB SYNC/HD
RGB3 IN
VIDEO IN
AUDIO IN
VD
Video deck
DVD player
Audio system
Red (connect to PR signal connector)
Blue (connect to PB signal connector)
Green (connect to Y signal connector)
NOTE:
B Only one audio system circuit is available for the AUDIO IN L-R jacks for
S-VIDEO/VIDEO signals, so if you wish to change the audio input source,
you will need to remove and insert the appropriate plugs.
B Only one audio system circuit is available for the RGB AUDIO IN jacks, so
if you wish to change the audio input source, you will need to remove and
insert the appropriate plugs.
B If an audio system is connected to the AUDIO OUT jack, the sound
volume balance can be controlled by the remote control unit which is
supplied with the projector.
B If the video signal source is connected using a cable with a BNC
connector plug, use a BNC/RCA adapter (sold separately) to convert the
cable end to an RCA plug-type jack.
B Refer to page 63 for a list of compatible YPBPR signals which can be input
to the projector.
B If the signal cables are disconnected or if the power supply for the
computer or video deck is turned off while the digital zoom function is
being used, this function will be cancelled.
26
Example of connecting to computer
Preparation
Computer
Monitor
Computer for
control use
ON
1
DIP
2
3
4
5
6
D-sub 9-pin
(male)
S-VIDEO IN
L
USB
SERIAL
RGB1 IN
DVI-D IN
RGB2 IN/RGB OUT
AUDIO OUT
R
RGB AUDIO IN
REMOTE
Computer
R/R-Y/PR
G/Y
B/B-Y/PB SYNC/HD
RGB3 IN
VIDEO IN
AUDIO IN
VD
DVI cable
(Option)
(TY-SCDV03)
Audio system
Computer with
DVI-D OUT connector
NOTE:
B It is better to shut down the computer before turning off the MAIN POWER
switch of the projector.
B Refer to the list of compatible signals on page 63 for the types of RGB
signals which can be input to the projector by connecting a computer.
B Do not input the signal to the RGB2 IN/RGB OUT connector when the
RGB2 SELECT item in the OPTION menu is set to OUTPUT. (Refer to
page 46.)
Refer to the accessory CD-ROM for details on connecting the
projector to a personal computer by means of a wireless or wired
network using an optional wireless card or projector LAN card.
(PT-L780NTU only)
27
Setting-up
Projection methods
In way of installing projector, any one of the following four projection methods
are used. Select whichever projection method matches the setting-up
method. (The projection method can be set from the OPTION menu. Refer to
page 47 for details.)
DESK/CEILING
DESK
CEILING
FRONT
(Factory default setting)
FRONT/REAR
REAR
NOTE:
B You will need to purchase the separate ceiling bracket (ET-PK780) when
using the ceiling installation method.
Projector position
<Units: mm (inch)>
SH
Top edge of screen
L: Projection distance
SH: Image height
SW:Image width
Screen
L
SW
25(31/32)
Bottom edge of screen
28
L
Screen
Screen size (4:3)
Diagonal
length
1.01 m(40˝)
1.27 m(50˝)
1.52 m(60˝)
1.77 m(70˝)
2.03 m(80˝)
2.28 m(90˝)
2.54 m(100˝)
3.81 m(150˝)
5.08 m(200˝)
6.35 m(250˝)
7.62 m(300˝)
Preparation
Projection distances
Projection distance (L)
Height
(SH)
Width
(SW)
Wide
(LW)
0.61 m(2´)
0.76 m(2´6˝)
0.91 m(3´)
1.07 m(3´6˝)
1.22 m(4´)
1.37 m(4´6˝)
1.52 m(5´)
2.29 m(7´6˝)
3.05 m(10´)
3.81 m(12´6˝)
4.57 m(15´)
0.81 m(2´8˝)
1.02 m(3´4˝)
1.22 m(4´)
1.42 m(4´8˝)
1.63 m(5´4˝)
1.83 m(6´)
2.03 m(6´8˝)
3.05 m(10´)
4.06 m(13´4˝)
5.08 m(16´8˝)
6.10 m(20´)
1.6 m(5´2˝)
2.0 m(6´6˝)
2.4 m(7´10˝)
2.8 m(9´2˝)
3.2 m(10´5˝)
3.6 m(11´9˝)
4.0 m(13´1˝)
6.1 m(20´)
8.1 m(26´6˝)
10.1 m(33´1˝)
12.2 m(40´)
Telephoto
(LT)
2.0 m(6´6˝)
2.6 m(8´6˝)
3.1 m(10´2˝)
3.6 m(11´9˝)
4.2 m(13´9˝)
4.7 m(15´5˝)
5.3 m(17´4˝)
7.9 m(25´11˝)
10.6 m(34´9˝)
13.3 m(43´7˝)
16.0 m(52´5˝)
Setting-up dimensions which are not given in the above table can be
calculated using the formulas below.
If the screen size (diagonal) is SD (m), then the following formula is used to
calculate the projection distance for the wide lens position (LW) and the
projection distance for the telephoto lens position (LT).
LW=0.0407xSD/0.0254-0.080
LT=0.0538xSD/0.0254-0.0774
For 16:9 aspect ratios, the following formula can be used to calculate the
projection distance.
LW=0.0443xSD/0.0254-0.080
LT=0.0586xSD/0.0254-0.0774
R
NOTE:
B The dimensions in the table above and the values obtained from the
above formulas may contain slight errors.
B If you use the projection distance for the 16:9 screen, the
4:3 projection image overflows the screen at the top and
bottom.
B If you set up the projector vertically, it may cause to
damage the projector.
B It is recommended that you set up the projector in
a place that is tilted at less than ±35°. Setting up
the projector in places that are tilted at more than
±35° may cause malfunctions.
Make sure that enough space is kept for the air
outlet port.
29
Starting to use
Turning on the power
Please ensure that all preparations have been completed before turning on
the power. (Refer to pages 24 – 29.)
# Remove the lens cover.
$ Connect the accessory power cord.
% Press the MAIN POWER switch to
the “l” side to turn on the power.
The power indicator on the projector
will illuminate red.
& Press the POWER button.
The power indicator on the projector
will flash green. After a short period,
the indicator will illuminate green, and
a picture will be projected.
' Press the input select (RGB, VIDEO)
button to select the input signal.
The input signal selected will change
as shown at below each time an input
select button is pressed.
%
$
RGB INPUT
TEMP
LAMP
INPUT
POWER
AUTO SETUP VIDEO
RGB
SHUTTER
STANDBY(R)
ON(G)
–
FOCUS
+
–
ZOOM
+
MENU
RGB INPUT
–
ZOOM
+
MENU
TEMP
LAMP
AUTO SETUP VIDEO
RGB
SHUTTER
STANDBY(R)
ON(G)
+
LASER
ENTER
INPUT
FOCUS
RGB
VIDEO
PAGE
POWER
–
AUTO
POWER SETUP
AUTO
POWER SETUP
RGB
LASER
VIDEO
MENU
PAGE
MENU
ENTER
SD CARD
VIDEO
VIDEO
RGB
RGB
NETWORK
DVI
RGB3
S-VIDEO
VIDEO
RGB2
RGB1
( While pressing the adjuster buttons,
adjust the forward/back angle of tilt
of the projector.
To make fine adjustments to the angle of
tilt of the projector, turn the front
adjustable legs. (The front adjustable legs
will be locked if they are fully extended
and then turned anticlockwise. Turn them
back clockwise to release the lock.)
) Press the AUTO SETUP button to
initiate automatic positioning.
The automatic positioning is only for vertical
keystone distortion. To correct the
horizontal keystone distortion or when
keystone distortion has not been corrected
to the optimum level, carry out the keystone
correction as described on page 42.
30
RGB INPUT
LAMP
TEMP
INPUT
POWER
AUTO SETUP VIDEO
RGB
SHUTTER
STANDBY(R)
ON(G)
–
FOCUS
+
–
ZOOM
+
AUTO
POWER SETUP
RGB
LASER
VIDEO
MENU
PAGE
MENU
ENTER
*Press the FOCUS +/- or ZOOM
+/- buttons to adjust the
projected image focus and size.
The projected image focus can
also be adjusted by turning the
focus ring. To make fine
adjustments to the projected
image focus, use the FOCUS +/buttons.
RGB INPUT
LAMP
TEMP
INPUT
POWER
AUTO SETUP VIDEO
RGB
SHUTTER
STANDBY(R)
ON(G)
–
FOCUS
+
–
ZOOM
+
MENU
ENTER
Focus
# Press the POWER button. “Power
Power OFF
OFF” is displayed on the screen.
OK
CANCEL
$ Select “OK” using the I and H
buttons and press the ENTER button.
The lamp unit will switch off and the picture will stop being projected. (The
power indicator on the projector will illuminate orange.)
% Wait until the power indicator on the projector illuminates red (until
the cooling fan stops).
Do not in any way cut power to the projector while the cooling fan is still
operating. Be careful not to switch off the MAIN POWER switch of the
projector, unplug the power cord from the electrical outlet or turn off in-line
switches such as tabletop power switches.
& Press the MAIN POWER switch to the “O” side to turn off the power.
NOTE:
B After the power is turned off, the lamp unit will take some time to cool
down. If you turn the power back on again before the lamp unit has cooled
down, the lamp unit may not turn on straight away, but it will turn on
automatically after a short period. (During this time, the power indicator on
the projector will flash orange.)
B When the projector is in standby mode (the power indicator on the
projector is illuminated red), the projector will still draw a maximum 3.5 W
of power, even when the cooling fan has stopped.
B If the MAIN POWER switch is accidentally turned off while the projector is
being used, the lamp unit may not turn on straight away after the power is
turned back on. In such cases, the lamp unit will turn back on
automatically after a short period. (During this time, the power indicator on
the projector will flash green.)
B A tinkling sound may be heard while the power indicator is turned off, but
this is not a sign of a malfunction.
B You can also turn off the power by pressing the POWER button twice.
B When the WEB STANDBY is set to “ON”, the cooling fan operates and
the power indicator on the projector flashes slowly in red and the projector
draw a maximum 43 W of power. (page 47) (PT-L780NTU only)
31
Basic Operation
Turning off the power
On-screen menus
Menu screens
The various settings and adjustments for this projector can be carried out by
selecting the operations from on-screen menus.
The general arrangement of these menus is shown below.
PICTURE menu (page 38)
When an RGB/DVI signal is being
input
PICTURE MODE
COLOR TEMP.
BRIGHT
CONTRAST
SHARPNESS
WHITE BALANCE R
WHITE BALANCE G
WHITE BALANCE B
STANDARD
SELECT:[^][@]
ADJUST:[{][}]
STANDARD
STANDARD
32
32
6
32
32
32
ENTER:[ENTER]
ESC:[MENU]
When an S-VIDEO/VIDEO signal is
being input
PICTURE MODE
COLOR TEMP.
COLOR
TINT
BRIGHT
CONTRAST
SHARPNESS
NR
TV-SYSTEM
STANDARD
SELECT:[^][@]
ADJUST:[{][}]
STANDARD
STANDARD
32
32
32
32
2
1
When a YPBPR signal is being input
PICTURE MODE
COLOR TEMP.
COLOR
TINT
BRIGHT
CONTRAST
SHARPNESS
NR
STANDARD
SELECT:[^][@]
ADJUST:[{][}]
STANDARD
STANDARD
32
32
32
32
2
1
ENTER:[ENTER]
ESC:[MENU]
When the NETWORK/SD CARD is
selected (PT-L780NTU only)
PICTURE MODE
COLOR TEMP.
BRIGHT
CONTRAST
STANDARD
STANDARD
STANDARD
32
32
AUTO1
ENTER:[ENTER]
ESC:[MENU]
SELECT:[^][@]
ADJUST:[{][}]
ENTER:[ENTER]
ESC:[MENU]
NOTE:
B Keystone distortion of the on-screen display will not be corrected.
32
POSITION menu (page 41)
When an RGB/DVI signal is being
input
H:
32
16
H:
128
0
V:
TOP LEFT
OFF
ON
OFF
SELECT:[^][@]
ADJUST:[{][}]
V:
32
0
POSITION
POSITION
KEYSTONE
OSD POSITION
ASPECT
RESIZING
AUTO SETUP
STANDARD
H:
H:
32
V: 32
0
V:
0
TOP LEFT
4:3
OFF
ON
ON
ENTER:[ENTER]
ESC:[MENU]
SELECT:[^][@]
ADJUST:[{][}]
ENTER:[ENTER]
ESC:[MENU]
“POSITION”, “DOT CLOCK” and
“CLOCK PHASE” are not displayed
when a DVI signal is being input.
When an S-VIDEO/VIDEO signal is
being input
POSITION
POSITION
KEYSTONE
OSD POSITION
ASPECT
RESIZING
AUTO SETUP
STANDARD
SELECT:[^][@]
ADJUST:[{][}]
H:
H:
32
V: 16
0
V:
0
TOP LEFT
AUTO
OFF
ON
ENTER:[ENTER]
ESC:[MENU]
AUDIO menu (page 45)
AUDIO
VOLUME
MUTE
SELECT:[^][@]
ADJUST:[{][}]
When the NETWORK/SD CARD is
selected (PT-L780NTU only)
POSITION
KEYSTONE
OSD POSITION
AUTO SETUP
STANDARD
H:
SELECT:[^][@]
ADJUST:[{][}]
0
V:
TOP LEFT
0
ENTER:[ENTER]
ESC:[MENU]
LANGUAGE menu (page 45)
LANGUAGE
20
OFF
ON
ENTER:[ENTER]
ESC:[MENU]
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
ITALIANO
SELECT:[^][@][{][}]
ADJUST:[{][}]
ENTER:[ENTER]
ESC:[MENU]
33
Basic Operation
POSITION
POSITION
DOT CLOCK
CLOCK PHASE
KEYSTONE
OSD POSITION
RESIZING
AUTO SETUP
FRAME LOCK
STANDARD
When a YPBPR signal is being input
OPTION menu (page 46)
OPTION
SHUTTER
OSD
AUTO KEYSTONE
RGB/YPbPr
RGB2 SELECT
BACK COLOR
FRONT/REAR
DESK/CEILING
LAMP POWER
LAMP RUN TIME
NEXT PAGE @
SELECT:[^][@]
ADJUST:[{][}]
OFF
OFF
RGB
INPUT
BLUE
FRONT
DESK
LOW
ON
ON
YPbPr
OUTPUT
BLACK
REAR
CEILING
HIGH
10 H
ENTER:[ENTER]
ESC:[MENU]
OPTION
PREVIOUS PAGE ^
FAN CONTROL
WEB CONTROL
WEB STANDBY
WEB PASSWORD
CONTROL KEY
FUNC1
SET ID
AUTO POWER OFF
SELECT:[^][@]
ADJUST:[{][}]
STANDARD
OFF
OFF
HIGH
ON
ON
OFF
MUTE
ALL
DISABLE
ON
KEYSTONE
ENTER:[ENTER]
ESC:[MENU]
The RGB/YPbPr item is displayed
when an RGB/YPBPR signal is
being input.
“WEB CONTROL”, “WEB STANDBY”
and “WEB PASSWORD” are only
displayed for the PT-L780NTU.
NETWORK menu (page 49)
(PT-L780NTU only)
SD CARD menu (page 49)
(PT-L780NTU only)
NETWORK
STATUS
WEP
LAN1
KEY1
SELECT:[^][@]調整:[←][→]ENTER:[ENTER]
ESC:[MENU]
LENS menu (page 50)
LENS
ZOOM/FOCUS
LENS SELECT
SELECT:[^][@]
34
STANDARD
ENTER:[ENTER]実行:[ENTER]
ESC:[MENU]
SD CARD
AUTOPLAY
REPEAT
INTERVAL
SELECT:[^][@]
ADJUST:[{][}]
OFF
ON
1
5 sec
ENTER:[ENTER]
ESC:[MENU]
# Press the MENU button.
The menu screen will be
displayed.
PICTURE MODE
COLOR TEMP.
BRIGHT
CONTRAST
SHARPNESS
WHITE BALANCE R
WHITE BALANCE G
WHITE BALANCE B
STANDARD
STANDARD
STANDARD
32
32
6
32
32
32
& Select an item pressing the F
or G buttons.
POSITION
POSITION
DOT CLOCK
CLOCK PHASE
KEYSTONE
OSD POSITION
RESIZING
AUTO SETUP
FRAME LOCK
STANDARD
H: 128
V: 32
32
16
H:
0
V:
0
TOP LEFT
OFF
ON
OFF
SELECT:[^][@]
ADJUST:[{][}]
SELECT:[{][}]
ADJUST:[{][}]
ENTER:[ENTER]
ESC:[MENU]
$ Press the I or H arrow
buttons to select a menu.
The selected menu screen will
then be displayed.
(Example: POSITION menu)
H: 128
V: 32
32
16
H:
0
V:
0
TOP LEFT
OFF
ON
OFF
ON
SELECT:[{][}]ADJUST:[{][}]
ENTER:[ENTER]
ESC:[MENU]
%Press the ENTER button to
accept the selection.
You can select an item here. The
selected item is shown in yellow.
ENTER:[ENTER]
ESC:[MENU]
B
A
C
A For the value adjusting items
Press the ENTER button to
display an individual adjustment
screen.
POSITION
DOT CLOCK
POSITION
POSITION
DOT CLOCK
CLOCK PHASE
KEYSTONE
OSD POSITION
RESIZING
AUTO SETUP
FRAME LOCK
STANDARD
ON
H:
V:
128
32
32
Press the I or H buttons to
adjust the setting.
You can also adjust the bar-scale
items pressing the I or H
buttons in the menu screen.
Some items can be adjusted by
pressing the F or G buttons.
B For the selective items
RESIZING
OFF
ON
Select the setting by pressing the
I or H buttons.
C For the fixed items
Press the ENTER button, and the
function will work.
Returning to the
previous screen
Press the MENU button to return to
the previous screen.
35
Basic Operation
Menu operation guide
Returning a setting to
the factory default
Select the STANDARD from the
menu screen by pressing the F or
G buttons and then press the
ENTER button to return all items
displayed on the screen to their
factory default settings.
B When a menu screen is being
displayed
POSITION
POSITION
DOT CLOCK
CLOCK PHASE
KEYSTONE
OSD POSITION
RESIZING
AUTO SETUP
FRAME LOCK
STANDARD
SELECT:[^][@]
ADJUST:[{][}]
H:
32
16
H:
128
V:
0
V:
TOP LEFT
OFF
ON
OFF
32
0
ON
ENTER:[ENTER]
ESC:[MENU]
Using the freeze function
The picture will alternate between a still picture and a moving picture each
time the FREEZE button on the remote control unit is pressed.
Still picture
36
Moving picture
This function lets you enlarge the
picture.
# Press a D.ZOOM +/- button
& Press the MENU button to
return to the normal screen.
NOTE:
B This function can only be used
when using the remote control
unit.
B If the type of signal being input
changes while the digital zoom
function is being used, the digital
zoom function will be cancelled.
[
The picture will then be enlarged
to 1.5 times the normal size.
$Use the F, G, I and H buttons
to move the enlarged area
which you want to project.
% Use the D.ZOOM +/- buttons to
change the enlargement ratio.
The enlargement ratio can be
changed within the range of x1 to
x4, by 30 steps.
37
Basic Operation
Using the D.ZOOM (digital zoom)
function
Adjusting the picture
Select the item pressing the F or G
buttons on the remote control unit or
the projector.
Press the I or H buttons to set the
selective items. For the value
adjusting items, press the ENTER
button to display an individual
screen, and press the I or H
buttons to adjust the setting.
When an RGB/DVI signal is being
input
PICTURE MODE
COLOR TEMP.
BRIGHT
CONTRAST
SHARPNESS
WHITE BALANCE R
WHITE BALANCE G
WHITE BALANCE B
STANDARD
SELECT:[^][@]
ADJUST:[{][}]
STANDARD
STANDARD
32
32
6
32
32
32
When an S-VIDEO/VIDEO signal is
being input
PICTURE MODE
COLOR TEMP.
COLOR
TINT
BRIGHT
CONTRAST
SHARPNESS
NR
TV-SYSTEM
STANDARD
SELECT:[^][@]
ADJUST:[{][}]
STANDARD
STANDARD
32
32
32
32
2
1
AUTO1
ENTER:[ENTER]
ESC:[MENU]
When the NETWORK/SD CARD is
selected (PT-L780NTU only)
PICTURE MODE
COLOR TEMP.
BRIGHT
CONTRAST
STANDARD
STANDARD
STANDARD
32
32
ENTER:[ENTER]
ESC:[MENU]
When a YPBPR signal is being input
PICTURE MODE
COLOR TEMP.
COLOR
TINT
BRIGHT
CONTRAST
SHARPNESS
NR
STANDARD
SELECT:[^][@]
ADJUST:[{][}]
ENTER:[ENTER]
ESC:[MENU]
STANDARD
STANDARD
32
32
32
32
2
1
PICTURE MODE
STANDARD
DYNAMIC
NATURAL
SELECT:[^][@]
ADJUST:[{][}]
38
ENTER:[ENTER]
ESC:[MENU]
Select the picture mode that best
matches the image source and
room conditions.
The mode best used in dark rooms
is NATURAL. For rooms having
regular lighting conditions in use,
select STANDARD. For
exceptionally bright rooms, use
DYNAMIC.
STANDARD
HIGH
LOW
This is used to adjust the white
areas of the picture if they appear
bluish or reddish.
COLOR
(S-VIDEO/VIDEO/YPBPR only)
Press the H button to make the
color more vivid in tone, and press
the I button to make the color
more pastel in tone.
details softer.
Noise Reduction (NR)
(When S-VIDEO/VIDEO/YPBPR
signals are being input)
If the signal is of such poor quality
that picture interference appears, you
can suppress this interference by
adjusting the NR (Noise Reduction),
except for 750p (720p), HDTV60
(1080i/60) and HDTV50 (1080i/50)
signals. To strengthen the effect,
press the H button. To turn it off , set
to “0” by pressing the I button.
AUTO1
TINT
AUTO2
(NTSC/NTSC 4.43/YPBPR only)
This adjusts the flesh tones in the
picture. Press the H button to make
flesh tones more greenish, and
press the I button to make the
flesh tones more reddish.
NTSC
NTSC4.43
PAL
PAL-M
BRIGHT
PAL-N
This adjusts the darker areas (black
areas) in the picture. Press the H
button if dark areas are too solid (for
example, if hair is difficult to see), and
press the I button if black areas are
too light (grey rather than black).
SECAM
CONTRAST
This adjusts the contrast of the
picture. Press the H button to make
the picture brighter, and press the
I button to make the picture
darker. (Adjust the BRIGHT setting
first if required before adjusting the
CONTRAST setting.)
SHARPNESS
Press the H button to make the
picture details sharper, and press
the I button to make the picture
TV SYSTEM
(S-VIDEO/VIDEO only)
AUTO1 The projector automatically
distinguishes between NTSC/NTSC
4.43/PAL/PAL60/SECAM signals.
AUTO2 The projector automatically
distinguishes between NTSC/PALM/PAL-N signals.
NOTE:
B This should normally be set to
“AUTO1” or “AUTO2”. If the
signal is of such poor quality that
the correct format cannot be
automatically distinguished,
change the setting manually to
the required TV system.
39
Basic Operation
Color Hue Setting (color
temperature)
WHITE BALANCE R/G/B
(RGB only)
This is used to adjust the white
areas of the picture if they appear
colorised. Press the I button to
make the selected color lighter.
Press the H button to make the
selected color stronger.
Projecting sRGBcompatible pictures
sRGB is an international color
reproduction standard (IEC61966-21) established by the International
Electrotechnical Commission (IEC).
If you would like the colors in sRGBcompatible pictures to be
reproduced more faithfully, make
the following settings.
# Press the F or G button to
select “PICTURE MODE”, and
then use the I or H button to
select “NATURAL”.
$ Press the F or G button to
select “COLOR TEMP.”, and
then use the I or H button to
select “STANDARD”.
% Select the STANDARD from the
menu screen by pressing the
F or G buttons and then press
the ENTER button.
& Select the LAMP POWER item
in the OPTION menu by
pressing the F or G buttons
and set to “HIGH” by pressing
the I or H buttons. (pages 46
and 47)
NOTE:
B sRGB is only enabled when RGB
signals are being input .
40
Adjusting the position
Select the item pressing the F or G
buttons on the remote control unit or
the projector.
Press the I or H buttons, to adjust
the alternative items. For the
numerically adjustable items, press
the ENTER button to display an
individual screen, and press the I
or H buttons to adjust the setting.
Some items can be adjusted
pressing the F or G buttons.
When an RGB/DVI signal is being
input
POSITION
POSITION
DOT CLOCK
CLOCK PHASE
KEYSTONE
OSD POSITION
RESIZING
AUTO SETUP
FRAME LOCK
STANDARD
SELECT:[^][@]
ADJUST:[{][}]
H:
32
16
H:
128
V:
When an S-VIDEO/VIDEO signal is
being input
POSITION
POSITION
KEYSTONE
OSD POSITION
ASPECT
RESIZING
AUTO SETUP
STANDARD
H:
H:
SELECT:[^][@]
ADJUST:[{][}]
ENTER:[ENTER]
ESC:[MENU]
When a YPBPR signal is being input.
POSITION
POSITION
KEYSTONE
OSD POSITION
ASPECT
RESIZING
AUTO SETUP
STANDARD
H:
H:
OFF
32
V: 32
0
V:
0
TOP LEFT
4:3
OFF
ON
32
SELECT:[^][@]
ADJUST:[{][}]
0
V:
TOP LEFT
OFF
ON
32
V: 16
0
V:
0
TOP LEFT
AUTO
OFF
ON
ENTER:[ENTER]
ESC:[MENU]
0
ON
ENTER:[ENTER]
ESC:[MENU]
“POSITION”, “DOT CLOCK” and
“CLOCK PHASE” are not displayed
when a DVI signal is being input.
When the NETWORK/SD CARD is
selected (PT-L780NTU only)
POSITION
KEYSTONE
OSD POSITION
AUTO SETUP
STANDARD
SELECT:[^][@]
ADJUST:[{][}]
H:
0
V:
TOP LEFT
0
ENTER:[ENTER]
ESC:[MENU]
41
Basic Operation
When the input signal is RGB, first
press the AUTO SETUP button to
initiate automatic positioning.
If the optimum setting is not
obtained when AUTO SETUP is
carried out, adjust by the following
procedure.
POSITION
POSITION
H:
V:
128
32
Moves the picture position.
Press the I or H buttons to move the
picture horizontally.
Press the F or G buttons to move the
picture vertically.
DOT CLOCK
(RGB only)
Periodic striped pattern interference
(noise) may occur when a striped
pattern such as the one below is
projected. If this happens, use the
I and H buttons to adjust so that
any such noise is minimised.
CLOCK PHASE
(RGB only)
Adjust the DOT CLOCK setting first
before carrying out this adjustment.
Use the I and H buttons to adjust so
that the noise level is least noticeable.
NOTE:
B If signals with a dot clock frequency
of 140 MHz or higher are being input,
interference may not be completely
eliminated when the DOT CLOCK
and CLOCK PHASE adjustments are
carried out.
KEYSTONE
Before carrying out keystone correction,
1) adjust the forward/back angle of tilt of
the projector by pressing the adjuster
buttons and 2) press the AUTO SETUP
buttons to correct vertical keystone
distortion. (pages 30 and 31)
The vertical keystone distortion will
be automatically corrected by the
projector's automatic setup function
42
when using the standard lens.
However the horizontal distortion or
adjustment of the tilted screen needs
to be corrected manually by following
any of the procedures below.
KEYSTONE
H:
V:
condition
0
0
Operation
Press the F
button.
Press the G
button.
Press the I
button.
Press the H
button.
NOTE:
B If you press the AUTO SETUP button
after correcting the keystone distortion
manually, the automatic keystone
correction function will operate and the
corrected picture will return to its
previous incorrect condition. In addition,
if you change the input signal and press
the AUTO SETUP button, the keystone
correction may be cancelled depending
on the type of signal and the angle of tilt
of the projector. To prevent them from
happening, you can set “AUTO
KEYSTONE” in the OPTION menu
to “OFF”
B The greater the correction of keystone
distortion amount, the more the picture
OSD POSITION
Press the I or H buttons to move
the OSD position.
AUTO
(S-VIDEO only)
When an S1 video signal is input to
the S-VIDEO terminal, the aspect
ratio is changed automatically to
project a 16:9 picture.
4:3
The input signal is projected without
change.
16:9
The picture is compressed to a ratio
of 16:9 and projected.
[
When a
squeezed
signal is being
input. (The
projected
image is
contracted
vertically)
S4:3
The size of the input signal is
compressed to 75% and projected.
(This is useful for projecting a
picture with a 4:3 aspect ratio onto a
16:9 screen.)
ASPECT
This setting is only valid for an SVIDEO/VIDEO signal and a YPBPR
signal in 525i (480i), 525p (480p)
and 625i format.
AUTO
[
When a 4:3
signal is being
input
4:3
16:9
S4:3
43
Basic Operation
quality will deteriorate, and the harder it
will become to achieve a good level of
focus. To obtain the best picture quality,
set up the projector and screen in such
a way that the amount of keystone
correction required is as minimal as
possible.
B The picture size will also change
when correction of keystone
distortion is carried out.
B The range of keystone correction
varies depending on the type of
signal being input. If you make an
adjustment that is outside the
allowable range, the setting will not
be changed. In addition, if the input
signal changes after keystone
correction has been carried out, the
correction setting may be cancelled.
This indicates that the current
correction setting exceeds the
allowable range for the new input
signal.
B If you correct both vertical and
horizontal keystone distortion at the
same time, the allowable range of
keystone correction becomes
smaller. If you make an adjustment
that is outside the allowable range,
the setting will not be changed.
NOTE:
B S1 video signals
S1 video signals are a type of video
signal with an aspect ratio of 16:9
which include a detector signal. This
detector signal is output by some
sources such as wide-vision video
decks. If the AUTO setting above is
selected, this projector will recognise
the detector signal and automatically
switch the aspect ratio to 16:9 in
order to project the picture.
B This projector is equipped with an
aspect ratio selection function.
However, if a mode which does
not match the aspect ratio of the
input signal is selected, it may
affect the quality of viewing of the
original picture. Keep this in mind
when selecting the aspect ratio.
B If using this projector in places
such as cafes or hotels with the
aim of displaying programmes for
viewing for a commercial purpose
or for public presentation, note
that if the aspect ratio (16:9)
selection function is used to
change the aspect ratio of the
screen picture, you may be
infringing the rights of the original
copyright owner for that
programme under copyright
protection laws.
B If a normal (4:3) picture which
was not originally intended for
wide-screen viewing is projected
onto a wide screen, distortion
may occur around the edges of
the picture so that part of the
picture is no longer visible. Such
programmes should be viewed in
4:3 mode to give proper
consideration to the aims and
intentions of the original
programme’s creator.
44
BWhen a VGA60 or 525p RGB
signal is being input, select the
signal in accordance with the
input signal.
RESIZING
This should normally be set to “ON”.
(This setting is only for signals
which have lower resolutions than
the LCD panels. Refer to page 63
for details.)
ON
The pixel resolution of the input
signal is converted to the same
resolution as the LCD panels before
being projected. For signals with
lower resolutions, gaps in the pixels
are automatically interpolated into
the picture before it is projected.
This may sometimes cause
problems with the quality of the
picture.
OFF
The picture signal is projected at its
original resolution, with no pixel
conversion. The projected picture
will be smaller than normal, so
adjust the zoom setting or move the
projector forwards or backwards to
adjust the picture size if necessary.
If set to “OFF”, some features, such
as D.ZOOM (digital zoom) or
keystone distortion correction will
not function.
AUTO SETUP
This item functions in the same way
as the AUTO SETUP button on the
remote control unit. (page 16)
FRAME LOCK
If the picture’s condition is bad while
a RGB moving picture signal is
projected, set the FRAME LOCK to
“ON”. Refer to page 63 on
compatible RGB signals.
Audio adjustment
AUDIO
VOLUME
MUTE
20
OFF
SELECT:[^][@]
ADJUST:[{][}]
ON
VOLUME
Press the I or H buttons to adjust
the volume of the sound output by
the projector’s built-in speakers.
MUTE
Set the MUTE to “ON” pressing the
I or H buttons to turn off the
volume of the sound output.
To release muting, set to “OFF”
pressing the I or H buttons.
ENTER:[ENTER]
ESC:[MENU]
Changing the display language
Use the F and G buttons on the projector or remote control unit to select a
language, then press the MENU button to accept the setting.
LANGUAGE
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
ITALIANO
SELECT:[^][@][{][}]
ADJUST:[{][}]
ENTER:[ENTER]
ESC:[MENU]
45
Basic Operation
Select the items by pressing the F
or G buttons on the remote control
unit or the projector.
Option settings
Select the item pressing the F or G
buttons on the remote control unit or
the projector.
Press the I or H buttons to adjust
the selective items. To make the
SHUTTER or WEB PASSWORD
(PT-L780NTU only) functions work,
press the ENTER button.
OPTION
SHUTTER
OSD
AUTO KEYSTONE
RGB/YPbPr
RGB2 SELECT
BACK COLOR
FRONT/REAR
DESK/CEILING
LAMP POWER
LAMP RUN TIME
NEXT PAGE @
SELECT:[^][@]
ADJUST:[{][}]
OPTION
PREVIOUS PAGE ^
FAN CONTROL
WEB CONTROL
WEB STANDBY
WEB PASSWORD
CONTROL KEY
FUNC1
SET ID
AUTO POWER OFF
SELECT:[^][@]
ADJUST:[{][}]
ON
The current input name is displayed
in the top-right corner of the screen
when the input signal is changed.
OFF
Use this setting when you do not want
the current input name to be displayed.
AUTO KEYSTONE
OFF
OFF
RGB
INPUT
BLUE
FRONT
DESK
LOW
ON
ON
YPbPr
OUTPUT
BLACK
REAR
CEILING
HIGH
10 H
ENTER:[ENTER]
ESC:[MENU]
STANDARD
OFF
OFF
HIGH
ON
ON
OFF
MUTE
ALL
DISABLE
ON
KEYSTONE
ENTER:[ENTER]
ESC:[MENU]
SHUTTER
The shutter function can be used to
momentarily turn off the picture and
sound from the projector when the
projector is not being used for short
periods of time, such as during
breaks in meetings or when carrying
out preparation. The projector uses
less power in shutter mode than it
does in normal projection mode.
46
OSD
This should normally be set to ON.
ON
During automatic setup, the angle of
tilt of the projector is detected and
vertical keystone distortion is
corrected automatically.
OFF
Use this setting when you do not
want automatic keystone correction
to be carried out during automatic
setup, such as when the screen
itself is at an angle.
RGB/YPbPr
This setting is valid when 750p,
HDTV60, HDTV50, 525p, 625i and
525i signals are being input. Select
the setting in accordance with the
input signal.
The RGB/YPbPr item is displayed
when an RGB1 IN, RGB2 IN or
RGB 3 IN connectors has a signal
being input.
RGB2 SELECT
This setting is used to select the
function of the RGB2 IN/RGB OUT
connector.
The selected input source (RGB1 or
RGB3) is output when RGB OUT is
selected.
This sets the colour which is
projected onto the screen when no
signal is being input to the projector.
FRONT/REAR
This setting should be changed in
accordance with the projector
setting-up method.
Set to “FRONT” when using a
normal reflective screen with the
projector positioned in front of the
screen, and set to “REAR” when
using a translucent screen with the
projector positioned behind the
screen.
DESK/CEILING
This setting should be changed in
accordance with the projector
setting-up method.
Set to “DESK” when setting up the
projector on a desk or similar, and
set to “CEILING” when suspending
the projector from the ceiling using
the ceiling bracket which is sold
separately.
LAMP POWER
This setting changes the lamp
brightness. When set to “LOW”, the
luminance of the lamp is reduced, but
the projector uses less power, and
the operating noise is also reduced.
This can help to extend the lamp’s
operating life. If using the projector in
small rooms where high luminance is
not required, it is recommended that
you set the LAMP POWER to “LOW”.
for the lamp unit will be reset to
zero.
NOTE:
B The lamp’s operating life varies
depending on the usage conditions
(such as the LAMP POWER
setting and the number of times
the power is turned on and off).
FAN CONTROL
If using of this projector at high
elevations (above 1 400 m), set the
FAN CONTROL to “HIGH”.
WEB CONTROL
(PT-L780NTU only)
To control the projector with a
personal computer by means of a
wireless or wired network using an
optional wireless or projector LAN
card, set WEB CONTROL to “ON”.
To prevent it, set to “OFF”.
WEB STANDBY
(PT-L780NTU only)
To turn on and off the power with a
personal computer by means of a
wireless or wired network using an
optional wireless or projector LAN
card, set the WEB STANDBY to
“ON”.
When the WEB STANDBY is set to
“ON”, the cooling fan operates and
the power indicator on the projector
flashes slowly in red.
LAMP RUN TIME
This setting displays the usage time
for the lamp unit which is currently
being used. If the lamp unit is
replaced in the way described on
page 64, the cumulative usage time
47
Advanced
Advanced Operation
Operation
BACK COLOR
WEB PASSWORD
(PT-L780NTU only)
You can set the password for
controlling the projector with a
personal computer by means of a
wireless or wired network using an
optional wireless or projector LAN
card. Use the F or G buttons to
change the characters, and use the
I or H buttons to change the
character position. When finished,
press the ENTER button. The
projector comes from the factory
without any password.
If password setting is complete, the
password will not be displayed on
the WEB PASSWORD screen.
When you forget it, set it again from
the beginning.
CONTROL KEY
To make the buttons on the
projector not function, set the
CONTROL KEY to “OFF”.
To use the buttons on the projector,
set to ON. (page 16)
FUNC 1
This assigns a function to the FUNC1
button of the remote control unit .
MUTE
B Functions in the same way as the
MUTE function. (page 45)
KEYSTONE
B Functions in the same way as
when “KEYSTONE” is selected
from the POSITION menu
screen. (page 42)
SET ID
UNIT ID is used to set projector IDs
to control two or more projectors
either simultaneously or separately.
48
“ALL”: The projectors can be
simultaneously controlled from
any remote control unit
regardless of their ID settings.
“1”: The projector can be controlled
from the remote control unit
with its projector ID set to “1”.
“2”: The projector can be controlled
from the remote control unit
with its projector ID set to “2”.
“3”: The projector can be controlled
from the remote control unit
with its projector ID set to “3”.
A L L [
1 [
2 [
3 SET ID
NOTE:
UNIT ID is set to “ALL “ by default.
Hence ID number need not be set
when only one projector is used.
If the projectors are given ID
numbers, their remote control units
must be assigned the same ID
numbers, respectively.
If the UNIT ID s of two or more
projectors are set to “ALL”, the user
will not be able to control them
separately.
The projector can be turned ON/OFF
from the remote control unit only if the
projector ID is set in the remote
control unit. For the details of
projector ID setting, see page 23.
AUTO POWER OFF
If any signal is not input into the
projector during the time that you set
up, the projector will return to standby
mode. The auto power off time can
be set to, from 15 minutes to 60
minutes, by 5 minutes. If you don't
use this feature, set it to “OFF”.
This feature will not function under
the following situation.
1) When the NETWORK or SD
CARD is selected (PT-L780NTU
only).
2) When using the freeze function.
3) When writing the data in the SD
memory card (PT-L780NTU
only).
NOTE:
While projector is connected to a
personal computer by means of a
wireless or wired network using an
optional wireless card or projector
LAN card with the WEB STANDBY
set to “ON”, the cooling fan operates
and the power indicator on the
projector flashes slowly in red.
(Refer to page 47)
NETWORK SETUP (PT-L780NTU only)
You need make adjustment on some items when controlling the projector
with a personal computer by means of the wireless or wired network, using
an optional wireless card or projector LAN card. Refer to the accessory CDROM for details.
STATUS
This setting is used to adjust the
LAN to control the projector by
means of the wireless or wired
network.
LAN1
KEY1
WEP
SELECT:[^][@]調整:[←][→]ENTER:[ENTER]
ESC:[MENU]
This setting is for encrypting data
transmitted by means of the
wireless network. (This item will not
be displayed when an optional
projector LAN card is used.)
SD CARD SETUP (PT-L780NTU only)
The following settings are used when projecting the pictures recorded in the
SD memory card. Refer to the accessory CD-ROM for details.
AUTO PLAY
SD CARD
AUTOPLAY
REPEAT
INTERVAL
OFF
ON
1
5 sec
Plays the pictures recorded in the
SD memory card automatically.
REPEAT
This setting is for adjusting the
times of the auto play.
INTERVAL
SELECT:[^][@]
ADJUST:[{][}]
ENTER:[ENTER]
ESC:[MENU]
This setting is adjusting the interval
of the auto play.
49
Advanced Operation
NETWORK
STATUS
WEP
Lens adjustment
Select an item by pressing the F or G buttons on the remote control unit or
the projector.
LENS SELECT
LENS
ZOOM/FOCUS
LENS SELECT
SELECT:[^][@]
STANDARD
ENTER:[ENTER]実行:[ENTER]
ESC:[MENU]
Zoom/Focus adjustment
Press the ENTER button to display
the individual adjustment screen.
←→ZOOM ↑↓FOCUS
Press the I or H buttons to adjust
the projected image size.
Press the F or G buttons to adjust
the projected image focus.
The projected image focus or zoom
can also be adjusted by pressing
the FOCUS +/- or ZOOM +/- buttons
on the projector. To make fine
adjustments to the projected image
focus, use the FOCUS +/- buttons.
50
Change the setting in accordance
with the type of projection lens (sold
separately) by pressing the I or H
buttons.
STANDARD
For standard projection
LONG FOCUS
For long-distance projection
(ET-LE30)
MIDDLE FOCUS
For medium-distance projection
(ET-LE20)
SHORT FOCUS
For short-distance projection
(ET-LE10)
Projection lens replacement
By replacing the projection lens with a lens that is sold separately, you can
change the projection distance.
Removing the lens
#Turn the projection lens
anticlockwise until it is in
position.
$While pressing the lens
release button, turn the
projection lens anticlockwise
again.
%Remove the projection lens.
#
$
%
Installing the lens
#
Signal connection
Projection
Groove
#Insert the other projection
lens (sold separately) as far
as it will go, while matching
the projection to the groove.
$Turn the projection lens
clockwise until a click is
heard.
Advanced Operation
$
NOTE:
B When replacing a projection lens, make sure that the power is off (the
Power indicator illuminates green).
B Do not touch the signal connection. If any dust or lint gets onto the signal
connection, the electrical contact may become poor.
B Do not touch the surface of the lens with your bare hands.
B Store the replaced projection lens away carefully to avoid subjecting it to
excessive vibration or shock.
51
Projection distance for each projection lens
(sold separately)
Projector position
<Units: mm (inch)>
SH
Top edge of screen
L: Projection distance
SH: Image height
SW:Image width
Screen
L
SW
25 mm
Bottom edge of screen
L
Screen
ET-LE10 (for short-distance projection)
Screen size (4:3)
Diagonal
Height (SH)
length
1.01 m(40˝)
1.27 m(50˝)
1.52 m(60˝)
1.77 m(70˝)
2.03 m(80˝)
2.28 m(90˝)
2.54 m(100˝)
3.81 m(150˝)
5.08 m(200˝)
6.35 m(250˝)
7.62 m(300˝)
52
0.61 m(2´)
0.76 m(2´6˝)
0.91 m(3´)
1.07 m(3´6˝)
1.22 m(4´)
1.37 m(4´6˝)
1.52 m(5´)
2.29 m(7´6˝)
3.05 m(10´)
3.81 m(12´6˝)
4.57 m(15´)
Projection distance (L)
Width
(SW)
0.81 m(2´8˝)
1.02 m(3´4˝)
1.22 m(4´)
1.42 m(4´8˝)
1.63 m(5´4˝)
1.83 m(6´)
2.03 m(6´8˝)
3.05 m(10´)
4.06 m(13´4˝)
5.08 m(16´8˝)
6.10 m(20´)
Wide
(LW)
Telephoto
(LT)
1.1 m(3´7˝)
1.3 m(4´3˝)
1.3 m(4´3˝)
1.7 m(5´6˝)
1.6 m(5´2˝)
2.0 m(6´6˝)
1.9 m(6´2˝)
2.4 m(7´10˝)
2.2 m(7´2˝)
2.7 m(8´10˝)
2.4 m(7´10˝)
3.1 m(10´2˝)
2.7 m(8´10˝)
3.5 m(11´5˝)
4.0 m(13´1˝)
5.3 m(17´4˝)
5.4 m(17´8˝) 7.0 m(22´11˝)
6.7 m(21´11˝) 8.8 m(28´10˝)
8.1 m(26´6˝) 10.6 m(34´9˝)
ET-LE20 (for medium-distance projection)
Screen size (4:3)
Diagonal
Height (SH)
length
1.01 m(40˝)
1.27 m(50˝)
1.52 m(60˝)
1.77 m(70˝)
2.03 m(80˝)
2.28 m(90˝)
2.54 m(100˝)
3.81 m(150˝)
5.08 m(200˝)
6.35 m(250˝)
7.62 m(300˝)
0.61 m(2´)
0.76 m(2´6˝)
0.91 m(3´)
1.07 m(3´6˝)
1.22 m(4´)
1.37 m(4´6˝)
1.52 m(5´)
2.29 m(7´6˝)
3.05 m(10´)
3.81 m(12´6˝)
4.57 m(15´)
Projection distance (L)
Width
(SW)
Wide
(LW)
Telephoto
(LT)
0.81 m(2´8˝)
1.02 m(3´4˝)
1.22 m(4´)
1.42 m(4´8˝)
1.63 m(5´4˝)
1.83 m(6´)
2.03 m(6´8˝)
3.05 m(10´)
4.06 m(13´4˝)
5.08 m(16´8˝)
6.10 m(20´)
2.1 m(6´10˝)
2.7 m(8´10˝)
3.2 m(10´5˝)
3.8 m(12´5˝)
4.3 m(14´1˝)
4.9 m(16´)
5.4 m(17´8˝)
8.2 m(26´10˝)
11.0 m(36´10˝)
13.8 m(45´3˝)
16.5 m(54´1˝)
3.3 m(10´9˝)
4.2 m(13´9˝)
5.0 m(16´4˝)
5.9 m(19´4˝)
6.8 m(22´3˝)
7.7 m(25´3˝)
8.5 m(27´10˝)
12.9 m(42´3˝)
17.2 m(56´5˝)
21.6 m(70´10˝)
26.0 m(85´3˝)
ET-LE30 (for long-distance projection)
Diagonal
Height (SH)
length
1.01 m(40˝)
1.27 m(50˝)
1.52 m(60˝)
1.77 m(70˝)
2.03 m(80˝)
2.28 m(90˝)
2.54 m(100˝)
3.81 m(150˝)
5.08 m(200˝)
6.35 m(250˝)
7.62 m(300˝)
0.61 m(2´)
0.76 m(2´6˝)
0.91 m(3´)
1.07 m(3´6˝)
1.22 m(4´)
1.37 m(4´6˝)
1.52 m(5´)
2.29 m(7´6˝)
3.05 m(10´)
3.81 m(12´6˝)
4.57 m(15´)
Projection distance (L)
Width
(SW)
Wide
(LW)
0.81 m(2´8˝)
3.4 m(11´1˝)
1.02 m(3´4˝)
4.2 m(13´9˝)
1.22 m(4´)
5.0 m(16´4˝)
1.42 m(4´8˝)
5.8 m(19´)
1.63 m(5´4˝)
6.6 m(21´7˝)
1.83 m(6´)
7.4 m(24´3˝)
2.03 m(6´8˝)
8.2 m(26´10˝)
3.05 m(10´)
12.2 m(40´)
4.06 m(13´4˝) 16.3 m(53´5˝)
5.08 m(16´8˝) 20.4 m(66´11˝)
6.10 m(20´)
24.4 m(80´)
Advanced Operation
Screen size (4:3)
Telephoto
(LT)
4.6 m(15´1˝)
5.8 m(19´)
6.9 m(22´7˝)
8.1 m(26´6˝)
9.2 m(30´2˝)
10.4 m(34´1˝)
11.5 m(37´8˝)
17.3 m(56´9˝)
23.0 m(75´5˝)
28.7 m(94´1˝)
34.5 m(113´2˝)
53
Setting-up dimensions which are not given in the table can be calculated
using the formulas below.
If the screen size (diagonal) is SD (m), then the following formula is used to
calculate the projection distance for the wide lens position (LW) and the
projection distance for the telephoto lens position (LT).
Model No. of projection lens Aspect ratio Methods of calculation of Projection distance (L) Unit: mm
LW=0.027xSD/0.0254-0.0523
4:3
LT=0.0355xSD/0.0254-0.0509
ET-LE10
(1.3-1.7:1)
LW=0.0294xSD/0.254-0.0523
16:9
LT=0.0387xSD/0.0254-0.0509
Zoom lens
ET-LE20
(2.6-4.2:1)
ET-LE30
(4.0-5.6:1)
4:3
LW=0.0554xSD/0.0254-0.134
LT=0.0871xSD/0.0254-0.136
16:9
LW=0.0604xSD/0.0254-0.134
LT=0.0949xSD/0.0254-0.136
4:3
LW=0.0809xSD/0.0254+0.104
LT=0.1147xSD/0.0254+0.096
16:9
LW=0.0881xSD/0.0254+0.104
LT=0.1250xSD/0.0254+0.096
Slot cover replacement
When connecting the projector to a personal computer using an optional
projector LAN card, replace the slot cover with the accessory projector LAN
card slot cover.
Removing the slot cover
$
#
#Remove the hooks from the holes
of the projector.
$Lift up the slot cover to remove it.
Installing the slot cover
#Insert one of the hooks of the slot
cover (for projector LAN card) into
the mounting hole in the projector.
$Insert the other hook of the slot
cover into the other mounting hole
in the projector.
54
Putting the power cord and
remote control unit away
Installing the cable cover
Remote control unit
(Infrared emitter)
Hook1
Hook2
#Put the remote control unit
into the cable cover with the
buttons facing downward to
prevent them from being
pressed.
$
$Put the power cords and
other cords into the cable
cover.
%
%Put the Velcro through the
hole, and tape it to prevent
the cords from dropping out.
Velcro
˛'
3 pt
˛'
(
&
&Insert the hook 1 of the cable
cover into the mounting hole
in the projector.
'Push in the hook 2 until it
locks into place.
(Tighten the screw by turning it
clockwise.
Removing the cable cover
˛$
˛$
#
%
#Loosen the screw by turning it
anticlockwise.
$Release the two hooks at the
top of the cable cover.
%Pull the cable cover to the
rear to remove it from the
projector.
NOTE:
Do not lift up the projector by holding the cable, otherwise the cable
cover might come off.
55
Advanced Operation
#
Using the cable cover
When installing the projector to the ceiling, the accessory cable cover can be
used to cover the terminals or cords after removing the cut-away parts.
#Use pliers or similar to break the
'Tighten the screw by turning it
perforated sections of the cutclockwise.
away parts.
Screw
Perforated sections
$Work the cut-away parts back and
forth several times to break the
fixing tabs. Smooth off any jagged
edges if necessary.
Refer to page 55 for details on
removing the cable cover.
Hook2
Hook1
Fixing tabs Fixing tabs
%Pass the power cord through cutaway part S, and pass the other
cables through cut-away part L,
and then insert the tabs of the
cable cover into the mounting
holes in the projector.
&Push hook 2 until it locks into
place.
Cut-away part S
Cut-away
part L
56
NOTE:
Do not cover the air inlet ports when
using the cable cover as stated
above.
Do not place any heavy objects on
the cable cover to prevent it from
being removed.
Do not bend the cables greatly,
otherwise it will be difficult to attach
the cable cover.
Remove the cable cover when
cleaning or replacing the air filter.
Using the remote terminal
Using the remote terminal built into this projector, it is possible to operate the
projector from an external location from where infrared remote control signals
cannot be received, by using a remote control panel.
Pin assignment and control
6
9
1
5
D-Sub 9-pin (female)
external appearance
Pin
#
$
%
&
'
(
)
*
+
Signal Name
GND
POWER
INPUT SEL3
INPUT SEL1
INPUT SEL2
ENABLE
Description
Ground
Power ON
Input signal select3
NC
Input signal select1
Input signal select2
NC
NC
Enables remote terminal control
Short pin 1 and pin 9 when controlling.
Pin No.
$-#
Lamp
Advanced Operation
#Power ON/OFF
Setting
Open
OFF (standby)
Short
ON
$Switching the input mode
Pin No.
%-#
'-#
(-#
Input Signal
Open
Open
Open
RGB1
Open
Short
Open
RGB2
Setting
Short
Short
Open
Open
Short
Open
RGB3
VIDEO
Short
Short
Open
S-VIDEO
Open
Open
Short
DVI
NOTE:
B The POWER, RGB and VIDEO buttons on the remote control unit and
projector will not operate when pins 1 and 9 are shorted. RS-232C
commands will also be ignored. If the projector is connecting a personal
computer using an optional wireless card or LAN card, the “POWER” or
“SWITCH INPUT MODE” will not function.
B Do not short pins. 1, 2, 3, 5, or 6 when pin 9 is open. If this is done, the
projector will ignore signals from the remote control unit.
57
Using the SERIAL connector
The serial connector which is on the side connector panel of the projector
conforms to the RS-232C interface specification, so that the projector can be
controlled by a personal computer which is connected to this connector.
Connection
Communications settings
Computer
SERIAL(female)
D-Sub9p (male)
Communication cable
Signal level
Sync. method
Baud rate
Parity
Character length
Stop bit
X parameter
S parameter
RS-232C
Asynchronous
9600 bps
None
8 bits
1 bit
None
None
NOTE:
B Use a proper communication
cable which is suitable for the
personal computer to connect the
serial connector and the personal
computer.
Basic format
Pin layout and signal
names for SERIAL
connector
STX Command : Parameter ETX
6
1
9
5
D-SUB 9-pin connector seen from
outside
Pin Signal
Contents
No. name
#
NC
$
TXD Transmitted data
%
RXD Received data
&
NC
'
GND
(
DSR
)
CTS Connected internally
*
RTS
+
NC
58
The data sent from the computer to
the projector is transmitted in the
format shown below.
Start byte
1 byte
End byte
(02h)
3 bytes 1 byte–5 bytes (03h)
NOTE:
B The projector can not receive the
command for 10 seconds after
the lamp is switched on. Wait 10
seconds before sending the
command.
B If sending multiple commands,
check that a response has been
received from the projector for
one command before sending the
next command.
B When a command which does
not require parameters is sent,
the colon (:) is not required.
B If an incorrect command is sent
from the personal computer, the
“ER401” command will be sent
from the projector to the personal
computer.
Control commands
The commands which the personal computer can use to control the projector
are shown in the following table.
Control
Contents
PON
Power ON
POF
Power OFF
AVL
Volume
IIS
Q$S
Remarks
In standby mode, all commands other than
the PON command are ignored.
B The PON command is ignored during
lamp ON control.
B If a PON command is received while the
cooling fan is operating after the lamp
has switched off, the lamp is not turned
back on again straight away, in order to
protect the lamp.
Parameter
000–063(Adjustment value 0–63)
Parameter
VID=VIDEO
SVD=S-VIDEO
RG1=RGB1(YPBPR1) RG2=RGB2(YPBPR2)
RG3=RGB3
DVI=DVI
NWP=NETWORK (PT-L780NTU only)
SDC=SD CARD (PT-L780NTU only)
Parameter
0 = Standby
1 = Lamp ON control active
2 = Lamp ON
3 = Lamp OFF control active
Input signal
selection
Lamp ON
condition query
Cable specifications
(When connected to a personal computer)
At the projector
1
NC
At the computer
(DTE specifications)
NC
3
3
4
NC
NC
4
5
5
6
1
2
2
NC
NC
6
7
7
8
8
9
NC
NC
9
59
Advanced Operation
Command
Indicators
There are two indicators on the control panel of the projector which give
information about the operating condition of the projector. These indicators
illuminate or flash to warn you about problems that have occurred inside the
projector, so if you notice that one of the indicators is on, turn off the power
and check the table below for the cause of the problem.
TEMP indicator
Indicator
display
Problem
Illuminated (red)
(Lamp unit on)
The surrounding
temperature or the
temperature inside
the projector has
become unusually
high.
Flashing (red)
(Lamp unit on)
Flashing (red)
(Lamp unit off)
The temperature
inside the projector
has become
dangerously high, or
the temperature has
suddenly changed.
The surrounding
temperature or the
temperature inside
the projector has
become dangerously
high, causing the
lamp unit to be
automatically shut
off.
B The ventilation holes may be covered.
Possible B The ambient temperature in the place of use may be too high.
cause B The air filter may be blocked.
B Uncover the ventilation holes.
B Set up the projector in a place where the temperature is
between 0 °C (32 °F) and 40 °C (104 °F) and the humidity is
between 20% and 80% (with no condensation). [If you set the
FAN CONTROL to “HIGH” (page 47), set up the projector in a
Remedy
place where the temperature is between 0 °C (32 °F) and 35 °C
(95 °F) and the humidity is between 20% and 80% (with no
condensation).]
B Turn off the MAIN POWER switch by following the procedure
on page 31, and then clean the air filter (refer to page 64).
60
LAMP indicator
Indicator
display
Illuminated (red)
It is nearly time to
Problem replace the lamp
unit.
Flashing (red)
An abnormality has been detected in the lamp
circuit.
B Does “REPLACE B The power may
B There may be an
LAMP” appear on
have been turned
abnormality in the
Possible
the screen after
on straight away
lamp circuit.
cause
the projector is
after it was turned
turned on?
off.
B Turn off the MAIN
B This occurs when B Wait for a while
the operation time
until the lamp unit
POWER switch by
for the lamp unit is
cools down before
following the
nearing 1 300
turning the power
procedure given
hours. (when
back on again.
on page 31, and
LAMP POWER
then contact an
has
been
set
to
Authorised
Remedy
“HIGH”) Ask your
Service Center.
dealer or an
Authorised
Service Center to
replace the lamp
unit.
Others
NOTE:
B Be sure to turn off the MAIN POWER switch by following the procedure
given in “Turning off the power” on page 31 before carrying out any of the
procedures in the “Remedy” column.
B If the main power turns off after the TEMP indicator starts flashing, it
means that an abnormality has occurred. Please contact an Authorised
Service Center so that the necessary repairs can be made.
61
About the automatic setup function
If you press the AUTO SETUP button, the items given in the table below will
be set automatically. The setting details change according to the signal
which is being input. Refer to the table below for details.
Horizontal/
vertical
position
Dot clock/
clock phase
VIDEO/S-VIDEO/
NETWORK/SD CARD
YPBPR
DVI
Dot Clock
frequency
is 140 MHz
or higher
Signal other
than above
Automatic
vertical
keystone
correction
Yes
Yes
Yes
Yes
No
Yes
Yes
NOTE:
B If the edges of the projected picture are indistinct, or if a dark picture is being
projected, the automatic setup processing may stop automatically before it is
complete. If this happens, project a different picture and then press the AUTO
SETUP button once more, or make the above adjustments manually.
B If you would like to make further adjustments to the picture, use the menu
commands which are listed on page 32 and subsequent pages.
62
List of compatible signals
NTSC/NTSC4.43/
PAL-M/PAL60
PAL/PAL-N/SECAM
525i
625i
525p
HDTV60
HDTV50
750P
VESA70
VESA85
VGA60 *4
VGA65
VGA72
VGA75
VGA85
SVGA55
SVGA60 *4
SVGA70
SVGA75
SVGA85
MAC16
XGA60 *4
XGA70
XGA75
XGA85
XGA85i
MXGA70
MXGA75
MXGA85
MAC21
MSXGA60 *4
SXGA60 *4
SXGA75
SXGA85
SXGA60+ *4
UXGA60 *4
Scanning
frequency
H
V
(kHz) (Hz)
720 x 480i
15.734
59.940
720 x 576i
720 x 480i
720 x 576i
720 x 483
1 920 x 1 080i
1 920 x 1 080i
1 280 x 720
640 x 400
640 x 400
640 x 480
640 x 480
640 x 480
640 x 480
640 x 480
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
832 x 624
1 024 x 768
1 024 x 768
1 024 x 768
1 024 x 768
1 024 x 768i
1 152 x 864
1 152 x 864
1 152 x 864
1 152 x 870
1 280 x 960
1 280 x 1 024
1 280 x 1 024
1 280 x 1 024
1 400 x 1 050
1 600 x 1 200
15.625
15.734
15.625
31.469
33.750
28.125
45.000
31.469
37.861
31.469
35.000
37.861
37.500
43.269
35.156
37.879
48.077
46.875
53.674
49.725
48.363
56.476
60.023
68.678
35.520
63.995
67.500
76.705
68.681
60.000
63.981
79.977
91.146
63.981
75.000
50.000
59.940
50.000
59.940
60.000
50.000
60.000
70.086
85.081
59.940
66.667
72.809
75.000
85.008
56.250
60.317
72.188
75.000
85.061
74.550
60.004
70.069
75.029
84.997
86.952
71.184
74.917
85.038
75.062
60.000
60.020
75.025
85.024
60.020
60.000
Dot clock
frequency
Resizing*3
quality*2
(MHz)
13.500
13.500
27.000
74.250
74.250
74.250
25.175
31.500
25.175
30.240
31.500
31.500
36.000
36.000
40.000
50.000
49.500
56.250
57.283
65.000
75.000
78.750
94.500
44.897
94.200
108.000
121.500
100.000
108.000
108.000
135.001
157.500
108.000
162.000
Format
A
OK
Video/S-Video
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
AA
AA
AA
AA
AA
A
A
A
A
A
A
A
B
A
B
OK
OK
OK
OK
Video/S-Video
YPBPR/RGB
YPBPR/RGB
YPBPR/RGB
YPBPR/RGB
YPBPR/RGB
YPBPR/RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
*1 The “i” appearing after the resolution indicates an interlaced signal.
*2 The following symbols are used to indicate picture quality.
AA Maximum picture quality can be obtained.
A Signals are converted by the image processing circuit before picture
is projected
B Some loss of data occurs to make projection easier.
*3 Signals with “OK” in the Resizing column can be set using the RESIZING
command in the PICTURE menu. (Refer to page 44.)
*4 Signals that are compatible with the FRAME LOCK function. (page 44.)
DVI signal is compatible only with VGA60, SVGA60, XGA60 and SXGA60.
63
Others
Mode
Display
resolution
(dots)*1
Cleaning and replacing the air filter
If the air filter becomes clogged with dust, the internal temperature of the
projector will rise, the TEMP indicator will flash and the projector power will
turn off. The air filter should be cleaned every 100 hours of use,
depending on the location where the projector is being used.
Cleaning procedure
# Turn off the MAIN POWER
switch and disconnect the
power cord plug from the
mains socket.
Turn off the MAIN POWER switch
according to the procedure given
in “Turning off the power” on
page 31 before disconnecting the
plug from the mains socket.
$ Gently turn the projector
upside down.
NOTE:
B Place the projector on top of a
soft cloth so that it will not
become scratched.
% Remove the air filter.
Put your fingernails under the air
filter and pull the air filter out of
the projector.
Air filter
64
& Clean the air filter.
Use a vacuum cleaner to clean
off any accumulated dust.
NOTE:
B Be careful not to let the air filter
get sucked into the vacuum
cleaner.
' Install the air filter.
NOTE:
B Be sure to install the air filter
cover before using the projector.
If the projector is used without the
air filter cover installed, dust and
other foreign particles will be
drawn into the projector, and
malfunctions will result.
B If the dust cannot be removed by
cleaning, it is time to replace the
air filter. Please consult your
dealer. Furthermore, if the lamp
unit is being replaced, replace the
air filter at this time also.
Replacing the lamp unit
When replacing the lamp, allow it
to cool for at least one hour
before handling it.
B The lamp cover gets very hot,
and contact with it can cause
burns.
Notes on replacing the
lamp unit
B The light generating lamp is
made of glass, so dropping it or
allowing it to hit hard objects may
cause it to burst. Be careful when
handling the lamp.
B After having removed the old
lamp, carelessly discarding it can
cause the lamp to burst. Dispose
of the lamp with the same care
that would be taken with a
fluorescent light.
B A Phillips screwdriver is
necessary for removing the lamp
unit. Make sure that your hands
are not slippery when using the
screwdriver.
NOTE:
B The projector is not supplied with
a replacement lamp unit. Please
ask your dealer for details. Lamp
unit product no.: ET-LA780
CAUTION:
B Do not use any lamp unit other
than the one with the product
number indicated above.
Lamp unit replacement
period
The lamp is a consumable product.
Even when the full life of the bulb
has not been exhausted, the
brightness of the light will gradually
decline. Therefore periodic
replacement of the lamp is
necessary.
The intended lamp replacement
interval is 1 500 hours, but it is
possible that the lamp may need to
be replaced earlier due to variables
such as a particular lamp's
characteristics, usage conditions
and the installation environment.
Early preparation for lamp
replacement is encouraged.
A lamp that has exceeded 1 500
hours of use has a much greater
chance of exploding. In order to
prevent the lamp from exploding,
the lamp will be automatically shut
off when 1 500 hours of use have
been reached.
NOTE:
B The usage hours explained
above are for use when the HIGH
setting has been selected for
LAMP POWER in the OPTION
menu. If the LOW setting is
selected, the brightness of the
lamp will be less and life of the
lamp can be extended.
B While 1 500 hours is the intended
replacement interval, it is not a
period of time covered by
warranty.
65
Others
Warning
On-screen display
Lamp indicator warning
light
Displayed for 30
seconds. Pressing any
More than 1 300 hours button will clear the
display.
The projector will enter
Standby Mode and the
This display cannot be red indicator lamp will
cleared at all, no matter illuminate.
More than 1 500 hours which button is pressed.
Lamp unit replacement procedure
NOTE:
B If the lamp usage time has passed 1 500 hours (when LAMP POWER has
been set to “HIGH”), the projector will switch to standby mode after
approximately 10 minutes of operation. The steps ) to . on the next
page should thus be completed within 10 minutes.
# Turn off the MAIN POWER
switch according to the
procedure given in “Turning off
the power” on page 31, and
then disconnect the power
cord plug from the mains
socket and check that the area
around the lamp unit has
cooled down.
$ Use a Phillips screwdriver to
turn the air outlet port fixing
screws at the back of the
projector, and then open the air
outlet port.
Air outlet port
% Use a Phillips screwdriver to loosen
the two lamp unit fixing screws until
the screws turn freely. Then hold
the handle of the lamp unit and
gently pull it out from the projector.
Lamp unit fixing screws
Handle
& Insert the new lamp unit while
making sure that the direction
of insertion is correct, and then
use a Phillips screwdriver to
securely tighten the lamp unit
fixing screws.
Air outlet port fixing screws
66
OPTION
SHUTTER
OSD
AUTO KEYSTONE
RGB/YPbPr
RGB2 SELECT
BACK COLOR
FRONT/REAR
DESK/CEILING
LAMP POWER
LAMP RUN TIME
NEXT PAGE @
SELECT:[{][}]
ADJUST:[{][}]
OFF
OFF
RGB
INPUT
BLUE
FRONT
DESK
LOW
ON
ON
YPbPr
OUTPUT
BLACK
REAR
CEILING
HIGH
1820 H
+ Press the ENTER button and
select the “LAMP RUN TIME” by
pressing the F or G buttons.
OPTION
SHUTTER
OSD
AUTO KEYSTONE
RGB/YPbPr
RGB2 SELECT
BACK COLOR
FRONT/REAR
DESK/CEILING
LAMP POWER
LAMP RUN TIME
NEXT PAGE @
OFF
OFF
RGB
INPUT
BLUE
FRONT
DESK
LOW
SELECT:[^][@]
ADJUST:[{][}]
ON
ON
YPbPr
OUTPUT
BLACK
REAR
CEILING
HIGH
1820 H
ENTER:[ENTER]
ESC:[MENU]
, Press and hold the ENTER
button for approximately 3
seconds.
Lamp Time Reset
Power OFF
OK
CANCEL
The “Lamp Time Reset” will be
displayed.
- Select “OK” by pressing the
I or H buttons and press the
ENTER button.
NOTE:
B If “CANCEL” is selected in step
-, the operation for resetting the
lamp time will be cancelled.
. Turn off the power.
This will reset the cumulative
usage time for the lamp unit to
zero.
Refer to steps % and & on page
31 for details on how to turn off
the power.
ENTER:[ENTER]
ESC:[MENU]
67
Others
' Close the air outlet port, and
then use a Phillips screwdriver
to securely tighten the air
outlet port fixing screws.
NOTE:
B Be sure to install the lamp unit
and the air outlet port securely. If
they are not securely installed, it
may cause the protection circuit
to operate so that the power
cannot be turned on.
( Insert the power cord plug into
the wall outlet and then press
the MAIN POWER switch.
NOTE:
B If the POWER indicator on the
projector does not illuminate red
when the MAIN POWER switch is
turned on, turn the MAIN POWER
switch off again and check that
the lamp unit and the air outlet
port are securely installed. Then
turn the MAIN POWER switch
back on.
) Press the POWER button so
that a picture is projected onto
the screen.
* Press the MENU button to
display the MENU screen, and
select “OPTION” by pressing
the I or H buttons.
Before calling for service
Before calling for service, check the following points.
Problem
Power does not turn
on.
No picture appears.
The picture is fuzzy.
COLOR is too light or
TINT is poor.
No sound can be
heard.
68
Possible cause
B The power cord may not be connected.
B The MAIN POWER switch is turned off.
B The main power supply is not being supplied to the wall
outlet.
B TEMP indicator is illuminated or flashing. (Refer to page
60.)
B LAMP indicator is illuminated or flashing. (Refer to page
61.)
B The lamp unit cover has not been securely installed.
B The video signal input source may not be connected
properly.
B The input selection setting may not be correct. (Refer to
page 30.)
B The BRIGHT adjustment setting may be at the minimum
possible setting. (Refer to page 39.)
B The shutter function may be in use. (Refer to page 46.)
B The lens cover may still be attached to the lens.
B The lens focus may not have been set correctly. (Refer
to pages 31 and 50.)
B The projector may not be at the correct distance from the
screen. (Refer to pages 29 and 52.)
B The lens may be dirty.
B The projector may be tilted too much. (Refer to page 28.)
B COLOR or TINT adjustment may be incorrect. (Refer to
page 39.)
B The input source which is connected to the projector
may not be adjusted correctly.
B The audio signal source may not be connected properly.
B The volume adjustment may be at the lowest possible
setting. (Refer to pages 17 and 45.)
B A cable may be connected to the AUDIO OUT jack.
B The MUTE function may be active (page 45.)
Problem
Possible cause
Others
The remote control
B The batteries may be weak.
unit does not operate. B The batteries may not be inserted correctly. (Refer to
page 22.)
B The remote control signal receptor on the projector may
be obstructed. (Refer to page 22.)
B The remote control unit may be out of the operation
range. (Refer to page 22.)
B Press and hold the Power button on the remote control
unit or the projector for more than 5 seconds to turn the
power off and back on again. At this time, the projector
will turn on and go to the standby condition.
B
The CONTROL KEY may be set to “OFF”. (Refer to
The buttons on the
page
48.)
projector do not
In
order
to set the CONTROL KEY to “ON” without using
function.
the remote control unit, keep holding down the ENTER
button on the projector and press the MENU button for
more than 2 seconds. It will then be turned ON.
B Press and hold the Power button on the remote control
unit or the projector for more than 5 seconds to turn the
power off and back on again. At this time, the projector
will turn on and go to the standby condition.
B The signal format (TV system) may not be set correctly.
The picture does not
(Refer to page 39.)
display correctly.
B There may be a problem with the video tape or other
signal source.
B A signal which is not compatible with the projector may
be being input. (Refer to page 63.)
B If you select SXGA60 or SXGA60+ type RGB signals,
the pictures may not be projected correctly. If this
happens, press the AUTO SETUP button.
B The cable may be too long.
Picture from
B The external video output for the laptop computer may
computer does not
not be set correctly.
appear.
(You may be able to change the external output settings
by pressing the [Fn]+[F3] or [Fn]+[F10] keys
simultaneously. The actual method varies depending on
the type of computer, so refer to the documentation
provided with your computer for further details.)
B If an RGB input indicator (Refer to page 16) is turned off,
the video signals may not be output from the computer.
B RGB2 SELECT in the OPTION menu is set to OUTPUT
when the signals are input to RGB2 IN / RGB OUT
connector. (Refer to page 46.)
69
Specifications
Power supply:
Power consumption:
100 V–240 V ~, 50 Hz/60 Hz
380 W (During standby (when fan is stopped):
Approx. 3.5 W)
[When the WEB STANDBY is set to “ON”:
Approx. 43 W (page 47)]
3.5 A–1.5 A
Amps:
LCD panel:
Panel size (diagonal):
1.0 type (22.86 mm)
Aspect ratio:
4:3 (16:9 compatible)
Display method:
3 transparent LCD panels (RGB)
Drive method:
Active matrix method
Pixels:
786 432 (1 024 x 768) x 3 panels
Lens: Manual zoom (1 - 1.3) / focus lens
F 1.7 - 2.1, f 40.7 mm - 52.8 mm
Lamp:
UHM lamp (270 W)
Luminosity:PT-L780NTU
3 200 lm/ANSI
PT-L750U
2 500 lm/ANSI
Scanning frequency(for RGB signals):
Horizontal scanning frequency:
31 kHz–91 kHz
Vertical scanning frequency:
50 Hz–85 Hz
Dot clock frequency:
Less than 140 MHz
YPBPR signals:
525i (480i), 625i, 525p (480p), 750p (720p),
HDTV60 (1080i/60), HDTV50 (1080i/50)
Color system:
7 (NTSC/NTSC 4.43/PAL/PAL-M/PALN/PAL60/SECAM)
Projection size:
1016 mm - 7 620 mm (40˝ - 300˝)
Throw distance:
1.2 m - 11.8 m (3´11˝ - 38´8˝)
Optical axis shift:
10:0 (fixed)
Screen aspect ratio:
4:3
Installation:
Front/Rear/Ceiling/Desk (Menu selection
method)
Speaker:
4 cm x 3 cm oval x 2
Max. usable volume output:
2W
Connectors
DVI-D IN connector:
Single-line DVI-D 24 pin
RGB IN/OUT:
Dual-line D-SUB HD 15-pin (female)
(One-line is available for input and output)
Single-line BNCX5
During YPBPR input/output:
Y:
1.0 V [p-p], 75 Ω
PB,PR :
0.7 V [p-p], 75 Ω
During RGB input/output:
R.G.B.:
0.7 V [p-p], 75 Ω
G.SYNC:
1.0 V [p-p], 75 Ω
HD/SYNC:
TTL high impedance, automatic plus/minus
polarity compatible
VD:
TTL high impedance, automatic plus/minus
polarity compatible
70
S-VIDEO IN:
AUDIO IN (for S-VIDEO/VIDEO):
AUDIO OUT:
Serial connector:
Cabinet:Moulded plastic (ABS/PC)
Dimensions:
Width:
Height:
Length:
Weight: PT-L780NTU
PT-L750U
Operating environment:
Temperature:
Humidity:
Certifications:
<Remote control unit>
Power supply:
Operating range:
Weight:
Dimensions:
Width:
Length:
Height:
<Options>
Ceiling bracket
Ceiling mount bracket
(for low ceilings)
Wireless mouse receiver
Wide conversion lens
Wireless card
LAN card
Projection lens
Single-line 0.5 V [rms] M3 jack (Stereo MINI)
Single-line, RCA pin jack
1.0 V [p-p], 75 Ω
Single-line, Mini DIN 4-pin
Y 1.0 V [p-p], C 0.286 V [p-p], 75 Ω
0.5 V [rms] RCA pin jack x 2 (L-R)
Single-line 0.5 V [rms] M3 jack (Stereo MINI)
(Monitor output/stereo compatible) 0 V [rms] 1.0 V [rms] (variable)
D-sub 9p (female) RS-232C compatible
290 mm (11-13/32˝)
137 mm (5-3/8˝)
406 mm (15-31/32˝) (without lens cover)
5.9 kg (13.0 lbs)
5.8 kg (12.8 lbs)
0 °C–40 °C (32 °F–104 °F)
[When the FAN CONTROL is set to “HIGH”
(page 47); 0 °C–35 °C (32 °F–95 °F)]
20%–80% (no condensation)
UL60950
FCC class B
3 V DC (AAA battery x2)
Approx. 7 m (23´) (when operated directly in
front of signal receptor)
108 g (3.8 ozs.) (including batteries)
33 mm (1-9/32˝)
168 mm (6-19/32˝)
40 mm (1-9/16˝)
ET-PK780
ET-PK780S
ET-RMRC1
ET-LEC701
ET-CDWL1U
ET-CDLAN1
ET-LE10 (for a short-distance projection)
ET-LE20 (for a medium-distance projection)
ET-LE30 (for a long-distance projection)
Others
AUDIO IN (for RGB):
VIDEO IN:
71
Dimensions
406(15-31/32)
<Units: mm (inch)>
290(11-13/32)
8(5/16)
25(31/32)
137(5-3/8)
55(2-5/32)
R
Trademark acknowledgements
B The SD logo is a trademark.
B Windows is a trademark or registered trademark of Microsoft Corporation
in the United States of America and other countries.
B VGA and XGA are trademarks of International Business Machines
Corporation.
B Macintosh is a registered trademark of Apple Computer, Inc.
B S-VGA is a registered trademark of the Video Electronics Standards
Association.
B Windows is a registered trademark of Microsoft Corporation.
All other trademarks are the property of the various trademark owners.
72
NOTES IMPORTANTES
CONCERNANT LA SÉCURITÉ
AVERTISSEMENT: POUR REDUIRE LES RISQUES DE FEU OU DE CHOC
ÉLECTRIQUE, NE PAS EXPOSER CE PRODUIT À L’EAU
OU À L’HUMIDITÉ
Alimentation: Ce projecteur LCD est conçu pour fonctionner sur secteur
de 100 V - 240 V, 50 Hz/60 Hz seulement.
ATTENTION: Le cordon d’alimentation secteur fourni avec le projecteur
peut être utilisé uniquement pour une alimentation électrique
de 125 V, 10 A maximum. Si on veut l’utiliser avec une
tension ou un courant plus forts, on doit se procurer un autre
cordon d’alimentation de 250 V. Si on utilise le cordon fourni
sous ces conditions, risque de provoquer un incendie.
Le symbole de la flèche en forme d’éclair, dans un triangle,
avertit l’usager de la présence de “tensions dangereuses” à
l’intérieur du produit qui peuvent être de force suffisante pour
constituer un risque de choc électrique aux personnes.
ATTENTION: Cet appareil est équipé d’une fiche
de courant à trois broches avec
mise à la terre. Ne pas retirer la
broche de mise à la masse de la
Ne pas retirer
fiche.
Cette fiche ne pourra être utilisée que dans une prise avec
mise à la terre. Ceci est une précaution sécuritaire. S’il est
impossible d’insérer la fiche dans la prise, s’adresser à un
électricien. Ne pas annuler la protection de la fiche à mise à
la terre.
73
Others
Le point d’exclamation dans un triangle avertit l’usager de la
présence d’instructions importantes concernant l’utilisation et
l’entretien (réparation) dans la littérature accompagnant le
produit.
Précautions de sécurité
AVERTISSEMENT
En cas de problème (pas d’image ou de son), ou si le projecteur dégage
de la fumée ou une odeur étrange, éteindre l’appareil et débrancher
immédiatement la fiche d’alimentation de la prise de courant.
B Ne pas continuer d’utiliser le projecteur dans ces cas, autrement cela peut
entraîner un incendie ou des chocs électriques.
B Après s’être assuré que de la fumée ne se dégage plus, s’adresser à un
centre technique agréé et demander que les réparations nécessaires
soient faites.
B Le fait de réparer le projecteur soi-même est très dangereux, et ne doit
jamais être fait.
Ne pas installer ce projecteur dans un endroit qui n’est pas assez
résistant pour supporter le poids du projecteur.
B Si l’emplacement d’installation n’est pas assez résistant, le projecteur
risque de tomber et causer de graves blessures et (ou) des dommages.
Demander à un technicien qualifié d’installer le projecteur par exemple
s’il est installé au plafond.
B Si l’installation n’est pas faite correctement, cela peut entraîner des
blessures ou des chocs électriques.
Si de l’eau ou des objets étrangers entrent dans le projecteur, si le
projecteur tombe, ou si le boîtier est endommagé, éteindre l’appareil et
débrancher immédiatement la fiche d’alimentation de la prise de
courant.
B Si l’on continue d’utiliser le projecteur dans cette condition, cela peut
entraîner un incendie ou des chocs électriques.
B S’adresser à un centre technique agréé pour que les réparations
nécessaires puissent être faites.
Ne pas surcharger la prise de courant.
B Si l’alimentation est surchargée (par exemple, par l’utilisation de trop
d’adaptateurs), cela risque de faire surchauffer le projecteur et peut
entraîner un incendie.
Ne pas retirer le capot ou le modifier.
B Des hautes tensions qui peuvent causer de graves blessures sont
présentes à l’intérieur du projecteur.
B Pour toute inspection, réglage ou réparation, s’adresser à un centre
technique agréé.
74
75
Others
Nettoyer la fiche du cordon d’alimentation régulièrement afin d’éviter
toute accumulation de poussière.
B Si de la poussière s’accumule sur la fiche du cordon d’alimentation,
l’humidité peut endommager l’isolant et entraîner un incendie. Débrancher
le cordon d’alimentation de la prise de courant et l’essuyer avec un chiffon
sec.
B Si le projecteur n’est pas utilisé pendant une période prolongée,
débrancher le cordon d’alimentation de la prise de courant.
Faire attention à ne pas endommager le cordon d’alimentation.
B Ne pas endommager le cordon d’alimentation, ne pas le modifier, ne pas
placer sous des objets lourds, ne pas le chauffer, ne pas le placer près
d’objets chauffants, ne pas le tordre, ne pas le plier ou le tirer
excessivement et ne pas le rouler en boule.
B Si le cordon d’alimentation est endommagé, cela peut entraîner un
incendie et des chocs électriques.
B Si le cordon d’alimentation est endommagé, le faire réparer par un centre
technique agréé.
Ne pas manipuler le cordon d’alimentation avec les mains mouillées.
B Cela peut entraîner des chocs électriques.
Brancher la fiche du cordon d’alimentation fermement dans la prise de
courant.
B Si la fiche n’est pas complètement insérée, cela peut entraîner des chocs
électriques ou la faire surchauffer.
B Si la fiche est endommagée ou la plaque de la prise est desserrée, elles
ne devraient pas être utilisées.
Ne pas placer le projecteur sur des surfaces instables.
B Si le projecteur est placé sur une surface qui est inclinée ou instable, il
risque de tomber ou de se renverser et cela peut causer des blessures ou
des dommages.
Ne pas placer le projecteur dans l’eau ou ne pas le laisser se mouiller.
B Sinon cela peut causer un incendie ou des chocs électriques.
Ne pas placer des récipients de liquide sur le projecteur.
B Si de l’eau se renverse sur le projecteur, s’adresser à un centre technique
agréé.
B Si de l’eau entre à l’intérieur du projecteur, entrer en contact avec un
centre technique agréé.
Ne pas mettre d’objets étrangers dans le projecteur.
B Ne pas insérer d’objets métalliques ou inflammables dans les orifices de
ventilation ou les faire tomber sur le projecteur, car cela peut causer un
incendie ou des chocs électriques.
Garder la télécommande hors de portée des enfants, et ne pas regarder
directement dans le rayon laser; ne pas pointer le rayon vers d’autres
personnes.
B Si l’on pointe directement vers les yeux le rayon laser émis par la
télécommande, ceci risque d’endommager les yeux.
Veiller à ce que les bornes + et - des piles n’entrent pas en contact avec
des objets métalliques tels que des colliers ou des épingles à cheveux.
B Sinon, les piles risqueront de fuir, de surchauffer, d’exploser ou de prendre feu.
B Ranger les piles dans un sac en plastique, et ne pas les ranger à
proximité d’objets métalliques.
Pendant un orage, ne pas toucher le projecteur ou le câble.
B Il y a risque d’électrocution.
Ne pas utiliser l’appareil dans un bain ou une douche.
BIl y a risque d’incendie ou d’électrocution.
Ne pas regarder directement dans la lentille pendant que le projecteur
fonctionne.
B Une lumière intense est émise par la lentille du projecteur. Si l’on regarde
directement dans cette lumière, elle risque de causer des blessures et de
graves lésions aux yeux.
Ne pas placer ses mains ou autres objets près de la sortie d’air.
B De l’air chaud sort par l’ouverture de sortie d’air. Ne pas placer les mains
ou la figure, ou d’autres objets qui ne peuvent résister à la chaleur près de
cette sortie d’air, sinon cela peut causer des blessures ou des dommages.
Lors du remplacement de la lampe, la laisser refroidir pendant au
moins une heure avant de la manipuler.
B Le couvercle de la lampe devient très chaud, et on risque de se brûler si
on le touche.
Avant de remplacer la lampe, veiller à débrancher le cordon
d’alimentation de la prise de courant.
B Il y a risque d’électrocution ou d’explosion.
Garder la carte mémoire SD hors de portée des enfants. (PT-L780NTU
seulement)
B En cas d’absorption de la carte SD, consulter immédiatement un médecin.
Attention
Ne pas obstruer les orifices d’entrée et de sortie d’air.
B Cela risque de faire surchauffer le projecteur, et causer un incendie ou
endommager le projecteur.
Ne pas installer le projecteur dans des endroits humides ou
poussiéreux ou dans des endroits où le projecteur peut entrer en
contact avec de la fumée ou la vapeur.
B L’utilisation du projecteur dans de telles conditions peut causer un
incendie ou des chocs électriques.
76
77
Others
Pour débrancher le cordon d’alimentation, tenir la fiche et non pas le
cordon.
B Si le cordon d’alimentation est tiré, le cordon sera endommagé et cela
peut causer un incendie, des courts-circuits ou des chocs électriques
sérieux.
Débrancher toujours tous les câbles avant de déplacer le projecteur.
B Le fait de déplacer le projecteur avec des câbles branchés peut
endommager les câbles, ce qui pourraient causer un incendie ou des
chocs électriques.
Ne pas placer d’objets lourds sur le projecteur.
B Cela peut déséquilibrer le projecteur et le faire tomber, ce qui peut
entraîner des dommages ou des blessures.
Ne pas court-circuiter, chauffer ou démonter les piles, et ne pas les
mettre dans l’eau ou dans le feu.
B Sinon, les piles risqueront de surchauffer, de fuir, d’exploser ou de
prendre feu, et donc de causer des brûlures ou d’autres blessures.
Lorsqu’on insère les piles, veiller à ce que les polarités (+ et -) soient
bien respectées.
B Si l’on insère les piles incorrectement, elles risqueront d’exploser ou de
fuir, ce qui peut causer un incendie, des blessures ou une contamination
du logement des piles et de la zone environnante.
Utiliser uniquement les piles spécifiées.
B Si l’on utilise des piles incorrectes, elles risqueront d’exploser ou de fuir,
ce qui peut causer un incendie, des blessures ou une contamination du
logement des piles et de la zone environnante.
Ne pas mélanger des piles usées et des piles neuves.
B Si l’on insère les piles incorrectement, elles risqueront d’exploser ou de
fuir, ce qui peut causer un incendie, des blessures ou une contamination
du logement des piles et de la zone environnante.
Ne pas peser de tout son poids sur ce projecteur.
B On risque de tomber ou de casser l’appareil, ce qui peut causer des
blessures.
B Veiller tout particulièrement à ce que des enfants ne montent pas sur
l’appareil.
Débrancher la fiche du cordon d’alimentation de la prise de courant
comme mesure de sécurité avant d’effectuer tout nettoyage.
B Sinon cela peut causer des chocs électriques.
Demander à un centre technique agréé de nettoyer l’intérieur du
projecteur au moins une fois par an.
B S’il n’est pas nettoyé et que la poussière s’accumule à l’intérieur du projecteur,
cela peut causer un incendie ou des problèmes de fonctionnement.
B Il est recommandé de nettoyer l’intérieur du projecteur avant que la saison
humide n’arrive. Demander au centre technique agréé plus proche de
nettoyer le projecteur lorsque cela est requis. Se renseigner auprès du
centre technique agréé pour le coût du nettoyage.
Nous faisons tous les efforts possibles afin de préserver
l’environnement. Prière d’apporter l’appareil, s’il n’est pas réparable, à
votre revendeur ou à un centre de recyclage.
Précautions de manipulation
Précautions à prendre lors du déplacement du
projecteur
Veiller à bien mettre le capuchon d’objectif en place avant de déplacer le
projecteur.
La lentille de projection est extrêmement sensible aux vibrations et aux chocs.
Veiller à ne pas la soumettre à des vibrations ou à des chocs excessifs lors du
déplacement du projecteur.
Avertissements concernant l’installation
Toujours observer les points suivants lors de l’installation du projecteur.
Éviter de l’installer dans les endroits sujets à des vibrations ou à des chocs.
Si le projecteur est installé dans les endroits sujets à de fortes vibrations, comme
près d’un moteur, ou s’il est installé à l’intérieur d’un véhicule ou à bord d’un
bateau, le projecteur peut être soumis à une vibration ou à des chocs qui peuvent
endommager les pièces internes et causer des mauvais fonctionnements ou des
accidents. Dès lors, installer le projecteur dans un endroit qui n’est pas soumis à
des vibrations ou des chocs.
Ne pas installer le projecteur près de lignes d’alimentation électrique à
haute tension ou de moteurs.
Le projecteur peut être sujet à une interférence électromagnétique s’il est installé
près de lignes d’alimentation électrique à haute tension ou de moteurs.
Si le projecteur est installé au plafond, demander à un technicien qualifié de
faire tous les travaux d’installation.
Si le projecteur doit être suspendu au plafond, il faut acheter le kit d’installation
séparé (numéro de modèle: ET-PK780). De plus, tous les travaux d’installation ne
devraient être faits que par un technicien qualifié.
Si l’on utilise ce projecteur à un endroit élevé (au-dessus de 1 400 m),
régler le VENTILATEUR à HAUTE. (Se référer à la page 47.)
Sinon, des anomalies pourront se produire.
Notes sur l’utilisation
Afin d’obtenir la meilleure qualité d’image
Si la lumière extérieure ou la lumière des lampes intérieures brille sur l’écran, les
images projetées n’auront pas un bon contraste. Tirer les rideaux ou les stores de
toutes les fenêtres et éteindre toutes les lumières fluorescentes près de l’écran
pour empêcher la réflexion.
Ne pas toucher aux surfaces de la lentille avec les mains nues.
78
Si la surface de la lentille est salie par des empreintes digitales ou autre, ceci sera
agrandi et projeté sur l’écran. D’ailleurs, lorsque le projecteur n’est pas utilisé,
rétracter la lentille, puis la couvrir à l’aide du capuchon d’objectif fourni.
À propos de l’écran
Si l’écran utilisé est sale, endommagé ou décoloré, des projections de bonne
qualité ne peuvent pas être obtenues. N’appliquer aucune substance volatile à
l’écran et ne pas le laisser se salir ou s’endommager.
A propos de la lampe
Il est possible qu’il faille remplacer la lampe plus tôt en raison de facteurs
variables tels que des caractéristiques de la lampe, des conditions d’utilisation et
un environnement d’installation particuliers, en particulier si elle est utilisée de
façon continue pendant plus de 10 heures.
A propos de la carte mémoire SD (PT-L780NTU seulement)
L’électricité statique dégagée par le corps humain peut endommager la carte
mémoire SD. Afin d’empêcher cela, toucher un objet métallique proche comme
un châssis de fenêtre en aluminium ou une poignée de porte pour décharger
l’électricité statique du corps.
A propos de la fente à carte (PT-L780NTU seulement)
S’assurer qu’aucun corps étranger ne se trouve à l’intérieur de la fente lors de
l’insertion de la carte mémoire SD ou d’une carte sans fil en option, sinon, cela
peut endommager la carte et la fente.
Avant de faire le nettoyage et l’entretien, s’assurer de
débrancher la fiche du cordon d’alimentation de la
prise de courant.
Others
Essuyer le boîtier avec un tissu doux et sec.
Si le boîtier est très sale, imbiber le chiffon dans de l’eau avec un peu de
détergent neutre, bien essorer le chiffon, puis essuyer le boîtier. Après le
nettoyage, sécher le boîtier à l’aide d’un chiffon sec.
Si un chiffon traité chimiquement est utilisé, lire les directives fournies avec
le chiffon avant de l’utiliser.
Ne pas essuyer la lentille avec un chiffon poussiéreux ou pelucheux.
Si de la poussière ou de la peluche se dépose sur la lentille, elle sera agrandie et
projetée sur l’écran. Utiliser une poire à air pour nettoyer toute poussière et
peluche de sur la surface de la lentille, ou utiliser un chiffon doux pour retirer toute
poussière ou peluche.
79
Remplacement du bloc de lampe
AVERTISSEMENT
Lors du remplacement de la
lampe, la laisser refroidir pendant
au moins une heure avant de la
manipuler.
B Le couvercle de la lampe devient
très chaud, et on risque de se
brûler si on le touche.
Notes sur le
remplacement du bloc
de lampe
B Faire très attention en manipulant le
bloc de lampe retiré, car il contient du
gaz sous haute pression et peut
facilement s’endommager s’il est
cogné contre des objets durs ou s’il
tombe.
B La lampe produisant la lumière est en
verre; elle risque donc d’éclater si on
la laisse tomber ou si elle heurte des
objets durs. Faire bien attention en
manipulant la lampe.
B La lampe usagée qu’on a retirée
risque d’éclater si on la jette sans
prendre de précautions. Jeter la
lampe de la même manière qu’une
lampe fluorescente.
REMARQUE:
B Le projecteur n’est pas fourni
avec un bloc de lampe de
rechange. Demander les détails
au revendeur.Numéro de produit
du bloc de lampe: ET-LA780
ATTENTION:
B Ne pas utiliser un bloc de lampe
avec un numéro de pièce autre
que celui indiqué ci-dessus.
80
Période de
remplacement du bloc
de lampe
La lampe est un produit qui doit être
remplacé. Même si la durée de vie
complète de l’ampoule n’est pas
encore épuisée, la luminosité de la
lampe diminuera progressivement. Il
faut donc remplacer périodiquement
la lampe.
L’intervalle de remplacement de la
lampe prévu est de 1 500 heures; il
est toutefois possible qu’il faille
remplacer la lampe avant ce délai en
raison d’éléments variables tels que
les caractéristiques particulières de
la lampe, les conditions d’utilisation
et l’environnement d’installation. Il
est recommandé de toujours avoir
un bloc de lampe de rechange prêt à
l’emploi. Une lampe qui a dépassé la
limite de 1 500 heures d’utilisation
risque beaucoup plus d’exploser.
Afin d’éviter que la lampe explose,
celle-ci est éteinte automatiquement
lorsque la limite de 1 500 heures
d’utilisation est atteinte.
REMARQUE:
B Les heures d’utilisation expliquées
ci-dessus concernent l’utilisation
lorsque le réglage HAUTE a été
sélectionné pour PUIS LAMPE
dans le menu OPTION. Si le
réglage FROIDE est sélectionné, la
luminosité de la lampe sera
moindre et la durée de vie de la
lampe sera allongée.
B Bien que le délai de 1 500 heures
soit l’intervalle de remplacement
prévu, l’obtention de cette durée
n’est pas couverte par la
garantie.
Affichage à l’écran
Plus de 1 300 heures
Plus de 1 500 heures
Témoin d’alarme de
l’indicateur de la lampe
Affiché pendant 30
secondes. L’affichage
disparaît si l’on appuie sur
Le projecteur passe en
n’importe quelle touche.
mode d’attente et
L’affichage ne peut pas l’indicateur rouge
être effacé, quelle que s’allume.
soit la touche sur
laquelle on appuie.
Méthode de remplacement du bloc de lampe
REMARQUE:
B Si le temps d’utilisation de la lampe a dépassé 1 500 heures (lorsque
PUIS LAMPE a été mis sur “HAUTE”), le projecteur passe en mode
d’attente après environ dix minutes de fonctionnement. Dès lors, faire les
étapes ) à . à la page suivante dans les 10 minutes.
# Mettre hors circuit
% Utiliser un tournevis Phillips
l’interrupteur d’alimentation
pour desserrer les deux vis de
principale (MAIN POWER)
fixation du bloc de lampe jusqu’à
suivant la méthode donnée
ce que les vis tournent librement.
dans “Mise hors circuit de
Tenir la poignée du bloc de
l’alimentation” à la page 31,
lampe et tirer doucement pour le
puis débrancher la fiche du
sortir du projecteur.
cordon d’alimentation de la
prise de courant et vérifier que
Vis de fixation du bloc de lampe
les pièces autour du bloc de
lampe se sont refroidies.
$ Utiliser un tournevis pour faire
tourner les vis de fixation de la
sortie d’air à l’arrière du
projecteur et ouvrir la sortie
d’air.
Vis de fixation de la sortie d’air
Poignée
& Insérer le nouveau bloc de
lampe tout en s’assurant que la
direction de l’insertion est
correcte, puis utiliser un
tournevis Phillips pour
resserrer fermement les vis de
fixation du bloc de lampe.
81
Others
Sortie d’air
' Refermer la sortie d’air, puis
utiliser un tournevis Phillips
pour bien resserrer les vis de
fixation de la sortie d’air.
REMARQUE:
B Veiller à bien installer le bloc de
lampe et la sortie d’air. S’ils ne sont
pas bien installés, ils peuvent
déclencher le circuit de protection,
empêchant la mise en circuit de
l’alimentation.
( Insérer la fiche du cordon
d’alimentation dans la prise de
courant, puis appuyer sur
l’interrupteur d’alimentation
principale (MAIN POWER).
REMARQUE:
B Si l’indicateur POWER ne s’allume
pas en rouge sur le projecteur
lorsque l’interrupteur MAIN POWER
est mis en circuit, remettre
l’interrupteur MAIN POWER hors
circuit et s’assurer que le bloc de
lampe et la sortie d’air sont bien
installés, puis remettre l’interrupteur
MAIN POWER en circuit.
) Appuyer sur la touche
d’alimentation (POWER) pour
projeter une image sur l’écran.
* Appuyer sur la touche de menu
(MENU) pour faire apparaître
l’écran de menu, et sélectionner
“OPTION” en appuyant sur les
touches I ou H.
OPTION
OBTURATEUR
INFO ÉCRAN
COR TRAP AUT
RGB/YPbPr
SELECTION RGB2
COULEUR FOND
INSTALLATION
SOL/PLAFOND
PUIS LAMPE
DURÉE LAMPE
PAGE SUIVANTE @
SÉL.:[^][@]
AJT:[{][}]
82
NON
NON
RGB
ENTRÉE
BLEU
FAÇADE
SOL
FROIDE
OUI
OUI
YPbPr
SORTIE
NOIR
ARRIÈRE
PLAFOND
HAUTE
1820 H
VALID:[ENTER]
ESC:[MENU]
+ Appuyer sur la touche d’entrée
(ENTER) et sélectionner le
“DURÉE LAMPE” (temps de
fonctionnement de la lampe) en
appuyant sur les touches I ou H.
OPTION
OBTURATEUR
INFO ÉCRAN
COR TRAP AUT
RGB/YPbPr
SELECTION RGB2
COULEUR FOND
INSTALLATION
SOL/PLAFOND
PUIS LAMPE
DURÉE LAMPE
PAGE SUIVANTE @
SÉL.:[^][@]
AJT:[{][}]
NON
NON
RGB
ENTRÉE
BLEU
FAÇADE
SOL
FROIDE
OUI
OUI
YPbPr
SORTIE
NOIR
ARRIÈRE
PLAFOND
HAUTE
1820 H
VALID:[ENTER]
ESC:[MENU]
, Maintenir la touche d’entrée
(ENTER) enfoncée pendant
environ 3 secondes.
TIME RESET
Coupe l,alimentation
OUI
NON
Le “TIME RESET Coupe
I’alimentation” (réinitialisation du
temps [mise hors tension])
s’affiche.
- Sélectionner “OUI” en
appuyant sur les touches I ou
H et appuyer sur la touche
d'entrée (ENTER).
REMARQUE:
B Si “NON” est sélectionné à
l’étape -, l’opération pour
remettre le temps de la lampe à
zéro sera annulée.
. Couper l’alimentation
électrique.
Le temps d’utilisation total du bloc
de lampe est alors remis à zéro.
Pour plus de détails concernant
la manière de couper le courant,
se reporter aux étapes % et &
de la page 31.
Part for Network Functions and SD
Card Functions
(PT-L780NTU)
83
Other instructions
Precautions on use of SD card
This SD card is a semiconductor memory with the size of 24mm x 32mm x 2.1mm, as
small as a postage stamp, and is expected to be a next-generation recording medium
that replaces minidisks (MDs), compact disks (CDs) and cassette tapes. The card
allows repetition of data reading, writing and deleting.
Instructions on handling
Abstain from the following:
• To disassemble or modify the card
• To give the card a strong impact, twisting, bending, dropping, treading, or water
wetting
• To rub the card with a sheet of cloth or plastics or to bring the card near to anything
that is likely to generate static electricity or electromagnetic field.
• To touch the metallic terminal of card with hand or metallic object, to affix stickers,
or to stain the card.
• To peel off the label that is affixed to the card.
• To affix other labels or stickers.
• To insert the card into a device that does not accept an SD card (e.g., device for
multimedia cards).
• To apply excessive force when operating the lid of the card port.
• To use cracked or deformed card.
• To use the card in a moist place such as bathroom or in a dusty place such as
warehouse.
Instruction on storage
Be sure to put the card in the case when it is taken out from the main body.
• Do not put the card in a vehicle or in a place exposed to direct sunlight where it
may become hot.
• Do not put the card in a place where corrosive gases may arise.
For protection of important data
• Do not turn off the power or do not remove the SD card during memory reading or
writing (when the SD card access lamp is blinking). Doing the above may destroy
the stored data.
• Do not forget to make backup of the data stored in the SD card. Note that user s
important data is subject to potential destruction although it is very rare to occur.
84
To create a backup copy of the data stored on the SD card
Double click and open the icon of SD card drive
in My Computer of your personal computer (on
the desktop if your computer is Macintosh) and
drag and drop the "DCIM" folder onto desktop
(while pressing the "Option" button, for Macintosh
machine). This operation can create copies of all
data within the "DCIM" folder into your personal
computer.
Write protection switch
• If the SD card is inserted into the personal
computer by means of the PC card adaptor
while the write-protection switch of SD card is
set to the "LOCK" position, a blue-screen
warning indication will appear when access is
made. If this occurs, press any button on the
keyboard of your PC to return the indication to
the original one. Before using an SD card in
your personal computer, ensure that the writeprotection switch is not set to the "LOCK"
position.
Front surface
Back surface
LOCK
• Putting the write-protection switch of SD card to
the "LOCK" position will disable image deletion
or transfer.
(attempt of operation will bring error message)
8MB
Write-protection switch
Please be advised of the following information in advance:
• The manufacturer shall not be responsible for any damage, whether direct or
indirect, caused by the use of or by the fault of the product.
• The manufacturer shall not be responsible for any damage or destruction of data
caused by the product.
85
Precautions on use of projector LAN card
Use an optional projector LAN card (ET-CDLAN1)
Turn off the power to the main unit before inserting
and removing the card.
When wiring the LAN cable, keep away from the
exhaust port on the rear of the main body.
The heat from the exhaust port may damage the cable.
Radio frequencies used by the wireless
card
The optional wireless card (ET-CDWL1 series) uses 2.4 GHz band wave.
Although radio station license is not required to use the wireless card, the
following points must be well understood:
Do not use the cards near other sources of radio
emissions.
The following devices may use the same frequencies that are used by the
wireless card. If the wireless card is used near such devices, radio
interference may prevent successful communication, or it may result in
slower communication speeds being achieved.
• Industrial, scientific, medical equipment, etc
• Electric stoves, etc
• Built-in radio devices used for identifying moving equipment in industrial
production lines
• Certain low-power radio devices
Keep the wireless card as far away as possible
from devices such as mobile telephones, TVs and
radios when using such devices
Devices such as mobile telephones, TVs and radios use different
frequencies from the wireless card, so that there will be no effect on either
wireless card communication or on reception or transmission for such
devices. However, radio emissions from the wireless card may cause video
or audio interference.
Radio emissions from the wireless card will not
travel through steel framework, metal sheets or
concrete.
The radio emissions from the wireless card will pass through materials such
as wood and glass (except for glass which is reinforced with metal fibres), so
that communication is possible because the signals can pass through walls
and floors which are made from these materials. However, the radio
emission cannot pass through materials such as steel frames, metal sheets
and concrete, so that communication is not possible because the signals
cannot pass through walls and floors which are made from such materials.
86
Available channels
The channels (frequency bandwidth) that are available for the wireless card to use
will vary depending on the country or area where the wireless card is being used.
Refer to the following table as a guide.
Country / Area
Certification
Last digit
of card
number *
Operating
channels
Frequency band
(median frequency)
Japan
ARIB
STD33 &
T66
1
1~14
2 412 MHz~
2 484 MHz
USA
FCC part 15
2
1~11
2 412 MHz~
2 462 MHz
Canada
IC
Taiwan
DGT
Malaysia
SIRIM
ETSI
300.328
3
1~13
2 412 MHz~
2 472 MHz
Spain
ETSI
300.328
4
10,11
2 457 MHz~
2 462 MHz
Singapore
IDA
5
10~13
2 457 MHz~
2 472 MHz
UK, Germany, France,
Italy, Belgium, Austria,
Sweden, Norway,
Denmark, Switzerland,
Holland, Finland,
Portugal, Greece,
Thailand, Korea,
Australia, New Zealand
* To check the region of intended use for the wireless card
which you have purchased, check the last digit of the product
number which appears on the label on the reverse side of the
card in the position shown in the illustration at right.
N5HBD0000002
Note:
The wireless card cannot be used in countries other than the
country of purchase. If you try to use it in other countries, you
may be infringing the radio transmission laws and regulations
of that country.
87
Typical applications of SD
card / network functions
Examples of use of SD card
Projecting images from SD card using
the projector only
Projection
Insertion
Refer to "Replaying
from recorded SD card
using the projector
only" on page 92.
R
8MB
SD card containing
image data
Screen
Projector
An SD viewer helps user easily search images.
Writing data directly on SD card using
personal computer
CA
Install Image Creator 1.0
RD
Personal computer
PC card
adaptor
8MB
SD card
The supplied Image Creator 1.0 can convert images in the
format of PowerPoint, JPEG, BMP, TIFF, and PNG into
DCF-conforming JPEG or PNG images and record them
onto the SD card so that the projector can replay (this
function is applicable only to Windows machines).
88
For the procedure of
direct writing from
personal computer,
refer to "Recording
directly onto SD card"
on page 94.
For details of Image
Creator 1.0, refer to
"Image Creator 1.0" on
page 130.
Example of use of network functions
Controlling the projector using Web
browser control
Wireless card or projector
LAN card
For details of Web
browser control, refer to
"Web browser control"
on page 116.
Insertion
Operation
with Web
browser control
Setting up
the projector
R
LAN-connectable
Personal computer
For details of network
setting, refer to
"Network Setting" on
page 99.
Screen
Projector
The Web browser accesses the projector and allows the
user to make settings for the projector.
Projecting images from SD card using
Web browser control
Wireless card
or projector
LAN card
SD card
containing image data
8MB
Insertion
Operation
with Web
browser control
LAN-connectable
Personal computer
Insertion
Projection
R
For details of network
setting, refer to
"Network setting" on
page 99.
For details of Web
browser control, refer
to "Web browser
control" on page 116.
Screen
Projector
The Web browser allows the user to access the projector
and to project the image data stored on the SD card
inserted in the projector.
Transferring image data from personal
computer to the projector and recording
them onto the SD card inserted in the
projector Wireless
SD card
Install Wireless
Manager 2.0
card or
projector
LAN card
Insertion
Transfer
image data
8MB
Recording
Insertion
For details of network
setting, refer to
"Network setting" on
page 99.
For details of Wireless
Manager 2.0, refer to
"Wireless Manager 2.0"
on page 122.
Projection
R
LAN-connectable
Personal computer
Projector
Screen
The supplied Wireless Manager 2.0 allows the user to
transfer image data from the personal computer to the SD
card inserted in the projector and to record the data on the
card. Thus the user can project images changing very
quickly to desired ones.
89
Fitting and removal of SD
card and wireless card
SD card
Fitting
Removal
Pay attention to the difference between
up and down sides of the SD card.
q Open the slot cover
w Confirm that the access
lamp is not blinking (i.e., SD
card is not under reading or
writing operation) at the
right back of the slot.
q Open the slot cover
Access lamp
w Insert the SD card
With the card label facing up, insert
the card from the side that has a cut
corner until it reaches the depth and
is locked.
Note:
• Be sure to confirm that the access
lamp is not blinking when to remove
the card. Removing the SD card while
the access lamp is blinking may
destroy the data stored on the card.
Note:
e Press the center of the SD
card to release the lock and
remove the card
• Forcible insertion of the SD card in a
wrong direction may cause a fault.
e Close the slot cover.
r Close the slot cover
90
Wireless card/Projector LAN card
Fitting
Removal
q Turn off the power to the
projector
q Turn off the power supply to
the projector
Turn off the power referring to How
to turn off the power supply given on
page 31.
w Open the slot cover
Turn off the power referring to How
to turn off the power supply given on
page 31.
w Open the slot cover
e Press the ejector button
Press the ejector button and it will
pop out.
e Insert the wireless/LAN card
With the side of LED facing
up, insert the card until it reaches the
depth and is locked.
Ejector button
r Further depress the ejector
button, and take out the
card
t Close the slot cover
Note:
• Pay attention to the difference
between up and down sides of the
card. Forcible insertion of the
card in a wrong direction may
cause a fault.
r Close the slot cover
91
How to use SD card
Replaying from recorded SD card using
the projector only
Setting
q Press the MENU button to view the
menu
PICTURE MODE
COLOR TEMP.
BRIGHT
CONTRAST
SHARPNESS
WHITE BALANCE R
WHITE BALANCE G
WHITE BALANCE B
STANDARD
SELECT:[^][@]
ADJUST:[{][}]
w Using the
and
"SD card" screen
buttons, show the
STANDARD
STANDARD
32
32
6
32
32
32
ENTER:[ENTER]
ESC:[MENU]
SD CARD
AUTOPLAY
REPEAT
INTERVAL
SELECT:[^][@]
ADJUST:[{][}]
OFF
ON
1
5 sec
ENTER:[ENTER]
ESC:[MENU]
e Press the ENTER button to show the
"SD card" setting screen.
r Using the
and
buttons, select the
desired item, and make setting with the
and
buttons.
AUTOPLAY
ON: The next image will automatically appear when images are replayed.
OFF: Images will not be changed automatically.
REPEAT
1~10: Automatic replay will be repeated by the predefined times if "ON" has been
selected for auto play.
Continuous: Automatic replay will be repeated endlessly if "ON" has been selected
for auto play.
INTERVAL
This parameter defines the interval of changing to the next image when "ON" has
been selected for auto play. The interval value can be selected from 5 to 60
seconds with the step being 5 seconds.
Note:
• Some images require a due time until they are displayed. For such images, the
actual image changing time may be longer than the set interval value.
92
Replay
q Change to "SD card" using the input
switching (RGB) button of the projector
or remote controller.
w Select the folder with the
buttons and press the
ENTER button.
SD CARD
and
A file selection screen will appear.
Notes:
• If three or more folders are found, press the
button and the next three (or less)
folders will be shown in turn.
• If no thumbnail has been incorporated in the
image file in advance, it will take a longer
time before image appears.
• A folder that contains no image file cannot
be selected.
• To return to the folder selection screen,
press the MENU button.
e Select the file with the
buttons and press
the ENTER button.
The selected image will be displayed in full
screen mode.
If "OFF" has been selected for auto play,
the
and
buttons can select the
previous or next image for display.
Notes:
• If ten or more files are found, press the
button when the bottom row files are
highlighted, or press the
button when the right bottom file is highlighted. This
will show another nine (or less) files in turn.
• To return to the file selection screen, press the MENU button.
• If "ON" has been selected for auto play, the image will be displayed in full screen
mode and automatic replay will start.
93
Recording directly on SD card
Use the SD card by means of a PC card adaptor in a personal computer having a slot
that is compatible to TYPE 2 or TYPE 3 PC (PCMCIA) card.
For a Windows machine, the supplied software, Image Creator 1.0, will be available
for compiling and storing.
For details of Image Creator 1.0, refer to "Image Creator 1.0" on page 130.
Compiling on Windows
If your PC is a Windows machine, the supplied software, Image Creator 1.0 can be
used. With this Image Creator 1.0, the user can convert the presentation file prepared
with Microsoft PowerPoint into image data that can be replayed on the projector,
change the screen size and sort the images.
Fitting SD card
D
R
A
Positively push in the card until it is locked. Also
pay attention to the difference between up and
down sides and fore and back sides when
inserting the card.
PC card adaptor
C
q Insert the SD card into the PC card
adaptor as shown in the diagram on
the right.
8M B
SD card
Note:
• If the SD card is inserted in the personal computer by means of PC card adaptor
with the write protection switch of SD card set to the LOCK position, a blue-screen
warning appears when accessed. If this occurs, press any button on the keyboard
of the personal computer to return the indication to the previous one. Before using
the SD card in your PC, confirm that the write protection switch is not set to the
LOCK position.
w Insert the PC card adaptor into the PC card slot of the
personal computer.
e If this is the first time to insert an SD
card, an "Add New Hardware Wizard"
dialog box appears. Click the "Next"
button.
94
If this is the second or forward time of SD card insertion, no setting operation is
required.
r Select "Create list of all drivers
existing in specific location and select
the driver for installation" and click the
"Next" button.
t Select "Standard IDE/ESDI hard disk
controller" and click the "Next" button.
From now on, go on installation operation following
the instructions on the screen. Finally, click the
"Complete" button to finish the preparatory
operation for SD card use.
y Open "My Computer" on the desktop
and confirm that the icon of the new
drive has been created.
Although the drive icon has the same picture
pattern as that of thee hard disk, you can identify it
with the disk capacity (indication of "6.4 MB" for a
8 MB SD card; the drive character of D:, E:, F:
etc. is used depending on the model of the
personal computer). If the capacity is not displayed
as in the diagram on the right, select the drive icon
and press the "ALT" + "ENTER" buttons and check
the indication on the displayed "Properties"
window.
Icon of SD card drive
Notes:
• The procedure window is for Windows 98SE. The contents of displayed window
vary with the Windows version. If the "New hardware" window requests selection of
the driver, select "Windows standard driver" and click the "OK" button. For further
information, refer to on-line Help of Windows.
• Deletion, copy and renaming of a file, creation and deletion of a folder (directory)
and similar operations can be performed in a similar manner to normal hard disk.
Refer to the instruction manual and Help descriptions of your operating system
(OS).
• The projector supports DCF-conforming directories and files as well as folders and
files specified by Wireless Manager 2.0. The projector cannot recognize directories
and files that are not conforming to DCF (except when Wireless Manager 2.0 is
used). Use Image Creator 1.0 to convert the format.
For details of Image Creator 1.0, refer to "Image Creator 1.0" on page 130.
For details of DCF standard, refer to "DCF standard" on page 136.
95
Removing SD card
Take out the SD card in the following procedure:
q Quit all software applications that use the SD card.
w Left-click the PC card icon ( ) shown on the task bar at the
right bottom on the screen.
Note:
• If no PC card icon is appearing on the task bar at the right bottom of the screen, go
to Start menu → Setting → Control panel, open "PC card", click the "Show control
on the task bar" check box, and then click the "OK" button.
e Select either "Disable standard
IDE/ESDI hard disk controller" or
"Disable BN-SD Series PCMCIA Disk
Controller" and click it.
r When a screen appears, as shown on
the right, click "OK" and take out the
PC card adaptor.
t Press the ejector button of the PC card
adaptor and pull out the SD card.
Note:
C
A
R
D
• Strictly follow the procedure for card removal.
Removing the card in a wrong procedure may
destroy the card or stored data.
8M B
Ejector button
96
Compilation on Macintosh machine
The supplied software, Image Creator 1.0, is not available in Macintosh machines.
However, it is possible to write and compile images stored in the personal computer.
Fitting SD card
D
R
A
Positively push in the card until it is locked. Also
pay attention to the difference between up and
down sides and fore and back sides when
inserting the card.
PC card adaptor
C
q Insert the SD card into the PC card
adaptor as shown in the diagram on
the right.
8M B
Note:
SD card
• If the SD card is inserted in the personal computer by means of PC card adaptor
with the write protection switch of SD card set to the LOCK position, an error
message may be shown after a long time taken for card recognition (for several
minutes depending on the conditions). If this occurs, follow the procedure given on
page 98 to take out the SD card from the personal computer, and then release the
write protection switch.
w Insert the PC card adaptor into the PC card slot of the
personal computer.
An icon of drive will be added automatically on the desktop.
e Write and edit files in the similar manner as a floppy disk and
an MO disk.
Note:
• Extension of functions is required including PC
Exchange and File Exchange. If those functions are
not installed, a message appears, saying, "The
computer cannot read this disk. Will you format the
disk?" and a formatting screen appears. NEVER
format the disk though.
If the card undergoes Macintosh formatting, the projector will not be able to
recognize the SD card. Be sure to click the "Remove" button and take out the SD
card. Then install PC Exchange, File Exchange and other function extension. (For
details of procedures, refer to the instruction manuals for the OS and related Help.)
• Deletion, copy and renaming of a file, creation and deletion of a folder (directory)
and similar operations can be performed in a similar manner to normal hard disk.
Refer to the instruction manual and Help descriptions of your operating system
(OS).
• The projector supports DCF-conforming directories and files as well as folders and
files specified by Wireless Manager 2.0. The projector cannot recognize directories
and files that are not conforming to DCF (except when Wireless Manager 2.0 is
used).
For details of DCF standard, refer to "DCF standard" on page 136.
97
Saving images in Macintosh onto the SD card.
JPEG images that were created with graphic software or captured by digital camera
into Macintosh can be saved onto the SD card and replayed with the projector.
Note:
• Fully read "DCF standard" on page 136 and perform file operation.
q Open the icon of SD card drive and press the "
" + "N"
buttons to create a new folder (directory) and rename it DCIM.
A DCIM directory already exists in an SD card in which any file has been saved
as a result of image capture by using the projector or use of a DCF-conforming
digital camera; thus there is no need for folder creation anew.
w Open the created DCIM directory and press the "
" + "N"
buttons to create a new folder (directory), and rename it with a
directory name that conforms to the DCF standard (e.g.,
100abcde).
Also an existing DCF-conforming directory may be used as in Step q.
e Drag and drop your saving-desired JPEG image file into the
created directory
The file will be copied in the directory (the original file in the personal computer
will not be deleted).
r Rename the copied file with a file name (e.g., abcd0001.jpg)
that conforms to the DCF standard.
When file saving is complete, take out the SD card from the personal computer
and insert that SD card into the projector following the procedure below. Now
JPEG images are ready for replay.
Removing SD card
Take out the SD card in the following procedure:
q Quit all software applications that use the SD card.
w Drag and drop the icon of SD card drive on the desktop into
the Recycle Bin icon and then take out the PC card adaptor.
e Press the ejector button of the PC
card adaptor and pull out the SD card.
Note:
C
A
R
D
• Strictly follow the procedure for card removal.
Removing the card in a wrong procedure may
destroy the card or stored data.
8M B
Ejector button
98
Network setting
Example of setting for use of the
wireless card
Image transfer methods that use wireless card are broadly classified into four types
depending on the current working environment.
To use wireless communication for the first time
Insert the optional wireless card (ET-CDWL1) into your PC and make setting for the
direct wireless communication with the projector.
For details of setting the projector, refer to "Setting the projector" on page 104.
For details of setting the PC, refer to "Settings of personal computer" on page 112.
R
Personal computer
Projector
Typical setting
Parameters
Setting of the projector
Setting of the PC
IP address
LAN 1 - 5:
192.168.10.10-14
(factory default)
If you use more than one
projector, assign a different
address to each of them.
Assign an address such as
192.168.10.15 or 192.168.10.20.
The same IP address as the
projector cannot be used.
Subnet mask
255.255.255.0
255.255.255.0
(factory default)
AD HOC
Ad Hoc
11 (factory default)
11
Use the same setting as the Use the same setting as the
PC.
projector.
Mode
Channel
Note:
• It is also necessary to install the wireless card driver and to make settings for the
wireless card.
For details of installing the wireless card driver, refer to "Installing wireless card
driver" on page 107.
For details of setting the wireless card, refer to "Settings of wireless card" on page
111.
99
If wireless communication has already been
established between PCs (in ad hoc mode)
In this case, it is required to make settings so that direct wireless communication will
be available between the personal computers and the projector in ad hoc mode using
the wireless cards that are currently used in the PCs.
For details of setting the projector, refer to "Setting the projector" on page 104.
R
Personal computer
Projector
Personal computer
Typical setting
Parameters
Setting of the projector
IP address
Assign an IP address that is different from that of PC.
Example: If the IP address of the PC is 192.168.10.11, assign
an address such as 192.168.10.12 to the projector.
Subnet mask
Use the same settings as the PC.
Mode
AD HOC
Channel
Use the same setting as the PC.
Notes:
• The settings of the PC are available without modification. However, give the same
WEP settings to the projector as the PC because the projector will also support
WEP if the WEP function is enabled on the PC.
If the WEP function is disabled, data encryption is also disabled. Therefore, it is
recommended to take measures for data protection such as setting a password in
folder sharing. For details, please consult your network administrator.
• Compatibility with other cards than the optional wireless card (ET-CDWL1) is not
guaranteed.
100
If wireless communication has already been
established using an access point
In this case, it is required to make settings so that wireless communication will be
available between the personal computers and the projector in infrastructure mode
through the access point.
Communication may not be established depending on the access point used.
For details of setting the projector, refer to "Setting the projector" on page 104.
Personal computer
Personal computer
Personal computer
LAN
R
Personal computer
Access point
Projector
Typical setting
Parameters
IP address
Subnet mask
Setting of the projector
For details of setting, please consult your network
administrator.
Mode
INFRASTRUCTURE
Channel
Use the same channel setting as the access point. Please
consult your network administrator.
SSID
Use the same SSID setting as the access point. Please
consult your network administrator.
Notes:
• If the projector is used in the area where the radio waves cannot reach the access
point, follow the instructions described in "If wireless communication has already
been established between PCs (in ad hoc mode)" on page 100.
• For the SSID of the projector, up to 32 alphanumeric characters and symbols are
available. For this reason, if the SSID of the access point cannot be used in the
projector, consult the network administrator and have the SSID changed to the one
that can be used in the projector.
• The projector does not support DHCP. If your LAN uses DHCP server, a fixed IP
address must be assigned to the projector. For details, please consult your network
administrator.
101
If communication in ad hoc mode is unavailable
Make setting for use in PEER-TO-PEER mode, which allows direct communication
via the LAN card. Use this setting when communication is not available in ad hoc
mode.
For details of setting the projector, refer to "Setting the projector" on page 104.
R
Personal
computer
Wireless
LAN card
Projector
Personal computer
Typical setting
Parameters
Setting of the projector
IP address
Assign an IP address that is different from that of PC.
Example: If the IP address of the PC is 192.168.10.11, assign
an address such as 192.168.10.12 to the projector.
Subnet mask
Use the same settings as the PC.
Mode
PEER-TO-PEER
Channel
Use the same setting as the PC.
SSID
Use the same setting as the PC.
Note:
• The setting on the PC side can be used without alteration.
102
Example of setting for use of the
projector LAN card
Usage of projector LAN card is classified into the following two types.
Note:
• The optional projector LAN card (ET-CDLAN1) cannot be used in a personal
computer.
To directly connect a personal computer to the
projector
Mount an optional projector LAN card
(ET-CDLAN1) on the projector, connect
the PC to this card with a cross cable, and
then make setting for communication.
For details of setting the projector, refer
to "Setting the projector" on page 104.
For details of setting the PC, refer to
"Settings of personal computer" on page
112.
R
Typical setting
Parameters
Setting of the projector
Setting of the PC
IP address
LAN 1 - 5:
192.168.10.10-14
(factory default)
Assign an address such as
192.168.10.15 or 192.168.10.20.
The same IP address as the
projector cannot be used.
Subnet mask
255.255.255.0
(factory default)
255.255.255.0
When connecting via a relaying device
When a hub or other relaying device is
placed between the projector and PC,
make setting for communication.
For details of setting the projector, refer
to "Setting the projector" on page 104.
For details of setting the PC, refer to
"Settings of personal computer" on page
112.
R
Straight cable
Typical setting
Parameters
Setting of the projector
Setting of the PC
IP address
Please consult your network administrator.
Subnet mask
Please consult your network administrator.
Note:
• Read and follow the instruction manual for that relaying device.
103
Setting up the projector
Mounting a wireless card
q Insert the wireless card into the projector
For details of installing and removing the wireless card, refer to "Wireless card" on
page 91.
w Press the MENU button to display the menu.
e Use
and
buttons to display
NETWORK
STATUS
"Network setting" screen.
WEP
LAN1
KEY1
SELECT:[^][@]調整:[←][→]ENTER:[ENTER]
ESC:[MENU]
r Press the ENTER button to display "Network setting" setting screen.
Status
Five different LAN settings (LAN 1-5) can be stored on the projector.
Selecting from LAN 1-5 with
and
buttons, press the ENTER button and its
status will be displayed.
To change the status, choose "RUN" from "Setting Wizard" and press the ENTER
button to move to the LAN setup wizard.
To enable the status, choose "OK" from "Setting Wizard" and press the ENTER
button.
WEP Wired Equivalent Privacy
The projector can encrypt the image data.
However, when the encryption function is enabled, it takes more time to transmit
images.
Selecting from KEY 1-4 with
and
buttons, press the ENTER button and the
WEP data will be displayed.
To change the setting of WEP, choose "RUN" from "Setting Wizard" and press the
ENTER button to move to the WEP setup wizard.
To enable the WEP data, choose "OK" from Setting Wizard and press the ENTER
button.
LAN Setup Wizard
IP address
Assign an IP address to the projector.
Make setting according to the typical setting. However, the same IP address as that
of the PC with which the projector communicates cannot be used.
Use
and
buttons to change the value,
and
buttons to switch the
fields. Press the ENTER button when the setting is completed.
Subnet mask
Set the subnet mask of the projector.
Make setting according to the typical setting.
Use
and
buttons to change the value, and use
switch the fields.
Press the ENTER button when the setting is completed.
104
and
buttons to
Gateway
This is a relaying point to connect two networks. It does not work in ad hoc mode.
This address must be specified when connecting to a network of a different
segment in infrastructure mode or peer-to-pee mode or to connect to the Internet.
For the details of specification of address, consult your network administrator.
Host name
Set the name of the projector on the network.
The name must be up to 16 alphanumeric characters and symbols.
Use
and
buttons to change the value, and use
and
switch the characters to be changed.
Press the ENTER button when the setting is completed.
buttons to
Mode
Make setting for the modes of “AD HOC”, “INFRASTRUCTURE” and “PPEER-TOPEER”.
Specify “AD HOC” when “To use wireless communication for the first time” or when
“If wireless communication has already been established between PCs (in ad hoc
mode)”. Specify “INFRASTRUCTURE” when “If wireless communication has
already been established using an access point”. Specify “PEER-TO-PEER” when
“If communication in ad hoc mode is unavailable”.
Press the ENTER button when the setting is completed.
SSID (in INFRASTRUCTURE mode or in PEER TO PEER mode
only)
Change the setting to the same name as the “SSID” that is set for the access point
for communication in infrastructure mode or peer-to-peer mode.
• For the SSID of the projector, up to 32 alphanumeric characters and symbols are
available. For this reason, if the SSID of the access point cannot be used in the
projector, consult the network administrator and have the SSID changed to the
one that can be used in the projector.
Use
and
buttons to change the value, and use the
and
buttons
to switch the characters to be changed.
Press the ENTER button when the setting is completed.
Channel
Select the channel for use. It is necessary to select the same channel as used by
the wireless card of the PC with which the projector communicates.
In the INFRASTRUCTURE mode, the projector usually operates regardless of the
channel setting. However, communication may not be established depending on
the access point used unless the projector has the same channel setting as the
access point.
Use
and
buttons to select the desired channel and press the ENTER
button.
Note:
• Available channels vary by the country (refer to page 87).
105
WEP setup wizard
KEY SIZE (encryption key size)
Set the size of the key required for the encrypted communication.
Conform to the setting of the personal computer and the access point. In some
cases, 64 bits may be indicated as 40 bits and 128 bits as 104 bits.
Use
and
buttons to toggle the values and press the ENTER button
when the setting is completed.
KEY ID (encryption key ID)
Specify the ID of the encryption key to be used.
Conform to the setting of the personal computer and the access point.
Use
and
buttons to select values and press the ENTER button when
the setting is completed.
KEY (encryption)
Enter a 10-digit key for 64-bit and a 20-digit key for 128-bit using characters 0 to 9
and A to F.
Conform to the setting of the personal computer and the access point.
Use
and
buttons to select the value, use the
and
buttons to
switch the digit and press the ENTER button when the setting is completed.
Mounting a projector LAN card
For the setting of the projector when mounting a projector LAN card, refer to
“Mounting a wireless card” on page 104.
In the LAN setup wizard of “Status”, however, only set the IP address, Subnet mask,
Gateway and Host name.
Further, no “WEP” setting is provided there.
106
Installing a wireless card driver
Install a wireless card driver onto the personal computer in order to use the wireless
card.
The following section describes the operation when using an optional wireless
card (ET-CDWL1).
Fitting and removal of wireless card into/from
personal computer
Insertion of wireless card
With the side of power monitor
facing up, insert the card into the
PC card slot until it reaches the
depth.
Pay attention to the difference between the
up and down sides of the wireless card.
Personal computer
Wireless card
Notes:
• Refer carefully to the instruction manual supplied with the PC.
• Forcible insertion of the wireless card in a wrong direction may cause a fault.
Removal of wireless card
q Quit Wireless Manager if using it.
w Left-click the icon for PC card (
) shown on the task bar at
the bottom right corner of the screen.
Note:
• If no PC card icon is appearing on the task bar at the bottom right of the screen, go
to Start menu - Setting - Control panel, open PC card, click the Show control on the
task bar check box, and then press the OK button.
e Select and click Stop Panasonic
Wireless Card.
r Press the OK button and remove the
wireless card.
107
Installing a driver
When the wireless card is inserted, the driver installation screen will appear. A driver is stored
in the CD-ROM supplied with the projector. Use the following procedure for installation.
When installing a driver, the setting utility is installed automatically. Installation screen
does not appear.
■ For Windows98SE
Note:
• The Windows98SE installation CD-ROM may be required when installing the
driver.
q When the wireless card is inserted, "Add
New Hardware Wizard" appears. Press
"Next" button.
w Select "Search for the best driver for
your device", and press "Next" button.
e Check "CD-ROM drive" and click
"NEXT".
r When "pananic.inf" is detected, press
the "Next" button.
Installation of the driver will be started.
t Press the "Finish" button.
y Press the "Yes" button to reboot the PC.
Rebooting the PC completes the installation of the
driver.
108
■ For WindowsMe
q Set the CD-ROM to the CD-ROM drive,
select "Automatic search for a better
driver" and press the "Next" button.
w Press the "Finish" button.
■ For Windows2000
q When the wireless card is inserted,
"New Hardware Found Wizard" appears.
Press the "Next" button.
w Select "Search for a suitable driver for
my device", and press the "Next"
button.
e Insert the supplied CD-ROM into the CDROM drive of the PC, click the check
box for "CD-ROM drive", and press the
"Next" button.
r Press the "Browse" and select "Wireless
Card\English" in the CD-ROM.
109
t When "pananic.inf" is detected, press the
"Next" button.
y Press the "Yes" button.
Installation of the driver will be started.
u Press the "Finish" button.
Installation of the driver will be completed.
■ For WindowsXP
q When the wireless card is inserted, "New
Hardware Found Wizard" appears. Press
the "Next" button.
w Uncheck "Search removable media", check
"Include this lacation in the search", click
the "Browse" button and then select
"WirelessCard\English" in the CD-ROM
drive for driver search location.
e Press the "Next" button.
r Press the "Finish" button.
110
Settings of wireless card
q Click the icon on the task bar and,
from "Menu", open "Advanced
Settings".
w Enter the name in "Profile Name" to
preserve the settings.
The initial value is set to Default .
Only alphanumeric characters and symbols are
acceptable.
e If the Communication mode is set to
"Infrastructure" (Access Point) or to
"PEER-TO-PEER":
Set Network name (SSID) to the same setting as
the projector.
If the Communication mode is set to
"AdHoc" (Pseudo AdHoc):
Set the channel to the same number as the
projector.
r If WEP (encryption) has been set in
the projector:
Select the "WEP mode", and set it to the same
settings as the projector and the access point.
64 (40) bit encryption
To enter an encryption key:
Characters: 5 characters
Hexadecimal numbers: 10 digits
Select a default key number from 1 to 4.
128 (104) bit encryption
To enter an encryption key:
Characters: 13 characters
Hexadecimal numbers: 26 digits
Select a default key number from 1 to 4.
t Click the Apply button.
Click the OK button to close the window.
111
Settings of personal computer
TCP/IP setting
■ For WindowsMe
q Right-click the "Network Computer"
icon and open "Properties".
w Select "TCP/IP -> Panasonic Wireless
Card", and click the "Properties"
button.
e Enter an IP address of the same
segment as the one assigned to the
projector.
r Enter the same value as the subnet
mask assigned to the projector.
t To communicate in "AdHoc" mode,
delete the gateway.
To communicate in "Infrastructure"
mode or PEER-TO-PEER mode, set a
proper gateway.
After the entry, click the "OK" button to return to
the previous screen.
y Click the "OK" button to complete the
setting procedure.
Rebooting the PC will establish the settings.
■ For Windows98SE
• To install the driver in a Windows98SE machine, refer to the procedures for
WindowsMe.
112
■ For WindowsXP
q Right-click the "My Network" icon
and open "Properties".
w Right-click the "My Network" icon
and open "Panasonic Wireless Card".
e Select "Internet Protocol (TCP/IP)",
and click the "Properties" button.
r Enter an IP address of the same
segment as the one assigned to the
projector.
t Enter the same value as the subnet
mask assigned to the projector.
After the entry, click the "OK" button to return to
the previous screen.
y Click the "OK" button to complete the setting procedure.
You do not have to restart the computer.
■ For Windows2000
• To install the driver for Windows2000, refer to the procedure for WindowsXP.
113
If two or more network devices are existent
■ For WindowsMe
q Right-click the "My Computer" icon
and click "Properties" to open the
"System Properties" window.
w Open "Device Manager", and select
the icon of the device you want to
disable, and click the "Properties"
button.
e Check the "Disable in this hardware
profile" checkbox and click the "OK"
button.
r Confirming that each icon of the
disabled adaptors is marked with "X",
click the "OK" button to close the
window.
■ For Windows98SE
• To install the driver in a Windows98SE machine, refer to the procedures for
WindowsMe.
114
■ For WindowsXP
q Right-click the "My Network Places"
icon and select "Properties", and
open the "Network connection"
window.
w Right-click the icon of the device you
want to disable and select "Disable".
e Making sure the icon of the device
you just disabled is gray, close the
window.
■ For Windows2000
• To install the driver for Windows2000, refer to the procedure for WindowsXP.
115
Web browser control
What you can do with Web browser
control
With the web browser, the user can access the projector for set-up using the projector
control and handle the SD card data loaded in the projector using the SD control.
Settings of Web browser control
Settings of projector
q Press the MENU button to display the menu.
w Use the
and
buttons to display the OPTION
SHUTTER
"Option" screen.
OSD
AUTO KEYSTONE
e Press the ENTER button to display the
RGB/YPbPr
RGB2 SELECT
BACK COLOR
Option set-up screen.
FRONT/REAR
Settings can be altered with
,
,
and
buttons.
Press the ENTER button when necessary changes are
completed.
DESK/CEILING
LAMP POWER
LAMP RUN TIME
NEXT PAGE @
SELECT:[^][@]
ADJUST:[{][}]
OFF
OFF
RGB
INPUT
BLUE
FRONT
DESK
LOW
ON
ON
YPbPr
OUTPUT
BLACK
REAR
CEILING
HIGH
10 H
ENTER:[ENTER]
ESC:[MENU]
Web control
ON: Enables the web browser control.
OFF: Disables the web browser control.
Web power
ON: Allows the user to turn on the power of the projector
using the web browser control.
OFF: Does not allow the user to turn on the power of the
projector using the web browser control.
OPTION
PREVIOUS PAGE ^
FAN CONTROL
WEB CONTROL
WEB STANDBY
WEB PASSWORD
CONTROL KEY
FUNC1
SET ID
AUTO POWER OFF
STANDARD
OFF
OFF
HIGH
ON
ON
OFF
MUTE
ALL
DISABLE
ON
KEYSTONE
Web password
The user can set a password using up to 16 alphanumeric SELECT:[^][@]
ENTER:[ENTER]
ADJUST:[{][}]
ESC:[MENU]
characters and symbols.
Use
buttons to change letters, use
buttons to move the digit.
No password has been set as a factory default.
Settings of personal computer
q Right-click "Internet Explorer" icon
and open "Properties".
w From "Connection", open "LAN
setting", clear all the check boxes of
options and click the "OK" button.
Click the "OK" button to close the set-up window.
Note:
• If the proxy server is already used, in "Advanced
Settings" set IP address of the connecting projector
as an exception not to use the proxy server.
e In "Security", set the security level to
the "Default level". Or otherwise, from
"Custom level" enable "Active script".
116
Note:
• For Netscape, go to “Edit” → “Setting” → “Details” and enable JavaScript.
Operation of Web browser control
Starting Web browser control
Start the browser (Microsoft Internet Explorer is used as an
example here), and enter the IP address assigned to the
projector.
Web browser control will be started.
Note:
• Web browser control can also be started from Wireless Manager 2.0.
While Wireless Manager 2.0 is running, right-click the icon shown on the task bar,
select and left-click Remote Control .
Disable the use of the proxy server (to use
the proxy server, refer to "Settings of
Web browser control" on page 116).
Specify the IP address that has been assigned to
the projector in the network setting.
Select Japanese or English.
Enter the password if any has been defined.
Note:
In case you forget the password, assign a new
password to the projector (For security reason,
the projector does not show the password that
you have been using).
Top screen
Note:
• The top screen may not be displayed depending on the browser. In that case, close
the window first and start again the Web browser control, or press the "CLT" + "R"
buttons at the same time.
117
Projector control
Click "Projector control" in the menu.
The user can make various settings of the projector.
Basic control screen
Notes:
• When the power is turned ON, the
window is closed for the moment. Then,
confirming that the light is turned on, start
operation again from the top screen.
• Connection with the projector cannot be
established just after turning on the
power. In this case, wait for a while and
try connection again.
• If Web control is not turned ON in the
option setting of the projector, neither basic
control nor option control will operate.
• Web power is not turned ON in the
option setting of the projector, it will not
be powered on. However, the projector
control screen will display still the same
content as shown when the projector
operates normally.
Option control screen
Note:
• If the projector does not work as
controlled, ensure that the Web control is
set to ON in the Option menu.
Monitor information screen
When power is turned ON:
When the system is in Web standby state:
Note:
• Monitor information is updated at regular intervals. If you go to "Display" and press
the "Refresh" button, you can check the current and accurate information.
118
SD control
q Switch to "SD CARD" by using the input selector (RGB)
button of the projector or the remote control.
It is also possible to switch to it on the basic control screen of the projector
control.
w Click "SD control" in the menu.
SD file list screen
Select a folder in the SD card.
Select from display of thumbnail, display
of file name list and presentation.
Control auto-play.
Clicking a file name will zoom in on it
within the Web browser.
Clicking Projection will display the file
by on projector.
SD thumbnail screen
Clicking an image will zoom in on it
within the Web browser.
Clicking "Projection" will display it
on the projector.
Presentation screen
Click the page, and the image
will be magnified and
displayed in the Web browser,
and then it will be projected by
the projector.
119
Changing password
Click "Change password" in the menu.
The user can change the password.
Note:
• Up to16 characters can be used for a
password.
Use alphanumeric characters and
symbols to create a password.
Both upper and lower case letters can
be used.
When using PDA
From a personal digital assistance (PDA) and other portable information terminal, the
user can access this projector to make setting on the projector and to operate data of
the SD card.
For details of PDA and for setting of PDA network cad, refer to manufacturer’s
instruction manual for those devices.
Operation of PDA
Starting the Web browser control (PDA)
Start the browsing software and enter the following address:
http://(the IP address set by the projector)/index_p.htm
Then the Web browser control (PDA) will start.
Notes:
• The English language is used on the Web browser control (PDA) screen.
• Explanation made here uses a PDA, pocket Internet explorer 3.0, for example, with
the screen size being 240 wide and 320 long.
Top screen
If a password has been set, enter it and press ENTER.
Enter the password if any has been defined.
Note:
In case you forget the password, assign a new
password to the projector (For security reason,
the projector does not show the password that
you have been using).
120
Menu screen
Press Projector control or SD control.
Projector control
Notes:
• When the power is turned ON, confirm that the indicator
lamp is lighting, then go to the top screen again.
• Immediately after power turning ON, it may happen to
be unable to connect with the projector. If this is the
case, wait for a while and then try connection again.
• Either basic control or option control will not function
unless Web power is set to ON in the option setting of
the projector.
• Power ON operation will not occur unless Web power is
set to ON in the option setting of the projector. At this
moment, however, the projector control screen has the
same indications as those displayed when normal
operation is available.
SD control
q Switch to “SD CARD” using the input switching (RGB) button
on the projector or the remote control.
Switching is also available on the screen of the projector control.
w Click “SD control” of the menu.
e Select from folders in the SD card.
r Select form control modes (presentation and list).
Presentation
The NEXT button will project the
next image and the PREV button
the previous image.
List
A list of files that can be replayed
will appear. Press the button
located at the right of the desired
file for replay, and the image will
be projected.
121
Wireless Manager 2.0
What you can do with Wireless
Manager 2.0
Wireless Manager 2.0 provides the following functions:
• To register multiple projectors that are on the network.
• To capture images on the computer screen and transmit them to the projector.
• To view the list of existing image files in the folder, from which the user can select
the desired images and transmit them to the projector. In addition, the software
also allows the user to enjoy automatic playback.
• To transmit image data onto the SD card inserted in the projector and stack images
in advance. This function allows quick image switching.
Note:
• Wireless Manager 2.0 supports BMP, JPEG, and PNG image formats.
• Wireless Manager 2.0 cannot be used with the earlier model of PT-L712NTU.
Installation of Wireless Manager 2.0
Install the Wireless Manager 2.0 onto your PC.
The software is contained in the supplied CD-ROM.
Before installation
The software does not run on the computer that does not operate with
Windows98SE/Me/2000/XP.
Procedure of installation
q Insert the CD-ROM into the CD-ROM drive.
w Open "WIRELESS MANAGER 2.0" folder in the CD-ROM.
e Open "English" folder.
r Double-click and run "Setup.exe".
Go on installation operation following the instructions shown on the screen.
122
Operation of Wireless Manager 2.0
Starting/ending Wireless Manager 2.0
Double-click the Wireless Manager icon.
Wireless Manager 2.0 startup screen is
displayed and Wireless Manager icon stays
resident on the task bar.
Right-click the icon displayed on the task bar,
and the "Menu" appears. Choose and left-click a
desired item, and it will be displayed on the
screen.
To quit Wireless Manager 2.0, right-click the task
bar and select "Exit" from the menu.
When a confirmation message is displayed, click
"Yes".
Note:
• Wireless Manager 2.0 can also be launched
from Image Creator 1.0.
From the Image Creator window, click Launch
Wireless Manager button (A).
If the images have been stored using Image
Creator 1.0 in advance, an image list window
appears after the start of Wireless Manager
2.0, followed by the thumbnail display of
images stored using Image Creator 1.0.
A
Registration of projector
In addition to the current projector, the user
can register multiple projectors to which
images will be transmitted.
q Right-click the icon on the task
bar and choose "Option".
B
"Option" screen is displayed.
w From the "Option" screen,
choose "Select the destination
receiver".
C
123
If another projector exists on the same network as the one
for the PC onto which Wireless Manager 2.0 has been
installed
e Click the "Search" button (B).
A "Searching Projectors" screen is displayed. To cancel the search, click the
"Cancel" button.
When the search is completed, a list of projectors connected to the network will
be displayed.
r Choose the desired projector to which
the image data will be transmitted and
click the "Register" button.
Note:
• If no projector is found on the network, a "No projector
is found" message is displayed. Check the network
setting of the PC in use and the projector setting.
If no projector does not exist on the
same network as that for the PC onto which Wireless
Manager 2.0 has been installed, or when a projector is to be
registered manually
e Click the "Add" button (C).
r From the keyboard, type the IP address
of the projector and click the "Register"
button.
The projector will be registered in the list of projectors
to which the image data is to be transmitted.
If the specified projector is not found on the network,
a "The projector was not detected" message will be
displayed.
If you want to cancel the registration, click the
"Cancel" button.
t Choose the SD folder to which the
image data is to be transmitted.
Image data can be transmitted onto the SD card
inserted in the projector.
Ten folders are provided on the SD card to receive
the transmitted image data.
Click the pull-down key of the "Folders in SD" and
choose a folder to which images are to be
transmitted from folders displayed.
y Click and choose the projector to which image data is to be
transmitted.
Image data cannot be transmitted unless a projector is selected.
u Click the "OK" button.
This will establish the setting.
To abort the setting, click the "Cancel" button.
124
To capture and transfer the image of PC screen
The user can capture the screen currently displayed on the PC monitor and transmit
it to the projector or saved it in the PC.
Before transmitting an image
It is necessary to switch the input of the projector before
sending an image to the projector by Wireless Manager.
Switch to "NETWORK" using the input selector (RGB)
button of the projector or the remote control.
NETWORK
Functions on the "Capture" window
When you right-click the icon on the task bar and choose "Capture", the "Capture"
window is displayed.
1. "Full screen" button
A full screen of the PC is captured.
The screen is kept blank during the image
capture process and it will be displayed again 1
when the capture is completed. The captured
2
image is displayed on PictureBox.
The process during the capture is displayed in
scheduled process window (8).
For details of the setting of the process during the
capture, refer to "Capture" in the option screen.
8
5
3
2. "Area" button
The user can specify an area on the PC screen
and capture the image within the area.
The "Capture" window is kept blank during the
area definition process. Use the mouse to clip
the area to be captured. When the clipping is
completed, the image is captured and displayed
in the PictureBox of the "Capture" window.
4
6
7
3. "Scope" button
A specified window on the PC monitor can be captured as an image.
The image will be captured when the Scope button is dragged with the mouse
and dropped on the desired window to be captured.
4. "Transmission" button
The image displayed in the PictureBox of the "Capture" window is transmitted to
the projector.
For details, refer to "Registration of
projector".
5. "Full size" button
This button toggles the "Capture" window
between the full size and the minimum size.
6. "Option" button
The user can define the conditions for
capturing an image.
On the Option screen, the user can specify
the type of capture format, after-capture
processing and the delay time for capturing.
125
Note:
• Images can be captured in three different formats (PNG, JPEG, BMP).
• As for JPEG, data compression ratio can be optionally specified.
• For the process after the capture, the user can choose either capturing and
transmitting the screen or saving the image.
• If capturing and transmitting the screen is selected, the image is transmitted to the
projector immediately after the capture. In this case, the indication in Window 8 will
be "The image will be transmitted when it is captured".
Uncheck this option if you want to transmit the captured image after verifying it.
If saving the image is selected, the captured image will be saved in the specified folder.
In this case, "Capture only" is displayed in part 8.
• The image is saved in the format specified in the capture format.
• The delay time for capture can be set when the image you want to capture is not
displayed immediately.
• The range of delay time setting is 1 to 30 seconds.
This value depends on the hardware of your PC as well as the operating
applications. Try to capture several images into your PC to determine the best
value to choose.
7. "Close" button
This button quits the "Capture" window.
Transfer of image stored in the personal computer
The images stored in the PC can be transmitted to the projector.
The functions on "Image List" screen
When the user right-click the icon on the task bar and choose "Image List", the
"Image List" appears.
1
17
16
13
4
9
14
8
7
5
10
6
11
2
3
12
15
1. Choosing an image folder
Specify the folder to manage those images to be transmitted to the projector.
If the specified folder contains some images, they are displayed in the thumbnail
display section (17).
2. "Add" button
An image will be added to the folder selected in the image folder (1).
Choose the image you want to add and click "Open".
The images will be added in the frame next to the last one of thumbnail display section (17).
126
3. "Delete" button
Image files selected in the thumbnail display section (17) will be deleted.
A message will be displayed to confirm the deletion. Choose "Yes" to delete, or
"No" to cancel.
Note:
• The deleted image files reside in the Recycle Bin. Any of them can be retrieved
from the bin if you accidentally delete them.
4. [Transmission] button
Image files selected in the thumbnail display section (17) will be transmitted to the projector.
If you want to cancel the transmission, click the "Cancel" button.
5. Automatic display
Images shown in thumbnails (17) will be replayed automatically.
The image currently selected, shown in the preview screen (16), will be first
displayed in automatic display mode.
To cancel transmission, click the "Cancel" button.
If you want to stop the automatic display, click the "Stop" button (7).
When the automatic display comes to an end, the top image will be selected.
For details of the advanced setting in automatic display, refer to the Paragraph 14 "Options".
In presentation mode, the personal computer uses the projector exclusively so
that images cannot be transferred from other PCs.
6. Transfer to SD
All images shown in thumbnails (17) will be transferred to the SD card inserted in the projector.
To cancel the transfer, click the "Cancel" button.
This function is not available during automatic display.
Note:
• The power of the projector cannot be turned off during the process of transfer to SD.
7. Stop
This suspends the automatic display currently performed.
Then the top image of in thumbnails (17) will be selected.
8. Presentation mode
During a presentation, choose this option to disable operation of sorting, adding
and deleting of images.
This mode will be cancelled when the order of images is changed.
In presentation mode, the personal computer uses the projector exclusively so
that images cannot be transferred from other PCs.
9. Previous image
This function selects the previous image in the thumbnails (17).
Selection of this function is ignored the top image is currently selected.
10.Next image
This function selects the next image in the thumbnails (17).
Selection of this function is ignored the last image is currently selected.
11.Re-display
The images in the folder that is selected in image folder setting (1) will be
displayed again in the thumbnail display area (17).
Thumbnails will be displayed in the same order as the previous one. The
registered new images such as the ones written into the folder with Explorer etc.
will be added to the last of thumbnails in turn.
This function is not available when the system is in automatic display mode.
Use this function when thumbnails are displayed in a wrong manner.
127
12.Display switching
Switch the way to show images in the thumbnail display area (17).
You can toggle between a mode of 4-row 4-line thumbnail display on the page
and a mode of full-size display of the image.
If the full-size mode is selected, the same image will be displayed as the one
currently projected.
13.Start (stopwatch function)
When you click the "Start" button with the mouse, the timer starts counting, the
elapsed time is displayed and "Stop" is shown on the button.
When you click the "Stop" button, the timer stops and "Reset" is displayed on the
button.
When you click the "Reset" button, the elapsed time is cleared to zero and "Start"
is displayed on the button.
14.Options
The user can make the setting of the shortcut keys and the operation mode of the
automatic display.
• Setting of the shortcut keys
"Transmit full-screen": transmits the entire image on the PC screen.
"Image list": displays an image list window.
"Capture": displays a capture window.
• Setting of the automatic display mode
"Number of loops": specifies the times of automatic display cycle to be
repeated. Choose from 1 to 10 or continuous.
"Interval": specifies the interval time for transmitting images during automatic
display. Choose from 10 to 600 seconds.
Click the "OK" button to save the above settings. Click the "Cancel" button to
cancel.
15.Close
The image list window will be closed.
16.Preview screen
If thumbnail display has been selected, the same image as the one transmitted to
the projector will be displayed.
If zoom or full-size image has been selected, the image to be transmitted next
(the selected one) will be displayed.
17.Thumbnail display
This function displays 4-row 4-line thumbnails on the page. Any thumbnail shown
in this area can be moved to a different location by drag-and-drop operation.
Clicking the Display switching button (12) will toggle between the mode of 4-row
4-line thumbnail display on the page and the mode of full-size display of the
image.
Any image file can be added from Explorer by drag-and-drop operation.
Up to 1000 thumbnails can be displayed. If more than 1000 thumbnails are found,
an error message will appear. Even when this error occurs, at least the 1000
thumbnails will be displayed.
128
Major examples of usage
Basic usage
q Launch the image list window.
w Choose the folder that contains prepared images.
e From the thumbnail display window, specify the image file
you want to transmit to the projector.
r Press the "Transmit" button to send the image to the projector.
Automatic display in predefined sequence
q In the thumbnail display window, sort images in the order you
want to replay.
Choose images and change the display order by drag-and-drop mouse operation.
w Check the "Presentation mode" box to disable alteration of the sequence.
e Press the "Automatic display" button to send the images to
the projector in the sequence defined above.
The number of repetitions of automatic display and the interval time of the display
should be specified in advance.
Quick-changing presentation using SD card
q On the thumbnail display window, sort the images in the order
you want to replay.
w Press the "Transmit to SD" button to send all image data to
the projector.
e From the remote control (Web browser control) screen,
project the image data that has been transferred to the
projector keeping in step with the presentation.
Conference using multiple personal computers
q Select the connection with the projector to be used in the
conference from the multiple personal computers.
w Manipulating the "Image list", the remote control (Web
browser control) and the "Capture" window depending on the
situation, transmit the selected images to the projector.
Image list
The images to be displayed are transferred to the projector from the folder that
contains the prepared images.
Remote control
The image data saved previously on the SD card is projected from the remote
control window.
"Capture" window
Whole or part of the PC screen is captured and transferred to the projector.
The operation mode after the capture should be specified in the option in advance.
129
Image Creator 1.0
What you can do with Image Creator 1.0
The following lists the functions that Image Creator 1.0 provides.
To convert a PowerPoint file (with a .ppt extension) into a DCF-compliant
JPEG or PNG image file.
The PC that converts the file must have PowerPoint97/2000/2002
installed in it.
To convert JPEG, BMP, TIFF and PNG images to DCF-compliant JPEG or
PNG images.
To change the image size or compression ratio.
XGA
SXGA
SVGA
XGA
XGA
XGA
C
B
C
A
To sort the images.
A
B
To write to the SD card, the hard disc and the MO etc.
8MB
130
Installation of Image Creator 1.0
Install the Image Creator 1.0 onto your PC.
The software is contained in the supplied CD-ROM.
Before installation
The software does not run on the computer that does not operate with Windows98SE/Me/2000/XP.
Procedure of installation
q Insert the CD-ROM into the CD-ROM drive.
w Open the "IMAGE CREATOR" folder in the CD-ROM.
e Double-click and run "Setup.exe".
Go on installation operation following the instructions shown on the screen.
Operation of Image Creator 1.0
Starting/ending Image Creator 1.0
To start Image Creator 1.0, go to the "Start"
menu at the bottom left of the screen, and
choose "Program". This operation will start
"IMAGE CREATOR Ver.1.0".
To quit Image Creator, press the "Exit" button on
the control screen.
Functions on the main screen
When you launch Image Creator, the main screen will appear as shown in the
diagram on the right.
The functions on the main screen are as follows:
1 2
1. "File" menu
"Capture slides", "Capture an image",
"Convert and save" and "Exit" are
available in this menu.
2. "Settings" menu
This menu allows you to use change of
"JPEG conversion format" (saving in DCF
format, making thumbnails) and adjust of
"JPEG quality" (low-quality or highquality).
3
11
4
5
6
9
7
3. "Version information"
8
10
You can check the version of "Image Creator 1.0 software".
4. "Capture slides" button
Presentation files created with Microsoft PowerPoint are captured into Image
Creator 1.0.
5. "Capture images" button
Image files created with other applications (either in JPEG, BMP, TIFF, PNG
format) are captured into "Image Creator 1.0".
6. "SD card/Other folder" selection
Here select the destination of captured image files.
131
7. "Convert and save" button
Files will be converted into the specified format (automatic, JPEG or PNG
conversion) and size, and saved into the destination selected in (6).
8. "Launch Wireless Manager" button
Wireless Manager 2.0 will be started.
(Once it is started, it will be minimized on the
task bar. To operate the function, right-clicking the icon with the mouse.)
If the images have been stored using Image Creator 1.0 in advance, an image list
window appears after the start of Wireless Manager 2.0, followed by the
thumbnail display of images stored using Image Creator 1.0.
9. Thumbnail display
The images captured into Image Creator 1.0 are displayed in reduced size. They
can be sorted or deleted by right clicking with the mouse.
10."Exit" button
Quits Image Creator 1.0.
11."Close" button
Quits Image Creator 1.0.
Converting and saving captured images
When you press the "Convert and save" button on the Image Creator main screen, a
setting window will appear as shown in the diagram on the right.
1. "Slide" button
1
8
This button switches the display of image
files captured into Image Creator.
2. "Compression format" setting
Specify the compression format in which the files
are saved (AUTO, JPEG and PNG are available).
If AUTO is selected, the file is automatically
converted into either JPEG or PNG format.
2
3
4
5
Note:
• If the file would be more compact in PNG
format, this format will be selected for saving.
3. "Convert and screen size" setting
6
7
Specify the screen size of the file to be saved.
4. "Current image" button
Currently selected image file will be saved in the specified compression format
and screen size onto the SD card or into other folders. The name of the saved file
will be generated automatically.
5. "All image" button
All image files captured into Image Creator are saved in the specified
compression format and screen size onto the SD card or into other folders. The
name of the saved file will be generated automatically.
6. Slide display
The currently selected image file will be displayed.
7. "Stop/Exit" button
This button stops converting and saving process and closes the screen. If you
press this button when converting or saving is in progress, the remaining process
will be stopped and the screen will be closed.
8. "Close" button
This button stops converting and saving process and closes the screen. If you
press this button when converting or saving is in progress, the remaining process
will be stopped and the screen will be closed.
132
Capturing presentation files created with Microsoft
PowerPoint97/2000/2002
q Press the "Capture slides" button and select the presentation
files you want to capture.
An "Open" screen will appear as shown in the
diagram. Using "File locations" menu and folder
icons, move to the location where you can find
the desired presentation files for conversion.
Select the desired files and press "Open"
button.
Thumbnails will be displayed when the files are
captured.
Note:
• Only presentation files saved in PPT format (with a .ppt extension) can be
captured. A file saved in other format (e.g. a file with a .pps extension) should be
opened with PowerPoint and saved in PPT format.
w Press "Convert and save" button
to save the captured image files
onto the SD card or other folders.
To capture all slides in a presentation file,
press the "Capture all" button. To capture
individual slides you like one by one, press
"Previous slide" or "Next slide" button to
display the slide you want to capture and
press the "Capture" button. When the capture
is completed, press the "Stop/Exit" button.
Note:
¡ Press the "Stop/Exit" button if you want to stop the process of "Capture all".
¡ The aspect ratio of captured slides will be converted to 4 to 3. It is not
recommended to capture the slides whose ratio is not 4 to 3 because they will not
be reproduced correctly.
¡ Some slides created with PowerPoint97 may cause an error during their
converting process. If this occurs, you can solve the problem by converting the
slides with the PC that has PowerPoint2000 installed.
Capturing JPEG, BMP, TIFF or PNG files created
with other applications
Press the "Capture images" button and select the images
or folders you want to capture.
A file search screen will appear as shown in the
diagram. Select the image files you want to convert
and press the "Open" button.
If you press "Capture all" button, all image files in
the folder currently opened will be captured.
Images not to be captured
The following images cannot be read even if they
are in JPEG, BMP, or TIFF format:
• Images with more than 10,000 dots vertically or horizontally.
• BMP images compressed in RLE format
• TIFF images compressed in LZW format
• JPEG or TIFF images in CMYK (Cyan, Magenta, Yellow and Black).
133
Capturing files by drag-and-drop operation
"Image Creator 1.0" supports drag-and-drop operation. When you choose a file or a
folder to be converted and drag and drop it on the shortcut icon or the window of the
application, Image Creator 1.0 starts automatically and the file(s) are captured.
Drag and drop onto the shortcut icon.
Drag and drop into the window.
Sorting images
Drag the desired image to move and drop it in the desired
location.
A green bold line is shown vertically between images.
Release the mouse button on the desired location, and the
image will move there.
Note:
• You can also move images on the "Sort images" setup screen. To display the
screen, right-click to display the sub-menu and choose "Sort... ".
Deleting images
q Select images foe deletion
If you click on images while depressing the
CTRL button, multiple images will be
selected. If you click on different images
while depressing the SHIFT button, all
images between the two images will be
selected.
w Right-click to display the submenu and select "Delete from the
list".
If you choose "Delete all images from the
list", all captured images will be deleted.
e Click "Yes" when a confirmation window is displayed.
The images will be deleted from the thumbnail display.
Note:
• The original images will not be deleted even captured
images are deleted.
Setting how to convert images when saving
You can specify how to convert images when saving images
onto the SD card or into other folders on the "Setup screen"
displayed by choosing "Setup" from the "Setup" menu or on
the "JPEG quality" adjustment slide bar on the main screen.
134
JPEG conversion format
If you select this check box with " ", the file and directory names will be converted
into DCF format upon saving. If the " " mark is not given, files will be saved in the
name shown under each image on the thumbnail screen.
For details of DCF standard, refer to "DCF standard" on page 136.
Note:
• When a file is saved onto the SD card, it is forcefully converted into DCF format.
"Create a thumbnail" check box
If you select this check box with " ", a reduced image
(i.e., a thumbnail) will be created in JPEG format and
embedded into the image file upon saving.
Note:
• When a file is saved onto the SD card, a thumbnail is
forcefully created.
"JPEG quality" adjustment slide bar
You can adjust the quality (compression ratio) of a
JPEG image to be saved using "Save to the SD card" or
"Save to the other folder" button.
If you choose higher quality, a file becomes larger; if you
choose lower quality, a file becomes smaller. (The size
of the lowest quality file is about one fifth of that of the
highest quality.)
Note:
• The JPEG format is suitable for natural pictures such as photographs. For
presentations created with PowerPoint and illustrations made with graphic
software, there may be significant loss of picture quality even if you choose a
higher quality.
Saving to other folder (directory)
With the "Save to other folder" button, you can save captured images onto the hard
disk of your PC or onto MO disk or others.
Choose "Save to other folder" on the main screen of the Image
Creator and select a destination folder.
A "Specify the destination" screen will appear as shown in the diagram. Using "File
location" menu and folder icons, move to the folder where you can find the desired
file to save, and open the folder and press the "Save" button.
Note:
¡ You can create a new folder using the "Create New Folder" button (
).
135
DCF standard
DCF standard has the following requirements:
Directory (folder) name
Directories must be created under a DCIM directory.
• Data located in directories other than "DCIM" directory is not recognized.
A directory name must be made of "a three-digit number (directory number) + 5
alphabets" (e.g. 100abcde).
• Numbers between 100 and 999 can be used for a three-digit number and 37
different characters can be used for 5 alphabets including 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,
a, b, c, d, e, f, g, h, i, j, k, l, m, n, o, p, q, r, s, t, u, v, w, x, y, z, _(under bar). (The
name is not case sensitive. Double-byte characters cannot be used.)
Multiple directories with the same three-digit number (directory number) cannot be
created.
Layering of directories is not supported.
File name
A file name must be made of "4 alphabets + a four-digit number (file number) + .jpg
(extension)" (e.g. abcd0001.jpg)
• 37 different characters, including 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, a, b, c, d, e, f, g, h, i, j, k,
l, m, n, o, p, q, r, s, t, u, v, w, x, y, z, _(under bar) can be used for 4 alphabets and
numbers between 0001 and 9999 can be used for a four-digit number. (The name
is not case sensitive. Double-byte characters cannot be used.)
Multiple files with the same four-digit number (file number) cannot be created in the
same directory.
File format
Only Exif2.1-compliant JPEG image is supported.
136
Before placing an repair order
Please make sure of the following:
Symptom
Please check:
• Is the PC card adapter inserted into the PC card slot of the PC until it
reaches the end?
The computer does • Is the SD card inserted into the SD card slot of the PC card adapter
not recognize the SD until it reaches the end?
card.
• Is the driver installed?
• Are there sufficient IRQ (interrupting signal) numbers? (Refer to the
online help of Windows.)
Writing cannot be
• Is the write-protect switch of the SD card set to "LOCK"?
performed.
The image from the
PC is not displayed.
• Is the external video output of the notebook computer properly
selected? (In some cases, the setting of the output is changed if Fn
and F3 buttons are pressed simultaneously. Since this depends on
the model, refer to the instruction manual supplied with your PC.)
• Is the wireless card inserted into the PC card slot of the PC until it
The PC does not reaches the end?
recognize
the • Is the driver installed?
wireless card.
• Are there sufficient IRQ (interrupting signal) numbers? (Refer to the
online help of Windows.)
• If WEP is enabled, transfer operation takes a longer time because
Transfer rate has the image data needs to be converted.
become lower.
• If another wireless device uses the same channel, the transfer rate
may become lower. Select other channel for setting.
• Immediately after the projector is turned on, it is on the way to establish
the network communication. Perform the search again after a while.
• Check whether the distance is too far between the PC and the projector,
or if any obstacle between is making the radio waves unstable.
• Make sure that the IP address and the subnet mask are correctly
assigned.
• Is TCP/IP installed in your personal computer?
• Does the WEP setting correspond with that of the projector?
Communication with the projector cannot be established if the WEP
function was enabled when a third-party wireless card was used or
the access point was used. Disable the WEP function.
• In the Ad Hoc mode, use the same channel setting for the projector
and the PC.
"Projector search" of
• In the Infrastructure mode, use the same setting for the projector and
the Wireless Manager
the PC as the access point "SSID". Alphanumeric characters (case
2.0 does not detect
sensitive) can be used for an SSID. Make sure that the user is not
the projector.
using the function for controlling PCs that can communicate with the
access point.
• In the PEER-TO-PEER mode, use the same setting for channel and
SSID of the projector and the PC.
• Is any network device other than the wireless card enabled? Check
with the device manager of Windows.
• Is any proxy-client software operating? Disable it when
communicating with the projector.
• When a projector LAN card is used, ensure that the projector and the
PC are directly connected with a cross cable.
If connection is made between the projector and the PC through a
hub or other relaying device, follow the connection method of the
projector.
137
Symptom
Please check:
Although an image is
displayed on the
"Image list" screen of
the Wireless Manager • There are several different formats in JPEG and PNG images and
2.0, an error message some of them cannot be displayed.
appears saying that
If this occurs, capture the image with the image creator and then save it back.
this image cannot be
displayed.
Colors are not
displayed properly
with Wireless
Manager 2.0 and it is
hard to read
characters.
138
• Right-click the space on the desktop and choose "Properties". On the
"Display Properties", open the "Settings" tab and set "Colors" to
"High Color [16 bit]" or higher.
Explanation of terms
LAN
Abbreviation of Local Area Network, including wired LAN and wireless LAN; a
relatively small-range network developed in a company or in a building.
TCP/IP
Abbreviation for Transmission Control Protocol/Internet Protocol. The standard
protocol for the Internet.
A protocol is a set of specifications and agreements which allow two computers to
communicate with each other.
IP Address
An Internet Protocol (IP) is a protocol used for the transmission of data, and the IP
address is the address of the destination where the data is being sent to. Identical IP
addresses cannot be used for two different devices within the one LAN.
Subnet Mask
Limits the range of IP addresses that can be assigned to a computer when using a
TCP/IP connection, in order to allow a network to be divided into several subsections. The parameters which divide the sub-network in this way are called the
subnet mask.
Gateway
A junction point where different types of networks are connected to each other.
It is used to refer to the hardware and software which is used when connecting a
particular network to another network which has been set up under different network
specifications. It makes adjustments for differences in the protocols used by the two
networks and makes it possible to connect to other networks.
DHCP
Abbreviation for Dynamic Host Configuration Protocol. A function which automatically
assigns IP addresses to each computer that is connected to a network. If a device
which functions as a DHCP server is located within a LAN, this device automatically
assigns IP addresses to computers which are connected to the LAN. Not available
with this product.
Ad Hoc Mode
A mode for direct communication between the projector and a computer with an
optional wireless card.
Infrastructure Mode
A mode for communication via an access point which is connected to a wired LAN.
A computer without an optional wireless card can still be used to send images to the
projector via an access point.
PEER-TO-PEER Mode
A mode that allows direct communication between the projector and a wireless LANincorporated personal computer produced by some manufacturers or a wireless LAN
card. If communication is not available in ad hoc mode, try to use this peer-to-peer
mode.
139
Access Point
A point of connection between a wired LAN and a wireless LAN.
Channel
If several access points which use the same frequency band are located near each
other, radio transmission interference between these access point can occur when
they are being used, and this can in turn result in drops in transmission speeds. In
order to reduce this problem when using wireless LANs, the frequency band can be
divided into 11 channels for communication purposes. (The number of channels
varies depending on the country.) However, because interference between adjacent
channels can occur, the channels available for use are normally spaced 2 or 3
channels apart from each other.
SSID
Abbreviation for Service Set ID. Wireless LANs that utilise access points require the
setting of SSID identification codes in order to distinguish between devices which are
a part of the LAN and devices which are not.
Wireless LAN cards of some manufacturers use the name of “ESSID” or “Network
name” instead of SSID.
WEP
Abbreviation for Wired Equivalent Privacy. A method of encrypting transmitted data.
An encryption key is generated and is given only to the person who will be using the
transmitted data, in order to prevent third parties from decoding the transmitted data.
Not available with this product.
JPEG
Abbreviation for Joint Photographic Experts Group. JPEG is the name of an
international organisation which was jointly established by the ISO and the ITU-TS
(formerly the CCIT), but the term is normally used to refer to the specifications for the
still picture compression algorithm which was formulated by the JPEG. This algorithm
allows still images such as photographs, single frames of moving images and
scanned images to be compressed to up to 1/100th of their original sizes. However,
images which are compressed in this way cannot be fully restored to their original
quality (some deterioration in quality occurs), so that compression rates of 1/5 to 1/30
are normally used. Because of differences in color separation, two format sub-types
are used: RGB (red, green and blue) and CMYK (cyan, magenta, yellow, black).
The projector and the Image Creator 1.0 software do not support the CMYK sub-type
of JPEG file.
BMP
Abbreviation for BitMaP. This is the standard image format for the bitmapped files
(image files consisting of a collection of dots) which are handled by Windows.
Color levels of monochrome, 16 colors, 256 colors and 16.7 million colors are
supported.
PNG
Abbreviation for Portable Network Graphics.
A high compression rate file format that provides restorable compression for line
raster images.
Because it uses restorable compression, it does not result in any loss of image
resolution unlike JPEG.
140
RLE
Abbreviation for Run Length Encoding. It can be used to achieve high rates of
compression for image files which contain large areas of a single color. RLE can be
used with monochrome, 16-color and 256-color BMP image files. (Image Creator 1.0
does not support files compressed using RLE.)
TIFF
Abbreviation for Tagged-Image File Format. This type of file is used to exchange
documents between computers. Color levels of monochrome, 256 colors and 16.7
million colors are supported. TIFF files in 16.7 million color format can include
transparent color.
LZW
Abbreviation for Lempel-Ziv-Welch. LZW is a compression method used for TIFF
files, and is named thus because it was developed by three people named Lempel,
Ziv and Welch. It compresses the files by converting patterns within the images into
short codes. There is no deterioration in image quality resulting from compression,
but high rates of compression which are comparable to JPEG files cannot be
expected to be obtained. (Image Creator 1.0 does not support files compressed using
LZW.)
DCF
Abbreviation for Design rule for Camera File system. DCF is a standard which was
established by the Japan Electronic Industry Development Association (JEIDA) with
the aim of realising a common image file format, directory name format and file name
format for the images used with digital still cameras. It is based on recommendations
such as Exif Version 2.1.
Exif 2.1
Abbreviation for Exchangeable Image File Format. This is an image file format which
was established by the Japan Electronic Industry Development Association (JEIDA).
It defines the common information format and range of application for images used
with digital still cameras, centring around TIFF and JPEG-format images. Version 2.1
is the latest version of the Exif standard.
PowerPoint
Application software for creating presentations which is included as part of Microsoft
Office. 95, 97, 2000 and 2002 versions are available, but the Image Creator 1.0
software which is bundled with the projector is only compatible with the 97, 2000 and
2002 versions.
141
Trademark Information
• The SD logo is a trademark.
• Windows and Powerpoint are trademarks or registered trademarks of
Microsoft Corporation in the United States of America and other countries.
• Macintosh and Mac are registered trademarks of Apple Computer Inc.
• All other model names, company names or product names are trademarks
or registered trademarks of their respective owners. TM and (R) symbols
identifying trademarks and registered trademarks are not otherwise used
throughout this manual.
ATTENTION
• Unauthorized use or reproduction of this software or this manual in full or
in part is strictly forbidden.
• Panasonic assumes no responsibility for any results or effects arising
from the use of this software and this manual.
• The specification for this software and the contents of this manual are
subject to change without prior notice.
142
Consignes de sécurité
AVERTISSEMENT
Garder la carte de méoire SD hors de portée des enfants en bas
age et des jeunes enfants.
• Si la carte de méoire est avalée, cela peut causer la mort par suffocation.
Si l'n pense que la carte de méoire a pu être avalée, consulter un médecin
immédiatement.
Attention
Veillez à n'insérer aucun corps étranger dans le logement
pourcarte du projecteur.
• Vous risqueriez d'endommager le projecteur. En outre, vous pourriez aussi
endommager la carte de radiocommunication en l'insérant dans son
logement alors qu'un corps étranger s'y trouve déjà.
À propos de la carte de
radiocommunication et du projecteur
Attention
Avant de toucher la carte sans fil ou la carte LAN de projecteur,
ne pas oublier de mettre son corps à la terre pour dissiper toute
charge électrique susceptible d'endommager la carte.
• Les décharges d'électricité statique transmises par le corps humain
risquent d'endommager la carte de radiocommunication. Pour décharger
votre corps à la terre, vous devez toucher une masse métallique telle
qu'un châssis de fenêtre en aluminium ou une poignée de porte
métallique.
Ne pas installer la carte sans fil accessoire ou la carte LAN de
projecteur dans un autre dispositif que la fente à carte du
projecteur.
• Vous risqueriez d'endommager la carte ou l'autre appareil.
143
Fréquences radio utilisées par la carte
de radiocommunication
La carte de radiocommunication fournie (en tant qu'accessoire) et la carte de
radiocommunication optionnelle (référence ET-CDWL1) émettent et
reçoivent des fréquences dans la bande des 2,4 GHz. Aucune autorisation
spéciale n'est nécessaire pour pouvoir émettre avec cette carte de
radiocommunication, cependant vous devez comprendre les points suivants
avant d'utiliser une carte de radiocommunication.
N'utilisez pas ces cartes près d'un autre appareil
émettant des ondes radio.
Les types d'appareils suivants sont susceptibles d'utiliser les mêmes
fréquences que la carte de radiocommunication. Si vous utilisez votre carte
près de l'un de ces appareils, vous risquez de perturber, de brouiller ou de
ralentir les communications de ces appareils.
• Équipements industriels, scientifiques, médicaux, etc.
• Fours électriques, etc.
• Dispositifs radio intégrés destinés à l'identification d'équipements mobiles
sur des chaînes de production industrielles.
• Certains appareils radio à faible consommation électrique.
Maintenez la carte de radiocommunication à bonne
distance d'appareils tels que télévhones portables,
télépiseurs et radio en cours d'utilisation.
Les appareils tels que télévhones mobiles, télépiseurs et postes de radio
utilisent des fréquences différentes de celles de la carte de
radiocommunication, si bien qu'ils ne risquent pas de brouiller les
communications de carte de radiocommunication. En revanche, les ondes
émises par la carte de radiocommunication peuvent perturber la réception
vidéo ou audio de ces appareils.
Les ondes radio émises par la carte de
radiocommunication ne sont pas capables de
traverser les structures d'acier, les plaques de tôle
ni le béton armé.
Les ondes radio de la carte de radiocommunication traversent facilement les
matériaux comme le bois ou le verre (excepté les vitres incorporant un
grillage métallique d'armature), si bien que la communication peut facilement
se faire au travers de murs et de planchers faits de ces matériaux. Mais les
ondes radio de la carte de radiocommunication ne traverseront pas les
armatures d'acier, les plaques de tôle et le béton armé, si bien que la
communication ne pourra pas se faire au travers de murs ou de planchers
faits de ces matériaux.
144
Canaux disponibles
Les canaux (fréquences) utilisés par la carte de radiocommunication dévendent de la
région du monde ou du pays dans lequel la carte est destinée à être utilisée. Le
tableau ci-dessous donne le détail de ces bandes de fréquences.
Pays / Région
Dernier
Agrément chiffre du n°
de la carte*
Canaux
utilisés
Bande de fréquence
Japon
ARIB
STD33 &
T66
1
1~14
2 412 MHz~
2 484 MHz
États-Unis
FCC part 15
2
1~11
2 412 MHz~
2 462 MHz
Canada
IC
Taiwan
DGT
Malaisie
SIRIM
Royaume-Uni,
Allemagne, France,
Italie, Belgique,
Autriche, Suède,
Norvège, Danemark,
Suisse, Hollande,
Finlande, Portugal,
Grèce, Thaïlande,
Corée, Australie et
Nouvelle-Zélande
ETSI
300.328
3
1~13
2 412 MHz~
2 472 MHz
Espagne
ETSI
300.328
4
10,11
2 457 MHz~
2 462 MHz
Singapour
IDA
5
10~13
2 457 MHz~
2 472 MHz
* Pour vérifier la région d'utilisation prépue de la carte de
radiocommunication que vous avez achetée, examinez le
dernier chiffre du numéro de produit qui figure sur l'étiquette
apposée au dos de la carte, à l'endroit illustré ci-contre.
N5HBD0000002
Remarque:
Votre carte de radiocommunication ne doit pas être utilisée
dans d'autres pays que celui dans lequel elle a été achetée.
En tentant de l'utiliser dans un autre pays, vous risqueriez de
vous placer en infraction par rapport à la législation ou
réglementation concernant les émissions radio.
145
ATTENTION
• Toute utilisation ou reproduction, même partielle, de ce logiciel ou de ce
manuel est strictement interdite.
• Panasonic ne saurait être tenue pour responsable d'aucun dommage ou
préjudice lié à l'utilisation de ce logiciel ou de ce manuel.
• Les caractéristiques techniques du logiciel et le contenu de ce manuel
sont sujets à modifications sans préavis.
R
Professional/Industrial Video
Panasonic Broadcast & Television Systems Company
Division of Matsushita Electric Corporation of America
3330 Cahuenga Blvd West Los Angeles, CA 90068 (323) 436-3500
Technical Support:
(800) 222 -0741
E-Mail: [email protected]
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3 (905) 624-5010
M0802-1092
Was this manual useful for you? yes no
