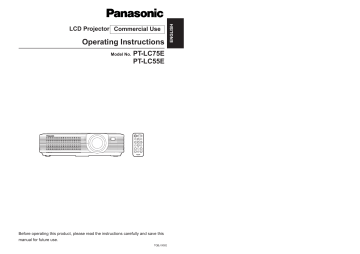

LCD Projector Commercial Use
Operating Instructions
Model No.
PT-LC75E
PT-LC55E
POWER
INPUT
VIDEO
AUTO
SETUP
RGB
MENU
ENTER
SHUTTER
FREEZE
STD
VOLUME
D.ZOOM
INDEX
WINDOW
PROJECTOR
Before operating this product, please read the instructions carefully and save this
manual for future use.
TQBJ 0082
ENGLISH
R
IMPORTANT: THE MOULDED PLUG (U.K. only)
This instruction booklet provides all the necessary operating information that
you might require. We hope it will help you to get the most performance out
of your new product, and that you will be pleased with your Panasonic LCD
projector.
The serial number of your product may be found on its back. You should
note it in the space provided below and retain this booklet in case service is
required.
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT
CAREFULLY.
Model number: PT-LC75E / PT-LC55E
Serial number:
If the plug contains a removable fuse cover, you must ensure that it is refitted
when the fuse is replaced. If you lose the fuse cover, the plug must not be
used until a replacement cover is obtained. A replacement fuse cover can be
purchased from an Authorised Service Centre.
If the fitted moulded plug is unsuitable for the socket outlet in your
home, then the fuse should be removed and the plug cut off and
disposed of safely. There is a danger of severe electrical shock if the
cut off plug is inserted into any 13 amp socket.
IMPORTANT SAFETY NOTICE
WARNING: THIS APPARATUS MUST BE EARTHED.
WARNING: To prevent damage which may result in fire or shock
hazard, do not expose this appliance to rain or moisture.
Machine Noise Information Ordinance 3. GSGV, January 18, 1991: The
sound pressure level at the operator position is equal or less than 70 dB
(A) according to ISO 7779.
WARNING:
1) Remove the plug from the wall outlet when this unit is not in use for a
prolonged period of time.
2) To prevent electric shock, do not remove cover. No user serviceable
parts inside. Refer servicing to qualified service personnel.
3) Do not remove the earthing pin on the power plug. This apparatus is
equipped with a three prong earthing-type power plug. This plug will only
fit an earthing-type power outlet. This is a safety feature. If you are
unable to insert the plug into the outlet, contact an electrician. Do not
defeat the purpose of the earthing plug.
This appliance is supplied with a moulded three pin mains plug for your
safety and convenience. A 13 amp fuse is fitted in this plug. Should the fuse
need to be replaced, please ensure that the replacement fuse has a rating of
13 amps and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark ASA or the BSI mark
on the body of the fuse.
If a new plug is to be fitted, please observe the wiring code as shown below.
If in any doubt, please consult a qualified electrician.
WARNING: — THIS APPLIANCE MUST BE EARTHED.
IMPORTANT: — The wires in this mains lead are coloured in accordance
with the following code: —
Green-and-Yellow: Earth
Blue:
Neutral
Brown:
Live
As the colours of the wire in the mains lead of this appliance may not
correspond with the coloured markings identifying the terminals in your plug,
proceed as follows.
The wire which is coloured GREEN-AND-YELLOW must be connected
to the terminal in the plug which is marked with the letter E or by the
Earth symbol
or coloured GREEN or GREEN-AND-YELLOW.
The wire which is coloured BLUE must be connected to the terminal in
the plug which is marked with the letter N or coloured BLACK.
N
V
50
A2
HE
-8
13
L
ASA
How to replace the fuse. Open the fuse
compartment with a screwdriver and replace the
fuse.
BS
13
63
/A
The wire which is coloured BROWN must be connected to the terminal
in the plug which is marked with the letter L or coloured RED.
2-ENGLISH
FUSE
ENGLISH-3
Preparation
Dear Panasonic Customer:
Preparation
IMPORTANT SAFETY NOTICE..........2
Precautions with regard to safety ....5
Accessories........................................9
Precautions on handling .................10
Location and function of
each part........................................12
Storing the card remote
control unit...................................15
About the RGB INPUT indicator .....17
About the automatic
setup function..............................17
Using the remote control unit.........18
Inserting the battery........................18
Operating range..............................18
Connections .....................................19
Notes on connections .....................19
Example of connecting to video
equipment ...................................20
Example of connecting to
computer .....................................21
Setting-up .........................................22
Projection methods.........................22
Projector position............................22
Projection distances .......................23
Basic Operation
Starting to use..................................24
Turning on the power......................24
Turning off the power......................25
On-screen menus.............................26
Menu screens .................................26
Menu operation guide.....................28
Unavailable on-screen menu
items............................................28
Returning to the previous screen....28
Returning a setting to the factory
default .........................................29
Using the freeze function ................29
Using the D.ZOOM (digital zoom)
function .........................................30
Correcting keystone distortion.......31
Adjusting the picture .......................32
PICTURE MODE ............................32
COLOR...........................................32
TINT................................................32
BRIGHT ..........................................32
CONTRAST....................................32
4-ENGLISH
Precautions with regard to safety
SHARPNESS .................................33
Colour Hue Setting .........................33
TV SYSTEM ...................................33
WHITE BALANCE R/G/B ...............33
SIGNAL MODE...............................33
Adjusting the position .....................34
HORIZONTAL POSITION ..............34
VERTICAL POSITION....................34
DOT CLOCK...................................34
CLOCK PHASE ..............................34
ASPECT .........................................35
RESIZING.......................................35
Advanced Operation
Option settings.................................36
OSD................................................36
AUTO KEYSTN ..............................36
AUTO Y·PB·PR ..............................36
AUTO RGB IN ................................36
RGB2 SELECT...............................36
RGB FORMAT................................37
BACK COLOR ................................37
FRONT/REAR ................................37
DESK/CEILING ..............................37
LAMP POWER ...............................37
LAMP TIME ....................................37
FUNC 1...........................................38
Using the shutter function ..............38
Changing the display
language........................................38
Using the INDEX WINDOW
function .........................................39
Using the SERIAL connector ..........40
Others
Indicators..........................................42
Cleaning and replacing
the air filter ....................................44
Replacing the lamp unit ..................45
Before asking for service ................48
Specifications...................................50
Appendix...........................................52
List of compatible signals ...............52
Dimensions.......................................53
Trademark acknowledgements ......54
WARNING
If a problem occurs (such as no image or no sound) or if you notice
smoke or a strange smell coming from the projector, turn off the power
and disconnect the power cord from the wall outlet.
B Do not continue to use the projector in such cases, otherwise fire or
electric shocks could result.
B Check that no more smoke is coming out, and then contact an Authorised
Service Centre for repairs.
B Do not attempt to repair the projector yourself, as this can be dangerous.
Do not install this projector in a place which is not strong enough to
take the full weight of the projector.
B If the installation location is not strong enough, it may fall down or tip over,
and severe injury or damage could result.
Installation work (such as ceiling suspension) should only be carried
out by a qualified technician.
B If installation is not carried out correctly, there is the danger that injury or
electric shocks may occur.
If foreign objects or water get inside the projector, or if the projector is
dropped or the cabinet is broken, turn off the power and disconnect the
power cord from the wall outlet.
B Continued use of the projector in this condition may result in fire or electric
shocks.
B Contact an Authorised Service Centre for repairs.
Do not cover the air inlet or the air outlet.
B Doing so may cause the projector to overheat, which can cause fire or
damage to the projector.
Do not overload the wall outlet.
B If the power supply is overloaded (for example, by using too many
adapters), overheating may occur and fire may result.
Do not remove the cover or modify it in any way.
B High voltages which can cause fire or electric shocks are present inside
the projector.
B For any inspection, adjustment and repair work, please contact an
Authorised Service Centre.
Clean the power cord plug regularly to prevent it from becoming
covered in dust.
B If dust builds up on the power cord plug, the resulting humidity can
damage the insulation, which could result in fire. Pull the power cord out
from the wall outlet and wipe it with a dry cloth.
B If not using the projector for an extended period of time, pull the power
cord plug out from the wall outlet.
ENGLISH-5
Preparation
Contents
6-ENGLISH
During a thunderstorm, do not touch the projector or the cable.
B Electric shocks can result.
Do not use the projector in a bath or shower.
B Fire or electric shocks can result.
Do not look into the lens while the projector is being used.
B Strong light is emitted from the projector’s lens. If you look directly into this
light, it can hurt and damage your eyes.
Do not bring your hands or other objects close to the air outlet port.
B Heated air comes out of the air outlet port. Do not bring your hands or
face, or objects which cannot withstand heat close to this port, otherwise
burns or damage could result.
Replacement of the lamp unit should only be carried out by a qualified
technician.
B The lamp unit has high internal pressure. It can easily become damaged if
struck against hard objects or dropped, and injury or malfunctions may
result.
When replacing the lamp, allow it to cool for at least one hour before
handling it.
B The lamp cover gets very hot, and contact with it can cause burns.
Before replacing the lamp, be sure to unplug the power cord from the
power outlet.
B Electric shocks or explosions can result if this is not done.
Caution
Do not set up the projector in humid or dusty places or in places where
the projector may come into contact with smoke or steam.
B Using the projector under such conditions may result in fire or electric
shocks.
When disconnecting the power cord, hold the plug, not the cord.
B If the power cord itself is pulled, the cord will become damaged, and fire,
short-circuits or serious electric shocks may result.
Always disconnect all cables before moving the projector.
B Moving the projector with cables still attached can damage the cables,
which could cause fire or electric shocks to occur.
Do not place any heavy objects on top of the projector.
B Failure to observe this may cause the projector to become unbalanced
and fall, which could result in damage or injury.
Do not short-circuit, heat or disassemble the battery or place it into
water or fire.
B Failure to observe this may cause the battery to overheat, leak, explode or
catch fire, and burns or other injury may result.
ENGLISH-7
Preparation
Do not do anything that might damage the power cord or the power
cord plug.
B Do not damage the power cord, make any modifications to it, place it near
any hot objects, bend it excessively, twist it, pull it, place heavy objects on
top of it or wrap it into a bundle.
B If the power cord is used while damaged, electric shocks, short-circuits or
fire may result.
B Ask an Authorised Service Centre to carry out any repairs to the power
cord that might be necessary.
Do not handle the power cord plug with wet hands.
B Failure to observe this may result in electric shocks.
Insert the power cord plug securely into the wall outlet.
B If the plug is not inserted correctly, electric shocks or overheating could
result.
B Do not use plugs which are damaged or wall outlets which are coming
loose from the wall.
Do not place the projector on top of surfaces which are unstable.
B If the projector is placed on top of a surface which is sloped or unstable, it
may fall down or tip over, and injury or damage could result.
Do not place the projector into water or let it become wet.
B Failure to observe this may result in fire or electric shocks.
Do not place liquid containers on top of the projector.
B If water spills onto the projector or gets inside it, fire or electric shocks
could result.
B If any water gets inside the projector, contact an Authorised Service
Centre.
Do not insert any foreign objects into the projector.
B Do not insert any metal objects or flammable objects into the projector or
drop them onto the projector, as doing so can result in fire or electric
shocks.
After removing the battery from the remote control unit, keep the
battery out of the reach of small children and infants.
B The battery can cause death by suffocation if swallowed.
B If the battery is swallowed, seek medical advice straight away.
Do not allow the + and - terminals of the battery to come into contact
with metallic objects such as necklaces or hairpins.
B Failure to observe this may cause the battery to leak, overheat, explode or
catch fire.
B Store the battery in a plastic bag and keep it away from metallic objects.
Insulate the battery using tape or similar before disposal.
B If the battery comes into contact with metallic objects or other batteries, it
may catch fire or explode.
8-ENGLISH
Accessories
Check that all of the accessories shown below have been included with your
projector.
Card remote control unit Lithium battery for
remote control unit
(TNQE239 x1)
(CR2025 x1)
POWER
RGB signal cable [3.0 m
(9´10˝), K1HA15FA0002
x1]
INPUT
VIDEO
AUTO
SETUP
RGB
MENU
ENTER
FREEZE
SHUTTER
Video/Audio cable [3.0
m (9´10˝),
K2KA2FA00001 x 1]
Power cord for U.K.
(K2CT3FZ00001 x 1)
STD
VOLUME
D.ZOOM
INDEX
WINDOW
PROJECTOR
Carrying bag (TPEP006 Power cord for
Continental Europe
x1)
(K2CM3FZ00001 x 1)
ENGLISH-9
Preparation
When inserting the battery, make sure the polarities (+ and -) are
correct.
B If the battery is inserted incorrectly, it may explode or leak, and fire, injury
or contamination of the battery compartment and surrounding area may
result.
Use only the specified battery.
B If an incorrect battery is used, it may explode or leak, and fire, injury or
contamination of the battery compartment and surrounding area may
result.
Do not put your weight on this projector.
B You could fall or the projector could break, and injury may result.
B Be especially careful not to let young children climb onto the projetor.
Disconnect the power cord plug from the wall outlet as a safety
precaution before carrying out any cleaning.
B Electric shocks can result if this is not done.
Ask an Authorised Service Centre to clean inside the projector at least
once a year.
B If dust is left to build up inside the projector without being cleaned out, it
can result in fire or problems with operation.
B It is a good idea to clean the inside of the projector before the season for
humid weather arrives. Ask your nearest Authorised Service Centre to
clean the projector when required. Please discuss with the Authorised
Service Centre regarding cleaning costs.
We are constantly making efforts to preserve and maintain a clean
environment. Please take non repairable units back to your dealer or a
recycling company.
Cautions regarding transportation
Be sure to attach the lens cover before transporting the projector.
The projection lens is extremely susceptible to vibration and shocks. When
carrying the projector, use the accessory carrying bag.
When placing the projector inside the carrying bag, position it so
that the lens is facing upward.
Cautions regarding setting-up
Observe the following at all times when setting up the projector.
Avoid setting up in places which are subject to vibration or shocks.
If the projector is set up in locations with strong vibration, such as near a
motor, or if it is installed inside a vehicle or on board a ship, the projector
may be subjected to vibration or shocks which can damage the internal parts
and cause malfunctions or accidents. Accordingly, set up the projector in a
place which is free from such vibrations and shocks.
Do not set up the projector near high-voltage power lines or near
motors.
The projector may be subject to electromagnetic interference if it is set up
near high-voltage power lines or motors.
If installing the projector to the ceiling, ask a qualified technician to
carry out all installation work.
If the projector is to be suspended from the ceiling, you will need to purchase
the separate installation kit (Model No.: ET-PKC75). Furthermore, all
installation work should only be carried out by a qualified technician.
If using of this projector at high elevations (above 1400 m), consult
your dealer or Authorised Service Centre.
Special measures will be necessary to use this projector at high elevations,
so consult your dealer or Authorised Service Centre about preparations.
Failure to observe this may cause malfunctions.
About the screen
If the screen you are using is dirty, damaged or discoloured, attractive
projections cannot be obtained. Do not apply any volatile substances to the
screen, and do not let it become dirty or damaged.
Before carrying out cleaning and maintenance, be
sure to disconnect the power cord plug from the
wall outlet.
Wipe the cabinet with a soft, dry cloth.
If the cabinet is particularly dirty, soak the cloth in water with a small amount
of neutral detergent in it, squeeze the cloth very well, and then wipe the
cabinet. After cleaning, wipe the cabinet dry with a dry cloth.
If using a chemically-treated cloth, read the instructions supplied with
the cloth before use.
Do not wipe the lens with a cloth that is dusty or which produces lint.
If any dust or lint gets onto the lens, such dust or lint will be magnified and
projected onto the screen. Use a blower to clean any dust and lint from the
lens surface, or use a soft cloth to wipe off any dust or lint.
Notes on use
In order to get the best picture quality
If outside light or light from indoor lamps is shining onto the screen, the
images projected will not have good contrast. Draw curtains or blinds over
any windows and turn off any fluorescent lights near the screen to prevent
reflection.
Do not touch the surfaces of the lens with your bare hands.
If the surface of the lens becomes dirty from fingerprints or anything else, this
will be magnified and projected onto the screen. Moreover, when not using
the projector, retract the lens and then cover it with the accessory lens cover.
10-ENGLISH
ENGLISH-11
Preparation
Precautions on handling
Projector <Back and bottom>
$
Projector <Top, right and front>
#
Preparation
Location and function of each part
%
% $
#
+
,
&
'
*
(
&
)
&
'
+
(
) *
# Projector control panel
(page 14)
$ Zoom ring
(page 25)
% Focus ring
(page 25)
& Air inlet ports
Do not cover these ports.
' Projection lens
( Lens cover
) Remote control signal receptor
(page 18)
* Leg adjuster buttons(L/R)
(page 24)
These buttons are used to unlock
the front adjustable legs. Press to
adjust the angle of tilt of the
projector.
+ Air filter
(page 44)
, Speaker
12-ENGLISH
# Air outlet port
Do not cover this port.
WARNING
Do not bring your hands or other
objects close to the air outlet
port.
B Heated air comes out of the air
outlet port. Do not bring your
hands or face, or objects which
cannot withstand heat close to
this port, otherwise burns or
damage could result.
$ Remote control signal receptor
(page 18)
% Connector panel
(page 16)
& Power input socket (AC IN)
(page 24)
The accessory power cord is
connected here.
Do not use any power cord other
than the accessory power cord.
' MAIN POWER switch
(pages 24 and 25)
( Card remote control unit holder
(page 15)
) Front adjustable legs(L/R)
(page 24)
* Lamp unit holder
(page 45)
+ Security lock
This can be used to connect a
commercially-available theftprevention cable (manufactured
by Kensington). This security lock
is compatible with the Microsaver
Security System from
Kensington. Contact details for
this company are given below.
Kensington Technology Group
ACCO Brands Inc.
2855 Campus Drive
San Mateo, CA 94403 USA
Tel (650)572-2700
Fax (650)572-9675
http://www.kensington.com/
http://www.gravis.com/
NOTE:
B During projection of an image, the
cooling fan will operate, emitting
a small noise as it operates.
Turning the lamp on or off will
cause this noise to increase a
little.
B By using the OPTION2 menu to
set “LAMP POWER” to
STANDARD, the operating sound
of the fan can be reduced. (Refer
to page 37.)
ENGLISH-13
&
'(
POWER
RGB INPUT LAMP
)
AUTO SETUP
INPUT
TEMP
STANDBY(R)
ON(G)
&
(
+
.
POWER
INPUT
VIDEO
AUTO
SETUP
RGB
MENU
ENTER
SHUTTER
FREEZE
)
,
*
2
1
STD
MENU
ENTER
VOLUME
D.ZOOM
INDEX
WINDOW
/
,
+
PROJECTOR
0
*
B The wireless remote control and the projector itself have the same control
buttons available.
# RGB INPUT indicator
(page 17)
This indicator shows whether a
signal is being input to the RGB
input connectors (RGB 1
IN/RGB2 IN). When an input
signal is detected, the indicator
illuminates.
$ LAMP indicator
(page 42)
This indicator illuminates when it
is time to replace the lamp unit. It
flashes if a circuit abnormality is
detected.
% TEMP indicator
(page 42)
This indicator illuminates if an
abnormally high temperature is
detected inside the projector or
surround it. If the temperature
rises above a certain level, the
power supply will be turned off
automatically and the indicator
will illuminate or flash.
& POWER button
(pages 24 and 25)
14-ENGLISH
' Power indicator
(pages 24 and 25)
This indicator illuminates red
when the MAIN POWER switch is
turned on (standby mode), and
illuminates green when the power
is turned on and a picture starts
to be projected.
( AUTO SETUP button
(pages 17 and 25)
If this button is pressed while a
picture is being projected, the
projection settings will be
adjusted automatically in
accordance with the signal being
input. (“AUTO SETUP” will
appear on the screen during
adjustment.) If “AUTO KEYSTN”
in the OPTION1 menu is set to
“ON”, the angle of tilt of the
projector will be automatically
detected and adjusted in order to
correct any keystone distortion.
) Input select (INPUT, RGB,
VIDEO) buttons
(page 24)
1 STD (standard) button
(page 29)
This button is used to reset the
projector adjustment values to the
factory default settings.
2 SHUTTER button
(page 38)
This button is used to
momentarily turn off the picture
and sound.
Storing the card
remote control unit
# Gently turn the projector
upside down.
$ Open the card remote control
unit holder.
% Place the remote control unit
inside.
& Close the card remote control
unit holder.
ENGLISH-15
Preparation
# $ %
* ENTER button
(page 28)
This button is used to accept and
to activate items selected in the
on-screen menus.
F, G, I and H)
+ Arrow (F
buttons
(page 28)
These buttons are used to select
and adjust items in the on-screen
menus.
, MENU button
(pages 26 and 28)
This button is used to display
menu screens. When a menu
screen is being displayed, it can
be used to return to a previous
screen or to clear the screen.
- FREEZE button
(page 29)
This button is used to
momentarily freeze the image so
that a still picture is displayed.
. VOLUME +/- buttons
These buttons are used to adjust
the volume of the sound output
by the projector’s built-in
speakers. Refer to page 26 for
details on how to adjust the
volume using the buttons on the
projector control panel.
/ INDEX WINDOW button
(page 39)
This button can be used to split
the image projection area into a
still image and a moving image.
0 D.ZOOM +/- buttons
(page 30)
These buttons are used to
enlarge certain portions of the
projected image.
AUT
<Projector control panel and remote control unit>
About the RGB INPUT indicator
<Connector panel>
#
$
The RGB input indicator can be used to check whether an RGB/YPBPR
signal is being input. Refer to the table below for details.
%
&
' (
Illuminated
# SERIAL connector
(pages 20, 21 and 40)
This connector is used to connect
a personal computer to the
projector in order to externally
control the projector. (RS-232C
compatible)
$ RGB1 IN connector
(pages 20 and 21)
This connector is used to input
RGB signals and YPBPR signals.
% RGB2 IN/RGB1 OUT connector
(pages 20, 21 and 36)
This connector is used to input or
output RGB signals and YPBPR
signals. Use the RGB2 SELECT
item in the OPTION1 menu to
select whether you want input or
output with this conector.
& S-VIDEO IN connector
(pages 20 and 35)
This connector is used to input
signals from a S-VIDEOcompatible equipment such as a
video deck. The connector is S1
signal compatible, and it
automatically switches between
16:9 and 4:3 aspect ratios in
accordance with the type of
signal being input.
16-ENGLISH
' VIDEO IN jack
(page 20)
This jack is used to input video
signals from a video equipment
such as a video deck.
( AUDIO IN L-R jacks
(pages 20 and 21)
Only one audio system circuit is
available for the AUDIO IN L-R
jacks, so if you wish to change
the audio input source, you will
need to remove and insert the
appropriate plugs.
Power supply status
RGB INPUT
indicator status
Switched off
Standby
On (projecting)
A signal is being input to
either the RGB1 IN or
RGB2 IN connector.
A signal is being input to
the connector selected
using the input select
buttons.
No signal is being input to
either the RGB1 IN or
RGB2 IN connector.
No signal is being input to
the connector selected
using the input select
buttons.
About the automatic setup function
If you press the AUTO SETUP button, the items given in the table below will
be set automatically. The setting details change according to the signal
which is being input. Refer to the table below for details.
Auto RGB
Horizontal/
Automatic
Dot clock/
input
vertical
keystone
clock phase
select/auto
position
correction
YPBPR select
VIDEO/
S-VIDEO
Yes
Yes
YPBPR
Clock is
100 MHz or
higher
Other
Yes
No
Yes
Yes
NOTE:
B If the edges of the projected picture are indistinct, or if a dark picture is
being projected, the automatic setup processing may stop automatically
before it is complete. If this happens, project a different picture and then
press the AUTO SETUP button once more, or make the above
adjustments manually.
B If you would like to make further adjustments to the picture, use the menu
commands which are listed on page 26 and subsequent pages.
ENGLISH-17
Connections
Inserting the battery
Operating range
Notes on connections
Insert the lithium battery which is
supplied with the remote control
unit, making sure that the polarities
are correct.
# While pushing the battery
holder tab to the right, pull out
the battery holder.
If the remote control unit is held so
that it is facing directly in front of the
front or rear remote control signal
receptors, the operating range is
within approximately 7 m (23´) from
the surfaces of the receptors.
Furthermore, the remote control unit
can be operated from an angle of
±30 ° to the left or right and ±15 °
above or below the receptors.
NOTE:
B If there are any obstacles in
between the remote control unit
and the receptors, the remote
control unit may not operate
correctly.
B If strong light is allowed to shine
onto the remote control signal
receptor, correct remote control
operation may not be possible.
Place the projector as far away
from light sources as possible.
B If facing the remote control unit
toward the screen to operate the
projector, the operating range of
the remote control unit will be
limited by the amount of light
reflection loss caused by the
characteristics of the screen
used.
B Read the instruction manual for each system component carefully before
connecting it.
B Turn off the power supply for all components before making any
connections.
B If the cables necessary for connecting a component to the system are not
included with the component or available as an option, you may need to
fashion a cable to suit the component concerned.
B If there is a lot of jitter in the video signal which is input from the video
source, the picture on the screen may flicker. In such cases, it will be
necessary to connect a TBC (time base corrector).
B It may not be possible to connect some types of computer. Refer to the list
of compatible signals on page 52.
B The pin layout and signal names for the S-VIDEO IN connector are shown
below.
Back side
Push the tab
Pull out
$ Insert the battery into the
battery holder so that the +
side is facing upward.
Match the “+”
surface of the
battery with the
“+” marked side of
the battery holder.
% Insert the battery holder.
NOTE:
B Do not drop the remote control
unit.
B Keep the remote control unit
away from liquids.
B Remove the battery if not using
the remote control unit for long
periods.
B Use only CR2025 batteries as
replacement batteries.
18-ENGLISH
#
$
&
%
Pin No.
#
$
%
&
Signal
Earth (Luminance signal)
Earth (Colour signal)
Luminance signal
Colour signal
External view
B The pin layout and signal names for the RGB/YPBPR (RGB1 IN/RGB2 IN)
connector are shown below.
-
1
(
,
#
'
External view
Pin No.
#
$
%
.
/
0
1
Signal
R/PR
G/G·SYNC/Y
B/PB
SDA
HD/SYNC
VD
SCL
Pin + is spare.
Pins &–*, , and - are for earth.
Pins . and 1 functions are only valid when
supported by the computer
ENGLISH-19
Preparation
Using the remote control unit
Computer for
control use
Example of connecting to computer
Computer
D-sub 15 (male) - BNC5 (female)
adapter cable (sold separately)
Red (connect to PR signal connector)
Blue (connect to PB signal connector)
Green (connect to Y signal connector)
Digital broadcast
tuner or DVD player
Preparation
Example of connecting to video equipment
Monitor
Computer for
control use
D-sub 9-pin
(male)
D-sub 9-pin
(male)
DVD player
Video deck
NOTE:
B Only one audio system circuit is available for the AUDIO IN L-R jacks, so if
you wish to change the audio input source, you will need to remove and
insert the appropriate plugs.
B If the video signal source is connected using a cable with a BNC
connector plug, use a BNC/RCA adapter (sold separately) to convert the
cable end to an RCA plug-type jack.
B Refer to page 52 for a list of compatible YPBPR signals which can be input
to the projector.
B If the signal cables are disconnected or if the power supply for the
computer or video deck is turned off while the digital zoom or index
window functions are being used, these functions will be cancelled.
20-ENGLISH
Computer
NOTE:
B It is better to shut down the computer before turning off the MAIN POWER
switch of the projector.
B Refer to the list of compatible signals on page 52 for the types of RGB
signals which can be input to the projector by connecting a computer.
B Do not input the signal to the RGB2 IN/RGB1 OUT connector when the
RGB2 SELECT item in the OPTION1 menu is set to OUTPUT. (Refer to
page 36.)
ENGLISH-21
Setting-up
Projection methods
The projector can be set up so that any one of the following four projection
methods are used. Select whichever projection method matches the settingup method. (The projection method can be set from the OPTION2 menu.
Refer to page 37 for details.)
DESK/CEILING
DESK
CEILING
FRONT
(Factory default setting)
FRONT/REAR
REAR
NOTE:
B You will need to purchase the separate ceiling bracket (ET-PKC75) when
using the ceiling installation method.
Projector position
SH
Top edge of screen
L: Projection distance
SH: Image height
SW:Image width
H1: Distance from centre
of lens to bottom edge
of projected image
Screen
H1
L
INPUT
ENTER
POWER
STANDBY(R)
ON(G)
MENU
Wide
(LW)
1.2 m(3´11˝)
1.5 m(4´11˝)
1.8 m(5´10˝)
2.1 m(6´10˝)
2.4 m(7´10˝)
2.7 m(8´10˝)
3.0 m(9´10˝)
3.6 m(11´9˝)
4.5 m(14´9˝)
6.0 m(19´8˝)
7.5 m(24´7˝)
9.0 m(29´6˝)
Telephoto
(LT)
1.1 m(3´7˝)
1.4 m(4´7˝)
1.7 m(5´6˝)
2.1 m(6´10˝)
2.4 m(7´10˝)
2.8 m(9´2˝)
3.2 m(10´5˝)
3.5 m(11´5˝)
4.2 m(13´9˝)
5.3 m(17´4˝)
7.1 m(23´3˝)
8.9 m(29´2˝)
10.7 m(35´1˝)
Wide
(LW)
Telephoto
(LT)
1.1 m(3´7˝)
1.2 m(3´11˝)
1.4 m(4´7˝)
1.5 m(4´11˝)
1.8 m(5´10˝)
1.8 m(5´10˝)
2.1 m(6´10˝)
2.1 m(6´10˝)
2.5 m(8´2˝)
2.4 m(7´10˝)
2.9 m(9´6˝)
2.8 m(9´2˝)
3.2 m(10´5˝)
3.0 m(9´10˝)
3.6 m(11´9˝)
3.7 m(12´1˝)
4.3 m(14´1˝)
4.6 m(15´1˝)
5.4 m(17´8˝)
6.1 m(20´)
7.3 m(23´11˝)
7.6 m(24´11˝) 9.1 m(29´10˝)
9.2 m(30´2˝) 11.0 m(36´1˝)
Height
position
(H1)
0.08 m(3-1/8˝)
0.09 m(3-17/32˝)
0.11 m(4-5/16˝)
0.14 m(5-1/2˝)
0.16 m(6-9/32˝)
0.18 m(7-1/16˝)
0.20 m(7-27/32˝)
0.22 m(8-21/32˝)
0.26 m(10-7/32˝)
0.33 m(12-31/32˝)
0.44 m(17-5/16˝)
0.55 m(21-5/8˝)
0.66 m(25-31/32˝)
Setting-up dimensions which are not given in the above table can be
calculated using the formulas below.
If the screen size (diagonal) is SD (m), then the following formula is used to
calculate the projection distance for the wide lens position (LW) and the
projection distance for the telephoto lens position (LT).
PT-LC75E
LW=0.030xSD/0.0254-0.037
LW=0.036xSD/0.0254-0.037
PT-LC55E
LW=0.031xSD/0.0254-0.038
LW=0.037xSD/0.0254-0.038
For 16:9 aspect ratios, the following formula can be used to calculate the
projection distance.
PT-LC75E
LW=0.032xSD/0.0254-0.037
LW=0.039xSD/0.0254-0.037
PT-LC55E
LW=0.033xSD/0.0254-0.038
LW=0.040xSD/0.0254-0.038
NOTE:
B The dimensions in the table above and the values obtained from the
above formulas may contain slight errors.
B If you use the projection distance for the 16:9
screen, the 4:3 projection image overflows the
screen at the top and bottom.
TEMP
L
0.84 m(33˝)
1.02 m(40˝)
1.27 m(50˝)
1.52 m(60˝)
1.78 m(70˝)
2.03 m(80˝)
2.29 m(90˝)
2.54 m(100˝)
3.05 m(120˝)
3.81 m(150˝)
5.08 m(200˝)
6.35 m(250˝)
7.62 m(300˝)
Projection distance (L)
PT-LC75E
PT-LC55E
Screen
22-ENGLISH
RGB INPUT LAMP
SW
AUTO SETUP
57 mm
Bottom edge of screen
Screen
size
(diagonal)
ENGLISH-23
Preparation
Projection distances
Starting to use
Turning on the power
Please ensure that all preparations have been completed before turning on
the power. (Refer to pages 19 – 23.)
* Press the AUTO SETUP button to
initiate automatic positioning.
When keystone distortion is not
corrected, carry out keystone
correction as described on page 31.
POWER
INPUT
VIDEO
POWER
AUTO SETUP
RGB
INPUT
AUTO
SETUP
MENU
ENTER
STANDBY(R)
ON(G)
SHUTTER
FREEZE
STD
MENU
ENTER
VOLUME
D.ZOOM
INDEX
WINDOW
# Remove the lens cover.
PROJECTOR
$ Connect the accessory power cord.
% Press the MAIN POWER switch to
the “|” side to turn on the power.
The power indicator on the projector
will illuminate red.
Turning off the power
$
& Press the POWER button.
The power indicator on the projector
will flash green. After a short period,
the indicatore will illuminate green, and
a picture will be projected.
%
POWER
INPUT
VIDEO
POWER
AUTO SETUP
AUTO
SETUP
MENU
ENTER
STANDBY(R)
ON(G)
FREEZE
SHUTTER
STD
MENU
ENTER
VOLUME
D.ZOOM
PROJECTOR
' Turn on the power of all connected
devices.
Start the Play function a device such
as a DVD player.
( Press the input select (INPUT, RGB,
VIDEO) button to select the input
signal.
The input signal selected will change
as shown at below each time an input
select button is pressed.
POWER
INPUT
VIDEO
POWER
AUTO SETUP
RGB
INPUT
AUTO
SETUP
MENU
ENTER
STANDBY(R)
ON(G)
FREEZE
SHUTTER
STD
MENU
ENTER
VOLUME
D.ZOOM
INDEX
WINDOW
PROJECTOR
INPUT
S-VIDEO
) While pressing the adjuster buttons,
adjust the forward/back angle of tilt
of the projector.
24-ENGLISH
RGB
VIDEO
RGB1
RGB
INPUT
INDEX
WINDOW
VIDEO
RGB2
Zoom
Focus
S-VIDEO
VIDEO
RGB2
RGB1
# Hold down the POWER button for at least 0.5 seconds or press the
POWER button twice to turn off the power.
The lamp unit will switch off and the picture will stop being projected. (The
power indicator on the projector will illuminate orange.)
$ Wait until the power indicator on the projector illuminates red (until
the cooling fan stops).
Do not in any way cut power to the projector while the cooling fan is still
operating. Be careful not to switch off the MAIN POWER switch of the
projector, unplug the power cord from the electrical outlet or turn off in-line
switches such as tabletop power switches.
% Press the MAIN POWER switch to the “O” side to turn off the power.
NOTE:
B After the power is turned off, the lamp unit will take some time to cool
down. If you turn the power back on again before the lamp unit has cooled
down, the lamp unit may not turn on straight away, but it will turn on
automatically after a short period. (During this time, the power indicator on
the projector will flash orange.)
B When the projector is in standby mode (the power indicator on the
projector is illuminated red), the projector will still draw a maximum 2 W of
power, even when the cooling fan has stopped.
B If the MAIN POWER switch is accidentally turned off while the projector is
being used, the lamp unit may not turn on straight away after the power is
turned back on. In such cases, the lamp unit will turn back on
automatically after a short period. (During this time, the power indicator on
the projector will flash green.)
B A tinkling sound may be heard while the power indicator is turned off, but
this is not a sign of a malfunction.
ENGLISH-25
Basic Operation
+ Turn the focus/zoom ring to adjust
the projected image focus and size.
PICTURE menu (page 32)
When an RGB/YPBPR signal is
being input
Menu screens
The various settings and adjustments for this projector can be carried out by
selecting the operations from on-screen menus.
The general arrangement of these menus is shown below.
MAIN MENU
MENU
KEYSTONE
POSITION
INDEX WINDOW
SHUTTER
AUDIO
LANGUAGE
OPTION1
OPTION2
SELCT ENTER
OPTION2 menu (page 36)
OPTION2
BACK COLOR
BLUE
FRONT/REAR
FRONT
DESK/CEILING
DESK
LAMP POWER
HIGH
LAMP RUNTIME
10H
FUNC 1
INDEX
SELCT ADJ
ESC
OPTION1 menu (page 36)
OPTION1
OSD
ON
AUTO KEYSTN
ON
AUTO Y•PB•PR
ON
AUTO RGB IN
ON
RGB2 SELECT
INPUT
RGB FORMAT
Y•PB•PR
SELCT ADJ
ESC
Keystone correction
(page 31)
INDEX WINDOW function
(page 39)
PICTURE MODE STANDARD
COLOR
32
TINT
32
BRIGHT
32
CONTRAST
32
SHARPNESS
0
COLOR TEMP. STANDARD
W-BAL R
32
W-BAL G
32
W-BAL B
32
SIGNAL MODE
SVGA
STANDARD
SELCT ADJ
ESC
When an S-VIDEO/VIDEO signal
is being input
PICTURE MODE STANDARD
COLOR
32
TINT
32
BRIGHT
32
CONTRAST
32
SHARPNESS
4
COLOR TEMP. STANDARD
TV-SYSTEM
AUTO1
STANDARD
SELCT ADJ
ESC
Basic Operation
On-screen menus
SHUTTER function
(page 38)
Volume adjustment
Press the ENTER button, and
then press the I and H
buttons to adjust the volume.
LANGUAGE menu (page 38)
LANGUAGE
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
ITALIANO
SELCT
POSITION menu (page 34)
When an RGB/YPBPR signal is
being input
POSITION
H-POSI
64
V-POSI
32
DOT CLK
32
CLK PHASE
16
ASPECT
4:3
RESIZING
ON
STANDARD
SELCT ENTER
ESC
When an S-VIDEO/VIDEO signal
is being input
POSITION
H-POSI
32
V-POSI
16
ASPECT
4:3
RESIZING
ON
STANDARD
SELCT ENTER
ESC
ENGLISH
ENTER
ESC
NOTE:
B Keystone distortion of the on-screen display will not be corrected.
26-ENGLISH
ENGLISH-27
# Press the MENU button.
The MAIN MENU screen will be
displayed.
MENU
KEYSTONE
POSITION
INDEX WINDOW
SHUTTER
AUDIO
LANGUAGE
OPTION1
OPTION2
SELCT ENTER
$ Press the F or G arrow
buttons to select an item.
Selected items will be displayed
in blue.
MENU
KEYSTONE
POSITION
INDEX WINDOW
SHUTTER
AUDIO
LANGUAGE
OPTION1
OPTION2
SELCT ENTER
% Press the ENTER button to
accept the selection.
The selected menu screen or
adjustment screen will then be
displayed.
(Example: PICTURE menu)
PICTURE MODE STANDARD
COLOR
32
TINT
32
BRIGHT
32
CONTRAST
32
SHARPNESS
4
COLOR TEMP. STANDARD
TV-SYSTEM
AUTO1
STANDARD
SELCT ADJ
ESC
28-ENGLISH
& Press the F or G buttons to
select an item, and then press
the I or H buttons to change
or adjust the setting.
An individual adjustment screen
such as the one shown below will
be displayed for bar-scale items.
BRIGHT
32
The bar scale will turn green
when any adjustment changes
the setting from the factory set
value.
Unavailable on-screen
menu items
This projector has unadjustable
items and unusable functions
depending on the signal being input.
When an item cannot be adjusted or
a function cannot be used, the
corresponding on-screen menu
display does not appear, and the
item or function will not work even if
the ENTER button is pressed.
Returning to the
previous screen
If you press the MENU button while
a menu screen is being displayed,
the display will return to the
previous screen.
If you press the MENU button while
the MAIN MENU screen is being
displayed, the MAIN MENU screen
will be cleared.
Returning a setting to
the factory default
B When an individual adjustment
screen is being displayed
If you press the STD (standard)
button on the remote control unit,
you can return settings to the
factory default settings. However,
the operation of this function varies
depending on which screen is being
displayed.
B When a menu screen is being
displayed
BRIGHT
STD
PICTURE MODE STANDARD
COLOR
32
TINT
32
BRIGHT
32
CONTRAST
32
SHARPNESS
4
COLOR TEMP. STANDARD
TV-SYSTEM
AUTO1
STANDARD
SELCT ENTER
ESC
All items displayed will be returned
to their factory default settings,
“STD” will be displayed in the topright screen and the bar scale will
appear white.
NOTE:
B You can also select STANDARD
from the menu screen and then
press the ENTER button.
32
Only the item displayed will be
returned to the factory default
setting, and the bar scale will
appear white.
NOTE:
B Triangle symbols above and
below a menu bar indicate the
factory default setting. Items
which do not have these triangle
symbols cannot be returned to
the factory default setting.
Indicates the standard factory
default setting
Indicates the current adjustment
value
B The positions of triangle symbols
vary depending on the type of
signal being input.
Using the freeze function
The picture will alternate between a still picture and a moving picture each
time the FREEZE button on the remote control unit is pressed.
Still picture
Moving picture
ENGLISH-29
Basic Operation
Menu operation guide
This function lets you enlarge a
single section of the picture.
Furthermore, the spot display mode
which is used to select the section
which is to be enlarged can also be
used when making presentations.
# Press a D.ZOOM +/- button.
The projector will change to spot
display mode.
$ Use the F, G, I and H
buttons to move the spot to the
section which you would like to
enlarge, and then press the
ENTER button.
The area around the spot will
then be enlarged to twice the
normal size.
30-ENGLISH
% Use the D.ZOOM +/- buttons to
change the enlargement ratio.
The enlargement ratio can be
changed within the range of x1 to
x2, in steps of 0.1.
NOTE:
B When RGB signals are being
input, the enlargement ratio can
be changed within the range of
x1 to x3.
& Press the MENU button to
return to the normal screen.
The projector will not return to
spot display mode at this time. To
return to spot display mode, clear
the enlarged picture display from
the screen and then press a
D.ZOOM +/- button again.
NOTE:
B This function can only be used
when using the remote control
unit.
B If the type of signal being input
changes while the digital zoom
function is being used, the digital
zoom function will be cancelled.
Correcting keystone distortion
Keystone distortion is corrected automatically when the projector’s automatic
setup function is used, but this correction will not apply if the screen itself is
tilted. In such cases, you can correct the keystone distortion manually with
the following procedure.
# Select “KEYSTONE” from the MAIN MENU screen, and then press the
ENTER button.
$ Press the I or H buttons to correct the keystone distortion.
Picture condition
Operation
Basic Operation
Using the D.ZOOM (digital zoom)
function
Press the H button.
Press the I button.
% Press the MENU button to return to the previous screen.
NOTE:
B If you press the AUTO SETUP button after correcting the keystone
distortion manually, the automatic keystone correction function will operate
and the corrected picture will return to its previous incorrect condition. To
prevent this from happening, you can set “AUTO KEYSTN” in the
OPTION1 menu to “OFF”.
B Keystone distortion can be corrected to ±30° of the angle of tilt for the
projector. However, the greater the correction amount, the more the
picture quality will deteriorate, and the harder it will become to achieve a
good level of focus. To obtain the best picture quality, set up the projector
and screen in such a way that the amount of keystone correction required
is as minimal as possible.
B The picture size will also change when correction of keystone distortion is
carried out.
ENGLISH-31
Use the F and G buttons on the
projector or remote control unit to
select an item, and then use the I
and H buttons to change the setting
for that item.
For items with bar scales, press the
ENTER button or the I or H
buttons to display the adjustment
screen, and then use the I or H
buttons to make the adjustment.
When an RGB/YPBPR signal is
being input
PICTURE MODE STANDARD
COLOR
32
TINT
32
BRIGHT
32
CONTRAST
32
SHARPNESS
0
COLOR TEMP. STANDARD
W-BAL R
32
W-BAL G
32
W-BAL B
32
SIGNAL MODE
SVGA
STANDARD
SELCT ADJ
ESC
When an S-VIDEO/VIDEO signal is
being input
PICTURE MODE STANDARD
COLOR
32
TINT
32
BRIGHT
32
CONTRAST
32
SHARPNESS
4
COLOR TEMP. STANDARD
TV-SYSTEM
AUTO1
STANDARD
SELCT ADJ
ESC
PICTURE MODE
PICTURE MODE STANDARD
[
DYNAMIC
[
NATURAL
Select the picture mode that best
matches the image source and
room conditions.
The mode best used in dark rooms
is NATURAL. For rooms having
regular lighting conditions in use,
select STANDARD. For
exceptionally bright rooms, use
DYNAMIC.
COLOR
(S-VIDEO/VIDEO/YPBPR only)
Press the H button to make the
colour more vivid in tone, and press
the I button to make the colour
more pastel in tone.
TINT
(NTSC/NTSC 4.43/YPBPR only)
This adjusts the flesh tones in the
picture. Press the H button to make
flesh tones more greenish, and
press the I button to make the
flesh tones more reddish.
SHARPNESS
Press the H button to make the
picture details sharper, and press
the I button to make the picture
details softer.
Colour Hue Setting
(color temperature)
COLOR TEMP.
STANDARD
[
HIGH
[
LOW
This is used to adjust the white
areas of the picture if they appear
bluish or reddish.
TV SYSTEM
(S-VIDEO/VIDEO only)
TV-SYSTEM
AUTO1
NOTE:
B This should normally be set to
“AUTO1” or “AUTO2”. If the
signal is of such poor quality that
the correct format cannot be
automatically distinguished,
change the setting manually to
the required TV system.
WHITE BALANCE R/G/B
(RGB only)
This is used to adjust the white
areas of the picture if they appear
colourised.
Press the I button to make the
selected colour lighter.
Press the H button to make the
selected colour stronger.
SIGNAL MODE
(RGB/YPBPR only)
This displays the type of signal
which is currently being projected.
Refer to the table on page 52 for
details on each type of signal.
[
AUTO2
[
NTSC
[
NTSC4.43
[
PAL
[
PAL-M
BRIGHT
This adjusts the darker areas (black
areas) in the picture. Press the H
button if dark areas are too solid (for
example, if hair is difficult to see),
and press the I button if black
areas are too light (grey rather than
black).
CONTRAST
This adjusts the contrast of the
picture. Press the H button to make
the picture brighter, and press the
32-ENGLISH
I button to make the picture
darker. (Adjust the BRIGHT setting
first if required before adjusting the
CONTRAST setting.)
[
PAL-N
[
SECAM
AUTO1
The projector automatically
distinguishes between NTSC/NTSC
4.43/PAL/SECAM signals.
AUTO2
The projector automatically
distinguishes between NTSC/PALM/PAL-N signals.
ENGLISH-33
Basic Operation
Adjusting the picture
When the input signal is RGB, first
press AUTO SETUP button to
initiate automatic positioning.
If the optimum setting is not
obtained when AUTO SETUP is
carried out, adjust by the following
procedure.
Use the F and G buttons on the
projector or remote control unit to
select an item, and then use the I
and H buttons to change the setting
for that item.
For items with bar scales, press the
ENTER button or the I or H
buttons to display the adjustment
screen, and then use the I or H
buttons to make the adjustment.
When an RGB/YPBPR signal is
being input
POSITION
H-POSI
64
V-POSI
32
DOT CLK
32
CLK PHASE
16
ASPECT
4:3
RESIZING
ON
STANDARD
SELCT ENTER
ESC
When an S-VIDEO/VIDEO signal is
being input
POSITION
H-POSI
32
V-POSI
16
ASPECT
4:3
RESIZING
ON
STANDARD
SELCT ENTER
ESC
HORIZONTAL POSITION
Press the I button to move the
picture to the left, and press the H
button to move the picture to the right.
34-ENGLISH
VERTICAL POSITION
Press the I button to move the
picture down, and press the H
button to move the picture up.
DOT CLOCK
(RGB only)
Periodic striped pattern interference
(noise) may occur when a striped
pattern such as the one below is
projected. If this happens, use the
I and H buttons to adjust so that
any such noise is minimised.
CLOCK PHASE
(RGB only)
Adjust the DOT CLOCK setting first
before carrying out this adjustment.
Use the I and H buttons to adjust
so that the noise level is least
noticeable.
NOTE:
B If signals with a dot clock frequency
of 100 MHz or higher are being input,
interference may not be completely
eliminated when the DOT CLOCK
and CLOCK PHASE adjustments are
carried out.
ASPECT
ASPECT
AUTO
[
4:3
[
16:9
[
S4:3
This setting is only valid for SVIDEO/VIDEO signals and YPBPR
signals in 525i (480i), 525p (480p)
and 625i format.
AUTO
(S-VIDEO only)
When an S1 video signal is input to
the S-VIDEO terminal, the aspect
ratio is changed automatically to
project a 16:9 picture.
4:3
The input signal is projected without
change.
16:9
The picture is compressed to a ratio
of 16:9 and projected.
S4:3
The size of the input signal is
compressed to 75% and projected.
(This is useful for projecting a
picture with a 4:3 aspect ratio onto a
16:9 screen.)
S1 video signals
B S1 video signals are a type of video
signal with an aspect ratio of 16:9
which include a detector signal. This
detector signal is output by some
sources such as wide-vision video
decks. If the AUTO setting above is
selected, this projector will recognise
the detector signal and automatically
switch the aspect ratio to 16:9 in
order to project the picture.
NOTE:
B This projector is equipped with an
aspect ratio selection function.
However, if a mode which does not
match the aspect ratio of the input
signal is selected, it may affect the
quality of viewing of the original
picture. Keep this in mind when
selecting the aspect ratio.
B If using this projector in places such
as cafes or hotels with the aim of
displaying programmes for viewing
for a commercial purpose or for
public presentation, note that if the
aspect ratio (16:9) selection function
is used to change the aspect ratio of
the screen picture, you may be
infringing the rights of the original
copyright owner for that programme
under copyright protection laws.
B If a normal (4:3) picture which was
not originally intended for widescreen viewing is projected onto a
wide screen, distortion may occur
around the edges of the picture so
that part of the picture is no longer
visible. Such programmes should be
viewed in 4:3 mode to give proper
consideration to the aims and
intentions of the original programme’s
creator.
RESIZING
This should normally be set to “ON”.
(This setting is only for signals
which have lower resolutions than
the LCD panels. Refer to page 52
for details.)
ON
The pixel resolution of the input
signal is converted to the same
resolution as the LCD panels before
being projected. For signals with
lower resolutions, gaps in the pixels
are automatically interpolated into
the picture before it is projected.
This may sometimes cause
problems with the quality of the
picture.
OFF
The picture signal is projected at its
original resolution, with no pixel
conversion. The projected picture
will be smaller than normal, so
adjust the zoom setting or move the
projector forwards or backwards to
adjust the picture size if necessary.
ENGLISH-35
Basic Operation
Adjusting the position
Use the F and G buttons on the
projector or remote control unit to
select an item, then press the I or
H buttons to change the setting.
OPTION1
OSD
ON
AUTO KEYSTN
ON
AUTO Y•PB•PR
ON
AUTO RGB IN
ON
RGB2 SELECT
INPUT
RGB FORMAT
Y•PB•PR
SELCT ADJ
ESC
OPTION2
BACK COLOR
BLUE
FRONT/REAR
FRONT
DESK/CEILING
DESK
LAMP POWER
HIGH
LAMP RUNTIME
10H
FUNC 1
INDEX
SELCT ADJ
ESC
OSD
ON
The signal name is displayed in the
top-right corner of the screen when
the input signal is changed.
OFF
Use this setting when you do not
want the signal name to be
displayed.
AUTO KEYSTN
This should normally be set to ON.
ON
During automatic setup, the angle of
tilt of the projector is detected and
keystone distortion is corrected
automatically.
OFF
Use this setting when you do not
want automatic keystone correction
to be carried out during automatic
setup, such as when the screen
itself is at an angle.
36-ENGLISH
RGB FORMAT
RGB FORMAT
AUTO Y·PB·PR
ON
OFF
RGB or YPBPR is
selected
HDTV60 automatically
HDTV50 depending on the
synchronising
signal status.
Other
RGB
format
setting
becomes
valid
RGB or YPBPR is
selected automatically
depending on the
synchronising signal
status.
Y•PB•PR
This setting is only valid when an
HDTV signal is being input and
“AUTO Y·PB·PR” is set to OFF.
BACK COLOR
BACK COLOR
BLUE
[
BLACK
This sets the colour which is
projected onto the screen when no
signal is being input to the projector.
FRONT/REAR
FRONT/REAR
FRONT
[
REAR
AUTO RGB IN
This should normally be set to ON.
ON
During automatic setup, the
projector selects whichever one of
the RGB1 IN or RGB2 IN
connectors has a signal being input,
and uses that signal for projection.
(If a picture is being projected, the
signal source is not automatically
changed.)
OFF
Use this setting when you do not
want the signal source to be
changed automatically during
automatic setup.
RGB2 SELECT
RGB2 SELECT
LAMP POWER
INPUT
[
OUTPUT
This setting is used to select the
function of the RGB2 IN/RGB1 OUT
connector.
This setting should be changed in
accordance with the projector
setting-up method.
Set to “FRONT” when using a
normal reflective screen with the
projector positioned in front of the
screen, and set to “REAR” when
using a translucent screen with the
projector positioned behind the
screen.
HIGH
[
[
AUTO Y·PB·PR
Input
signal
LAMP POWER
RGB
STANDARD
This setting changes the lamp
brightness. When set to
“STANDARD”, the luminance of the
lamp is reduced, but the projector
uses less power, and the operating
noise is also reduced. This can help
to extend the lamp’s operating life. If
using the projector in small rooms
where high luminance is not
required, it is recommended that
you set the LAMP POWER to
“STANDARD”.
LAMP TIME
This setting displays the usage time
for the lamp unit which is currently
being used.
NOTE:
B The lamp’s operating life varies
depending on the usage
conditions (such as the LAMP
POWER setting and the number
of times the power is turned on
and off).
DESK/CEILING
DESK/CEILING
DESK
[
CEILING
This setting should be changed in
accordance with the projector
setting-up method.
Set to “DESK” when setting up the
projector on a desk or similar, and
set to “CEILING” when suspending
the projector from the ceiling using
the ceiling bracket which is sold
separately.
ENGLISH-37
Advanced Operation
Option settings
FUNC 1
FUNC1
INDEX
[
KEUSTONE
This assigns a function to the F1
button of the ET-RM100 wireless
remote control unit (sold
separately).
INDEX
B Functions in the same way as the
INDEX WINDOW button on the
accessory card remote control
unit. (page 39)
KEYSTONE
B Functions in the same way as
when “KEYSTONE” is selected
from the MAIN MENU screen.
(page 31)
Using the INDEX WINDOW function
This function lets you store a picture which is being projected into memory,
so that you can display a still picture and a moving picture on the screen.
# Press the INDEX WINDOW button.
You can also select INDEX WINDOW from
the MAIN MENU screen and then press the
ENTER button.
NOTE:
B The aspect ratio of the screen changes and
the image is vertically elongated in
comparison to a normal image.
$ Use the F and G buttons to select a screen size.
The screen size can be chosen from 3 options.
Still
Moving
Using the shutter function
Changing the display language
Use the F and G buttons on the
projector or remote control unit to
select a language, then press the
ENTER button to accept the setting.
LANGUAGE
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
ITALIANO
SELCT
38-ENGLISH
ENTER
ENGLISH
Still
Still
Moving
Still Moving
picture picture
Moving
% Use the I and H buttons to switch between the still picture screen
(left) and moving picture screen (right).
Still
Moving
Moving
Still
& Press the ENTER button to store the picture in memory.
NOTE:
B When the screen size is changed, the picture’s aspect ratio will also
change. Make sure that you fully understand the notes on ASPECT which
are given on page 35 before using the index window function.
B When steps $ and % are carried out, the memory will be reset and a new
picture will be stored in memory.
Indicates the language which is
currently set
ESC
ENGLISH-39
Advanced Operation
The shutter function can be used to momentarily turn off the picture and
sound from the projector when the projector is not being used for short
periods of time, such as during breaks in meetings or when carrying out
preparation. The projector uses less power in shutter mode than it does in
normal projection mode.
# Press the SHUTTER button on the remote control unit.
You can also select SHUTTER from the MAIN MENU screen and then
press the ENTER button.
$ Press any button on either the projector or remote control unit to
return to normal operating mode.
The serial connector which is on the side connector panel of the projector
conforms to the RS-232C interface specification, so that the projector can be
controlled by a personal computer which is connected to this connector.
Connection
SERIAL(female)
D-Sub9p (male)
Communication cable
NOTE:
B Use a proper communication
cable which is suitable for the
personal computer to connect the
serial connector and the personal
computer.
Pin layout and signal
names for SERIAL
connector
1
9
5
D-SUB 9-pin connector seen from
outside
Pin Signal
No. name
#
$
%
&
'
(
)
*
+
Contents
NC
TXD Transmitted data
RXD Received data
Connected internally
GND
NC
CTS
Connected internally
RTS
NC
40-ENGLISH
The commands which the personal computer can use to control the projector
are shown in the following table.
Command
Control
Contents
Remarks
Communications settings
Computer
6
Control commands
Signal level
Sync. method
Baud rate
Parity
Character length
Stop bit
X parameter
S parameter
RS-232C
Asynchronous
9600 bps
None
8 bits
1 bit
None
None
PON
Power ON
POF
Power OFF
AVL
Volume
In standby mode, all commands other than
the PON command are ignored.
B The PON command is ignored during
lamp ON control.
B If a PON command is received while the
cooling fan is operating after the lamp
has switched off, the lamp is not turned
back on again straight away, in order to
protect the lamp.
Parameter
000–063(Adjustment value 0–63)
Parameter
VID=VIDEO
SVD=S-VIDEO
RG1=RGB1(YPBPR1) RG2=RGB2(YPBPR2)
Basic format
The data sent from the computer to
the projector is transmitted in the
fromat shown below.
IIS
STX Command : Parameter ETX
Q$S
Input signal
selection
Parameter
0 = Standby
1 = Lamp ON control active
2 = Lamp ON
3 = Lamp OFF control active
Lamp ON
condition query
Start byte
1 byte
End byte
(02h)
3 bytes 1 byte–5 bytes (03h)
NOTE:
B The projector can not receive the
command for 10 seconds after
the lamp is on. Wait 10 seconds
before sending the command.
B If sending multiple commands,
check that a response has been
received from the projector for
one command before sending the
next command.
B When a command which does
not require parameters is sent,
the colon (:) is not required.
B If an incorrect command is sent
from the personal computer, the
“ER401” command will be sent
from the projector to the personal
computer.
Cable specifications
(When connected to a personal computer)
At the projector
1
NC
At the computer
(DTE specifications)
NC
1
2
2
3
3
4
NC
NC
NC
NC
6
6
7
7
8
8
9
4
5
5
NC
NC
9
ENGLISH-41
Advanced Operation
Using the SERIAL connector
Indicators
LAMP indicator
There are two indicators on the control panel of the projector which give
information about the operating condition of the projector. These indicators
illuminate or flash to warn you about problems that have occurred inside the
projector, so if you notice that one of the indicators is on, turn off the power
and check the table below for the cause of the problem.
TEMP indicator
Illuminated (red)
(Lamp unit on)
The surrounding
temperature or the
temperature inside
the projector has
become unusually
Problem high.
Indicator
display
Flashing (red)
(Lamp unit on)
The temperature
inside the projector
has become
dangerously high, or
the temperature has
suddenly changed.
Flashing (red)
(Lamp unit off)
The surrounding
temperature or the
temperature inside
the projector has
become dangerously
high, causing the
lamp unit to be
automatically shut
off.
B The ventilation holes may be covered.
Possible B The ambient temperature in the place of use may be too high.
cause B The air filter may be blocked.
Illuminated (red)
It is nearly time to
Problem replace the lamp
unit.
Flashing (red)
An abnormality has been detected in the lamp
circuit.
B Does “REPLACE B The power may
B There may be an
LAMP” appear on
have been turned
abnormality in the
Possible
the screen after
on straight away
lamp circuit.
cause
the projector is
after it was turned
turned on?
off.
B Turn off the MAIN
B This occurs when B Wait for a while
the operation time
until the lamp unit
POWER switch by
for the lamp unit is
cools down before
following the
nearing 1800
turning the power
procedure given
on page 25, and
hours. (when
back on again.
then contact an
LAMP POWER
has
been
set
to
Authorised
Remedy
“HIGH”) Ask your
Service Centre.
dealer or an
Authorised
Service Centre to
replace the lamp
unit.
NOTE:
B Be sure to turn off the MAIN POWER switch by following the procedure
given in “Turning off the power” on page 25 before carrying out any of the
procedures in the “Remedy” column.
B If the main power turns off after the TEMP indicator starts flashing, it
means that an abnormality has occurred. Please contact an Authorised
Service Centre so that the necessary repairs can be made.
Others
B Uncover the ventilation holes.
B Set up the projector in a place where the temperature is
between 0 °C (32 °F) and 40 °C (104 °F) and the humidity is
Remedy
between 20% and 80% (with no condensation).
B Turn off the MAIN POWER switch by following the procedure
on page 25, and then clean the air filter (refer to page 44).
Indicator
display
42-ENGLISH
ENGLISH-43
Cleaning and replacing the air filter
Replacing the lamp unit
If the air filter becomes clogged with dust, the internal temperature of the
projector will rise, the TEMP indicator will flash and the projector power will
turn off. The air filter should be cleaned every 100 hours of use,
depending on the location where the projector is being used.
Warning
# Turn off the MAIN POWER
switch and disconnect the
power cord plug from the wall
outlet.
Turn off the MAIN POWER switch
according to the procedure given
in “Turning off the power” on
page 25 before disconnecting the
plug from the wall outlet.
$ Gently turn the projector
upside down.
NOTE:
B Place the projector on top of a
soft cloth so that it will not
become scratched.
% Remove the air filter.
Put your fingernails under the air
filter and pull the air filter out of
the projector.
& Clean the air filter.
Use a vacuum cleaner to clean
off any accumulated dust.
Notes on replacing the
lamp unit
NOTE:
B Be careful not to let the air filter
get sucked into the vacuum
cleaner.
' Install the air filter.
NOTE:
B Be sure to install the air filter
cover before using the projector.
If the projector is used without the
air filter cover installed, dust and
other foreign particles will be
drawn into the projector, and
malfunctions will result.
B If the dust cannot be removed by
cleaning, it is time to replace the
air filter. Please consult your
dealer. Furthermore, if the lamp
unit is being replaced, replace the
air filter at this time also.
B The light generating lamp is
made of glass, so dropping it or
allowing it to hit hard objects may
cause it to burst. Be careful when
handling the lamp.
B After having removed the old
lamp, carelessly discarding it can
cause the lamp to burst. Dispose
of the lamp with the same care
that would be taken with a
fluorescent light.
B A Phillips screwdriver is
necessary for removing the lamp
unit. Make sure that your hands
are not slippery when using the
screwdriver.
NOTE:
B The projector is not supplied with
a replacement lamp unit. Please
ask your dealer for details. Lamp
unit product no.: ET-LAC75
CAUTION:
B Do not use any lamp unit other
than the one with the product
number indicated above.
The lamp is a consumable product.
Even when the full life of the bulb
has not been exhausted, the
brightness of the light will gradually
decline. Therefore periodic
replacement of the lamp is
necessary.
The intended lamp replacement
interval is 2000 hours, but it is
possible that the lamp may need to
be replaced earlier due to variables
such as a particular lamp's
characteristics, usage conditions
and the installation environment.
Early preparation for lamp
replacement is encouraged.
A lamp that has exceeded 2000
hours of use has a much greater
chance of exploding. In order to
prevent the lamp from exploding,
the lamp will be automatically shut
off when 2000 hours of use have
been reached.
NOTE:
B The usage hours explained
above are for use when the HIGH
setting has been selected for
LAMP POWER in the OPTION2
menu. If the STANDARD setting
is selected, the brightness of the
lamp will be less and life of the
lamp can be extended.
B While 2000 hours is the intended
replacement interval, it is not a
period of time covered by
warranty.
Air filter
44-ENGLISH
ENGLISH-45
Others
Cleaning procedure
The lamp unit should only be
replaced by a qualified
technician.
When replacing the lamp, allow it
to cool for at least one hour
before handling it.
B The lamp cover gets very hot,
and contact with it can cause
burns.
Lamp unit replacement
period
More than 1800 hours
More than 2000 hours
Lamp indicator warning
light
Displayed for 30
seconds. Pressing any
button will clear the
display.
The projector will enter
Standby Mode and the
This display cannot be red indicator lamp will
cleared at all, no matter illuminate.
which button is pressed.
Lamp unit replacement procedure
NOTE:
B If the lamp usage time has passed 2000 hours (when LAMP POWER has
been set to “HIGH”), the projector will switch to standby mode after
approximately 10 minutes of operation. The steps ) to - on the next
page should thus be completed within 10 minutes.
# Turn off the MAIN POWER
switch according to the
procedure given in “Turning off
the power” on page 25, and
then disconnect the power
cord plug from the wall outlet
and check that the area around
the lamp unit has cooled down.
$ Use a Phillips screwdriver to
turn the lamp unit cover fixing
screws at the bottom of the
projector, and then remove the
lamp unit cover from the
projector.
Lamp unit cover
% Use a Phillips screwdriver to loosen
the two lamp unit fixing screws until
the screws turn freely. Then hold
the handle of the lamp unit and
gently pull it out from the projector.
Lamp unit fixing screws
Handle
& Insert the new lamp unit while
making sure that the direction
of insertion is correct, and then
use a Phillips screwdriver to
securely tighten the lamp unit
fixing screws.
' Install the lamp unit cover, and
then use a Phillips screwdriver
to securely tighten the lamp
unit cover fixing screws.
NOTE:
B Be sure to install the lamp unit
and the lamp unit cover securely.
If they are not securely installed,
it may cause the protection circuit
to operate so that the power
cannot be turned on.
( Insert the power cord plug into
the wall outlet and then press
the MAIN POWER switch.
NOTE:
B If the POWER button on the
projector does not illuminate red
when the MAIN POWER switch is
turned on, turn the MAIN POWER
switch off again and check that
the lamp unit and the lamp unit
cover are securely installed. Then
turn the MAIN POWER switch
back on.
) Press the POWER button so
that a picture is projected onto
the screen.
* Press the MENU button to
display the MAIN MENU
screen, and then press the F
and G buttons to move the
cursor to select “OPTION2”.
MENU
KEYSTONE
POSITION
INDEX WINDOW
SHUTTER
AUDIO
LANGUAGE
OPTION1
OPTION2
SELCT ENTER
+ Press the ENTER button to
display the OPTION2 screen,
and then use the F and G
buttons to select LAMP
RUNTIME.
OPTION2
BACK COLOR
BLUE
FRONT/REAR
FRONT
DESK/CEILING
DESK
LAMP POWER
HIGH
LAMP RUNTIME 1820H
FUNC 1
INDEX
SELCT
ESC
, Press and hold the ENTER
button on the control panel of
the projector for approximately
3 seconds.
OPTION2
BACK COLOR
BLUE
FRONT/REAR
FRONT
DESK/CEILING
DESK
LAMP POWER
HIGH
TIME RESET[POWER OFF]
FUNC 1
INDEX
SELCT
ESC
The “LAMP RUNTIME” will
change to “TIME RESET
[POWER OFF]”.
NOTE:
B This operation will not work if the
ENTER button on the remote
control unit is pressed.
B If the MENU button is pressed,
the lamp time resetting screen
will be cancelled.
- Hold down the POWER button
for at least 0.5 seconds or
press the POWER button twice
to turn off the power.
This will reset the cumulative
usage time for the lamp unit to
zero.
Lamp unit cover fixing screws
46-ENGLISH
ENGLISH-47
Others
On-screen display
Before asking for service
Before asking for service, check the following points.
Possible cause
B The power cord may not be connected.
B The MAIN POWER switch is turned off.
B The main power supply is not being supplied to the
wall outlet.
B TEMP indicator is illuminated or flashing. (Refer to
page 42.)
B LAMP indicator is illuminated or flashing. (Refer to
page 42.)
B The lamp unit cover has not been securely
installed.
No picture appears. B The video signal input source may not be
connected properly.
B The input selection setting may not be correct.
(Refer to page 24.)
B The BRIGHT adjustment setting may be at the
minimum possible setting. (Refer to page 32.)
B The shutter function may be in use. (Refer to page
38.)
The picture is
B The lens cover may still be attached to the lens.
fuzzy.
B The lens focus may not have been set correctly.
(Refer to page 25.)
B The projector may not be at the correct distance
from the screen. (Refer to pages 22 and 23.)
B The lens may be dirty.
B The projector may be tilted too much. (Refer to
page 24.)
COLOR is too light or B COLOR or TINT adjustment may be incorrect.
TINT is poor
(Refer to page 32.)
B The input source which is connected to the
projector may not be adjusted correctly.
No sound can be
B The audio signal source may not be connected
heard.
properly.
B The volume adjustment may be at the lowest
possible setting. (Refer to pages 15 and 26.)
Others
Problem
Power does not
turn on.
Problem
Possible cause
Remote control unit B The battery may be weak.
does not operate.
B The battery may not be inserted correctly. (Refer to
page 18.)
B The remote control signal receptor on the projector
may be obstructed. (Refer to page 18.)
B The remote control unit may be out of the
operation range. (Refer to page 18.)
The picture does not B The correct input signal may not be selected.
display correctly.
(Refer to page 25.)
B The signal format (TV system) may not be set
correctly. (Refer to page 33.)
B There may be a problem with the video tape or
other signal source.
Picture from
B A signal which is not compatible with the projector
computer does not
may be being input. (Refer to page 52.)
appear
B The cable may be too long.
B The external video output for the laptop computer
may not be set correctly.
(You may be able to change the external output
settings by pressing the [Fn]+[F3] or [Fn]+[F10]
keys simultaneously. The actual method varies
depending on the type of computer, so refer to the
documentation provided with your computer for
further details.)
B If an RGB input monitor (refer to pages 14 and 17)
is turned off, the video signals may not be output
from the computer.
B RGB2 SELECT in the OPTION2 menu is set to
OUTPUT when the signals are input to RGB2 IN /
RGB1 OUT connector. (Refer to page 36)
48-ENGLISH
ENGLISH-49
Power supply:
Power consumption:
Connectors
RGB IN/OUT:
100 V–240 V ~, 50 Hz/60 Hz
220 W (During standby (when fan is
stopped): Approx. 2 W)
2.8 A–1.0 A
Amps:
LCD panel:
Panel size (diagonal):
0.7 type (17.78 mm)
Aspect ratio:
4:3 (16:9 compatible)
Display method:
3 transparent LCD panels (RGB)
Drive method:
Active matrix method
Pixels:
PT-LC75E:
786 432 (1024 x 768) x 3 panels
PT-LC55E:
480 000 (800 x 600) x 3 panels
Lens:
Manual zoom (1 - 1.2) / focus lens
PT-LC75E:
F 1.7 - 1.9, f 21.5 mm - 25.8 mm
PT-LC55E:
F 2.0 - 2.3, f 22.0 mm - 26.2 mm
Lamp:
UHM lamp (160 W)
Luminosity:
1200 lm/ANSI
Scanning frequency(for RGB signals):
PT-LC75E
Horizontal scanning
frequency
Vertical scanning
frequency
Dot clock frequency
31 kHz–91 kHz
31 kHz–70 kHz
56 Hz–87 Hz
56 Hz–87 Hz
Less than 100 MHz
Less than 100 MHz
YPBPR signals:
Colour system:
Projection size:
Throw distance:
PT-LC75E:
PT-LC55E:
Optical axis shift:
Screen aspect ratio:
Installation:
Speaker:
Max. useable volume output:
50-ENGLISH
PT-LC55E
NTSC (480i), 480p, PAL (625i), 720p,
HDTV60, HDTV50
6 (NTSC/NTSC 4.43/PAL/PAL-M/PALN/SECAM)
838 mm - 7620 mm (33˝ - 300˝)
1.1 m - 10.7 m (3´7˝ - 35´1˝)
1.1 m - 11.0 m (3´7˝ - 36´1˝)
6:1 (fixed)
4:3
Front/Rear/Ceiling/Desk (Menu selection
method)
4 cm x 3 cm oval x 1
2 W (mono)
During YPBPR input/output:
Y:
PB,PR :
During RGB input/output:
R.G.B.:
G.SYNC:
HD/SYNC:
VD:
VIDEO IN:
S-VIDEO IN:
AUDIO IN:
Serial connector:
Cabinet:
Dimensions:
Width:
Height:
Length:
Weight:
Operating environment:
Temperature:
Humidity:
Certifications:
<Remote control unit>
Power supply:
Operating range:
Weight:
Dimensions:
Width:
Height:
Length:
<Options>
Ceiling bracket
Wireless remote control unit
Wide conversion lens
Dual-line D-SUB HD 15-pin (female)
(One-line is available for input and output)
1.0 V [p-p], 75 Ω
0.7 V [p-p], 75 Ω
0.7 V [p-p], 75 Ω
1.0 V [p-p], 75 Ω
TTL high impedance, automatic
plus/minus polarity compatible
TTL high impedance, automatic
plus/minus polarity compatible
Single-line, RCA pin jack
1.0 V [p-p], 75 Ω
Single-line, Mini DIN 4-pin
Y 1.0 V [p-p], C 0.286 V [p-p], 75 Ω
0.5 V [rms] RCA pin jack x 2 (L-R)
D-sub 9p (female) RS-232C compatible
Moulded plastic (ABS/PC)
310 mm (12-3/16˝)
85.5 mm (3-11/32˝)
243 mm (9-9/16˝) (without lens cover)
3 kg (6.6 lbs.)
0 °C–40 °C (32 °F–104 °F)
20%–80% (no condensation)
EN60950, EN55022, EN61000-3-2,
EN61000-3-3, EN55024
3 V DC (Lithium CR2025 battery x1)
Approx. 7 m (23´) (when operated directly
in front of signal receptor)
18 g (0.6 ozs.) (including battery)
40 mm (1 9/16˝)
6.5 mm (1/4˝)
86 mm (3 3/8˝)
ET-PKC75
ET-RM100
ET-LEC75
Others
Specifications
ENGLISH-51
Appendix
Dimensions
<Units: mm (˝)>
List of compatible signals
243(9-9/16)
57(2-7/32)
310(12-3/16)
85.5(3-11/32)
4.5(5/32)
49.3(1-15/16)
INPUT
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK Video/S-Video
OK Video/S-Video
OK YPBPR
OK YPBPR
OK YPBPR
YPBPR/RGB
YPBPR/RGB
YPBPR
OK
RGB
OK
RGB
OK
RGB
OK
RGB
OK
RGB
OK
RGB
OK
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
RGB
AUTO SETUP
OK
OK
OK
OK
OK
POWER
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
AA
AA
AA
AA
AA
A
A
A
A
A
A
A
B
C
B
C
B
C
C
C
TEMP
13.500
13.500
27.000
74.250
74.250
74.250
25.175
31.500
25.175
30.240
31.500
31.500
36.000
36.000
40.000
50.000
49.500
56.250
57.283
65.000
75.000
78.750
94.500
44.897
94.200
108.000
121.500
100.000
108.000
108.000
135.001
157.500
162.000
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
AA
AA
AA
AA
AA
A
B
B
B
B
B
B
B
B
ENTER
59.940
50.000
59.940
50.000
59.940
60.000
50.000
60.000
70.086
85.081
59.940
66.667
72.809
75.000
85.008
56.250
60.317
72.188
75.000
85.061
74.550
60.004
70.069
75.029
84.997
86.952
71.184
74.917
85.038
75.062
60.000
60.020
75.025
85.024
60.000
STANDBY(R)
ON(G)
15.734
15.625
15.734
15.625
31.469
33.750
28.125
45.000
31.469
37.861
31.469
35.000
37.861
37.500
43.269
35.156
37.879
48.077
46.875
53.674
49.725
48.363
56.476
60.023
68.678
35.520
63.995
67.500
76.705
68.681
60.000
63.981
79.977
91.146
75.000
Resizing*3
Dot clock
quality*2
frequency
Format
(MHz) LC75 LC55 LC75 LC55
MENU
NTSC/M-NTSC/PAL-M
720 x 480i
PAL/PAL-N/SECAM
720 x 576i
525i
720 x 480i
625i
720 x 576i
525p
720 x 483
HDTV60
1 920 x 1 080i
HDTV50
1 920 x 1 080i
750P
1 280 x 720
VGA400
640 x 400
640 x 400
VGA480
640 x 480
640 x 480
640 x 480
640 x 480
640 x 480
SVGA
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
MAC16
832 x 624
XGA
1 024 x 768
1 024 x 768
1 024 x 768
1 024 x 768
1 024 x 768i
MXGA
1 152 x 864
1 152 x 864
1 152 x 864
MAC21
1 152 x 870
MSXGA
1 280 x 960
SXGA
1 280 x 1 024
1 280 x 1 024
1 280 x 1 024
UXGA
1 600 x 1 200
Scanning
frequency
H
V
(kHz) (Hz)
RGB INPUT LAMP
Mode
Display
resolution
(dots)*1
198(7-25/32)
52-ENGLISH
Others
*1 The “i” appearing after the resolution indicates an interlaced signal.
*2 The following symbols are used to indicate picture quality.
AA Maximum picture quality can be obtained.
A Signals are converted by the image processing circuit before picture
is projected
B Some loss of data occurs to make projection easier.
C Picture cannot be projected.
*3 Signals with “OK” in the Resizing column can be set using the RESIZING
command in the PICTURE menu. (Refer to page 35.)
ENGLISH-53
Trademark acknowledgements
B VGA and XGA are trademarks of International Business Machines
Corporation.
B Macintosh is a registered trademark of Apple Computer, Inc.
B S-VGA is a registered trademark of the Video Electronics Standards
Association.
B Windows is a registered trademark of Microsoft Corporation.
All other trademarks are the property of the various trademark owners.
These Operating Instructions are printed on recycled paper.
54-ENGLISH
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
