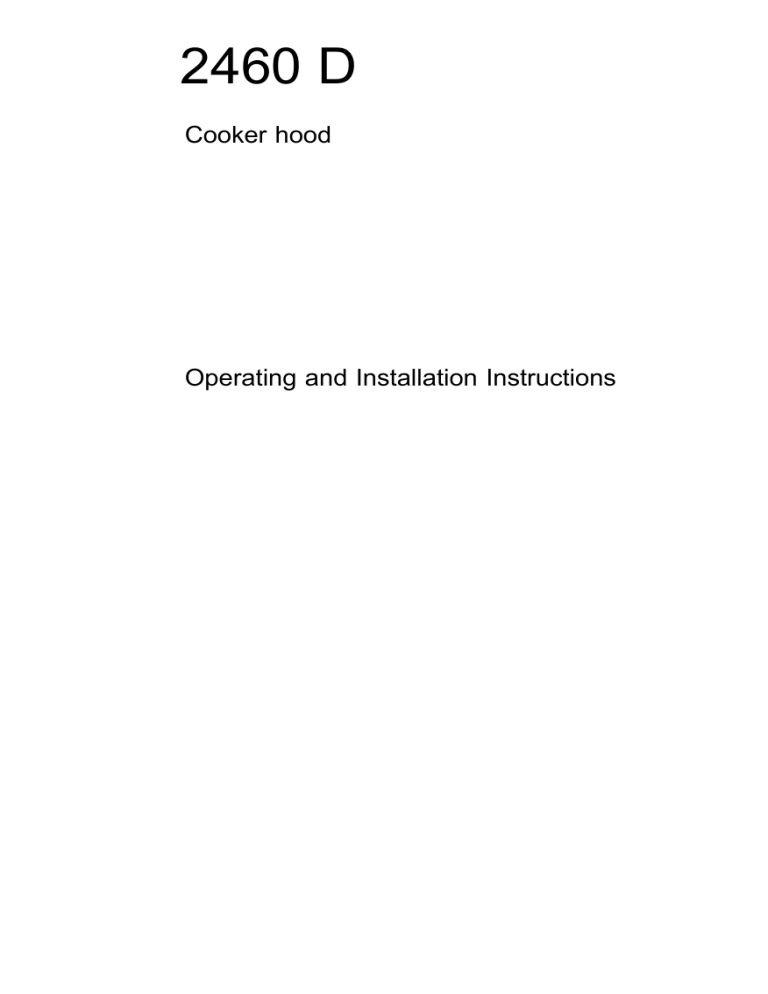

2460 D
Cooker hood
Operating and Installation Instructions
Printed on recycled paper
AEG - putting words into action
Safety warnings
For the User
For the Installer
Description of the Appliance
Extractor version
Filter Version
Control Panel
Maintenance and care
Cleaning the hood
Metal grease filter
Removing the metal grease filter
Charcoal filter
Changing the light bulb
What to do if
Service and Spare Parts
Guarantee Conditions
Technical Specifications
Mounting accessories included
Electrical connection
Safety warnings for the electrician
Wall unit mounting
Safety warnings
For the User
• The cooker hood is designed to extract unpleasant odours from the
kitchen, it will not extract steam.
• Always cover lighted elements, to prevent excess heat from
damaging the appliance. In the case of oil, gas and coal fired
cookers it is essential to avoid open flames.
• Also, when frying, keep the deep frying pan on the cooker top/cooker
under careful control.
• The hot oil in the frying pan might ignite due to overheating.
• The risk of self-ignition increases when the oil being used is dirty.
• It is extremely important to note that overheating can cause a fire.
• Never carry out any flambé cooking under the hood.
• Always disconnect the unit from the power supply before
carrying out any work on the hood, including replacing the
light bulb (take the cartridge fuse out of the fuse holder or switch off
the automatic circuit breaker).
• It is very important to clean the hood and replace the filter at
the recommended intervals. Failure to do so could cause
grease deposits to build up, resulting in a fire hazard.
For the Installer
• When used as an extractor unit, the hood must be fitted with a
150mm diameter hose.
• Should there already be a pipe of diameter 125 mm that ducts to
the outside through the walls or roof, it is possible to use the 150/
125 mm reduction flange provided. In this case the hood will be
slightly more noisy.
• When installing the hood, make sure you respect the following
minimum distance from the top edge of the cooking hob/ring
electric cookers
500 mm
gas cookers
650 mm
coal and oil cookers
700 mm min.
• The national standard on fuel-burning systems specifies a maximum
depression of 0.04 bar in such rooms.
• The air outlet must not be connected to chimney flues or combustion gas ducts. The air outlet must under no circumstances be
connected to ventilation ducts for rooms in which fuel-burning
appliances are installed.
• It is advisable to apply for authorization from the relevant controlling
authority when connecting the outlet to an unused chimney flue or
combustion gas duct.
The air outlet installation must comply with the regulations laid down
by the relevant authorities.
• When the unit is used in its extractor version, a sufficiently large
ventilation hole must be provided, with dimensions that are
approximately the same as the outlet hole.
• National and regional building regulations impose a number of
restrictions on using hoods and fuel-burning appliances connected to
a chimney, such as coal or oil room-heaters and gas fires, in the
same room.
• Hoods can only be used safely with appliances connected to a
chimney if the room and/or flat (air/environment combination) is
ventilated from outside using a suitable ventilation hole approximately
500-600 cm2 large to avoid the possibility of a depression being
created during operation of the hood.
• If you have any doubts, contact the relevant controlling authority or
building inspector’s office.
• Since the rule for rooms with fuel burning appliances is “outlet hole of
the same size as the ventilation hole”, a hole of 500-600 cm2, which
is to say a larger hole, could reduce the performance of the extractor
• If the hood is used in its filtering function, it will operate simply and
safely in the above conditions without the need for any of the
aforementioned measures.
• When the hood is used in its extractor function, the following rules
must be followed to obtain optimal operation:
— short and straight outlet hose
— keep bends in outlet hose to a minimum
— never install the hoses with an acute angle, they must
always follow a gentle curve only
— keep the hose as large as possible (preferably the same diameter
as the outlet hole).
• Failure to observe these basic instructions will drastically reduce the
performance and increase the noise levels of the extractor hood.
Description of the Appliance
• The hood is supplied as an extractor unit and can also be used with
a filtering function by fitting one charcoal filter
• You will need an original AEG charcoal filter for this function
(Available from your local AEG Service Force Centre).
Extractor version
• The air is discharged to the outside through a hose, which must be
fitted to connection flange A. Fig. 1.
• In order to obtain the best performance
the hose should have a diameter equal
to the outlet hole.
Should there already be a pipe of
diameter 125 mm that ducts to the
outside through the walls or roof, it is
possible to use the 150/125 mm
reduction flange provided. In this case
the hood will be slightly more noisy.
Fig. 1
Filter Version
• The air is filtered through a charcoal filter and returned to the kitchen
through the top grill of the outlet pipe.
• You will need an original AEG charcoal filter for the filtering function.
• Fix the deflector using 4 screws Ø 3,5x6.5 mm. Fig. 2.
• Optionally, the position of the chimney elements can be changed.
When using the hood in the filter version the chimney must be fixed
at the top, with the air outlet grill at the side.
Fig. 2
Control Panel
• Best results are obtained by using a low speed for normal conditions
and a high speed when odours are more concentrated.
Turn the hood on a few minutes before you start cooking, you will
then get an under pressure in the kitchen. The hood should be left on
after cooking for about 15 minutes or until all the odours have
Indicator lamp
Light ON/OFF switch
Motor OFF - Speed 1 push-button
Speed 2 push-button
Speed 3 push-button
Correct ventilation
If the cooker hood is to work correctly there must be an under
pressure in the kitchen. It is important to keep the kitchen windows
closed and have a window in an adjacent room open.
This is not applicable for recirculation. Great care must be taken if
the hood is used at the same time as a burner or fireplace (e.g. gas,
diesel, coal or wood heaters, water heaters, etc.), as the hood will
expel air which is required by these other appliances. In this situation, ensure that a window is open. The negative pressure in the
room must not exceed 0,04 mbar to prevent fumes being drawn back
into the room by the cooker hood.
Maintenance and care
• The hood must always be disconnected from the electricity
supply before beginning any maintenance work.
Cleaning the hood
• Clean the outside of the hood using a damp cloth and a mild detergent.
• Never use corrosive, abrasive or flammable cleaning products.
• Never insert pointed objects in the motor’s protective grid.
• Only ever clean the switch panel and filter grille using a damp cloth
and mild detergents.
• It is extremely important to clean the unit and change the filters at
the recommended intervals. Failure to do so will cause grease
deposits to build up that could constitute a fire hazard.
Metal grease filter
• The purpose of the grease filters is to
absorb grease particles which form
during cooking and it must always be
used, either in the external ducted or
internal recycling function.
Attention: the metal grease filters must
be removed and washed, either by hand
or in the dishwasher, every four weeks.
Open the metal grease filter
• First, push the metal grease filter stop
backwards, then extract the filter,
pulling downwards. Fig. 3.
Fig. 3
Hand washing
Soak grease filters for about one hour in hot water with a greaseloosening cleaner, then rinse off thoroughly with hot water. Repeat
the process if necessary. Refit the grease filters when they are dry.
Place grease filters in dishwasher. Select the most powerful washing
programme and highest temperature, at least 65°C. Repeat the
process. Refit the grease filters when they are dry.
When washing the metal grease filter in the dishwasher a slight
discolouration of the filter can occur, this does not have any impact
on its performance.
Charcoal filter
• The charcoal filter should only be used if you want to use the hood in
its filtering function.
• To do this you will need an original AEG charcoal filter.
• Replacing the charcoal filter
The charcoal filters cannot be cleaned, we recommend that they
should be replaced approximately every three months or more often if
the hood is used for more than three hours per day.
• Fitting
Remove the frame b which supports the filter c by unscrewing it
from the hood a, Fig. 4.
Insert the coal mattress inside the frame and put all parts back in
their place.
• To remove proceed in the reverse order.
• Always specify the hood model code number and serial number
when ordering replacement filters. This information is shown on the
registration plate located on the inside of the unit.
• The charcoal filter can be ordered from your local AEG Service Force
Fig. 4
• Failure to observe the instructions on cleaning the unit and changing
the filters could cause a fire hazard. You are therefore strongly
recommended to follow these instructions.
• The manufacturer declines all responsibility for any damage to the
motor or any fire damage linked to inappropriate maintenance or
failure to observe the above safety recommendations.
Changing the light bulb
Disconnect the cooker hood from the mains supply.
Remove the lamp cover, use a screw driver as a lever. Fig. 5.
Replace the old bulb with a new one of the same type.
Refit the lamp cover.
If the light does not come on, make sure the bulb has been inserted
in correctly before contacting your local AEG Service Force Centre.
Fig. 5
What to do if
If your appliance fails to work properly please carry out the following checks.
The cooker hood will not start...
Check that:
The hood is connected to the
electricity supply.
Check that the fan speed control is
set to 1, 2 or 3.
The cooker hood is not working
Check that:
The fan speed is set high enough
for the task.
The grease filters are clean.
The kitchen is adequately vented to
allow the entry of fresh air.
If set up for recirculation, check that
the charcoal filter is still effective.
If set up for extraction, check that
the ducting and outlets are not
The cooker hood has switched off
during operation...
The safety cut-out device has been
Turn off the hob and then wait for the
device to reset.
If the hood has been installed below
the heights indicated in the
installation instructions the motor
will cut-out frequently which will
damage the hood.
If after all these checks, the problem persists, contact your local Service
Force Centre, quoting the model and serial number.
Please note that it will be necessary to provide proof of purchase for any
in-guarantee service calls.
In-guarantee customers should ensure that the above checks have been
made as the engineer will make a charge if the fault is not a mechanical or
electrical breakdown.
Service and spare parts
In the event of your appliance requiring service, or if you wish to
purchase spare parts, contact your local AEG Service Force Centre by
08705 929 929
Your call will be automatically routed to the Service Centre covering
your post code area.
For the address of your local Service Force Centre and further information about Service Force, please visit the website at
Please ensure that you have read the section „What to do if....“ as the
engineer will make a charge if the fault is not a mechanical or electrical
breakdown even the appliance is under warranty.
Please note that proof of purchase is required for in-guarantee
service calls.
Help us to help you
Please determine your type of enquiry before writing or telephoning.
When you contact us we need to know:
• Your name
• Address and post code
• Telephone number
• Clear and concise details of the fault
• Name and model of the appliance*
• E number*
* This information can be found on the rating plate, which can be seen
when the grease filters are removed.
Customer Care
For general enquiries concerning your AEG appliances, or for further
information on AEG products, please contact our Customer Care
Department at the address below or visit our website at
Customer Care Department
AEG Domestic Appliances
55-77 High Street
Tel.: 08705 350 350*
* calls to this number may be recorded for training purposes.
Guarantee conditions
AEG offer the following guarantee to the first purchaser of this appliance.
1. The guarantee is valid for 12 months commencing when the appliance
is handed over to the first retail purchaser, which must be verified by
purchase invoice or similar documentation. The guarantee does not
cover commercial use.
2. The guarantee covers all parts or components which fail due to faulty
workmanship or faulty materials. The guarantee does not cover
appliances where defects or poor performance are due to misuse,
accidental damage, neglect, faulty installation, unauthorised
modification or attempted repair, commercial use or failure to observe
requirements and recommendations set out in the instruction book. This
guarantee does not cover such parts as light bulbs, removable
glassware or plastic.
3. Should guarantee repairs be necessary the purchaser must inform the
nearest customer service office (manufacturer`s service or authorised
agent). AEG reserves the right to stipulate the place of the repair (i.e.
the customer`s home, place of installation or AEG workshop).
4. The guarantee or free replacement includes both labour and materials.
5. Repairs carried out under guarantee do not extend the guarantee
period for the appliance. Parts removed during guarantee repairs
become the property of AEG.
6. The purchaser`s statutory rights are not affected by this guarantee.
European Guarantee
If you should move to another country within Europe then your guarantee
moves with you to your new home subject to the following qualifications:
- The guarantee starts from the date you first purchased your product.
- The guarantee is for the same period and to the same extent for labour
and parts as exist in the new country of use for this brand or range of
- This guarantee relates to you an cannot be transferred to another user.
- Your new home is within the European Community (EC) or European
Free Trade Area.
- The product is installed and used in accordance with our instructions
and is only used domestically, i.e. a normal household.
- The product is installed taking into account regulations in your new
Before you move please contact your nearest Customer Care Centre, listed
below, to give them details of your new home. They will then ensure that the
local Service Organisation is aware of your move and able to look after you and
your appliances.
+33 (0) 44 62 29 29
+49 (0) 800 234 7378
+39 (0) 800 117 511
+46 (0) 8 672 5360
+44 (0) 1753 219899
Technical Specifications
Dimensions - extractor version (in cm):
2460 D
Dimensions - filter version (in cm):
Maximum absorbed power:
195 W
Motor absorption:
1 x 155 W
2 x 20W
Length of the cable:
150 cm
Mounting accessories included
6 wall plugs Ø 8 mm
6 wood-screws 5 x 45 mm
6 metal screws 2,9 x 6,5
8 metal screws 3 x 10
1 deflector
1 chimney support
1 reduction flange Ø 125-120 mm
1 support bracket
Electrical connection
Safety warnings for the electrician
The electric outlet should be placed inside the chimney.The hood has a
power cable, 150 cm, with earth connection and the rated voltage is
220 - 240 V.
Connect the hood to the mains supply via a double pole switch
which has 3 mm minimum separation between the contacts.
This switch must be accessible at all times.
The following is valid in the United Kingdom only:
- the wire which is coloured green and yellow must be connected to
the terminal which is marked with the letter E or by the earth symbol
), or coloured green or green and yellow;
- the wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black, - the wire which is coloured brown must be connected to the terminal
which is marked with the letter L or coloured red.
Wall unit mounting - Fig. 6
• Only for extractor version: position the upper section of the
chimney so that the oulet slots H are not visible (see also A-B-C
sequence on on Fig. 6).
• Fix each other both parts of the hood (1), make all connections
between the two parts (2) and fix with 6 screws (3).
• Mark the wall with a centre line, this will aid mounting (4), position
the template so that the mid line printed on the template matches
with the center line previously drawn, the lower side of the template
corresponds to the lower side of the hood once mounted (5).
• Drill two holes Ø 8mm and fix the support bracket with two wall plugs
and screws (6). Hang the hood (7) and adjust its position (8-9).
• From the inside of the hood mark two points for final fixing (10).
• Remove the hood (11) and drill two holes Ø 8mm (12), fit two wall
plugs (13).
• Rest the chimney support bracket G against the wall, touching the
ceiling. Use the support bracket as a drilling template and mark 2
holes with a pencil (14), dril the holes insert 2 wall plugs, fix the
chimney support bracket to the wall using two screws (15) (If the
hood is to be used in filter version, fix deflector F to the chimney
support bracket G using 4 screws).
• Hang the hood again (16) and fix it with two screws (17).
• Connect an exhaust pipe to the outlet hole of the hood B (18) for
direct discharge of fumes to the outside (Extractor version) or to be
connected to the connection ring located on the bottom of the
deflector F (Filter version).
• Make the electrical connections (19).
• Fit the chimney sections and fix them at the top to the chimney
support G (20b) using 2 screws (20a), slide the bottom section of
the chimney down until it completely covers the suction unit and
slots into the housing provided on top of the hood (21) and fix with 2
Extractor version only!
NOTE: 18 not supplied
Fig. 6
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
© Copyright by AEG
LI1UGB Ed. 04/02
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
