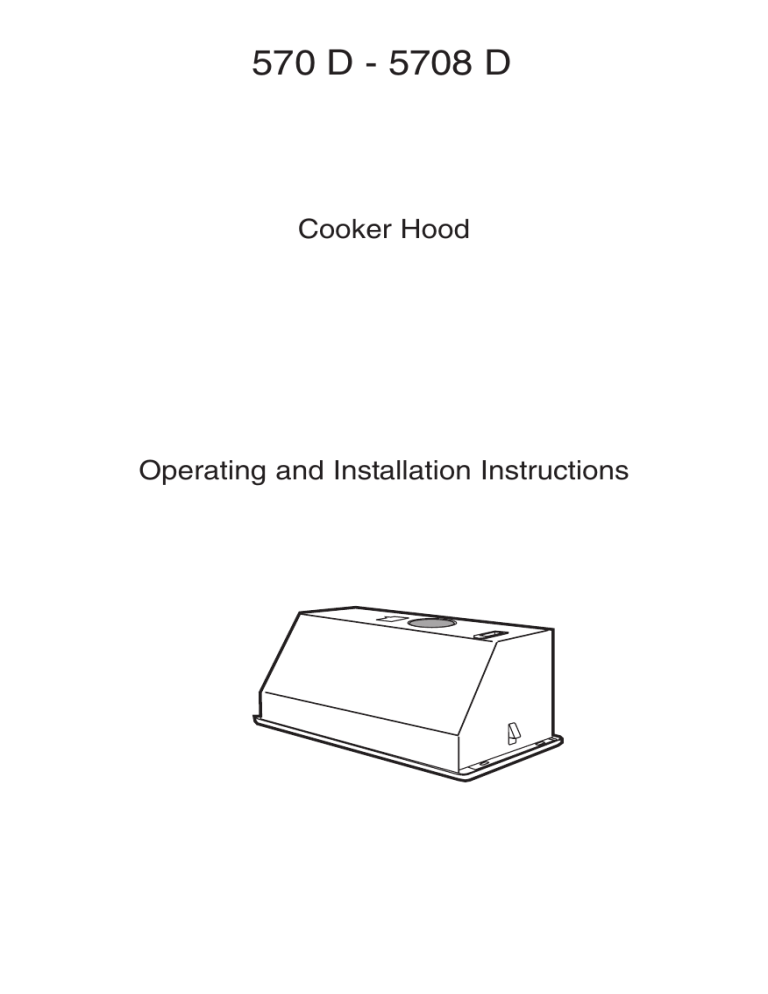

570 D - 5708 D
Cooker Hood
Operating and Installation Instructions
Contents
Safety warnings ................................................................................ 3
For the user ........................................................................................ 3
For the installer ................................................................................... 4
Description of the Appliance ........................................................... 6
Extraction version ............................................................................... 6
Recirculation Version .......................................................................... 6
Control Panel .................................................................................... 7
Maintenance and Care ..................................................................... 8
Cleaning the hood .............................................................................. 8
Metal grease filter ............................................................................... 8
Charcoal filter ..................................................................................... 9
Changing the light bulb ..................................................................... 10
Special accessories ........................................................................ 10
Something Not Working ................................................................. 11
Technical Specifications ................................................................ 12
Mounting accessories included ......................................................... 12
Electrical connection ..................................................................... 12
Installation ........................................................................................ 13
2
Safety warnings
For the user
• The cooker hood is designed to extract unpleasant odours from
the kitchen, it will not extract steam.
• Always cover lighted elements, to prevent excess heat from
damaging the appliance. In the case of oil, gas and coal fired
cookers it is essential to avoid open flames.
• Also, when frying, keep the deep frying pan on the cooker top/
cooker under careful control.
• The hot oil in the frying pan might ignite due to overheating.
• The risk of self-ignition increases when the oil being used is dirty.
• It is extremely important to note that overheating can cause a fire.
• Never carry out any flambé cooking under the hood.
• Always disconnect the unit from the power supply before
carrying out any work on the hood, including replacing the light
bulb.
• It is very important to clean the hood and to perform
maintenance and care of filters at the recommended intervals.
Failure to do so could cause grease deposits to build up,
resulting in a fire hazard.
• The appliance is not intended for use by young children or infirm
persons without supervision.
• Young children should be supervised to ensure that they do not play
with the appliance.
• WARNING - Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric shock.
This appliance is marked according to the European directive 2002/96/
EC on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste
handling of this product.
The symbol
on the product, or on the documents accompanying
the product, indicates that this appliance may not be treated as
household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment.
Disposal must be carried out in accordance with local environmental
regulations for waste disposal.
For more detailed information about treatment, recovery and recycling
of this product, please contact your local city office, your household
waste disposal service or the shop where you purchased the product.
3
For the installer
• When used as an extractor unit, the hood must be fitted with a
120mm diameter duct.
Only 5708 D: this model is equipped with two outlet hole. 2 ducts
are therefore necessary for discharging the fumes.
• When installing the hood, make sure you respect the following
minimum distance from the top edge of the cooking hob/ring
surfaces:
electric cookers
650 mm
gas cookers
650 mm
The hood can be installed above these heights but for optimum
performance it should be installed at the distance quoted for the
appropriate heat source.
• The national Standard on fuel-burning systems specifies a maximum
depression of 0.04 mbar in such rooms.
• The air outlet must not be connected to chimney flues or combustion
gas ducts. The air outlet must under no circumstances be connected
to ventilation ducts for rooms in which fuel-burning appliances are
installed.
• The air outlet installation must comply with the regulations laid down
by the relevant authorities.
• When the unit is used in its extractor version, a sufficiently large
ventilation hole must be provided, with dimensions that are approximately the same as the outlet hole.
• National and regional building regulations impose a number of
restrictions on using hoods and fuel-burning appliances connected
to a chimney, such as coal or oil room-heaters and gas fires, in the
same room.
• Hoods can only be used safely with appliances connected to a
chimney if the room and/or flat (air/environment combination) is
ventilated from outside using a suitable ventilation hole approximately 500-600 cm2 large to avoid the possibility of a depression
being created during operation of the hood.
• If you have any doubts, contact the relevant controlling authority or
building inspector’s office.
• Since the rule for rooms with fuel burning appliances is “outlet hole
of the same size as the ventilation hole”, a hole of 500-600 cm2,
which is to say a larger hole, could reduce the performance of the
extractor hood.
• If the hood is used in its filtering function, it will operate simply and
safely in the above conditions without the need for any of the
aforementioned measures.
4
• When the hood is used in its extractor function, the following rules
must be followed to obtain optimal operation:
- short and straight outlet ducting
- keep bends in outlet ducting to a minimum
- never install the ducts with an acute angle, they must always follow
a gentle curve.
- keep the duct as large as possible (preferably the same diameter
as the outlet hole).
• Failure to observe these basic instructions will drastically reduce the
performance and increase the noise levels of the extractor hood.
5
Description of the Appliance
• The cooker hood is designed to extract unpleasant odours from
the kitchen, it will not extract steam.
• The hood is supplied as an extractor unit and can also be used with
a recirculation version by fitting a charcoal filter.
Extraction version
• In this version fumes are extracted to the outside via a duct.
• In order to obtain the best performance the ducting should have a
diameter equal to the outlet hole.
Only 5708 D: this model is equipped with two outlet hole. 2 ducts
are therefore necessary for discharging the fumes.
Coupling ring
510
710
Bayonet screw fitting
570 D (1x) - 5708 D (2x)
Fig. 1
Recirculation Version
•
•
The air is filtered through charcoal filters and
returned to the kitchen. Fig. 2
You will need original charcoal filters for the
recirculation function. (Available from your local
Service Centre).
Fig. 2
6
Control Panel
• Best results are obtained by using a low speed for normal
conditions and a high speed when odours are more concentrated.
Turn the hood on a few minutes before you start cooking, you will
then get an under pressure in the kitchen. The hood should be left
on after cooking for about 15 minutes or until all the odours have
disappeared.
The switches are located on the right-hand side of the hood.
• the light switch switches the hood lamp on and off
• the motor switch switches the motor on and off, enabling you to
select one of the three different speeds.
Light switch
= Light OFF
= Light ON
Motor switch
= Sliding speed control
i
Booster 1
(Only 570 D)
Fig. 3
Booster 1+2
(Only 5708 D)
7
Maintenance and Care
• The hood must always be disconnected from the electricity
supply before beginning any maintenance work.
Cleaning the hood
• Clean the outside of the hood using a damp cloth and a mild detergent.
• Never use corrosive, abrasive or flammable cleaning products.
• Never insert pointed objects in the motor’s protective grid.
• Wash the outside surfaces using a delicate detergent solution.
Never use caustic detergents or abrasive brushes or powders.
• Only ever clean the control panel and filter grille using a damp cloth
and delicate detergents.
• It is very important to clean the hood and to perform maintenance
and care of filters at the recommended intervals. Failure to do so
could cause grease deposits to build up, resulting in a fire hazard.
• Clean the inner housing using a hot detergent solution only (never
use caustic detergents, abrasive powders or brushes).
Metal grease filter
• The purpose of the grease filters is to absorb grease particles which
form during cooking and it must always be used, either in the
external extraction or internal re-circulation function.
Attention: the metal grease filters must be removed and washed,
either by hand or in the dishwasher, every four weeks.
Removing the metal grease filter
• Fold the handles downwards and press
them towards the centre. Fig. 4.
Hand washing
Soak grease filters for about one hour in
hot water with a grease-loosening cleaner,
then rinse off thoroughly with hot water.
Repeat the process if necessary. Refit the
grease filters when they are dry.
Handle
Dishwasher
Fig. 4
Place grease filters in the dishwasher.
Select most powerful washing programme
and highest temperature, at least 65°C. Repeat the process. Refit
the grease filters when they are dry.
When washing the metal grease filter in the dishwasher a slight
discolouration of the filter can occur, this does not have any impact
on its performance.
• Clean the inner housing using a hand hot solution only(never use
caustic detergents, abrasive powders or brushes).
8
Charcoal filter
• The charcoal filter should only be used if you want to use the hood in
the recirculation function.
• To do this you will need an original charcoal filter (available from
your local Service Centre).
• Replacing the charcoal filter Type 150
This filter cannot be cleaned or reused.
As a general rule, the activated charcoal filter should be changed
once every 4 months.
• Cleaning/replacing the charcoal filter Type 150 LONG LIFE
Unlike other charcoal filters, the LONGLIFE charcoal filter can be
cleaned and reactivated. With normal use the filter should be
cleaned every second month (when using the hood 2,5 hours per
day,on avarage). The best way to clean the filter is in the
dishwasher. Use normal detergent and choose the highest temperature (65º C). Wash the filter separately so that no food parts gets
stuck on the filter and later causes bad odours. To reactivate the
charcoal, the filter should be dried in an oven for 10 minutes with a
maximum temperature of 100º C.
After approximately three years of use, the charcoal filter should be
replaced with a new, as the odour reduction capacity will be reduced.
• Fitting - Fig. 5
Remove the grease filter.
Fit the charcoal filter on the lamp side, press in both red lugs on the
charcoal filter, and unclip the charcoal filter forwards (towards the
front edge of the appliance).
Refit the grease filter.
• To remove proceed in the reverse order.
• Always specify the hood model code number and serial number
when ordering replacement filters. This information is shown on the
registration plate located on the inside of the unit.
• The charcoal filter can be ordered from your local Service Centre.
Fig. 5
9
Warning
• Failure to observe the instructions on cleaning the unit and changing
the filters will cause a fire hazard. You are therefore strongly
recommended to follow these instructions.
• The manufacturer declines all responsibility for any damage to the
motor or any fire damage linked to inappropriate maintenance or
failure to observe the above safety recommendations.
Changing the light bulb
• Disconnect the cooker hood from the main supply.
• Unlock the lighting cover by twisting the bolts to the left and fold
down the bulb cover. Fig. 6.
Replace the old light bulb(s) with a new light bulb of the same kind.
• Close the bulb cover and relock it by twisting the bolts to the right.
• If the light does not come on, make sure the bulb has been inserted
correctly before contacting your local Service Centre.
Fig. 6
Special accessories
Charcoal filter Type 150 LONG LIFE
Charcoal filter Type 150
10
Something Not Working
If your appliance fails to work properly please carry out the following
checks.
Symptom
Solution
The cooker hood
will not start...
Check that: The hood is connected to
the electricity supply.
Check that a fan speed has been
selected
The cooker hood
is not working
Check that: The fan speed is set
high enough for the task.
The grease filters are clean.
The kitchen is adequately vented to
allow the entry of fresh air.
If set up for recirculation, check that
the charcoal filter is still effective.
If set up for extraction, check that the
ducting and outlets are not blocked.
The cooker hood has
switched off
during operation...
The safety cut-out device has been
tripped.
Turn off the hob and then wait for
the device to reset.
If the hood has been installed below
the heights indicated in the
installation instructions the motor
will cut-out frequently which will
damage the hood.
If after all these checks, the problem persists, contact your local
Service Centre, quoting the model and serial number.
Please note that it will be necessary to provide proof of purchase for
any in-guarantee service calls.
In-guarantee customers should ensure that the above checks have
been made as the engineer will make a charge if the fault is not a
mechanical or electrical breakdown.
11
Technical Specifications
Maximum absorbed power (W):
Motor (W):
Lighting (W):
Length of the cable (cm):
Electrical connection (V):
287
570D
200
1x186
1x11
150
230
5708D
340
2x160
2x9
150
220-240
A
B
285
A=
B=
C=
570 D
515 mm
510 mm
548 mm
C
Fig. 7
570 D - 5708 D
Mounting accessories included
1 allen spanner (for TORX screws)
1 cover
1 flange
2 screws 2,9 x 13 mm (for relocating the control unit)
4 screws 2,9 x 16 mm (for fixing the hood)
12
5708 D
715 mm
710 mm
748 mm
Electrical connection
Safety warnings for the electrician
Before connecting the appliance to the power supply, check that the
voltage indicated on the rating plate corresponds to the mains power
supply available. Appliances fitted with a plug can be connected to
any standard power socket within easy access.
Should it be necessary to provide a fixed connection, the hood must
only be installed by an electrician authorised by the local electricity
board. When installing, an omnipolar disconnector with a distance of
at least 3 mm between contacts must be provided.
Fixed connection of the appliance must only be carried out by an
authorised electrician.
Installation - Fig. 8
Only 5708 D: this model is equipped with two outlet hole. 2 hoses are
therefore necessary for discharging the fumes.
If present, an opening for the easy passage of both hoses must be
made in the top of the wall-unit.
• Drill the base of the wall unit to allow for passage of the hood body.
Fig. 7.
• Drill the top of the wall unit to allow for passage of the exhaust pipe
and the electrical cable. Fig. 7.
• Remove the grease filter (1).
• Remove the grease filter support frame, by pressing the two spring
clamps located at the sides of the frame (2).
• Through the top of the wall unit, insert a pipe with a diameter of
120mm at the connection ring (3).
• Fit the connection ring on the hood exhaust outlet (4) and fasten it
to the exhaust pipe.
• Insert the body of the hood into the hole in the base of the wall unit
(5) – check the position of the exhaust pipe and the electrical cable,
press firmly so that the anchor springs (6) engage above the bottom
of wall unit. Tighten the screws in the anchor springs firmly.
• If necessary the hood can be fastened with four more screws (7).
• Replace the grease filter support frame.
• Replace the grease filter.
13
3-F
OK!
OK!
5-C
4
5-C
6
6
7
7
7
7
2
Fig. 8
14
1
2
Removing the hood from cabinet
Follow these steps:
• Remove the grease filter.
• Remove the 4 additional screws from the frame.
• Loosen the screws on the two fixing springs. Fig. 9.
Fig. 9
• Push a flat screwdriver into the hole for the fixing springs (right and
left) and push each of the fixing springs inwards. Fig. 10.
• At the same time, pull the extractor hood (right and left) out of the
cabinet.
Re-install it as described above.
Fig. 10
15
Relocating the control unit
The control unit can be fitted at a different point (cladding,
lighting facia, etc.).
Remove the grease filter grill and the housing frame.
1. Loosen two screws and pull the control unit forwards out of the
housing. Undo the socket connection.
Caution: The socket connection cable is only long enough
for a maximum distance of 40 cm!
Fig. 11
2. Open the cable channel on the top side of the housing and pull
the wire for the control unit through the opening. Shut the cover
so that it supports the wire.
3. Fit the cover included with the appliance over the opening for
the control unit.
4. Dimensions to cut out for the control unit:
Fig. 12
16
17
18
19
From the Electrolux Group. The world´s No.1 choice.
The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning
and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers,
washing machines,vacuum cleaners, chain saws and lawn mowers) are sold each year to a
value of approx. USD 14 billion in more than 150 countries around the world.
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
LI2VDA Ed. 03/06
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
