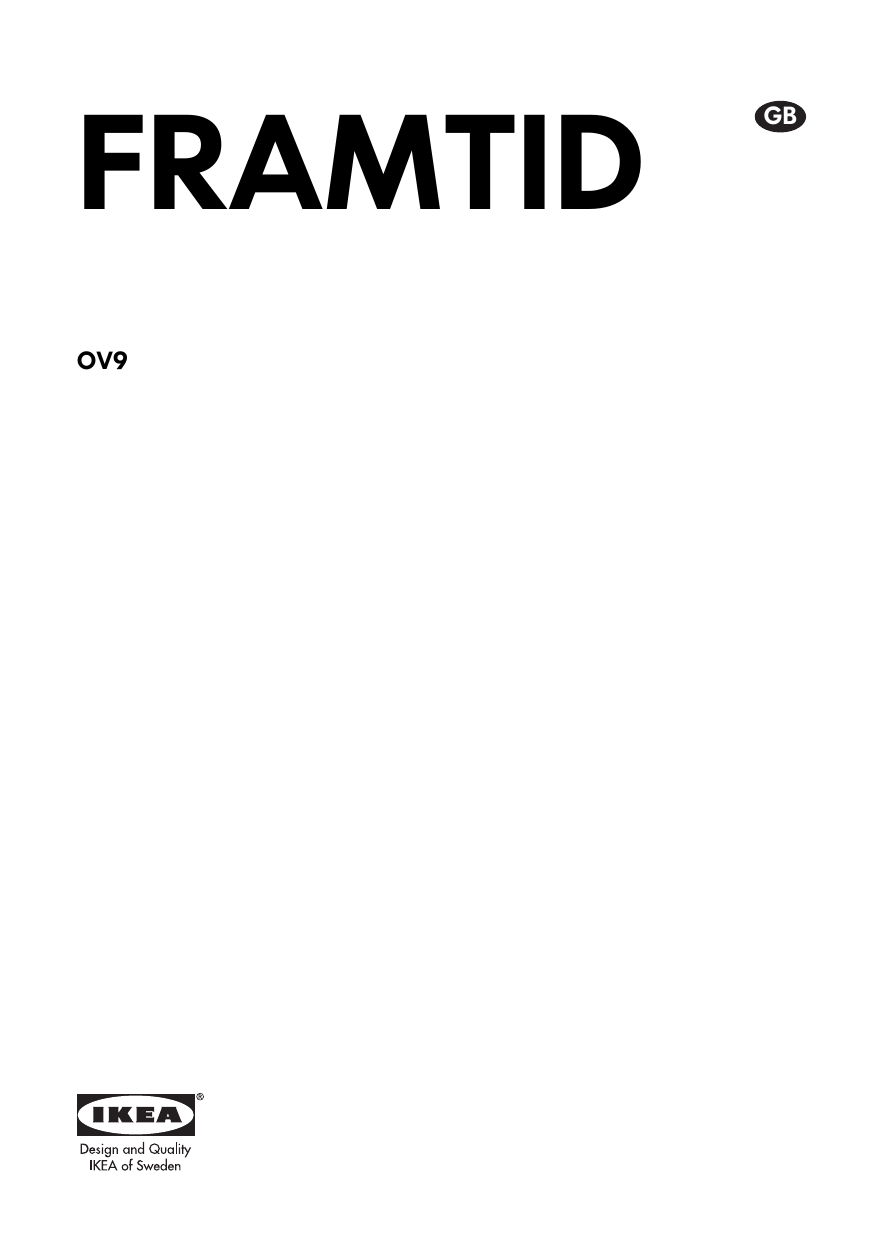

IKEA FOV9S User Manual

FRAMTID
OV9
GB
ENGLISH
4
ENGLISH
4
Contents
Safety information
Product description
Before first use
Daily use
Steam cooking
Cooking tables
Care and cleaning
4
5
6
6
10
11
12
What to do if…
Technical data
Installation
Electrical connection
Environment concerns
IKEA GUARANTEE
15
16
16
17
17
18
Subject to change without notice
Safety information
For your safety and correct operation
of the appliance, read this manual
carefully before installation and use. Always
keep these instructions with the appliance
even if you move or sell it. Users must fully
know the operation and safety features of
the appliance.
Correct use
• Do not leave the appliance unattended
during operation.
• The appliance is designed exclusively for
domestic use.
• The appliance must not be used as a
work surface or as a storage surface.
• Do not place or store flammable liquids,
highly inflammable materials or fusible
objects (e.g. plastic film, plastic, aluminium) in or near the appliance.
• Watch out when connecting electric appliances to sockets nearby. Do not allow
connecting leads to come into contact
with or to catch beneath the hot oven
door.
• Do not keep moist dishes and food in the
oven after finishing the cooking as the
moist can damage the enamel or get into
the units.
• Do not do repairs yourself to prevent injury and damage to the appliance. Always contact your local Service Centre.
• Do not use harsh abrasive or sharp metal
scrappers to clean the oven door glass
since they can scratch the surface, which
may result in shattering of the glass.
Note on enamel coating
Changes in the colour of the oven enamel coating as a result of use do not affect
the appliance suitability for normal and correct use. They therefore do not constitute a
defect in the sense of the warranty law.
Child safety
• Only adults can use this appliance. Children must get supervision to make sure
that they do not play with the appliance.
• Keep all packaging away from children.
There is a risk of suffocation.
• Keep children away from the appliance
when the door is open.
General safety
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their
safety.
• Risk of burns! The interior of the oven becomes hot during use.
• Always stand back from the appliance
when opening the oven door during
cooking or at the end of it to allow any
build up of steam or heat to release.
Installation
• Make sure that the appliance is not damaged because of transport. Do not connect a damaged appliance. If necessary,
contact the supplier.
ENGLISH
5
• Only an authorised service engineer can
repair this appliance. Use only original
spare parts.
• Built-in appliances can only be used after
they are built-in to suitable built-in units
and work surfaces that meet standards.
• Do not change the specifications or modify this product. Risk of injury and damage
to the appliance.
Warning! Carefully obey the
instructions for electrical connections.
Oven lamp
• Bulb lamps used in this appliance are
special lamps selected for household appliances use only. They cannot be used
for the full or partial illumination of a
household room.
• If it becomes necessary to replace the
lamp use one of the same power and
specifically designed for household appliances only.
Information on acrylamides
Important! According to the latest scientific
knowledge, intensive browning of food,
especially in products containing starch, can
constitute a health risk due to acrylamides.
Therefore, we recommend cooking at the
lowest possible temperatures and not
browning foods too much.
Product description
General overview
1
2 3
4 5 6
7
8
9
17
10
16
11
15
14
13
12
1 Water tank
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Water tank indicators
Temperature control knob
Temperature indicator
Electronic timer
Power indicator
Control knob for the oven function
Control panel
Air vents for cooling fan
Grill
Oven lamp
Water outlet hose
Water outlet valve
Rating plate
Fan
Steam inlet opening
Meat probe socket
ENGLISH
6
Oven accessories
Dripping pan
Baking tray
1x
1x
Push-pull control knobs
Grid
Meat probe
1x
1x
The oven is provided with push-pull control
knobs. You can sunk the push-pull control
knobs inside the control panel when the
oven is off.
Turn the push-pull control knobs clockwise
to set the temperature and the oven function.
Before first use
Remove all packaging, both inside and
outside the oven, before using the appliance. Do not remove the rating plate.
When you connect the appliance to the
electrical supply or in case of a power cut,
the Time function indicator flashes automatically.
To set the current time use "+" or "-" button.
After approx. 5 seconds the flashing stops
and the clock displays the time of the day
set.
If the time of the day is not set the appliance does not work.
Initial cleaning
Clean the appliance before first use. Clean
the accessories and the oven interior with a
soft cloth with warm water and soap.
Daily use
Switching the appliance on
Set the oven function and the temperature.
After that preheat the oven up without food.
Preheating
Turn the oven function control knob to
and run the oven for 45 minutes at maximum temperature, to burn off any residue
from the cavity surface. Accessories can become hotter than in normal use. During this
period an odour can be emitted. This is normal. Make sure the room is well ventilated.
ENGLISH
7
Setting the oven function
Turn the control knob for oven functions (refer to "Product description").
Setting the temperature
Turn the temperature control knob (refer to
"Product description"). You can set the temperature between 50 °C and 250 °C.
Switching the appliance off
Turn the temperature and oven functions
control knobs to the off position.
Oven functions
Oven function
Application
OFF position
Oven lamp- comes on without any cooking function.
Conventional cooking - heats both from the top and bottom element. To
bake and roast on one oven level.
Top heating element - heats only from the top of the oven. To finish
cooked dishes.
Bottom heating element - heats only from the bottom of the oven. To
bake cakes with crispy or crusty bases.
Full grill - the full grill element is on. To grill flat food items in large quantities. To make toasts.
Thermal grilling - the grill element and the oven fan operate alternately
and circulate hot air around the food. To cook large pieces of meat. Do
not use this function in the temperature over the 200°C.
Fan cooking - to roast or roast and bake the food that requires the same
cooking temperature, using more than one shelf, without flavour transference.
Defrost - thaws frozen food. The temperature control knob must be on
off position.
Pizza - the bottom element provides direct heat to the base of pizzas,
quiches or pies, while the fan ensures air is circulated to cook the pizza
toppings or pie fillings.
Steam cooking - to bake, to roast, to warm up frozen or chilled food. Also to prepare fruits, vegetables, fish, potatoes, rice and pasta.
Power indicator
The power indicator (refer to "Product description") comes on when the control knob
for oven function is set.
Temperature indicator
The temperature indicator (refer to "Product
description") comes on when the oven heats
up. It goes off when the oven reaches the
correct temperature. It then cycles on and
off to show the temperature adjusts.
ENGLISH
8
Safety thermostat
To prevent dangerous overheating (through
incorrect use of the appliance or defective
components), the oven is fitted with a safety
thermostat, which interrupts the power supply. The oven switches back on again automatically, when the temperature drops.
Should the safety thermostat fail to work, do
not attempt to fix it yourself. Please contact
After Sales Service.
"Tank full" indicator
The indicator shows that the oven is ready
for steam cooking.
"Tank empty" indicator
The indicator shows that the tank is empty
and you need to refill the tank.
For more information refer to "Steam cooking".
.
The steam cooking indicators comes on
only when you set the steam function
Mechanical child lock
The appliance is delivered with fixed and
activated child lock. It is situated just below
the oven control panel on the right side.
To open the oven
door with the child
lock inserted, pull
the child lock handle up as shown in
the picture.
Close the oven door
without pulling the
child lock.
To remove the child
lock open the oven
door and unscrew it
using the torx key
included in the oven
fitting bag.
The cooling fan
The cooling fan (not visible) keeps the front
panel, the knobs and the oven door handle
cool. When the oven is on the cooling fan
switches on automatically. Warm air blows
out through the air vents near the oven
door handle. To keep the controls cool, the
cooling fan can still run after the oven is off.
Clock functions
Symbol
Function
Description
Cooking duration
To set how long the oven is to be in use
End of cooking
To set when the oven is to switch off
Cooking duration and End
of cooking combined
To set delayed start of the appliance
Minute minder
To set a countdown. A signal sounds when the
time elapses
Clock
To set the time of the day
Meat probe
Measures the core temperature while roasting
larger pieces of meat
ENGLISH
9
1
2
1 Time and meatprobe temperature display
2 Function indicators
3 Button "+"
4 Selector button
5 Button "-"
5
4
3
Setting the clock functions
• Push selector button
again and again
until the desired function indicator flashes.
• To set or modify the time use"+ " / " -" in
the next 5 seconds. After that the set time
begins to run.
Cancelling the clock function
again and again
Push selector button
until the function indicator shows the right
function and push " - " button. After few
seconds the clock function goes out.
Meat probe
Meat probe measures the core temperature
of the meat. When the meat reaches set
temperature the oven switches off automatically.
It is kindly suggested to use only the
recommended meat probe for this appliance.
Warning! The meat probe is hot! Risk
of burns! Be careful when you remove
the tip and plug of the meat probe.
1.
2.
3.
Insert the meat probe plug into the
socket in the side wall of the oven.
Insert the meat probe point in the middle of the meat, as far as it goes.
again and
Push selector button
again until Meat probe indicator
flashes.
4.
5.
6.
7.
Use "+" / "-" buttons to set the desired
core temperature. You can set the temperature from 30 °C to 99 °C.
Refer to suggested values in the table.
Use control knobs to set the desired
oven cooking function and temperature.
When the meat reaches set core temperature, the oven switches off automatically.
Remove the meat probe.
Suggested core temperatures
50 °C
Rare
60 °C
Medium
70 °C
Well done
In case the level of cooking is not satisfactory do above steps once again and set higher core temperature.
Switching off the display
You can save energy by switching off
the clock display.
1.
2.
Push "+" and "-" buttons at the same
time and hold for 5 seconds.
The display switches off.
To switch on the display push any button.
ENGLISH
10
Steam cooking
Fill the water tank before every steam cooking. The maximum capacity of the tank is
0,8 l. It is enough for about 40-45 minutes
cooking.
For information about recommended type
of water refer to "Types of water " in "Care
and cleaning" chapter.
Caution! Wait at least 30 minutes after
every steam cooking in order to avoid
hot water exit from water outlet valve.
If you pour too much water into the
tank, a safety outlet pours it back into
the bottom of the oven. Dry the water with
a sponge or cloth.
Steam appears when the oven reaches
set temperature.
Warning! Be careful when you open
the oven door as the steam
immediately pours out.
1
2
3
Press the water tank
back to its original
position.
Warning! Use only drinking water as
liquid to fill the water tank. Do not use
filtered water, distilled water,
demineralized water or other liquids.
Warning! Do not pour inflammable or
alcoholic liquids (grappa,
whisky,cognac, etc.) into the water tank.
1.
2.
3.
Pull the water tank Fill the water tank
upwards as far as it with water until
goes.
Tank Full indicator
comes on.
4.
Prepare the food in pots suitable for
oven use and position them on the grid
at the 2nd level from the bottom.
Turn the control knob for the oven func.
tion to
Set the temperature between 130 and
230 °C. Steam cooking does not give
good results in temperatures above
230° C.
Empty the water tank after each steam
cooking (refer to "Emptying the water
tank")
Emptying the water tank
B
C
A
ENGLISH
11
Open the door and put the end of the water outlet hose (A) into the water outlet
valve (C). Water outlet valve is in the bottom left corner of the door frame. Put the
other end of the water outlet hose (B) into
an empty container.
When all the water is drained out, remove
the water outlet hose from the water outlet
valve.
Warning! Do not use the drained
water to refill steam tank again.
Warning! Even if tank empty light
is on it does not mean tank is
completely empty. Wait until the water flow
from water outlet valve stops.
Cooking tables
Weight
(kg)
Food
1
Pork / lamb
1
Veal / Beaf
Level
Oven temperature
(°C)
Cooking
Time (min)
2
180
100-110
2
190
70-100
2
200
70-80
Duck
1
160
120-150
3
Goose
1
160
150-200
4
Turkey
1
180
210-240
1
Fish 1)
2
190
30-40
1
Stuffed Pepperoni
Tomatos/Roasted
Potatos 1)
2
175
50-70
Vegetables
2
175
25-35
Instant cakes
2
160
45-55
Pies 1)
2
160
80-100
Biscuits
3
140
25-35
2
Lasagne
2
180
45-60
1
White Bread 1)
2
190
50-60
1
Pizza
1
190
25-35
1,2
1,5
1
Chicken/Rabbit
Oven Function
1)
1) According to the cooking time reported in the table, it is necessary to refill the tank after approximately 40-45 min
of cooking. When the water tank is empty the "Tank empty" indicator (refer to "Product description") comes on .
Warning! Do not line the oven with
aluminium foil and do not place a
roasting pan or baking tray on the floor.
Build-up heat can damage the oven
enamel.
Warning! Always cook with the oven
door closed, even while grilling. Be
careful when opening the drop down oven
door. Do not allow it to fall open - support
the door using the door handle, until it is
fully open.
ENGLISH
12
Care and cleaning
Warning! Switch the appliance off and
let it cool down before you clean it.
Warning! For safety reasons, do not
clean the appliance with steam
blasters or high-pressure cleaners.
Removing the oven door and the glass
panel
1
2
Open the door fully
and hold the two
door hinges .
Lift and turn the levers on the two hinges.
3
4
Close the oven door
to the first opening
position (approx.
45°). Then pull forward and remove it
from its seat.
Place the door on a
stable surface protected by a soft
cloth.
5
6
Warning! Keep the appliance clean at
all times. A build-up of fats or other
foodstuffs can cause a fire, especially in the
dripping pan.
Outside of the appliance
• Clean the front of the appliance with a
soft cloth and warm water with soap.
• For metal fronts, use normal cleaning
agents.
• Do not use scouring agents and abrasive
sponges.
Oven interior
• Turn the oven lamp on before cleaning.
• Clean the oven with a soft cloth with
warm water and soap and leave it to
dry .
Accessories
Clean all slide-in units with a soft cloth with
warm water and soap (shelf, baking tray,
shelf support rails etc.) after each use and
dry well. Soak briefly to make them easier
to clean.
Cleaning the oven door
The oven door has two panels of glass installed one behind the other. To make the
cleaning easier remove the oven door and
the internal panel of glass.
Warning! The oven door can close if
you try to remove the internal panel of
glass when the door is still assembled.
Release the locking
system to remove
the internal panel of
glass.
ENGLISH
13
7
Cleaning the water tank
8
Warning! Do not pour water into the
water tank during the cleaning cycle.
90°
1
Turn 2 fasteners by
90° and remove
them from their
seats.
2
Carefully lift and remove the panel of
glass.
Clean the glass panel with water and soap.
Dry it carefully.
Inserting the door and the glass panel
When the cleaning procedure is completed,
insert the glass panel and the oven door. To
do so, follow the steps in reverse.
The inner glass panel must be assembled
keeping the decorative frame (screen-printing) turned towards outside of the oven. To
double check you did the above operation
in a proper way simply pass your fingers on
the inner glass surface. If the panel of glass
is assembled correctly you should not feel
any roughness.
Insert the internal panel of glass into the
right seats as shown below.
During cleaning cycle some water can
drop from steam inlet in the oven's
cavity. We recommend to insert dripping
pan on the shelf level just below the steam
inlet in order to avoid water fall directly on
oven cavity bottom.
It is normal that lime deposits can form in
your oven after some time.
To prevent this, clean the parts of the oven
that generate the steam. Empty the tank after each steam cooking.
1. Fill in the water tank with 0,5 l of water
and 50-60 grams of citric acid (five teaspoons). Switch off the oven and wait
for approximately 60 minutes.
2. Switch on the oven and set the steam
function. Set the temperature between
130 and 230 °C. Switch it off after
20-25 minutes and cool down for 5- 10
minutes.
3. Switch on the oven and set the steam
function. Set the temperature between
130 and 230 °C. Switch it off after 10
minutes. Let it cool down and proceed
with the removal of the tank contents
following the procedure described earlier.
4. Rinse the water tank few times and
clean the remaining lime reside from
the inside the oven with a cloth.
Types of water
• Soft water with low lime content - recommended, it decreases the cleaning cycles
• Tap water - you can use it if your domestic water supply has purifier or water
sweetener
• Hard water with high lime content - it
does not have any influence on the appliance performance but it increases the
cleaning cycles
ENGLISH
14
CALCIUM QUANTITY TABLE INDICATED FROM W.H.O.
(World Health Organization)
Calcium deposit
Water hardness
(French degrees)
Water hardness
(German degrees)
Water classification
Run decalcification every
0-60 mgl
0-6
0-3
Sweet of soft
150 cycles -2,5
months
60-120 mgl
6-12
3-7
Medium hardness
100 cycles -2
months
120-180 mgl
12-18
8-10
Hard or calcareous
75 cycles -1,5
months
over 180 mgl
over 18
over 10
Very hard
60 cycles -1
month
Side rails
To clean the side walls of the oven cavity,
remove the side rails.
1
switch off the appliance and disconnect it
from the electrical supply.
2
2
1
1.
Pull the rails away
from the oven wall
at the front.
Then unhook the
rails at the back.
To put the side rails back, follow the instruction in reverse.
Important! The rounded ends of the guide
bars must point to the front.
Changing the oven lamp and cleaning the
glass cover
Warning! Before you change the oven
lamp (refer to "Product description"),
2.
3.
Turn the glass cover anti - clockwise
and remove it. Clean the glass cover.
If necessary, replace the old oven lamp
with a 15/25 watt, 230V (50Hz), 300
°C heat resistant oven lamp (Connection type: E14).
Refit the glass cover.
ENGLISH
15
What to do if…
Problem
Possible cause
Solution
The oven does not operate
The required setting have not
been set
check if cooking function and
temperature are selected
The oven does not operate
The appliance is not correctly
connected or/and the mains
supply to the oven is not on
Check if the appliance is correctly connected and the mains
supply to the oven is on
The temperature indicator does not come
on
The required setting have not
been set
Select the cooking function and
temperature
The oven lamp is not
working
The oven lamp bulb is faulty
Replace the oven lamp bulb
There is water inside
the oven
There is too much water in the
tank
Turn the oven off and wipe the
water with a cloth or sponge
The steam cooking
does not work
Lime obstructs the hole
Check the steam inlet opening.
Remove the lime
It takes more than
Lime deposits formed in the
three minutes to empty oven
the water tank
or
The water leaks from
steam inlet opening
Clean the water tank (refer to
"Cleaning the water tank")
Steam and condensation settle on the food
and in the oven cavity
Dishes have been left in the
oven for too long
Do not leave the dishes standing in the oven for longer than
15-20 minutes after the cooking
process ends
“12.00” appears on
the display
Interruption of the power supply
Reset the time
F11 appears on the
display
The plug of the meat probe is
not firmly in position in the
socket
Insert the meat probe plug into
the socket in the side wall of the
oven as far as it can go
If there is a fault, first try to find a solution to
the problem yourself. If you cannot find a
solution to the problem yourself, contact
your dealer or the After Sales Service.
If you operated the appliance wrongly,
or the installation was not carried out
by a registered engineer, the visit from the
After Sales Service technician or dealer may
not take place free of charge, even during
the warranty period.
ENGLISH
16
Technical data
Dimensions (internal)
Width
Height
Depth
Usable volumes
60 l
Area of largest baking sheet (net surface)
1130 cm²
Bottom heating element
1000 W
Top heating element
800 W
Full oven (Top + Bottom)
1800 W
Full grill
2450 W
Thermal grill
1650 W
Fan cooking
2025 W
Pizza
2675 W
Steam function
2825 W
Oven lamp
25 W
Hot air fan motor
25 W
Cooling fan
25 W
Total rating1)
2825 W
Number of functions
9
Energy consumption
0,78 kWh
Energy Consumption with a standard
load and bottom heating
0,79 kWh
Energy Consumption with a standard
load forced air oven
0,78 kWh
395
335
400
1) Information on the electrical connection, voltage and overall power is given on the rating plate (refer to "Product
description").
Installation
Caution! Refer to the assembly
instructions for the installation.
Warning! Only a qualified and
competent person must do the
installation of the appliance. If you do not
contact qualified or competent person, the
guarantee becomes invalid if there is
damage.
• Before you built in the appliance to the
kitchen cabinet make sure that the recess
dimensions are suitable.
• Make sure that there is anti-shock protection for the installation.
• According to the regulations of force, all
parts which ensure the anti-shock protection must be fixed in such a way that they
cannot be undone without tools.
ENGLISH
• The appliance can be placed with its
back and one side close to the higher appliances or walls. The other side must be
placed close to the furniture with the
same height.
• The built-in unit must meet the stability
requirements of DIN 68930.
17
• Built-in ovens and built-in cooking surfaces are fitted with special connection systems. For safety reasons, you must only
combine appliances from the same manufacturer.
Electrical connection
Warning! Only a qualified electrician
and competent person must do the
electrical installation.
• The manufacturer is not responsible if you
do not follow these safety precautions.
• Ground the appliance according to safety precautions.
• Make sure that the rated voltage and
type of power on the rating plate agree
with the voltage and the power of the local power supply.
• This appliance is supplied with a mains
cable without plug.
• The yellow-green earth wire should be
2-3 cm longer than all other cables.
• Any electrical component must be installed or replaced by the After Sales Service
technician or qualified service personnel.
• Always use a correctly installed shockproof socket.
• Do not use multi-way plugs, connectors
and extension cables. There is a risk of
fire.
• Make sure that the mains plug is accessible after installation.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains
plug.
• Connect the appliance to the mains using
a device that allows to disconnect the appliance from the mains at all poles with a
contact opening width of at least 3 mm,
eg. automatic line protecting cut-out,
earth leakage trips or fuse.
This appliance complies with the E.E.C. Directives.
Environment concerns
The symbol
on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it should be taken to the appropriate
collection point for the recycling of electrical
and electronic equipment. By ensuring this
product is disposed of correctly, you will
help prevent potential negative
consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling of
this product. For more detailed information
about recycling of this product, please
contact your local council, your household
waste disposal service or the shop where
you purchased the product.
Packaging materials
are recyThe materials with the symbol
clable. Dispose the packaging in a suitable
collection containers to recycle it.
ENGLISH
Before disposal of appliance
Warning! Do these steps to dispose
the appliance:
18
• Pull the mains plug out of the mains socket.
• Cut off the mains cable and discard it.
• Discard the door catch. This prevents the
children to close themselves inside the
appliance. Risk of suffocation.
IKEA GUARANTEE
How long is the IKEA guarantee valid?
This guarantee is valid for five (5) years
from the original date of purchase of Your
appliance at IKEA, unless the appliance is
named LAGAN in which case two (2) years
of guarantee apply. The original sales receipt is required as proof of purchase. If
service work is carried out under guarantee,
this will not extend the guarantee period for
the appliance,
Which appliances are not covered by the
IKEA five (5) years guarantee?
The range of appliances named LAGAN
and all appliances purchased in IKEA before 1st of August 2007
Who will execute the service?
IKEA service provider will provide the service through its own service operations or
authorized service partner network.
What does this guarantee cover?
The guarantee covers faults of the appliance, which have been caused by faulty
construction or material faults from the date
of purchase from IKEA. This guarantee applies to domestic use only. The exceptions
are specified under the headline “What is
not covered under this guarantee?” Within
the guarantee period, the costs to remedy
the fault e.g. repairs, parts, labour and travel will be covered, provided that the appliance is accessible for repair without special
expenditure. On these conditions the EU
guidelines (Nr. 99/44/EG) and the respective local regulations are applicable. Replaced parts become the property of IKEA.
What will IKEA do to correct the problem?
IKEA appointed service provider will examine the product and decide, at its sole discretion, if it is covered under this guarantee.
If considered covered, IKEA service provider
or its authorized service partner through its
own service operations, will then, at its sole
discretion, either repair the defective product or replace it with the same or a comparable product.
What is not covered under this
guarantee?
• Normal wear and tear.
• Deliberate or negligent damage, damage caused by failure to observe operating instructions, incorrect installation or by
connection to the wrong voltage, damage caused by chemical or electro-chemical reaction, rust, corrosion or water
damage including but not limited to damage caused by excessive lime in the water supply, damage caused by abnormal
environmental conditions.
• Consumable parts including batteries
and lamps.
• Non-functional and decorative parts
which do not affect normal use of the appliance, including any scratches and possible color differences.
• Accidental damage caused by foreign
objects or substances and cleaning or unblocking of filters, drainage systems or
soap drawers.
• Damage to the following parts: ceramic
glass, accessories, crockery and cutlery
baskets, feed and drainage pipes, seals,
lamps and lamp covers, screens, knobs,
casings and parts of casings. Unless such
damages can be proved to have been
caused by production faults.
ENGLISH
• Cases where no fault could be found during a technician’s visit.
• Repairs not carried out by our appointed
service providers and/or an authorized
service contractual partner or where nonoriginal parts have been used.
• Repairs caused by installation which is
faulty or not according to specification.
• The use of the appliance in a non-domestic environment i.e. professional use.
• Transportation damages. If a customer
transports the product to their home or
other address, IKEA is not liable for any
damage that may occur during transport.
However, if IKEA delivers the product to
the customer's delivery address, then
damage to the product that occurs during
this delivery will be covered by this guarantee.
• Cost for carrying out the initial installation
of the IKEA appliance. However, if an
IKEA service provider or its authorized
service partner repairs or replaces the
appliance under the terms of this guarantee, the service provider or its authorized
service partner will re-install the repaired
appliance or install the replacement, if
necessary.
This restriction do not apply to fault-free
work carried out by a qualified specialist
using our original parts in order to adapt
the appliance to the technical safety specifications of another EU country.
How country law applies
The IKEA guarantee gives You specific legal
rights, which covers or exceed local demands. However these conditions do not
limit in any way consumer rights described
in the local legislation
Area of validity
For appliances which are purchased in one
EU country and taken to another EU country, the services will be provided in the
framework of the guarantee conditions normal in the new country. An obligation to
carry out services in the framework of the
guarantee exists only if the appliance complies and is installed in accordance with:
19
• the technical specifications of the country
in which the guarantee claim is made;
• the Assembly Instructions and User Manual Safety Information;
The dedicated After Sales Service for
IKEA appliances:
Please do not hesitate to contact IKEA After
Sales Service to:
1. make a service request under this guarantee;
2. ask for clarification on installation of the
IKEA appliance in the dedicated IKEA
kitchen furniture. The service won’t provide clarifications related to:
– the overall IKEA kitchen installation;
– connections to electricity (if machine
comes without plug and cable), to
water and to gas since they have to
be executed by an authorized service engineer.
3. ask for clarification on user manual contents and specifications of the IKEA appliance.
To ensure that we provide you with the best
assistance, please read carefully the Assembly Instructions and/or the User Manual
section of this booklet before contacting us.
How to reach us if You need our service
Please refer to the last page of this manual
for the full list of IKEA appointed contacts
and relative national phone numbers.
Important! In order to provide You with a
quicker service, we recommend that You
use the specific phone numbers listed at the
end of this manual. Always refer to the
numbers listed in the booklet of the specific
appliance You need an assistance for.
Before calling us, assure that You have to
hand the IKEA article number (8 digit code)
for the appliance of which you need our
assistance.
ENGLISH
Important! SAVE THE SALES RECEIPT! It is
Your proof of purchase and required for the
guarantee to apply. Note that the receipt
reports also the IKEA article name and
number (8 digit code) for each of the
appliances you have purchased.
20
Do You need extra help?
For any additional questions not related to
After Sales of your appliances, please contact our nearest IKEA store call centre. We
recommend you read the appliance documentation carefully before contacting us.
21
Country
België
Belgique
Phone number
070 246016
Call Fee
Opening time
Binnenlandse gesprekskosten
8 tot 20 Weekdagen
Tarif des appels nationaux
8 à 20. En semaine
България
0700 10 218
Такса за повикване от страната
От 9 до 18 ч в работни дни
Česká republika
246 019721
Cena za místní hovor
8 až 20 v pracovních dnech
Danmark
70 15 09 09
Landstakst
man.-fre. 09.00-20.00
lør. 09.00-16.00
1 søndag pr. måned, normalt første
søndag i måneden
01803-334532
(0,09 € / Min.*) * aus dem Festnetz
der DTAG; Mobilfunkpreise
abweichend
8 bis 20 Werktage
Deutschland
Ελλάδα
211 176 8276
Υπεραστική κλήση
8 έως 20 κατά τις εργάσιμες ημέρες
España
91 1875537
Tarifa de llamadas nacionales
De 8 a 20 en días laborables
France
0170 36 02 05
Tarif des appels nationaux
9 à 21. En semaine
Ireland
0 14845915
National call rate
8 till 20 Weekdays
Ísland
5880503
Innanlandsgjald fyrir síma
9 til 18. Virka daga
02 00620818
Tariffa applicata alle chiamate
nazionali
dalle 8 alle 20 nei giorni feriali
Italia
Κυπρος
Magyarország
Nederland
Norge
22 030 529
Υπεραστική κλήση
8 έως 20 κατά τις εργάσιμες ημέρες
061 998 0549
Belföldi díjszabás
Hétköznap 8 és 10 óra között
0900 235 45 32
and/or
0900 BEL IKEA
"0,10 EUR/min (niet lokaal)
Incl. BTW"
ma-vr 9.00-21.00
zat 9.00-20.00
zon 9.00-18.00
815 22052
Takst innland
8 til 20 ukedager
Österreich
0810 300486
zum Ortstarif
8 bis 20 Werktage
Polska
012 297 8787
Stawka wg taryfy krajowej
Od 8 do 20 w dni robocze
Portugal
211557985
Chamada Nacional
9 às 21. Dias de Semana
*excepto feriados
România
0212121224
Tarif apel naţional
8 - 20 în zilele lucrătoare
8 495 6662929
Действующие телефонные
тарифы
с 8 до 20 по рабочим дням
Время московское
Россия
Schweiz
Tarif für Anrufe im Bundesgebiet
8 bis 20 Werktage
Tarif des appels nationaux
8 à 20. En semaine
Tariffa applicata alle chiamate
nazionali
dalle 8 alle 20 nei giorni feriali
(02) 3300 2554
Cena vnútroštátneho hovoru
8 až 20 v pracovných dňoch
Suomi
030 600 5203
Lankapuhelinverkosta
0,0828€/puhelu+0,032€/min
Matkapuhelinverkosta 0,192€/min
arkipäivisin 8.00-20.00
Sverige
0775 700 500
lokalsamtal (lokal taxa)
mån-fre 8.30-20.00
lör-sön 9.30-18.00
Türkiye
212 244 0769
Ulusal arama ücreti
Hafta içi saat 09:00'dan 18:00'a kadar
044 586 2078
Міжміськи дзвінки платні
9 - 21 В робочі дні
020 3347 0044
National call rate
9 till 21. Weekdays
Suisse
031 5500 324
Svizzera
Slovensko
Україна
United Kingdom
22
23
397118603-B-272011
© Inter IKEA Systems B.V. 2008
AA-401764-2

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
