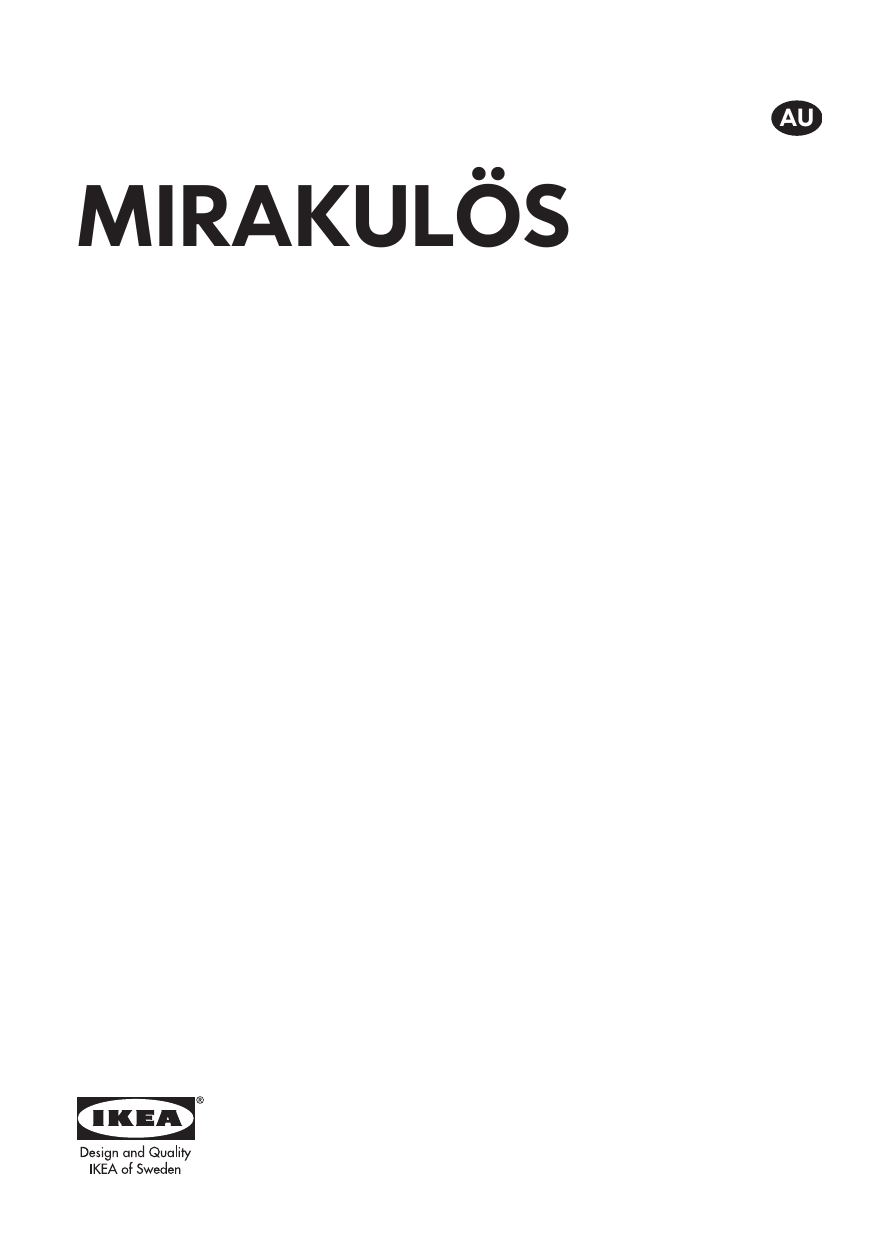

IKEA MIRAKULÖS User Manual

AU
MIRAKULÖS
ENGLISH
4
4
ENGLISH
Contents
Safety information
Conditions of Use
Safety instructions
Installation
Product description
Before first use
Daily use
Clock functions
Using the accessories
4
5
6
8
9
9
10
13
15
Additional functions
Hints and tips
Care and cleaning
Troubleshooting
Technical information
Energy efficiency
ENVIRONMENT CONCERNS
IKEA GUARANTEE
17
17
19
23
25
25
26
26
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible if
an incorrect installation and use causes injuries and damages.
Always keep the instructions with the appliance for future
reference.
Children and vulnerable people safety
•
•
•
•
•
•
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
Do not let children play with the appliance.
Keep all packaging away from children.
Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts are hot.
If the appliance has a child safety device, we recommend you
activate it.
Cleaning and user maintenance shall not be made by
children without supervision.
ENGLISH
•
5
Children of less than 3 years should be kept away unless
continuously supervised.
General Safety
•
•
•
•
•
•
•
•
•
•
Only a qualified person must install this appliance and
replace the cable.
Internally the appliance becomes hot when in operation. Do
not touch the heating elements that are in the appliance.
Always use oven gloves to remove or put in accessories or
ovenware.
Before maintenance cut the power supply.
Ensure that the appliance is switched off before replacing the
lamp to avoid the possibility of electric shock.
Do not use a steam cleaner to clean the appliance.
Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the glass door since they can scratch the surface,
which may result in shattering of the glass.
If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly
qualified persons in order to avoid a hazard.
To remove the shelf supports first pull the front of the shelf
support and then the rear end away from the side walls.
Install the shelf supports in the opposite sequence.
The means for disconnection must be incorporated in the
fixed wiring in accordance with the wiring rules.
Only use the core temperature sensor recommended for this
appliance.
Conditions of Use
This appliance is intended to be used in
household and similar applications such as:
• Farm houses
• By clients in serviced apartments, holiday
apartments and other residential type
environments.
6
ENGLISH
Safety instructions
Installation
Warning! Only a qualified
person must install this
appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Obey the installation instruction supplied
with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Do not pull the appliance by the handle.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is installed
below and adjacent safe structures.
• The sides of the appliance must stay
adjacent to appliances or to units with
the same height.
Electrical connection
Warning! Risk of fire and
electrical shock.
• All electrical connections should be made
by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the
power supply. If not, contact an
electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by our
Authorised Service Centre.
• Do not let mains cables touch or come
near the appliance door, especially
when the door is hot.
• The shock protection of live and
insulated parts must be fastened in such
a way that it cannot be removed without
tools.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains
plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you disconnect
the appliance from the mains at all poles.
The isolation device must have a contact
opening width of minimum 3 mm.
Use
Warning! Risk of injury, burns
and electrical shock or explosion.
• Use this appliance in a household only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance
door while the appliance is in operation.
Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not apply pressure on the open door.
7
ENGLISH
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully. The
use of ingredients with alcohol can cause
a mixture of alcohol and air.
• Do not let sparks or open flames to come
in contact with the appliance when you
open the door.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
Warning! Risk of damage to the
appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other objects
in the appliance directly on the
bottom.
– do not put aluminium foil directly on
the bottom of the appliance.
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food in
the appliance after you finish the
cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel has no effect
on the performance of the appliance. It is
not a defect in the sense of the warranty
law.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
• Always cook with the oven door closed.
• If the appliance is installed behind a
furniture panel (e.g. a door) make sure
the door is never closed when the
appliance is in operation. Heat and
moisture can build up behind a closed
furniture panel and cause subsequent
damage to the appliance, the housing
unit or the floor. Do not close the
furniture panel until the appliance has
cooled down completely after use.
Steam Cooking
Warning! Risk of burns and
damage to the appliance.
• Released Steam can cause burns:
– Do not open the appliance door
during the steam cooking operation.
– Open the appliance door with care
after the steam cooking operation.
Care and Cleaning
Warning! Risk of injury, fire, or
damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains plug
from the mains socket.
• Make sure the appliance is cold. There is
a risk that the glass panels can break.
• Replace immediately the door glass
panels when they are damaged. Contact
the Authorised Service Centre.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Remaining fat or food in the appliance
can cause fire.
• If you use an oven spray, obey the safety
instructions on the packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
Internal light
• The type of light bulb or halogen lamp
used for this appliance is only for
household appliances. Do not use it for
house lighting.
Warning! Risk of electrical shock.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
ENGLISH
Disposal
Warning! Risk of injury or
suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children and
pets to get closed in the appliance.
• Packaging material:
The packaging material is
environmentally-friendly and recyclable.
8
Plastic parts are marked with
international abbreviations such as PE,
PS, etc. Dispose of the packaging
material in the containers provided for
this purpose at your local waste
management facility.
Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
Installation
Warning! Refer to Safety
chapters.
Assembly
Refer to the Assembly Instructions
for the installation.
Electrical installation
Warning! Only a qualified
person must do the electrical
installation.
The manufacturer is not
responsible if you do not follow
the safety precautions from the
Safety chapters.
This appliance is supplied without a main
plug and a main cable.
Cable
Cable types applicable for installation or
replacement:
H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F,
H05 V2V2-F (T90), H05 BB-F
For the section of the cable refer to the total
power on the rating plate. You can also
refer to the table:
Total power (W)
Section of the cable
(mm²)
maximum 1380
3 x 0.75
maximum 2300
3x1
maximum 3680
3 x 1.5
The earth cord (green / yellow cable) must
be 2 cm longer than phase and neutral
cables (blue and brown cables).
ENGLISH
9
Product description
General overview
1
2
3
4
5
6
7
15
5
14
4
8
3
9
2
13
12
1
11
10
Accessories
• Wire shelf x 2
For cookware, cake tins, roasts.
• Baking tray x 1
For cakes and biscuits.
• Grill- / Roasting pan x 1
To bake and roast or as pan to collect
fat.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Control panel
Knob for the oven functions
Electronic programmer
Knob for the temperature
Water drawer
Grill
Socket for the core temperature sensor
Lamp
Fan
Shelf support, removable
Draining pipe
Water outlet valve
Rating plate
Shelf positions
Steam inlet
• Core temperature sensor x 1
To measure how far the food is cooked.
• Telescopic runners x 2 sets
For shelves and trays.
Before first use
Warning! Refer to Safety
chapters.
Initial Cleaning
Remove all accessories and removable shelf
supports from the appliance.
Refer to "Care and cleaning"
chapter.
Clean the appliance before first use.
Put the accessories and the removable shelf
supports back to their initial position.
Setting the time
After the first connection to the mains, all
symbols in the display are on for some
seconds. For the subsequent few seconds
the display shows the software version.
ENGLISH
10
After the software version goes off, the
display shows
flashes.
and "12:00". "12"
or
to set the current hour.
1. Press
to confirm. This is necessary
2. Press
only when you set the time for the first
time. Later the new time will be saved
automatically after 5 seconds.
The display shows
and the set hour.
"00" flashes.
3. Press
or
to set the current minutes.
to confirm. This is necessary
4. Press
only when you set the time for the first
time. Later the new time will be saved
automatically after 5 seconds.
The display shows the new time.
4. Let the appliance operate for 15
minutes.
Accessories can become hotter than usual.
The appliance can emit an odour and
smoke. This is normal. Make sure that the
airflow in the room is sufficient.
Using the Mechanical child lock
The appliance has the child lock installed
and activated. It is below the control panel
on the right side.
To open the oven door with the child lock
installed, pull the child lock handle up as
shown in the picture.
Changing the time
You can change the time of day only when
the oven is in standby mode.
again and again until the symbol
Press
flashes in the display.
To set a new time, refer to "Setting the
time".
Close the oven door without pulling the
child lock.
To remove the child lock, open the oven
door and remove the child lock with the torx
key. The torx key is in the oven fitting bag.
Preheating
Preheat the empty appliance to burn off the
remaining grease.
and the maximum
1. Set the function
temperature.
2. Let the appliance operate for 1 hour.
3. Set the function
and the maximum
temperature.
Daily use
Warning! Refer to Safety
chapters.
Activating and deactivating the appliance
1. Turn the knob for the oven functions
clockwise to an oven function.
2. Turn the knob for the temperature to set
the temperature.
ENGLISH
11
The display shows the set temperature.
3. To deactivate the appliance, turn the
knob for the oven functions to the off
position.
Oven functions
Oven function
Off position
Application
The appliance is off.
Forced Air Cook- To bake on up to 3 shelf positions at the same time and
ing
to dry food. When you use this function, decrease the
oven temperature by 20 - 40 °C from the standard
temperatures you use for cooking with the function
Conventional (Top and Bottom Heat).
Conventional
(Top and Bottom
Heat)
To bake and roast food on 1 shelf position.
Grilling
To grill flat food in the middle of the shelf. To make
toasts.
Bottom Heat
To bake cakes with crispy bottom and to preserve food.
Grilling with Fan
To roast larger meat joints or poultry with bones on 1
shelf position. Also to make gratins and to brown.
Bread and Pizza
Baking
To bake food on 1 shelf position for a more intensive
browning and a crispy bottom. When you use this function, decrease the oven temperature by 20 - 40 °C
from the standard temperatures you use for cooking
with the function Conventional (Top and Bottom Heat).
Defrost
To defrost frozen food.
The knob for the temperature must be in the off position.
Top Heat
To brown bread, cakes and pastries. To finish cooked
dishes.
Fast Grilling
To grill flat food in large quantities and to toast bread.
ENGLISH
12
Oven function
Application
Forced Air +
Steam
To steam dishes. Use this function to decrease the
length of the cooking time and to preserve the vitamins
and nutrients in the food. Select the function and set the
temperature between 130 °C to 230 °C.
Display
G
A
G
F
B
E
C
A)
B)
C)
D)
Time and temperature
Heat-up and residual heat indicator
Water tank (selected models only)
Core temperature sensor (selected
models only)
E) Door lock (selected models only)
F) Hours / minutes
G) Clock functions
D
Buttons
Button
Function
Description
MINUS
To set the time.
CLOCK
To set a clock function.
PLUS
To set the time.
Heat-up indicator
When you activate an oven function, the
bars in the display
come on one by one.
The bars show that the oven temperature
increases or decreases.
Steam Cooking
1. Set the function .
2. Press the cover of the water drawer to
open it. Fill the water drawer with water
until the Tank Full indicator comes on.
The maximum capacity of the tank is
900 ml. It is sufficient for approximately
55 - 60 minutes of cooking.
Use only water as the liquid.
Do not use filtered
(demineralised) or distilled
water. Do not use other
liquids.
Do not put flammable or
alcoholic liquids (grappa,
whisky, cognac, etc.) into the
water drawer.
3. Push the water drawer into its initial
position.
4. Prepare the food in the correct
cookware.
5. Set the temperature between 130 °C
and 250 °C. Refer to table for steam
cooking.
ENGLISH
13
Warning! Wait a minimum of 60
minutes after each use of the
Forced Air + Steam function in
order to prevent hot water from
exiting the water outlet valve.
Empty the water tank after the steam
cooking is completed.
1. Prepare the draining pipe (C), included
in the same package with the user
manual. Put the connector (B) onto one
of the ends of the draining pipe.
2. Put the second end of the draining pipe
(C) into a container. Put it at a lower
position than the outlet valve (A).
A
Water tank indicator
When the steam cooking operates, the
display shows water tank indicator. Water
tank indicator shows the level of the water
in the tank.
- Water tank is full. An acoustic
signal sounds when the tank is full. Press
any button to stop the acoustic signal.
•
- Water tank is half full.
- Water tank is empty. An acoustic
•
signal sounds when the tank must be
refilled.
If you put too much water into
the tank, the safety outlet moves
the excess water to the bottom of
the oven.
Remove the water with a sponge
or a cloth.
B
C
•
Emptying the water tank
Caution! Make sure that the
appliance is cool before you start
to empty the water tank.
3. Open the oven door and put the
connector (B) into the outlet valve (A).
4. Push the connector again and again
when you empty the water tank.
The water tank can have
some water when the display
shows
symbol. Wait until
the water flow from the water
outlet valve stops.
5. Remove the connector from the valve
when the water stops flowing.
Do not use the drained water to
fill the water tank again.
Clock functions
Clock functions table
Clock function
TIME OF DAY
Application
To set, change or check the time of day. Refer to "Setting the time".
14
ENGLISH
Clock function
Application
MINUTE MINDER
Use to set a countdown time (maximum 23 h 59 min).
This function has no effect on the operation of the appliance. You can set the MINUTE MINDER at any time,
also if the appliance is off.
DURATION
To set how long the appliance operates. Use only when
an oven function is set.
END
To set when the appliance must deactivate. Use only
when an oven function is set. You can use Duration and
End at the same time (time delay), if the appliance is to
be activate and deactivate automatically later.
If you press
when you set the
Press
again and again to
switch between the clock
functions.
hours for DURATION
, the
appliance goes to setting of the
To confirm the settings of the
END
clock functions, press
or wait 5
seconds for an automatic
confirmation.
Setting the DURATION or END function
during cooking function
1. Press
again and again until the
display shows
or
.
or
flashes in the display.
or
to the set the values and
2. Press
to confirm.
press
For Duration
first you set the minutes
and then the hours, for End
first you set
the hours and then the minutes.
An acoustic signal sounds for 2 minutes
or
symbol and
after the time ends.
time setting flash in the display. The oven
stops.
3. Press any button to stop the acoustic
signal.
function.
Setting the MINUTE MINDER
1. Press
again and again until and
"00" flash in the display.
or
to set the MINUTE
2. Press
MINDER.
First you set the seconds, then the
minutes and then the hours.
At first, the time is calculated in minutes
and seconds. When the time you set is
longer than 60 minutes, the symbol
comes on in the display.
The appliance now calculates the time in
hours and minutes.
3. The MINUTE MINDER starts
automatically after five seconds.
After 90% of the set time, an acoustic
signal sounds.
4. When the set time ends, an acoustic
signal sounds for two minutes. "00:00"
and flash in the display. Press any
button to stop the acoustic signal.
15
ENGLISH
If you set the MINUTE MINDER
when the DURATION
or END
function operates, the symbol
comes on in the display.
Press
again and again until the display
shows time without clock symbols.
You cannot use the Count Up
Timer when the Duration
End
or
function operates.
Count Up Timer
Use the Count Up Timer to monitor how
long the oven operates.
Using the accessories
Warning! Refer to Safety
chapters.
cavity.
Using the core temperature sensor
The core temperature sensor measures the
core temperature of the meat. When the
meat is at the set temperature, the
appliance deactivates.
There are two temperatures to be set:
• the oven temperature.
• the core temperature. Refer to the values
in the table.
Recommended core temperatures
50 °C
Rare
60 °C
Medium
70 °C
Well done
Caution! Only use the core
temperature sensor supplied with
the appliance, or genuine
replacement parts.
1. Set the oven function and the oven
temperature.
2. Put the point of the core temperature
sensor into the centre of the meat.
3. Put the plug of the core temperature
sensor into the socket on the top of the
Make sure that the core temperature
sensor stays in the meat and in the
socket during the cooking.
When you use the core temperature
sensor for the first time, the default core
flashes,
temperature is 60 °C. While
you can use the knob for the
temperature to change the default core
temperature.
The display shows the symbol of the core
and the default
temperature sensor
core temperature.
4. Press
to save the new core
temperature, or wait 10 seconds for the
setting to be saved automatically.
ENGLISH
16
The new default core temperature is
displayed during the next use of the core
temperature sensor.
When the meat is at the set core
temperature, the symbol for the core
temperature sensor
and the default
core temperature flash. An acoustic signal
sounds for two minutes. The appliance
deactivates automatically.
5. Press any button to stop the acoustic
signal.
6. Remove the plug of the core
temperature sensor from the socket.
Remove the meat from the appliance.
Warning! Be careful when you
remove the tip and plug of the
core temperature sensor. The
core temperature sensor is hot.
There is a risk of burns.
The Duration
and End
not operate with the core
temperature sensor.
Using the telescopic runners
Keep the installation instructions
for the telescopic runners for
future use.
With telescopic runners you can put in and
remove the shelves more easily.
Caution! Do not clean the
telescopic runners in the
dishwasher. Do not lubricate the
telescopic runners.
1
2
°C
°C
do
You can change the core temperature at
any time during the cooking:
1. Press :
• four times - the display shows the set
core temperature which changes
every 10 seconds to the current core
temperature.
• five times - the display shows the
current oven temperature which
changes every 10 seconds to the set
oven temperature.
• six times - the display shows the set
oven temperature.
2. Use the knob for the temperature to
change the temperature.
Pull out the right
and left hand
telescopic runners.
Put the wire shelf on
the telescopic
runners and
carefully push them
into the appliance.
Make sure you push back the telescopic
runners fully in the appliance before you
close the oven door.
You can also use the telescopic
runners with the trays or pans
supplied with the appliance.
Warning! Refer to
"Product description"
chapter.
ENGLISH
17
Additional functions
Using the Child Lock
Residual heat indicator
The Child Lock prevents an accidental
operation of the appliance.
When you deactivate the appliance, the
1. Do not set an oven function.
2. Press and hold
and
at the same
time for 2 seconds.
An acoustic signal sounds. SAFE comes on in
the display.
To deactivate the Child Lock, repeat step 2.
Automatic switch-off
For safety reasons the appliance
deactivates automatically after some time if
an oven function operates and you do not
change any settings.
Temperature (°C)
Switch-off time (h)
30 - 115
12.5
120 - 195
8.5
200 - 245
5.5
250
1.5
display shows the residual heat indicator
if the temperature in the oven is more than
40 °C. Turn the knob for the temperature
left or right to show the oven temperature.
Cooling fan
When the appliance operates, the cooling
fan activates automatically to keep the
surfaces of the appliance cool. If you
deactivate the appliance, the cooling fan
can continue to operate until the appliance
cools down.
Safety thermostat
Incorrect operation of the appliance or
defective components can cause dangerous
overheating. To prevent this, the oven has a
safety thermostat which interrupts the
power supply. The oven activates again
automatically when the temperature drops.
After an automatic switch-off, deactivate
the appliance fully. Then you can activate it
again.
The Automatic switch-off does
not work with the functions: core
temperature sensor, Duration,
End.
Hints and tips
General information
• The appliance has five shelf positions.
Count the shelf positions from the bottom
of the appliance floor.
• The appliance has a special system
which circulates the air and constantly
recycles the steam. With this system you
can cook in a steamy environment and
keep the food soft inside and crusty
outside. It decreases the cooking time
and energy consumption to a minimum.
• Moisture can condense in the appliance
or on the door glass panels. This is
ENGLISH
18
normal. Always stand back from the
appliance when you open the appliance
door while cooking. To decrease the
condensation, operate the appliance for
10 minutes before cooking.
• Clean the moisture after each use of the
appliance.
• Do not put the objects directly on the
appliance floor and do not put
aluminium foil on the components when
you cook. This can change the baking
results and cause damage to the enamel.
• Leave the meat for approximately 15
minutes before carving so that the juice
does not seep out.
• To prevent too much smoke in the oven
during roasting, add some water into the
deep pan. To prevent the smoke
condensation, add water each time after
it dries up.
Baking cakes
Initially, monitor the performance when you
cook. Find the best settings (heat setting,
cooking time, etc.) for your cookware,
recipes and quantities when you use this
appliance.
• Do not open the oven door before 3/4 of
the set cooking time is up.
• If you use two baking trays at the same
time, keep one empty level between
them.
Cooking times
Cooking times depend on the type of food,
its consistency, and volume.
Cooking meat and fish
• Use a deep pan for very fatty food to
prevent the oven from stains that can be
permanent.
Cooking table
Quantity
(kg)
Food
Function Shelf position
Temperature
(°C)
Time (min)
1 - 1.5
Lamb
2
175
110 - 130
1 - 1.5
Meat (roast beef,
pork)
2
180 - 210
45 - 90
1 - 1.5
Chicken
2
200
70 - 85
1.2
Rabbit
2
175
60 - 80
1.5
Duck
2
220
120 - 150
4
Turkey
2
180
210 - 240
0.6 - 1
Fish
2
180 - 190
20 - 40
-
Plum cake
2
160
50 - 60
ENGLISH
Quantity
(kg)
19
Food
Function Shelf position
Temperature
(°C)
Time (min)
1
Pies
2
170
80 - 100
-
Biscuits
2 and 4
140 - 150
35 - 40
2
Lasagne
2
180 - 190
25 - 40
(0.7) - 1
Bread (bread rolls)
2
180 - (200)
(25) - 451)
1
Pizza
2
210 - 220
15 - 25
1)
-
Reheating (one plate
dishes)
2
140
15 - 25
1)
1) Preheat the oven for 10 minutes.
Care and cleaning
Warning! Refer to Safety
chapters.
Notes on cleaning
• Clean the front of the appliance with a
soft cloth with warm water and a
cleaning agent.
• To clean metal surfaces, use a usual
cleaning agent.
• Clean the appliance interior after each
use. Fat accumulation or other food
remains may result in a fire. The risk is
higher for the grill pan.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all accessories after each use and
let them dry. Use a soft cloth with warm
water and a cleaning agent.
• If you have nonstick accessories, do not
clean them using aggressive agents,
sharp-edged objects or a dishwasher. It
can cause damage to the nonstick
coating.
Stainless steel or aluminium appliances
Clean the oven door with a wet
sponge only. Dry it with a soft
cloth.
Do not use steel wool, acids or
abrasive materials as they can
damage the oven surface. Clean
the oven control panel with the
same precautions.
Cleaning the door gasket
• Regularly do a check of the door gasket.
The door gasket is around the frame of
the oven cavity. Do not use the
appliance if the door gasket is
damaged. Contact the Service.
• To clean the door gasket, use a soft cloth
with warm water and a cleaning agent.
Removing the shelf supports
To clean the oven, remove the shelf
supports.
ENGLISH
20
After some time, you can have lime deposits
in your oven. To prevent this, clean the parts
of the oven that generate the steam. Empty
the tank after each steam cooking.
2
1
2
Types of water
1
Pull the rear end of
the shelf support
away from the side
wall and remove it.
Install the shelf supports in the opposite
sequence.
Pull the front of the
shelf support away
from the side wall.
The rounded ends of the shelf
supports must point to the front.
• Soft water with low lime content - the
manufacturer recommends this because
it decreases the quantity of cleaning
procedures.
• Tap water - you can use it if your
domestic water supply has purifier or
water sweetener.
• Hard water with high lime content - it
does not have an effect on the
performance of the appliance but it
increases the quantity of cleaning
procedures.
Cleaning the water tank
Warning! Do not put water into
the water tank during the
cleaning procedure.
During the cleaning procedure,
some water can drip from the
steam inlet onto the cavity of the
oven. Put a dripping pan on the
shelf level directly below the
steam inlet to prevent water from
falling onto the bottom of the
oven cavity.
CALCIUM QUANTITY TABLE INDICATED FROM W.H.O. (World Health Organization)
Calcium deposit
Water hardness
(French degrees) (German degrees)
Water classifica- Run decalcification
tion every
0 - 60 mg/l
0-6
0-3
Sweet of soft
75 cycles - 2.5
months
60 - 120 mg/l
6 - 12
3-7
Medium hardness
50 cycles - 2
months
ENGLISH
21
Calcium deposit
Water hardness
(French degrees) (German degrees)
Water classifica- Run decalcification
tion every
120 - 180 mg/l
12 - 18
8 - 10
Hard or calcare- 40 cycles - 1.5
ous
months
over 180 mg/l
over 18
over 10
Very hard
1. Fill in the water tank with 850 ml of
water and 50 ml of citric acid (five
teaspoons). Deactivate the oven and
wait for approximately 60 minutes.
2. Activate the oven and set the function
Forced Air + Steam. Set the temperature
230 °C. Deactivate it after 25 minutes
and let it cool down for 15 minutes.
3. Activate the oven and set the function
Forced Air + Steam. Set the temperature
between 130 and 230 °C. Deactivate it
after 10 minutes.
Let it cool down and continue with the
removal of the tank contents. Refer to
"Emptying the water tank".
4. Rinse the water tank and clean the
remaining lime residue in the oven with
a cloth.
5. Clean the drain pipe by hand in warm
water with soap. To prevent damage,
do not use acids, sprays or similar
cleaning agents.
Cleaning the oven door
The oven door has three glass panels.You
can remove the oven door and the internal
glass panels to clean them.
The oven door can close if you
try to remove the glass panels
before you remove the oven
door.
Caution! Do not use the
appliance without the glass
panels.
1
30 cycles - 1
month
2
Open the door fully Lift and turn the
and hold the two
levers on the two
door hinges.
hinges.
3
4
Close the oven door Put the door on a
halfway to the first
soft cloth on a
opening position.
stable surface.
Then pull forward
and remove the
door from its seat.
ENGLISH
22
rough when you touch it.
6
5
A
B
90°
Release the locking
system to remove
the glass panels.
Turn the two
fasteners by 90°
and remove them
from their seats.
7
Make sure that you install the middle panel
of glass in the seats correctly.
1
2
First lift carefully
and then remove
the glass panels one
by one. Start from
the top panel.
Clean the glass panels with water and
soap. Dry the glass panels carefully.
When the cleaning is completed, install the
glass panels and the oven door. Do the
above steps in the opposite sequence.
Make sure that you put the glass panels (A
and B) back in the correct sequence. The
first panel (A) has a decorative frame. The
screen-printing zone must face the inner
side of the door. Make sure that after the
installation the surface of the glass panel
frame on the screen-printing zones is not
Replacing the lamp
Put a cloth on the bottom of the interior of
the appliance. It prevents damage to the
lamp glass cover and the cavity.
Warning! Danger of
electrocution! Disconnect the fuse
before you replace the lamp.
The lamp and the lamp glass
cover can be hot.
ENGLISH
23
Caution! Always hold the
halogen lamp with a cloth to
prevent grease residue from
burning on the lamp.
1. Deactivate the appliance.
2. Remove the fuses from the fuse box or
deactivate the circuit breaker.
2. Clean the glass cover.
3. Replace the oven light bulb with a 40
W, 220 - 240 V (50 Hz), 300 °C heat
resistant oven light bulb (connection
type: G9).
4. Install the glass cover.
The back lamp
1. Turn the lamp glass cover
counterclockwise to remove it.
Troubleshooting
Warning! Refer to Safety
chapters.
What to do if...
Problem
Possible cause
Remedy
The oven does not heat up.
The oven is deactivated.
Activate the oven.
The oven does not heat up.
The clock is not set.
Set the clock.
The oven does not heat up.
The necessary settings are
not set.
Make sure that the settings
are correct.
The oven does not heat up.
The automatic switch-off is
activated.
Refer to "Automatic switchoff".
The oven does not heat up.
The Child Lock is on.
Refer to "Using the Child
Lock".
The oven does not heat up.
The fuse is released.
Make sure that the fuse is
the cause of the malfunction.
If the fuse releases again
and again, contact a qualified electrician.
The lamp does not operate.
The lamp is defective.
Replace the lamp.
There is water inside the
oven.
There is too much water in
the tank.
Deactivate the oven and
wipe the water with a cloth
or sponge.
ENGLISH
24
Problem
Possible cause
Remedy
The steam cooking does not
work.
Lime obstructs the hole.
Check the steam inlet opening. Remove the lime.
It takes more than three minutes to empty the water
tank or the water leaks from
the steam inlet opening.
There are lime deposits in
the oven.
Clean the water tank. Refer
to "Cleaning the water
tank".
It takes too long to cook the
dishes or they cook too
quickly.
The temperature is too low
or too high.
Adjust the temperature if
necessary. Follow the advice
in the user manual.
Steam and condensation
settle on the food and in the
cavity of the oven.
You left the dish in the oven
for too long.
Do not leave the dishes in
the oven for longer than 15 20 minutes after the cooking
process ends.
The display shows an error
code that is not in this table.
There is an electrical fault.
• Deactivate the oven with
the house fuse or the
safety switch in the fuse
box and activate it again.
• If the display shows the
error code again, contact
the service centre.
Service data
If you cannot find a solution to the problem
yourself, contact an Authorised Service
Centre.
the front frame of the appliance cavity. Do
not remove the rating plate from the
appliance cavity.
The necessary data for the service centre is
on the rating plate. The rating plate is on
We recommend that you write the data here:
Model (MOD.)
.........................................
Product number (PNC)
.........................................
Serial number (S.N.)
.........................................
ENGLISH
25
Technical information
Technical data
Dimensions (internal)
Width
Height
Depth
Area of baking tray
1438 cm²
Top heating element
1000 W
Bottom heating element
1000 W
Grill
2300 W
Fan
1900 W
Total rating
2780 W
Voltage
220 - 240 V
Frequency
50 Hz
Number of functions
10
480 mm
355 mm
417 mm
Energy efficiency
Product information according to EU 66/2014
Model identification
MIRAKULÖS 002.847.20
Energy Efficiency Index
100.0
Energy consumption with a standard load, conventional mode
0.93 kWh/cycle
Energy consumption with a standard load, fan-forced 0.85 kWh/cycle
mode
Number of cavities
1
Heat source
Electricity
Volume
72 l
Type of oven
Built-In Oven
Mass
37.0 kg
ENGLISH
EN 60350-1 - Household electric cooking
appliances - Part 1: Ranges, ovens, steam
ovens and grills - Methods for measuring
performance.
Energy saving
The appliance contains features which help
you save energy during everyday cooking.
• General hints
– Make sure that the oven door is
closed properly when the appliance
operates and keep it closed as much
as possible during the cooking.
– Use metal dishes to improve the
energy saving.
– When possible, put the food inside
the oven without heating it up.
– When the cooking duration is longer
than 30 minutes, reduce the oven
temperature to minimum, 3 - 10
minutes before the end of the
cooking time, depending on the
26
duration of the cooking. The residual
heat inside the oven will continue to
cook.
– Use the residual heat to warm up
other foods.
• Cooking with fan - when possible, use
the cooking functions with fan to save
energy.
• Residual heat
– In some oven functions if a
programme with time selection
(Duration, End) is activated and the
cooking time is longer than 30
minutes, the heating elements
deactivate automatically 10%
earlier. The fan and lamp continue to
operate.
• Keep food warm - if you want to use the
residual heat to keep the meal warm,
choose the lowest possible temperature
setting. The display shows the residual
heat temperature.
ENVIRONMENT CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable containers
to recycle it. Help protect the environment
and human health and to recycle waste of
electrical and electronic appliances. Do not
dispose appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
IKEA GUARANTEE
How long is the IKEA guarantee valid?
This guarantee is valid for five (5) years
from the original date of purchase of Your
appliance at IKEA Pty Ltd, ABN
84006270757 or at Cebas Pty Ltd, ABN 15
009 156 003 (Both Trading as IKEA) unless
the appliance is named LAGAN in which
case two (2) years of guarantee apply. The
original sales receipt is required as proof of
purchase. If service work is carried out
under guarantee, this will not extend the
guarantee period for the appliance.
Which appliances are not covered by the
IKEA five (5) years guarantee?
The range of appliances named LAGAN .
Who will execute the service?
27
ENGLISH
IKEA service provider will provide the service through its own service operations or
authorized service partner network. Contact
IKEA for further information.
If you encounter any trouble with the
appliance and wish to register a service call
or make a claim, please refer to
www.ikea.com.au for your local store after
sales customer service center phone
number, online email and opening times.
The principal address and contact details in
Australia are:
For Queensland, New South Wales, and
Victorian customers please contact:
IKEA Pty Ltd
IKEA Pty Ltd
IKEA Service Office
L1 Clock Tower, 630 Princes Highway
Tempe, NSW 2044
Contact - IKEA Customer Service at
www.IKEA.com.au
For Western Australian and South
Australian customers please contact:
Cebas Pty Ltd
8c Sunray Drive, Innaloo WA 6018
Australia
Contact - IKEA Customer Service at
www.IKEA.com.au
What does this guarantee cover?
The guarantee covers faults of the appliance, which have been caused by faulty
construction or material faults from the date
of purchase from IKEA. This guarantee applies to domestic use only. The products
have been designed and tested for
domestic purposes only and this guarantee
does not cover damage arising from use of
the Product in a commercial environment.
The exceptions are specified under the
headline "What is not covered under this
guarantee?" Within the guarantee period,
the costs to remedy the fault e.g. repairs,
parts, labour and travel will be covered,
provided that the appliance is accessible
for repair without special expenditure.
Replaced parts become the property of
IKEA.
The guarantee exists only if the appliance
complies and is installed in accordance
with:
• The technical specifications.
• The Assembly Instructions and user
manual Safety Information.
IKEA's guarantee is subject to Australian
Consumer Law - see Schedule 2 to
Competition and Consumer Act, 2010. This
guarantee is in addition to (and does not
exclude, restrict or modify in any way) any
non-excludable statutory warranties in
Australia.
What will IKEA do to correct the problem?
IKEA appointed service provider will examine the product and decide, at its sole discretion, if it is covered under this guarantee.
They will notify you as to whether your
claim is covered under this guarantee. If
your claim is approved, the IKEA service
provider or its authorized service partner,
will then, at its sole discretion, either repair
the defective product or replace it with the
same or a comparable product.
What is not covered under this
guarantee?
• Normal wear and tear.
• Deliberate or negligent damage, damage caused by failure to observe operating instructions, incorrect installation or
by connection to the wrong voltage, damage caused by chemical or electro-chem-
28
ENGLISH
•
•
•
•
•
•
•
•
•
•
ical reaction, rust, corrosion or water
damage including but not limited to damage caused by excessive lime in the water supply, damage caused by abnormal
environmental conditions.
Consumable parts including batteries
and lamps.
Non-functional and decorative parts
which do not affect normal use of the appliance, including any scratches and possible colour differences.
Accidental damage caused by foreign
objects including insect or vermin
infestation or substances and cleaning or
unblocking of filters, drainage systems or
soap drawers.
Damage to the following parts: ceramic
glass, accessories, crockery and cutlery
baskets, feed and drainage pipes, seals,
lamps and lamp covers, screens, knobs,
casings and parts of casings. Unless such
damages can be proved to have been
caused by production faults.
Cases where no fault could be found during a technician's visit.
Repairs not carried out by our appointed
service providers and/or an authorized
service contractual partner or where
non-original parts have been used.
Repairs caused by installation which is
faulty or not according to specification.
The use of the appliance in a non-domestic environment i.e. professional use.
Transportation damages. If a customer
transports the product to their home or
other address, IKEA is not liable for any
damage that may occur during transport.
However, if IKEA delivers the product to
the customer's delivery address, then
damage to the product that occurs
during this delivery will be covered by
this guarantee.
Cost for carrying out the initial
installation of the IKEA appliance.
However, if an IKEA service provider or
its authorized service partner repairs or
replaces the appliance under the terms
of this guarantee, the service provider or
its authorized service partner will reinstall the repaired appliance or install
the replacement, if necessary.
• The appliance's serial number or
warranty seal has been removed or
defaced.
How country law applies
Our goods come with guarantees that
cannot be excluded under the Australian
Consumer Law (ACL). You are entitled to a
replacement or refund for a major failure
and compensation for any other reasonably
foreseeable loss or damage.
You are also entitled to have the goods
repaired or replaced if the goods fail to be
of acceptable quality and the failure does
not amount to a major failure.
This guarantee is not intended in any way
to limit or exclude such rights and remedies
that you may have under law.
You can find out more information about
the Australian Consumer Law on the ACCC
website: www.accc.gov.au
Area of validity
This IKEA guarantee applies only to
products purchased and installed in
AUSTRALIA .
What you must do to make a claim under
the guarantee:
To make a claim under the guarantee
contact IKEA after sales customer service
center at the above address, the IKEA
catalogue or refer to www.ikea.com.au for
your local store customer service phone
number, online email and opening times.
Please describe the problem that you are
facing with the appliance in detail along
with your product article number (8 digit
code) and date of purchase at the time of
call registration.
ENGLISH
29
Please do not hesitate to contact the
dedicated after sales customer service
center for IKEA appliances to:
SAVE THE SALES RECEIPT!
Kindly keep all these details and
original invoice of purchase
handy during the service
technician's visit to enable him to
carry out the job.
It is your proof of purchase and
required for the guarantee to
apply. Note that the receipt
reports also the IKEA article
name and number (8 digit code)
for each of the appliances you
have purchased.
1. Make a service request under this guarantee;
2. Ask for clarification on installation of the
IKEA appliance in the dedicated IKEA
kitchen furniture.
3. Ask for clarification on user manual contents and specifications of the IKEA appliance.
To ensure that we provide you with the best
assistance, please read carefully the Assembly Instructions and/or the User Manual
section of this booklet before contacting us.
How to reach us if you need our service
The IKEA after sales customer service centre
will assist you on the phone with basic
trouble shooting for your appliance at the
time of service call request. Please refer to
the IKEA catalogue or www.ikea.com.au
and select your local store for local store
phone numbers and opening times.
Please describe the problem that
you are facing with the
appliance in detail along
with your product article number
( 8 digit code ) and date of
purchase at the time of call
registration .
*
ENGLISH
30
ENGLISH
31
867310773-A-462014
© Inter IKEA Systems B.V. 2014
21552
AA-992207-2

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
