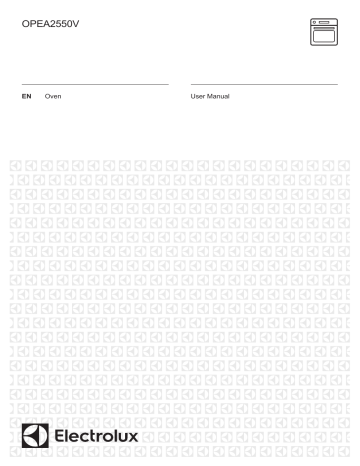

OPEA2550V
EN
Oven
User Manual
2
www.electrolux.com
CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................4
3. PRODUCT DESCRIPTION................................................................................ 7
4. BEFORE FIRST USE......................................................................................... 7
5. DAILY USE......................................................................................................... 8
6. CLOCK FUNCTIONS......................................................................................... 9
7. USING THE ACCESSORIES........................................................................... 10
8. ADDITIONAL FUNCTIONS.............................................................................. 11
9. HINTS AND TIPS............................................................................................. 11
10. CARE AND CLEANING..................................................................................21
11. TROUBLESHOOTING....................................................................................24
12. INSTALLATION.............................................................................................. 25
13. TECHNICAL DATA.........................................................................................27
14. ENERGY EFFICIENCY.................................................................................. 27
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
ENGLISH
1.
3
SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the
result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•
•
•
•
•
•
•
•
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away unless continuously supervised.
Children of less than 3 years of age should be kept
away unless continuously supervised.
Do not let children play with the appliance.
Keep all packaging away from children and dispose of
it appropriately.
Keep children and pets away from the appliance when
it operates or when it cools down. Accessible parts are
hot.
If the appliance has a child safety device, it should be
activated.
Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•
•
Only a qualified person must install this appliance and
replace the cable.
WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements.
4
www.electrolux.com
•
•
•
•
•
•
•
Always use oven gloves to remove or put in
accessories or ovenware.
Before carrying out any maintenance, disconnect the
appliance from the power supply.
Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric
shock.
Do not use a steam cleaner to clean the appliance.
Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can
scratch the surface, which may result in shattering of
the glass.
If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
To remove the shelf supports first pull the front of the
shelf support and then the rear end away from the
side walls. Install the shelf supports in the opposite
sequence.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
•
•
•
•
•
•
•
•
Remove all the packaging.
Do not install or use a damaged
appliance.
Follow the installation instructions
supplied with the appliance.
Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
Do not pull the appliance by the
handle.
Keep the minimum distance from
other appliances and units.
Install the appliance in a safe and
suitable place that meets installation
requirements.
The appliance is equipped with an
electric cooling system. It must be
operated with the electric power
supply.
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
•
•
•
•
•
•
All electrical connections should be
made by a qualified electrician.
The appliance must be earthed.
Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
Always use a correctly installed
shockproof socket.
Do not use multi-plug adapters and
extension cables.
Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
ENGLISH
•
•
•
•
•
•
•
•
be replaced, this must be carried out
by our Authorised Service Centre.
Do not let mains cables touch or
come near the appliance door,
especially when the door is hot.
The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
If the mains socket is loose, do not
connect the mains plug.
Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
The electrical installation must have
an isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation
device must have a contact opening
width of minimum 3 mm.
This appliance complies with the
E.E.C. Directives.
2.3 Use
•
•
•
•
•
•
•
•
•
•
•
•
5
Do not use the appliance as a work
surface or as a storage surface.
Open the appliance door carefully.
The use of ingredients with alcohol
can cause a mixture of alcohol and
air.
Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
WARNING!
Risk of damage to the
appliance.
•
•
WARNING!
Risk of injury, burns and
electric shock or explosion.
•
This appliance is for household use
only.
Do not change the specification of this
appliance.
Make sure that the ventilation
openings are not blocked.
Do not let the appliance stay
unattended during operation.
Deactivate the appliance after each
use.
Be careful when you open the
appliance door while the appliance is
in operation. Hot air can release.
Do not operate the appliance with wet
hands or when it has contact with
water.
Do not apply pressure on the open
door.
•
•
•
To prevent damage or discoloration to
the enamel:
– do not put ovenware or other
objects in the appliance directly
on the bottom.
– do not put aluminium foil directly
on the bottom of cavity of the
appliance.
– do not put water directly into the
hot appliance.
– do not keep moist dishes and
food in the appliance after you
finish the cooking.
– be careful when you remove or
install the accessories.
Discoloration of the enamel or
stainless steel has no effect on the
performance of the appliance.
Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
This appliance is for cooking
purposes only. It must not be used for
other purposes, for example room
heating.
Always cook with the oven door
closed.
If the appliance is installed behind a
furniture panel (e.g. a door) make
sure the door is never closed when
the appliance is in operation. Heat
and moisture can build up behind a
closed furniture panel and cause
subsequent damage to the appliance,
the housing unit or the floor. Do not
close the furniture panel until the
appliance has cooled down
completely after use.
6
www.electrolux.com
2.4 Care and cleaning
WARNING!
Risk of injury, fire, or
damage to the appliance.
•
•
•
•
•
•
•
•
Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
Make sure the appliance is cold.
There is the risk that the glass panels
can break.
Replace immediately the door glass
panels when they are damaged.
Contact the Authorised Service
Centre.
Be careful when you remove the door
from the appliance. The door is
heavy!
Clean regularly the appliance to
prevent the deterioration of the
surface material.
Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products,
abrasive cleaning pads, solvents or
metal objects.
If you use an oven spray, follow the
safety instruction on it's packaging.
Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
2.5 Internal lighting
WARNING!
Risk of electric shock.
•
•
•
The type of light bulb or halogen lamp
used for this appliance is for
household appliances only. Do not
use it for house lighting.
Before replacing the lamp, disconnect
the appliance from the power supply.
Only use lamps with the same
specifications.
2.6 Service
•
•
To repair the appliance contact an
Authorised Service Centre.
Use original spare parts only.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
•
•
•
Disconnect the appliance from the
mains supply.
Cut off the mains electrical cable
close to the appliance and dispose of
it.
Remove the door catch to prevent
children or pets from becoming
trapped in the appliance.
ENGLISH
7
3. PRODUCT DESCRIPTION
3.1 General overview
1
2
3
4
5
6
7
11
5
4
3
2
1
8
9
1
2
3
4
5
6
7
8
9
10
11
Control panel
Power lamp / symbol
Knob for the heating functions
Analog Timer
Control knob (for the temperature)
Temperature indicator / symbol
Heating element
Lamp
Fan
Shelf support, removable
Shelf positions
10
3.2 Accessories
•
•
Wire shelf
For cookware, cake tins, roasts.
Baking tray
For cakes and biscuits.
•
•
Grill- / Roasting pan
To bake and roast or as pan to collect
fat.
Telescopic runners
For shelves and trays.
4. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
4.1 Initial Cleaning
Remove all accessories and removable
shelf supports from the oven.
Refer to "Care and cleaning"
chapter.
Clean the oven and the accessories
before first use.
Put the accessories and the removable
shelf supports back to their initial
position.
4.2 Preheating
Preheat the empty oven before first use.
1. Set the function .Set the maximum
temperature.
2. Let the oven operate for 1 hour.
3. Set the function . Set the
maximum temperature.
4. Let the oven operate for 15 minutes.
5. Set the function . Set the
maximum temperature.
6. Let the oven operate for 15 minutes.
7. Turn off the oven and let it cool
down.
Accessories can become hotter than
usual. The oven can emit an odour and
smoke. Make sure that the airflow in the
room is sufficient.
8
www.electrolux.com
5. DAILY USE
WARNING!
Refer to Safety chapters.
Oven func‐
tion
5.1 Setting a heating function
1. Turn the knob for the heating
functions to select a heating function.
2. Turn the control knob to select the
temperature.
The lamp turns on when the oven
operates.
3. To turn off the oven, turn the knob for
the heating functions to the off
position.
Moist Fan
Baking
5.2 Heating functions
Oven func‐
tion
Application
The oven is off.
Off position
Light
True Fan
Cooking
To turn on the lamp
without a cooking func‐
tion.
To bake on up to three
shelf positions at the
same time and to dry
food.
Set the temperature 20
- 40 °C lower than for
Conventional Cooking.
Bottom Heat
Application
This function is de‐
signed to save energy
during cooking. For the
cooking instructions re‐
fer to "Hints and tips"
chapter, Moist Fan Bak‐
ing. The oven door
should be closed during
cooking so that the
function is not interrup‐
ted and to ensure that
the oven operates with
the highest energy effi‐
ciency possible. When
you use this function,
the temperature in the
cavity may differ from
the set temperature.
The heating power may
be reduced. For general
energy saving recom‐
mendations refer to
"Energy Efficiency"
chapter, Energy Saving.
To bake cakes with
crispy bottom and to
preserve food.
To grill flat food and to
toast bread.
Grilling
Fast Grilling
To grill flat food in large
quantities and to toast
bread.
To roast larger meat
joints or poultry with
Turbo Grilling bones on one shelf po‐
sition. To make gratins
and to brown.
To bake pizza. To make
intensive browning and
Pizza Setting a crispy bottom. Set the
temperature 230°C.
ENGLISH
Oven func‐
tion
9
Application
To bake and roast food
on one shelf position.
Conventional
Cooking
(Top / Bottom
Heat)
6. CLOCK FUNCTIONS
6.1 Analog timer
A. Window
B. Dial
C. Settings knob
The timer has these functions:
•
•
Time of day
Minute Minder + End of Cooking.
A
B
C
Setting the time of day
To set the time of day, push and turn the
settings knob counterclockwise (in the
direction indicated by the arrow), until the
clock hands are in the necessary
position. Do not turn the settings knob
clockwise.
After you set the time, let the settings
knob move to its initial position or
carefully pull back.
Normal setting
Turn the settings knob counterclockwise,
until
shows in the window. In this
position you operate the appliance
manually. The Minute Minder + End of
Cooking function is off.
Minute Minder + End of
Cooking
Use it to set the automatic switch-off time
for an oven function. The maximum time
you can set is 180 minutes.
Use it only for food which
you do not have to mix or
monitor during the cooking
procedure.
1. Set an oven function and the
temperature.
10
www.electrolux.com
2. Turn the settings knob
counterclockwise, until the necessary
switch-off time (in minutes) shows in
the window of the dial.
The countdown starts. After the time
period is completed, an acoustic signal
sounds. The appliance deactivates.
To cancel the Minute Minder + End of
Cooking function, turn the settings knob
counterclockwise until
window.
shows in the
The acoustic signal can be
deactivated. Turn the
settings knob
counterclockwise, until
shows in the window. In this
position, there is no acoustic
signal after the appliance
deactivates.
7. USING THE ACCESSORIES
WARNING!
Refer to Safety chapters.
7.1 Inserting the accessories
Wire shelf:
Push the shelf between the guide bars of
the shelf support and make sure that the
feet point down.
Wire shelf and baking tray / deep pan
together:
Push the baking tray / deep pan between
the guide bars of the shelf support and
the wire shelf on the guide bars above.
Baking tray/ Deep pan:
Push the baking tray / deep pan between
the guide bars of the shelf support.
Small indentation at the top
increase safety. The
indentations are also anti-tip
devices. The high rim
around the shelf prevents
cookware from slipping of
the shelf.
ENGLISH
7.2 Telescopic Runners
Keep the installation
instructions for the
telescopic runners for future
use.
11
2. Put the wire shelf on the telescopic
runners and carefully push them into
the oven.
°C
With telescopic runners you can put in
and remove the shelves more easily.
CAUTION!
Do not clean the telescopic
runners in the dishwasher.
Do not lubricate the
telescopic runners.
1. Pull out the right and left hand
telescopic runners.
°C
Make sure you push back the telescopic
runners fully in the oven before you close
the oven door.
8. ADDITIONAL FUNCTIONS
8.1 Cooling fan
When the oven operates, the cooling fan
turns on automatically to keep the
surfaces of the oven cool. If you turn off
the oven, the cooling fan can continues
to operate until the oven cools down.
dangerous overheating. To prevent this,
the oven has a safety thermostat which
interrupts the power supply. The oven
turns on again automatically when the
temperature drops.
8.2 Safety thermostat
Incorrect operation of the oven or
defective components can cause
9. HINTS AND TIPS
WARNING!
Refer to Safety chapters.
The temperature and baking
times in the tables are
guidelines only. They
depend on the recipes and
the quality and quantity of
the ingredients used.
12
www.electrolux.com
9.1 Cooking recommendations
The oven has five shelf positions.
Count the shelf positions from the bottom
of the oven floor.
Your oven may bake or roast differently
to the oven you had before. The below
tables provide you with the standard
settings for temperature, cooking time
and shelf position.
If you cannot find the settings for a
special recipe, look for the similar one.
The oven has a special system which
circulates the air and constantly recycles
the steam. With this system you can
cook in a steamy environment and keep
the food soft inside and crusty outside. It
decreases the cooking time and energy
consumption.
Baking cakes
Do not open the oven door before 3/4 of
the set cooking time is up.
Cooking meat and fish
Use a deep pan for very fatty food to
prevent the oven from stains that can be
permanent.
Leave the meat for approximately 15
minutes before carving so that the juice
does not seep out.
To prevent too much smoke in the oven
during roasting, add some water into the
deep pan. To prevent the smoke
condensation, add water each time after
it dries up.
Cooking times
Cooking times depend on the type of
food, its consistency, and volume.
Initially, monitor the performance when
you cook. Find the best settings (heat
setting, cooking time, etc.) for your
cookware, recipes and quantities when
you use this appliance.
If you use two baking trays at the same
time, keep one empty level between
them.
9.2 Baking and roasting
Cakes
Food
Top / Bottom Heat
True Fan Cooking
Time
(min)
Com‐
ments
Tempera‐
ture (°C)
Shelf po‐
sition
Tempera‐ Shelf po‐
ture (°C)
sition
Whisked
recipes
170
2
160
3 (2 and
4)
45 - 60
In a cake
mould
Short‐
bread
dough
170
2
160
3 (2 and
4)
20 - 30
In a cake
mould
Buttermilk 170
cheese‐
cake
1
165
2
60 - 80
In a 26 cm
cake
mould
Apple
cake (Ap‐
ple pie)1)
170
2
160
2 (left and 80 - 100
right)
In two 20
cm cake
moulds on
a wire
shelf
Strudel
175
3
150
2
In a baking
tray
60 - 80
ENGLISH
Food
Top / Bottom Heat
True Fan Cooking
Tempera‐
ture (°C)
Shelf po‐
sition
Tempera‐ Shelf po‐
ture (°C)
sition
Jam-tart
170
2
165
2 (left and 30 - 40
right)
In a 26 cm
cake
mould
Sponge
cake
170
2
160
2
50 - 60
In a 26 cm
cake
mould
Christmas 160
cake /
Rich fruit
cake1)
2
150
2
90 - 120
In a 20 cm
cake
mould
Plum
cake1)
175
1
160
2
50 - 60
In a bread
tin
Small
cakes one level
170
3
140 - 150
3
20 - 30
In a baking
tray
Small
cakes two levels
-
140 - 150
2 and 4
25 - 35
In a baking
tray
Small
cakes three lev‐
els
-
-
140 - 150
1, 3 and 5 30 - 45
In a baking
tray
Biscuits /
pastry
stripes one level
140
3
140 - 150
3
30 - 35
In a baking
tray
Biscuits / pastry
stripes two levels
-
140 - 150
2 and 4
35 - 40
In a baking
tray
Biscuits /
pastry
stripes three lev‐
els
-
140 - 150
1, 3 and 5 35 - 45
In a baking
tray
Meringues 120
- one level
3
120
3
80 - 100
In a baking
tray
Merin‐
gues- two
levels1)
-
120
2 and 4
80 - 100
In a baking
tray
-
-
Time
(min)
13
Com‐
ments
14
www.electrolux.com
Food
Top / Bottom Heat
True Fan Cooking
Time
(min)
Com‐
ments
Tempera‐
ture (°C)
Shelf po‐
sition
Tempera‐ Shelf po‐
ture (°C)
sition
Buns1)
190
3
190
3
12 - 20
In a baking
tray
Eclairs one level
190
3
170
3
25 - 35
In a baking
tray
Eclairs two levels
-
170
2 and 4
35 - 45
In a baking
tray
Plate tarts 180
2
170
2
45 - 70
In a 20 cm
cake
mould
Rich fruit
cake
160
1
150
2
110 - 120
In a 24 cm
cake
mould
Victoria
sandwich
170
1
160
2 (left and 50 - 60
right)
In a 20 cm
cake
mould
1) Preheat the oven for 10 minutes.
Bread and pizza
Food
Top / Bottom Heat
True Fan Cooking
Tempera‐ Shelf po‐
ture (°C)
sition
Tempera‐ Shelf po‐
ture (°C)
sition
190
1
190
Rye bread 190
1
Bread
rolls 1)
190
Pizza1)
Scones1)
White
bread1)
Time
(min)
Com‐
ments
1
60 - 70
1-2
pieces,
500 gr per
piece
180
1
30 - 45
In a bread
tin
2
180
2 (2 and
4)
25 - 40
6 - 8 rolls
in a bak‐
ing tray
230 - 250
1
230 - 250
1
10 - 20
In a bak‐
ing tray or
a deep
pan
200
3
190
3
10 - 20
In a bak‐
ing tray
1) Preheat the oven for 10 minutes.
ENGLISH
15
Flans
Food
Top / Bottom Heat
True Fan Cooking
Time
(min)
Com‐
ments
Tempera‐ Shelf po‐
ture (°C)
sition
Tempera‐ Shelf po‐
ture (°C)
sition
200
2
180
2
40 - 50
In a mould
Vegetable 200
flan
2
175
2
45 - 60
In a mould
Quiches1) 180
1
180
1
50 - 60
In a mould
Lasagne1) 180 - 190
2
180 - 190
2
25 - 40
In a mould
Cannello‐
ni1)
2
180 - 190
2
25 - 40
In a mould
Time
(min)
Com‐
ments
Pasta flan
180 - 190
1) Preheat the oven for 10 minutes.
Meat
Food
Top / Bottom Heat
True Fan Cooking
Tempera‐ Shelf po‐
ture (°C)
sition
Tempera‐ Shelf po‐
ture (°C)
sition
Beef
200
2
190
2
50 - 70
On a wire
shelf
Pork
180
2
180
2
90 - 120
On a wire
shelf
Veal
190
2
175
2
90 - 120
On a wire
shelf
English
210
roast beef,
rare
2
200
2
50 - 60
On a wire
shelf
English
210
roast beef,
medium
2
200
2
60 - 70
On a wire
shelf
English
210
roast beef,
well done
2
200
2
70 - 75
On a wire
shelf
Shoulder
of pork
180
2
170
2
120 - 150
With rind
Shin of
pork
180
2
160
2
100 - 120
2 pieces
Lamb
190
2
175
2
110 - 130
Leg
Chicken
220
2
200
2
70 - 85
Whole
Turkey
180
2
160
2
210 - 240
Whole
16
www.electrolux.com
Food
Top / Bottom Heat
True Fan Cooking
Time
(min)
Com‐
ments
Tempera‐ Shelf po‐
ture (°C)
sition
Tempera‐ Shelf po‐
ture (°C)
sition
Duck
175
2
220
2
120 - 150
Whole
Goose
175
2
160
1
150 - 200
Whole
Rabbit
190
2
175
2
60 - 80
Cut in
pieces
Hare
190
2
175
2
150 - 200
Cut in
pieces
Pheasant
190
2
175
2
90 - 120
Whole
Time
(min)
Com‐
ments
Fish
Food
Top / Bottom Heat
True Fan Cooking
Tempera‐ Shelf po‐
ture (°C)
sition
Tempera‐ Shelf po‐
ture (°C)
sition
190
2
175
2
40 - 55
3 - 4 fish
Tuna fish / 190
Salmon
2
175
2
35 - 60
4 - 6 fillets
Trout /
Sea
bream
9.3 Grilling
Set the maximum temperature.
Preheat the oven for 3 minutes.
Use the fourth shelf position.
Food
Quantity
Time (min)
Pieces
Quantity
(kg)
1st side
2nd side
Fillet steaks
4
0.8
12 - 15
12 - 14
Beef steaks
4
0.6
10 - 12
6-8
Sausages
8
-
12 - 15
10 - 12
Pork chops
4
0.6
12 - 16
12 - 14
Chicken (cut in 2)
2
1
30 - 35
25 - 30
Kebabs
4
-
10 - 15
10 - 12
Breast of chicken
4
0.4
12 - 15
12 - 14
Hamburger
6
0.6
20 - 30
-
Fish fillet
4
0.4
12 - 14
10 - 12
ENGLISH
Food
Quantity
Time (min)
Pieces
Quantity
(kg)
1st side
2nd side
Toasted sandwiches
4-6
-
5-7
-
Toast
4-6
-
2-4
2-3
9.4 Turbo Grilling
Veal
Use the first or the second shelf position.
Beef
Preheat the oven.
To calculate the roasting time multiple
the time given in the table below by the
centimetres of thickness of the fillet.
Food
Tempera‐
ture (°C)
Time (min)
Roast veal,
1 kg
160 - 180
90 - 120
Knuckle of
veal, 1.5 - 2
kg
160 - 180
120 - 150
Tempera‐
ture (°C)
Time (min)
Food
Tempera‐
ture (°C)
Time (min)
Roast beef
or fillet, rare
190 - 200
5-6
Food
Roast beef
or fillet, me‐
dium
180 - 190
6-8
Leg of lamb, 150 - 170
roast lamb,
1 - 1.5 kg
100 - 120
Roast beef
or fillet, well
done
170 - 180
8 - 10
Saddle of
160 - 180
lamb, 1 - 1.5
kg
40 - 60
Pork
Lamb
Poultry
Food
Tempera‐
ture (°C)
Time (min)
Food
Tempera‐
ture (°C)
Time (min)
Shoulder,
neck, ham
joint, 1 - 1.5
kg
160 - 180
90 - 120
Poultry por‐
tions, 0.2 0.25 kg
each
200 - 220
30 - 50
Chop, spare 170 - 180
rib, 1 - 1.5
kg
60 - 90
Chicken,
half, 0.4 0.5 kg each
190 - 210
35 - 50
Meat loaf,
0.75 - 1 kg
160 - 170
50 - 60
190 - 210
50 - 70
Pork knuck‐
le (precooked),
0.75 - 1 kg
150 - 170
90 - 120
Chicken,
poulard, 1 1.5 kg
Duck, 1.5 2 kg
180 - 200
80 - 100
Goose, 3.5 - 160 - 180
5 kg
120 - 180
17
18
www.electrolux.com
Food
Tempera‐
ture (°C)
Time (min)
Turkey, 2.5 - 160 - 180
3.5 kg
120 - 150
Turkey, 4 - 6 140 - 160
kg
150 - 240
9.5 Moist Fan Baking
For best results follow
suggestions listed in the
table below.
Fish (steamed)
Food
Tempera‐
ture (°C)
Time (min)
Whole fish,
1 - 1.5 kg
210 - 220
40 - 60
Food
Accessories
Temperature Shelf po‐
(°C)
sition
Time (min)
Sweet rolls, 12
pieces
baking tray or dripping
pan
175
3
40 - 50
Rolls, 9 pieces
baking tray or dripping
pan
180
2
35 - 45
Pizza, frozen,
0.35 kg
wire shelf
180
2
45 - 55
Swiss roll
baking tray or dripping
pan
170
2
30 - 40
Brownie
baking tray or dripping
pan
170
2
45 - 50
Soufflè, 6
pieces
ceramic ramekins on
wire shelf
190
3
45 - 55
Sponge flan
base
flan base tin on wire
shelf
180
2
35 - 45
Victoria Sand‐
wich
baking dish on wire
shelf
170
2
35 - 50
Poached fish,
0.3 kg
baking tray or dripping
pan
180
2
35 - 45
Whole fish, 0.2 baking tray or dripping
kg
pan
180
3
25 - 35
Fish fillet, 0.3
kg
pizza pan on wire shelf
170
3
30 - 40
Poached meat, baking tray or dripping
0.25 kg
pan
180
3
35 - 45
ENGLISH
Food
Accessories
Temperature Shelf po‐
(°C)
sition
Time (min)
Shashlik, 0.5
kg
baking tray or dripping
pan
180
3
40 - 50
Cookies, 16
pieces
baking tray or dripping
pan
150
2
30 - 45
Macaroons, 20 baking tray or dripping
pieces
pan
180
2
45 - 55
Muffins, 12
pieces
baking tray or dripping
pan
170
2
30 - 40
Savory pastry,
16 pieces
baking tray or dripping
pan
170
2
35 - 45
Short crust bis‐ baking tray or dripping
cuits, 20 pieces pan
150
2
40 - 50
Tartlets, 8
pieces
baking tray or dripping
pan
170
2
30 - 40
Poached vege‐ baking tray or dripping
tables, 0.4 kg
pan
180
2
35 - 45
Vegetarian
omelette
pizza pan on wire shelf
180
3
35 - 45
Vegetables,
mediterrean
0.7 kg
baking tray or dripping
pan
180
4
35 - 45
9.6 Drying - True Fan Cooking
Cover trays with grease proof paper or
baking parchment.
and let it cool down for one night to
complete the drying.
For a better result, stop the oven halfway
through the drying time, open the door
Vegetables
For one tray use the third shelf position.
For 2 trays use the first and fourth shelf position.
Food
Temperature (°C)
Time (h)
Beans
60 - 70
6-8
Peppers
60 - 70
5-6
Vegetables for sour
60 - 70
5-6
Mushrooms
50 - 60
6-8
Herbs
40 - 50
2-3
19
20
www.electrolux.com
Fruit
Food
Temperature
(°C)
Time (h)
Plums
60 - 70
Apricots
Shelf position
1 position
2 positions
8 - 10
3
1/4
60 - 70
8 - 10
3
1/4
Apple slices
60 - 70
6-8
3
1/4
Pears
60 - 70
6-9
3
1/4
9.7 Information for test
institutes
Tests according to IEC 60350-1.
Food
Function
Small
cake
Shelf
posi‐
tion
Tem‐
pera‐
ture
(°C)
Time (min)
Comments
Conven‐
Baking
tional Cook‐ tray
ing
3
170
20 - 30
Put 20 small
cakes per one
baking tray.
Small
cake
True Fan
Cooking /
Fan Cook‐
ing
Baking
tray
3
150 160
20 - 35
Put 20 small
cakes per one
baking tray.
Small
cake
True Fan
Cooking /
Fan Cook‐
ing
Baking
tray
2 and
4
150 160
20 - 35
Put 20 small
cakes per one
baking tray.
Apple pie Conven‐
Wire
tional Cook‐ shelf
ing
2
180
70 - 90
Use 2 tins (20
cm diameter), di‐
agonally shifted.
Apple pie True Fan
Cooking /
Fan Cook‐
ing
Wire
shelf
2
160
70 - 90
Use 2 tins (20
cm diameter), di‐
agonally shifted.
Conven‐
Wire
tional Cook‐ shelf
ing
2
170
40 - 50
Use a cake
mould (26 cm di‐
ameter).
Preheat the oven
for 10 minutes.
Fatless‐
ponge
cake
Acces‐
sories
ENGLISH
21
Food
Function
Acces‐
sories
Shelf
posi‐
tion
Tem‐
pera‐
ture
(°C)
Time (min)
Comments
Fatless‐
ponge
cake
True Fan
Cooking /
Fan Cook‐
ing
Wire
shelf
2
160
40 - 50
Use a cake
mould (26 cm di‐
ameter).
Preheat the oven
for 10 minutes.
Fatless‐
ponge
cake
True Fan
Cooking /
Fan Cook‐
ing
Wire
shelf
2 and
4
160
40 - 60
Use a cake
mould (26 cm di‐
ameter). Diago‐
nally shifted.
Preheat the oven
for 10 minutes.
Short
bread
True Fan
Cooking /
Fan Cook‐
ing
Baking
tray
3
140 150
20 - 40
-
Short
bread
True Fan
Cooking /
Fan Cook‐
ing
Baking
tray
2 and
4
140 150
25 - 45
-
Short
bread
Conven‐
Baking
tional Cook‐ tray
ing
3
140 150
25 - 45
-
Toast
4-6
pieces
Grilling
4
max.
2 - 3 minutes Preheat the oven
first side; 2 - 3 for 3 minutes.
minutes sec‐
ond side
Wire
4
shelf and
dripping
pan
max.
20 - 30
Beef bur‐ Grilling
ger
6 pieces,
0.6 kg
Wire
shelf
Put the wire shelf
on the fourth lev‐
el and the drip‐
ping pan on the
third level of the
oven. Turn the
food halfway
through the
cooking time.
Preheat the oven
for 3 minutes.
10. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
10.1 Notes on cleaning
Clean the front of the oven with a soft
cloth with warm water and a mild
cleaning agent.
22
www.electrolux.com
To clean metal surfaces, use a dedicated
cleaning agent.
CAUTION!
Be careful when you remove
the shelf supports. The
catalytic panels are not
attached to the oven walls
and can fall out when you
remove the shelf supports.
Clean the oven interior after each use.
Fat accumulation or other food remains
may result in a fire. The risk is higher for
the grill pan.
Clean all accessories after each use and
let them dry. Use a soft cloth with warm
water and a cleaning agent. Do not clean
the accessories in the dishwasher.
Clean stubborn dirt with a special oven
cleaner. Do not apply oven cleaner on
the catalytic surfaces.
1. Pull the front of the shelf support
away from the side wall. Hold the
rear shelf runners and catalytic panel
in place with the other hand.
If you have nonstick accessories, do not
clean them using aggressive agents,
sharp-edged objects or a dishwasher. It
can cause damage to the nonstick
coating.
Moisture can condense in the oven or on
the door glass panels. To decrease the
condensation, operate the oven for 10
minutes before cooking. Clean the
moisture from the cavity after each use.
2. Pull the rear end of the shelf support
away from the side wall and remove
it.
10.2 Stainless steel or
aluminium ovens
Clean the oven door with a damp cloth or
sponge only. Dry it with a soft cloth.
Do not use steel wool, acids or abrasive
materials as they can damage the oven
surface. Clean the oven control panel
with the same precautions.
10.3 Cleaning the door gasket
Regularly do a check of the door gasket.
The door gasket is around the frame of
the oven cavity. Do not use the oven if
the door gasket is damaged. Contact an
Authorised Service Centre.
1
Install the removed accessories in the
opposite sequence.
The retaining pins on the
telescopic runners must
point to the front.
10.5 Catalytic cleaning
The cavity with a catalytic coating is selfcleaning. It absorbs fat.
Before you turn on the catalytic cleaning:
To clean the door gasket, refer to the
general information about cleaning.
•
•
10.4 Removing the shelf
supports / catalytic panels
•
To clean the oven, remove the shelf
supports / catalytic panels.
2
remove all the accessories .
clean the oven floor with warm water
and mild detergent.
clean the inner door glass with warm
water and soft cloth.
1. Set the function .
2. Set the oven temperature to 250 °C
and let the oven operate for 1 hour.
3. Turn off the oven.
4. When the oven cools down, clean the
cavity with a wet soft cloth.
ENGLISH
23
Spots or discolouration of the catalytic
coating have no effect on Catalytic
cleaning.
10.6 Removing and installing
door
The oven door has two glass panels.
You can remove the oven door and the
internal glass panel to clean it. Read the
whole "Removing and installing door"
instruction before you remove the glass
panels.
The oven door may close if
you try to remove the
internal glass panel before
you remove the oven door.
4. Lift and turn the lever fully on the left
hinge.
CAUTION!
Do not use the oven without
the internal glass panel.
1. Fully open the door and find the
hinge to the right side of the door.
2. Use a screwdriver to lift and turn fully
the right side hinge lever.
5. Close the oven door halfway to the
first opening position. Then lift and
pull forward and remove the door
from its seat.
3. Find the hinge to the left side of the
door.
6. Put the door on a soft cloth on a
stable surface.
24
www.electrolux.com
7. Hold the door trim (B) on the top
edge of the door at the two sides and
push inwards to release the clip seal.
When installed correctly the door trim
clicks.
Make sure that you install the internal
glass panel in the seats correctly.
A
2
B
1
8. Pull the door trim to the front to
remove it.
9. Hold the door glass panel by its top
edge and carefully pull it out. Make
sure the glass slides out of the
supports completely.
10. Clean the glass panels with water
and soap. Dry the glass panels
carefully. Do not clean the glass
panels in the dishwasher.
When the cleaning is completed, install
the glass panel and the oven door.
The screen-printing zone must face the
inner side of the door. Make sure that
after the installation the surface of the
glass panel frame on the screen-printing
zones is not rough when you touch it.
10.7 Replacing the lamp
WARNING!
Risk of electric shock.
The lamp can be hot.
1. Turn off the oven.
Wait until the oven is cooled down.
2. Disconnect the oven from the mains.
3. Put a cloth on the bottom of the
cavity.
CAUTION!
Always hold the halogen
lamp with a cloth to prevent
grease residue from burning
on the lamp.
The back lamp
1. Turn the lamp glass cover to remove
it.
2. Clean the glass cover.
3. Replace the lamp with a suitable 300
°C heat-resistant lamp.
4. Install the glass cover.
11. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
11.1 What to do if...
Problem
Possible cause
Remedy
The oven does not heat
up.
The oven is deactivated.
Activate the oven.
ENGLISH
25
Problem
Possible cause
Remedy
The oven does not heat
up.
The Minute Minder + End
of Cooking programmer is
not set.
Set the Minute Minder +
End of Cooking program‐
mer. Refer to the chapter
"Clock functions".
The oven does not heat
up.
The fuse is blown.
Make sure that the fuse is
the cause of the malfunc‐
tion. If the fuse is blown
again and again, contact a
qualified electrician.
The lamp does not oper‐
ate.
The lamp is defective.
Replace the lamp.
Steam and condensation
settle on the food and in
the cavity of the oven.
You left the dish in the
oven for too long.
Do not leave the dishes in
the oven for longer than 15
- 20 minutes after the
cooking process ends.
11.2 Service data
If you cannot find a solution to the
problem yourself, contact your dealer or
an Authorised Service Centre.
plate is on the front frame of the oven
cavity. Do not remove the rating plate
from the oven cavity.
The necessary data for the service
centre is on the rating plate. The rating
We recommend that you write the data here:
Model (MOD.)
.........................................
Product number (PNC)
.........................................
Serial number (S.N.)
.........................................
12. INSTALLATION
WARNING!
Refer to Safety chapters.
26
www.electrolux.com
12.1 Building In
548
21
min. 550
80
60
520
600
114
18
20
589
594
min. 560
595+-1
198
60
5
3
523
20
548
70
60
21
min. 550
20
520
18
590
114
min. 560
589
594
198
60
595+-1
5
3
523
20
12.2 Securing the appliance to
the cabinet
A
B
12.3 Electrical installation
The manufacturer is not
responsible if you do not
follow the safety precautions
from the Safety chapters.
This appliance is supplied with a main
plug and a main cable.
12.4 Cable
Cable types applicable for installation or
replacement:
H07 RN-F, H05 RN-F, H05 RRF, H05
VV-F, H05 V2V2-F (T90), H05 BB-F
ENGLISH
For the section of the cable refer to the
total power on the rating plate. You can
also refer to the table:
Total power (W)
Section of the ca‐
ble (mm²)
maximum 1380
3 x 0.75
27
Total power (W)
Section of the ca‐
ble (mm²)
maximum 2300
3x1
maximum 3680
3 x 1.5
The earth cord (green / yellow cable)
must be 2 cm longer than phase and
neutral cables (blue and brown cables).
13. TECHNICAL DATA
13.1 Technical data
Voltage
220 - 240 V
Frequency
50 / 60 Hz
14. ENERGY EFFICIENCY
14.1 Energy saving
the duration of the cooking. The residual
heat inside the oven will continue to
cook.
The oven contains features
which help you save energy
during everyday cooking.
Use the residual heat to warm up other
dishes.
General hints
Make sure that the oven door is closed
properly when the oven operates. Do not
open the door too often during cooking.
Keep the door gasket clean and make
sure it is well fixed in its position.
Use metal dishes to improve energy
saving.
When possible, do not preheat the oven
before you put the food inside.
When the cooking duration is longer than
30 minutes, reduce the oven temperature
to minimum 3 - 10 minutes before the
end of the cooking time, depending on
Keep breaks between baking as short as
possible when you prepare few dishes at
one time.
Cooking with fan
When possible, use the cooking
functions with fan to save energy.
Keep food warm
Choose the lowest possible temperature
setting to use residual heat and keep a
meal warm.
Moist Fan Baking
Function designed to save energy during
cooking.
15. ENVIRONMENTAL CONCERNS
Recycle materials with the symbol .
Put the packaging in relevant containers
to recycle it. Help protect the
environment and human health by
recycling waste of electrical and
electronic appliances. Do not dispose of
*
appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
867348850-A-292018
www.electrolux.com/shop
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
