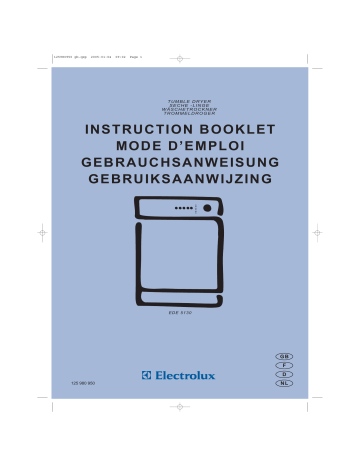

T U M B L E D RY E R
SECHE -LINGE
WÄSCHETROCKNER
TROMMELDROGER
INSTRUCTION BOOKLET
MODE D’EMPLOI
GEBRAUCHSANWEISUNG
GEBRUIKSAANWIJZING
EDE 5130
GB
F
D
125 980 950
NL
125980950 gb.qxp
2005-01-04
09:02
Page 2
Dear customer,
Please read these operating instructions carefully and pay particular attention to the safety notes indicated in
the first pages.
We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.
Transport damages
After unpacking the machine please check it is not damaged. If in doubt, do not start it but contact your local
Service Centre.
The symbols you will see on some paragraphs of this booklet have the following meaning:
The warning triangle emphasize information that is particularly important for your safety or correct
functioning of the appliance.
The information marked with this symbol provides additional instructions and practical tips on the use of
the appliance.
Tips and information about economical and ecological use of the machine are marked with this symbol.
Our contribution to the protection of the
environment: we use recycled paper.
2
125980950 gb.qxp
2005-01-04
09:02
Page 3
Important safety information ............4
Maintenance and Cleaning................13
External cleaning ................................................13
Disposal ............................................................5
Tips for environmental protection
Cleaning the door................................................13
Cleaning the filters ..............................................13
5
Something not working? ....................14
Description of the appliance ..............6
Installation ......................................................7
Unpacking ............................................................7
Positioning ............................................................7
Fitting the vent hose ..........................................7-8
Electrical connection ............................................8
Stacking kit............................................................8
Door reversal ........................................................8
Use ........................................................................9
The control panel ..................................................9
Drying times ........................................................10
Operating sequence............................................11
Useful hints ........................................................12
Technical specifications
DIMENSIONS:
Height
Width
Depth
85 cm
60 cm
58 cm
ELECTRICAL CONNECTION:
MAX. POWER ABSORBED:
MIN. FUSE RATING:
220/230 V/50 Hz
2600 W
16 A
MAX. DRYING CAPACITY:
Cotton, linen
Synthetics
5 kg
2.5 kg
CONSUMPTION:
Cotton, linen
Cotton, linen
3.3 kWh (5 kg store dry)
2.7 kWh (5 kg iron dry)
This appliance complies with the following E.E.C. Directives:
- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.
3
ENGLISH
Contents
125980950 gb.qxp
2005-01-04
09:02
Page 4
Important safety information
These warnings have been provided in the interest of safety. You MUST read them carefully before installing or
using the appliance.
Installation
General safety
• Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
• It is dangerous to alter the specifications or attempt
to modify this product in any way.
• Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out by
inexperienced persons may cause injury or serious
malfunctioning. Contact your local Zanussi Service
Centre. Always insist on genuine Zanussi spare
parts.
• Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
• If the machine is situated on a carpeted floor,
please adjust the feet in order to allow air to
circulate freely.
• This tumble dryer is designed to be vented through
to the open air. It should have its own ventilation
system which should not be joined with any other
ventilation system connected to any other
appliance.
Child safety
• Children are often not aware of how dangerous
electrical appliances can be. When the machine is
working, children should be carefully supervised
and not be allowed to play with the appliance.
Use
• The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children - danger
of suffocation! Keep them out of children’s reach.
• This appliance is designed for domestic use only. If
the machine is used for any other purposes or is
not used correctly, the manufacturer accepts no
responsibility for any damage that might occur.
• Make sure that children or pets do not climb into
the drum.
• When the appliance is to be scrapped, cut off the
electrical supply cable and destroy the plug with
the remaining cable. Disable the door catch in
order to prevent children from becoming trapped
inside while playing.
• Always unplug the appliance after use.
• Clothes which are dripping wet should not be
placed in the dryer.
• Danger of explosion: Never tumble dry items that
have been in contact with inflammable solvents
(petrol, methylated spirits, dry cleaning fluid and
the like). As these substances are volatile, they
could cause an explosion. Tumble dry only items
washed with water.
• Risk of fire: items that have been spotted or soaked with
vegetable or cooking oil constitute a fire hazard and
should not be placed in the tumble dryer.
• If you have washed your laundry with stain
remover you must execute an extra rinse cycle
before loading your tumble dryer.
• Please make sure that no gas lighters have
accidentally been left in pockets of garments to be
loaded into appliance.
• Do not dry canvas shoes or sports shoes, as they
could get stuck between the door and the drum,
thus blocking this latter.
• Leave the door slightly ajar when the appliance is
not being used. This will allow the seal to be
preserved.
• Clean fluff filters after using the tumble dryer. To
prevent fire risks, do not use the appliance if the
fluff filters are damaged or without filters.
• Do not allow fluff to accumulate around the dryer.
4
125980950 gb.qxp
2005-01-04
09:02
Page 5
• Packaging materials
The materials marked with the symbol
recyclable.
• Machine
are
Use authorised disposal sites for your old appliance.
Help to keep your country tidy!
This means that they can be recycled by disposing of
them properly in appropriate collection containers.
Tips for environmental protection
• To utilize the maximum load, laundry which is to be
dried ready to put away (store dry) can be dried
together with items to be ironed. To do this, select
the time for iron-dry, remove the iron-dry items at
the end of the programme and then finish-dry the
rest of the load.
To save energy and to help protect the environment,
we recommend that you follow these hints:
• Try to load the maximum capacity of the machine
as small loads are uneconomical.
• Always load well spun laundry. The higher the spin
speed, the lower the electricity consumption and
the shorter the drying times.
• Clean the filters regularly to avoid excessive drying
times and high electricity consumption.
• Do not over-dry laundry, this avoids creasing and
saves energy.
Select the drying programme according to the type
of laundry and the required degree of dryness.
• Ventilate the room well. The room temperature
should not exceed +35°C during drying.
5
ENGLISH
Disposal
125980950 gb.qxp
2005-01-04
09:02
Page 6
Description of the appliance
01 Control panel
02 Fluff filters
03 Rating Plate
1
04 Adjustable feet
2
3
2
4
05 Side vent outlets
06 Ring nut
07 Rear vent outlet
7
6
5
6
125980950 gb.qxp
2005-01-04
09:02
Page 7
Warning!
The feet must never be removed.
Do not restrict the floor clearance through deeppile carpets, strips of wood or similar. This might
cause heat build-up which would interfere with
the operation of the appliance.
Unpacking
Slide out the polythene bag with the
polystyrene stuffing before using the appliance
Pull off adhesive strips from inside machine on
top of drum.
Important
When operating the tumble dryer, the room
temperature must not exceed 35°C, as it may affect
the performance of the appliance.
Fitting the vent hose
To simplify the installation, there is a choice of vent
outlets: one at the back, the others in the left and
right-hand side.
Connect the hose to whichever is the more
convenient by pulling the ring nut (A) from the vent
outlet at the back, screwing it on to the hose and
pushing it firmly back into place.
The unused vents should now be sealed with the
special snap covers provided.
P1106
Positioning
A
It is recommended that, for your convenience, the
machine is positioned close to your washing machine.
Whilst drying, the tumble dryer will expel a certain amount
of warm, very moist air, and this should be removed from
the room as quickly as possible to prevent condensation.
In an extremely well ventilated room or close to an open
window, this may occur naturally.
However, in general, it is better to carry the dryer's
exhaust outside via the 100 mm diameter flexible hose
supplied with the appliance; ending either temporarily at
an open window, or permanently at a fixed ventilation
grille, fitted to an exterior wall or window.
The tumble dryer must be installed in a clean place,
where dirt does not build up.
Make sure there are no obstructing items or material
near the air-intake louvres provided at
the back (e.g. paper, rags etc.).
P1028
A
P1027
Advice: If the hose is long and the room
temperature low, the moisture might condense to
water inside the hose. This is an unavoidable
natural phenomenon. To prevent this water from
Iying in the hose or flowing back into the tumble
dryer, it is advisable to drill a small hole (dia.
3 mm) in the lowest point of the hose and to place a
small container below it.(See picture, point B).
To keep vibration and noise to a minimum when the
dryer is in use, it should be placed on a firm, level
surface.
Once in its permanent operating position, check that
the dryer is absolutely level with the aid of a spirit
level. If it is not, raise or lower the feet until it is.
P1056
P0046
7
B
ENGLISH
Installation
125980950 gb.qxp
2005-01-04
09:02
Page 8
Electrical connection
Once connected to the dryer, run the vent hose to
the desired outlet point, ensuring that the run’s
overall length is less than 2 m, and that it contains no
more than two bends. As to the outlet itself, if you
have decided on a fixed wall/window grille, a good
local builder’s merchant should be able to supply you
with the necessary fittings and installation advice.
This machine is designed to operate on a 220-230 V,
single-phase, 50 Hz supply.
Check that your domestic electrical installation can
take the maximum load required (2.6 kW), also
taking into account any other appliances in use.
Connect the machine to an earthed socket, in
accordance with current wiring regulations.
It is important not to connect the vent
hose to, for example, a cooker hood, or
a chimney or flue pipe designed to carry
the exhaust from a fuel burning
appliance.
The manufacturer declines any
responsibility for damage or injury
through failure to comply with the
above safety precaution.
Stacking kit
A special stacking kit is available through your
dealer, to enable the mounting of the dryer on top of
your washing machine.
P0055
Note that to avoid condensation problems, it is
essential that the dryer be fitted with the flexible hose
to carry its “exhaust” at least beyond the kitchen
units; preferable outside the kitchen.
P1107
In order to prevent the appliance from overheating, it
is important that the steam exhaust is unobstructed.
Therefore, in case of a permanent hose fitted to an
exterior wall or ceiling, it must be ensured an
exhaust capacity of at least 150 m3/h.
Door reversal
To make it easier to load or unload the laundry the
door can be reversed.
This operation must be carried out by qualified
personnel.
If the dryer is fitted next to kitchen units, make
sure that the vent hose is not squashed. If the
hose is partially squashed, drying efficiency will
be reduced, resulting in longer drying times and
higher energy consumption.
Please contact the nearest Zanussi Service Centre.
If the hose is completely squashed, the safety
cut-outs with which the machine is fitted may
operate.
8
125980950 gb.qxp
2005-01-04
09:02
Page 9
ENGLISH
Use
The control panel
1
2 3
4 5 6
7
1 Programme chart
6 Start button - “START
This will help you to select the correct programme for
drying.
2 Mains-ON light
After selecting the drying time press this button to
start the programme.
If the door is opened during drying or during a power
cut, this button has to be depressed again after
closing the door to allow the programme to continue.
Comes on when the appliance is switched on
(ON/OFF button - “AAN/UIT” pressed down) and
goes out when this button is released.
7 Drying Time Selector Dial
The selector dial incorporates two drying cycles, one
of up to 150 minutes at a high temperature for cotton
and linen, and one of up to 100 minutes at a low
temperature for synthetic fabrics.
3 ON/OFF button - “AAN/UIT”
This button is used to switch the dryer on. At the end
of the programme, release this button by pressing it
again to switch the dryer off.
To set the machine to the selected time, turn the dial
clockwise until the time you want coincides exactly
with the pointer.
NEVER attempt to turn the dial in an anticlockwise
direction.
4 Low temperature button - “LAGE
TEMP.”
When selecting the drying time, you should
remember that it includes a 10 minute cooling phase
(position
on the dial).
This phase should not be shortened, stopped or
avoided, as this could cause skin burns or damages
to the laundry.
Pressing this button allows drying to be performed at
a lower temperature, for delicate items.
The corresponding pilot light comes on.
5 Cool Tumbling Button
“AFKOELEN”
Additional drying
If at the end of the programme, the laundry is still too
dump, set the dial for a further period of drying
(remembering to take into account the cooling
period).
By pressing this button the heat is cut off. This is
particularly useful to freshen the laundry (e.g. to
remove a persistent odour of moth-balls) or to dry
particularly delicate items.
In this case, you should select a longer drying time.
9
125980950 gb.qxp
2005-01-04
09:02
Page 10
Drying Times
Cotton
Selector dial: up to 150 minutes
Degree of drying required
Quantity
kg
Drying times
mins
800/1000
5
2.5
065 - 90
035 - 55
1200/1400
5
2.5
055 - 75
025 - 45
800/1000
5
2.5
075 - 100
045 - 65
1200/1400
5
2.5
065 - 85
035 - 50
Quantity
kg
Drying times
mins
2.5
25 - 35
1
15 - 20
2.5
20 - 30
Degree of spin given
rpm
Iron dry
Store dry
Synthetics
Selector dial: up to 100 minutes
Degree of drying required
Degree of spin given
rpm
Store dry
800
Iron dry
650
Never overfill the drum (do not load large quilts, for example).
The laundry must be suitably spun in your washing machine before being placed in the tumble dryer (500rpm
minimum).
Drying times vary according to:
- The type of laundry
- The size of the load
- The degree of spinning prior to drying
Drying times are given as a guide only. Experience will soon enable you to estimate the drying time needed for
your usual laundry loads.
Do not start by selecting a long drying time. It is better to determine the required degree of dryness by gradually
increasing the drying time.
For a mixed load (cotton and resistant synthetics, for example) select the time for the most delicate fibres and
increase it by 10 mins.
10
2005-01-04
09:02
Page 11
After each use
Operating sequence
• Switch the appliance off by releasing the ON/OFF
button “AAN/UIT”:. The mains-ON light goes out.
Before starting up for the first time it is advisable lo
load a few moist cloths into the dryer and to let it run
for about 20 minutes. This ensures that no dust and
dirt is left in the drum.
• Clean the filters (see page 13).
Drying:
Open the door.
Load the items one at a time, shaking them out
loosely and close the door.
Please check the laundry does not get caught
between the door and filter.
P1104
P1108
Press the ON/OFF button “AAN/UIT”: the mains-ON
light comes on.
Depress button “LAGE TEMP.” or “AFKOELEN” if
required.
Turn the selector dial clockwise to the desired time,
in the high or low temperature section, depending on
the laundry.
Depress Start-button , the machine starts operating.
The machine stops automatically at the end of drying
programme.
If the laundry is still too damp, select a further brief
drying time, bearing in mind that during the last 10
minutes the dryer carries out the cooling and anticrease treatment phase.
11
ENGLISH
125980950 gb.qxp
125980950 gb.qxp
2005-01-04
09:02
Page 12
• Avoid drying dark clothes with light coloured fluffy
items such as towels as they could attract the fluff.
Useful hints
• Try to load to the maximum capacity of the
machine as small loads are uneconomical.
For information, here is a list of the average
weights of some common laundry items.
Sheet
• Easy-care items, too, e.g. shirts, should be briefly
pre-spun before drying (depending on crease
resistance approx. 30 seconds or using the special
brief spin programme of your washing machine).
700 - 1000 g
Tablecloth
• Knitted textiles (knitted underwear) may shrink a
little during drying. Please do not overdry items of
this type. It is advisable to allow for shrinkage
when choosing the size of new purchases.
400 - 500 g
Kitchen towel
70 - 120 g
Table napkin
50 - 100 g
Towelling hand towel
Bathrobe
• The laundry must be thoroughly spun before
tumble drying.
• You can also put starched items into your dryer.
However, to achieve the desired starched effect,
choose the programme “iron dry”. To remove any
starch residues, wipe out the internal drum after
drying with a moist cloth and then rub it dry.
150 - 250 g
1000 - 1500 g
Man’s shirt
200 - 300 g
Pillowcase
100 - 200 g
Man’s pyjamas
400 - 500 g
Ladies’ nightdress
200 - 250 g
• To avoid a static charge when drying is completed,
use either a fabric softener when you are washing
the laundry or a fabric conditioner specifically for
tumble dryers.
• Remove the laundry when the dryer has finished
drying.
• If individual items are still damp after drying, set a
brief post-drying time, but at least 20 minutes.
This will be necessary particularly for multilayered
items (e.g. collars, pockets, etc.).
• Never tumble dry the following:
Particularly delicate items such as net curtains,
woollen, silk, fabrics with metal trim, nylon tights,
bulky materials such as anoraks, blankets,
eiderdowns, sleeping bags, feather quilts and any
items containing rubber foam or materials similar
to rubber foam.
• Always follow the instructions on garment labels:
may be tumble dried
normal drying (high temperature)
delicate drying (low temperature)
do not tumble dry
• Close pillowcases and covers with fasteners to
prevent small laundry items getting tangled inside
them. Close press studs, zips and hooks and tie
belts and apron strings.
• Sort laundry according to type and degree of
drying required.
• Do not over-dry laundry, this avoids creasing and
saves energy.
12
125980950 gb.qxp
2005-01-04
09:02
Page 13
You must disconnect the appliance from the
electricity supply, before you can carry out any
cleaning or maintenance work.
If necessary the filters can be cleaned under running
water using a brush. In this case remove the filter in
the door opening as per picture (it can be positioned
with the tooth facing to the left or to the right).
External cleaning
650
800 /
kg 5
kg 2,5
900
70' - 90'
35' - 50'
1000 /
1200
65' - 85'
30' - 45'
Use only soap and water and then dry thoroughly.
Important: do not use methylated spirit, diluents or
similar products.
Cleaning the door
P1112
Clean periodically the interior part of the door to
remove any fluff from the seals around the filter.
Accurate cleaning ensures correct drying.
650
800 /
kg 5
kg 2,5
900
70' - 90'
35' - 50'
1000 /
1200
65' - 85'
30' - 45'
800 /
900
80' - 100'
70'
55' -
1000 /
1200
75' - 95'
50' - 65'
kg 2,5
kg 1
50' - 60'
30' - 35'
E
R S
V E
R E
T O
A U
P1109
Cleaning the filters
Your dryer will only function well if the filters are
clean.
The filters collect all the fluff which accumulates
during drying and they must therefore be cleaned at
the end of each programme, before removing the
laundry, with a damp cloth.
650
800 /
kg 5
kg 2,5
P1110
900
70' - 90'
35' - 50'
1000 /
1200
65' - 85'
30' - 45'
800 /
900
80' - 100'
70'
55' -
1000 /
1200
75' - 95'
50' - 65'
kg 2,5
kg 1
50' - 60'
30' - 35'
E
R S
V E
R E
T O
A U
P1111
The filter in the inner door must be removed for
cleaning.
Do not be alarmed by the amount of fluff. It is not
due to excessive wear caused by the dryer. All fabric
loses fluff when drying but it goes un-noticed in the
air. In a tumble dryer it simply collects in the filter.
13
800 /
900
80' - 100'
70'
55' -
1000 /
1200
75' - 95'
50' - 65'
kg 2,5
kg 1
50' - 60'
30' - 35'
E
R S
V E
R E
T O
A U
ENGLISH
Maintenance and Cleaning
125980950 gb.qxp
2005-01-04
09:02
Page 14
Something not working?
Before contacting your local Electrolux Service Centre, please make the following checks:
Problem
Possible cause
• The door is open.
• The dryer does not work:
• The plug is not fitted into the wall socket.
• There is no electricity supply from the wall socket.
• The selector dial is not set correctly.
• The start button has not been depressed.
• The filters are clogged.
• The dryer does not dry properly:
• Insufficient drying time.
• The selected cycle is not suitable for the laundry.
• The laundry has not been spun properly.
• The Low Temperature -”LAGE TEMP.” or the Cool
Tumbling - “AFKOELEN” button has been pressed.
• Excessive laundry load.
• The dryer is not correctly installed.
If, after the above checks, there is still a fault, call
your local Electrolux Service Centre.
Please make sure you give the model and serial
number of the appliance.
This information can be found on the rating plate
(see picture on page 6).
14
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
