125980962 -gb.qxp
4/5/2006
1:25 PM
Page 1

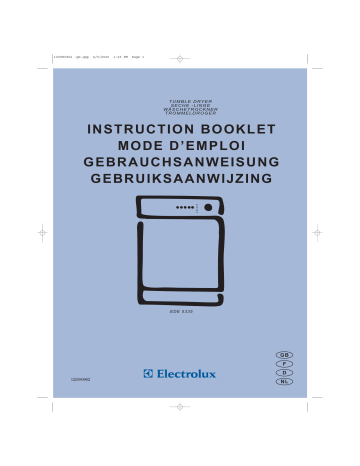

T U M B L E D RY E R
SECHE -LINGE
WÄSCHETROCKNER
TROMMELDROGER
INSTRUCTION BOOKLET
MODE D’EMPLOI
GEBRAUCHSANWEISUNG
GEBRUIKSAANWIJZING
EDE 5335
GB
F
D
125980962
NL
125980962 -gb.qxp
4/5/2006
1:25 PM
Page 2
Dear customer,
Please read these operating instructions carefully and pay particular attention to the safety notes indicated in
the first pages.
We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.
Transport damages
After unpacking the machine please check it is not damaged. If in doubt, do not start it but contact your local
Service Centre.
The symbols you will see on some paragraphs of this booklet have the following meaning:
The warning triangle emphasize information that is particularly important for your safety or correct
functioning of the appliance.
The information marked with this symbol provides additional instructions and practical tips on the use of
the appliance.
Tips and information about economical and ecological use of the machine are marked with this symbol.
Our contribution to the protection of the
environment: we use recycled paper.
2
125980962 -gb.qxp
4/5/2006
1:25 PM
Page 3
Important safety information ............4
Maintenance and Cleaning................14
External cleaning ................................................14
Disposal ............................................................5
Tips for environmental protection
Cleaning the door................................................14
Cleaning the filters ..............................................14
5
Something not working? ....................15
Description of the appliance ..............6
Installation ......................................................7
Unpacking ............................................................7
Positioning ............................................................7
Fitting the vent hose ..........................................7-8
Electrical connection ............................................8
Stacking kit............................................................8
Door reversal ........................................................8
Use ........................................................................9
The control panel ............................................9-10
Programme chart ................................................11
Operating sequence............................................12
Useful hints ........................................................13
Technical specifications
DIMENSIONS:
Height
Width
Depth
85 cm
60 cm
58 cm
ELECTRICAL CONNECTION:
MAX. POWER ABSORBED:
MIN. FUSE RATING:
220/230 V/50 Hz
2600 W
16 A
MAX. DRYING CAPACITY:
Cotton, linen
Synthetics
6 kg
3 kg
CONSUMPTION:
Cotton, linen
Cotton, linen
3.3 kWh (6 kg store dry)
2.6 kWh (6 kg iron dry)
This appliance complies with the following E.E.C. Directives:
- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.
3
ENGLISH
Contents
125980962 -gb.qxp
4/5/2006
1:25 PM
Page 4
Important safety information
These warnings have been provided in the interest of safety. You MUST read them carefully before installing or
using the appliance.
prevent fire risks, do not use the appliance if the
fluff filters are damaged or without filters.
Installation
• Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
• Do not allow fluff to accumulate around the dryer.
General safety
• Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
• It is dangerous to alter the specifications or attempt
to modify this product in any way.
• If the machine is situated on a carpeted floor,
please adjust the feet in order to allow air to
circulate freely.
• Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out by
inexperienced persons may cause injury or serious
malfunctioning. Contact your local Zanussi Service
Centre. Always insist on genuine Zanussi spare
parts.
• This tumble dryer is designed to be vented through
to the open air. It should have its own ventilation
system which should not be joined with any other
ventilation system connected to any other
appliance.
Child safety
Use
• Children are often not aware of how dangerous
electrical appliances can be. When the machine is
working, children should be carefully supervised
and not be allowed to play with the appliance.
• This appliance is designed for domestic use only. If
the machine is used for any other purposes or is
not used correctly, the manufacturer accepts no
responsibility for any damage that might occur.
• The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children - danger
of suffocation! Keep them out of children’s reach.
• Always unplug the appliance after use.
• Clothes which are dripping wet should not be
placed in the dryer.
• Make sure that children or pets do not climb into
the drum.
• Danger of explosion: Never tumble dry items that
have been in contact with inflammable solvents
(petrol, methylated spirits, dry cleaning fluid and
the like). As these substances are volatile, they
could cause an explosion. Tumble dry only items
washed with water.
• When the appliance is to be scrapped, cut off the
electrical supply cable and destroy the plug with
the remaining cable. Disable the door catch in
order to prevent children from becoming trapped
inside while playing.
• Risk of fire: items that have been spotted or
soaked with vegetable or cooking oil constitute a
fire hazard and should not be placed in the tumble
dryer.
• If you have washed your laundry with stain
remover you must execute an extra rinse cycle
before loading your tumble dryer.
• Please make sure that no gas lighters have
accidentally been left in pockets of garments to be
loaded into appliance.
• Do not dry canvas shoes or sports shoes, as they
could get stuck between the door and the drum,
thus blocking this latter.
• Leave the door slightly ajar when the appliance is
not being used. This will allow the seal to be
preserved.
• Clean fluff filters after using the tumble dryer. To
4
125980962 -gb.qxp
4/5/2006
1:26 PM
Page 5
• Packaging materials
The materials marked with the symbol
recyclable.
The symbol
on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it shall be handed over to
the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help
prevent potential negative consequences for the
environment and human health, which could
otherwise be caused by in appropriate waste
handling of this product. For more detailed
information about recycling of this product, please
contact your local city office, your household waste
disposal service or the shop where you purchased
the product.
are
This means that they can be recycled by disposing
of them properly in appropriate collection
containers.
• Machine
Use authorised disposal sites for your old appliance.
Help to keep your country tidy!
Tips for environmental protection
• To utilize the maximum load, laundry which is to be
dried ready to put away (store dry) can be dried
together with items to be ironed. To do this, select
the programme for iron-dry, remove the iron-dry
items at the end of the programme and then finishdry the rest of the load.
To save energy and to help protect the environment,
we recommend that you follow these hints:
• Try to load the maximum capacity of the machine
as small loads are uneconomical.
• Always load well spun laundry. The higher the spin
speed, the lower the electricity consumption and
the shorter the drying times.
• Clean the filters regularly to avoid excessive drying
times and high electricity consumption.
• Do not over-dry laundry, this avoids creasing and
saves energy.
Select the drying programme according to the type
of laundry and the required degree of dryness.
• Ventilate the room well. The room temperature
should not exceed +35°C during drying.
5
ENGLISH
Disposal
125980962 -gb.qxp
4/5/2006
1:26 PM
Page 6
Description of the appliance
01 Control panel
02 Fluff filters
03 Rating Plate
04 Adjustable feet
1
2
3
2
4
05 Side vent outlets
06 Ring nut
07 Rear vent outlet
7
6
5
6
125980962 -gb.qxp
4/5/2006
1:26 PM
Page 7
Warning!
The feet must never be removed.
Do not restrict the floor clearance through deeppile carpets, strips of wood or similar. This might
cause heat build-up which would interfere with
the operation of the appliance.
Unpacking
Slide out the polythene bag with the
polystyrene stuffing before using the appliance
Pull off adhesive strips from inside machine on
top of drum.
Important
When operating the tumble dryer, the room
temperature must not exceed 35°C, as it may affect
the performance of the appliance.
Fitting the vent hose
To simplify the installation, there is a choice of vent
outlets: one at the back, the others in the left and
right-hand side.
Connect the hose to whichever is the more
convenient by pulling the ring nut (A) from the vent
outlet at the back, screwing it on to the hose and
pushing it firmly back into place.
The unused vents should now be sealed with the
special snap covers provided.
P1106
Positioning
A
It is recommended that, for your convenience, the
machine is positioned close to your washing machine.
Whilst drying, the tumble dryer will expel a certain amount
of warm, very moist air, and this should be removed from
the room as quickly as possible to prevent condensation.
In an extremely well ventilated room or close to an open
window, this may occur naturally.
However, in general, it is better to carry the dryer's
exhaust outside via the 100 mm diameter flexible hose
supplied with the appliance; ending either temporarily at
an open window, or permanently at a fixed ventilation
grille, fitted to an exterior wall or window.
The tumble dryer must be installed in a clean place,
where dirt does not build up.
Make sure there are no obstructing items or material
near the air-intake louvres provided at
the back (e.g. paper, rags etc.).
P1028
A
P1027
Advice: If the hose is long and the room
temperature low, the moisture might condense to
water inside the hose. This is an unavoidable
natural phenomenon. To prevent this water from
Iying in the hose or flowing back into the tumble
dryer, it is advisable to drill a small hole (dia.
3 mm) in the lowest point of the hose and to place a
small container below it.(See picture, point B).
To keep vibration and noise to a minimum when the
dryer is in use, it should be placed on a firm, level
surface.
Once in its permanent operating position, check that
the dryer is absolutely level with the aid of a spirit
level. If it is not, raise or lower the feet until it is.
P1056
P0046
7
B
ENGLISH
Installation
125980962 -gb.qxp
4/5/2006
1:26 PM
Page 8
Electrical connection
Once connected to the dryer, run the vent hose to
the desired outlet point, ensuring that the run’s
overall length is less than 2 m, and that it contains no
more than two bends. As to the outlet itself, if you
have decided on a fixed wall/window grille, a good
local builder’s merchant should be able to supply you
with the necessary fittings and installation advice.
This machine is designed to operate on a 220-230 V,
single-phase, 50 Hz supply.
Check that your domestic electrical installation can
take the maximum load required, also taking into
account any other appliances in use.
Connect the machine to an earthed socket, in
accordance with current wiring regulations.
It is important not to connect the vent
hose to, for example, a cooker hood, or
a chimney or flue pipe designed to carry
the exhaust from a fuel burning
appliance.
The manufacturer declines any
responsibility for damage or injury
through failure to comply with the
above safety precaution.
The plug must still be accessible after the
appliance has been installed.
Stacking kit
A special stacking kit is available through your
dealer, to enable the mounting of the dryer on top of
your washing machine.
P0055
Note that to avoid condensation problems, it is
essential that the dryer be fitted with the flexible hose
to carry its “exhaust” at least beyond the kitchen
units; preferable outside the kitchen.
In order to prevent the appliance from overheating, it
is important that the steam exhaust is unobstructed.
Therefore, in case of a permanent hose fitted to an
exterior wall or ceiling, it must be ensured an
exhaust capacity of at least 150 m3/h.
P1107
If the dryer is fitted next to kitchen units, make
sure that the vent hose is not squashed. If the
hose is partially squashed, drying efficiency will
be reduced, resulting in longer drying times and
higher energy consumption.
Door reversal
To make it easier to load or unload the laundry the
door can be reversed.
This operation must be carried out by qualified
personnel.
If the hose is completely squashed, the safety
cut-outs with which the machine is fitted may
operate.
Please contact the nearest Electrolux Service
Centre.
8
125980962 -gb.qxp
4/5/2006
1:26 PM
Page 9
ENGLISH
Use
The control panel
1 Programme chart
6 Start button - “START”
This will help you to select the correct programme for
drying.
Press this button for about 2 seconds to start the
dryer after having selected the programme.
If the door is opened while the programme is
running, this button must be pressed again after
closing the door in order to restart the programme
from the point at which it was interrupted.
This button must also be pressed after a power cut.
In both cases light
or
(depending on the
phase in progress) flashes to remind you that the
start button needs to be pressed again.
2 Mains-ON light
Comes on when the appliance is switched on
(ON/OFF button - “AAN/UIT” pressed down) and
goes out when this button is released.
3 ON/OFF button - “AAN/UIT”
This button is used to switch the dryer on. At the end
of the programme, release this button by pressing it
again to switch the dryer off.
7 Programme phase indicator lights
4 Low temperature button - “LAGE
TEMP.”
“Drying” light
These lights indicate the various phases of the
programme as they are being performed.
This light indicates that the appliance is in the drying
phase.
Pressing this button allows drying to be performed at
a lower temperature, for delicate items.
The corresponding pilot light comes on.
“Cooling” light
This light indicates that the appliance is in the
cooling phase. At the end of drying, there is a 10
minute cooling phase to cool the laundry.
5 Buzzer OFF button - “ZOEMER UIT”
If light
or
is flashing, this means that the Start
button needs to be pressed again for the programme
to resume.
A buzzer sounds during the anti-creasing phase.
Press this button when selecting the programme if
you wish to switch the buzzer off. The corresponding
light illuminates.
“End of programme” light
This light flashes at the end of the cooling phase and
during the anti-creasing phase.
9
125980962 -gb.qxp
4/5/2006
1:26 PM
Page 10
“Anti-creasing phase” light
This light flashes alternately with the light
at the
end of the drying phase (after cooling) and during the
anti-creasing phase.
If only light
flashes, this means that the anticreasing phase has finished.
8 Programme/Time selector dial
Allows you to select electronically controlled or time
controlled drying.
Turn the dial to the required programme or time.
Electronically controlled drying
(automatic)
The appliance runs these programmes with the help
of probes which detect the degree of dampness of
the laundry.
Simply select the programme according to the type
of laundry and degree of drying required.
Time controlled drying
Can be used to finish off drying if necessary.
Select the 60 minute programme for cottons or the
30 minute programme for synthetics.
To cancel a programme which is running, turn the
programme selector dial to “0”.
At the end of drying, turn the selector dial to “0”
before removing the laundry.
10
125980962 -gb.qxp
4/5/2006
1:26 PM
Page 11
Programme chart
Degree of drying
required
Type of laundry
Max-load (1)
Cotton & linen
extra dry
ready to wear
store dry
slightly damp
iron dry
machine iron dry
6 kg
6 kg
6 kg
6 kg
6 kg
6 kg
Synthetics
extra dry
store dry
iron dry
3 kg
3 kg
3 kg
Jumpers
Baby cycle
2 kg
Jackets, trousers,
dresses, skirts.
Dry fresh
1 - 4 garments
Programme
Extra droog
Sterkdroog
Kastdroog (*)
Strijkdroog +
Strijkdroog (*)
Mangeldroog
A
B
C
D
E
F
Extra droog
Kastdroog (*)
Strijkdroog
G
H
J
K
Baby
L
Verfrissen
(*) According to CEI 1121 Standards.
• Baby cycle “Baby” is a special programme for jumpers to be dried “ready to wear”.
• Dry fresh “Verfrissen” is designed to clean and freshen garments labelled “dry clean only” at home, in your
tumble dryer, using the special product available on the market.
Time controlled drying
Drying time
Max-load (1)
Programme
selector dial position
Cotton
90 min
6 kg
90’
Cotton
60 min
6 kg
60’
Synthetics
30 min
3 kg
30’
Type of laundry
(1) Never overfill the drum (do not load large quilts, for example).
Drying times vary according to:
• The type of laundry
• The size of the load
• The degree of spinning prior to drying.
Fresh & Cool - “Afkoelen”
This position on programme selector dial can be used to freshen the laundry (e.g. to remove a persistent odour
of moth-balls).
Load
It is often difficult to estimate the weight of items to be dried. We therefore recommend that you adopt the
following guidelines:
• cotton, linen: drum full but not too tightly packed;
• synthetics: drum no more than half full;
• delicate fabrics: drum no more than one third full.
11
ENGLISH
Automatic drying (electronic programmes)
125980962 -gb.qxp
4/5/2006
1:26 PM
Page 12
Turn the programme selector dial to “0”; light
goes out.
Operating sequence
Before using your tumble dryer for the first time, we
recommend to place a few damp cloths inside the
appliance and dry for 30 minutes.
There may be dust inside a brand new tumble dryer.
Release the ON/OFF button ON/OFF button
(“AAN/UIT”) (the mains-ON light goes out) and
immediately remove the laundry.
After each use
Drying
• Turn the programme selector dial to “0”.
1. Connect the appliance.
• Switch the appliance off by releasing the ON/OFF
button (“AAN/UIT”). The mains-ON light goes out.
2. Open the door.
• Clean the filters (see page 14).
Important!
If the drying programme has to be stopped before it
reaches the end, we recommend that you turn the
programme selector dial to position
(cooling) and
wait until the end of this phase before removing the
laundry. This will avoid a build-up of heat inside the
appliance.
P1108
P1104
3. Load the items one at a time, shaking them out
loosely.
Modifying the programme
To change a programme which is running, first
cancel it by turning the programme selector dial to
“0”. Select the new programme and press the Start
button .
4. Close the door. Please check the laundry does
not get caught between the door and filter.
5. Press the ON/OFF button (“AAN/UIT”): the
mains-ON light comes on.
6. Select the drying programme or time.
7. If required, press the low temperature button
(“LAGE TEMP.”) and/or the buzzer OFF button
(“ZOEMER UIT”).
8. Press the Start button for 2 seconds: light
comes on and drying starts.
The drum turns alternately in both directions
during drying.
All drying programmes end with a 10 minute
cooling phase (light
is on).
You may remove the laundry after this phase.
9. If the laundry is not removed at the end of the
cycle, the dryer performs an anti-creasing phase
(duration: 30 minutes maximum).
The buzzer sounds every 10 seconds (if the
buzzer OFF button “ZOEMER UIT”. has not been
pressed).
Lights
and
flash alternately.
If you do not remove the laundry, the dryer will
stop automatically at the end of the anti-creasing
phase.
Light
flashes and the mains-ON light stays on.
12
4/5/2006
1:26 PM
Page 13
• Avoid drying dark clothes with light coloured fluffy
items such as towels as they could attract the fluff.
Useful hints
• The laundry must be thoroughly spun before
tumble drying.
• Try to load to the maximum capacity of the
machine as small loads are uneconomical.
For information, here is a list of the average
weights of some common laundry items.
Sheet
700 - 1000 g
Tablecloth
• Knitted textiles (knitted underwear) may shrink a
little during drying. Please do not overdry items of
this type. It is advisable to allow for shrinkage
when choosing the size of new purchases.
400 - 500 g
Kitchen towel
70 - 120 g
Table napkin
50 - 100 g
Towelling hand towel
Bathrobe
• Easy-care items, too, e.g. shirts, should be briefly
pre-spun before drying (depending on crease
resistance approx. 30 seconds or using the special
brief spin programme of your washing machine).
• You can also put starched items into your dryer.
However, to achieve the desired starched effect,
choose the programme “iron dry”. To remove any
starch residues, wipe out the internal drum after
drying with a moist cloth and then rub it dry.
150 - 250 g
1000 - 1500 g
• To avoid a static charge when drying is completed,
use either a fabric softener when you are washing
the laundry or a fabric conditioner specifically for
tumble dryers.
Man’s shirt
200 - 300 g
Pillowcase
100 - 200 g
• Remove the laundry when the dryer has finished
drying.
Man’s pyjamas
400 - 500 g
Ladies’ nightdress
200 - 250 g
• If individual items are still damp after drying, set a
brief post-drying time, but at least 30 minutes.
This will be necessary particularly for multilayered
items (e.g. collars, pockets, etc.).
• Never tumble dry the following:
Particularly delicate items such as net curtains,
woollen, silk, fabrics with metal trim, nylon tights,
bulky materials such as anoraks, blankets,
eiderdowns, sleeping bags, feather quilts and any
items containing rubber foam or materials similar
to rubber foam.
• Always follow the instructions on garment labels:
may be tumble dried
normal drying (high temperature)
delicate drying (low temperature)
do not tumble dry
• Close pillowcases and covers with fasteners to
prevent small laundry items getting tangled inside
them. Close press studs, zips and hooks and tie
belts and apron strings.
• Sort laundry according to type and degree of
drying required.
• Do not over-dry laundry, this avoids creasing and
saves energy.
13
ENGLISH
125980962 -gb.qxp
125980962 -gb.qxp
4/5/2006
1:26 PM
Page 14
Maintenance and Cleaning
You must disconnect the appliance from the
electricity supply, before you can carry out any
cleaning or maintenance work.
If necessary the filters can be cleaned under running
water using a brush. In this case remove the filter in
the door opening as per picture (it can be positioned
with the tooth facing to the left or to the right).
External cleaning
650
800 /
kg 5
kg 2,5
900
70' - 90'
35' - 50'
1000 /
1200
65' - 85'
30' - 45'
Use only soap and water and then dry thoroughly.
Important: do not use methylated spirit, diluents or
similar products.
Cleaning the door
P1112
Clean periodically the interior part of the door to
remove any fluff from the seals around the filter.
Accurate cleaning ensures correct drying.
650
800 /
kg 5
kg 2,5
900
70' - 90'
35' - 50'
1000 /
1200
65' - 85'
30' - 45'
800 /
900
80' - 100'
70'
55' -
1000 /
1200
75' - 95'
50' - 65'
kg 2,5
kg 1
50' - 60'
30' - 35'
E
R S
V E
R E
T O
A U
P1109
Cleaning the filters
Your dryer will only function well if the filters are
clean.
The filters collect all the fluff which accumulates
during drying and they must therefore be cleaned at
the end of each programme, before removing the
laundry, with a damp cloth.
650
800 /
kg 5
kg 2,5
P1110
900
70' - 90'
35' - 50'
1000 /
1200
65' - 85'
30' - 45'
800 /
900
80' - 100'
70'
55' -
1000 /
1200
75' - 95'
50' - 65'
kg 2,5
kg 1
50' - 60'
30' - 35'
E
R S
V E
R E
T O
A U
P1111
The filter in the inner door must be removed for
cleaning.
Do not be alarmed by the amount of fluff. It is not
due to excessive wear caused by the dryer. All fabric
loses fluff when drying but it goes un-noticed in the
air. In a tumble dryer it simply collects in the filter.
14
800 /
900
80' - 100'
70'
55' -
1000 /
1200
75' - 95'
50' - 65'
kg 2,5
kg 1
50' - 60'
30' - 35'
E
R S
V E
R E
T O
A U
125980962 -gb.qxp
4/5/2006
1:26 PM
Page 15
Before contacting your local Zanussi Service Centre, please make the following checks:
Problem
Possible cause
• The dryer does not work:
• The door is open.
• The plug is not fitted into the wall socket.
• There is no electricity supply from the wall socket.
• The selector dial is not set correctly.
• The start button has not been depressed.
• The dryer does not dry properly:
• The filters are clogged.
• The selected cycle is not suitable for the laundry.
• The laundry has not been spun properly.
• The low temperature function has been selected.
• Excessive laundry load.
• The dryer is not correctly installed.
If, after the above checks, there is still a fault, call
your local Zanussi Service Centre.
Please make sure you give the model and serial
number of the appliance.
This information can be found on the rating plate
(see picture on page 6).
15
ENGLISH
Something not working?
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
