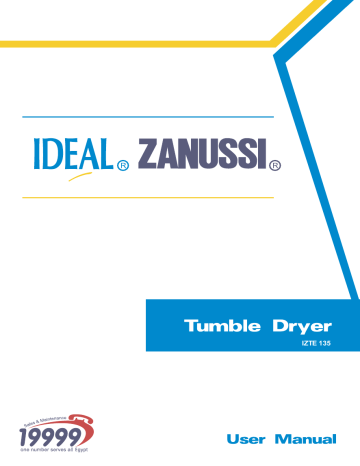

Zanussi IZTE135 User manual

Zanussi IZTE135 User manual
IZTE 135
Tumble Dryer
Tumble Dryer
Thank you for selecting our appliance
We wish you lots of enjoyment with your new appliance and we hope that you will consider our
brand again when purchasing household appliances
Please read this user manual carefully and keep it throughout the product life cycle as a reference
document. The user manual should be passed on to any future owner of the appliance
The symbols you will see on some paragraphs of this booklet have the following meaning
The warning triangle emphasize information that is particularly important for your safety or
correct functioning of the appliance.
The information marked with this symbol provides additional instructions and practical tips
on the use ofthe appliance.
Tips and information about economical and ecological use of the machine are marked with
this symbol.
Contents
Important safety information
3
Care and cleaning
13
Description of the appliance
5
Something not working
16
The control panel
6
Technical data
18
Drying programmes
7
Consumption values
19
Before the first use
8
Disposal
20
8
Installation
21
Drying hints
Operating sequence
2
10
Tumble Dryer
Safety Information
In the interest of your safety and to ensure the correct use, before installingand first using the
appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary
mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly
familiar with its operation and safety features. Save these instructions and make sure that they
remain with the appliance if it is moved or sold, so that everyone using it through its life will be
properly informed on appliance use and safety.
General safety
• It is dangerous to alter the specifications or
attempt to modify this product in any way.
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or lack of experience
and knowledge, unless they have been
given supervision or instruction concerning
use of the appliance by a person responsible
for their safety.
• Make sure that small pets do not climb into
the drum. To avoid this, please check into
the drum before using.
• Any objects such as coins, safety pins,
nails, screws, stones or any other hard,
sharp material can cause extensive damage
and must not be placed into the
machine.
• In order to avoid danger
excessive drying, do not
dry the following items:
and the like (these items
of fires caused by
use appliance to
Cushions, quilts
accumulate heat).
• Items such as foam rubber (latex foam),
shower caps, waterproof textiles, rubber
backed articles and clothes or pillows fitted
with foam rubber pads should not be dried
in the tumble dryer.
• Always unplug the appliance after use,
clean and maintenance.
• Under no circumstances should you attempt
to repair the machine yourself. Repairs carried
out by inexperienced persons may cause injury
or serious malfunctioning. Contact your local
Service Centre. Always insist on genuine spare
parts.
• Items that have been soiled with substances
such as cooking oil acetone, petrol, kerosene,
spot removers, turpentine, waxes and wax
removers should be washed in hot water with
an extra amount of detergent before being dried
in the tumble dryer.
• Danger of explosion: Never tumble dry
items that have been in contact with
inflammable solvents (petrol, methylated
spirits, dry cleaning fluid and the like). As
these substance are volatile, they could
cause an explosion. Only tumble dry items
washed with water.
• Risk of fire: items that have been spotted
or soaked with vegetable or cooking oil
constitute a fire hazard and should not be
placed in the tumble dryer.
• If you have washed your laundry with stain
remover you must execute an extra rinse
cycle before loading your tumble dryer.
• Please make sure that no gas lighters or
matches have accidentally been left in
pockets of garments to be loaded into
appliance.
3
Tumble Dryer
WARNING!
machine dried. Follow the instructions on each
Never stop a tumble dry before the end of
garment label.
the drying cycle unless all items are quickly
• Do not dry unwashed items in the tumble dryer.
removed and spread out so that the heat is
• Do not overload the appliance. See the reevant
dissipated.
section in the user manual.
• Clothes which are dripping wet should not be
RISK OF FIRE!
placed in the dryer.
Installation
• Garments which have been in contact with
• This appliance is heavy. Care should be taken
volatile petroleum products should not be
when moving it.
machine dried. If volatile cleaning fluids are
• When unpacking the appliance, check that it
used, care should be taken to ensure that the
is not damaged. If in doubt, do not use it and
fluid is removed from the garment before placing
contact the Service Centre.
in the machine.
• All packing and transit bolts must be removed
• Never pull the power supply cable to remove
before use. Serious damage can occur to the
the plug from the socket; always take hold of
product and to property if this is not adhered to.
the plug itself.
See relevant section in the user manual.
• Never use the tumble dryer if the power supply
• The final part of a tumble dryer cycle occurs
cable, the control panel, the working surface or
without heat ( cool down cycle ) to ensure that
the base are damaged so that the inside of the
the items are left at a temperature that ensures
tumble dryer is accessible.
that items will not be damaged.
• Fabric softeners, or similar products should
• Any electrical work required to install this
be used as specified by the fabric softener
appliance should be carried out by a qualified
instructions.
electrician or competent person.
• Care must be taken to ensure that the appliance
Child safety
does not stand on the electrical supply cable.
• This machine is not intended for use by young
• If the machine is situated on a carpeted floor,
children or infirm persons without supervision.
please adjust the feet in order to allow air to
• Children should be supervised to ensure that
circulate freely.
they do not play with the appliance.
• After having installed the appliance, check that
• The packaging components (e.g. plastic film,
it is not pressing or standing on its electrical
polystyrene) can be dangerous to children
supply cable.
- danger of suffocation! Keep them out of
• If the tumble dryer is placed on top of a washing
children’s reach.
machine, it is compulsory touse the stacking kit
• Keep all detergents in a safe place out of
(optional accessory).
children’s reach.
• Make sure that children or pets do not climb
Use
• This appliance is designed for domestic use. It
must not be used for purposes other than those
for which it was designed.
• Only wash fabrics which are designed to be
4
into the drum.
Tumble Dryer
Description of the appliance
1 Control panel
2 Fluff filters
1
3 Rating Plate
2
4 Consenser Unit
5 Water reservoir
6 Adjustable feet
3
4
5
6
5
Tumble Dryer
The Control Panel
1
1. Programme/Time
selector dial
2. Delicate button
3. Textile button
4. Indicator lights
2
3
4
5
Allows you to select electronically controlled or time controlled drying. Turn the dial to the required programme
or time.
Pressing this button allows drying to be performed at a
lower temperature, for delicate items.
You can select 2 different options:
- Cotton Cycle: to be used for cotton, Synthetics to be
used for synthetic or delicate items.
• Drying
• Filter cleaning light
• End of programme
• Water reservoir fullt
• Condenser cleaning
5. Start/Pause button
6
Press this button to start the dryer after having selected
the programme and the options.
Tumble Dryer
Drying programmes
Programme
Extra
Cupboard
Max Load
Type of
Kg
laundry
6
Cottons
6
Cottons
Options
Textile
• Cotton
Textile
• Cotton
Description of
programme
Drying thick or multilayered textiles,
e.g. terry towelling items
Thorough
drying
of fabrics of even
thicknesses, e.g. terry
towelling items, knitted
items, towels.
Thorough drying of thick
Extra
3
Synthetics
Textile
or multilayered fabrics,
• Synthetics
e.g. pullovers, bedding,
table linen.
For thin fabrics which
are not ironed, e.g. easy
Cupboard
3
Synthetics
Textile
care shirts, table linen,
• Synthetics
baby
clothes,
socks,
lingerie with bones or
wires.
6
Cotton
Textile
• Synthetics
Time
• Cotton
3
Synthetics
• Delicate
If the TIME programme
has been selected,
programme
duration
time of 30 minutes up
to 150 minutes can be
set by intervals of 5
minutes or 10 minutes.
Drying thick or multilayered textiles, e.g.
terry towelling items.
7
Tumble Dryer
Before the first use
• Ensure that the electrical connections comply with the installation instructions.
• Remove the polystryrene block and any material from the drum.
• Before using your tumble dryer for the first time, we recommend that you place a few damp
cloths inside the appliance and dry for 30 minutes.
There may be dust inside a brand new tumble dryer.
Drying hints
Before loading the laundry
Never tumble dry the following: Particularly
delicate items such as net curtains, woollen,
silk, fabrics with metal trim, nylon tights,
bulky materials such as anoraks, blankets,
eiderdowns, sleeping bags, feather quilts and
any items containing rubber foam or materials
similar to rubber foam.
• Always follow the instructions on garment labels:
may be tumble dried
normal drying (high temperature)
delicate drying (low temperature)
do not tumble dry
• Close pillowcases and covers with fasteners
to prevent small laundry items getting tangled
inside them. Close press studs, zips and hooks
and tie belts and apron strings.
• Sort laundry according to type and degree on
drying required.
• Do not over-dry laundry, this avoids creasing
and saves energy.
• Avoid drying dark clothes with light coloured
fluffy items such as towels as they could attract
the fluff.
8
• The laundry must be thoroughly spun before
tumble drying.
• Easy-care items, too, e.g. shirts, should be
briefly pre-spun before drying (depending
on crease resistance approx. 30 seconds or
using the special brief spin programme on your
washing machine).
• Knitted textiles (knitted underwear) may shrink
a little during drying. Please do not overdry items
of this type. It is advisable to allow for shrinkage
when choosing the size of new purchases.
• You can also put starched items into your
dryer. However, to achieve the desired starched
effect, choose the programme “iron dry”. To
remove any starch residues, wipe out the
internal drum after drying with a moist cloth and
then rub it dry.
• To avoid a static charge when drying is
completed, use either a fabric softener when
you are washing the laundry or a fabric conditioner specifically for tumble dryers.
• Remove the laundry when the dryer has
finished drying.
• If individual items are still damp after drying,
set a brief post-drying time, but at least 30
minutes. This will be necessary particularly for
multilayered items (e.g. collars, pockets, etc.).
Tumble Dryer
Make sure that no metal objects are left in the
Laundry weights
laundry (e.g. hair clips, safety pins, pins).
The following weights are indicative:
Button up pillowcases, close zip fasteners, hooks
Bathrobe
1200g
Napkin
100g
Quilt Cover
700g
Sheet
500g
Pillow Case
200g
Table Cloth
250g
Towelling Towel
200g
Tea Cloth
100g
gramme charts.
Night Dress
200g
General rules
Ladies’ Briefs
100g
Man’s work shirt
600g
Man’s shirt
200g
Man’s pyjamas
500g
Blouse
100g
Men’s underpants
100g
and poppers. Tie any belts or long tapes.
To avoid laundry becoming tangled: close zips,
button up duvet covers and tie loose ties or
ribbons (e.g. of aprons). Turn items with doublelayered fabrics inside out (e.g. with cotton lined
anoraks, the cotton layer should be outermost).
These fabrics will then dry better.
Maximum loads
Recommended loads are indicated in the pro-
Cotton, linen: drum full but not too tightlypacked;
Synthetics: drum no more than half full;
Delicate fabrics and woollens: drum no
more than one third full.
Try to load to the maximum capacity of the
machine as small loads are uneconomical.
9
Tumble Dryer
Operating sequence
Load the laundry Connect the appliance.
Open the door (see
picture).
required programme.
The light Start/Pause
starts to flash. The selector dial is divided into
following sections:
• Cottons
• Synthetics
• Time
Place the laundry in
the drum, one item at a
time, shaking them out
as much as possible.
Close the door. Please
check the laundry does
not get caught between
the door and filter.
Select the required
programme
Turn the programme
selector dial to the
10
Allows you to select
electronically controlled
or time controlled drying. Turn the dial to the
required programme or
time.
Electronically controlled drying (automatic)
The appliance runs
these
programmes
with the help of probes
which detect the degree of dampness of
the laundry. Simply
select the programme
according to the type
of laundry and degree
of drying required. The
selector dial can be
turned clockwise. The
lights Drying, and End
come on.
At the end of the
programme the selector dial must be
turned to position
O, to switch the machine off.
Attention!
If you turn the programme selector dial
to another programme
when the machine is
working, the lights of
the programme progress display start to
flash. The machine will
not perform the new selected programme.
Programme Option
buttons Depending on
the programme, different functions can
be combined. These
must be selected after
choosing the desired
programme and before depressing the
Start/Pause
button.
When these buttons
are pressed, the corresponding pilot lights
come on. When they
are pressed again, the
pilot lights go out.
formed at a lower temperature, for delicate
items.
The
corresponding
pilot light comes on.
This option can also be
used for time controlled
drying. DELICATE is
only suitable for use
with loads of up to 3kg!
When the programme
has finished the pilot
lights End is on.
Select the Textile
Press the Textile button
repeatedly, to select the
desired option. The relevant light will light up.
You can select 2 different options:
Cotton Cycle :
to be used for cotton,
When the programme
has finished the pilot
lights End is on.
Delicate
Pressing this button allows drying to be per-
Synthetics
o be used for synthetic
or delicate items.
Tumble Dryer
When the programme
has finished the pilot
lights End
is on.
Start / Pause
Press this button to
start the dryer after
having selected the
programme and the
options. The relevant
light will stop flashing. If
the programme selector
dial is turned to another
position, when the
machine is running, the
buzzer will sound and
the programme phase
indicator lights will
flash. The drum turns
alternately in both directions during drying.
All drying programmes
end with a 10 minute
cooling phase (light
Cooling is on). You may
remove the laundry after this phase.
The display will show
the symbol Delicate ,
and
and
illuminate and the buzzer
sounds.
If the door of the appliance or the small door
at the bottom is opened
while the programme
is running, this button
must be pressed again
after closing the door in
order to restart the programme from the point
at which it was interrupted. This button must be
depressed also after a
power failure and after
having reinserted the
water reservoir, if it has
been emptied in the
middle of a programme
after lighting up of light.
In both cases the light
of the
Start/Pause
button flashes to remind
you that the start button
needs to be pressed
again.
• Water reservoir full
At the end of the
light
programme
This light indicates
that the appliance is in
the drying phase. This
light comes on at the
end of the programme
to remind you that the
water reservoir must
be emptied out. If this
light illuminates during a programme this
means that the water
reservoir is full. The
buzzer sounds, the programme stops, the light
of the
Start/Pause
button flashes. This
light comes on also
when the water reservoir is not inserted correctly.
If the laundry is not
removed at the end
of the cycle, the dryer
performs an anticreasing phase (duration: 30
minutes maximum).
• Filter cleaning
Indicator lights
These lights indicate
the following functions:
• Drying light
This light indicates that
the appliance is in the
drying phase.
• End of programme
light
This light is on at the end
of the cooling phase,
during the anticreasing
phase and at the end of
the programme.
This light illuminates
at the end of the programme to remind you
that the filters must be
cleaned.
• Condenser cleaning
It comes on every 80
cycles to remind you
that the condenser
must be cleaned.
If you do not remove
the laundry, the dryer
will stop automatically
at the end of the anticreasing phase. Lights
End/Anticrease ,
and
remain lit and
the buzzer sounds for 2
minutes.
Turn the programme
selector dial to “O” to
switch the machine
off. Remove the laundry from the drum and
carefully check that the
drum is empty.
Buzzer permamently
off.
The buzzer can be
off by pressing at the
same time
Delicate
and Textile
buttons, for approx.
5 sec.
Cancelling a programme
Turn the selector dial
to “O” to cancel a programme which is running. Now you can select a new programme.
11
Tumble Dryer
If you do not intend to carry out another wash,
close the water tap. Leave the door open to
prevent the formation of mildew and unpleasant smells.
Turn the programme selector dial to “O”; all the
lights go out. The appliance is switched off.
Remove the laundry. If you open and then close
the door before turning the selector dial to “O”
all the lights corresponding to the phases making up the performed programme come on.
After each use
• Clean the filters.
• Empty the water reservoir.
Modifying the programme
To change a programme which is running, first
cancel it by turning the programme selector dial
to “O”. Select the new programme and press
the Start button.
12
Tumble Dryer
Care and Cleaning:
Important:
You must DISCONNECT the appliance from the
electricity supply, before you can carry out any
cleaning or maintenance work.
External cleaning
Use only soap and water and then dry thoroughly.
Important: do not use methylated spirit, diluents
The filter in the inner door must be removed for
or similar products.
cleaning.
Cleaning the door
Clean periodically the interior part of the door to
remove any fluff from the seals around the filter.
Accurate cleaning ensures correct drying.
Do not be alarmed by the amount of fluff. It is
not due to excessive wear caused by the dryer.
All fabric loses fluff when drying but it goes
unnoticed in the air. In a tumble dryer it simply
collects in the filter. After a while, a whitish
Cleaning the filters
patina due to detergent residue on laundry
Your dryer will only function well if the filters are
forms on the filters. When this occurs, clean the
clean. The filters collect all the fluff which ac-
filters with warm water using a brush. Remove
cumulates during drying and they must there-
the filter in the door opening as per picture (it
fore be cleaned at the end of each programme,
can be positioned with the tooth facing to the
before removing the laundry, with a damp cloth.
left or to the right).
The light is on to remind you this operation.
13
Tumble Dryer
Important:
Do not use the appliance without filters.
Cleaning the condenser unit
comes on.
Clean the condenser when light
The condenser is situated at the lower part of
the cabinet behind a small door. To open the
door, push the catch as per picture. During the
drying cycle or at the end, it is normal for water
to be present on the surface of the condenser
insertion.
Clean the rubber seal round the condenser
cabinet and in the inner part of the small door
with a damp cloth.
Important:
Do not use pointed objects or utensils to clean
the spaces between the plates, as this could
damage the condenser and make it permeable. Re-fit the condenser, turn the red stops
upwards and close the door.
Important:
Do not use this appliance if the condenser has
not been fitted.
To pull out the condenser, first turn the two red
stops downwards and then remove the condenser unit holding it at the handle.
Clean it with a brush and rinse it under the
shower if necessary. Also clean the outside, removing all fluff.
14
Emptying the water reservoir
Water extracted from the laundry condenses inside the machine and is collected in a reservoir.
The reservoir must be emptied after each drying cycle to ensure efficient operation when the
machine is next used. The pilot light reminds
you this operation.
Proceed as follows:
• Open the small door at the lower part of the cabinet
• Turn the yellow stop upwards
• Pull out the reservoir
• Open the small cover and let water flow down
• Close the small cover and re-insert correctly
the reservoir
Tumble Dryer
• Push it until it clicks and turn the yellow stop
Cleaning the air intake grille
downwards firmly lock it.
Using a vacuum cleaner remove the fluff from the
• Close the small door and press the START/
air intake grille at the back of the appliance.
PAUSE
button again to allow the programme
to continue.
Cleaning the drum
The reservoir must be re-inserted correctly.
After emptying and inserting the reservoir the
START-button
has to be depressed again to
allow the programme to continue.
Handy tip: The condensed water may be used
in a steam iron or to top up a battery, etc. In this
case it must be filtered (e.g. through a coffee
filter).
When your laundry does not reach the desired
degree of dryness, in other words, when it turns
out either too dry or too damp, we advise you to
clean the inside of the drum with a cloth soaked
with vinegar.
This will eliminate the slight patina that has
formed in the drum (due to residues of detergent and softeners used in the washing, and to
the lime contained in the water), which prevents
the probes from detecting the correct degree of
dryness.
15
Tumble Dryer
Something not working
Certain problems are due to lack of simple maintenance or oversights, which can be solved easily
without calling out an engineer. Before contacting your local Service Centre, please carry out the
checks listed below.
During machine operation it is possible that the red Start/Pause
pilot light flashes to indicate that
the machine is not working.
Once the problem has been eliminated, press the Start/Pause
button to restart the programme.
If after all checks, the problem persists, contact your local Service Centre.
Malfunction
Possible cause
• Mains plug is not plugged
in or fuse is not working cor-
Dryer does not work.
rectly. • Loading door is open. •
Have you pressed the START/
PAUSE
button?
• Wrong programme selected.
• Lint filter clogged. • Heat exchanger clogged with lint. •
Incorrect volume of laundry. •
Drying results unsatisfactory.
Ventilation slots in base area
covered up. • Residue on inside surface of drum or drum
ribs. • Conductance of water
at installation site differs from
standard setting of machine.
Loading door does not close.
16
Solution
• Plug in at mains socket.
Check fuse in fuse box (domestic installation). • Close
loading door. • Press the
START/PAUSE
button
again.
• Select a different programme
the next time you dry (see
“Overview of programmes”
section).
• Clean lint filter.
• Clean heat exchanger.
• Observe recommended loading volumes.
• Uncover ventilation slots in
base area.
• Clean inside surface of drum
and drum ribs
• Re-programme standard setting for degree of drying (see
‘Programming options’ section).
• Fine strainer not in place
• Install fine strainer and/or
and/or large mesh filter not
snap large mesh filter into
locked in place.
place.
Tumble Dryer
Malfunction
When pressing a button,
the corresponding button
flashes several times.
Possible cause
• Washing protection. After
the start of the programme,
• Turn the programme knob to
the option can no longer be
“0” Set the programme again
set.
Drying cycle ends shortly
• Not enough washing loaded
after programme starts.
or washing loaded is too dry
END
light illuminated.
for selected programme.
Programme inactive, Water
reservoir full light
Solution
Select time programme or
higher drying level (e.g.
vinstead of
EXTRA DRY
).
CUPBOARD
• Empty condensate tank, then
• Condensate tank is full.
start programme with
START/PAUSE
illuminated.
button.
• Lint filter clogged.
• Clean lint filter
• Heat exchanger clogged
• Clean heat exchanger.
unusually long time.
with lint.
• DELICATE is only suitable
Note: After around 5 hours
• DELICATE button pressed
for use with loads of up to 3
the drying cycle ends
and load volume too big.
kg!
automatically (see „Drying
• Load volume too big.
• Reduce load volume.
• Laundry insufficiently
• Laundry must be adequately
predrained.
pre-drained.
Drying cycle lasts an
cycle complete“)
If you are unable to identify or solve the problem,
contact our service centre. Before telephoning,
make a note of the model, serial number and
purchase date of your machine: the Service
Centre will require this information.
Important:
If you call out an engineer to a fault listed below,
or to repair a fault caused by incorrect use or
installation, a charge will be made even if the
appliance is under guarantee.
17
Tumble Dryer
Technical data
Technical data
Dimensions
Width
60 cm
Height
85 cm
Depth
58 cm
Electrical connection
Information on the electrical connection is given on the rating
Voltage - Overall power -
plate on the inner edge of the appliance door
Fuse
Depth with loading door
109 cm
open
Maximum Load
Use
Cotton
6 kg
Synthetics
3 kg
Domestic
+ 5°C + 35°C
This appliance conforms with the following EU Directives:
– 2006/95/EC dated 12.12.06 Low Voltage Directive
– 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Directive
92/31/EEC
– 93/68/EEC dated 22.07.1993 CE Marking Directive
18
Tumble Dryer
Consumption values
Consumption values (*)
Programme
Energy
duration
consumption
(in minutes)
(in kWh)
Cottons Cupboard 1)
125
3,8
1000
Cottons Iron 1)
100
3,0
1000
Synthetics Cupboard 2)
50
1,35
1200
Programme
Max load:
Revolutions
per minute
The consumption values have been established
1) Cottons load:
6 kg
under standard conditions. They may deviate
2) Synthetics load:
3 kg
when the machine is operated in domestic
circumstances.
19
Tumble Dryer
Disposal
Packaging materials
The materials marked with the symbol
Tips for environmental protection
are
To save energy and to help protect the
recyclable.
environment, we recommend that you follow
This means that they can be recycled by dis-
these hints:
posing of them properly in appropriate collection containers.
• Try to load the maximum capacity of the
machine as small loads are uneconomical.
• Always load well spun laundry. The higher the
spin speed, the lower the electricity consum
Machine
Use authorised disposal sites for your old appliance. Help to keep your country tidy!
tion and the shorter the drying times.
• Do not over-dry laundry, this avoids creasing
and saves energy. Select the drying pr gramme
Old appliance
The symbol
according to the type of laundry and the reon the product or on its
quired degree of dryness.
packaging indicates that this product may
• To utilize the maximum load, laundry which is
not be treated as household waste. Instead it
to be dried ready to put away (store dry) can
should be taken to the appropriate collection
be dried together with items to be ironed. To do
point for the recycling of electrical and electronic
this, select the programme for iron-dry, remove
equipment. By ensuring this product is disposed
the iron-dry items at the end of the programme
of corectly, you will help prevent potential nega-
and then finish-dry the rest of the load.
tive consequences for the environment and human health, which could otherwise be caused
by in appropriate waste handling of this product
.For more detailed information about recycling
of this product, please contact your local council, your household waste disposal service or
the shop where you purchased the product.
20
• Clean the filters regularly to avoid excessive
drying times and high electricity consumption.
• Ventilate the room well. The room temper ture
should not exceed +35°C during drying.
Tumble Dryer
Installation
Unpacking
the floor clearance through deeppile carpets,
Slide out the polythene bag with the polysty-
strips of wood or similar. This might cause heat
rene stuffing before using the appliance Pull off
build-up which would interfere with the opera-
adhesive strips from inside machine on top of
tion of the appliance.
Important
The hot air emitted by the tumble dryer can
reach temperatures of up to 60°C. The appliance must therefore not be installed on floors
which are not resistant to high temperatures.
When operating the tumble dryer, the room
Should the appliance be moved, it must be
transported vertically. The appliance must
not be installed behind a lockable door, a
sliding door or a door with a hinge on the
opposite side to that of the appliance.
temperature must not be lower than +5°C and
higher than +35°C, as it may affect the performance of the appliance.
Stacking kit
A special stacking kit is available through your
Positioning
dealer, to enable the mounting of the dyer on top
It is recommended that, for your convenience,
of a front loading washing machine with cover’s
the machine is positioned close to your washing
depth between 48 and 60 cm. Read carefully
machine. The tumble dryer must be installed in
the instructions supplied with the kit.
a clean place, where dirt does not build up. Air
must be able to circulate freely all round the
appliance. Do not obstruct the front ventilation grille or the air intake grilles at the back of
the machine. To keep vibration and noise to a
minimum when the dryer is in use, it should be
placed on a firm, level surface. Once in its permanent operating position, check that the dryer
is absolutely level with the aid of a spirit level. If
it is not, raise or lower the feet until it is. The feet
must never be removed. Do not restrict
Door reversal
To make it easier to load or unload the laundry
the door can be reversed.
21
Tumble Dryer
Important:
Electrical connection
Reversing the door is not possible if after this
This machine is designed to operate on a 230
operation the appliance result installed behind
V, single-phase, 50 Hz supply. Check that your
a door with a hinge on the opposite side to that
domestic electrical installation can take the
of the appliance.
maximum load required (2.35 kW), also taking
into account any other appliances in use.
This operation must be carried out by qualified
personnel. Please contact the nearest Service
Centre.
Connect the machine to an earthed socket, in
accordance with current wiring regulations.
Important:
The manufacturer declines any responsibility for damage or injury through failure to
comply with the above safety precaution.
Should the appliance power supply cable
need to be replaced, this must be carried out
by our Service Centre.
Important:
The power supply cable must be accessible
after installing the machine..
22
136905861 - 01 - 11082008
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
