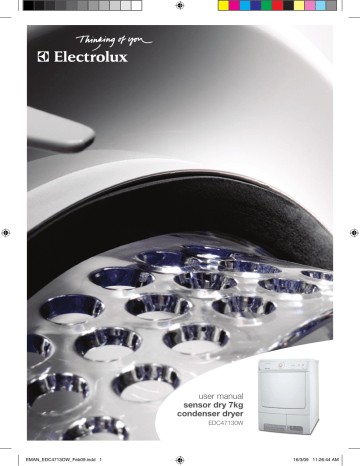

Electrolux EDC47130W User manual

Electrolux EDC47130W User manual
user manual
sensor dry 7kg
condenser dryer
EMAN_EDC4713OW_Feb09.indd 1
16/3/09 11:26:44 AM
we were thinking of you
when we made this product
EMAN_EDC4713OW_Feb09.indd 2
16/3/09 11:26:45 AM
electrolux contents 3
Congratulations and thank you for choosing
our EDC47130W tumble dryer. We are sure
you will find your new tumble dryer a pleasure
to use. Before you use your tumble dryer, we
recommend that you read through the whole
user manual, which provides the description
of the tumble dryer and its functions.
To avoid the risks that are always present when
you use an electrical appliance it is important
that the tumble dryer is installed correctly and
that you read the safety instructions carefully
to avoid misuse and hazards. We recommend
that you keep this instruction booklet for future
reference and pass it on to any future owners.
After unpacking the tumble dryer please check
it is not damaged. If in doubt, do not use the
appliance but contact your local Electrolux
Service Centre.
The symbols you will see in this booklet have
these meanings:
Safety information........................................ 4
Product description...................................... 6
Control panel................................................ 6
Drying hints................................................. 10
Drying program........................................... 11
Care and cleaning.................................12-14
Something not working.........................15-16
Technical data............................................. 16
Consumption values.................................. 16
Environment concerns............................... 18
Warranty...................................................... 19
This symbol indicates information
concerning your personal safety
Contact us................................................... 19
This symbol indicates information
on how to avoid damaging the dryer
This symbol indicates tips and information
about use of the dryer
This symbol indicates tips and information
about economical and ecological use of
the dryer
dangerous voltage
This symbol indicates risk of injury from
electrical current
EMAN_EDC4713OW_Feb09.indd 3
16/3/09 11:26:45 AM
4 safety information electrolux
Safety Information
In the interest of your safety and to ensure
the correct use, before installing and first
using the appliance, read this user manual
carefully, including its hints and warnings.
To avoid unnecessary mistakes and accidents,
it is important to ensure that all people using
the appliance are thoroughly familiar with
its operation and safety features. Save these
instructions and make sure that they remain
with the appliance if it is moved or sold, so
that everyone using it through its life will be
properly informed on appliance use and safety.
General safety
• It is dangerous to alter the specifications or
attempt to modify this product in any way.
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
• Make sure that small pets do not climb into
the drum. To avoid this, please check into
the drum before using.
• Any objects such as coins, safety pins, nails,
screws, stones or any other hard, sharp
material can cause extensive damage and
must not be placed into the machine.
• In order to avoid danger of fires caused by
excessive drying, do not use appliance to
dry the following items: Cushions, quilts
and the like (these items accumulate heat).
• Items such as foam rubber (latex foam),
shower caps, waterproof textiles, rubber
backed articles and clothes or pillows fitted
with foam rubber pads should not be dried
in the tumble dryer.
• Always unplug the appliance after use,
cleaning and maintenance.
• Under no circumstances should you attempt
to repair the machine yourself. Repairs
carried out by inexperienced persons may
cause injury or serious malfunctioning.
Contact your local Service Centre.
Always insist on genuine spare parts.
EMAN_EDC4713OW_Feb09.indd 4
• O
il-affected items can ignite spontaneously,
especially when exposed to heat sources
such as in a tumble dryer. The items become
warm, causing an oxidation reaction in
the oil. Oxidation creates heat. If the heat
can not escape, the items can become
hot enough to catch fire. Piling, stacking
or storing oil-affected items can prevent
heat from escaping and so create a fire
hazard. If it is unavoidable that fabrics that
contain vegetable or cooking oil or have
been contaminated by hair care products,
acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax
removers should be washed in hot water
with an extra amount of detergent before
being dried in the tumble dryer.
• Danger of explosion: Never tumble
dry items that have been in contact with
flammable solvents (petrol, methylated
spirits, dry cleaning fluid and the like),
as these substances are volatile and
could cause an explosion. Only tumble
dry items washed with water.
• Risk of fire: items that have been spotted
or soaked with vegetable or cooking oil
constitute a fire hazard and should not be
placed in the tumble dryer.
• If you have washed your laundry with stain
remover you must execute an extra rinse
cycle before loading your tumble dryer.
• Please make sure that no gas lighters or
matches have accidentally been left in pockets
of garments to be loaded into the appliance.
• The final part of a tumble dryer cycle occurs
without heat (cool down cycle) so that the
items are left at a temperature which ensures
they will not be damaged.
Never stop a tumble dryer before the end
of the drying cycle unless all items are
quickly removed and spread out so that
the heat is dissipated.
16/3/09 11:26:45 AM
electrolux safety information 5
Risk of Fire!
• This appliance is heavy. Care should be
taken when moving it.
• When unpacking the appliance, check that
it is not damaged. If in doubt, do not use it
and contact the Service Centre.
• All packing and transit bolts must be
removed before use. Serious damage can
occur to the product and to property if this
is not adhered to. See relevant section in the
user manual.
• The final part of a tumble dryer cycle occurs
without heat (cool down cycle) so that the
items are left at a temperature which ensures
they will not be damaged.
• Any electrical work required to install this
appliance should be carried out by a
qualified electrician or competent person.
• Care must be taken to ensure that the
appliance does not stand on the electrical
supply cable.
• If the machine is situated on a carpeted floor,
please adjust the feet in order to allow air to
circulate freely.
• After having installed the appliance,
check that it is not pressing or standing
on its electrical supply cable.
• If the tumble dryer is placed on top of a
washing machine, it is compulsory to use
the stacking kit (optional accessory).
the fluid is removed from the garment before
placing in the machine.
Never pull the power supply cable to remove
the plug from the socket; always take hold of
the plug itself.
Never use the tumble dryer if the power
supply cable, the control panel, the working
surface or the base are damaged so that
the inside of the tumble dryer is accessible.
Fabric softeners, or similar products
should be used as specified by the fabric
softener instructions.
Always clean the lint filter before each use.
Do not operate the dryer without checking
the filter is clean.
Child safety
• This machine is not intended for use by young
children or infirm persons without supervision.
• Children should be supervised to ensure that
they do not play with the appliance.
• The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children
– danger of suffocation! Keep them out of
children’s reach.
• Keep all detergents in a safe place out
of children’s reach.
• Make sure that children or pets do not
climb into the drum.
• This appliance is designed for domestic use.
It must not be used for purposes other than
those for which it was designed.
• Only dry fabrics which are designed to be
machine dried. Follow the instructions on
each garment label.
• Do not dry unwashed items in the tumble dryer.
• Do not overload the appliance. See the
relevant section in the user manual.
• Clothes which are dripping wet should not
be placed in the dryer.
• Garments which have been in contact with
volatile petroleum products should not be
machine dried. If volatile cleaning fluids are
used, care should be taken to ensure that
EMAN_EDC4713OW_Feb09.indd 5
16/3/09 11:26:45 AM
6 product description | control panel electrolux
Product Description
Control panel
Lint filters
Rating Plate
Condenser unit
Water tank
Adjustable feet
Control panel
Program selector dial
Delicate button
Textile button
Indicator lights
Start/Pause button
EMAN_EDC4713OW_Feb09.indd 6
16/3/09 11:26:45 AM
electrolux use 7
First Use
• Ensure that the electrical connections
comply with the installation instructions.
• Remove the polystyrene block and any
material from the drum.
• Before using your tumble dryer for the first
time, we recommend that you place a few
damp cloths inside the appliance and dry
for 30 minutes.
There may be dust inside a brand new
tumble dryer.
Select the required program
Turn the program selector dial to the
required program.
The Start/Pause light starts to flash.
Daily Use
Load the laundry
Connect the appliance.
Open the door (see picture).
The selector dial is divided into the
following sections:
Place the laundry in the drum, one item at a
time, shaking them out as much as possible.
Close the door.
Please check the laundry does not get caught
between the door and filter.
EMAN_EDC4713OW_Feb09.indd 7
Allows you to select electronically controlled
or time controlled drying.
Turn the dial to the required program or time
and press the stop/start button to commence
the cycle.
Electronically controlled drying (automatic)
The appliance runs these programs with the
help of probes which detect the degree of
dampness of the laundry. Simply select the
program according to the type of laundry
and degree of drying required.
The selector dial can be turned either clockwise
or anti clockwise. The lights use Drying, Cooling
and End/Anticrease illuminates.
16/3/09 11:26:46 AM
8 use electrolux
At the end of the program the selector dial
must be turned to position O, to switch the
machine off.
Select the Textile
Press the Textile button repeatedly, to select the
desired option. The relevant light will light up.
If you turn the program selector dial to another
program when the machine is working, the
lights or the program progress display start to
flash. The machine will not perform the new
selected program.
Program Option buttons
Depending on the program, different functions
can be combined. These must be selected
after choosing the desired program and before
depressing the Start/Pause button.
When these buttons are pressed, the
corresponding pilot lights come on. When they
are pressed again, the pilot lights go out.
Select Delicate
Pressing this button allows drying to be performed
at a lower temperature, for delicate items.
The corresponding pilot light comes on. This
option can also be used for time controlled drying.
DELICATE is only suitable for use with loads of
up to 3kg!
When the program has finished the pilot light
End/Anticrease is on.
EMAN_EDC4713OW_Feb09.indd 8
You can select 2 different options:
Cotton Cycle: to be used for cotton.
When the program has finished the pilot light
End/Anticrease is on.
Synthetics: to be used for synthetic or
delicate items. When the program has finished
the pilot light End/Anticrease is on.
Select the Start/Pause
Press this button to start the dryer after
having selected the program and the options.
The relevant light will stop flashing. If the
program selector dial is turned to another
position when the machine is running, the
buzzer will sound and the program phase
indicator lights will flash.
The drum turns alternately in both directions
during drying.
All drying programs end with a 10 minute
cooling phase (Cooling light is on).
You may remove the laundry after this phase.
The lights Filter and Water Tank illuminate
and the buzzer sounds.
If the door of the appliance or the small door
at the bottom is opened while the program
is running, this button must be pressed again
after closing the door in order to restart
the program from the point at which it was
interrupted. This button must be depressed
also after a power failure and after having
reinserted the water tank, if it has been
emptied in the middle of a program.
16/3/09 11:26:46 AM
electrolux use 9
In both cases the Start/Pause button flashes
to remind you that the start button needs to be
pressed again.
Indicator lights
These lights indicate the following functions:
Drying light
This light indicates that the appliance is in the
drying phase.
Cooling light
This light indicates that the appliance is in the
cooling phase. At the end of drying, there is a
10 minute cooling phase to cool the laundry.
End/Anticrease light
This light is on at the end of the cooling phase,
during the anti-creasing phase and at the end
of the program.
Condenser light
It comes on every 80 cycles to remind you
that the condenser must be cleaned.
Filter light
This light illuminates at the end of the program
to remind you that the filters must be cleaned.
Water Tank light
This light comes on at the end of the program to
remind you that the water tank must be emptied
out. If this light illuminates during a program
this means that the water tankis full. The buzzer
sounds, the program stops, the Start/Pause
button flashes. This light comes on also when
the water tank is not inserted correctly.
Turn the program selector dial to “O” to switch
the machine off. Remove the laundry from the
drum and carefully check that the drum is empty.
If you open and then close the door before
turning the selector dial to “O” all the lights
corresponding to the phases making up
the performed program come on.
After each use
• Clean the filters.
• Empty the water tank.
Modifying the program
To change a program which is running, first
cancel it by turning the program selector dial
to “O”. Select the new program and press the
Start button .
At the end of the program
All drying programs end with a 10 minute
cooling phase.
You may remove the laundry after this phase.
The lights Filter and Water Tank illuminate.
The display shows a static zero.
If the laundry is not removed at the end of
the cycle, the dryer performs an anticreasing
phase (duration: 30 minutes maximum). If you
do not remove the laundry, the dryer will stop
automatically at the end of the anti-creasing
phase. Lights Filter and Water Tank remain
lit and the buzzer sounds for 2 minutes.
EMAN_EDC4713OW_Feb09.indd 9
16/3/09 11:26:46 AM
10 drying hints electrolux
Drying hints
Before loading the laundry
Never tumble dry the following: Particularly
delicate items such as net curtains, woollens,
silk, fabrics with metal trim, nylon tights,
bulky materials such as anoraks, blankets,
eiderdowns, sleeping bags, feather quilts and
any items containing rubber foam or materials
similar to rubber foam.
• Always follow the instructions on garment labels:
may be tumble dried
normal drying (high temperature)
delicate drying (low temperature)
do not tumble dry
• C
lose pillowcases and covers with fasteners
to prevent small laundry items getting tangled
inside them. Close press studs, zips and
hooks and tie belts and apron strings.
• Sort laundry according to type and degree
of drying required.
• Do not over-dry laundry, this avoids creasing
and saves energy.
• Avoid drying dark clothes with light coloured
fluffy items such as towels as they could
attract fluff.
• The laundry must be thoroughly spun before
tumble drying.
• Easy-care items, e.g. shirts, should be
briefly pre-spun before drying (depending
on crease resistance approx. 30 seconds
or using the special brief spin program of
your washing machine).
• Knitted textiles (knitted underwear) may shrink
a little during drying. Please do not overdry items
of this type. It is advisable to allow for shrinkage
when choosing the size of new purchases.
• Remove the laundry when the dryer has
finished drying.
• If individual items are still damp after drying,
set a brief post-drying time, (at least 30
minutes). This will be necessary particularly for
multilayered items (e.g. collars, pockets, etc.).
EMAN_EDC4713OW_Feb09.indd 10
Make sure that no metal objects are left in
the laundry (e.g. hair clips, safety pins, pins).
Button up pillowcases, close zip fasteners,
and hooks. Tie any belts or long tapes.
To avoid laundry becoming tangled: close zips,
button up duvet covers and tie loose ties or
ribbons (e.g. of aprons).
Turn items with double-layered fabrics inside
out (e.g. with cotton lined anoraks, the cotton
layer should be outermost). These fabrics will
then dry better.
Maximum loads
Recommended loads are indicated in the
program charts.
General rules:
Cotton, linen: drum full but not too tightly packed;
Synthetics: drum no more than half full;
Delicate fabrics and woollens: drum no
more than one third full.
Try to load to the maximum capacity of the
machine as small loads are uneconomical.
16/3/09 11:26:46 AM
electrolux drying programs 11
Drying programs
Type of laundry
Description of program
Drying thick or multi-layered textiles, e.g. terry towelling items.
Thorough drying of fabrics of even thickness, e.g. terry towelling items,
knitted items, towels.
Thorough drying of thick or multilayered fabrics, e.g. pullovers, bedding,
table linen.
For thin fabrics which are not ironed, e.g. easy care shirts, table linen,
baby clothes, socks, lingerie with bones or wires.
If the TIME program has been selected, program duration time
of 30 minutes and up to 150 minutes can be set by intervals of
5 minutes or 10 minutes.
Drying thick or multi-layered textiles, e.g. terry towelling items.
Cotton Extra program is the energy rating label program in accordance with AS/NZS2442.2:2000
Max Cottons load: 7kg
Max Synthetics load: 3kg
Max Time load: 7kg
Laundry weights
The following weights are indicative:
quilt cover
pillow case
towelling towel
tea cloth
night dress
ladies’ briefs
men’s work shirt
men’s shirt
men’s pyjamas
men’s underpants
EMAN_EDC4713OW_Feb09.indd 11
16/3/09 11:26:46 AM
12 care and cleaning electrolux
Care and cleaning
You must DISCONNECT the appliance from the
electricity supply, before you can carry out any
cleaning or maintenance work.
External cleaning
Use only soap and water and then dry thoroughly.
Important: do not use methylated spirit, dilutents
or similar products.
Cleaning the door
Periodically clean the interior part of the door to
remove any fluff from the seals around the filter.
Accurate cleaning ensures correct drying.
Do not be alarmed by the amount of fluff. It is
not due to excessive wear caused by the dryer.
All fabric loses fluff when drying but it goes
unnoticed in the air. In a tumble dryer it simply
collects in the filter.
After a while, a whitish film due to detergent
residue on laundry forms on the filters. When
this occurs, clean the filters with warm water
using a brush. Remove the filter in the door
opening as per picture below (it can be
positioned with the tooth facing to the left
or to the right).
Cleaning the filters
Your dryer will only function well if the filters
are clean. The filters collect all the fluff which
accumulates during drying and they must therefore
be cleaned at the end of each program, before
removing the laundry, with a damp cloth. The light
Filter is on to remind you of this operation.
The filter in the inner door must be
removed for cleaning.
EMAN_EDC4713OW_Feb09.indd 12
16/3/09 11:26:47 AM
electrolux care and cleaning 13
Do not use the appliance without filters.
Cleaning the condenser unit
Clean the condenser when the light
Condenser comes on.
The condenser is situated at the lower part of
the cabinet behind a small door. To open the
door, push the catch as per picture above.
During the drying cycle or at the end, it is
normal for water to be present on the surface
of the condenser unit.
To pull out the condenser, first turn the two
red stops downwards and then remove the
condenser unit holding it at the handle.
Clean it with a brush and rinse it under the
shower if necessary.
Also clean the outside, removing all fluff.
Clean the rubber seal round the condenser
cabinet and in the inner part of the small door
with a damp cloth.
Important! Do not use pointed objects
or utensils to clean the spaces between
the plates, as this could damage the
condenser and make it permeable.
Re-fit the condenser, turn the red stops
upwards and close the door.
Do not use this appliance if the condenser
has not been fitted.
EMAN_EDC4713OW_Feb09.indd 13
16/3/09 11:26:49 AM
14 care and cleaning electrolux
Care and cleaning
Emptying the water tank
Water extracted from the laundry condenses
inside the machine and is collected in a tank.
The tank must be emptied after each drying
cycle to ensure efficient operation when the
machine is next used. The light Water Tank
reminds you of this operation.
Proceed as follows:
• Open the small door at the lower part
of the cabinet
• Turn the yellow stops upwards
• Pull out the tank
• Open the small cover and empty the water
out of the container
• Close the small cover and correctly re-insert
the tank
• Push the container in until it clicks, then turn
the yellow stops downwards to lock it firmly
into place
• Close the small door and press the START/
PAUSE button again to allow the program
to continue.
The tank must be re-inserted correctly.
After emptying and inserting the tank the Start/
Pause button has to be depressed again to
allow the program to continue.
Handy tip: The condensed water may be used
in a steam iron or to top up a battery, etc. In this
case it must be filtered (e.g. through a coffee filter).
Cleaning the air intake grille
Using a vacuum cleaner remove the fluff from
the air intake grille at the back of the appliance.
Cleaning the drum
When your laundry does not reach the desired
degree of dryness, in other words, when it turns
out either too dry or too damp, we advise you
to clean the inside of the drum with a cloth
soaked with vinegar.
This will eliminate the slight film that has formed
in the drum (due to residues of detergent and
softeners used in the washing, and from the
lime contained in the water), which prevents
the probes from detecting the correct degree
of dryness.
EMAN_EDC4713OW_Feb09.indd 14
16/3/09 11:26:51 AM
electrolux something not working 15
Something not working
Certain problems are due to lack of simple
maintenance or oversights, which can be
solved easily without calling out an engineer.
Before contacting your local Service Centre,
please carry out the checks listed below.
During machine operation it is possible that
the red Start/Pause pilot light flashes to
indicate that the machine is not working.
Once the problem has been eliminated, press
the Start/Pause button to restart the program.
If after all checks, the problem persists, contact
your local Service Centre.
Possible cause
Dryer does
not work
• Mains plug is not plugged in or fuse is not
working correctly
• Loading door is open
• Have you pressed the START/ PAUSE button?
• Plug in at mains socket
Check fuse in fuse box (domestic installation)
• Close loading door
• Press the START/PAUSE button again
Drying results
• Wrong program selected
• Lint filter clogged
• Condenser unit clogged with lint
• Incorrect load size
• Ventilation slots in base area covered up
• Residue on inside surface of drum or drum ribs
• Select a different program the next time
you use the dryer (see “Overview of
programs” section).
• Clean lint filter
• Clean condenser unit.
• Observe recommended loading volumes.
• Uncover ventilation slots in base area.
• Clean inside surface of drum and drum ribs
Loading door
does not close
• Fine strainer not in place and/or large mesh
filter not locked in place.
• Install fine strainer and/or snap large mesh
filter into place
When pressing
a button, the
button flashes
several times.
• Washing protection
After the start of the program, the option can
no longer be set
• Turn the program knob to OFF.
Set the program again
Drying cycle
ends shortly
after program
starts. END
light illuminated
• Not enough washing loaded or washing
loaded is too dry for selected program.
• Select time program or higher drying level
(e.g. EXTRA DRY instead of CUPBOARD).
inactive, Water
tank full light
• Water Tank is full
• Empty water tank, then start program
with START/PAUSE button.
Drying cycle
lasts an
unusually long
• Lint filter clogged
• Condenser unit clogged with lint
• DELICATE button pressed and load volume
too big
• Load size too big
• Laundry insufficiently pre-drained
• Clean lint filter
• Clean condenser unit
• DELICATE is only suitable for use with loads
of up to 3 kg!
• Reduce load size
• Laundry must be sufficiently spun and/or
adequately pre-drained
Note: After
around 5 hours
the drying cycle
ends automatically
(see “Drying cycle
EMAN_EDC4713OW_Feb09.indd 15
16/3/09 11:26:51 AM
16 something not working | technical data | consumption values electrolux
If you are unable to identify or solve the
problem, contact our service centre. Before
phoning, make a note of the model, serial
number and purchase date of your machine:
the Service Centre will require this information.
Important: if you call out an engineer to a
fault listed on page 15, or to repair a fault
caused by incorrect use or installation,
a charge will be made even if the appliance
is under warranty.
Width 60cm
Height 85cm
Depth 58cm
Electrical connection
Voltage – Overall power
– Fuse
Information on the
electrical connection is
given on the rating plate
on the inner edge of the
appliance door
Depth with loading door
Maximum Load
Cotton 7kg
Synthetics 3kg
+ 5°C + 35°C
EMAN_EDC4713OW_Feb09.indd 16
Slide out the polyethylene bag with the
polystyrene stuffing before using the appliance.
Pull off the adhesive strips from the top of drum
inside the machine.
Please Note: If this appliance is supplied
from a cord extension set or electrical
portable outlet device it must be positioned
so that it is not subject to splashing or
ingress of moisture.
Technical data
The tumble dryer must not be installed
behind a lockable door, a sliding door or a
door with a hinge on the opposite side to that
of the tumble dryer in such a way that a full
opening of a tumble dryer door is restricted.
It is recommended that, for your convenience,
the machine is positioned close to your
washing machine.
The tumble dryer must be installed in a
clean place, where dirt does not build up.
Air must be able to circulate freely all around
the appliance. Do not obstruct the front
ventilation grille or the air intake grilles at
the back of the machine.
To keep vibration and noise to a minimum when
the dryer is in use, it should be placed on a firm,
level surface.
16/3/09 11:26:51 AM
electrolux installation 17
Once in its permanent operating position, check
that the dryer is absolutely level with the aid of
a spirit level. If it is not, raise or lower the feet
until it is.
The feet must never be removed. Do not restrict
the floor clearance through deep pile carpets,
strips of wood or similar. This might cause
heat build-up which would interfere with the
operation of the appliance.
The hot air emitted by the tumble dryer can
reach temperatures of up to 60°C. The appliance
must therefore not be installed on floors which
are not resistant to high temperatures.
When operating the tumble dryer, the room
temperature must not be lower than +5°C
and higher than +35°C, as it may affect the
performance of the appliance.
The manufacturer declines any responsibility
for damage or injury through failure to
comply with the above safety precaution.
Should the appliance power supply cable
need to be replaced, this must be carried
out by our Service Centre.
The power supply cable must be
accessible after installing the machine.
Stacking kit
A special stacking kit is available through your
dealer, to enable the mounting of the dyer on
top of a front loading washing machine which
cover’s a depth between 48 and 60cm.
Read carefully the instructions supplied with the kit.
Electrical connection
This machine is designed to operate on a
230-240V, single-phase, 50Hz supply. Check
that your domestic electrical installation can
take the maximum load required, also taking
into account any other appliances in use.
Connect the machine to an earthed socket,
in accordance with current wiring regulations.
EMAN_EDC4713OW_Feb09.indd 17
16/3/09 11:26:51 AM
18 installation | environment concerns electrolux
Environment concerns
Packaging materials
Ecological hints
The materials marked with the symbol
are recyclable.
This means that they can be recycled by
disposing of them properly in appropriate
collection containers.
To save energy and to help protect the
environment, we recommend that you follow
these hints:
• Try to load the maximum capacity of the
machine as small loads are uneconomical.
• Always load well spun laundry. The higher
the spin speed, the lower the electricity
consumption and the shorter the drying times.
• Do not over-dry laundry, this avoids creasing
and saves energy. Select the drying program
according to the type of laundry and the
required degree of dryness.
• To utilize the maximum load, laundry which
is to be dried ready to put away (store-dry)
can be dried together with items to be ironed.
To do this, select the program for iron-dry,
remove the iron-dry items at the end of the
program and then finish-dry the rest of the load.
• Clean the filters regularly to avoid excessive
drying times and high electricity consumption.
• Ventilate the room well. The room temperature
should not exceed +35°C during drying.
• Regularly clean the air intake.
Old machine
Use authorised disposal sites for your old
appliance. Help to keep your country tidy!
The symbol
on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it shall be handed over to the applicable
collection point for the recycling of electrical
and electronic equipment. By ensuring this
product is disposed of correctly, you will help
prevent potential negative consequences for
the environment and human health, which
could otherwise be caused by inappropriate
waste handling of this product. For more
detailed information about recycling of this
product, please contact your local city office,
your household waste disposal service or
the shop where you purchased the product.
EMAN_EDC4713OW_Feb09.indd 18
16/3/09 11:26:52 AM
electrolux warranty 19
This document sets out the terms and conditions of product
warranties for the Electrolux EDC47130W Tumble Dryer. It
is an important document. Please keep it with your proof
of purchase documents in a safe place for future reference
should you require service for your Electrolux appliance.
General Terms and Conditions
1. In this warranty
(a)‘Electrolux’ means Electrolux Home Products Pty Ltd ABN
51 004 762 341 in respect of Appliances purchased in
Australia and Electrolux (NZ) Limited in respect of Appliances
purchased in New Zealand;
(b)‘Appliance’ means any Electrolux product purchased by you
accompanied by this document;
(c)‘Warranty Period’ means
(i)where you use the Appliance for personal, domestic
or household purposes in Australia the period of
“24” months and in New Zealand the period of
“24” months;
(ii)where you use the Appliance for commercial
purposes, in Australia the period of “3” months
and in New Zealand the period of “3” months,
(if the period stated is 0 months you are not
covered by this product warranty)
following the date of original purchase of the Appliance;
(d)‘you’ means the purchaser of the Appliance not having
purchased the appliance for re-sale, and ‘your’ has a
corresponding meaning.
2.This warranty only applies to Appliances purchased and used
in Australia or New Zealand and is in addition to (and does not
exclude, restrict, or modify in any way) any non-excludable
statutory warranties in Australia or New Zealand.
3.Electrolux warrants that, when dispatched from an Electrolux
warehouse, the Appliance is free from defects in materials and
workmanship for the Warranty Period.
4.During the Warranty Period Electrolux or its Authorised
Service Centre will, at no extra charge if your appliance is
readily accessible without special equipment, and subject to
these terms and conditions, repair or replace any parts which
it considers to be defective. You agree that any replaced
Appliances or parts become the property of Electrolux. This
warranty does not apply to light globes, batteries, filters or
similar perishable parts.
5.Parts and Appliances not supplied by Electrolux are not
covered by this warranty.
6.Where you are within an Electrolux service area, this warranty
covers the cost of transport of the Appliance to and from
Authorised Service Centres of Electrolux and travelling costs for
representatives of the Authorised Service Centre to and from
your home or business. If you are outside an Electrolux service
area, you will bear these costs. For information about whether
you are within an Electrolux service area, please phone 13 13 49
in Australia, or 0800 10 66 10 in New Zealand.
7.Proof of purchase is required before you can make a claim
under this warranty.
8.You may not make a claim under this warranty unless the defect
claimed is due to faulty or defective parts or workmanship.
Electrolux is not liable in the following situations (which are
not exhaustive):
(a)The Appliance is damaged by:
(ii)misuse or abuse, including failure to properly maintain
or service
normal wear and tear
(iv)power surges, electrical storm damage or incorrect
power supply
incomplete or improper installation
incorrect, improper or inappropriate operation
(vii) insect or vermin infestation.
(b)The Appliance is modified without authority from Electrolux
in writing.
(c)The Appliance’s serial number or warranty seal has been
removed or defaced.
(d)The Appliance was serviced or repaired by anyone other
than Electrolux or its Authorised Service Centres.
9.This warranty, the contract to which it relates and the
relationship between you and Electrolux are governed by the
law applicable in the Australian State where the Appliance was
purchased or the law applicable in New Zealand if the Appliance
was purchased in New Zealand. Where the Appliance
was purchased in New Zealand for business purposes the
Consumer Guarantee Act does not apply.
Limitation of Liability
10. To the extent permitted by law:
(a)Electrolux excludes all warranties other than as contained in
this document;
(b)Electrolux shall not be liable for any loss or damage
whether direct or indirect or consequential arising from your
purchase, use or non-use of the Appliance.
11.Provisions of the Trade Practices Act and State consumer
legislation in Australia, and the Consumer Guarantees
Act, the Sale of Goods Act and the Fair Trading Act in
New Zealand, imply warranties or conditions, or impose
obligations, upon Electrolux which cannot be excluded,
restricted or modified. To the extent permitted by law, the
liability of Electrolux (if any) arising out of or in relation to the
Appliance or any services supplied by Electrolux shall be
limited (where it is fair and reasonable to do so),:
(a)in the case of Appliances, at its option, to the replacement or
repair of the Appliances or the supply of equivalent products
or the payment of the cost of replacing the Appliances or
having the Appliances repaired or of acquiring equivalent
Appliances. Upon being replaced, parts and Appliances
become the property of Electrolux; or
(b)in the case of services, at its option, to the supply of the
services again or the payment of the cost of having the
services re-supplied;
and in the case of Appliances or services supplied in
New Zealand, loss or damage whether direct or indirect
or consequential that is reasonably foreseeable.
You acknowledge that in the event that you make a warranty
claim it will be necessary for Electrolux and its Authorised Service
Centres to exchange information in relation to you to enable
Electrolux to meet its obligations under this warranty.
Important Notice
Before Calling a Service Technician please check carefully the operating instructions, service booklet and the warranty terms and conditions.
or to find the address of your nearest
state service centre in Australia
Please call 13 13 49
For the cost of a local call (Australia only)
or to find the address of your nearest
authorised service centre in New Zealand
Free call 0800 10 66 10
(New Zealand only)
EMAN_EDC4713OW_Feb09.indd 19
or to find the address of your nearest
state spare parts centre in Australia
Please call 13 13 50
For the cost of a local call (Australia only)
or to find the address of your nearest
state spare parts centre in New Zealand
Free call 0800 10 66 20
(New Zealand only)
16/3/09 11:26:52 AM
20 safety instructions
Electrolux Home Products Australia
telephone: 1300 363 640
1800 350 067
[email protected]
Electrolux Home Products New Zealand
09 573 2384
09 573 2221
[email protected]
The Thoughtful Design Innovator.
Do you remember the last time you opened a gift that made you say
“Oh! How did you know? That’s exactly what I wanted!” That’s the kind of
feeling that the designers at Electrolux seek to evoke in everyone who chooses
or uses one of our products. We devote time, knowledge, and a great deal of
thought to anticipating and creating the kind of appliances that our customers
really need and want.
This kind of thoughtful care means innovating with insight. Not design for
design’s sake, but design for the user’s sake. For us, thoughtful design means
making appliances easier to use and tasks more enjoyable to perform, freeing
our customers to experience the ultimate 21st century luxury: ease of mind.
Our aim is to make this ease of mind more available to more people in more
parts of their everyday lives, all over the world. The “Thinking of you” promise from Electrolux goes beyond meeting the needs
of today’s consumers. It also means we’re committed to making appliances
safe for the environment—now and for future generations.
Electrolux. Thinking of you.
Share more of our thinking at www.electrolux.com.au or www.electrolux.co.nz
P/No. 867 200 534-A-190407-01
© Copyright 2009 Electrolux Home Products Pty Ltd ABN 51 004 762 341
Print code: EDC4713OWUM_Feb09
EMAN_EDC4713OW_Feb09.indd 20
16/3/09 11:26:53 AM
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
