Aeg-Electrolux T59840 User Manual

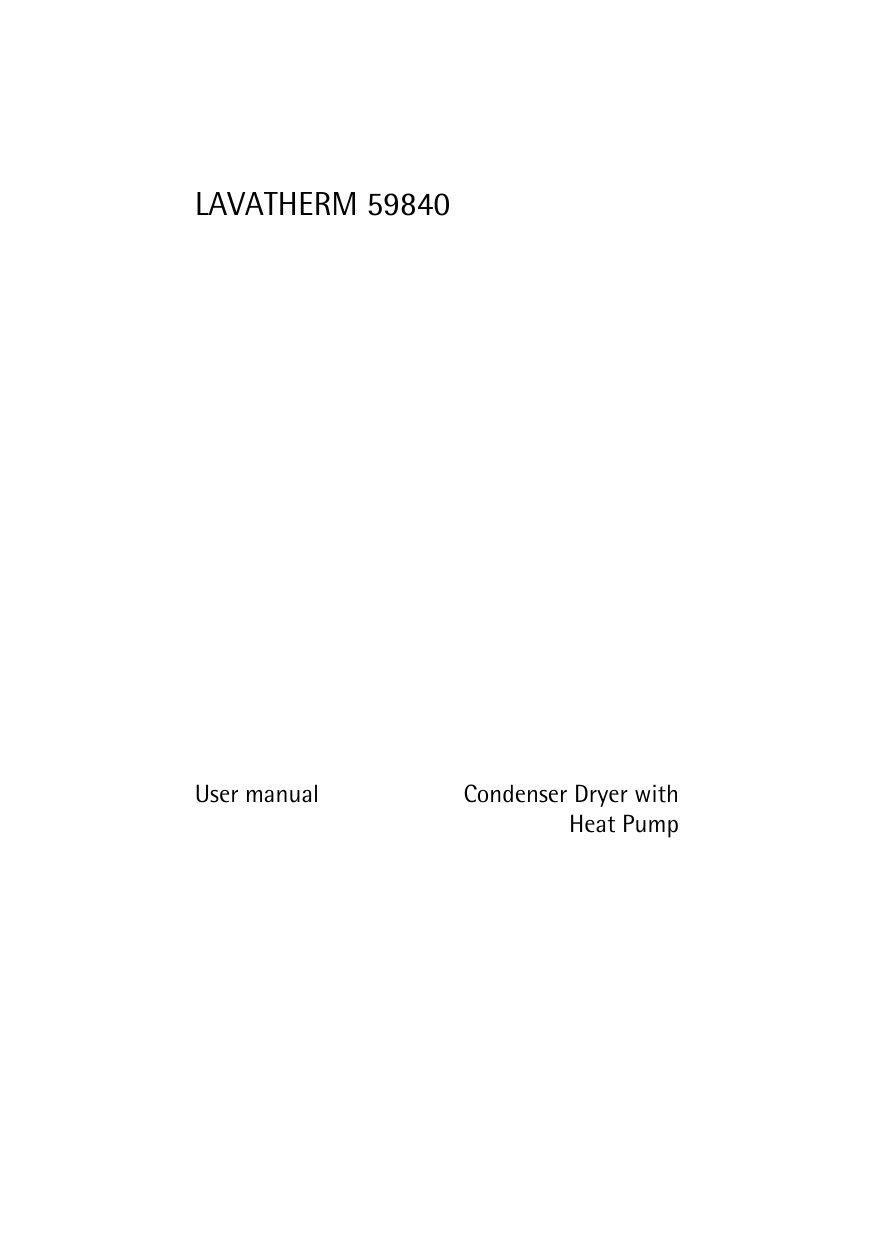

LAVATHERM 59840
User manual
Condenser Dryer with
Heat Pump
2
Dear Customer
Thank you for choosing one of our high-quality products.
With this appliance you will experience the perfect combination of functional
design and cutting edge technology.
Convince yourself that our appliances are engineered to deliver the best
performance and control - indeed we are setting the highest standards of
excellence.
In addition to this you find environmental and energy saving aspects as an integral
part of our products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfectly
and most efficiently. To refer to this manual any time you need to, we recommend
you to keep it in a safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
The following symbols are used in this user manual:
Important information concerning your personal safety and information on how
to avoid damaging the appliance.
General information and tips
Environmental information
Contents
3
125989520-01-14012008
Contents
Operating Instructions
5
Important safety information
5
Product description
8
Control panel
What is shown in the display
9
9
Before first use
10
Sorting and preparing laundry
11
Programme chart
12
Daily use
Switching machine on / switching light on
Opening loading door / loading laundry
Selecting the programme
Setting dryness level
Setting the pre-drainage spin speed
Setting long anti-crease function
Buzzer
Time
Setting delay timer
Setting child lock
Starting the programme
Changing programme
Putting in extra items or taking items out before end of programme
Drying cycle complete / removing laundry
15
15
15
15
16
16
17
17
17
18
18
19
19
19
20
Care and cleaning
Cleaning fluff filter
Cleaning the door seal
Emptying the condensate tank
Cleaning heat exchanger filter
Cleaning the drum
Clean operating screen and housing
21
21
23
23
24
26
27
What to do if ...
Troubleshooting by yourself
28
28
4
Contents
Changing the bulb for interior lighting
29
Machine settings
31
Technical data
32
Consumption values
33
Hints for test institutes
33
Installation
Transporting the appliance
Appliance positioning
Removing transport safety packaging
Electrical connection
Permanent connection
Changing door stop
Special accessories
34
34
34
35
36
37
37
38
Environment
Packaging material
Old appliance
Environmental tips
40
40
40
41
Guarantee/Service
42
Guarantee/Customer Service
GREAT BRITAIN & IRELAND
European Guarantee
42
42
44
Service
45
www.electrolux.com
45
Subject to change without notice
Important safety information
5
Operating Instructions
Important safety information
In the interest of your safety and to ensure the correct use, before installing
and first using the appliance, read this user manual carefully, including its
hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar
with its operation and safety features. Save these instructions and make
sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use
and safety.
General safety
• It is dangerous to alter the specifications or attempt to modify this product in
any way.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Make sure that small pets do not climb into the drum. To avoid this, please check
into the drum before using.
• Any objects such as coins, safety pins, nails, screws, stones or any other hard,
sharp material can cause extensive damage and must not be placed into the
machine.
• In order to avoid danger of fires caused by excessive drying, do not use appliance
to dry the following items: Cushions, quilts and the like (these items accumulate
heat).
• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber
backed articles and clothes or pillows fitted with foam rubber pads should not
be dried in the tumble dryer.
• Always unplug the appliance after use, clean and maintenance.
• Under no circumstances should you attempt to repair the machine yourself.
Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Centre. Always insist on genuine spare
parts.
6
Important safety information
• Items that have been soiled with substances such as cooking oil acetone, petrol,
kerosene, spot removers, turpentine, waxes and wax removers should be washed
in hot water with an extra amount of detergent before being dried in the tumble
dryer.
• Danger of explosion: Never tumble dry items that have been in contact with
inflammable solvents (petrol, methylated spirits, dry cleaning fluid and the like).
As these substance are volatile, they could cause an explosion. Only tumble dry
items washed with water.
• Risk of fire: items that have been spotted or soaked with vegetable or cooking
oil constitute a fire hazard and should not be placed in the tumble dryer.
• If you have washed your laundry with stain remover you must execute an extra
rinse cycle before loading your tumble dryer.
• Please make sure that no gas lighters or matches have accidentally been left in
pockets of garments to be loaded into appliance
WARNING!
Never stop a tumble dry before the end of the drying cycle unless all items
are quickly removed and spread out so that the heat is dissipated. Risk of
fire!
• Risk of electric shock! Do not spray down the appliance with jets of water.
Installation
• This appliance is heavy. Care should be taken when moving it.
• When unpacking the appliance, check that it is not damaged. If in doubt, do not
use it and contact the Service Centre.
• All packing and transit bolts must be removed before use. Serious damage can
occur to the product and to property if this is not adhered to. See relevant section
in the user manual.
• The final part of a tumble dryer cycle occurs without heat ( cool down cycle ) to
ensure that the items are left at a temperature that ensures that items will not
be damaged.
• Any electrical work required to install this appliance should be carried out by a
qualified electrician or competent person.
• Care must be taken to ensure that the appliance does not stand on the electrical
supply cable.
• If the machine is situated on a carpeted floor, please adjust the feet in order to
allow air to circulate freely.
Important safety information
7
• After having installed the appliance, check that it is not pressing or standing on
its electrical supply cable.
• If the tumble dryer is placed on top of a washing machine, it is compulsory to
use the stacking kit (optional accessory).
Use
• This appliance is designed for domestic use. It must not be used for purposes
other than those for which it was designed.
• Only wash fabrics which are designed to be machine dried. Follow the instructions on each garment label.
• Do not dry unwashed items in the tumble dryer.
• Do not overload the appliance. See the relevant section in the user manual.
• Clothes which are dripping wet should not be placed in the dryer.
• Garments which have been in contact with volatile petroleum products should
not be machine dried. If volatile cleaning fluids are used, care should be taken
to ensure that the fluid is removed from the garment before placing in the
machine.
• Never pull the power supply cable to remove the plug from the socket; always
take hold of the plug itself.
• Never use the tumble dryer if the power supply cable, the control panel, the
working surface or the base are damaged so that the inside of the tumble dryer
is accessible.
• Fabric softeners, or similar products should be used as specified by the fabric
softener instructions.
• Caution - hot surface : Do not touch the door light cover surface when the
light is switched on.1)
Child safety
• This machine is not intended for use by young children or infirm persons without
supervision.
• Children should be supervised to ensure that they do not play with the appliance.
• The packaging components (e.g. plastic film, polystyrene) can be dangerous to
children - danger of suffocation! Keep them out of children’s reach.
• Keep all detergents in a safe place out of children’s reach.
• Make sure that children or pets do not climb into the drum.
1) Only dryers equipped with internal drum light.
8
Product description
Product description
2
1
4
3
5
6
8
7
10
9
11
12
1
2
3
4
5
6
7
8
9
10
11
12
Control panel
Drawer with condensed water container
Lamp for inside light
Fine strainer (lint filter)
Large mesh filter (lint filter)
Micro-fine filter (lint filter)
Rating plate
Loading door (reversible)
Base door upstream of fluff filter and heat exchanger
Button for opening door in plinth
Air slots
Screwed feet (with height adjustment)
Control panel
Control panel
6
1
1
2
3
4
5
6
5
4
3
2
Programme knob and OFF switch
Function buttons
START PAUSE button
DELAY START button
Status led
Display
What is shown in the display
4
6
5
2
3
1
9
10
Before first use
1
2
3
4
5
6
time to end / error message
cycle phase status
options
warnings
spin speed selection
dryness selection
Before first use
WARNING!
If the appliance was not transported in an upright position, leave it to stand for 12
hours before connecting it to the electricity supply and using it for the first time,
so that the oil can flow back to the compressor. Otherwise the compressor could
be damaged.
In order to remove any residues which may have been produced during production,
wipe the dryer drum with a damp cloth or carry out a brief drying cycle (30 MIN)
with damp cloths in the machine.
Sorting and preparing laundry
11
Sorting and preparing laundry
Sorting laundry
• Sort by fabric type:
– Cotton/linen for programmes in COTTONS programme group.
– Mixtures and synthetics for programmes in EASY CARE programme group.
• Sorting by care label. The care labels mean:
Drying in the tumble
dryer possible in principle
Drying at normal
temperature
Drying at reduced
temperature
Drying in the tumble
dryer not possible
Do not place in the appliance any wet laundry which is not specified on the care
label as being suitable for tumble-drying.
This appliance can be used for all wet laundry items which are labelled as suitable
for tumble-drying.
• Do not dry new, coloured textiles together with light-coloured laundry items.
Textile colours may bleed.
• Do not dry cotton jersey and knitwear with the EXTRA programme. Items may
shrink!
• Wool and wool-like textiles can be dried using the WOOL programme. Before
the drying cycle spin the woollen textiles as well as possible (max. 1200 rpm).
Only dry woollen textiles together which are similar or the same with repect to
material, colour and weight. Please dry heavy laundry items made of wool
separately.
Preparing laundry
• To avoid laundry becoming tangled: close zips, button up duvet covers and tie
loose ties or ribbons (e.g. of aprons).
• Empty pockets. Remove metal items (paper clips, safety pins, etc).
• Turn items with double-layered fabrics inside out (e.g. with cotton-lined anoraks,
the cotton layer should be outermost). These fabrics will then dry better.
12
Programme chart
TIME
•
•
•
•
-
Thorough drying of thick or multi- layered
• fabrics, e.g. terry towelling items, bathrobes, cottons.
COTTONS
INTENSIVE
DRY
7 kg
•
•
•
•
-
•
COTTONS
STORAGE
DRY1)
7 kg
•
•
•
•
-
Thorough drying of fabrics of even
• thicknesses, e.g. terry towelling items, knitwear, towels, cotton shirts.
COTTONS
IRON DRY1)
7 kg
•
•
•
•
-
•
For normal thickness cotton or linen laundry, e.g. bedding, table linen.
EASY CARE
EXTRA DRY
3 kg
•
•
•
•
-
•
Thorough drying of thick or multi-layered
fabrics, e.g. pullovers, bedding, table linen.
EASY CARE
STORAGE
DRY1)
3 kg
•
•
•
•
-
For thin fabrics which are not ironed, e.g.
• easy care shirts, table linen, socks, lingerie
with bones or wires.
EASY CARE
IRON DRY
3 kg
•
•
•
•
-
•
TIME
7 kg
-
-
•
•
•
• For drying of individual items of laundry.
FRESHENUP
1 kg
-
-
•
•
-
For refreshing or gently cleaning textiles
• with commercially available dry cleaning
products.
MICRO-FIBRE
1 kg
•
•
•
•
-
•
Application/properties
Thorough drying of thick fabrics, e.g. terry
towelling items, towels, cottons.
For thin fabrics which are also to be ironed,
e.g. knitwear, cotton shirts.
For thin fabrics, polyester and polyamide,
which are not ironed.
Care mark
BUZZER
7 kg
DELAY START
SPIN SPEED
COTTONS
EXTRA DRY
Programmes
max. load
LONG ANTI-CREASE
Additional functions/
options
DRYNESS
(weight when dry)
Programme chart
BUZZER
TIME
DELAY START
•
•
•
•
-
•
For drying cotton and synthetic fabrics,
uses low temperature.
BED LINEN
3 kg
•
•
•
•
-
•
Bed linen (single and double sheet, pillowcase, bedspread, duvet cover).
VISCOSE
1 kg
•
•
•
•
-
•
For thin fabrics, viscose, and polyester,
which are not ironed.
JEANS
7 kg
•
•
•
•
-
For leisure clothing, such as jeans, sweat• shirts, etc., of different material thicknesses
(e.g. at the neck, cuffs and seams).
SPORTSLIGHT
2 kg
•
•
•
•
-
•
-
Special program with anti-crease mechanism for easy care fabrics such shirts and
blouses; for minimum ironing effort. The
• results depends on the type of fabric and
its finish. Place fabrics in the dryer straight
after spinning; once dried, immediately remove fabrics and place on a clothes hanger.
SHIRTS
EASY IRON
PLUS
SILK
1.5 kg
(or 7
shirts)
•
•
•
•
Application/properties
For sportswear, thin fabrics, polyester,
which are not ironed.
1 kg
(or 5
shirts)
•
•
•
•
-
Special program with anti-crease mechanism for easy care fabrics such shirts and
blouses; for minimum ironing effort. The
• results depends on the type of fabric and
its finish. Place fabrics in the dryer straight
after spinning; once dried, immediately remove fabrics and place on a clothes hanger.
1 kg
•
•
•
•
-
•
For drying silk using warm air and gentle
movement.
Care mark
SPIN SPEED
LONG ANTI-CREASE
3 kg
max. load
MIXED
Programmes
13
Additional functions/
options
DRYNESS
(weight when dry)
Programme chart
WOOL
1 kg
1) In accordance with IEC61121
•
-
•
-
Application/properties
For drying woollen fabrics after they have
been washed, using warm air at minimum
mechanical load (Follow section “Sorting
• and preparing washing”). Recommendation: Remove fabrics immediately after
drying, as no anti-crease programme follows.
Care mark
DELAY START
TIME
BUZZER
SPIN SPEED
•
LONG ANTI-CREASE
Additional functions/
options
DRYNESS
Programmes
max. load
Programme chart
(weight when dry)
14
Daily use
15
Daily use
Switching machine on / switching light on
Turn the programme selector to any programme or turn it to LIGHT ON. The machine
has been switched on. When the loading door is opened, the drum is illuminated.
Opening loading door / loading laundry
1. Open loading door:
Use force to push against the loading
door (push point)
2. Load your laundry (do not force it in).
CAUTION!
Do not jam laundry in between the loading door and rubber seal.
3. Close loading door securely. Lock
must audibly lock.
Selecting the programme
Use the programme selector to set the programme you require. The estimated time to
end of the programme appears in the LCD in
h:mm format (hours:minutes).
During the cycle time elapses by steps of one
minute; less than 1 hour the leading zeros are
not shown (ex. “59”, “5”, “0”).
16
Daily use
Setting dryness level
If laundry comes out of the machine too
damp after a standard drying programme,
you can increase the drying result by using
the DRYNESS function. Laundry becomes
drier as you move from MIN to MAX.
Press the DRYNESS button repeatedly until
the desired dryness level (MIN, MED or
MAX) is shown in the display. When humidity
adjustment is not foreseen on the related
program, bar frame with AUTO text is shown.
If wool or silk comes out of the machine too damp at the end of a WOOL or SILK
programme, you can dry it again by restarting the appropriate programme, this
time with the DRYNESS function selected and dryness level MIN, MED or MAX. In
the case of a drying cycle with relatively dry laundry, the length of the programme
cycle displayed at the beginning is corrected after a while.
Setting the pre-drainage spin speed
If the washing in the washing machine was
initially drained prior to the drying cycle, the
dryer can be set according to the spin speed
of the initial drainage procedure. The higher
the spin speed was, the shorter the programme length for the drying cycle.
Press the SPIN SPEED button a number of
times until the desired spin speed of the initial
drainage is displayed. No value is shown if no spin speed is selected.
In certain programmes the spin speed has not
effect (time controlled cycles), its selection
can be not selectable and only three dashes
are visualized. Available selections:
Daily use
17
Setting long anti-crease function
Press the LONG ANTI-CREASE button. A 90
minute anti-crease phase is set. The display
now shows the LONG ANTI-CREASE icon
. If this additional function is selected, the
anti-crease phase at the end of the drying
cycle is lengthened by 60 minutes. The laundry can be removed at any time during the
anti-crease phase.
Buzzer
The appliance is supplied with the BUZZER
function deactivated.
To activate buzzer press BUZZER button.
The button is used to switch the function on
or off. When the function is active, the BUZsymbol appears in the display.
ZER
The buzzer sounds or plays a tune during:
– cycle end
– anti-crease phase and when phase starts or ends
– cycle interruption by a warning
– alarm
Time
To select the programme duration after setting the TIME programme. You can select a
programme duration from 10 mins to 3 hrs in
10-minute steps.
1. Turn the programme knob to the TIME
programme. The blinking 10' above TIME
button is on.
2. Press the TIME button repeatedly until the
desired programme duration is shown in the display, e.g. 20 for a programme
of 20 minutes.
18
Daily use
If the programme duration is not selected, the duration is automatically set to 10
mins.
Setting delay timer
With the DELAY button, you can delay the
start of a programme by between 30 minutes (30') and a maximum of 20 hours
(20h).
1. Select the programme and additional
functions.
2. Press the DELAY button as many times as necessary until the required start
delay appears on the display, e.g. 12h if the programme is to be started in 12
hours.
If the display is showing 20h and you press the button again, the time delay
will be cancelled. The display will show 0'and then the duration of the selected programme.
3. To activate the delay timer, press the START PAUSE button. The amount of time
remaining until the programme is set to start is continuously displayed (e.g.
15h, 14h, 13h, … 30' etc).
Setting child lock
The child lock can be set to prevent a programme being accidentally started or a
programme in operation being accidentally changed. The child lock function locks
all buttons and the programme knob. The child lock can be activated or deactivated
by holding down the LONG ANTI-CREASE and BUZZER buttons simultaneously for
5 seconds.
– Before programme is started: Appliance cannot be used
– After programme is started: Programme in operation cannot be changed
The ( icon appears in the display to indicate that the child safety device is activated.
The child safety device is not deactivated once the programme comes to an end.
If you want to set a new programme, you must first deactivate the child safety
device.
Daily use
19
Starting the programme
Press the START PAUSE button. The programme is started.
The programme progress is shown in LCD by
appropriate set of icons. From left to the right,
to ANTI-CREASE
icon
from IRON DRY
depends on the drying cycle chosen. E. g. in
case of STORAGE programme the following
.
status icons are visible:
Current cycle progress is marked by flashing dash under status icon. When appropriate part of drying cycle is accomplished dash becomes steady and appears
flashing under next status icon.
Changing programme
To change a programme which has been selected by mistake once the programme
has started, first turn the programme selector to OFF and then reset the programme.
The programme can no longer be changed directly once the programme has started.
If nevertheless there is an attempt to change the programme on the programme
knob, the programme progress display and the maintenance indicators flash. If an
option button (excluding the BUZZER button) is pressed, Err appears in the multidisplay. The drying programme is not however affected by this (laundry protection).
Putting in extra items or taking items out before end of programme
1. Open loading door.
WARNING!
Laundry and drum can become hot. Risk of burns!
2. Load or remove laundry items.
3. Close loading securely. Lock must audibly lock.
4. Press the START PAUSE button to continue the drying cycle.
20
Daily use
Drying cycle complete / removing laundry
Once the drying cycle is complete, display shows a blinking "0", under anticrease
icon appear dash. If the BUZZER button has been pressed, an acoustic
signal sounds intermittently for about one minute.
The drying cycles (except for the WOOL programme) are automatically followed
by an anti-crease phase which lasts around 30 minutes. The drum rotates at intervals during this phase. This keeps the laundry loose and free of creases. The
laundry can be removed at any time during the anti-crease phase. (The laundry
should be taken out towards the end of the anti-crease phase at the latest to
function has been
prevent creases from forming.) If LONG ANTI-CREASE
selected, the anti-crease phase is lengthened by 60 minutes.
1. Open door.
2. Before removing the laundry, remove fluff from the micro-fine filter. It is best
to use a damp hand for this purpose. (See “Care and cleaning” chapter.)
3. Remove laundry.
4. Turn the programme selector to OFF.
After each drying cycle:
- Clean the micro-fine filter and fine filter
- Drain the condensed water container
(See chapter “Care and cleaning”.)
5. Close the door.
Care and cleaning
21
Care and cleaning
Cleaning fluff filter
The filters collect all the fluff which accumulates during drying. To ensure that the
dryer works perfectly, the fluff filters (micro-fine filter and fine strainer) must be
cleaned after every drying cycle.
is on to remind you this operation.
The warning icon
CAUTION!
Never operate the dryer without fluff filters or with damaged or blocked fluff filters.
1.
2.
Open loading door
Use a damp hand to clean the micro- fine filter, which is built into
the lower part of the loading aperture.
3.
After a period of time, a patina due
to detergent residue on laundry
forms on the filters. When this occurs, clean the filters with warm
water using a brush. Remove the
filter from the door pulling it out. It
can be positioned with the tooth
facing to the left or to the right).
After cleaning do not forget to put
it back.
22
Care and cleaning
4.
Push down unlock button on large
mesh filter.
Large mesh filter jumps up.
5.
6.
Take out fine strainer.
Remove fluff from fine strainer. It
is best to use a damp hand for this
purpose.
Clean the entire filter area
The strainer area does not have to
be cleaned after every drying cycle,
but should be checked regularly
and cleaned of fluff if necessary.
7. To do this, grip the top of the large
mesh filter and pull it forwards until
it comes loose from the two brackets.
8. Remove fluff from the entire filter
area. It is best to use a vacuum
cleaner for this purpose.
9. Press both journals of the large
mesh filter into the brackets on the
loading door until they snap into
place.
10. Re-insert fine strainer.
Care and cleaning
23
11. Press against the large mesh filter
until it locks into the interlock.
If the fine strainer is not fitted, the large
mesh filter will not snap into place and
the loading door cannot be closed.
Cleaning the door seal
Wipe the door seal with a damp cloth immediately after the drying cycle has
finished.
Emptying the condensate tank
Empty condensate tank after every drying cycle.
If the condensate tank is full, an active programme will break off automatically
icon on the display will light up. In order to continue
and the EMPTY CONTAINER
the programme, the condensate tank must first be emptied.
WARNING!
The condensate is not suitable for drinking or for preparing foodstuffs.
1. Take out drawer containing condensed water container completely
1 and pull up the condensed water
container’s drainage pipe as far as it
will go 2.
2
1
24
Care and cleaning
2. Pour condensed water out into a basin or similar receptacle.
3. Slide outlet connections in and refit
condensate tank.
If the programme has been interrupted as a result of the condensate tank
being full: Press the START PAUSE
button to continue the drying cycle.
The condensate tank has a volume of approx. 4 litres. This is sufficient for around
7kg of laundry which has previously been spun at 1000 revolutions/ minute.
The condensate can be used as distilled water, e.g. for steam ironing. However first
filter the condensate (e.g. with a coffee filter) to remove any residue and small
pieces of fluff.
Cleaning heat exchanger filter
If the indicator CLEAN BASE FILTER
lights up, the heat exchanger filter in the
base of the appliance must be cleaned.
To protect the heat pump from dirt, the dryer is fitted with fluff filter, which is
located in the filter housing. Here too large amounts of fluff build up over time,
which affect the function of the appliance.
IMPORTANT
• Operating when the fluff filter is clogged with fluff can damage the dryer. This
also increases energy consumption.
• Never operate the dryer without the fluff filters.
• Do not use the dryer without the fluff filter. A dirty heat pump requires more
energy and can only be cleaned up by means of a costly process.
Care and cleaning
1.
2.
Open loading door
Open door in plinth: To do this,
press the release button on the bottom of the door aperture and open
the door in the plinth to the left.
3.
Pull filter housing out of the base
by the handle.
Clean the inside of the door, the
fluff filter chamber and the rubber
seals of fluff.
4.
5.
Remove fluff from the fluff filter on
the floor of the base with a damp
hand.
6.
To clean the fluff filter: Remove filter from filter housing. To do this,
press the pressure points on the
sides and pull the filter frame up
and out of the housing.
25
2
1
26
Care and cleaning
7.
8.
Remove fluff from the fluff filter
with a damp hand.
Insert the fluff filter into the filter
housing.
9.
As necessary, approx. once every 6
months, remove the fluff from the
heat exchanger using the sponge
supplied. When doing this, please
use rubber gloves.
Tip: The fluff can be removed more
easily if it is first dampened e. g.
with a laundry dampener.
10. Re-insert filter housing along with filter in appliance base.
Note: If the fluff filter is not inserted in the filter housing, the filter housing
cannot be slid into the appliance base.
11. Close door in plinth.
Cleaning the drum
CAUTION!
Do not use abrasives or steel wool to clean the drum.
Lime in the water or cleaning agents may form a barely visible lining on the inside
of the drum. The degree to which the laundry has been dried is then no longer
detected reliably. The laundry is damper than expected when removed from the
dryer.
Use a standard domestic cleaner (e.g. vinegar-based cleaner) to wipe down the
inside of the drum and drum ribs.
Care and cleaning
27
Clean operating screen and housing
CAUTION!
Do not use furniture cleaners or aggressive cleaning agents to clean the machine.
Use a damp cloth to wipe down the operating screen and housing.
28
What to do if ...
What to do if ...
Troubleshooting by yourself
If, during operation, the error code E... plus number or letter) appears on the LCD:
Switch the machine off and on again. Reset programme. Press the START PAUSE
button If the error is still displayed, please inform your local Service Force Centre
and quote the error code.
Problem
Possible cause
Remedy
Plug in at mains socket. Check
Mains plug is not plugged in or
fuse in fuse box (domestic infuse is not working correctly.
stallation).
Dryer does not work.
Loading door is open.
Close loading door.
Have you pressed the START
PAUSE button?
Press the START PAUSE button
again.
Wrong programme selected.
Select a different programme
the next time you dry (see “Programme chart” chapter).
Lint filters clogged.
Clean lint filters.
Fluff filter clogged.
Clean fluff filter.
Overloading of laundry.
Observe recommended loading
volumes.
Ventilation slots in base area
covered up.
Uncover ventilation slots in
base area.
Drying results unsatisfactory.
Residue on inside surface of
drum or drum ribs.
Clean inside surface of drum
and drum ribs.
Make an adjustment using the
DRYNESS function (see chapter
”Daily use”)
Loading door does not close.
Fine strainer not in place and/
or mesh filter not locked in
place.
Install fine strainer and/or snap
large mesh filter into place.
When a button is pressed, Err
appears on the LCD.
Washing protection. After the
start of the programme, the
option can no longer be set.
Turn the programme knob to
OFF. Set the programme again.
Drum light does not work.
Programme selector in OFF po- Turn programme selector to
sition.
LIGHT or to any programme.
What to do if ...
Defective light bulb.
29
Replace light bulb (see next
section).
Programme time is corrected
Displayed programme time
automatically depending on
changes erratically or stays untype and volume of laundry
changed for a long time.
and level of dampness.
Automatic process; this is not a
machine fault.
Programme inactive, empty
icon is on.
water tank
Empty condensate tank, then
start programme with START
PAUSE button.
Condensate tank is full.
Select time programme or
Drying cycle ends shortly after Not enough washing loaded or
higher drying level (e.g. INTENprogramme starts. END display washing loaded is too dry for
SIVE DRY instead of STORAGE
illuminated.
selected programme.
DRY).
Lint filter clogged.
Clean lint filter.
Fluff filter clogged.
Clean fluff filter.
Drying cycle lasts an unusually Load volume too big.
long time. Note: After around 5
Laundry insufficiently spun.
hours the drying cycle ends
automatically (see „Drying cyParticularly high room
cle complete ”).
temperature. Temporary
switching off of the compressor to avoid overload.
Reduce load volume.
Laundry must be adequately
spun.
Automatic process, there is no
fault with the appliance. If possible, lower the room temperature.
Changing the bulb for interior lighting
Only use a special bulb which is designed specially for dryers. The special bulb can
be obtained from the Customer Care Department, ET no. 112 552 000-5.
When the appliance is switched on, the interior lighting switches itself off after 4
minutes when the door is open.
WARNING!
Do not use standard bulbs! These develop too much heat and may damage the
machine!
WARNING!
Before replacing the bulb, disconnect the mains plug.
1. Unscrew cover above the bulb (this can be found directly behind the loading
aperture, at the top; refer to “Description of machine” section.)
30
What to do if ...
2. Replace defective bulb.
3. Screw cover back down.
Check the correct positioning of o-ring gasket before screwing back the door light
cover. Do not operate the dryer when missing o-ring gasket on door light cover.
WARNING!
For safety reasons, the cover must be screwed down tightly. If this is not done, the
dryer must not be operated.
Machine settings
31
Machine settings
Setting
BUZZER permanent off
Implementation
1. Turn the programme selector to any programme.
2. Press simultaneously the DRYNESS and SPIN SPEED
buttons and hold down for approx. 5 seconds.
3. The buzzer is by default always off. You can use BUZZER button to activate or deactivate sound but machine does not memorize your selection.
Water hardness
1. Turn the programme selector to any programme.
Water contains, a variable quantity of 2. Press simultaneously the DRYNESS and TIME buttons
and hold down for approx. 5 seconds. The current
limestone and mineral salts of which
setting is on the display:
quantities vary according to geographi–
low conductivity <300 micro S/cm
cal locations thus varying its
conductivity values.
–
medium conductivity 300-600 micro S/
cm
Relevant variations of the conductivity
of the water compared to those prefixed
–
high conductivity >600 micro S/cm
by the factory could slightly influence 3. Press the START PAUSE button sequentially until you
the residual humidity of the laundry at
set desired level.
the end of the cycle. Your dryer allows
4. To memorize setting press simultaneously the DRYyou to regulate the sensitivity of the
NESS and TIME buttons or turn knob to OFF position
drying sensor based on conductivity
values of the water.
Emptying water tank - warning mes- 1. Turn the programme selector to any programme.
sage permanent off
2. Press simultaneously the SPIN SPEED and TIME buttons and hold down for approx. 5 seconds.
When using an external drain for the
condensed water.
The current setting is on the display:
– warning icon and
is off
– warning icon and
is switched on
- warning message
- warning message
By default the warning message is switched on and displayed always at the end of the drying cycle or during
the cycle if the water container is full.
32
Technical data
Technical data
This appliance conforms with the following EU Directives:
– 73/23/EEC dated 19.02.1973 Low Voltage Directive
– 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Directive
92/31/EEC
– 93/68/EEC dated 22.07.1993 CE Marking Directive
Height x width x depth
85 x 60 x 60 cm
Depth with loading door open
109 cm
Height can be adjusted by
1.5 cm
Weight when empty
approx. 60kg
Loading volume (depends on programme)1)
max. 7kg
Energy consumption in accordance with IEC
61121 s. e. (7kg of cotton, pre-drained at 1000
rpm, COTTONS STORAGE DRY programme)
2,4 kWh
Use
Domestic
Permissible ambient temperature
+ 5°C to + 35°C
1) Different loading volume data may be needed in some countries as a result of different measuring methods.
Consumption values
33
Consumption values
The consumption values have been established under standard conditions. They
may deviate when the machine is operated in domestic circumstances.
Programme
COTTONS STORAGE DRY1)
COTTONS
IRON DRY1)
EASY CARE STORAGE DRY2)
Loading volume in kg
Energy consumption in
kWh
7
2.4
7
1.8
3
0.75
1) pre-drained at 1000 rpm
2) pre-drained at 1200 rpm
Hints for test institutes
Parameters possible to checked by the Test Institutes:
• Energy consumption (corrected with final humidity) during the cupboard dry
cotton cycle with nominal load.
• Energy consumption (corrected with final humidity) during the cupboard dry
cotton cycle with half load.
• Final humidity (during Cupboard dry cotton, Iron dry cotton and Cupboard dry
Easy care)
• Condensation efficiency (corrected with final humidity) during cupboard dry
cotton cycle with nominal and half load
All the cycles have to be checked in accordance with IEC 61121 (Tumble dryers for
household use – Methods for measuring the performance).
34
Installation
Installation
Transporting the appliance
Only tip the appliance on its left side to transport (see illustration), if it cannot be transported in an upright position.
Appliance positioning
• It is recommended that, for your convenience, the machine is positioned close
to your washing machine.
• The tumble dryer must be installed in a clean place, where dirt does not build
up.
• Air must be able to circulate freely all round the appliance. Do not obstruct the
front ventilation grille or the air intake grilles at the back of the machine.
• To keep vibration and noise to a minimum when the dryer is in use, it should be
placed on a firm, level surface.
• Once in its permanent operating position, check that the dryer is absolutely level
with the aid of a spirit level. If it is not, raise or lower the feet until it is.
• The feet must never be removed. Do not restrict the floor clearance through
deeppile carpets, strips of wood or similar. This might cause heat built-up which
would interfere with the operation of the appliance.
Installation
35
The hot air emitted by the tumble dryer can reach temperatures of up to 60°C. The
appliance must therefore not be installed on floors which are not resistant to high
temperatures.
When operating the tumble dryer, the room temperature must not be lower than
+5°C and higher than +35°C, as it may affect the performance of the appliance.
WARNING!
Should the appliance be moved, it must be transported vertically.
WARNING!
The appliance must not be installed behind the lockable door, a sliding door a door
with a hinge on the opposite side to that of the appliance.
Removing transport safety packaging
CAUTION!
Before use all parts of the transport packaging must be removed.
1. Open loading door
2. Pull off adhesive strips from inside machine on top of drum.
3. Remove foil hose and polystyrene
padding from the machine.
WARNING!
If the appliance was not transported in
an upright position, leave it to stand for
12 hours before connecting it to the
electricity supply and using it for the first
time, so that the oil can flow back to the
compressor. Otherwise the compressor could be damaged.
36
Installation
Electrical connection
Details on mains voltage, type of current and the fuses required should be taken
from the type plate. The type plate is fitted near the loading aperture (see “Product
description” chapter).
Connect the machine to an earthed socket, in accordance with current wiring
regulations.
WARNING!
The manufacturer declines any responsibility for damage or injury through
failure to comply with the above safety precautions.
Should the appliance power supply cable need to be replaced, this must be
carried out by our Service Center.
The appliance is supplied with a 13 amp plug fitted. In the event of having to change
the fuse in the plug supplied, a 13 amp ASTA approved BS 1363/A fuse must be
used.
The wire coloured green and yellow must be
4
connected to the terminal marked with the
or colletter «E» or by the earth symbol
oured green and yellow.
The wire coloured blue must be connected to
the terminal «N» or coloured black.
The wire coloured brown must be connected
3
to the terminal marked «L» or coloured red.
1
Upon completion there must be no cut, or
2
stray strands of wire present and the cord
clamp must be secure over the outer sheath.
WARNING!
A cut off plug inserted into a 13 amp socket is a serious safety (shock)
hazard.
Ensure that the cut off plug is disposed of safely.
WARNING!
The power supply cable must be accessible after installing the machine.
Installation
37
Permanent connection
In the case of permanent connection it is necessary that you install a double pole
switch between the appliance and the electricity supply (mains), with a minimum
gap of 3mm between the switch contacts and of a type suitable for the required
load in compliance with the current electrical regulations.
The switch must not break the yellow and green earth cable at any point.
Changing door stop
WARNING!
The door stop may only be changed by a specialist. If necessary, please contact our
after-sales service or your specialist dealer.
WARNING!
Before changing the door stop, disconnect the mains plug.
1.
2.
3.
4.
5.
6.
Open loading door.
Unscrew hinge A from the front of the
machine and take off the loading door.
Remove cover plates B and C. To do this,
insert a thin screwdriver into the slots as
shown in the illustration, press downwards slightly and pry out the cover
plates.
A
C
Use an appropriate tool and exert pressure to unfasten locking block D from
the snap-on fixture, take out and re-inD
B
sert on the other side having rotated the
block through 180°.
C
Unscrew hinge A from the loading door, A
rotate through 180°, re-insert on the
opposite side and screw down.
Re-insert cover plates B and C on the opposite site having first rotated them
through 180°.
38
Installation
Unscrew cover plates E from the
E
front of the machine, rotate
through 180°, screw on the oppoG
site side.
F
8. Unscrew door lock F, push down
slightly and remove from the front
of the machine.
E
9. Disconnect cable connector from
door lock F.
F
10. Press snap-in button G in and
G
down, press cover down slightly
and remove from front of the machine.
11. Disconnect cable connector from
cover G.
12. Change door lock F over to the opposite side, insert the cable connector and
screw down the door interlock.
13. On the other side, insert the cable connector in cover G, insert cover and allow
snap-in button to lock into place.
14. Insert loading door and hinges into recesses on the front of the machine and
screw down.
Note regarding contact protection:The machine is only secure for operations
again once all plastic parts have been inserted.
7.
Special accessories
Intermediate installation kit for stacked washer and dryer:
Available from your Service Force Centre or your specialist dealer
These intermediate installation kits can be used to arrange the dryer and an
automatic AEG-Electrolux washing machine (60cm wide, front loading) as a spacesaving washer/dryer stack. The automatic washing machine is at the bottom and
the dryer is at the top.
Version to be supplied:
– with extractable stacker plate 916.018 903
Read carefully the instructions supplied with the kit.
Installation
39
Installation kit for external condensate drain
Attached to your product
Installation kit 125 122 510 for direct draining of condensate into a basin, siphon,
gully, etc. The condensate tank then no longer has to be drained, it must however
remain in its intended position in the machine. Refer to the “Programme options”
section for how to deactivate the EMPTY WATER TANK
alert.
Max. displacement height: 1m from the base of the dryer; max. displacement
length: 3m
Read carefully the instructions supplied with the kit.
40
Environment
Environment
The symbol
on the product or on its packaging indicates that this product may
not be treated as household waste. Instead it should be taken to the appropriate
collection point for the recycling of electrical and electronic equipment. By
ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. For more
detailed information about recycling of this product, please contact your local
council, your household waste disposal service or the shop where you purchased
the product.
Packaging material
The packaging materials are environmentally friendly and can be recycled. The
plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose
of the packaging materials in the appropriate container at the community waste
disposal facilities.
Old appliance
The heat pump of your dryer contains a closed refrigerant circuit filled with a
refrigerant which is free from fluoro-chloro-hydrocarbons. The refrigerant circuit
in the heat pump must not be damaged.
WARNING!
Remove mains plug from socket when you have no further use for the machine.
Cut off mains cable and dispose of together with plug. Destroy loading door hook.
Children cannot then lock themselves in the machine and put their lives at risk.
Environment
41
Environmental tips
• In the dryer, laundry becomes fluffy and soft. Fabric softeners are not therefore
needed when washing.
• Your dryer will function most economically if you:
– always keep the ventilation slots on the base of the dryer unobstructed;
– use the loading volumes specified in the programme overview;
– ensure you have good ventilation in the installation room;
– clean the micro-fine filter and fine strainer after each drying cycle;
– spin the laundry well before drying. Example: Consumption data – depending
on spinning speed – for 7 kg of laundry, dried using the COTTONS STORAGE
DRY programme.
Pre-draining
Drying cycle
Residual dampness
Revolutions per minute
in litres
as a %
1000
4.20
60
2,4
1200
3.92
56
2,3
1400
3.64
52
2,2
1800
3.15
45
2,0
Energy in kWh
42
Guarantee/Customer Service
Guarantee/Service
Guarantee/Customer Service
GREAT BRITAIN & IRELAND
Standard guarantee conditions
We, Electrolux, undertake that if within 12 months of the date of the purchase this
Electrolux appliance or any part thereof is proved to be defective by reason only
of faulty workmanship or materials, we will, at our option repair or replace the
same FREE OF CHARGE for labour, materials or carriage on condition that:
• The appliance has been correctly installed and used only on the electricity supply
stated on the rating plate.
• The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's instructions.
• The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not authorised by us.
• Electrolux Service Force Centre must undertake all service work under this guarantee
• Any appliance or defective part replaced shall become the Company's property.
• This guarantee is in addition to your statutory and other legal rights.
Exclusions
• Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic.
• Costs incurred for calls to put right an appliance which is improperly installed
or calls to appliances outside the United Kingdom.
• Appliances found to be in use within a commercial environment, plus those
which are subject to rental agreements.
• Products of Electrolux manufacturer that are not marketed by Electrolux
Service and Spare Parts
In the event of your appliance requiring service, or if you wish to purchase spare
parts, please contact your local Service Force Centre by telephoning
0870 5 929 929
Guarantee/Customer Service
43
Your telephone call will be automatically routed to the Service Force Centre covering your postcode area.
For the address of your local Service Force Centre and further information about
Service Force, please visit the website at
www.serviceforce.co.uk
Before calling out an engineer, please ensure you have read the details under the
heading "What to do if..."
When you contact the Service Force Centre you will need to give the following
details:
1. Your name, address and postcode.
2. Your telephone number.
3. Clear concise details of the fault.
4. The model and Serial number of the appliance (found on the rating plate).
5. The purchase date.
Please note a valid purchase receipt or guarantee documentation is required for in
guarantee service calls.
Customer Care
For general enquiries concerning your Electrolux appliance, or for further information on Electrolux products please contact our Customer Care Department by
letter or telephone at the address below or visit our website at www.electrolux.co.uk
Customer Care Department Electrolux Major Appliances Addington Way Luton
Bedfordshire, LU4 9QQ
Tel:
Electrolux
08705 950 950 (*)
AEG-Electrolux
08705 350 350 (*)
Zanussi-Electrolux
08705 727 727 (*)
(*) Calls may be recorded for training purposes
For Customer Service in The Republic of Ireland please contact us at the
address below:
Electrolux Group (Irl) Ltd Long Mile Road, Dublin 12, Republic of Ireland Tel: +353
(0)1 4090751 Email: [email protected]
44
European Guarantee
This appliance is guaranteed by Electrolux in each of the countries listed at the
back of this user manual, for the period specified in the appliance guarantee or
otherwise by law. If you move from one of these countries to another of the countries listed, the appliance guarantee will move with you subject to the following
qualifications:• The appliance guarantee starts from the date you first purchased the appliance
which will be evidenced by production of a valid purchase document issued by
the seller of the appliance.
• The appliance guarantee is for the same period and to the same extent for labour
and parts as exists in your new country of residence for this particular model or
range of appliances.
• The appliance guarantee is personal to the original purchaser of the appliance
and cannot be transferred to another user.
• The appliance is installed and used in accordance with instructions issued by
Electrolux and is only used within the home, i.e. is not used for commercial
purposes.
• The appliance is installed in accordance with all relevant regulations in force
within your new country of residence.
The provisions of this European Guarantee do not affect any of the rights granted
to you by law.
www.electrolux.com
45
Service
In the event of technical faults, please first check whether you can remedy the
problem yourself with the help of the operating instructions (Chapter “What to do
if…”).
If you were not able to remedy the problem yourself, please contact the Customer
Care Department or one of our service partners.
In order to be able to assist you quickly, we
require the following information:
– Model description
– Product number (PNC)
– Serial number (S No.) (for numbers, see rating plate)
– Type of fault
– Any error messages displayed by the appliance
So that you have the necessary reference numbers from your appliance at hand,
we recommend that you write them in here:
Model description: ................................................................................
PNC: .....................................................................................................
S No.: ...................................................................................................
www.electrolux.com
Albania
+35 5 4 261 450
Rr. Pjeter Bogdani Nr. 7 Tirane
Belgique/België/Belgien
+32 2 363 04 44
Bergensesteenweg 719, 1502
Lembeek
Česká republika
+420 2 61 12 61 12
Budějovická 3, Praha 4,
140 21
Danmark
+45 70 11 74 00
Sjællandsgade 2, 7000 Fredericia
46
www.electrolux.com
Deutschland
+49 180 32 26 622
Muggenhofer Str. 135, 90429
Nürnberg
Eesti
+37 2 66 50 030
Pärnu mnt. 153, 11624
Tallinn
España
+34 902 11 63 88
Carretera M-300, Km. 29,900
Alcalá de Henares Madrid
France
www.electrolux.fr
Great Britain
+44 8705 929 929
Addington Way, Luton, Bedfordshire LU4 9QQ
Hellas
+30 23 10 56 19 70
4, Limnou Str., 54627
Thessaloniki
Hrvatska
+385 1 63 23 338
Slavonska avenija 3,
10000 Zagreb
Ireland
+353 1 40 90 753
Long Mile Road Dublin 12
Italia
+39 (0) 434 558500
C.so Lino Zanussi, 26 - 33080
Porcia (PN)
Latvija
+37 17 84 59 34
Kr. Barona iela 130/2,
LV-1012, Riga
Lietuva
+370 5 278 06 03
Ozo 10a, LT-08200 Vilnius
Luxembourg
+352 42 431 301
Rue de Bitbourg, 7, L-1273
Hamm
Magyarország
+36 1 252 1773
H-1142 Budapest XIV,
Erzsébet királyné útja 87
Nederland
+31 17 24 68 300
Vennootsweg 1, 2404 CG - Alphen aan den Rijn
Norge
+47 81 5 30 222
Risløkkvn. 2 , 0508 Oslo
Österreich
+43 18 66 400
Herziggasse 9, 1230 Wien
Polska
+48 22 43 47 300
ul. Kolejowa 5/7,
Warszawa
Portugal
+35 12 14 40 39 39
Quinta da Fonte - Edificio Gonçalves Zarco - Q 35 -2774-518
Paço de Arcos
Romania
+40 21 451 20 30
Str. Garii Progresului 2,
S4, 040671 RO
47
Schweiz - Suisse - Svizzera
+41 62 88 99 111
Industriestrasse 10, CH-5506
Mägenwil
Slovenija
+38 61 24 25 731
Gerbičeva ulica 98, 1000
Ljubljana
Slovensko
+421 2 43 33 43 22
Electrolux Slovakia s.r.o.,
Electrolux Domáce spotre‐
biče SK, Seberíniho 1, 821
03 Bratislava
Suomi
www.electrolux.fi
Sverige
+46 (0)771 76 76 76
Electrolux Service, S:t Göransgatan 143, S-105 45 Stockholm
Türkiye
+90 21 22 93 10 25
Tarlabaşı caddesi no : 35
Taksim İstanbul
Россия
+7 495 937 7837
129090 Москва,
Олимпийский проспект,
16, БЦ "Олимпик"
Україна
+380 44 586 20 60
04074 Київ,
вул.Автозаводська, 2а,
БЦ "Алкон"
www.electrolux.com
125989520-01-14012008
www.aeg-electrolux.co.uk

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
