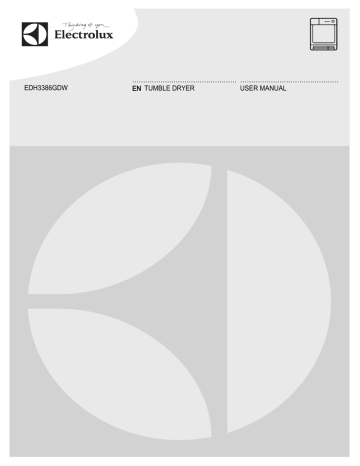

EDH3386GDW
................................................ .............................................
EN TUMBLE DRYER
USER MANUAL
2
www.electrolux.com
CONTENTS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
PROGRAMME TABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
TECHNICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it
decades of professional experience and innovation. Ingenious and stylish, it has been designed
with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great
results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
ENGLISH
1.
3
SAFETY INSTRUCTIONS
Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and
use causes injuries and damages. Always
keep the instructions with the appliance
for future reference.
1.1 Children and vulnerable
people safety
WARNING!
Risk of suffocation, injury or permanent disability.
• This appliance can be used by children
aged from 8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction for the operation of the appliance by a person who is
responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep all detergents away from children.
• Keep children and pets away from the
appliance door when it is open.
• Cleaning and user maintenance shall
not be made by children without supervision.
1.2 Installation
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.
• Make sure that the floor where you install the appliance is flat, stable, heat
resistant and clean.
• Do not install or use the appliance
where the temperature is less than 5°C
or higher than 35°C.
• Do not install the appliance behind a
lockable door, a sliding door or a door
with a hinge on the opposite side,
where the appliance door can not be
fully opened.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Always move the appliance vertically.
• The rear surface of the appliance must
be put against the wall.
• Make sure that there is air circulation
between the appliance and the floor.
• Make sure the carpet does not obstruct
the ventilation openings in the base of
the appliance (if applicable).
• Exhaust air must not be discharged into
a flue which is used for exhausting
fumes from appliances burning gas or
other fuels.
• If the tumble dryer is put on top of a
washing machine, use the stacking kit.
The stacking kit, available from your authorized vendor, can be used only with
the appliance specified in the instructions, supplied with the accessory.
Read it carefully before installation (Refer to the Installation leaflet).
• Ensure you have good ventilation in the
installation room to avoid the back flow
of gases into the room from appliances
burning other fuels, including open fires.
• The appliance can be installed as freestanding or below the kitchen counter
with correct space (Refer to the Installation leaflet).
• When the appliance is put in its permanent position, check if it is fully level
with the aid of a spirit level. If it is not,
adjust the feet until it is.
Electrical connection
WARNING!
Risk of fire and electrical shock.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the power supply. If not, contact an electrician.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
4
www.electrolux.com
•
•
•
•
Should the appliance power supply cable need to be replaced, this must be
carried out by our Service Centre.
Connect the mains plug to the mains
socket only at the end of the installation. Make sure that there is access to
the mains plug after the installation.
Do not pull the mains cable to disconnect the appliance. Always pull the
mains plug.
Do not touch the mains cable or the
mains plug with wet hands.
Only for UK and Ireland. The appliance
has a 13 amp mains plug. If it is necessary to change the fuse in the mains
plug, use a 13 amp ASTA (BS 1362)
fuse.
•
•
•
•
•
•
This appliance complies with the E.E.C.
Directives.
1.3 Use
WARNING!
Risk of fire, explosion, electric
shock or damage to the appliance
• Use this appliance in a household only.
• Do not change the specification of this
appliance.
• The final part of the drying cycle occurs
without heat (cool down cycle) to ensure that the items will not be damaged.
If you stop the appliance before the end
of the drying cycle, immediately remove
and spread out all items, so that the
heat can dissipate.
• If you use fabric softener or similar
products, obey the instructions on the
packaging.
• Do not run the appliance without a filter.
Clean the lint filter before or after each
use.
• Wipe away lint that has accumulated
around the appliance.
• Do not dry the damaged items which
contain padding or fillings.
• Do not dry items such as foam rubber
(latex foam), shower caps, waterproof
textiles, rubber backed articles and
•
•
•
•
•
clothes or pillows fitted with foam rubber pads..
Before drying items that have been in
contact with substances such as cooking oil, acetone, alcohol , petrol, kerosene, spot removers, turpentine, waxes
and wax removers, wash them in hot
water with an extra amount of detergent.
Do not dry items in the appliance if industrial chemicals have been used for
cleaning.
Make sure that no gas lighters or
matches have been left in the pockets
of the clothing.
Only dry fabrics which are applicable to
dry in the tumble dryer. Follow the instructions on the fabric label.
Do not dry not washed items in the appliance.
If you have washed your laundry with a
stain remover start an extra rinse cycle
before you start the dryer.
Do not drink or prepare food with the
condensed water. It can cause health
problems to people and pets.
Do not sit or stand on the open door.
Obey the maximum load volume of 8 kg
(refer to the “Programme chart” chapter).
Do not dry dripping wet clothes in the
tumble dryer.
1.4 Care and Cleaning
WARNING!
Risk of injury or damage to the
appliance.
• Before maintenance, deactivate the appliance and disconnect the mains plug
from the mains socket.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal objects.
ENGLISH
1.5 Internal light
WARNING!
Risk of injury.
Visible LED radiation, do not look
directly into the beam.
The type of light bulb or halogen
lamp used for this appliance, is
only for household appliances. Do
not use it for house lighting.
To replace the internal light, contact the Service.
1.6 Disposal
WARNING!
Risk of injury or suffocation.
5
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children and pets to get closed in the appliance.
Compressor
WARNING!
Risk of damage of the appliance.
• The compressor and its system in the
tumble dryer is filled with the special
agent which is free from fluoro-chlorohydrocarbons. This system must stay
tight. The damage of the system can
cause a leakage.
• Disconnect the appliance from the
mains supply.
2. PRODUCT DESCRIPTION
1
4 Load door
2
5 Primary Filter
6 The button to open the heat exchang-
er door
3
4
12
11
10
9
1 Water container
2 Control panel
3 Internal light
5
6
7
8
7 Airflow slots
8 Adjustable feet
9 Heat exchanger door
10 Heat exchanger cover
11 The knob to lock the heat exchanger
cover
12 Rating plate
The load door can be installed by
the user in the opposite side. It
can help to easily put and remove
the laundry or if there is a limit to
install the appliance (see separate
leaflet).
6
www.electrolux.com
3. CONTROL PANEL
1
2
3
4
5
6
8
7
1 Programme knob
5 Buzzer
2 Display
6 Wool Load
touchpad
3 Time
touchpad
7 Start/Pause
4 Delay
touchpad
8 On/Off
touchpad
button
Touch the touchpads with your
finger in the area with the symbol
or the name of the option.
Do not wear gloves when you operate with the control panel.
Make sure that the control panel
is always clean and dry.
Indicators
Description
Acoustic signals.
Child lock.
Water container.
Filter.
Condenser.
Drying phase.
Cooling phase.
Crease guard phase.
Delay start.
Programme duration.
Time Drying duration.
-
touchpad
Delay start duration.
ENGLISH
7
4. PROGRAMME TABLE
Programmes
Type of load / Load (max.)1) / Fabric mark
Cotton fabrics
Extra Dry
Drying level: extra dry. / 8kg /
Strong Dry
Drying level: strong dry. / 8kg /
Cupboard
Dry2)3)
Iron Dry2)
Drying level: cupboard dry. / 8kg /
Drying level: applicable for iron. / 8kg /
Synthetic fabrics
Extra Dry
Drying level: extra dry. / 3,5kg /
Cupboard Dry2)
Drying level: cupboard dry. / 3,5kg /
Iron Dry
Drying level: applicable for iron. / 3,5kg /
Rapid
To dry cotton and synthetic fabrics, uses low temperature. /
2kg /
Time Drying
With this programme you can use the option Time and set
the programme duration. / 8kg /
Refresh
Refreshing a textiles that were in storage. / 1kg
Wool fabrics. Gentle drying washable woollens. Remove
immediately the items when the programme is completed./
1kg
Wool4)
For drying sport shoes only with Drying Rack (see separate
user manual provided with Drying Rack). / 1 pair of sport
shoes
Delicates
Delicate fabrics. / 3kg /
Duvets
To dry one or two duvet and pillows (with feather, down or
synthetic fillings). / 3kg /
Easy Iron
Easy care fabrics for which a minimum of ironing is necessary. The drying results can be different from one type of
fabric to the other. Shake the items before you put them in
the appliance. When the programme is completed, Immediately remove the items and put them on a hanger. / 1 kg
(or 5 shirts) /
1) The maximum weight refers to dry items.
8
www.electrolux.com
2) For test institutes only: Standard programmes for tests are specified in the EN 61121
document.
3) In accordance to 932/2012. The Cotton “Cupboard dry” is the “Standard Cotton
Programme”. It is suitable to dry wet normal cotton laundry and it is the most efficient
programme in terms of energy.
4) The wool drying cycle of this tumble drying machine has been tested and approved by The
Woolmark Company. The cycle is suitable to dry wool garments which are labelled "hand
wash" provided that the garments are washed in a Woolmark endorsed hand washing
cycle and tumble dried according to the instructions issued by the manufacturer. (M1129).
5. OPTIONS
5.1 Time
5.2 Wool Load
This option is applicable to the Time Drying programme and to the Wool programme (only with the Drying Rack).
This option is applicable only to the Wool
programme. To get laundry more dried
press the
Wool Load touchpad again
and again to increase the programme duration.
We recommend that you set a
short duration for small quantities
of laundry or for only one item.
5.3 Buzzer
• Time Drying programme: You can
set the programme duration, from a
minimum of 10 minutes to a maximum
of 2 hours. The setting of the duration is
related to the quantity of laundry in the
appliance.
• Wool programme: You can set the
programme duration, from a minimum
of 30 minutes to a maximum of 4
hours. The setting of the duration is related to the quantity of laundry in the
appliance.
If you press Time option for Wool programme, Wool Load option is automatically blocked.
When the buzzer function is activated,
you can hear the buzzer at the:
• cycle end
• start and end of crease guard phase
• cycle interruption
The buzzer function is by default always
on. You can use this function to activate
or deactivate the sound.
You can activate the Buzzer option with all programmes.
Programmes1)
Time Drying
Wool
●
●2)
●
1) Together with the programme you can set 1 or more options. To activate or deactivate
them, press the related touchpad.
2) Only with the Drying Rack
ENGLISH
9
6. SETTINGS
erates. Press and hold the same
touchpads until the child lock indicator goes off.
A
B
A) Time
B) Delay
C
D
6.2 Water hardness and
conductivity
E
Water hardness is different for different locations. Water hardness has an effect on
the water conductivity and on the conductivity sensor of the appliance. If you
know, the value of the water conductivity
you can adjust the sensor in order to have
better drying results.
touchpad
touchpad
C) Buzzer
touchpad
D) Wool Load
touchpad
E) Start/Pause
touchpad
6.1 Child lock function
This option prevents children to play with
the appliance while a programme operates. The programme knob and the
touchpads are locked. Only the on/off
button is unlocked.
Activating the child lock option
1. Press the on/off button to activate the
appliance.
2. Press and hold touchpads (A) and (D)
at the same time until the child lock indicator comes on.
• It is possible to deactivate the child
lock option while a programme op-
Adjusting the conductivity sensor
1. Press the on/off button to activate the
appliance
2. Press and hold touchpads (A) and (B)
at the same time until one of the these
indicators comes on:
•
(low <300 μS/cm)
•
(moderate 300-600 μS/cm)
•
(high >600 μS/cm)
3. Press the touchpad (E) again and
again until the indicator of the correct
level comes on.
4. To confirm the adjustment, press and
hold touchpads (A) and (B) at the
same time for approximately 2 seconds.
7. DAILY USE
Before you use the appliance for
the first time do one of these operations:
• Clean the tumble dryer drum
with a moist cloth.
• Start a short programme (e.g.
30 minutes) with moist laundry.
At the beginning of drying cycle
(3-5 min.) there could be a slightly
higher sound level. It is because of
start of the compressor that is
normal for compressor powered
appliances such: refrigerators,
freezers .
7.1 Starting a programme
without delay start
1. Prepare the laundry and load the appliance.
2. Press the on/off button to activate the
appliance.
3. Set the correct programme and options for the type of load.
• The display shows the programme
duration.
4. Press the Start/Pause touchpad, the
programme starts.
10 www.electrolux.com
CAUTION!
Make sure that when you close
the door, the laundry does not
catch between the appliance door
and the rubber seal.
7.2 Starting the programme with
delay start
1. Set the correct programme and options for the type of load.
2. Press the delay start button again and
again until the display shows the delay
time you want to set.
• You can delay the start of a programme from a minimum of 30 minutes to a maximum of 20 hours.
3. Press the Start/Pause touchpad, the
countdown starts. The display shows
the countdown of the delay start.
• When the countdown is completed,
the programme starts.
7.3 Change a programme
1. Press the on/off button to deactivate
appliance
2. Press the on/off button to activate the
appliance.
3. Set the programme.
7.4 At the end of the
programme
When the programme is completed,
• An intermittent acoustic signal operates.
• The indicator flashes.
• The indicator
comes on.
• The Start/Pause indicator is on.
The appliance continues to operate with
the crease guard phase for approximately
other 30 minutes.
The crease guard phase removes creases
from your laundry.
You can remove the laundry before the
crease guard phase is completed. We
recommend, for better results, that you
remove the laundry when the phase is almost completed or completed.
When the crease guard phase is completed:
• The indicator is on but does not flash.
• The indicator
goes off.
• Start/Pause indicator goes off.
1. Press the on/off button to deactivate
the appliance.
2. Open the appliance door.
3. Remove the laundry.
4. Close the appliance door.
Always clean the filter and empty
the water container when a programme is completed.
7.5 Auto STAND-BY function
To decrease the energy consumption, this
function automatically deactivates the appliance:
• After 5 minutes if you do not start the
programme.
• After 5 minutes from the end of the programme.
8. HINTS AND TIPS
8.1 Preparing the laundry
• Close the zippers.
• Close the fasteners of the duvet covers.
• Do not keep ties or ribbons loose (e.g.
apron ribbons). Tie them before you
start a programme.
• Remove all items from the pockets.
• If an item has the internal layer made of
cotton, turn it inside out. Make sure that
the cotton layer is always external.
• We recommend that you set the correct programme applicable for the type
of fabrics that are in the appliance.
• Do not put fabrics with strong colours
together with fabrics with light colours.
Strong colours can bleed.
ENGLISH
• Use an applicable programme for cotton jersey and knitwear to prevent the
items to shrink.
• Make sure that the laundry weight is
not more than the maximum weight
that is in the programme table.
11
• Dry only the laundry that is applicable
for tumble dryer. Refer to the fabric label on the items.
Fabric Description
label
Laundry that is applicable for tumble dryer.
Laundry that is applicable for tumble dryer. Set the programme with
standard temperature.
Laundry that is applicable for tumble dryer. Set the programme with low
temperature.
Laundry that is not applicable for tumble dryer.
9. CARE AND CLEANING
9.1 Cleaning the filter
1.
2.
2
1
3.
4.
1
5.
2
6.
1
2
12 www.electrolux.com
9.2 Draining the water container
1.
2.
3.
4.
You can use the water from the
water container as an alternative
to distilled water (e.g. for steam
ironing). Before you use the water,
remove dirt residues with a filter.
9.3 Cleaning the condenser filter
The frequency to clean the filters
is related to the laundry type and
its quantity.
If you dry with the maximum load,
clean the filters after each 3 cycles.
1.
2.
3.
4.
1
1
2
2
ENGLISH
5.
6.
7.
8.
2
1
9.
10.
11.
121).
13.
14.
13
14 www.electrolux.com
15.
16.
2
1
1) If necessary, one time for each 6 months, remove the fluff from the heat exchanger
compartment. You can use a vacuum cleaner.
9.4 Cleaning the drum
Clean the drum with a moist cloth. Only
use neutral detergents. Do not use abrasive products, abrasive cleaning pads or
solvents.
Dry the drum with a soft cloth.
abrasive products, abrasive cleaning pads
or solvents.
Dry the appliance with a soft cloth.
9.6 Cleaning the airflow slots
Use a vacuum cleaner to remove the fluff
from the airflow slots.
9.5 External Cleaning
Clean the appliance with a moist cloth.
Only use neutral detergents. Do not use
10. TROUBLESHOOTING
10.1
Problem
Possible solution
You cannot activate the appliance.
Make sure that the mains plug is connected to the mains socket.
Make sure that there is not a damaged
fuse in the fuse box.
The programme does not start.
Press Start/Pause.
Make sure that the appliance door is
closed.
The appliance door does not close.
Make sure that the installation of the filter is
correct.
Make sure that the laundry does not catch
between the appliance door and the rubber seal.
The appliance stops during operation.
Make sure that the water container is empty. Press Start/Pause to start the programme again.
The display shows a long programme duration.1)
Make sure that the weight of the laundry is
applicable to the duration of the programme.
ENGLISH
Problem
15
Possible solution
Make sure that the filter is clean.
The laundry is too wet. Spin the laundry in
the washing machine again.
Make sure that the room temperature is
not too warm.
The display shows a short programme duration.
Set the Time Drying or the Extra Dry programme.
The display shows Err.
If you want to set a new programme, deactivate and activate the appliance.
Make sure that the options are applicable
to the programme.
The display shows E51)
Deactivate and activate the appliance.
Start a new programme. If the problem occurs again, contact the Service.
1) After maximum 5 hours, the programme ends automatically
10.2 If the drying results are not
satisfactory
• The set programme was incorrect.
• The filter is clogged.
• The condenser is clogged.
• There was too much laundry in the appliance.
• The drum is dirty.
• Incorrect setting of the conductivity
sensor.
• The airflow slots are clogged.
11. TECHNICAL DATA
Dimensions (mm)
Width / Height / Depth
600 / 850 – 865 / 600
Max. depth
(with the appliance door open)
1090 mm
Max. width
(with the appliance door open)
950 mm
Electrical connection
Voltage
230-240 V
Frequency
50 Hz
Fuse
13 A
Total power
900 W
Drum volume
118 l
Weight of the appliance
53 kg
Laundry: max. weight
8 kg
Type of use
Household
Ambient temperature
Min.
5 °C
Max.
35 °C
16 www.electrolux.com
Energy consumption 1)
kWh/cycle
2,24 kWh
Annual energy consumption 2)
265 kWh
Energy efficiency class
A+
Power consumption
Left-on mode
0,48 W
Off-mode
0,48 W
1) With reference to EN 61121. 8 kg of cotton centrifuged at 1000 rpm.
2) Energy consumption per year in kWh, based on 160 drying cycles of the standard cotton
programme at full and partial load, and the consumption of the low-power modes. Actual
energy consumption per cycle will depend on how the appliance is used (REGULATION
(EU) No 392/2012).
12. ENVIRONMENT CONCERNS
Recycle the materials with the symbol
. Put the packaging in applicable
and electronic appliances. Do not dispose
appliances marked with the symbol
containers to recycle it.
Help protect the environment and human
health and to recycle waste of electrical
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
ENGLISH
17
18 www.electrolux.com
ENGLISH
19
136921061-A-012013
www.electrolux.com/shop
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
