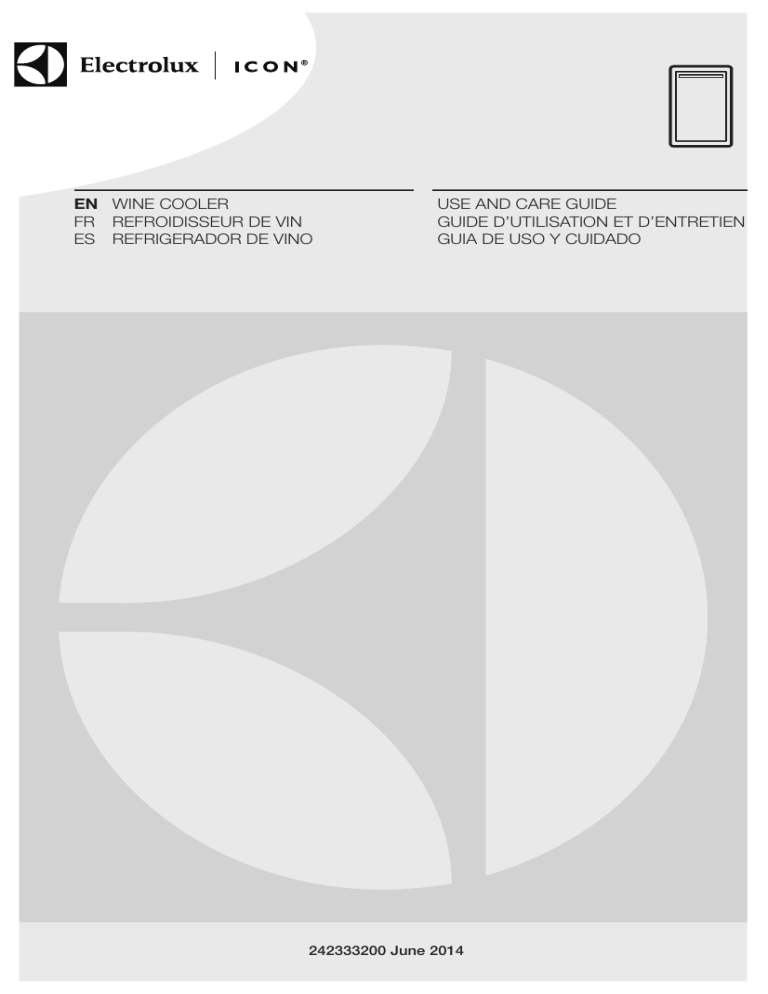

EN WINE COOLER
FR REFROIDISSEUR DE VIN
ES REFRIGERADOR DE VINO
USE AND CARE GUIDE
GUIDE D’UTILISATION ET D’ENTRETIEN
GUIA DE USO Y CUIDADO
242333200 June 2014
2
Finding Information
Please Read and Save
This Guide
Product Registration
Card
Thank you for choosing Electrolux, the
new premium brand in home appliances.
This Use & Care Guide is part of our
commitment to customer satisfaction and
product quality throughout the service life
of your new wine cooler.
We view your purchase as the beginning
of a relationship. To ensure our ability to
continue serving you, please use this page
to record key product information.
The package containing this manual
also includes your product registration
information. Warranty coverage begins at
the time your Electrolux wine cooler was
purchased.
IMPORTANT
PLEASE READ all instructions
completely before attempting to install
or operate the unit.
All wine coolers require a connection to
an electrical power source. Improper
hook-up can result in a safety hazard
and potential damage to the product
or contents! Proper installation, in
accordance with the manufacturer’s
specifications and all local codes, is
the sole responsibility of the consumer.
The manufacturer is not responsible for
any installation expenses or damages
incurred due to improper installation.
If you are unsure of your ability to
safely connect electric power to the
unit, consult a licensed and insured
professional to perform all electrical work.
Once you have your unit installed,
we suggest you keep this manual
in a safe place for future reference.
Should any problems occur, refer to the
“Troubleshooting” section of this manual.
This information will help you quickly
identify a problem and get it remedied. In
the event you require assistance, please
contact the dealer where you purchased
your unit.
Make a Record for
Quick Reference
Whenever you call to request information
or service, you will need to know your
model number and serial number. You
can find this information on the serial plate
located in the top left hand corner of your
unit and on the product registration card.
NOTE
Registering your product with Electrolux
enhances our ability to serve you. You
can register online at
www.electroluxappliances.com or by
dropping your Product Registration
Card in the mail. Complete and mail the
Product Registration Card as soon as
possible to validate the registration date.
Please record the purchase date of your
Electrolux unit and your dealer’s name,
address and telephone number.
____________________________________
Purchase Date
____________________________________
Electrolux Model Number
____________________________________
Electrolux Serial Number
____________________________________
Dealer Name
____________________________________
Dealer Address
____________________________________
Dealer Telephone
Keep this manual and the sales receipt
together in a safe place for further
reference.
Questions?
For toll-free telephone support in the U.S.
and Canada:1-877- 4ELECTROLUX
(1-877-435-3287)
For online support and Internet product
information: www.electroluxappliances.com
Finding Information
Table of Contents
Finding Information.......................................................................2
Please Read and Save This Guide.............................................................2
Make a Record for Quick Reference..........................................................2
Product Registration Card........................................................................2
Questions?.............................................................................................2
Safety.............................................................................................4
Important Safety Instructions.....................................................................4
Safety Precautions.........................................................................4
Definitions....................................................................................4
General Precautions.......................................................................4
Installation ....................................................................................5
Installing the Wine cooler..........................................................................5
Site Preparation......................................................................................6
Installing the Anti-Tip Bracket....................................................................6
Leveling..........................................................................................8
Leveling the Unit.....................................................................................8
Operation.......................................................................................9
Temperature Mode.............................................................................. 10
Alarms............................................................................................... 11
Vacation/Sabbath Mode........................................................................ 12
Storage........................................................................................13
Loading Tips and Suggestions............................................................... 13
Maintenance................................................................................14
Troubleshooting...........................................................................16
Before You Call for Service.................................................................... 16
If Service is Required............................................................................ 16
Warranty Information...................................................................17
3
4
Safety
Important Safety
Instructions
Safety Precautions
Do not attempt to install or operate
your unit until you have read the safety
precautions in this manual. Safety items
throughout this manual are labeled with a
Danger, Warning or Caution based on the
risk type.
Definitions
This is the safety alert symbol. It is
used to alert you to potential personal
injury hazards. Obey all safety messages
that follow this symbol to avoid possible
injury or death.
DANGER
DANGER indicates an imminently
hazardous situation which, if not
avoided, will result in death or serious
injury.
WARNING
WARNING indicates a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
CAUTION
CAUTION indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
General Precautions
WARNING
RISK OF CHILD ENTRAPMENT.
Before you throw away your old
appliance, take off the doors and
leave shelves in place so that
children may not easily climb inside.
WARNING
• Never attempt to repair or
perform maintenance on the
unit until the electricity has been
disconnected.
• Altering, cutting of power cord,
removal of power cord, removal
of power plug, or direct wiring
can cause serious injury, fire
and/or loss of property and/or
life and will void the warranty.
• Do not lift unit by door handle.
CAUTION
• Use care when moving the
unit. Some edges are sharp
and may cause personal injury.
Wear gloves when moving or
repositioning the unit.
• Never install the unit behind
closed doors. Be sure front
grille is free of obstruction.
Obstructing free air flow can
cause the unit to malfunction,
and may void the warranty.
• Allow unit temperature to
stabilize for 24 hours before use.
IMPORTANT
Indicates installation, operation, or
maintenance information which is
important but not hazard-related.
CAUTION
• Use only genuine Electrolux
replacement parts. Imitation
parts can damage the unit and
may void the warranty.
Installation
Installing the Wine Cooler
Your Electrolux wine cooler has been designed for either free-standing or built-in
installation. When built-in, your wine cooler does not require additional air space for top,
sides or rear. In either case, the front grille must NOT be obstructed.
NOTE
To ease unit installation and removal, it is recommended that the cabinet rough
opening dimensions be increased by at least ¼ inch over the dimensions given for
your unit.
NOTE
All units require zero clearance when installed flush with a cabinet or wall. Electrolux
stainless steel models require a minimum 2 7⁄8 inch handle clearance when installed
against a wall or cabinet that extends beyond the front edge of the unit.
Unit Dimensions
Width
Height
Depth
23 / inch
33 / - 34 / inches
26 11/32 inch
7 8
3 4
3 4
46 13⁄32"
2 15⁄32"
26 11⁄32"
23⅞"
23 23⁄32"
33¾"
adjustable to
34¾"
3 11⁄32"
2 11⁄16"
Product Dimensions
21½"
5
6
Installation
Site Preparation
1 Position the unit on a flat, level
surface capable of supporting the
entire weight of the unit. Remember
the unit will be significantly heavier
once it is fully loaded.
2 This unit requires a grounded and
polarized 115 VAC, 60Hz, 15A circuit
(normal household current).
3 Avoid connecting the unit to a Ground
Fault Interrupter (GFI). GFIs are prone
to nuisance tripping which will cause
the unit to shut down. GFIs are
generally not used on circuits which
power equipment that must run
unattended for long periods of time.
4 The unit must be installed according to
your state and local laws and regulations.
Installing the Anti-Tip
Device
WARNING
Do not double stack two units
as shown below. This may cause
serious personal injury.
WARNING
ELECTROCUTION HAZARD!
Electrical Grounding Required. This
appliance is equipped with a three
prong (grounding) polarized plug
for your protection against possible
shock hazards.
• NEVER remove the round
grounding prong from the plug.
• NEVER use a two-prong
grounding adapter.
• NEVER use an extension cord to
connect power to the unit.
Where a two-prong wall receptacle is
encountered or a longer power cord is
required, contact a qualified electrician
to have it replaced in accordance with
applicable electrical codes.
5 Position the unit to allow free air flow
through the front grille.
Intake
Exhaust
6 Wipe out inside of unit with a damp
cloth.
7 Be sure to install the Anti-Tip bracket.
Follow the instructions provided with
the Anti-Tip bracket kit.
CAUTION
If your wine cooler is not located
under a counter top (free standing),
you must use an anti-tip device
installed as per these instructions. If
the wine cooler is removed from its
location for any reason, make sure
that the device is properly engaged
when you push the wine cooler back
into the original location. If the device
is not properly engaged, there is a
risk of the wine cooler tipping over,
causing property or personal injury if
you or a child stand, sit, or lean on an
open shelf.
CAUTION
Any finished flooring should be
protected with appropriate material to
avoid damage when moving the unit.
Installation
ALL UNITS CAN TIP
Floor Mount Installation
The anti-tip bracket is to be located on the
floor in the left or right rear corner of the
wine cooler.
Step by step instructions for locating
the position of the bracket:
1 Decide where you want to place the
wine cooler. Slide it into place, being
careful not to damage the floor, leaving 1"
(2.5cm) of clearance from the rear wall to
allow room for the anti-tip bracket.
2 Raise the rear leveling legs
approximately ¼" (6mm) to allow
engagement with the anti-tip bracket.
Level the unit by adjusting all the leveling
legs as required. Turning the leveling leg
counterclockwise will raise the unit and
clockwise will lower the unit.
3 Make sure the wine cooler is in the
desired location, then mark on the
floor the rear and side corner of the
cabinet where the anti-tip bracket will
be installed. If the installation does not
nt o
Fro
net
bi
f ca
allow marking the rear corner of the
cabinet, then make temporary lines
on the floor marking the front corner
of the cabinet, excluding the drawer.
Slide the wine cooler out of the way.
From the temporary line extend the
sidewall line back 21½" (54.6cm).
4 Align the anti-tip bracket to the marks
on the floor so the side of the bracket
lines up with the side of the cabinet
mark, and the "V" notches on the antitip bracket line up with the end of the
21½" (54.6cm) line (Rear of cabinet line).
5 Fasten the anti-tip bracket to the floor
using the supplied screw.
6 Slide the cabinet back into position,
making sure the rear cabinet leveling
leg slides under the anti-tip bracket
engaging the slot.
NOTE
If installing on a concrete floor, concrete
fasteners are required, (not included with
the anti-tip kit).
Anti-Tip
Bracket
21 1⁄2"
(54.6cm)
Leveling Leg
Bottom View of
Wine cooler
Front of
cabinet
line
Sid
Rear Leveling leg
eo
fc
ab
21 1/2"
(54.6cm)
ine
t li
ne
Screw
"V" notches
in bracket
WARNING
of
ar ine "V" notches
Reinet l
in bracket
cab
TIP OVER HAZARD: One
of the rear cabinet leveling
legs must be engaged
under an anti-tip bracket.
7
8
Leveling
Leveling the Unit
Position the unit on a flat, level surface capable of supporting the entire weight of the unit
when full.
Leveling Legs
Adjustable legs at the front and rear corners of the appliance should be set so the unit
is firmly positioned on the floor and level from side to side and front to back. The overall
height of your Electrolux appliance may be adjusted between the minimum, 33 ¾”
(85.7cm), by turning the leveling leg in and the maximum, 34 ¾” (88.3cm), by turning the
leveling leg out.
To adjust the leveling legs, place the appliance on a solid surface and protect the floor
beneath the legs to avoid scratching the floor. With the assistance of another person,
lean the appliance back to access the front leveling legs. Raise or lower the legs to the
required dimension by turning the legs. Repeat this process for the rear by tilting the
appliance forward using caution. On a level surface check the appliance for levelness
and adjust accordingly.
Leveling legs, 2
at the front and 2
in the rear.
Front Grille,
keep this area
open.
Operation
Temp
Minus
keypad
On/Off
keypad
Temp
Plus
keypad
Lock
keypad
Display Area
on
off
light
light
lock
alarm reset
System
Status
indicators
door ajar
power failure
temp
air filter
Electronic Control Display
Power Failure
To wake the display press any keypad. A
confirm tone will sound, and the current
storage compartment temperature will be
displayed.
on
off
alarm reset
light
Starting your appliance:
Plug the appliance power cord into a 115
volt wall outlet. Your appliance is shipped
from the factory in the "On" position and
will begin start-up of cooling as soon as
power is supplied. If the appliance does
not start, confirm that the wall outlet has
power, and that the control is in the "On"
position, (See "Turning your appliance On
and Off").
The control display is covered with a clear
plastic film. This film may be removed by
carefully lifting the film at a corner.
On initial power up, the control display will
indicate a "Power Failure" alarm. This is
a normal condition as the appliance was
powered-up at the factory for quality inspection
and then removed from power. A momentary
press of the "On/Off" keypad will reset this
alarm condition. (See Alarms section).
Sleep mode:
If no keypads are pressed for 60 seconds,
the display will enter sleep mode to
conserve power. The control panel will
go dark with the exception of the system
status "OK" indicator which will remain
enabled. Alarm conditions will wake the
display, (See Alarms section).
To make the following changes to the
control settings (turning the appliance ON/
OFF, adjusting the temperature, changing
the interior lights, and activating vacation
mode), the control must be awake.
lock
The sleep mode can be disabled if you
prefer to have the display on continuously.
Press and hold the "Lock" keypad until the
display goes past "Loc" and reads "nSL".
To enable the sleep mode, repeat the
instruction, again going past "Loc" until the
display reads "SLP".
on
off
Turning your appliance ON and OFF:
If the appliance is "On", (and out of sleep
mode) the temperature will be shown in
the display area of the control. To turn the
appliance "Off", press and hold the
"On/Off" keypad for four seconds. "OFF"
will now be displayed on the control.
on
off
To turn the appliance "On", press and hold
the "On/Off" keypad for four seconds.
9
10 Operation
on
off
light
Adjusting the temperature:
To set or check the set-point temperature
(with the control out of sleep mode),
press the "-" or "+" keypads. "SET" will
be indicated on the user interface panel
and the current set-point temperature will
display and flash. Subsequent presses
of the "-" or "+" keypads will adjust the
temperature colder or warmer respectively.
When you have reached your desired
set-point temperature, press the "On/Off"
keypad to accept, or do nothing and the
"Set" mode will time-out in 10 seconds
accepting the displayed temperature as
the new set-point.
The available set-point temperature range
for your appliance is 40°F (4.4°C) to 65°F
(18.3°C). If you attempt to adjust the
temperature outside of this range you will
receive an audible notification.
When initially loading your product with
warm contents, it may take up to 48 hours
for the storage compartment temperature
to stabilize.
When making temperature set-point
changes, it may take up to 24 hours for
the stored contents to stabilize at your
new set-point temperature.
Factors that affect the storage
compartment stabilized temperature:
• Changes to temperature setting.
• Room temperature changes.
• Temperature of stored contents.
light
- Loading warm contents.
- Cold content load will delay the
change to a warmer set-point
temperature.
- Warm content load will delay
the change to a colder set-point
temperature.
• Usage, (number and duration of the
door openings).
• Use of the storage compartment
display lighting, (glass door product
only).
• Installation of the appliance in direct
sunlight or next to a heat source.
light
Interior display lighting:
(Glass door models only)
Your appliance is equipped with a dual
light level display lighting feature. With
the control out of sleep mode press the
"Light" keypad once to activate the interior
lighting display feature at full illumination.
A confirmation tone will sound, and the
light bulb "Icon" will illuminate. Pressing
the "Light" keypad a 2nd time will dim the
lighting to 50%. A 3rd press will deactivate
the display lighting feature. The display
lighting will automatically deactivate after
four hours.
Temperature mode:
The temperature mode is preset from the
factory in Fahrenheit (°F) but you have the
option to change it to Centigrade (°C). To
change the mode, press and hold the "-"
keypad, while pressing the "+" keypad,
then release the "-" keypad.
The temperature will now be displayed in
Centigrade (°C).
Repeat the procedure to change the
temperature mode back to Fahrenheit (°F).
lock
light
lock
light
lock
Control lock:
The control panel can be locked to avoid
unintentional changes. To lock the control,
press and hold the "Lock" keypad until
the display reads "Loc". The lock icon will
flash three times and then continuously
illuminate. When the control panel is
locked, only the Lock keypad, System
Status OK indicator, and the Alarm
indicator are active. To unlock the control
panel, repeat this instruction until the
display reads "nLc".
Operation 11
Alarms
The control will alert you to conditions that
could adversely affect the performance of
the appliance.
Door Ajar
on
off
alarm reset
Door ajar - If the door is open, or not
closed properly, for more than five minutes
the System Status OK indicator will turnoff, the "Door Ajar" indicator will flash,
and a tone will sound every 60 seconds.
Additionally, an "ALARM RESET" indicator
will be displayed below the
"On/Off" keypad. This alarm condition
can be reset by closing the door or
momentarily pressing the "On/Off" keypad,
(i.e.-if you are cleaning the storage
compartment, etc.). The alarm will recur in
five minutes if the alarm condition persists.
on
off
Temp
alarm reset
Temperature alarm - If the storage
compartment temperature exceeds 10°F
from set-point for more than a one hour
duration, the System Status indicator will
turn off, the "Temp" indicator will flash,
and an audible tone will sound every 60
seconds. Additionally, an "ALARM RESET"
indicator will be displayed below the "On/
Off" keypad. This alarm condition can
be reset by momentarily pressing the
"On/Off" keypad. If this alarm occurs,
it is recommended that you check the
condition of your stored contents, even
though the appliance is operating normally
and the temperature has recovered.
Prolonged temperature excursions could
spoil perishables.
NOTE
Power Failure
on
off
alarm reset
Power failure - If power to the appliance
is interrupted the System Status indicator
will turn-off and the "Power Failure"
indicator will flash. Additionally, an "ALARM
RESET" indicator will be displayed below
the "On/Off" keypad. No audible tone
will sound. This alarm condition can
be reset by momentarily pressing the
"On/Off" keypad. If this alarm occurs,
it is recommended that you check the
condition of any perishables, even if the
appliance is operating normally and the
temperature has recovered. Prolonged
power outages could result in excessive
temperature excursions which may spoil
perishables.
Multiple alarms are possible, i.e.- “Door
Ajar” for a prolonged period may trigger
a “Temp” alarm, in which case both
“Door Ajar” and “Temp” indicators will
activate.
Door Ajar
Temp
NOTE
The system status “OK” indicator
(blue dot at top of alarm window) will
remain lit whenever the unit is operating
properly.
12 Operation
Vacation/Sabbath mode:
This operating mode can be used to save energy during high cost energy periods, or
when you won't be using your appliance for an extended period of time. Vacation mode
also serves as a Sabbath mode, disabling functions and its controls in accordance
with the weekly Sabbath and religious holidays observed within the Orthodox Jewish
community. When used as Sabbath mode, you may open or close the door at any
time to access contents without concern of directly turning on or off any lights, digital
readouts, solenoids, fans, valves, compressor, icons, tones, or alarms.
When activated, the display, alarm indicators and tones, keypad touch tones,
interior lights, and all options are disabled. All keypad functions are disabled,
with the exception of the "On/Off" keypad which is required to exit Vacation/
Sabbath mode. Storage compartment temperatures are monitored and
controlled at the settings prior to entering Vacation/Sabbath mode. For further
assistance, guidelines for proper usage and a complete list of models with the
Sabbath feature, please visit the web at http:\\www.star-k.org.
on
off
on
off
To enter Vacation/Sabbath Mode (with the control out of sleep mode), press and hold the
"On/Off" keypad until the display goes past "OFF" and reads "VAC". The display will flash
"VAC" three times to acknowledge your request, then will display "VAC" continuously
until Vacation/Sabbath mode is exited. A power outage will not exit Vacation/Sabbath
mode, exiting can only be accomplished manually. To exit Vacation/Sabbath mode and
return to normal operation, press and hold the "On/Off" keypad until the control displays
the temperature.
Storage 13
Loading Tips and Suggestions
Your appliance is equipped with a
cantilever shelf system which provides
maximum adjustability and customization
of the shelving arrangement.
CAUTION
Never try to move a loaded shelf,
remove everything from the shelf
before moving. Use both hands when
moving the shelf.
Wine cooler Shelving:
• Five (5) roll-out wine racks
• Two (2) five bottle roll-out wine racks
To remove a shelf from the frame:
• Extend the shelf out of the cabinet
until it stops.
• Unload the shelf.
• Lift up on the front of the shelf to
disengage the slide stops. Remove
the shelf from the cabinet.
Lift up on the
front of the shelf
14 Maintenance
Front Grille
Be sure that nothing obstructs the required
air flow openings in front of the cabinet.
At least once or twice a year, brush or
vacuum lint and dirt from the front grille
area.
Cabinet
The painted cabinet can be washed
with either a mild soap and water and
thoroughly rinsed with clear water. NEVER
use abrasive scouring cleaners.
Interior
Wash interior compartment with mild
soap and water. Do NOT use an abrasive
cleaner, solvent, polish cleaner or undiluted
detergent.
Care of Appliance
1. Avoid leaning on the door, you may
bend the door hinges or tip the
appliance.
2. Exercise caution when sweeping,
vacuuming or mopping near the front
of the appliance. Damage to the grille
can occur.
3. Periodically clean the interior of the
appliance as needed.
4. Periodically check and/or clean the
front grille as needed.
In the Event of a Power Failure
If a power failure occurs, try to correct it
as soon as possible. Minimize the number
of door openings while the power is off so
as not to adversely affect the appliance's
temperature.
Light assembly replacement
All models use an LED to illuminate the
interior of the appliance. This component
is very reliable, but should it fail, contact a
qualified service technician for replacement
of the LED.
The following suggestions will
minimize the cost of operating
your refrigeration appliance.
1. Do not install your appliance next to
a hot appliance (cooker, dishwasher,
etc.), heating air duct, or other heat
sources.
2. Install product out of direct sunlight.
3. Ensure the front grille vents at front
of appliance beneath door are not
obstructed and kept clean to allow
ventilation for the refrigeration system
to expel heat.
4. Plug your appliance into a dedicated
power circuit. (Not shared with other
appliances).
5. When initially loading your new
product, or whenever large quantities
of warm contents are placed within
refrigerated storage compartment,
minimize door openings for the
next 12 hours to allow contents
to pull down to compartment set
temperature.
6. Maintaining a relatively full storage
compartment will require less
appliance run time than an empty
compartment.
7. Ensure door closing is not obstructed
by contents stored in your appliance.
8. Allow hot items to reach room
temperature before placing in
product.
9. Minimize door openings and duration
of door openings.
10. Use the warmest temperature control
set temperature that meets your
personal preference and provides
the proper storage for your stored
contents.
11. When on vacation or away from
home for extended periods, set the
appliance to warmest acceptable
temperature for the stored contents.
12. Set the control to the “off” position if
cleaning the appliance requires the
door to be open for an extended
period of time.
13. For wine storage products: When
serving temperatures are not
required, return the compartment(s)
set temperature to the ideal red and
white wine long term storage temperature of 13°C / 55°F.
Maintenance 15
Door alignment:
The door should be parallel to the sides
and top of the appliance. If alignment is
necessary the door may be adjusted by
removing the grille, then loosening the two
screws which secure the door adjustment
bracket on the bottom of the door and
adjusting the door side to side. Use a
5⁄32” Allen wrench for this procedure.
When finished aligning the door, tighten
the screws securely and install the grille.
NOTE
Although not necessary, as the screws
in the door adjustment bracket can be
accessed with the door open, the grille
can be removed in the following manner.
• Loosen the two Phillips head
screws, one at each end of the
grill. It is not necessary to remove
them.
• With the door open raise up on
the end of the grille opposite the
hinges and pull toward you to
remove the screw from the keyhole
slot in the grille.
• Then pull the grille to the side to
remove the grille.
Installation is the opposite of removal.
Be sure to tighten the two Phillips head
screws.
Grille
Door should be
parallel to top
and sides of
the appliance.
Keyhole slot
in grille
Access to the phillips head
screws is through the top
end slots in the front of
the grille
Rear of grille
Screw slot in grille
Door
adjustment
bracket
Bottom
of door
Loosen (don't remove)
these two screws.
16 Troubleshooting
Before You Call for Service If Service is Required
If the unit appears to be malfunctioning,
read through this manual first. If the problem
persists, check the Troubleshooting Guide
below. Locate the problem in the guide and
refer to the cause and its remedy before calling
for service. The problem may be something
very simple that can be solved without a
service call. Consulting or contracting a
qualified service technician may be necessary.
Contact the dealer where you purchased
the unit if service is required. State the
model and serial number and explain the
problem. The model and serial number
plate is located on the ceiling of your unit.
If you do not know the name of the selling dealer
or a local service company, you can check
online at www.electroluxappliances.com or
call 1-877-435-3287.
WARNING
ELECTROCUTION HAZARD
NEVER attempt to repair or perform maintenance on the unit until the main
electrical power has been disconnected.
Problem
Unit not cold
enough.
Adjust
temperatures
(see “Adjusting
the Temperature”
in the “Start-Up
and Temperature
Control” section).
Unit too cold.
Contents of unit
too cold/frozen.
Adjust temperatures
(see “Adjusting
the Temperature”
in the “Start-Up
and Temperature
Control” section).
No interior light.
Light will not go
out when door is
closed.
Alarm(s) will not
shut off.
Power is not
restored after
power failure.
Door does not
close properly.
Possible Cause
• Control set too warm.
• Light staying on.
• Airflow to front grille
blocked.
• Door gasket not
sealing properly.
• Control set too cold.
• Failed LED assembly.
• Manual light control
is ON.
• Door switch not
making contact.
• Door is ajar.
• Power has failed.
• Internal temperature is
too high.
• Circuit breaker has
tripped.
• Door hinges are
misaligned.
• Door gasket is not
sealing properly.
Remedy
• Adjust temperature colder. Allow 24
hours for temperature to stabilize.
• Turn off manual light control.
See “Operation” section.
• Airflow must not be
obstructed to front grille. See
“Installation” section.
• Adjust door gasket.
• Adjust temperature warmer.
Allow 24 hours for temperature
to stabilize.
• Contact a qualified Electrolux
Service Technician.
• Turn off manual light control.
See “Operation” section.
• Check for proper door
alignment.
• Press “Power” key to
acknowledge alarm.
• Ensure door is closed firmly.
• Allow 24 hours for temperature
to stabilize.
• Verify electrical supply. See
“Installation” section.
• Loosen hinges and re-align
door. Retighten hinges.
• Turn gasket 180°.
Warranty Information 17
Major Appliance Warranty Information
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase,
Electrolux will repair or replace any parts of this appliance that prove to be defective in materials or
workmanship when such appliance is installed, used, and maintained in accordance with the provided
instructions. In addition, the cabinet liner and sealed refrigeration system (compressor, condenser,
evaporator, dryer or tubing) of your appliance is covered by a two through five year limited warranty. During
the 2nd through 5th years from your original date of purchase, Electrolux will repair or replace any parts in the
cabinet liner and sealed refrigeration system which prove to be defective in materials or workmanship when
such appliance is installed, used, and maintained in accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily
determined.
2. Product that has been transferred from its original owner to another party or removed
outside the USA or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased “as-is” are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or
for appliances not in ordinary household use or used other than in accordance with the
provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your
appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,
shelves, etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other
consumables, or knobs, handles, or other cosmetic parts.
11. Pickup and delivery costs; your appliance is designed to be repaired in the home.
12. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls,
tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the
state of Alaska.
13. Damages to the finish of appliance or home incurred during transportation or installation,
including but not limited to floors, cabinets, walls, etc.
14. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL
BE REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED
WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD
ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE
FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND
INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED
WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW
THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR
LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
If You Need Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the
warranty period should service be required. If service is performed, it is in your best interest
to obtain and keep all receipts. Service under this warranty must be obtained by contacting
Electrolux at the addresses or phone numbers below.
This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico,
your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux
Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux
authorizes no person to change or add to any obligations under this warranty. Obligations for service
and parts under this warranty must be performed by Electrolux or an authorized service company.
Product features or specifications as described or illustrated are subject to change without notice.
Canada
USA
1-800-265-8352
1-877-435-3287
Electrolux Canada Corp.
Electrolux Major Appliances North America
5855 Terry Fox Way
10200 David Taylor Drive
Mississauga, Ontario,
Charlotte, NC 28262
Canada L5V 3E4
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
