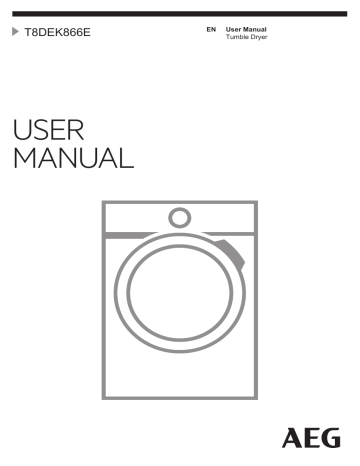

T8DEK866E
USER
MANUAL
EN
User Manual
Tumble Dryer
2
www.aeg.com
CONTENTS
1. SAFETY INFORMATION............................................................................................. 3
2. SAFETY INSTRUCTIONS.............................................................................................5
3. PRODUCT DESCRIPTION...........................................................................................7
4. CONTROL PANEL....................................................................................................... 8
5. PROGRAM....................................................................................................................9
6. OPTIONS....................................................................................................................12
7. BEFORE FIRST USE................................................................................................... 13
8. DAILY USE.................................................................................................................. 13
9. HINTS AND TIPS........................................................................................................16
10. CARE AND CLEANING.......................................................................................... 17
11. TROUBLESHOOTING............................................................................................. 19
12. TECHNICAL DATA..................................................................................................21
13. ACCESSORIES......................................................................................................... 22
14. QUICK GUIDE.........................................................................................................24
15. PRODUCT INFORMATION SHEET IN REFERENCE TO E.U. REGULATION
1369/2017........................................................................................................................25
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler features you might not find on ordinary appliances. Please
spend a few minutes reading to get the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.aeg.com/webselfservice
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
ENGLISH
1.
3
SAFETY INFORMATION
Before beginning the installation and use of this
appliance, carefully read the supplied instructions. The
manufacturer is not responsible for any injuries or
damages that are the result of incorrect installation or
usage. Always keep the instructions in a safe and
accessible location for future reference.
- Read the supplied instructions.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent
disability.
•
•
•
•
•
•
•
•
•
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away unless continuously supervised.
Children of less than 3 years of age should be kept
away unless continuously supervised.
Do not let children play with the appliance.
Keep all packaging away from children and dispose of
it appropriately.
Keep detergents away from children.
Keep children and pets away from the appliance when
the door is open.
If the appliance has a child safety device, it should be
activated.
Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
4
www.aeg.com
1.2 General Safety
•
•
•
•
•
•
•
•
•
•
•
•
•
Do not change the specification of this appliance.
If the tumble dryer is put on top of a washing
machine, use the stacking kit. The stacking kit,
available from your authorized vendor, can be used
only with the appliance specified in the instructions
supplied with the accessory. Read it carefully before
installation (refer to the Installation leaflet).
The appliance can be installed as freestanding or
below a kitchen counter with correct space (refer to
the Installation leaflet).
Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite
side, that would prevent the appliance door from
being fully open.
The ventilation opening in the base must not be
covered by a carpet, mat, or any floor covering.
WARNING: The appliance must not be supplied
through an external switching device, such as a timer,
or connected to a circuit that is regularly switched on
and off by a utility.
Connect the mains plug to the mains socket only at
the end of the installation process. Make sure that the
mains plug is accessible after installation.
If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
Do not exceed the maximum load of 8 kg (refer to the
"Programme chart" chapter).
Do not use the appliance if items have been soiled
with industrial chemicals.
Wipe away lint or packaging debris that has
accumulated around the appliance.
Do not run the appliance without a filter. Clean the lint
filter before or after each use.
Do not dry unwashed items in the tumble dryer.
ENGLISH
•
•
•
•
•
•
5
Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should
be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be
dried in the tumble dryer.
Fabric softeners, or similar products, should only be
used as specified by the product manufacturer’s
instructions.
Remove all objects from items that could be a source
of fire ignition such as lighters or matches.
WARNING: Never stop a tumble dryer before the end
of the drying cycle unless all items are quickly
removed and spread out so that the heat is
dissipated.
Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use the appliance
where the temperature can be lower
than 5°C or higher than 35°C.
• The floor area on which the appliance
is to be installed must be flat, stable,
heat resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• Always keep the appliance vertical
when it is being moved.
• The rear surface of the appliance
must be put against a wall.
• When the appliance is in its
permanent position, check if it is
levelled correctly with the aid of a
spirit level. If it is not, adjust the feet
accordingly.
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
6
www.aeg.com
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Do not touch the mains cable or the
mains plug with wet hands.
• This appliance complies with the
E.E.C. Directives.
2.3 Use
WARNING!
Risk of injury, electric shock,
fire, burns or damage to the
appliance.
• This appliance is for household use
only.
• Do not dry damaged (torn, frayed)
items that contain padding or fillings.
• Only dry fabrics which are suitable for
drying in a tumble dryer. Follow the
instructions on the fabric label.
• If you have washed your laundry with
a stain remover start an extra rinse
cycle before you start the dryer.
• Do not drink or prepare food with the
condensed water/distilled water. It
can cause health problems to people
and pets.
• Do not sit or stand on the open door
of the appliance.
• Do not dry dripping wet clothes in a
tumble dryer.
2.4 Internal lighting
WARNING!
Risk of injury.
• Visible LED radiation, do not look
directly into the beam.
• The LED lamp is dedicated to drum
lighting. This lamp cannot be reused
for other lighting purposes.
• To replace the internal lighting,
contact the Authorised Service
Centre.
2.5 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products,
abrasive cleaning pads, solvents or
metal objects.
• To prevent damage to the cooling
system be careful when you clean the
appliance.
2.6 Compressor
WARNING!
Risk of damage to the
appliance.
• The compressor and its system in the
tumble dryer is filled with the special
agent which is free from fluoro-chlorohydrocarbons. This system must stay
tight. The damage of the system can
cause a leakage.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains electrical and water supplies.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
• Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).
ENGLISH
3. PRODUCT DESCRIPTION
1
2
3
4
5
6
7
10
8
9
1
2
3
4
5
6
Water container
Control panel
Internal lighting
Appliance door
Filter
Rating plate
For ease of loading laundry
or ease of installation the
door is reversible. (see
separate leaflet).
7
8
9
10
Airflow slots
Condenser lid
Condenser cover
Adjustable feet
7
8
www.aeg.com
4. CONTROL PANEL
1
2
6
4
5
1 Program dial
2 Display
3
Start/Pause button
4 Options
5
On/Off button with Auto Off
function
6 Programs
4.1 Display
Symbol on the display
Symbol description
laundry maximum load
delay start option on
-
3
delay start selection (30min-20h)
cycle time indication
buzzer off
ENGLISH
Symbol on the display
Symbol description
child lock on
,
,
laundry dryness: iron dry, cupboard dry, cupboard
dry +, extra dry
,
indicator: drain the water container
indicator: clean the filter
indicator: check the condenser
time dry option on
time programme selection (10min-2h)
-
indicator: drying phase
indicator: crease guard phase
indicator: cooling phase
5. PROGRAM
Program
Load 1)
8 kg
Cycle to be used to dry cotton with
"cotton cupboard" dryness level,
/
with maximum energy saving.
8 kg
Cycle defined to dry all types of
cotton ready to store (cupboard
dry).
/
3,5 kg
Synthetic and mixed fabrics.
/
3 kg
Cotton and synthetic fabrics.
/
3)
Cottons Eco
Cottons
Synthetics
Mixed
Properties / Fabric mark 2)
9
10
www.aeg.com
Program
Load 1)
Properties / Fabric mark 2)
Woollen fabrics. Gentle drying for hand-washable woollens. Remove items immediately when
the programme is completed.
Wool
1 kg
The wool drying cycle of this machine has been
approved by The Woolmark Company for the
drying of wool garments labelled as "hand
wash" provided that the garments are dried according to the instructions issued by the manufacturer of this machine. Follow the garment
care label for other laundry instructions. M1641
The Woolmark symbol is a Certification mark in
many countries.
Silk
Bed Linen
Easy Iron
1 kg
Gentle drying of hand-washable
silks.
/
3 kg
Bed linen such as single and double sheets, pillowcases, duvet cover.
/
1 kg (or 5
shirts)
Easy care fabrics for which a minimum of ironing
is necessary. The drying results can be different
from one type of fabric to another. Shake the
items before putting them in the appliance.
When the programme has ended, immediately
remove the items and put them on a hanger.
/
Outdoor
2 kg
Outdoor clothing, technical, sports
fabrics, waterproof and breathable
jackets, shell jackets with a remov- /
able fleece or inner insulation.
Suitable for drying in tumble dryer.
ENGLISH
Program
Load 1)
Duvet
Properties / Fabric mark 2)
Single or double duvets and pillows (with feather, down or synthetic fillings).
3 kg
11
/
1) The maximum weight refers to dry items.
2) For fabric mark meaning see chapter DAILY USE: Preparing the laundry.
3) The
Cottons Eco programme is the “Standard cotton programme” according to Commission
Regulation EU No. 392/2012. It is suitable for drying normal wet cotton laundry and it is the most efficient
programme in terms of energy consumption for drying wet cotton laundry.
5.1 Programmes and options selection
Options
Dryness
Programmes 1)
Extra
Silent
Anticrease
Refresh
Time
Dry
Cottons Eco
Cottons
Synthetics
Mixed
2)
Wool
Silk
Bed Linen
Easy Iron
Outdoor
Duvet
1) Together with the programme you can set 1 or more options.
2) See chapter OPTIONS: Time Dry on Wool programme
5.2 Consumption data
Program
Spun at / residual humidity
Cottons ECO8 kg
Drying time 1)
Energy
consumption 2)
12
www.aeg.com
Program
cupboard dry
iron dry
Spun at / residual humidity
Drying time 1)
Energy
consumption 2)
1400 rpm / 50%
156 min
1,31 kWh
1000 rpm / 60%
173 min
1,47 kWh
1400 rpm / 50%
120 min
0,94 kWh
1000 rpm / 60%
137 min
1,12 kWh
1400 rpm / 50%
93 min
0,72 kWh
1000 rpm / 60%
105 min
0,83 kWh
1200 rpm / 40%
65 min
0,47 kWh
800 rpm / 50%
80 min
0,60 kWh
Cottons ECO 4 kg
cupboard dry
Synthetics 3,5 kg
cupboard dry
1) For partial loads, the cycle time is shorter and appliance uses less energy.
2) Improper ambient temperature and/or poorly centrifuged laundry can prolong cycle time and increase
the energy consumption.
6. OPTIONS
6.1
Dryness
This option helps to achieve requested
laundry dryness. Possible selections:
level.
- ready to iron - iron dry
- ready to store - cupboard dry
level - default selection which is related
to the programme.
+ level.
level.
6.2
- ready to store - cupboard dry
- ready to store - extra dry
Extra Silent
The appliance operates with low noise
without effect on the drying quality. The
appliance operates slowly with longer
cycle time.
6.3
ECO
This option is on by default with all
programs.
The power consumption is at the
minimum level.
6.4
Anticrease
Extends up to 120 minutes the anticrease phase (30 minutes) at the end of
the drying cycle. After drying phase drum
rotates from time to time to prevent
creases. Laundry can be removed during
the anti-crease phase.
6.5
Refresh
To refresh clothes that were in storage.
Maximal load cannot exceed 1 kg.
6.6
Time Dry
For cottons, synthetics and mixed. Lets
the user to set drying time from
ENGLISH
minimum 10 min to maximum of 2 hours
(in 10 min steps). When this option is
maximum, load indicator disappears.
2. Touch
Delay Start button again
and again.
Time of delay is on the display (e.g.
6.7
Time Dry on Wool
program
if the program has to start after 12
hours.)
Option applicable to Wool program to
adjust final dryness level to more dry or
less dry.
touch the
Start/Pause button.
Time to start decreases on the display.
6.8
Delay Start
Lets to delay the start of a
drying program from
minimum of 30 minutes to
maximum of 20 hours.
1. Set the drying program and options.
13
3. To activate
Delay Start option,
6.9 Buzzer
The sound is heard at the:
• cycle end
• start and end of crease guard phase
The buzzer option is by default always
on. You can use this option to activate or
deactivate the sound.
7. BEFORE FIRST USE
Rear drum packaging is
removed automatically when
dryer is activated for the first
time. Possible to hear some
noise.
Before you use the appliance for the first
time:
• Clean the tumble dryer drum with a
moist cloth.
• Start a 1 hour programme with moist
laundry.
At the beginning of the
drying cycle (first 3-5 min)
there could be a slightly
higher sound level. This is
due to the compressor
starting up. This is normal for
compressor powered
appliances such as
refrigerators and freezers.
8. DAILY USE
8.1 Preparing the laundry
• Close the zips.
• Close the fasteners of duvet covers.
• Do not dry ties or ribbons loose (e.g.
apron ribbons). Tie them before you
start a programme.
• Remove all items from pockets.
• Turn items with the internal layer
made of cotton inside out. Cotton
layer must be faced outwards.
• Always set the programme suitable
for the type of laundry.
• Do not put light and dark colours
together.
• Use suitable programme for cottons,
jersey and knitwear to reduce
shrinkage.
• Do not exceed the maximum load
stated in the programmes chapter or
shown on the display.
• Dry only the laundry that is suitable
for tumble drying. Refer to the fabric
label on the items.
• Do not dry large and small items
together. Small items can be trapped
inside the large items and remain wet.
14
www.aeg.com
Fabric label
Description
Laundry is suitable for tumble drying.
Laundry is suitable for tumble drying at higher temperatures.
Laundry is suitable for tumble drying at low temperatures only.
Laundry is not suitable for tumble drying.
8.2 Loading the laundry
CAUTION!
Ensure the laundry is not
trapped between the
appliance door and the
rubber seal.
If the appliance is on, some indications
appear on the display.
8.5 Setting a programme
1. Pull open the appliance door.
2. Load the laundry one item at a time.
3. Close the appliance door.
8.3 Turning on the appliance
Use the programme dial to set the
programme.
The possible time to complete the
programme appears on the display.
To turn on the appliance:
On/Off button.
Push the
If the appliance is on, some indicators
appear on the display.
8.4 Auto Off function
To decrease the energy consumption,
the Auto Off function turns the appliance
off automatically:
• if the
Start/Pause touch button is
not touched within 5 minutes.
• 5 minutes after a cycle ends.
On/Off button to turn on the
Push the
appliance.
The drying time you see on
the display, when the cotton
programme is selected, is
related to the load of 5 kg
and standard conditions.
Real drying time will depend
on type of the load (quantity
and composition), the room
temperature and the
humidity of your laundry
after spin drying phase.
8.6 Options
Together with the programme you can
set 1 or more special options.
ENGLISH
15
8.8 Starting a program
To activate or deactivate an option touch
the relevant button or a two button
combination.
its symbol appears on the display or the
led above the corresponding button
lights up.
8.7 Child lock option
The child lock can be set to prevent
children from playing with the appliance.
The child lock option locks all touch
buttons and the program dial (this option
does not lock the
On/Off button).
You can activate the child lock option:
Start/Pause
• before you touch the
button - the appliance cannot start
• after you touch the
Start/Pause
button - programs and option
selection is unavailable.
Child lock option activation:
To start the program:
Touch the
Start/Pause button.
The appliance starts and the LED above
the button stops flashing and stays on.
8.9 Program change
To change a program:
1. Push the
On/Off button to turn
the appliance off.
2. Push the
On/Off button again to
turn on the appliance.
3. Set a new program.
8.10 Program end
Clean the filter and drain the
water container after each
drying cycle. (See chapter
CARE AND CLEANING.)
If the drying cycle is finished, the symbol
appears on the display. If the
Buzzer option is activated, the acoustic
signal sounds intermittently for 1 minute.
1. Turn the dryer on.
2. Select 1 of the available programs.
3. Touch and hold down 2 buttons at
the same time.
The symbol
appears on the display.
4. To deactivate the child lock, touch
the above buttons again until the
symbol disappears.
If you do not turn off the
appliance, the anti-crease
phase starts (not active with
all programs). Flashing
symbol signals the execution
of the anticrease phase.
Laundry can be removed
during this phase.
To remove the laundry:
1. Push the
On/Off button for 2
seconds to turn the appliance off.
2. Open the appliance door.
16
www.aeg.com
3. Remove the laundry.
4. Close the appliance door.
9. HINTS AND TIPS
9.1 Ecological hints
• Spin the laundry well before drying.
• Do not exceed the load sizes which
are specified in the programs chapter.
• Clean the filter after each drying
cycle.
• Do not use fabric softener to wash
and then dry. In the tumble dryer
laundry becomes soft automatically.
• Use distilled water like that used for
steam ironing. If it is necessary, clean
the distilled water before (e.g. with a
coffee filter) to remove any particles.
• Always keep the airflow slots at the
bottom of the appliance clear.
• Make sure there is good airflow where
the appliance is to be installed.
9.2 Adjustment of default
dryness level
To change the default dryness level:
1. Turn the appliance on.
2. Select 1 of the available programs.
3. Touch and hold down the
Dryness and
Anticrease buttons
at the same time.
One of the symbols appears on the
display:
- Maximum dryness
- Extra dryness
- Standard dryness
4. Touch the
Start/Pause button
repeatedly until you reach the
desired dryness level.
Dryness level
Maximum
dryness
Display symbol
Dryness level
Display symbol
Extra dryness
Standard
dryness
5. To memorise the setting touch and
Dryness and
hold down the
Anticrease buttons at the same time
for approximately 2 seconds.
9.3 Deactivating the tank
indicator
The water container indicator is activated
by default. It illuminates at the end of the
drying cycle or during the cycle if the
water reservoir is full. If the draining kit is
installed the water container is drained
automatically and the indicator can be
deactivated.
To deactivate the indicator:
1. Turn the appliance on.
2. Select 1 of the available programs.
3. Touch and hold down
Anticrease
and
Time Dry buttons at the
same time.
One of 2 configurations is possible:
• the Tank indicator:
is on if the
appears - the
symbol
water container indicator is
permanently activated
• the Tank indicator:
is off if the
symbol
appears - the
water container indicator is
permanently deactivated
ENGLISH
17
10. CARE AND CLEANING
10.1 Cleaning the filter
At the end of each cycle the
Filter
symbol comes on the display and you
must clean the filter.
5. If necessary, remove fluff from the
filter socket and gasket. You can use
a vacuum cleaner. Place the filter
back inside the filter socket.
The filter collects the fluff
during the drying cycle.
1. Open the door. Pull the filter up.
10.2 Emptying the water
container
2. Push the hook to open the filter.
Empty the condensed water container
after each drying cycle.
If the condensed water container is full,
the programme stops automatically. The
Tank symbol comes on the display
and you must empty the water container.
To empty the water container:
1. Pull the water container out keeping
it in a horizontal position.
3. Use a moist hand to clean both parts
of the filter.
2. Pull the plastic connection out and
drain the water into a basin or
equivalent receptacle.
4. If necessary, clean the filter with a
vacuum cleaner. Close the filter.
18
www.aeg.com
3. Push the plastic connection back in
and place the water container back
into position.
4. To continue the programme press
the
Start/Pause button.
10.3 Cleaning the condenser
If the symbol
Condenser flashes on
the display, inspect the condenser and
its compartment. If it is dirty, clean it. Do
the check not less than once a 6 months.
4. Lower the condenser lid.
WARNING!
Do not touch the metal
surface with bare hands. Risk
of injury. Wear protective
gloves. Clean carefully to
avoid damaging the metal
surface.
To inspect:
1. Open the door. Pull the filter up.
5. If necessary, remove the fluff from
the condenser and its compartment.
You can use a wet cloth and/or a
vacuum cleaner with a brush
attachment.
2. Open the condenser cover.
6. Close the condenser lid.
7. Turn the lever until it clicks into
position.
8. Put the filter back.
10.4 Cleaning the drum
3. Turn the lever to unlock the
condenser lid.
WARNING!
Disconnect the appliance
before you clean it.
Use a standard neutral soap detergent to
clean the inner surface of the drum and
drum lifters. Dry the cleaned surfaces
with a soft cloth.
ENGLISH
CAUTION!
Do not use abrasive
materials or steel wool to
clean the drum.
19
CAUTION!
Do not use furniture
cleaning agents or cleaning
agents which can cause
corrosion.
10.5 Cleaning the control
panel and housing
10.6 Cleaning the airflow slots
Use a standard neutral soap detergent to
clean the control panel and housing.
Use a vacuum cleaner to remove fluff
from the airflow slots.
Use a moist cloth to clean. Dry the
cleaned surfaces with a soft cloth.
11. TROUBLESHOOTING
Problem 1)
Possible cause
Remedy
The tumble dryer is not connected Connect it to the mains socket.
to the mains supply.
Check the fuse in the fuse box (domestic installation).
The tumble dryer does not operate.
The door is open.
Close the door.
The
On/Off button was not
pushed.
Push the
The
Start/Pause button was
not touched.
Touch the
The appliance is in standby mode.
Push the
Incorrect programme selection.
Select a suitable programme. 2)
The filter is clogged.
Clean the filter. 3)
Dryness option was set to
iron dry.4)
Unsatisfactory
drying result.
On/Off button.
Start/Pause button.
On/Off button.
Change
Dryness option to a
higher level.
The load was too large.
Do not exceed the maximum load
size.
The airflow slots are clogged.
Clean the airflow slots at the bottom of the appliance.
There is some dirt on the humidity
sensor in the drum.
Clean the front surface of the
drum.
The dryness level was not set to
the desired level.
Adjust the dryness level. 5)
The condenser is clogged.
Clean the condenser. 3)
20
www.aeg.com
Problem 1)
The loading
door does not
close
Possible cause
Remedy
The filter is not locked into position.
Put the filter in the correct position.
Laundry is trapped between the
door and the seal.
Remove trapped items and close
the door.
It is not possible After a cycle starts it is not possible Turn the tumble dryer off and on.
to change the
to change the programme or opChange the programme or option
programme or
tion.
as required.
option.
It is not possible The option you tried to select is
to select an op- not available for the selected protion. An acoustic gramme.
signal is emitted.
Turn the tumble dryer off and on.
Change the programme or option
as required.
There is no
drum light
Contact the service centre to replace the drum lamp.
Defective drum lamp.
Unexpected du- The drying duration is calculated
ration time apaccording to load size and damppears on the dis- ness.
play.
A programme is
inactive.
The water container is full.
This is automated - the appliance
is working correctly.
Drain the water container, push
the
Start/Pause button. 3)
The load size is small.
Select a time programme. The
time value must be related to the
load. To dry one item or a small
amount of laundry we recommend
short drying times.
The laundry is too dry.
Select an appropriate time programme or a higher dryness level
The drying cycle
is too short.
(e.g.
extra dry)
ENGLISH
Possible cause
Problem 1)
Drying cycle too
long 6)
21
Remedy
The filter is clogged.
Clean the filter.
The load is too large.
Do not exceed the maximum load
size.
The laundry was not spun sufficiently.
Spin the laundry well in the washing machine.
Too low or too high room temperature - this is not the appliance
malfunction.
Ensure a room temperature higher
than +5°C and lower than +35°C.
Optimal room temperature to achieve best drying results is between
19°-24°C.
1) If there is an error message on the display (e.g. E51): Turn the tumble dryer off and on. Select a new
programme. Touch the Start/Pause button. If the appliance does not operate contact the service centre
and provide the error code.
2) Follow the programme description — see the PROGRAMMES chapter .
3) See the CARE AND CLEANING chapter.
4) Only dryers with the Dryness option.
5) See the HINTS AND TIPS chapter .
6) Note: After a maximum of 5 hours the drying cycle ends automatically.
12. TECHNICAL DATA
Height x Width x Depth
850 x 600 x 600 mm (maximal 665 mm)
Max. depth with the appliance door open
1100 mm
Max. width with the appliance door open
950 mm
Adjustable height
850 mm (+ 15 mm - feet regulation)
Drum volume
118 l
Maximum load volume
8 kg
Voltage
230 V
Frequency
50 Hz
Sound power level
65 dB
Total power
700 W
Energy efficiency class
A+++
Energy consumption on the standard cotton 1,47 kWh
programme with the full load. 1)
Energy consumption on the standard cotton 0,83 kWh
programme with the partial load. 2)
22
www.aeg.com
Annual energy consumption3)
176,50 kWh
Left-on mode power absorption 4)
0,05 W
Off mode power absorption 4)
0,05 W
Type of use
Household
Allowed ambient temperature
+ 5°C to + 35°C
Level of protection against ingress of solid
particles and moisture ensured by the protective cover, except where the low voltage
equipment has no protection against moisture
IPX4
This product contains fluorinated greenhouse gases, hermetically sealed
Gas designation
R134a
Weight
0,280 kg
Global-warming potential (GWP)
1430
1) With reference to EN 61121. 8 kg of cotton centrifuged at 1000 rpm.
2) With reference to EN 61121. 4 kg of cotton centrifuged at 1000 rpm.
3) Energy consumption per year in kWh, based on 160 drying cycles of the standard cotton programme
at full and partial load, and the consumption of the low-power modes. Actual energy consumption per
cycle will depend on how the appliance is used (REGULATION (EU) No. 392/2012).
4) With reference to EN 61121.
The information given in the chart above is compliant with the EU Commission regulation
392/2012 implementing directive 2009/125/EC.
13. ACCESSORIES
13.1 Stacking kit
Available from your authorised vendor.
Stacking kit can be used only between
washing machines and tumble dryers
specified in the leaflet. See the leaflet
attached.
Read carefully the instructions supplied
with the accessory.
Accessory name: SKP11, STA9
ENGLISH
13.2 Draining kit
23
13.3 Pedestal with drawer
Accessory name: DK11.
Available from your authorised vendor
(can be attached to some types of
tumble dryer)
For thorough draining of the condensed
water into a basin, siphon, gully, etc.
After installation, the water container is
drained automatically. The water
container must stay in the appliance.
The installed hose must be minimum 50
cm to maximum 100 cm from floor level.
The hose cannot be in a loop. Decrease
the length of the hose if necessary.
Read carefully the instructions supplied
with the accessory.
Accessory name: PDSTP10, E6WHPED2.
Available from your authorised vendor.
For increasing the height of the
appliance in order to ease loading and
unloading of laundry.
The drawer can be used for laundry
storage e.g. : towels, cleaning products
etc.
Read carefully the instructions supplied
with the accessory.
24
www.aeg.com
14. QUICK GUIDE
14.1 Daily use
1
2
3
5
4
4
1. Push the
On/Off button to turn
on the appliance.
2. Use the programme dial to set the
programme.
3. To activate or deactivate an option
touch the relevant button or 2
buttons combination.
1
2
At the end of each cycle the
Filter
symbol comes on the display and you
must clean the filter.
1. Open the door. Pull the filter up.
4. Touch the
Start/Pause button.
5. The appliance starts.
14.2 Cleaning the filter
3
2. Push the hook to open the filter.
3. Use a moist hand to clean both parts
of the filter.
ENGLISH
25
14.3 Program
Load 1)
Program
8 kg
Cycle to be used to dry cotton with "cotton cupboard" dryness level, with maximum energy saving.
8 kg
Cycle defined to dry all types of cotton ready to
store (cupboard dry).
Cottons Eco
Cottons
Synthetics
Mixed
Wool
Silk
Bed Linen
Easy Iron
Outdoor
Duvet
Properties / Fabric mark
3,5 kg
Synthetic and mixed fabrics.
3 kg
Cotton and synthetic fabrics.
1 kg
Woollen fabrics. Gentle drying for hand-washable
woollens. Remove items immediately when the
programme is completed.
1 kg
Gentle drying of hand-washable silks.
3 kg
Bed linen such as single and double sheets, pillowcases, duvet cover.
Easy care fabrics for which a minimum of ironing is
necessary. The drying results can be different from
1 kg (or 5 one type of fabric to another. Shake the items beshirts)
fore putting them in the appliance. When the programme has ended, immediately remove the
items and put them on a hanger.
2 kg
Outdoor clothing, technical, sports fabrics, waterproof and breathable jackets, shell jackets with a
removable fleece or inner insulation. Suitable for
drying in tumble dryer.
3 kg
Single or double duvets and pillows (with feather,
down or synthetic fillings).
1) The maximum weight refers to dry items.
15. PRODUCT INFORMATION SHEET IN REFERENCE
TO E.U. REGULATION 1369/2017
Product Information Sheet
Trade Mark
AEG
Model
T8DEK866E,
PNC916098029
Rated capacity in kg
8
26
www.aeg.com
Air vented or condenser tumble dryer
Condenser
Energy efficiency class
A+++
Energy consumption in kWh per year, based on 160 drying cy- 176,50
cles of the standard cotton programme at full and partial load,
and the consumption of the low-power modes. Actual energy
consumption per cycle will depend on how the appliance is
used.
Automatic tumble drier or non-automatic tumble drier
Automatic
Energy consumption of the standard cotton programme at full 1,47
load in kWh
Energy consumption of the standard cotton programme at
partial load in kWh
0,83
Power consumption of the off-mode in W
0,05
Power consumption in left-on mode in W
0,05
Duration of the left on mode in minutes
10
The 'standard cotton programme' used at full and partial load
is the standard drying programme to which the information in
the label and the fiche relates, this programme is suitable for
drying normal wet cotton laundry and it is the most efficient
programme in terms of energy consumption for cotton.
Weighted programme time of the 'standard cotton programme at full and partial load' in minutes
134
Programme time of the 'standard cotton programme at full
load' in minutes
173
Programme time of the 'standard cotton programme at partial 105
load' in minutes
Condensation efficiency class on a scale from G (least efficient) to A (most efficient)
B
Average condensation efficiency of the standard cotton programme at full load as a percentage
86
Average condensation efficiency of the standard cotton programme at partial load as a percentage
86
Weighted condensation efficiency for the 'standard cotton
programme at full and partial load'
86
Sound power level in dB
65
Built in appliance Y/N
No
The information given in the chart above is compliant with the EU Commission regulation
392/2012 implementing directive 2009/125/EC.
ENGLISH
27
16. ENVIRONMENTAL CONCERNS
Recycle materials with the symbol .
Put the packaging in relevant containers
to recycle it. Help protect the
environment and human health by
recycling waste of electrical and
electronic appliances. Do not dispose of
*
appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
136944323-A-372018
www.aeg.com/shop
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
