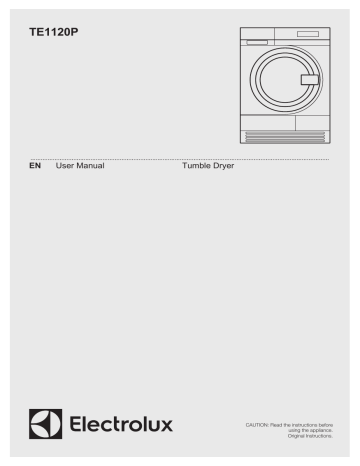

User Manual
Tumble Dryer
CAUTION: Read the instructions before
using the appliance.
Original Instructions.
1. SAFETY INFORMATION...................................................................................... 2
2. PRODUCT DESCRIPTION................................................................................... 9
3. ACCESSORIES..................................................................................................10
4. CONTROL PANEL............................................................................................. 11
5. COIN OPERATED MACHINES........................................................................... 12
6. PROGRAMME TABLE....................................................................................... 12
7. BEFORE FIRST USE.......................................................................................... 13
8. DAILY USE........................................................................................................ 13
9. HINTS AND TIPS............................................................................................... 14
10. CARE AND CLEANING....................................................................................14
11. TROUBLESHOOTING......................................................................................17
12. TECHNICAL DATA...........................................................................................19
13. WARRANTY.................................................................................................... 20
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can be
safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Read the instructions before using the appliance
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes
injuries and damages. Always keep the instructions with
the appliance for future reference.
- Read the supplied instructions.
- Warning; Risk of fire / Flammable materials
1.1 Children and vulnerable people safety
Risk of suffocation, injury or permanent disability.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning the use of the appliance in a safe
way and understand the hazards involved.
Do not let children play with the appliance.
Children aged 3 years and under must be kept away
from this appliance when it is in operation at all times.
Keep all packaging away from children and dispose of it
Keep detergents away from children.
Keep children and pets away from the appliance when
the door is open.
If the appliance has a child safety device, this should be
Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 Installation
Follow the installation instruction supplied with the
Make sure that the appliance is stable during
Remove all the packaging.
Do not install or use a damaged appliance.
Always be careful when you move the appliance
because it is heavy. Always wear safety gloves.
Always move the appliance vertically.
The appliance can be installed as freestanding or below
the kitchen counter with correct space (Refer to the
Installation leaflet).
If the tumble dryer is put on top of a washing machine,
use the stacking kit. The stacking kit, available from
your authorized vendor, can be used only with the
appliance specified in the instructions, supplied with the
accessory. Read it carefully before installation (Refer to
the Installation leaflet).
Do not install or use the appliance where the
temperature is less than 5°C or higher than 35°C.
Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite side,
that would prevent the appliance door from being fully
Do not install the appliance in a moving platform (e.g. on
a ship).
Make sure that the floor where you install the appliance
is flat, stable, heat resistant and clean.
Make sure that there is air circulation between the
appliance and the floor.
The rear surface of the appliance must be put against
the wall.
When the appliance is put in its permanent position,
check if it is fully level with the aid of a spirit level. If it is
not, adjust the feet until it is.
Make sure that the appliance is disconnected from the
electricity supply during installation, maintenance and
repairs and cannot be reconnected until all work has
been carried out.
Connect the mains plug to the mains socket only at the
end of the installation process. Make sure that the
mains plug is accessible after installation.
Ensure good air ventilation in the located room to avoid
the backflow of unwanted gases into the room from
appliances burning gas or other fuels, including open
Exhaust air must not be discharged into a flue which is
used for exhausting fumes from any appliances burning
gas or other fuels.
The ventilation opening in the base (if applicable) must
not be covered by a carpet, mat, or any floor covering.
1.3 Electrical connection
Risk of fire and electrical shock.
The appliance must be correctly earthed. The
manufacturer is not responsible for the consequences
of an inadequate earthing system.
Make sure that the parameters on the rating plate are
compatible with the electrical ratings of the mains power
Always use a correctly installed shockproof socket.
Do not use multi-plug adapters and extension cables.
Do not pull the mains cable to disconnect the appliance.
Always pull the mains plug.
Do not touch the mains cable or the mains plug with
wet hands.
If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service
Centre or similarly qualified persons to avoid an
electrical hazard.
UK and Ireland only. This appliance is fitted with a 13 A
mains plug. If it is necessary to change the mains plug
fuse, use only a 13 A ASTA (BS 1362) fuse.
This appliance complies with the E.E.C. Directives.
1.4 Use
Risk of injury, electrical shock, fire, burns or
damage to the appliance.
Obey the maximum load volume of 8kg (refer to the
“Programme chart” chapter).
Do not use the appliance if items have been soiled with
industrial chemicals.
Wipe away lint or packaging debris that has
accumulated around the appliance.
Do not run the appliance without a filter. Clean the lint
filter before or after each use.
Do not dry unwashed items in the tumble dryer.
Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should
be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be
dried in the tumble dryer.
Fabric softeners, or similar products, should only be
used as specified by the product manufacturer’s
Remove all objects from items that could be a source of
fire ignition such as lighters or matches.
Never stop a tumble dryer before the end of the drying
cycle unless all items are quickly removed and spread
out so that the heat is dissipated.
The final part of a tumble dryer cycle occurs without
heat (cool down cycle) to ensure that the items are left
at a temperature that ensures that the items will not be
Do not dry the damaged items which contain padding
or fillings.
Only dry fabrics which are applicable to dry in the
tumble dryer. Follow the instructions on the fabric label.
If you have washed your laundry with a stain remover
start an extra rinse cycle before you start the dryer.
Do not drink or prepare food with the condensed water/
distilled water. It can cause health problems to people
and pets.
Do not sit or stand on the open door.
Do not dry dripping wet clothes in the tumble dryer.
Oil-affected items can ignite spontaneously, especially
when exposed to heat sources such as in a tumble
dryer. The items become warm, causing an oxidation
reaction in the oil. Oxidation creates heat. If the heat
cannot escape, the items can become hot enough to
catch fire. Piling, stacking or storing oil-affected items
can prevent heat from escaping and create a fire
If it is unavoidable that fabrics that contain vegetable or
cooking oil or have been contaminated by hair care
products be placed in a tumble dryer they should first
be washed in hot water with extra detergent -this will
reduce, but not eliminate, the hazard.
1.5 Internal light
Risk of injury.
Visible LED radiation, do not look directly into the beam.
The LED lamp is dedicated to drum lighting. This lamp
cannot be reused for other lighting purposes.
To replace the internal light, contact the Authorised
Service Centre.
1.6 Care and cleaning
Risk of injury or damage to the appliance.
Do not use water spray and steam to clean the
Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use any abrasive products,
abrasive cleaning pads, solvents or metal objects.
1.7 Disposal
Risk of injury or suffocation.
Disconnect the appliance from the mains electrical and
water supplies.
Cut off the mains electrical cable close to the appliance
and dispose of it.
Remove the door catch to prevent children or pets from
becoming trapped in the drum.
1.8 Service
Only original spare parts can ensure the safety
standards of the appliance.
Only repairs undertaken by an Electrolux approved
service technician are covered by the guarantee.
1.9 Compressor
Risk of damage to the appliance.
The compressor and its system in the tumble dryer is
filled with the special agent which is free from fluorochlorohydrocarbons. This system must stay tight. The
damage of the system can cause a leakage.
Water container
Control panel
Internal light
Appliance door
Button for condenser door
Airflow slots
For ease of loading laundry or
ease of installation the door is
reversible. (see separate
Adjustable feet
Condenser door
Condenser cover
Locks for condenser cover
Rating plate
3.1 Stacking kit
water container must stay in the
The installed hose must be on the height
from minimum of 50 cm to maximum of 1
m from floor level. The hose cannot be in
loop. Decrease the length of the hose if
Read carefully the instructions supplied
with the accessory.
3.3 Pedestal with the drawer
Available from your authorized vendor.
Stacking kit can be used
only with the washing machines specified in the leaflet. See the leaflet attached.
Read carefully the instructions supplied with the accessory.
3.2 Draining kit
It is available from your authorized vendor.
To put the appliance higher at the level
what helps to easy load and remove the
The drawer can be used for laundry
storage e.g. : towels, cleaning products
and more.
Read carefully the instructions supplied
with the accessory.
It is available from your authorized vendor
(can be attached to some types of the
tumble dryers)
The accessory for through draining of the
condensed water into a basin, siphon,
gully, etc. After the installation, the water
container is drained automatically. The
3.4 Coin operated machine
If the appliance is set in a public place, it
can be connected to a coin operated
Coin meter is distributed and
installed only by the
authorized Electrolux service.
1 Display
Start/Pause button
3 Program buttons
4.1 Display
ON/OFF button with the Auto Off
Symbol on the display
Symbol description
normal/medium temperature level
easy care temperature level
drying temperature
easy care drying temperature
indicator: drain the water container
indicator: clean filter
indicator: do the check of the heat exchanger
indicator: drying phase
indicator: cooling phase
indicator: crease guard phase
cycle time indication
1. Select the programme you wish to run
Normal or Low temperature
2. Insert correct amount of coins. When
inserting coins, the display will count
3. Push
Start/Pause button to start
the machine
down to:
and the machine will
be ready to start.
The following table shows the available
programmes and a brief description:
Automatic programmes
8 kg
Cotton and terry.
Normal/medium temperature.
8 kg
Cotton and terry.
Easy care temperature.
1) The maximum weight refers to dry items.
Before you use the appliance for the first
• Start a short programme (e.g. 30
minutes) with moist laundry.
• Clean the tumble dryer drum with a
moist cloth.
8.1 Preparing the laundry
• Close the zippers.
• Close the fasteners of duvet covers.
• Do not dry ties or ribbons loose (e.g.
apron ribbons). Tie them before you
start a programme.
• Remove all items from pockets.
• Turn inside out items with internal layer
made of cotton. Cotton layer must be
faced outward.
• Set always the programme suitable for
type of the dried laundry.
• Do not put light and dark colours
Fabric label
• Use suitable programme for cottons,
jersey and knitwear to prevent
• Do not exceed the maximum load
stated in programmes chapter or
shown on the display.
• Dry only the laundry that is suitable for
tumble drying. Refer to the fabric label
on the items.
• Do not dry large and small items
together. Small items can be trapped
inside the large items and remain wet.
Laundry is suitable for tumble drying.
Laundry is suitable for tumble drying at higher temperatures.
Laundry is suitable for tumble drying at low temperatures only.
Laundry is not suitable for tumble drying.
8.2 Loading the laundry
Ensure the laundry is not
trapped between the
appliance door and rubber
1. Pull open the appliance door.
2. Load the laundry one item at a time.
3. Close the appliance door.
8.3 Turning on the appliance
To turn on the appliance:
Push the ON/OFF button.
If the appliance is on, some indicators
appear on the display.
8.4 Auto Off function
To decrease the energy consumption, the
Auto Off function turns off the appliance
• if the Start/Pause touch button was not
touched within 5 minutes.
• 5 minutes after cycle ends.
Push the ON/OFF button to turn on the
If the appliance is on, some indications
come in to the view on the display.
8.5 Setting a programme
1. Push the ON/OFF button to turn the
appliance off.
2. Push the ON/OFF button again to turn
on the appliance.
3. Set a new program.
8.8 Programme end
Use the programme button to set the
The display shows cycle time or price to
8.6 Starting a programme
Clean the filter and drain the
water container after each
drying cycle. (See chapter
If the drying cycle is completed, the
symbol flashes on the display and the
acoustic signal sounds intermittently for 1
If you do not turn off the
appliance, the crease guard
phase starts. Laundry can be
removed during this phase.
To start the programme:
1. Insert correct amount of coins as on
the display.
2. Push the Start/Pause button.
The appliance starts and the LED above
the button stops flashing and stays on.
To remove the laundry:
1. Push the
ON/OFF button for 2
seconds to turn off the appliance.
2. Open the appliance door.
3. Remove the laundry.
4. Close the appliance door.
8.7 Program change
To change a program:
9.1 Ecological hints
• Spin the laundry well before drying.
• Do not exceed the load sizes which are
specified in the programs chapter.
• Clean the filter after each drying cycle.
• Do not use fabric softener to wash and
then dry. In the tumble dryer laundry
becomes soft automatically.
• Use distilled water like that used for
steam ironing. If it is necessary, clean
the distilled water before (e.g. with a
coffee filter) to remove any particles.
• Always keep the airflow slots at the
bottom of the appliance clear.
• Make sure there is good airflow where
the appliance is to be installed.
10.1 Cleaning the filter
At the end of each cycle the symbol
Filter is on the display and you must clean
the filter.
The symbol
flashes on the
display - the filter is missing.
The tumble dryer cannot
The filter collects the fluff. The
fluff occurs while the clothes
are dried in the tumble dryer.
To clean the filter:
1. Open the door. Pull the filter.
5. If necessary clean the filter with the
brush under warm tap water and/or a
vacuum cleaner. Close the filter.
2. Push the button.
6. If necessary remove fluff from the filter
socket and gasket. You can use a
vacuum cleaner. Put the filter inside
the filter socket.
3. Open the filter.
4. Use a moist hand to clean the filter.
10.2 Emptying the water
Empty the condensed water container
after each drying cycle.
If the condensed water container is full,
the programme stops automatically. The
Reservoir symbol comes on the
display and you must empty the water
3. Turn 2 blockages to unlock the
condenser cover.
To empty the water container:
1. Pull the water container out keeping it
in a horizontal position.
4. Lower the condenser cover.
2. Pull the plastic connection out and
drain the water into a basin or
equivalent receptacle.
3. Push the plastic connection back in
and place the water container back
into position.
4. To continue the programme press the
Start/Pause button.
5. Catch the handle and pull the
condenser out from the bottom
compartment. Move condenser
horizontally to do not spill remaining
10.3 Cleaning the condenser
If the symbol
Condensor flashes on
the display, the condenser and its
compartment must be cleaned.
To clean the condenser and its
1. Open the door.
2. Move the release button on the
bottom of the door to open the
condenser door.
6. Clean the condenser in vertical
position over a basin or paddling.
Rinse through with a hand shower.
drum lifters. Dry the cleaned surfaces with
a soft cloth.
Do not use abrasive materials
or steel wool to clean the
10.5 Cleaning the control panel
and housing
Use a standard neutral soap detergent to
clean the control panel and housing.
7. Put the condenser back inside the
bottom compartment.
8. Close the condenser cover.
9. Lock 2 blockages until they snap.
10. Close the condenser door.
Use a moist cloth to clean. Dry the
cleaned surfaces with a soft cloth.
Do not use furniture cleaning
agents or cleaning agents
which can cause corrosion to
clean the appliance.
10.4 Cleaning the drum
Disconnect the appliance
before you clean it.
Use a standard neutral soap detergent to
clean the inner surface of the drum and
10.6 Cleaning the airflow slots
Use a vacuum cleaner to remove fluff from
the airflow slots.
Problem 1)
Possible cause
The tumble dryer is not connected to mains supply.
Connect in at mains socket.
Check fuse in fuse box (domestic
The loading door is opened.
Close the loading door.
ON/OFF button was not
Push the
The tumble dryStart/Pause button was
er does not op- The
not pushed.
Push the
ON/OFF button.
Start/Pause button.
The appliance is in the standby
Push the
The filter is missed or in wrong
Insert the filter in the right position.
ON/OFF button.
The E59 error code on the display Unload part of the laundry. Obey
the maximum load.
- dryer overloaded.
Problem 1)
drying result.
Possible cause
Incorrect programme selection.
Do the selection of the applicable
programme. 2)
The filter is clogged.
Clean the filter. 3)
Too high volume of the load.
Obey the maximum load volume.
The airflow grill is clogged.
Clean the airflow grill in the bottom of the appliance.
Dirt on the humidity sensor in the
Clean the front surface of the
Incorrect remaining laundry mois- Adjust remaining laundry moisture
ture degree.
degree. 4)
The loading
door does not
Err (Error) on
the display.
The condenser is clogged.
Clean the condenser. 3)
The filter not locked in the position.
Put the filter in the correct position.
The laundry is locked between
the door and the seal.
Put the load correctly in the drum.
You try to change the programme Turn the tumble dryer off and on.
or the option after the start of the Make the new selection.
The option you try to activate is
not applicable with the selected
Turn the tumble dryer off and on.
Make the new selection.
Defective drum lamp.
Contact the service centre to replace the drum lamp.
elapsing time
on the display.
The time to end is calculated on
the basis of the volume and
dampness of the laundry.
The automatic procedure — this
is not the appliance malfunction.
Programme inactive.
The water container is full.
Drain the water container, push
No drum light
Start/Pause button. 3)
Possible cause
Problem 1)
The filter is clogged.
Clean the filter.
Too high the laundry load.
Drying cycle too
The laundry not spun sufficiently.
long 5)
Very high room temperature - this
is not the appliance malfunction.
Obey the maximum load.
Spin correctly the laundry.
If possible, lower the room temperature.
1) If there is an error message on the display (e.g. E51): Turn the tumble dryer off and on.
Make a selection of the new programme. Push the
Start/Pause button. Does not operate?
- contact the service centre and give the error code.
2) Follow the programme description — see PROGRAMME TABLE
3) See chapter CARE AND CLEANING
4) See HINTS AND TIPS chapter
5) Note: After maximum 5 hours the drying cycle ends automatically.
Height x Width x Depth
850 x 600 x 605 mm (maximal 648 mm)
Max. depth with the appliance door open
1072 mm
Max. width with the appliance door open
950 mm
Adjustable height
850 mm (+ 15 mm - feet regulation)
Drum volume
118 l
Maximum load volume
8 kg
Emission sound pressure level
<70 dB
230-240 V
50 Hz
Necessary fuse
10 A
Total power
2250 W
Left—on mode power absorption
0,12 W
Off mode power absorption
0,12 W
Permitted ambient temperature
+ 5°C to + 35°C
Level of protection against ingress of solid IPX4
particles and moisture ensured by the protective cover, except where the low voltage equipment has no protection against
This document sets out the terms and
conditions of the product warranties for
Electrolux Appliances. It is an important
document. Please keep it with your proof
of purchase documents in a safe place for
future reference should you require service
for your Appliance.
1. In this warranty:
a. ‘acceptable quality’ as referred to
in clause 10 of this warranty has
the same meaning referred to in
the ACL;
b. ‘ACL’ means Schedule 2 to the
Competition and Consumer Act
c. ‘Appliance’ means any Electrolux
product purchased by you and
accompanied by this document;
d. ‘ASC’ means Electrolux’
authorised serviced centres;
e. ‘Electrolux’ means Electrolux
Professional of Level 1, 5-7 Keith
Campbell Court, Scoresby,
Victoria 3179 , ABN 51 004 762
341 in respect of appliances
purchased in Australia;
f. ‘major failure’ as referred to in
clause 10 of this warranty has the
same meaning referred to in the
ACL and includes a situation when
an Appliance cannot be repaired
or it is un-economic for Electrolux,
at its discretion, to repair an
Appliance during the Warranty
g. ‘Warranty Period’ means the
Appliance is warranted against
manufacturing Defects in Australia
for a period of 24 months;
h. ‘you’ means the purchaser of the
Appliance not having purchased
the Appliance for re-sale, and
‘your’ has a corresponding
2. This warranty only applies to
Appliances, purchased and used in
Australia and is in addition to (and
does not exclude, restrict, or modify in
any way) any non-excludable statutory
warranties in Australia.
3. During the Warranty Period Electrolux
or its ASC will, at no extra charge if
your Appliance is readily accessible for
service, without special equipment
and subject to these terms and
conditions, repair or replace any parts
which it considers to be defective.
Electrolux or its ASC may use
remanufactured parts to repair your
Appliance. You agree that any
replaced Appliances or parts become
the property of Electrolux. This
warranty does not apply to light
globes, batteries, filters or similar
perishable parts.
Parts and Appliances not supplied by
Electrolux are not covered by this
To the extent permitted by law, you
will bear the cost of transportation,
travel and delivery of the Appliance to
and from Electrolux or its ASC. If you
reside outside of the metropolitan
service area, you will bear the cost of:
a. travel of an authorised
b. transportation and delivery of the
Appliance to and from Electrolux
or its ASC;
In all instances, unless the
Appliance is transported by
Electrolux or an Electrolux
authorised representative, the
Appliance is transported at the
owner’s cost and risk while in
transit to and from Electrolux or its
Proof of purchase is required before
you can make a claim under this
You may not make a claim under this
warranty unless the defect claimed is
due to faulty or defective parts or
workmanship. Electrolux is not liable in
the following situations (which are not
a. the Appliance is damaged by:
– accident
– misuse or abuse, including
failure to properly maintain or
– normal wear and tear
– power surges, electrical storm
damage or incorrect power
– incomplete or improper
– incorrect, improper or
inappropriate operation
– insect or vermin infestation
– failure to comply with any
additional instructions supplied
with the Appliance;
b. the Appliance is modified without
authority from Electrolux in writing;
c. the Appliance was serviced or
repaired by anyone other than the
Appliance's serial number or
warranty seal has been removed
or defaced;
d. the Appliance was serviced or
repaired by anyone other than
Electrolux, an authorised repairer
or ASC.
8. This warranty, the contract to which it
relates and the relationship between
you and Electrolux are governed by
the law applicable where the
Appliance was purchased.
9. To the extent permitted by law and
subject to your non-excludable
statutory rights and warranties,
Electrolux excludes all warranties and
liabilities (other than as contained in
this document) including liability for
any loss or damage whether direct or
indirect arising from your purchase,
use or non use of the Appliance.
10. For Appliances and services provided
by Electrolux in Australia, the
Appliances come with a guarantee by
Electrolux that cannot be excluded
under the ACL. You are entitled to a
replacement or refund for a major
failure and for compensation for any
other reasonably foreseeable loss or
damage. You are also entitled to have
the Appliance repaired or replaced if
the Appliance fails to be of acceptable
quality and the failure does not
amount to a major failure. The benefits
to you given by this warranty are in
addition to your other rights and
remedies under a law in relation to the
Appliances or services to which the
warranty relates.
11. At all times during the Warranty
Period, Electrolux shall, at its
discretion,determine whether repair,
replacement or refund will apply if an
Appliance has a valid warranty claim
applicable to it.
12. To enquire about claiming under this
warranty, please follow these steps:
a. carefully check the operating
instructions, user manual and
the terms of this warranty;
b. have the model and serial number
of the Appliance available;
c. have the proof of purchase (eg an
invoice) available;
d. telephone the numbers shown
13. You accept that if you make a
warranty claim, Electrolux and its ASC
may exchange information in relation
to you to enable Electrolux to meet its
obligations under this warranty.
Important Notice
Before calling for service, please ensure that the steps listed in clause 13 above have
been followed.
Warranty, Service and Spare Parts
1300 368 299
Recycle the materials with the symbol .
Put the packaging in applicable containers
to recycle it. Help protect the environment
and human health and to recycle waste of
electrical and electronic appliances. Do
not dispose appliances marked with the
symbol with the household waste.
Return the product to your local recycling
facility or contact your municipal office.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
