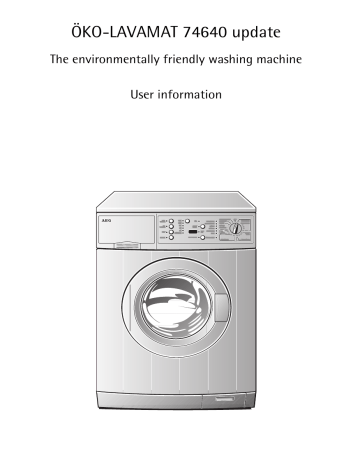

ÖKO-LAVAMAT 74640 update
The environmentally friendly washing machine
User information
Dear Customer,
Please read this instruction book carefully before using the appliance.
Please ensure you fully understand the safety instructions on the first
pages of this instruction book.
Retain the instruction book for future reference, and pass it on to any
future owners.
1
The warning triangle and / or key words (Warning!, Caution!, Important!) give information that is important for your safety or the function of the appliance is highlighted. It is imperative that this
information is observed.
0 1. This symbol guides you step by step through the operation of the
appliance.
2. ...
3
This symbol gives you additional information and practical tips on using
the appliance.
2
Tips and information about the economical and environmentally
friendly use of the machine are marked with the clover leaf.
In the event of a malfunction, these operating instructions contain information on how to remedy these faults yourself. See the section
"What to do if ..."
Printed on recycled paper.
Thinking ecologically means acting ecologically ...
2
Contents
Operating Instructions
....................................
6
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
Environmental tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
Description of the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Detergent dispenser drawer
.................................... 9
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Programme selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Programme options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
What does UPDATE mean? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Before the First Wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Preparing a Wash Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sorting and preparing a wash load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Washing Types and Care Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Detergents and Conditioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Which detergent and conditioner? . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How much detergent and conditioner? . . . . . . . . . . . . . . . . . . . . . . . . .
Water softening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14
14
15
16
16
16
16
Running a washing cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brief instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the Washing Programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing Spin Speed/selecting RINSE HOLD . . . . . . . . . . . . . . . . . . . . . . . .
Setting the Delay Timer/Soaking Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Opening and closing the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading the washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Add detergent / conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting a wash programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Washing Programme Progress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Change the washing programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Washing cycle is complete/Removing the washing. . . . . . . . . . . . . . . . . . . .
17
17
18
19
20
21
21
22
23
24
24
26
3
Programme Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Separate conditioning/starching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Separate rinse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Separate spin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27
27
28
28
28
Maintenance and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Detergent Dispenser Drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Washing Machine Drum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29
29
29
30
30
What to do if... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If the washing results are not satisfactory . . . . . . . . . . . . . . . . . . . . . . . . . .
Carrying out an emergency emptying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Drain pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Additional rinse cycles (RINSE+) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31
31
35
36
37
38
Child Safety Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Installation and connection instructions
. . . . . . . . . . . . . . . . 40
Installation Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Installation of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transporting the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Remove transport packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation-Site preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation on a Suspended Floor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Levelling the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
41
41
41
43
43
44
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Water connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inlet Hose Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water Drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pump head of greater than 1m . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
47
47
48
49
50
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Dimensions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Warranty conditions
Index
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Service & Spare Parts
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
5
Operating Instructions
Operating Instructions
1
Safety
The safety features of AEG electrical appliances comply with accepted
technical standards and the German Appliance Safety Law. However, we
also consider it our obligation as a manufacturer to inform you about
the following safety information.
Prior to initial start-up
• Observe the "Installation and Connection Instructions" in this instruction book.
• If the appliance is delivered in the winter months and temperatures
are below freezing: Store the washing machine at room temperature
for a few hours before putting it into operation.
Intended Use
• The washing machine is only intended for washing normal domestic
washing. If the appliance is used for any other purpose or incorrectly
operated, the manufacturer accepts no liability for any damages
which may result.
• It is dangerous to alter the specifications or attempt to modify this
product in any way.
• Only use detergents which are suitable for automatic washing machines, and follow the recommendations of the detergent manufacturer.
• Garments which have been in contact with flammable solvents
should not be washed. Also bear this in mind when washing precleaned washing.
• Do not use the washing machine for dry-cleaning.
• Dyes and bleaching agents may only be used if specifically permitted
by the manufacturer of these products. We cannot be held liable for
any damages.
• This appliance must be connected to the cold water supply only.
• Damage due to frost is not covered by the guarantee. If the washing
machine is located in a room in which below freezing temperatures
may occur, emergency emptying must be carried out (see "carrying
out an emergency emptying“).
6
Operating Instructions
Child Safety
• Packaging materials (e.g. films, styrofoam) can be dangerous for children. There is a risk of suffocation! Keep all packaging well away from
children.
• This appliance is designed to be operated by adults. Do not allow
children to tamper with the controls or play with the appliance.
• Pets and children have been known to climb into washing machines.
Please check the drum before use.
• When disposing of the appliance, cut off the mains cable, and destroy
the plug. Disable the door lock to prevent young children being
trapped inside.
General Safety
• Repairs to washing machines must only be carried out by qualified
personnel. Repairs carried out by inexperienced persons may cause
injury or serious malfunctioning. Contact your local AEG Service
Force Centre.
• Never operate the washing machine if the mains cable is damaged or
the control panel, work top or base area are damaged allowing internal components to be accessible.
• Switch off the appliance and isolate from the mains supply before
carrying out any cleaning or maintenance work.
• If operation is stopped, disconnect the appliance from the mains supply and shut off the tap.
• Do not use the mains cable to remove the plug from the socket. Always pull the plug itself.
• Adapters and extension cables must not be used. There is a danger
of overheating!
• Do not clean the washing machine with a water jet. There is a danger
of electric shock!
• During high temperature wash programmes the glass of the door may
become hot. Do not touch!
• Allow the water to cool down before cleaning the drain pump, carrying out emergency emptying or opening the door in an emergency.
• Small animals/pets can chew on power cables and water hoses. This
can lead to the risk of electric shock and water damage to the appliance and property. Keep small animals away from the appliance.
7
Operating Instructions
2
Disposal
Packaging
Dispose of the packaging material correctly. All packaging materials
used are environmentally friendly and can be disposed of without any
danger to the environment.
• Plastic parts can be recycled and are identified as follows:
for polyethylene, e.g. the outer covering and the bags in
>PE<
the interior.
>PS<
for polystyrene, e.g. padding (always CFC-free)
>POM< for polyoxymethylene, e.g. plastic clips
• Cardboard packaging is manufactured from recycled paper and
should be deposited in the waste paper collection for recycling.
When disposing of the washing machine!
Cut off the mains cable and destroy the plug. Disable the door catch to
prevent young children becoming trapped inside. Use an authorised
disposal site.
2
Environmental tips
To save water and energy, and to help protect the environment, we recommend that you follow these tips.
• Do not use a pre-wash for normally soiled washing.
• It is more economical to wash full loads.
• When washing small loads, reduce the detergent by half to two
thirds.
• Pre-treat stains, and then wash at a lower temperature.
• Use the energy-saving programme when washing light to normally
soiled garments.
• In hard water areas, the use of a water softening agent can reduce
the amount of detergent necessary. See manufacturers recommendations.
8
Operating Instructions
Description of the Appliance
Front view
Detergent
dispenser drawer
Control panel
Rating plate
(behind door)
Main door
Screw feet (heightadjustable);
rear left: Automatic
adjustment foot
Flap in front of
drain pump
Detergent dispenser drawer
Stain removers
Main wash detergent
in powder form and
water softening
agent if required
Pre-wash detergent/
soaking agent or
water softening
agent if used
Liquid conditioners
(fabric softener,
starch)
9
Operating Instructions
Control panel
Spin speed / RINSE HOLD button
Programme option buttons
Programme progress display
DOOR Indicator
Programme selector
Multi-display
DELAY TIMER button
OVER DOSING indicator
START/ PAUSE button
Programme selector
The programme selector is used
to select the washing cycle (for
example water level, drum movement, number of rinses, spin
speed) and the temperature according to the type of washing.
OFF
Switches the washing machine
off, the machine is switched on
at all other positions.
To amend programme settings selected by mistake, turn the programme
selector to OFF. This restores the original settings.
COTTONS/LINEN
Main wash cycle for Cottons/Linen at 30 °C to 95 °C
2
10
ENERGY SAVING position: Energy-saving programme at approx. 60 °C
for lightly to normally soiled cottons, with an extended wash time
(cannot be combined with the QUICK WASH option).
Operating Instructions
EASY-CARES
Main wash cycle for easy-care fabrics (mixed fibres) at 40 °C to 60 °C.
EASY IRON position: Main wash cycle at 40 °C for easy-care fabrics
which, after washing with this programme, only require a gentle iron, if
any ironing at all.
DELICATES
Main wash cycle for delicates at 30 °C or 40 °C.
WOOL P (hand wash)
Main wash cycle (cold to 40 °C) for machine-washable woollens and for
woollen fabrics and silk carrying the symbol ï (hand wash).
GENTLE RINSE
Separate gentle rinsing e.g. for rinsing hand-washed fabrics (3 rinsing
cycles, liquid conditioner from æ compartment is rinsed in, short spin).
STARCHING
Separate starching, separate softening, separate conditioning of wet
washing (1 rinse, liquid conditioner is washed in from the compartment
æ, and a spin).
DRAIN
Pump out the water at the end of a rinse hold (without spinning).
3
The effect of Rinse Hold is that the washing is left to soak in the last
rinse water, without spinning.
SPIN
Draining of the water after a rinse hold and spin, or separate spin of
hand-washed cottons/linen.
SHORT SPIN
Draining of the water at the end of a rinse hold and short spin or separate short spin for delicate fabrics (easy-cares, delicates, woollens).
11
Operating Instructions
Programme options
The programme options are used to adapt the programme to the degree of soiling of the washing.
The additional programme options are not necessary for normally soiled washing.
Different functions can be combined together, depending on the programme.
PRE WASH
Warm pre-wash before the main wash that follows
automatically; with intermediate spin for COTTONS/
LINEN and EASY-CARES, without intermediate spin
for DELICATES.
SOAKING
Approx. 50-60 minutes at a water temperature of 30 °C. Can be extended with the DELAY TIMER button to a max. of 10 hours. The main
wash cycle follows automatically.
QUICK WASH
Shortened main wash cycle for lightly soiled washing.
STAIN
For treating heavily soiled or stained washing. In-wash stain treatments
are washed in at the optimum time as the programme progresses. Can
only be used for washing temperatures of above 40°C as stain removers
are not effective at lower temperatures.
3
12
If you press a button for a programme option and “Err” flashes in the
multi-display, the selected function cannot be combined with the programme that has been set.
Operating Instructions
Consumption data
The values given in the following table for selected programmes were
calculated under standard conditions. They provide a useful guide for
operation in the home.
Programme selector/
temperature
Load
in kg
Water
in litres
Energy
in kWh
COTTONS/LINEN 95
5
52
1,80
ENERGY SAVING1)
5
41
0,94
COTTONS/LINEN 40
5
48
0,52
EASY-CARES 40
2.5
51
0,42
DELICATES 30
2.5
53
0,30
2
48
0,30
WOOL/P (hand wash) 30
1) Note: The selected programme is tested in accordance with EN 60 456. The
consumption values, however, can deviate depending on the following: water
pressure, water hardness, water inlet temperature, room temperature, washing
type and quantity, the detergent used, fluctuations in the mains voltage and the
selected programme options.
What does UPDATE mean?
The control system of your machine is fully electronic. The software
which determines this control system can be reprogrammed. If a further improvement to washing technology is introduced by AEG then
your machine can be updated.
The cost of the update will be advised at the time of the request. For
further information regarding this please contact the AEG Customer
Care Department.
13
Operating Instructions
Before the First Wash
0 1. Pull the detergent dispenser drawer out slightly.
2. Pour about 1 litre of water through the detergent dispenser drawer
into the washing machine. The next time a programme is started the
solution container will be closed and the ECO valve can function
correctly.
3. Carry out a washing cycle without any washing laundry (COTTONS 95,
using half the usual quantity of washing detergent). This removes any
residues from the drum and solution container which may have been
left during manufacturing.
Preparing a Wash Load
Sorting and preparing a wash load
• Sort washing according to the care symbol and type (see "Washing
types and care symbols").
• Empty all pockets.
• Remove metal objects (paper clips, safety pins etc.).
• In order to prevent bunching up of washing and damage to washing,
close zippers, button up duvet covers and pillow cases, and tie up
loose straps such as from aprons.
• Turn articles with double layered textiles inside out (sleeping bags,
anoraks etc.).
• Coloured, knitted fabrics, as well as wool and fabrics with appliqués
should be turned inside out.
• Place small and delicate items (e.g. socks, tights and stockings, bras
etc.) in a washing net, or pillow case.
• Handle curtains with care. Metal rollers or burred, plastic rollers must
be removed or tied into a net or bag. We cannot accept liability for
damage.
• Do not wash coloured and white washing together. This could discolour white washing or turn it grey.
• New, coloured washing often contains excessive dye. Wash these separately the first time.
14
Operating Instructions
• Mix small and large items of washing. This improves washing efficiency and the washing is more evenly distributed during the spinning cycle.
• Shake out washing before placing into the washing machine.
• Do not place folded washing into the drum.
• Observe tips such as "wash separately“ and "wash separately several
times".
Washing Types and Care Symbols
The care symbols help you chose the correct washing programme.
Washing should be sorted according to type and care symbol. The temperatures indicated in the care symbols are the maximum temperatures.
Cottons ç
Fabrics made from cotton and linen with this care symbol will withstand maximum wash actions and high temperatures. The COTTONS /
LINEN programme is appropriate for this type of washing.
Linen è ë
Fabrics made of cotton and linen which carry this care symbol will
withstand maximum wash actions. The COTTONS / LINEN programme is
appropriate for this type of washing.
Easy-cares ê í
Fabrics such as treated cotton, cotton mixed fabrics, viscose and synthetics which carry this care symbol need a softer wash action. The
EASY CARES / EASY IRON programme is appropriate for this type of
washing.
Delicates ì
Fabrics such as those with layered fibres, micro fibres, viscose, synthetics,
as well as curtains with this care symbol require particularly careful
handling. The DELICATES programme is appropriate for this type of
washing.
Wool and particularly sensitive washing 9 ì ï
Fabrics such as wool, wool mixtures and silk with this care symbol require a very gentle wash cycle. The WOOL /P (hand wash) programme
is suitable for this type of washing.
Important! Fabrics with this care symbol ñ (do not wash!) must not
be washed in washing machines.
15
Operating Instructions
Detergents and Conditioners
Which detergent and conditioner?
Use only detergents and conditioners which are suitable for use in automatic washing machines. Always follow the manufacturer's instructions.
How much detergent and conditioner?
The required quantity depends upon:
• the extent of soiling of the washing
• the hardness class of the mains water
• the amount of washing
2
Should the detergent manufacturer not specify the dosage quantity for
less than full loads, reduce the detergent accordingly: For a half load
reduce the quantity by 1/3. For a small load or an EASY IRON programme reduce the quantity by 1/2.
Observe the instructions for use and dosing provided by the detergent
and conditioner manufacturer.
Water softening
For medium to high water hardness (hardness class II upwards) a water
softening agent can be used. Refer to the manufacturer's instructions.
Then always add the appropriate amount of detergent (underdosing)
for hardness class I (soft). Your local Water Authority can advise you on
the hardness of the water in your area.
Water hardness details
Water hardness in °dH
(German hardness scale)
Water hardness in ppm
(Parts Per Million)
I - soft
0-7
to 125
II - medium hard
7 - 14
125 - 250
III - hard
14 - 21
250 - 375
greater than 21
greater than 375
Hardness class
IV - very hard
16
Operating Instructions
Running a washing cycle
Brief instructions
A washing cycle consists of the following steps:
0 1. Set the correct washing programme:
– Select the programme and temperature with the programme selector.
– Select any programme options if required.
2. If necessary, change the spin speed/select RINSE HOLD.
3. Set the DELAY TIMER if required.
4. Open the door and load the washing.
5. Close the door.
6. Add the detergent/conditioner.
7. Start the washing programme with the START/PAUSE button.
When the washing programme has ended:
Important! If the washing cycle ended with a rinse hold, carry out
PUMP OUT, SPIN, or SHORT SPIN before opening the door.
8. Open the door and remove the washing.
9. Switch off the washing machine: Set the programmes selector to OFF.
17
Operating Instructions
Setting the Washing Programme
See "Programme tables" for a suitable programme, correct temperature
and possible programme options to suit the type of washing.
0 1. Set the programme selector to
the desired washing programme
with the desired temperature.
The expected duration of the
programme selected is displayed
in the multi display in minutes.
3
2. If required, select programme option(s):
The indicator of the programme selected lights up.
– To change the selection press another button.
– To cancel a selection, press the button again.
18
Operating Instructions
Changing Spin Speed/selecting RINSE HOLD
0
To change the Spin Speed for the final rinse or select RINSE HOLD:
Keep pressing the Spin Speed/RINSE HOLD button
until the indicator light for the desired speed
(or RINSE HOLD) comes on.
If RINSE HOLD is selected, the washing is left to
soak in the last rinse water, without spinning.
3
If the Spin Speed is not changed, the final spin is
automatically adjusted to suit the washing programme:
– COTTONS/LINEN
1400 revolutions per minute
– EASY-CARES/EASY IRON
900 revolutions per minute
– DELICATES
900 revolutions per minute
– WOOL
900 revolutions per minute
The speed of intermediate spins depends on the selected programme
and cannot be changed.
19
Operating Instructions
Setting the Delay Timer/Soaking Time
Delay Timer
0
3
The DELAY TIMER button lets you delay the start of a wash programme
by between 30 minutes and a maximum of 23 hours.
To do this, press the DELAY TIMER button until
the desired start delay is shown in the multidisplay, for instance in the format 12h to delay
the start of the programme by 12 hours.
If 23h is displayed and you press one more
time, 0 appears and then the duration of the
programme set (display in minutes, e. g.126).
In this state no time delay is set.
The time delay set only becomes active, when the programme is started
with the START/PAUSE button.
Soaking time
With the SOAKING button pressed down you can increase the soaking
time using the DELAY TIMER (by a maximum of 10 hours).
3
0
Without a time delay the soaking time is approx. 30 minutes, plus a
pre-wash period of approx. 20 minutes.
To set, press the DELAY TIMER button repeatedly until the required extension of the soaking time is shown in the multi-display, e. g. 60‘
(=1 hour).
After approx. 2 seconds the multi-display shows
the duration in minutes.
While SOAKING counts down, PRE WASH is lit
on the programme progress display.
20
Operating Instructions
Opening and closing the door
0
0
To open: pull the handle on the door.
To close: firmly push the door shut.
When the appliance is switched on, the DOOR and
START/PAUSE lights show whether the door can be
opened:
DOOR light
START/PAUSE light
Can the door be opened?
lit green
flashing red or not lit
yes
lit green
lit red
yes, after pressing the
START/PAUSE button
During the programme the door is locked at high water levels or high
temperatures. The DOOR light is not lit.
3
If
– the DOOR light flashes red,
– the error code E40 is flashing in the multi-display,
– and the END light flashes 4 times,
you have attempted to start a programme without shutting the door
correctly. Should this happen, firmly press the door shut and restart the
programme.
Loading the washing
See "Programme Tables" for maximum loads.
For information about the correct preparation of the washing see "Sort
and prepare washing".
0 1. Sort and prepare the washing according to type.
2. Open the door: Pull the handle on the door.
3. Load the washing.
Important! Do not trap washing when
closing the door. The fabrics and the machine could be damaged.
4. Close the door firmly.
3
21
Operating Instructions
Add detergent / conditioner
For instructions concerning detergent
and conditioners, see "Detergents and
conditioners".
0 1. Open the detergent dispenser drawer.
press in the flap on the drawer so as to
be able to grasp the handle(1), and pull
out the drawer (2).
2. Adding detergent / conditioner
3
Compartment for in-wash
stain treatment
Compartment for powder
main detergent
(If you use water softening agent and
require the right compartment for the
pre-wash/soaking detergent , add the
water softening agent to the main detergent in the left compartment.)
Compartment for liquid conditioner
(Softener, finisher, starch)
Important! Do not fill above the MAX mark. When using
thick concentrated fabric conditioners and starches we
recommend you dilute the concentrate with water to ensure
trouble-free dispensing. If using starch powder dissolve
according to the manufacturer´s instructions.
Note: It is normal for a small amount of water to be left in
the compartment for liquid conditioner; this will not affect
the wash results.
Compartment for pre-wash/soaking detergent
(Only for programme options PRE WASH/SOAKING)
or for water softening agent
3. Push the detergent dispenser drawer fully in.
3
22
If using liquid detergent / tablets
Add liquid detergent / tablets in the quantity recommended by the
washing detergent manufacturer. Add liquid detergent with dosage
containers provided by the detergent manufacturer.
Operating Instructions
Starting a wash programme
0 1. Check that the tap is turned on.
2. To start a wash programme: Press the START/PAUSE
button.
The programme is started, or will start automatically
after the delay timer set has counted down.
3
0
The door is not shut properly if, after having pressed the START/PAUSE
button,
– the DOOR light flashes red,
– the error code E40 is flashing in the multi-display,
– and the END light flashes 4 times.
In such an event, firmly press the door shut and press the START/PAUSE
button again.
If the delay timer has been set
The time delay that has been set counts down and in the multidisplay
the time remaining until the programme is due to start (in minutes, e.g.
30‘, or in hours, e. g. 5h) is shown. During this time you can change or
cancel the delay timer:
Press the DELAY TIMER button repeatedly until the desired time is
shown; if displaying showing the programme duration (display in minutes, e. g.126) the programme starts without any delay.
Adding washing
Washing can be added, as long as the DOOR light is lit green:
0 1. Press the START/PAUSE button. The door can be opened.
2. Close the door and press the START/PAUSE button again.
The programme is resumed.
Washing Programme Progress
Programme progress display
Prior to the start, the programme steps chosen are
displayed by the Programme progress display.
During the washing programme the current
programme step is displayed.
23
Operating Instructions
Multi-display
The expected time remaining (in minutes)
to the end of the programme is displayed in
the multi display.
3
The counting down of the remaining time may be stopped or corrected
by the washing machine controller as a result of automatic adjustments
to the programme (amount of washing, washing type, imbalance detection, special rinse cycle, etc.).
Change the washing programme
Changing or stopping the wash programme
0 1. Press the START/PAUSE button.
2. Turn the programme selector to OFF. The washing programme is
stopped.
3. If required, set a new washing programme. Otherwise, turn the programme selector to PUMP OUT and press the START/PAUSE button.
3
The washing programme can be interrupted at any time with the
START/PAUSE button and can be continued by pressing the button
again. Changing the washing programme is only possible after the programme selector has been turned to OFF.
Selecting the programme options.
The programme options QUICK WASH or STAIN can still be selected after the programme starts.
0 1. Press the START/PAUSE button.
2. Press the QUICK WASH or STAIN button.
3. Press the START/PAUSE button again. The washing programme is
continued.
Changing the Spin Speed
During the washing programme, the spin speed can still be changed or
RINSE HOLD can be set.
0 1. Press the START/PAUSE button.
2. Change the speed with the Spin speed / RINSE HOLD button.
3. Press the START/PAUSE button again. The washing programme
continues.
24
Operating Instructions
Washing cycle is complete/Removing the washing.
Once the washing programme has come to an end, END illuminates on
the programme progress display.
0 1. After a rinse hold, the water must first be pumped out:
– Turn the programme selector to OFF, then turn to DRAIN and press
the START/PAUSE button (the water is pumped out without spinning),
or
– Turn the programme selector to OFF, then turn to SPIN or SHORT
SPIN and press the START/PAUSE button (the water is pumped out
and the washing is spun or gently spun).
At the end of this programme step, the END indicator will illuminate.
2. Open the door.
As soon as the DOOR indicator lights up green, the door can be opened.
3. Remove the washing.
4. Turn the programme selector to OFF.
5. Close the water tap.
6. After washing, pull out the washing detergent dispenser drawer slightly
so that it can dry out. Leave the door ajar so that air can circulate in
the drum.
3
If the OVERDOSING indicator illuminates, then too
much detergent was used in the washing programme
just completed. Observe the dosing recommendations
of the detergent manufacturer as well as the load quantity for the next
wash.
Important! If the washing machine is not to be used for a long period:
Close the water tap and disconnect the washing machine from the
electricity mains.
25
Operating Instructions
Programme Tables
Washing
The tables do not show all the possible settings, only those most likely
to be selected for everyday purposes.
Type of washing;
care symbol
Cottons
ç
Energy-saving
programme:3)
Cottons ç
Linen
è ë
Easy-cares
ê í
Delicates
ì
Woollens/Hand Wash
9 ì ï
Max. load1)
(dry weight)2)
Programme
selector;
temperature
Possible
programme
options
5kg
COTTONS/LINEN
95
PRE WASH
SOAKING
QUICK WASH
STAIN
5kg
COTTONS/LINEN
ENERGY SAVING
PRE WASH
SOAKING
STAIN
5kg
COTTONS/LINEN
30 to 60
PRE WASH
SOAKING
QUICK WASH
STAIN4)
2.5kg
EASY-CARES
40 to 60
1kg
EASY IRON5)
40
2,5kg
(or 15-20m2
curtains)
2kg
DELICATES
30, 40
PRE WASH
SOAKING
QUICK WASH
STAIN
PRE WASH
SOAKING
QUICK WASH
P WOOL
COLD up to 40
1) The load amount inquiry operates in accordance with the EN 60456 standard
load.
2) A 10 litre bucket holds approximately 2.5kg of dry washing (cotton).
3) Programme settings for testing in accordance with or following EN 60 456 and
IEC 60 456 are described in the section “Consumption data”.
4) A temperature of at least 40°C is required for the STAIN programme, to make
stain treatment products effective.
5) Creasing can largely be avoided, but only by keeping wash loads under 1kg.
About 1kg of dry washing is equivalent to between 5 and 7 easy-care men’s
shirts.
26
Operating Instructions
Separate conditioning/starching
Type of washing
Cottons/linen
Max. Load
(dry weight)
Programme selector
5kg
STARCHING
Max. Load
(dry weight)
Programme selector
Separate rinse
Type of washing
Cottons/linen
5kg
Easy-cares
2.5kg
Delicates
2.5kg
GENTLE RINSE
Woollens/Hand Wash
2kg
Separate spin
Type of washing
Cottons/linen
Max. Load
(dry weight)
Programme selector
5kg
SPIN
Easy-cares
2.5kg
Delicates
2.5kg
Woollens/Hand Wash
SHORT SPIN
2kg
27
Operating Instructions
Maintenance and Cleaning
Control panel
0
Important! Do not use household furniture polish or abrasive cleaners
to clean panel and operating parts.
Wipe over the operating panels with a damp cloth. Use warm water.
Detergent Dispenser Drawer
The detergent dispenser drawer should be cleaned from time to time.
0 1. Pull the detergent dispenser drawer out as far as it will go.
2. Remove the detergent dispenser drawer by pulling sharply.
3. Take the conditioner insert out of the
middle compartment.
4. Clean the conditioner insert under
running water.
5. Clean the separate compartments
with warm water. It is best to use
a flat brush.
6. Push on the conditioner insert
as far as it will go so that it is
securely in place.
28
Operating Instructions
7. Use a brush to clean the entire
compartment area of the washing
machine, particularly also the
nozzles on the top side of the
compartment.
8. Set the detergent dispensing
drawer into the guide tracks and
push it in.
Washing Machine Drum
0
The washing machine drum is made from rust-free stainless steel. Any
objects left in the laundry which are likely to rust can stain the drum.
Important! Do not clean the stainless steel drum with descaling agents
containing acids, scouring agents containing chlorine or iron, or steel
wool. Your local AEG Service Force Centre has suitable agents available.
Remove any rust stains on the drum using a stainless steel cleaning
agent.
Maintenance Wash
3
With the use of low temperature washes it is possible to get a build up
of residues inside the drum.
We recommend that a maintenance wash be performed on a regular
basis.
To run a maintenance wash:
The drum should be empty of laundry.
0 1. Select the hottest cotton wash programme.
2. Use a normal measure of detergent, must be a powder.
Main door
0
Regularly check to see if there are deposits or foreign objects in the
rubber seal behind the door, and remove them.
29
Operating Instructions
What to do if...
Trouble Shooting
If the appliance is not working correctly, please carry out the following
checks before contacting your local AEG Service Force Centre.
Important: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be
made even if the appliance is in guarantee.
• If the fault code E10, E20 or E40 is shown in
the multi-display, you may be able to remedy
the fault yourself (see the Faults table below).
When you have remedied the fault, press the
START/PAUSE button.
• With all other displayed faults (E plus number or letter): switch appliance off and on again. Reset the wash programme and press the
START/PAUSE button.
If the fault code is displayed again, please contact the Customer Service
department quoting the fault code.
Problem
Possible cause
The plug is not connected.
Connect the plug to a mains
socket.
The house fuse has blown.
Replace the fuse.
Washing machine does The door is not closed propnot work.
erly.
The START/PAUSE button
was not pressed for long
enough.
The door cannot be
closed.
Close the door - there should
be an audible click.
Press and hold the START/
PAUSE button until the programme starts.
Cancel the child safety deThe child safety device is set. vice (see section “Child safety
device”).
Fault code E40 apThe door is not closed proppears. END light flashes erly.
4 times.
30
Remedy
Close the door properly.
Restart the programme.
Operating Instructions
Problem
Possible cause
The water tap is turned off.
Water is not entering
the appliance.
The filter in the threaded inFault code E10 aplet hose fitting is blocked.
pears END light flashes
once.
Water tap is furred with lime
scale or is faulty.
The washing machine
vibrates when operating or is not stable.
Remedy
Turn on the tap. Restart the
programme.
Turn off the tap. Unscrew the
hose from the tap, take out
the filter and clean it under
running water.
Check the tap and have it repaired, if necessary.
The transit bar has not been
removed.
Remove the transit bar as
described in the installation
and connection instructions.
The height-adjustable feet
have not been set correctly.
Adjust the feet as described
in the installation and connection instructions.
There is very little washing in
Operation is not affected by
the drum (e.g. only one baththis.
robe).
Water could not be drained
completely before spinning,
because the outlet hose has a
kink in it or the drain pump
is blocked.
Check the positioning of the
outlet hose and eliminate
any kinks if necessary or
clean the drain pump and remove any foreign matter
that may be located in the
drain pump housing.
31
Operating Instructions
Problem
Water is running out
from under the washing machine.
Possible cause
Remedy
The threaded inlet hose fitting is leaking.
Screw the inlet hose in
firmly.
The outlet hose is leaking.
Check the outlet hose and
replace if necessary.
The drain pump cover is not
closed properly.
Close the cover properly.
Cancel the programme and
Washing has been trapped in free the washing from the
the door.
door. Re-start the
programme.
Connect the emergency
emptying hose properly (see
Section “Emergency emptyThe emergency emptying
hose is not closed properly or ing procedure”). If the emergency emptying hose is
is leaking.
leaking, contact your local
Service Force Centre.
The water for the main
wash is producing too
many suds. At the end
Follow the manufacturer's
Probably too much detergent
of the wash cycle, the
instructions exactly when
has been used.
spin cycle is intermeasuring out detergent.
rupted. OVER DOSING
light is lit.
Softener has not been
rinsed in and the æ
compartment for conditioners is full of water.
32
The conditioner insert is not
correctly set into the additive compartment or is
blocked.
Clean the detergent drawer,
and adjust the conditioner
insert firmly.
The washing is badly
creased.
Probably too much washing
was loaded.
Keep to the maximum loads
(see the Programme Tables).
Select the EASY IRON programme for easy-care fabrics.
The washing has not
been spun as dry as
usual.
The washing could not be
distributed evenly in the
drum prior to spinning.
Always load the drum as full
as possible with a combination of large and small items.
Operating Instructions
Problem
The washing has not
been spun thoroughly
and water remains visible in the drum.
Fault code E20 appears END light flashes
twice.
Possible cause
Remedy
The outlet hose is kinked.
Remove the kink, press the
START/PAUSE button to continue the programme.
The maximum pump height
(outlet height 1m from the
surface on which the washing machine has been installed) has been exceeded.
Contact your local Service
Force Centre, who will be
able to provide an adapter
kit for pump lifts greater
than 1m as a special accessory.
The drain pump is blocked.
Switch off the machine and
disconnect the mains plug;
clean the drain pump.
For siphon connections: The
siphon is blocked.
Clean the siphon.
Wait until DOOR light is lit
green.
The door has been locked
due to the high level of water or high temperature.
(DOOR light is not lit).
The door cannot be
opened when the
washing machine is
switched on.
If water is visible in the viewing window, first carry out an
A power failure has occurred.
emergency emptying proce(All display lights have gone
dure (see section “Carrying
out).
out an emergency emptying
For safety reasons, the door
procedure”).
remains locked for approx. 4
After approx. 4 to 10 minutes
to 10 minutes.
the door can be opened by
pulling on the handle.
The tap is not fully turned
on.
Detergent residues are
accumulating in the
detergent drawer.
If you still need to open the
door:
turn the programme knob to
OFF; turn programme knob
to DRAIN. Press the START/
PAUSE button.
After the water has been
drained, the door can be
opened.
Turn the tap on fully.
Turn off the tap. Unscrew the
The filter in the threaded ininlet hose from the tap and
let hose fitting is blocked at
from the machine. Clean the
the tap or at the appliance.
filter.
33
Operating Instructions
Problem
Possible cause
Remedy
The rinse water is
cloudy.
The probable cause is a detergent with a high silicate
content.
This has no negative influence on the wash result; use
a liquid detergent, if necessary.
When pressing a programme option, the
corresponding light
does not light up, Err
appears in the multidisplay.
The selected additional programme function cannot be
combined with the programme set.
Select another function.
If the washing results are not satisfactory
If the washing turns greyish and limescale deposits are present in
the drum
• Insufficient detergent has been added.
• Incorrect detergent was used.
• Stains were not pre-treated.
• Programme or temperature was not set correctly.
• If using modular detergents, the individual components were not
used in the correct ratio.
If there are still grey stains on the washing
• Soiled garments with ointments, grease or oils were washed with insufficient detergent.
• The temperature selected for the wash was too low.
• A frequent cause is that fabric softener - particularly a concentrated
one - has come into contact with the washing. Wash out these types
of stains as soon as possible and use the fabric softener carefully.
If after the last rinse foam is still visible
• Modern detergents can still cause foam in the final rinse cycle. However, the washing is still sufficiently rinsed.
If there are white residues on the washing
• These are insoluble contents of modern detergents. They are not the
result of an insufficient rinse. Shake out the washing or brush it off.
Turn the washing inside out before washing it. Review your choice of
detergent and if necessary use liquid detergent.
34
Operating Instructions
Carrying out an emergency emptying
• If the washing machine no longer pumps out the water, emergency
emptying must be carried out.
• If the washing machine is located in a room in which below freezing
temperatures might occur, emergency emptying must be carried out.
Furthermore: unscrew the inlet hose from the water tap and drain off
the water. Empty the drainage hose.
Warning! Switch off the washing machine and pull out the mains plug
prior to performing emergency emptying.
Warning! The water, which flows out of the emergency emptying hose
can be hot. First allow the water to cool down before you carry out the
emergency emptying.
0 1. Have a flat container on hand to catch the water.
2. Pull down the flap in the right corner of
the base strip outwards and pull it off.
1
3. Remove the emergency emptying hose
from its holder.
4. Place the container under the hose.
5. Detach the plug of the emergency emptying hose by turning it anticlockwise
and pull it out.
The water runs out. Depending on the
amount of water, it may be necessary to
empty the collecting vessel several
times. To do this, close the emergency
emptying hose temporarily with the
plug.
Discard the water from the container, replace it under the emergency
emptying hose and remove the plug from the hose.
35
Operating Instructions
When the water is completely drained:
6. Push the plug securely into the emergency emptying hose and turn it
clockwise to secure it.
7. Replace the emergency emptying hose in its holder.
8. Put on the flap and close.
Drain pump
The drain pump is maintainance-free. The cover of the drain pump is
required to be opened only in the event of a malfunction when no
more water is being pumped out, e.g. if the pump wheel is blocked.
Before loading the machine, please always ensure that there are no foreign objects present in the pockets or inbetween the items to be
washed. Paper clips, nails etc. which may find their way into the washing machine along with the washing will remain in the drain pump
housing (foreign objects are protected by the pump wheel).
To restart the drain pump when it is blocked, please proceed as follows:
Warning! Switch off the washing machine and remove the mains plug
before cleaning the drain pump!
0 1. First carry out an emergency emptying procedure (see section “Carrying
out emergency emptying”).
2. Place a cloth on the floor in front of the cover of the drain pump.
Residual water may run out.
3. Unscrew the drain pump cover in an
anti-clockwise motion and pull it out.
1
4. Remove any foreign objects and fabric
lint from the pump housing and from
the pump wheel.
36
Operating Instructions
5. Check that you are able to turn the
pump wheel at the very rear of the
pump housing. (If the wheel rotates
with a jerky motion, this is normal.) If
you cannot turn the pump wheel, please
contact customer service.
6. Replace the pump cover. Laterally insert
the webs on the cover into the guide
slots and securely screw on the cover in
a clockwise motion.
7. Close the emergency emptying hose and
place it in the holder.
8. Close the flap.
37
Operating Instructions
Additional rinse cycles (RINSE+)
The washing machine is set for very economical water consumption.
However, for people who suffer from allergies to detergents, it can be
helpful to rinse with extra water.
3
If RINSE+ is selected, two extra rinse cycles are added to the COTTONS/
LINEN, EASY-CARES/EASY IRON and DELICATES programmes.
When delivered, the machine is not set for additional rinses.
To set additional rinse cycles:
0 1. Turn the programme knob to COTTONS/LINEN, EASY-CARES/EASY IRON
or DELICATES (with any temperature).
2. Wait at least 10 seconds.
3. Then press and hold the PRE-WASH and QUICK WASH buttons at the
same time for at least 2 seconds. RINSE and RINSE+ light up on the
programme progress display. The additional rinse cycles are now set. The
function remains set until cancelled again.
3
Additional rinse cycles increase water consumption.
To cancel the additional rinse cycles:
0 1. Turn the programme knob to COTTONS/LINEN, EASY-CARES/EASY IRON
or DELICATES.
2. Press and hold the PRE-WASH and QUICK WASH buttons at the same
time for at least 2 seconds. RINSE+ goes out on the programme
progress display. The additional rinse cycles are now cancelled.
38
Operating Instructions
Child Safety Feature
If the child safety feature is set,
the door cannot be closed and no
washing programme can be
started.
0
1
0
Setting the child safety feature
Use a coin to turn the rotary knob
on the inside of the door clockwise as far as it will go.
Warning! The rotary knob must
not be in a vertical position after
adjustment, otherwise the child
safety feature is not active. The rotary knob must project as shown in
the diagram.
Cancelling the child safety
feature
Turn the rotary knob anticlockwise
as far as it will go.
39
Installation and connection instructions
Installation and connection instructions
Installation Safety Precautions
• When moving do not tilt the washing machine onto its front or onto
its right hand side (viewed from the front). This is to prevent the possibility of the electronic components becoming wet.
• Before installation inspect the machine for transport damage. Do not
connect the appliance if it is damaged - contact your retailer.
• Ensure all packaging and transit bolts/bars have been removed, see
„Removal of Transit Packaging“. Failure to remove transit bolts/bars
may cause serious damage to the appliance or property.
• Always insert the plug into a correctly installed earthed socket.
• Any plumbing work required to install this appliance should be
carried out by a plumber or competent person.
• Check that the electricity supply is the same as that indicated on the
appliance´s rating plate.
• Any electrical work required to install this appliance should be carried
out by an electrician or competent person.
40
Installation and connection instructions
Installation of the appliance
Transporting the appliance
• Do not place the washing machine on its front or on its right hand
side (viewed from the front). This is to prevent the possibility of the
electronic components becoming wet.
• Never transport the unit without the transport packaging and bolts/
bars. Do not remove the transport packaging until the appliance is at
the installation location. Transporting the unit without the transport
packaging can damage it.
• Never lift the appliance by the door, lid or lower front panel.
• When transporting the unit with a sack trolley: Attach the sack trolley at the side only.
Remove transport packaging
Important! It is essential to remove the transport packaging before putting the appliance into
operation. Keep all parts of the
transport packaging in a safe
place for future use.
0 1. Open both hose holders on the
appliance's rear side and remove
the hoses and mains cable.
2. Pull both hose holders off the appliance with a strong pull.
41
Installation and connection instructions
3
42
The special spanner A and the
caps B (2 each) and C (1 each)
are supplied with it.
3. Remove the screw D, including
the compression spring with the
special spanner A.
4. Cover the hole with the cap C.
Important! When fitting the
plastic caps, press until they snap
into the rear panel securely.
5. Remove the two screws E with
the special spanner A.
6. Remove the 4 screws F.
7. Remove the transit bar G.
8. Screw the 4 screws F back in for
safe keeping.
9. Close the 2 large holes with the
caps B.
Important! When fitting the
plastic caps, press until they snap
into the rear panel securely.
Installation and connection instructions
Installation-Site preparation
• The installation surface must be clean, dry and level. Do not install on
a deep pile carpet.
• Minor unevenness of the floor surface should never be levelled out by
laying pieces of wood, card or similar materials, but should always be
compensated for by adjusting the screw feet.
• If the appliance is installed next to a heat source (e.g. cooking appliance), a heat insulating pad (87 x 57 cm) must be placed between the
appliance and the heat source.
• Do not install the appliance in locations where the temperature may
fall below freezing.
• Please ensure that when the appliance is installed it is easily accessible for the engineer in the event of a breakdown.
Installation on a Suspended Floor
Suspended wooden floors are particularly susceptible to vibration. To
help prevent vibration we recommend you place a waterproof wood
panel, at least 15 mm thick under the appliance, secured to at least
2 floor beams with screws. If possible install the appliance in one of the
corners of the room, where the floor is more stable.
43
Installation and connection instructions
Levelling the appliance
Self adjusting foot: The rear foot of your washing machine is designed
like a spring leg. This makes the machine very stable even at high spin
speeds.
If the washing machine is still not stable during spinning, proceed as
follows:
0 1. Set the three adjustable feet to
the nominal value of 10 mm.
Use the supplied spanner.
If the self adjusting foot does
not reach the floor:
2. Manually extend the self
adjusting foot (rear left) to
the required length.
3. Check the appliance is level using
a spirit level.
Important! Never use strips or
shims of wood or cardboard etc.
to compensate for any unevenness in the floor. Always use
the adjustable feet.
3
44
Installation and connection instructions
Electrical Connection
Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
1
WARNING - THIS APPLIANCE MUST BE EARTHED.
The manufacturer declines any liability should these safety
measures not be observed.
Before switching on, make sure
the electricity supply voltage is
the same as that indicated on the
appliance rating plate.
The rating plate is located at the
top of the rim of the open door.
The appliance is supplied with a
13amp plug fitted. In the event of
having to change the fuse in the
plug supplied, a 13amp ASTA approved (BS 1362) fuse must be used.
Should the plug need to be replaced
Green & Yellow
for any reason, proceed as described
below.
The wires in the mains lead are
coloured in accordance with the
following code:
Brown
Blue
Green and Yellow: Earth
Blue:
Neutral
Brown:
Live
Cord Clamp
• The wire coloured green and yellow must be connected to the terminal marked with the letter “E“ or by the earth symbol
or coloured
green and yellow.
• The wire coloured blue must be connected to the terminal “N“ or
coloured black.
• The wire coloured brown must be connected to the terminal marked
“L“ or coloured red.
• Upon completion there must be no cut, or stray strands of wire
present and the cord clamp must be secure over the outer sheath.
1
WARNING! A cut off plug inserted into a 13 amp socket is a
serious safety (shock) hazard. Ensure that the cut off plug is
disposed of safely.
45
Installation and connection instructions
Permanent Connection
In the case of a permanent connection it is necessary that you install a
double pole switch between the appliance and the electricity supply
(mains), with a minimum gap of 3 mm between the switch contacts
and of a type suitable for the required load in compliance with the
current electrical regulations.
The switch must not break the yellow and green earth cable at any
point.
46
;
This appliance is in accordance with the following EU Guidelines:
– Low Voltage Guidelines 73/23 EEC dated 19 February 1973, include
Guideline Change Notice 93/68 EEC
– EMC Guideline 89/336 EEC dated 3 May 1989, including Guideline
Change Notice 92/31 EEC.
This appliance complies with the requirements laid out in the EEC Directive 76/899.
Voltage 240 V AC: Fuse rating 13 amps
See rating plate for further information.
This appliance meets VDE requirements.
Particular regulations of local electricity authorities must be observed.
This appliance conforms to EEC Directive No. 82/499/EWG on radio interference.
1
WARNING! Repairs to electrical appliances must only be carried out by
trained personnel. Improper repairs may lead to serious risks for the
user.
Installation and connection instructions
Water connection
3
The washing machine is provided with safety devices preventing backcontamination of the water supply and complies with local water authority requirements.
This appliance is designed to be permanently plumbed into your home’s
water supply.
Before connecting up the machine to new pipework or to pipework
that has not been used for some time, run off a reasonable amount of
water to flush out any debris that may have collected in the pipes.
Important!
– Appliances for connecting to cold water must not be connected to
hot water.
– Only use new hose sets for the connection.
Water pressure
The appliance is designed to operate within the following water
pressure units. Minimum 1 bar (= 10N/cm2 = 0.1 Mpa), maximum
10 bar (= 100N/cm2 = 1 Mpa).
• If more than 10 bar: Install a pressure-reduction valve upstream
• If less than 1 bar: Unscrew the inlet hose from the appliance at the
inlet solenoid valve and remove the flow regulator (to do this, remove
the filter with needle nose pliers and remove the rubber washer behind the filter). Replace the filter.
47
Installation and connection instructions
Inlet Hose Connection
A pressure hose of 1.35m in length is supplied.
If a longer inflow hose is required, only a VDE-approved, complete set
of hoses with fitted hose screw connections is permissible, available
from AEG Service Force Centres.
– Hose sets in lengths of 2.2m, 3.5m, and 5m are available for washing
machines without Aqua-Control.
– Hose sets in lengths of 2.0m, 2.9m and 3.9m are available for washing machines with Aqua-Control.
Important! Never cut into pieces in order to extend the hoses!
Sealing rings are supplied either in the plastic
nuts of the hose screw connection or in the
enclosed pack. Do not use other seals!
0 1. Connect the hose with the angled connection to
the machine.
3
Important!
– Do not lay the inlet hose vertically downwards, instead run it
to the right or left as shown in
the diagram.
– Tighten firmly to prevent
leakage but do not use
excessive force.
2. Connect the hose with the straight connection
to a water tap with a screw thread R 3/4 (inches)
Important! Only tighten the screw connection
by hand.
3. By slowly opening the water tap before putting
the washing machine into operation, check that
the connection is free of leaks.
48
Installation and connection instructions
Water Drainage
The appliance drain hose should hook into a standpipe, the hook in the
drain hose is formed using the plastic “U-Piece“ supplied. The standpipe
should have an internal diameter of approximately 38 mm (see diagram) thus ensuring there is an air break between the drain hose and
standpipe.
Important! It is essential to lay
the drainage hose without kinks.
When discharging into a standpipe ensure that the top of the
curve in the hose end is no more
than 90 cm (35.4’’) and no less
than 60 cm (23.6’’) above floor
level.
The upright standpipe should
have a minimum, length of
30 cm (12’’) from the bottom of
the elbow to the top of the pipe
(see diagram). Make sure that it is
designed in such a way that the
end of the drain hose cannot be
covered with water.
Longer drain hoses are available
in lengths of 2.7 and 4 metres
from your AEG Service Force
Centre.
49
Installation and connection instructions
If you intend the drain hose from
the washing machine to empty
into a sink, make sure that the
sink is empty and the plug hose
is not blocked. Use the plastic
“U-Piece“ supplied.
Important! The end of the
drainage hose must not be
submerged in the pumped-out
water. Otherwise, the water
could be sucked back into the appliance.
Pump head of greater than 1m
Every washing machine includes a wash water pump for the removal of
wash and rinse water, which can pump fluids through the outlet hose
up to a height of 1m, measured from the surface on which the machine
stands.
For pump heads of greater than 1m please contact your local
AEG Service Force Centre.
50
Installation and connection instructions
Technical data
Height Adjustment
Load (depending on the
programme)
Area of use
Drum speed, spinning
Water pressure
approx. +10 / -5mm
max. 5kg
Domestic
see rating plate
1-10bar
(=10-100 N/cm2= 0.1-1.0 Mpa)
Dimensions
(dimensions in mm)
51
Warranty conditions
Warranty conditions
Great Britain
Standard guarantee conditions
We, AEG, undertake that if within 12 months of the date of the purchase this AEG appliance or
any part thereof is proved to be defective by reason only of faulty workmanship or materials, we
will, at our discretion repair or replace the same FREE OF CHARGE for labour, materials or carriage
on condition that:
• The appliance has been correctly installed and used only on the electricity or gas supply stated
on the rating plate.
• The appliance has been used for normal domestic purposes only, and in accordance with the
manufacturer's operating and maintenance instructions.
• The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any
person not authorised by us.
• All service work under this guarantee must be undertaken by a Service Force Centre. Any appliance or defective part replaced shall become the Company's property.
• This guarantee is in addition to your statutory and other legal rights.
• Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available
outside these hours in which case a premium will be charged.
Exclusions
This guarantee does not cover:
• Damage or calls resulting from transportation, improper use or neglect, the replacement of any
light bulbs or removable parts of glass or plastic.
• Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the United Kingdom.
• Appliances found to be in use within a commercial environment, plus those which are subject
to rental agreements.
• Products of AEG manufacture which are not marketed by AEG.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to
your new home subject to the following qualifications:
• The guarantee starts from the date you first purchased your product.
• The guarantee is for the same period and to the same extent for labour and parts as exists in
the new country of use for this brand or range of products.
• This guarantee relates to you and cannot be transferred to another user.
• Your new home is within the European Community (EC) or European Free Trade Area.
• The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal household.
• The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your
move and able to look after you and your appliances.
52
France
Senlis
+33 (0) 3 44 62 29 29
Germany
Nürnberg
+49 (0) 800 234 7378
Italy
Pordenone
+39 (0) 800 117511
Sweden
Stockholm
+46 (0) 8 672 5360
UK
Slough
+44 (0) 1753 219899
53
Index
Index
A
P
Automatic adjustment foot . . . . . . . . . . 9, 44
Pre wash . . . . . . . . . . . . . . . . . 12, 20, 22, 27
Pre-wash detergent . . . . . . . . . . . . . . . . 9, 22
Programme progress display . . . . . . . . 10, 24
C
Changing the program . . . . . . . . . . . . . . . . 24
Child safety feature . . . . . . . . . . . . . . .31, 39
Circulation pump . . . . . . . . . . . . . . . . . . . . . 9
Conditioner . . . . . . . . . 9, 11, 16, 17, 22, 28
Correcting the programme . . . . . . . . . . . . 10
Cottons . . . . . . . . . . . . . . . . . . .10, 15, 27, 28
Curtains . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Customer Service . . . . . . . . . . . . . . . . .30, 55
D
Delay timer . . . . . . . . . . . . . . .10, 12, 20,
Delicates . . . . . . . . . . . . . . . . . .11, 15, 27,
Detergent . . . . . . . . . . . . . . . . . . 9, 16, 17,
Detergent dispenser drawer . . . . . . . . . . 9,
Drain . . . . . . . . . . . . . . . . . . . . . . . . . . . .11,
Drain pump . . . . . . . . . . . . . . . . . . . . . . . . .
Duration . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23
28
23
22
26
37
24
E
Easy iron . . . . . . . . . . . . . . . . . .11, 15, 27,
Easy-cares . . . . . . . . . . . . . . . .11, 15, 27,
Eco valve . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency emptying . . . . . . . . . . . . . . . . .
Energy saving . . . . . . . . . . . . . . . . . . . .10,
Err (Error message) . . . . . . . . . . . . . . . . . . .
33
28
14
36
27
12
F
Fabric softener . . . . . . . . . . . . . . . . . . . . . . 22
G
Gentle rinse . . . . . . . . . . . . . . . . . . . . . .11, 28
H
Hand wash . . . . . . . . . . . . . . . . . . . . . . .11, 27
L
Linen . . . . . . . . . . . . . . . . . . . . . . . . 10, 15, 27
Load . . . . . . . . . . . . . . . . . . . . . . . . . . . .13, 27
M
Multi-display . . . . . . . . . . 10, 20, 23, 24, 31
O
Open the door . . . . . . . . . . . . . . . . 21, 26, 34
Over-dosed . . . . . . . . . . . . . . . . . . . . . . . . . 26
54
Q
Quick wash . . . . . . . . . . . . . . . . . . .12, 24, 27
R
Rating plate . . . . . . . . . . . . . . . . . . . 9, 45, 46
Rinse . . . . . . . . . . . . . . . . . . . . . . . . . . . 11, 28
Rinse hold . . . . . . . . . . . . . . . . . . . .11, 19, 26
Rinse+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Risk of frost . . . . . . . . . . . . . . . . . . . . . . 6, 36
S
Silk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11, 15
Soaking . . . . . . . . . . . . . . . . . . 12, 20, 22, 27
Softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Spin . . . . . . . . . . . . . . . . . . . . . 11, 17, 24, 28
Spinning . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Stain . . . . . . . . . . . . . . . . . . . . . . . .12, 24, 27
Stain removers . . . . . . . . . . . . . . . . . . . . 9, 22
Starching . . . . . . . . . . . . . . . . . . . . . . . . 11, 28
Stopping the program . . . . . . . . . . . . . . . . .24
U
Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
W
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . 6, 52
Water
hardness . . . . . . . . . . . . . . . . . . . . . . . . . .16
pump off . . . . . . . . . . . . . . . . . . . . . . 11, 26
softener . . . . . . . . . . . . . . . . . . . . . 9, 16, 22
Woollens . . . . . . . . . . . . . . . . . . . . .11, 27, 28
Hand-washable . . . . . . . . . . . . .11, 15, 27
Service & Spare Parts
Service & Spare Parts
If the event of your appliance requiring service, or if you wish to purchase spare parts, please contact Service Force by telephoning:
0870 5 929 929
Your telephone call will be automatically routed to the Service Force
Centre covering your post code area.
For the address of your local Service Force Centre and further information about Service Force, please visit the website at
www.serviceforce.co.uk
Before calling out an engineer, please ensure you have read the details
under the heading „What to do if...“
When you contact the Service Force Centre you will need to give the
following details:
1. Your name, address and post code.
2. Your telephone number.
3. Clear and concise details of the
fault.
4. The model and serial number of
the appliance (found on the rating
plate).
5. The purchase date.
Please not that the valid purchase receipt or guarantee documentation
is required for in-guarantee service calls.
Customer Care
For general enquiries concerning your AEG appliance, or for further information on AEG products please contact our Customer Care Department by letter or telephone at the address below or visit our website at
www.aeg.co.uk.
Customer Care Department
AEG Domestic Appliances
55-77 High Street
Slough
Berkshire, SL1 1DZ
Tel: 08705 350350(*)
(*)Calls may be recorded for training purposes
55
From the Electrolux Group. The world´s No.1 choice.
The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor
use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines,
vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more
than 150 countries around the world.
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
822 943 757-01-220803-01
Subject to change without notice
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
