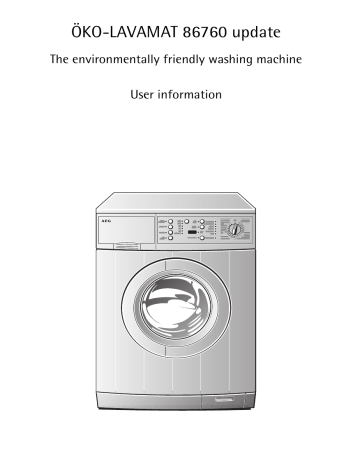

ÖKO-LAVAMAT 86760 update
The environmentally friendly washing machine
User information
Dear Customer,
Please read this user information carefully.
Pay particular attention to the section "Safety" on the first Info pages.
Please keep this user information in a safe place for later reference.
Pass it on to any future owners of the unit.
1
The warning triangle and /or signal words (Warning!, Caution!, Important!) emphasise information which is important for your safety or for
the unit's functional reliability. It is imperative that this information is
observed.
0 1. This symbol guides you step by step through the operation of the appli-
ance.
2. ...
3
Next to this symbol you will find additional information and practical
tips on using the appliance.
2
Tips and information on economical and environmentally responsible
use of the unit are identified with the clover leaf.
For any faults which occur, this user information contains information
on how to remedy these faults yourself. See the section "What to do
if ..."
Printed on recycled paper.
Thinking ecologically means acting ecologically.
2
Contents
Operating Instructions
....................................
6
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
Environmental Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
Unit description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Drawer for detergent and care agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Programme Selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Programme Option Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Programmable functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
9
9
10
10
12
13
Consumption Values and Programme Times . . . . . . . . . . . . . . . . . . . . . . 14
Wash Time Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
What does “UPDATE” mean? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Anti-flood system Aqua Control + Aqua Alarm . . . . . . . . . . . . . . . . . . . 15
Before the First Wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Preparing a Wash Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sorting and preparing a wash load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Washing Types and Care Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Washing Detergents and Care Agents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Which washing detergent and care agent? . . . . . . . . . . . . . . . . . . . . . .
How much washing detergent and care agent? . . . . . . . . . . . . . . . . . . .
Water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16
16
17
18
18
18
18
Running a Wash Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brief Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the wash programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing Spin Speed /selecting RINSE HOLD . . . . . . . . . . . . . . . . . . . . . . . .
Setting the delay timer/soaking duration . . . . . . . . . . . . . . . . . . . . . . . . . . .
Opening and closing the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading the Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Add detergent/conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting the wash programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19
19
20
21
22
23
23
24
25
3
Washing Programme Progress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Washing cycle complete/Removing the washing . . . . . . . . . . . . . . . . . . . . 27
Programme Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Separate Rinse/Conditioning/Starching/Treating . . . . . . . . . . . . . . . . . . . .
Separate Spinning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28
28
29
29
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Detergent Drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Washing Drum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30
30
30
31
31
What to do if... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Remedying faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If the washing results are not satisfactory . . . . . . . . . . . . . . . . . . . . . . . . . .
Carrying out emergency drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Drain pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency unlocking of the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Additional Rinse RINSE+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Additional Rinse and Water Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Variomatic Loose Spin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32
32
36
37
38
39
40
41
41
42
Programme Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Child Safety Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Installation and connection instructions
. . . . . . . . . . . . . . . . 45
Installation Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Installation of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transporting the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Remove transport packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Prepare the installation place . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation on a concrete base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation on vibrating floors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Compensate for floor unevenness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
46
46
46
48
48
48
49
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Water connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Permissible water pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water inflow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Delivery heads over 1m . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
50
50
51
52
52
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Dimensions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Warranty conditions / Customer service centres
Index
. . . . . . . 54
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Service
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
5
Operating Instructions
Operating Instructions
1
Safety
The safety aspects of AEG electrical appliances comply with accepted
technical standards and the German Appliance Safety Law. However, as
manufacturers we regard it as our responsibility to inform you about
the following safety instructions.
Before Using for the First Time
• Refer to the "Installation and Connection Instructions" further on in
this user information.
• If units are delivered in the winter months at minus temperatures:
Store the washing machine at room temperature for a few hours before putting it into operation.
Correct Use
• The washing machine is only intended for washing normal domestic
washing. If the appliance is used for a wrong purpose or wrongly operated, the manufacturer cannot assume any liability for any damages.
• Additions or modifications to the washing machine are strictly forbidden due to safety reasons.
• Use only detergent which is suitable for washing machines. Refer to
the detergent manufacturer's instructions.
• The washing must not contain any flammable solvents. Also bear this
in mind when washing pre-cleaned washing.
• Do not use the washing machine for dry-cleaning.
• Dyes /dye-removing agents may only be used in the washing machine
if the manufacturer expressly permits use of these products. We cannot accept liability for any damage.
• Use only water from the water mains. Use rain water or service water
only if it meets the requirements defined in DIN 1986 and DIN 1988.
• Frost damage is not covered by the warranty! If the washing machine
is in a room subject to possible frost hazards, emergency emptying
must be carried out if there is a risk of frost (see the Section "Carrying out emergency emptying“).
6
Operating Instructions
Safety of Children and Infirm Persons
• Packaging materials (e.g. films, polystyrene) can be dangerous for
children. Risk of suffocation! Keep packaging away from children.
• The appliance is not intendet for use by young children or infirm persons without supervision.
• Children frequently cannot recognise hazards involved in handling
electrical appliances. Therefore, ensure that they are properly supervised during operation and never allow children to play with the
washing machine -there is a risk that they can lock themselves inside it.
• Ensure that children or small animals do not climb into the washing
machine's drum.
• When disposing of washing machines pull out the mains plug, destroy
the door lock, cut off the electrical supply lead and dispose of the
plug and remaining cable. This means that playing children cannot
shut themselves in and cannot encounter a potentially lethal hazard.
General Safety
• Repairs to washing machines may only be carried out by skilled
persons. Improper repairs can cause significant hazards for the user.
If your appliance needs repairing, please contact customer service or
your dealer.
• Never put the washing machine into operation if the mains cable is
damaged or if the control panel, work top or base area is damaged in
such a way that the inside of the appliance is openly accessible.
• Before cleaning, care and maintenance work, switch off the washing
machine. Also, pull the mains plug out of the socket, or - in the case
of permanent connection - switch off the LS switch in the fuse box
or completely unscrew the screw-in fuse.
• If operation is stopped, disconnect the appliance from the mains supply and shut off the tap.
• Never pull the mains plug out of the socket by the cable. Always use
the plug.
• Multiple connectors, couplings and extension cables must not be
used. Fire hazard through overheating!
• Do not spray down the washing machine with a water jet. Danger of
electrical shock!
• The glass in the filling door become hot when high-temperature
washing programmes are used. Do not touch!
7
Operating Instructions
• Allow the washing solution to cool down before performing and
emergency emptying of the appliance, before cleaning the solution
pump or before an emergency opening of the filling door.
• Small animals can chew on power cables and water hoses. This can
cause a danger of electric shock and water damage. Keep small
animals away from washing machines.
2
Disposal
Disposing of the Packaging Material!
Dispose of the packaging of your washing machine correctly. All pakkaging materials used are environmentally-compatible and recyclable.
• Plastic parts are identified with internationally standardised abbreviations:
>PE<
for polyethylene, e.g. packing films.
>PS<
for polystyrene, e.g. cushion parts (always CFC-free)
>POM< for polyoxymethylene, e.g. plastic clips.
• Cardboard packaging is manufactured from recycled paper and
should be deposited in the waste paper collection for recycling.
Disposing of your old appliance!
When you put your unit out of operation one day, please bring it to
your nearest recycling centre or to your dealer.
2
Environmental Tips
• You do not need to use a pre wash cycle or soak for washing with average soiling. This saves detergent, water and time (and protects the
environment).
• When loaded to the capacities indicated the washing machine is especially efficient.
• For small loads, use only one half to two thirds of the recommended
quantity of detergent.
• By pre-treating stains and marks you will be able to wash at a lower
temperature.
• It is often possible to wash without using softener. Give it a try! If
you use a drier, your washing will be soft and fluffy even without a
softener.
• For medium to high water hardness (from hardness range II, see “Detergents and Conditioners”) you should use water softener. The
detergent can then always be dosed as for hardness range I (= soft).
8
Operating Instructions
Unit description
Front view
Drawer for detergent and
conditioner
Control panel
Rating plate
(behind filling door)
Filling door
Screw feet
(height-adjustable);
rear left: Automatic
adjustment foot
Flap in front of
the drain pump
Drawer for detergent and care agent
Stain removers
Main wash detergent
(powder form) and
possibly water softener
Pre-wash detergent/
soaking agent or
water softener
Liquid care agents
(conditioner,
finisher, starch)
9
Operating Instructions
Control Panel
Program
Spin speed/
Progress-Display
RINSE HOLD button
Additional ProgrammeProgramme Selector
DOOR/LIGHT button
Options
Multi display
START/
PAUSE
Button
DELAY TIMER Button
OVERDOSING indicator
Programme Selector
The programme selector defines the
nature of the wash cycle (e.g. water
level, drum movement, number of
rinses, spin speed) to suit the type of
washing, as well as the water temperature.
OFF
Switches the washing machine off;
the machine is switched on at all
other positions.
To correct programme settings that have been selected accidentally
turn the programme selector to the OFF position. The initial position is
reinstated.
10
Operating Instructions
COTTONS/LINEN, EASY-CARES
Wash programme between 20 °C and 95 °C, may be used for all cotton
and linen washing (cottons/linen), easy-cares (blended fabrics, e.g., cotton/polyester) and synthetics. The wash programme adjusts to suit the
various types of fabric and quantities. If there is mostly cotton/linen a
suitable cottons/linen programme is carried out; if there is more synthetic material a programme for easy-cares is selected. If the machine
is loaded exclusively with easy-cares the quantity should not exceed
2.5 kg in order to avoid creasing.
STARCHING
Separate starching, separate rinsing, separate conditioning or separate
soaking of damp washing (1 rinse, liquid conditioner is added from the
compartment æ, spin).
If a separate rinse is carried out do not put any conditioner into the
compartment.
DRAIN
The water is pumped away after a rinse hold (without spin).
3
Rinse hold means: the washing remains in the last rinsing water and is
not spun.
SPIN
The water is pumped out at the end of a rinse hold and spin, or hand
washed cottons/linen and easy cares are spun separately.
SHORT SPIN
The water is pumped out at the end of a rinse hold and short spin, or
delicate fabrics (delicates, woollens) are given a separate short spin at
low revs.
DELICATES
Wash programme for delicates at 30 °C or 40 °C.
WOOL / P Hand wash
Wash programme (cold to 40 °C) for machine-washable woollens and
for hand-washable woollen fabrics bearing the ï care symbol (hand
wash).
SILK / P Hand wash
Wash programme at 30 °C for hand and machine-washable silk.
3
As silk is a very sensitive fabric, we recommend that you only wash one
item of clothing at a time, and that such items never be washed with
other rough fabrics. A still more gentle wash is possible for extremely
sensitive silk fabrics using the TIME SAVER button.
11
Operating Instructions
FASHION
A particularly gentle special programme at 40 °C for modern fabrics
such as viscose, modal, cupro, lyocell, with a gentler wash action than
the DELICATES programme, but washing more thoroughly than the
hand wash programmes.
REFRESH
A special programme lasting approx. 20 minutes at 30 °C to give fabrics
a quick wash, such as, for example, very slightly soiled sports clothes
that have been worn only once.
EASY IRON
Wash programme at 40 °C for easy-care fabrics that will only need to
be ironed lightly, if at all, at the conclusion of the programme.
2
ENERGY SAVING
A wash programme at approx. 60 °C that is particularly economical on
electricity and water for slightly to normally soiled cotton and linen
washing (cottons/linen) with an extended washing time.
Programme Option Buttons
The programme option buttons are used to adapt
the programme to suit the degree of soiling of the
wash. The additional PRE WASH and STAIN options
are not needed for normally soiled washing. The
different functions can be combined together, depending on the programme.
PRE WASH (Pre-wash/Soaking)
Cold pre-wash before the main wash cycle, which
follows automatically. The DELAY TIMER button
changes Pre-wash to warm soaking.
SENSITIVE
Special extra programme function that gives an extra rinse along with
better fabric care (less drum movement). This is ideal when frequent
washes are necessary, for example in cases of sensitive skin. RINSE+ can
still be selected as well.
STAIN
For heavily soiled or stained washing. (In-wash stain treatment products (powder or tablets) are washed in at the optimum time as the programme progresses.)
3
12
With the WOOL/P (Handwash) setting, the additional programme option buttons cannot be used.
Operating Instructions
TIME SAVER
Shortened wash programme for lightly soiled washing, consisting of
three stages with the COTTONS/LINEN, EASY-CARES programme and
two stages with the other programmes.
Length of programmes
Programme
COTTONS/LINEN,
EASY-CARES at 60 °C
Other programmes,
for example DELICATES at 30 °C
Without
TIME SAVER
With TIME SAVER
Button
pressed
once
Button
pressed
twice
119 mins.
91 mins.
63 mins.
68 mins.
52 mins.
-
Programmable functions
The programmable functions Extra Rinse (RINSE+), Water Cooling and
Variomatic Spin are described in the Chapter “What to do if ...”.
13
Operating Instructions
Consumption Values and Programme Times
The following table gives the values for selected programmes under
standard conditions. Consumption values depend on the selected programme settings (optional functions), washing type and quantity, water
pressure, such as water inlet temperature, water hardness, room temperature or detergent used, etc. The tables do, however, give a helpful
guide for normal household use.
Programme Selector
(Temperature)
Type of
material
Load Water Energy Time in
in kg in litres in kWh minutes
ENERGY SAVING 1)
Cotton
6
42
1.02
120
COTTONS/LINEN, EASY-CARES 95
Cotton
6
50
2.05
148
COTTONS/LINEN, EASY-CARES 60
Cotton
6
50
1.08
119
COTTONS/LINEN, EASY-CARES 40
Cotton
6
58
0.66
116
COTTONS/LINEN, EASY-CARES 60
TIME SAVER (press once) 1)
Synthetics
3
56
0.95
91
COTTONS/LINEN, EASY-CARES 40
TIME SAVER (press once) 1)
Synthetics
3
52
0.55
88
COTTONS/LINEN, EASY-CARES 40
TIME SAVER (press twice)
Synthetics
3
50
0.58
59
DELICATES 30
Synthetics
3
56
0.36
68
2
42
0.18
35
WOOL / P (Handwash) 30
1) Note:Programme setting for testing in accordance with or in support of Standard EN 60 456 and IEC 60 456.
Wash Time Display
3
14
The wash times for the wash programmes
depend on the usual washing practice and
the ambient conditions at the place of installation. The washing type and quantity,
the type of washing detergent, the water temperature and the room
temperature etc. can influence the duration of the wash programme.
Operating Instructions
What does “UPDATE” mean?
The wash programmes in your washing machine are controlled by software.
New types of fabric or new detergents may require new wash programmes in the future. In most cases, the software can be adapted to
this.
For further information on a possible “update” please contact customer
service.
Anti-flood system Aqua Control +
Aqua Alarm
In the event of damage to the supply hose, the system blocks the further supply of water to the unit directly st the water tap.
If water escapes at another point, the drainage pump pumps the water
off automatically - even if the unit is switched on. It is merely necessary for the washing machine to be connected to the mains. If the antiflood system responds, a warning signal sounds at the same time.
15
Operating Instructions
Before the First Wash
0
Run a wash cycle without washing; COTTONS/LINEN, EASY-CARES 95
programme with half the amount of washing detergent. This removes
any residues from the drum and solution container which may have
been left during manufacturing.
Preparing a Wash Load
Sorting and preparing a wash load
• Sort the washing according to care symbol (see “Washing Types and
Care Symbols”).
• Empty all pockets.
• Remove metal objects (paper clips, safety pins etc.).
• In order to prevent the washing tangling and being damaged: close
zippers, button up duvet covers and pillow cases, and tie up loose
straps such as from aprons.
• Turn articles with double layered fabric inside out (sleeping bags,
anoraks etc.).
• In the case of knitted coloured fabrics and also wool and fabrics with
jewellery attached: turn inside out.
• Place small and delicate articles (baby booties, stockings, bras etc.)
into a washing net, a pillow case with zipper, or in large socks before
washing.
• Handle curtains with particular care. Metal fittings or burred, plastic
fittings must be removed or tied into a net or bag. We cannot accept
liability for damage.
• Do not wash coloured and white washing together. This could transfer colour to white washing or turn it grey.
• New coloured items often have an excess of colour. It is better to
wash such items separately the first time.
• Mix small and large items of washing. This improves the wash efficiency and the washing is more evenly distributed during the spin cycle.
• Shake out washing before placing into the washing machine.
• Do not place folded washing into the drum.
• Observe such washing instructions as “wash separately” and “wash
separately several times”!
16
Operating Instructions
Washing Types and Care Symbols
The care symbols help you choose the correct wash programme. Washing should be sorted according to type and care symbol. The temperatures indicated in the care symbols are all maximum temperatures.
Cottons ç
Fabrics made from cotton and linen with this care symbol will withstand maximum wash actions and high temperatures. The COTTONS/
LINEN, EASY-CARES programme is suitable for this type of washing.
Linen è ë
Fabrics made from cotton and linen which carry this care symbol will
withstand maximum wash actions. The COTTONS/LINEN, EASY-CARES
programme is suitable for this type of washing.
Easy-care washing ê í
Fabrics such as treated cotton, cotton mixed fabrics and synthetics
which carry this care symbol need a gentler wash action. The COTTONS/
LINEN, EASY-CARES and EASY IRON programmes are available for this
type of washing.
Delicates ì
Fabrics such as those with layered fibres, microfibres, synthetics and curtains with this care symbol require particularly careful handling. The
DELICATES programme is appropriate for these types of washing.
Viscose í ì
Modern fabrics such as viscose, cupro, lyocell, modal and others require
particularly careful handling. The FASHION programme is appropriate
for these types of washing.
Woollens, silk and particularly delicate wash items 9 ì ï
Fabrics such as wool, wool mixtures and silk which carry these care
symbols require a very gentle wash cycle. The WOOL/P Hand wash and
SILK/P Hand wash programmes are suitable for this type of fabric.
Important! Fabrics which bear the care symbol ñ (Do not wash!)
may not be machine washed!
17
Operating Instructions
Washing Detergents and Care Agents
Which washing detergent and care agent?
Use only washing detergents and care agents which are suitable for use
in washing machines. Always follow the manufacturer's instructions.
How much washing detergent and care agent?
The amount to be used depends on:
• the dirtiness of the washing
• the hardness category of the mains water supply
• the filling quantity
2
If the detergent manufacturer gives no details of the dosing quantities
for minimum loads, add one third less for half loads and, in the case of
very small loads and for EASY IRON, only half the amount of detergent
recommended for a full load.
Refer to the detergent/care agent manufacturer's instructions on use
and dosage.
Water softener
For medium to high water hardness (hardness class II upwards), you
should use softener. Refer to the manufacturer's instructions. Then always add the appropriate amount of detergent for hardness class I
(= soft). The responisable water works will provide information on the
local water hardness.
2
Since the water softener is rinsed in before the main detergent (water
pre-softening), 80% of the stated quantity of softener shown on the
package is sufficient.
Water hardness details
Water hardness in °dH
(German hardness scale)
Water hardness in mmol
(millimol per litre)
I - soft
0-7
to 1.3
II - medium hard
7 - 14
1.3 - 2.5
III - hard
14 - 21
2.5 - 3.8
greater than 21
greater than 3.8
Hardness class
IV - very hard
18
Operating Instructions
Running a Wash Cycle
Brief Instructions
A wash cycle consists of the following steps:
0 1. Set the correct wash programme:
– select the programme and temperature using the programme selector
– if required, select programme option
2. If required change the spin speed/select rinse hold.
3. If required, set the DELAY TIMER.
4. Open the door and load the washing.
5. Close the door.
6. Add detergent/conditioner.
7. Start the wash programme by pressing the START/PAUSE button.
When the wash programme has ended:
Important! If the wash cycle has ended with a rinse hold, activate
DRAIN, SPIN or SHORT SPIN before opening the door.
8. Open the door and remove the washing.
9. Switch off the washing machine: set the programme selector to OFF.
19
Operating Instructions
Setting the wash programme
3
For suitable programme, correct temperature and possible additional
programs for the respective type of washing, see „Programme tables“.
0 1. With the programme knob, set
the desired wash programme and
temperature.
In the multi-display the
probable duration of the set programmes will be shown in
minutes.
2. If necessary, press additional programme button(s):
The display of the selected additional programme is
displayed.
– For changing to another selection, press another
button.
– For resetting, press button again.
20
Operating Instructions
Changing Spin Speed /selecting RINSE HOLD
0
To change Spin Speed for the final spin (if necessary)/select RINSE HOLD:
Press the Spin Speed/RINSE HOLD button as often
as necessary, until the indicator light for the desired speed (or RINSE HOLD) is lit.
If RINSE HOLD is selected, the washing is left to
soak in the last rinse water, without spinning.
3
If the Spin Speed is not changed, the final spin is automatically adjusted to suit the washing programme:
– COTTONS/LINEN, EASY-CARES
1600 revolutions per minute
– ENERGY SAVING
1600 revolutions per minute
– DELICATES
1200 revolutions per minute
– WOOL / P (Handwash)
1200 revolutions per minute
– SILK/ P (Handwash)
1200 revolutions per minute
– FASHION
1200 revolutions per minute
– EASY IRON
1200 revolutions per minute
The speed of intermediate spins depends on the selected programme,
and cannot be changed.
21
Operating Instructions
Setting the delay timer/soaking duration
Delay timer
The DELAY TIMER button makes it possible to delay the start of a wash
programme by 1 to a maximum of 19 hours.
0 1. Select wash programme.
2. Press DELAY TIMER button.
3. Press START/PAUSE button.
When start delay has been set, the DELAY
TIMER display lights up.
Depress the DELAY TIMER button until the desired start delay appears,
e. g. 12h for a 12 hour delay to the start of the programme. If19h is
displayed and the button is pressed again, then the delay timer is cancelled. The duration of the set wash programme will now appear in the
display in minutes, e. g.120.
The set delay timer can also be cancelled it the programme selector is
set to the OFF position.
Soaking duration
With depressed PRE WASH button, by pressing the DELAY TIMER button, the duration of soaking can be extended by 1 to a maximum of 19
hours.
0 1. Press the PRE WASH button.
2. Press DELAY TIMER button.
Soaking is set, the WASH TIME indicator illuminates.
The soaking time is now increased by 1 hour.
3. By repeated pressing of the DELAY TIMER button, the soaking times can
be increased in steps of an hour.
The WASH TIME and DELAY TIMER displays light up.
22
Operating Instructions
Opening and closing the door
0
0
3
Open: Press the DOOR/LIGHT button. The door springs
open.
Close: Press the door firmly closed.
When the unit is switched on, the DOOR/LIGHT display
shows whether the door can be opened:
– green: The door can be opened (not when programming is activated, see the section "Programme protection“ for details)
– off:
Door cannot be opened
– red:
Door is open
The washing drum is illuminated when the door is open. The light goes
out automatically after approx. 3 minutes.
Loading the Washing
For maximum load, see “Programme Tables”.
See “Sorting and Preparing a Wash Load” for information on how to
prepare washing correctly.
0 1. Sort and prepare the washing according to type and colour.
2. Open the door: Press DOOR/LIGHT button.
Door springs open.
3. Load the washing.
Important! Do not trap washing when
closing the door. The fabrics and the appliance could be damaged.
4. Close the door firmly.
3
23
Operating Instructions
Add detergent/conditioner
For information concerning detergent and conditioners see the section
“Detergent and Conditioners”.
0 1. Open the detergent dispenser drawer:
grasp the drawer at the flap at the bottom (1), and pull out the drawer to its
full extent (2).
3
2. Add detergent/conditioner.
Compartment for in-wash stain
treatment/tablets
Only for STAIN programme option.
Compartment for washing powder/
tablets for main wash
(If you use water softener and need the
right compartment for the pre-wash
detergent/soaking agent, add the water
softener to the main wash detergent in
this compartment.)
Compartment for liquid conditioner
(softener, finisher, starch)
Important! Do not fill compartment above the MAX mark.
Concentrated conditioner may need to be diluted up to the
MAX mark; dissolve starch powder.
Information: A small amount of residual water in the
compartment for liquid conditioners is normal and will
not affect the rinse results.
Compartment for pre wash detergent/soaking agent
Only for PRE WASH programme option
or for water softener.
3. Push the detergent dispenser drawer in fully.
3
24
If using liquid detergent/tablets:
Use the dispensing containers supplied by the detergent industry for
adding liquid detergent or tablets. Follow the instructions on the detergent package.
Operating Instructions
Starting the wash programme
0 1. Check that the water tap is open.
2. Starting the wash programme: Press the
START/PAUSE button.
The wash programme is started or starts after
the end of the time delay set.
3
If the DOOR/LIGHT indicator flashes red when pressing the START/
PAUSE button, then the door is not properly closed. Press the door
firmly closed and press the START/PAUSE button again.
If a delay start has been set:
The delay time set counts down, the remaining time until the start of
the programme is displayed in the multi display (in hours remaining).
During this time, you can add washing or change the delay time or
cancel it.
• Adding washing: Press the START/PAUSE button. The door can be
opened. Then close the door and press the START/PAUSE button
again.
• Changing or stopping the delay time: Press the DELAY TIMER button
until the desired time is displayed; when the duration of the programme is displayed (e. g. 120 minutes) the wash programme starts
immediately.
25
Operating Instructions
Washing Programme Progress
Programme progress display
Prior to the start, the programme steps chosen are
displayed by the Programme progress display.
During the washing programme the current
programme step is displayed.
Multi display
The expected time remaining (in minutes)
up to the end of the programme is shown
in the Multi display.
3
The multi display indicates the estimated duration, in minutes, of the
programme. These timings are estimates and can vary according to incoming water temperature, type and quantity of laundry, out of balance spin detection and foam detection. During the programme
countdown, the remaining time can be recalculated due to any of the
above factors.
Changing spin speed
During the washing programme, the spin speed can still be changed or
RINSE HOLD can be set.
Other settings cannot be changed.
26
0
Stopping the programme
Turn the progamme selector to OFF in order to stop the washing
prematurely.
3
The programme can be interrupted at any time with the START/PAUSE
button and can be continued again by pressing this button again.
Operating Instructions
Washing cycle complete/Removing the washing
Once the wash programme has come to an end the END indicator illuminates on the programme progress display.
• If the EASY IRON programme was selected, and anti-crease phase of
approximately 30 minutes follows the programme end. Here, the
multi display shows the remaining time and the END indicator illuminates. During the anti-creasing phase, the door can be opened at any
time and the washing can be removed.
• If RINSE HOLD was selected, the display next to the
START/PAUSE button flashs.
0 1. After a rinse hold, the water must first be pumped out:
– Either press the START/PAUSE button (water is pumped out and the
washing is spun according to the completed programme; using the
RINSE HOLD spin speed button, it is possible to change the spin speed
during spinning),
or
– Turn the programme selector to DRAIN and press the START/PAUSE
button (the water is pumped off without spinning),
or
– Turn the programme selector to SPIN or SHORT SPIN and press START/
PAUSE button (water is pumped out and the washing is spun accordingly).
After the end of this programme step, the END display lights up.
2. Open the door.
As soon as the indicator next to the DOOR/LIGHT button is green, the
door can be opened (not if programme security is activated. For details
see „Programme security„).
3. Remove the washing.
4. Turn the programme selector to OFF.
5. After washing, pull the washing detergent drawer out a little so that it
can dry out. Leave the door ajar so that air can circulate in the drum.
3
If the display OVER DOSING lights up, too much
washing detergent was used in the washing program
just ended. During the next wash, pay attention to
the dosing information of the washing detergent
manufacturer and pay attention to the filling quantity!
Caution! If the washing machine is not used for a long time:
Close the water tap and disconnect the washing machine from the
electricity mains. (Anti-flood system Aqua Control with Aqua Alarm
does not function if the power supply is interrupted.)
27
Operating Instructions
Programme Tables
Washing
The tables do not show all the possible settings, only those most likely
to be selected for everyday purposes.
Type of washing,
Care symbol
Cottons/Coloureds3)
èç
Cottons/Coloureds
ëèç
Max. Load1)
(Dry weight)2)
6kg
ENERGY SAVING 60
6kg
COTTONS/LINEN,
EASY-CARES
20 to 95
PRE WASH
SENSITIVE
STAIN
TIME SAVER
3kg
REFRESH 30
3kg
COTTONS/LINEN,
EASY-CARES
20 to 60
PRE WASH
SENSITIVE
STAIN
TIME SAVER
1kg
EASY IRON4) 40
PRE WASH
STAIN
TIME SAVER
3kg
REFRESH 30
3kg
(or 15-20m2
net curtains)
3kg
28
Possible
Programme
options or
functions
PRE WASH
SENSITIVE
STAIN
TIME SAVER
Easy-Cares3)
îí ê
Delicates
ì
Programme selector
Temperature [in °C]
DELICATES 30, 40
FASHION 40
PRE WASH
STAIN
TIME SAVER
Operating Instructions
Type of washing,
Care symbol
Max. Load1)
(Dry weight)2)
Possible
Programme
options or
functions
Programme selector
Temperature [in °C]
Wool/ Handwash
9ìï
2kg
WOOL/P COLD to 40
Silk/Handwash ï
1kg
SILK/P 30
TIME SAVER
1) The load amount inquiry operates in accordance with the EN 60456 standard
load.
2) A 10 litre bucket holds around 2.5kg of dry clothes (cotton).
3) Programme settings for testing in accordance with or in support of standard EN
60 456 and IEC 60 456, are described in the Chapter “Consumption Values and
Programme Times“.
4) Creasing can be largely avoided by keeping wash loads under 1kg (roughly 5 to 7
easy-care men's shirts).
Separate Rinse/Conditioning/Starching/Treating
Max. load
(dry weight)
Programme selector
Cottons/Coloureds
6kg
STARCHING
Wool/Handwash
2kg
STARCHING + TIME SAVER
button
Type of washing
Separate Spinning
Type of washing
Max. load
(dry weight)
Cottons/Coloureds
6kg
Easy-Cares
3kg
Delicates
3kg
Wool/Handwash
2kg
Silk
1kg
Programme selector
SPIN
SHORT SPIN
29
Operating Instructions
Cleaning and Care
Control panel
0
Important! Do not use any furniture cleaning agents or aggressive
cleaning agents in order to clean panel and control parts.
Wipe control panels with a damp cloth. When doing so, use warm water.
Detergent Drawer
The detergent drawer should be cleaned from time to time.
0 1. Pull the detergent drawer out as far as it will go.
2. Remove the detergent drawer by pulling sharply.
3. Take the conditioner insert out of the
middle compartment.
4. Clean the conditioner insert under
running water.
5. Clean the compartments with warm
water from the rear side. It is best to
use a flat brush.
6. Push on the conditioner insert as far as it will go so that it is securely in
place.
30
Operating Instructions
7. Use a brush to clean the entire
rinsing-in section of the washing
machine, particularly also the nozzles on the top side of the rinsingin chamber.
8. Set the detergent drawer into the
guide tracks and push in.
Washing Drum
0
The washing drum is made of stainless steel. Rusting foreign bodies in
the washing can cause rust deposits on the drum.
Important! Do not clean the stainless steel drum with decalcifying
agents containing acids, scouring agents containing chlorine or iron, or
steel wool. Our Customer Service can provide suitable agents.
Remove any rust deposits on the drum using a stainless steel cleaning
agent.
Main door
0
Check on a regular basis to see if deposits or foreign objects are present
in or at the rubber sleeve behind the door, and remove.
31
Operating Instructions
What to do if...
Remedying faults
In the event of a fault, try to solve the problem yourself with the aid of
the information provided here. If you use the Customer Service for one
of the faults listed here or to remedy an operating error, the Customer
Service technician's visit will not be free of charge, even during the
warranty period.
• If the fault code C1 or C2 is shown in the
Multi-display, you may be able to remedy
the problem yourself (see the faults table
below). When you have remedied the fault,
press the START/PAUSE button.
• With all other displayed faults (C plus number or letter): switch appliance off and on again. Reset the wash programme and press the
START/PAUSE button.
If the fault code is displayed again, please contact the Customer Service
department quoting the fault code.
Problem
Possible cause
Remedy
The mains plug is not
plugged in.
Plug in the mains plug.
The house fuse has blown.
Replace the fuse.
Washing machine does
Door is not properly closed.
not work.
Close door; Lock must engage audibly .
Keep the START/PAUSE butSTART/PAUSE button has not
ton pressed until the probeen pressed long enough.
gramme starts.
Door cannot be closed.
Water is not entering.
Error code (1 appears.
Child safety feature is
switched On.
Cancel child safety feature
(see section „Child safety
feature“).
Water tap is closed.
Open water tap.
Close water tap. Disconnect
Filter in the socket of the inhose from water tap, remove
let hose connection is
filter and clean under
blocked.
running water.
Water tap is blocked with
limescale or is faulty.
32
Check the water tap and
have it reaired if necessary.
Operating Instructions
Problem
Possible cause
Remedy
Transport packaging has not
been removed.
Remove transport packaging
according to setting up and
connection instructions.
The machine is not level.
Adjust the feet according to
installation and connection
instructions.
Washing machine viThere is very little washing in
brates during operation the drum (e.g. only a dressing This does not affect the operation of the machine.
or is unstable.
gown).
Water could not be fully
pumped out before spinning
because the drain hose is
kinked or water pump is
blocked.
Check the drain hose and remove any kink if necessary,
or clean the drain pump and,
if necessary, remove foreign
bodies from the pump housing.
If may be necessary to reduce the amount of deterExcessive foaming dur- Probably too much detergent
gent used. Follow the
ing the main wash.
has been used.
detergent manufacturer’s
recommendations.
The screw Connection on the Tighten the inlet hose screw
inlet hose is leaking.
connection.
Water leaks out of the
washing machine.
Drainage hose is leaking.
Check the drain hose and replace it if necessary.
The drain pump cover is not
correctly close.
Close cover correctly.
Washing is caught in the
door.
Stop the programme, remove
the washing caught in the
door. Restart the programme.
The emergency emptying
hose is not correctly closed
or is leaking.
Close the emergency emptying hose (see section „Carry
out emergency emptying“).
Call your local Service Force
Centre if the emergency
emptying hose is leaking.
33
Operating Instructions
Problem
Possible cause
Remedy
The drain pump runs
constantly - even when The Aqua Control anti-flood
the appliance is
system has been activated.
switched off.
Close the water tap, remove
the mains plug and inform
your local Service Force Centre.
Fabric softener was not
rinsed in, compartment æ for conditioners is filled with water.
The insert in the compartiment for conditioners is not
correctly attached or is
blokked.
Clean the detergent dispenser drawer and attach the
conditioner insert correctly.
Washing is heavily
creased.
Probably too much washing
has been put in drum.
Pay attention to the maximum load quantity (see programme tables). In the case
of easy-care fabrics select
the EASY IRON programme.
The washing has not
been spun as dry as
usual.
The washing was not able to Always load the drum as ful
be distributed evenly in the as possible with a combinadrum prior to spinning.
tion of large and small items.
Drain hose is kinked.
Maximum pump height
(emptying height 1m from
The washing is not suf- base surface of the applificiently spun. Water is ance) is exceeded.
left in the drum.
Error code (2 appears.
Drain pump is blocked.
Remove the kink.
Contact your local Service
Force Centre. For pumping
heights over 1 m a conversion kit is available as a special accessory.
Switch off appliance and pull
out the mains plug. Clean
the drain pump.
At the siphon connection: SiClean siphon.
phon is blocked.
The door is locked for safety
Wait until the DOOR/LIGHT
reasons (DOOR/LIGHT display
display lights up green.
is off).
The door cannot be
opened when appliance
is switched on.
The programme security
function is On.
34
Cancel programme security
(see section „Programme
protection“).
Operating Instructions
Problem
Possible cause
Water tap is not fully
opened.
Remedy
Open water tap fully.
Remnants of detergent
Close the water tap. Unscrew
are building up in the The inlet hose filter in the
the inlet pipe from water tap
detergent drawer.
coupling of the inlet hose at
and from the appliance and
the tap is blocked.
clean the filter.
The rinse water is
cloudy.
The cause is probably a detergent with a high silicate
content.
No negative influence on the
rinse results, use a liquid detergent if necessary.
When pressing a proThe selected programme opgramme option button
tion cannot be combined
Make another selection.
the corresponding diswith the set programme.
play does not light up.
Programme security is
switched On; the proProgramme cycledisgramme selector has been
play flashes constantly.
moved during the wash cycle.
Turn programme selector to
its original position (see
„Programme security“).
35
Operating Instructions
If the washing results are not satisfactory
If the washing has turned grey and if limescale is deposited in the
drum, then
• Too little detergent was used.
• The wrong detergent was used.
• Special soiling was not pre-treated.
• Program or temperature not set correctly.
• If multi-component detergents are used, the individual components
were not used in the correct ratio.
If there are still grey spots on the washing,
• Washing soiled with ointments, grease or oils was washed with too
little detergent.
• Too lower temperature was used for washing.
• A frequent cause is that softener - particularly that in concentrated
form - has reached the washing. Wash out such spots quickly and use
the softener concerned carefully.
If at the end of the last rinse foam is still visible
• Modern detergents can also cause foam in the last rinse. However,
the washing is still sufficiently rinsed.
If there are white remnants on the washing
• These are insoluble components of modern detergents. They are not
the result of an insufficient rinsing effect.
Shake or brush out the washing. In future, perhaps you should turn
the washing inside out before washing it. Examine your choice of detergent and if necessary use liquid detergent.
36
Operating Instructions
Carrying out emergency drainage
• If the washing machine no longer pumps off the washing solution,
emergency drainage must be performed.
• If the washing machine is in a room where there is a risk of frost,
emergency drainage must be performed if there is a possibility of
frost.
In addition: unscrew the inlet hose form the water tap and place it on
the floor. Empty the drainage hose.
Warning! Switch off the washing machine before performing emergency drainage and pull out the mains plug.
Caution! The washing solution escaping from the emergency drainage
hose may be hot. There is a risk of scalding! Allow the washing solution
to cool down before performing emergency drainage.
0 1. Place a flat collecting vessel in order to collect the washing solution
which is draining off.
2. Fold open the flap in the right section
of the base outwards and pull it off.
1
3. Remove the emergency drainage hose
from its holder.
4. Place the container under the hose.
5. Detach the plug of the emergency
drainage hose by turning it anticlockwise and pull it out.
The washing solution runs out. Depending on the amount of solution, it may
be necessary to empty the collecting
vessel several times. To do this, close the
emergency drainage hose temporarily
with the plug.
37
Operating Instructions
When the water is completely drained:
6. Push the plug securely into the emergency drainage hose and turn it
clockwise to secure it.
7. Replace the emergency drainage hose in its holder.
8. Put on the flap and close.
Drain pump
The drain pump is maintenance free. The cover of the drain pump must
only opened in the event of a malfunction when no more water is being pumped out, e.g. if the pump is blocked.
Before loading the machine, please always ensure that there are no foreign objects left in the pockets or in between the items to be washed.
Paper clips, nails etc. which may find their way into the washing machine along with the washing will remain in the drain pump housing.
To restart the drain pump when it is blocked, please proceed as follows:
Warning! Switch off the washing machine and remove the mains plug
before cleaning the drain pump!
0 1. First carry out an emergency emptying procedure (see section “Carrying
out emergency emptying”).
2. Place a cloth on the floor in front of the cover of the drain pump.
Residual water may run out.
3. Unscrew the drain pump cover in an
anti-clockwise direction and pull it out.
1
4. Remove any foreign objects and fabric
lint from the pump housing.
38
Operating Instructions
5. Replace the pump cover. Laterally insert
the webs on the cover into the guide
slots and screw on the cover in a clockwise direction.
6. Close the emergency emptying hose and
place it in the holder.
7. Close the flap.
Emergency unlocking of the door
If the filling door can no longer be opened, it can be opened with the
aid of the emergency unlocking facility.
Warning! Switch off the washing machine before operating the emergency unlocking and remove the plug from the mains!
0 1. If water is visible in the door's window, first perform emergency emptying (see the section "Carrying out emergency emptying“).
2. Open the flap downwards in the right
part of the base panel.
3. Turn the rotary knob clockwise using a
coin. The filling door springs open.
1
39
Operating Instructions
Additional Rinse RINSE+
The washing machine is set for very economical water consumption.
However, for persons who suffer from allergies to detergents, it can be
helpful to rinse with extra water.
3
If this function is set, an additional rinse cycle is carried out for the
COTTONS/LINEN, EASY-CARES, EASY IRON and DELICATES programmes.
When the appliance is supplied from the factory, the additional rinse
function is not set.
Setting the additional rinse function:
0 1. Turn the programme selector to SHORT SPIN.
2. Press the SENSITIVE button for at least 5 seconds. After the button has
been pressed for 5 seconds, RINSE+ will flash in the programme
progress display for 5 seconds.
3. While RINSE+ is flashing, release the SENSITIVE button. Once the flashing has stopped, the additional rinse has been set. It will remain set until it is cancelled again. When the additional rinse has been set, the
RINSE+ indicator in the programme progress display is illuminated before the programme starts and during the additional rinse.
4. If you wish to check whether the additional rinse is set:
– Turn the programme selector to SHORT SPIN.
– Press the SENSITIVE button briefly.
If RINSE+ flashes in the programme progress display the additional
rinse has been set.
Cancelling the additional rinse:
0 1. Turn the programme selector to SHORT SPIN.
2. Press the SENSITIVE button for at least 5 seconds.
Immediately the button is pressed RINSE+ will flash in the programme
progress display. After 5 seconds RINSE+ will stop flashing and remain
constantly illuminated for a further 5 seconds.
3. While RINSE+ is constantly illuminated, release the SENSITIVE button.
Once RINSE+ is no longer illuminated the additional rinse has been
cancelled.
3
40
An additional rinse cycle increases water consumption and the programme duration.
Operating Instructions
Water Cooling
It may be necessary to cool down the water before pumping it out in
order to prevent thermal damage to the plastic drainage pipes.
3
The water is cooled down before pumping out at the end of the main
wash cycle (by adding cold water). This setting only works on the
COTTONS/LINEN, EASY-CARES programme when the temperature is
above 40 °C.
When the appliance is supplied water cooling is not set except for the
SENSITIVE programme option.
Setting the water cooling function:
0 1. Turn the programme selector to SHORT SPIN.
2. Press the PRE WASH button for at least 5 seconds. After the button has
been kept pressed for 5 seconds, MAIN WASH flashes on the programme progress display for 5 seconds.
3. Release the PRE WASH button while MAIN WASH is flashing. Once it
has stopped flashing, the water cooling function is set. It remains set
until it is cancelled again.
4. If you wish to check whether the water cooling function is set:
– Turn the programme selector to SHORT SPIN.
– Press the PRE WASH button briefly.
When MAIN WASH flashes in the programme progress display, the water cooling function is set.
Cancelling the water cooling function:
0 1. Turn the programme selector to SHORT SPIN.
2. Press the PRE WASH button for at least 5 seconds. MAIN WASH flashes
in the programme progress display as soon as the button is pressed. After 5 seconds MAIN WASH will stop flashing and remain constantly illuminated for 5 seconds.
3. While MAIN WASH is constantly illuminated, release the PRE WASH
button. Once MAIN WASH is no longer illuminated, the water cooling
function has been cancelled.
3
Water cooling increases water consumption and the programme duration.
Additional Rinse and Water Cooling
You can combine the additional rinse cycle with water cooling. Setting
as for “Additional Rinse” and “Water Cooling”.
41
Operating Instructions
Variomatic Loose Spin
A spin function that can be set as an integrated part of the final spin.
The washing clings less to the drum wall and can be removed more easily. May be selected with COTTONS/LINEN, EASY-CARES.
Setting loose spin:
0 1. Turn the programme selector to SHORT SPIN.
2. Press the STAIN button for at least 5 seconds.
After the button has been kept pressed for 5 seconds, END flashes on
the programme progress display for 5 seconds.
3. Release the STAIN button while END is flashing. Once it has stopped
flashing, the loose spin function has been set. It will remain set until it
is cancelled again.
4. If you wish to check whether the loose spin function is set:
– Turn the programme selector to SHORT SPIN.
– Press the STAIN button briefly.
If END flashes in the programme progress display, the loose spin function has been set.
Cancelling loose spin:
0 1. Turn the programme selector to SHORT SPIN.
2. Press the STAIN button for at least 5 seconds.
END flashes in the programme progress display as soon as the button is
pressed. After 5 seconds END will stop flashing and remain constantly
illuminated for 5 seconds.
3. While END is constantly illuminated, release the STAIN button. Once
END is no longer illuminated, the loose spin function has been cancelled.
42
Operating Instructions
Programme Protection
To safeguard a programme setting against unwanted changes (e. g.
program selector turned, option buttons pressed etc.), you can set the
programme protection. This prevents your washing being damaged.
3
It is possible to set or cancel the programme protection at any time
during a programme.
Selecting programme protection:
0 1. Select the desired wash programme settings.
2. Press the START/PAUSE button to start the programme.
3. Press and hold down the PRE WASH and SENSITIVE buttons simultaneously for 5 seconds. The programme progress indicator will flash for
5 seconds; programme protection has been set.
3
As long as the programme protection is set, you cannot make any other
settings. The door cannot be opened using the DOOR/LIGHT button.
Even after the wash cycle has finished you will need to cancel the programme protection before you can open the door.
If an attempt is made to change the selected settings during the wash
cycle by activating a button, the programme progress display will flash
for 5 seconds.
If you attempt to change the selected setting by turning the programme selector, the programme progress display will flash until the
original setting of the programme selector is restored. The wash cycle is
not influenced in either case.
3
The programme selector must be in its original position in order to cancel the programme protection.
0
Cancelling programme protection:
Press and hold down the PRE WASH and SENSITIVE buttons simultaneously for 5 seconds. The programme progress indicator flashes for
5 seconds and then remains illuminated constantly for 5 seconds. Programme protection has been cancelled.
43
Operating Instructions
Child Safety Feature
If the child safety feature is set,
the filling door can no longer be
closed and no washing program
can be started.
0
1
0
44
Setting the child safety feature
Use a coin to turn the rotary knob
on the inside of the filling door
clockwise as far as it will go.
Warning! The rotary knob must
not be in a vertical position after
adjustment, otherwise the child
safety feature is not active. The rotary knob must project as shown in
the diagram
Cancelling the child safety
feature
Turn the rotary knob anticlockwise
as far as it will go.
Installation and connection instructions
Installation and connection instructions
Installation Safety Precautions
• Do not tilt the washing machine onto its front or onto its right side
(viewed from the front). Electronic components can get wet.
• Check the washing machine for transport damages. A damaged unit
must never be put into operation under any circumstances. In the
event of damage, please contact your supplier.
• Ensure that all parts of the transport safeguard are removed and that
the unit is splash protected, see "Removing transport safeguard".
Otherwise, the units or neighbouring furniture can be damaged when
spinning.
• Always insert the plug into a correctly installed earthed socket.
• In the case of permanent connection: A permanent connection may
only be made by an authorised specialist.
• Before putting the machine into operation, ensure that the mains
voltage and current type shown on the unit's rating plate correspond
with those at the place where the machine is being installed. The fuse
rating is also found on the rating plate.
• Should work be carried out on the water supply installations in order
to allow the machine to be connected properly to the water supply,
this work must be carried out by an authorised installer.
• Should work be carried out on the mains supply in order to allow the
machine to be connected properly to the electricity supply, this work
must be carried out by an authorised electrician.
• The mains lead may only be replaced by the customer service or by an
authorised electrician.
45
Installation and connection instructions
Installation of the appliance
3
Washing machines with curved panels are not suitable for installing
under units.
Transporting the appliance
• Do not place the washing machine on its front or on its right side
(viewed from the front). Otherwise, electrical components can get
wet.
• Never transport the unit without the transport safeguard. Do not remove the transport safeguard until the appliance is at the installation
location. Transporting the unit without the transport safeguard can
damage it.
• Lift the appliance neither by an open filling door nor by the base.
When transporting the unit with a sack trolley:
• Attach the sack trolley only at the side. The sack trolley shovel must
not be longer than 24 cm, otherwise the float switch can be destroyed.
Remove transport packaging
Important! It is essential to remove the transport packaging before putting the appliance into
operation. Keep all parts of the
transport packaging in a safe
place for future use.
0 1. Open both hose holders on the
appliance's rear side and remove
the hoses and mains cable.
46
Installation and connection instructions
2. Pull both hose holders off the appliance with a strong pull.
3
The special spanner (A) and the
caps (B) (2 each) and (C) (1 each)
are supplied with it.
3. Remove the screw D, including
the compression spring with the
special spanner A.
4. Cover the hole with the cap C.
Important! When fitting the
plastic caps, press until they snap
into the rear panel securely.
5. Remove the two screws (E) with
the special spanner (A).
6. Remove the 4 screws (F).
7. Remove the transit bar (G).
8. Screw the 4 screws (F) back in for
safe keeping.
9. Close the 2 large holes with the
caps (B).
Important! When fitting the
plastic caps, press until they snap
into the rear panel securely.
47
Installation and connection instructions
Prepare the installation place
• The installation surface must be clean and dry, free of floor polish
residues and other greasy coatings so that the unit does not slip
away. Do not use lubricants as a sliding aid.
• Installation on a high-veil carpet or floor tiles with soft sponge backs
is not recommended because the standing safety of the appliance is
then no longer ensured.
• By installation surfaces with small-format tiles, lay a conventional
rubber mat underneath.
• Minor unevenness of the floor surface should never be levelled out by
laying pieces of wood, card or similar materials, but rather should always be compensated for by adjusting the screw feet.
• If, for space reasons, it is not possible to avoid setting up the unit directly next to a gas or coal-fired cooker: install a thermal insulation
panel between the cooker and washing machine (85 x 57cm) which
must have an aluminium film on the side against the cooker.
• The washing machine must not be set up in a room where there is a
danger of frost. Frost hazard!
• Flexible feed and drain tubings may not be crinkled or squeezed.
Installation on a concrete base
If the unit is set up on a concrete base,
for safety reasons it is essential to fit
stand plates in which the washing machine is adjusted. The stand plates are
available from Customer Service under
the spare parts number 645 425 058.
Installation on vibrating floors
Where the floor vibrates, particularly in the case of wooden beam
floors with pliable boards, securely screw a water-resistant wooden
panel at least 15mm thick onto at least 2 floor planks. If possible, set up
the unit in the corner of a room, as the wooden floor is optimally restrained there and is therefore least likely to be subject to resonance vibrations.
48
Installation and connection instructions
Compensate for floor unevenness
Automatic adjustment foot: The rear left foot of your washing machine is designed as a spring leg. This means that it guarantees that
your unit will stand securely even at high spin speeds.
If, nevertheless, the washing machine is unstable during spinning,
please proceed as follows:
0 1. Set the three adjusted feet at the
nominal value of 10 mm. To do
this, use the supplied special
spanner to remove the transport
safeguard.
If the automatically adjusting
foot does not reach the floor:
2. Automatic adjustment foot (rear
left) manually for extending the
reqired dimension.
3. If necessary, check the setting
with a spirit level.
Caution! Never use wood, card or
similar underlays to level out minor
floor unevenness. Instead, always adjust
the adjustment foot.
3
49
Installation and connection instructions
Electrical connection
Details of the mains voltage, current
type and required fuses can be
found on the rating plate. The rating plate is located at the top
above the filling door.
For permanent electrical connection
within the electrical circuit, provisions must be made which allow for electrical disconnection of the appliance from the mains with a contact opening of at least 3 mm at all
poles. Suitable devices include circuit breakers, fuses (threaded fuses
must be entirely removed from the socket), ground fault circuit interrupters and contactors. Permanent connection may only be carried out
by an authorised electrician.
;
This appliance complies with the following EC directives:
– The "Low Voltage Directive" 72/23/EU with changes
– The "EMC Directive" 89/336/EU with changes
Water connection
3
The washing machine has safety features which prevent back-contamination of the drinking water and which conform to the national regulations of the water authorities (e.g. for Germany: DVGW guidelines).
This means that additional protective measures in the installation are
not necessary.
Important!
– Units for connecting to cold water must not be connected to hot water.
– Use only new hose sets for the connection.
Permissible water pressure
The water pressure must be at least 1 bar (= 10 N/cm2 = 0.1 Mpa), maximum 10 bar = 100 N/cm2 = 1 Mpa).
• If more than 10 bar: Connect a pressure-reduction valve upstream.
• If less than 1 bar: Unscrew the inlet hose on the unit side at the solenoid intake valve and remove the flow regulator (to do this, remove
the filter with pointed pliers and take out the rubber washer behind).
Replace the filter.
50
Installation and connection instructions
Water inflow
A pressure hose 1.5m in length is supplied.
If a longer inflow hose is required, only a VDE-approved, complete set
of hoses with fitted hose screw connections offered by our Customer
Service is permissible.
– Hose sets in lengths of 2.2m, 3.5m and 5m are available for washing
machines without Aqua-Control.
– Hose sets in lengths of 2.0m, 2.9m and 3.9m are available for washing machines with Aqua-Control.
Caution! Never cut into pieces in order to extend the hoses!
Sealing rings are supplied either in the plastic
nuts of the hose screw connection or in the enclosed pack. Do not use other seals!
0 1. Connect the hose with the angled connection to
the machine.
3
Caution!
– Do not lay the infeed hose vertically downwards. Instead, turn
it to the right or left as shown
in the diagram.
– Tighten the hose connection
only by hand.
2. Connect the hose with the straight connection
to a water tap with a R 3/4 (inch) screw thread.
Caution! Only tighten the screw connection manually.
3. By slowly opening the water tap before putting
the washing machine into operation, check that
the connection is free of leaks.
51
Installation and connection instructions
Water drain
The drainage hose can either be connected to a siphon or hung in a
wash basin or discharge basin or a bath tub.
Only original hoses may be used for extensions (max. 3m laid on the
floor and then up to 80cm high). Customer Service stocks drainage
hoses in lengths of 2.7 and 4m.
Important! It is essential to lay the drainage hose without kinks.
0
Water drain-off inside a siphon
The grommet on the hose end fits all
standard siphon types.
Secure the connection between the
grommet and siphon with a hose clamp.
Water drain-off inside a basin
Important!
– Small basins are not suitable for
drainage. Water could overflow!
– The end of the drainage hose must not
be submerged in the pumped-out water. Otherwise, the water could be
sucked back into the unit.
0
– When hanging in a wash basin or a
bath tub, the drainage hose must be
secured with the supplied attachable
bend to prevent it slipping. The backsurge force of the escaping water
could otherwise force the hose out of
the basin.
Tie the bend to the tap or the wall using
a piece of string.
Delivery heads over 1m
To pump off the washing / rinsing solution, every washing machine has
a drain pump which carries liquids up to a height of 1m via the drainage hose, calculated from the machine's standing surface.
Please contact Customer Service for delivery heads of over 1m.
52
Technical data
Adjustment possibility
Filling quantity (program-dependent)
Area of use
Drum speed, spinning
Water pressure
Approx. +10 / -5mm
max. 6kg
Domestic
See rating plate
1-10 bar (= 10 - 100 N/cm2
= 0.1 - 1.0 Mpa)
Dimensions
(dimensions in mm)
53
Warranty conditions / Customer service centres
Warranty conditions / Customer service
centres
Weitere Kundendienststellen im Ausland
In diesen Ländern gelten die Garantiebedingungen der örtlichen Partner. Diese können
dort eingesehen werden.
Further after-sales service agencies overseas
In these countries our AEG agents’ own guarantee conditions are applicable. Please obtain further details direct.
Autres agences étrangères assurant le service après-vente
Dans ces pays, les conditions de garantie des concessionnaires de la région sont valables. Vous pouvez les consulter sur place.
Otros puntos de Postventa en el extranjero
En estos países rigen las condiciones de nuestros representantes locales. las cuales
pueden ser consultadas allí mismo.
Ulteriori uffici del servizio tecnico assistenza clienti all’estero
In questi paesi sono valide le condizioni di garanzia dei partner locali. Queste condizioni
possono essere esaminante sul luogo.
Serviços de assistência técnica no estrangeiro
Nestes países são válidas as condições de garantia dos concessionários locais, podendo
aí ser consultadas.
További vevöszolgálati irodák külföldön
Ezekben az országokban a mi AEG vevöszolgálatainknál saját jótállási feltételek alkalmazhatók. A további adatokat kérjük közvetlenül szerezzék be.
54
U.A.E. Abu Dhabi
Universal Trading Company
P.O. Box 43 99
Tel.: 335331
Jordan
Jordan Household
Supply Co. Ltd.
P.O. Box 3/68
Amman/Tel.: 69 70 50
Malta
ITC
International Trading Company
White House Building
Mountbatte Street
Blata L-Bajda/Tel.: 220644
Egypt
Middle East Commercial
Center
P.O. Box 19
Kairo-Heliopolis
Tel.: 29917/31634
Kanada
EURO-LINE Appliances
2150 Winston PARK Drive 20
Oakville, Ontario L6H 5V1
Tel.: 905 829 3980
Fax: 905 829 3985
Mauritius
Happy World Centre Ltd.
P.O. 7 54
1 Chausee Street
Port Louis
Tel.: 25355
Warranty conditions / Customer service centres
Australia
ANDI-Co Pty. Ltd
9 Kingston Town Close
Oakleigh VIC 3166
Tel.: (03) 9569 1235
Fax: (03) 9569 1450
Korea (South)
Core Incorp.
3/F Chewoo Bldg.
200 Nonhyun-Dong
Kangnam-Ku
Seoul
Telefon 82 2 549 89 61
Namibia
AEG NAMIBIA (PTY) LIMITED-Jeppe Street
Northern Industrial Area
Windhoek
Tel.: (061) 21-6082/4
Fax: (061) 217838
Bahrain/Arabian Gulf
A.A. Zayani & Sons
P.O. Box 9 32
Bahrain
Tel.: 261060
Croatia
Electrolux D.O.O.
Suplova 7
10000 Zagreb
Tel.: 1 61 19512
Fax: 1 61 19513
New Zealand
Euro-Life New Zealand Ltd.
Privat Bag
58 Symonds Street
Auckland
Tel.: (09) 525 2222
Bulgaria
Electrolux Bulgaria E.O.O.D.
91 Levski Blvd.
1000 Sofia
Tel.: 2 806676
Fax. 2 980 5276
Kuwait/Arabian Gulf
Ali Al-Ghanim Est.
P.O. Box 10 83
Tel.: 5322463
Fax: 5242114
Nouvelle Caledonie
Socometra N.C.
B.P. 483
Nouman
Tel.: 275444
Cyprus
Hadjikyrlakos & Sons Ltd.
Prodromou 121
P.O. Box 21587
Nicosia 1511
Service Telephones:
Nicosia 02 481226
Limassol 05 562182
Larnaca 04 633929
Paphos 06 932 699
Estonia
Electrolux Estonia Ltd.
Mustamäe tee 24
EE0006 Tallinn
Tel.: (372) 6 650 090
Fax: (372) 6 650 092
Lebanon
Adib & Assaferi
P.O. Box 539
Tripoli
Oman
Moshin Haider Darwish
P.O. Box 1 35
Muscat
Tel.: 703743
Latavia
Electrolux Latavia Ltd.
Terlaton Street 42/44
1011 Riga
Tel.: 371 2 297821
Fax: 371 2 821286
Poland
Electrolux Poland Sp. zo.o.
ul. Domaniewska 41
02-034 Warszawa
tel.: 022 874 33 33
fax: 022 874 33 00
Hongkong
Wo Kee Services Ltd.
585-609 Castle Peak Road
Kwai Chung N.T.
Hongkong
Tel.: 2494 4000
Lthuania
Electrolux Lthuania
Verkui 29
2600 Vilnus
Tel.: 372 272 3326
Fax: 372 272 3366
Russia
Electrolux Russia Ltd.
16 Olympiysky prospekt
129090 Moscow
Tel.: (095) 937 7837
Fax: (095) 926 5513
55
Warranty conditions / Customer service centres
56
Israel
Electricity & Electronic
Services-Evis LTD.
19 Hataasia st.
Raanana,
Industrial area 43654
Tel: 972-9-7448118
Fax: 972-9-7603618
e-mail:[email protected]
Malaysia
Arzbergh Engineering
No. 49A/B, Jalan Petaling
Utama 7
4600 Petaling Jaya
Tel.: 3 795 1084
Fax: 3 795 1082
Saudi Arabia
Alia Trading Corporation
P.O. Box 4101
King Abdul Aziz Street
Riyadh
Tel.: 4645977
Al Nahas Est.
Musaidia Market I
P.O. Box 1 15 29
Jeddah
Tel.: 6606852
Japan
Electrolux Japan Ltd.
Domestic Appliances Department
Maruzen Showa Warehouse
Building
Tookai 4-5-12, Ota-ku
143-006 Tokyo
Tel.: 0120-13-7117
Fax: 03-3790-5257
Singapore
Arzbergh Engineering
19 Tanglin Road 06-07
Singapore 247909
Tel.: 65 7356572
Fax: 7351124
Slovenia
Electrolux Slovenia D.O.O.
Traska Ul. 132
1000 Ljubljana
Tel.: 61 1234 137
Fax: 61 1234 238
Thailand
OLYMPIA Thai Ltd.
44 Ratchadapisek Road
10320 Bangkok
Tel.: 2 513 6111
Fax: 2 513 2574
Slovakia Rep.
Electrolux Slovakia S.R.O.
Seberiniho 1
821 03 Bratislava
Tel.: 02 4333 4322, 4355
Fax: 02 4333 6976
South Africa
AEG (Pty) Ltd.
55, 12th Road
P.O. Box 1 02 64
Kew/Johannesburg 2000
Tel.: 8069111
Hungary
Electrolux Lehel KFT
(AEG Div)
Erzsébet Királyné útja 87.
1142 Budapest
Tel.: 00361/467-3200
USA
ANDI Co. Appl. Inc. East
65 Campus Plaza
Edison, New Jersey 0837
USA/Tel.: (201) 2258839
Syria
Masri & Shami
P.O. Box 24 96
Damascus
Tel.: 214080
57
Index
Index
A
P
Aqua Control . . . . . . . . . . . . . . . . . . . . .15, 27
Automatic adjustment foot . . . . . . . . . . 9, 49
Pre-wash . . . . . . . . . . . . . . . . . 12, 20, 24, 28
Pre-wash detergent . . . . . . . . . . . . . . . . 9, 24
Programme option buttons . . . . . . . . 12, 28
Programme progress display . . . . . . . . . . . .10
Programme protection . . . . . . . . . . . . 23, 43
Pump out . . . . . . . . . . . . . . . . . . . . . . . . . . .27
C
Care agent . . . . . . . . . . . . . . . . . . . . . . . . 9, 18
Child safety feature . . . . . . . . . . . . . . .32, 44
Coloureds . . . . . . . . . . . . . . . . . . . . . . . .28, 29
Conditioner . . . . . . . . . . . . 9, 11, 19, 24, 29
Correcting a programme . . . . . . . . . . . . . . 10
Cottons . . . . . . . . . . . . . . . . . . .11, 17, 28, 29
Cottons/Linen, Easy-Cares . . . . . . . . . . . . . 28
Curtains . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Customer Service . . . . . . . . . .15, 31, 32, 59
D
Delay timer . . . . . . . . . . . . . . . . . . 10, 12,
Delicates . . . . . . . . . . . . . . . . . . . . . 11, 17,
Detergent . . . . . . . . . . . . . . . . . . 9, 18, 19,
Detergent drawer . . . . . . . . . . . . . . . . . . 9,
Drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Drain pump . . . . . . . . . . . . . . . . . . . . . . . 9,
22
28
24
24
11
38
E
Easy iron . . . . . . . . . . . . . . . . . . . . . . . . .12,
Easy-cares . . . . . . . . . . . . . . . . . . . 11, 17,
Emergency drainage . . . . . . . . . . . . . . . . . .
Emergency unlocking . . . . . . . . . . . . . . . . .
Energy Saving Programme . . . . . . . . . .12,
28
28
37
39
28
Rating plate . . . . . . . . . . . . . . . . . . . 9, 50, 59
Refresh . . . . . . . . . . . . . . . . . . . . . . . . . 12, 28
Rinse + . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Rinse hold . . . . . . . . . . . . . . . . . . . .11, 21, 27
Rinsing . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Risk of frost . . . . . . . . . . . . . . . . . . . . . . 6, 37
S
Sensitive . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Short spin . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Silk . . . . . . . . . . . . . . . . . . . . . . . . . .11, 17, 29
hand-washable . . . . . . . . . . . . . . . . . . . . .11
Soaking . . . . . . . . . . . . . . . . . . . . . . . . . 12, 22
Soaking agent . . . . . . . . . . . . . . . . . . . . . . .24
Softener . . . . . . . . . . . . . . . . . . . . . . . . . 8, 24
Spinning . . . . . . . . . . 11, 19, 21, 23, 26, 29
Stain . . . . . . . . . . . . . . . . . . 9, 12, 20, 28, 36
Starching . . . . . . . . . . . . . . . . . . . . . . . . 11, 29
T
F
Time Saver . . . . . . . . . . . . . . . . . . . . . . . 13, 28
Fashion . . . . . . . . . . . . . . . . . . . . . . . . . .12, 28
U
H
Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Handwash . . . . . . . . . . . . . . . . . . . . . . .11, 29
W
I
Warranty . . . . . . . . . . . . . . . . . . . . . . 6, 32, 54
Wash time . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Washing powder . . . . . . . . . . . . . . . . . . 9, 18
Water
hardness . . . . . . . . . . . . . . . . . . . . . . . 8, 18
pumping out . . . . . . . . . . . . . . . . . . . 11, 27
softener . . . . . . . . . . . . . . . . . . 8, 9, 18, 24
Water Cooling . . . . . . . . . . . . . . . . . . . . . . .41
Wool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Woollens . . . . . . . . . . . . . . . . . . . . . . . . 11, 17
hand-washable . . . . . . . . . . . . . . . . . . . . .11
In-wash stain treatment . . . . . . . . . . . . 9, 24
L
Linen . . . . . . . . . . . . . . . . . . . . . . . . . . . .11, 17
Load . . . . . . . . . . . . . . . . . . . . . . . . . . . .14, 28
M
Multi-display . . . . . . . . . . . . . . . . . 10, 32, 59
O
Opening the door . . . . . . . . . .23, 27, 39, 43
Over-dosed . . . . . . . . . . . . . . . . . . . . . . . . . 27
58
R
Service
Service
In the chapter "What to do if...“ , some faults are listed which you can
remedy yourself. Look there first if a fault occurs. If you do not find any
information there, please consult your Customer Service. (You can find
the addresses and telephone numbers in the section "Customer Service
Centres“.)
Always prepare in advance for the discussion. By doing so you will simplify the diagnosis and the decision on whether customer service is
necessary.
Note the PNC number and S. number. You will find both on the rating
plate on the inside of the door of
your washing machine.
PNC .....................................................
S. No. .....................................................
Answer as precisely as possible:
• What form does the fault take?
• Under what circumstances does the fault occur?
• Does the multi display show an error message?
When do you incur costs even during the warranty period?
– If you could have remedied the fault yourself with the aid of the fault
table (see the section "What to do if..."),
– If several journeys by the customer service technician are necessary
because for example he did not receive all the important information
before his visit and must collect spare parts. These multiple trips can
be avoided if you prepare your phone call as described above.
59
From the Electrolux Group. The world´s No.1 choice.
The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor
use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines,
vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more
than 150 countries around the world.
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
822 943 585-01-170403-01
Subject to change without notice
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
