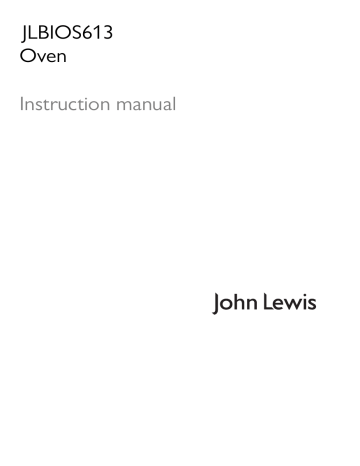

JLBIOS613
Oven
Instruction manual
Safety information
It is most important that this instruction book should be retained with
the appliance for future reference. Should the appliance be sold or
transferred to another owner, or should you move house and leave the
appliance, always ensure that the book is supplied with the appliance in
order that the new owner can get to know the functioning of the
appliance and the relevant warnings.
These warnings have been provided in the interest of safety. You MUST
read them carefully before installing or using the appliance. If you are
unsure of the meanings of these warnings contact the John Lewis
branch from which you purchased the appliance.
• If the appliance has a child safety device,
we recommend that you activate it.
Before the installation and use of the
appliance, carefully read the supplied
instructions. The manufacturer is not
responsible if an incorrect installation and
use causes injuries and damages. Always
keep the instructions with the appliance for
future reference.
Installation
Warning! Only a qualified person
must install this appliance.
Children and vulnerable
people safety
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied
with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always wear
safety gloves.
• Do not pull the appliance by the handle.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is installed
below and adjacent safe structures.
• The sides of the appliance must stay
adjacent to appliances or to units with the
same height.
Warning! Risk of suffocation, injury
or permanent disability.
• Do not let persons, children included,
with reduced physical sensory, reduced
mental functions or lack of experience and
knowledge use the appliance. They must
have supervision or instruction for the
operation of the appliance by a person
who is responsible for their safety.
• Do not let children play with the
appliance.
• Keep all packaging away from children.
• Keep children and pets away from the
appliance when it operates or when it
cools down. Accessible parts are hot.
Electrical connection
Warning! Risk of fire and electrical
shock.
2
Use
• All electrical connections should be made
by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the power
supply. If not, contact an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Contact the Service or an electrician to
change a damaged mains cable.
• Do not let mains cables to come in touch
with the appliance door, specially when
the door is hot.
• The shock protection of live and insulated
parts must be fastened in such a way that
it cannot be removed without tools.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you disconnect
the appliance from the mains at all poles.
The isolation device must have a contact
opening width of minimum 3 mm.
Warning! Risk of injury, burns or
electric shock or explosion.
• Use this appliance in a household
environment.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
• Internally the appliance becomes hot
when in operation. Do not touch the
heating elements that are in the appliance.
Always use oven gloves to remove or put
in accessories or ovenware.
• Be careful, when you open the appliance
door while the appliance is in operation.
Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work
surface or as a storage surface.
• Always keep the appliance door closed
when the appliance is in operation.
• Open the appliance door carefully. The
use of ingredients with alcohol can cause a
mixture of alcohol and air.
• Do not let sparks or open flames to come
in contact with the appliance when you
open the door.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
Warning! Risk of damage to the
appliance.
3
• If you use an oven spray, obey the safety
instructions on the packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
• To prevent damage or discoloration to
the enamel:
– Do not put ovenware or other objects
in the appliance directly on the bottom.
– Do not put aluminium foil directly on
the bottom of the appliance.
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food in
the appliance after you finish the cooking.
– be careful when you remove or install
the accessories.
• Discoloration of the enamel has no effect
on the performance of the appliance. It is
not a defect in the sense of the warranty
law.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be permanent.
Pyrolytic cleaning
Warning! Risk of burns.
• Keep children away from the appliance
while the Pyrolytic cleaning is in
operation. The appliance becomes very
hot.
• Provide good ventilation during and after
each Pyrolytic cleaning.
• Remove any pets (especially birds) from
the vicinity of the appliance location
during and after the Pyrolytic cleaning and
first use maximum temperature operation
to a well ventilated area.
• Read carefully all the instructions for
Pyrolytic cleaning.
Care and Cleaning
Warning! Risk of injury, fire or
damage to the appliance.
Internal light
• Before maintenance, deactivate the
appliance and disconnect the mains plug
from the mains socket.
• Make sure the appliance is cold. There is
the risk that the glass panels can break.
• Replace immediately the door glass panels
when they are damaged. Contact the
Service.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Remaining fat or food in the appliance can
cause fire.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal objects.
• The type of light bulb or halogen lamp
used for this appliance, is only for
household appliances. Do not use it for
house lighting.
Warning! Risk of electrical shock.
• Before replacing the lamp, disconnect the
appliance from the power supply.
• Only use lamps with the same
specifications.
Disposal
Warning! Risk of injury or
suffocation.
• Disconnect the appliance from the mains
supply.
4
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
5
Contents
Guide to use the
instruction manual
The following symbols will be found in the
text to guide you throughout the instructions:
Safety instructions
Hints and tips
Environmental information
6
Product description
2
1
3
4
5
5
4
10
3
6
2
1
7
8
9
Accessories
1.
2.
3.
Control panel
Electronic programmer
Socket for the Core Temperature
Sensor
4. Heating element
5. Oven lamp
6. Fan
7. Rear wall heating element
8. Bottom heat
9. Shelf support, removable
10. Shelf positions
• Wire shelf
For cookware, cake tins, roasts.
7
• Trivet
To bake and roast or as pan to collect fat.
• Core Temperature Sensor
For roasting and grilling.
To measure how far the food is cooked.
• Telescopic runners
Use the trivet only with the grill/
roasting pan.
• Grill / roasting pan
For shelves and trays.
Before first use
First connection to the
mains
Warning! Refer to "Safety
information" chapter.
After first connection to the mains all
symbols in the display are on for some
seconds. For the subsequent few seconds
the display shows software version.
Initial Cleaning
• Remove all parts from the appliance.
• Clean the appliance before first use.
First setting the time of
day
Important! Refer to chapter "Care and
Cleaning".
After the software version goes off, the
display shows h and 12:00.
Setting the time of day:
or
to set the hours.
1. Touch
2. Touch
or Time functions.
8
3. Touch
or
to set the minutes.
4. Touch
or Time functions.
The Temperature/Time display shows the
new time.
Touch Time functions. flashes in the
display. To set the new time use the above
procedure.
Changing the time of day
You can change the time only when the
appliance is off.
Control panel
Electronic programmer
1
2
3
4
5
6
7
8
9
10
Use the sensor fields to operate the
appliance.
1
Sensor Field
Function
Description
-
DISPLAY
Shows the current settings of the appliance.
2
ON / OFF
To activate and deactivate the appliance.
To set an automatic programme, cleaning function
or an oven function.
3
Oven
functions
OPTIONS
4
Favourite
function
MY FAVOURITE
PROGRAMME
5
°C
Fast heat-up
hold 3 sec.
To store your favourite programme. Use it to
access your favourite programme directly, also
when the appliance is off.
TEMPERATURE / FAST To set and examine cavity temperature or core
HEAT UP
temperature sensor temperature. If you press it
and hold for three seconds, it turns Fast heat up
function ON and OFF.
Straight access to the temperature setting of the
first oven function when the appliance is off.
9
Sensor Field
Function
6
UP, DOWN
7
OK
Description
To choose an oven function, clock function and to
set the minute minder, temperature or time of
day.
To confirm the selection or setting.
8
Oven light
OVEN LIGHT
To activate or deactivate the oven lamp.
9
Time
functions
CLOCK
To set the clock function.
10
Minute
timer
MINUTE MINDER
To set the minute minder.
Display
1
2
7
3
6
1. Oven function symbol
2. Temperature / Time display
3. Clock / Residual heat display (also
Minute minder and Time of day)
4. Residual heat indicator
5
4
5. Indicators for the clock functions (refer
to the table "Clock functions")
6. Heat up indicator
7. Number of oven function / programme
Other indicators of display
Symbols
/
Name
Description
Function
You can choose an oven function.
Automatic programme
You can choose an oven programme.
My favourite
programme
The favourite programme operates.
kgr / gr
An oven programme with weight input operates.
10
Symbols
/
Name
Description
h / min
A clock function operates.
Temperature / fast heat
up
The function operates.
Temperature
You can examine or change the temperature.
Core temperature
sensor
The core temperature sensor is in the core
temperature sensor socket.
Door lock
The door lock function operates.
Oven light
The oven light is off.
Minute minder
The minute minder function operates.
Heat up indicator
When the appliance is at the set
temperature Heat up indicator goes off the
display.
If you set an oven function, the bars in the
display come on one by one. The bars
show that the temperature in the appliance
increases or decreases.
Daily use
Warning! Refer to "Safety
information" chapter.
To operate the appliance you can use:
• manual mode -to set an oven function,
the temperature and the cooking time
manually.
• automatic programmes -to prepare a
dish when you do not have a knowledge
or experience in cooking.
2.
3.
If you activate the appliance with
or Oven functions and do not set
an oven function or programme, the
appliance deactivates automatically
after 20 seconds.
Setting the oven function
1.
Touch the field Oven functions.
Oven function
1
The display shows a set temperature,
the symbol and the number of the oven
function. flashes in the display.
or
to set an oven
Touch
function.
Touch
or the appliance starts
automatically after five seconds.
Application
True Fan Cooking
To bake maximum on three shelf positions at the same time.
Decrease the oven temperatures (20 - 40 °C) compared with
Conventional. And to dry food.
11
Oven function
Application
2
Pizza Setting
To bake on one shelf position food with a more intensive
browning and a crispy base. Decrease the oven temperatures
(20 - 40 °C) compared with Conventional cooking.
3
Slow Cook
To prepare very lean, tender roasted food.
4
Conventional
Cooking
To bake and roast food on one shelf position.
5
Frozen Foods
To make your convenience food like e.g. French Fries,
Wedges, spring rolls crispy.
6
Turbo Grilling
To roast larger meat joints or poultry with bones on one shelf
position. Also to gratinate and to brown.
7
Fast Grilling
8
Grilling
9
Keep Warm
10
Defrost
11
Bottom Heat
To bake cakes with a crispy base, and to preserve food.
12
ECO Roasting
ECO functions let you to optimize the energy consumption
during cooking. Thus it is necessary to set the cooking time
first. To get more information about the recommended
settings, refer to the cooking tables with the equivalent usual
oven function.
13
Pyro Cleaning
For automatic pyrolytic cleaning of the oven. The oven
temperature is at approximately 500° C. It burns off residual
dirt in the oven. This can then be removed with a cloth when
the oven is cold.
To grill flat food in large quantities. To toast bread.
To grill flat food in the middle of the grill. To toast bread.
To keep food warm.
To defrost frozen food.
Changing the oven
temperature
Examining the oven
temperature
Touch
/
to change the temperature
in steps of 5 °C.
When the appliance is at the set
temperature, an acoustic signal operates
three times and the Heat up indicator goes
off.
You can examine the temperature in the
appliance when the function or programme
operates.
1. Touch the field °C Fast heat-up hold
3 sec.
12
Energy saving
The Temperature/Time display shows
the temperature in the appliance.
The appliance has some
features that help you save
energy during everyday
cooking:
• Residual heat:
– the oven function or
programme operates: the
heating elements are deactivated
10% time earlier (the lamp and
fan continue to operate). The
condition: the cooking time is
longer then 30 minutes or you
use the clock functions
(Duration, End, Time delay).
– the oven is off: you can use the
heat to keep the food warm.
The indication: the clock/
Residual heat display shows the
remaining temperature, the bars
show the decreasing
temperature.
• Oven lamp off - touch the field
Oven light to deactivate the oven
lamp during cooking;
• Display off - if necessary,
deactivate the appliance. Touch
Time functions and
at the
same time until the display goes
out (or on).
• Eco functions - refer to "Oven
functions".
If you want to change the oven
temperature, touch the field °C Fast
heat-up hold 3 sec. one more time
and use
or
.
2.
Touch
to go back to the set
temperature or the display will show it
automatically after five seconds.
Fast heat up function
The fast heat up function decreases the heat
up time.
Do not put food in the oven when
the fast heat up function operates.
Activating the fast heat up function:
Touch and hold the field °C Fast heat-up
hold 3 sec. for more than three seconds.
If you activate the fast heat up function, the
bars on the display flash one by one to
show that the function operates.
The fast heat up is not available with
every oven function. An acoustic
signal operates if the fast heat up is
not available for set function.
13
Clock functions
SYMBO
L
FUNCTION
DESCRIPTION
COUNT UP TIMER
To set count up. It shows how long the appliance operates.
This function has no effect on the operation of the appliance.
TIME OF DAY
To examine the time of day. For changing the time of day refer
to 'Setting the time of day'.
DURATION
To set how long the appliance operates.
END
To set when the appliance deactivates. You can use Duration
and End at the same time (Time delay), if the appliance is to be
activate and deactivate automatically later.
SET+GO
To start the appliance with necessary settings with only one
touch of the sensor field, any time later.
Count Up Timer
5.
Use the Count Up Timer to monitor how
long the appliance operates. It is on
immediately when the appliance starts to
heat.
Reset the Count Up Timer: touch the
field Time functions again and again until
flashes in the display. Touch
until the
display shows "00:00" and the Count Up
Timer starts to count up again.
If you touch Time functions or
while you set the DURATION, the
appliance switches to the setting of
the END function.
6.
You cannot use the Count Up Timer
when Duration or End is set.
7.
Setting the DURATION
1.
2.
3.
4.
Use
or
to set the hours for
DURATION.
When the set time ends, an acoustic
signal sounds for two minutes.
and the time setting flash in the
display. The appliance deactivates.
Touch a sensor field or open the oven
door to stop the acoustic signal.
Deactivate the appliance.
Setting the END
Activate the appliance and set an oven
function and temperature.
Touch Time functions again and again
until the display shows
.
flashes in the display.
or
to set the minutes for
Use
DURATION.
Touch
to confirm.
1.
2.
3.
14
Activate the appliance and set an oven
function and temperature.
Touch Time functions again and again
until the display shows
.
flashes in the display.
or
to set END (first you set
Use
the minutes and then the hours) and
or Time functions to confirm.
4.
5.
6.
Setting the Time delay
function
When the set time ends, an acoustic
signal sounds for two minutes.
and the time setting flash in the
display. The appliance deactivates.
Touch a sensor field or open the oven
door to stop the acoustic signal.
Deactivate the appliance.
DURATION and END can be used at
the same time, if the oven is to be switched
on and off automatically later. In this case
first set DURATION and then END
function (refer to "Setting the DURATION"
and "Setting the END ").
When the Time delay function is activated
the display shows static symbol of the oven
function, with a dot and . The dot
shows which clock function is on in the
Clock/Residual heat display.
Setting the SET+GO
To start the appliance with the necessary
settings at any time with only one touch of
the sensor field.
1. Set an oven function (or programme)
and temperature (refer to "Setting the
oven function" and "Changing the oven
temperature").
2. Set the DURATION (refer to "Setting
the DURATION").
3. Touch Time functions again and again
until flashes in the display.
to set the SET+GO function.
4. Touch
The display shows and with an
indicator. The indicator shows which
clock function is activated.
5. Touch a sensor field (apart from ON/
OFF) to start the SET+GO function.
Setting the MINUTE
MINDER
Use the MINUTE MINDER to set a
countdown (maximum 23 h 59 min). This
function has no effect on the operation of
the oven. You can set the MINUTE
MINDER at any time and also when the
appliance is off.
1. Touch Minute timer.
and "00" flash in the display.
2.
You can use the SET+GO function
only if the DURATION is set.
Check result (selected
models only)
If you set END or DURATION function, 2
minutes before end of cooking an acoustic
signal sounds and lamp activates. The
appliance goes to the setting of the END or
DURATION function. During these two
minutes you can examine the cooking results
and, if necessary, add END or DURATION
time.
3.
4.
15
Use
or
to set the MINUTE
MINDER. First you set the seconds,
then the minutes and the hours.
Touch
or the MINUTE MINDER
starts automatically after five seconds.
When the set time ends, an acoustic
signal sounds for two minutes and
"00:00" and flash in the display.
5.
Touch a sensor field or open the oven
door to stop the acoustic signal.
Automatic programmes
Warning! Refer to "Safety
information" chapter.
Automatic programmes
with weight input
There are 20 automatic programmes
and recipes. Use an automatic
programme or recipe when you do
not have a knowledge or experience
how to prepare a dish. You can find
the recipes for the automatic
programmes in the "Recipe book".
If you set the weight of the meat, the
appliance calculates the roasting time.
1. Touch Oven functions again and again
until the display shows
.
or
to set the weight
2. Touch
programme (refer to "Recipe book").
The display shows: the cooking time,
the duration symbol , a default
weight, a unit of measurement (kg, g).
3. Touch
or the settings are saved
automatically after five seconds.
4. The appliance activates. A symbol of the
weight unit flashes in the display. During
this time you can change the default
weight value with
or
. Touch
.
5. When the set time ends, an acoustic
signal sounds for two minutes.
flashes.
The appliance deactivates.
6. Touch a sensor field or open the
appliance door to stop the signal.
There are three types of automatic
programmes:
• Automatic recipes;
• Automatic programmes with weight input;
• Automatic programmes with core
temperature sensor;
Automatic recipes
Setting an automatic recipe:
1. Touch Oven functions two times until
the display shows
.
The display shows the symbol and the
number of the automatic programme.
2. Touch
or
to choose the
automatic recipe.
3. Touch
or the automatic recipe
activates automatically after five
seconds.
4. When the set time ends, an acoustic
signal sounds for two minutes. The
symbol flashes.
The appliance deactivates.
5. Touch a sensor field or open the
appliance door to stop the signal.
Automatic programmes
with the core
temperature sensor
The core temperature of the food is default
and fixed in programmes with the core
temperature sensor. The programme ends
when the appliance is at the set core
temperature.
16
1.
2.
3.
Touch Oven functions again and again
until the display shows
.
Install the core temperature sensor
(refer to "Core temperature sensor").
Touch
or
to set the programme
for the core temperature sensor.
The display shows the cooking time,
and
.
4.
5.
Touch
or the settings are saved
automatically after five seconds.
When set time ends, an acoustic signal
sounds for two minutes.
flashes.
The appliance deactivates.
Touch any sensor field or open the
appliance door to stop the signal.
Using the accessories
2.
Warning! Refer to "Safety
information" chapter.
Core temperature
sensor
The core temperature sensor measures the
core temperature of the meat. When the
meat is at the set temperature, the appliance
deactivates.
There are two temperatures to set:
• The oven temperature: refer to the table
for roasting in the recipe book.
• The core temperature: refer to the table
for the core temperature sensor in the
recipe book.
3.
Important! Only use the core temperature
sensor supplied or the correct replacement
parts.
1.
Activate the appliance.
4.
5.
17
Put the tip of the core temperature
on the handle) into
sensor (with
the centre of the meat.
Put the plug of the core temperature
sensor into the socket at the front of
the appliance.
The display shows
flashing and the
default set core temperature. The
temperature is 60 °C for the first
operation, and the last set value for
each subsequent operation.
Touch
or
to set the core
temperature.
Touch
or the settings save
automatically after 5 seconds.
You can set the core temperature
flashes. If
is in the
only when
display but does not flash before you
set the core temperature, touch °C
Fast heat-up hold 3 sec. and
or
to set a new value.
6.
Warning! Be careful when you
remove the core temperature
sensor. It is hot. There is a risk of
burns.
9.
When you put the core temperature
sensor into the socket, you cancel
the settings for the clock functions.
Set the oven function and, if necessary,
the oven temperature.
The display shows the current core
temperature and , which shows the
relation between the set oven
temperature and the current oven
temperature.
When you cook with the core
temperature sensor, you can change
the temperature shown in the
Temperature/Time display. After
you put the core temperature sensor
into the socket and set an oven
function and temperature, the display
shows the current core temperature.
The core temperature sensor must
stay in the meat and in the socket
during the cooking.
While the appliance calculates the
approximate duration time, the value
of the Count Up Timer function
shows in the Timer/Residual heat
display. When the first calculation
ends, the Timer/Residual heat display
shows - and then the approximate
duration of the cooking.
The appliance continues to calculate
the duration during the cooking. The
display updates at intervals with the
new duration value.
7.
8.
Deactivate the appliance.
Touch °C Fast heat-up hold 3
sec. again and again to see
three other temperatures:
• The current core temperature
• The oven set temperature
• The current oven temperature.
The set core temperature changes into the
current core temperature and the current
oven temperature changes into the set oven
temperature.
When the meat is at the set core
temperature, the core temperature and
flash. An acoustic signal sounds for
two minutes.
Touch a sensor field to deactivate the
acoustic signal.
Remove the core temperature sensor
from the socket and remove the meat
from the appliance.
18
Installing the Oven
Accessories
Telescopic runners Inserting the Oven
Accessories
Put the baking tray or the deep pan on the
telescopic runners.
The deep pan and the wire shelf have
side edges. These edges and the
shape of the guide-bars causes the
anti-tilt safety for the oven
accessories.
Put the wire shelf on the telescopic runners
so that the feet point downwards.
The high rim around the wire shelf is
an additional device to prevent
cookware from slipping.
Installing the wire shelf and the deep
pan together
Put the wire shelf on the deep pan. Push the
deep pan between the guide-bars of one of
the oven levels.
Inserting the wire shelf and the deep
pan together
19
Put the wire shelf on the deep pan. Put the
wire shelf and the deep pan on the
telescopic runners.
Put the trivet inside the deep pan so that
the supports of the oven shelf point up.
• Put the deep pan in the oven at the
necessary level.
Trivet and grill/roasting
pan
You can use the trivet to grill flat
dishes in large quantities and to toast:
•
Warning! Risk of burns when
removing the accessories from a hot
oven.
You can use the trivet to roast larger
pieces of meat or poultry on one
level:
•
Put the trivet inside the deep pan so that
the supports of the oven shelf point
downwards.
• Put the deep pan in the oven at the
necessary level.
Additional functions
My Favourite
Programme function
Using the My Favourite Programme
function:
• To activate the function touch
Favourite function. The appliance
activates your favourite programme.
• To deactivate the function touch .
The appliance deactivates your favourite
programme.
Use this function to save your favourite
temperature and time settings for an oven
function or programme.
1. Set the temperature and time for an
oven function or programme.
2. Touch and hold Favourite function
for more than three seconds.
An acoustic signal sounds.
3. Deactivate the appliance.
When the function operates, you can
change the time and temperature.
20
Child Lock
Settings menu
The Child Lock prevents an accidental
operation of the appliance.
The settings menu lets you add or remove
functions from the main menu (for example,
you can activate or deactivate the residual
heat indicator). The settings menu has a
maximum of seven settings (from SET1 to
SET7). Refer to the table below to see the
possible value of each setting.
Activating and deactivating the Child
Lock function:
1. Deactivate the appliance with
. Do
not set an oven function.
2. Touch and hold Time functions and
at the same time for two seconds.
An acoustic signal sounds.
SAFE comes on or goes out in the display.
Settings menu
If the appliance has the Pyrolytic
cleaning function and the function
operates, the door is locked. A
message comes on in the display
when you touch a sensor field.
Control Lock
You can activate the function only when the
appliance operates. The Control Lock
prevents an accidental change of the oven
function.
Activating/deactivating the Control
Lock function:
1. Activate the appliance.
2. Activate an oven function or setting.
3. Touch and hold Time functions and
at the same time for two seconds.
An acoustic signal sounds.
Lock comes on or goes out in the display.
Indicator
Description
Value to set
SET1
SET+GO
ON/OFF
SET2
RESIDUAL
HEAT
INDICATOR
ON/OFF
SET3
CLEANING
REMINDER
ON/OFF
SET4
KEY TONE
CLICK/
BEEP/OFF
SET5
FAULTY
TONE
ON/OFF
SET6
SERVICE
MENU
ON/OFF
SET7
RESTORE
SETTINGS
YES/NO
You can set the settings menu only
when the appliance is off.
Activating the settings menu:
1. If necessary, deactivate the appliance
.
2. Touch and hold Oven functions for
three seconds.
The display shows "SET1". "1" flashes.
3. Touch
/
to select the setting.
.
4. Touch
/
to change the value of
5. Touch
the setting.
6. Touch
.
You can deactivate the appliance
when the Control Lock is on. When
you deactivate the appliance, the
Control Lock deactivates.
If the oven has the Pyro cleaning
function, the door is locked.
Lock comes on in the display when
you touch a sensor field.
21
Automatic switch-off
• if an oven function operates.
• if you do not change the oven
temperature.
For safety reasons the appliance deactivates
automatically after some time:
Oven temperature
Switch-off time
30 °C -120 °C
12.5 h.
120 °C - 200 °C
8.5 h.
200 °C -250 °C
5.5 h.
250 °C -maximum °C
3.0 h.
– if you touch any of the sensor fields
during night brightness (apart from
ON/OFF), the display goes back to day
brightness mode for next 10 seconds;
– if the appliance is off and you set the
minute minder. When the minute
minder function ends, the display goes
back to night brightness;
After an automatic switch-off, touch a
sensor field to operate the appliance again.
Important! The Automatic switch-off
works with all oven functions, apart from
Light, Low temperature cooking, core
temperature sensor, Duration, End, Time
delay.
Brightness of the display
Cooling fan
There are two modes of display's
brightness:
• Night brightness - when the appliance is
off, the brightness of the display is lower
between 22:00 and 06:00;
• Day brightness:
– when the appliance is on;
When the appliance operates, the cooling
fan activates automatically to keep the
surfaces of the appliance cool. If you
deactivate the appliance, the cooling fan can
continue to operate until the appliance cools
down.
Care and cleaning
• Clean the appliance interior after each
use. Then you can remove dirt more
easily and it does not burn on.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all accessories (with a soft cloth
with warm water and cleaning agent) after
each use and let them dry.
Warning! Refer to "Safety
information" chapter.
Notes on cleaning:
• Clean the front of the appliance with a
soft cloth with warm water and cleaning
agent.
• To clean metal surfaces use a usual
cleaning agent.
22
• If you have nonstick accessories, do not
clean them using an aggressive agents,
sharp edged objects or dishwasher. It can
cause a damage to the nonstick coating.
During pyrolytic cleaning the lamp is
off.
Cleaning reminder
To remind you that the pyrolytic cleaning is
necessary the cleaning reminder symbol
flashes in the display
after every
deactivating the appliance for the next 10
seconds.
Pyrolytic cleaning
1.
Remove all parts from the appliance.
The pyrolytic cleaning
procedure cannot start:
– If you do not remove the shelf
support or telescopic runners (if
present), the display shows "C1"
– If you do not remove the core
temperature sensor plug from the
socket, the display shows „C2“
– If you do not close the oven door
correctly, the display shows „C3“.
2.
3.
4.
5.
The cleaning reminder goes off
from the display:
• After end of the pyrolytic cleaning
function
• When you deactivate it in the Basic
settings (refer to "Basic settings")
Shelf support
Remove the worst of the residual dirt
manually.
Set the Pyrolytic cleaning function
(refer to "Oven functions").
to activate the Pyro cleaning
Touch
function.
Touch
or
to set the duration of
the cleaning procedure:
– P1 1:00 for a low degree of dirt
– P2 1:30 for a usual degree of dirt
– P3 2:30 for a high degree of dirt.
Touch
to confirm.
You can remove the shelf support to clean
the side walls.
You can use the End function to
delay start of the cleaning process.
During the Pyro cleaning the door is
locked. The symbol and the bars
of the heat indicator come up, until
the door unlocks again.
The door unlocks when temperature
inside the oven is under safety
condition and Pyro cleaning is
finished.
Pull the front of the shelf support away
from the side wall.
Removing the shelf support
1.
23
3.
2.
If necessary, replace the oven lamp with
applicable 300 °C heat-resistant oven
lamp.
Important! Use the same oven lamp type.
2
4.
1
Install the glass cover.
Replacing the lamp:
1. You can find the lamp glass cover at the
left side of the cavity.
Remove the left shelf rail.
2.
Pull the shelf support from the back of
the side wall to remove it.
To install the shelf support follow the
procedure in reverse.
Important! Valid with telescopic
runners:
The retaining pins on the telescopic shelf
runners must point to the front!
Oven lamp
Warning! There is a risk of
electrical shock.
The oven lamp and the lamp glass
cover can be hot.
Before you change the oven lamp:
• Deactivate the appliance.
• Remove the fuses from the fuse box or
deactivate the circuit breaker.
3.
Use a narrow, blunt object (for example
a teaspoon) to remove the glass cover.
Clean the glass cover.
If necessary, replace the lamp with
applicable 300°C heat-resistant lamp.
Important! Use the same lamp type.
4.
5.
Caution! Put a cloth on the bottom
of the interior of the appliance. It
prevents damage to the lamp glass
cover and the cavity.
Install the glass cover.
Install the left shelf rail.
Door and glass panels
To clean the door, remove it.
Replacing the oven lamp:
1. You can find the lamp glass cover at the
cavity ceiling.
Turn the lamp glass cover
counterclockwise to remove it.
2. Clean the glass cover.
Caution! Be careful when you
remove the door from the appliance.
The door is heavy!
Removing the door
1. Open the door as far as it goes.
24
2.
A
3.
A
Hold the door trim (B) on the top edge
of the door at the two sides and push
inwards to release the clip seal.
Pull the door trim to the front to
remove it.
4.
3.
4.
Fully press clamping levers (A) on the
two door hinges.
Close the door until the first position
(angle approximately 70°).
Hold of the door with one hand on
each side and pull it away from the at an
up angle.
To install the door follow the
procedure in reverse.
5.
Hold the door glass panels on their top
edge one by one and pull them up out
of the guide
Clean the door glass panels.
To install panels follow the
procedure in reverse. Install the
smaller panel first, then the larger.
The number of glass panels if
different for the different models.
Caution! Put the door with the
outer side down on a soft and level
surface to prevent scratches.
Removing and cleaning the door glass
panels
1. Remove the door.
2.
B
25
What to do if…
Warning! Refer to "Safety
information" chapter.
Problem
Possible cause
Solution
The oven does not heat up
The appliance is deactivated
Activate the appliance
The oven does not heat up
The time of day is not set
Set the clock. Refer to "First
setting the time of day"
The oven does not heat up
The necessary settings are not
set
Make sure, the settings are
correct
The oven does not heat up
The automatic switch-off is
activated
Refer to „Automatic switch-off“
The oven does not heat up
The fuse is released
Make sure, if the fuse is the
cause for the malfunction. If the
fuse releases again and again,
refer to an authorized
electrician
The oven lamp does not
operate
The oven lamp is defective
Replace the oven lamp.
The display shows C1
You want to start the pyrolytic
cleaning but you did not
remove the shelf support (or
telescopic runners).
Remove the shelf support (or
telescopic runners) from the
oven.
The display shows C2
You want to start the pyrolytic
cleaning, keep warm or defrost
function but you did not
remove core temperature
sensor plug from the socket.
Remove the core temperature
sensor plug from the socket.
The display shows C3
You want to start pyrolytic
cleaning but you did not close
the oven door correctly.
Close the door correctly.
The display shows F102
The door lock is defect
• Close the door correctly
• Deactivate the appliance with
the house fuse or the safety
switch in the fuse box and
activate it again
• If the display shows F102
again, refer to the Customer
Care Department
26
Problem
Possible cause
The display shows an error
code that is not in this list
There is an electronic fault
Solution
• Deactivate the appliance with
the house fuse or the safety
switch in the fuse box and
activate it again
• If the display shows the error
code again, refer to the
Customer Care Department
The necessary data for the service centre is
on the rating plate. The rating plate is on the
front frame of the appliance cavity.
If you cannot find a solution to the problem
yourself, contact your dealer or the service
centre.
We recommend that you write the data here:
Model (MOD.)
.........................................
Product number (PNC)
.........................................
Serial number (S.N.)
.........................................
Installation
Warning! Refer to "Safety
information" chapter.
Important! The built-in unit must meet the
stability requirements of DIN 68930.
min.
3 mm
27
min.
50 mm
=
=
560 min.
600
548
20 min. !
546
114
530 min.
594
572
30
579
5
567
594
21
28
200 cm2
547
546
114
560 min.
20
590
572
530 min.
594
579
5
590 min.
567
594
21
30
alternativ 100
max. R1200 mm
130
140
H05VV-F
H05RR-F
min. 1600 mm
29
90º
2x3,5x25
Environment concerns
about recycling of this product, please
contact your local council, your household
The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it should be taken to the appropriate
collection point for the recycling of electrical
and electronic equipment. By ensuring this
product is disposed of correctly, you will
help prevent potential negative
consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling of
this product. For more detailed information
30
waste disposal service or the shop where
you purchased the product.
Packaging material
The packaging material is
environmentally-friendly and
recyclable. Plastic parts are marked
with international abbreviations such
as PE, PS, etc. Dispose of the
packaging material in the containers
provided for this purpose at your
local waste management facility.
Repairs - after sales service
Your appliance comes with a three year
warranty. If it is not working correctly refer
to "Something not working". If a fault occurs
which you can not resolve through following
the advice and information contained within
this instruction manual, the next step is to
contact John Lewis technical support on:
5.
The model and serial number of the
appliance. So that you always have
these numbers at hand, we recommend
you to make a note of them here:
0844 871 7771
• S.N.........................................
They will give you details for your local
service engineer. Before calling out an
engineer, please ensure you have read the
details under the heading “Something not
working”.
When you contact your local service
engineer you will need to give the following
details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of fault
4. The purchase date as found on your
receipt
IMPORTANT : If you call out an
engineer to a fault listed under the
heading ''Something not working'', or
to repair a fault caused by incorrect
use or installation, a charge will be
made even if the appliance is under
guarantee.
• Mod.......................................
• P.N.C.....................................
Spare parts
Always insist on genuine spare parts.
An authorised service engineer should
service this product, and only genuine spare
parts should be used. Under no
circumstances should you attempt to repair
the appliance yourself. Repairs carried out
by inexperienced persons may cause injury
or serious malfunctioning. Please contact
31
John Lewis technical support on 0844 871
7771 for assistance
32
33
34
35
John Lewis Partnership
171 Victoria Street
London SW1E 5NN
www. johnlewis.com
892949235-B-012012
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
