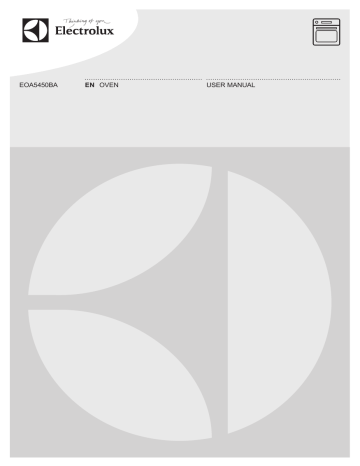

EOA5450BA
EN OVEN
USER MANUAL
2
www.electrolux.com
CONTENTS
1. SAFETY INFORMATION............................................................................................ 3
2. SAFETY INSTRUCTIONS.......................................................................................... 4
3. PRODUCT DESCRIPTION.........................................................................................6
4. BEFORE FIRST USE..................................................................................................7
5. DAILY USE................................................................................................................ 7
6. CLOCK FUNCTIONS.................................................................................................9
7. USING THE ACCESSORIES....................................................................................10
8. ADDITIONAL FUNCTIONS.......................................................................................12
9. HINTS AND TIPS.....................................................................................................12
10. CARE AND CLEANING......................................................................................... 24
11. TROUBLESHOOTING........................................................................................... 26
12. ENERGY EFFICIENCY........................................................................................... 27
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings
with it decades of professional experience and innovation. Ingenious and stylish, it has
been designed with you in mind. So whenever you use it, you can be safe in the
knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
ENGLISH
1.
3
SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes
injuries and damages. Always keep the instructions with
the appliance for future reference.
1.1 Children and vulnerable people safety
•
•
•
•
•
•
•
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Do not let children play with the appliance.
Keep all packaging away from children.
Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts are
hot.
If the appliance has a child safety device, we
recommend you activate it.
Cleaning and user maintenance shall not be made by
children without supervision.
Children of less than 3 years should be kept away
unless continuously supervised.
1.2 General Safety
•
•
•
•
Only a qualified person must install this appliance and
replace the cable.
Internally the appliance becomes hot when in operation.
Do not touch the heating elements that are in the
appliance. Always use oven gloves to remove or put in
accessories or ovenware.
Before maintenance cut the power supply.
Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric
shock.
4
www.electrolux.com
•
•
•
•
•
Do not use a steam cleaner to clean the appliance.
Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can scratch
the surface, which may result in shattering of the glass.
If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
To remove the shelf supports first pull the front of the
shelf support and then the rear end away from the side
walls. Install the shelf supports in the opposite
sequence.
The means for disconnection must be incorporated in
the fixed wiring in accordance with the wiring rules.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Obey the installation instruction
supplied with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Do not pull the appliance by the
handle.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is
installed below and adjacent safe
structures.
• The sides of the appliance must stay
adjacent to appliances or to units with
the same height.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not contact
an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by
our Authorised Service Centre.
• Do not let mains cables to come in
touch with the appliance door,
specially when the door is hot.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
ENGLISH
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation device
must have a contact opening width of
minimum 3 mm.
• This appliance complies with the E.E.C.
Directives.
•
2.3 Use
WARNING!
Risk of injury, burns and
electrical shock or explosion.
• Use this appliance in a household only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay
unattended during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the
appliance door while the appliance is in
operation. Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with
water.
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully. The
use of ingredients with alcohol can
cause a mixture of alcohol and air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
WARNING!
Risk of damage to the
appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other
objects in the appliance directly on
the bottom.
•
•
•
5
– do not put aluminium foil directly
on the bottom of the appliance.
– do not put water directly into the
hot appliance.
– do not keep moist dishes and food
in the appliance after you finish the
cooking.
– be careful when you remove or
install the accessories.
Discoloration of the enamel has no
effect on the performance of the
appliance. It is not a defect in the
sense of the warranty law.
Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
Always cook with the oven door
closed.
2.4 Care and cleaning
WARNING!
Risk of injury, fire, or damage
to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold. There
is the risk that the glass panels can
break.
• Replace immediately the door glass
panels when they are damaged.
Contact the Service.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Clean regularly the appliance to
prevent the deterioration of the surface
material.
• Remaining fat or food in the appliance
can cause fire.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal
objects.
• If you use an oven spray, obey the
safety instructions on the packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
6
www.electrolux.com
2.6 Disposal
2.5 Internal light
• The type of light bulb or halogen lamp
used for this appliance is only for
household appliances. Do not use it for
house lighting.
WARNING!
Risk of electrical shock.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
3. PRODUCT DESCRIPTION
3.1 General overview
1
11
2
3
4
5
6
5
4
3
2
1
3.2 Accessories
7
8
9
10
1
2
3
4
5
6
7
8
9
10
11
Control panel
Knob for the oven functions
Power lamp / symbol / indicator
Electronic programmer
Knob for the temperature
Temperature lamp / symbol / indicator
Heating element
Lamp
Fan
Shelf support, removable
Shelf positions
Grill- / Roasting pan
Wire shelf
For cookware, cake tins, roasts.
To bake and roast or as a pan to collect
fat.
ENGLISH
Trivet
Telescopic runners
For shelves and trays.
For roasting and grilling.
Use the trivet only with the
Grill- / Roasting pan.
4. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
4.1 Initial Cleaning
Remove all accessories and removable
shelf supports from the appliance.
Refer to "Care and cleaning"
chapter.
Clean the appliance before first use.
Put the accessories and the removable
shelf supports back to their initial position.
4.2 Setting the time
You must set the time before you operate
the oven.
The indicator for the Time of day function
flashes when you connect the appliance
5. DAILY USE
WARNING!
Refer to Safety chapters.
5.1 Retractable knobs
To use the appliance, press the control
knob. The control knob comes out.
to the electrical supply, when there was a
power cut or when the timer is not set.
Press the
or
button to set the
correct time.
After approximately five seconds, the
flashing stops and the display shows the
time of day you set.
4.3 Changing the time
You cannot change the time
of day if the Duration
End
or
function operates.
Press
again and again until the
indicator for the Time of Day function
flashes.
To set a new time, refer to "Setting the
time".
7
8
www.electrolux.com
5.2 Activating and deactivating
the appliance
It depends on the model if
your appliance has knob
symbols, indicators or
lamps:
• The indicator comes on
when the oven heats up.
• The lamp comes on when
the appliance operates.
• The symbol shows
whether the knob controls
the oven functions or the
temperature.
1. Turn the knob for the oven functions
to select an oven function.
2. Turn the knob for the temperature to
select a temperature.
3. To deactivate the appliance turn the
knobs for the oven functions and
temperature to the off position.
5.3 Oven functions
Oven function
Application
Off position
The appliance is off.
Light
To activate the lamp without a cooking function.
True Fan Cooking
To bake on up to 3 shelf positions at the same time
and to dry food. Set the temperature 20 - 40 °C lower
than for Conventional Cooking.
Pizza Setting
To bake food on 1 shelf position for a more intensive
browning and a crispy bottom. Set the temperature
20 - 40 °C lower than for Conventional Cooking.
Conventional
Cooking
To bake and roast food on 1 shelf position.
Bottom Heat
To bake cakes with crispy bottom and to preserve
food.
Defrost
To defrost frozen food.
Grilling
To grill flat food and to toast bread.
ENGLISH
Oven function
Application
Fast Grilling
To grill flat food in large quantities and to toast bread.
Turbo Grilling
To roast larger meat joints or poultry with bones on 1
shelf position. Also to make gratins and to brown.
5.4 Display
A
B
C
A) Function indicators
B) Time display
C) Function indicator
5.5 Buttons
Button
Function
Description
MINUS
To set the time.
CLOCK
To set a clock function.
PLUS
To set the time.
6. CLOCK FUNCTIONS
6.1 Clock functions table
Clock function
Application
Time of day
To set, change or check the time of day.
Minute Minder
To set countdown time. This function has no effect on the
operation of the appliance.
Duration
To set the cooking time of the oven.
End
To set the time of day when the oven should deactivate.
9
10
www.electrolux.com
For the Minute Minder
function the display shows
the time left.
3. When the time ends the indicator of
the clock function flashes and an
acoustic signal sounds. Press a
button to stop the signal.
4. Turn the knob for the oven functions
and the knob for the temperature to
the off position.
You can use the functions
Duration
and End
at
the same time to set the time
for how long the appliance
should operate and when the
appliance should deactivate.
This lets you activate the
appliance with a delay in
time. First set the Duration
and then the End
.
With the Duration
6.2 Setting the clock functions
For Duration
and End
, set an oven
function and temperature of cooking. This
is not necessary for the Minute Minder
1. Press
again and again until the
indicator for the necessary clock
function starts to flash.
or
to set the time for the
2. Press
necessary clock function.
The clock function operates. The display
shows the indicator for the clock function
you set.
.
and
End
functions, the
appliance deactivates
automatically.
6.3 Cancelling the clock
functions
1. Press the
again and again until the
necessary function indicator flashes.
2. Press and hold .
The clock function goes out after some
seconds.
7. USING THE ACCESSORIES
WARNING!
Refer to Safety chapters.
Push the deep pan between the guide
bars of the shelf support.
7.1 Inserting the accessories
Wire shelf:
Push the shelf between the guide bars of
the shelf support and make sure that the
feet point down.
Wire shelf and the deep pan together:
Push the deep pan between the guide
bars of the shelf support and the wire shelf
on the guide bars above.
Deep pan:
ENGLISH
11
Wire shelf and deep pan together:
• All accessories have small
indentations at the top of
the right and left side to
increase safety. The
indentations are also antitip devices.
• The high rim around the
shelf is a device which
prevents cookware from
slipping.
Put the wire shelf on the deep pan. Put
the wire shelf and the deep pan on the
telescopic runners.
7.2 Telescopic runners inserting the accessories
CAUTION!
Make sure you push back the
telescopic runners fully in the
appliance before you close
the oven door.
Wire shelf:
Put the wire shelf on the telescopic
runners so that the feet point downwards.
The high rim around the wire
shelf is a special device to
prevent the cookware from
slipping.
7.3 Trivet and Grill- / Roasting
pan
WARNING!
Be careful when you remove
the accessories from a hot
appliance. There is a risk of
burns.
You can use the trivet to roast larger
pieces of meat or poultry on one shelf
position.
1. Put the trivet into the deep pan so that
the supports of the wire shelf point up.
Baking tray or deep pan:
Put the baking tray or deep pan on the
telescopic runners.
2. Put the deep pan into the oven on the
necessary shelf position.
12
www.electrolux.com
You can use the trivet to grill flat dishes in
large quantities and to toast.
1. Put the trivet into the deep pan so that
the supports of the wire shelf point
down.
2. Put the deep pan into the oven on the
necessary shelf position.
8. ADDITIONAL FUNCTIONS
8.1 Cooling fan
When the appliance operates, the cooling
fan activates automatically to keep the
surfaces of the appliance cool. If you
deactivate the appliance, the cooling fan
can continue to operate until the appliance
cools down.
9. HINTS AND TIPS
WARNING!
Refer to Safety chapters.
The temperature and baking
times in the tables are
guidelines only. They depend
on the recipes and the quality
and quantity of the
ingredients used.
9.1 Inner side of the door
In some models, on the inner side of
the door you can find:
• the numbers of the shelf positions.
• information about the oven functions,
recommended shelf positions and
temperatures for typical dishes.
9.2 Baking
• Your oven can bake or roast differently
to the appliance you had before. Adapt
your usual settings (temperature,
cooking times) and shelf positions to
the values in the tables.
• The manufacturer recommends that
you use the lower temperature the first
time.
• If you cannot find the settings for a
special recipe, look for the one that is
almost the same.
• You can extend baking times by 10 –
15 minutes if you bake cakes on more
than one level.
• Cakes and pastries at different heights
do not always brown equally at first. If
this occurs, do not change the
temperature setting. The differences
equalize during the baking procedure.
• With longer baking times, you can
deactivate the oven approximately 10
minutes before the end of the baking
time and then use the residual heat.
When you cook frozen food, the trays in
the oven can twist during baking. When
the trays become cold again, the
distortions are gone.
ENGLISH
13
9.3 Tips on baking
Baking results
Possible cause
Remedy
The bottom of the cake is
not browned sufficiently.
The shelf position is incorrect.
Put the cake on a lower
shelf.
The cake sinks and becomes soggy, lumpy or
streaky.
The oven temperature is too The next time you bake, set
high.
a slightly lower oven temperature.
The cake sinks and becomes soggy, lumpy or
streaky.
The baking time is too
short.
Set a longer baking time.
You cannot decrease
baking times by setting
higher temperatures.
The cake sinks and becomes soggy, lumpy or
streaky.
There is too much liquid in
the mixture.
Use less liquid. Be careful
with mixing times, especially
if you use a mixing machine.
The cake is too dry.
The oven temperature is too The next time you bake, set
low.
a higher oven temperature.
The cake is too dry.
The baking time is too long. The next time you bake, set
a shorter baking time.
The cake browns unevenly.
The oven temperature is too Set a lower oven temperahigh and the baking time is ture and a longer baking
too short.
time.
The cake browns unevenly.
The mixture is unevenly dis- Spread the mixture evenly
tributed.
on the baking tray.
The cake is not ready in the The oven temperature is too The next time you bake, set
baking time given.
low.
a slightly higher oven temperature.
9.4 Baking on one level:
Baking in tins
Food
Function
Ring cake /
Brioche
Temperature
(°C)
Time (min)
Shelf position
True Fan Cook- 150 - 160
ing
50 - 70
1
Madeira cake /
Fruit cakes
True Fan Cook- 140 - 160
ing
70 - 90
1
Fatless sponge
cake / Fatless
sponge cake
True Fan Cook- 140 - 150
ing
35 - 50
2
Fatless sponge
cake / Fatless
sponge cake
Conventional
Cooking
35 - 50
2
160
14
www.electrolux.com
Food
Function
Flan base short pastry
Flan base sponge mixture
Time (min)
Shelf position
True Fan Cook- 170 - 1801)
ing
10 - 25
2
True Fan Cook- 150 - 170
ing
20 - 25
2
Apple pie / Ap- True Fan Cook- 160
ple pie (2 tins
ing
Ø20 cm, diagonally off set)
60 - 90
2
Apple pie / Ap- Conventional
ple pie (2 tins
Cooking
Ø20 cm, diagonally off set)
180
70 - 90
1
Cheesecake
170 - 190
60 - 90
1
Conventional
Cooking
Temperature
(°C)
1) Preheat the oven.
Cakes / pastries / breads on baking trays
Food
Function
Temperature
(°C)
Time (min)
Shelf position
Plaited bread /
Bread crown
Conventional
Cooking
170 - 190
30 - 40
3
Christmas stollen
Conventional
Cooking
160 - 1801)
50 - 70
2
Bread (rye
Conventional
bread):
Cooking
1. First part of
baking procedure.
2. Second
part of baking procedure.
1. 2301)
2. 160 - 180
1. 20
2. 30 - 60
1
Cream puffs /
Eclairs
Conventional
Cooking
190 - 2101)
20 - 35
3
Swiss roll
Conventional
Cooking
180 - 2001)
10 - 20
3
Cake with
crumble topping (dry)
True Fan Cook- 150 - 160
ing
20 - 40
3
Buttered almond cake /
Sugar cakes
Conventional
Cooking
20 - 30
3
190 - 2101)
ENGLISH
Food
Function
Fruit flans
(made with
yeast dough /
sponge mixture)2)
Fruit flans
(made with
yeast dough /
sponge mixture)2)
Time (min)
Shelf position
True Fan Cook- 150
ing
35 - 55
3
Conventional
Cooking
35 - 55
3
Fruit flans made True Fan Cook- 160 - 170
with short pas- ing
try
40 - 80
3
Yeast cakes
with delicate
toppings (e.g.
quark, cream,
custard)
160 - 1801)
40 - 80
3
Temperature
(°C)
Time (min)
Shelf position
Conventional
Cooking
Temperature
(°C)
15
170
1) Preheat the oven.
2) Use a deep pan.
Biscuits
Food
Function
Short pastry
biscuits
True Fan Cook- 150 - 160
ing
10 - 20
3
Short bread /
Short bread /
Pastry stripes
True Fan Cook- 140
ing
20 - 35
3
Short bread /
Short bread /
Pastry stripes
Conventional
Cooking
20 - 30
3
Biscuits made
with sponge
mixture
True Fan Cook- 150 - 160
ing
15 - 20
3
Pastries made
True Fan Cook- 80 - 100
with egg white / ing
Meringues
120 - 150
3
Macaroons
30 - 50
3
1601)
True Fan Cook- 100 - 120
ing
16
www.electrolux.com
Food
Function
Biscuits made
with yeast
dough
Temperature
(°C)
Time (min)
Shelf position
True Fan Cook- 150 - 160
ing
20 - 40
3
Puff pastries
True Fan Cook- 170 - 1801)
ing
20 - 30
3
Rolls
True Fan Cook- 1601)
ing
10 - 25
3
Rolls
Conventional
Cooking
10 - 25
3
Small cakes /
True Fan Cook- 1501)
Small cakes (20 ing
per tray)
20 - 35
3
Small cakes /
Conventional
Small cakes (20 Cooking
per tray)
1701)
20 - 30
3
190 - 2101)
1) Preheat the oven.
9.5 Bakes and gratins
Food
Function
Temperature
(°C)
Time (min)
Shelf position
Pasta bake
Conventional
Cooking
180 - 200
45 - 60
1
Lasagne
Conventional
Cooking
180 - 200
25 - 40
1
Vegetables au
gratin1)
Turbo Grilling
160 - 170
15 - 30
1
Baguettes top- True Fan Cook- 160 - 170
ped with melted ing
cheese
15 - 30
1
Sweet bakes
Conventional
Cooking
180 - 200
40 - 60
1
Fish bakes
Conventional
Cooking
180 - 200
30 - 60
1
Stuffed vegetables
True Fan Cook- 160 - 170
ing
30 - 60
1
1) Preheat the oven.
9.6 Multilevel Baking
Use the function True Fan Cooking.
ENGLISH
Cakes / pastries / breads on baking trays
Food
Temperature
(°C)
Time (min)
Cream puffs /
Eclairs
160 - 1801)
Dry streusel
cake
150 - 160
Shelf position
2 positions
3 positions
25 - 45
1/4
-
30 - 45
1/4
-
1) Preheat the oven.
Biscuits / small cakes / small cakes / pastries / rolls
Food
Temperature
(°C)
Time (min)
Short pastry
biscuits
150 - 160
Short bread /
Short bread /
Pastry Stripes
Shelf position
2 positions
3 positions
20 - 40
1/4
1/3/5
140
25 - 45
1/4
1/3/5
Biscuits made
with sponge
mixture
160 - 170
25 - 40
1/4
-
Biscuits made
with egg white,
meringues
80 - 100
130 - 170
1/4
-
Macaroons
100 - 120
40 - 80
1/4
-
Biscuits made
with yeast
dough
160 - 170
30 - 60
1/4
-
Puff pastries
170 - 1801)
30 - 50
1/4
-
Rolls
180
20 - 30
1/4
-
23 - 40
1/4
-
Small cakes /
1501)
Small cakes (20
per tray)
1) Preheat the oven.
9.7 Pizza Setting
Food
Temperature (°C)
Time (min)
Shelf position
Pizza (thin crust)
200 - 2301)2)
15 - 20
2
Pizza (with a lot of
topping)
180 - 200
20 - 30
2
17
18
www.electrolux.com
Food
Temperature (°C)
Time (min)
Shelf position
Tarts
180 - 200
40 - 55
1
Spinach flan
160 - 180
45 - 60
1
Quiche Lorraine
170 - 190
45 - 55
1
Swiss Flan
170 - 190
45 - 55
1
Cheesecake
140 - 160
60 - 90
1
Apple cake, covered 150 - 170
50 - 60
1
Vegetable pie
160 - 180
50 - 60
1
Unleavened bread
230 - 2501)
10 - 20
2
Puff pastry flan
160 - 1801)
45 - 55
2
Flammekuchen (Piz- 230 - 2501)
za-like dish from Alsace)
12 - 20
2
Piroggen (Russian
version of calzone)
15 - 25
2
180 - 2001)
1) Preheat the oven.
2) Use a deep pan.
9.8 Roasting
• Use heat-resistant ovenware to roast
(refer to the instructions of the
manufacturer).
• You can roast large roasting joints
directly in the deep pan (if present) or
on the wire shelf above the deep pan.
• Roast lean meats in the roasting tin
with the lid. This keeps the meat more
succulent.
• All types of meat that can be browned
or have crackling can be roasted in the
roasting tin without the lid.
• We recommend that you cook meat
and fish weighing 1 kg and above in
the appliance.
• To prevent the meat juices or fat from
burning onto the pan, put some liquid
into the deep pan.
• If necessary, turn the roast (after 1/2 2/3 of the cooking time).
• Baste large roasts and poultry with
their juices several times during
roasting. This gives better roasting
results.
• You can deactivate the appliance
approximately 10 minutes before the
end of the roasting time, and use the
residual heat.
9.9 Roasting tables
Beef
Food
Quantity
Function
Temperature (°C)
Pot roast
1 - 1.5 kg
Convention- 230
al Cooking
Time (min)
Shelf position
120 - 150
1
ENGLISH
19
Food
Quantity
Function
Temperature (°C)
Time (min)
Shelf position
Roast beef or
fillet: rare
per cm of
thickness
Turbo Grilling
190 - 2001)
5-6
1
Roast beef or
fillet: medium
per cm of
thickness
Turbo Grilling
180 - 1901)
6-8
1
Roast beef or
fillet: well done
per cm of
thickness
Turbo Grilling
170 - 1801)
8 - 10
1
1) Preheat the oven.
Pork
Food
Quantity
Function
Temperature (°C)
Time (min)
Shelf position
Shoulder /
Neck / Ham
joint
1 - 1.5 kg
Turbo Grilling
160 - 180
90 - 120
1
Chop / Spare
rib
1 - 1.5 kg
Turbo Grilling
170 - 180
60 - 90
1
Meatloaf
750 g - 1 kg Turbo Grilling
160 - 170
50 - 60
1
Pork knuckle
(precooked)
750 g - 1 kg Turbo Grilling
150 - 170
90 - 120
1
Veal
Food
Quantity
(kg)
Function
Roast veal
1
Knuckle of
veal
Temperature (°C)
Time (min)
Shelf position
Turbo Grilling 160 - 180
90 - 120
1
1.5 - 2
Turbo Grilling 160 - 180
120 - 150
1
Quantity
(kg)
Function
Time (min)
Shelf position
Lamb
Food
Temperature (°C)
Shelf position
Leg of lamb / 1 - 1.5
Roast lamb
Turbo Grilling 150 - 170
100 - 120
1
Saddle of
lamb
Turbo Grilling 160 - 180
40 - 60
1
1 - 1.5
20
www.electrolux.com
Game
Food
Quantity
Function
Temperature (°C)
Time (min)
Shelf position
Saddle / Leg up to 1 kg
of hare
Conventional 2301)
Cooking
30 - 40
1
Saddle of
venison
1.5 - 2 kg
Conventional 210 - 220
Cooking
35 - 40
1
Haunch of
venison
1.5 - 2 kg
Conventional 180 - 200
Cooking
60 - 90
1
Time (min)
Shelf position
1) Preheat the oven.
Poultry
Food
Quantity
Function
Temperature (°C)
Poultry portions
200 - 250 g
each
Turbo Grilling 200 - 220
30 - 50
1
Half chicken
400 - 500 g
each
Turbo Grilling 190 - 210
35 - 50
1
Chicken,
poulard
1 - 1.5 kg
Turbo Grilling 190 - 210
50 - 70
1
Duck
1.5 - 2 kg
Turbo Grilling 180 - 200
80 - 100
1
Goose
3.5 - 5 kg
Turbo Grilling 160 - 180
120 - 180
1
Turkey
2.5 - 3.5 kg
Turbo Grilling 160 - 180
120 - 150
1
Turkey
4 - 6 kg
Turbo Grilling 140 - 160
150 - 240
1
Food
Quantity
(kg)
Function
Time (min)
Shelf position
Whole fish
1 - 1.5
Conventional 210 - 220
Cooking
40 - 60
1
Fish (steamed)
9.10 Grilling
• Always grill with the maximum
temperature setting.
• Set the shelf into the shelf position as
recommended in the grilling table.
• Always set the pan to collect the fat
into the first shelf position.
Temperature (°C)
• Grill only flat pieces of meat or fish.
• Always preheat the empty oven with
the grill functions for 5 minutes.
CAUTION!
Always grill with the oven
door closed.
ENGLISH
21
Grilling
Food
Temperature
(°C)
Time (min)
Shelf position
1st side
2nd side
Roast beef
210 - 230
30 - 40
30 - 40
2
Filet of beef
230
20 - 30
20 - 30
3
Back of pork
210 - 230
30 - 40
30 - 40
2
Back of veal
210 - 230
30 - 40
30 - 40
2
Back of lamb
210 - 230
25 - 35
20 - 25
3
Whole Fish, 500 210 - 230
- 1000 g
15 - 30
15 - 30
3/4
Fast Grilling
Food
Time (min)
Shelf position
1st side
2nd side
Burgers / Burgers
8 - 10
6-8
4
Pork fillet
10 - 12
6 - 10
4
Sausages
10 - 12
6-8
4
Fillet / Veal steaks
7 - 10
6-8
4
Toast / Toast1)
1-3
1-3
5
Toast with topping
6-8
-
4
1) Preheat the oven.
9.11 Frozen foods
Use the function True Fan Cooking.
Food
Temperature (°C)
Time (min)
Shelf position
Pizza, frozen
200 - 220
15 - 25
2
Pizza American, fro- 190 - 210
zen
20 - 25
2
Pizza, chilled
210 - 230
13 - 25
2
Pizza Snacks, frozen
180 - 200
15 - 30
2
French Fries, thin
200 - 220
20 - 30
3
French Fries, thick
200 - 220
25 - 35
3
Wedges / Croquettes
220 - 230
20 - 35
3
22
www.electrolux.com
Food
Temperature (°C)
Time (min)
Shelf position
Hash Browns
210 - 230
20 - 30
3
Lasagne / Cannello- 170 - 190
ni, fresh
35 - 45
2
Lasagne / Cannello- 160 - 180
ni, frozen
40 - 60
2
Oven baked cheese 170 - 190
20 - 30
3
Chicken Wings
20 - 30
2
190 - 210
Frozen ready meals
Food
Function
Temperature
(°C)
Time (min)
Temperature
(°C)
Frozen pizza
Conventional
Cooking
as per manufacturer’s instructions
as per manufacturer’s instructions
3
French fries1)
(300 - 600 g)
Conventional
200 - 220
Cooking or Turbo Grilling
as per manufacturer’s instructions
3
Baguettes
Conventional
Cooking
as per manufacturer’s instructions
as per manufacturer’s instructions
3
Fruit flans
Conventional
Cooking
as per manufacturer’s instructions
as per manufacturer’s instructions
3
1) Turn the French fries 2 or 3 times during cooking.
9.12 Defrost
• Remove the food packaging and put
the food on a plate.
• Use the first shelf position from the
bottom.
• Do not cover the food with a bowl or a
plate, as this can extend the defrost
time.
Food
Quantity
Defrosting
time (min)
Further defrosting
time (min)
Comments
Chicken
1 kg
100 - 140
20 - 30
Put the chicken on an upturned
saucer in a big plate. Turn halfway through.
Meat
1 kg
100 - 140
20 - 30
Turn halfway through.
Meat
500 g
90 - 120
20 - 30
Turn halfway through.
Trout
150 g
25 - 35
10 - 15
-
ENGLISH
23
Food
Quantity
Defrosting
time (min)
Further defrosting
time (min)
Comments
Strawberries
300 g
30 - 40
10 - 20
-
Butter
250 g
30 - 40
10 - 15
-
Cream
2 x 200 g
80 - 100
10 - 15
Whip the cream when still slightly
frozen in places.
Gateau
1.4 kg
60
60
-
9.13 Preserving - Bottom Heat
• Use only preserve jars of the same
dimensions available on the market.
• Do not use jars with twist-off and
bayonet type lids or metal tins.
• Use the first shelf from the bottom for
this function.
• Put no more than six one-litre preserve
jars on the baking tray.
• Fill the jars equally and close with a
clamp.
• The jars cannot touch each other.
• Put approximately 1/2 litre of water into
the baking tray to give sufficient
moisture in the oven.
• When the liquid in the jars starts to
simmer (after approximately 35 - 60
minutes with one-litre jars), stop the
oven or decrease the temperature to
100 °C (see the table).
Soft fruit
Food
Temperature (°C)
Cooking time until Continue to cook
simmering (min)
at 100 °C (min)
Strawberries / Blueberries / Raspberries / Ripe gooseberries
160 - 170
35 - 45
Food
Temperature (°C)
Cooking time until Continue to cook
simmering (min)
at 100 °C (min)
Pears / Quinces /
Plums
160 - 170
35 - 45
Food
Temperature (°C)
Cooking time until Continue to cook
simmering (min)
at 100 °C (min)
Carrots1)
160 - 170
50 - 60
5 - 10
Cucumbers
160 - 170
50 - 60
-
Mixed pickles
160 - 170
50 - 60
5 - 10
-
Stone fruit
10 - 15
Vegetables
24
www.electrolux.com
Food
Temperature (°C)
Cooking time until Continue to cook
simmering (min)
at 100 °C (min)
Kohlrabi / Peas /
Asparagus
160 - 170
50 - 60
15 - 20
1) Leave standing in the oven after it is deactivated.
9.14 Drying - True Fan Cooking
• Cover trays with grease proof paper or
baking parchment.
• For a better result, stop the oven
halfway through the drying time, open
the door and let it cool down for one
night to complete the drying.
Vegetables
Food
Temperature
(°C)
Time (h)
Shelf position
1 position
2 positions
Beans
60 - 70
6-8
3
1/4
Peppers
60 - 70
5-6
3
1/4
Vegetables for
sour
60 - 70
5-6
3
1/4
Mushrooms
50 - 60
6-8
3
1/4
Herbs
40 - 50
2-3
3
1/4
Temperature
(°C)
Time (h)
Shelf position
Plums
60 - 70
Apricots
Fruit
Food
1 position
2 positions
8 - 10
3
1/4
60 - 70
8 - 10
3
1/4
Apple slices
60 - 70
6-8
3
1/4
Pears
60 - 70
6-9
3
1/4
10. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
10.1 Notes on cleaning
• Clean the front of the appliance with a
soft cloth with warm water and a
cleaning agent.
• To clean metal surfaces, use a usual
cleaning agent.
• Clean the appliance interior after each
use. Fat accumulation or other food
remains may result in a fire. The risk is
higher for the grill pan.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all accessories after each use
and let them dry. Use a soft cloth with
warm water and a cleaning agent.
• If you have nonstick accessories, do
not clean them using aggressive
ENGLISH
agents, sharp-edged objects or a
dishwasher. It can cause damage to
the nonstick coating.
10.2 Removing the shelf
supports
To clean the oven, remove the shelf
supports.
1. Pull the front of the shelf support away
from the side wall.
25
Spots or discolouration of the
catalytic surface have no
effect on catalytic properties.
WARNING!
Keep children away when
you clean the oven at a high
temperature. The oven
surface becomes very hot
and there is a risk of burns.
CAUTION!
Always turn the oven light on
while using the catalytic
cleaning (if applicable).
Before activating the catalytic
cleaning remove all the
accessories from the oven.
2. Pull the rear end of the shelf support
away from the side wall and remove it.
The walls with a catalytic coating are selfcleaning. They absorb fat which collects
on the walls while the appliance operates.
To support the self-cleaning procedure,
heat the empty oven on a regular basis.
1. Clean the oven floor with warm water
and washing up liquid, then dry it.
2
1
Install the shelf supports in the opposite
sequence.
The retaining pins on the
telescopic runners must point
to the front.
10.3 Catalytic cleaning
CAUTION!
Do not clean the catalytic
surface with oven sprays,
abrasive cleaning agents,
soap or other cleaning
agents. This will damage the
catalytic surface.
2. Set the function .
3. Set the oven temperature to 250 °C
and let the oven operate for 1 hour.
4. When the appliance is cool, clean it
with a soft and moist sponge.
10.4 Removing and installing the
door
You can remove the door and the internal
glass panels to clean it. The number of
glass panels is different for different
models.
WARNING!
Be careful when you remove
the door from the appliance.
The door is heavy.
1. Open the door fully.
2. Fully press the clamping levers (A) on
the two door hinges.
26
www.electrolux.com
When the cleaning is completed, install the
glass panels and the door. Do the above
steps in the opposite sequence. Install the
smaller panel first, then the larger.
A
A
3. Close the oven door to the first
opening position (approximately 70°
angle).
4. Hold the door with one hand on each
side and pull it away from the
appliance at an upwards angle.
5. Put the door with the outer side down
on a soft cloth on a stable surface.
This is to prevent scratches.
6. Hold the door trim (B) on the top edge
of the door at the two sides and push
inwards to release the clip seal.
10.5 Replacing the lamp
Put a cloth on the bottom of the interior of
the appliance. It prevents damage to the
lamp glass cover and the cavity.
WARNING!
Danger of electrocution!
Disconnect the fuse before
you replace the lamp. The
lamp and the lamp glass
cover can be hot.
1. Deactivate the appliance.
2. Remove the fuses from the fuse box
or deactivate the circuit breaker.
The top lamp
1. Turn the lamp glass cover
counterclockwise to remove it.
2
B
1
7. Pull the door trim to the front to
remove it.
8. Hold the door glass panels on their
top edge one by one and pull them up
out of the guide.
9. Clean the glass panel with water and
soap. Dry the glass panel carefully.
11. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
2. Clean the glass cover.
3. Replace the lamp with a suitable 300
°C heat-resistant lamp.
4. Install the glass cover.
ENGLISH
27
11.1 What to do if...
Problem
Possible cause
Remedy
The oven does not heat up. The oven is deactivated.
Activate the oven.
The oven does not heat up. The clock is not set.
Set the clock.
The oven does not heat up. The necessary settings are
not set.
Make sure that the settings
are correct.
The oven does not heat up. The fuse is released.
Make sure that the fuse is
the cause of the malfunction. If the fuse releases
again and again, contact a
qualified electrician.
The lamp does not operate. The lamp is defective.
Replace the lamp.
Steam and condensation
You left the dish in the oven Do not leave the dishes in
settle on the food and in the for too long.
the oven for longer than 15
cavity of the oven.
- 20 minutes after the cooking process ends.
The display shows "12.00".
There was a power cut.
11.2 Service data
If you cannot find a solution to the
problem yourself, contact your dealer or
an Authorised Service Centre.
Reset the clock.
the front frame of the appliance cavity. Do
not remove the rating plate from the
appliance cavity.
The necessary data for the service centre
is on the rating plate. The rating plate is on
We recommend that you write the data here:
Model (MOD.)
.........................................
Product number (PNC)
.........................................
Serial number (S.N.)
.........................................
12. ENERGY EFFICIENCY
12.1 Product Fiche and information according to EU 65-66/2014
Supplier's name
Electrolux
Model identification
EOA5450BAK
EOA5450BAX
Energy Efficiency Index
103,5
Energy efficiency class
A
28
www.electrolux.com
Energy consumption with a standard load, conventional mode
0,99 kWh/cycle
Energy consumption with a standard load, fanforced mode
0,88 kWh/cycle
Number of cavities
1
Heat source
Electricity
Volume
71 l
Type of oven
Built-In Oven
Mass
EOA5450BAK
EOA5450BAX
EN 60350-1 - Household electric cooking
appliances - Part 1: Ranges, ovens, steam
ovens and grills - Methods for measuring
performance.
12.2 Energy saving
The appliance contains features which
help you save energy during everyday
cooking.
• General hints
– Make sure that the oven door is
closed properly when the
appliance operates and keep it
closed as much as possible during
the cooking.
– Use metal dishes to improve the
energy saving.
– When possible, put the food inside
the oven without heating it up.
– When the cooking duration is
longer than 30 minutes, reduce the
oven temperature to minimum, 3 10 minutes before the end of the
cooking time, depending on the
duration of the cooking. The
residual heat inside the oven will
continue to cook.
– Use the residual heat to warm up
other foods.
• Cooking with fan - when possible,
use the cooking functions with fan to
save energy.
• Keep food warm - if you want to use
the residual heat to keep the meal
warm, choose the lowest possible
temperature setting.
13. ENVIRONMENTAL CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable containers
to recycle it. Help protect the environment
and human health and to recycle waste of
electrical and electronic appliances. Do
not dispose appliances marked with the
symbol with the household waste.
Return the product to your local recycling
facility or contact your municipal office.
*
37,0 kg
37,0 kg
ENGLISH
29
30
www.electrolux.com
ENGLISH
31
867303872-B-232014
www.electrolux.com/shop
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
