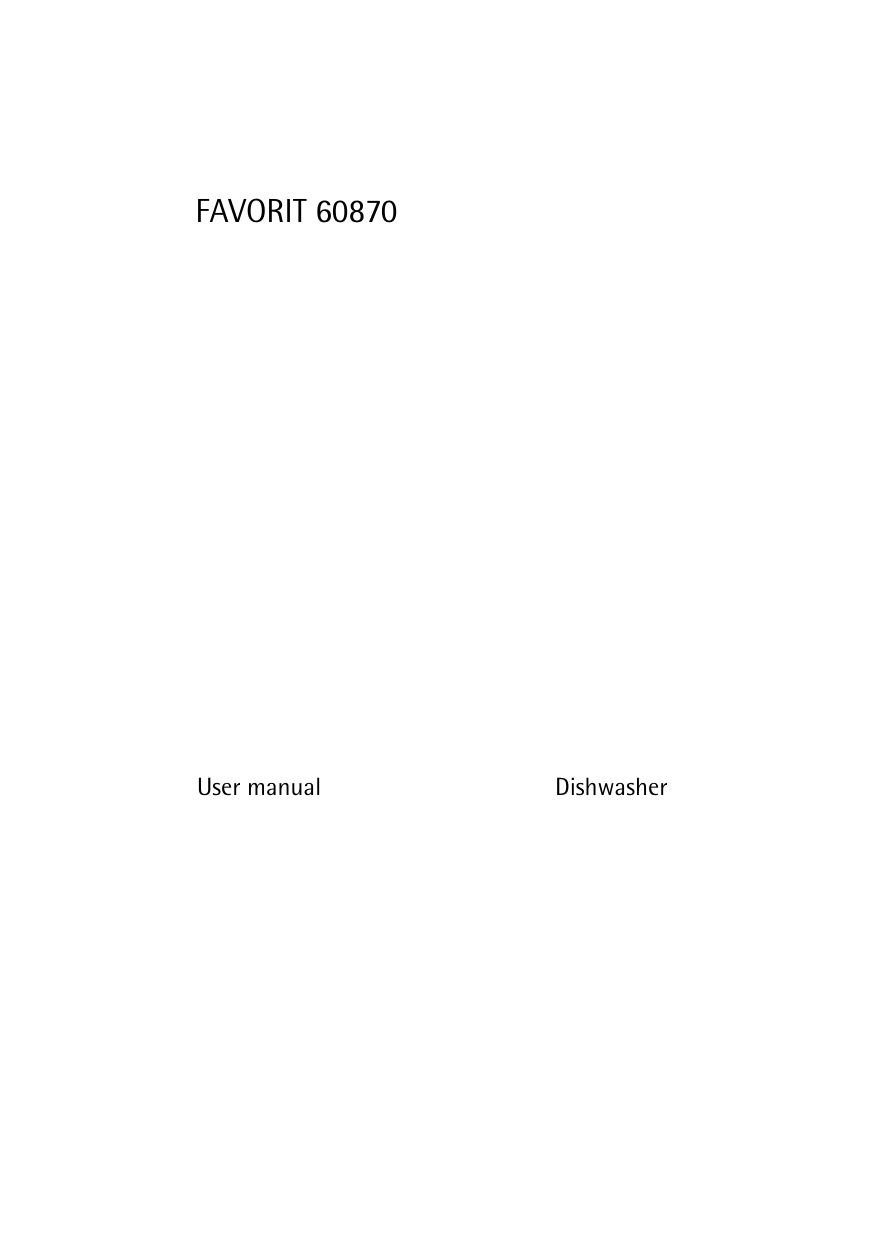

FAVORIT 60870
User manual
Dishwasher
2
Dear Customer
Thank you for choosing one of our highquality products.
With this appliance you will experience the perfect combination of functional
design and cutting edge technology.
Convince yourself that our appliances are engineered to deliver the best per
formance and control indeed we are setting the highest standards of excel
lence.
In addition to this you find environmental and energy saving aspects as an inte
gral part of our products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfect
ly and most efficiently.
To refer to this manual any time you need to, we recommend you to keep it in a
safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
3
The following symbols are used in this user manual:
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
General information and tips
2
Environmental information
1
Contents
3
Contents
Operating Instructions
4
Safety
4
Diagram of appliance
5
Control panel
6
Prior to using for the first time
Setting the water softener
Adding special salt
Filling up with rinse aid
In daily use
Loading cutlery and dishes
Adjusting the height of the upper basket
Adding detergent
Using 3in1 detergents
Selecting the dishwashing cycle (Cycle Table)
Starting a dishwashing cycle
Setting the Delay Timer
Switching off the dishwasher
Care and cleaning
9
9
11
12
15
15
22
23
25
26
28
29
30
31
What to do if…
Remedying small malfunctions
If the dishwashing results are not satisfactory
Disposal
33
33
36
37
Technical data
37
Notes for Test Institutes
38
Installation and connection instructions
39
Safety information for the installation
39
Installing the dishwasher
40
Connecting the dishwasher
41
Guarantee/Customer Service
44
Service
47
4
Operating Instructions
Operating Instructions
1 Safety
Prior to using for the first time
• Follow the ”Instructions for installation and connection”.
Correct use
• The dishwasher is only intended for washing domestic dishes.
• Additions or modifications to the dishwasher are not permitted.
• Use only special salt, detergent and rinse aid suitable for domestic dishwash
ers.
• Do not put any solvents in the dishwasher. This could cause an explosion.
Child safety
• Keep packaging away from children. There is a risk of suffocation.
• Children often do not recognise the hazards associated with electrical appli
ances. Don’t allow children to use the dishwasher unsupervised.
• Make sure that children and pets don’t climb into the dishwasher. Could en
danger life!
• Dishwasher detergents can cause chemical burns to the eyes, mouth and
throat. Could endanger life! Comply with the safety instructions of the dish
washer detergent manufacturer.
• The water in the dishwasher is not for drinking. Risk of chemical burns.
General safety
• Repairs to the dishwasher are only to be carried out by qualified service engi
neers.
• When the dishwasher is not being used, switch it off and shut off the water
tap.
• Never unplug the appliance by pulling on the cable. Always pull the plug.
• Ensure that the door of the dishwasher is always closed when it is not being
loaded or unloaded. In this way you will avoid anybody tripping over the open
door and hurting themselves.
• Never sit or stand on the open door.
• If the dishwasher is located in a room where there may be a frost, remove the
connection hose from the tap after each use of the dishwasher.
Diagram of appliance
5
Diagram of appliance
Ceiling spray arm
Upper basket spray arm
and floor spray arm
Water hardness
dial
Dispenser
for special salt
Dispenser
for detergent
Dispenser
for rinse aid
Rating plate
Filters
Interior lighting
1
This dishwasher has an internal light that turns on and off when the opening
and closing of the dishwasher’s door occurs.
Internal light equipped with led lamp CLASS 1 in accordance with EN 608251:
1994 + A1:2002 + A2:2001
In case that this light has to be replaced, please contact your local Service Force
Centre.
6
Control panel
Control panel
ON/OFF button
1
Programme buttons
2
3
Function buttons
Control panel
7
The ON/OFF button is used to turn the dishwasher on and off.
The Programme buttons are used to select the desired dishwashing cycle.
Function buttons: In addition to the preset dishwashing cycle, the following
functions can also be set using these buttons:
Function button 1
Set the water softener
Function button 2
Activates/deactivates rinse aid inflow when 3in1 on
Function button 3
not programmed The rinse aid inflow is only affected, if the 3in1 function is selected.
Multidisplay
Programme progress display
Control
indicators
Set delay
timer
Select
3 in1 function
8
Control panel
The multidisplay can indicate:
– the level of hardness to which the water softener is set.
– whether the rinse aid inflow has been activated/deactivated.
– the start delay that has been set.
– the estimated time remaining for the current dishwashing cycle.
– what type of error has occurred with the dishwasher.
Programme progress display: The current stage of the programme is always
shown in the programme progress display.
The control indicators have the following meanings:
1)
Refill with special salt
1)
Refill with rinse aid
Turn on the tap
Clean the dishwasher's filter system
The door of the dishwasher is open
1) These control indicators are never illuminated while a dishwashing cycle is running.
Prior to using for the first time
9
Prior to using for the first time
3
If you wish to use 3 in 1 detergent:
– First read the section “Using 3in1 detergents”.
– Do not fill up with special salt or rinse aid.
If you do not use 3in1 detergent, before using for the first time
1. Set the water softener
2. Fill up with special salt for water softeners
3. Fill up with rinse aid
Setting the water softener
3
The water softener must be set manually and electronically:
To avoid scale deposits on the dishes and in the dishwasher, the dishes must be
washed with soft water, i.e. water with a low lime content. The water softener
must be set according to the table to the water hardness in the area where you
live. Your local water company will be able to give you information about the
water hardness in your area.
The dishwasher must be switched off.
Setting manually:
1. Open the dishwasher door.
2. Remove the lower basket from the
dishwasher.
3. Turn water hardness dial on the left wall of
the dishwasher interior to 1 or 2 (see table).
10
3
Prior to using for the first time
Setting electronically:
1. Press the ON/OFF button.
If the only LED indicator illuminated is one that belongs to a programme button,
this means that this dishwashing cycle has been activated. The dishwashing
cycle must be deselected:
Press function buttons 1 and 2 simultaneously for approx. 2 seconds.
The LED indicators of all the programme buttons that can be selected light up.
2. Press function buttons 1 and 2 simultaneously and keep them pressed.
The LED indicators for function buttons 1 to 3 will flash.
3. Press function button 1.
The LED indicator for function button 1 will flash.
The multidisplay will indicate the hardness setting.
4. Pressing function button 1 increases the hardness setting by 1.
(Exception: hardness setting 1 follows hardness setting 10).
5. When the hardness setting is correct, press the ON/OFF button.
The hardness setting is now saved.
If the water softener is set electronically to “1”, this switches off the control in
dicator for special salt.
Water hardness
Adjusting the hardness setting
in °d1)
in mmol/l2)
51 70
43 50
37 42
29 36
23 28
9,0 12,5
7,6 8,9
6,5 7,5
5,1 6,4
4,0 5,0
IV
19 22
15 18
3,3 3,9
2,6 3,2
III
5*
4
11 14
1,9 2,5
II
3
4 10
0,7 1,8
I/II
below 4
below 0.7
I
Range
Manual
2*
1
Electronic
103)
9
8
7
6
2
1
no salt
necessary
1) (°d) German degree, measure of the hardness of water
2) [mmol/l] millimol per litre, international unit for water hardness
3) On this setting the length of the dishwashing cycle may be slightly longer.
*) factory setting
Indication on
the multidis
play
10L .
9L
8L
7L
6L
5L
4L
3L
2L
1L
Prior to using for the first time
11
Adding special salt
1.
2.
3.
4.
3
3
To decalcify the water softener, it must be filled up with special salt. Use only
special salt suitable for domestic dishwashers.
If you do not use 3 in1 detergent, fill up with special salt:
– Before using the dishwasher for the first time.
– When the control indicator for special salt is illuminated on the control panel.
Open the door and remove the lower
basket.
Screw open the lid on the salt dispenser by
turning it anticlockwise.
Only when using the dishwasher for the
first time:
Fill the salt dispenser with water.
Place the funnel (supplied) over the dis
penser opening.
Fill the dispenser with special salt; the ca
pacity of the dispenser is approx. 1.01.5
kg, depending on the size of the grains. Do
not overfill the dispenser.
If water overflows when filling up with special salt, this is completely harmless.
5. Clean away any salt remnants from the dispenser opening.
6. Screw the lid back on in a clockwise direction.
7. Run a dishwashing cycle after filling the salt dispenser with special salt.
This will wash away salt water and salt crystals that have been spilt.
Depending on the size of the salt grains, it can take several hours for the salt to
dissolve in the water and for the control indicator for special salt to go out.
12
Prior to using for the first time
Filling up with rinse aid
With rinse aid the rinsing water drains away better and so you get smearfree,
gleaming dishes and clear glasses.
If you do not use 3in1 detergent, fill up with rinse aid:
– Before using the dishwasher for the first time.
– When the control indicator for rinse aid is illuminated on the control panel.
Use only special rinse aid for dishwashers
and no other liquid detergents.
1. Open the door.
The rinse aid compartment is located on
the inside of the dishwasher door.
2. Press the release button on the rinse aid
compartment.
3. Open the cover.
4. Pour rinse aid in slowly right up to the bro
ken “max” line;
this corresponds to a volume of approx.
140 ml when full.
5. Press the lid shut until it clicks into place.
6. Wipe up any spilt rinse aid with a cloth.
Otherwise there will be too much foam
when rinsing.
Prior to using for the first time
13
Setting the amount of rinse aid required
3
1.
2.
3.
4.
5.
6.
Only change the amount dispensed, if smears, milky spots (reduce the amount)
or dried on water spots (increase the amount) can be seen on glasses and dishes.
(See section “If dishwashing results are not satisfactory”.) The dosage can be set
from 16. The dosage is preset to “4” in the factory.
Open the dishwasher door.
Press the release button on the rinse aid
compartment.
Open the cover.
Set the dosage level.
Press the lid shut until it clicks into place.
If rinse aid has leaked out, wipe it away
with a cloth.
14
Prior to using for the first time
Activating rinse aid inflow when 3in1 function is selected
3
3
If the 3in1 function is not selected, the rinse aid inflow is always activated.
If the 3in1 function is selected due to the use of 3in1 detergent, the rinse aid in
flow is deactivated. If the dishes then do not dry sufficiently, you should reacti
vate the rinse aid inflow (see also section “Using 3in1 detergents”).
1. Press the ON/OFF button.
If the only LED indicator illuminated is one that belongs to a programme button,
this means that this dishwashing cycle has been activated. The dishwashing cy
cle must be deselected:
Press function buttons 1 and 2 simultaneously for approx. 2 seconds.
The LED indicators of all the programme buttons that can be selected light up.
2. Press function buttons 1 and 2 simultaneously and keep them pressed.
The LED indicators for function buttons 1 to 3 will flash.
3. Press function button 2.
The LED indicator for function button 2 will flash.
The multidisplay will indicate the current setting:
0d
Rinse aid inflow deactivated when 3in1 on (factory setting)
1d
Rinse aid inflow activated when 3in1 on
4. Pressing function button 2 activates and deactivates the rinse aid dispensing
function.
5. Once the multidisplay is indicating the required setting, press the ON/OFF but
ton. The setting is now saved.
In daily use
15
In daily use
Loading cutlery and dishes
1
Sponges, cleaning cloths and any other objects that can absorb water must not
be washed in the dishwasher. Plastic and Tefloncoated dishes and pans tend to
retain water droplets. These dishes and pans therefore do not dry as well as
those made of china and stainless steel.
For washing in the dishwasher, the following cutlery/dishes/pots and pans
are not suitable:
are of limited suitability:
• Only wash stoneware in the dishwasher if it is
specifically marked by the manufacturer as being
• Cutlery with wooden, horn, china or
dishwashersafe.
mother of pearl handles
• Glazed patterns may fade if washed very frequently
• Plastic items that are not heat
in the dishwasher.
resistant
• Silver and aluminium parts have a tendency to
• Older cutlery with cement
discolour during washing. Food remains, e.g. egg
that is sensitive to temperature
white, egg yolk and mustard often cause discolora
• Dishes or cutlery with glued parts
tion and staining on silver. Therefore always clean
• Pewter or copper items
food
• Lead crystal glass
residues from silver immediately, if it is not to be
• Steel items that rust
washed straight after use.
• Wooden boards/platters
• Items made from synthetic materials • Glass can become dull after a large number of
washes.
• Before loading the dishes, you should:
– Remove the worst of the food residues.
– Soak pans with burnton food residues.
• When loading the dishes and cutlery, please note:
– Dishes and cutlery must not impede the rotation of the spray arms.
– Load bowls, cups, glasses, pans, etc. with the opening downwards so that
water cannot collect in them
– Dishes and items of cutlery must not lie inside one another or cover one an
other
– To avoid damage to glasses, they must not touch one another
– Don’t put small items (e.g. lids) in the baskets for the dishes, but in the cut
lery basket, so that they can’t fall through the holes.
16
In daily use
Loading cutlery
1
Warning: Sharp knives and other items of cutlery with sharp edges must be laid
in the cutlery rack or in the upper basket because of the risk of injury.
Place knives, small spoons and small forks in
the cutlery tray which is in the upper basket.
Place forks and spoons that do not fit in the
cutlery tray in the cutlery basket.
To ensure that all items of cutlery in the cut
lery basket can be reached by the water, you should:
1.Place the grid insert on the cutlery 2.Place forks and spoons in the cutlery
basket
basket's grid insert with their han
dles pointing downwards.
For larger utensils, such as whisks, leave off one half of the cutlery grid.
The cutlery basket can be opened out.
Always make sure that you put your hand
around both parts of the twopart handle
when removing it from the dishwasher.
1. Place the cutlery basket on a table or work
surface.
2. Open out the twopart handle.
3. Remove cutlery.
In daily use
Loading / Unloading lower basket and upper basket
To load and unload, pull out or push in the
upper and lower baskets in the middle us
ing the handle on the front of the basket.
Pots, Pans, Large Plates
Load larger and heavily soiled dishes and
pans in the lower basket.
(Max. diameter for plates 29 cm).
To make it easier to load larger dishes, all
rear plate rests in the lower basket can be
folded down.
17
18
In daily use
Beer glasses and champagne
glasses
Up to four wheat beer glasses, Pils glasses,
etc. can be hung in the beer glass holders
on the lefthand side in the bottom basket.
If necessary, the beer glass holders can be
folded up out of the way.
The beer glass holders can be replaced with
two cup racks supplied as extras, which
also serve as Prosecco glass or champagne
glass holders.
1. Remove beer glass holders by pulling up
wards and pressing lightly on the hooks
from below.
2. Attach cup racks onto the horizontal bars
A or B using the hooks. Press lightly to
snap onto the hooks.
3. Remove the cup racks in the same way as
for the beer glass holders.
4. For wheat beer glasses of normal size at
tach the beer glass holders to horizontal
bar A, for much shorter glasses on B.
In daily use
1
The bars that fix the beer glass holders or
cup racks can be removed, if required.
1. Push the bars back using the thumbs (see
the picture).
Important: Risk of injury:
Do not take hold of the bars with the hand;
place the hand under the bars on the cut
lery basket for support.
2. Fix the bars again by pushing them
forwards.
19
20
In daily use
Cups, Glasses, Coffee Service
Load smaller, fragile crockery and long,
sharp cutlery in the upper basket.
• Arrange items of crockery on and under
the folding cup racks so that they are
offset from each other and water can
reach all items.
• The cup racks can be folded up out of the
way for tall crockery items.
• Lay or hang wine and brandy glasses in
the slots in the cup racks.
• For glasses with long stems, fold the
glass rack to the right, otherwise fold it
away to the left.
In daily use
• The row of spikes on the left of the upper
basket is also in two parts and can be
folded away.
Spikes not folded away: place glasses,
mugs etc. in the upper basket.
Spikes folded away: More room for serv
ing dishes.
21
22
In daily use
Adjusting the height of the upper basket
Maximum height of dishes in the
3
Upper basket
Lower basket
with upper basket raised
22 cm
30 cm
with upper basket lowered
24 cm
29 cm
The height of the baskets can also be adjusted when they are loaded.
Raising / Lowering the upper basket
1. Pull out the upper basket completely.
2. Holding the upper basket by the handle,
raise it as far as it will go and then lower it
vertically.
The upper basket will latch into the lower
or the upper position.
In daily use
Adding detergent
1
3
Detergents remove the dirt from dishes and
cutlery.
The detergent must be added before the
cycle starts.
Only use detergent intended for domestic
dishwashers.
The detergent compartment is located on
the inside of the door.
1. If the lid is closed:
Press the release button.
The lid will spring open.
2. Place the detergent in the detergent dis
penser. The markings indicate the dosing
levels for powder detergents: “20/30” cor
responds to approx.
20/30 ml of detergent.
Follow the manufacturer’s instructions
with regard to dosing and storage.
3. Close the lid and press until it locks into
place.
In the case of very heavily soiled dishes, fill
the adjoining compartment (1) with addi
tional detergent. This detergent comes into
use during the prewash cycle.
23
24
In daily use
Concentrated detergents
2
Today’s detergents for dishwashers are almost exclusively lowalkaline concen
trated detergents with natural enzymes in tablet or powder form.
Using 50°C dishwashing cycles in conjunction with these concentrated deter
gents reduces pollution and is good for your dishes, as these dishwashing cycles
are specially matched to the dirtdissolving properties of the enzymes in con
centrated detergents. It is for this reason that using 50 °C dishwashing cycles in
conjunction with concentrated detergents can achieve the same cleaning results
that can otherwise only be achieved using 65 °C cycles.
Detergent tablets
3
Detergent tablets from different manufacturers dissolve at different rates. For
this reason, some detergent tablets do not attain their full cleaning power dur
ing short cycles. Therefore please use dishwashing cycles with prewash when
using detergent tablets.
In daily use
25
Using 3in1 detergents
3
3
These products are detergents with a combined cleaning, rinsing and salt func
tion.
When the 3in1 function is activated,
– the addition of special salt and rinse aid from the respective dispenser is pre
vented.
– If the salt and rinse aid dispensers are empty, this is not indicated.
– The dishwashing cycles can be up to 30 minutes longer.
If you want to use 3in1 detergents, check whether these detergents are suitable
for your water hardness. (Follow manufacturer’s instructions!)
If your water hardness is higher than that recommended by the manufacturer
but you would nevertheless like to use 3in1 detergent, proceed as follows:
• With the 3in1 function selected, set the water softener one hardness setting
lower than when rinsing without 3in1 detergent.
• Fill up the dispenser (if this is empty) with special salt.
The dishwasher remembers the two different settings of the degree of hardness
for rinsing with and without 3in1 function.
If you want to use 3in1 products
1. Press the ON/OFF button.
2. Press the MULTITAB button.
The button indicator lights up: 3in1 function is selected.
Before the start of the dishwashing cycle put 3in1 detergent in the detergent
dispenser.
As the rinse aid inflow is automatically switched off when the 3in1 function is
activated, it may come about because of the different quality standards in the
3in1 detergent, that the dishes do not dry sufficiently.
If this happens, proceed as follows (see section “Adding rinse aid”):
• Fill up the dispenser (if this is empty) with rinse aid.
• Set rinse aid dosage to “2” mechanically.
• Activate rinse aid inflow.
If you do not want to use 3in1 products any more
If you want to stop using 3in1 products, please do the following:
• Deactivate the 3in1 function.
• Fill up the dispensers for salt and rinse aid again.
• Switch the water softener to the highest setting and perform up to three nor
mal cycles without loading any dishes.
• Then set the water softener to the water hardness in your area.
If you want to use 4in1 products
When using "4 in 1" detergents that integrate also anti glass corrosion agent
into "3 in 1" formula, please follow the same indication as given for "3 in 1" de
tergents.
26
In daily use
Selecting the dishwashing cycle (Cycle Table)
Dinner service and
cookware, tempera
normally soiled
turesensitive
crockery
Dessert dishes and
coffee service, deli lightly soiled
cate glassware
(cold)6)
All types of dishes
•
•
•
•
•
•
•
•
Used dishes that are be
ing stored in the dish
•
washer and are to be
washed later.
9
23 25
12 14
0,8
1,8 2,0
0,95 1,05
120 130
12 23
•
1,1 1,6
•
30
•
130 160
ECO
50°5)
Water (litres)
•
15
heavily soiled,
driedon food remains,
in particular protein
and starch
•
4
Dinner service and
cookware
Energy (kWh)
INTENSIV
CARE 70°4)
0,9
•
< 0,1
just used, lightly to nor
mally soiled
•
73
Dishes, excluding
saucepans
•
12
30 MIN
(60°)3)
Drying
•
Final rinse
•
1 to 2x
normally soiled,
driedon food remains
2x
Dinner service and
cookware
2x
AUTOMATIC
(45° 70°)2)
Consumption
values1)
90 125 Length (minutes)
Type of
soiling
Main wash
Suitable
for:
Prewash
Dishwashing
cycle
Intermediate rinse
Programme
sequence
1) The consumption values were obtained under standardised conditions. They depend on how full the bas
kets for the dishes are. Variations are therefore possible in practice.
2) When using this cycle the degree of water clouding determines the amount of soiling on the dishes. The
length of the cycle and water and energy consumption can vary greatly – depending upon the load and
how dirty the dishes are. Depending upon the soiling, the temperature of the water will be automatically
adjusted to between 45°C and 70°C.
3) When using this cycle, only load the dishwasher half full.
4) During the final rinse, the temperature is increased to 68° for 10 minutes to sanitize e.g. babies’ bottles,
plastic chopping boards or jam jars.
5) Test programme for Test Institutes
6) This cycle does not need any detergent.
In daily use
Selecting a programme
When your dishes look like this, select:
an intensive programme.
a normal or energysaving programme.
a short programme (e.g. 30 minute pro
gramme).
27
28
In daily use
Starting a dishwashing cycle
1.
2.
3.
4.
5.
3
Check that the spray arms can turn freely.
Turn the water tap on fully.
Close the door.
Press the ON/OFF button.
Select the desired cycle.
The cycle indicator and the respective cycle stages in the cycle progress display
will be illuminated. The remaining time expected for the cycle will be shown in
the multidisplay.
The selected cycle will begin after approximately 3 seconds.
The current stage of the cycle is always shown in the cycle progress display.
During the dishwashing cycle, the remaining time shown in the multidisplay
may be adjusted according to the size of the load, degree of soiling, etc.
Interrupting or aborting a dishwashing cycle
1
3
Only interrupt a dishwashing cycle that is in progress if it is absolutely necessary.
Interrupting the dishwashing programme by opening the dishwasher door
Hot steam may escape when the door is opened. There is a risk of scalding.
1. Open the door carefully. The dishwashing cycle will stop.
2. Close the door. The cycle will continue.
Aborting the dishwashing cycle
1. Press function buttons 1 and 2 and keep them pressed.
The LED indicators of all the programme buttons that can be selected light up.
2. Release the function buttons. The dishwashing cycle has been cancelled.
3. If you want to start a new cycle, check whether there is any detergent in the dis
penser.
4. Switch off using the ON/OFF button.
Turning off the dishwasher will only interrupt a selected dishwashing cycle, not
cancel it. The cycle will recommence after turning the dishwasher back on again.
In daily use
29
Setting the Delay Timer
3
With the delay timer you can delay the start of a dishwashing cycle for between
1 and 19 hours.
1. Press the Delay Timer button repeatedly until the multidisplay shows the de
sired time delay, for example 12h, if the cycle is to start in 12 hours. The Delay
Timer indicator is illuminated.
2. Select dishwashing cycle.
3. The time remaining to the start of the cycle is continuously displayed (e. g. 12h,
11h, 10h, … 1h etc.).
To change the time delay:
As long as the cycle has not yet started, you can still change the setting by
pressing the DELAY TIMER button.
Cancelling the time delay:
Press the Delay Timer button repeatedly until the length of the selected cycle
appears in the multidisplay. The selected dishwashing cycle will begin immedi
ately.
To change a dishwashing cycle
As long as the cycle has not yet started, you can still change the dishwashing
cycle. First abort the dishwashing cycle, then reset the time delay, lastly select
the new dishwashing cycle.
30
In daily use
Switching off the dishwasher
1
Only switch the dishwasher off when the multidisplay indicates “0” for the cy
cle time remaining and the end of programme indicator is illuminated.
With some dishwashing cycles, the drying fan continues to run even after the
end of the cycle.
1. Press the ON/OFF button. All display indicators will go out.
2. Turn off the water tap.
Carefully open the door. Hot steam may escape.
• Hot dishes are sensitive to knocks. Therefore leave the dishes to cool for about
15 minutes before removing them. You also get a better drying result.
• Dishes dry more quickly if you open the door for a moment after the cycle has
ended and then leave it slightly open.
Removing the dishes
3
It is normal for the inner door and the dispensers to be damp.
• Empty the lower basket first, then the upper basket. This way you avoid drip
ping water from the upper basket onto dishes in the lower basket.
• The dishwasher's interior light will always be on when the door of the appli
ance is open. Therefore, in order to save energy, you should always close the
door of the dishwasher after having loaded or removed dishes.
Care and cleaning
31
Care and cleaning
1
Do not use furniture care products or aggressive cleaners.
• When necessary, clean the dishwasher’s controls with a soft cloth and clean
warm water.
• Occasionally check the internal dispensers, door seal and water inlet filter (if
fitted) for dirt and clean them, if necessary.
32
Care and cleaning
Cleaning the filters
3
The filters must be regularly checked and
cleaned. Dirty filters will spoil the wash re
sults.
1. Open the door and remove the lower basket.
2. Turn the handle about ¼ of a turn anticlock
wise (A) and remove the filter system (B).
3. Grasp the grip hole on the fine filter (1) and
remove it from the microfilter (2).
4. Clean all filters thoroughly under running
water.
1
5. Remove the flat filter (3) from the base of
the washing compartment and clean both
surfaces thoroughly.
6. Reinsert the flat filter.
7. Place the fine filter in the microfilter and fit
the two together.
8. Insert the filter system in place and lock it by
turning the handle clockwise as far as it will
go. Ensure that the flat filter does not pro
trude above the base of the washing com
partment.
Under no circumstances may the dishwasher be used without its filters.
What to do if…
33
What to do if…
Remedying small malfunctions
Before you call the Customer Care Department, please check whether
– you cannot remedy the fault yourself with the help of the following fault
table
or
– whether it is caused by faulty, electrical connections and/or faulty water con
nections.
In these cases the engineer must make you liable for the costs of the Customer
Service intervention even during the warranty period.
If one of the following fault codes is displayed in the multidisplay during oper
ation:
– Fault codeÅ 10 (Problems with water inlet),
– Fault codeÅ 20 (Problems with water drainage),
please have a look at the following table.
When the fault is remedied, press the button for the cycle that has started. The
cycle will continue.
With other fault codes (“Å ” followed by a number):
– Abort the dishwashing cycle.
– Switch the appliance off and on again.
– Reset the dishwashing cycle.
If the fault is displayed again, please contact the Customer Care Department
and inform them of the fault code.
34
What to do if…
Malfunction
Possible cause
The cycle indicator for the se
lected dishwashing cycle is
flashing:
the control indicator
is
lit,
fault code Å 10 is displayed
in the multidisplay
(Problems with water inlet).
The cycle indicator for the se
lected dishwashing cycle is
flashing,
fault code Å 20 is displayed
in the multidisplay
(there is water in the dish
washer’s internal dispenser).
Remedy
Water tap is blocked with
limescale or faulty.
Check the water tap and have
it repaired if necessary.
The tap is turned off.
Turn the tap on.
The filter (where present) in the
Clean the filter in the threaded
threaded hose fitting on the
hose fitting.
tap is blocked.
Cancel the dishwashing cycle
(see chapter: Starting a dish
washing cycle),
Filters in the base of the wash
clean filters (see chapter:
ing compartment are blocked.
Cleaning the filters),
then start the dishwashing cy
cle again.
Water inflow hose
has not been correctly posi
tioned.
Check the position of the hose.
The sink outlet is blocked.
Clean out sink outlet.
Water drain hose
has not been correctly posi
tioned.
Check the position of the hose.
First shut off the water tap,
Fault code Å 30 is displayed The antiflood system has been then switch off the appliance
in the multidisplay.
triggered.
and contact the Customer Care
Department.
The door of the dishwasher is
open.
The control indicator
is lit.
The control indicator
The indicator
is there to re
mind you to check the dish
The indicator goes out auto
washer’s filters occasionally
is lit. and to clean them, if necessary. matically at the start of the
It lights up at regular intervals, next dishwashing cycle.
regardless of how clean the fil
ters are.
The cycle is not starting.
Close the dishwasher door.
The mains plug is not
plugged in.
Plug in the mains plug.
A fuse in the house’s wiring
system is defective.
Replace the fuse.
For dishwasher models with a If the dishes are to be washed
delay start timer:
immediately, cancel the delay
A start time has been selected. start.
What to do if…
Malfunction
Possible cause
35
Remedy
Rust spots are visible in the
dishwashing compartment.
The dishwashing compart
ment is made from rustfree
stainless steel. Rust spots in
the dishwashing compartment
Only wash cutlery, dishes and
are due to rust particles from
pans that are suitable for dish
external sources (rust particles
washer use.
from water pipes, pans, cutlery,
etc.). Remove such spots with a
commerciallyavailable clean
ing product for stainless steel.
A whistling noise can be
heard when washing dishes.
Decalcify appliance with com
mercially available agents for
cleaning dishwashers.
The whistling is not a cause for If the noises can still be heard
concern.
after decalcifying the ma
chine, use a different brand of
detergent for washing cutlery
and dishes.
The dishwasher interior light
does not come on.
The mains plug is not
plugged in.
Plug in mains plug.
The bulb in the interior light is
faulty.
Contact the Customer Care De
partment.
36
What to do if…
If the dishwashing results are not satisfactory
The dishes are still dirty.
• The wrong dishwashing cycle was selected.
• The dishes were loaded is such a way that the dishwashing water did not
reach all items. The baskets for the dishes must not be overloaded.
• Filters in the floor of the dishwasher are not clean or incorrectly inserted.
• Good quality detergent was not used, or too little was used.
• In the case of scale deposits on the dishes: The special salt dispenser is empty
or the water softening system has been incorrectly set.
• The drain hose is incorrectly positioned.
• If at the end of the dishwashing cycle there is still detergent left in the deter
gent dispenser, either the spray arm was jammed or the spray arm jets are
blocked with pollutants in the dishwashing water.
You have the option of removing the spray arms from their fixture for clean
ing (see section “Care and Cleaning”).
The dishes do not dry and are not shining.
• Poor quality rinse aid was used.
• The rinse aid dispenser is empty.
There are smears, streaks, milky spots or a shiny bluish coating on glasses
and dishes.
• Lower rinse aid dosage.
There are dried water drops on the glasses and dishes.
• Increase rinse aid dosage.
• The detergent may be the cause. Contact the detergent manufacturer's cus
tomer advice centre.
Glass corrosion
• Contact the detergent manufacturer's customer advice centre.
Disposal
37
Disposal
2
Packaging material
The packaging materials are environmentally friendly and can be recycled. The
plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dis
pose of the packaging materials in the appropriate container at the community
waste disposal facilities.
2
Old appliance
W
1
The symbol
on the product or on its packaging indicates that this product
may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equip
ment. By ensuring this product is disposed of correctly, you will help prevent po
tential negative consequences for the environment and human health, which
could otherwise be caused by inappropriate waste handling of this product. For
more detailed information about recycling of this product, please contact your
local city office, your household waste disposal service or the shop where you
purchased the product.
Warning! When your appliance has finished its working life, remove the plug
from the socket. Cut off the cable and plug and dispose of them.
Break the door lock so that the door no longer shuts. This prevents children from
trapping themselves inside and endangering their lives.
Technical data
5
Capacity:
12 place settings including serving dishes
Permitted water pressure:
0.11.0 MPa (= 10100 N/cm2 = 110 bar )
Electrical connection:
See the rating plate on the righthand side of the dishwasher’s
interior door .
Dimensions:
850 x 598 x 598 (H x W x D in mm)
Max. weight:
45 kg
38
Notes for Test Institutes
Notes for Test Institutes
Testing in accordance with EN 60704 must be carried out with the appliance
fully loaded and using the test cycle (see “Cycle Table”).
Tests in accordance with EN 50242 must be carried out when the salt dis
penser in the water softener and the rinse aid dispenser have been filled with
salt and rinse aid respectively, and using the test cycle (see “Cycle Table”).
Full load: 12 place settings including serving dishes
Amount of detergent
required:
5g + 25g (Type B)
Rinse aid setting:
4 (Type III)
Example loading arrangements:
Upper basket *)
*) If there are cup racks in place on the lefthand side or the cutlery tray is in place, remove them.
Lower basket with cutlery basket*)
Cutlery basket
*) If necessary, you can remove the cup racks on the lefthand side and/or the beer glass holder.
Installation and connection instructions
39
Installation and connection instructions
1 Safety information for the installation
• Only transport the dishwasher in an upright position, otherwise salt water
may run out.
• Before using the dishwasher for the first time, check for any damage caused in
transport. Do not under any circumstances connect an appliance that is dam
aged. In the case of damage, please contact your supplier.
• Never use the dishwasher if the mains cable, water inlet or drain hose are
damaged; or if the control panel, work top or plinth area are damaged such
that the inside of the appliance is freely accessible.
• Always plug the mains plug into a correctly installed shockproof socket.
• Prior to using the appliance for the first time, ensure that the rated voltage
and type of supply on the rating plate match that of the supply where the ap
pliance is to be installed. The fuse rating is also to be found on the rating plate.
• Multiway plugs / connectors and extension cables must not be used. This
could constitute a fire hazard through overheating.
• The dishwasher’s cable must only be replaced by the Customer Care Depart
ment or a registered electrician.
• A water inlet hose with safety valve must only be replaced by the Customer
Care Department.
40
Installing the dishwasher
Installing the dishwasher
• The dishwasher must be installed on a firm floor and adjusted to ensure that it
is stable and level in all directions.
• To compensate for unevenness in the floor and to match the height of the ap
pliance to that of surrounding units, extend the threaded feet using a screw
driver.
• The drain hose, inlet hose and mains cable must be laid so that they are able to
move freely within the plinth area, and so that they are not kinked or crushed
when the dishwasher is in position.
Freestanding appliances
1
If the dishwasher is installed directly next to a cooker, a heatinsulating, non
flammable panel (laminated with aluminium foil on the side next to the cooker)
must be fitted flush with the top edge of the work surface (depth 57.5 cm).
If the appliance is builtin under a kitchen
work surface, the worktop supplied with
the dishwasher can be removed in the fol
lowing way:
1. Unscrew the screws from the elbows at the
rear (1).
2. Push the appliance’s worktop backwards
about 1 cm (2).
3. Lift the worktop at the front (3) and re
move it.
1
If the dishwasher is later used as a freestanding appliance, the work surface
supplied with it must be remounted.
Connecting the dishwasher
41
Connecting the dishwasher
Connecting to the water supply
• The dishwasher can be connected to cold and hot water supplies up to max.
60 °C.
• The dishwasher must not be connected to open hot water appliances or in
stantaneous water heaters.
Permitted water pressure
Lowest permitted water pressure:
0,1 MPa ( = 1 bar = 10 N/cm2 )
Consult your plumber if the water pressure is
less than 0,1 MPa.
Highest permitted water pressure:
1 MPa ( = 10 bar = 100 N/cm2 )
If the water pressure is greater than
1 MPa, a pressure reduction valve must be used
(available from your dealer).
Connecting the inlet hose
1
3
1
The water inlet hose must not be kinked, crushed or entangled when it is being
connected.
Connect the threaded hose fitting (ISO 2281:2000) on the water inlet hose to a
tap with an external thread (¾ inch). The inlet hose is fitted with either a plastic
or a metal nut:
– Only tighten the nut hand tight.
Then do a visual check for water tightness. (Make sure that the tap is not drip
ping.)
So that access to the tap in the kitchen is not restricted by the use of the dish
washer, we recommend installing an additional tap, or fitting a Tbranch to the
existing tap.
WARNING! Dangerous voltage
(This does apply to dishwashers with safety
valve).
The electrical cable for the safety valve is in
the doublewalled water inlet hose and is
live.
Therefore do not immerse the water inlet
hose or the safety valve in water.
42
Connecting the dishwasher
Water drainage
1
Drain hose
The drain hose must not be kinked, crushed or entangled.
Connecting the drain hose:
– Maximum permitted height: 1 metre.
– Minimum required height: 40 cm above the bottom edge of the appliance.
Extension hoses
• Extension hoses are available from your
dealer or from our Customer Care Depart
ment. To ensure that the function of the
appliance is not impeded, the internal di
ameter of extension hoses must be 19 mm.
• Extension hoses must not be laid more
than a maximum distance of 4 metres
horizontally; the maximum permitted
height for the connection for the drain
hose is then 85 cm.
Sink outlet connection
• The outlet of the drain hose (ø 19 mm) fits all commonly available sink outlet
types. The outer diameter of the sink outlet connection must be at least
15 mm.
• The drain hose must be fixed to the sink outlet connection using the hose
clamp supplied.
Antiflood system
For protection from water damage, the dishwasher is equipped with a antiflood
system.
In the event of a fault, the safety valve in the water inlet hose immediately in
terrupts the supply of water to the appliance.
Connecting the dishwasher
43
Electrical connection
Details about the voltage, type of supply and the fuses required are to be found
on the rating plate. The rating plate is located on the righthand inner edge of
the dishwasher door.
To isolate the dishwasher from the mains, pull out the mains plug.
Important:
– Safety standards require the appliance to be earthed. The manufacturer ac
cepts no liability for failure to observe the above safety precautions.
– The plug must be accessible after the appliance has been installed.
44
Guarantee/Customer Service
Guarantee/Customer Service
European Guarantee
This appliance is guaranteed by Electrolux in each of the countries listed at the back of this user manual, for
the period specified in the appliance guarantee or otherwise by law. If you move from one of these coun
tries to another of the countries listed below the appliance guarantee will move with you subject to the fol
lowing qualifications:
• The appliance guarantee starts from the date you first purchased the appliance which will be evidenced
by production of a valid purchase document issued by the seller of the appliance.
• The appliance guarantee is for the same period and to the same extent for labour and parts as exists in
your new country of residence for this particular model or range of appliances.
• The appliance guarantee is personal to the original purchaser of the appliance and cannot be transferred
to another user.
• The appliance is installed and used in accordance with instructions issued by Electrolux and is only used
within the home, i.e. is not used for commercial purposes.
• The appliance is installed in accordance with all relevant regulations in force within your new country of
residence.
The provisions of this European Guarantee do not affect any of the rights granted to you by law.
Guarantee/Customer Service
45
www.electrolux.com
p
t
b
Albania
+35 5 4 261 450
Rr. Pjeter Bogdani Nr. 7 Tirane
Belgique/België/
Belgien
+32 2 363 04 44
Bergensesteenweg 719, 1502 Lembeek
Èeská republika
+420 2 61 12 61 12
Budìjovická 3, Praha 4, 140 21
Danmark
+45 70 11 74 00
Sjællandsgade 2, 7000 Fredericia
Deutschland
+49 180 32 26 622
Muggenhofer Str. 135, 90429 Nürnberg
Eesti
+37 2 66 50 030
Mustamäe tee 24, 10621 Tallinn
España
+34 902 11 63 88
Carretera M300, Km. 29,900
Alcalá de Henares Madrid
France
www.electrolux.fr
Great Britain
+44 8705 929 929
Addington Way, Luton, Bedfordshire
LU4 9QQ
Hellas
+30 23 10 56 19 70
4 Limnou Str., 54627 Thessaloniki
Hrvatska
+385 1 63 23 338
Slavonska avenija 3, 10000 Zagreb
Ireland
+353 1 40 90 753
Long Mile Road Dublin 12
Italia
+39 (0) 434 558500
C.so Lino Zanussi, 26 33080 Porcia (PN)
Latvija
+37 17 84 59 34
Kr. Barona iela 130/2, LV1012, Riga
Lietuva
+370 5 2780609
Ozo 10A, LT 08200 Vilnius
Luxembourg
+352 42 431 301
Rue de Bitbourg, 7, L1273 Hamm
Magyarország
+36 1 252 1773
H1142 Budapest XIV,
Erzsébet királyné útja 87
Nederland
+31 17 24 68 300
Vennootsweg 1, 2404 CG Alphen aan den Rijn
Norge
+47 81 5 30 222
Risløkkvn. 2 , 0508 Oslo
Österreich
+43 18 66 400
Herziggasse 9, 1230 Wien
Polska
+48 22 43 47 300
ul. Kolejowa 5/7, Warszawa
Portugal
+35 12 14 40 39 39
Quinta da Fonte Edificio Gonçalves Zarco Q 35
2774 518 Paço de Arcos
Romania
+40 21 451 20 30
Str. Garii Progresului 2, S4, 040671 RO
Schweiz/Suisse/
Svizzera
+41 62 88 99 111
Industriestrasse 10, CH5506 Mägenwil
Slovenija
+38 61 24 25 731
Electrolux Ljubljana d.o.o.
Gerbiceva 98, 1000 Ljubljana
Slovensko
+421 2 43 33 43 22
Electrolux Slovakia s.r.o., Electrolux Domáce spot
rebièe SK, Seberíniho 1, 821 03 Bratislava
Suomi
www.electrolux.fi
46
Guarantee/Customer Service
p
t
b
Sverige
+46 (0)771 76 76 76
Electrolux Service, S:t Göransgatan 143,
S105 45 Stockholm
Türkiye
+90 21 22 93 10 25
Tarlabaþý caddesi no : 35 Taksim
Istanbul
Ðîññèÿ
+7 095 937 7837
129090 Ìîñêâà, Îëèìïèéñêèé ïðîñïåêò, 16,
ÁÖ „Îëèìïèê“
Service
47
Service
In the event of technical faults, please first check whether you can remedy the
problem yourself with the help of the operating instructions (section “What to
do if…”).
If you were not able to remedy the problem yourself, please contact the Cus
tomer Care Department or one of our service partners.
In order to be able to assist you quickly, we
require the following information:
– Model description
– Product number (PNC)
– Serial number (S No.)
(for numbers see rating plate)
– Type of fault
– Any error messages displayed by the ap
pliance
So that you have the necessary reference numbers from your appliance at hand,
we recommend that you write them in here:
Model description:
.................................................................
PNC:
.................................................................
S No:
.................................................................
117 987 59/0-00-160407-01
Subject to change without notice
www.electrolux.com

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
