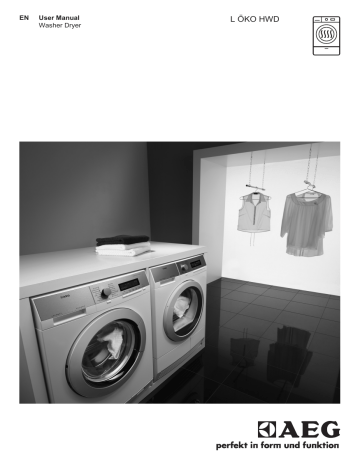

EN
User Manual
Washer Dryer
L ÖKO HWD
2
www.aeg.com
CONTENTS
1. SAFETY INFORMATION.................................................................................................3
2. SAFETY INSTRUCTIONS................................................................................................ 5
3. PRODUCT DESCRIPTION.............................................................................................. 7
4. CONTROL PANEL...........................................................................................................8
5. PROGRAMMES ............................................................................................................ 12
6. CONSUMPTION VALUES.............................................................................................16
7. SETTINGS...................................................................................................................... 17
8. OPTIONS....................................................................................................................... 18
9. BEFORE FIRST USE.......................................................................................................19
10. DAILY USE - WASHING ONLY...................................................................................20
11. END OF THE PROGRAMME......................................................................................23
12. DAILY USE - DRYING ONLY...................................................................................... 23
13. DAILY USE - WASHING & DRYING........................................................................... 25
14. HINTS AND TIPS......................................................................................................... 26
15. CARE AND CLEANING.............................................................................................. 28
16. TROUBLESHOOTING.................................................................................................34
17. INSTALLATION........................................................................................................... 38
18. TECHNICAL DATA..................................................................................................... 44
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you impeccable
performance for many years, with innovative technologies that help make life simpler
features you might not find on ordinary appliances. Please spend a few minutes
reading to get the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.aeg.com
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice
ENGLISH
1.
3
SAFETY INFORMATION
Before the installation and use of the appliance,
carefully read the supplied instructions. The
manufacturer is not responsible if an incorrect
installation and use causes injuries and damages. Always
keep the instructions with the appliance for future
reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent
disability.
•
•
•
•
•
•
•
•
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Do not let children play with the appliance.
Children of less than 3 years should be kept away
unless continuously supervised.
Keep all packaging away from children.
Keep all detergents away from children.
Keep children and pets away from the appliance door
when it is open.
If the appliance has a child safety device, we
recommend you activate it.
Cleaning and user maintenance shall not be made by
children without supervision.
1.2 General Safety
•
•
•
Do not change the specification of this appliance.
The appliance can be installed as freestanding or
below the kitchen counter with correct space.
Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite
4
www.aeg.com
•
•
•
•
•
•
•
•
•
•
•
•
•
side, where the appliance door can not be fully
opened.
Connect the mains plug to the mains socket only at
the end of the installation. Make sure that there is
access to the mains plug after the installation.
The ventilation openings in the base (if applicable)
must not be obstructed by a carpet.
Ensure you have good ventilation in the installation
room to avoid the back flow of gases into the room
from appliances burning other fuels, including open
fires.
Exhaust air must not be discharged into a flue which is
used for exhausting fumes from appliances burning
gas or other fuels (if applicable).
The operating water pressure (minimum and
maximum) must be between 0,5 bar (0,05 MPa) and 8
bar (0,8 MPa).
Obey the maximum load volume of 9 kg (refer to the
“Programme chart” chapter).
The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
Wipe away lint that has accumulated around the
appliance.
Do not run the appliance without filters. Clean the lint
filter before or after each use.
Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should
be washed in hot water with an extra amount of
detergent before being dried in the wash dryer.
Do not use the appliance if industrial chemicals have
been used for cleaning.
Do not dry unwashed items in the wash dryer.
ENGLISH
•
•
•
•
•
•
•
•
5
Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be
dried in the wash dryer.
Fabric softeners, or similar products, should be used
as specified by the fabric softener instructions.
Remove all objects from pockets such as lighters and
matches.
Never stop the wash dryer before the end of the
drying cycle unless all items are quickly removed and
spread out so that the heat is dissipated.
The final part of a wash dryer cycle occurs without
heat (cool down cycle) to ensure that the items are left
at a temperature that ensures that the items will not
be damaged.
Do not use water spray and steam to clean the
appliance.
Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
Before maintenance, deactivate the appliance and
disconnect the mains plug from the mains socket.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging and the
transit bolts.
• Keep the transit bolts. When you
move the appliance again you must
block the drum.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Do not install or use a damaged
appliance.
• Obey the installation instruction
supplied with the appliance.
• Do not install or use the appliance
where the temperature is less than
5°C or higher than 35 °C.
• Make sure that the floor where you
install the appliance is flat, stable,
heat resistant and clean.
• Do not install the appliance where the
appliance door can not be fully
opened.
• Always move the appliance vertically.
• The rear surface of the appliance
must be put against the wall.
• Make sure that there is air circulation
between the appliance and the floor.
• Adjust the feet to have the necessary
space between the appliance and the
carpet.
• When the appliance is put in its
permanent position, check if it is fully
level with the aid of a spirit level. If it
is not, adjust the feet until it is.
• To make sure the compressor works
properly, wait 6 hours after the
installation before using the
appliance.
6
www.aeg.com
2.2 Electrical Connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Do not touch the mains cable or the
mains plug with wet hands.
• Only for UK and Ireland: The
appliance has a 13 amp mains plug. If
it is necessary to change the fuse in
the mains plug, use a 13 amp ASTA
(BS 1362) fuse.
• This appliance complies with the
E.E.C. Directives.
2.3 Water Connection
• Make sure not to cause damage to
the water hoses.
• Before you connect the appliance to
new pipes or pipes not used for a
long time, let the water flow until it is
clean.
• The first time you use the appliance,
make sure that there is no leakage.
2.4 Use
WARNING!
Risk of injury, electrical
shock, fire, burns or damage
to the appliance.
• Use this appliance in a household
only.
• Do not change the specification of
this appliance.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the glass of the door
while a programme operates. The
glass can be hot.
• Do not dry the damaged items which
contain padding or fillings.
• If you have washed your laundry with
a stain remover start an extra rinse
cycle before you start a drying cycle.
• Make sure that you remove all metal
objects from the laundry.
• Only dry fabrics which are applicable
to dry in the washer-dryer. Follow the
instructions on the fabric label.
• Plastic items are not heat resistant.
– If you use a detergent ball,
remove it before you set the
drying programme.
– Do not use a detergent ball when
you set a non-stop programme.
WARNING!
Risk of injury or damage to
the appliance.
• Do not sit or stand on the open door.
• Do not dry dripping wet clothes in the
appliance.
2.5 Disposal
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
2.6 Compressor
WARNING!
Risk of damage to the
appliance.
• The compressor and its system in the
washer-dryer is filled with the special
agent which is free from fluorochlorohydrocarbons. This system must
stay tight. The damage of the system
can cause a leakage.
ENGLISH
3. PRODUCT DESCRIPTION
3.1 Appliance overview
1
2
3
10
4
11
12
5
6
13
7
9
8
1
2
3
4
5
6
7
8
Worktop
Detergent dispenser
Air filter(s)
Control panel
Door handle
Rating plate
Drain pump filter
Feet for the appliance level
3.2 How to activate the child
safety device
This device prevents children or pets to
be closed in the drum.
Turn the device clockwise, until the
groove is horizontal.
You cannot close the door.
14
9
10
11
12
13
14
Airflow slots
Water drain hose
Water inlet valve
Mains cable
Transit bolts
Feet for the appliance level
To close the door, turn the device
anticlockwise until the groove is vertical.
7
8
www.aeg.com
3.3 Accessories
1
2
4
3
1
Spanner
To remove the transit bolts.
2
Plastic caps
To close the holes on the rear side of the
cabinet after the removal of the transit
bolts.
3
Anti-flood inlet hose
To prevent possible leakage
4
Plastic hose guide
To connect the drain hose on the edge of
a sink.
4. CONTROL PANEL
4.1 Control panel description
1
2
WA S C H E N
3
WASCHEN/TROCKNEN
Feinwäsche
Koch/Bunt
Leichtbügeln
Baumwolle Eco
Super Eco
20 Min. - 3kg
Spülen
Schleudern/
Pumpen
Glätten
Auffrischen
DAMPF
4
Pflegeleicht
Wolle/
Seide
Anti-Allergie
5
6
Baumwolle
Pflegeleicht
Wolle
Ein/Aus
TROCKNEN
13
On/Off button (Ein/Aus)
Programme knob
Display
Automatic drying level touch button
(Automatik Trocknen)
5 Drying time touch button (Zeit
Trocknen)
6 Steam touch button (Dampf)
7 Start Pause touch button (Start/
Pause)
1
2
3
4
12
11 10
9
8
7
8 Delay start touch button (Zeitvorwahl)
9 Time save touch button (Zeit Sparen)
10 Extra rinse touch button (Extra
Spülen)
11 Option touch button (Flecken/
Vorwäsche)
12 Spin reduction touch button (U./Min.)
13 Temperature touch button (Temp.)
ENGLISH
4.2 Display
A
K
J
B
I
H
G
C
F
D
E
The display shows:
A
The text bar:
• Guides you in the use of the appliance.
• Shows the programme status and phase.
• Shows alarm messages. Refer to 'Troubleshooting' .
The symbols appear on the display when the related phase or function is set.
B
Child safety lock
Door locked
C
You cannot open the appliance door when the symbol is on. You can
open the door only when the symbol goes off.
If the programme is completed but the symbol stays on:
• The «Rinse hold» function is on.
• There is water in the drum.
9
10
www.aeg.com
Digit area
Time of the day
When you activate the appliance the display shows the time of the day for some
seconds. To adjust the clock, refer to "Clock setting".
Programme duration
When you set the programme, the cycle duration is displayed for a few seconds
then, the time of the programme end appears again.
Programme duration indicator
The indicator comes on when the digits shows the programme duration.
D
End time of the programme
Programme end indicator
The indicator comes on when the digits shows the programme end
time.
Time of delay
When you set the delayed start the time of the programme end increases by steps
of 30 minutes till 10 hours and by steps of one hour till 20 hours.
End of the programme
The display shows a zero.
This part comes on only if the door is open - Refer to 'Activating the appliance and
setting a programme'.
E
Maximum allowed load of laundry for the set programme (in kg).
Graphic bars
To set a function:
The function indicator comes on when the related function is set.
The empty indicator bar appears only if the related function is available for the set programme.
If an indicator bar does not come on, it means that it is not available.
The indicator bar fills accordingly to the set functions.
If you make a wrong selection, the text bar says that the selection is not
possible.
ENGLISH
Time save
The indicator comes on when you set one of the programme duration.
F
Shortened time
Extra Quick
G
Indicator for air filters
Extra rinsing
H
The value shows the total number of the rinses.
The indicator bar fills accordingly the numbers of rinses.
Stain indicator
Prewash indicator
I
Soak indicator
The indicator bar fills accordingly to the set functions.
Spin speed of the set programme
J
No Spin indicator1)
Rinse Hold indicator
1) Only available for SPIN/DRAIN programme.
Default temperature of the set programme
K
Cold water
11
12
www.aeg.com
5. PROGRAMMES
5.1 Programme Chart
Programme
Temperature
range
Maximum load
Maximum spin
speed
Programme description
(Type of load and soil level)
Washing/Drying programmes1)
Koch/Bunt
95°C - Cold
Baumwolle Eco2)
60°C - 40°C
Pflegeleicht
60°C - Cold
Wolle/Seide
40°C - Cold
Anti-Allergie
60°C
9 kg
1600 rpm
White cotton and coloured cotton. Normal soil and
light soil.
9 kg
1600 rpm
White cotton and colour-fast cotton. Normal soil.
The energy consumption decreases and the time of
the washing programme is extended.
4 kg
1200 rpm
Synthetic items or mixed fabric items. Normal soil.
1.5 kg
1200 rpm
Machine washable wool, hand washable wool and
9 kg
1600 rpm
White cotton items. This programme removes micro-organisms thanks to the washing by 60°C and
adds one rinse. In this way the wash is more effective.
delicate fabrics with «hand washing» care symbol.3)
Drying programmes
6 kg
Drying programme for cotton items.
4 kg
Drying programme for synthetic items.
1 kg
Drying programme for woollen.
Baumwolle
Pflegeleicht
Wolle
Washing programmes
Feinwäsche
40°C - Cold
Leichtbügeln
60°C - Cold
4 kg
1200 rpm
Delicate fabrics as acrylics, viscose, polyester
items. Normal soil.
4 kg
800 rpm
Synthetic items to be gentle washed. Normal and
light soil.4)
ENGLISH
Programme
Temperature
range
Maximum load
Maximum spin
speed
Programme description
(Type of load and soil level)
Super Eco
Cold
3 kg
1200 rpm
Mixed fabric (cotton and synthetic items).5)
20 Min. - 3 kg
40°C - 30°C
3 kg
1200 rpm
Cottons and synthetics items with light soil level
or worn only once.
9 kg
1600 rpm
To rinse and spin the laundry. All fabrics.
9 kg
1600 rpm
To spin the laundry and to drain the water in the
drum. All fabrics.
Spülen 6)
0°C
Schleudern/
Pumpen7)
0°C
Steam programmes8)
Steam can be used for dried, washed or worn once laundry. These programmes can
reduce creases and odours and make your laundry more soft.
Do not use any detergent. If necessary, remove stains by washing or using localized
stain removal.
Steam programmes do not perform any hygienic cycle.
Do not set a Steam programme with these types of items:
• items where it is not specified on the care label as being suitable for tumble drying.
• all items with plastic, metal, wooden parts or alike.
up to 1.5 kg
Glätten
40°C
Steam programme for cotton and synthetic items.
This cycle helps to dewrinkle the laundry.
13
14
www.aeg.com
Programme
Temperature
range
Maximum load
Maximum spin
speed
Programme description
(Type of load and soil level)
up to 1.5 kg
Steam programme for cotton and synthetic items.
This cycle removes odours from the laundry.9)
Auffrischen
40°C
1) When you set a Washing / Drying programme, the display tells you that the drying cycle is not set. If
you want to dry your laundry, set an automatic drying or a timed drying.
2) The washing programme Baumwolle Eco at 60ºC with a load of 9 kg and the drying programme
Baumwolle are the reference programmes for the data entered in the energy label, in compliance with
EEC 92/75 standards.
The water temperature of the washing phase may differ from the temperature declared
for the selected programme.
3) During this cycle the drum rotates slowly to ensure a gentle washing. It can seem that the drum
doesn't rotate or doesn't rotate properly. Consider this as a normal functioning of the appliance.
4) To reduce the creases of the laundry, this cycle regulates the water temperature and performs a soft
wash and spin phase. The appliance adds some rinses. This programme is not compatible with drying.
5) This programme is for daily use and has lowest energy and water consumption maintaining a good
washing performance.
6) Make sure the spin speed agrees with the laundry.
7) Set the spin speed. Make sure it agrees with the laundry. If you set No Spin option the only drain
phase is available.
8) If you set a Steam programme with dried laundry, at the end of the cycle the laundry could be humid.
It is better to expose the items to the fresh air for about 10 minutes to let the humidity dry. When the
programme is completed, quickly remove the laundry from the drum. After a steam cycle, items may to
be ironed anyway, but with less effort!
9) Steam does not remove animal odours.
Programme options compatibility
Programme
U./
Min.
PreStains
wash
Soak
Extra
Spü-
Zeit
Spa-
len 1)
ren2)
Zeitvorwahl
■
■
■
■
■ 3)
■
■
■
■
Koch/Bunt
■
■
■
■
Baumwolle Eco
■
■
■
■
Pflegeleicht
■
■
■
■
■
■
Anti-Allergie
■
■
■
■
■
Feinwäsche
■
■
■
■
■
■
■
Leichtbügeln
■
■
■
■
■
■
■
Super Eco
■
■
Wolle/Seide
■
■
■
■
■
■
■
ENGLISH
Programme
U./
Min.
20 Min. - 3 kg
■
Spülen
■
Schleudern/Pumpen
■
PreStains
wash
Soak
Extra
Spü-
Zeit
Spa-
len 1)
ren2)
15
Zeitvorwahl
■
■
■
■
■
■
1) If the Permanent Extra Rinse option is activated, the appliance adds some additional rinses. In the
Rinse programme, if you set a low spin speed the appliance performs delicate rinses and a short spin.
2) If you set a shorter duration, we recommend that you decrease the quantity of the load. It is possible
to load fully the appliance, however the washing results are reduced.
3) For this programme you can set only the Extra Quick duration.
5.2 Programmes for automatic drying
Dryness Level
Type of fabric
Load
Extra Dry
For towelling materials
Cottons and Linen
(bathrobes, bath towels, etc)
up to 6 kg
Cupboard Dry1)
For items to put away
Cottons and Linen
(bathrobes, bath towels, etc)
up to 6 kg
Synthetics and mixed fabrics
(jumpers, blouses, underwear,
household linen)
up to 4 kg
Cottons and Linen
(sheets, tablecloths, shirts, etc)
up to 6 kg
Iron Dry
Suitable for ironing
1) Hints for test institute The test performance, in accordance with EN 50229:2007-07, must be carried
out by setting the AUTOMATIC CUPBOARD DRY programme for Cotton with a load composition according to EN61121. Clean the air filters after each cycle.
5.3 Programmes for timed drying
Dryness Level
Type of fabric
Extra Dry
Cottons and Linen
For towelling materials (bathrobes, bath towels, etc)
Cupboard Dry
For items to put away
Cottons and Linen
(bathrobes, bath towels, etc)
Load
(kg)
Spin
speed
(rpm)
Suggested
duration
(mins)
6
1600
240 - 250
3
1600
120 - 140
1
1600
50 - 60
6
1600
230 - 240
3
1600
110 - 130
1
1600
40 - 50
16
www.aeg.com
Dryness Level
Type of fabric
Cupboard Dry
For items to put away
Synthetics and mixed fabrics
(jumpers, blouses, underwear, household linen)
4
1200
155 - 165
2
1200
55 - 65
Iron Dry
Suitable for ironing
Cottons and Linen
(sheets, tablecloths, shirts,
etc)
6
1600
190 - 200
3
1600
70 - 80
1
1600
30 - 40
1
1200
80 - 100
Wool dry
Wool
(wool jumpers)
5.4 Woolmark Apparel Care Blue
• The wool wash cycle of this machine
has been approved by The Woolmark
Company for the washing of wool
garments labelled as «hand wash»
provided that the garments are
Load
(kg)
Spin
speed
(rpm)
Suggested
duration
(mins)
washed according to the instructions
issued by the manufacturer of this
washing machine. Follow the garment
care label for drying and other
laundry instructions. M1230
• The wool drying cycle of this machine
has been approved by The Woolmark
Company for the drying of wool
garments labelled as «hand wash»
provided that the garments are dried
according to the instructions issued
by the manufacturer of this machine.
Follow the garment care label for
other laundry instructions. M1399
In UK, Eire, Hong Kong and India the
Woolmark symbol is a certification
trademark.
6. CONSUMPTION VALUES
The data of this table are approximate. Different causes can change the
data: the quantity and type of laundry, the water and ambient temperature.
ENGLISH
17
At programme start the display shows the duration programme for the
maximum load capacity.
During the washing phase the programme duration is automatically calculated and can be greatly reduced if the laundry load is lower than the
maximum load capacity (e.g. Cotton 60°C, maximum load capacity 9 kg,
the programme duration exceeds 2 hours; real load 1 kg, the programme duration don’t reach 1 hour).
When the appliance is calculating the real programme duration a dot
blinks in the display.
Programmes
Load
(kg)
Energy
Water conApproximate proconsump- sumption (li- gramme duration
tion (kWh) tre)
(minutes)
Cottons 60 °C
9
1.68
71
180
Baumwolle Eco
Cotton Energy Saving Pro-
9
1.094
69
238
Cottons 40 °C
9
1.05
71
175
Synthetics 40 °C
4
0.88
60
142
Delicates 40 °C
4
0.70
63
91
1.5
0.35
59
58
gramme 60 °C1)
Wool/Handwash 30 °C
1) «Cotton Energy Saving programme » at 60°C with a load of 9 kg is the reference programme for the
data entered in the energy label, in compliance with EEC 92/75 standards.
7. SETTINGS
7.1 Acoustic signals
7.2 Child Lock function
You can hear the acoustic signals when:
With this function you can prevent that
the children play with the control panel.
• You activate the appliance.
• You deactivate the appliance.
• You touch the buttons.
• The programme is completed.
• The appliance has a malfunction.
To deactivate/activate the acoustic
signals, press Flecken/Vorw. and Extra
Spülen at the same time for 6 seconds.
If you deactivate the
acoustic signals, they
continue operate only when
you touch the buttons and
when a malfunction occurs.
• To activate/deactivate this function,
touch Temp. and U./Min. buttons at
the same time until the indicator
comes on/goes off.
You can activate this function:
• After you touch Start/Pause : all the
buttons and the programme knob are
deactivated.
• Before you touch Start/Pause : the
appliance cannot start.
7.3 Permanent Extra Rinse
With this function you can keep the extra
rinse permanently on when you set a new
programme.
18
www.aeg.com
• To activate/deactivate this function
touch Zeit Sparen and Zeitvorwahl at
the same time until the display show
the indicator
off.
comes on/goes
8. OPTIONS
8.1 Touch Screen
Make sure the touch screen
and buttons are always clean
and dry.
8.2 Ein/Aus
Press this button to activate or deactivate
the appliance. A tune sounds when the
appliance is activated.
The AUTO Stand-by function
automatically deactivates the appliance
to decrease the energy consumption
when:
• You do not use the appliance for 5
minutes before you pressStart/Pause
button.
All setting are cancelled.
Press the button Ein/Aus to activate
the appliance again.
Set again the washing programme
and all possible functions.
• After 5 minutes from the end of the
washing programme
Refer to 'At the end of the
programme'
You can not set all
automatic levels for each
type of fabrics.
8.5 Zeit Trocknen
Touch this button to set the time that
suits the fabrics you have to dry. The text
bar in the display shows the set value.
Each time you touch this button the time
value increases by 5 minutes.
You cannot set all time
values for different types of
fabrics.
8.6 Dampf
Touch this button to set the steam level.
This is possible only with programmes
where the steam function is available.
The duration of the steam phase
changes accordingly to your selection.
8.7 Start/Pause
Touch button Start/Pause to start or
interrupt a programme.
8.3 Programme knob
8.8 Zeitvorwahl
Turn this knob to set a programme. The
related programme indicator comes on.
Touch button Zeitvorwahl to delay the
start of a programme from 30 minutes to
20 hours.
8.4 Automatik Trocknen
Touch this button to set one of 3
automatic dryness levels proposed by
the appliance. On the control panel the
dryness indicators illuminate accordingly.
The text bar in the display shows the set
`dryness level:
• Iron dry – 1 indicator on: laundry to
be ironed
• Cupboard dry – 2 indicators on:
laundry to be put in store
• Extra dry – 3 indicators on: laundry to
be fully dried
8.9 Zeit Sparen
Touch button Zeit Sparen to decrease
the programme time.
You can select:
• SHORTENED DURATION: to wash
items with daily soil.
• EXTRA QUICK: to wash quickly items
with almost no soil.
Some programmes accept
only one of these functions.
ENGLISH
19
8.10 Extra Spülen
8.12 U./Min.
Touch this button to add rinsing phases
to a programme.
Touch button U./Min. to:
• Decrease the maximum speed of the
spin phase of the programme.
Use this function for persons allergic to
detergents and in areas where the water
is soft.
8.11 Flecken/Vorwäsche
Touch this button to set one of the
following functions:
•
Prewash
Use this function for heavy soil. The
appliance adds a prewash phase to
the main wash. The programme
duration increases.
•
Soak
Use this function for heavy soil. The
appliance soaks the laundry at 30°C
for about half an hour before to wash.
•
Stains
Use this function for laundry with hard
stains to remove. When you set this
function, put the stain remover into
compartment
The display shows only
the spin speeds available
for the set programme.
• Deactivate the spin phase ( 'No spin'
function).
• Activate the Rinse Hold function.
Set this function to prevent fabric
creases. The appliance does not drain
the water when the programme is
completed.
8.13 Temp.
Touch this button to change the default
temperature.
Symbols
and
= cold water
.
The programme duration
increases. This function is
not available with a
temperature lower than
40° C.
9. BEFORE FIRST USE
1. Put a small quantity of detergent in
the compartment for washing phase.
2. Set and start a programme for cotton
at the highest temperature without
laundry.
This removes all possible dirt from the
drum and the tub.
9.1 Clock setting
After you set the language, the display
tells to set the clock. The hour digits
flash.
1. Turn the programme knob to change
the hour.
2. Touch Start/Pause button to confirm
the selection.
The minute digits flash.
3. Turn the programme knob to change
the minutes.
4. Touch Start/Pause button to confirm
the selection.
9.2 Change the time of the
day after the first activation
1. Touch the button Extra Spülen and
the button Zeit Sparen at the same
time for some seconds.
The hour digits flash.
2. Turn the programme knob to change
the hour.
3. Touch Start/Pause button to confirm
the selection.
20
www.aeg.com
The minute digits flash.
4. Turn the programme knob to change
the minutes.
5. Touch Start/Pause button to confirm
the selection.
9.3 Language setting
The first time you activate the appliance,
the display shows the default language
and tells you to confirm it or change it:
1. Turn the programme knob to set the
desired language.
2. When the display shows the
necessary language touch Start/
Pause button to confirm the
selection.
9.4 Change the language after
the first activation
1. Touch button U./Min. and button
Flecken/Vorwäsche at the same time
for some seconds.
2. When the display shows the
language set, turn the programme
knob to set the new language.
3. Touch Start/Pause button to confirm
the selection.
10. DAILY USE - WASHING ONLY
10.1 Before activating the
appliance
1. Open the water tap.
2. Connect the mains plug to the mains
socket.
10.2 Activating the appliance
and setting a programme
1. Press button Ein/Aus to activate the
appliance.
2. Turn the programme knob to the
required programme.
The programme indicator comes on.
The indicator of Start/Pause button
flashes with red colour.
The display shows the default
temperature and spin and, if the door is
already open, the maximum load
allowed for the set programme (this
information disappears when you close
the door).
3. If necessary, touch Temp. button and
U./Min. button to change the water
temperature and the spin speed.
4. If necessary, touch the other buttons
to add some options or to set a
delayed start.
The display shows the symbol of the set
option and the digit shows the delayed
time.
10.3 Loading the laundry
1. Open the appliance door
2. Put the laundry in the drum, one item
at a time.
3. Shake the items before you put them
in the appliance.
Make sure not to put too much laundry
in the drum.
4. Close the door.
CAUTION!
Make sure that no laundry stays between
the seal and the door. There is a risk of
water leakage or damage to the laundry.
ENGLISH
10.4 Filling the detergent and
additives
Compartment for washing phase.
Compartment for liquid additives
(fabric conditioner, starch).
Maximum level for quantity of liquid
additives.
Flap for powder or liquid detergent.
Always obey the instructions
that you find on the
packaging of the detergent
products.
10.5 Liquid or powder
detergent
Compartment for prewash phase,
soak programme or stain remover.
1
A
2
1.
21
2.
B
4.
3.
• Position A for powder detergent (factory setting).
• Position B for liquid detergent.
When you use the liquid detergent:
• Do not use gelatinous or thick liquid detergents.
• Do not put more liquid then the maximum level.
• Do not set the prewash phase.
• Do not set the delay start.
22
www.aeg.com
10.6 Starting a programme
without the delay start
Touch button Start/Pause to start the
programme.
The relevant indicator stops to flash and
stays on with red colour.
The programme starts, the door is
locked. The display show the indicator
.
The drain pump can operate
for a short time when the
appliance fills water.
10.7 Behaviour of the
appliance
After approximately 15
minutes from the start of the
programme:
• The appliance adjusts
automatically the cycle
time to the laundry you
have put in the drum to
have perfect washing
results in the minimum
necessary time.
• The display shows the
new time value.
10.8 Starting a programme
with the delay start
1. Touch button Zeitvorwahl again and
again to set the desired delayed
start.
The display show the expected end of
the programme.
2. Touch button Start/Pause.
The appliance starts the countdown of
the delay start.
When the countdown is completed, the
programme starts automatically.
Before you touch button
Start/Pause to start the
appliance, you can cancel or
change the set of the delay
start.
10.9 Cancelling the delay start
1. Touch button Start/Pause. The
related indicator flashes.
2. Touch button Zeitvorwahl again and
again until the display tells that there
is no delay start.
3. Touch button Start/Pause. The
programme starts.
10.10 Interrupting a
programme and changing the
options
You can change only some options
before they operate:
1. Touch button Start/Pause.
The related indicator flashes.
2. Change the options.
3. Touch button Start/Pause again.
The washing programme continues.
10.11 Cancelling a running
programme
1. Press button Ein/Aus to cancel the
programme and to deactivate the
appliance.
2. Press button Ein/Aus again to
activate the appliance.
Now, you can set a new washing
programme.
Before starting the new
programme, the appliance
could drain the water. In this
case, make sure that the
detergent is still in the
detergent compartment; if
not, fill the detergent again.
10.12 Opening the door
WARNING!
If the temperature and level
of the water in the drum are
too high and the drum still
rotates you cannot open the
door.
While a programme or the delay start
operates, the appliance door is locked.
To open the appliance door:
1. Touch button Start/Pause.
ENGLISH
The door lock symbol in the display goes
off.
2. Open the appliance door.
3. Close the appliance door and touch
button Start/Pause.
The programme or the delay start
continues
10.13 Draining water out after
end of cycle
The washing programme is completed,
but there is water in the drum:
• The drum turns regularly to prevent
the creases in the laundry.
• The door stays locked.
• You must drain the water to open the
door:
1. If necessary, decrease the spin
speed.
2. Touch the Start/Pause button.
The appliance drains the water and
spins.
3. When the programme is completed
and the door lock indicator goes off,
you can open the door.
4. Press Ein/Aus some seconds to
deactivate the appliance.
The appliance drains and
spins automatically after
approximately18 hours.
10.14 AUTO Stand-by option
The AUTO Stand-by option automatically
deactivates the appliance to decrease
the energy consumption when:
• You do not use the appliance for 5
minutes before you press Start/Pause
button.
Press the button Ein/Aus to activate
the appliance again.
• After 5 minutes from the end of the
washing programme
Press the button Ein/Aus to activate
the appliance again.
The display shows the end of the last
set programme.
Turn the programme knob to set a
new cycle.
11. END OF THE PROGRAMME
When the programme has finished, the
appliance stops automatically. The
acoustic signal operates (if it is active).
In the display comes on and a
message tells you that the programme is
completed.
The indicator of Start/Pause button goes
off.
1. Press the button Ein/Aus to
deactivate the appliance.
After five minutes from the end of the
programme, the energy saving function
automatically deactivates the appliance.
12. DAILY USE - DRYING ONLY
WARNING!
Refer to Safety chapters.
23
When you activate the
appliance again, the display
show the end of the last set
programme. Turn the
programme knob to set a
new cycle.
2. Remove the laundry from the
appliance.
3. Make sure that the drum is empty.
4. Keep the door and air filter ajar, to
prevent mildew and odours.
24
www.aeg.com
12.1 Preparation to drying
1. Press button Ein/Aus for some
seconds to activate the appliance
2. Load the laundry one item at a time.
3. Turn the programme dial to the
drying programme applicable for the
items to dry.
The text bar in the display tells which
programme you have chosen.
When drying a big amount
of laundry, to have good
drying performances, make
sure that the laundry itself is
not rolled up and that is
uniformly distributed in the
drum.
At the beginning of the
drying cycle (3 – 5 min.)
there could be a slightly
higher sound level. This is
the compressor start and it is
quite normal for compressor
powered appliances such
refrigerators, freezers and so
on.
12.2 Automatic drying
1. Touch button Automatik Trocknen
repeatedly to set the required
dryness level. The indicators on the
control panel illuminate accordingly:
a. IRON DRY level - 1 indicator on:
for cotton items
b. CUPBOARD DRY level - 2
indicators on: for cotton and
synthetic items
c. EXTRA DRY level - 3 indicators
on : indicator for cotton items
You cannot set all dryness
levels for any type of
laundry.
The display shows the time end and the
set drying programme.
2. Touch button Start/Pause to start the
programme.
The text bar tells that the appliance is
drying.
The display shows the door locked
indicator and the programme in progress
indicator and, alternatively, the time
of the cycle end.
The display updates regularly the drying
cycle time (every minute).
12.3 Timed drying
1. Touch button Zeit Trocknen again
and again to set the time value (see
the «Drying Programme» table).
The display shows 15 minutes for cottons
and synthetics programmes while starts
from 13 minutes for wool programme.
Each time you touch this button the time
value increases by 5 minutes. The display
shows the set time value.
2. Touch Start/Pause to start the
programme. The text bar tells that
the appliance is drying.
On the display appear the door locked
and the programme in progress
indicators.
The display shows alternatively, the
drying cycle duration and the time of the
cycle end.
The display updates regularly the drying
cycle value.
If the laundry is not sufficient
dry, set again a short drying
time.
12.4 At the end of the drying
programme
• The appliance stops automatically.
• The acoustic signals operate (if they
are active).
• In the display comes on. The text
bar tells you that the programme is
completed.
• The indicator of button Start/Pause
goes
goes off. The door locked
off
• Press the button Ein/Aus for some
seconds to deactivate the appliance.
ENGLISH
25
After some minutes from
the end of the
programme, the energy
saving function
automatically deactivates
the appliance.
1. Remove the laundry from the
appliance.
2. Make sure that the drum is empty.
13. DAILY USE - WASHING & DRYING
WARNING!
Refer to Safety chapters.
13.1 NON-STOP programme
You can wash and dry your laundry
setting a «non stop-programme».
Proceed as follows:
1. Press button Ein/Aus for some
seconds to activate the appliance .
2. Load the laundry one item at a time.
3. Put the detergent and the additives
in the appropriate compartment.
4. Turn the programme dial to the
washing programme. The display
shows the default temperature and
spin. If necessary, change them
according to your laundry.
5. Set the available options.
13.2 Washing and Drying at
automatic levels
1. Touch button Automatik Trocknen
repeatedly until the display shows
the required dryness level. The
indicators above the button
illuminate accordingly:
a. IRON DRY level: 1 indicator on for cotton items;
b. CUPBOARD DRY level: 2
indicators on - for cotton and
synthetic items;
c. EXTRA DRY level: 3 indicators
on - for cotton items.
The display shows that the appliance is
ready to start.
The time value on the display is the
duration of both cycles washing and
drying, calculated on a default load
size.
To have a good drying the
appliance does not let you
set a too low spin speed for
the items to be washed and
dried.
2. Touch button Start/Pause to start the
programme.
The display shows the door locked
indicator and the programme in progress
indicator and, alternatively, the
drying time and the time of the cycle
end.
The text bar tells that the appliance is
operating.
The display shows regularly a new time
value.
13.3 Washing and Timed
Drying
1. Touch button Zeit Trocknen
repeatedly to set the time value (see
the «Drying Programme» table).
The display shows 15 minutes for cottons
and synthetics programmes while starts
from 13 minutes for wool programme.
Each time you press this button the time
value increases by 5 minutes. The display
shows the set time value.
2. Press Start/Pause to start the
programme.
On the display appear the door locked
and the programme in progress
indicators.
The display shows, alternatively, the
programme duration and the time of the
cycle end.
The text bar tells that the appliance is
operating.
26
www.aeg.com
13.4 At the end of the
programme
The appliance stops automatically. The
acoustic signals operate (if they are
active).
For more information see ‘At the end of
the drying programme “ of the previous
chapter.
13.5 Fluff in the fabrics
During the washing and/or drying phase,
some types of fabric, (sponge, wool,
sweatshirt) could release fluff.
The released fluff could stick to the
fabrics during the next cycle.
This inconvenient increases with
technical fabrics.
To prevent the fluff in your laundry, we
recommend that you:
• To do not wash dark fabrics after you
washed and dried light coloured
fabrics (new sponge, hand towel,
wool, sweatshirt ) and the contrary.
• To dry this type of fabrics at open air
when they are washed the first time.
• To clean the drain filter.
• After the drying phase, clean the air
filters, the empty drum, the gasket
and the door with a wet cloth.
To remove the fluff inside the drum,
set a special programme:
• Empty the drum.
• Clean the drum, the gasket and the
door with a wet cloth.
• Set the rinse programme.
• Touch at the same time U./Min. and
Extra Spülen to activate the cleaning
function until the display shows CLE.
• Touch Start/Pause to start the
programme.
14. HINTS AND TIPS
WARNING!
Refer to Safety chapters.
14.1 The laundry load
• Divide the laundry in: white, coloured,
synthetics, delicates and wool.
• Obey the washing instructions that
are on the laundry care labels.
• Do not wash together white and
coloured items.
• Some coloured items can discolour
with the first wash. We recommend
that you wash them separately for the
first times.
• Button up pillowcases, close zippers,
hooks and poppers. Tie up belts.
• Empty the pockets and unfold the
items.
• Turn inside out multilayered fabrics,
wool and items with painted
illustrations.
• Remove hard stains.
• Wash with a special detergent heavy
soil stains.
• Be careful with the curtains. Remove
the hooks or put the curtains in a
washing bag or pillowcase.
• Do not wash in the appliance laundry
without hems or with cuts. Use a
washing bag to wash small and/or
delicate items (e.g. underwired bras,
belts, tights, etc. ).
• A very small load can cause balance
problems with the spin phase. If this
occurs, adjust manually the items in
the tub and start the spin phase
again.
14.2 Stubborn stains
For some stains, water and detergent is
not sufficient.
We recommend that you remove these
stains before you put the items in the
appliance.
Special stain removers are available. Use
the special stain remover that is
applicable to the type of stain and fabric.
14.3 Detergents and additives
• Only use detergents and additives
specially made for washing machines:
– powder detergents for all types of
fabric,
– powder detergents for delicate
fabrics (40 °C max) and woollens,
– liquid detergents, preferably for
low temperature wash
ENGLISH
•
•
•
•
•
programmes (60 °C max) for all
types of fabric, or special for
woollens only.
Do not mix different types of
detergents.
To help the environment, do not use
more than the correct quantity of
detergent.
Obey the instructions that you find on
the on packaging of these products.
Use the correct products for the type
and colour of the fabric, the
programme temperature and the
level of soil.
If your appliance has not the
detergent dispenser with the flap
device, add the liquid detergents with
a dosing ball (supplied by the
detergent's manufacturer).
14.4 Ecological hints
• Set a programme without the
prewash phase to wash laundry with
normal soil.
• Always start a washing programme
with the maximum load of laundry.
• If necessary, use a stain remover when
you set a programme with a low
temperature.
• To use the correct quantity of the
detergent, check the water hardness
of your domestic system
14.5 Water hardness
If the water hardness in your area is high
or moderate, we recommend that you
use a water softener for washing
machines. In areas where the water
hardness is soft it is not necessary to use
a water softener.
To know the water hardness in your area,
contact your local water authority.
Use the correct quantity of the water
softener. Obey the instructions that you
find on the packaging of the product.
14.6 Drying hints
Prepare the drying cycle
• Open the water tap.
• Do a check if the connection of the
drain hose is correct. Refer to
installation chapter for more
information.
27
• For the maximum laundry load of the
drying programmes, refer to the
drying programmes table.
14.7 Items to do not dry
Do no not set a drying programme for
this laundry:
• Very delicate items.
• Synthetic curtains.
• Pieces of clothing with metal inserts.
• Nylon stockings.
• Quilts.
• Bed covers.
• Duvets.
• Anoraks.
• Sleeping bags
• Fabrics with residue of hair sprays, nail
solvents or similar.
• Garments with foam-rubber or
materials similar to foam-rubber.
14.8 Garment labels
When you dry the laundry, obey the
indications on the labels of the
manufacturers:
•
= The item can be tumble dried
•
= The drying cycle is at high
temperature
•
= The drying cycle is at reduced
temperature
•
= The item can not be tumble
dried.
14.9 Drying cycle duration
The drying time can change depending
on:
• speed of the last spin
• dryness level
• type of laundry
• weight of the load size
14.10 Additional drying
If, at the end of the drying programme,
the laundry is still damp, set a short
drying cycle again.
WARNING!
To avoid creases of fabrics
or shrinks of the clothing
do not over dry the
laundry.
28
www.aeg.com
14.11 General Tips
Refer to the «Drying programmes» table
to find the average drying times.
The experience will help you to dry the
laundry in a more correct way. Take note
of the duration drying time of the cycles
done before.
When the drying programme is
completed remove the laundry in a short
time.
To avoid the static charge at the end of
the drying cycle:
1. Use fabric conditioner in the washing
cycle.
2. Use special fabric conditioner for
tumble dryers.
15. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
15.1 External cleaning
Clean the appliance only with soap and
warm water. Fully dry all the surfaces.
CAUTION!
Do not use alcohol, solvents
or chemical products.
15.2 Descaling
15.3 Maintenance wash
With the low temperature programmes it
is possible that some detergent stays in
the drum. Make regularly a maintenance
wash. To do this:
• Remove the laundry from the drum.
• Set the cotton programme with the
highest temperature with a small
quantity of detergent.
15.4 Door seal
If the water hardness in your area is high
or moderate, we recommend that you
use a water descaling product for
washing machines.
Regularly examine the drum to prevent
limescale and rust particles.
To remove rust particles use only special
products for washing machine. Do this
separately from the laundry wash.
Always obey the instructions
that you find on the
packaging of the product.
Regularly examine the seal and remove
all objects from the inner part.
ENGLISH
15.5 Cleaning the detergent dispenser
1.
2.
1
2
3.
4.
15.6 Cleaning the air filters
The air filters collect the fluff. The fluff normally occurs when the clothes
are dried in a washer-dryer.
• At the end of each drying cycle in the display the indicator
the primary air filter.
The text bar says to clean the primary filter (see pict. 1-5).
is on to tell you to clean
may flash to remind you that both air filters should be
• Occasionally the indicator
cleaned.
The acoustic signal operate and the text bar says to check the primary and secondary
filters (see pict. 6-8).
1.
2.
29
30
www.aeg.com
L
L
PU
PU
3.
LL
4.
U
P
L
L
5.
6.
7.
8.
+
9.
10.
To have best drying performances clean regularly the air filters with warm
water and afterwards dry them with a towel. Clogged filter increases the
drying time.
WARNING!
The primary filter recess must not be blocked by any object.
If you only wash the laundry with your washer-dryer, it is normal to find
some humidity in the primary air filter.
ENGLISH
15.7 Cleaning the drain filter
WARNING!
Do not clean the drain filter
if the water in the appliance
is hot.
1.
2.
2
1
1
2
1
3.
4.
1
5.
6.
1
2
2
31
32
www.aeg.com
7.
8.
1
2
9.
2
1
15.8 Cleaning the inlet hose filter and the valve filter
It could be necessary to clean the filters when:
• The appliance does not fill with water.
• The appliance fills with the water for a long time.
• The indicator of button Start/Pause flashes and the display shows the related alarm.
Refer to 'Troubleshooting'.
To clean the water inlet filters:
• Close the water tap.
• Remove the water inlet hose from the
water tap.
• Clean the filter in the inlet hose with a stiff
brush.
1
2
3
ENGLISH
33
• Remove the inlet hose behind the
appliance.
• Clean the filter in the valve with a stiff
brush or a towel.
• Install again the inlet hose. Make sure that
the couplings are tight to prevent
leakages.
• Open the water tap.
45°
20°
15.9 Emergency drain
15.10 Frost precautions
Because of a malfunction, the appliance
cannot drain the water.
If the appliance is installed in an area
where the temperature can be less than
0° C, remove the remaining water from
the inlet hose and the drain pump.
If this occurs, do steps (1) through (9) of
'Cleaning the drain filter'. If necessary,
clean the pump.
When you drain the water with the
emergency drain procedure, you must
activate again the drain system:
1. When you drain the water with the
emergency drain procedure, you
must activate again the drain system:
Put 2 litres of water in the main wash
compartment of the detergent
dispenser.
2. Start the programme to drain the
water
1. Disconnect the mains plug from the
mains socket.
2. Close the water tap.
3. Put the two ends of the inlet hose in
a container and let the water flow out
of the hose.
4. Empty the drain pump. Refer to the
emergency drain procedure.
5. When the drain pump is empty,
install the inlet hose again.
34
www.aeg.com
WARNING!
Make sure that the
temperature is more than 0
°C before you use the
appliance again.
The manufacturer is not
responsible for damages
caused by low temperatures.
16. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
16.1 Introduction
The start of the appliance does not occur or it stops during operation.
First try to find a solution to the problem (refer to the table). If not, contact the Authorised
Service Centre.
With some problems, the acoustic signals operate and the display shows an alarm
message:
CAUTION!
Deactivate the appliance before you do the checks.
16.2 Possible failures
Problems with alarm messages
Message
Possible solution
The display tells to check the Make sure that the water tap is open.
tap: the appliance does not
fill with water.
Make sure that the pressure of the water supply is not too
low. For this information, contact your local water authority.
Make sure that the water tap is not clogged or is furred
with lime-scale.
Make sure that the filter of the inlet hose and the filter of
the valve are not clogged. Refer to “Care and cleaning”.
Make sure that the inlet hose is not damaged.
Make sure that the connection of the water inlet hose is
correct.
The display tells to check the Make sure that the drain hose is not damaged.
drain filter: the appliance
does not drain the water.
ENGLISH
Message
35
Possible solution
Make sure that the drain filter is not clogged. Clean the
filter, if necessary. Refer to 'Care and cleaning'.
Make sure that the connection of the drain hose is correct.
The display tells to check the Make sure that the appliance door is not open or closed
door.
correctly.
The display tells there is a
water alert.
The anti-flood device is activated:
• Disconnect the appliance.
• Close the water tap.
• Contact the service centre.
The display tells that the
main supply is unstable.
Wait until the mains supply is stable. The appliance automatically starts operating.
At the end of the washing
cycle the display tells that
too much detergent was
used.
This is not a failure but a suggestion for next wash to decrease the detergent quantity.
The display tells to check the Make sure that the filter drawer is correctly inserted.
air filter (the indicator
flashes and the acoustic signal operates)
Problems without alarm messages
Problem
Possible solution
The programme does not
start.
Make sure that the mains plug is connected to the mains
socket.
Make sure that there is not a damaged fuse in the fuse
box.
Make sure that the you have touched Start/Pause.
If the delay start is set, cancel the setting or wait for the
end of countdown.
Deactivate the Child Lock function if it is on.
The appliance does not drain Make sure that you have not set a programme without
the water.
drain phase.
Make sure that you have not set an option which ends
with water in the tub.
36
www.aeg.com
Problem
Possible solution
The appliance fills with water Make sure that the drain hose is in the correct position.
and drains immediately.
The hose may be too low.
The spin phase does not operate or the washing cycle
lasts longer than usually.
Make sure that the spin phase is not off.
Make sure that the drain filter is not clogged. Clean the
filter, if necessary. Refer to 'Care and cleaning'.
Make sure that the this is not a balance problem. Adjust
manually the items in the drum and start the spin phase
again.
There is water on the floor.
Make sure that the couplings of the water hoses are tight
and there is not water leakages.
Make sure that the drain hose have no damages.
Make sure you use the correct detergent and the correct
quantity of it.
You cannot open the appliance door.
Make sure that the washing programme is finished.
Set the drain or the spin programme if there is water in
the drum.
Make sure that the appliance receives electrical power.
This problem may be caused by a failure of the appliance. Contact the Authorised Service Centre. If you need
to open the door, please read carefully «Emergency door
opening».
The appliance makes an unusual noise.
Make sure the levelling of the appliance is correct. Refer
to 'Installation'.
Make sure that the packaging and/or the transit bolts are
removed. Refer to 'Installation'.
Add more laundry in the drum. The load may be too
small.
The washing results are not
satisfactory.
Increase the detergent quantity or use a different detergent.
Use special products to remove the stubborn stains before you wash the laundry.
Make sure that you set the correct temperature.
Decrease the laundry load.
The washing cycle is shorter
than the time displayed.
The appliance calculates a new time according to the
laundry load.
ENGLISH
37
Problem
Possible solution
The washing cycle is longer
than the time displayed.
An unbalanced laundry load increases the duration time.
This is a normal behaviour of the appliance.
After a steam programme,
garments are partially wet.
Make sure that the appliance is accurately levelled. Adjust the appliance by raising or lowering the feet.
After a steam programme,
garments are not sufficiently
smooth.
Make sure that you set a correct STEAM programme.
The appliance does not dry
or does not dry correctly.
Make sure the air filters are not clogged.
Make sure the drain filter is not clogged.
Make sure you have set the correct cycle. If necessary, set
a short drying time again.
The drying cycle is too long.
Make sure the air filters are properly cleaned.
Make sure your laundry load does not exceed the declared load for the set programme.
Make sure that the room temperature is in the correct
range.
The laundry is full of different colours fluff.
Set a drying cycle to remove some fluff (for more details
refer to 'FLUFF IN THE FABRICS' ).
Clean the laundry with a fluff remover.
There is a big quantity of
fluff in the drum.
In case of an excessive amount of fluff in the drum, run
the special programme to clean it (refer to “FLUFF IN
THE FABRICS” for more details).
After the check, activate the appliance. The programme continues from the point of
interruption.
If the problem occurs again, contact the Authorised Service Centre.
If the display shows other alarm codes. Deactivate and activate the appliance. If the
problem continues, contact the Authorised Service Centre.
16.3 Emergency door opening
In case of power failure or appliance
failure the appliance door remains
locked. The washing programme
continues, when the power is restored. If
the door remains locked in case of
failure, it is possible to open it using the
emergency unlock feature.
Before opening the door:
CAUTION!
Make sure that the water
temperature and the
laundry are not hot. Wait
till they cool down, if
necessary.
CAUTION!
Make sure that the drum is
not rotating. Wait till the
drum stops rotating, if
necessary.
38
www.aeg.com
Make sure that the water
level inside the drum is not
too high. Proceed with an
emergency drain, if
necessary (refer to
«Emergency drain» in
«Care and cleaning»
chapter).
To open the door, proceed as follows:
1. Press the button Ein/Aus to switch
the appliance off.
2. Disconnect the mains plug from the
mains socket.
3. Open the filter flap.
4. Keep the emergency unlock trigger
pulled downward and, at the same
time, open the appliance door.
5. Take out the laundry and then close
the appliance door.
6. Close the filter flap.
17. INSTALLATION
WARNING!
Refer to Safety chapters.
17.1 Unpacking
WARNING!
As you will put down the appliance on the rear side, wait about 6 hours
before you use it. This time is necessary to enable the compressor to
work properly.
WARNING!
Remove all the packaging and the transit bolts before installing the
appliance.
Use the gloves.
• Remove the external film. If necessary,
use a cutter
ENGLISH
39
• Remove the cardboard top.
• Remove the polystyrene packaging
materials.
• Remove the internal film.
• Open the door.
• Remove the polystyrene piece from
the door seal and all the items from
the drum.
• Put one of the polystyrene packaging
elements on the floor behind the
appliance.
• Carefully put down the appliance with
the rear side on it.
• Make sure not to damage the hoses.
• Remove the polystyrene protection
from the bottom.
1
2
40
www.aeg.com
• Pull up the appliance in vertical
position.
• Remove the power supply cable and
the drain hose from the hose holders.
It is possible to see water
flowing from the drain
hose. This is due to the
testing with water of the
appliances in factory.
• Remove the three bolts.
• Use the key supplied with the
appliance.
• Pull out the plastic spacers.
• Put the plastic caps in the holes.
• You can find these caps in the user
manual bag.
We recommend that you keep the packaging and the transit bolts for any
movement of the appliance.
17.2 Fixing plate kit
(4055171146)
Available from your authorized dealer.
If you install the appliance on a plinth,
secure the appliance in the fixing plates.
Read carefully the instructions supplied
with the accessory.
ENGLISH
41
17.3 Installation under a counter
The appliance can be installed as
freestanding or below the kitchen counter
with correct space (see picture).
600 mm
≥ 870 mm
CAUTION!
To assure free air circulation
under the appliance, do not
attach the sound barriers (if
available).
600 mm
17.4 Positioning and levelling
• Install the appliance on a flat hard floor.
• Make sure that carpets do not stop the air
circulation below the appliance.
• Make sure that the appliance does not
touch the wall or other units.
• Loosen or tighten the feet to adjust the
level.
A correct adjustment of the appliance level
prevents the vibration, noise and the
movement of the appliance when in
operation.
x4
• The appliance must be level and stable.
CAUTION!
Do not put cardboard, wood
or equivalent materials below
the appliance feet to adjust
the level.
42
www.aeg.com
17.5 The inlet hose
• Connect the hose to the back appliance.
Turn the inlet hose only left or right.
• Loose the ring nut to set it in the correct
position.
45
20
O
O
• Connect the water inlet hose to the cold
water tap with 3/4 thread.
CAUTION!
Make sure that there are no
leaks from the couplings.
Do not use an extension hose if the inlet hose is too short. Contact the
service centre for the replacement of the inlet hose.
17.6 Water-stop device
The inlet hose has a water stop device. This
device prevents water leaks in the hose
because of its natural ageing.
The red sector in the window «A» shows this
fault.
If this occur, close the water tap and contact
the service centre to replace the hose.
A
17.7 Water drainage
There are different procedures to connect the drain hose:
With the plastic hose guide:
ENGLISH
43
• Making an U form with the drain hose.
On the edge of a sink
• Make sure that the plastic guide cannot
move when the appliance drains. Attach
the guide to the water tap or the wall.
To a stand pipe with vent-hole
• Directly into a drain pipe at a height of not
less than 60 cm (23.6”) and not more than
100 cm (39.3”). Refer to the illustration.
• The end of the drain hose must always be
ventilated , i.e. the inner diameter of the
drain pipe (min. 38 mm - min. 1.5”) must
be larger than the external diameter of the
drain hose.
Drain hose end
• If the end of the drain hose looks like this
(see the picture), you can push it directly
into the stand pipe.
Without the plastic hose guide.
44
www.aeg.com
To a sink spigot
• Refer to the illustration. Put the drain hose
in the spigot and tighten it with a clip.
• Make sure that the drain hose makes a
loop to prevent that remaining particles
go in the appliance from the sink.
To a wall-pipe
• Directly to a built-in drain pipe in the room
wall and tighten it with a clip.
You can extend the drain hose to maximum 400 cm. Contact the service
centre for the other drain hose and the extension.
18. TECHNICAL DATA
Dimension
Width/ Height/ Depth/ Total depth
600 mm/ 870 mm/
605 mm/ 640 mm
Electrical connection
Voltage
Overall power
Fuse
Frequency
230 V
2200 W
10 A
50 Hz
Level of protection against ingress of solid particles and moisture
ensured by the protective cover, except where the low voltage
equipment has no protection against moisture
IPX4
Water supply 1)
Cold water
Water supply pressure
Minimum
Maximum
0,5 bar (0,05 MPa)
8 bar (0,8 MPa)
Ambient temperature
Minimum
5 °C
Maximum
35 °C
Cotton
9
Synthetics
4
Wool
1.5
Cotton
6
Synthetics
4
Maximum wash load
Maximum dry load
ENGLISH
Spin Speed
Wool
1
Maximum
1600 rpm
45
1) Connect the water inlet hose to a water tap with a 3/4'' thread.
19. ENVIRONMENT CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable
containers to recycle it. Help protect the
environment and human health and to
recycle waste of electrical and electronic
appliances. Do not dispose appliances
*
marked with the symbol with the
household waste. Return the product to
your local recycling facility or contact
your municipal office.
46
www.aeg.com
ENGLISH
47
132907970-A-312014
www.aeg.com/shop
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
