IKEA RENLIG User Manual

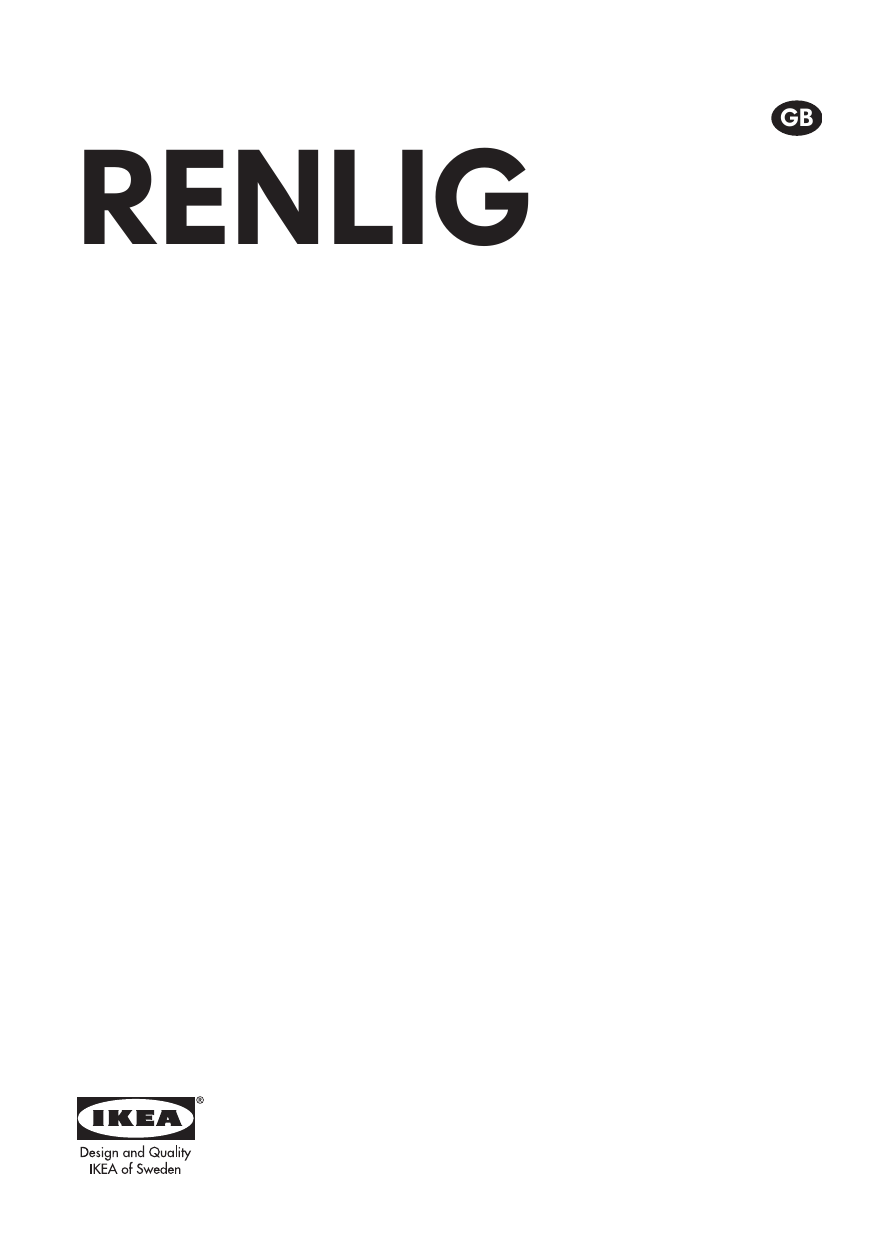

RENLIG
GB
ENGLISH
Please refer to the last page of this manual for the full list of IKEA
appointed After Sales Service Provider and relative national phone
numbers.
ENGLISH
4
4
ENGLISH
Contents
Safety information
Safety instructions
Product description
Control panel
Before first use
Daily use
Hints and tips
4
6
8
9
12
12
15
Programmes
Consumption values
Care and cleaning
Troubleshooting
Technical data
Environmental concerns
16
19
20
23
26
27
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
for any injuries or damages that are the result of incorrect
installation or usage. Always keep the instructions in a safe and
accessible location for future reference.
Children and vulnerable people safety
•
•
•
•
•
•
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved.
Children between 3 and 8 years of age and persons with
very extensive and complex disabilities shall be kept away
unless continuously supervised.
Children of less than 3 years of age should be kept away
unless continuously supervised.
Do not let children play with the appliance.
Keep all packaging away from children and dispose of it
appropriately.
Keep detergents away from children.
ENGLISH
•
•
•
5
Keep children and pets away from the appliance when the
door is open.
If the appliance has a child safety device, it should be
activated.
Children shall not carry out cleaning and user maintenance of
the appliance without supervision.
General Safety
•
•
•
•
•
•
•
•
•
•
Do not change the specification of this appliance.
Do not exceed the maximum load of 7 kg (refer to the
"Programme chart" chapter).
The operating water pressure at the water entry point from
the outlet connection must be between 0.5 bar (0.05 MPa)
and 8 bar (0.8 MPa).
The ventilation opening in the base must not be covered by a
carpet, mat, or any floor covering.
The appliance must be connected to the water mains using
the new supplied hose sets, or other new hose sets supplied
by the Authorised Service Centre.
Old hose sets must not be reused.
If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre
or similarly qualified persons to avoid an electrical hazard.
Before any maintenance operation, deactivate the appliance
and disconnect the mains plug from the socket.
Do not use high pressure water sprays and/or steam to clean
the appliance.
Clean the appliance with a moist cloth. Use only neutral
detergents. Do not use abrasive products, abrasive cleaning
pads, solvents or metal objects.
6
ENGLISH
Safety instructions
Installation
The installation must comply with
relevant national regulations.
• Remove all the packaging and the transit
bolts including rubber bush with plastic
spacer.
• Keep the transit bolts in a safe place. If
the appliance is to be moved in the
future they must be reattached to lock
the drum to prevent an internal damage.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Do not install or use the appliance where
the temperature can be less than 0°C or
where it is exposed to the weather.
• The floor area on which the appliance is
to be installed must be flat, stable, heat
resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• When the appliance is in its permanent
position, check if it is levelled correctly
with the aid of a spirit level. If it is not,
adjust the feet accordingly.
• Do not install the appliance directly
above a floor drain.
• Do not spray water on the appliance
and do not expose it to excessive
humidity.
• Do not install the appliance where the
appliance door cannot be fully opened.
• Do not put a closed container to collect
possible water leakage under the
appliance. Contact the Authorised
Service Centre to ensure which
accessories can be used.
Electrical connection
Warning! Risk of fire and electric
shock.
• The appliance must be earthed.
• Always use a correctly installed
shockproof socket.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by our
Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• Do not touch the mains cable or the
mains plug with wet hands.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains
plug.
• This appliance complies with the E.E.C.
Directives.
Water connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let the
water flow until it is clean and clear.
• Ensure that there are no visible water
leaks during and after the first use of the
appliance.
• Do not use an extension hose if the inlet
hose is too short. Contact the service
centre for the replacement of the inlet
hose.
ENGLISH
• You can extend the drain hose to
maximum 400 cm. Contact the service
centre for the other drain hose and the
extension.
Use
7
Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
Disposal
Warning! Risk of injury, electric
shock, fire, burns or damage to
the appliance.
• This appliance is for household use only.
• Follow the safety instructions on the
detergent packaging.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
• Make sure that all metal objects are
removed from the laundry.
• Do not wash fabrics which are heavily
soiled with oil, grease or other greasy
substances. It can damage rubber parts
of the washing machine. Prewash such
fabrics by hand before loading them into
the washing machine.
• Do not touch the glass door while a
programme is in operation. The glass
can get hot.
Warning! Risk of injury or
suffocation.
• Disconnect the appliance from the mains
electrical and water supplies.
• Cut off the mains electrical cable close to
the appliance and dispose of it.
• Remove the door catch to prevent
children or pets from becoming trapped
in the drum.
• Dispose of the appliance in accordance
with local requirements for the disposal
of Waste Electrical and Electronic
Equipment (WEEE).
ENGLISH
8
Product description
Appliance overview
1
2
1
2
3
4
5
6
Detergent dispenser drawer
Control panel
Door opening handle
Rating plate
Drain filter
Adjustable feet
3
4
5
6
Detergent dispenser drawer
Compartment for detergent used for
prewash and soak phase. The prewash and
soak detergent is added at the beginning of
the wash programme.
Compartment for powder or liquid
detergent used for main wash. If using liquid
detergent pour it just before starting the
programme.
Compartment for liquid additives (fabric
softener, starch).
Follow the product manufacturer’s recommendations on quantities to use and do
not ever exceed the «MAX» mark in the detergent dispenser drawer. Any fabric
softener or starching additives must be poured into the compartment before
starting the wash programme.
ENGLISH
9
Child safety device
This appliance incorporates a special feature to prevent children and pets becoming
trapped inside the drum.
Make sure that children or pets do not climb into the drum. Please check into the drum
before using it.
To activate this device, rotate the button
clockwise (without pressing it) inside the door
until the groove is horizontal. If necessary use
a coin.
To disable this device and restore the
possibility of closing the door, rotate the
button anticlockwise until the groove is
vertical.
Control panel
Control panel description
1
2
10
1 Programme knob
2 Display
3 Delay Start button
4 Door lock indicator
5 Start/Pause button
6 Extra Rinse button
9
8
7
6
3
5
7 Easy Iron button
8 Prewash button
9 Option button :
• Super Quick option
• Economy option
4
ENGLISH
10
10 Spin reduction
and Rinse Hold option
Programme knob
It allows you to switch the appliance On/Off and/or to select a
programme.
Display
The display shows the following information:
• A - Child safety lock
This device permits you to leave the appliance unattended
during it's functioning.
• B – Digit:
– Duration of the selected programme. After selecting a
programme, the duration is displayed in hours and minutes (e. g.
). The duration is calculated automatically on the basis of the maximum recommended load for
each type of fabric. After the programme has started, the
time remaining is updated every minute.
– Delayed start. The selected delay appears on the display
for a few seconds, then the duration of the selected programme is displayed again. The delay time value decreases by one unit every hour and then, when 1 hour remains, every minute.
– Alarm codes. In the event of operating problems, some
alarm codes can be displayed, e. g.
(see paragraph
«Troubleshooting»).
– Incorrect option selection. If an option which is not compatible with the set wash programme is selected, the message
is displayed at the bottom of the display for a
few seconds. The integrated red indicator of button
starts flashing.
– End of programme. When the programme has finished
and the
the flashing zero is displayed, the indicator
indicator of button
go out. The door can be opened.
A
B
Delay Start button
The programme can be delayed from 30 min - 60 min - 90min, 2
hours and then by 1 hour up to a maximum of 20 hours by
means of this button.
ENGLISH
11
Door lock indicator
This indicator illuminates when the programme starts and indicates if the door can be opened:
• indicator on: the door cannot be opened. The appliance is
working or has stopped with water left in the tub.
• indicator off: the door can be opened. The programme is finished or the water has been emptied out.
• indicator flashing: the door is opening in a few minutes.
Start/Pause button
This button allows you to start or to interrupt the selected washing programme.
Extra Rinse button
This appliance is designed for saving energy. If it necessary to
rinse the laundry using an extra quantity of water (extra rinse),
select this option. Some additional rinses will be performed. This
option is recommended for people who are allergic to detergents, and in areas where the water is very soft.
The relevant indicator illuminates.
Easy Iron button
With this option the laundry is gently washed and spun to avoid
any creasing. In this way ironing is easier.
Furthermore, the appliance will perform some additional rinses
in some programmes.
On cotton programmes the maximum spin speed is reduced automatically.
The related indicator illuminates.
Prewash button
By selecting this option the appliance performs a prewash cycle
before the main wash phase. The washing time will be prolonged. This option is recommended for heavily soiled laundry.
The relevant indicator illuminates.
Option button
By pressing this button you can set:
• Super Quick option
: the appliance performs a short cycle
for lightly soiled items or for laundry which needs only freshening up.
We recommend you to reduce the fabric load.
The relevant indicator illuminates.
• Economy option
:
With this option you can have a good washing results and
decrease the energy consumption at the same time.
The appliance extends the wash time and reduces the temperature.
The related indicator illuminates.
ENGLISH
Spin reduction button
12
By pressing this button you can change the spin speed of the selected programme.
The relevant indicator illuminates.
Rinse Hold option
Set this option to prevent the laundry creases. The drum turns
regularly to prevent the laundry creases.
The relevant indicator illuminates.
There is a water in the drum when the programme is
completed. The door stays locked. You must drain the
water to unlock the door. To drain the water refer to
«At the end of the programme».
Before first use
1. Ensure that the electrical and water
connections comply with the installation
instructions.
2. Remove any material from the drum.
3. Pour 2 liters of water into the main wash
compartment
of the detergent
drawer in order to activate the ECO
valve.
Select a cotton cycle at the highest
temperature without any laundry in the
appliance, to remove any manufacturing
residue from the drum and tub.
Pour 1/2 a measure of detergent into the
main wash compartment and start the
appliance.
Daily use
Loading the laundry
Open the water tap. Connect the mains
plug to the mains socket.
1. Pull the door handle to open the
appliance door.
2. Put the laundry in the drum, one item at
a time.
3. Shake the items before you put them in
the appliance.
Make sure not to put too much laundry in
the drum. Refer to max. loads indicated in
"Programme chart".
4. Close the door.
Caution!
Make sure
that no
laundry
stays
between
the seal
and the
door.
There is a risk of water leakage or damage
to the laundry.
13
ENGLISH
Measure out detergent and fabric
softener
Pour the detergent
into the main wash
compartment
or
in the appropriate
compartment if the
selected programme/
option it requires (see
more details in
"Detergent dispenser
drawer"). To pour the
right quantity of the
detergent, see more
details in "Degrees of
water hardness".
Pour fabric softener
into the compartment
marked
(must not
exceed the «MAX»
mark in the drawer).
Close the drawer gently
Setting a programme
1. Turn the programme knob to switch the
appliance on and set the programme:
• The indicator of the button
flashes.
• The display shows the programme
duration.
2. If necessary, change the spin speed or
add available options. When you
activate an option, the indicator of the
set option comes on.
If you set something incorrect, the
display shows the message
.
For the description of each wash
cycle, the compatibility among
the washing programmes and
the options, consult the chapter
«Programmes».
Starting a programme without the delay
start
Press the button
.
• The indicator of the button
stops
to flash and stays on.
• The programme starts, the door
is on.
locks, the indicator
• The programme time decreases with
steps of one minute.
The drain pump can operate for
a short time at the beginning of
the washing cycle.
Starting a programme with the delay start
option
1. Press the button
again and again
until the display shows the delay you
want to set. The delay start indicator
comes on.
2. Press the button :
• The door is locked and the indicator
is on.
• The appliance starts the countdown.
• When the countdown is completed,
the programme starts automatically.
You can cancel or change the set
of the
option before you press
the button . After pressing the
you can only cancel
button
option.
the
To cancel the
option:
a. Press the button
to set the
appliance to pause. The indicator of
button
flashes.
14
ENGLISH
b. Press the button
until the display
shows .
again to start
Press the button
the programme immediately.
Interrupting a programme and changing
the options
You can change only some options before
they operate.
1. Press the button .
The indicator flashes.
2. Change the options.
3. Press the button
again.
The programme continues.
the cycle or when the
operates:
1. Press the button
to pause the
appliance.
2. Wait until the indicator
goes off.
3. You can open the door.
4. Close the door and touch the button
again. The programme (or the )
continues.
At the end of the programme
Cancelling a running programme
1. Turn the programme knob to position
to cancel the programme and to
deactivate the appliance.
2. Turn the programme knob again to
activate the appliance. Now, you can
set a new washing programme.
Before starting the new
programme the appliance could
drain the water. In this case,
make sure that the detergent is
still in the detergent
compartment, if not fill the
detergent again.
Opening the door
While a programme or the
To open the door during the first minutes of
operates, the
appliance door is locked. The indicator
is on.
Caution! If the temperature and
level of the water in the drum are
too high and the drum still
rotates, you cannot open the
door.
• The appliance stops automatically.
• The acoustic signal operates (if it is
activated).
• In the display comes on.
goes off.
• The indicator of the button
• The door lock indicator
goes off.
Turn the programme knob to position
to deactivate the appliance.
• You can open the door.
• Remove the laundry from the appliance.
Make sure that the drum is empty.
• Close the water tap.
• Keep the door and the detergent drawer
ajar, to prevent the mildew and odours.
The washing programme is completed,
but there is water in the drum:
• The drum turns regularly to prevent the
creases in the laundry.
• The indicator
stays on to remind you
to drain the water.
• The door lock indicator
is on. The
indicator of button
is off. The door
stays locked.
• You must drain the water to open the
door.
Draining the water:
1. To drain the water.
programme.
• Set a
or a
• Press the button . The appliance
drains the water and spins.
ENGLISH
2. When the programme is completed and
the door lock indicator
goes off, you
can open the door.
3. Turn the programme knob to the
position
to deactivate the appliance.
15
be enabled. The brightness of the display is
reduced. By pressing any button the
appliance will come out of the energy
saving status.
Stand by
Once the programme has finished, after a
few minutes the energy saving system will
Hints and tips
Sorting out the laundry
Follow the wash code symbols on each
garment label and the manufacturer’s
washing instructions. Sort the laundry as
follows: whites, coloureds, synthetics,
delicates, woollens.
Removing stains
Stubborn stains may not be removed by just
water and detergent. It is therefore
advisable to treat them prior to washing.
Blood: treat fresh stains with cold water. For
dried stains, soak overnight in water with a
stain remover product then rub in the soap
and water.
Oil based paint: moisten with benzine stain
remover, lay the garment on a soft cloth
and dab the stain; treat several times.
Dried grease stains: moisten with
turpentine, lay the garment on a soft
surface and dab the stain with the fingertips
and a cotton cloth.
Rust: oxalic acid dissolved in hot water or a
rust removing product used cold. Be careful
with rust stains which are not recent since
the cellulose structure will already have
been damaged and the fabric tends to
hole.
1) do not use acetone on artificial silk
Mould stains: treat with bleach, rinse well
(white cottons and fast coloureds only).
Grass: soap lightly and treat with bleach
(white cottons and fast coloureds only).
Ball point pen and glue: moisten with
acetone1), lay the garment on a soft cloth
and dab the stain.
Lipstick: moisten with acetone as above,
then treat stains with methylated spirits.
Treat any residual marks with bleach.
Red wine: soak in water and detergent,
rinse and treat with acetic or citric acid,
then rinse. Treat any residual marks with
bleach.
Ink: depending on the type of ink, moisten
the fabric first with acetone1), then with
acetic acid; treat any residual marks on
white fabrics with bleach and then rinse
thoroughly.
Tar stains: first treat with stain remover,
methylated spirits or benzine, then rub with
detergent paste.
Degrees of water hardness
Water hardness is classified in so-called
“degrees” of hardness. Information on
hardness of the water in your area can be
ENGLISH
16
obtained from the relevant water supply
company, or from your local authority.
Degrees of water hardCharacteris- ness
tic
German
French °T.H.
°dH
Soft
0-7
0-15
Medium
8-14
16-25
Hard
Very hard
15-21
26-37
> 21
> 37
A water softener must be added
when water has a medium-high
degree of hardness. Follow the
manufacturer’s instructions. The
quantity of detergent can then
always be adjusted (reduced) to
degree of hardness soft.
Programmes
Programme Chart
Please always refer to the care label symbol of your garment and select the
washing programme based on what it says.
Programme
Temperature
range
COTTONS
90° - 60° - 40° 30°
Maximum load
Maximum spin
speed
7 kg
1400 rpm
7 kg
+ option
1400 rpm
1)
COTTONS ECO
60°C - 40°C
SYNTHETICS
60° - 40° - 30°
DELICATES
40° - 30°
Programme description
(Type of load and soil level)
White cotton and coloured cotton. Normal soil and
light soil.
White cotton and fast-coloured cotton. Normal soil.
The energy consumption decreases and the time of
the washing programme is extended.
3 kg
900 rpm
Synthetic items or mixed fabric items. Normal soil.
3 kg
700 rpm
Delicate fabrics such as acrylics, viscose and
mixed fabrics requiring gentler washing. Normal
soil.
ENGLISH
Programme
Temperature
range
17
Maximum load
Maximum spin
speed
Programme description
(Type of load and soil level)
2 kg
1000 rpm
Delicate fabrics with "hand washing" care symbol.2)
2 kg
1000 rpm
Machine washable wool and had washable wool2).
3 kg
1200 rpm
Items in denim and jersey. Also for dark coloured
items.
3 kg
900 rpm
Special programme for cotton, synthetic and mixed
fabrics lightly soiled. Select this programme to reduce the energy consumption. Make sure that the
detergent is suitable for low temperatures in order
to have good washing results3).
7 kg
Prewash - Soak for about 40 minutes - Stop with
water in the tub. Special programme for heavily
soiled laundry. At the end of this time the appliance
will stop automatically with water left in the tub. Before starting a new washing phase, it is necessary to
empty out the water (read "At the end of the programme")4) .
3 kg
700 rpm
A short cycle for synthetic and delicate items with
light soil level or for items to freshen up.
Rinse
7 kg
1400 rpm
To rinse and spin the laundry. All fabrics, except
woollens and very delicate fabrics. Reduce the spin
speed accordingly to the type of laundry.
Drain
7 kg
To drain the water in the drum. All fabrics.
HANDWASH
40° - 30° (Cold)
WOOL
40°
JEANS
40°
MIX 20°
20°C
SOAK
30°C
MINIPROGRAMME
30°C
ENGLISH
Programme
Temperature
range
Spin
18
Maximum load
Maximum spin
speed
7 kg
1400 rpm
Programme description
(Type of load and soil level)
To spin the laundry and to drain the water in the
drum. All fabrics, except woollens and delicate
fabrics.
Position to turn the appliance off or/and reset a programme.
ON/OFF
1) Standard programmes for the Energy Label consumption values. According to regulation 1061/2010, these programmes are respectively the «Standard 60°C cotton programme» and the «Standard 40°C cotton programme». They
are the most efficient programmes in terms of combined energy and water consumption for washing normally soiled
cotton laundry.
The water temperature of the washing phase may differ from the temperature declared for the selected
programme.
2) During this cycle the drum rotates slowly to ensure a gentle washing. If it seems that the drum doesn't rotate or
doesn't rotate properly, consider this as a normal functioning of the appliance.
3) The appliance performs the short heating phase if the water temperature is below 20°C. The appliance can show
the temperature setting as “cold”.
4) This programme cannot be used for very delicate fabrics as silk or wool. Pour the detergent for the soak programme into the compartment marked
. At the end of the soak (after having emptied out the water) you can select the desired washing programme. First turn the appliance off, then select the programme and start it.
Programme options compatibility
Programme
1)
2)
3)
4)
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
ENGLISH
19
Programme
1)
■
2)
3)
4)
■
■
■
■
■
■
1) This option is active only at 40° C and 60° C.
2) When you set this option, we recommend that you decrease the quantity of the laundry. It is possible to keep the full
load but the washing results can be unsatisfactory. Recommended load: cotton: 3.5 kg, synthetics and delicates: 1.5
kg.
3) If using liquid detergents, a programme without PREWASH must be selected.
4) Maximum load with Easy iron option 1.5 kg.
Consumption values
Stated values are obtained in laboratory conditions with relevant standards.
Different causes can change the data: the quantity and type of laundry and
ambient temperature. Water pressure, the supply voltage and the temperature
of inlet water may also affect the washing programme duration.
Programmes
Load (kg) Energy con- Water con- Approximate Remaining
sumption sumption (li- programme
moisture
(kWh)
tre)
duration (mi(%)1)
nutes)
Cottons 60°C
7
1.35
67
150
52
Cottons 40°C
7
0.85
67
140
52
Synthetics 40°C
3
0.55
42
90
35
Delicates 40°C
3
0.55
63
65
35
Wool/Handwash
30°C
2
0.25
55
60
30
Standard cotton programmes
Standard 60°C cotton
7
1.01
52
180
52
Standard 60°C cotton
3.5
0.78
44
149
52
ENGLISH
20
Programmes
Load (kg) Energy con- Water con- Approximate Remaining
sumption sumption (li- programme
moisture
(kWh)
tre)
duration (mi(%)1)
nutes)
Standard 40°C cotton
3.5
0.61
44
140
52
1) At the end of spin phase.
Off Mode (W)
Left On Mode (W)
0.10
0.98
The information given in the chart above is compliant with the EU Commission regulation
1015/2010 implementing directive 2009/125/EC .
Care and cleaning
Warning! Refer to Safety
chapters.
Warning! Switch the appliance
off before you carry out any
cleaning or maintenance work.
Maintenance Wash
With the use of low temperature washes it is
possible to get a build up of residues inside
the drum.
We recommend that a maintenance wash
be performed on a regular basis.
To run a maintenance wash:
• The drum should be empty of laundry.
• Select the hottest cotton wash
programme.
• Use a normal measure of detergent, must
be a powder with biological properties.
Cleaning the dispenser drawer and the
drawer recess
The washing powder and additive
dispenser drawer should be cleaned
regularly.
To remove the
drawer, press the
catch downwards
and pull it out.
To aid cleaning,
remove also the top
part of the additive
compartment.
ENGLISH
21
Use a stiff brush to
clean and remove all
washing powder
residue.
Pull out the
emergency emptying
hose (B), place it in
the container and
remove its cover cap.
Flush out all the
removed parts of the
dispenser drawer
under a tap to
remove any traces of
accumulated powder.
When no more water
comes out, unscrew
the filter cover and
remove it. Always
keep a rag nearby to
dry up spillage of
water when removing
the filter.
Remove any objects
from the filter impeller
by rotating it.
1
2
Use the previous
brush to clean the
recess, ensuring that
upper and lower part
of it is well cleaned.
After having cleaned the dispenser and the
drawer recess, replace it and run a rinse
programme without any laundry in the
drum to flush away any residue.
Cleaning the drain filter
Proceed as follows:
A
B
Place a container
close to the pump (A),
to collect any
spillage.
2
1
Use a pencil to check
whether the filter
wheel right at the
back of the filter
housing can turn. (It is
normal for the filter
wheel to turn jerkily.)
If the filter wheel
cannot be turned,
please contact the
Authorised Service
Centre.
Put the cap back on
the emergency
emptying hose and
place the latter back
in its seat. Screw the
filter fully in.
22
ENGLISH
Cleaning the inlet filter and the filter valve
The dangers of freezing
If the appliance takes long to fill with water
or doesn't fill, the starting button indicator
flashes in red. Check if the water inlet filter
and the valve filter are blocked (see
chapter "Troubleshooting" for more details).
If the appliance is installed in a place where
the temperature could drop below 0°C,
proceed as follows to remove any water
remaining inside the appliance:
• unplug the appliance;
• turn off the water tap;
• place the end of the emergency
emptying hose and that of the inlet hose
in a bowl placed on the floor and let
water drain out;
• screw the water inlet hose back on and
reposition the emergency emptying hose
after having put the cap on again;
• When you intend to start the appliance
up again, make sure that the room
temperature is above 0°C.
Every time you drain the water
through the emergency emptying
hose you must pour 2 litres of
water into the main wash
compartment of the detergent
drawer and then run the drain
programme. This will activate the
ECO VALVE device avoiding that
part of the detergent remains
unused at next washing.
Proceed as follows:
• Turn off the water
tap.
• Unscrew the hose
from the tap.
• Clean the filter in
the hose with a stiff
brush.
• Screw firmly the
inlet hose back
onto the tap.
• Unscrew the hose from the appliance.
Keep a rag nearby because some water
may flow.
• Clean the filter in the valve with a stiff
brush or with the piece of cloth.
• Screw the hose
back to the
appliance turning
35°
45°
it to the left or the
right to suit the
installation. Tight
the locknut
correctly to
prevent water
leaks.
• Turn on the water tap.
Emergency emptying out
If the water is not discharged, proceed as
follows to empty out the appliance:
• unplug the appliance;
• turn off the water tap;
• if necessary, wait until the water has
cooled down;
• open the filter door;
• place a bowl on the floor and place the
end of the emergency emptying hose
into the bowl. Remove its cap. The water
should drain by gravity into the bowl.
When the bowl is full, put the cap back
on the hose. Empty the bowl. Repeat the
procedure until water stops flowing out;
• clean the filter if necessary as previously
described;
ENGLISH
23
• replace the emergency emptying hose in
its seat after having plugged it;
• screw the filter cover again and close the
door.
Troubleshooting
Warning! Refer to Safety
chapters.
Introduction
The start of the appliance does not occur or it stops during operation.
With some problems, it is also possible that the red indicator of button
flashes.
First try to find a solution to the problem (refer to the table). If not, contact the Authorised
Service Centre.
Warning! Deactivate the appliance before you do the checks.
Possible failures
Problem
Possible cause
The door has not been closed.
Solution
Close the door firmly.
(The red indicator of button
flashes).
The plug is not properly inserted in Insert the plug into the power
the power socket.
socket.
The appliance
does not start:
There is no power at the socket.
Please check your domestic electrical installation.
The main fuse has blown.
Replace the fuse.
The programme selector dial is not Please turn the selector dial and
correctly positioned and the butpress the button
again.
ton
has not been pressed.
The delay start has been selected. If the laundry are to be washed
immediately, cancel the delay
start.
ENGLISH
24
Problem
Possible cause
The water tap is closed.
Solution
Open the water tap.
(The red indicator of button
flashes).
The appliance
does not fill the
water:
The water tap is blocked or there
is lime scale.
Clean the water tap.
The connection of the water inlet
hose in not correct.
Check the inlet hose connection.
The water pressure is too low.
Contact your local water authority.
The inlet hose is squashed or
kinked.
Check the inlet hose connection.
(The red indicator of button
flashes).
The filter in the inlet hose or the in- Clean the water inlet filters. (See
let valve filter are blocked.
"Cleaning the inlet hose and the
valve filter" for more details).
(The red indicator of button
flashes).
The door is not properly closed.
Close the door firmly.
(The red indicator of button
flashes).
The drain hose is squashed or
kinked.
Check the drain hose connection.
(The red indicator of button
flashes).
The drain filter is clogged.
The appliance
does not drain
the water:
Clean the drain filter.
(The red indicator of button
flashes).
An option or a programme that
ends with the water still in the tub
or a that eliminates all the spinning phases has been selected.
Select the draining or spinning
programme.
The connection of the drain hose is Check the drain hose connection.
not correct.
ENGLISH
Problem
The appliance
switches off during the washing
phase:
25
Possible cause
Solution
The mains supply has been cut off. Wait for the electricity restore.
The appliance will start again
from the same interrupted washing phase.
The electronic unbalance detecRedistribute the load manually or
tion device has cut in because the load more laundry and select the
laundry is not evenly distributed in spin programme.
the drum. The laundry is redistributed by reverse rotation of the
The appliance
spinning phase drum. This may happen several
starts late or does times before the unbalance disappears and normal spinning can renot start:
sume. If, after 10 minutes, the
laundry is still not evenly distributed in the drum, the appliance
will not spin.
Too much detergent or unsuitable Reduce the detergent quantity or
detergent (creates too much foam) use another one.
has been used.
Check whether there are any
Check the water inlet hose conleaks from one of the inlet hose fit- nection.
There is water on
tings. It is not always easy to see
the floor:
this as the water runs down the
hose; check if it is damp.
The drain or inlet hose is damaged.
Replace it with a new one (check
with the Authorised Service Centre the right spare part number).
The programme is still running.
Wait the end of washing cycle.
The door lock has not been reThe door does not
leased.
open:
There is water in the drum.
Wait a few minutes before opening the door.
Select drain or spin programme
to empty out the water.
ENGLISH
Problem
26
Possible cause
Solution
The transit bolts and packing have Check the correct installation of
not been removed.
the appliance.
The appliance
produces an unusual noise:
Unsatisfactory
washing results:
The support feet have not been
adjusted.
Check the correct levelling of the
appliance.
The drain filter could be blocked.
Check the drain filter. (See
"Cleaning the drain filter" for
more details).
Too little detergent or unsuitable
detergent has been used.
Increase the detergent quantity
or use another one.
Stubborn stains have not been
treated prior to washing.
Use commercial products to treat
the stubborn stains.
The correct temperature was not
selected.
Check if you have selected the
correct temperature.
Excessive laundry load.
Reduce the laundry load in according to the washing programmes table.
Service
We recommend the use of original spare
parts. After the check, switch on the
appliance and press the button
restart the programme.
The necessary data for the service centre is
on the rating plate. We recommend that
you write the data here:
to
If the problem remains, contact your
Authorised Service Centre.
Made In Italy
© Inter IKEA Systems B.V. 1999
501.514.59
21552
Model description
(MOD): .....................
Product number (PNC): ...........................
Serial number (S.N.): ...............................
Technical data
Product type
Built in - Washing Machine
ENGLISH
Dimensions
Water supply pressure1)
27
Width (cm)
59,6
Height (cm)
82
Depth (cm)
54,4 max
Minimum
Maximum
0,5 bar (0,05 MPa)
8 bar (0,8 MPa)
Cotton max. load (kg)
7
Max. spin speed (rpm)
1400
Energy class
A++
Washing class
A
Spinning class
B
Washing noise (dB(A))
56
Spinning noise (db(A))
74
Average annual energy consumption (kWh)2)
189
Average annual water consumption (litres)2)
10469
1) If the pressure in your area is lower or higher, please contact your Authorised Service Centre.
2) The data is based on the Standard Cotton programmes for test institutes assuming 200 cycles per a year.
Information on the electrical connection, voltage and overall power is given on
the rating plate, on the inner edge of the appliance door.
Environmental concerns
Recycle materials with the symbol . Put
the packaging in relevant containers to
recycle it. Help protect the environment and
human health by recycling waste of
electrical and electronic appliances. Do not
dispose of appliances marked with the
symbol with the household waste. Return
the product to your local recycling facility or
contact your municipal office.
28
Country
Phone number
België
Belgique
070 246016
Call Fee
Opening time
Binnenlandse gesprekskosten
8 tot 20 Weekdagen
Tarif des appels nationaux
8 à 20. En semaine
България
00359888164080
0035924274080
Такса за повикване от страната
От 9 до 18 ч в работни дни
Česká republika
246 019721
Cena za místní hovor
8 až 20 v pracovních dnech
Danmark
70 15 09 09
Landstakst
man. - fre. 09.00 - 20.00
lør. - søn. 09.00 - 18.00
Deutschland
+49 1806 33 45 32*
* 0,20 €/Verbindung aus dem Festnetz max. 0,60 €/Verbindung
aus dem Mobilfunknetz
Werktags von 8.00 bis 20.00
Ελλάδα
211 176 8276
Υπεραστική κλήση
8 έως 20 κατά τις εργάσιμες ημέρες
España
91 1875537
Tarifa de llamadas nacionales
De 8 a 20 en días laborables
France
0170 36 02 05
Tarif des appels nationaux
9 à 21. En semaine
Trošak poziva 27 lipa po minuti
radnim danom od ponedjeljka
do petka od 08:00 do 16:00
Hrvatska
00385 1 6323 339
Ireland
0 14845915
National call rate
8 till 20 Weekdays
Ísland
5880503
Innanlandsgjald fyrir síma
9 til 18. Virka daga
Italia
02 00620818
Tariffa applicata
alle chiamate nazionali
dalle 8 alle 20 nei giorni feriali
Κυπρος
22 030 529
Υπεραστική κλήση
8 έως 20 κατά τις εργάσιμες ημέρες
Lietuva
5 230 06 99
Nacionalinių pokalbių tarifai
Pr. - Ketv.: 8:00 - 12:00, 12:45 - 17:00
Pnkt.: 8:00 - 12:00, 12:45 - 15:45
Magyarország
061 998 0549
Belföldi díjszabás
Hétköznap 8 és 10 óra között
Nederland
0900 235 45 32 en/of
0900 BEL IKEA
15 cent/min., starttarief 4.54 cent
en gebruikelijke belkosten
ma - vr 08.00 - 20.00,
zat 09.00 - 20.00 (zondag gesloten)
Norge
22 72 35 00
Takst innland
8 til 20 ukedager
Österreich
+43-1-2056356
max. 10 Cent/min.
Mo - Fr 8.00 - 20.00 Uhr
Polska
801 400 711
Stawka wg taryfy krajowej
Od 8 do 20 w dni robocze
Portugal
211557985
Chamada Nacional
9 às 21. Dias de Semana
*excepto feriados
România
021 211 08 88
Tarif apel naţional
8 - 20 în zilele lucrătoare
8 495 6662929
Действующие телефонные
тарифы
с 8 до 20 по рабочим дням
Время московское
Россия
Schweiz
Tarif für Anrufe im Bundesgebiet
8 bis 20 Werktage
Tarif des appels nationaux
8 à 20. En semaine
Tariffa applicata
alle chiamate nazionali
dalle 8 alle 20 nei giorni feriali
(02) 3300 2554
Cena vnútroštátneho hovoru
8 až 20 v pracovných dňoch
Suomi
030 6005203
Lankapuhelinverkosta
0,0835 €/puhelu + 0,032 €/min
Matkapuhelinverkosta 0,192 €/min
arkipäivisin 8.00 - 20.00
Sverige
0775 700 500
lokalsamtal (lokal taxa)
mån-fre 8.30 - 20.00
lör-sön 9.30 - 18.00
Suisse
031 5500 324
Svizzera
Slovensko
Türkiye
212 244 0769
Ulusal arama ücreti
Hafta içi saat 09:00’dan 18:00’a kadar
Україна
044 586 2078
Міжміськи дзвінки платні
9 - 21 В робочі дні
United Kingdom
020 3347 0044
National call rate
9 till 21. Weekdays
Србија
+381 11 7 555 444
(ако позивате изван Србије)
011 7 555 444
(ако позивате из Србије)
Цена позива у националном
саобраћају
Понедељак – субота: 09 – 20
Недеља: 09 – 18
Eesti, Latvija, Slovenija
www.ikea.com
*
29
30
31
132903831-A-042018
© Inter IKEA Systems B.V. 2018
21552

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
