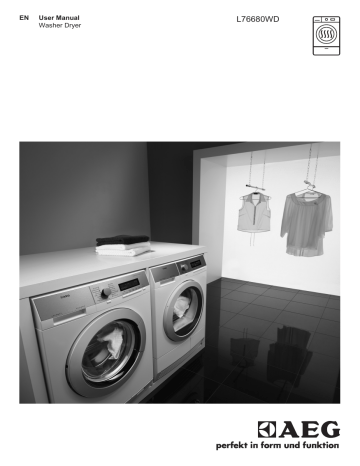

EN
User Manual
Washer Dryer
L76680WD
2
www.aeg.com
CONTENTS
1. SAFETY INFORMATION.................................................................................................3
2. SAFETY INSTRUCTIONS................................................................................................ 5
3. PRODUCT DESCRIPTION.............................................................................................. 7
4. CONTROL PANEL...........................................................................................................8
5. PROGRAMMES ............................................................................................................ 10
6. CONSUMPTION VALUES.............................................................................................14
7. OPTIONS....................................................................................................................... 15
8. SETTINGS...................................................................................................................... 16
9. BEFORE FIRST USE.......................................................................................................16
10. DAILY USE................................................................................................................... 17
11. DAILY USE - DRYING ONLY...................................................................................... 20
12. DAILY USE - WASHING & DRYING........................................................................... 21
13. HINTS AND TIPS......................................................................................................... 23
14. CARE AND CLEANING.............................................................................................. 25
15. TROUBLESHOOTING.................................................................................................28
16. TECHNICAL DATA..................................................................................................... 32
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you impeccable
performance for many years, with innovative technologies that help make life simpler
features you might not find on ordinary appliances. Please spend a few minutes
reading to get the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.aeg.com
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
ENGLISH
1.
3
SAFETY INFORMATION
Before the installation and use of the appliance,
carefully read the supplied instructions. The
manufacturer is not responsible if an incorrect
installation and use causes injuries and damages. Always
keep the instructions with the appliance for future
reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent
disability.
•
•
•
•
•
•
•
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Do not let children play with the appliance.
Children of less than 3 years should be kept away
unless continuously supervised.
Keep all packaging away from children.
Keep all detergents away from children.
Keep children and pets away from the appliance door
when it is open.
Cleaning and user maintenance shall not be made by
children without supervision.
1.2 General Safety
•
•
•
Do not change the specification of this appliance.
The appliance can be installed as freestanding or
below the kitchen counter with correct space.
Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite
side, where the appliance door can not be fully
opened.
4
www.aeg.com
•
•
•
•
•
•
•
•
•
•
•
•
•
Connect the mains plug to the mains socket only at
the end of the installation. Make sure that there is
access to the mains plug after the installation.
The ventilation openings in the base (if applicable)
must not be obstructed by a carpet.
Ensure you have good ventilation in the installation
room to avoid the back flow of gases into the room
from appliances burning other fuels, including open
fires.
Exhaust air must not be discharged into a flue which is
used for exhausting fumes from appliances burning
gas or other fuels (if applicable).
The operating water pressure (minimum and
maximum) must be between 0,5 bar (0,05 MPa) and 8
bar (0,8 MPa).
Obey the maximum load volume of 8 kg (refer to the
“Programme chart” chapter).
The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
Wipe away lint that has accumulated around the
appliance.
Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should
be washed in hot water with an extra amount of
detergent before being dried in the wash dryer.
Do not use the appliance if industrial chemicals have
been used for cleaning.
Do not dry unwashed items in the wash dryer.
Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be
dried in the wash dryer.
ENGLISH
•
•
•
•
•
•
•
5
Fabric softeners, or similar products, should be used
as specified by the fabric softener instructions.
Remove all objects from pockets such as lighters and
matches.
Never stop the wash dryer before the end of the
drying cycle unless all items are quickly removed and
spread out so that the heat is dissipated.
The final part of a wash dryer cycle occurs without
heat (cool down cycle) to ensure that the items are left
at a temperature that ensures that the items will not
be damaged.
Do not use water spray and steam to clean the
appliance.
Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
Before maintenance, deactivate the appliance and
disconnect the mains plug from the mains socket.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging and the
transit bolts.
• Keep the transit bolts. When you
move the appliance again you must
block the drum.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Do not install or use a damaged
appliance.
• Obey the installation instruction
supplied with the appliance.
• Do not install or use the appliance
where the temperature is less than 0
°C or where it is exposed to the
weather.
• Make sure that the floor where you
install the appliance is flat, stable,
heat resistant and clean.
• Do not install the appliance where the
appliance door can not be fully
opened.
• Always move the appliance vertically.
• The rear surface of the appliance
must be put against the wall.
• Make sure that there is air circulation
between the appliance and the floor.
• Adjust the feet to have the necessary
space between the appliance and the
carpet.
• When the appliance is put in its
permanent position, check if it is fully
level with the aid of a spirit level. If it
is not, adjust the feet until it is.
2.2 Electrical Connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
6
www.aeg.com
• Do not touch the mains cable or the
mains plug with wet hands.
• Only for UK and Ireland: The
appliance has a 13 amp mains plug. If
it is necessary to change the fuse in
the mains plug, use a 13 amp ASTA
(BS 1362) fuse.
• This appliance complies with the
E.E.C. Directives.
2.3 Water Connection
• Make sure not to cause damage to
the water hoses.
• Before you connect the appliance to
new pipes or pipes not used for a
long time, let the water flow until it is
clean.
• The first time you use the appliance,
make sure that there is no leakage.
2.4 Use
WARNING!
Risk of injury, electrical
shock, fire, burns or damage
to the appliance.
• Use this appliance in a household
only.
• Do not change the specification of
this appliance.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the glass of the door
while a programme operates. The
glass can be hot.
• Do not dry the damaged items which
contain padding or fillings.
• If you have washed your laundry with
a stain remover start an extra rinse
cycle before you start a drying cycle.
• Make sure that you remove all metal
objects from the laundry.
• Only dry fabrics which are applicable
to dry in the washer-dryer. Follow the
instructions on the fabric label.
• Plastic items are not heat resistant.
– If you use a detergent ball,
remove it before you set the
drying programme.
– Do not use a detergent ball when
you set a non-stop programme.
WARNING!
Risk of injury or damage to
the appliance.
• Do not sit or stand on the open door.
• Do not dry dripping wet clothes in the
appliance.
2.5 Disposal
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
ENGLISH
7
3. PRODUCT DESCRIPTION
3.1 Appliance overview
1
2
3
4
5
1
2
3
4
5
6
7
Worktop
Detergent dispenser
Control panel
Door handle
Rating plate
Drain pump filter
Feet for the appliance level
6
7
3.2 Installation on suspended
flooring
3.3 Fixing plate kit
(4055171146)
Suspended wooden floors are
particularly susceptible to vibration.
Available from your authorized dealer.
To help prevent vibration we
recommend you place a waterproof
wood panel, at least 15 mm thick under
the appliance, secured to at least 2 floor
beams with screws, the wood panel must
extend beyond the front feet.
If possible install the appliance in one of
the corners of the room, where the floor
is more stable.
If you install the appliance on a plinth,
secure the appliance in the fixing plates.
Read carefully the instructions supplied
with the accessory.
8
www.aeg.com
4. CONTROL PANEL
4.1 Control panel description
1
2
3
Cottons Eco
Cottons
Super Eco
Wash/Dry
60 min.
Cottons Dry
Synthetics
Synthetics Dry
Easy Iron
Wool Dry
Delicates
+ Prewash
+ Prewash
Spin/Drain
Wool/Silk
Rinse
20 Min. - 3 kg
On/Off
Temp.
Spin
10
9
Drying
Level
Drying
Time
Time
Save
Delay
Start
Start/Pause
8
7
6
5
4
7 Drying time button
1 On/Off button
2 Programme knob
3 Display
8 Drying level button
4 Start/Pause button
5 Delay Start button
9 Spin button
10 Temperature button
6 Time Save button
4.2 Display
A
B
Temperature area:
A
Temperature indicator
Cold water indicator.
C
D
ENGLISH
Spin area:
Spin speed indicator
B
No Spin indicator1)
Rinse Hold indicator
1) Only available for Spin/Drain programme.
Dryness level symbols1):
Iron dry
Cupboard dry
Extra dry
Display indicators2):
C
Door locked - You cannot open the door when this symbol is on.
You can open the door only when the symbol goes off.
Washing phase
Drying phase
Child safety lock
Extra rinse
Delay start
1) They come on when you set an automatic drying programme.
2) The symbols appear on the display when the related phase or function is set.
9
10
www.aeg.com
Time area:
Programme duration (washing and/or drying phase)
When the programme starts, the time decreases with steps of 1 minute.
Delay start
When you press the delay start button, the display shows the delay
start time.
D
Alarm codes
If the appliance has a malfunction, the display shows alarm codes.
Refer to 'Troubleshooting' chapter.
Message of error
The display shows this message for some seconds when:
• You cannot set a function with the washing programme.
• You try to change the washing programme while it operates.
Programme is completed
5. PROGRAMMES
5.1 Programme Chart
Programme
Temperature
range
Maximum load
Maximum spin
speed
Programme description
(Type of load and soil level)
Washing programmes
Cottons
95°C - Cold
Cottons + Prewash
95°C - Cold
Synthetics
60°C - Cold
Synthetics + Prewash
60°C - Cold
8 kg
1600 rpm
White cotton and coloured cotton. Normal soil
and light soil.
8 kg
1600 rpm
White cotton and coloured cotton. Heavy soil and
normal soil.
3.5 kg
1200 rpm
Synthetic items or mixed fabric items. Normal soil.
3.5 kg
1200 rpm
Synthetic items or mixed fabric items. Heavy soil
and normal soil.
ENGLISH
Programme
Temperature
range
Easy Iron
60°C - Cold
Delicates
40°C - Cold
Wool/Silk
40°C - Cold
Maximum load
Maximum spin
speed
Programme description
(Type of load and soil level)
3.5 kg
800 rpm
Synthetic items to be gentle washed. Normal and
3.5 kg
1200 rpm
Delicate fabrics as acrylics, viscose, polyester
items. Normal soil.
1.5 kg
1200 rpm
Machine washable wool, hand washable wool
and delicate fabrics with «hand washing» care sym-
light soil.1)
bol.2)
20 Min. - 3 Kg
40°C - 30°C
3 kg
1200 rpm
Cottons and synthetics items with light soil level
or worn only once.
8 kg
1600 rpm
To rinse and spin the laundry. All fabrics.
Rinse
8 kg
1600 rpm
To spin the laundry and to drain the water in the
drum. All fabrics.
Spin/Drain3)
11
Drying programmes
1 kg
Drying programme for woollen.
2 kg
Drying programme for synthetic items.
4 kg
Drying programme for cotton items.
Wool dry
Synthetics dry
Cottons dry
1 kg
Wash/Dry 60 min. 1200 rpm
40°C - 30°C
Complete programme composed of washing phase
and of drying phase for a small load size of mixed
fabrics (cottons and synthetics items).
Saving energy programmes
Super Eco
Cold
3 kg
1200 rpm
Mixed fabric (cotton and synthetic items)4).
12
www.aeg.com
Programme
Temperature
range
Cottons Eco5)
60°C - 40°C
Maximum load
Maximum spin
speed
Programme description
(Type of load and soil level)
8 kg
1600 rpm
White cotton and colour-fast cotton. Normal soil.
The energy consumption decreases and the time of
the washing programme is extended.
1) To reduce the creases of the laundry, this cycle regulates the water temperature and performs a soft
wash and spin phase. The appliance adds some rinses. This programme is not compatible with drying.
2) During this cycle the drum rotates slowly to ensure a gentle washing. It can seem that the drum
doesn't rotate or doesn't rotate properly. Consider this as a normal functioning of the appliance.
3) Set the spin speed. Make sure it agrees with the laundry. If you set No Spin option the only drain
phase is available.
4) This programme is for daily use and has lowest energy and water consumption maintaining a good
washing performance.
5) The washing programme Cottons Eco at 60ºC with a load of 8 kg and the drying programme Cottons
dry are the reference programmes for the data entered in the energy label, in compliance with EEC
92/75 standards.
The water temperature of the washing phase may differ from the temperature declared
for the selected programme.
Programme options compatibility
Programme
Extra
Spin
Rinse1)
Time Save2)
Delay
Start
Cottons
■
■
■
■
■
Cottons + Prewash
■
■
■
■
■
Synthetics
■
■
■
■
■
Synthetics + Prewash
■
■
■
■
■
Easy Iron
■
■
■
■
■
Delicates
■
■
■
■
■
Wool/Silk
■
■
20 Min. - 3 Kg
■
Rinse
■
Spin/Drain3)
■
Super Eco
■
■
■
■
■
■
■
■
■
■
ENGLISH
Programme
Cottons Eco
Extra
Spin
Rinse1)
■
■
13
Time Save2)
Delay
Start
■ 4)
■
■
1) If the Permanent Extra Rinse option is activated, the appliance adds some additional rinses. In the
Rinse programme, if you set a low spin speed the appliance performs delicate rinses and a short spin.
2) If you set a shorter duration, we recommend that you decrease the quantity of the load. It is possible
to load fully the appliance, however the washing results are reduced.
3) Set the spin speed. Make sure it agrees with the laundry. If you set No Spin option the only drain
phase is available.
4) For this programme you can set only the Extra Quick duration.
5.2 Programmes for automatic drying
Dryness Level
Extra Dry
For towelling materials
Cupboard Dry1)
For items to put away
Iron Dry
Suitable for ironing
Type of fabric
Load
Cottons and Linen
(bathrobes, bath towels, etc)
up to 4 kg
Cottons and Linen
(bathrobes, bath towels, etc)
up to 4 kg
Synthetics and mixed fabrics
(jumpers, blouses, underwear, household linen)
up to 2 kg
Cottons and Linen
(sheets, tablecloths, shirts,
etc)
up to 4 kg
1) Hints for test institute The test performance, in accordance with EN 50229, must be carried out with
a FIRST drying load of the maximum declared drying capacity (load composition according to EN61121)
by setting the AUTOMATIC CUPBOARD DRY programme for Cotton. The SECOND drying load with the
residual load must be tested by setting the AUTOMATIC CUPBOARD DRY programme for Cotton.
5.3 Programmes for timed drying
Dryness Level
Type of fabric
Extra Dry
Cottons and Linen
For towelling materials (bathrobes, bath towels, etc)
Load
(kg)
Spin
speed
(rpm)
Suggested
duration
(mins)
4
1600
155 - 170
2
1600
85 - 100
1
1600
60 - 70
14
www.aeg.com
Dryness Level
Type of fabric
Load
(kg)
Cupboard Dry
For items to put away
Cottons and Linen
(bathrobes, bath towels, etc)
Spin
speed
(rpm)
Suggested
duration
(mins)
4
1600
145 - 160
2
1600
75 - 90
1
1600
50 - 60
Cupboard Dry
For items to put away
Synthetics and mixed fabrics
(jumpers, blouses, underwear, household linen)
2
1200
100 - 115
1
1200
50 - 60
Iron Dry
Suitable for ironing
Cottons and Linen
(sheets, tablecloths, shirts,
etc)
4
1600
110 - 130
2
1600
60 - 70
1
1600
40 - 50
1
1200
85 - 105
Wool dry
Wool
(wool jumpers)
5.4 Woolmark Apparel Care Blue
• The wool wash cycle of this machine
has been approved by The Woolmark
Company for the washing of wool
garments labelled as «hand wash»
provided that the garments are
washed according to the instructions
issued by the manufacturer of this
washing machine. Follow the garment
care label for drying and other
laundry instructions. M1380
• The wool drying cycle of this machine
has been approved by The Woolmark
Company for the drying of wool
garments labelled as «hand wash»
provided that the garments are dried
according to the instructions issued
by the manufacturer of this machine.
Follow the garment care label for
other laundry instructions. M1381
In UK, Eire, Hong Kong and India the
Woolmark symbol is a certification
trademark.
6. CONSUMPTION VALUES
The data of this table are approximate. Different causes can change the
data: the quantity and type of laundry, the water and ambient temperature.
ENGLISH
15
At programme start the display shows the duration programme for the
maximum load capacity.
During the washing phase the programme duration is automatically calculated and can be greatly reduced if the laundry load is lower than the
maximum load capacity (e.g. Cotton 60°C, maximum load capacity 8 kg,
the programme duration exceeds 2 hours; real load 1 kg, the programme duration don’t reach 1 hour).
When the appliance is calculating the real programme duration a dot
blinks in the display.
Programmes
Load
(kg)
Energy
Water conApproximate proconsump- sumption (li- gramme duration
tion (kWh) tre)
(minutes)
Cottons 60 °C
8
1.35
67
175
Cottons Eco
Cotton Energy Saving Pro-
8
1.02
63
235
8
0.85
67
170
Synthetics 40 °C
3.5
0.40
48
115
Delicates 40 °C
3.5
0.50
55
80
Wool/Handwash 30 °C
1.5
0.25
45
60
gramme 60 °C1)
Cottons 40 °C
1) «Cotton Energy Saving programme » at 60°C with a load of 8 kg is the reference programme for the
data entered in the energy label, in compliance with EEC 92/75 standards.
7. OPTIONS
7.1 Temperature
Set this option to change the default
temperature.
Indicator
= cold water.
The display shows the set temperature.
7.2 Spin
With this option you can decrease the
default spin speed.
The display shows the indicator of the set
speed.
Additional spin options:
No Spin
• Set this option to remove all spin
phases.
• Set it for very delicate fabrics.
• The rinse phase uses more water for
some washing programmes.
• The display shows the indicator
.
Rinse Hold
• Set this option to prevent the laundry
creases.
• The washing programme stops with
the water in the drum. The drum turns
regularly to prevent the laundry
creases.
• The door stays locked. You must drain
the water to unlock the door.
• The display shows the indicator
To drain the water refer to
‘At the end of the
programme’.
.
16
www.aeg.com
7.3 Drying level
Press this button to set one of 3
automatic dryness levels proposed by
the appliance. The display shows the
symbol of the set level:
•
Iron dry – laundry to be ironed
•
Cupboard dry – laundry to be put
in store
•
Extra dry – laundry to be fully
dried
You cannot set all
automatic levels for each
type of fabrics.
You cannot set all time
values for different types of
fabrics.
7.5 Time Save
With this option you can decrease the
programme duration.
• Press this button one time to set
'Shortened duration' for items with
daily soil.
• Press this button two times to set
'Extra Quick' for items with almost no
soil.
Some programmes accept
only one of the two options.
7.4 Drying time
7.6 Delay Start
Press this button to set the time that suits
the fabrics you have to dry. The display
shows the set value.
With this option you can delay the start
of a programme from 30 minutes to 20
hours.
Each time you press this button the time
value increases by 5 minutes.
The display shows the related indicator
and delay time.
8. SETTINGS
8.1 Acoustic signals
The acoustic signals operate when:
• You activate the appliance.
• You deactivate the appliance.
• You press the buttons.
• The programme is completed.
• The appliance has a malfunction.
To deactivate/activate the acoustic
signals, press Drying Level and Drying
Time at the same time for 6 seconds.
If you deactivate the
acoustic signals, they
continue operate when the
appliance has a malfunction.
8.2 Child Lock
With this option you can prevent that the
children play with the control panel.
• To activate/deactivate this option,
press Temp. and Spin at the same
time until the indicator
comes on/
goes off.
You can activate this option:
• After you press Start/Pause : the
options and the programme knob are
locked.
• Before you press Start/Pause : the
appliance cannot start.
8.3 Permanent Extra Rinse
With this option you can permanently
have an extra rinse when you set a new
programme.
• To activate/deactivate this option
press Time Save and Delay Start at
the same time until the indicator Extra
Rinse comes on/goes off.
9. BEFORE FIRST USE
1. Put 2 litre of water in the detergent
compartment for washing phase.
This activates the drain system.
ENGLISH
2. Put a small quantity of detergent in
the compartment for washing phase.
3. Set and start a programme for cotton
at the highest temperature without
laundry.
17
This removes all possible dirt from the
drum and the tub.
10. DAILY USE
10.1 Loading the laundry
1. Open the appliance door
2. Put the laundry in the drum, one item
at a time.
3. Shake the items before you put them
in the appliance.
Make sure not to put too much laundry
in the drum.
4. Close the door firmly.
Compartment for prewash phase,
soak programme or stain remover.
Compartment for washing phase.
Compartment for liquid additives
(fabric conditioner, starch).
Maximum level for quantity of liquid
additives.
Flap for powder or liquid detergent.
Always obey the instructions
that you find on the
packaging of the detergent
products.
10.3 Check the position of the
flap
CAUTION!
Make sure that no laundry
stays between the seal and
the door. There is a risk of
water leakage or damage to
the laundry.
1. Pull out the detergent dispenser until
it stops.
2. Press the lever down to remove the
dispenser.
A
10.2 Filling the detergent and
additives
3. To use powder detergent, turn the
flap up.
18
www.aeg.com
3. Press button On/Off to activate the
appliance.
A short tune sounds.
10.5 Setting a programme
4. To use liquid detergent, turn the flap
down.
B
1. Turn the programme knob and set
the programme:
• The related programme indicator
comes on.
• The indicator of Start/Pause
flashes.
• The display shows: the default
temperature, the spin speed, the
indicators of the programme
phases and the programme
duration.
2. If necessary, change the
temperature, the spin speed, the
cycle duration, or add available
options. When you activate an
option, the indicator of the set
option comes on.
If you set something
incorrect, the display shows
the message Err.
With the flap in the
position DOWN:
• Do not use
gelatinous or thick
liquid detergents.
• Do not put more
liquid detergent than
the limit showed in
the flap.
• Do not set the
prewash phase.
• Do not set the delay
start function.
5. Measure out the detergent and the
fabric conditioner.
6. Carefully close the detergent
dispenser.
Make sure that the flap does not cause a
blockage when you close the drawer.
10.4 Activating the appliance
1. Open the water tap.
2. Connect the mains plug to the mains
socket.
10.6 Starting a programme
without the delay start
Press button Start/Pause to start the
programme.
The relevant indicator stops to flash and
stays on.
On the display the indicator of the phase
is operation starts to flash.
The programme starts, the door is
locked. The display show the indicator
.
The drain pump can operate
for a short time when the
appliance fills water.
ENGLISH
10.7 Behaviour of the
appliance
After approximately 15
minutes from the start of the
programme:
• The appliance adjusts
automatically the cycle
time to the laundry you
have put in the drum to
have perfect washing
results in the minimum
necessary time.
• The display shows the
new time value.
10.8 Starting a programme
with the delay start
1. Press button Delay Start again and
again until the display shows the
number of minutes or hours of delay.
The related indicator comes on.
2. Press button Start/Pause.
The appliance starts the countdown of
the delay start.
When the countdown is completed, the
programme starts automatically.
Before you press button
Start/Pause to start the
appliance, you can cancel or
change the set of the delay
start.
10.9 Cancelling the delay start
To cancel the delay start:
1. Press button Start/Pause to set the
appliance to pause.
The related indicator flashes.
2. Press button Delay Start repeatedly
until the display shows .
3. Press button Start/Pause again to
start the programme immediately.
10.10 Interrupting a
programme and changing a
function
You can change only some options
before they operate.
1. Press button Start/Pause.
The related indicator flashes.
19
2. Change the function set.
3. Press the button Start/Pause again.
The programme continues.
10.11 Cancelling a running
programme
1. Press button On/Off to cancel the
programme and to deactivate the
appliance.
2. Press button On/Off again to activate
the appliance.
Now, you can set a new washing
programme.
Before starting the new
programme the appliance
could drain the water. In this
case, make sure that the
detergent is still in the
detergent compartment, if
not fill the detergent again.
10.12 Opening the door
If the temperature and level
of the water in the drum are
too high and the drum still
rotates you cannot open the
door.
While a programme or the delay start
operates, the appliance door is locked.
1. Press button Start/Pause.
In the display the related door lock
indicator goes off.
2. Open the appliance door.
3. Close the door and press button
Start/Pause.
The programme or the delay start
continues.
10.13 End of cycle
When the programme has finished, the
appliance stops automatically. The
acoustic signal operates (if it is active).
In the display
comes on and the door
locked indicator
goes off.
The indicator of Start/Pause button goes
off.
1. Press button On/Off to deactivate
the appliance.
20
www.aeg.com
After five minutes from the end of the
programme, the energy saving function
automatically deactivates the appliance.
When you activate the
appliance again, the display
show the end of the last set
programme. Turn the
programme knob to set a
new cycle.
2. Remove the laundry from the
appliance.
3. Make sure that the drum is empty.
4. Keep the door ajar, to prevent
mildew and odours
10.14 Draining water out after
end of cycle
The washing programme is completed,
but there is water in the drum:
The drum turns regularly to prevent the
creases in the laundry.
The door lock indicator
door stays locked.
is on. The
You must drain the water to open the
door:
1. If necessary, decrease the spin
speed.
2. Press the Start/Pause button.
The appliance drains the water and
spins.
3. When the programme is completed
and the door lock indicator
off, you can open the door .
4. Press On/Off some seconds to
deactivate the appliance.
The appliance drains and
spins automatically after
approximately18 hours.
10.15 AUTO Stand-by option
The AUTO Stand-by function
automatically deactivates the appliance
to decrease the energy consumption
when:
• You do not use the appliance for 5
minutes before you press Start/Pause
button.
Press the button On/Off to activate
the appliance again.
• After 5 minutes from the end of the
washing programme
Press the button On/Off to activate
the appliance again.
The display shows the end of the last
set programme.
Turn the programme knob to set a
new cycle.
If you set a programme or an
option that ends with water
in the drum, the AUTO
Stand-by function doesn't
deactivate the appliance to
remind you to drain the
water.
goes
11. DAILY USE - DRYING ONLY
WARNING!
Refer to Safety chapters.
11.1 Drying setting
WARNING!
Make sure that the water
tap is open.
1. Press On/Off for some seconds to
activate the appliance.
2. Load the laundry one item at a time.
3. Turn the programme dial to the
programme applicable for the items
to dry. The display shows the drying
indicator
.
To have a good drying
performance do not exceed
the maximum drying loads
recommended in the user
manual. Do not set a spin
speed lower than the
automatic speed of the set
programme.
ENGLISH
11.2 Drying at automatic levels
The laundry can be dried at pre-defined
levels of dryness:
1. Press Drying level again and again
until the display shows one of the
dryness level indicator:
•
: IRON DRY level indicator for
cotton items
•
: CUPBOARD DRY level
indicator for cotton and synthetic
items
: EXTRA DRY level indicator
for cotton items
The display shows a time value,
calculated on the default load size. If the
amount of your laundry is more or less
than the default size, the appliance
adjusts automatically the time value
during the cycle.
2. Press Start/Pause to start the
programme.
The display shows the door locked
•
indicator
. The drying indicator
starts to flash.
The appliance calculates also the
duration of the anti-crease and
the cooling phases.
2. Press Start/Pause to start the
programme.
• The display shows regularly a new
time value.
• The drying indicator
starts to
flash.
• The display shows the door
locked indicator
.
If you set only 10 minutes of
drying, the appliance
performs only a cooling
phase.
If the laundry is not sufficient
dry, set again a short drying
time.
11.4 End of the drying
programme
The appliance stops automatically.
• The acoustic signals operate (if they
are active).
• In the display comes on.
• The indicator Start/Pause goes off.
• The last minutes of the drying cycle
the appliance performs a cooling and
anti-crease phase. The door is still
locked.
You cannot set all dryness
levels for any type of
laundry.
11.3 Timed Drying
goes off in
When the door locked
the display, you can open the door.
The laundry can also be dried with a
manual timed drying:
1. Press Drying time again and again to
set the time value (see the
«Programmes for timed drying»
table).
• The display shows the set time
. Each time you
value: e.g.
press this button the time value
increases by 5 minutes.
• After some seconds the display
shows a new time value: e.g.
1. Press the button On/Off for some
seconds to deactivate the appliance.
After some minutes from the end of the
programme, the energy saving function
automatically deactivates the appliance.
2. Remove the laundry from the
appliance.
Make sure that the drum is empty.
3. Keep the door ajar, to prevent
mildew and odours.
.
12. DAILY USE - WASHING & DRYING
WARNING!
Refer to Safety chapters.
21
12.1 Non-Stop programme
1. Press On/Off for some seconds to
activate the appliance.
22
www.aeg.com
2. Load the laundry one item at a time.
12.3 Washing & Timed Drying
To have a good drying
performance do not exceed
the maximum drying loads
recommended in the user
manual. Do not set a spin
speed lower than the
automatic speed of the set
programme.
3. Put the detergent and the additives
in the appropriate compartment.
4. Turn the programme dial to the
washing programme.
The display shows the indicators of the
different washing phases.
5. Set the available options.
To have a good drying the appliance
does not let you set a too low spin speed
for the items to be washed and dried.
12.2 Washing & Automatic
drying
1. Press Drying level again and again
until the display shows one of the
dryness level indicator:
•
: IRON DRY level indicator for
cotton items
•
: CUPBOARD DRY level
indicator for cotton and synthetic
items
•
: EXTRA DRY level indicator
for cotton items
The display shows the indicator . The
time value on the display is the duration
of the washing + drying cycles,
calculated on a default load size.
To have a good drying the
appliance does not let you
set a too low spin speed for
the items to be washed and
dried.
2. Press Start/Pause to start the
programme.
In the display the indicator of the set
dryness level stays on.
The door locked indicator
goes on.
The display shows regularly a new time
value.
The last minutes of the
drying cycle the appliance
performs the anti-crease and
the cooling phases.
1. Press Drying time to set the drying
time value. The display shows 10
minutes.
The indicator
comes on in the display.
The display shows the set drying value
time. for example:
. After some
seconds the display shows the final time
, that is the total duration of
value
the washing and drying cycles (washing +
drying + anti-crease + cooling phases).
If you set only 10 minutes of
drying after washing, the
appliance calculates also the
duration of the anti-crease
and the cooling phases.
2. Press Start/Pause to start the
programme.
comes
In the display the indicator
on. The door is locked. The display
shows regularly a new time value.
12.4 End of the programme
The appliance stops automatically. The
acoustic signals operate (if they are
active).
For more information see 'At the end of
the drying programme " of the previous
chapter.
1. Remove the laundry from the
appliance.
Make sure that the drum is empty.
2. Keep the door ajar, to prevent
mildew and odours.
12.5 Fluff in the fabrics
During the washing and/or drying phase,
some types of fabric, (sponge, wool,
sweatshirt) could release fluff.
The released fluff could stick to the
fabrics during the next cycle.
This inconvenient increases with
technical fabrics.
To prevent the fluff in your laundry, we
recommend that you:
ENGLISH
• To do not wash dark fabrics after you
washed and dried light coloured
fabrics (new sponge, wool, sweatshirt )
and the contrary.
• To dry this type of fabrics at open air
when they are washed the first time.
• To clean the drain filter.
• After the drying phase, clean the
empty drum, the gasket and the door
with a wet cloth.
23
1. Empty the drum.
2. Clean the drum, the gasket and the
door with a wet cloth.
3. Set the rinse programme.
4. Press at the same time Spin and
Drying Time to activate the cleaning
function until the display shows CLE.
5. Press Start/Pause to start the
programme.
12.6 How to remove the fluff
in the garments
To remove the fluff inside the drum, set a
special programme:
13. HINTS AND TIPS
WARNING!
Refer to Safety chapters.
13.1 The laundry load
• Divide the laundry in: white, coloured,
synthetics, delicates and wool.
• Obey the washing instructions that
are on the laundry care labels.
• Do not wash together white and
coloured items.
• Some coloured items can discolour
with the first wash. We recommend
that you wash them separately for the
first times.
• Button up pillowcases, close zippers,
hooks and poppers. Tie up belts.
• Empty the pockets and unfold the
items.
• Turn inside out multilayered fabrics,
wool and items with painted
illustrations.
• Remove hard stains.
• Wash with a special detergent heavy
soil stains.
• Be careful with the curtains. Remove
the hooks or put the curtains in a
washing bag or pillowcase.
• Do not wash in the appliance laundry
without hems or with cuts. Use a
washing bag to wash small and/or
delicate items (e.g. underwired bras,
belts, tights, etc. ).
• A very small load can cause balance
problems with the spin phase. If this
occurs, adjust manually the items in
the tub and start the spin phase
again.
13.2 Stubborn stains
For some stains, water and detergent is
not sufficient.
We recommend that you remove these
stains before you put the items in the
appliance.
Special stain removers are available. Use
the special stain remover that is
applicable to the type of stain and fabric.
13.3 Detergents and additives
• Only use detergents and additives
specially made for washing machines:
– powder detergents for all types of
fabric,
– powder detergents for delicate
fabrics (40 °C max) and woollens,
– liquid detergents, preferably for
low temperature wash
programmes (60 °C max) for all
types of fabric, or special for
woollens only.
• Do not mix different types of
detergents.
• To help the environment, do not use
more than the correct quantity of
detergent.
• Obey the instructions that you find on
the on packaging of these products.
• Use the correct products for the type
and colour of the fabric, the
24
www.aeg.com
programme temperature and the
level of soil.
• If your appliance has not the
detergent dispenser with the flap
device, add the liquid detergents with
a dosing ball (supplied by the
detergent's manufacturer).
13.4 Ecological hints
•
•
•
•
•
•
Quilts.
Bed covers.
Duvets.
Anoraks.
Sleeping bags
Fabrics with residue of hair sprays, nail
solvents or similar.
• Garments with foam-rubber or
materials similar to foam-rubber.
• Set a programme without the
prewash phase to wash laundry with
normal soil.
• Always start a washing programme
with the maximum load of laundry.
• If necessary, use a stain remover when
you set a programme with a low
temperature.
• To use the correct quantity of the
detergent, check the water hardness
of your domestic system
13.8 Garment labels
13.5 Water hardness
If the water hardness in your area is high
or moderate, we recommend that you
use a water softener for washing
machines. In areas where the water
hardness is soft it is not necessary to use
a water softener.
To know the water hardness in your area,
contact your local water authority.
Use the correct quantity of the water
softener. Obey the instructions that you
find on the packaging of the product.
13.6 Drying hints
Prepare the drying cycle
• Open the water tap.
• Do a check if the connection of the
drain hose is correct. Refer to
installation chapter for more
information.
• For the maximum laundry load of the
drying programmes, refer to the
drying programmes table.
13.7 Items not to dry
Do not set a drying programme for
this laundry:
• Very delicate items.
• Synthetic curtains.
• Pieces of clothing with metal inserts.
• Nylon stockings.
When you dry the laundry, obey the
indications on the labels of the
manufacturers:
•
= The item can be tumble dried
•
= The drying cycle is at high
temperature
•
= The drying cycle is at reduced
temperature
•
= The item can not be tumble
dried.
13.9 Drying cycle duration
The drying time can change depending
on:
• speed of the last spin
• dryness level
• type of laundry
• weight of the load size
13.10 Additional drying
If, at the end of the drying programme,
the laundry is still damp, set a short
drying cycle again.
WARNING!
To avoid creases of fabrics
or shrinks of the clothing
do not over dry the
laundry.
13.11 General Tips
Refer to the «Drying programmes» table
to find the average drying times.
The experience will help you to dry the
laundry in a more correct way. Take note
of the duration drying time of the cycles
done before.
ENGLISH
To avoid the static charge at the end of
the drying cycle:
25
When the drying programme is
completed remove the laundry in a short
time.
1. Use fabric conditioner in the washing
cycle.
2. Use special fabric conditioner for
tumble dryers.
14. CARE AND CLEANING
14.3 Maintenance wash
WARNING!
Refer to Safety chapters.
With the low temperature programmes it
is possible that some detergent stays in
the drum. Make regularly a maintenance
wash. To do this:
14.1 External cleaning
Clean the appliance only with soap and
warm water. Fully dry all the surfaces.
• Remove the laundry from the drum.
• Set the cotton programme with the
highest temperature with a small
quantity of detergent.
CAUTION!
Do not use alcohol, solvents
or chemical products.
14.4 Door seal
14.2 Descaling
If the water hardness in your area is high
or moderate, we recommend that you
use a water descaling product for
washing machines.
Regularly examine the drum to prevent
limescale and rust particles.
To remove rust particles use only special
products for washing machine. Do this
separately from the laundry wash.
Regularly examine the seal and remove
all objects from the inner part.
Always obey the instructions
that you find on the
packaging of the product.
14.5 Cleaning the detergent dispenser
1.
2.
26
www.aeg.com
3.
4.
14.6 Cleaning the inlet hose and the valve filter
1.
2.
1
2
3
3.
4.
45°
20°
14.7 Cleaning the drain filter
Do not clean the drain filter if the water in the appliance is hot.
ENGLISH
1.
2.
1
1
2
3.
4.
2
1
5.
6.
1
7.
2
8.
1
2
27
28
www.aeg.com
9.
14.8 Emergency drain
Because of a malfunction, the appliance
cannot drain the water.
If this occurs, do steps (1) through (9) of
'Cleaning the drain filter'. If necessary,
clean the pump.
When you drain the water with the
emergency drain procedure, you must
activate again the drain system:
1. When you drain the water with the
emergency drain procedure, you
must activate again the drain system:
Put 2 litres of water in the main wash
compartment of the detergent
dispenser.
2. Start the programme to drain the
water
0° C, remove the remaining water from
the inlet hose and the drain pump.
1. Disconnect the mains plug from the
mains socket.
2. Close the water tap.
3. Put the two ends of the inlet hose in
a container and let the water flow out
of the hose.
4. Empty the drain pump. Refer to the
emergency drain procedure.
5. When the drain pump is empty,
install the inlet hose again.
WARNING!
Make sure that the
temperature is more than 0
°C before you use the
appliance again.
The manufacturer is not
responsible for damages
caused by low temperatures.
14.9 Frost precautions
If the appliance is installed in an area
where the temperature can be less than
15. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
With some problems, the acoustic
signals operate and the display shows
an alarm code:
15.1 Introduction
•
The start of the appliance does not occur
or it stops during operation.
- The appliance does not fill with
water properly.
•
First try to find a solution to the problem
(refer to the table). If not, contact the
Authorised Service Centre.
- The appliance does not drain
the water.
•
- The appliance door is open or
not closed correctly. Please check the
door!
•
- The mains supply is unstable.
Wait until the mains supply is stable.
ENGLISH
•
- No communication between
electronic elements of the appliance.
Switch off and switch on again.
•
- The anti-flood device is on.
Disconnect the appliance and close
the water tap. Contact the Authorised
Service Centre.
29
WARNING!
Deactivate the appliance
before you do the checks.
15.2 Possible failures
Problem
Possible solution
The programme does
not start.
Make sure that the mains plug is connected to the mains socket.
Make sure that the appliance door is closed.
Make sure that there is not a damaged fuse in the fuse box.
Make sure that the Start/Pause has been pressed.
If the delay start is set, cancel the setting or wait for the end of
countdown.
Deactivate the Child Lock function if it is on.
The appliance does not
fill with water properly.
Make sure that the water tap is open.
Make sure that the pressure of the water supply is not too low.
For this information, contact your local water authority.
Make sure that the water tap is not clogged.
Make sure that the filter of the inlet hose and the filter of the
valve are not clogged. Refer to “Care and cleaning”.
Make sure that the inlet hose has no kinks or bends.
Make sure that the connection of the water inlet hose is correct.
The appliance does not
fill with water and drain
immediately.
Make sure that the drain hose is in the correct position. The
hose may be too low.
The appliance does not
drain the water.
Make sure that the sink spigot is not clogged.
Make sure that the drain hose has no kinks or bends.
Make sure that the drain filter is not clogged. Clean the filter, if
necessary. Refer to 'Care and cleaning'.
Make sure that the connection of the drain hose is correct.
Set the drain programme if you set a programme without drain
phase.
30
www.aeg.com
Problem
Possible solution
Set the drain programme if you set an option which ends with
water in the tub.
The spin phase does not
operate or the washing
cycle lasts longer than
usually.
Set the spin programme.
Make sure that the drain filter is not clogged. Clean the filter, if
necessary. Refer to 'Care and cleaning'.
Adjust manually the items in the tub and start the spin phase
again. This problem may be caused by balance problems.
There is water on the
floor.
Make sure that the couplings of the water hoses are tight and
there is not water leakages.
Make sure that the drain hose have no damages.
Make sure you use the correct detergent and the correct quantity of it.
You cannot open the appliance door.
Make sure that the washing programme is finished.
Set the drain or the spin programme if there is water in the
drum.
Make sure that the appliance receives electrical power.
This problem may be caused by a failure of the appliance.
Contact the Authorised Service Centre. If you need to open
the door, please read carefully «Emergency door opening».
The appliance makes an
unusual noise.
Make sure the levelling of the appliance is correct. Refer to 'Installation'.
Make sure that the packaging and/or the transit bolts are removed. Refer to 'Installation'.
Add more laundry in the drum. The load may be too small.
The cycle is shorter than
the time displayed.
The appliance calculates a new time according to the laundry
load. See the ‘Consumption Values’ chapter.
The cycle is longer than
the time displayed.
An unbalanced laundry load increases the duration time. This
is a normal behaviour of the appliance.
The washing results are
not satisfactory.
Increase the detergent quantity or use a different detergent.
Use special products to remove the stubborn stains before you
wash the laundry.
Make sure that you set the correct temperature.
ENGLISH
Problem
31
Possible solution
Decrease the laundry load.
You cannot set an option.
Make sure that you press only the wanted button(s).
The appliance does not
dry or does not dry correctly.
Turn the water tap on.
Make sure the drain filter is not clogged.
Reduce the laundry load.
Make sure you have set the correct cycle. if necessary ,set
again a short drying time.
The laundry is full of different colours fluff.
The fabrics washed in the previous cycle released fluff of a different colour:
• The drying phase helps to eliminate some fluff.
• Clean the clothes with a fluff remover.
In case of an excessive amount of fluff in the drum run the special programme to clean it (refer to “Fluff in the fabrics" for
more details).
After the check, activate the appliance. The programme continues from the point of
interruption.
If the problem occurs again, contact the Authorised Service Centre.
If the display shows other alarm codes. Deactivate and activate the appliance. If the
problem continues, contact the Authorised Service Centre.
15.3 Emergency door opening
In case of power failure or appliance
failure the appliance door remains
locked. The washing programme
continues, when the power is restored. If
the door remains locked in case of
failure, it is possible to open it using the
emergency unlock feature.
Before opening the door:
CAUTION!
Make sure that the water
temperature and the
laundry are not hot. Wait
till they cool down, if
necessary.
CAUTION!
Make sure that the drum is
not rotating. Wait till the
drum stops rotating, if
necessary.
Make sure that the water
level inside the drum is not
too high. Proceed with an
emergency drain, if
necessary (refer to
«Emergency drain» in
«Care and cleaning»
chapter).
To open the door, proceed as follows:
1. Press the button On/Off to switch the
appliance off.
2. Disconnect the mains plug from the
mains socket.
3. Open the filter flap.
4. Keep the emergency unlock trigger
pulled downward and, at the same
time, open the appliance door.
32
www.aeg.com
5. Take out the laundry and then close
the appliance door.
6. Close the filter flap.
16. TECHNICAL DATA
Dimension
Width/ Height/ Depth/
Total depth
600 mm/850 mm/ 522 mm/ 540 mm
Electrical connection
Voltage
Overall power
Fuse
Frequency
230-240 V
2200 W
13 A
50 Hz
Level of protection against ingress of solid particles
and moisture ensured by the protective cover, except where the low voltage equipment has no protection against moisture
IPX4
Water supply pressure
1)
Minimum
Maximum
0,5 bar (0,05 MPa)
8 bar (0,8 MPa)
Maximum wash load
Cotton
8 kg
Maximum dry load
Cotton
Synthetics
4 kg
2 kg
Spin Speed
Maximum
1600 rpm
1) The appliance works correctly if the water pressure is not less than 0.05 MPa (0.5 bar). If you can not
connect the water inlet hose to the cold water tap of the primary hydraulic system, connect it to your
domestic cold water storage system. Make sure not to have more than a distance of 5.02 m (16.5 ft) between the appliance inlet hose and the bottom of the water storage tank.
17. ENVIRONMENT CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable
containers to recycle it. Help protect the
environment and human health and to
recycle waste of electrical and electronic
appliances. Do not dispose appliances
*
marked with the symbol with the
household waste. Return the product to
your local recycling facility or contact
your municipal office.
ENGLISH
33
34
www.aeg.com
ENGLISH
35
132901380-A-062015
www.aeg.com/shop
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
