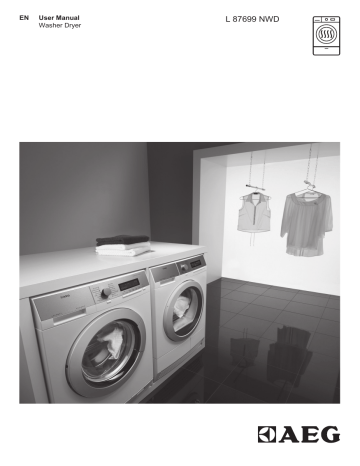

EN
User Manual
Washer Dryer
L 87699 NWD
2
www.aeg.com
CONTENTS
1. SAFETY INFORMATION............................................................................................. 3
2. SAFETY INSTRUCTIONS.............................................................................................5
3. PRODUCT DESCRIPTION...........................................................................................7
4. CONTROL PANEL....................................................................................................... 8
5. PROGRAMMES .........................................................................................................11
6. CONSUMPTION VALUES......................................................................................... 16
7. OPTIONS....................................................................................................................17
8. SETTINGS...................................................................................................................18
9. DAILY USE - WASHING ONLY................................................................................. 19
10. DAILY USE - DRYING ONLY...................................................................................22
11. DAILY USE - WASHING & DRYING....................................................................... 24
12. HINTS AND TIPS..................................................................................................... 26
13. CARE AND CLEANING.......................................................................................... 28
14. TROUBLESHOOTING............................................................................................. 32
15. TECHNICAL DATA..................................................................................................35
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler features you might not find on ordinary appliances. Please
spend a few minutes reading to get the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.aeg.com/webselfservice
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
ENGLISH
1.
3
SAFETY INFORMATION
Before the installation and use of the appliance,
carefully read the supplied instructions. The
manufacturer is not responsible for any injuries or
damages that are the result of incorrect installation or
usage. Always keep the instructions in a safe and
accessible location for future reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent
disability.
•
•
•
•
•
•
•
•
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
Do not let children play with the appliance.
Children aged 3 years and under must be kept away
from this appliance when it is in operation at all times.
Keep all packaging away from children and dispose of
it appropriately.
Keep detergents away from children.
Keep children and pets away from the appliance when
the door is open.
If the appliance has a child safety device, this should
be activated.
Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•
•
Do not change the specification of this appliance.
The appliance shall be installed as a freestanding
product or below the kitchen worktop if space
margins permit.
4
www.aeg.com
•
•
•
•
•
•
•
•
•
•
•
•
•
Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite
side, that would prevent the appliance door from
being fully opened.
Connect the mains plug to the mains socket only at
the end of the installation process. Make sure that the
mains plug is accessible after installation.
The ventilation opening in the base must not be
covered by a carpet, mat, or any floor covering.
WARNING: The appliance must not be supplied
through an external switching device, such as timer, or
connected to a circuit that is regularly switched on and
off by a utility.
Ensure good air ventilation in the located room to
avoid the backflow of unwanted gases into the room
from appliances burning gas or other fuels, including
open fires.
Exhaust air must not be discharged into a flue which is
used for exhausting fumes from any appliances
burning gas or other fuels.
The operating water pressure at the water entry point
from the outlet connection must be between 0.5 bar
(0.05 MPa) and 8 bar (0.8 MPa).
Do not exceed the maximum load of 9 kg (refer to the
"Programme chart" chapter).
The appliance must be connected to the water mains
using the new supplied hose sets, or other new hose
sets supplied by the Authorised Service Centre.
Old hose sets must not be reused.
If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
Wipe away lint or packaging debris that has
accumulated around the appliance.
Items that have been soiled with substances such as
vegetable or mineral oil, acetone, alcohol, petrol,
kerosene, spot removers, turpentine, waxes and wax
ENGLISH
•
•
•
•
•
•
•
•
•
•
5
removers should be washed separately with an extra
amount of detergent before being dried in the washer
dryer.
Do not use the appliance if items have been soiled
with industrial chemicals.
Do not dry unwashed items in the wash dryer.
Items such as foam rubber (latex foam), shower caps,
waterproof textiles, and rubber backed articles and
clothes, or pillows fitted with foam rubber pads should
not be dried in the washer dryer.
Fabric softeners, or similar products, should only be
used as specified by the product manufacturer’s
instructions.
Remove all objects from items that could be a source
of fire ignition such as lighters or matches.
Never stop the washer dryer before the end of the
drying cycle unless all items are quickly removed and
separated so that residual heat can dissipate.
The final part of the washer dryer cycle takes place
without heat (cool down cycle) to ensure that items
reach a temperature that will not cause damage to
them.
Do not use high pressure water sprays and/or steam
to clean the appliance.
Clean the appliance with a moist cloth. Use only
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Follow the installation instruction
supplied with the appliance.
• Do not install or use the appliance
where the temperature can be less
than 0°C or where it is exposed to the
weather.
• Always keep the appliance vertical
when being moved.
• Make sure that there is air circulation
between the appliance and the floor.
• Remove all the packaging and the
transit bolts.
6
www.aeg.com
• The floor area where the appliance is
to be installed must be flat, stable,
heat resistant and clean.
• Keep the transit bolts in a safe place.
If the appliance is to be moved in
future they must be reattached to lock
the drum to prevent internal damage.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use a damaged
appliance.
• Do not install the appliance where the
appliance door cannot be fully
opened.
• Adjust the feet to have the necessary
space between the appliance and the
flooring.
• When the appliance is in its
permanent position, check that it is
fully level with the aid of a spirit level.
If it is not, adjust the feet accordingly.
2.2 Electrical Connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Do not touch the mains cable or the
mains plug with wet hands.
• This appliance complies with the
E.E.C. Directives.
2.3 Water Connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes,
pipes not used for a long time, where
repair work has been carried out or
new devices fitted (water meters,
etc.), let the water flow until it is clean
and clear.
• Ensure that there are no visible water
leaks during and after the first use of
the appliance.
2.4 Use
WARNING!
Risk of injury, electrical
shock, fire, burns or damage
to the appliance.
• This appliance is for household use
only.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the glass door while a
programme is in operation. The glass
can get hot.
• Do not dry damaged (torn, frayed)
items that contain padding or fillings.
• If laundry has been washed with a
stain remover, carry out an additional
rinse cycle before starting a drying
cycle.
• Make sure that all metal objects are
removed from the laundry.
• Only dry fabrics that are suitable to
dry in the washer dryer. Follow the
cleaning instruction on the item label.
• Plastic items are not heat resistant.
– If a detergent ball is used, remove
it before starting a drying
programme.
– Do not use a detergent ball if
setting a non-stop programme.
WARNING!
Risk of injury or damage to
the appliance.
• Do not sit or stand on the open door.
• Do not dry dripping wet clothes in the
appliance.
2.5 Disposal
• Disconnect the appliance from the
mains electrical and water supplies.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
• Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).
ENGLISH
7
3. PRODUCT DESCRIPTION
3.1 Appliance overview
1
2
3
4
1
2
3
4
5
6
7
Worktop
Detergent dispenser
Control panel
Door handle
Rating plate
Drain pump filter
Feet for levelling the appliance
5
6
7
3.2 How to activate the child
safety device
To close the door, turn the device
anticlockwise until the groove is vertical.
This device prevents children or pets
from being closed in the drum.
3.3 Fixing plate kit
(4055171146)
Turn the device clockwise, until the
groove is horizontal.
You cannot close the door.
Available from your authorised dealer.
If you install the appliance on a plinth,
secure the appliance in the fixing plates.
Read carefully the instructions supplied
with the accessory.
8
www.aeg.com
4. CONTROL PANEL
4.1 Control panel description
1
2
3
TROCKNEN
WASCHEN/
TROCKNEN
Baumwolle
Koch/Bunt
Pflegeleicht
Baumwolle Eco
Wolle
Pflegeleicht
Feinwäsche
Seide
Leichtbügeln
Wolle
20 Min. - 3 kg
Schleudern/
Pumpen
Spülen
NonStop 60min.
Anti-Allergie
Dampf
Ein/Aus
1
2
3
4
5
6
7
Temp.
U./Min.
12
11
Ein/Aus button
Programme knob
Display
Trockengrad button
Trockenzeit button
Start/Pause button
Zeitvorwahl button
Flecken/
Vorw.
Extra
Spülen
10
8
9
10
11
12
9
Zeit
Sparen
Zeitvorwahl
Start/Pause
8
7
6
Trockengrad
4
Trockenzeit
5
Zeit Sparen button
Extra Spülen button
Flecken/Vorwäsche button
U./Min. button
Temp. button
4.2 Display
A
B
C
P
D
E
O
The display shows:
Temperature of the set programme
A
Cold water
F
G H I
N
J
M
K
L
ENGLISH
9
Spin speed of the set programme
B
No Spin symbol1)
Rinse hold symbol
1) Only available for SPIN/DRAIN programme.
The phase symbols
When a programme is set, all the symbols of the phases related to the programme
come on.
When the programme starts, only the symbol of the phase in operation flashes.
When the programme is completed, the symbol of the last phase is on.
C
Prewash phase
Washing phase
Rinse phase
Spin phase
D
E
F
The drying symbol comes on when you set a drying programme.
The steam symbol comes on when you set a Steam programme.
The anti-crease symbol comes on when you set a drying programme.
You cannot open the appliance door when the symbol is on. You can
open the door only when the symbol goes off.
G
If the programme is completed but the symbol stays on:
• The «Rinse hold» function is on.
• There is water in the drum.
H
The child safety lock symbol comes on when this device is activated.
I
The delay start symbol comes on when you set the delay start function.
10
www.aeg.com
Programme time (washing and/or drying phase)
When the programme starts, the programme time decreases with
steps of 1 minute.
Delay start
When you press the delay start button, the display shows the delay
start time
Alarm codes
If the appliance has a malfunction, the display shows alarm codes.
Refer to «Troubleshooting».
J
The display shows this message for some seconds when:
• You cannot set a function with the washing programme.
• You try to change the washing programme while it operates.
When the programme is completed.
Dryness level symbols: they come on when you set an automatic drying.
Extra dry level symbol
K
Store dry level symbol
Iron dry level symbol
L
The drying time symbol comes on when you set the a drying programme.
M
The detergent overdosing symbol comes on at the end of the cycle
when the appliance detects too much detergent.
Graphic bars
The empty indicator bar appears only if the related function is available for the set programme.
The indicator bar fills accordingly to the set functions.
If you make a wrong selection the message Err indicates that the selection is not possible.
ENGLISH
11
The Zeit Sparen symbol comes on when you set one of the programme duration.
N
Shortened time
Extra Quick
The Extra Spülen symbol comes on when this function is activated.
O
The value shows the total number of the rinses.
The indicator bar is fully filled when you set the maximum number of
rinses.
The Flecken symbol comes on when you activate the function.
The Vorwäsche symbol comes on when this function is activated.
P
The indicator bar is not fully filled when you set only one of the functions.
The indicator bar is fully filled when you set the two functions.
5. PROGRAMMES
5.1 Programme Chart
Programme
Temperature range
Maximum load
Maximum spin
speed
Programme description
(Type of load and soil level)
9 kg
1600 rpm
White cotton and coloured cotton.
Normal soil and light soil.
4 kg
1200 rpm
Synthetic items or mixed fabric
items. Normal soil.
1 kg
1200 rpm
Special programme for silk and mixed
synthetic items.
Washing programmes
Koch/Bunt
95°C - Cold
Pflegeleicht
60°C - Cold
Seide
30°C
12
www.aeg.com
Programme
Temperature range
Wolle
40°C - Cold
NonStop 60min.
40°C - 30°C
Anti-Allergie
60° C
Maximum load
Maximum spin
speed
Programme description
(Type of load and soil level)
2 kg
1200 rpm
Machine washable wool, hand washable wool and other fabrics with
«hand washing» care symbol1).
1 kg
1200 rpm
Complete programme composed of a
washing phase and of a drying phase
for a small load of mixed fabrics (cotton and synthetic items).
9 kg
1600 rpm
White cotton items. This programme
removes micro-organisms thanks to
the washing by 60°C and adds one
rinse. In this way the wash is more effective.
Steam programmes2)
Steam can be used for dried, washed or worn once laundry. These programmes can
reduce creases and odours and make your laundry softer.
Do not use any detergent. If necessary, remove stains by washing or using localized
stain removal.
Steam programmes do not perform any hygienic cycle.
Do not set a Steam programme with these types of items:
• Items to be washed at a temperature lower than 40°C.
• Items where it is not specified on the care label as being suitable for tumble drying.
• All items with plastic, metal, wooden parts or alike.
1.5 kg
Steam programme for cotton and synthetic items. This cycle helps to refresh and dewrinkle the laundry. Do
not set this programme with items
washed at a temperature lower than
40°C.
9 kg
1600 rpm
To rinse and spin the laundry. All fabrics, except woollens and very delicate
fabrics. Reduce the spin speed accordingly to the type of laundry.
9 kg
1600 rpm
To spin the laundry and to drain the
water in the drum. All fabrics, except
woollens and delicate fabrics.
Dampf
Washing programmes
Spülen
Cold
Schleudern/Pumpen3)
ENGLISH
13
Programme
Temperature range
Maximum load
Maximum spin
speed
Programme description
(Type of load and soil level)
20 Min. - 3 kg
40°C - 30°C
3 kg
1200 rpm
Cotton and synthetic items with
light soil level or worn only once.
4 kg
800 rpm
Synthetic items requiring a gentle
4 kg
1200 rpm
Delicate fabrics such as acrylics, viscose and mixed fabrics requiring a
mild washing. Normal soil.
1 kg
Drying programme for woollens.
3 kg
Drying programme for synthetic
items.
6 kg
Drying programme for cotton items.
Leichtbügeln
60°C - Cold
Feinwäsche
40°C - Cold
wash. Normal and light soil.4)
Drying programmes
Wolle
Pflegeleicht
Baumwolle
1) During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the drum doesn't
rotate or doesn't rotate properly, but this is normal for this programme.
2) If you set a Steam programme with dried laundry, at the end of the cycle the laundry could be humid.
It is better to expose the items to the fresh air for about 10 minutes to let the humidity dry. When the
programme is completed, quickly remove the laundry from the drum. After a steam cycle, items may be
ironed however with less effort.
3) Set the spin speed. Make sure it is suitable for the type of fabric being washed. If you set the No Spin
option then only the drain phase is available.
4) To reduce creasing, this cycle regulates the water temperature and performs a soft wash and spin
phase. The appliance adds some rinses. This programme is not compatible with drying.
Programme options compatibility
Programme
FleckZeit
en/
Extra
SpaVorwä- Spülen 2)
ren3)
sche1)
U./Min.
Zeitvorwahl
Koch/Bunt
■
■
■
■
■
■
Baumwolle Eco
■
■
■
■
■ 4)
■
Pflegeleicht
■
■
■
■
■
■
Seide
■
■
14
www.aeg.com
Programme
FleckZeit
en/
Extra
SpaVorwä- Spülen 2)
ren3)
sche1)
U./Min.
Wolle
■
■
■
■
NonStop 60min.
Anti-Allergie
Zeitvorwahl
■
■
■
■
■
■
Dampf
Spülen
■
■
■
Schleudern/Pumpen
■
20 Min. - 3 kg
■
Leichtbügeln
■
■
■5)
■
■
■
Feinwäsche
■
■
■
■
■
■
■
■
■
1) If you use liquid detergent, set a programme without Prewash. The Stain option is not available with a
temperature lower than 40°C.
2) If the permanent Extra Rinse option is activated, the appliance adds some additional rinses. In the
Rinse programme, if you set a low spin speed the appliance performs delicate rinses and a short spin.
3) If you set the shortest duration, we recommend that you decrease the load size. It is possible to fully
load the appliance, however the washing results can be less satisfactory.
4) For this programme you can set only the Extra Quick duration.
5) Only the Prewash option is available.
5.2 Automatic drying
Dryness Level
Extra Dry
For towelling materials
Type of fabric
Load
Cottons and Linen
(bathrobes, bath towels, etc)
up to 6 kg
ENGLISH
Dryness Level
Cupboard Dry1)
For items to be stored
Iron Dry
Suitable for ironing
Type of fabric
Load
Cottons and Linen
(bathrobes, bath towels, etc)
up to 6 kg
Synthetics and mixed fabrics
(jumpers, blouses, underwear, household linen)
up to 3 kg
Silk items (blouses, shirts,
clothing..)
up to 1 kg
Wool items (woollen jumpers)
up to 1 kg
Cottons and Linen
(sheets, tablecloths, shirts,
etc)
up to 6 kg
15
1) Hints for test institute The test performance, in accordance with EN 50229, must be carried out with
a FIRST drying load of the maximum declared drying capacity (load composition according to EN61121)
by setting the AUTOMATIC CUPBOARD DRY programme for Cotton. The SECOND drying load with the
residual load must be tested by setting the AUTOMATIC CUPBOARD DRY programme for Cotton.
5.3 Timed drying
Dryness Level
Type of fabric
Extra Dry
Cottons and Linen
For towelling materials (bathrobes, bath towels, etc)
Cupboard Dry
For items to be stored
Cupboard Dry
For items to be stored
Load
(kg)
Spin
speed
(rpm)
Suggested
duration
(mins)
6
1600
220 - 240
4
1600
140 - 160
2
1600
100 - 110
6
1600
210 - 230
4
1600
130 - 150
2
1600
90 - 100
Synthetics and mixed fabrics
(jumpers, blouses, underwear, household linen)
3
1200
100 - 110
1
1200
40 - 50
Wool
(woollen jumpers)
1
1200
110 - 130
Silk
(blouses, shirts, clothes etc)
1
1000
80
Cottons and Linen
(bathrobes, bath towels, etc)
16
www.aeg.com
Dryness Level
Type of fabric
Iron Dry
Suitable for ironing
Cottons and Linen
(sheets, tablecloths, shirts,
etc)
5.4 Woolmark Apparel Care Blue
• The wool wash cycle of this machine
has been approved by The Woolmark
Company for the washing of wool
garments labelled as "hand wash"
provided that the products are
Load
(kg)
Spin
speed
(rpm)
Suggested
duration
(mins)
6
1600
150 - 170
4
1600
85 - 105
2
1600
55 - 65
washed according to the instructions
on the garment label and those
issued by the manufacturer of this
washing machine. M1144
• The wool drying cycle of this machine
has been tested and approved by The
Woolmark Company. The cycle is
suitable to dry wool garments which
are labelled "hand wash" provided
that the garments are washed in a
Woolmark endorsed hand washing
cycle and dried according to the
instructions issued by the
manufacturer. M1224
In UK, Eire, Hong Kong and India the
Woolmark symbol is a certification
trademark.
6. CONSUMPTION VALUES
Stated values are obtained in laboratory conditions with relevant standards. Different causes can change the data: the quantity and type of
laundry and ambient temperature. Water pressure, the supply voltage
and the temperature of inlet water may also affect the washing programme duration.
Technical specifications may be changed without prior notice to improve
the quality of product.
At the start of the programme, the display shows the programme duration for the maximum load capacity.
During the washing phase the programme duration is automatically calculated and can be greatly reduced if the laundry load is lower than the
maximum load capacity (e.g. Cotton 60°C, maximum load capacity 9 kg,
the programme duration exceeds 2 hours; actual load 1 kg, the programme duration will be less than 1 hour).
When the appliance is calculating the real programme duration a dot
flashes in the display.
ENGLISH
Programmes
Load
(kg)
Cottons 60°C
9
1.6
69
168
Cottons 40°C
9
1.0
69
164
Synthetics 40°C
4
0.6
48
105
Delicates 40°C
4
0.7
58
86
Wool/Handwash 30°C
2
0.35
57
61
17
Energy
Water conApproximate proconsump- sumption (li- gramme duration
tion (kWh) tre)
(minutes)
7. OPTIONS
7.1 Ein/Aus
Press this button to activate or deactivate
the appliance. A tune sounds when the
appliance is activated.
The AUTO Stand-by function
automatically deactivates the appliance
to decrease the energy consumption
when:
• You do not use the appliance for 5
minutes before you press the Start/
Pause button.
All settings are cancelled.
Press the Ein/Aus button to activate
the appliance again.
Set the washing programme and all
possible functions again.
• 5 minutes after the end of the
washing programme.
Refer to "AUTO Stand-by option".
7.2 Programme knob
Turn this knob to set a programme. The
related programme indicator comes on.
7.3 Temp.
Press this button to change the default
temperature. When the display shows
and
, the appliance does not heat
the water.
7.4 U./Min.
Press this button to:
• Decrease the maximum speed of the
programme spin phase.
The display indicates only
the spin speeds available
for the set programme.
• Deactivate the spin phase.
• Activate the Rinse Hold option.
Set this option to prevent fabrics from
creasing. The washing programme
ends with water in the drum. The
drum turns regularly to reduce
creasing.
The door stays locked. You must drain
the water to unlock the door.
7.5 Flecken/Vorwäsche
Press this button to add the stain and the
prewash phase to a programme.
Press the button repeatedly to activate
one or both options. The related
indicator and the indicator bar illuminate
in the display.
• Flecken: Use this option for laundry
with hard stains to remove.
When you set this option, put the
.
stain remover into compartment
This option increases the programme
duration.
This option is not
available with a
temperature lower than
40° C.
• Vorwäsche: Use this option to add a
prewash phase before the washing
phase.
We recommend that you use this
option when you have very soiled
laundry.
18
www.aeg.com
This option increases the
programme duration.
7.10 Trockengrad
7.6 Extra Spülen
Press this button to set one of 3
automatic dryness levels available. The
display shows the symbol of the set level:
Press the Extra Spülen button to add
rinsing phases to a programme.
•
Iron dry – laundry to be ironed
•
Cupboard dry – laundry to be put
in storage
•
Extra dry – laundry to be fully
dried
Use this option for persons allergic to
detergents and in areas where the water
is soft.
7.7 Zeit Sparen
With this option you can decrease the
programme duration.
• Press this button one time to set
'Shortened duration' for items with
daily soil.
• Press this button two times to set
'Extra Quick' for slightly soiled items
only.
Some programmes accept
only one of the two options.
7.8 Zeitvorwahl
With this option you can delay the start
of a programme from 30 minutes to 20
hours.
You cannot set all
automatic levels for each
type of fabric.
7.11 Trockenzeit
Press this button to set the time that suits
the fabrics you have to dry. The display
shows the set value.
Each time you press this button the time
value increases by 5 minutes.
Drying durations may be
restricted by the programme
selected.
The display shows the related indicator
and delay time.
7.9 Start/Pause
Press button Start/Pause to start or
interrupt a programme.
8. SETTINGS
8.1 Acoustic signals
The acoustic signals operate when:
• You activate the appliance.
• You deactivate the appliance.
• You press the buttons.
• The programme is completed.
• The appliance has a malfunction.
To deactivate/activate the acoustic
signals, press Flecken/Vorwäsche and
Extra Spülen at the same time for 6
seconds.
If you deactivate the
acoustic signals, they
continue operate when the
appliance has a malfunction.
8.2 Child Lock
With this option you can prevent that the
children play with the control panel.
• To activate/deactivate this option,
press Temp. and U./Min. at the same
time until the indicator
goes off.
comes on/
ENGLISH
You can activate this option:
• After you press Start/Pause : the
options and the programme knob are
locked.
• Before you press Start/Pause : the
appliance cannot start.
19
• To activate/deactivate this option
press Zeit Sparen and Zeitvorwahl at
the same time until the relevant
indicator comes on/goes off.
8.3 Permanent Extra Rinse
With this option you can permanently
have an extra rinse when you set a new
programme.
9. DAILY USE - WASHING ONLY
WARNING!
Refer to Safety chapters.
9.1 Before first use
1. Connect the mains plug to the mains
socket.
2. Open the water tap.
3. Put a small quantity of detergent in
the compartment for washing phase.
4. Set and start a programme for cotton
at the highest temperature without
laundry.
This removes all possible dirt from the
drum and the tub.
CAUTION!
Make sure that no laundry
becomes trapped between
the seal and the door. There
is a risk of water leakage or
damage to the laundry.
9.3 Filling the detergent and
additives
9.2 Loading the laundry
1. Open the appliance door.
2. Put the laundry in the drum, one item
at a time.
3. Shake the items before you put them
in the appliance.
Make sure you do not put too much
laundry in the drum.
4. Close the door firmly.
Compartment for prewash phase,
soak programme or stain remover.
Compartment for washing phase.
Compartment for liquid additives
(fabric conditioner, starch).
Maximum level for quantity of liquid
additives.
Flap for powder or liquid detergent.
Always follow the
instructions that you find on
the packaging of the
detergent products.
20
www.aeg.com
9.4 Check the position of the
flap
1. Pull out the detergent dispenser until
it stops.
2. Press the lever down to remove the
dispenser.
1
2
3. To use powder detergent, turn the
flap up.
A
With the flap in the
position DOWN:
• Do not use
gelatinous or thick
liquid detergents.
• Do not put more
liquid detergent than
the limit shown on in
the flap.
• Do not set the
prewash phase.
• Do not set the delay
start function.
5. Measure out the detergent and the
fabric conditioner.
6. Carefully close the detergent
dispenser.
Make sure that the flap does not cause a
blockage when you close the drawer.
9.5 Activating the appliance
1. Connect the mains plug to the mains
socket.
2. Open the water tap.
3. Press button Ein/Aus to activate the
appliance.
A short tune sounds.
9.6 Setting a programme
4. To use liquid detergent, turn the flap
down.
B
1. Turn the programme knob and set
the programme:
• The related programme indicator
comes on.
• The indicator of Start/Pause
flashes.
• The display shows: the default
temperature, the spin speed, the
indicators of the programme
phases and the programme
duration.
2. If necessary, change the
temperature, the spin speed, the
cycle duration, or add available
options. When you activate an
option, the indicator of the set
option comes on.
If you set something
incorrect, the display shows
the message Err.
ENGLISH
9.7 Starting a programme
without the delay start
Press button Start/Pause to start the
programme.
The relevant indicator stops to flash and
stays on.
On the display the indicator of the phase
is operation starts to flash.
The programme starts, the door is
locked. The display show the indicator
.
The drain pump can operate
for a short time when the
appliance fills water.
9.8 Cycle time recalculation
After approximately 15
minutes from the start of the
programme:
• The appliance adjusts
automatically the cycle
time to the laundry you
have put in the drum to
have perfect washing
results in the minimum
necessary time.
• The display shows the
new time value.
9.9 Starting a programme with
the delay start
1. Press button Zeitvorwahl again and
again until the display shows the
number of minutes or hours of delay.
The related indicator comes on.
2. Press button Start/Pause.
The appliance starts the countdown of
the delay start.
When the countdown is completed, the
programme starts automatically.
Before you press button
Start/Pause to start the
appliance, you can cancel or
change the set of the delay
start.
9.10 Cancelling the delay start
To cancel the delay start:
21
1. Press button Start/Pause to set the
appliance to pause.
The related indicator flashes.
2. Press button Zeitvorwahl repeatedly
until the display shows .
3. Press button Start/Pause again to
start the programme immediately.
9.11 Interrupting a
programme and changing a
option
You can change only some options
before they operate.
1. Press button Start/Pause.
The related indicator flashes.
2. Change the option set.
3. Press the button Start/Pause again.
The programme continues.
9.12 Cancelling a running
programme
1. Press button Ein/Aus to cancel the
programme and to deactivate the
appliance.
2. Press button Ein/Aus again to
activate the appliance.
Now, you can set a new washing
programme.
Before starting the new
programme the appliance
could drain the water. In this
case, make sure that the
detergent is still in the
detergent compartment, if
not fill the detergent again.
9.13 Opening the door
If the temperature and level
of the water in the drum are
too high and/or the drum
still rotates you cannot open
the door.
While a programme or the delay start
operates, the appliance door is locked.
1. Press button Start/Pause.
In the display the related door lock
indicator goes off.
2. Open the appliance door.
3. Close the door and press button
Start/Pause.
22
www.aeg.com
The programme or the delay start
continues.
9.14 End of cycle
When the programme has finished, the
appliance stops automatically. The
acoustic signal operates (if it is active).
In the display
comes on and the door
locked indicator
goes off.
The indicator of Start/Pause button goes
off.
1. Press button Ein/Aus to deactivate
the appliance.
After five minutes from the end of the
programme, the energy saving function
automatically deactivates the appliance.
When you activate the
appliance again, the display
show the end of the last set
programme. Turn the
programme knob to set a
new cycle.
2. Remove the laundry from the
appliance.
3. Make sure that the drum is empty.
4. Keep the door ajar, to prevent
mildew and odours
9.15 Draining water out after
end of cycle
The washing programme is completed,
but there is water in the drum:
The drum turns regularly to prevent the
creases in the laundry.
The door lock indicator
door stays locked.
is on. The
1. If necessary, decrease the spin
speed.
2. Press the Start/Pause button.
The appliance drains the water and
spins.
3. When the programme is completed
and the door lock indicator
goes
off, you can open the door .
4. Press Ein/Aus some seconds to
deactivate the appliance.
The appliance drains and
spins automatically after
approximately18 hours.
9.16 AUTO Stand-by option
The AUTO Stand-by function
automatically deactivates the appliance
to decrease the energy consumption
when:
• You do not use the appliance for 5
minutes before you press Start/Pause
button.
Press the button Ein/Aus to activate
the appliance again.
• After 5 minutes from the end of the
washing programme
Press the button Ein/Aus to activate
the appliance again.
The display shows the end of the last
set programme.
Turn the programme knob to set a
new cycle.
If you set a programme or an
option that ends with water
in the drum, the AUTO
Stand-by function doesn't
deactivate the appliance to
remind you to drain the
water.
You must drain the water to open the
door:
10. DAILY USE - DRYING ONLY
WARNING!
Refer to Safety chapters.
10.1 Preparation to drying
1. Press button Ein/Aus for some
seconds to activate the appliance
2. Load the laundry one item at a time.
3. Turn the programme dial to the
drying programme applicable for the
items to dry.
The display shows a minimum time value
and the following symbols:
ENGLISH
The drying symbol comes on.
The anti-crease symbol comes on.
The drying time symbol comes on.
When drying a big amount
of laundry, to have good
drying performances, make
sure that the laundry itself is
not rolled up and that is
uniformly distributed in the
drum.
To have best performances
in drying when you wash the
laundry set a spin cycle at
the maximum speed allowed
for your type of items.
You can dry your laundry in two ways:
10.2 Automatic drying
1. Press button Trockengrad repeatedly
until a black line appears under one
of the dryness level symbol:
Extra dry level
Cupboard dry level
23
The symbol of the set level stays on
(e.g. Cupboard dry).
The other level symbols go off.
The display updates regularly the drying
cycle time (every minute).
You cannot set all levels for
all kind of laundry (refer to
"Programmes for automatic
drying" table) .
10.3 Timed drying
1. Press button Trockenzeit repeatedly
to set the time value (see the «Drying
Programme» table).
The drying symbol comes on.
The anti-crease symbol comes on.
The drying time symbol comes on.
Set time value.
Each time you press this button the time
value increases by 5 minutes. The display
shows the set time value.
After some seconds the set time value on
the display changes: the appliance
calculates also the duration of the anticrease and the cooling phases.
Iron dry level
Final time value.
The drying time symbol goes off
The display shows a time value,
calculated on a default load size. If the
amount of your laundry is more or less
than the default size, the appliance
adjusts automatically the time value
during the cycle.
2. Press button Start/Pause to start the
programme. In the display:
The door locked symbol comes on.
The drying symbol starts to flash.
2. Press Start/Pause to start the
programme. The text bar tells that
the appliance is drying. The display
shows the new time value every
minute.
The drying symbol starts to flash.
The door locked symbol comes on.
If you set the time value of
only 10 minutes, the
appliance performs only a
cooling phase.
24
www.aeg.com
10.4 At the end of the drying
programme
1. The appliance stops automatically.
2. The acoustic signals operate (if they
are active).
3. In the display comes on.
4. The indicator of button Start/Pause
goes off.
5. The last minutes of the drying cycle
the appliance performs the anticrease phase.
The anti-crease symbol
flashes.
The door is still locked (the symbol
is on).
6. Press button Ein/Aus for some
seconds to deactivate the appliance.
After some minutes from
the end of the
programme, the energy
saving function
automatically
deactivates the
appliance.
7. When the door locked light
goes
off you can open the door.
8. Remove the laundry from the
appliance. Make sure that the drum
is empty.
9. Keep the door ajar, to prevent
mildew and odours.
10. Close the water tap.
11. DAILY USE - WASHING & DRYING
WARNING!
Refer to Safety chapters.
11.1 NON-STOP programme
WARNING!
Do not put a plastic device/
ball for the detergent into
the drum.
1. Press button Ein/Aus for some
seconds to activate the appliance .
2. Load the laundry one item at a time.
3. Put the detergent and the additives
in the appropriate compartment.
4. Turn the programme dial to the
washing programme. The display
shows the symbols of the different
washing phases.
5. Set the available options.
WARNING!
Do not set a spin speed
lower than the automatic
speed of the set
programme.
11.2 Washing and Drying at
automatic levels
1. Press button Trockengrad repeatedly
until the black line appears under
one of the dryness level symbol.
The iron dry level
The cupboard dry level
The extra dry level
The drying symbol comes on.
The anti-crease symbol comes on.
The display shows that the appliance is
ready to start.
The time value on the display is the
duration of both cycles washing and
drying, calculated on a default load
size.
To have a good drying the
appliance does not let you
set a too low spin speed for
the items to be washed and
dried.
2. Press button Start/Pause to start the
programme.
ENGLISH
The set dryness level symbol stays
on (e.g. Cupboard dry). The others
level symbols go off.
The door locked symbol comes on.
The display shows the new time value
each minute.
The last minutes of the
drying cycle the appliance
performs the anti-crease and
the cooling phases.
11.3 Washing and Timed
drying
WARNING!
Do not put a plastic device/
ball for the detergent into
the drum.
1. Press button Trockenzeit repeatedly
to set the drying time value:
The drying symbol comes on.
The anti-crease symbol comes on.
The drying time symbol comes on.
The display shows the set drying value
time .
Set drying time value.
Each time you press this button the time
value increases by 5 minutes.
To have a good drying we
suggest you to do not set a
too low spin speed for the
items to be washed and
dried.
2. After some seconds the display
shows the total duration of the
cycles:
25
Final time value (washing + drying
+ anti-crease + cooling phases)
If you set a drying time of
only 10 minutes, the final
time value includes also the
anti-crease and the cooling
phases.
3. Press button Start/Pause to start the
programme.
The door is locked.
The display shows the new time value
each minute.
11.4 At the end of the drying
programme
1. The appliance stops automatically.
2. The acoustic signals operate (if they
are active).
3. In the display comes on.
4. The indicator of button Start/Pause
goes off.
5. The last minutes of the drying cycle
the appliance performs the anticrease phase.
The anti-crease symbol
flashes.
The door is still locked (the symbol
is on).
6. Press button Ein/Aus for some
seconds to deactivate the appliance.
After some minutes from
the end of the
programme, the energy
saving function
automatically
deactivates the
appliance.
7. When the door locked light
goes
off you can open the door.
8. Remove the laundry from the
appliance. Make sure that the drum
is empty.
9. Keep the door ajar, to prevent
mildew and odours.
10. Close the water tap.
26
www.aeg.com
11.5 Fluff in the fabrics
During the washing and/or drying phase,
some types of fabric, (sponge, wool,
sweatshirt) could release fluff.
The released fluff could stick to the
fabrics during the next cycle.
To prevent the fluff in your laundry, we
recommend that you:
• Do not wash dark fabrics after you
have washed and dried light coloured
fabrics (new sponge, wool, sweatshirt )
and the contrary.
• Line dry this type of fabrics at open air
when they are washed the first time.
• Clean the drain filter.
• After the drying phase, clean the
empty drum, the gasket and the door
with a wet cloth.
11.6 How to remove the fluff
in the garments
To remove the fluff inside the drum, set a
special programme:
1. Empty the drum.
2. Clean the drum, the gasket and the
door with a wet cloth.
3. Set the rinse programme.
4. Press at the same time U./Min. and
Extra Spülen to activate the cleaning
function until the display shows CLE.
5. Press Start/Pause to start the
programme.
12. HINTS AND TIPS
WARNING!
Refer to Safety chapters.
12.1 The laundry load
• Divide the laundry in: white, coloured,
synthetics, delicates and wool.
• Obey the washing instructions that
are on the laundry care labels.
• Do not wash white and coloured
items together.
• Some coloured items can discolour
with the first wash. We recommend
that you wash them separately for the
first times.
• Button up pillowcases, close zippers,
hooks and poppers. Tie up belts.
• Empty the pockets and unfold the
items.
• Turn multilayered fabrics, wool and
items with painted illustrations inside
out.
• Remove hard stains with a special
detergent.
• Wash and pre-treat heavy soil stains
before putting items in drum
• Be careful with the curtains. Remove
the hooks and put the curtains in a
washing bag or pillowcase.
• Do not wash laundry without hems or
with cuts. Use a washing bag to wash
small and/or delicate items (e.g.
underwired bras, belts, tights, etc. ).
• A very small load can cause balance
problems with the spin phase. If this
occurs, adjust manually the items in
the tub and start the spin phase
again.
12.2 Stubborn stains
For some stains, water and detergent is
not sufficient.
We recommend that you pre-treat these
stains before you put the items in the
appliance.
Special stain removers are available. Use
the special stain remover that is
applicable to the type of stain and fabric.
12.3 Detergents and additives
• Only use detergents and additives
specially made for washing machines:
– powder detergents for all types of
fabric,
– powder detergents for delicate
fabrics (40 °C max) and woollens,
– liquid detergents, preferably for
low temperature wash
programmes (60 °C max) for all
types of fabric, or special for
woollens only.
ENGLISH
• Do not mix different types of
detergents.
• To help the environment, do not use
more than the correct quantity of
detergent.
• Obey the instructions that you find on
the on packaging of these products.
• Use the correct products for the type
and colour of the fabric, the
programme temperature and the
level of soil.
• If your appliance does not have the
detergent dispenser with the flap
device, add the liquid detergents with
a dosing ball (supplied by the
detergent's manufacturer).
12.4 Ecological hints
• Always start a washing programme
with the maximum load of laundry
allowed.
• If necessary, use a stain remover when
you set a programme with a low
temperature.
• To use the correct quantity of
detergent, check the water hardness
of your domestic system. Refer to
"Water hardness".
12.5 Water hardness
If the water hardness in your area is high
or moderate, we recommend that you
use a water softener for washing
machines. In areas where the water
hardness is soft it is not necessary to use
a water softener.
To know the water hardness in your area,
contact your local water authority.
Use the correct quantity of the water
softener. Obey the instructions that you
find on the packaging of the product.
12.6 Drying hints
Prepare the drying cycle
• Open the water tap.
• Check if the drain hose is connected
properly. Refer to installation chapter
for more information.
• For the maximum laundry load of the
drying programmes, refer to the
drying programmes table.
27
12.7 Items not suitable for
drying
Do not set a drying programme for
this laundry:
• Very delicate items.
• Synthetic curtains.
• Pieces of clothing with metal inserts.
• Nylon stockings.
• Quilts.
• Bed covers.
• Duvets.
• Anoraks.
• Sleeping bags.
• Fabrics with residue of hair sprays, nail
solvents or similar.
• Garments with foam-rubber or
materials similar to foam-rubber.
12.8 Garment labels
When you dry the laundry, obey the
indications on the labels of the
manufacturers:
•
= The item can be tumble dried
•
= The drying cycle is at high
temperature
•
= The drying cycle is at reduced
temperature
•
= The item can not be tumble
dried.
12.9 Drying cycle duration
The drying time can change depending
on:
• speed of the last spin
• dryness level
• type of laundry
• weight of the load
12.10 Additional drying
If, at the end of the drying programme,
the laundry is still damp, set a short
drying cycle again.
WARNING!
To avoid creasing and
shrinkage do not overdry
the laundry.
28
www.aeg.com
12.11 General Tips
Refer to the «Drying programmes» table
to find the average drying times.
Experience will help you to dry the
laundry better. Take note of the duration
of the cycles done before.
1. Use fabric conditioner in the washing
cycle.
2. Use special fabric conditioner for
tumble dryers.
When the drying programme is
completed remove the laundry promptly.
To avoid the static charge at the end of
the drying cycle:
13. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
13.1 External cleaning
Clean the appliance with soap and warm
water only. Fully dry all the surfaces.
CAUTION!
Do not use alcohol, solvents
or chemical products.
13.2 Descaling
13.3 Maintenance wash
With the low temperature programmes it
is possible that some detergent stays in
the drum. Perform a maintenance wash
regularly. To do this:
• Remove all laundry from the drum.
• Select the cotton programme with the
highest temperature with a small
quantity of detergent.
13.4 Door seal
If the water hardness in your area is high
or moderate, we recommend that you
use a water descaling product for
washing machines.
Regularly examine the drum to prevent
limescale and rust particles.
To remove rust particles use only special
products for washing machines. Do this
separately from the laundry wash.
Always obey the instructions
that you find on the
packaging of the product.
Regularly examine the seal and remove
all objects from the inner part.
ENGLISH
13.5 Cleaning the detergent dispenser
1.
2.
1
2
3.
4.
13.6 Cleaning the inlet hose and the valve filter
1.
2.
1
2
3
29
30
www.aeg.com
3.
4.
45°
20°
13.7 Cleaning the drain filter
Do not clean the drain filter if the water in the appliance is hot.
Regularly check the drain pump filter and make sure that it is clean.
Repeat the steps 2 and 3 until the water stops to flowing out.
1.
2.
2
180°
1
3.
4.
1
2
2
1
ENGLISH
5.
6.
7.
8.
31
1
2
2
1
Always keep a rag nearby to
dry up any water spillage.
13.8 Emergency drain
Because of a malfunction, the appliance
cannot drain the water.
If this occurs, do steps (1) through (8) of
'Cleaning the drain filter'. If necessary,
clean the pump.
When you drain the water with the
emergency drain procedure, you must
activate the drain system again:
1. Put 2 litres of water in the main wash
compartment of the detergent
dispenser.
2. Start the programme to drain the
water.
13.9 Frost precautions
If the appliance is installed in an area
where the temperature can be less than
0° C, remove the remaining water from
the inlet hose and the drain pump.
1. Disconnect the mains plug from the
mains socket.
2. Close the water tap.
3. Put the two ends of the inlet hose in
a container and let the water flow out
of the hose.
4. Empty the drain pump. Refer to the
emergency drain procedure.
5. When the drain pump is empty,
install the inlet hose again.
WARNING!
Make sure that the
temperature is higher than 0
°C before you use the
appliance again.
The manufacturer is not
responsible for damages
caused by low temperatures.
32
www.aeg.com
14. TROUBLESHOOTING
•
- The appliance door is open or
not closed correctly. Please check the
door!
14.1 Introduction
•
The appliance does not start or it stops
during operation.
- The mains supply is unstable.
Wait until the mains supply is stable.
•
First try to find a solution to the problem
(refer to the table). If the problem
persists, contact the Authorised Service
Centre.
- No communication between
electronic elements of the appliance.
Switch off and switch on again.
•
- The anti-flood device is on.
Disconnect the appliance and close
the water tap. Contact the Authorised
Service Centre.
WARNING!
Refer to Safety chapters.
With some problems, the acoustic
signals operate and the display shows
an alarm code:
•
- The appliance does not fill with
water properly.
•
- The appliance does not drain
the water.
WARNING!
Deactivate the appliance
before you do the checks.
14.2 Possible failures
Problem
Possible solution
The programme does
not start.
• Make sure that the mains plug is connected to the mains
socket.
• Make sure that the appliance door is closed.
• Make sure that there is not a damaged fuse in the fuse box.
• Make sure that the Start/Pause has been pressed.
• If the delay start is set, cancel the setting or wait for the end
of countdown.
• Deactivate the Child Lock function if it is on.
The appliance does not
fill with water properly.
• Make sure that the water tap is open.
• Make sure that the pressure of the water supply is not too
low. For this information, contact your local water authority.
• Make sure that the water tap is not clogged.
• Make sure that the filter of the inlet hose and the filter of
the valve are not clogged. Refer to “Care and cleaning”.
• Make sure that the inlet hose has no kinks or bends.
• Make sure that the connection of the water inlet hose is
correct.
• Make sure that the connections of the water inlet hoses are
correct.
The appliance does not
fill with water and drain
immediately.
• Make sure that the drain hose is in the correct position. The
hose may be too low. Refer to 'Installation instruction'.
ENGLISH
Problem
33
Possible solution
•
•
•
•
The appliance does not
drain the water.
Make sure that the sink spigot is not clogged.
Make sure that the drain hose has no kinks or bends.
Make sure that the connection of the drain hose is correct.
Set the drain option if you set a programme without drain
phase.
• Set the drain option if you set an option which ends with
water in the drum.
• Make sure that the drain filter is not clogged. Clean the filter, if necessary. Refer to 'Care and cleaning'.
• If problem remains please contact the Authorised Service
Centre.
The spin phase does not
operate or the washing
cycle lasts longer than
usually.
• Set the spin option.
• Set the drain option if you set an option which ends with
water in the drum.
• Make sure that the drain filter is not clogged. Clean the filter, if necessary. Refer to 'Care and cleaning'.
• Adjust manually the items in the tub and start the spin
phase again. This problem may be caused by balance problems.
There is water on the
floor.
• Make sure that the couplings of the water hoses are tight
and there is not water leakages.
• Make sure that the water inlet hose and the drain hose have
no damages.
• Make sure you use the correct detergent and the correct
quantity of it.
You cannot open the appliance door.
• Make sure that the washing programme is finished.
• Set the drain or the spin option if there is water in the drum.
• Do the emergency drain procedure. See "Frost precautions" (in "Care and Cleaning" chapter).
• Make sure that the appliance receives electrical power.
• This problem may be caused by a failure of the appliance.
Contact the Authorised Service Centre. If you need to open
the lid, please read carefully "Emergency door opening".
The appliance makes an
unusual noise.
• Make sure the levelling of the appliance is correct. Refer to
'Installation instruction'.
• Make sure that the packaging and/or the transit bolts are
removed. Refer to 'Installation instruction'.
• Add more laundry in the drum. The load may be too small.
The cycle is shorter than
the time displayed.
• The appliance calculates a new time according to the laundry load. See the ‘Consumption Values’ chapter.
The cycle is longer than
the time displayed.
• An unbalanced laundry load increases the duration time.
This is a normal behaviour of the appliance.
34
www.aeg.com
Problem
Possible solution
The washing results are
not satisfactory.
• Increase the detergent quantity or use a different detergent.
• Use special products to remove the stubborn stains before
you wash the laundry.
• Make sure that you set the correct temperature.
• Decrease the laundry load.
You cannot set an option.
The appliance does not
dry or does not dry correctly.
The laundry is full of different colours fluff.
• Make sure that you press only the wanted touch button(s).
•
•
•
•
Turn the water tap on.
Make sure the drain filter is not clogged.
Reduce the laundry load.
Make sure you have set the correct cycle. If necessary ,set
again a short drying time.
The fabrics washed in the previous cycle released fluff of a different colour:
• The drying phase helps to eliminate some fluff.
• Clean the clothes with a fluff remover.
In case of an excessive amount of fluff in the drum run the special programme to clean it (refer to “Fluff in the fabrics" for
more details).
After the check, activate the appliance. The programme continues from the point of
interruption.
If the problem occurs again, contact the Authorised Service Centre.
If the display shows other alarm codes. Deactivate and activate the appliance. If the
problem continues, contact the Authorised Service Centre.
14.3 Emergency door opening
In case of power failure or functioning
failure the appliance door remains
locked. The washing programme
continues when the power is restored. If
the door remains locked in case of
failure, it is possible to open it using the
emergency unlock function.
Before opening the door:
CAUTION!
Make sure that the water
temperature is not too
high and the laundry is not
hot. If necessary, wait until
they cool down.
CAUTION!
Make sure that the drum is
not rotating. If necessary,
wait until the drum stops
rotating.
Make sure that the water
level inside the drum is not
too high. If necessary,
proceed with an
emergency drain (refer to
«Emergency drain» in
«Care and cleaning»
chapter).
To open the door, proceed as follows:
1. Press the Ein/Aus button to switch
the appliance off.
2. Disconnect the mains plug from the
mains socket.
3. Open the filter flap.
ENGLISH
4. Keep the emergency unlock trigger
pulled downward and, at the same
time, open the appliance door.
35
5. Take out the laundry and then close
the appliance door.
6. Close the filter flap.
15. TECHNICAL DATA
Dimension
Width/ Height/ Depth/
Total depth
600 mm/ 850 mm/ 605 mm/ 639 mm
Electrical connection
Voltage
Overall power
Fuse
Frequency
230 V
2200 W
10 A
50 Hz
Level of protection against ingress of solid particles
and moisture ensured by the protective cover, except where the low voltage equipment has no protection against moisture
IPX4
Water supply pressure
Minimum
Maximum
0,5 bar (0,05 MPa)
8 bar (0,8 MPa)
Maximum wash load
Cotton
9 kg
Maximum dry load
Cotton
Synthetics
6 kg
3 kg
Spin Speed
Maximum
1600 rpm
16. ENVIRONMENTAL CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable
containers to recycle it. Help protect the
environment and human health and to
recycle waste of electrical and electronic
appliances. Do not dispose appliances
*
marked with the symbol with the
household waste. Return the product to
your local recycling facility or contact
your municipal office.
132917101-A-202017
www.aeg.com/shop
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
