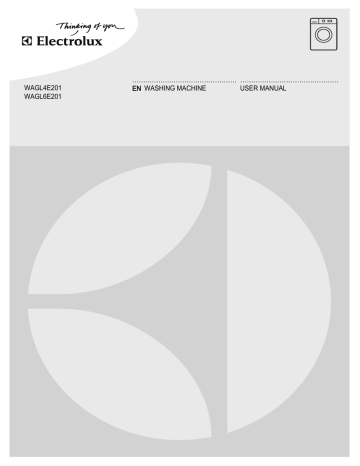

WAGL4E201
WAGL6E201
................................................ .............................................
EN WASHING MACHINE
USER MANUAL
2 electrolux
Electrolux. Thinking of you.
Share more of our thinking at www.electrolux.com
CONTENTS
Safety information
Safety instructions
Environment concerns
Technical information
Product description
Control panel
Programmes
2
3
4
5
5
6
9
Consumption values
11
Before first use
12
Daily use
12
Helpful hints and tips
15
Care and cleaning
16
Troubleshooting
19
Installation
21
Subject to change without notice.
SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.
CHILDREN AND VULNERABLE PEOPLE SAFETY
Warning! Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep all detergents away from children.
• Keep children and pets away from the appliance door when
it is open.
• If the appliance has a child safety device, we recommend
you activate it.
• Cleaning and user maintenance shall not be made by children without supervision.
electrolux 3
GENERAL SAFETY
• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Do not change the specification of this appliance.
• Obey the maximum load volume of 8 kg (refer to the “Programme chart” chapter).
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
• The operating water pressure (minimum and maximum)
must be between 0,5 bar (0,05 MPa) and 8 bar (0,8 MPa)
• The ventilation openings in the base (if applicable) must not
be obstructed by a carpet.
• The appliance is to be connected to the water mains using
the new supplied hose-sets. Old hose sets must not be
reused.
SAFETY INSTRUCTIONS
INSTALLATION
• Remove all the packaging and the transit
bolts.
• Keep the transit bolts. When you move
the appliance again you must block the
drum.
• Do not install or use a damaged appliance.
• Do not install or use the appliance where
the temperature is less than 0 °C or
where it is exposed to the weather.
• Obey the installation instruction supplied
with the appliance.
• Make sure that the floor where you install
the appliance is flat, stable, heat resistant
and clean.
• Do not install the appliance where the appliance door can not be fully opened.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Make sure that there is air circulation between the appliance and the floor.
• Adjust the feet to have the necessary
space between the appliance and the
carpet.
Electrical connection
Warning! Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the power
supply. If not, contact an electrician.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the appliance power supply cable
need to be replaced, this must be carried
out by our Service Centre.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
4 electrolux
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains
plug.
• Do not touch the mains cable or the
mains plug with wet hands.
• This appliance complies with the E.E.C.
Directives.
Water connection
• Make sure not to cause damage to the
water hoses.
• The appliance is to be connected to the
water mains using the new supplied
hose-sets. Old hose sets must not be
reused.
• Before you connect the appliance to new
pipes or pipes not used for a long time,
let the water flow until it is clean.
• The first time you use the appliance,
make sure that there is no leakage.
USE
Warning! Risk of injury, electrical
shock, fire, burns or damage to the
appliance.
• Use this appliance in a household environment.
• Do not change the specification of this
appliance.
• Obey the safety instructions on the detergent packaging.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
• Do not touch the glass of the door while
a programme operates. The glass can be
hot.
• Make sure that you remove all metal objects from the laundry.
• Do not put a container to collect possible
water leakage under the appliance. Contact the Service to ensure which accessories can be used.
CARE AND CLEANING
Warning! Risk of injury or damage to
the appliance.
• Before maintenance, deactivate the appliance and disconnect the mains plug
from the mains socket.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal objects.
DISPOSAL
Warning! Risk of injury or suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children and pets to get closed in the appliance.
ENVIRONMENT CONCERNS
Recycle the materials with the symbol
.
Put the packaging in applicable containers
to recycle it.
Help protect the environment and human
health and to recycle waste of electrical and
electronic appliances. Do not dispose
appliances marked with the symbol with
the household waste. Return the product to
your local recycling facility or contact your
municipal office.
PACKAGING MATERIALS
.
Recycle the materials with the symbol
Put the packaging in applicable containers
to recycle it.
ECOLOGICAL HINTS
To help the environment, use less water
and energy, obey these instructions:
• Set a programme without the prewash
phase to wash laundry with normal soil.
• Always start a washing programme with
the maximum load of laundry.
• If necessary, use a stain remover when
you set a programme with a low temperature.
• To use the correct quantity of the detergent, check the water hardness of your
domestic system
electrolux 5
TECHNICAL INFORMATION
Dimensions
Width / Height / Depth
Electrical connection:
605 / 850 / 605 mm
Total depth
640 mm
Voltage
Overall power
Fuse
Frequency
230 V
2200 W
10 A
50 Hz
Level of protection against ingress of solid particles and moisture ensured by the protective cover, except where the low voltage equipment has no protection against moisture
Water supply pressure
Water supply
IPX4
Minimum
0,5 bar (0,05 MPa)
Maximum
8 bar (0,8 MPa)
1)
Cold water
Maximum load
Cotton
Spin speed
Maximum
8 kg
1400 rpm (WA GL4E201)
1600 rpm (WA GL6E201)
1) Connect the water inlet hose to a water tap with a 3/4'' thread.
PRODUCT DESCRIPTION
1
2
3
8
9
10
4
5
11
6
12
7
1
2
3
4
5
6
7
8
9
10
Worktop
Detergent dispenser
Control panel
Door handle
Rating plate
Drain pump
Feet for the appliance level
Water drain hose
Water inlet valve
Mains cable
11 Transit bolts
12 Feet for the appliance level
6 electrolux
ACCESSORIES
1
4
2
4 Plastic hose guide
To connect the drain hose on the edge
of a sink.
3
CHILD SAFETY DEVICE
• When you activate this device, you cannot close the door. This prevents children
or pets to be closed in the drum. To activate the device, turn it clockwise, until the
groove is horizontal. To deactivate the
device, turn it counterclockwise, until the
groove is vertical.
1 Spanner
To remove the transit bolts.
2 Plastic caps
To close the holes on the rear side of
the cabinet after the removal of the
transit bolts.
3 Anti-flood inlet hose
To prevent possible leakage
CONTROL PANEL
1
2
3
Glätten
Défroissage
Koch/Bunt
Blanc/Couleurs
Auffrischen
Rafraîchir
+ Vorwäsche
+ Prélavage
Baumwolle Eco
Coton Eco
Extra Leise
Extra Silence
Super Eco
Pflegeleicht
Synthétiques
20 min 3 kg
Leichtbügeln
Repassage Facile
Feinwäsche
Délicats
Outdoor
Blousons
Spülen
Rinçage
Schleudern/Pumpen
Essorage/Vidange
Wolle/Seide
Laine/Soie
Ein/Aus
Marche/Arrêt
Daunen
Couette
Temp.
10
1 On/Off button (Ein/Aus — Marche/
Arrêt)
2 Programme knob
3 Display
4 Start Pause button (Start/Pause —
Départ/Pause)
5 Delay start button (Zeitvorwahl — Départ Différé)
Schleudern
Essorage
9
Flecken
Taches
Spülen +
Rinçage +
8
7
Zeit Sparen Zeitvorwahl
Départ Différé
Court
6
5
Start/Pause
Départ/Pause
4
6 Time saving button (Zeit Sparen —
Court)
7 Extra rinse button (Spülen + — Rinçage+)
8 Stain button (Flecken — Taches)
9 Spin reduction button (Schleudern —
Essorage)
10 Temperature button (Temp.)
electrolux 7
ON OFF BUTTON 1
Press this button to activate or deactivate
the appliance. A tune sounds when the appliance is activated.
The AUTO Stand-by function automatically
deactivates the appliance to decrease the
energy consumption when:
• You do not use the appliance for 5 minutes before you press button 4 .
– All settings are cancelled.
– Press button 1 to activate the appliance again.
– Set again the washing programme and
all possible options.
• After 5 minutes from the end of the
washing programme. Refer to 'At the end
of programme'.
PROGRAMME KNOB 2
Turn this knob to set a programme. The related programme indicator comes on.
DISPLAY 3
A
B
C
The display shows:
A
• The maximum temperature of the programme.
B
• The default spin speed of the programme.
• 'No Spin'1) and 'Rinse Hold' symbols.
C
• The display symbols.2)
Symbols
Description
Washing phase
Rinse phases
Spin phase
Child lock
You cannot open the appliance door when the symbol is on.
You can open the door only when the symbol goes off.
If the programme is completed but the symbol stays on:
• There is water in the drum.
• The 'Rinse Hold' function is on.
Delay start
D
8 electrolux
D
• The programme time
When the programme starts, the time decreases with steps of 1 minute.
• The delay start
When you press the delay start button, the display shows the delay start time.
• Alarm codes
If the appliance has a malfunction, the display shows alarm codes. Refer to 'Troubleshooting' chapter.
• Err
The display shows this message for some seconds if:
– You set a function that is not applicable for the programme.
– You change the programme while it operates.
The indicator of the Start/Pause button 4 flashes.
•
When the programme is completed.
1) Only available for Spin/Drain programme.
2) The symbols appear on the display when the related phase or function is set.
This function is not available with a
temperature lower than 40° C.
START/PAUSE BUTTON 4
Press button 4 to start or interrupt a programme.
DELAY START BUTTON 5
Press button 5 to delay the start of a programme from 30 minutes to 20 hours.
TIME SAVE BUTTON 6
Press the button 6 to decrease the programme duration.
• Press one time to set 'Shortened duration' for items with daily soil.
• Press two times to set 'Extra Quick' for
items with almost no soil.
SPIN BUTTON 9
Press this button to:
• Decrease the maximum speed of the
spin phase when you set a programme.
The display shows only the spin
speeds available with the set programme.
• Deactivate the spin phase.
• Activate the 'Rinse Hold' function. Set
this function to prevent fabric creases.
The appliance does not drain the water
when the programme is completed.
Spin phase is off.
Some programmes accept only one of
the two functions.
EXTRA RINSE BUTTON 7
Press button 7 to add rinsing phases to a
programme.
Use this function for persons allergic to detergents and in areas where the water is
soft.
STAIN BUTTON 8
Press button 8 to add the stain phase to a
programme.
Use this function for laundry with hard
stains to remove.
When you set this function, put the stain re.
mover into compartment
This function increases the programme
duration.
'Rinse Hold' function is on.
TEMPERATURE BUTTON 10
Press button 10 to change the default temperature.
--
= cold water
ACOUSTIC SIGNALS FUNCTION
You can hear the acoustic signals when:
• You activate the appliance.
• You deactivate the appliance.
• You press the buttons.
• The programme is completed.
• The appliance has a malfunction.
To deactivate/activate the acoustic signals, press button 8 and button 7 at the
same time for 6 seconds.
electrolux 9
If you deactivate the acoustic signals,
they continue operate only when you
press the buttons and when a malfunction occurs.
CHILD LOCK FUNCTION
This function prevents children to play with
the control panel.
• To activate the function, press button 10
and button 9 at the same time until the
.
display shows the symbol
• To deactivate the function, press button
10 and button 9 at the same time until
goes off.
the symbol
You can activate the function:
• Before you press the Start/Pause button
4 : the appliance cannot start.
• After you press the Start/Pause button
4 , all the buttons and the programme
knob are deactivated.
PERMANENT EXTRA RINSE FUNCTION
With this function you can keep the extra
rinse function permanently on when you set
a new programme.
• To activate the function press button 6
and button 5 at the same time until the
indicator of button 7 is on.
• To deactivate the function press button
6 and button 5 at the same time until
the indicator of button 7 is off.
PROGRAMMES
Programme
Temperature
Type of load
max. weight of load
Cycle
description
Functions
Koch/Bunt - Blanc/
Couleurs
Cottons
95° - Cold
White and coloured cotton with normal soil.
max. 8 kg
Wash
Rinses
Long spin
SPIN REDUCTION
RINSE HOLD
STAIN
EXTRA RINSE
TIME SAVE1)
Koch/Bunt + Vorwäsche - Blanc/Couleurs
+ Prélavage
Cottons with Prewash
95° - Cold
White and coloured cotton with heavy soil.
max. 8 kg
Prewash
Wash
Rinses
Long spin
SPIN REDUCTION
RINSE HOLD
STAIN
EXTRA RINSE
TIME SAVE1)
Extra Leise - Extra Silence
Extra Silent
95° - Cold
White and coloured cotton with normal soil.
max. 8 kg
Wash
Rinses
Stop with water in the
drum
STAIN
EXTRA RINSE
TIME SAVE1)
Pflegeleicht - Synthétiques
Synthetics
60° - Cold
Synthetic or mixed fabric
items with normal level of
soil.
max. 4 kg
Wash
Rinses
Short spin
SPIN REDUCTION
RINSE HOLD
STAIN
EXTRA RINSE
TIME SAVE1)
Leichtbügeln - Repassage Facile2)
Easy Iron
60° - Cold
Synthetic fabric items
with normal soil.
max. 4 kg
Wash
Rinses
Short spin
RINSE HOLD
EXTRA RINSE
TIME SAVE1)
Feinwäsche - Délicats
Delicates
40° - Cold
Delicate fabrics as acrylics, viscose, polyester
items with normal soil.
max. 4 kg
Wash
Rinses
Short spin
SPIN REDUCTION
RINSE HOLD
STAIN
EXTRA RINSE
TIME SAVE1)
10 electrolux
Programme
Temperature
Type of load
max. weight of load
Cycle
description
Functions
Machine washable wool.
Hand washable wool and
delicate fabrics with
«hand washing» care
symbol.
max. 2 kg
Wash
Rinses
Short spin
SPIN REDUCTION
RINSE HOLD
Daunen - Couette
Duvets
60° - 30°
One synthetic blanket,
duvet, bedspread and so
on.
max. 3 kg
Wash
Rinses
Short spin
SPIN REDUCTION
Schleudern/Pumpen Essorage/Vidange3)
Spin/Drain
All fabrics
The maximum load of
the laundry is related to
the type of laundry.
Drainage of the water
Spin phase at the maximum speed.
SPIN REDUCTION
NO SPIN
Spülen - Rinçage
Rinse
Hand washed items.
Rinses
Long spin
SPIN REDUCTION
RINSE HOLD
EXTRA RINSE
Träningskläder
Outdoor
40° - Cold
Waterproof, sports and
outdoor clothing. Do not
use any fabric softener!
max. 2.5 kg
Wash
Rinses
Short spin
SPIN REDUCTION
RINSE HOLD
EXTRA SPÜLEN
20 Min. - 3 kg
40° - 30°
Cotton and synthetic
items with light soil or
worn only one time.
Wash
Rinses
Short spin
SPIN REDUCTION
Super Eco4)
Cold
Mixed fabrics (cotton and
synthetic items).
max. 3 kg
Wash
Rinses
Long spin
SPIN REDUCTION
RINSE HOLD
EXTRA RINSE
White and fast coloured
cotton with normal soil.
max. 8 kg
Wash
Rinses
Long spin
SPIN REDUCTION
NO SPIN
RINSE HOLD
STAIN
EXTRA RINSE
Wolle/Seide - Laine/
Soie
Wool/Silk
40° - Cold
Baumwolle Eco - Coton Eco5)
60° - 40°
1) If you press the button 6 two times (Super Quick function set), we recommend you to decrease the quantity of the
load. It is possible to keep the full load but the washing results are not good.
2) The wash and spin phase of this programme is soft to prevent the creases of the laundry. The appliance adds
some rinses.
3) Set the spin speed. Make sure that it agrees with the laundry. To select the DRAIN programme only, set the
function NO SPIN.
4) Set this programme to decrease the time and the consumption of energy and water.
5) Standard programmes for the Energy Label consumption values.
According to regulation 1061/2010, the «Baumwolle Eco - Coton Eco 60° C» and «Baumwolle Eco - Coton Eco
40° C» are respectively the «standard 60° C cotton programme» and the «standard 40° C cotton programme».
They are the most efficient programmes in terms of combined energy and water consumptions for washing
normally soiled cotton laundry.
The water temperature of the washing phase may differ from the temperature declared for the selected programme.
STEAM PROGRAMMES
electrolux 11
Programme1)
Type of load
Auffrischen - Rafraîchir
This cycle removes odours from the
laundry.
Max. load
Cotton and synthetic items.
Do not set the Steam programme for
this type of clothes:
• Clothes which is not specified on
the care label as being suitable for
tumble-drying.
• Clothes with inclusion of plastic,
metal, wooden parts or alike.
Steam does not remove animal
odours.
Glätten - Défroissage
This programme helps to dewrinkle
the laundry.
up to 1.5 Kg
up to 1.5 Kg
Steam can be used for dried, washed or worn once laundry. These programmes can reduce
creases and odours and make your laundry more smooth.
Do not use any detergent. If necessary, remove stains by washing or using localized stain removal.
Steam programmes do not perform any hygienic cycle.
1) If you set a Steam programme with dried laundry, at the end of the cycle the laundry feels humid. It is better to
expose clothes to the fresh air for about 10 minutes to let the humidity dry. Laundry should be removed from the
drum as quick as possible. After a steam cycle, clothes may to be ironed anyway, but with less effort!
WOOLMARK CERTIFICATE
for the washing of machine washable Woolmark product provided that the garments
are washed according to the instructions on
the garment label and those issued by the
manufacturer of this washing machine.
M1027
In UK, Eire, Hong Kong and India the Woolmark symbol is a certification trademark.
The wool wash cycle of this machine has
been approved by The Woolmark Company
CONSUMPTION VALUES
At programme start the display shows the duration programme for the maximum
load capacity.
During the washing phase the programme duration is automatically calculated and
can greatly be reduced if the laundry load is lower than the maximum load capacity
(e.g. Cotton 60°C, maximum load capacity 8 kg, the programme duration exceeds 2
hours; real load 1 kg, the programme duration don’t reach 1 hour).
When the appliance is calculating the real programme duration a dot blinks in the
display.
The data of this table are approximate. Different causes can change the data: the
quantity and type of laundry, the water and ambient temperature.
Programmes
Load
(kg)
Energy consumption
(kWh)
Water
consumption (litre)
Approximate programme
duration
(minutes)
Remaining moisture (%)1)
WA
GL4E201
Remaining moisture (%)1)
WA
GL6E201
Cottons 60 °C
8
1.6
72
168
52
43
Cottons 40 °C
8
1.0
72
164
52
43
Synthetics 40 °C
4
0.6
50
110
35
35
Delicates 40 °C
4
0.7
60
91
35
35
12 electrolux
Programmes
Load
(kg)
Energy consumption
(kWh)
Water
consumption (litre)
Approximate programme
duration
(minutes)
Remaining moisture (%)1)
WA
GL4E201
Remaining moisture (%)1)
WA
GL6E201
2
0.35
57
58
30
30
Wool/Hand wash
30 °C
Standard cotton programmes
Standard 60 °C
cotton
8
0.9
58
208
52
43
Standard 60 °C
cotton
4
0.65
45
156
52
43
Standard 40 °C
cotton
4
0.49
45
156
52
43
1) At the end of spin phase.
Off Mode (W)
Left-On Mode (W)
0.48
0.48
The information given in the charts above are in compliance with the EU Commission regulation
1015/2010 implementing directive 2009/125/EC.
BEFORE FIRST USE
1. To activate the drain system, put 2 litre
of water in the main wash compartment
of the detergent dispenser.
2. Put a small quantity of detergent in the
main wash compartment of the detergent dispenser. Set and start a programme for cotton at the highest temperature without laundry. This removes
all possible dirt from the drum and the
tub.
DAILY USE
1. Open the water tap.
2. Connect the mains plug to the mains
socket.
3. Press button 1 to activate the appliance.
4. Put the laundry in the appliance.
5. Use the correct quantity of detergent
and additives.
6. Set and start the correct programme
for the type of laundry and soil.
LOADING THE LAUNDRY
1. Open the appliance door.
2. Put the laundry in the drum, one item at
a time. Shake the items before you put
them in the appliance. Make sure not to
put too much laundry in the drum.
3. Close the door.
Make sure that no laundry stays between
the seal and the door. There is a risk of water leakage or damage to the laundry.
electrolux 13
USING THE DETERGENT AND ADDITIVES
The detergent compartment for the prewash phase and the soak programme.
Add the detergent for prewash and soak before the start of the programme.
The detergent compartment for the washing phase.
If you use a liquid detergent, put it immediately before you start the programme.
Liquid additives compartment (fabric conditioner, starch).
Put the product in the compartment before you start the programme.
This is the maximum level for the quantity of liquid additives.
The compartment for the stain remover.
Put the product in the compartment and set the stain function before you start
the programme.
Flap for powder or liquid detergent
Turn it (up or down) in the correct position to use powder or liquid detergent.
Always obey the instructions that you find on the packaging of the detergent products.
Check the position of the flap
1. Pull out the detergent dispenser until it
stops.
2. Press the lever down to remove the
dispenser.
3. To use powder detergent, turn the flap
up.
14 electrolux
4. To use liquid detergent, turn the flap
down.
CANCEL A PROGRAMME
1. Press button 1 to cancel the programme and to deactivate the appliance.
2. Press button 1 again to activate the
appliance. Now, you can set a new
washing programme.
The appliance does not drain the water.
5. Measure out the detergent and the fabric conditioner.
6. Carefully close the detergent dispenser.
Make sure that the flap does not cause
a blockage when you close the drawer.
With the flap in the position DOWN:
– Do not use gelatinous or thick liquid
detergents.
– Do not put more liquid detergent
than the limit showed in the flap.
– Do not set the prewash phase.
– Do not set the delay start function.
SETTING AND STARTING A
PROGRAMME
1. Turn the programme knob. The related
programme indicator comes on.
2. The indicator of button 4 flashes with
red colour.
3. The display shows the default temperature and spin speed. To change the
temperature and/or the spin speed,
press the related buttons.
4. Set the available functions. The indicator of the set function comes on or the
display shows the related symbol.
5. Press button 4 to start the programme. The indicator of button 4 is
on.
The drain pump can operate for a short
time when the appliance fills water.
INTERRUPT A PROGRAMME
1. Press button 4 . The indicator flashes.
2. Press button 4 again. The washing
programme continues.
CHANGE A FUNCTION
You can change only some functions before they operate.
1. Press button 4 . The indicator flashes.
2. Change the function set.
SET THE DELAY START
1. Press button 5 again and again until
the display shows the number of minutes or hours. The related symbols
comes on.
2. Press button 4 , the appliance starts
the countdown of the delay start.
When the countdown is completed, the
programme starts automatically.
Before you press button 4 to start the
appliance, you can cancel or change
the set of the delay start.
You cannot set the delay start with the
Steam programme.
CANCEL THE DELAY START
1. Press button 4 . The related indicator
flashes.
2. Press button 5 again and again until
the display shows 0’.
3. Press button 4 . The programme
starts.
OPEN THE DOOR
While a programme or the delay start operates, the appliance door is locked.
To open the appliance door:
1. Press button 4 . The door lock symbol in the display goes off.
2. Open the appliance door.
3. Close the appliance door and press
button 4 . The programme or the delay start continues.
electrolux 15
If the temperature and level of the water in the drum are too high, the door
lock symbol stays on and you cannot
open the door. To open the door do
the steps that follow:
1. Deactivate the appliance.
2. Wait for some minutes.
3. Make sure that no water is in the
drum.
Important! If you deactivate the appliance,
it is necessary to set the programme again.
AT THE END OF THE PROGRAMME
• The appliance stops automatically.
• The acoustic signals operate.
• In the display
comes on.
• The indicator of the Start/Pause button
4 goes off.
• The door lock symbol goes off.
• Press button 1 to deactivate the appliance. After five minutes from the end of
the programme, the energy saving function automatically deactivates the appliance.
programme. Turn the programme knob
to set a new cycle.
• Remove the laundry from the appliance.
Make sure that the drum is empty.
• Keep the door ajar, to prevent mildew
and odours.
• Close the water tap.
The washing programme is completed,
but there is water in the drum:
– The drum turns regularly to prevent the
creases in the laundry.
– The door stays locked.
– You must drain the water to open the
door.
To drain the water:
1. If necessary, decrease the spin speed.
2. Press the Start/Pause button 4 . The
appliance drain the water and spin.
3. When the programme is completed
and the door lock symbol goes off, you
can open the door
4. Deactivate the appliance.
The appliance drain and spin automatically after approximately 18 hours.
When you activate the appliance again,
the display show the end of the last set
HELPFUL HINTS AND TIPS
THE LAUNDRY LOAD
• Divide the laundry in: white, coloured,
synthetics, delicates and wool.
• Obey the washing instructions that are on
the laundry care labels.
• Do not wash together white and coloured
items.
• Some coloured items can discolour with
the first wash. We recommend that you
wash them separately for the first times.
• Button up pillowcases, close zippers,
hooks and poppers. Tie up belts.
• Empty the pockets and unfold the items.
• Turn inside out multilayered fabrics, wool
and items with painted illustrations.
• Remove hard stains.
• Wash with a special detergent heavy soil
stains.
• Be careful with the curtains. Remove the
hooks or put the curtains in a washing
bag or pillowcase.
• Do not wash in the appliance :
– Laundry without hems or with cuts
– Underwired bras.
– Use a washing bag to wash small
items.
• A very small load can cause balance
problems with the spin phase. If this occurs, adjust manually the items in the tub
and start the spin phase again.
STUBBORN STAINS
For some stains, water and detergent is not
sufficient.
We recommend that you remove these
stains before you put the items in the appliance.
Special stain removers are available. Use
the special stain remover that is applicable
to the type of stain and fabric.
DETERGENTS AND ADDITIVES
• Only use detergents and additives specially made for washing machines.
16 electrolux
• Do not mix different types of detergents.
• To help the environment, do not use
more than the correct quantity of detergent.
• Obey the instructions that you find on the
on packaging of these products.
• Use the correct products for the type and
colour of the fabric, the programme temperature and the level of soil.
• If you use liquid detergents, do not set
the prewash phase.
• If your appliance has not the detergent
dispenser with the flap device, add the
liquid detergents with a dosing ball.
water softener for washing machines. In
areas where the water hardness is soft it is
not necessary to use a water softener.
To know the water hardness in your area,
contact your local water authority.
Obey the instructions that you find on the
packaging of the products.
Equivalent scales measure the water hardness:
• German degrees (°dH).
• French degrees (°TH).
• mmol/l (millimol for each litre - international unit for the hardness of water).
• Clarke degrees.
WATER HARDNESS
If the water hardness in your area is high or
moderate, we recommend that you use a
Water hardness table
Level
Type
1
2
Water hardness
°dH
°T.H.
mmol/l
soft
0-7
0-15
0-1.5
Clarke
0-9
medium
8-14
16-25
1.6-2.5
10-16
3
hard
15-21
26-37
2.6-3.7
17-25
4
very hard
> 21
> 37
>3.7
>25
CARE AND CLEANING
Warning!
Disconnect the appliance from the mains
supply before you clean it.
DESCALING
The water we use contains limescale. If it
becomes necessary, use a water softener
to remove limescales.
Use a special product made for washing
machines. Obey the instructions that you
find on the packaging of the manufacturer.
Do this separately from the laundry wash.
drum. Make regularly a maintenance wash.
To do this:
• Empty the laundry from the drum.
• Set the hottest cotton wash programme
• Use a correct quantity of powder detergent with biological properties.
After each wash, keep the door open for a
while to prevent mould and to let unpleasant smells go out.
DOOR SEAL
EXTERNAL CLEANING
Clean the appliance only with soap and
warm water. Fully dry all the surfaces.
Caution! Do not use alcohol, solvents
or chemical products.
MAINTENANCE WASH
With the low temperature programmes it is
possible that some detergent stays in the
Regularly examine the seal and remove all
objects from the inner part.
electrolux 17
DRUM
Regularly examine the drum to prevent
limescale and rust particles.
Only use special products to remove rust
particles from the drum.
To do this:
• Clean the drum with special product for
stainless steel.
• Start a short programme for cotton at the
maximum temperature with a small quantity of detergent.
DETERGENT DISPENSER
1. Press the lever.
1
2
DRAIN PUMP
Regularly examine the drain pump and
make sure that it is clean.
Clean the pump if:
• The appliance does not drain the water.
• The drum cannot turn.
• The appliance makes an unusual noise
because of the blockage of the drain
pump.
• The display shows an alarm code because of the problem with water drain.
Warning!
• Disconnect the mains plug from the
mains socket.
• Do not remove the filter while the appliance operates. Do not clean the
drain pump if the water in the appliance is hot. The water must be cold
before you clean the drain pump.
Cleaning the drain pump:
1. Open the drain pump door.
2. Pull the dispenser out.
3. Remove the top part of the liquid additive compartment.
2. Pull the flap out to remove it.
4. Clean all the parts with water.
5. Clean the dispenser recess with a
brush.
6. Put back the dispenser in the recess.
3. Put a container below the recess of the
drain pump to collect the water that
flows out.
18 electrolux
4. Press the two levers and pull forward
the drainage duct to let the water flow
out.
5. When the container is full of water, put
the drainage duct back again and empty the container. Do steps 4 and 5
again and again until no more water
flows out from the drain pump.
6. Pull back the drainage duct and turn
the filter to remove it.
11. Put the flap back and close the drain
pump door.
2
1
1
2
7. Remove fluff and objects from the
pump.
THE INLET HOSE FILTER AND THE
VALVE FILTER
It could be necessary to clean the filters
when:
• The appliance does not fill with water.
• The appliance fills with the water for a
long time.
• The indicator of button 4 flashes and
the display shows the related alarm. Refer to 'Troubleshooting'.
Warning! Disconnect the mains plug
from the mains socket.
8. Make sure that the impeller of the
pump can turn. If this does not occur,
contact the service centre.
9. Clean the filter under the water tap and
put it back in the pump into the special
guides.
10. Make sure that you tighten correctly the
filter to prevent leakages.
Cleaning the water inlet filters:
1. Close the water tap.
2. Remove the water inlet hose from the
water tap.
3. Clean the filter in the inlet hose with a
stiff brush.
4. Remove the inlet hose behind the appliance.
electrolux 19
5. Clean the filter in the valve with a stiff
brush or a towel.
6. Install again the inlet hose. Make sure
that the couplings are tight to prevent
leakages.
45°
20°
7. Open the water tap.
EMERGENCY DRAIN
Because of a malfunction, the appliance
cannot drain the water.
If this occurs, do steps (1) through (6) of 'To
clean the drain pump'.
If necessary, clean the pump.
Put the drainage duct back and close the
drain pump flap.
When you drain the water with the emergency drain procedure, you must activate
again the drain system:
1. Put 2 litres of water in the main wash
compartment of the detergent dispenser.
2. Start the programme to drain the water.
FROST PRECAUTIONS
If the appliance is installed in an area where
the temperature can be less than 0 °C, remove the remaining water from the inlet
hose and the drain pump.
1. Disconnect the mains plug from the
mains socket.
2. Close the water tap.
3. Remove the water inlet hose
4. Put the two ends of the inlet hose in a
container and let the water flow out of
the hose.
5. Empty the drain pump. Refer to the
emergency drain procedure
6. When the drain pump is empty, install
the inlet hose again.
Warning! Make sure that the
temperature is more than 0 °C before
you use the appliance again.
The manufacturer is not responsible for
damages caused by low temperatures.
TROUBLESHOOTING
The start of the appliance does not occur or
it stops during operation.
First try to find a solution to the problem (refer to the table). If not, contact the service
centre.
•
- The appliance does not drain the
water.
•
- The appliance door is open or not
closed correctly.
•
- The anti-flood device is on.
With some problems, the acoustic
signals operate and the display shows
an alarm code:
•
- The appliance does not fill with
water.
Problem
The appliance does not
fill with water.
Possible cause
Warning! Deactivate the appliance
before you do the checks.
Possible solution
The water tap is closed.
Open the water tap.
The water inlet hose is damaged.
Make sure that the water inlet hose has
no damages.
20 electrolux
Problem
The appliance does not
drain the water.
Possible cause
Possible solution
The filters in the water inlet
hose is blocked .
Clean the filters. Refer to 'Care and
cleaning'.
The water tap is blocked or is
furred with limescale.
Clean the water tap.
The connection of the water
inlet hose is not correct.
Make sure that the connection is correct.
The water pressure is too low.
Contact your local water authority.
The water drain hose is damaged.
Make sure that the water drain hose has
no damages.
The filter of the drain pump is
blocked.
Clean the filter of the drain pump. Refer
to 'Care and cleaning'.
The connection of the water
drain hose is not correct.
Make sure that the connection is correct.
A washing programme without
the drain phase is set.
Set the drain programme.
The function Rinse & Hold is
on.
Set the drain programme.
The appliance door is
open or not closed
correctly.
Close the door correctly.
The anti-flood device is
on.
• Disconnect the appliance.
• Close the water tap.
• Contact the service centre.
The spin phase does
not operate.
The programme does
not start.
There is water on the
floor.
You cannot open the
appliance door.
The spin phase is off.
Set the spin programme.
The filter of the drain pump is
blocked.
Clean the filter of the drain pump. Refer
to 'Care and cleaning'.
Balance problems with the
laundry load.
Adjust manually the items in the tub and
start the spin phase again.
The mains plug is not connected in the mains socket.
Put in the mains plug.
Blow out fuse in the household
fuse box.
Replace the fuse.
You did not press button 4 .
Press button 4 .
The delay start is set.
To start immediately the programme,
cancel the delay start.
The Child Lock function is activated.
Deactivate the Child Lock function.
Leakages from the couplings
of the water hoses.
Make sure that the couplings are tight.
Leakages from the drain
pump.
Make sure that the drain pump filter is
tight.
The water drain hose is damaged.
Make sure that the water inlet hose has
no damages.
The washing programme is in
operation.
Let the washing programme end.
There is water in the drum.
Set the drain or the spin programme.
electrolux 21
Problem
The appliance makes
an unusual noise.
Possible cause
Possible solution
Incorrect level of the appliance.
Adjust the level of the appliance. Refer
to 'Installation'.
You did not remove the packaging and/or the transit bolts.
Remove the packaging and/or the transit bolts. Refer to 'Installation'.
The load is very small.
Add more laundry in the drum.
The appliance fills with
water and drain immediately.
The end of the drain hose is
too low.
Make sure that the drain hose is in the
correct position.
The cycle is shorter
than the time displayed.
The appliance calculates a
new time according to the
laundry load.
See the ‘Consumption Values’ chapter.
The cycle is longer
than the time displayed.
An unbalanced laundry load
increases the duration time.
This is a normal behaviour of the appliance.
The washing results
are not satisfactory.
The detergent you used was
not sufficient or correct.
Increase the detergent quantity or use a
different one.
You did not remove the stubborn stains before you wash
the laundry.
Use special products to remove the
stubborn stains.
Incorrect temperature was set.
Make sure that you set the correct temperature.
Too much laundry load.
Decrease the laundry load.
After the check, activate the appliance. The
programme continues from the point of interruption.
If the problem occurs again, contact the
service centre.
If the display shows other alarm codes,
contact the service centre.
SERVICE
Mod. ... ... ...
Prod. No. ... ... ...
Ser. No. ...
Refer to the information supplied with this
appliance for guarantee condition and point
of contact. The information to give to the
service is on the rating plate.
We recommend that you write the information
here:
Model
(MOD.)
..................
Product number
(PNC)
..................
Serial number
(S.N.)
..................
INSTALLATION
FIXING PLATE KIT (4055171146)
Available from your authorized dealer.
If you install the appliance on a plinth, secure the appliance in the fixing plates.
Follow the instructions supplied with the kit.
UNPACKING
1. Use the gloves. Remove the external
film. If necessary, use a cutter.
22 electrolux
6. Put one of the polystyrene packaging
elements on the floor behind the appliance. Carefully put down the appliance
with the rear side on it. Make sure not
to damage the hoses.
2. Remove the cardboard top.
3. Remove the polystyrene packaging
materials.
7. Remove the polystyrene protection
from the bottom.
1
4. Remove the internal film.
2
8. Pull up the appliance in vertical position.
9. Remove the power supply cable and
the drain hose from the hose holders.
5. Open the door. Remove the polystyrene piece from the door seal and all the
items from the drum.
10. Remove the three bolts. Use the key
supplied with the appliance.
electrolux 23
11. Pull out the plastic spacers.
12. Put the plastic caps in the holes. You
can find these caps in the user manual
bag.
and the movement of the appliance when
in operation.
x4
• The appliance must be level and stable.
Caution! Do not put cardboard, wood
or equivalent materials below the
appliance feet to adjust the level.
Warning! Remove all the packaging
and the transit bolts before you install
the appliance.
THE INLET HOSE
• Connect the hose to the appliance. Turn
the inlet hose only left or right. Loose the
ring nut to set it in the correct position.
We recommend that you keep the
packaging and the transit bolts for
when you move the appliance.
POSITIONING AND LEVELLING
• Install the appliance on a flat hard floor.
• Make sure that carpets do not stop the
air circulation below the appliance.
• Make sure that the appliance does not
touch the wall or other units
• Loosen or tighten the feet to adjust the
level. A correct adjustment of the appliance level prevents the vibration, noise
20
O
45
O
24 electrolux
• Connect the water inlet hose to the cold
water tap with 3/4 thread.
With the plastic hose guide.
• On the edge of a sink.
Caution! Make sure that there are no
leaks from the couplings.
Do not use an extension hose if the inlet hose is too short. Contact the service centre for the replacement of the inlet hose.
Water-stop device
The inlet hose has a water stop device. This
device prevents water leaks in the hose because of its natural ageing. The red sector
in the window «A» shows this fault .
If this occur, close the water tap and contact the service centre to replace the hose.
A
WATER DRAINAGE
There are different procedures to connect
the drain hose:
Make sure that the plastic guide cannot
move when the appliance drains. Attach
the guide to the water tap or the wall.
• To a stand pipe with vent-hole.
Refer to the illustration. Directly into a
drain pipe at a height of not less than 60
cm and not more than 100 cm. The end
of the drain hose must always be ventilated , i.e. the inner diameter of the drainpipe must be larger than the external diameter of the drain hose.
Without the plastic hose guide.
• To a sink spigot.
electrolux 25
• Directly to a built-in drain pipe in the
room wall and tighten it with a clip.
Refer to the illustration. Put the drain
hose in the spigot and tighten it with a
clip. Make sure that the drain hose
makes a loop to prevent that remaining
particles go in the appliance from the
sink.
You can extend the drain hose to maximum 400 cm. Contact the service centre for the other drain hose and the extension.
26 electrolux
electrolux 27
www.electrolux.com/shop
132916261-A-2013
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
