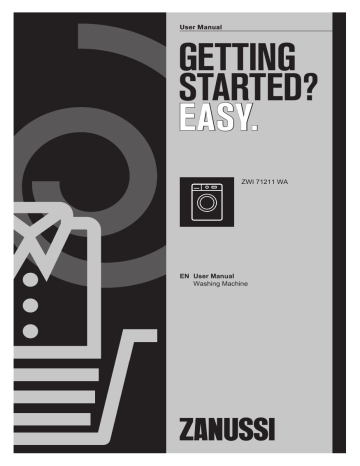

User Manual
GETTING
STARTED?
EASY.
ZWI 71211 WA
EN User Manual
Washing Machine
SAFETY INFORMATION
Before the installation and use of the appliance, carefully read the
supplied instructions. The manufacturer is not responsible for any
injuries or damages that are the result of incorrect installation or
usage. Always keep the instructions in a safe and accessible
location for future reference.
CHILDREN AND VULNERABLE PEOPLE SAFETY
•
•
•
•
•
•
•
•
This appliance can be used by children aged 8 years and
above and by persons with reduced capabilities provided that
they have been given instruction and/or supervision regarding
the safe use of the appliance and understand the potential
hazards involved.
Do not let children play with the appliance.
Children under 3 years of age should be kept away from the
appliance unless continuously supervised.
Keep all packaging away from children and dispose of it
appropriately.
Keep detergents away from children.
Keep children and pets away from the appliance door when it is
open.
If the appliance has a child safety device, this should be
activated.
Children shall not carry out cleaning and user maintenance of
the appliance without supervision.
GENERAL SAFETY
•
•
•
•
2
Do not change the specification of this appliance.
Do not exceed the maximum load of 7 kg (refer to the
"Programme chart" chapter).
The operating water pressure at the water entry point from the
outlet connection must be between 0.5 bar (0.05 MPa) and 8
bar (0.8 MPa).
The ventilation opening in the base (if applicable) must not be
covered by a carpet, mat, or any floor covering.
•
•
•
•
•
•
The appliance must be connected to the water mains using the
new supplied hose sets, or other new hose sets supplied by
the Authorised Service Centre.
Old hose sets must not be reused.
If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre or
similarly qualified persons to avoid an electrical hazard.
Before any maintenance operation, deactivate the appliance
and disconnect the mains plug from the socket.
Do not use high pressure water sprays and/or steam to clean
the appliance.
Clean the appliance with a moist cloth. Use only neutral,
detergents. Do not use abrasive products, abrasive cleaning
pads, solvents or metal objects.
SAFETY INSTRUCTIONS
INSTALLATION
• Remove all the packaging and the transit bolts.
• Keep the transit bolts in a safe place. If the
appliance is to be moved in future they must be
reattached to lock the drum to prevent internal
damage.
• Always take care when moving the appliance as
it is heavy. Always use safety gloves and
enclosed footwear.
• Do not install or use a damaged appliance.
• Follow the installation instruction supplied with
the appliance.
• Do not install or use the appliance where the
temperature can be less than 0°C or where it is
exposed to the weather.
• The floor area where the appliance is to be
installed must be flat, stable, heat resistant and
clean.
• Make sure that there is air circulation between
the appliance and the floor.
• Adjust the feet to have the necessary space
between the appliance and the flooring.
• Do not install the appliance where the appliance
door cannot be fully opened.
ELECTRICAL CONNECTION
• The appliance must be earthed.
• Always use a correctly installed shockproof
socket.
•
•
•
•
•
•
•
Make sure that the electrical information on the
rating plate agrees with the power supply. If not,
contact an electrician.
Do not use multi-plug adapters and extension
cables.
Make sure not to cause damage to the mains
plug and to the mains cable. Should the mains
cable need to be replaced, this must be carried
out by our Authorised Service Centre.
Connect the mains plug to the mains socket
only at the end of the installation. Make sure that
there is access to the mains plug after the
installation.
Do not touch the mains cable or the mains plug
with wet hands.
Do not pull the mains cable to disconnect the
appliance. Always pull the mains plug.
This appliance complies with the E.E.C.
Directives.
WATER CONNECTION
• Do not cause damage to the water hoses.
• Before connection to new pipes, pipes not used
for a long time, where repair work has been
carried out or new devices fitted (water meters,
etc.), let the water flow until it is clean and clear.
• Ensure that there are no visible water leaks
during and after the first use of the appliance.
3
SERVICE
• To repair the appliance contact an Authorised
Service Centre.
• Use original spare parts only.
USE
WARNING! Risk of injury, electrical
shock, fire, burns or damage to the
appliance.
•
•
•
•
•
•
DISPOSAL
This appliance is for household use only.
Follow the safety instructions on the detergent
packaging.
Do not put flammable products or items that are
wet with flammable products in, near or on the
appliance.
Make sure that all metal objects are removed
from the laundry.
Do not put a container to collect possible water
leakage under the appliance. Contact the
Authorised Service Centre to ensure which
accessories can be used.
Do not touch the glass door while a programme
is in operation. The glass can get hot.
WARNING! Risk of injury or
suffocation.
•
•
•
•
Disconnect the appliance from the mains
electrical and water supplies.
Cut off the mains electrical cable close to the
appliance and dispose of it.
Remove the door catch to prevent children or
pets from becoming trapped in the drum.
Dispose of the appliance in accordance with
local requirements for the disposal of Waste
Electrical and Electronic Equipment (WEEE).
PRODUCT DESCRIPTION
APPLIANCE OVERVIEW
1
2
3
4
5
6
1 Detergent dispenser
2 Control panel
•
3 Door handle
4 Rating plate
5 Drain pump filter
6 Feet for levelling the appliance
CHILD SAFETY
This device prevents children or pets to be closed
in the drum.
4
•
Turn the device clockwise, until the groove
is horizontal.
You cannot close the
door.
To close the door,
turn the device anticlockwise until the
groove is vertical.
CONTROL PANEL
CONTROL PANEL DESCRIPTION
1
2
10
1 Programme knob
2 Display
3 Delay Start button (Startzeitvorwahl)
9
8
6
4
5
8 Prewash button (Vorwäsche)
9 Options button (Optionen)
4 Door locked indicator
5 Start/Pause button (Start/Pause)
7
3
•
ECO (Eco)
•
Quick (Extra Kurz)
10 Spin reduction steps (Schleudern)
6 Extra Rinse button (Extra Spülen)
•
Rinse Hold position (Spülstopp)
7 Easy Iron button (Bügelquick)
DISPLAY
A
•
B
The display shows the following information:
A - Child lock indicator:
• This device permits you to leave the appliance
unattended during it's functioning.
When the related option is selected, the
indicator comes on the display.
B - This area shows:
• Programme time
• End of programme
• Delay start
• Alarm codes (refer to the chapter
'Troubleshooting').
• Incorrect option selection: the display shows the
•
•
message
for some seconds if:
You set a option that is not suitable for the
programme.
You change the programme while it operates.
5
PROGRAMMES
PROGRAMME CHART
Programme
Temperature range
Maximum load
Maximum spin
speed
Programme description
(Type of load and soil level)
Koch-/Buntwäsche
1
Koch-/Buntwäsche
90°C
2-3
Koch-/Buntwäsche
7 kg
1200 rpm
White cotton and coloured cotton. Normal
soil and light soil.
7 kg
1200 rpm
White cotton and fast-coloured cotton.
Normal soil. The energy consumption decreases and the time of the washing programme is
extended.
7 kg
1200 rpm
White cotton and coloured cotton. Normal
soil and light soil.
1)
60°C - 40°C
4
Koch-/Buntwäsche
30°C
Pflegeleicht
5
Pflegeleicht
60°C
3 kg
900 rpm
Synthetic items or mixed fabric items.
Normal soil.
6
Pflegeleicht
40°C
3 kg
900 rpm
Synthetic items or mixed fabric items.
Normal soil.
7
Pflegeleicht
30°C
3 kg
900 rpm
Synthetic items or mixed fabric items.
Normal soil.
8
Feinwäsche
40°C
3 kg
700 rpm
Delicate fabrics such as acrylics, viscose,
polyester items. Normal soil.
9
Feinwäsche
30°C
3 kg
700 rpm
Delicate fabrics such as acrylics, viscose,
polyester items. Normal soil.
10
Handwäsche
40°C
2 kg
900 rpm
Machine washable wool, hand washable
wool and delicate fabrics with «hand washing» care symbol.2)
11
Handwäsche
30°C
2 kg
900 rpm
Machine washable wool, hand washable
wool and delicate fabrics with «hand washing» care symbol.2)
12
Handwäsche
2 kg
900 rpm
Machine washable wool, hand washable
wool and delicate fabrics with «hand washing» care symbol.2)
Feinwäsche
- Cold
6
Programme
Temperature range
13
Maximum load
Maximum spin
speed
Programme description
(Type of load and soil level)
Wolle
40°C
2 kg
900 rpm
Machine washable wool, hand washable
wool and delicate fabrics with «hand washing» care symbol.2)
14
Jeans
40°C
3 kg
1200 rpm
Items in denim and jersey. Also for dark
coloured items.
15
Mix 20°
20°C
3 kg
900 rpm
Special programme for cotton, synthetic and
mixed fabrics lightly soiled. Select this programme to reduce the energy consumption.
Make sure that the detergent is suitable for low
temperature in order to have good washing results.
16
Einweichen
30°C
7 kg
Prewash - Soak for about 40 minutes - Stop
with water in the tub. Special programme for
heavily soiled laundry. At the end of this time
the appliance will stop automatically with water
left in the tub. Before starting a new washing
phase, it is necessary to empty out the water
(read "At the end of the programme"). 3)
17
Kurz 30'
30°C
3 kg
700 rpm
Cotton and synthetic items with light soil
level or worn only once.
18
Spülen
7 kg
1200 rpm
To rinse and spin the laundry. All fabrics, except woollens and very delicate fabrics. Reduce the spin speed accordingly to the type of
laundry.
19
Abpumpen
7 kg
To drain the water after programme with the
option Rinse Hold selected.
20
Schleudern
7 kg
1200 rpm
To spin and drain the water after programme
with the option Rinse Hold selected
Set the spin speed according to the fabric to
be spun.
Specials
Extra
7
Programme
Temperature range
Maximum load
Maximum spin
speed
Programme description
(Type of load and soil level)
For cancelling the programme which is running or switch the appliance off.
1) Standard programmes for the Energy Label consumption values. According to regulation
1061/2010, the "Cotton
" with "Eco
option and the "Cotton
" with "Eco
option are
respectively the «Standard 60°C cotton programme» and the «Standard 40°C cotton programme». They
are the most efficient programmes in terms of combined energy and water consumption for washing normally soiled cotton laundry.
The water temperature of the washing phase may differ from the temperature declared for the
selected programme.
2) During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the drum doesn't
rotate or doesn't rotate properly, but this is normal for this programme.
3) This programme cannot be used for very delicate fabrics as silk or wool. Pour the detergent for the soak
programme into the compartment marked
. At the end of the soak (after having emptied out the water)
you can select the desired washing programme. First turn the appliance off, then select the programme
and start it.
Bügelquick4)
■
■
■
■
■
■
■
■
Pflegeleicht
■
■
■
■
■
■
■
■
Feinwäsche
■
■
■
■
Handwäsche
■
■
■
Wolle
■
■
■
Jeans
■
■
Mix 20°
■
■
■
■
■
■
■
Einweichen
8
Startzeitvorwahl
Vorwäsche3)
Extra Spülen
Extra Kurz2)
Koch-/Buntwäsche
Programme
Spülstopp
Eco1)
Schleudern
Programme options compatibility
■
■
Kurz 30'
■
Spülen
■
■
■
■
■
■
Startzeitvorwahl
Extra Spülen
Bügelquick4)
Vorwäsche3)
Extra Kurz2)
Eco1)
Spülstopp
Schleudern
Programme
Abpumpen
Schleudern
■
■
1) This option is not active at a temperature lower than 40°C.
2) If you select this option we recommend that you reduce the maximum load. full loading is possible, however with somewhat reduced cleaning results.
3) If using liquid detergent, a programme without prewash must be selected.
4) if you set the Easy Iron, the recommended max load is 1.5 kg.
CONSUMPTION VALUES
The data in this table are approximate. Different variables can affect the data: the quantity
and type of laundry, the water and ambient temperature.
Programmes
Load (kg)
Energy consumption
(kWh)
Water consumption (litre)
Approximate
Remaining
programme
duration (mi- moisture (%)1)
nutes)
Koch-/Buntwäsche
60°C
7
1.35
67
150
53
Koch-/Buntwäsche
40°C
7
0.85
67
140
53
Pflegeleicht 40°C
3
0.55
42
90
35
Feinwäsche 40°C
3
0.55
63
65
35
2
0.25
55
60
30
7
1.01
52
180
53
3.5
0.78
44
149
53
Wolle 30°C
2)
Standard cotton programmes
Standard 60°C cotton
Standard 60°C cotton
9
Programmes
Load (kg)
Standard 40°C cot-
3.5
ton
Energy consumption
(kWh)
0.61
Water consumption (litre)
44
Approximate
Remaining
programme
duration (mi- moisture (%)1)
nutes)
140
53
1) At the end of spin phase.
2) Not available for some models.
Off Mode (W)
0.10
Left On Mode (W)
0.98
The information given in the chart above is compliant with the EU Commission regulation 1015/2010
implementing directive 2009/125/EC.
OPTIONS
PROGRAMME SELECTION
This knob allows you to select a programme and/or
to switch the appliance on/off .
SCHLEUDERN
With this option you can change the default spin
speed.
The indicator of the set speed comes on.
SPÜLSTOPP
• Set this option to prevent the laundry creases.
• The related indicator comes on.
• There is a water in the drum when the
programme is completed.
• The drum turns regularly to prevent the laundry
creases.
• The door stays locked. You must drain the water
to unlock the door.
To drain the water refer to ‘At the end
of the programme’.
ECO
With this option you can have a good washing
results and decrease the energy consumption at
the same time.
The appliance extends the wash time and reduces
the temperature.
The related indicator comes on.
10
EXTRA KURZ
Press this button to decrease the programme
duration.
Set this option for items with light soil or items to
refresh.
VORWÄSCHE
The machine performs a prewash cycle before the
main wash phase.
The washing time will be prolonged.
This option is recommended for heavily soiled
laundry.
BÜGELQUICK
The appliance carefully washes and spins the
laundry to prevent the creases.
The appliance decreases the spin speed, uses
more water and adapts the programme duration to
the type of laundry.
The related indicator comes on.
EXTRA SPÜLEN
With this option you can add some rinses to a
washing programme.
Use this option for persons allergic to detergents
and in areas where the water is soft.
The related indicator comes on.
STARTZEITVORWAHL
With this option you can delay the start of a
programme from 30 minutes to 20 hours.
The display shows the related indicator.
•
•
•
The indicator is on: the door cannot be opened.
The indicator flashes: the door is opening in
some minutes.
The indicator is off: the door can be opened.
DOOR LOCKED INDICATOR TÜR
The indicator Tür shows when the door can be
opened:
SETTINGS
CHILD LOCK
With this option you can prevent that the children
play with the control panel.
• To activate/deactivate this option, press
Schleudern and Optionen at the same time until
the indicator
comes on/goes off.
You can activate this option:
• After you press Start/Pause: the options and the
programme knob are locked.
• Before you press Start/Pause: the appliance
cannot start.
ACOUSTIC SIGNALS
The acoustic signals operate when:
• The programme is completed.
• The appliance has a malfunction.
To deactivate/activate the acoustic signals,
press Vorwäsche and Bügelquick at the same time
for 6 seconds.
If you deactivate the acoustic signals,
they continue to operate when the
appliance has a malfunction.
BEFORE FIRST USE
1. Put 2 litre of water in the detergent
compartment for washing phase.
This activates the drain system.
2. Put a small quantity of detergent in the
compartment for washing phase.
3. Set and start a programme for cotton at the
highest temperature without laundry.
This removes all possible dirt from the drum and the
tub.
DAILY USE
WARNING! Refer to Safety chapters.
LOADING THE LAUNDRY
Open the water tap. Connect the mains plug to the
mains socket.
1. Pull the door handle to open the appliance
door.
2. Put the laundry in the drum, one item at a time.
3. Shake the items before you put them in the
appliance.
Make sure not to put too much laundry in the drum.
Refer to max. loads indicated in "Programme chart".
4. Close the door.
CAUTION!
Make sure
that no laundry stays between the
seal and the
door. There
is a risk of
water leakage or damage to the
laundry.
11
USING DETERGENT AND ADDITIVES
1. Measure out the detergent and the fabric
conditioner.
2. Put the detergent
and the fabric conditioner into the compartments.
3. Carefully close the
detergent drawer.
DETERGENT COMPARTMENTS
Detergent compartment for prewash phase.
Detergent compartment for
washing phase.
Compartment for liquid additives
(fabric conditioner, starch).
SETTING A PROGRAMME
1. Turn the programme knob to switch the
appliance on and set the programme:
• The indicator of the button Start/Pause
flashes.
• The display shows the programme duration.
2. If necessary, change the temperature and the
spin speed or add available options. When you
activate an option, the indicator of the set
option comes on.
If you set something incorrect, the
display shows the message
.
STARTING A PROGRAMME WITH THE DELAY
START OPTION
1. Press the button Startzeitvorwahl again and
again until the display shows the delay you
want to set. The delay start indicator comes on.
2. Press the button Start/Pause:
• The door is locked and the indicator Tür is
on.
• The appliance starts the countdown.
• When the countdown is completed, the
programme starts automatically.
You can cancel or change the set of
the Startzeitvorwahl option before you
press the button Start/Pause. After
pressing the button Start/Pause you
can only cancel the Startzeitvorwahl
option.
To cancel the Startzeitvorwahl option:
12
a. Press the button Start/Pause to set the
appliance to pause. The indicator of button
Start/Pause flashes.
b. Press the button Startzeitvorwahl until the
display shows .
Press the button Start/Pause again to start
the programme immediately.
STARTING A PROGRAMME WITHOUT THE
DELAY START
Press the button Start/Pause.
• The indicator of the button Start/Pause
stops to flash and stays on.
• The programme starts, the door locks, the
indicator Tür is on.
• The programme time decreases with steps
of one minute.
The drain pump can operate for a
short time at the beginning of the
washing cycle.
CANCELLING A RUNNING PROGRAMME
1. Turn the programme knob to position
to
cancel the programme and to deactivate the
appliance.
2. Turn the programme knob again to activate the
appliance. Now, you can set a new washing
programme.
Before starting the new programme
the appliance could drain the water. In
this case, make sure that the detergent
is still in the detergent compartment, if
not fill the detergent again.
INTERRUPTING A PROGRAMME AND
CHANGING THE OPTIONS
You can change only some options before they
operate.
1. Press the button Start/Pause.
The indicator flashes.
2. Change the options.
3. Press the button Start/Pause again.
The programme continues.
OPENING THE DOOR
While a programme or the Startzeitvorwahl
operates, the appliance door is locked. The
indicator Tür is on.
CAUTION! If the temperature and
level of the water in the drum are too
high and the drum still rotates, you
cannot open the door.
To open the door during the first minutes of the
cycle or when the Startzeitvorwahl operates:
1. Press the button Start/Pause to pause the
appliance.
2. Wait until the indicator Tür goes off.
3. You can open the door.
4. Close the door and touch the button Start/
Pause again. The programme (or the
Startzeitvorwahl) continues.
AT THE END OF THE PROGRAMME
• The appliance stops automatically.
• The acoustic signal operates (if it is activated).
•
•
In the display comes on.
The indicator of the button Start/Pause goes off.
•
The door lock indicator
goes off.
Turn the programme knob to position
to
deactivate the appliance.
• You can open the door.
• Remove the laundry from the appliance. Make
sure that the drum is empty.
• Close the water tap.
• Keep the door and the detergent drawer ajar, to
prevent the mildew and odours.
The washing programme is completed, but
there is water in the drum:
•
•
The drum turns regularly to prevent the creases
in the laundry.
The indicator Spülstopp stays on to remind you
to drain the water.
is on. The indicator
The door lock indicator
of button Start/Pause flashes. The door stays
locked.
• You must drain the water to open the door.
Draining the water:
1. To drain the water.
• Set a Abpumpen or a Schleudern
programme.
• Press the button Start/Pause. The
appliance drains the water and spins.
2. When the programme is completed and the
•
door lock indicator
the door.
goes off, you can open
3. Turn the programme knob to the position
deactivate the appliance.
to
STAND BY
Some minutes after the end of the washing
programme, if you do not deactivate the appliance,
the energy saving status activates. The energy
saving status decreases the energy consumption
when the appliance is on the standby:
• All indicators and the display go off.
• The indicator of button Start flashes slowly.
Press one of the buttons to deactivate the energy
saving status.
HINTS AND TIPS
THE LAUNDRY LOAD
• Divide the laundry in: white, coloured,
synthetics, delicates and wool.
• Obey the washing instructions that are on the
laundry care labels.
• Do not wash white and coloured items together.
• Some coloured items can discolour with the first
wash. We recommend that you wash them
separately for the first times.
• Button up pillowcases, close zippers, hooks and
poppers. Tie up belts.
• Empty the pockets and unfold the items.
• Turn multilayered fabrics, wool and items with
painted illustrations inside out.
• Remove hard stains.
• Wash heavy soil stains with a special detergent.
• Be careful with the curtains. Remove the hooks
or put the curtains in a washing bag or
pillowcase.
•
•
Do not wash laundry without hems or with cuts.
Use a washing bag to wash small and/or
delicate items (e.g. underwired bras, belts,
tights, etc. ).
A very small load can cause balance problems
with the spin phase. If this occurs, adjust
manually the items in the tub and start the spin
phase again.
STUBBORN STAINS
For some stains, water and detergent is not
sufficient.
We recommend that you pre-treat these stains
before you put the items in the appliance.
Special stain removers are available. Use the
special stain remover that is applicable to the type
of stain and fabric.
13
DETERGENTS AND ADDITIVES
• Only use detergents and additives specially
made for washing machines:
– powder detergents for all types of fabric,
– powder detergents for delicate fabrics (40
°C max) and woollens,
– liquid detergents, preferably for low
temperature wash programmes (60 °C max)
for all types of fabric, or special for woollens
only.
• Do not mix different types of detergents.
• To help the environment, do not use more than
the correct quantity of detergent.
• Obey the instructions that you find on the on
packaging of these products.
• Use the correct products for the type and colour
of the fabric, the programme temperature and
the level of soil.
• If your appliance does not have the detergent
dispenser with the flap device, add the liquid
detergents with a dosing ball (supplied by the
detergent's manufacturer).
•
•
•
Always start a washing programme with the
maximum load of laundry allowed.
If necessary, use a stain remover when you set a
programme with a low temperature.
To use the correct quantity of detergent, check
the water hardness of your domestic system.
Refer to "Water hardness".
WATER HARDNESS
If the water hardness in your area is high or
moderate, we recommend that you use a water
softener for washing machines. In areas where the
water hardness is soft it is not necessary to use a
water softener.
To know the water hardness in your area, contact
your local water authority.
Use the correct quantity of the water softener.
Obey the instructions that you find on the
packaging of the product.
ECOLOGICAL HINTS
• Set a programme without the prewash phase to
wash laundry with normal soil.
CARE AND CLEANING
WARNING! Refer to Safety chapters.
EXTERNAL CLEANING
Clean the appliance with soap and warm water
only. Fully dry all the surfaces.
CAUTION! Do not use alcohol,
solvents or chemical products.
DESCALING
If the water hardness in your area is high or
moderate, we recommend that you use a water
descaling product for washing machines.
Regularly examine the drum to prevent limescale
and rust particles.
To remove rust particles use only special products
for washing machines. Do this separately from the
laundry wash.
Always obey the instructions that you
find on the packaging of the product.
14
MAINTENANCE WASH
With the low temperature programmes it is possible
that some detergent stays in the drum. Perform a
maintenance wash regularly. To do this:
• Remove all laundry from the drum.
• Select the cotton programme with the highest
temperature with a small quantity of detergent.
DOOR SEAL
Regularly examine the
seal and remove all objects from the inner part.
CLEANING THE DETERGENT DISPENSER
Clean regularly the washing powder and additive
dispenser drawer.
•
•
•
•
•
•
Press the catch downwards and pull it out to
remove the drawer.
Flush it out under a
tap, to remove any
traces of accumulated
powder.
A
B
•
•
Remove the top part of
the additive compartment to aid cleaning.
•
Make sure that all
washing powder residue is removed from
the upper and lower
part of the recess.
Use a small brush to
clean the recess.
•
•
•
1
2
CAUTION! Switch the appliance off
and remove the mains plug from the
socket.
Proceed as follows:
• Unplug the appliance.
• If it is necessary, wait until the water has cooled
down.
•
•
Replace the drawer and run the rinse
programme without any clothes in the drum.
CLEANING THE DRAIN FILTER
The pump should be inspected regularly and
particularly if:
• the appliance does not empty and/or spin;
• the appliance makes an unusual noise during
draining phase due to objects such as safety
pins, coins and so on blocking the pump;
• a problem with water draining is detected (see
chapter 'Troubleshooting' for more details).
•
•
Place a container
close to the pump (A)
to collect any spillage.
Pull out the emergency emptying hose (B),
place it in the container and remove its cap.
When no more water
comes out, unscrew
the filter.
Turn the filter anticlockwise.
Remove the filter.
Use pliers, if necessary.
When removing the
filter, always keep a
rag nearby to dry up
any water spillage.
Clean the filter under
a tap, to remove any
traces of fluff.
Remove foreign
bodes and fluff from
the filter seat and from
the pump impeller.
Check carefully
whether the pump impeller rotates (it rotates jerkily).
If it doesn’t rotate, please contact your Service
Centre.
• Put the cap back on
the emergency emptying hose and place
2
the latter back in its
seat.
• Replace the filter into
the pump, insert it
correctly into the spe1
cial guides.
•
Screw the pump cover firmly. Turn it clockwise.
CAUTION! When the appliance is in
use and depending on the set
programme there can be hot water in
the pump.
15
Never remove the filter during a washing cycle,
always wait until the appliance has finished the
cycle, and is empty.
When refitting the filter, ensure it is securely retightened so as to stop leaks and young children
being able to remove it.
CLEANING THE INLET HOSE AND THE VALVE
FILTER
If the appliance doesn't fill, take long to fill with
water, the starting button blinks or the display (if
available) shows the relevant alarm (see chapter
'Troubleshooting' for more details), check if the
water inlet filters are blocked.
To clean the water inlet filters:
• Turn off the water tap.
1
• Unscrew the hose
from the tap.
• Clean the filter in the
2
hose with a stiff brush.
3
•
Screw the hose back onto the tap. Make sure
the connection is tight.
• Unscrew the hose
from the machine.
• Keep a rag nearby because some water
may flow.
•
Clean the filter in the
valve with a stiff brush
or with the piece of
cloth.
•
Screw the hose back
to the machine and
make sure the connection is tight.
Turn on the water tap.
•
45°
20°
16
FROST PRECAUTIONS
If the appliance is installed in an area where the
temperature can be less than 0° C, remove the
remaining water from the inlet hose and the drain
pump.
1. Disconnect the mains plug from the mains
socket.
2. Close the water tap.
3. Place the end of the emergency emptying hose
and that of the inlet hose in a bowl placed on
the floor and let water flow out of the hoses.
4. Set the Drain programme and let it operate until
the end of the cycle.
5. Turn the programme knob to
to disconnect
the appliance from the power supply.
6. Screw the water inlet hose back on and re-fit
the emergency emptying hose after having put
the cap on again.
WARNING! Make sure that the
temperature is more than 0 °C before
you use the appliance again.
The manufacturer is not responsible
for damages caused by low
temperatures.
EMERGENCY EMPTYING OUT
If the appliance does not drain the water, proceed
as follows:
1. Disconnect the mains plug from the mains
socket.
2. Close the water tap.
3. If necessary, wait until the water has cooled
down.
4. Place a bowl on the floor and put the end of
the emergency emptying hose into the bowl.
Remove its cap.
The water should drain by gravity into the bowl.
5. When the bowl is full, put the cap back on the
emergency hose.
6. Empty the bowl. Repeat the procedure until
water stops flowing out.
7. Clean the pump if necessary as previously
described.
8. Replace the emergency emptying hose in its
seat after having plugged it.
9. Screw the water inlet hose back on.
TROUBLESHOOTING
WARNING! Refer to Safety chapters.
•
•
INTRODUCTION
The appliance does not start or it stops during
operation.
First try to find a solution to the problem (refer to
the table). If the problem persists, contact the
Authorised Service Centre.
With some problems, the acoustic signals
operate and the display shows an alarm
code:
- The appliance does not fill with water
properly.
- The appliance does not drain the water.
•
- The appliance door is open or not
closed correctly. Please check the door!
•
- The mains supply is unstable. Wait until
the mains supply is stable.
WARNING! Deactivate the appliance
before you do the checks.
POSSIBLE FAILURES
Problem
Possible solution
The programme does not
start.
•
•
•
•
•
Make sure that the mains plug is connected to the mains socket.
Make sure that the appliance door is closed.
Make sure that there is not a damaged fuse in the fuse box.
Make sure that the Start/Pause has been pressed.
Deactivate the Child Lock function if it is on (if available).
The appliance does not fill
with water properly.
•
•
Make sure that the water tap is open.
Make sure that the pressure of the water supply is not too low. For
this information, contact your local water authority.
Make sure that the water tap is not clogged.
Make sure that the filter of the inlet hose and the filter of the valve
are not clogged. Refer to “Care and cleaning”.
Make sure that the inlet hose has no kinks or bends.
Make sure that the connection of the water inlet hose is correct.
Make sure that the drain hose is in the correct position. The hose
may be too low.
•
•
•
•
•
The appliance does not
drain the water.
•
•
•
•
•
•
The spin phase does not
operate or the washing cycle lasts longer than usually.
•
•
•
Make sure that the sink spigot is not clogged.
Make sure that the drain hose has no kinks or bends.
Make sure that the drain filter is not clogged. Clean the filter, if necessary. Refer to 'Care and cleaning'.
Make sure that the connection of the drain hose is correct.
Set the drain programme if you set a programme without drain
phase.
Set the drain programme if you set an option which ends with water
in the tub.
Set the spin programme.
Make sure that the drain filter is not clogged. Clean the filter, if necessary. Refer to 'Care and cleaning'.
Adjust manually the items in the tub and start the spin phase again.
This problem may be caused by balance problems.
17
Problem
There is water on the floor.
Possible solution
•
•
Make sure that the couplings of the water hoses are tight and there
is not water leakages.
Make sure that the drain hose have no damages.
Make sure you use the correct detergent and the correct quantity of
it.
Make sure you have replaced the emergency emptying cap into the
filter
Make sure you have properly screwed the filter in after cleaning.
You cannot open the appliance door.
•
•
Make sure that the washing programme is finished.
Set the drain or the spin programme if there is water in the drum.
The appliance makes an
unusual noise.
•
Make sure the levelling of the appliance is correct. Refer to 'Installation'.
Make sure that the packaging and/or the transit bolts are removed.
Refer to 'Installation'.
Add more laundry in the drum. The load may be too small.
•
•
•
•
•
The washing results are
not satisfactory.
You cannot set an option.
•
•
•
•
Increase the detergent quantity or use a different detergent.
Use special products to remove the stubborn stains before you
wash the laundry.
Make sure that you set the correct temperature.
Decrease the laundry load.
•
Make sure that you press only the wanted button(s).
After the check, activate the appliance. The
programme continues from the point of interruption.
If the problem occurs again, contact the Authorised
Service Centre.
If the display shows other alarm codes. Deactivate
and activate the appliance. If the problem
continues, contact the Service.
SERVICE
We recommend the use of original spare parts.
When contacting the Authorised Service Centre,
make sure that these data are available. You can
find the information on the rating plate: model, PNC
and Serial Number. (Mod., Prod. No., Ser. No.)
INSTALLATION
WARNING! Refer to Safety chapters.
UNPACKING
Remove all transit bolts and packing
before you use the appliance. You are
advised to keep all transit devices so t
hat they can be refitted if the appliance
ever has to be transported again.
18
•
After removing all the
packaging, carefully
lay the appliance on
it’s back to remove
the polystyrene base
from the bottom.
•
2
•
Remove the power
supply cable and the
draining hose from the
hose holders on the
rear of the appliance.
•
Unscrew the three
bolts.
•
Slide out the relevant
plastic spacers.
•
•
1
Level the appliance by
raising or lowering the
feet.
The feet may be tight
to adjust as they incorporate a self locking nut, but the appliance MUST be level
and stable.
If necessary, check the setting with a spirit level.
Any necessary adjustment can be made with a
spanner.
• After having levelled
the appliance, tighten
the lock nuts.
• Accurate levelling prevents vibration, noise
and displacement of
the appliance during
operation.
Never place cardboard, wood or
similar materials under the appliance
to compensate for any unevenness in
the floor.
•
Remove the polystyrene block fitted on the
door seal. Pull out all
items from the drum.
WATER INLET
• The inlet hose is supplied with the appliance
and can been found inside the appliance drum.
• Do not use the hose from your previous
appliance to connect to the water supply.
This appliance must be connected toa
cold water supply.
•
•
Fill the smaller upper
hole and the two large
ones with the plastic
plug caps supplied in
the bag with the User
Manual.
•
POSITIONNING
• Install the machine on a flat hard floor. Make
sure that air circulation around the appliance is
not impeded by carpets, rugs etc.
• Check that the machine does not touch the wall
or other kitchen units.
Connect the hose
with the angled connection to the machine. Do not place
the inlet hose downwards.
45˚ • Angle the hose to the
left or right depending
35˚
on the position of your
water tap.
Set the hose correctly by loosening the ring nut.
After positioning the inlet hose, be sure to tighten the ring nut again to prevent leaks.
19
•
•
Connect the hose to a
tap with a 3/4”thread.
Always use the hose
supplied with the appliance.
The inlet hose must not be lengthened. If it is
too short and you do not wish to move the tap,
you will have to purchase a new, longer hose
specially designed for this type of use.
WATER DRAINAGE
The end of the drain hose can be positioned in
three ways:
BUILDING IN
OVERVIEW
This appliance has been designed to be built into
the kitchen furniture. The recess should have the
dimensions shown in the picture below:
20
•
Hooked over the edge of a sink using the
plastic hose guide supplied with the
machine.
In this case, make sure the end cannot come
unhooked when the appliance is emptying. This
could be done by tying it to the tap with a piece
of string or attaching it to the wall.
• In a sink drain pipe branch.
This branch must be above the trap so that the
bend is at least 60 cm above the ground.
• Directly into a drain pipe at a height of not
less than 60 cm and not more than 90 cm.
The end of the drain hose must always be
ventilated, i.e. the inside diameter of the
drainpipe must be larger than the outside
diameter of the drain hose. The drain hose must
not be kinked.
The drain hose may be extended to a maximum of 4
metres. An additional drain hose and joining piece
is available from your local Service Centre
600 mm
16-22 mm
min. 596 mm
560 mm
555 mm
X
Ø 35 mm
min.
820 mm
416
mm
818 mm
75 mm
22±1,5 mm
14 mm
60 mm
595-598 mm
170 mm
100 mm
We recommend that you keep the
packaging and the transit bolts for any
movement of the appliance.
PREPARATION AND ASSEMBLY OF THE
DOOR
The appliance is originally prearranged for the
assembly of a door opening from right to left (see
picture below)
Hinges
To mount the hinges drill two holes (dia. 35 mm,
depth 12.5-14 mm depending on the depth of door
furniture) on the inner side of the door.
To fix the hinges to the door use the screws for
wood 1 and 2 supplied with the appliance (see
below).
1
2
The distance between the holes hobs fixing centres
must be 416 mm. The distance from upper edge of
the door to the centre of the hole depends on the
adjacent furniture's dimensions.
Door mounting
To mount the door fix the hinges to the appliance
using the M5x15 screws.
Do not remove the screw B !!
Door
• - width 595-598 mm
• - thickness 16-22 mm
The height X depends on the height of the adjacent
furniture's base.
The hinges can be adjusted to compensate for
possible uneven thickness of the door.
21
If the door has to be opened from left to right, invert
the position of the plates E, the magnet D and the
plate C.
Mount the counter-magnet D and the hinges A as
previously described.
Do not remove the screw B!
A
D
B
A
To align the door perfectly, loosen the screw, adjust
the door and tighten the screw A again.
The appliance is prearranged for a magnetic
closure of the door. To enable a correct operation
of this device, screw the counter-magnet A (steel
disk + rubber ring) into the inner side of the door.
Its position must correspond to the magnet B on
the appliance.
C
E
B
Do not remove the screw C !
A
B
C
TECHNICAL DATA
22
Dimension
Width/ Height/ Depth/ Total depth
596 mm/ 820 mm/ 544 mm/ 560 mm
Electrical connection
Voltage
Overall power
Fuse
Frequency
230 V
2000 W
10 A
50 Hz
Level of protection against ingress of solid particles and
moisture ensured by the protective cover, except where
the low voltage equipment has no protection against
moisture
IPX4
Water supply pressure
0,5 bar (0,05 MPa)
8 bar (0,8 MPa)
Minimum
Maximum
Cold water
Water supply 1)
Maximum Load
Cotton
7 kg
Energy Efficiency Class
Spin Speed
A++
Maximum
1200 rpm
1) Connect the water inlet hose to a water tap with a 3/4'' thread.
ENVIRONMENTAL CONCERNS
the symbol with the household waste. Return the
product to your local recycling facility or contact
your municipal office.
Recycle the materials with the symbol
. Put the
packaging in applicable containers to recycle it.
Help protect the environment and human health
and to recycle waste of electrical and electronic
appliances. Do not dispose appliances marked with
23
*
132918174-A-462015
WWW.ZANUSSI.COM/SHOP
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
