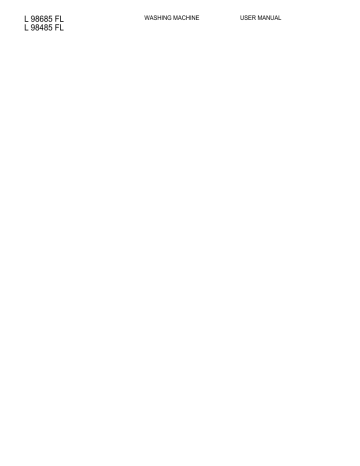

L 98685 FL
L 98485 FL
WASHING MACHINE
USER MANUAL
2
CONTENTS
4
6
6
7
7
8
13
18
19
19
19
20
23
23
25
27
32
35
SAFETY INFORMATION
ENVIRONMENT CONCERNS
TECHNICAL INFORMATION
PRODUCT DESCRIPTION
INTERIOR ACCESSORIES
CONTROL PANEL
WASHING PROGRAMMES
BEFORE FIRST USE
USING THE APPLIANCE
ACTIVATING THE APPLIANCE AND SETTING A
PROGRAMME
LOADING THE LAUNDRY
USING THE DETERGENT AND ADDITIVES
STARTING A PROGRAMME
AT THE END OF PROGRAMME
HELPFUL HINTS AND TIPS
CARE AND CLEANING
TROUBLESHOOTING
INSTALLATION
SERVICE
When contacting Service, ensure that
you have the following data available.
The information can be found on the
rating plate.
Model
PNC
Serial Number
The following symbols are used in this
user manual:
Warning - Important Safety information.
General information and tips
Environmental information
Subject to change without notice
ENGLISH
3
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler – features you might not find on ordinary appliances. Please spend
a few minutes reading to get the very best from it.
ACCESSORIES AND CONSUMABLES
In the AEG webshop, you’ll find everything you need to keep all your AEG
appliances looking spotless and working perfectly. Along with a wide range of
accessories designed and built to the high quality standards you would expect, from
specialist cookware to cutlery baskets, from bottle holders to delicate laundry bags…
Visit the webshop at:
www.aeg.com/shop
VISIT OUR WEBSITE FOR:
- Products
- Brochures
- User manuals
- Trouble shooter
- Service information
www.aeg.com
4
SAFETY INFORMATION
Before the installation and use, read this
manual carefully:
• For your safety and the safety of your
property
• To help the environment
• For the correct operation of the appliance.
Always keep these instructions with the
appliance also if you move or give it to a
different person.
The manufacturer is not responsible if an
incorrect installation and use causes damage.
CHILDREN AND VULNERABLE
PERSON SAFETY
• Do not let persons, children included,
with reduced physical sensory, reduced
mental functions or lack of experience
and knowledge use the appliance. They
must have supervision or instruction for
the operation of the appliance by a person who is responsible for their safety.
Do not let children play with the appliance.
• Keep all packaging away from children.
There is the risk of suffocation or injury.
• Keep all detergents away from children.
• Keep children and pets away from the
appliance when the door is open.
• Before you close the appliance door,
make sure that children and pets are
not into the drum.
• If the appliance has a child safety device, we recommend to activate it.
CHILD SAFETY DEVICE
• When you activate this device, you cannot close the door. This prevents children or pets to be closed in the drum.
To activate the device, turn it clockwise,
until the groove is horizontal. To deactivate the device, turn it counterclockwise, until the groove is vertical.
GENERAL SAFETY
• Do not use the appliance for professional use. The appliance is only for domestic use.
• Do not change the specifications of this
appliance. There is the risk of injury and
damage to the appliance.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
Risk of explosion or fire.
• Obey the safety instructions on the detergent packaging to prevent burns to
eyes, mouth and throat.
• Make sure that you remove all metal
objects from the laundry. Hard and
sharp material can cause damage to
the appliance.
• Do not touch the glass of the door
while a programme operates. The glass
can be hot (only for front-loading appliances).
CARE AND CLEANING
• Deactivate the appliance and disconnect the mains plug from the mains
socket.
• Do not use the appliance without the
filters. Make sure that the installation of
the filters is correct. An incorrect installation causes water leakages.
INTERNAL LAMP
This appliance has an internal lamp that
comes on when you open the door and
goes off when the door is closed.
WARNING!
Do not look directly into the beam
of the lamp.
ENGLISH
To replace the internal lamp, contact the service centre.
Disconnect the mains plug from
the mains socket before the replacement of the internal lamp.
INSTALLATION
• The appliance is heavy, be careful when
you move it.
• Do not transport your appliance without the transit bolts, you can damage
internal components and cause leakages or malfunctions.
• Do not install and connect a damaged
appliance.
• Make sure to remove all packaging and
transport bolts.
• Make sure that the mains plug is disconnected from the mains socket during installation.
• Only a qualified person must do the
electrical installation, the plumbing and
the installation of the appliance. This to
prevent the risks of structural damage
or injury.
• Do not install or use the appliance
where the temperature is less than 0 °C.
• When you install the appliance on a
carpet floor, make sure that there is air
circulation between the appliance and
the carpet. Adjust the feet to have the
necessary space between the appliance
and the carpet.
Water connection
• Do not connect the appliance with old
hoses already used. Only use new hoses.
• Make sure not to cause damage to the
water hoses.
• Do not connect the appliance to new
pipes or pipes not used for a long time.
Let the water flow for some minutes,
then connect the inlet hose.
• The first time you use the appliance,
make sure that the water hoses and the
couplings do not have leakages.
Electrical connection
• Make sure that the appliance is earthed.
5
• Make sure that the electrical information on the rating plate agrees with the
power supply.
• Always use a correctly installed shockproof socket.
• Do not use multiple plugs and extension cables. There is a risk of fire.
• Do not replace or change the mains cable. Contact the service centre.
• Make sure not to cause damage to the
mains plug and cable.
• Connect the mains plug to the mains
socket only at the end of the installation. Make sure that there is access to
the mains plug after the installation.
• Do not pull the mains cable to disconnect the appliance. Always pull the
mains plug.
DISCARD THE APPLIANCE
1.
Disconnect the mains plug from the
mains socket.
2. Cut off the mains cable and discard it.
3. Discard the door catch. This prevents
children or pets to be closed in the
appliance. There is a risk of suffocation (only for front-loading appliances).
6
ENVIRONMENT CONCERNS
PACKAGING MATERIALS
Recycle the materials with the symbol
.
Put the packaging in applicable containers to recycle it.
ECOLOGICAL HINTS
To help the environment, use less water
and energy, obey these instructions:
• Set a programme without the prewash
phase to wash laundry with normal soil.
• Always start a washing programme with
the maximum load of laundry.
• If necessary, use a stain remover when
you set a programme with a low temperature.
• To use the correct quantity of the detergent, check the water hardness of
your domestic system
on the product or on its
The symbol
packaging indicates that this product may
not be treated as household waste.
Instead it should be taken to the
appropriate collection point for the
recycling of electrical and electronic
equipment. By ensuring this product is
disposed of correctly, you will help
prevent potential negative consequences
for the environment and human health,
which could otherwise be caused by
inappropriate waste handling of this
product. For more detailed information
about recycling of this product, please
contact your local council, your household
waste disposal service or the shop where
you purchased the product.
TECHNICAL INFORMATION
Dimensions
Width / Height / Depth
600 / 850 / 600 mm
Total depth
640 mm
Electrical connection:
Voltage
Overall power
Fuse
Frequency
230 V
2200 W
10 A
50 Hz
Water supply pressure
Minimum
0,5 bar (0,05 MPa)
Maximum
8 bar (0,8 MPa)
Water supply 1)
Cold water
Maximum load
Cotton
Spin speed
Maximum
1) Connect the water inlet hose to a water tap with a 3/4'' thread.
8 kg
1400 rpm (L98485FL)
1600 rpm (L98685FL)
ENGLISH
PRODUCT DESCRIPTION
1
2
3
9
10
11
4
5
6
12
7
13
8
1 Worktop
8 Feet for the appliance level
2 Detergent dispenser
9 Water drain hose
3 Control panel
4 Door handle
10 Water inlet hose
5 Internal lamp
12 Transit bolts
6 Rating plate
13 Feet for the appliance level
11 Mains cable
7 Drain pump
INTERIOR ACCESSORIES
1
2
1 Spanner
To remove the transit bolts.
2 Plastic caps
4
3
To close the holes on the rear side of
the cabinet after the removal of the
transit bolts.
3 Anti-flood inlet hose
To prevent possible leakage
4 Plastic hose guide
To connect the drain hose on the
edge of a sink.
7
8
CONTROL PANEL
1
2
3
Glätten
Koch/Bunt
Auffrischen
Extra Leise
Energiesparen
Super Eco
Pflegeleicht
20Min. - 3kg
Feinwäsche
Gewichtssensor
Dampf
Jeans
Memory 2
Wolle/Seide
Spülen
Schleudern/
Pumpen
Daunen
Auto Off
Anti-Allergie
4
Memory 1
Leichtbügeln
Temp.
12
U/Min. Flecken/
Vorw.
11
1 Auto Off button
2 Programme knob
3 Display
4 Dampf touch button
5 Memory touch buttons
6 Start/Pause touch button
7 Zeitvorwahl touch button
8 Zeit Sparen touch button
9 Extra Spülen touch button
10 Flecken/Vorwäsche/Einweichen touch
button
10
Extra
Spülen
Zeit
Sparen
9
8
Zeitvorwahl
7
5
Start/Pause
6
The AUTO OFF function automatically deactivates the appliance to stop the energy
consumption when:
• You do not use the appliance for 5 minutes before you press button 6 .
– All settings are cancelled.
– Press button 1 to activate the appliance again.
– Set again the washing programme
and all possible options.
• After 5 minutes from the end of the
washing programme. Refer to 'At the
end of programme'.
11 Spin reduction touch button (U./Min.)
12 Temperature touch button (Temp.)
PROGRAMME KNOB 2
TOUCH SCREEN
Turn this knob to set a programme. The
related programme indicator comes on.
Do not wear gloves when you
touch the buttons.
Make sure the touch screen and
buttons are always clean and dry.
AUTO OFF BUTTON 1
Press this button to activate or deactivate
the appliance. A tune sounds when the
appliance is activated.
ENGLISH
9
DISPLAY 3
A
J
I
A
B
H
G
C
F
D
E
The text bar:
• Guides you in the use of the appliance.
• Shows the programme status and phase.
• Shows alarm messages. Refer to 'Troubleshooting' .
The symbols appear on the display when the related phase or function is set.
B
Child lock
C
Door locked
You cannot open the door when the symbol is on.
You can open the door only when the symbol goes off.
If the symbol stays on but the programme is completed:
• There is water in the drum.
• The ' Rinse Hold ' function is on.
• The time of the day
When you activate the appliance the display shows the time of the
day for some seconds. To adjust the clock, refer to "Clock setting".
• The programme duration
When the washing programme starts, the programme time decreases
every minute.
D
Programme duration symbol
The symbol comes on when the digits shows the programme duration.
• The end time of the washing programme .
Programme end symbol
The symbol comes on when the digits shows the programme end time.
10
• The time of delay
– When you set the delayed start the time of the programme end increases by steps of 30 minutes till 10 hours and by steps of one
hour till 20 hours.
• The end of the programme
The display shows a zero.
This part comes on only if the door is open - Refer to 'Loading the laundry'.
The programme maximum load
The weight of the laundry
E
The indicator bar fills accordingly to the laundry weight.
The indicator fully fills when you put the maximum load.
If you need to set a function
• An empty indicator bar comes on when the related function is available with the set programme. If an indicator bar does not come on, it
means that it is not available.
• The function symbol comes on when the function is set.
• The indicator bar fills accordingly to the set function.
• If you make an incorrect selection the text bar on the display tells that the selection is not possible.
Time save
The symbol comes on when you set the following functions:
Shortened duration
F
Extra quick
Extra rinsing
G
The indicator bar fills accordingly the numbers of rinses.
Stains
Prewash
H
Soak
The indicator bar fills accordingly to the set functions.
The default spin speed of the programme.
I
___
No spin 1)
ENGLISH
11
Rinse hold
1) Only available for Spin/Drain programme.
The default temperature of the programme.
J
Cold wash
DAMPF BUTTON 4
ZEITSPAREN BUTTON 8
Touch button 4 to set the steam level.
This is possible only with programmes
where the steam function is available. The
duration of the steam phase changes accordingly to your selection.
Touch button 8 to decrease the programme time.
You can select:
SHORTENED DURATION
To wash items with daily soil.
EXTRA QUICK
To wash quickly items with almost no soil.
Some programmes accept only one of
these functions.
MEMORY BUTTONS 5
Touch one of the buttons 5 to memorise a programme or to set a memorised
programme.
Memorise a programme
1.
Press button 1 to activate the appliance.
2.
Turn the programme knob ( 2 ) to
your favourite programme.
3. If it is necessary, set one or more
functions.
4. Touch and hold one of the buttons
5 for some seconds. The buzzer
sounds and the display shows that the
programme is saved. .
Set a memorised programme
1. Touch the button where you memorised the programme you want to set.
2. The programme indicator comes on
and the display shows all the information.
To cancel a memorised programme you can only memorise a
new programme.
START/PAUSE BUTTON 6
Touch button 6 to start or interrupt a
programme.
EXTRA SPÜLEN BUTTON 9
Touch button 9 to add rinsing phases to
a programme.
Use this function for persons allergic to
detergents and in areas where the water
is soft.
FLECKEN, VORWÄSCHE UND
EINWEICHEN BUTTON 10
Touch button 10 to set one of the these
functions:
FLECKEN
Use this function for laundry with hard
stains to remove.
When you set this function, put the stain
.
remover into compartment
The programme duration increases.
This function is not available with
a temperature lower than 40° C.
VORWÄSCHE
ZEITVORWAHL BUTTON 7
Use this function for heavy soil.
The appliance adds a prewash phase to
the main wash.
The programme duration increases.
Touch button 7 to delay the start of a
programme from 30 minutes to 20 hours.
EINWEICHEN
Use this function for heavy soil.
12
The appliance soaks the laundry at 30°C
for about half an hour before to wash.
SPIN BUTTON 11
Touch button 11 to:
• Decrease the maximum speed of the
spin phase of the programme.
The display shows only the spin
speeds available with the set programme.
• Deactivate the spin phase (' No Spin '
function).
• Activate the ' Rinse Hold ' function.
Set this function to prevent fabric creases. The appliance does not drain the
water when the programme is completed.
TEMPERATURE BUTTON 12
Touch button 12 to change the default
temperature.
Symbols - - - and
= cold water
ACOUSTIC SIGNALS
FUNCTION
You can hear the acoustic signals when:
• You activate the appliance.
• You deactivate the appliance.
• You touch the buttons.
• The programme is completed.
• The appliance has a malfunction.
To deactivate/activate the acoustic signals, touch button 10 and button 9 at
the same time for 6 seconds.
If you deactivate the acoustic signals, they continue operate only
when you touch the buttons and
when a malfunction occurs.
CHILD LOCK FUNCTION
This function prevents children to play
with the control panel.
• To activate the function, touch button
12 and button 11 at the same time until the display shows the symbol
.
• To deactivate the function, touch button 12 and button 11 at the same time
until the symbol
goes off.
You can activate the function:
• Before you touch the button 6 : the
appliance cannot start.
• After you touch the button 6 , all the
buttons and the programme knob are
deactivated.
PERMANENT EXTRA RINSE
FUNCTION
With this function you can keep the extra
rinse function permanently on when you
set a new programme.
• To activate the function touch button
8 and button 7 at the same time until the display shows the symbol
.
• To deactivate the function touch button 8 and button 7 at the same time
until the symbol
goes off.
ENGLISH
13
WASHING PROGRAMMES
Programme
Temperature Type of load
Weight of load
Programme
description
Functions
Koch/Bunt
95° - Cold
White and coloured cotton
with heavy level
of soil.
Maximum load 8
kg
Wash
Rinses
Long spin
SPIN REDUCTION
SPÜLSTOPP
FLECKEN1)
VORWÄSCHE2)
EINWEICHEN
EXTRA SPÜLEN
ZEIT SPAREN3)
Extra Leise
95° - Cold
White and coloured cotton
with normal level
of soil.
Maximum load 8
kg
Wash
Rinses
Long spin
Stop with water in the
drum
SPÜLSTOPP
FLECKEN1)
VORWÄSCHE2)
EINWEICHEN
EXTRA SPÜLEN
ZEIT SPAREN3)
Pflegeleicht
60° - Cold
Rinses
Short spin
Synthetic or
mixed fabric
items with normal soil.
Maximum load 4
kg
Wash
Rinses
Short spin
SPIN REDUCTION
SPÜLSTOPP
FLECKEN1)
VORWÄSCHE2)
EINWEICHEN
EXTRA SPÜLEN
ZEIT SPAREN3)
Leichtbügeln
60° - Cold
Synthetic fabric
Wash
items with norRinses
mal soil. It preShort spin
vents the creases
of the laundry.
Maximum load 4
kg
SPIN REDUCTION
SPÜLSTOPP
VORWÄSCHE2)
EINWEICHEN
EXTRA SPÜLEN
ZEIT SPAREN3)
14
Programme
Temperature Type of load
Weight of load
Programme
description
Functions
Feinwäsche
40° - Cold
Rinses
Short spin
Delicate fabrics
as acrylics, viscose, polyester
items with normal soil.
Maximum load 4
kg
Wash
Rinses
Short spin
SPIN REDUCTION
SPÜLSTOPP
VORWÄSCHE2)
FLECKEN
EINWEICHEN
EXTRA SPÜLEN
ZEIT SPAREN3)
Wolle / Seide
40° - Cold
Rinses
Short spin
Machine washa- Wash
ble wool as well
Rinses
as for hand wash- Short spin
able woollens
and delicate fabrics with «hand
washing» care
symbol.
Maximum load 2
kg
SPIN REDUCTION
SPÜLSTOPP
Daunen
60° - 30°
Rinses
Short spin
Special proWash
gramme for one Rinses
synthetic blanket, Short spin
duvet, bedspread and so
on.
Maximum load 3
kg
SPIN REDUCTION
Anti-Allergie
60°
White cotton
items4).
Maximum load 8
kg
Wash at 60°
Rinses
Short spin
SPIN REDUCTION
SPÜLSTOPP
FLECKEN
VORWÄSCHE2)
EINWEICHEN
EXTRA SPÜLEN
Schleudern /
Pumpen5)
0°
All fabrics
The maximum
load of the laundry is related to
the type of laundry.
Drainage of
the water
Spin phase at
the maximum
speed
SPIN REDUCTION
OHNE
SCHLEUDERN6)
ENGLISH
15
Programme
Temperature Type of load
Weight of load
Programme
description
Functions
Spülen
0°
All fabrics
Maximum load 8
kg
Rinse with ad- SPIN REDUCditives
TION
Spin phase
SPÜLSTOPP
EXTRA SPÜLEN7)
Jeans
60° - Cold
Items like pants, Wash
shirts or jackets
Rinses
in Jeans and also Short spin
jersey realized
with hi-tech materials.
Maximum load 8
kg
SPIN REDUCTION
SPÜLSTOPP
VORWÄSCHE
2)
EINWEICHEN
EXTRA SPÜLEN
ZEIT SPAREN3)
20 min. - 3 kg
40° or 30°
Quick wash of
sport items or
cotton and synthetic items,
lightly soiled or
worn once.
Maximum load 3
kg
Wash
Rinses
Short spin
SPIN REDUCTION
Super Eco
0°
Mixed fabrics
(cotton and synthetic items)8).
Maximum load 3
kg
Wash
Rinses
Long spin
SPIN REDUCTION
SPÜLSTOPP
EXTRA SPÜLEN
White and fast
coloured cotton
with the normal
soil9).
Maximum load 8
kg
Wash
Rinses
Short spin
SPIN REDUCTION
SPÜLSTOPP
FLECKEN
VORWÄSCHE2)
EINWEICHEN
EXTRA SPÜLEN
ZEIT SPAREN3)
Energiespa60° or 40°
ren
STANDARD
PROGRAMMES
for the Energy
Label consumption values
1) Not available with temperature lower than 40°C.
2) If you use liquid detergent, set a programme without PREWASH.
3) If you touch the button 8 to set the Extra Kurz function, we recommend that you
decrease the quantity of the load. It is possible to keep the full load but the washing results
are not good.
4) This program removes the micro-organisms thanks to the washing by 60°C and adds on
rinse. In this way the action is more effective. Important! Put into the compartment Stain
a special additive for hygiene and select the option Stain.
16
5) The default spin speed is for cotton items. Set the spin speed applicable with your laundry.
6) If you select this function the appliance performs only a drain phase.
7) Press button to add rinses. With a low spin speed the appliance performs delicate rinses
and a short spin.
8) Use a special detergent for very low temperature.
9) Set this programme to have a good washing results and decrease the energy consumption.
The time of the washing programme is extended.
STEAM PROGRAMMES
Programme1)
Type of load
Load
Dampf Auffrischen2)
This cycle removes odour from
the laundry.
Cotton and synthetic items.
Do not set the Steam programme for
this type of clothes:
• Clothes which is not specified on
the care label as being suitable for
tumble-drying.
• Clothes with inclusion of plastic,
metal, wooden parts or alike.
up to
1,5 Kg
Steam does not remove
animal odours.
Dampf Glätten2)
This programme helps to dewrinkle odour from the laundry.
up to
1,5 Kg
Steam can be used for dried, washed or worn once laundry. These programmes can reduce creases and odours and make your laundry more
smooth.
Do not use any detergent. If necessary, remove stains by washing or using
localized stain removal.
Steam programmes do not perform any hygienic cycle.
Touch the button 4 to change the duration of steam phase.
1) If you set a Steam programme with dried laundry, at the end of the cycle the laundry feel
humid. It is better to expose clothes to the open air for about 10 minutes to let the humidity
go away. Laundry should be removed from the drum as quick as possible. After a steam
cycle, clothes may to be ironed anyway, but with less effort!
2) For the programme time, refer to the display.
CONSUMPTION VALUES
Energy consumption
(KWh)2)
Water consumption (litre)2)
White Cottons 95 °C
2.40
70
Cottons 60 °C
1.50
66
Cottons 40 °C
0.90
66
Synthetics 40 °C
0.60
48
Delicates 40 °C
0.70
58
Wool/ Handwash 30 °C
0.35
57
0.88
57
Programme1)
Programmes for energy saving
Cotton 60 °C economy3)
ENGLISH
Programme1)
Cotton 40 °C economy3)
17
Energy consumption
(KWh)2)
Water consumption (litre)2)
0.70
57
The cotton 60 °C economy and cotton 40 °C economy are the standard
cotton programmes for normally soiled cotton laundry. They are suitable
to clean normally soiled cotton laundry and they are the most efficient
programmes in terms of combined energy and water consumption for
washing that type of cotton laundry. The actual water temperature may
differ from the declared cycle temperature.
1) Refer to the display for the programme time.
2) The consumption information shown in this chart is indicative. It can vary depending on the
quantity and the type of laundry, on the temperature of the water supply and on the
ambient temperature.
3) This is the programme for test institutes. It agrees with EN60456.
18
BEFORE FIRST USE
To activate the drain system, put 2 litre of water in the main wash compartment of the detergent dispenser.
2. Put a small quantity of detergent in
the main wash compartment of the
detergent dispenser. Set and start a
programme for cotton at the highest
temperature without laundry. This removes all possible dirt from the drum
and the tub.
1.
LANGUAGE SETTING
The first time you activate the appliance,
the display shows the default language
and tells you to confirm it or change it:
• Turn the programme knob to set the
desired language.
• When the display shows the necessary
language, touch button 6 to confirm
the selection.
Change the language after the
first activation
1.
Touch button 11 and button 10 at
the same time for some seconds.
2. When display shows the language
set, turn the programme knob to set
the new language.
3.
Touch button 6 to confirm the selection.
CLOCK SETTING
After you set the language, the display
tells to set the clock:
• The hour digits flash.
• Turn the programme knob to change
the hour.
• Touch button 6 to confirm the selection.
• The minute digits flash.
• Turn the programme knob to change
the minutes.
• Touch button 6 to confirm the selection.
Change the time of the day
after the first activation
1.
Touch button 9 and the button 8
at the same time for some seconds.
2. The hour digits flash.
3. Turn the programme knob to change
the hour.
4.
Touch button 6 to confirm the selection.
5. The minute digits flash.
6. Turn the programme knob to change
the minutes.
7.
Touch button 6 to confirm the selection.
ENGLISH
19
USING THE APPLIANCE
1.
Open the water tap.
2.
Connect the mains plug to the mains
socket.
ACTIVATING THE APPLIANCE AND SETTING A PROGRAMME
For a correct operation of the weight sensor, activate the appliance and
set the programme BEFORE you put the laundry in the drum.
1.
Press button 1 to activate the appliance.
2.
Turn the programme knob ( 2 ) to
the necessary programme or touch
one of the buttons 5 to set a memorised programme. The programme indicator comes on.
3.
The indicator of button 6 flashes
with red colour.
4. The display shows the default temperature and spin. If it is necessary,
touch button 12 and button 11 to
change the water temperature and
the spin speed.
5. If it is necessary, touch the other buttons to add some functions or to set a
delayed start. The display shows the
symbol of the set function and the
digit ( D ) shows the delayed time.
LOADING THE LAUNDRY
Open the appliance door.
The display (E) shows the maximum
programme load for the programme
(MAX ) and the weight of the laundry
(KG). The text bar on the display tells
to add the laundry.
3. Put the laundry in the drum, one item
at a time. Shake the items before you
put them in the appliance.
4. On the display the weight of the laundry updates by step of kg 0.5. The
weight is indicative and changes with
the type of the laundry.
1.
2.
If you put more laundry than the
maximum load, the display tells
that you put more than the maximum load.
You can wash your laundry but the
energy and water consumption increase.
To have the best consumption
and washing performance remove
some items.
The overload indication is available only for programmes with a
maximum load lower than the appliance maximum load.
5.
Close the door. The text bar on the
display tells the percentage of detergent to use. This data is indicative
and refers to the detergent quantity
for a maximum load that the manufacturer recommends.
20
Make sure not to have the laundry out of
the drum between the seal and the door.
There is the risk of water leakage or damage laundry.
USING THE DETERGENT AND ADDITIVES
The detergent compartment for the prewash phase and the soak
programme.
Add the detergent for prewash and soak before the start of the
programme.
The detergent compartment for the washing phase.
If you use a liquid detergent, put it immediately before you start
the programme.
Liquid additives compartment (fabric conditioner, starch).
Put the product in the compartment before you start the programme.
This is the maximum level for the quantity of liquid additives.
The compartment for the stain remover.
Put the product in the compartment and set the stain function before you start the programme.
Flap for powder or liquid detergent
Turn it (up or down) in the correct position to use powder or liquid
detergent.
Always obey the instructions that you find on the packaging of the detergent products.
ENGLISH
21
Check the position of the flap
1.
Pull out the detergent dispenser until
it stops.
2. Press the lever down to remove the
dispenser.
3.
To use powder detergent, turn the
flap up.
4.
To use liquid detergent, turn the flap
down.
With the flap in the position
DOWN:
– Do not use gelatinous or thick
liquid detergents.
– Do not put more liquid detergent than the limit showed in
the flap.
– Do not set the prewash phase.
– Do not set the delay start function.
5.
6.
Measure out the detergent and the
fabric conditioner.
Carefully close the detergent dispenser. Make sure that the flap does
not cause a blockage when you close
the drawer.
SET THE DELAY START
1.
Touch button 7 again and again to
set the desired delayed start. The display shows the expected end of the
programme
2.
Touch button 6 , the appliance
starts the countdown of the delay
start.
When the countdown is completed,
the programme starts automatically.
Before you touch button 6 to
start the appliance, you can cancel
or change the set of the delay
start.
22
You cannot set the delay start with
the Steam programme.
ENGLISH
23
STARTING A PROGRAMME
1.
Touch button 6 to start the programme. The indicator of button 6
stops to flash and is on with red colour.
If a delayed start is set, the appliance
starts the countdown.
The appliance adjust automatically the cycle time to the
laundry you have put in the
drum to have perfect washing
results in the minimum necessary time. After approximately
15 minutes from the start of
the programme, the display
shows the new time value.
INTERRUPT A PROGRAMME
1.
Touch button 6 . The indicator
flashes.
2.
Touch button 6 again. The washing
programme continues.
1.
Touch button 6 . The indicator
flashes.
2. Change the function set.
3.
OPEN THE DOOR
While a programme or the delay start operates, the appliance door is locked.
To open the appliance door:
1.
Touch button 6 . The door lock
symbol in the display goes off and a
message tells you that the door is unlocked.
2. Open the appliance door.
3. Close the appliance door and touch
button 6 again. The programme or
the delay start continues.
If the temperature and the level of
the water is too high, the door
lock symbol stays on. You cannot
open the door. If necessary, do
the following procedure to open
the door:
1. Deactivate the appliance.
2. Wait for some minutes.
3. Make sure that no water is in
the drum.
CANCEL A PROGRAMME
1.
Press button 1 to cancel the programme and to deactivate the appliance.
2.
Press button 1 again to activate the
appliance. Now, you can set a new
washing programme.
Touch button 6 again. The washing
programme continues.
If you deactivate the appliance, it
is necessary to set the programme
again.
The appliance does not drain the
water.
CHANGE A FUNCTION
You can change only some functions before they operate.
AT THE END OF PROGRAMME
1.
2.
The appliance stops automatically.
The acoustic signals operate, if it is
active.
3.
In the display
goes on and the
message tells you that the programme is completed.
4.
The indicator of button 6 goes off.
5. The door lock symbol goes off.
6.
Press button 1 to deactivate the appliance. After five minutes from the
end of the programme, the AUTO
OFF function automatically deactivates the appliance.
When you activate the appliance
again, the display shows the end
of the last set programme. Turn
the programme knob to set a new
cycle.
24
7.
8.
9.
Remove the laundry from the appliance. Make sure that the drum is
empty.
Keep the door ajar, to prevent mildew and odours.
Close the water tap.
The washing programme is completed,
but there is water in the drum:
– The drum turns regularly to prevent the
creases in the laundry.
– The door stays locked.
– You must drain the water to open the
door.
To drain the water:
If necessary, decrease the spin speed.
1.
2.
Touch button 6 . The appliance
drains the water and spins.
3. When the programme is completed
and the door lock symbol goes off,
you can open the door
4.
Press button 1 to deactivate the appliance.
The appliance drain and spin automatically after approximately 18
hours.
ENGLISH
25
HELPFUL HINTS AND TIPS
THE LAUNDRY LOAD
DETERGENTS AND ADDITIVES
• Divide the laundry in: white, coloured,
synthetics, delicates and wool.
• Obey the washing instructions that are
on the laundry care labels.
• Do not wash together white and coloured items.
• Some coloured items can discolour with
the first wash. We recommend that you
wash them separately for the first times.
• Button up pillowcases, close zippers,
hooks and poppers. Tie up belts.
• Empty the pockets and unfold the
items.
• Turn inside out multilayered fabrics,
wool and items with painted illustrations.
• Remove hard stains.
• Wash with a special detergent heavy
soil stains.
• Be careful with the curtains. Remove
the hooks or put the curtains in a washing bag or pillowcase.
• Do not wash in the appliance :
– Laundry without hems or with cuts
– Underwired bras.
– Use a washing bag to wash small
items.
• A very small load can cause balance
problems with the spin phase. If this occurs, adjust manually the items in the
tub and start the spin phase again.
• Only use detergents and additives specially made for washing machines.
• Do not mix different types of detergents.
• To help the environment, do not use
more than the correct quantity of detergent.
• Obey the instructions that you find on
the on packaging of these products.
• Use the correct products for the type
and colour of the fabric, the programme temperature and the level of
soil.
• If you use liquid detergents, do not set
the prewash phase.
• If your appliance has not the detergent
dispenser with the flap device, add the
liquid detergents with a dosing ball.
STUBBORN STAINS
For some stains, water and detergent is
not sufficient.
We recommend that you remove these
stains before you put the items in the appliance.
Special stain removers are available. Use
the special stain remover that is applicable to the type of stain and fabric.
WATER HARDNESS
If the water hardness in your area is high
or moderate, we recommend that you use
a water softener for washing machines. In
areas where the water hardness is soft it is
not necessary to use a water softener.
To know the water hardness in your area,
contact your local water authority.
Obey the instructions that you find on the
packaging of the products.
Equivalent scales measure the water hardness:
• German degrees (°dH).
• French degrees (°TH).
• mmol/l (millimol for each litre - international unit for the hardness of water).
• Clarke degrees.
Water hardness table
Level
Type
1
soft
Water hardness
°dH
°T.H.
mmol/l
Clarke
0-7
0-15
0-1.5
0-9
26
Level
Type
2
Water hardness
°dH
°T.H.
mmol/l
Clarke
medium
8-14
16-25
1.6-2.5
10-16
3
hard
15-21
26-37
2.6-3.7
17-25
4
very hard
> 21
> 37
>3.7
>25
ENGLISH
27
CARE AND CLEANING
WARNING!
Disconnect the appliance from the mains
supply before you clean it.
DESCALING
The water we use contains limescale. If it
becomes necessary, use a water softener
to remove limescales.
Use a special product made for washing
machines. Obey the instructions that you
find on the packaging of the manufacturer.
Do this separately from the laundry wash.
EXTERNAL CLEANING
CAUTION!
Do not use alcohol, solvents or
chemical products.
MAINTENANCE WASH
With the low temperature programmes it
is possible that some detergent stays in
the drum. Make regularly a maintenance
wash. To do this:
• Empty the laundry from the drum.
• Set the hottest cotton wash programme
• Use a correct quantity of powder detergent with biological properties.
After each wash, keep the door open for a
while to prevent mould and to let unpleasant smells go out.
Clean the appliance only with soap and
warm water. Fully dry all the surfaces.
DOOR SEAL
Regularly examine the seal and remove all
objects from the inner part.
DRUM
Regularly examine the drum to prevent
limescale and rust particles.
Only use special products to remove rust
particles from the drum.
To do this:
• Clean the drum with special product for
stainless steel.
• Start a short programme for cotton at
the maximum temperature with a small
quantity of detergent.
28
DETERGENT DISPENSER
To clean the dispenser:
1
1.
2.
Press the lever.
Pull the dispenser out.
3.
Remove the top part of the liquid additive compartment.
Clean all the parts with water.
2
4.
5.
6.
DRAIN PUMP
Regularly examine the drain pump
and make sure that it is clean.
Clean the pump if:
• The appliance does not drain the water.
• The drum cannot turn.
• The appliance makes an unusual noise
because of the blockage of the drain
pump.
• The display shows an alarm code because of the problem with water drain.
Clean the dispenser recess with a
brush.
Put back the dispenser in the recess.
WARNING!
1. Disconnect the mains plug
from the mains socket.
2. Do not remove the filter while
the appliance operates. Do
not clean the drain pump if
the water in the appliance is
hot. The water must be cold
before you clean the drain
pump.
ENGLISH
29
To clean the drain pump:
1.
Open the drain pump door.
2.
Pull the flap out to remove it.
3.
Put a container below the recess of
the drain pump to collect the water
that flows out.
Press the two levers and pull forward
the drainage duct to let the water
flow out.
4.
1
5.
6.
When the container is full of water,
put the drainage duct back again and
empty the container. Do steps 4 and
5 again and again until no more water flows out from the drain pump.
Pull back the drainage duct and turn
the filter to remove it.
2
7.
Remove fluff and objects from the
pump.
8.
Make sure that the impeller of the
pump can turn. If this does not occur,
contact the service centre.
30
9.
Clean the filter under the water tap
and put it back in the pump into the
special guides.
10. Make sure that you tighten correctly
the filter to prevent leakages.
11. Put the flap back and close the drain
pump door.
2
1
THE INLET HOSE FILTER AND
THE VALVE FILTER
• The indicator of button 6 flashes and
the display shows the related alarm. Refer to 'Troubleshooting'.
It could be necessary to clean the filters
when:
• The appliance does not fill with water.
• The appliance fills with the water for a
long time.
WARNING!
Disconnect the mains plug from
the mains socket.
To clean the water inlet filters:
Close the water tap.
Remove the water inlet hose from the
water tap.
3. Clean the filter in the inlet hose with a
stiff brush.
1.
2.
4.
5.
6.
7.
20°
Remove the inlet hose behind the
appliance.
Clean the filter in the valve with a stiff
brush or a towel.
Install again the inlet hose. Make sure
that the couplings are tight to prevent leakages.
Open the water tap.
45°
EMERGENCY DRAIN
Because of a malfunction, the appliance
cannot drain the water.
If this occurs, do steps (1) through (6) of
'To clean the drain pump'.
If necessary, clean the pump.
Put the drainage duct back and close the
drain pump flap.
When you drain the water with the emergency drain procedure, you must activate
again the drain system:
ENGLISH
Put 2 litres of water in the main wash
compartment of the detergent dispenser.
2. Start the programme to drain the water.
1.
FROST PRECAUTIONS
If the appliance is installed in an area
where the temperature can be less than 0
°C, remove the remaining water from the
inlet hose and the drain pump.
1. Disconnect the mains plug from the
mains socket.
2. Close the water tap.
3. Remove the water inlet hose
4. Put the two ends of the inlet hose in a
container and let the water flow out
of the hose.
5. Empty the drain pump. Refer to the
emergency drain procedure
6. When the drain pump is empty, install
the inlet hose again.
WARNING!
Make sure that the temperature is
more than 0 °C before you use the
appliance again.
The manufacturer is not responsible for damages caused by low
temperatures.
31
32
TROUBLESHOOTING
The start of the appliance does not occur
or it stops during operation.
Try to find a solution to the problem before you contact the service centre (refer
to the table).
With some problems, the acoustic signals operate and the display shows an
alarm message.
WARNING!
Deactivate the appliance before
you do the checks.
Problem
Possible cause
Possible solution
The display tells
to check the tap:
the appliance
does not fill with
water.
The water tap is closed.
Open the water tap.
The water inlet hose is
damaged.
Make sure that the water inlet
hose has no damages.
The filters in the water in- Clean the filters. Refer to 'Care
let hose is blocked .
and cleaning'.
The connection of the
water inlet hose is not
correct.
Make sure that the connection is
correct.
The water pressure is too
low.
Contact your local water authority.
The water tap is blocked
or is furred with limescale.
Clean the water tap.
The water drain hose is
damaged.
Make sure that the water drain
hose has no damages.
The filter of the drain
pump is blocked.
Clean the filter of the drain
pump. Refer to 'Care and cleaning'.
The connection of the
water drain hose is not
correct.
Make sure that the connection is
correct.
The display tells
to check the
door.
The appliance door is
open or not closed correctly.
Close the door correctly.
The display tells
there is a water
alert.
The anti-flood device is
activated.
• Disconnect the appliance.
• Close the water tap.
• Contact the service centre.
The display tells
to check the
drain filter: the
appliance does
not drain the water.
ENGLISH
33
PROBLEM WITHOUT ALARM MESSAGE
Problem
Possible cause
Possible solution
The appliance
does not drain
the water.
A washing programme
without the drain phase
is set.
Set the drain programme.
The function Rinse Hold
is on.
Set the drain programme.
The spin phase
The spin phase is off.
does not operate.
The programme
does not start.
Set the spin programme.
The filter of the drain
pump is blocked.
Clean the filter of the drain
pump. Refer to 'Care and cleaning'.
Balance problems with
the laundry load.
Adjust manually the items in the
tub and start the spin phase
again.
The mains plug is not
connected in the mains
socket.
Put in the mains plug.
Blow out fuse in the
household fuse box.
Replace the fuse.
You did not touch button Touch button 6 .
6 .
There is water on
the floor.
You cannot open
the appliance
door.
The appliance
makes an unusual
noise.
The delay start is set.
If necessary to wash the laundry
immediately, cancel the delay
start.
The Child Lock function
is activated.
Deactivate the Child Lock function.
Leakages from the couplings of the water hoses.
Make sure that the couplings are
tight.
Leakages from the drain
pump.
Make sure that the drain pump
filter is tight.
The water drain hose is
damaged.
Make sure that the water inlet
hose has no damages.
The washing programme Let the washing programme end.
is in operation.
There is water in the
drum.
Set the drain or the spin programme.
Incorrect level of the appliance.
Adjust the level of the appliance.
Refer to 'Installation'.
34
Problem
Possible cause
Possible solution
You did not remove the
packaging and/or the
transit bolts.
Remove the packaging and/or
the transit bolts. Refer to 'Installation'.
The load is very small.
Add more laundry in the drum.
The appliance fills The end of the drain
with water and
hose is too low.
drain immediately.
Make sure that the drain hose is
in the correct position.
The washing reThe detergent you used
sults are not satis- was not sufficient or corfactory.
rect.
Increase the detergent quantity
or use a different one.
You did not remove the
stubborn stains before
you wash the laundry.
Use special products to remove
the stubborn stains.
You set a not correct
temperature.
Make sure that you set the correct temperature.
Too much laundry load.
Decrease the laundry load.
The internal lamp
is off.
The lamp is burned.
To replace the lamp, contact the
service centre.
After a steam
programme, garments are partially wet.
The appliance is not accurately levelled.
Check the levelling and adjust
the appliance by raising or lowering the feet.
After a steam
programme, garments are not sufficiently smooth.
A wrong STEAM programme has been selected (e.g. Synthetic instead of Cotton).
Note the composition of the fabric.
Excessive laundry load.
Reduce the laundry load
The drum is emp- It is necessary to set a
ty and the display tare.
shows there is
some weight in .
Press button 1 to deactivate
the appliance and to activate it
again.
The drum is full
but the display
shows 0.0 kg.
Press button 1 to deactivate
the appliance . Empty the drum
and obey to the necessary steps.
(Refer to 'Loading the laundy')
You loaded the laundry
before to activate the
appliance.
After the check, activate the appliance.
The programme continues from the point
of interruption.
If the problem occurs again, contact the
service centre.
If the display shows other alarm message,
contact the service centre.
ENGLISH
35
INSTALLATION
UNPACKING
1.
Use the gloves. Remove the external
film. If necessary, use a cutter.
2.
3.
Remove the cardboard top.
Remove the polystyrene packaging
materials.
4.
Remove the internal film.
5.
Open the door. Remove the polystyrene piece from the door seal and all
the items from the drum.
36
6.
Put one of the polystyrene packaging
elements on the floor behind the appliance. Carefully put down the appliance with the rear side on it. Make
sure not to damage the hoses.
7.
Remove the polystyrene protection
from the bottom.
Pull up the appliance in vertical position.
8.
1
2
9.
Remove the power supply cable and
the drain hose from the hose holders.
10. Remove the three bolts. Use the key
supplied with the appliance.
11. Pull out the plastic spacers.
ENGLISH
37
12. Put the plastic caps in the holes. You
can find these caps in the user manual bag.
WARNING!
Remove all the packaging and the
transit bolts before you install the
appliance.
We recommend that you keep the
packaging and the transit bolts for
when you move the appliance.
POSITIONING AND LEVELLING
• Install the appliance on a flat hard floor.
• Make sure that carpets do not stop the
air circulation below the appliance.
• Make sure that the appliance does not
touch the wall or other units
• Loosen or tighten the feet to adjust the
level. A correct adjustment of the appliance level prevents the vibration, noise
and the movement of the appliance
when in operation.
x4
• The appliance must be level and stable.
CAUTION!
Do not put cardboard, wood or
equivalent materials below the
appliance feet to adjust the level.
38
THE INLET HOSE
• Connect the hose to the appliance.
Turn the inlet hose only left or right.
Loose the ring nut to set it in the correct position.
20
O
45
O
• Connect the water inlet hose to the
cold water tap with 3/4 thread.
CAUTION!
Make sure that there are no leaks
from the couplings.
Do not use an extension hose if
the inlet hose is too short. Contact
the service centre for the replacement of the inlet hose.
Water-stop device
The inlet hose has a water stop device.
This device prevents water leaks in the
hose because of its natural ageing. The
red sector in the window «A» shows this
fault .
If this occur, close the water tap and contact the service centre to replace the
hose.
A
WATER DRAINAGE
There are different procedures to connect
the drain hose:
ENGLISH
39
With the plastic hose guide.
• On the edge of a sink.
• Make sure that the plastic guide cannot
move when the appliance drains. Attach the guide to the water tap or the
wall.
• To a stand pipe with vent-hole.
Refer to the illustration. Directly into a
drain pipe at a height of not less than
60 cm and not more than 100 cm. The
end of the drain hose must always be
ventilated , i.e. the inner diameter of
the drainpipe must be larger than the
external diameter of the drain hose.
Without the plastic hose guide.
• To a sink spigot.
Refer to the illustration. Put the drain
hose in the spigot and tighten it with a
clip. Make sure that the drain hose
makes a loop to prevent that remaining
particles go in the appliance from the
sink.
• Directly to a built-in drain pipe in the
room wall and tighten it with a clip.
40
You can extend the drain hose to
maximum 400 cm. Contact the
service centre for the other drain
hose and the extension.
ENGLISH
41
42
ENGLISH
43
www.aeg.com/shop
132940553-B-382011
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
