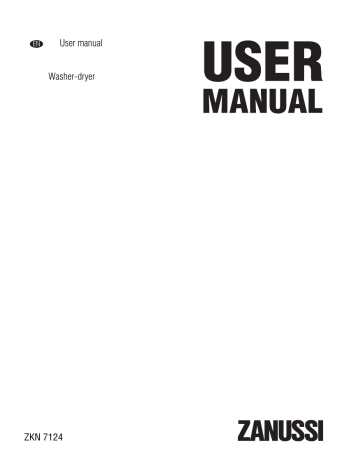

EN
User manual
Washer-dryer
ZKN 7124
Contents
Safety information _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 2
Product description _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 4
Control panel _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 5
Washing programmes _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 7
Automatic Drying programmes _ _ _ _ _ _ _ _ _ _ _ 10
Timed Drying Programmes _ _ _ _ _ _ _ _ _ _ _ _ _ 10
Helpful hints and tips _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 11
Drying Hints _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 12
First use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 13
Personalisation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 13
Daily Use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Use - Drying _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Use - Washing & Drying _ _ _ _ _ _ _ _ _ _ _ _ _ _
Care and cleaning _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
What to do if… _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Technical data _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Consumption values _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Installation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Electrical connection _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Environment concerns _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
13
15
16
17
20
24
24
24
26
27
Subject to change without notice.
Safety information
Important! Read carefully & keep for future reference.
• The safety of Your appliance complies with the industry
standards and with legal requirements on the safety of
appliances. However, as manufacturers, we feel it is
our duty to provide the following safety notes.
• It is most important that this instruction book should
be retained with the appliance for future reference.
Should the appliance be sold or transferred to another
owner, or should you move house and leave the appliance, always ensure that the book is supplied with the
appliance in order that the new owner can get to know
the functioning of the appliance and the relevant warnings.
• You MUST read them carefully before installing or using the appliance.
• Before first starting up, check the appliance for any
damage incurred during transport. Never connect up a
damaged appliance . If parts are damaged, contact your
supplier.
• If the appliance is delivered in the winter months when
there are minus temperatures. Store it at room temperature for 24 hours before using for the first time.
General safety
• It is dangerous to alter the specifications or attempt to
modify this product in any way.
• During high temperature wash programmes the door
glass may get hot. Do not touch it!
• Make sure that small pets and children do not climb
into the drum. To avoid this, please check into the
drum before using.
2
• Any objects such as coins, safety pins, nails, screws,
stones or any other hard, sharp material can cause extensive damage and must not be placed into the machine.
• Only use the advised quantities of fabric softener and
detergent. Damage to the fabric can ensue if you overfill. Refer to the manufacturer’s recommendations of
quantities.
• Wash small items such as socks, laces, washable belts
etc in a washing bag or pillow case as it is possible for
such items to slip down between the tub and the inner
drum.
• Do not use your washing machine to wash articles with
whalebones, material without hems or torn material.
• Always unplug the appliance and turn off the water
supply after use, cleaning and maintenance.
• Under no circumstances should you attempt to repair
the machine yourself. Repairs carried out by inexperienced people may cause injury or serious malfunctioning. Contact your local Service Centre. Always insist on genuine spare parts.
Installation
• This appliance is heavy. Care should be taken when
moving it.
• When unpacking the appliance, check that it is not
damaged. If in doubt, do not use it and contact the
Service Centre.
• All packing and transit bolts must be removed before
use. Serious damage can occur to the product and to
property if this is not adhered to. See relevant section
in the user manual.
www.zanussi.com
• After having installed the appliance, check that it is not
standing on the inlet and drain hose and the worktop is
not pressing the electrical supply cable against the
wall.
• If the machine is situated on a carpeted floor, please
adjust the feet in order to allow air to circulate freely
under the appliance.
• Always be sure, that there is no water leakage from hoses and their connections after the installation.
• If the appliance is installed in a location subject to
frost, please read the “dangers of freezing” chapter.
• Any plumbing work required to install this appliance
should be carried out by a qualified plumber or competent person.
• Any electrical work required to install this appliance
should be carried out by a qualified electrician or competent person.
Use
• This appliance is designed for domestic use. It must
not be used for purposes other than those for which it
was designed.
• Only wash and dry fabrics which are designed to be
machine washed or dried. Follow the instructions on
each garment label
• Do not overload the appliance. See the Washing Programme Table.
• Before washing, ensure that all pockets are empty and
buttons and zips are fastened. Avoid washing frayed or
torn articles and treat stains such as paint, ink, rust,
and grass before washing. Underwired bras must NOT
be machine washed.
• Garments which have been in contact with volatile petroleum products should not be machine washed. If
volatile cleaning fluids are used, care should be taken
to ensure that the fluid is removed from the garment
before placing in the machine.
• As some duvets and eiderdowns should be washed/
dried in large commercial machines because of their
bulk, please check with the manufacturer of the item
before washing in a domestic machine.
• The users should always check that they have not left
their gas lighters (disposable or otherwise) in their
clothing.
• Never tumble dry items that have had contact with
chemicals such as dry cleaning fluid. These are of a
volatile nature and could cause an explosion. Only
www.zanussi.com
tumble dry items which have been washed in water or
require airing.
• Plastic detergent dispensers should not remain in the
drum during the drying cycle, as the plastic used is not
designed to withstand the heat. If you wish to washthrough-to-dry you should use the conventional detergent dispenser drawer.
• Never pull the power supply cable to remove the plug
from the socket; always take hold of the plug itself.
• Never use your new appliance if the power supply cable, the control panel, the working surface or the base
are damaged so that the inside of the appliance is accessible.
Child safety
• This appliance is not intended for use by person (including children) with reduced physical sensory or
mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
• Children should be supervised to ensure that they do
not play with the appliance.
• The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - danger of suffocation! Keep them out of children’s reach
• Keep all detergents in a safe place out of children’s
reach.
• Make sure that children or pets do not climb into the
drum. To prevent children and pets becoming trapped
inside the drum this machine incorporates a special
feature.
To activate this device, rotate the button (without
pressing it) inside the
door clockwise until the
groove is horizontal. If
necessary use a coin.
To disable this device and
restore the possibility of
closing the door, rotate the
button anti-clockwise until
the groove is vertical.
3
Product description
1 Detergent dispenser drawer
2 Control panel
1
2
3 Door opening handle
4 Rating plate
5 Drain pump
6 Adjustable feet
3
4
5
6
Detergent dispenser drawer
Compartment for detergent used for prewash and soak
phase or for stain remover used during the stain action
phase (if available). The prewash and soak detergent is
added at the beginning of the wash programme. The stain
remover is added during the stain action phase.
Compartment for powder or liquid detergent used for
main wash. If using liquid detergent pour it just before
starting the programme.
Compartment for liquid additives (fabric softener,
starch).
Follow the product manufacturer’s recommendations on
quantities to use and do not exceed the «MAX» mark in the
detergent dispenser drawer. Any fabric softener or starching additives must be poured into the compartment before
starting the wash programme.
4
www.zanussi.com
Control panel
On the following page there is a picture of the control panel. It shows the programme selector dial as well as the
buttons, pilot lights and the display. These are presented by relevant numbers on the following pages.
10
9
1
2
3
4
5
6
7
8
1 Programme selector dial
2 Spin reduction button (Centrifugado)
6 Extra Rinse button (AquaCare)
7 Start/Pause button (Inicio/Pausa)
3 Auto Dry button (Secado automático):
– Store Dry (Seco armario)
– Iron Dry (Seco plancha)
4 Timed Dry (Tiempo de secado)
8 Delay Start button (Inicio diferido)
9 Door Locked pilot light (Puerta bloqueada)
10 Display
5 Super Quick button (Super rápido)
Table of symbols
= Rinses
= Rinse hold
= Drain
= Child lock
1-8 Programme selector dial, spin speed button,
drying level and time, and available options
Programme Selector Dial
It allows you to switch the appliance on/off and/or to select a programme.
CENTRIFUGADO
By pressing this button you can reduce the maximum spin
speed allowed for the selected programme or to select the
available option(s).
www.zanussi.com
= Spin
Rinse hold
By selecting this function the water of the last rinse is not
emptied out to prevent the fabrics from creasing. Before
opening the door it will be necessary to empty out the water. To empty out the water, please read the paragraph «At
the end of the programme».
SECADO AUTOMÁTICO
By pressing this button you can choose the required degree of drying for cottons and synthetics:
• Store dry (Cottons and Synthetics)
• Iron dry (Cottons)
5
The pilot light corresponding to the selected dryness degree will illuminate.
TIEMPO DE SECADO
If you wish to carry out a timed drying programme, press
this button until the drying time you want appears on the
display according to the fabrics (cottons or synthetics)
you have to dry. For Cottons you can select a drying time
from 10 minutes to 250 minutes (4.10). For Synthetics
you can select a drying time from 10 minutes to 130 minutes (2.10). Every time you press this button the drying
time increases by 5 mins.
Available options:
SUPER RÁPIDO
Short cycle for lightly soiled items or for laundry which
needs only freshening up. We recommend you to reduce
the fabrics loading.
AQUACARE
This appliance is designed for saving energy. If it necessary to rinse the laundry using an extra quantity of water
select this option. Some additional rinses will be performed. This option is recommended for people who are
allergic to detergents, and in areas where the water is very
soft.
INICIO/PAUSA
This button allows you to start or to interrupt the selected
programme.
INICIO DIFERIDO
The programme can be delayed from 30 min - 60 min - 90
min, 2 hours and then by 1 hour up to a maximum of 20
hours by means of this button.
PUERTA BLOQUEADA
The pilot light 9 illuminates when the programme starts
and indicates if the door can be opened:
• light on: the door cannot be opened. The machine is
working or has stopped with water left in the tub.
• light off: the door can be opened. The programme is
finished or the water has been emptied out.
• light blinking: the door is opening in a few minutes.
10 Display
10.1
10.2
The display shows the following information:
10.1
Child safety lock
This device permits you to leave the appliance unattended during it's functioning.
10.2
• Duration of the selected programme
).
After selecting a programme, the duration is displayed in hours and minutes (for example
The duration is calculated automatically on the basis of the maximum recommended load for each type
of fabric. After the programme has started, the time remaining is updated every minute.
• Selected drying time
After selecting a drying programme the drying time is shown in minutes or hours and minutes. After
the programme has started, the time remaining is updated every minute.
6
www.zanussi.com
• Delayed start
The Selected delay set by pressing the relevant button appears on the display for a few seconds, then
the duration of the selected programme is displayed again. The delay time value decreases by one unit
every hour and then, when 1 hour remains, every minute.
• Alarm codes
In the event of operating problems, some alarm codes can be displayed, for example
graph «What to do if...»).
(see para-
• Incorrect option selection
If an option which is not compatible with the set wash programme is selected, the message Err is
displayed at the bottom of the display for a few seconds and the integrated red light of button 7 start
flashing.
• End of programme
When the programme has finished the flashing zero (
light of button 7 go out and the door can be opened.
) is displayed, the pilot light 9 and the pilot
Washing programmes
Programme - Maximum and Minimum Temperature - Cycle Description - Maximum Spin Speed - Maximum Fabrics Load Type of Laundry
Options
Algodón
90° - 60°
Main wash - Rinses
Spin at the maximum speed
Max. load 8 kg - Reduced load 4 kg1)
White cotton(heavily and normally soiled items).
CENTRIFUGADO
RINSE HOLD
SUPER RÁPIDO
AQUACARE
Algodón eco
60°
Main wash - Rinses
Spin at the maximum speed
Max. load 8 kg
White or fast colour cotton (normally soiled items).
This programme can be selected for normally soiled cotton
items. The temperature will decrease and the washing time will
be extended. This allows to obtain a good washing efficiency by
saving energy.
CENTRIFUGADO
RINSE HOLD
AQUACARE
Algodón
60° - 40° - 30°
Main wash - Rinses
Spin at the maximum speed
Max. load 8 kg - Reduced load 4 kg1)
White or colour cotton (normally or slightly soiled items) .
CENTRIFUGADO
RINSE HOLD
SUPER RÁPIDO
AQUACARE
www.zanussi.com
Detergent Compartment
7
Programme - Maximum and Minimum Temperature - Cycle Description - Maximum Spin Speed - Maximum Fabrics Load Type of Laundry
Options
Algodón +prelavado
90° - 60° - 40°
Prewash - Main wash - Rinses
Spin at the maximum speed
Max. load 8 kg - Reduced load 4 kg1)
White or colour cotton (heavily or normally soiled items)
CENTRIFUGADO
RINSE HOLD
SUPER RÁPIDO
AQUACARE
Sintéticos
60° - 30°
Main wash - Rinses
Maximum spin speed at 900 rpm
Max. load 4 kg - Reduced load 2 kg1)
Synthetic or mixed fabrics: underwear, coloured garments, nonshrink shirts, blouses.
CENTRIFUGADO
RINSE HOLD
SUPER RÁPIDO
AQUACARE
Plancha fácil
40°
Main wash - Rinses
Maximum spin speed at 900 rpm
Max. load 1,5 kg
Synthetic or mixed fabrics: selecting this programme the laundry is gently washed and spun to avoid any creasing. In this way
ironing is easier. Furthermore the machine will perform additional rinses.
CENTRIFUGADO
RINSE HOLD
Delicados
40° - 30°
Main wash - Rinses
Maximum spin speed at 700 rpm
Max. load kg 4 - Reduced load kg 21)
Delicate fabrics: acrylics, viscose, polyester.
CENTRIFUGADO
RINSE HOLD
SUPER RÁPIDO
AQUACARE
A mano
40° - 30° - Cold
Main wash - Rinses
Maximum spin speed at 900 rpm
Max. load 2 kg
Washing programme for machine washable wool as well as for
hand washable woollens and delicate fabrics.
CENTRIFUGADO
RINSE HOLD
Detergent Compartment
2)
A single or bulky item may cause imbalance. If the appliance doesn’t perform the final spin phase, add more
items, redistribute the load manually and then select the spinning programme.
8
www.zanussi.com
Programme - Maximum and Minimum Temperature - Cycle Description - Maximum Spin Speed - Maximum Fabrics Load Type of Laundry
Vaqueros
40°
Main wash - Rinses
Maximum spin speed at 1200 rpm
Max. load 4 kg
With this programme it is possible to wash items like pants,
shirts or jackets in denim tissue and also jersey realized with hitech materials.
Options
Detergent Compartment
CENTRIFUGADO
RINSE HOLD
The Extra Rinse option will be activated automatically.
Sport intensivo
40°
Prewash - Main wash - Rinses
Maximum spin speed at 900 rpm
Max. load 2 kg
This programme is suitable for washing heavily soiled sport
items. The machine will add automatically a prewash phase before the main wash to eliminate mud stains (for this phase we
recommend that you do not put detergent in the appropriate
compartment to rinse clothing with only water).
CENTRIFUGADO
RINSE HOLD
AQUACARE
Rinses
Rinses
Spin at the maximum speed
Max. load 8 kg
With this programme it is possible to rinse and spin cotton garments which have been washed by hand. The machine performs
3 rinses, followed by a final long spin.
CENTRIFUGADO
RINSE HOLD
AQUACARE
The spin speed will automatically assume the setting for
cotton items. if required, reduce the speed to the desired
level by pressing the relevant button.
Drain
Draining of water
Max. load 8 kg
For emptying out the water of the last rinse in programmes,
which stop with water in the tub.
www.zanussi.com
9
Programme - Maximum and Minimum Temperature - Cycle Description - Maximum Spin Speed - Maximum Fabrics Load Type of Laundry
Spin
Drain and long spin
Spin at the maximum speed
Max. load 8 kg
Separate spin for hand washed garments and after programmes
which stop with water in the tub. You can reduce the spin speed
to the required level by pressing the relevant button to adapt it
to the fabrics to be spun.
Detergent Compartment
Options
CENTRIFUGADO
Off
For cancelling the programme which is running or to switch the
machine off .
1) If you select the Super Quick option by pressing button 5, we recommend that you reduce the maximum load as indicated in the
chart. Full loading is possible however with somewhat reduced cleaning results.
2) If using liquid detergents, a programme without PREWASH must be selected.
Automatic Drying programmes
Degree of Drying
Type of Fabric
Max Load
SECO ARMARIO
Suitable for items to put away without ironing
Cotton and linen (bathrobes, bath
towels, etc)
4 kg
SECO ARMARIO
Suitable for items to put away without ironing
Synthetics and mixed fabrics
(jumpers, blouses, underwear,
household linen)
3 kg
SECO PLANCHA
Suitable for ironing
Cotton and linen (sheets, tablecloths, shirts, etc.)
4 kg
Timed Drying Programmes
Degree of Drying
SECO ARMARIO1)
Suitable for items to put away without ironing
SECO ARMARIO
Suitable for items to put away without ironing
10
Type of Fabric
Drying Load
Spin Speed
Suggested drying time in Minutes
Cotton and linen (bathrobes, bath towels, etc)
6 kg
4 kg
2 kg
1200
210-230
125-135
70-80
3 kg
1 kg
900
115-125
40-50
Synthetics and mixed
fabrics
www.zanussi.com
Degree of Drying
SECO PLANCHA
Suitable for ironing
Type of Fabric
Drying Load
Spin Speed
Suggested drying time in Minutes
Cotton and linen
(sheets, tablecloths,
shirts, etc.)
6 kg
4 kg
2 kg
1200
170-190
100-110
60-70
1) In compliance with EC directive EN 50229 the cotton reference programme for the data entered in the Energy Label must be tested
dividing the maximum washing load by two equal parts and drying with DRYING TIME each of them.
Helpful hints and tips
Sorting out the laundry
Follow the wash code symbols on each garment label and
the manufacturer’s washing instructions. Sort the laundry
as follows: whites, coloureds, synthetics, delicates, woollens.
Before loading the laundry
Never wash whites and coloureds together. Whites may
lose their «whiteness» in the wash.
New coloured items may run in the first wash; they should
therefore be washed separately the first time.
Button up pillowcases, close zip fasteners, hooks and
poppers. Tie any belts or long tapes.
Remove persistent stains before washing.
Rub particularly soiled areas with a special detergent or
detergent paste.
Treat curtains with special care. Remove hooks or tie them
up in a bag or net.
Removing stains
Stubborn stains may not be removed by just water and detergent. It is therefore advisable to treat them prior to
washing.
Blood: treat fresh stains with cold water. For dried stains,
soak overnight in water with a special detergent then rub
in the soap and water.
Oil based paint: moisten with benzine stain remover, lay
the garment on a soft cloth and dab the stain; treat several
times.
Dried grease stains: moisten with turpentine, lay the garment on a soft surface and dab the stain with the fingertips
and a cotton cloth.
Rust: oxalic acid dissolved in hot water or a rust removing
product used cold. Be careful with rust stains which are
not recent since the cellulose structure will already have
been damaged and the fabric tends to hole.
Mould stains: treat with bleach, rinse well (whites and fast
coloureds only).
Grass: soap lightly and treat with bleach (whites and fast
coloureds only).
Ball point pen and glue: moisten with acetone1), lay the
garment on a soft cloth and dab the stain.
Lipstick: moisten with acetone as above, then treat stains
with methylated spirits. Treat any residual marks with
bleach.
Red wine: soak in water and detergent, rinse and treat with
acetic or citric acid, then rinse. Treat any residual marks
with bleach.
Ink: depending on the type of ink, moisten the fabric first
with acetone1), then with acetic acid; treat any residual
marks on white fabrics with bleach and then rinse thoroughly.
Tar stains: first treat with stain remover, methylated spirits
or benzine, then rub with detergent paste.
Detergents and additives
Good washing results also depend on the choice of detergent and use of the correct quantities to avoid waste and
protect the environment.
Although biodegradable, detergents contain substances
which, in large quantities, can upset the delicate balance
of nature.
The choice of detergent will depend on the type of fabric
(delicates, woollens, cottons, etc.), the colour, washing
temperature and degree of soiling.
All commonly available washing machine detergents may
be used in this appliance:
• powder detergents for all types of fabric
• powder detergents for delicate fabrics (60°C max) and
woollens
1) do not use acetone on artificial silk
www.zanussi.com
11
• liquid detergents, preferably for low temperature wash
programmes (60°C max) for all types of fabric, or special for woollens only.
The detergent and any additives must be placed in the appropriate compartments of the dispenser drawer before
starting the wash programme.
If using liquid detergents, a programme without prewash
must be selected.
Your appliance incorporates a recirculation system which
allows an optimal use of the concentrated detergent.
Follow the product manufacturer’s recommendations on
quantities to use and do not exceed the «MAX» mark in
the detergent dispenser drawer.
Quantity of detergent to be used
The type and quantity of detergent will depend on the type
of fabric, load size, degree of soiling and hardness of the
water used.
Follow the product manufacturers’ instructions on quantities to use.
Use less detergent if:
• you are washing a small load
• the laundry is lightly soiled
• large amounts of foam form during washing.
Degrees of water hardness
Water hardness is classified in so-called “degrees” of
hardness. Information on hardness of the water in your
area can be obtained from the relevant water supply company, or from your local authority. If the water hardness
degree is medium or high we suggest you to add a water
softener following always the manufacturer’s instructions.
When the degree of hardness is soft, readjust the quantity
of the detergent.
Drying Hints
Preparing the drying cycle
As a dryer, the appliance works on the condensation principle.
Therefore, the water tap must be open and the drain hose
must drain water into a sink or into the drain pipe, even
during the drying cycle.
Attention!
Before starting the drying programme, reduce the loads of
washed laundry, in order to obtain good performances.
Laundry not suitable for drying
• Particularly delicate items such as synthetic curtains,
woollen and silk, garments with metal inserts, nylon
stockings, bulky garments such as anoraks, bed covers, quilts, sleeping bags and duvets must not be machine dried.
• Avoid drying dark clothes with light coloured fluffy
items such as towels as these can attract the fluff.
• Remove the laundry when the appliance has finished
drying.
• To avoid a static charge when drying is completed, use
either a fabric softener when you are washing the laundry or a fabric conditioner specifically for tumble dryers.
• Garments padded with foam-rubber or materials similar to foam-rubber must not be machine dried; they
represent a fire hazard.
12
• Also, fabrics containing residue of setting lotions or
hair sprays, nail solvents or similar solutions must not
be machine dried in order to avoid the formation of
harmful vapours.
The detergent and any additives must be placed in the appropriate compartments of the dispenser drawer before
starting the wash programme.
If using liquid detergents, a programme without prewash
must be selected.
Your appliance incorporates a re-circulation system which
allows an optimal use of the concentrated detergent.
Follow the product manufacturer’s recommendations on
quantities to use and do not exceed the «MAX» mark in
the detergent dispenser drawer.
Garment labels
For drying, follow the indications given on the manufacturer’s labels:
•
= May be tumble dried
•
= Drying at high temperature
•
= Drying at reduced temperature
•
= Do not tumble dry.
Drying cycle duration
The drying time may vary depending on:
• speed of the final spin
• dryness degree required (iron dry, store dry)
www.zanussi.com
• type of laundry
• weight of the load size .
The average drying time for a timed drying are indicated in
the «Drying programmes» chapter. The experience will
help you to dry your laundry in a more suitable way, according to the different fabrics. Take note of the duration
drying time of the already performed cycles.
Additional drying
If the laundry is still damp at the end of the drying programme, select a short drying cycle again.
Warning! Do not over dry the laundry in order to
avoid creasing of fabrics or garment’s shrinking.
First use
• Ensure that the electrical and water connections
comply with the installation instructions.
• Remove the polystyrene block and any material
from the drum.
• Before the first wash, run a cotton cycle at the
highest temperature without any laundry in the
machine, to remove any manufacturing residue
from the drum and tub. Pour 1/2 a measure of
detergent into the main wash compartment and
start the machine.
Personalisation
Acoustic signals
The machine is provided with an acoustic device, which
sounds in the following cases:
• at the end of the cycle
• if there is a fault.
By pressing the 4 and 5 buttons simultaneously for about
6 seconds, the acoustic signal is deactivated (except if
there is a fault). By pressing these 2 buttons again, the
acoustic signal is reactivated.
Child safety lock
This device permits you to leave the appliance unattended
so you do not need to worry that children might be injured
by or cause damage to the appliance. This function remains enabled also when the washing machine is not
working.
There are two different ways to set this option:
1. Before pressing button 7: it will be impossible to
start the machine.
2. After pressing button 7: it will be impossible to
change any other programme or option.
To enable or disable this option press simultaneously for
about 6 seconds buttons 2 and 3 until on the display, the
appears or disappears.
icon
Daily Use
Load the laundry
Open the door by carefully
pulling the door handle
outwards. Place the laundry in the drum, one item
at a time, shaking them
out as much as possible.
Close the door.
www.zanussi.com
Make sure that no laundry
stays between the seal and
the door. There is a risk of
water leakage or damage
to the laundry.
13
Measure out the detergent and the fabric softener
Pull out the dispenser drawer until it stops. Measure
out the amount of detergent required, pour it into the
or in the appropriate commain wash compartment
partment if the selected programme/option it requires
(see more details in "Detergent dispenser drawer").
If required, pour fabric softener into the compartment
(the amount used must not exceed the
marked
«MAX» mark in the drawer). Close the drawer gently.
Select the required programme by means of the
programme selector dial (1)
Turn the programme selector dial to the required programme.
The green pilot light of button 7 starts to flash. The selector dial can be turned either clockwise or anticlockwise.
to reset the proTurn the selector dial to position
gramme/to switch the machine OFF.
At the end of the programme the selector dial must be
, to switch the machine off.
turned to position
Important! If you turn the programme selector dial to
another programme when the machine is working, the red
pilot light of button 7 will blink 3 times and the
messageErr is displayed to indicate a wrong selection.
The machine will not perform the new selected
programme.
Select the spin speed by pressing button 2
When selecting a programme, the appliance proposes automatically the maximum spin speed provided for that
programme. (See "Washing programmes" for the maximum allowed spin speed).
Press this button repeatedly to change the spin speed, if
you want your laundry to be spun at a different speed. The
relevant pilot light illuminates.
Select the available options by pressing the buttons
5 and 6
Depending on the programme, different options can be
combined. These must be selected after choosing the desired programme and before starting the programme.
When these buttons are pressed, the corresponding pilot
lights illuminate. When they are pressed again, the pilot
lights go out. If an incorrect option is selected, the integrated red pilot light of the button 7 flashes 3 times and
the message Err is displayed.
For the compatibility among the washing programmes and
the options see chapter «Washing programmes».
Start the programme by pressing button 7
To start the selected programme, press this button; the
corresponding green pilot light stops blinking.
The pilot light 9 illuminates to indicate that the appliance
starts operating and the door is locked.
If you have chosen a delayed start, the machine will begin
the countdown.
Important! If an incorrect option is selected, the message
Err is displayed for a few seconds and the red pilot light of
this button blinks 3 times.
Select the Delay Start by pressing button 8
Before you start the programme, if you wish to delay the
start, press this button to select the desired delay.
The selected delay time value will appear on the display
for a few seconds, then the duration of the programme will
appear again.
You must select this option after you have set the programme and before you start the programme.
You can cancel or modify the delay time at any moment,
before you press button 7.
Selecting the delay start :
1. Select the programme and the required options.
2. Select the delay start by pressing button 8.
3. Press button 7:
- the machine starts its hourly countdown.
- the programme will start after the selected delay
has expired.
Cancelling the Delay Start after having started the programme:
1. Set the washing machine to PAUSE by pressing button 7.
2. Press button 8 once. On the display will appear '.
3.
14
Press button 7 again to start the programme.
www.zanussi.com
Important!
• The selected delay can be changed only after selecting
the washing programme again.
• The door will be locked throughout the delay time. If
you need to open the door, you must first set the washing machine to PAUSE by pressing button 7 and wait a
few minutes before opening the door. After you have
closed the door, press the same button again.
Important! The Delay Start cannot be selected with the
draining programme.
Altering an option or a running programme
It is possible to change some options before the programme carries them out.
Before you make any change, you must pause the washing
machine by pressing button 7.
Changing a running programme is possible only by resetand then
ting it. Turn the programme selector dial to
to the new programme position. Start the new programme
by pressing button 7 again.
The washing water in the tub will be not emptied out.
Interrupting a programme
Press the button 7 to interrupt a programme which is running, the corresponding pilot light starts blinking. Press
the button again to restart the programme.
Cancelling a programme
Turn the selector dial to
to cancel a programme which
is running. Now you can select a new programme.
Opening the door after the programme has started
First set the machine to pause by pressing the button 7.
If the pilot light 9 goes off, the door can be opened.
Stand by : once the programme has finished after a few
minutes the energy saving system will be enabled. The
brightness of the display is reduced. By pressing any but-
If the pilot light 9 remains lit, this means that the machine
is already heating or that the water level is too high. In any
case, do not force the door!
If you cannot open the door but you need to open it,
switch the machine off by turning the selector dial to
.
After a few minutes the door can be opened.
(Pay attention to the water level and temperature!).
After closing the door, it is necessary to select the programme and options again and to press button 7.
At the end of the programme
The machine stops automatically. The blinking appears
on the display, the pilot light of button 7 and the pilot light
9 go off.
If a programme or an option that ends with water left in the
tub has been selected, the pilot light 9 remains on and the
door is locked to indicate that the water must be emptied
out before opening the door.
Before you empty out the water, the drum continues to run
at regular intervals until the water draining.
Follow the below instructions to empty out the water:
1. Turn the programme selector dial to
.
2.
3.
Select the draining or spinning programme.
Reduce the spin speed if needed, by pressing the
relevant button.
4. Press button 7.
At the end of the programme, the door is released and can
to
be opened. Turn the programme selector dial to
switch the machine off.
Remove the laundry from the drum and carefully check
that the drum is empty. If you do not intend to carry out
another wash, close the water tap. Leave the door open to
prevent the formation of mildew and unpleasant smells.
ton the appliance will come out of the energy saving status.
Use - Drying
Drying only
Caution!
The recommended load size is 4 kg for cottons and linen
and 3 kg for synthetic items.
By pressing Drying Time button it is also possible
to dry up to 6 kg of cotton items (see the «Drying
Programme » table).
Caution!
The water tap must be open and the drain hose must be
positioned in the sink or connected to the drain pipe.
1. Load the laundry.
www.zanussi.com
15
2.
3.
4.
5.
Select a spin cycle at the maximum spin speed allowed for the type of laundry in order to obtain the
best drying performances.
Select the drying programme for Cottons or Synthetic in the Drying sector of the programme selector dial.
If you wish to select an automatic drying (for cottons
and synthetic items only), press the button 3 until
the pilot light corresponding to the required dryness
degree illuminates.
If you wish to select a timed drying, press the button
4 until the time you want appears on the display (see
the «Drying Programme» table). Every time you
press this button the drying time increases by 5 minutes.
The programme time will automatically increase by
some minutes.
6.
7.
Press button 7 to start the programme. The time remaining is updated every minute.
At the end of the programme, the buzzer sounds. The
blinking appears on the display. The door pilot
light 9 is on.
During the last minutes of the drying cycle the appliance performs an anti-crease phase. Through this
time the door is locked. The display shows the blinking .
At the end of the anti-crease phase the door pilot
light 9 is off.
If you wish to open the door before or during the
anti-crease phase or to interrupt it, press any button
or turn the programme selector dial to any programme po).
sition (except
8.
9.
position to switch
Turn the selector dial to the
the machine off.
Remove the laundry from the drum.
The different type of cottons (towelling, sheets,
shirts, and so on) or any laundry items rolling up
during the spinning phase may result in partial dryness. In
the exceptional case that at the end of the cycle the laundry remains slightly wet, we suggest that you unfold the
rolled up items, redistribute them evenly in the drum and
select an additional drying cycle of 20-30 minutes.
If you set only 10 minutes of drying phase with the
drying time button (4), the appliance performs only
a cooling phase.
Use - Washing & Drying
NON-STOP programme - Washing and Automatic
Drying
The maximum load size is 4 kg for cotton and 3 kg for
synthetic.
Caution! Do not use a dosing device/ball when
carrying out a washing and drying programme.
1.
2.
3.
4.
Load the laundry.
Add detergent and fabric softener.
Switch the machine on by turning the selector dial to
the set washing programme/fabric.
Select the required options by pressing the relevant
buttons.
If possible, do not select a spin speed lower than
that proposed by the appliance to avoid too long a
drying time therefore saving energy.
5.
6.
7.
For cottons and synthetic the lowest value you can
select is 900 r.p.m.
Set the dryness degree by pressing button 3. The
display shows the whole duration of the washing and
the set drying cycle.
Start the programme by pressing button 7. The time
remaining is updated every minute on the display.
At the end of the programme turn the selector dial to
position to switch the machine off. Remove
the
the laundry.
NON-STOP programme - Washing and Timed
Drying
The recommended load size is 4 kg for cotton and 3 kg for
synthetic.
It is also possible to dry up to 6 kg of cotton items
(see the «Drying Programme » table).
In any case the reduction of the spin speed is only
possible after selecting drying.
16
www.zanussi.com
Caution! Do not use a dosing device/ball when
carrying out a washing and drying programme.
1.
2.
3.
Load the laundry and add detergent and fabric softener.
Switch the machine on by turning the selector dial to
the set washing programme/fabric.
Select the required options by pressing the relevant
buttons.
If possible, do not select a spin speed lower than
that proposed by the appliance to avoid too long a
drying time therefore saving energy.
4.
Set the drying time by pressing button 4. The display
shows the whole duration of the washing and the set
drying cycle.
If you set a washing programme and only 10 minutes of drying cycle, the total duration displayed
includes also the unrolling and the cooling phase.
5.
6.
Start the programme by pressing button 7. The time
remaining is updated every minute on the display.
At the end of the programme turn the selector dial to
position to switch the machine off and rethe
move the laundry.
In any case the reduction of the spin speed is only
possible after selecting drying.
The lowest values you can select are 900 r.p.m. for
cottons and synthetics and 700 r.p.m. for delicate
fabrics.
Fluff in the fabrics
During the WASHING AND/OR DRYING PHASE, certain
types of fabric, such as sponge, wool, sweatshirt, could
release fluff.
The released fluff could stick to the fabrics during the next
cycle.
This drawback increases with technical fabrics.
To prevent the fluff in your clothes, it is recommended:
• To do not wash dark fabrics after you washed and dried
light colored fabrics (new sponge, wool, sweatshirt especially) and vice versa.
• To air-dry this type of fabrics when they are washed the
first time.
• To clean the drain filter.
• After the drying phase, thoroughly clean the empty
drum, the gasket and the door with a wet rag.
To remove the fluff inside the drum, run a special programme to clean it:
• Empty the drum and clean the drum, the gasket and the
door with a wet rag.
• Turn the programme selector to the rinse programme.
• Activate the cleaning function by pressing at the same
time button 5 and button 8 until the display shows
CLE.
• Press button 7 to start the programme.
Care and cleaning
Warning! You must DISCONNECT the appliance
from the electricity supply, before you can carry out
any cleaning or maintenance work.
External cleaning
Descaling
Cleaning the dispenser drawer
The water we use normally contains lime. It is a good idea
to periodically use a water softening powder in the machine. Do this separately from any laundry washing, and
according to the softening powder manufacturer's instructions. This will help to prevent the formation of lime deposits.
The washing powder and additive dispenser drawer
should be cleaned regularly.
www.zanussi.com
Clean the exterior cabinet of the appliance with soap and
water only, and then dry thoroughly.
17
Remove the drawer by
pressing the catch downwards and by pulling it
out. Flush it out under a
tap, to remove any traces
of accumulated powder.
To aid cleaning, the top
part of the additive compartment should be removed.
Open the pump door.
Put a container below the recess of the drain pump to
collect the water that flows out.
Cleaning the drawer recess
Having removed the drawer, use a small brush to
clean the recess, ensuring
that all washing powder
residue is removed from
the upper and lower part of
the recess.
Press the two levers and pull forward the drainage duct
to let the water flow out.
Replace the drawer and run the rinse programme without any clothes in the drum.
Cleaning the pump
The pump should be inspected regularly and particularly
if:
• the appliance does not empty and/or spin;
• the appliance makes an unusual noise during draining
due to objects such as safety pins, coins etc. blocking
the pump;
• a problem with water draining is detected (see chapter
“What to do if...” for more details).
1.
2.
Warning!
Disconnect the mains plug from the mains socket.
Do not remove the filter while the appliance operates. Do not clean the drain pump if the water in the
appliance is hot. The water must be cold before you
clean the drain pump.
When the container is full of water, put the drainage
duct back again and empty the container. Do steps 3
and 4 again and again until no more water flows out
from the drain pump.
1
2
Pull back the drainage duct.
Unscrew the filter and remove it.
Proceed as follows:
18
www.zanussi.com
empty. When refitting the pump cover, ensure it is
securely re-tightened so as to stop leaks and young
children being able to remove it.
Cleaning the water inlet filters
Remove fluff and objects from the pump.
Important! If the appliance doesn't fill, takes long to fill
with water, the starting button blinks yellow or the display
(if available) shows the relevant alarm (see chapter "What
to do if..." for more details), check if the water inlet filters
are blocked .
To clean the water inlet filters:
• Turn off the water tap.
• Unscrew the hose from
the tap.
• Clean the filter in the
hose with a stiff brush.
Make sure that the impeller of the pump can turn. If this
does not occur, contact the service centre.
1
• Screw the hose back onto the tap. Make sure the
connection is tight.
2
Clean the filter under the water tap and put it back in the
pump into the special guides.
Make sure that you tighten correctly the filter to prevent
leakages.
• Unscrew the hose from the machine. Keep a rag
nearby because some water may flow.
• Clean the filter in the valve with a stiff brush or with
the piece of cloth.
35°
45°
Close the pump door.
Caution! When the appliance is in use and
depending on the programme selected there can be
hot water in the pump.
Never remove the pump cover during a wash cycle, always
wait until the appliance has finished the cycle, and is
www.zanussi.com
• Screw the hose back to the machine and make sure
the connection is tight.
• Turn on the water tap.
19
Frost precautions
If the machine is installed in a place where the temperature could drop below 0°C, remove the remaining water
from the inlet hose and the drain pump.
1. disconnect the mains plug from the mains socket.
2. close the water tap
3. unscrew the water inlet hose from the tap;
4. put the two ends of the inlet hose in a container and
let the water flow out of the hose.
5. empty the drain pump as described in the ‘Emergency emptying out’ section.
6. when the drain pump is empty, install the water inlet
hose again.
Warning!
Make sure that the temperature is more than 0 °C before
you use the appliance again.
The manufacturer is not responsible for damages caused
by low temperatures.
Emergency emptying out
1.
2.
3.
4.
5.
pull out the plug from the power socket;
close the water tap;
if necessary, wait until the water has cooled down;
open the pump door;
place a container on the floor below the recess of the
drain pump;
6. press the two levers and pull forward the drainage
duct to let the water flow out;
7. when the container is full of water, put the drainage
duct back again and empty the container;
repeat this operation until water stops flowing out;
8. if necessary clean the pump (refer to the section
‘Cleaning the pump’ );
9. close the drain pump door.
When you drain the water with the emergency drain procedure, you must activate again the drain system:
1. Put 2 litres of water in the main wash compartment
of the detergent dispenser.
2. Start the programme to drain the water.
If the appliance cannot drain the water, proceed as follows
to empty out the machine:
What to do if…
Certain problems are due to lack of simple maintenance or
oversights, which can be solved easily without calling out
an engineer. Before contacting your local Service Centre,
please carry out the checks listed below.
During machine operation it is possible that the red pilot
light of button 7 blinks, one of the following alarm codes
appears on the display and some acoustic signals sound
every 20 seconds to indicate that the machine is not working:
20
•
•
: problem with the water supply.
: problem with the water draining.
•
: door open.
Once the problem has been eliminated, press the button 7
to restart the programme. If after all checks, the problem
persists, contact your local Service Centre.
www.zanussi.com
Problem
Possible cause/Solution
The door has not been closed.
• Close the door firmly.
The plug is not properly inserted in the power socket.
• Insert the plug into the power socket.
There is no power at the socket.
• Please check your domestic electrical installation.
The main fuse has blown.
The washing machine does not start: • Replace the fuse.
The selector dial is not correctly positioned and/or the button 7 has not been
pressed.
• Please turn the selector dial and press the button 7 again.
The delay start has been selected.
• If the laundry are to be washed immediately, cancel the delay start.
The Child Safety Lock has been activated.
• Deactivate the Child Safety Lock.
The machine does not fill:
The water tap is closed.
• Open the water tap.
The inlet hose is squashed or kinked.
• Check the inlet hose connection.
The filter in the inlet hose or in the inlet valve filter are blocked.
• Clean the water inlet filters (see ‘Cleaning the water inlet filters’ for more
details).
The door is not properly closed.
• Close the door firmly.
The machine fills then empties immediately:
The end of the drain hose is too low.
• Refer to relevant paragraph in «Water drainage» section.
The machine does not empty and/or
does not spin:
The drain hose is squashed or kinked.
• Check the drain hose connection.
The drain filter is clogged.
• Clean the drain filter.
An option or a programme that ends with the water still in the tub or that eliminates all the spinning phases has been selected.
• Select the draining or spinning programme.
The laundry is not evenly distributed in the drum.
• Redistribute the laundry.
www.zanussi.com
21
Problem
Possible cause/Solution
There is water on the floor:
Too much detergent or unsuitable detergent (creates too much foam) has been
used.
• Reduce the detergent quantity or use another one.
Check whether there are any leaks from one of the inlet hose fittings. It is not
always easy to see this as the water runs down the hose; check to see if it is
damp.
• Check the water inlet hose connection.
The drain or inlet hose is damaged.
• Replace it with a new one.
The filter has not been properly screwed in after cleaning action.
• Screw the filter fully in.
Unsatisfactory washing results:
Too little detergent or unsuitable detergent has been used.
• Increase the detergent quantity or use another one.
Stubborn stains have not been treated prior to washing.
• Use commercial products to treat the stubborn stains.
The correct temperature was not selected.
• Check if you have selected the correct temperature.
Excessive laundry load.
• Reduce the laundry load.
The door will not open:
The programme is still running.
• Wait the end of washing cycle.
The door lock has not been released.
• Wait until the door is released.
There is water in the drum.
• Select drain or spin programme to empty out the water.
The machine vibrates is noisy:
The transit bolts and packing have not been removed.
• Check the correct installation of the appliance.
The support feet have not been adjusted
• Check the correct levelling of the appliance.
The laundry is not evenly distributed in the drum.
• Redistribute the laundry.
Maybe there is very little laundry in the drum.
• Load more laundry.
22
www.zanussi.com
Problem
Possible cause/Solution
Spinning starts late or the machine
does not spin:
The electronic unbalance detection device has cut in because the laundry is
not evenly distributed in the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume. If, after 10 minutes, the laundry is still
not evenly distributed in the drum, the machine will not spin. In this case, redistribute the load manually and select the spin programme.
• Redistribute the laundry.
The load is too small.
• Add more items, redistribute the load manually and then select the spinning
programme.
The machine makes an unusual
noise:
The machine is fitted with a type of motor which makes an unusual noise compared with other traditional motors. This new motor ensures a softer start and
more even distribution of the laundry in the drum when spinning, as well as
increased stability of the machine.
No water is visible in the drum:
Machines based on modern technology operate very economically using very
little water without affecting performance.
The machine does not dry or does
not dry properly:
The drying time or the dryness degree has not been selected.
• Select the drying time or the dryness degree.
The water tap is not turned on.
• Open the water tap.
The drain filter is clogged.
• Clean the drain filter.
The machine is overloaded.
• Reduce the laundry load in the drum.
The selected drying programme, time or dryness degree was not suitable for
the laundry.
• Select the suitable drying programme, time or dryness degree for the laundry.
The laundry is full of different colored fluff:
The fabrics washed in the previous cycle released fluff of a different color .
• The drying phase helps to eliminate some fluff.
• Clean the clothes with a fluff remover.
In case of an excessive amount of fluff in the drum run the special programme
to clean it (refer to “FLUFF IN THE FABRICS” for more details).
If you are unable to identify or solve the problem, contact
our service centre. Before telephoning, make a note of the
model, serial number and purchase date of your machine:
the Service Centre will require this information.
www.zanussi.com
Mod. ... ... ...
Prod. No. ... ... ...
Ser. No. ...
23
Technical data
Dimensions
Width
Height
Depth
60 cm
85 cm
63 cm
Electrical connection
Voltage - Overall power - Fuse
Information on the electrical connection is given on the rating plate, on the
inner edge of the appliance door.
Water Supply Pressure
Minimum
Maximum
0,05 MPa
0,8 MPa
Level of protection against ingress of solid particles and moisture
IPX4
Maximum Load
Cotton
8 kg
Maximum Dry Load
Cotton
Cotton Big Capacity
Synthetic
4 Kg
6 Kg
3 Kg
Spin Speed
Maximum
1200 rpm
Consumption values
Programme
Energy consumption
(KWh)
Water consumption (litres)
ALGODÓN 90°
2.1
65
ALGODÓN 60°
1.4
60
ALGODÓN ECONÓMICO 1)
1.36
57
ALGODÓN 40°
0.77
60
SINTÉTICOS 40°
0.6
54
DELICADOS 40°
0.6
63
LANA / A MANO 30°
0.25
55
Programme duration
(Hours.Minutes)
For the duration of the programmes, please refer to
the display on the control
panel.
1) This programme at 60°C with a load of 8 kg is the reference programme for the data entered in the energy label, in compliance with
EEC 92/75 standards.
The consumption data shown on this chart is to be considered purely indicative, as it may vary depending on the
quantity and type of laundry, on the inlet water temperature and on the ambient temperature.
Installation
Unpacking
All transit bolts and packing must be removed before using the appliance.
You are advised to keep all transit devices so that they can
be refitted if the machine ever has to be transported again.
24
www.zanussi.com
Accurate levelling prevents vibration, noise and displacement of the machine during operation. Never place cardboard, wood or similar materials under the machine to
compensate for any unevenness in the floor.
If necessary, check the
setting with a spirit level.
After removing all the
packaging, carefully lay
machine on it's back to remove the polystyrene base
from the bottom.
Remove the power supply
cable and the hoses from
the hose holders on the
rear of the appliance.
Rubber feet kit (4055126249)
Available from your authorized dealer.
The rubber feet are particularly recommended on floating,
slippery and wooden floors.
Mount the rubber feet to prevent vibration, noises and displacement of the appliance during operation.
Read carefully the instructions supplied with the kit.
Unscrew the three bolts.
Slide out the relevant plastic spacers.
Water inlet
Warning! This appliance must be connected to a
cold water supply
Caution! Before connecting up the appliance to new
pipework or to pipework that has not been used for
some time, run off a reasonable amount of water to flush
out any debris that may have collected
Caution! Do not use the hose from your previous
appliance to connect to water supply.
Open the porthole and remove the polystyrene
block fitted on the door
seal.
Fill the smaller upper hole
and the two large ones
with the corresponding
plastic plug caps supplied
in the bag containing the
instruction booklet.
Connect the hose to a tap
with a 3/4” thread. Always
use the hose supplied with
the appliance.
Positioning
Install the machine on a flat hard floor. Make sure that air
circulation around the machine is not impeded by carpets,
rugs etc. Check that the machine does not touch the wall
or other kitchen units. Level the washing machine by raising or lowering the feet. The feet may be tight to adjust as
they incorporate a self locking nut, but the machine MUST
be level and stable.
Any necessary adjustment can be made with a spanner.
www.zanussi.com
25
In this case, make sure the end cannot come unhooked
when the machine is emptying. This could be done by
tying it to the tap with a piece of string or attaching it to
the wall.
35°
45°
The other end of the inlet hose which connects to the
appliance can be turned as showed in the picture.
Do not place the inlet hose downwards. Angle the hose
to the left or right depending on the position of your
water tap. Set the hose correctly by loosening the ring
nut. After positioning the inlet hose, be sure to tighten
the ring nut again to prevent leaks.
Caution! The inlet hose must not be lengthened. If it
is too short and you do not wish to move the tap,
you will have to purchase a new, longer hose specially
designed for this type of use.
In a sink drain pipe branch. This branch must be above
the trap so that the bend is at least 60 cm above the
ground.
Directly into a drain pipe at a height of not less than 60
cm and not more than 90 cm. The end of the drain hose
must always be ventilated, i.e. the inside diameter of the
drain pipe must be larger than the outside diameter of
the drain hose. The drain hose must not be kinked.
Water drainage
The end of the drain hose can be positioned in three ways:
Hooked over the edge of a
sink using the plastic hose
guide supplied with the
machine.
Electrical connection
Information on the electrical connection is given on the
rating plate on the inner edge of the appliance door.
Check that your domestic electrical installation can take
the maximum load required, also taking into account any
other appliances in use.
Caution! Connect the machine to an earthed socket.
Caution! The power supply cable must be easily
accessible after installing the machine.
Caution! Should the appliance power supply cable
need to be replaced, this must be carried out by a
Service Centre.
Caution! The manufacturer does not accept any
responsibility for damage or injury through failure
to comply with the above safety precaution.
26
www.zanussi.com
Environment concerns
The symbol on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it should be taken to the
appropriate collection point for the recycling of electrical
and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential
negative consequences for the environment and human
health, which could otherwise be caused by inappropriate
waste handling of this product. For more detailed
information about recycling of this product, please contact
your local council, your household waste disposal service
or the shop where you purchased the product.
Packaging materials
The materials marked with the symbol
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
www.zanussi.com
are recyclable.
This means that they can be recycled by disposing of
them properly in appropriate collection containers.
Ecological hints
To save water, energy and to help protect the environment,
we recommend that you follow these tips:
• Normally soiled laundry may be washed without prewashing in order to save detergent, water and time (the
environment is protected too!).
• The machine works more economically if it is fully loaded.
• With adequate pre-treatment, stains and limited soiling
can be removed; the laundry can then be washed at a
lower temperature.
• Measure out detergent according to the water hardness, the degree of soiling and the quantity of laundry
being washed.
27
132945671-A-502011
www.zanussi.com/shop
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
