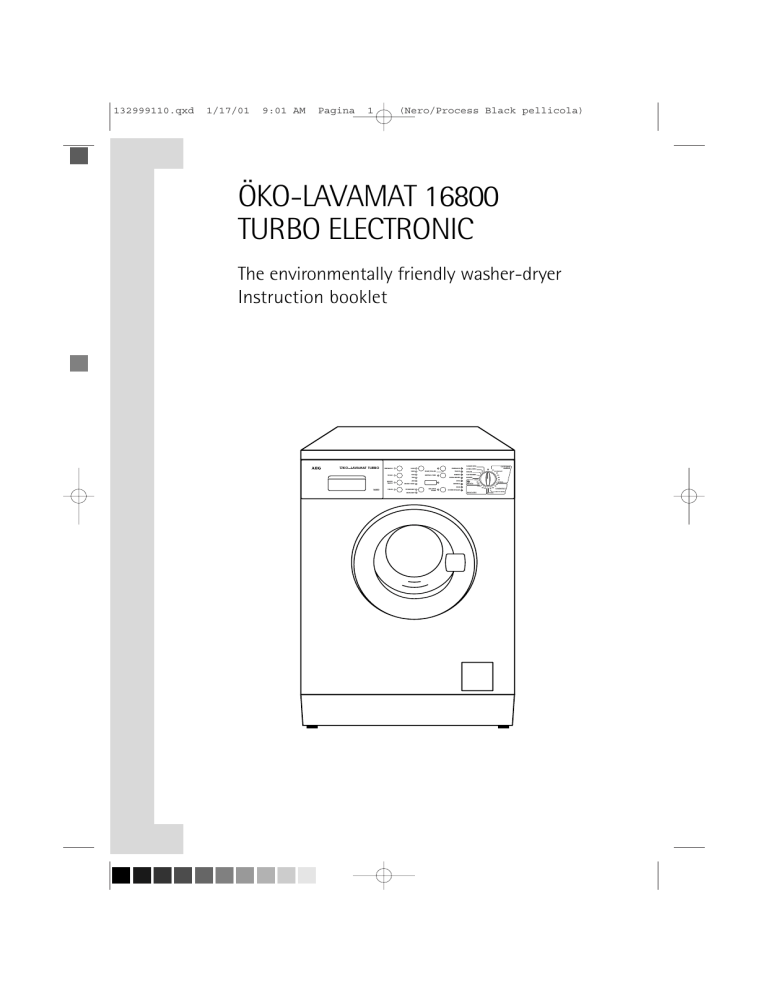

ÖKO-LAVAMAT 16800
TURBO ELECTRONIC
The environmentally friendly washer-dryer
Instruction booklet
ÖKO_LAVAMAT TURBO
PREWASH
SOAK
PREWASH
1600
1200
START/PAUSE
900
DRYING TIME
16800
QUICK
WASH
400
SPIN
RINSE HOLD
DRYING
STAIN
STORE DRY
IRON DRY
AUS ERFAHRUNG GUT
WASH
RINSES
EXTRA RINSE
700
DELAYED
START
SHORT SPIN
LONG SPIN
95
DRAIN
COTTONS
LINENS
ECONOMY
60
50
40
SOFTENERS
RINSES
30
COLD
WOOL
30
40
COLD
END
OVERDOSAGE
DELICATES
DRYING
30
40
40
40
DRYING
60
50
SYNTHETICS
EASY TO IRON
132999110.qxd
1/17/01
9:01 AM
Pagina
2
(Nero/Process Black pellicola)
Dear customer,
Please read these operating instructions carefully and pay particular
attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and
pass it on to any future owners.
The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is particularly important for your safety or correct
functioning of the appliance.
This symbol guides you, step by step, in the operation of the appliance.
The information marked with this symbol provides additional instructions and practical tips on the use of the appliance.
Tips and information about economical and ecological use of the
machine are marked with the clover symbol.
If you require assistance or advice on your appliance, please contact our
customer care department by letter or telephone:
Customer Care Department
AEG Domestic Appliances
55-77 High Street
Slough
Berkshire SL1 1DZ
Tel: 08705 350350*
* calls to this number may be recorded for training
purposes.
Important
Your machine is fitted with a balance control device, which ensures the machine is stable during the spin.
If the wash load appears not to have been spun sufficiently at the end of the
wash cycle, because it is not evenly distributed in the drum, the balance control device may have operated. It will therefore be necessary to redistribute
the wash load manually and select a spin programme. For more detailed information see the section headed "Something Not Working".
Printed on recycled paper.
People who think ecologically, act accordingly....
2
132999110.qxd
1/17/01
9:01 AM
Pagina
3
(Nero/Process Black pellicola)
Contents
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Tips for environmental protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Main features of your washer-dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Programme selector dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
START/PAUSE button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
DELAY START button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
ELECTRONIC DRYING buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
DRYING TIME button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Programme Option buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
STAIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
QUICK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
SOAK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
PREWASH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
SPIN SPEED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
RINSE HOLD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Programme progress display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Cancelling a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Altering a programme which is running . . . . . . . . . . . . . . . . . . . . . . . . . 16
Opening the door after the programme has started . . . . . . . . . . . . . . . . 16
Detergent dispenser drawer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Before the first wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Preparing the wash cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Sorting out and preparing the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Weight of laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Types of fabric and care labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Detergents and additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-22
Which detergent? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
And in which form? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Fabric conditioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3
132999110.qxd
1/17/01
9:01 AM
Pagina
4
(Nero/Process Black pellicola)
Contents
Preparing the drying cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Garments not suitable for drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Drying symbols on garment labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Duration of the drying cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Modification of the drying time or degree of drying. . . . . . . . . . . . . . . . . . 24
Fibre residue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Additional drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
How to wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Load the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Add detergent and additive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Selection of the desired wash programme . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Selection of the desired options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Selection of the SPIN SPEED or RINSE HOLD option . . . . . . . . . . . . . . . . . . 26
Selection of the EXTRA RINSE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Selection of the DELAY START option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Starting the programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
At the end of the programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Automatic washing and drying (NON-STOP programme). . . . . . . . . . . . 30
How to dry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Drying only. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Programme charts: wash and special programmes . . . . . . . . . . . . . . 31-32
Programme chart: timed drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Consumption data for timed drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
After each wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Periodical cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Detergent dispenser drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Drain filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Water inlet filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Emergency emptying out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Frost precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Something not working? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37-40
Unsatisfactory washing results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
4
132999110.qxd
1/17/01
9:01 AM
Pagina
5
(Nero/Process Black pellicola)
Contents
Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Service and Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43-44
Guarantee Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
European Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Instructions for installation and electrical connection . . . . . . . . . . . . . . 47
Safety instructions for the installer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Dimensions of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Front view and side view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Levelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Water inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Water drainage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Permanent connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
5
132999110.qxd
1/17/01
9:01 AM
Pagina
6
(Nero/Process Black pellicola)
Safety instructions
Your safety is of paramount importance, please ensure you read this
instruction book before installing or using this appliance.
General safety
• Repairs to the machine must be carried out only by qualified personnel. Repairs carried out by inexperienced persons could cause injury or
serious malfunctioning. Contact your local AEG Service Force Centre.
• Never start the machine if the mains cable is damaged or the control
panel or worktop are damaged allowing inner components to be
accessible.
• Unplug the appliance before carrying out any cleaning or maintenance operations.
• Never pull the mains cable to remove the plug from the socket;
always take hold of the plug itself.
• During high temperature wash programmes and during the drying
cycle, the door glass may get hot.
• Let the water cool down before carrying out emergency emptying or
before opening the door in an emergency.
Installation
• Follow the installation instructions carefully.
• Carry out a first wash without laundry (COTTONS 60, with half the
amount of detergent) in order to remove any manufacturing residue
from the tub and the drum.
6
132999110.qxd
1/17/01
9:01 AM
Pagina
7
(Nero/Process Black pellicola)
Safety instructions
Child safety
• This appliance is designed to be operated by adults. Children should not
be allowed to tamper with the controls or play with the appliance.
• Pets and children have been known to climb into washing machines.
Please check the drum before use.
• Keep all packaging well away from children.
• Keep all detergents in a safe place out of children’s reach.
• When disposing of the appliance, cut off the mains cable, and destroy
the plug. Disable the door catch to prevent young children being
trapped inside.
During use
• Always unplug the appliance and turn off the water tap after use.
• This appliance is designed for domestic use only. If the machine is
used for any other purposes or is not used correctly, the manufacturer accepts no responsibility for any possible damage that might occur.
• For safety reasons, the appliance must not be modified.
• Use only detergents suitable for washing machines and follow the
manufacturer’s instructions.
• Garments which have been in contact with flammable solvents
should not be machine washed.
• Dyes and bleaching agents may only be used if specifically permitted
by the manufacturer of these products. We cannot be held liable for
any damage.
7
132999110.qxd
1/17/01
9:01 AM
Pagina
8
(Nero/Process Black pellicola)
Disposal
Packaging materials
The materials marked with the symbol
are recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by disposing of them properly in
appropriate collection containers.
Machine
Use authorised disposal sites for your old appliance. Help to keep your
country tidy!
Tips for environmental protection
To save water, energy and to help protect the environment, we recommend
that you follow these tips:
• Normally soiled laundry may be washed without prewashing in order
to save detergent, water and time (the environment is protected too!).
• Use the energy saving programme when washing normally soiled garments.
• The machine works more economically if it is fully loaded (for both
washing and drying cycles).
• When small loads are washed, use only half to two thirds of the recommended amount of detergent.
• The machine will consume less energy if the laundry is adequately
spun before being dried.
• With adequate pre-treatment, stains and limited soiling can be
removed; the laundry can then be washed at a lower temperature.
8
132999110.qxd
1/17/01
9:01 AM
Pagina
9
(Nero/Process Black pellicola)
Main features of your washer-dryer
• Programme and temperature setting using the programme selector.
• Stain programme for effectively treating stained washing.
• Energy saving programme for normally soiled cotton items.
• Speed for the final spin can be reduced to 1200, 900, 700 or 400
rpm.
• RINSE HOLD: the laundry is left immersed in the final rinse water to
prevent creasing.
• Delay timer: programme start can be delayed by 1 to 19 hours (e.g.
to times with a more economical power rate).
• Programme progress display showing the programme steps selected
and the programme phase which is running.
• Because of its gentle washing action, the special wool cycle washes
your garments with extreme care.
• The drying programmes will enable you to have dry and soft laundry in a short time.
• 3-compartment drawer for detergent and fabric softener.
• Unbalance detection device: to prevent vibration during spinning.
9
132999110.qxd
1/17/01
9:01 AM
Pagina
10
(Nero/Process Black pellicola)
Description of the appliance
Front view
Detergent drawer
Control panel
ÖKO_LAVAMAT TURBO
PREWASH
PREWASH
1600
1200
START/PAUSE
SOAK
900
DRYING TIME
QUICK
WASH
400
SPIN
RINSE HOLD
DRYING
16800
STAIN
STORE DRY
WASH
RINSES
EXTRA RINSE
700
DELAYED
START
SHORT SPIN
LONG SPIN
COTTONS
LINENS
ECONOMY
60
50
40
SOFTENERS
RINSES
30
COLD
WOOL
30
40
COLD
END
OVERDOSAGE
IRON DRY
95
DRAIN
DELICATES
DRYING
30
40
40
40
DRYING
60
50
SYNTHETICS
EASY TO IRON
Door
Drain filter
Adjustable feet
10
132999110.qxd
1/17/01
9:01 AM
Pagina
11
(Nero/Process Black pellicola)
Description of the appliance
Control panel
E
B
PREWASH
PREWASH
1600
1200
START/PAUSE
SOAK
900
DRYING TIME
700
EXTRA RINSE
QUICK
WASH
400
SPIN
RINSE HOLD
DRYING
STORE DRY
STAIN
WASH
RINSES
A
B
C
D
E
F
G
H
J
=
=
=
=
=
=
=
=
=
LONG SPIN
H
60
50
40
RINSES
30
COLD
WOOL
30
40
COLD
OVERDOSAGE
FG
COTTONS
LINENS
ECONOMY
SOFTENERS
DELICATES
C D
95
DRAIN
END
DELAYED
START
IRON DRY
A
SHORT SPIN
DRYING
60
30
40
40
40
DRYING
50
SYNTHETICS
EASY TO IRON
J
Option buttons
Spin speed button
Electronic drying button
Display
START/PAUSE button
Delay start button
Drying time button
Programme progress display
Programme selector dial
Programme selector dial
The programme selector determines the type of washing cycle (e.g. water
level, drum movement, number of rinses), the washing temperature and
enables the required drying pro- SHORT SPIN
COTTONS
LINENS
95
gramme to be selected according to LONG SPIN
ECONOMY
DRAIN
60
the type of laundry.
SOFTENERS
50
40
The selector dial is divided into 6 sec- RINSES
COLD
30
tions:
30
DRYING
40
WOOL
60
• Cottons-Linens
COLD
50
30
40
40
40
SYNTHETICS
• Synthetics
EASY TO IRON
DRYING
DELICATES
• Delicates
• Wool
(hand washing)
• Special programmes
• Reset programme O
The selector dial can be turned either clockwise or anticlockwise.
Position E corresponds to the ENERGY SAVING programme at approx.
67°C for normally soiled laundry, extended washing time (cannot be
combined with QUICK WASH).
11
132999110.qxd
1/17/01
9:01 AM
Pagina
12
(Nero/Process Black pellicola)
Description of the appliance
Position 40°C Easy to iron.
In this position the laundry is gently washed and spun to avoid any
creasing. In this way ironing is easier.
Position COLD = cold wash
START/PAUSE button
This button has three functions:
a) Start
After having selected the required programme, press this button to start
the machine. If you have selected the DELAYED START option, the
machine starts its hourly countdown.
b) Pause
To interrupt a programme which is running, press the START/PAUSE
button: the information on the display starts to flash.
To restart the programme from the point at which it was interrupted,
press the START/PAUSE button again.
c) Empty out water
At the end of a programme which ends with water in the drum (RINSE
HOLD option), press the START/PAUSE button to empty out the water:
the machine will empty and spin.
DELAYED START button
The wash programme can be delayed from 1 hour up to a maximum of
19 hours.
The button must be pressed after selecting the programme and
before pressing the START/PAUSE button.
The figures indicating the delay appear for about 5 seconds in the display. The duration of the selected wash programme is then displayed.
After depressing the START/PAUSE button, the machine starts its hourly
countdown.
To alter or cancel the preset delay, press the START/PAUSE button, then
press the DELAYED START button until the required time is displayed or,
if you wish to cancel the delay, until the symbol 0 h is displayed.
Then press the START/PAUSE button again.
When the delay is cancelled, the display shows the duration of the wash
programme previously selected.
12
132999110.qxd
1/17/01
9:01 AM
Pagina
13
(Nero/Process Black pellicola)
Description of the appliance
ELECTRONIC DRYING button
STORE DRY
IRON DRY
This button enables you to choose the required degree of drying for
cottons and synthetics:
- Store dry
- Iron dry (not for synthetics)
The drying time is automatically adjusted by the machine: the laundry
will be dried to the selected degree of dryness.
DRYING TIME button
If you wish to carry out a timed programme instead of an electronic programme push the button until the drying time you want appears in the
display according to the fabrics (cotton or synthetics) you have to dry.
For COTTON you can select a drying time from 10 minutes to 130 minutes.
For SYNTHETICS you can select a time from 10 minutes to 100 minutes.
Programme Option buttons
Depending on the programme, different functions can be combined.
These must be selected after choosing the desired programme and
before depressing the START/PAUSE button.
When these buttons are pressed, the corresponding pilot lights come on.
When they are pressed again, the pilot lights go out.
STAIN
To treat heavily soiled or stained laundry with stain remover (extended main
wash with time optimised stain action phase, not selectable for wool or programmes with temperatures lower than 40°C).
This function cannot be used with QUICK WASH, SOAK and PREWASH.
QUICK WASH
By pressing this button the washing time is reduced. For use when
washing lightly soiled laundry.
This option is not available with the wool and economy programme and
cannot be used with STAIN.
SOAK
The machine performs a soak of about 30 minutes at 30°C. By pressing
the DELAYED START button the soak time can be prolonged up to 10
hours max. After this time the wash cycle will automatically start.
This function cannot be used with WOOL, PREWASH or STAIN programme.
13
132999110.qxd
1/17/01
9:01 AM
Pagina
14
(Nero/Process Black pellicola)
Description of the appliance
The soak programme ends with a short spin in programmes for Cotton
and Synthetics, and with emptying of the water without spinning for
Delicates.
PREWASH
The machine performs a prewash cycle at 30°C max. The prewash cycle
ends with a short spin in programmes for Cotton and Synthetics, and
with emptying of the water without spinning for Delicates.
This option is not available with the wool programme and cannot be
used with SOAK and STAINS.
For use when washing heavily soiled laundry.
Important: By depressing at the same time PREWASH and QUICK WASH
buttons the machine will perform an extra rinse (see page 27)
SPIN SPEED
Press this button to reduce the maximum speed of the final
speed proposed by the machine for the selected programme or
to select RINSE HOLD option.
The maximum spin speed for cotton is 1600 rpm, for synthetics and wool 900 rpm and for delicates 700 rpm.
1600
1200
900
700
400
RINSE HOLD
RINSE HOLD
By selecting this option, the last rinse water is not emptied out, to
prevent the fabrics from creasing. When the programme has finished,
the pilot light END on the programme progress display illuminates to
indicate that the water must be emptied out.
To empty out water:
• press the START/PAUSE button: after emptying, the machine performs
the spin cycle required for the type of wash selected;
• select the DRAIN programme to empty out the water without spinning.
Warning! The programme selector dial must be turned first to RESET O
and then to the DRAIN programme.
If the water is not emptied out, the machine automatically empties
itself after 18 hours.
The RINSE HOLD option cannot be selected for the automatic WASHING &
DRYING programme.
14
132999110.qxd
1/17/01
9:01 AM
Pagina
15
(Nero/Process Black pellicola)
Description of the appliance
Display
The display shows the following information:
• Duration of the selected programme (in minutes), calculated automatically on the basis of the maximum recommended load for each type
of fabric.
• Selected drying time (max. 130 minutes for cotton, 100 minutes for
synthetics).
After the programme has started, the time remaining is updated every
minute.
• When the programme has finished, a steadily lit zero is displayed.
• Delayed start, (19 hours max.) programmed using the special button.
The countdown is updated every hour.
• Alarm code indicating a fault in the machine operation (see page 37).
Programme progress display
By selecting the wash programme, the pilot lights corresponding to the various phases making up the programme
come on.
After the machine has started, only the running phase
pilot light stays on. When the programme has finished,
the END pilot light comes on.
PREWASH
WASH
RINSES
EXTRA RINSE
SPIN
DRYING
END
OVERDOSAGE
When the programme has finished, if the OVERDOSAGE light comes on,
it indicates that too much detergent has been used or that the drain filter is blocked.
15
132999110.qxd
1/17/01
9:01 AM
Pagina
16
(Nero/Process Black pellicola)
Description of the appliance
Cancelling a programme
To cancel a programme which is running, turn the programme selector
dial to the RESET O position.
Warning! After a programme which ends with water in the drum
(RINSE HOLD option), turn the selector dial first to O and then to the
DRAIN programme.
Altering a programme which is running
To alter a programme, first set the machine to PAUSE by pressing the
START/PAUSE button.
Any function can be modified before the machine starts it. After selecting the new option press the START/PAUSE button again to re-start the
selected programme.
To modify the selected programme turn the programme selector dial to
O and then choose a new programme.
The water is not emptied out and after pressing the START/PAUSE button again the machine restarts with the newly selected programme.
Opening the door after the programme has started
To open the door set the machine to PAUSE by pressing the START/PAUSE
button.
The door can be opened if:
• the machine is not already heating or drying;
• the water level is not above the bottom edge of the door;
• the drum is not turning.
The light on the control panel beside the START/PAUSE button indicates
if the door can be opened:
• green light: the door can be opened;
• unlit light: the door cannot be opened;
• flashing red light: the door is open.
16
132999110.qxd
1/17/01
9:01 AM
Pagina
17
(Nero/Process Black pellicola)
Description of the appliance
Detergent dispenser drawer
Compartment for prewash or soak detergent and stain remover. The prewash
or soak detergent is added at the beginning of the wash programme. The
stain remover is added during the STAIN-Action phase in the main wash.
Compartment for powder or liquid detergent used for main wash.
It is emptied at the beginning of the wash cycle.
Compartment for liquid additives (fabric softener, starch).
It is emptied at the last rinse.
The quantity of additives must not exceed the “MAX” mark in the
drawer.
Before the first wash
Before your first wash, we recommend that you run a cotton cycle at
60°C, without any laundry in the machine, to remove any manufacturing residue from the drum and tub.
Pour 1/2 a measure of detergent into the dispenser drawer and start the
machine.
17
132999110.qxd
1/17/01
9:01 AM
Pagina
18
(Nero/Process Black pellicola)
Preparing the wash cycle
Sorting out and preparing the laundry
• Sort out the laundry according to type of fabrics and care labels (see
“Types of fabric and care labels”).
• Empty pockets.
• Remove any metal parts (safety pins, clips, etc.).
• To prevent the laundry from getting damaged and forming bundles,
it is advisable to close zips, button up pillowcases and quilt covers and
tie up loose straps such as those of aprons.
• Turn double faced items inside out (sleeping bags, anoraks, etc.)
• Turn coloured knitted fabrics, woollens and fabrics with trim inside
out.
• Wash small and delicate items (baby socks, tights) inside a laundry net
or in a pillow case closed with a zip, or in larger socks.
• Treat curtains with special care. Remove all metal or plastic hooks or
put them in a net or a bag. We decline any responsibility in case of
damage.
• Whites and coloureds must be washed separately: white items can
loose their whiteness.
• New coloured fabrics often have excess dyes; it is advisable to wash
them separately for the first time.
• Wash small and large items together; this improves the washing result
and the laundry is better distributed during spinning.
• Shake out garments before putting them into the machine.
• Insert each garment separately.
18
132999110.qxd
1/17/01
9:01 AM
Pagina
19
(Nero/Process Black pellicola)
Preparing the wash cycle
Weight of laundry
Sort of laundry
Approximate
dry weights
Bathrobes
1200 g
Work shirts
300-600 g
Quilt covers
700 g
Sheets
500 g
Blouses
100 g
Hand towels
200 g
Tea towels
100 g
Shirts
200 g
Pillowcases
200 g
Night-gowns/Pyjamas
200-250 g
Tablecloths
200-300 g
Underwear
250 g
Types of fabric and care labels
The labels on garments help you to select the most suitable wash programme. The laundry should be sorted out according to the type of fabric and the instructions indicated on care labels.
Temperatures indicated on labels are always maximum temperatures.
Cotton 95
Linen and cottons marked with this symbol can be washed at high temperatures.
Cotton 60
Linen and cottons marked with this symbol are colourfast and can be
washed at 60°C.
Cotton 40 30
Garments marked with these symbols have delicate colours, therefore
the washing temperature must not exceed these values.
Synthetics 40 60
Mixed and synthetic fabrics marked with these symbols require a gentle
wash programme and they must therefore be washed using the specific
programme.
19
132999110.qxd
1/17/01
9:01 AM
Pagina
20
(Nero/Process Black pellicola)
Preparing the wash cycle
Delicates 40 30
Microfibres, synthetics or curtains marked with these symbols require a
very gentle treatment.
The DELICATES programme is suitable for this type of fabric.
30
40
Woollens and particularly delicate items
Fabrics such as wool, wool mix or silk marked with this symbol are particularly sensitive to machine washing.
The WOOLLENS programme is suitable for this type of fabric.
If the label has the symbol
(do not wash), the garments must not
be machine washed!
20
132999110.qxd
1/17/01
9:01 AM
Pagina
21
(Nero/Process Black pellicola)
Preparing the wash cycle
Detergents and additives
Which detergent?....
To ensure you obtain the best wash results from your appliance, it is
important to use the right detergent in your everyday wash, and only
detergents recommended for use in automatic machines.
To maintain the appearance of your clothes and household textiles and
to make them last longer you should use different types of detergent
for different washes, whether for whites, colours or delicates.
WHITES
We recommend the Ariel product range which is
biological and designed to provide excellent cleaning and stain removal even at low temperatures.
NON BIOLOGICAL
If you prefer to use a non biological detergent, which
does not contain enzymes we recommend Fairy. Fairy
provides good cleaning and stain removal.
COLOUREDS
For coloured items you should use a detergent which is
designed to clean while maintaining the original colour.
Ariel Color does not contain bleach and therefore helps
to preserve colours.
DELICATE ITEMS
When washing delicates such as woollens, you
should use a product which is specially designed to
care for fine fabrics. Dreft Automatic is suitable for
woollens and other delicates.
LAUNDRY BLEACH
For additional stain removal you may wish to use a
product such as Ace Gentle Bleach which is used in
addition to your chosen detergent. Ace is suitable for all
washable fabrics including silks, woollens and coloureds.
STAIN REMOVER
For heavily soiled garments to be washed with STAINAction, you should use stain removers such as VANISH
In-Wash, Ecover Stain Salt and GloWhite Booster.
NEW
TOUGHER ON
STAINS
IN-WASH
STAIN REMOVER
FOR WHITES AND COLOURS
JUST ADD TO DETERGENT
21
132999110.qxd
1/17/01
9:01 AM
Pagina
22
(Nero/Process Black pellicola)
Preparing the wash cycle
And in which form?
Not only are there different types of detergent, but they are also available
in different forms. Whether you chose a powder or liquid in traditional or
compact form is your own personal choice.
TRADITIONAL POWDERS
Pour the powder directly into the dispenser drawer. Do not sprinkle
powder onto clothes in the machine drum.
TRADITIONAL LIQUIDS
Liquid can be placed in the main wash compartment of the detergent
drawer marked with the symbol
, start the machine immediately
upon placing the detergent in the dispenser drawer.
Alternatively the detergent is measured into the specially designed dosing
device* which should be placed on top of the laundry, and at the back of
the machine drum.
COMPACT POWDERS AND LIQUIDS
Compact detergents (or concentrates as they are also known) are available
in liquid or powder form, and generally require a smaller dosage. Follow the
manufacturer’s instructions to ensure the most economical usage. Pour the
detergent directly into the dispenser drawer, or alternatively measure the
detergent into the specially designed dosing device* which should be
placed on top of the laundry, and at the back of the machine drum.
* If you use a dosing device in a washer dryer, please ensure the dosing
device/ball is removed before carrying out a drying programme.
FABRIC CONDITIONERS
These are ideal for improving “softness”, and also reduce static cling on
easy-cares and make ironing easier. They are available in two types:
• For example Lenor liquid fabric softener, for use in the
washing machine/washer dryer. The liquid fabric
softener should be poured into the compartment
marked with the symbol . Follow the manufacturer’s dosage instructions and never exceed the MAX
level.
• Bounce conditioning sheets for use in a tumble dryer. We recommend the conditioning sheets are
pinned (using a safety pin) to an article of laundry
and placed in the tumble dryer.
22
132999110.qxd
1/17/01
9:01 AM
Pagina
23
(Nero/Process Black pellicola)
Preparing the drying cycle
As a dryer, the machine works on the condensation principle.
Therefore, the water tap must be open and the drain hose must
drain water into a sink or into the drain pipe, even during the drying cycle.
Load
Sort of laundry
Linen and cottons
Synthetics
max. load
(dry weight)
2.75 kg
2 kg
Warning:
Loads of washed laundry exceeding these values must be divided
before being dried, otherwise poor results will be obtained.
Garments not suitable for drying
• Particularly delicate items such as synthetic curtains, woollen and silk,
garments with metal inserts, nylon stockings, bulky garments such as
anoraks, bedcovers, quilts, sleeping bags and duvets must not be
machine dried.
• Garments padded with foam-rubber or materials similar to foamrubber must not be machine dried; they represent a fire hazard.
• Also, fabrics containing residues of setting lotions or hair sprays, nail
solvents or similar solutions must not be machine dried in order to
avoid the formation of harmful vapours.
23
132999110.qxd
1/17/01
9:01 AM
Pagina
24
(Nero/Process Black pellicola)
Preparing the drying cycle
Drying symbols on garment labels
Always look at the garment label to check whether garments can be
machine dried.
The following symbols refer to drying:
Machine drying is usually possible
Normal drying (normal temperature)
Gentle drying (reduced temperature)
Do not machine dry
Duration of the drying cycle
The drying time can vary according to
• the final spin speed;
• the required degree of drying (store dry or iron dry);
• the type of laundry;
• the size of load.
The usual drying times for the timed programmes are indicated in the
programme chart. As you become more familiar with the appliance, you
will discover the drying times that best suit your needs according to the
various type of fabric. It is a good idea to make a note of these times.
Modification of the drying time or degree of drying
If you wish to modify the drying time or the degree of drying when a drying programme is running, first depress START/PAUSE button to set the
machine to PAUSE. After modifying the time or degree, depress
START/PAUSE again to continue the programme.
Fibre residue
After drying fluffy fabrics, such as new towels, it is advisable to perform
the RINSE programme to be sure that any residue that may remain in
the tub is completely removed and does not stick to garments dried
afterwards.
After each drying cycle the filter should be checked and cleaned.
Additional drying
Should the laundry still be too wet at the end of the programme, set
another short drying time.
Warning! To prevent the formation of creases or shrinking of fabrics, avoid excessive drying.
24
132999110.qxd
1/17/01
9:01 AM
Pagina
25
(Nero/Process Black pellicola)
How to wash
Max. load
- cottons
- synthetics and delicates
- wool
5.5 kg
3 kg
2 kg
Load the laundry
Open the door.
Place the laundry in the drum, one item at a time. Distribute laundry as
evenly as possible. Close the door.
Add detergent and additive
Pull the drawer
out till it stops.
Pour the main
wash detergent
into compartment .
If you wish to
perform a prewash, a SOAK or
a STAIN-Action programme, pour detergent or stain remover into compartment .
Important!
Do not use normal detergent for the STAIN-Action programme,
always use a STAIN remover.
Pour the fabric softener into compartment
“MAX” mark.
Close the drawer gently, pushing it fully in.
without exceeding the
25
132999110.qxd
1/17/01
9:01 AM
Pagina
26
(Nero/Process Black pellicola)
How to wash
Selection of the desired wash programme
Turn the programme selector dial
to the desired position: the lights
corresponding to the different
phases making up the selected
programme light up.
The display shows the duration of
the programme.
PREWASH
WASH
RINSES
EXTRA RINSE
SHORT SPIN
LONG SPIN
COTTONS
LINENS
ECONOMY
60
50
40
SOFTENERS
RINSES
30
COLD
SPIN
DRYING
95
DRAIN
WOOL
30
40
COLD
END
DRYING
30
OVERDOSAGE
DELICATES
40
40
40
DRYING
60
50
SYNTHETICS
EASY TO IRON
Selection of the desired options
The options available depend on the degree of soiling of the
laundry. The corresponding light comes on.
PREWASH
SOAK
QUICK
WASH
STAIN
Selection of the spin speed or RINSE HOLD option
It is possible to select a lower spin speed by means of
the relevant button; the light corresponding to the
selected speed comes on.
When selecting the RINSE HOLD option, the laundry is
left immersed in the final rinse water.
1600
1200
900
700
400
RINSE HOLD
If the spin speed is not reduced , the final spin speed will
be as follows:
- cottons, linens
1600 r.p.m.
- synthetics
900 r.p.m.
- delicates
700 r.p.m.
- wool
(hand washing)
900 r.p.m.
26
132999110.qxd
1/17/01
9:01 AM
Pagina
27
(Nero/Process Black pellicola)
How to wash
EXTRA RINSE
This appliance is designed for saving water. However, for people with
a very delicate skin (allergic to detergents) it may be necessary to
rinse the laundry using an extra quantity of water (extra rinse).
The extra rinse is available only with the cotton, synthetics or delicate
programme.
Selection of the EXTRA RINSE option
Press simultaneously PREWASH and QUICK WASH buttons for about 2
seconds: the EXTRA RINSE light in the programme progress display
comes on.
This function stays permanently on. To remove it press PREWASH and
QUICK WASH buttons again until the EXTRA RINSE light comes off.
Selection of the DELAYED START option
To delay starting of a programme, press the DELAYED START button
before starting the machine. The figures corresponding to the
selected delay will be displayed for about 5 seconds, after which the
duration of the selected programme will appear on the display.
If the SOAK button has been pressed the selected delay will correspond to the soak time. If no delay time is selected the soak programme will last about 30 minutes.
When the START/PAUSE button is pressed, the selected delay will
appear again on the display and the machine starts its countdown.
27
132999110.qxd
1/17/01
9:01 AM
Pagina
28
(Nero/Process Black pellicola)
How to wash
Starting the programme
1. Check that the water tap is open.
2. Press START/PAUSE to start the programme.
If the Delay Start option has been selected the START/PAUSE
programme will start at the end of the countdown.
If the door light beside the START/PAUSE button is red and flashing at
the start of the programme it indicates that the door is open. Close
the door and press the START/PAUSE button again.
If the delay start option has been selected, the machine starts its
countdown, in hours, which will appear on the display. During this
period it is possible to load other laundry, to modify or cancel the
delay time.
• Load other laundry: press the START/PAUSE button. Open the door.
Load the laundry. Close the door and press the START/PAUSE button
again.
• Modify or cancel the delay time: press the START/PAUSE button.
Press the DELAYED START button until the time required appears on
the display, or 0h, if you wish to cancel it. Press the START/ PAUSE
button again.
Programme progress display
By selecting the wash programme, the pilot lights corresponding to the various phases making up the programme
come on. After the machine has started, only the running
phase pilot light stays on.
PREWASH
WASH
RINSES
EXTRA RINSE
SPIN
DRYING
END
OVERDOSAGE
Display
The time to the end of the programme decreases minute by
minute and appears on the display.
28
132999110.qxd
1/17/01
9:01 AM
Pagina
29
(Nero/Process Black pellicola)
How to wash
At the end of the programme
The machine stops automatically. A zero appears on the display. An
acoustic signal is clearly audible. The END light comes on in the programme progress display.
If the OVERDOSAGE light comes on it indicates that too much detergent has been used. At the next wash carefully follow the detergent
manufacturer’s instructions. Measure out detergent according to
amount, type, degree of soil of fabrics and water hardness.
This light could come on also when the drain filter is blocked.
If the RINSE HOLD option has been selected, the water must be emptied out before opening the door either
- by pressing the START/PAUSE button (the laundry will be spun at the
speed corresponding to the selected type of fabrics. The spin speed
can be reduced by means of the SPIN SPEED button)
- or by turning the selector dial to O and then to DRAIN and pressing
the START/PAUSE button again. In this case the water will be emptied,
but the laundry is not spun.
Turn the selector dial to O.
Remove the laundry from the drum.
Check that the drum is empty so as to avoid any forgotten items
being damaged in a subsequent wash (e.g. shrinking) or their colour
running into a load of whites.
Close the water tap.
Leave the door open to prevent the formation of mildew and unpleasant smells.
29
132999110.qxd
1/17/01
9:01 AM
Pagina
30
(Nero/Process Black pellicola)
How to wash
Automatic washing and drying
(NON-STOP programme)
Warning! For NON-STOP programmes, it is also essential not to exceed
the maximum load sizes of 2.75 kg for cotton and 2 kg for synthetics.
Load the laundry.
Add detergent and additive.
Do not use a dosing device when carrying out automatic washing and
drying programme.
Select the wash programme.
Select the required options by means of the relevant buttons. If possible,
do not select a spin speed lower than that proposed by the appliance to
avoid a too long drying time so saving energy.
By automatic washing and drying it is not possible to select a spin speed
lower than 900 r.p.m. for cottons and 700 r.p.m. for synthetics.
Select the drying time or degree of drying.
Start the programme by depressing the START/PAUSE button.
At the end of the programme, turn the selector dial to O.
Remove the laundry.
How to dry
Drying only
Max. load
- cottons
2.75 kg
- synthetics
2 kg
During the drying programme the water tap must be open and the
drain hose must be correctly positioned.
Turn the programme selector dial to DRYING for cottons or synthetics.
If you wish to carry out the timed drying press the relevant button until
the time you want appears in the display.
If you wish to carry out the electronic drying depress the relevant button
until the light corresponding to the degree of dryness required (store dry or
iron dry) illuminates.
Press the START/PAUSE button to start the programme.
At the end of the cycle turn the programme selector dial to O and
remove the laundry.
30
132999110.qxd
1/17/01
9:01 AM
Pagina
31
(Nero/Process Black pellicola)
Programme chart
Wash programmes
Wash
Temp.
programme
Fabrics
Additional
functions
Consumption*
Max.
Energy
Water Duration
load
kWh
lt.
min.
Cotton and linen,
for example normally soiled work
White
95°-60°
garments, sheets,
Cottons
household linen,
underwear, towels.
STAIN
SOAK
QUICK
PREWASH
EXTRA RINSE
RINSE HOLD
SPIN SPEED
5.5 kg
1.9
51
154
Cotton and linen, for
example normally to
lightly soiled sheets
and household linen.
PREWASH
EXTRA RINSE
RINSE HOLD
SPIN SPEED
5.5 kg 1.55
48
148
5.5 kg 1.08
48
135
Whites
ECONOMY
60°
STAIN
SOAK
Coloured cotton or QUICK
Coloured 60°-50°
linen fabric, shirts, PREWASH
cottons 40°-30°
underwear, towels. EXTRA RINSE
RINSE HOLD
SPIN SPEED
Synthetic fabrics, STAIN
SOAK
underwear,
QUICK
60°-50°
coloured garments, PREWASH
Synthetics
40°
non-shrink shirts, EXTRA RINSE
RINSE HOLD
blouses.
SPIN SPEED
STAIN
SOAK
40°-30° Delicate fabrics, for QUICK
PREWASH
Delicates
COLD example curtains. EXTRA RINSE
RINSE HOLD
SPIN SPEED
Wool
40°-30 Wool, wool mixCOLD tures, silk.
RINSE HOLD
SPIN SPEED
3 kg
1.0
55
89
3 kg
0.55
60
64
2 kg
0.4
63
55
In compliance with EC directive 92/75, the consumption figures indicated on the
energy label refer to the 60°C wash programme for cotton.
* The consumption data shown on this chart is to be used as a guide only, as it
may vary depending on the quantity and type of laundry, on the inlet water temperature and on the ambient temperature. It refers to the highest temperature
for each wash programme.
31
132999110.qxd
1/17/01
9:01 AM
Pagina
32
(Nero/Process Black pellicola)
Programme chart
Special programmes
Programme
Rinses
Consumption*
DescripAdditional Max.
Programme phases
Energy
Water Duration
tion
functions load
kWh
lt.
min.
This programme can 3 rinses with liquid
EXTRA RINSE
be used for additive.
RINSE HOLD 5.5 kg 0.025
48
20
rinsing hand Short spin.
SPIN SPEED
washed gar- (700 rpm max)
ments.
Hand washed
1 rinse with liquid
garments to
additive.
Softeners
be starched
Long spin.
or softened.
Drain
For emptying
out the last
rinse water in
programmes
with the Rinse
Hold option
Long
Spin
Separate spin
Long spin.
for cottons.
The water is emptied
out.
RINSE HOLD
5.5 kg
SPIN SPEED
/
SPIN SPEED 5.5 kg
Separate spin
for synthetics Short spin.
SPIN SPEED 3 kg
Short spin
and delicate (700 rpm max)
fabrics.
For cancelling the
programme which
O
is running or to
Reset
switch the machine
off.
/
16
27
/
/
3.5
/
/
12
/
/
3
/
/
/
* The consumption data shown on this chart is to be used as a guide only, as
it may vary depending on the quantity and type of laundry, on the inlet
water temperature and on the ambient temperature.
32
132999110.qxd
1/17/01
9:01 AM
Pagina
33
(Nero/Process Black pellicola)
Programme chart
Timed Drying
Degree of drying
Type of fabric
Max. load
Spin speed
Drying time
mins
Cotton and
linen (towels,
T-shirts,
bathrobes)
2.75 kg
1600
75-85
1.5 kg
1600
45-55
2 kg
900
85-95
1 kg
900
50-60
2.75 kg
1600
55-65
1.5 kg
1600
35-45
Store dry (*)
Suitable for items to
Synthetics and
put away without
mixed fabrics
ironing
(jumpers,
blouses,
underwear,
household
linen)
Iron dry
Suitable for ironing
Cotton and
linen (sheets,
tablecloths,
shirts, etc.)
(*) The STORE DRY drying programme for cotton is the reference programme
for the Energy Label data, in compliance with standard EEC 92/75.
Consumption data for timed drying
The values shown in the chart have been obtained in laboratory tests.
They may vary when the appliance is used at home, but they can be
used as a guide.
Spin speed
Max
load
Water
litres
Energy
kWh
Duration
minutes
Cotton
Store dry
1600
2.75 kg
24
1.8
75-85
Cotton
Iron dry
1600
2.75 kg
18
1.3
55-65
Synthetics
Store dry
900
2 kg
27
1.2
85-95
Degree of drying
33
132999110.qxd
1/17/01
9:01 AM
Pagina
34
(Nero/Process Black pellicola)
Cleaning and maintenance
After each wash
At the end of the wash programme, pull the dispenser drawer out a little to let it dry.
Leave the door ajar to allow air to circulate.
If the machine is not used for a prolonged period:
Close the water tap and unplug the appliance.
Periodical cleaning
Exterior
Clean the outside of the cabinet with soap and water only. Rinse with
clean water and dry.
Important: do not use methylated spirits, solvents or similar products
to clean the cabinet.
Detergent dispenser drawer
After a while,
detergents and
fabric softeners
leave deposits in
the drawer.
Clean the drawer,
from time to
time, by rinsing it
under a running
tap. To remove the drawer from the machine, press the button in the
rear left-hand corner.
To facilitate cleaning, the top part of the additive compartment can be
removed.
Detergent can also accumulate inside the
drawer recess: clean it with an old toothbrush.
Refit the drawer after cleaning.
34
132999110.qxd
1/17/01
9:01 AM
Pagina
35
(Nero/Process Black pellicola)
Cleaning and maintenance
Door seal
Regularly check to see, if there are deposits or
foreign objects in the rubber seal behind the
door and remove them.
Drain filter
The drain filter collects threads and small objects inadvertently left in
the laundry. Check regularly that the filter is clean.
Open the filter
door.
Place a container
under the filter
and unscrew it;
some water will
come out of the
filter.
P0860
Pull out the filter.
Clean the filter
under a running
tap, then refit it,
screwing it fully in.
P0859
Water inlet filter
If you notice that the machine is taking longer to fill, check that the
filter in the water inlet hose is not blocked.
Turn off the water tap.
Unscrew the hose from the tap.
Clean the filter with a stiff brush.
Screw the hose back onto the tap.
35
132999110.qxd
1/17/01
9:01 AM
Pagina
36
(Nero/Process Black pellicola)
Cleaning and maintenance
Emergency emptying out
If the water is not discharged (pump is blocked, filter or drain pipe are
clogged), proceed as follows to empty out the machine:
• pull out the plug from the power socket;
• close the water tap;
• if necessary, wait until the water has cooled;
• place a bowl on the floor;
• put the drain hose end into the bowl and let the water out.
Should it not be possible to have access to the drain hose because, for
example the appliance is built in the kitchen furniture, slightly loosen
the drain filter after placing a bowl on the floor to let the water come
out slowly.
At the end screw the filter again.
Frost precautions
If the machine is installed in a place where the temperature could drop
below 0°C, proceed as follows:
• Close the water tap and unscrew the water inlet hose from the tap.
• Place the end of the drain hose and the inlet hose in a bowl placed
on the floor.
• Select the “DRAIN” programme and run it until the machine stops.
• Turn the programme selector dial to O (RESET).
• Remove the plug from the power socket.
• Screw the water inlet hose back on and put the drain hose back in its
place.
By doing this, any water remaining in the machine is removed, avoiding
ice forming and consequently damage to the appliance.
When you use the machine again, make sure that the ambient temperature is above 0°C.
36
132999110.qxd
1/17/01
9:01 AM
Pagina
37
(Nero/Process Black pellicola)
Something not working?
If during the spin cycle the machine makes an unusual
whistling noise, different from the noise made by traditional washing machines, this is due to a new type of
motor.
If water is not visible in the drum, this is due to
the modern technology of new washing
machines that use less water than traditional
machines.
Troubleshooting
If a problem arises, you can try to solve it yourself following the
instructions below.
If you call out an engineer when one of the following problems arises,
or to repair a fault due to incorrect use, the call-out will be charged
even if requested within the guarantee period.
During machine operation the following alarm codes may be displayed:
- E10: problem with the water supply (phase light EXTRA RINSE is on)
- E20: problem with water draining (phase light RINSES is on)
- E40: door open (phase light WASH is on)
Once the problem has been eliminated, press the START/PAUSE button
to restart the programme. If after all checks, the problem persists, contact your local AEG Service Force Centre.
If the alarm code EFO (water leakage) appears on the display, contact the Service Force Centre.
Problem
Possible cause
The main electrical fuse
has blown.
The door is not properly
closed (E40).
The machine does not work The plug is not connected.
The START button has not
been pressed.
The DELAYED START
option has been selected.
Solution
Replace the fuse.
Close the door; the click
of the lock should be heard.
Insert the plug.
Press the button.
Check the selected delay on
the display.
37
132999110.qxd
1/17/01
9:01 AM
Pagina
38
(Nero/Process Black pellicola)
Something not working?
Problem
Possible cause
Solution
The water tap is closed (E10). Open the water tap.
The water inlet hose is
squashed or kinked (E10).
The machine does not fill
The machine fills then
empties immediately
Check the whole length of the
hose and remove the kink.
The small filter of the water Clean the filter.
inlet hose is clogged (E10).
The door is not properly
closed (E40).
Close the door.
The end of the drain hose
is too low.
Place the hose at the right
height (see Installation
section).
The drain hose is
squashed or kinked (E20).
Check the whole length of
the hose and remove the
kink.
The drain filter or the
Clean the filter or check
drain hose are clogged (E20). the hose.
The machine does not
empty and/or does not spin The RINSE HOLD option
(stop with water in drum)
has been selected.
Empty out the water by
pressing the START button
or selecting the DRAIN
programme.
The laundry is not evenly
Redistribute the laundry
distributed inside the drum. manually in the drum.
There is water on the floor
38
Too much detergent has
been used.
Measure detergent
according to the
manufacturer’s instructions.
An unsuitable detergent
has been used that
creates too much foam.
Use a suitable washing
machine detergent.
One of the connectors on
the water inlet hose is
leaking.
Check that the hose is
firmly screwed on at both
ends.
The drain filter has not
been properly screwed on
after cleaning.
Fully screw the filter into
place.
132999110.qxd
1/17/01
9:01 AM
Pagina
39
(Nero/Process Black pellicola)
Something not working?
Problem
The machine vibrates or is
noisy
The door will not open
Possible cause
Solution
The transit bolts have
not been removed.
Check that the machine
has been unpacked as
described in the Installation
section.
The feet have not been
adjusted.
Carefully level the machine.
There is little laundry in
the drum.
Correct operation of the
machine is not affected.
The programme is still
running and the drum
is turning.
Wait until the end of the
programme before opening
the door.
The water level is above the
bottom edge of the door.
Before opening the door,
the water must be emptied
out.
The machine is heating the Wait until the end of the
water or draining the
heating or drying phase.
clothes.
39
132999110.qxd
1/17/01
9:01 AM
Pagina
40
(Nero/Process Black pellicola)
Something not working?
Problem
Possible cause
Solution
The unbalance detection
device that prevents
excessive vibration during
spinning has cut in.
If the laundry is not evenly
distributed inside the drum
at the beginning of the
spin cycle, the machine
detects this and tries to
redistribute it more evenly
by means of a few drum
rotations.
Only when the laundry is
more evenly distributed
will the spin cycle be
performed, at a lower speed,
if the laundry is not evenly
distributed.
If, after about 15 minutes,
the laundry is still tangled,
the machine will not spin.
Therefore, if the laundry is
still wet at the end of the
cycle, it is advisable to
redistribute it manually
inside the drum and to
select the spin programme.
The water tap is not open
(E10).
Open the water tap.
The drain filter is clogged.
Clean the filter.
Spinning starts late or the
machine does not spin
The drying time or degree of Select the required function.
dryness has not been selected.
The machine will not dry or
An appropriate drying time
the laundry is not dry
has not been chosen.
enough
There is too much laundry
inside the appliance.
40
Select the appropriate
drying time suitable for the
required degree of drying,
according to the type of
fabric (cottons or synthetics).
Reduce the load.
132999110.qxd
1/17/01
9:01 AM
Pagina
41
(Nero/Process Black pellicola)
Something not working?
Unsatisfactory washing results
If the laundry looks grey and lime scale is found in the drum
• Too little detergent has been used.
• An unsuitable detergent has been used.
• Stubborn stains have not been treated prior to washing.
• The programme/temperature has not been correctly selected.
If grey stains remain on the laundry
• Laundry stained with ointments, grease or oil has been washed with
an insufficient amount of detergent.
• The temperature selected for the wash programme was too low.
• Fabric softener - especially the concentrated type - has come into
direct contact with the laundry. Wash these stains immediately and
pour fabric softener carefully.
Foam is still visible even after the last rinse
• Modern detergents often produce foam, even in the last rinse. However the laundry has been completely rinsed.
White residue is left on the laundry
• This is due to insoluble components in modern detergents and is
therefore not the result of insufficient rinsing. Shake or brush the
laundry. In future, it may be better to turn garments inside out before
washing them. Check the choice of detergent; try using liquid detergents.
41
132999110.qxd
1/17/01
9:01 AM
Pagina
42
(Nero/Process Black pellicola)
Technical data
Height x Width x Depth
Depth with door opened
Height adjustment
Net weight
Load (depending on programme)
Use
Drum speed during washing
Drum speed during spinning
Water pressure
84x60x60 cm
93 cm
± 13 mm approx.
79 kg approx.
5.5 kg max.
domestic
max. 55 rpm
1600/1200/900/700/400 rpm
50-800 kPa
This appliance complies with the following EC directives:
- 73/23/EEC of 19.2.1973 “Low voltage directive”, including directive
93 / 68 / EEC
- 89/336/EEC of 3.5.1989 “Electromagnetic Compatibility Directive”.
42
132999110.qxd
1/17/01
9:01 AM
Pagina
43
(Nero/Process Black pellicola)
Service & Spare Parts
If after carrying out the necessary checks there is still a fault with your
appliance please contact your local AEG Service Force Centre.
In guarantee customers should ensure that the suggested checks in
the “Troubleshooting” section have been made as the engineer will
make a charge if the fault is not a mechanical or electrical breakdown.
Please note that proof of purchase is required for in-guarantee service calls.
Service & Spare Parts
If you require a service engineer or wish to purchase spare parts, contact your local AEG Service Force Centre, by telephoning:
08705 929 929
Help us to help you
Please determine your type of enquiry before telephoning. When you
contact us we need to know:
1.Your name, address and post code.
2.Your telephone number.
3.Clear and concise details of the fault.
- What is the fault?
- When does the fault occur?
- Does the multi-display issue an error-message (E and a number)?
4.The model, production number and production identification number.
5.Date of purchase.
Mod. 16800
Type P 6359679
Prod. No. 914601513 00
230-240V~ 50Hz 2050 W
10 A
Ser. No.
IPX4
This information can be found on the rating plate, so you have these
numbers to hand we recommed you write them below.
Prod. No. . . . . . . . . . . . . . . . . . . . . .
Ser.-No.
.....................
43
132999110.qxd
1/17/01
9:01 AM
Pagina
44
(Nero/Process Black pellicola)
Customer care
For general enquiries regarding your AEG appliance, or further information on AEG products please contact our Customer Care Department.
Customer Care Department
AEG Domestic Appliances
55-77 High Street
Slough
Berkshire SL1 1DZ
Tel: 08705 350350
44
132999110.qxd
1/17/01
9:01 AM
Pagina
45
(Nero/Process Black pellicola)
Guarantee Conditions
AEG offer the following guarantee to the first purchaser of this appliance.
1.The guarantee is valid for 12 months commencing when the appliance
is handed over to the first retail purchaser, which must be verified by
purchase invoice or similar documentation.
The guarantee does not cover commercial use.
2.The guarantee covers all parts or components which fail due to faulty
workmanship or faulty materials. The guarantee does not cover appliances where defects or poor performance are due to misuse, accidental
damage, neglect, faulty installation, unauthorised modification or
attempted repair, commercial use or failure to observe requirements and
recommendations set out in the instruction book.
This guarantee does not cover such parts as light bulbs, removable
glassware, dust bags or filters.
3.Should guarantee repairs be necessary the purchaser must inform the
nearest customer service office (AEG’s service or authorised agent).
AEG reserves the right to stipulate the place of the repair (i. e. the
customer’s home, place of installation or AEG workshop).
4.The guarantee or free replacement includes both labour and materials.
5.Repairs carried out under guarantee do not extend the guarantee
period for the appliance. Parts removed during guarantee repairs
become the property of AEG.
6.The purchaser’s statutory rights are not affected by this guarantee.
45
132999110.qxd
1/17/01
9:01 AM
Pagina
46
(Nero/Process Black pellicola)
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:
- The guarantee starts from the date you first purchased your product.
- The guarantee is for the same period and to the same extent for
labour and parts as exist in the new country of use for this brand
or range of products.
- This guarantee relates to you and cannot be transferred to another
user.
- Your new home is within the European Community (EC) or European
Free Trade Area.
- The product is installed and used in accordance with our instructions
and is only used domestically, i.e. a normal household.
- The product is installed taking into account regulations in your new
country.
Before you move please contact your nearest Customer Care Centre,
listed below, to give them details of your new home. They will then
ensure that the local Service Organisation is aware of your move and
able to look after you and your appliance.
France
Senlis
+33 (0) 44 62 29 29
Germany
Nürnberg
+49 (0) 911 323 2600
Italy
Pordenone
+39 (0) 1678 47053
Sweden
Stockholm
+46 (0) 8 738 7910
UK
Slough
+44 (0) 1753 219899
46
132999110.qxd
1/17/01
9:01 AM
Pagina
47
(Nero/Process Black pellicola)
Instructions for installation and electrical connection
Safety instructions for the installer
• This appliance is heavy, care should be taken when moving it.
• When unpacking the appliance, check that it is not damaged. If in
doubt, do not use it and contact the retailer.
• All internal packing must be removed before using the appliance.
Serious damage may be caused to the machine or adjacent furniture
if the protective transit devices are not completely removed. Refer to
the relevant paragraph.
• Any electrical work required to install this appliance must be carried
out by a qualified electrician or competent person.
• Any plumbing work required to install this appliance must be carried
out by a qualified plumber or competent person.
• After having installed the machine, check that it is not standing on
its electrical supply cable.
• If the appliance is placed on a carpeted floor, ensure that air can circulate freely between the adjustable feet and the floor.
• The installation should comply with local water authority and building regulations requirements.
• Should the appliance power supply cable need to be replaced, this
should be carried out by our Service Force Centre.
47
132999110.qxd
1/17/01
9:01 AM
Pagina
48
(Nero/Process Black pellicola)
Dimensions of the appliance
Front view and side view
935
600
ÖKO_LAVAMAT TURBO
1400
1000
900
700
400
606
F
D
C
B
A
95
E
60
50
40
30
30
40
30
14800
40
40
40
60
50
10
90
835
25
566
Rear view
335
40
170
50
Cold water
Power cable
Drain
45
85
48
132999110.qxd
1/17/01
9:01 AM
Pagina
49
(Nero/Process Black pellicola)
Installation
Unpacking
All transit bolts and packing must be removed before using the appliance.
Using a spanner, unscrew and remove the
rear right-hand bolt and lay the machine on
its back, taking care not to squash the hoses.
This can be avoided by placing one of the
corner packing pieces between the machine
and the floor.
025
Remove the polystyrene block
from the bottom
of the machine
and release the
2
1
two plastic bags
which are fixed
under the filter
door.
Carefully remove
the right-hand bag (1) then the left-hand bag (2) by pulling them towards
the centre of the machine.
Set the machine
upright and
remove the two
remaining bolts
from the back.
Pull out the three
plastic spacers from
the holes into
which the bolts
were fitted.
Plug the open holes with the plugs which you will find in the plastic bag
containing the instruction booklet.
You are advised to keep all transit devices so that they can be refitted if the
machine ever has to be transported again.
49
132999110.qxd
1/17/01
9:01 AM
Pagina
50
(Nero/Process Black pellicola)
Positioning
Install the machine on a flat hard floor.
Make sure that air circulation around the machine is not impeded by
carpets, rugs etc.
• Before placing it on small tiles, apply a rubber coating.
• Never try to correct any unevenness in the floor by putting pieces of
wood, cardboard or similar materials under the machine.
• If it is impossible to avoid positioning the machine next to a gas
cooker or coal-burning stove, an insulating panel (85x57 cm) covered
with aluminium foil on the side facing the cooker or stove, must be
inserted between the two appliances;
• The machine must not be installed in rooms where the temperature
can drop below 0°C.
• The water inlet hose and the drain hose must not be kinked.
• Please ensure that when the appliance is installed, it is easily accessible for the engineer in the event of a breakdown.
Levelling
Carefully level by screwing the adjustable
feet in or out. Never place cardboard, wood
or similar materials under the machine to
compensate for any unevenness in the
floor.
Water inlet (cold water connection only)
Connect the hose
to a tap with a
3/4” thread.
Installation
should comply
with local water
authority and
building regulations’ requirements.
Set the hose correctly by loosening the ring nut. After positioning the
inlet hose, be sure to tighten the ring nut again to prevent leaks.
Do not connect to a hot water supply.
50
132999110.qxd
1/17/01
9:01 AM
Pagina
51
(Nero/Process Black pellicola)
Installation
The inlet hose is provided with a water stop
device, which protects against damage
caused by water leaks in the hose which
could develop due to natural ageing of the
hose. This fault is shown by a red sector in
the window “A”. Should this occur, turn the
water tap off and refer to your Service Force
Centre to replace the hose.
A
Water drainage
The upright standpipe should have a minimum length of 30 cm (12”) from the bottom
of the elbow to the top of the pipe (see diagram). Make sure that it is designed in such a
way that the end of the drain hose cannot be
covered with water.
Longer drain hoses are available in lengths
of 2.7 and 4 metres from your AEG Service
Force Centre.
If you intend the drain hose from the machine
to empty into a sink, make sure that the sink
is empty and the plug hole is not blocked. Use
the plastic “U -Piece” supplied.
Min. 30 cm.(12")
Min.60 cm.(23.6")
Max. 90 cm.(35.4")
The appliance drain hose should hook into a standpipe, the hook in the
drain hose is formed using the plastic “U-Piece” supplied. The standpipe
should have an internal diameter of approximately 38 mm (see diagram) thus ensuring there is an air break between the drain hose and
standpipe.
When discharging into a stand3 pin
pipe ensure that the top of the
curve in the hose end is no
more than 90 cm (35.4”) and
no less than 60 cm (23.6”)
above floor level.
38 mm.(1/1 2 ") diameter
standpipe
Important
Before connecting up the machine to new pipework or to pipework that has
not been used for some time, run off a reasonable amount of water to flush
out any debris that may have collected in the pipes.
51
132999110.qxd
1/17/01
9:01 AM
Pagina
52
(Nero/Process Black pellicola)
Installation
In the interest of the environment
Washing machines and dishwashers should be connected
to the FOUL drainage system,
the water will then be taken
to a sewage works for treatment before being discharged
safely into a river.
It is essential that these appliances are not connected to the
surface water drainage system
as this water is discharged
directly into a river or stream
and may cause pollution.
If you require any further
advice please contact your local
water authority.
SHOWER
BATH
SINK TOILET
BIDET
WASHING
MACHINE DISHWASHER
RAINWATER
'RUN-OFF'
SURFACE WATER
DRAINS & SEWERS
UNTREATED
DISCHARGE
RIVER
FOUL DRAIN
FOUL SEWERS
SEWAGE
TREATMENT
WORKS
TREATED
DISCHARGE
RIVER
Electrical connections
WARNING: THIS APPLIANCE MUST BE EARTHED.
The manufacturer declines any liability should this safety measure
not be observed.
If the plug that is fitted to your appliance is not suitable for your socket
outlet, it must be cut off and the appropriate plug fitted.
Remove the fuse from the cut off plug.
The cut off plug should then be disposed of to prevent the hazard of
shocks in case it should be plugged into a 13 Amp socket in another
part of your home.
52
132999110.qxd
1/17/01
9:01 AM
Pagina
53
(Nero/Process Black pellicola)
Installation
Important
13 AMP
The wires in the mains lead are coloured in
GREEN &YELLOW
13AMP FUSE
accordance with the following code:
Green and Yellow
- Earth
Blue
- Neutral
Brown
- Live
If you fit your own plug, the colours of the
BROWN
BLUE
wires in the mains lead of your appliance
CORD CLAMP
may not correspond with the markings
identifying the terminals in your plug, proceed as follows:
Connect the green and yellow (earth) wire to the terminal in the plug
which is marked with the letter «E» or the earth symbol
or coloured
green and yellow.
Connect the blue (neutral) wire to the terminal in the plug which is
marked with the letter «N» or coloured black.
Connect the brown (live) wire to the terminal in the plug which is
marked with the letter «L» or coloured red.
The plug moulded on to the lead incorporates a fuse. For replacement, use
a 13 Amp BS1362 fuse. Only ASTA or BSI approved fuses should be used.
The plug must not be used if the fuse cover/carrier is lost. The
cover/carrier is indicated by the coloured insert at the base of the plug.
A replacement cover/carrier must be obtained from your local AEG Service
Centre.
The power supply cable must be easily accessible after installing the
machine.
Permanent connection
In the case of a permanent connection it is necessary that you install a
double pole switch between the appliance and the electricity supply
(mains), with a minimum gap of 3 mm between the switch contacts and
of a type suitable for the required load in compliance with the current
electrical regulations.
The switch must not break the yellow and green earth cable at any
point.
This operation should only be performed by a qualified electrician.
53
132999110.qxd
1/17/01
9:01 AM
Pagina
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
132.999.110-02-0101
54
(Nero/Process Black pellicola)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
