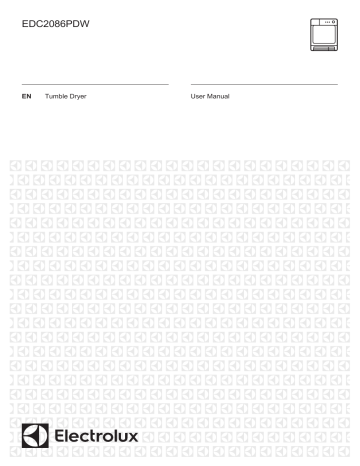

EDC2086PDW
EN
Tumble Dryer
User Manual
2
www.electrolux.com
CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................5
3. PRODUCT DESCRIPTION................................................................................ 6
4. CONTROL PANEL............................................................................................. 7
5. PROGRAMME TABLE....................................................................................... 8
6. OPTIONS............................................................................................................9
7. SETTINGS........................................................................................................10
8. BEFORE FIRST USE....................................................................................... 11
9. DAILY USE....................................................................................................... 11
10. HINTS AND TIPS........................................................................................... 12
11. CARE AND CLEANING..................................................................................13
12. TROUBLESHOOTING....................................................................................15
13. TECHNICAL DATA.........................................................................................17
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
ENGLISH
1.
3
SAFETY INFORMATION
Before beginning the installation and use of this
appliance, carefully read the supplied instructions. The
manufacturer is not responsible for any injuries or
damages that are the result of incorrect installation or
usage. Always keep the instructions in a safe and
accessible location for future reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent
disability.
•
•
•
•
•
•
•
•
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
Do not let children play with the appliance.
Children of less than 3 years should be kept away
unless continuously supervised.
Keep all packaging away from children and dispose of
it appropriately.
Keep detergents away from children.
Keep children and pets away from the appliance when
the door is open.
If the appliance has a child safety device, this should
be activated.
Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•
•
Do not change the specification of this appliance.
The appliance can be installed as freestanding or
below a kitchen counter with correct space (refer to
the Installation leaflet).
4
www.electrolux.com
•
•
•
•
•
•
•
•
•
•
•
•
Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite
side, that would prevent the appliance door from being
fully opened.
The ventilation opening in the base must not be
covered by a carpet, mat, or any floor covering.
WARNING: The appliance must not be supplied
through an external switching device, such as timer, or
connected to a circuit that is regularly switched on and
off by a utility.
Connect the mains plug to the mains socket only at
the end of the installation process. Make sure that the
mains plug is accessible after installation.
If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
Do not exceed the maximum load of 8 kg (refer to the
"Programme chart" chapter).
Do not use the appliance if items have been soiled
with industrial chemicals.
Wipe away lint or packaging debris that has
accumulated around the appliance.
Do not run the appliance without a filter. Clean the lint
filter before or after each use.
Do not dry unwashed items in the tumble dryer.
Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers
should be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be
dried in the tumble dryer.
ENGLISH
•
•
•
•
5
Fabric softeners, or similar products, should only be
used as specified by the product manufacturer’s
instructions.
Remove all objects from items that could be a source
of fire ignition such as lighters or matches.
WARNING: Never stop a tumble dryer before the end
of the drying cycle unless all items are quickly
removed and spread out so that the heat is dissipated.
Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
2. SAFETY INSTRUCTIONS
2.1 Installation
•
•
•
•
•
•
•
•
•
•
Remove all the packaging.
Do not install or use a damaged
appliance.
Follow the installation instructions
supplied with the appliance.
Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
Do not install or use the appliance
where the temperature can be less
than 5°C or higher than 35°C.
The floor area on which the appliance
is to be installed must be flat, stable,
heat resistant and clean.
Make sure that there is air circulation
between the appliance and the floor.
Always keep the appliance vertical
when being moved.
The rear surface of the appliance
must be put against the wall.
When the appliance is in its
permanent position, check that it is
fully level with the aid of a spirit level.
If it is not, adjust the feet accordingly.
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
•
•
The appliance must be earthed.
Make sure that the parameters on the
rating plate are compatible with the
•
•
•
•
•
electrical ratings of the mains power
supply.
Always use a correctly installed
shockproof socket.
Do not use multi-plug adapters and
extension cables.
Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
Do not touch the mains cable or the
mains plug with wet hands.
This appliance complies with the
E.E.C. Directives.
2.3 Use
WARNING!
Risk of injury, electric shock,
fire, burns or damage to the
appliance.
•
•
•
•
•
•
This appliance is for household use
only.
Do not dry damaged (torn, frayed)
items that contain padding or fillings.
Only dry fabrics which are applicable
to dry in the tumble dryer. Follow the
instructions on the fabric label.
If you have washed your laundry with
a stain remover start an extra rinse
cycle before you start the dryer.
Do not drink or prepare food with the
condensed water/distilled water. It can
cause health problems to people and
pets.
Do not sit or stand on the open door.
6
www.electrolux.com
•
Do not dry dripping wet clothes in the
tumble dryer.
2.4 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
•
•
•
Do not use water spray and steam to
clean the appliance.
Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products,
abrasive cleaning pads, solvents or
metal objects.
•
•
•
Disconnect the appliance from the
mains electrical and water supplies.
Cut off the mains electrical cable
close to the appliance and dispose of
it.
Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).
2.5 Disposal
WARNING!
Risk of injury or suffocation.
3. PRODUCT DESCRIPTION
1
2
3
4
11
5
10
6
9
7
8
For ease of loading laundry
or ease of installation the
door is reversible. (see
separate leaflet).
1
2
3
4
5
6
7
8
9
10
11
Water container
Control panel
Appliance door
Primary Filter
Button for condenser door
Airflow slots
Adjustable feet
Condenser door
Condenser cover
Locks for condenser lid
Rating plate
ENGLISH
7
4. CONTROL PANEL
1
2
3
4
5
6
8
7
8 On/Off button
1 Programme knob
2 Display
3
Time touchpad
4
Delay touchpad
5
Delicate touchpad
6
Wool Load touchpad
7
Press the touch buttons with
your finger in the area with
the symbol or name of the
option. Do not wear gloves
when you operate the
control panel. Make sure
that the control panel is
always clean and dry.
Start/Pause touchpad
4.1 Indicators
Indicators
Description
Drying phase
Cooling phase
Crease guard phase
Condenser
Water container
Filter
Delay start
Child lock
Acoustic signals
8
www.electrolux.com
Indicators
Description
Programme duration
-
Time Drying duration
-
Delay start duration
5. PROGRAMME TABLE
Programmes
Type of load
Load (max.)1) /
Fabric mark
Cotton
Extra Dry
Drying level: extra dry.
8kg/
Strong Dry
Drying level: strong dry.
8kg/
Cupboard Dry2) 3)Drying level: cupboard dry.
Iron Dry 2)
Drying level: suitable for ironing.
8kg/
8kg/
Synthetic
Extra Dry
Drying level: extra dry.
3,5kg/
Cupboard Dry 2)
Drying level: cupboard dry.
3,5kg/
Iron Dry
Drying level: suitable for ironing.
3,5kg/
Easy Iron
Easy care fabrics for which a minimum of
ironing is necessary. The drying results
can be different from one type of fabric to 1kg (or 5 shirts)/
another. Shake the items before putting
them in the appliance. When the pro‐
gramme has ended, immediately remove
the items and put them on a hanger.
Duvets
Single or double duvets and pillows (with
3kg/
feather, down or synthetic fillings).
Delicates
Delicate fabrics.
Wool
2kg/
Woollen fabrics. Gentle drying of washa‐
ble woollens. Remove items immediately 1kg
when the programme is completed.
For drying sport shoes only with Drying
Rack (see separate user manual provi‐
ded with Drying Rack).
1 pair of sport
shoes
ENGLISH
Programmes
Type of load
Load (max.)1) /
Fabric mark
Refresh
Refreshing textiles that were in storage.
1kg
Time Drying
With this programme you can use the
Time option and set the programme du‐
ration.
8kg/
To dry cotton and synthetic fabrics.
2kg/
Quick
9
1) The maximum weight refers to dry items.
2) For test institutes only: Standard programmes for tests are specified in the EN 61121
document.
3) The
Cotton Cupboard Dry ECO programme is the “Standard cotton programme” ac‐
cording to Commission Regulation EU n 392/2012. It is suitable for drying normal wet cotton
laundry and it is the most efficient programme in terms of energy consumption for drying wet
cotton laundry.
6. OPTIONS
6.1 Time
This option is applicable to the Time
Drying programme and to the Wool
programme (only with the Drying Rack).
We recommend that you set
a short duration for small
quantities of laundry or for
only one item.
•
•
Time Drying programme: You can
set the programme duration, from a
minimum of 10 minutes to a maximum
of 2 hours. The setting of the duration
is related to the quantity of laundry in
the appliance.
Wool programme: You can set the
programme duration, from a minimum
of 30 minutes to a maximum of 4
hours. The setting of the duration is
related to the quantity of laundry in
the appliance.
6.2 Wool Load
This option is applicable only to the Wool
programme. To get laundry more dried
press the Wool Load
touchpad again
and again to increase the programme
duration (estimated drying time will
appear on the display).
6.3 Delicate
With this option you can set a delicate
drying programme that has a low
temperature. Use this option with a
fabrics that have the symbol
on the
fabric label (e.g. acrylic, viscose).
6.4 Options table
Programmes1)
Cotton
Extra Dry
■
Strong Dry
■
10
www.electrolux.com
Programmes1)
■
Cupboard Dry
■
Iron Dry
Synthetic
Extra Dry
■
Cupboard Dry
■
Iron Dry
■
■
Easy Iron
Duvets
■
Delicates
■
■ 2)
Wool
■
■
Refresh
■
Time Drying
■
Quick
1) Together with the programme you can set 1 or more options. To activate or deactivate
them, press the related touch button.
2) Only with the Drying Rack (standard accessory or optional, depending on model).
7. SETTINGS
A
B
C
D
7.1 Child lock function
This option prevents children to play with
the appliance while a programme
operates. The programme knob and the
touchpads are locked.
Only the on/off button is unlocked.
E
A. Time
touchpad
B. Delay
touchpad
C. Delicate
D. Wool Load
E. Start/Pause
touchpad
touchpad
touchpad
Activating the child lock option:
1. Press the on/off button to activate the
appliance.
2. Wait approximately 8 seconds.
3. Press and hold touchpads (A) and
(D) at the same time. The child lock
indicator comes on.
ENGLISH
The child lock indicator comes on.
It is possible to deactivate
the child lock option while a
programme operates. Press
and hold the same
touchpads until the child lock
indicator goes off.
7.2 Buzzer on/off
To deactivate or activate the acoustic
signals, press and hold for approximately
2 seconds touch buttons (B) and (C) at
the same time.
7.3 Adjustment of the remaining
laundry moisture degree
11
1. Press the on/off button to activate the
appliance.
2. Wait approximately 8 seconds.
3. Press and hold buttons (A) and (B) at
the same time.
One of the these indicators comes on:
•
the maximum dry laundry
•
the more dry laundry
•
the standard dry laundry
4. Press the button (E) again and again
until the indicator of the correct level
comes on.
5. To confirm the adjustment, press and
hold buttons (A) and (B) at the same
time for approximately 2 seconds.
To change the default degree of the
remaining moisture of the laundry:
8. BEFORE FIRST USE
Before you use the appliance for the first
time:
•
•
Start a 1 hour programme with moist
laundry.
Clean the tumble dryer drum with a
moist cloth.
9. DAILY USE
9.1 Start a programme without
delay start
1. Prepare the laundry and load the
appliance.
CAUTION!
Make sure that when
you close the door, the
laundry does not get
caught between the
appliance door and the
rubber seal.
2. Press the on/off button to activate the
appliance.
3. Set the correct programme and
options for the type of load.
The display shows the programme
duration.
The drying time you see is
related to the load of 5 kg for
cotton and jeans
programmes. For the other
programmes the drying time
is related to the
recommended loads. If 5kg
is exceeded, the drying time
of the cotton and jeans
programmes will be longer.
4. Press the Start/Pause touch button.
The programme starts.
9.2 Starting the programme
with delay start
1. Set the correct programme and
options for the type of load.
2. Press the delay start button again
and again until the display shows the
delay time you want to set.
12
www.electrolux.com
You can delay the start
of a programme from a
minimum of 30 minutes
to a maximum of 20
hours.
3. Press the Start/Pause touchpad.
The display shows the countdown of the
delay start.
When the countdown is completed, the
programme starts.
9.3 Change a programme
1. Press the on/off button to deactivate
appliance
2. Press the on/off button to activate the
appliance.
3. Set the programme.
9.4 At the end of the
programme
You can remove the laundry before the
crease guard phase is completed. We
recommend, for better results, that you
remove the laundry when the phase is
almost completed.
When the crease guard phase is
completed:
•
The indicator
flash.
•
The indicator
is on but does not
flash.
Start/Pause indicator goes off.
•
1. Press the on/off button to deactivate
the appliance.
2. Open the appliance door.
3. Remove the laundry.
4. Close the appliance door.
Always clean the filter and
empty the water container
when a programme is
completed.
When the programme is completed:
•
An intermittent acoustic signal
operates.
•
The indicator
flashes.
• The indicator
flashes.
• The Start/Pause indicator is on.
The appliance continues to operate with
the crease guard phase for
approximately other 30 minutes.
The crease guard phase prevents
creases from your laundry.
is on but does not
9.5 Stand-by function
To decrease the energy consumption,
this function automatically deactivates
the appliance:
•
•
After 5 minutes if you do not start the
programme.
After 5 minutes from the end of the
programme.
10. HINTS AND TIPS
10.1 Preparing the laundry
•
•
•
•
•
•
•
•
•
Close the zips.
Close the fasteners of duvet covers.
Do not dry ties or ribbons loose (e.g.
apron ribbons). Tie them before you
start a programme.
Remove all items from pockets.
Turn items with the internal layer
made of cotton inside out. Cotton
layer must be faced outwards.
Always set the programme suitable
for the type of laundry.
Do not put light and dark colours
together.
•
•
Use suitable programme for cottons,
jersey and knitwear to reduce
shrinkage.
Do not exceed the maximum load
stated in the programmes chapter or
shown on the display.
Dry only the laundry that is suitable
for tumble drying. Refer to the fabric
label on the items.
Do not dry large and small items
together. Small items can be trapped
inside the large items and remain wet.
ENGLISH
Fabric label
Description
Laundry is suitable for tumble drying.
Laundry is suitable for tumble drying at higher temperatures.
Laundry is suitable for tumble drying at low temperatures only.
Laundry is not suitable for tumble drying.
11. CARE AND CLEANING
11.1 Cleaning the filter
1.
2.
2
1
3.
4.
5.1)
6.
1
2
1) if necessary, clean the filter with hot water.
13
14
www.electrolux.com
11.2 Emptying the water container
1.
2.
3.
4.
You can use the water from
the water container as an
alternative to distilled water
(e.g. for steam ironing).
Before you use the water,
remove dirt residues with a
filter.
11.3 Cleaning the condenser
1.
2.
3.
4.
2
11
1
2
1
ENGLISH
5.
6.
7.
8.
1
15
2
12
3
11.4 Cleaning the drum
WARNING!
Disconnect the appliance
before you clean it.
Use a standard neutral soap detergent to
clean the inner surface of the drum and
drum lifters. Dry the cleaned surfaces
with a soft cloth.
CAUTION!
Do not use abrasive
materials or steel wool to
clean the drum.
Use a moist cloth to clean. Dry the
cleaned surfaces with a soft cloth.
CAUTION!
Do not use furniture cleaning
agents or cleaning agents
which can cause corrosion.
11.6 Cleaning the airflow slots
Use a vacuum cleaner to remove fluff
from the airflow slots.
11.5 Cleaning the control panel
and housing
Use a standard neutral soap detergent to
clean the control panel and housing.
12. TROUBLESHOOTING
Problem
Possible solution
You cannot activate the appliance.
Make sure that the mains plug is connec‐
ted to the mains socket.
Check fuse in fuse box (domestic installa‐
tion).
The programme does not start.
Press Start/Pause.
Make sure that the appliance door is
closed.
16
www.electrolux.com
Problem
Possible solution
The appliance door does not close.
Make sure that the installation of the filter
is correct.
Make sure that the laundry does not
catch between the appliance door and
the rubber seal.
The appliance stops during operation.
Make sure that the water container is
empty. Press Start/Pause to start the pro‐
gramme again.
The cycle time is too long or unsatisfacto‐ Make sure that the weight of the laundry
is applicable to the duration of the pro‐
ry drying result.1)
gramme.
Make sure that the filter is clean.
The laundry is too wet. Spin the laundry
in the washing machine again.
Ensure that the room temperature is
higher than +5°C and lower than +35°C.
Optimal room temperature is 19°C to
24°C.
Set the Time Drying or the Extra Dry pro‐
gramme.2)
The display shows Err.
If you want to set a new programme, de‐
activate and activate the appliance.
Make sure that the options are applicable
to the programme.
The display shows (e.g. E51).
Deactivate and activate the appliance.
Start a new programme. If the problem
occurs again, contact the Service.
1) After maximum 5 hours, the programme ends automatically.
2) It can happen that some area remains humid when drying big items (e.g. bed sheets ).
If the drying results are not
satisfactory
•
•
•
•
•
•
The set programme was incorrect.
The filter is clogged.
The condenser is clogged.
There was too much laundry in the
appliance.
The drum is dirty.
Incorrect setting of the conductivity
sensor ( See chapter "Settings -
Adjustment of the remaining laundry
moisture degree " for better setting).
• The airflow slots are clogged.
• Room temperature is too low or too
high ( optimal room temperature 19°C
to 24°C )
ENGLISH
17
13. TECHNICAL DATA
Height x Width x Depth
850 x 600 x 580 mm (maximal 640 mm)
Max. depth with the appliance door open
1090 mm
Max. width with the appliance door open
950 mm
Adjustable height
850 mm (+ 15 mm - feet regulation)
Drum volume
118 l
Maximum load volume
8 kg
Voltage
230-240 V
Frequency
50 Hz
Total power
2800 W
Energy efficiency class
B
Energy consumption1)
4,82 kWh
Annual energy consumption2)
560 kWh
Left—on mode power absorption
0,50 W
Off mode power absorption
0,50 W
Type of use
Household
Permitted ambient temperature
+ 5°C to + 35°C
Level of protection against ingress of sol‐
id particles and moisture ensured by the
protective cover, except where the low
voltage equipment has no protection
against moisture
IPX4
1) With reference to EN 61121. 8kg of cotton centrifuged at 1000 rpm.
2) Energy consumption per year in kWh, based on 160 drying cycles of the standard cotton
programme at full and partial load, and the consumption of the low-power modes. Actual en‐
ergy consumption per cycle will depend on how the appliance is used (REGULATION (EU)
No 392/2012).
13.1 Consumption data
Programme
Spun at / residual humidity
Drying time
Energy
consump‐
tion
Cotton 8 kg
Cupboard Dry
Iron Dry
1400 rpm / 50%
123 min.
4,23 kWh
1000 rpm / 60%
138 min.
4,82 kWh
1400 rpm / 50%
107 min.
3,46 kWh
18
www.electrolux.com
Programme
Spun at / residual humidity
1000 rpm / 60%
Drying time
Energy
consump‐
tion
118 min.
3,95 kWh
1200 rpm / 40%
50 min.
1,47 kWh
800 rpm / 50%
57 min.
1,68 kWh
Synthetic 3,5 kg
Cupboard Dry
14. ENVIRONMENTAL CONCERNS
Recycle materials with the symbol .
Put the packaging in relevant containers
to recycle it. Help protect the
environment and human health by
recycling waste of electrical and
electronic appliances. Do not dispose of
*
appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
ENGLISH
19
136942071-A-412017
www.electrolux.com/shop
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
