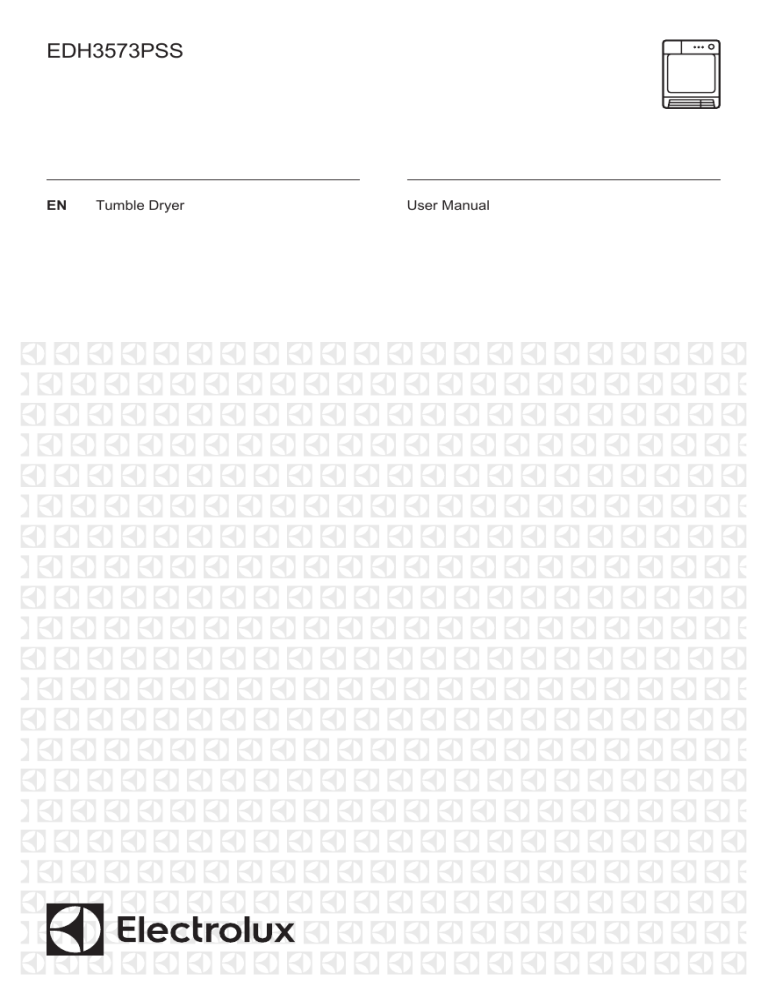

EDH3573PSS
EN
Tumble Dryer
User Manual
2
www.electrolux.com
CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................5
3. PRODUCT DESCRIPTION................................................................................ 7
4. CONTROL PANEL............................................................................................. 7
5. PROGRAMME TABLE....................................................................................... 8
6. OPTIONS..........................................................................................................10
7. SETTINGS........................................................................................................11
8. BEFORE FIRST USE....................................................................................... 11
9. DAILY USE....................................................................................................... 12
10. HINTS AND TIPS........................................................................................... 13
11. CARE AND CLEANING..................................................................................14
12. TROUBLESHOOTING....................................................................................16
13. TECHNICAL DATA.........................................................................................17
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
ENGLISH
1.
3
SAFETY INFORMATION
Before beginning the installation and use of this
appliance, carefully read the supplied instructions. The
manufacturer is not responsible for any injuries or
damages that are the result of incorrect installation or
usage. Always keep the instructions in a safe and
accessible location for future reference.
- Read the supplied instructions.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent
disability.
•
•
•
•
•
•
•
•
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
Do not let children play with the appliance.
Children aged 3 years and under must be kept away
from this appliance when it is in operation at all times.
Keep all packaging away from children and dispose of
it appropriately.
Keep detergents away from children.
Keep children and pets away from the appliance door
when it is open.
If the appliance has a child safety device, this should
be activated.
Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•
Do not change the specification of this appliance.
4
www.electrolux.com
•
•
•
•
•
•
•
•
•
•
•
If the tumble dryer is put on top of a washing machine,
use the stacking kit. The stacking kit, available from
your authorized vendor, can be used only with the
appliance specified in the instructions, supplied with
the accessory. Read it carefully before installation
(Refer to the Installation leaflet).
The appliance can be installed as freestanding or
below the kitchen counter with correct space (Refer to
the Installation leaflet).
Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite
side, that would prevent the appliance door from being
fully opened.
The ventilation opening in the base (if applicable) must
not be covered by a carpet, mat, or any floor covering.
WARNING: The appliance must not be supplied
through an external switching device, such as timer, or
connected to a circuit that is regularly switched on and
off by a utility.
Connect the mains plug to the mains socket only at
the end of the installation process. Make sure that the
mains plug is accessible after installation.
Ensure good air ventilation in the located room to
avoid the backflow of unwanted gases into the room
from appliances burning gas or other fuels, including
open fires.
Exhaust air must not be discharged into a flue which is
used for exhausting fumes from any appliances
burning gas or other fuels.
If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
Do not exceed the maximum load of 7 kg (refer to the
"Programme chart" chapter).
Do not use the appliance if items have been soiled
with industrial chemicals.
ENGLISH
•
•
•
•
•
•
•
•
•
•
Wipe away lint or packaging debris that has
accumulated around the appliance.
Do not run the appliance without a filter. Clean the lint
filter before or after each use.
Do not dry unwashed items in the tumble dryer.
Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers
should be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be
dried in the tumble dryer.
Fabric softeners, or similar products, should only be
used as specified by the product manufacturer’s
instructions.
Remove all objects from items that could be a source
of fire ignition such as lighters or matches.
Never stop a tumble dryer before the end of the drying
cycle unless all items are quickly removed and spread
out so that the heat is dissipated.
The final part of a tumble dryer cycle occurs without
heat (cool down cycle) to ensure that the items are left
at a temperature that ensures that the items will not be
damaged.
Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
2. SAFETY INSTRUCTIONS
2.1 Installation
•
•
•
•
•
5
Remove all the packaging.
Do not install or use a damaged
appliance.
Follow the installation instruction
supplied with the appliance.
•
Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
Do not install or use the appliance
where the temperature can be less
than 5°C or higher than 35°C.
The floor area where the appliance is
to be installed must be flat, stable,
heat resistant and clean.
6
www.electrolux.com
•
•
•
•
Make sure that there is air circulation
between the appliance and the floor.
Always keep the appliance vertical
when being moved.
The rear surface of the appliance
must be put against the wall.
When the appliance is in its
permanent position, check that it is
fully level with the aid of a spirit level.
If it is not, adjust the feet accordingly.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
•
•
•
•
•
•
•
The appliance must be earthed.
Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
Always use a correctly installed
shockproof socket.
Do not use multi-plug adapters and
extension cables.
Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
Do not touch the mains cable or the
mains plug with wet hands.
This appliance complies with the
E.E.C. Directives.
2.3 Use
WARNING!
Risk of injury, electrical
shock, fire, burns or damage
to the appliance.
•
•
•
•
•
This appliance is for household use
only.
Do not dry damaged (torn, frayed)
items that contain padding or fillings.
Only dry fabrics which are applicable
to dry in the tumble dryer. Follow the
instructions on the fabric label.
If you have washed your laundry with
a stain remover start an extra rinse
cycle before you start the dryer.
Do not drink or prepare food with the
condensed water/distilled water. It can
•
•
cause health problems to people and
pets.
Do not sit or stand on the open door.
Do not dry dripping wet clothes in the
tumble dryer.
2.4 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
•
•
Do not use water spray and steam to
clean the appliance.
Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products,
abrasive cleaning pads, solvents or
metal objects.
2.5 Compressor
WARNING!
Risk of damage to the
appliance.
•
The compressor and its system in the
tumble dryer is filled with the special
agent which is free from fluoro-chlorohydrocarbons. This system must stay
tight. The damage of the system can
cause a leakage.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
•
•
•
•
Disconnect the appliance from the
mains electrical and water supplies.
Cut off the mains electrical cable
close to the appliance and dispose of
it.
Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).
ENGLISH
7
3. PRODUCT DESCRIPTION
1
1
2
3
4
5
2
3
6
7
8
9
10
4
11
5
10
6
9
7
8
11
Water container
Control panel
Appliance door
Primary Filter
The button to open the heat
exchanger door
Airflow slots
Adjustable feet
Heat exchanger door
Heat exchanger cover
The knob to lock the heat exchanger
cover
Rating plate
For ease of loading laundry
or ease of installation the
door is reversible. (see
separate leaflet).
4. CONTROL PANEL
1
3
2
4
5
6
7
8
1 Programme knob and
2 Indicators
3 Display
OFF switch
4
Minuterie touchpad
5
Départ Différé touchpad
6
Signal Sonore touchpad
7
Anti-froissage touchpad
8
Départ/Pause touchpad
8
www.electrolux.com
Touch the touchpads with
your finger in the area with
the symbol or name of the
option. Do not wear gloves
when you operate with the
control panel. Make sure
that the control panel is
always clean and dry.
4.1 Indicators
Indicators
Description
Drying phase
Cooling phase
Crease guard phase
Condenser
Water container
Filter
Delay start
Child lock
Acoustic signals
Programme duration
-
Time Drying duration
-
Delay start duration
5. PROGRAMME TABLE
Programmes
Type of load
Load (max.)1) /
Fabric mark
Coton
Extra Sec
Drying level: extra dry.
7kg/
Prêt à Ranger+
Drying level: strong dry.
7kg/
Drying level: cupboard dry.
7kg/
Prêt à Ranger2) 3)
ENGLISH
Programmes
Prêt à Repasser 2)
Type of load
Drying level: suitable for ironing.
9
Load (max.)1) /
Fabric mark
7kg/
Synthétiques
Extra Sec
Drying level: extra dry.
3,5kg/
Prêt à Ranger 2)
Drying level: cupboard dry.
3,5kg/
Prêt à Repasser
Drying level: suitable for ironing.
3,5kg/
Sports
Sportswear, thin and light fabrics, mi‐
crofiber, polyester.
2kg/
Minuterie
With this program you can use the Mi‐
nuterie option and set the programme 7kg/
duration.
Rafraîchir
Refreshing a textiles that were in stor‐
1kg
age.
Rafraîchir Laine
Refreshing a wool fabrics. Wool items
become soft and cosy. Remove the
1kg
items immediately after the pro‐
gramme end.
Délicats
Delicate fabrics.
3kg/
Couette
Single or double duvets and pillows
(with feather, down or synthetic fil‐
lings).
3kg/
Easy care fabrics for which a mini‐
mum of ironing is necessary. The dry‐
ing results can be different from one
1kg (or 5 shirts)/
type of fabric to another. Shake the
Facile à Repasser items before putting them in the appli‐
ance. When the programme has
ended, immediately remove the items
and put them on a hanger.
1) The maximum weight refers to dry items.
2) For test institutes only: Standard programs for tests are specified in the EN 61121
document.
3) The
Coton Prêt à Ranger program is the “Standard cotton programme”. It is suita‐
ble for drying normal wet cotton laundry and it is the most efficient program in terms of ener‐
gy consumption for drying wet cotton laundry.
10
www.electrolux.com
6. OPTIONS
6.1 Minuterie
This option is applicable only to the
Minuterie programme. You can set the
programme duration, from a minimum of
10 minutes to a maximum of 2 hours.
The setting of the duration is related to
the quantity of laundry in the appliance.
We recommend that you set
a short duration for small
quantities of laundry or for
only one item.
rotates time to time what prevents the
mclothes from creases. Laundry can be
removed during the anti-crease phase.
6.3 Signal Sonore
you can hear the buzzer at the:
•
•
•
cycle end
start and end of crease guard phase
cycle interruption
The buzzer function is by default always
on. You can use this function to activate
or deactivate the sound.
6.2 Anti-froissage
You can activate the Signal
Sonore option with all
programmes.
Extends up to 90 minutes the anticrease
phase (30 minutes) at the end of the
drying cycle. After drying phase drum
6.4 Options table
Programmes1)
Coton
Extra Sec
■
■
Prêt à Ranger+
■
■
Prêt à Ranger
■
■
Prêt à Repasser
■
■
Extra Sec
■
■
Prêt à Ranger
■
■
Prêt à Repasser
■
■
Sports
■
■
■
■
■
■
Synthétiques
Minuterie
■
Rafraîchir
Rafraîchir Laine
■ 2)
■
ENGLISH
11
Programmes1)
■
Délicats
■
■
Couette
Facile à Re‐
passer
■
■
1) Together with the program you can set 1 or more options. To activate or deactivate them,
press the related touchpad.
2) Only with the Drying Rack (standard accessory or optional, depending on model).
7. SETTINGS
A
The child lock indicator comes on.
It is possible to deactivate
the child lock option while a
programme operates. Press
and hold the same
touchpads until the child lock
indicator goes off.
B
C
D
E
A. Minuterie
touchpad
B. Départ Différé
C. Signal Sonore
touchpad
touchpad
D. Anti-froissage
touchpad
E. Départ/Pause
touchpad
7.1 Child lock function
This option prevents children to play with
the appliance while a programme
operates. The programme knob and the
touchpads are locked.
Only
OFF switch is unlocked.
Activating the child lock option:
1. Use the programme knob to set any
programme.
2. Wait approximately 8 seconds.
3. Press and hold touchpads (A) and
(D) at the same time. The child lock
indicator comes on.
7.2 Adjustment of the remaining
laundry moisture degree
To change the default degree of the
remaining moisture of the laundry:
1. Use the programme knob to set any
programme.
2. Wait approximately 8 seconds.
3. Press and hold buttons (A) and (B) at
the same time.
One of the these indicators comes on:
•
the maximum dry laundry
•
the more dry laundry
•
the standard dry laundry
4. Press the button (E) again and again
until the indicator of the correct level
comes on.
5. To confirm the adjustment, press and
hold buttons (A) and (B) at the same
time for approximately 2 seconds.
8. BEFORE FIRST USE
Before you use the appliance for the first
time:
•
Clean the tumble dryer drum with a
moist cloth.
12
www.electrolux.com
•
Start a short programme (e.g. 30
minutes) with moist laundry.
At the beginning of the
drying cycle (first 3-5 min)
there could be a slightly
higher sound level. This is
due to the compressor
starting up. This is normal
for compressor powered
appliances such as
refrigerators and freezers.
9. DAILY USE
9.1 Start a programme without
delay start
1. Prepare the laundry and load the
appliance.
CAUTION!
Make sure that when
you close the door, the
laundry does not catch
between the appliance
door and the rubber
seal.
2. Set the correct programme and
options for the type of load.
The display shows the programme
duration.
The drying time you see is
related to the load of 5 kg for
cotton and jeans
programmes. For the other
programmes the drying time
is related to the
recommended loads. The
drying time of the cotton and
jeans programmes with the
load more than 5 kg is
longer.
3. Press the Départ/Pause touchpad.
The programme starts.
9.2 Starting the programme
with delay start
1. Set the correct programme and
options for the type of load.
2. Press the delay start button again
and again until the display shows the
delay time you want to set.
You can delay the start
of a programme from a
minimum of 30 minutes
to a maximum of 20
hours.
3. Press the Départ/Pause touchpad.
The display shows the countdown of the
delay start.
When the countdown is completed, the
programme starts.
9.3 Change a programme
1. Turn the Programme knob to
2. Set the programme.
OFF
9.4 At the end of the
programme
When the programme is completed:
•
An intermittent acoustic signal
operates.
•
The indicator
•
•
The indicator
flashes.
The Départ/Pause indicator is on.
flashes.
The appliance continues to operate with
the crease guard phase for
approximately other 30 minutes.
The crease guard phase prevents
creases from your laundry.
You can remove the laundry before the
crease guard phase is completed. We
recommend, for better results, that you
remove the laundry when the phase is
almost completed.
When the crease guard phase is
completed:
ENGLISH
•
The indicator
flash.
•
is on but does not
The indicator
flash.
Départ/Pause indicator goes off.
•
1.
2.
3.
4.
is on but does not
Turn the Programme knob to
Open the appliance door.
Remove the laundry.
Close the appliance door.
OFF
13
9.5 Stand-by function
To decrease the energy consumption,
this function automatically deactivates
the appliance:
•
•
After 5 minutes if you do not start the
programme.
After 5 minutes from the end of the
programme.
Always clean the filter and
empty the water container
when a programme is
completed.
10. HINTS AND TIPS
10.1 Preparing the laundry
•
•
•
•
•
•
•
•
•
Close the zippers.
Close the fasteners of duvet covers.
Do not dry ties or ribbons loose (e.g.
apron ribbons). Tie them before you
start a programme.
Remove all items from pockets.
If an item has an internal layer made
of cotton, turn it inside out. Make sure
that the cotton layer is always facing
outward.
We recommend that you set a correct
programme suitable for the type of
fabrics that are in the appliance.
Do not put dark colours together with
light colours.
Fabric label
•
•
Use a suitable programme for cotton,
jersey and knitwear to prevent
shrinkage.
Make sure that the load do not
exceeds the maximum load stated in
programs chapter or shown on the
display.
Only dry laundry that is suitable for
tumble drying. Refer to the fabric label
on the items.
Do not dry large and small items
together. Small items can be trapped
inside the large items and remain wet.
Description
Laundry is suitable for tumble drying.
Laundry is suitable for tumble drying at higher temperatures.
Laundry is suitable for tumble drying at low temperatures only.
Laundry is not suitable for tumble drying.
14
www.electrolux.com
11. CARE AND CLEANING
11.1 Cleaning the filter
1.
2.
2
1
3.
4.
1
2
5. 1)
6.
1
2
1) If necessary clean the filter with tap warm water using a brush and/or a vacuum cleaner.
11.2 Emptying the water container
1.
2.
3.
4.
ENGLISH
15
You can use the water from
the water container as an
alternative to distilled water
(e.g. for steam ironing).
Before you use the water,
remove dirt residues with a
filter.
11.3 Cleaning the condenser
1.
2.
3.
4.
1
2
1
2
5.
6
2
1
7.
CAUTION!
Do not touch the metal
surface with bare hands.
Risk of injury. Wear
protective gloves. Clean
carefully to avoid damaging
the metal surface.
11.4 Cleaning the drum
WARNING!
Disconnect the appliance
before you clean it.
Use a standard neutral soap detergent to
clean the inner surface of the drum and
16
www.electrolux.com
drum lifters. Dry the cleaned surfaces
with a soft cloth.
CAUTION!
Do not use abrasive
materials or steel wool to
clean the drum.
Use a moist cloth to clean. Dry the
cleaned surfaces with a soft cloth.
CAUTION!
Do not use furniture cleaning
agents or cleaning agents
which can cause corrosion
to clean the appliance.
11.5 Cleaning the control panel
and housing
11.6 Cleaning the airflow slots
Use a standard neutral soap detergent to
clean the control panel and housing.
Use a vacuum cleaner to remove fluff
from the airflow slots.
12. TROUBLESHOOTING
Problem
Possible solution
You cannot activate the appliance.
Make sure that the mains plug is connec‐
ted to the mains socket.
Check fuse in fuse box (domestic installa‐
tion).
The programme does not start.
Press Départ/Pause.
Make sure that the appliance door is
closed.
The appliance door does not close.
Make sure that the installation of the filter
is correct.
Make sure that the laundry does not
catch between the appliance door and
the rubber seal.
The appliance stops during operation.
Make sure that the water container is
empty. Press Départ/Pause to start the
programme again.
The cycle time is too long or unsatisfacto‐ Make sure that the weight of the laundry
is applicable to the duration of the pro‐
ry drying result.1)
gramme.
Make sure that the filter is clean.
The laundry is too wet. Spin the laundry
in the washing machine again.
Ensure that the room temperature is
higher than +5°C and lower than +35°C.
Optimal room temperature is 19°C to
24°C.
Set the Minuterie or the Extra Sec pro‐
gramme.2)
ENGLISH
Problem
Possible solution
The display shows Err.
If you want to set a new programme, de‐
activate and activate the appliance.
17
Make sure that the options are applicable
to the programme.
The display shows (e.g. E51).
Deactivate and activate the appliance.
Start a new programme. If the problem
occurs again, contact the Service.
1) After maximum 5 hours, the programme ends automatically.
2) It can happen that some area remains humid when drying big items (e.g. bed sheets ).
If the drying results are not
satisfactory
•
•
•
•
•
The set programme was incorrect.
The filter is clogged.
The condenser is clogged.
There was too much laundry in the
appliance.
The drum is dirty.
•
Incorrect setting of the conductivity
sensor ( See chapter "Settings -
Adjustment of the remaining laundry
moisture degree " for better setting).
• The airflow slots are clogged.
• Room temperature is too low or too
high ( optimal room temperature 19°C
to 24°C )
13. TECHNICAL DATA
Height x Width x Depth
850 x 600 x 600 mm (maximal 640 mm)
Max. depth with the appliance door open
1090 mm
Max. width with the appliance door open
950 mm
Adjustable height
850 mm (+ 15 mm - feet regulation)
Drum volume
118 l
Maximum load volume
7 kg
Voltage
230 V
Frequency
50 Hz
Total power
950 W
Energy efficiency class
A+
Energy consumption1)
2,17 kWh
Annual energy consumption2)
260 kWh
Left—on mode power absorption
0,44 W
Off mode power absorption
0,44 W
Type of use
Household
Permitted ambient temperature
+ 5°C to + 35°C
18
www.electrolux.com
Level of protection against ingress of sol‐
id particles and moisture ensured by the
protective cover, except where the low
voltage equipment has no protection
against moisture
IPX4
This product contains fluorinated greenhouse gases, hermetically sealed
Gas designation
R134a
Weight
0,380 kg
Global-warming potential (GWP)
1430
1) With reference to EN 61121. 7kg of cotton centrifuged at 1000 rpm.
2) Energy consumption per year in kWh, based on 160 drying cycles of the standard cotton
program at full and partial load, and the consumption of the low-power modes. Actual ener‐
gy consumption per cycle will depend on how the appliance is used (REGULATION (EU) No
392/2012).
13.1 Consumption data
Programme
Spun at / residual humidity
Drying time
Energy
consump‐
tion
Coton 7 kg
Prêt à Ranger
Prêt à Repasser
1400 rpm / 50%
139 min.
1,90 kWh
1000 rpm / 60%
159 min.
2,17 kWh
1400 rpm / 50%
103 min.
1,47 kWh
1000 rpm / 60%
117 min.
1,68 kWh
1200 rpm / 40%
57 min.
0,64 kWh
800 rpm / 50%
65 min.
0,72 kWh
Synthétiques 3,5 kg
Prêt à Ranger
14. ENVIRONMENTAL CONCERNS
Recycle the materials with the symbol
. Put the packaging in applicable
containers to recycle it. Help protect the
environment and human health and to
recycle waste of electrical and electronic
appliances. Do not dispose appliances
*
marked with the symbol with the
household waste. Return the product to
your local recycling facility or contact
your municipal office.
ENGLISH
19
136946640-A-122016
www.electrolux.com/shop
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
