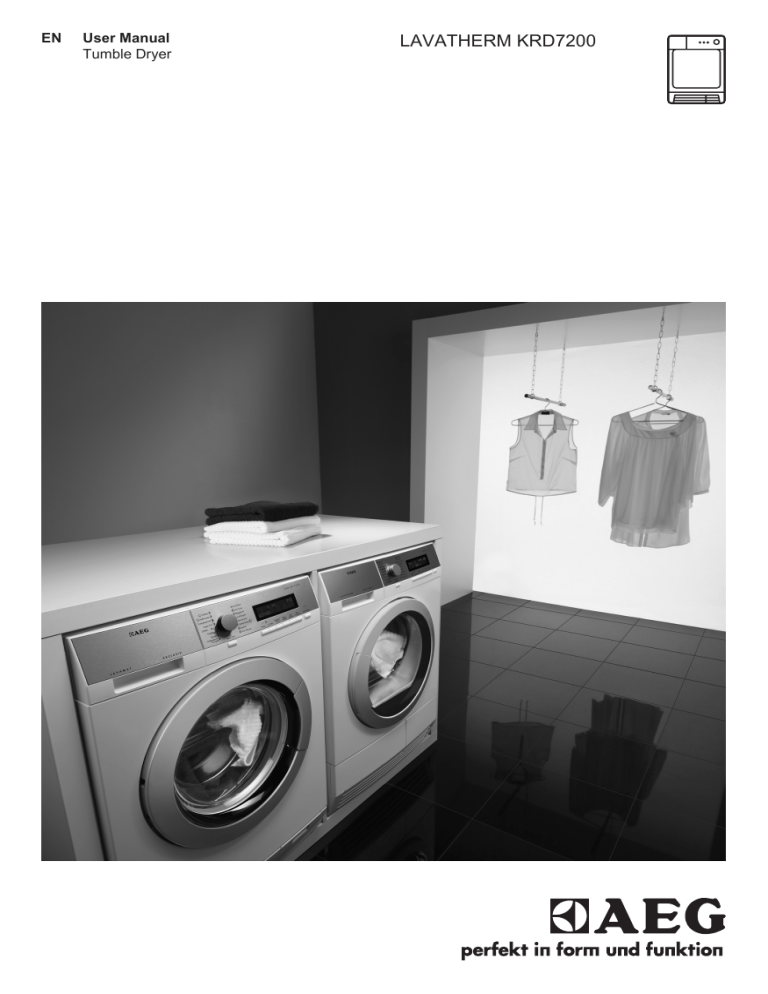

EN User Manual

Tumble Dryer

LAVATHERM KRD7200

2 www.aeg.com

CONTENTS

1. SAFETY INFORMATION.................................................................................................3

2. SAFETY INSTRUCTIONS................................................................................................ 5

3. PRODUCT DESCRIPTION.............................................................................................. 7

4. ACCESSORIES.................................................................................................................8

5. CONTROL PANEL...........................................................................................................9

6. PROGRAMME TABLE................................................................................................... 10

7. OPTIONS....................................................................................................................... 13

8. BEFORE FIRST USE.......................................................................................................13

9. DAILY USE......................................................................................................................13

10. HINTS AND TIPS.........................................................................................................16

11. CARE AND CLEANING.............................................................................................. 16

12. TROUBLESHOOTING.................................................................................................19

13. TECHNICAL DATA..................................................................................................... 20

14. INSTALLATION........................................................................................................... 21

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information: www.aeg.com

Register your product for better service: www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

ENGLISH

1.

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

1.1

General Safety

Do not change the specification of this appliance.

If the tumble dryer is put on top of a washing machine, use the stacking kit. The stacking kit, available from your authorized vendor, can be used only with the appliance specified in the instructions, supplied with the accessory. Read it carefully before installation (Refer to the Installation leaflet).

The appliance can be installed as freestanding or below the kitchen counter with correct space (Refer to the Installation leaflet).

Do not install the appliance behind a lockable door, a sliding door or a door with a hinge on the opposite side, where the appliance door can not be fully opened.

The ventilation openings in the base (if applicable) must not be obstructed by a carpet.

Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

Ensure you have good ventilation in the installation room to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.

Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels. (if applicable)

3

4 www.aeg.com

If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

Obey the maximum load volume of 7kg (refer to the

“Programme chart” chapter).

Do not use the appliance if industrial chemicals have been used for cleaning.

Wipe away lint that has accumulated around the appliance.

Do not run the appliance without a filter. Clean the lint filter before or after each use.

Do not dry unwashed items in the tumble dryer.

Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

Remove all objects from pockets such as lighters and matches.

Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.

Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

ENGLISH

1.2

Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent disability.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Do not let children play with the appliance.

Children of less than 3 years should be kept away unless continuously supervised.

Keep all packaging away from children.

Keep all detergents away from children.

Keep children and pets away from the appliance door when it is open.

If the appliance has a child safety device, we recommend you activate it.

Cleaning and user maintenance shall not be made by children without supervision.

2.

SAFETY INSTRUCTIONS

2.1

Installation

• Remove all the packaging.

• Do not install or use a damaged appliance.

• Obey the installation instruction supplied with the appliance.

• Always be careful when you move the appliance because it is heavy. Always wear safety gloves.

• Do not install or use the appliance where the temperature is less than

5°C or higher than 35°C.

• Make sure that the floor where you install the appliance is flat, stable, heat resistant and clean.

• Make sure that there is air circulation between the appliance and the floor.

• Always move the appliance vertically.

• The rear surface of the appliance must be put against the wall.

• When the appliance is put in its permanent position, check if it is fully level with the aid of a spirit level. If it is not, adjust the feet until it is.

2.2 Electrical connection

WARNING!

Risk of fire and electrical shock.

• The appliance must be earthed.

• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.

• Always use a correctly installed shockproof socket.

• Do not use multi-plug adapters and extension cables.

5

6 www.aeg.com

• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

• Do not touch the mains cable or the mains plug with wet hands.

• Only for UK and Ireland. The appliance has a 13 amp mains plug. If it is necessary to change the fuse in the mains plug, use a 13 amp ASTA

(BS 1362) fuse.

• This appliance complies with the

E.E.C. Directives.

2.3

Use

WARNING!

Risk of injury, electrical shock, fire, burns or damage to the appliance.

• Use this appliance in a household only.

• Do not dry the damaged items which contain padding or fillings.

• Only dry fabrics which are applicable to dry in the tumble dryer. Follow the instructions on the fabric label.

• If you have washed your laundry with a stain remover start an extra rinse cycle before you start the dryer.

• Do not drink or prepare food with the condensed water/distilled water. It can cause health problems to people and pets.

• Do not sit or stand on the open door.

• Do not dry dripping wet clothes in the tumble dryer.

2.4 Care and cleaning

WARNING!

Risk of injury or damage to the appliance.

• Do not use water spray and steam to clean the appliance.

• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

2.5 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent children and pets to get closed in the appliance.

3.

PRODUCT DESCRIPTION

1 2

ENGLISH 7

11

10

9

8

1

Water container

2

Control panel

3

Appliance door

4

Filter

5

Button for condenser door

6

Airflow slots

7

Adjustable feet

8

Condenser door

9

Condenser cover

10

Locks for condenser cover

11

Rating plate

The load door can be installed by the user in the opposite side. It can help to easily put and remove the laundry or if there is a limit to install the appliance (see separate leaflet).

3

4

5

6

7

8 www.aeg.com

4.

ACCESSORIES

4.1 Stacking kit

Accessory name: SKP11, STA8, STA9

Available from your authorized vendor.

Stacking kit can be used only with the washing machines specified in the leaflet. See the leaflet attached.

Read carefully the instructions supplied with the accessory.

4.2

Draining kit

Accessory name: DK11.

It is available from your authorized vendor (can be attached to some types of the tumble dryers)

The accessory for through draining of the condensed water into a basin, siphon, gully, etc. After the installation, the water container is drained automatically. The water container must stay in the appliance.

The installed hose must be on the height from minimum of 50 cm to maximum of 1 m from floor level. The hose cannot be in loop. Decrease the length of the hose if necessary.

Read carefully the instructions supplied with the accessory.

ENGLISH 9

5.

CONTROL PANEL

1 2 3

1

Programme dial

2

On/Off button

3

Programme indicators

4

Dry Plus button

5

Delicate button

6

Anti-crease button

7

Buzzer button

8

Time Dry button

9

Delay Start button

10 Display

11

Start/Pause button

12

Indicators:

Water container - drain the water container

Filter - clean filter

Condenser - clean condenser

5.1

Display

4 5 6 7 8 9 10 11 12 default laundry dryness m /

-

m moderate laundry dryness maximum laundry dryness delicate option on anti-crease phase duration drying phase indicator cooling phase indicator crease guard phase indicator child lock option on delay start option on cycle time indication time programme selection

(10min.-2h) delay start selection

(30min.-20h)

10 www.aeg.com

6.

PROGRAMME TABLE

Programmes

Load

1)

7 kg

Properties / Fabric mark

Cotton

Drying level: extra dry.

/

Extra Dry

Cupboard Dry

2)3)

Iron Dry

2)

7 kg

7 kg

Drying level: cupboard dry.

/

Drying level: applicable for iron.

/

Jeans

Bed Linen

Duvets

Time

Mixed

Extra Quick

7 kg

3 kg

3 kg

7 kg

3 kg

Leisure clothing such as jeans, sweat-shirts of different material thicknesses (e.g. at the neck, cuffs and seams).

/

To dry bed linen such as: single and double sheet, pillowcase, bedspread.

/

To dry one or two duvet and pillows (with feather, down or synthetic fillings).

With this programme you can use the option Time and set the programme duration.

/

/

To dry cotton and synthetic fabrics, uses low temperature.

/

Extra Dry

Cupboard Dry

2)

Iron Dry

3,5 kg

3,5 kg

Synthetic

Drying level: extra dry.

3,5 kg

Drying level: cupboard dry.

Drying level: applicable for iron.

/

/

/

ENGLISH 11

Programmes

Easy Iron

Active Wear

Sports

Load

1)

1 kg (or 5 shirts)

2 kg

2 kg

Properties / Fabric mark

Easy care fabrics for which a minimum of ironing is necessary. The drying results can be different from one type of fabric to the other. Shake the items before you put them in the appliance.

When the programme is completed, Immediately remove the items and put them on a hanger.

/

To dry outdoor pieces of clothing, technical, sports, pile fabrics, waterproof and breathable jackets, shell jacket teamed with a removable fleece or inner insulation.

Sportswear, thin and light fabrics, microfiber, polyester, which are not ironed.

Delicates

3 kg Delicate fabrics.

/

Wool Refresh

1 kg

Refreshing a wool fabrics. Wool items become soft and cosy. Remove the items immediately after the programme end.

1)

The maximum weight refers to dry items.

2) For test institutes only:

Standard programmes for tests are specified in the EN 61121 document. If is necessary to correct the remaining moisture level of the laundry, adjust the programme with the Dry

Plus option Clean the filter after each cycle

3)

The Cotton Cupboard Dry programme is the “Standard cotton programme” and it is suitable to dry normal wet cotton laundry and it is the most efficient programme in terms of energy consumption for drying wet cotton laundry.

6.1

Programmes and options selection

Programmes

1)

Dry

Plus

Options

Delicate

Anticrease

Cotton; Extra Dry

Cotton; Cupboard Dry

Cotton; Iron Dry

Jeans

Bed Linen

Duvets

2)

Time

Dry

12 www.aeg.com

Programmes

1)

Dry

Plus

Options

Delicate

Anticrease

Time

Extra Quick Mixed

Synthetic; Extra Dry

Synthetic; Cupboard Dry

Synthetic; Iron Dry

Easy Iron

Active Wear

Sports

Delicates

2)

Wool Refresh

1)

Together with the programme you can set 1 or more options.

2)

Activated by default.

2)

6.2 Consumption Data

2)

2)

Programme Spun at / residual humidity

Time

Dry

Drying time

Energy consumption

Cupboard Dry

Iron Dry

Cupboard Dry

1400 rpm / 50%

Cotton 7 kg

1000 rpm / 60%

1400 rpm / 50%

1000 rpm / 60%

Synthetic 3 kg

1200 rpm / 40%

800 rpm / 50%

115 min.

131 min.

96 min.

109 min.

48 min.

55 min.

3,77 kWh

4,30 kWh

3,04 kWh

3,47 kWh

1,26 kWh

1,43 kWh

ENGLISH 13

7.

OPTIONS

7.1

Dry Plus

This option helps to get the laundry more dried. There are 3 possible selections:

- the default selection which is related to the programme.

- the selection to get the laundry lightly dried.

- the selection to get the laundry more dried.

7.2 Delicate

To dry more lightly the sensitive and temperature sensitive textiles (e.g.

acrylic, viscose). With this option programme operates with decreased heat. For fabrics with the symbol on the fabric label.

7.3 Anti-crease

Extends anti-crease phase (30 minutes) at the end of the drying cycle to 90 minutes. This option prevents laundry from creases. Laundry can be removed during the anti-crease phase.

7.4 Buzzer

When the buzzer option is activated you can hear the buzzer at the:

• cycle end

• anti-crease phase start and end

8.

BEFORE FIRST USE

Before you use the appliance for the first time do these operations:

• Clean the tumble dryer drum with a moist cloth.

9.

DAILY USE

9.1

Preparing the laundry

• Close the zippers.

• Close the fasteners of the duvet covers.

• cycle interruption

The buzzer option is by default always on. You can use this function to activate or deactivate the sound.

You can activate the Buzzer option with all programmes.

7.5 Time Dry

Operates only with the Time programme. Lets the user to set special time of drying programme from minimum 10 min. to maximum of 2 hours

(in 10 min. steps).

7.6

Delay Start

Lets to delay the start of a drying programme from minimum of 30 minutes to maximum of 20 hours.

1.

Set the drying programme and options.

2.

Push the Delay Start button again and again.

the necessary time of the delay come into the view on the display (e.g. if the programme has to start after 12 hours.)

3.

To activate the Delay Start option, push the Start/Pause button. The time to start decreases on the display.

• Start a short programme (e.g. 30 minutes) with moist laundry.

• Do not keep ties or ribbons loose

(e.g. apron ribbons). Tie them before you start a programme.

• Remove all items from the pockets.

14 www.aeg.com

• If an item has the internal layer made of cotton, turn it inside out. Make sure that the cotton layer is always external

• We recommend that you set the correct programme applicable for the type of fabrics that are in the appliance.

• Do not put fabrics with strong colours together with fabrics with light colours. Strong colours can bleed.

• Use an applicable programme for cotton jersey and knitwear to prevent the items to shrink.

• Make sure that the laundry weight is not more than the maximum weight that is in the programme table.

• Dry only the laundry that is applicable for tumble dryer. Refer to the fabric label on the items.

Fabric label Description

Laundry that is applicable for tumble dryer.

Laundry that is applicable for tumble dryer. Set the programme with standard temperature.

Laundry that is applicable for tumble dryer. Set the programme with low temperature.

Laundry that is not applicable for tumble dryer.

9.2

Loading the laundry

CAUTION!

Do not lock the laundry in between the appliance door and rubber seal.

1.

Pull the appliance door.

2.

Load loosely the laundry.

3.

Close the appliance door.

9.3 Turning on the appliance

To turn on the appliance:

Push the On/Off button.

If the appliance is on, some indications come in to the view on the display.

9.4 Auto stand-by function

To decrease the energy consumption, the automatic stand-by function deactivates the appliance:

• if the Start/Pause button was not pushed in the time of 5 minutes.

• after 5 minutes from the programme end.

Push the On/Off button to activate the appliance.

If the appliance is on, some indications come in to the view on the display.

9.5 Setting a programme

Use the programme dial to set the programme.

The possible time to complete the programme comes into the view on the display.

The drying time you see is related to the load of 5 kg for cotton and jeans programmes. For the other programmes the drying time is related to the recommended loads. The drying time of the cotton and jeans programmes with the load more than 5 kg is longer.

9.6 Options

Together with the programme you can set 1 or more special options.

ENGLISH 15

The symbol comes into the view on the display.

5.

To deactivate the child lock, push again the above buttons until the symbol goes out of the view.

9.8 Starting a programme

To start the programme:

To activate or deactivate the option push the applicable button .

When the option is activated the LED above the button or symbol on the display comes into the view.

9.7 Child lock option

The child lock can be set to prevent the children to play with the appliance. The child lock option locks all push buttons and the programme dial (this option does not lock On/Off button).

You can activate the child lock option:

• before you push the Start/Pause button - the appliance cannot start

• after you push the Start/Pause button - programmes and option selection is off.

Child lock option activation:

1.

Turn on the dryer.

2.

Wait approximately 8 seconds.

3.

Select 1 of the available programmes.

4.

Push at the same time and hold down the Dry Plus and

Delicate

buttons .

Push the Start/Pause button.

The appliance starts and the LED above the button does not flash but is stable.

9.9 Programme change

To change a programme:

1.

Push the On/Off button to turn off the appliance.

2.

Push again the On/Off button to turn on the appliance.

3.

Set a new programme.

9.10 Programme end

Clean the filter and drain the water container after each drying cycle. (See chapter

CARE AND CLEANING.)

If the drying cycle is completed, the symbol flashes on the display. If the

Buzzer option is on, the acoustic signal sounds intermittently for 1 minute.

If you do not turn off the appliance, the crease guard phase starts. Laundry can be removed during this phase.

To remove the laundry:

1.

Push the On/Off button for 2 seconds to turn off the appliance.

2.

Open the appliance door.

3.

Remove the laundry.

4.

Close the appliance door.

16 www.aeg.com

10.

HINTS AND TIPS

10.1 Ecological hints

• Spin good the laundry before drying.

• Use the load volumes which are specified in the programme chart.

• Clean the filter after each drying cycle.

• Do not use fabric softener to wash and then dry. In the tumble dryer laundry becomes soft automatically.

• Use the condensate as distilled water, e.g. for steam ironing. If it is necessary clean the condensate before (e.g.

with a coffee filter) to remove possible small pieces of fluff.

• Always keep the airflow slots on the bottom of the appliance clear.

• Make sure that is good airflow in the appliance installation position.

10.2

Adjustment of the remaining laundry moisture degree

To change the default degree of the remaining moisture of the laundry:

1.

Turn on the appliance.

2.

Wait approximately 8 seconds.

3.

Select 1 of available programmes.

4.

Push at the same time and hold down the Dry Plus and Anticrease buttons.

One of the symbols goes into the view on the display:

11.

CARE AND CLEANING

11.1 Cleaning the filter

At the end of each cycle the indicator

Filter is on and you must clean the filter.

The filter collects the fluff.

The fluff occurs while the clothes are dried in the tumble dryer.

To clean the filter:

1.

Open the door. Pull the filter.

- the maximum dry laundry

- the more dry laundry

- the standard dry laundry

5.

Push the Start/Pause button again and again until you set necessary degree.

6.

To memorise the setting, push at the same time the Dry Plus and

Anti-crease buttons for approximately 2 seconds.

10.3 Deactivating the Water container indicator

1.

Turn on the appliance.

2.

Wait approximately 8 seconds.

3.

Select 1 of available programmes.

4.

Push at the same time and hold down the Dry Plus and

Buzzer buttons.

One of 2 configurations is possible:

• the Water container indicator: is on and the symbol goes into the view - the water container indicator is permanently on

• the Water container indicator: is off and the symbol goes into the view - the water container indicator is permanently off

2.

Open the filter.

3.

Use a moist hand to clean the filter.

ENGLISH 17

11.2 Draining the water container

Drain the condensed water container after each drying cycle.

If the condensed water container is full, the programme breaks off automatically.

The indicator

Water container

is on and you must drain the water container.

To drain the water container:

1.

Pull the water container and keep it in horizontal position.

4.

If necessary clean the filter with the brush under warm tap water and/or a vacuum cleaner. Close the filter.

2.

Move the plastic connection out and drain the water into a basin or equivalent receptacle.

5.

If necessary remove fluff from the filter socket and gasket. You can use a vacuum cleaner. Put the filter inside the filter socket.

3.

Move plastic connection in and install water container.

4.

To continue the programme press the Start/Pause button.

11.3

Cleaning the condenser

If the indicator Condenser flashes, the condenser and its compartment must be cleaned.

To clean the condenser and its compartment:

1.

Open the door.

2.

Move the release button on the bottom of the door to open the condenser door.

18 www.aeg.com

3.

Turn 2 blockages to unlock the condenser cover.

4.

Lower the condenser cover.

5.

Catch the handle and pull the condenser out from the bottom compartment. Move condenser horizontally to do not spill remaining water.

6.

Clean the condenser in vertical position over a basin or paddling.

Rinse through with a hand shower.

7.

Put the condenser back inside the bottom compartment.

8.

Close the condenser cover.

9.

Lock 2 blockages until they snap.

10.

Close the condenser door.

11.4

Cleaning the drum

WARNING!

Disconnect the appliance before you clean it.

Use a standard neutral soap detergent to clean the inner surface of the drum and drum ribs. Dry the cleaned surfaces with a soft cloth.

CAUTION!

Do not use abrasive materials or steel wool to clean the drum.

11.5

Cleaning the control panel and housing

Use a standard neutral soap detergent to clean the control panel and housing.

Use a moist cloth to clean. Dry the cleaned surfaces with a soft cloth.

CAUTION!

Do not use furniture cleaning agents or cleaning agents which can cause corrosion to clean the appliance.

11.6 Cleaning the airflow slots

Use a vacuum cleaner to remove the fluff from the airflow slots.

ENGLISH 19

12.

TROUBLESHOOTING

Problem

1)

Possible cause Remedy

The tumble dryer is not connected to mains supply.

The loading door is opened.

Connect in at mains socket. Check fuse in fuse box (domestic installation).

Close the loading door.

The tumble dryer does not operate.

The On/Off button was not pushed.

The Start/Pause button was not pushed.

The appliance is in the standby mode.

Incorrect programme selection.

Push the

Push the

Push the

On/Off button.

Start/Pause button.

On/Off button.

Do the selection of the applicable programme.

2)

The filter is clogged.

Clean the filter.

3)

Unsatisfactory drying result.

The loading door does not closed

Err

(Error) on the display.

The Dry Plus option was in minimum level.

4)

Too high volume of the load.

The airflow grill is clogged.

Dirt on the humidity sensor in the drum.

Incorrect remaining laundry moisture degree.

Change the Dry Plus option to the moderate or maximum level.

4)

Obey the maximum load volume.

Clean the airflow grill in the bottom of the appliance.

Clean the front surface of the drum.

Adjust remaining laundry moisture degree.

5)

The condenser is clogged.

The filter not locked in the position.

The laundry is locked between the door and the seal.

You try to change the programme or the option after the start of the cycle.

The option you try to activate is not applicable with the selected programme.

Clean the condenser.

3)

Put the filter in the correct position.

Put the load correctly in the drum.

Turn the tumble dryer off and on.

Make the new selection.

Turn the tumble dryer off and on.

Make the new selection.

20 www.aeg.com

Problem

1)

Possible cause

Abnormally elapsing time on the display.

The time to end is calculated on the basis of the volume and dampness of the laundry.

Remedy

The automatic procedure — this is not the appliance malfunction.

Programme inactive.

The water container is full.

Too small laundry volume.

Drain the water container, push the Start/Pause button.

3)

Do the selection of time programme. The time value must be related to the load. To dry 1 item or small quantities of the laundry we recommend to use short times.

Drying cycle too short.

The laundry is too dry.

Do the selection of time programme or higher drying level

(e.g. Extra Dry)

Clean the filter.

The filter is clogged.

Drying cycle too long

6)

Too high volume of the load.

The laundry not spun sufficiently.

Obey the maximum load volume.

Spin correctly the laundry.

Very high room temperature - this is not the appliance malfunction.

If possible, lower the room temperature.

1)

If there is an error message on the display (e.g. E51 ): Turn the tumble dryer off and on. Make a selection of the new programme. Push the Start/Pause button. Does not operate? - contact the service centre and give the error code.

2)

Follow the programme description — see PROGRAMME TABLE

3)

See chapter CARE AND CLEANING

4)

Only dryers with the Dry Plus option

5)

See HINTS AND TIPS chapter

6)

Note: After maximum 5 hours the drying cycle ends automatically.

13.

TECHNICAL DATA

Height x Width x Depth

Max. depth with the appliance door open

Max. width with the appliance door open

Adjustable height

Drum volume

Maximum load volume

Voltage

Frequency

850 x 600 x 540 mm (maximal 570 mm)

1030 mm

950 mm

850 mm (+ 15 mm - feet regulation)

104 l

7 kg

230 V

50 Hz

ENGLISH 21

Necessary fuse

Total power

Energy efficiency class

10 A

2250 W

B

4,30 kWh

Energy consumption

1)

Annual energy consumption

2)

Left—on mode power absorption

Off mode power absorption

504 kWh

0,41 W

0,41 W

Type of use

Permitted ambient temperature

Household

+ 5°C to + 35°C

Level of protection against ingress of solid particles and moisture ensured by the protective cover, except where the low voltage equipment has no protection against moisture

IPX4

1)

With reference to EN 61121. 7kg of cotton centrifuged at 1000 rpm.

2)

Energy consumption per year in kWh, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used (REGULATION (EU) No 392/2012).

14.

INSTALLATION

14.1 Unpacking

CAUTION!

Before use all parts of the transport packaging must be removed.

To remove the polystyrene blockages:

1.

Open the door.

2.

Pull plastic hose with the polystyrene blockages out from the drum.

14.2 Feet regulation

It is possible to adjust the height of the tumble dryer. To do that adjust the feet.

15mm

14.3

Installation under a counter

The appliance can be installed as freestanding or below the kitchen counter with correct space (see picture).

22 www.aeg.com

600 mm

> 850 mm

540 mm

15.

ENVIRONMENTAL CONCERNS

Recycle the materials with the symbol .

Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

*

ENGLISH 23

www.aeg.com/shop

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
