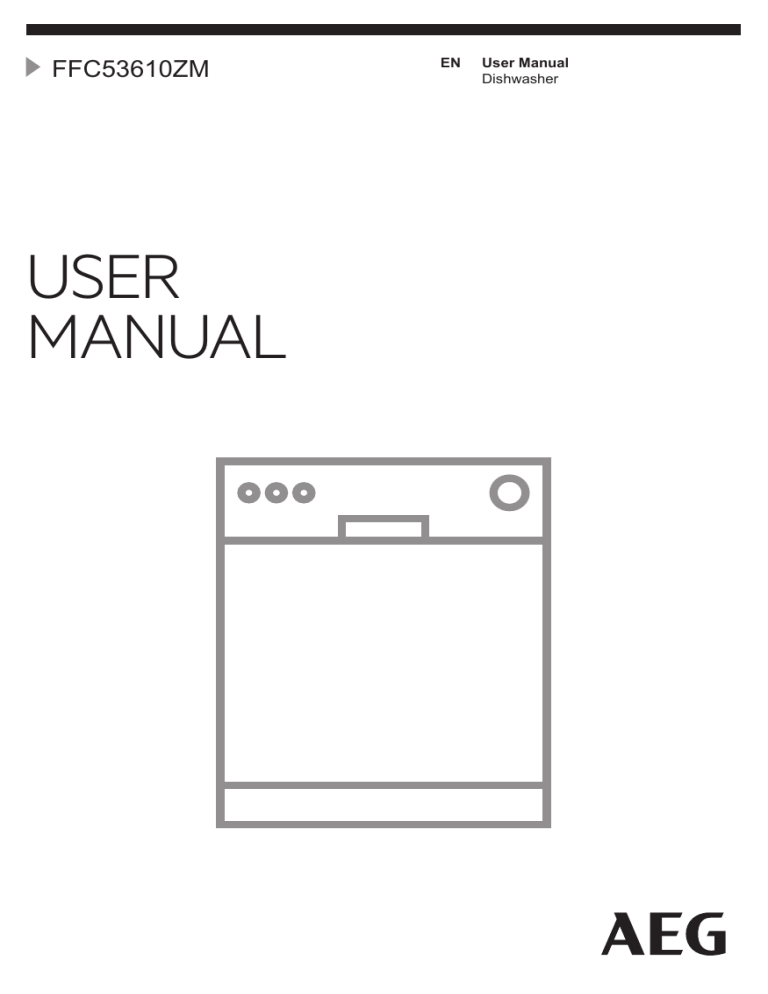

Aeg FFC53610ZM User Manual
FFC53610ZM
USER
MANUAL
EN
User Manual
Dishwasher
2
www.aeg.com
CONTENTS
1. SAFETY INFORMATION............................................................................................. 2
2. SAFETY INSTRUCTIONS.............................................................................................4
3. PRODUCT DESCRIPTION...........................................................................................6
4. CONTROL PANEL....................................................................................................... 7
5. PROGRAMMES............................................................................................................8
6. SETTINGS.....................................................................................................................9
7. OPTIONS....................................................................................................................10
8. BEFORE FIRST USE................................................................................................... 11
9. DAILY USE.................................................................................................................. 12
10. HINTS AND TIPS..................................................................................................... 13
11. CARE AND CLEANING.......................................................................................... 14
12. TROUBLESHOOTING............................................................................................. 16
13. TECHNICAL INFORMATION................................................................................. 19
14. WARRANTY .............................................................................................................19
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler features you might not find on ordinary appliances. Please
spend a few minutes reading to get the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.aeg.com/webselfservice
Register your product for better service:
www.registeraeg.com
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1.
SAFETY INFORMATION
Before the installation and use of the appliance,
carefully read the supplied instructions. The
manufacturer is not responsible for any injuries or
damages that are the result of incorrect installation or
ENGLISH
3
usage. Always keep the instructions in a safe and
accessible location for future reference.
1.1 Children and vulnerable people safety
•
•
•
•
•
•
•
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away unless continuously supervised.
Children of less than 3 years of age should be kept
away unless continuously supervised.
Do not let children play with the appliance.
Keep detergents away from children.
Keep children and pets away from the appliance when
the door is open.
Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•
•
•
•
•
This appliance is intended to be used in household
and similar applications such as:
– farm houses; staff kitchen areas in shops, offices
and other working environments;
– by clients in hotels, motels, bed & breakfast and
other residential type environments.
Do not change the specification of this appliance.
The operating water pressure (minimum and
maximum) must be between 0.5 (0.05) / 8 (0.8) bar
(MPa)
Obey the maximum number of 13 place settings.
If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
4
www.aeg.com
•
•
•
•
•
•
Put the cutlery in the cutlery basket with the sharp
ends pointing down or put them in the cutlery drawer
in a horizontal position with the sharp edges down.
Do not leave the appliance with the open door
unattended to avoid stepping accidentally onto it.
Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
Do not use high pressure water sprays and/or steam
to clean the appliance.
If the appliance has ventilation openings in the base,
they must not be covered e.g. by a carpet.
The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not install or use the appliance
where the temperature is less than 0
°C.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need
to be replaced, this must be carried
out by our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• This appliance complies with the
E.E.C. Directives.
• UK and Ireland only. This appliance is
fitted with a 13 A mains plug. If it is
necessary to change the mains plug
fuse, use only a 13 A ASTA (BS 1362)
fuse.
2.3 Water connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes,
pipes not used for a long time, where
repair work has been carried out or
new devices fitted (water meters,
ENGLISH
etc.), let the water flow until it is clean
and clear.
• Ensure that there are no visible water
leaks during and after the first use of
the appliance.
• The water inlet hose has a safety valve
and a sheath with an inner mains
cable.
•
•
•
•
5
instructions on the detergent
packaging.
Do not drink and play with the water
in the appliance.
Do not remove the dishes from the
appliance until the programme is
complete. Some detergent may
remain on the dishes.
The appliance can release hot steam
if you open the door while a
programme operates.
Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
2.5 Service
WARNING!
Dangerous voltage.
• If the water inlet hose is damaged,
immediately close the water tap and
disconnect the mains plug from the
mains socket. Contact the Authorised
Service Centre to replace the water
inlet hose.
2.4 Use
• Do not sit or stand on the open door.
• Dishwasher detergents are
dangerous. Obey the safety
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
6
www.aeg.com
3. PRODUCT DESCRIPTION
1
2
3
11
10
1
2
3
4
5
6
9
Worktop
Upper spray arm
Lower spray arm
Filters
Rating plate
Air vent
8 7
6
7
8
9
10
11
5
4
Rinse aid dispenser
Detergent dispenser
Cutlery basket
Lower basket
Upper basket
ENGLISH
4. CONTROL PANEL
1
2
8
1
2
3
4
5
On/off button
Program button
Programme indicators
Display
Delay button
3
4
7
5
6
6 Option button
7 Indicators
8 Start button
4.1 Indicators
Indicator
Description
Washing phase. It comes on when the washing phase operates.
Rinsing phase. It comes on when the rinsing phase operates.
Drying phase. It comes on when the drying phase operates.
End indicator.
XtraDry indicator.
Rinse aid indicator. It is always off while the programme operates.
Delay indicator.
ExtraHygiene indicator.
Door indicator. It comes on when the appliance door is open or is not correctly closed.
7
8
www.aeg.com
5. PROGRAMMES
The order of the programmes in the
table may not reflect their sequence on
the control panel.
Programme
1)
2)
3)
4)
Degree of soil
Type of load
Programme phases
Options
• Normal soil
• Crockery and
cutlery
•
•
•
•
• ExtraHygiene
• XtraDry
• All
• Crockery, cutlery, pots and
pans
• Prewash
• Wash from 45 °C to 70
°C
• Rinses
• Dry
• ExtraHygiene
• XtraDry
• Heavy soil
• Crockery, cutlery, pots and
pans
•
•
•
•
• ExtraHygiene
• XtraDry
• Fresh soil
• Crockery and
cutlery
• Wash 60 °C or 65 °C
• Rinses
• All
• Prewash
Prewash
Wash 50 °C
Rinses
Dry
Prewash
Wash 70 °C
Rinses
Dry
• ExtraHygiene
• XtraDry
1) This programme offers the most efficient use of water and energy consumption for crockery and cutlery with normal soil. This is the standard programme for test institutes.
2) The appliance senses the degree of soil and the quantity of items in the baskets. It automatically adjusts the temperature and the quantity of water, the energy consumption and the programme duration.
3) With this programme, you can wash a load with fresh soil. It gives good washing results in a short time.
4) With this programme, you can quickly rinse off food remains from dishes and prevent odours forming
in the appliance. Do not use detergent with this programme.
5.1 Consumption values
Programme 1)
Water
(l)
Energy
(kWh)
Duration
(min)
11.6
0.77
129
10 - 12
0.8 - 1.4
120 - 150
13 - 15
1.3 - 1.5
130 - 150
9
0.9
30
ENGLISH
Programme 1)
Water
(l)
Energy
(kWh)
Duration
(min)
4
0.1
14
9
1) The pressure and the temperature of the water, the variations of the mains supply, the options and the
quantity of dishes can change the values.
5.2 Information for test
institutes
To receive the necessary information for
conducting performance tests (e.g.
according to EN60436), send an email to:
info.test@dishwasher-production.com
In your request please include the
product number code (PNC) found on
the rating plate.
For any other questions regarding your
dishwasher please refer to the service
book provided with your appliance.
6. SETTINGS
6.1 Programme selection
mode and user mode
When the appliance is in programme
selection mode it is possible to set a
programme and to enter the user mode.
Settings available in the user mode:
• The activation or deactivation of the
rinse aid empty notification.
As the appliance stores the saved
settings, there is no need to configure
it before every cycle.
To enter user mode, press and hold
simultaneously Delay and Option until
the indicators
,
flash and the display is blank.
and
6.2 The rinse aid empty
notification
The rinse aid helps to dry the dishes
without streaks and stains.
The rinse aid is automatically released
during the hot rinse phase.
is on and the display shows the
programme duration.
When rinse aid chamber is empty, the
rinse aid indicator is turned on notifying
to refill rinse aid. If the drying results are
satisfactory while using multi-tablets
only, it is possible to deactivate the
notification for refilling rinse aid.
However, for best drying performance,
always use rinse aid.
After activation, the appliance is in
programme selection mode by default. If
not, set the programme selection mode
the following way:
If standard detergent or multi-tablets
without rinse aid are used, activate the
notification to keep the rinse aid refill
indicator active.
Press and hold simultaneously Delay and
Option until the appliance is in
programme selection mode.
How to deactivate the rinse
aid empty notification
How to enter user mode
Make sure the appliance is in user mode.
How to set the programme
selection mode
The appliance is in programme selection
mode when the programme indicator
Make sure the appliance is in
programme selection mode.
1. Press Start.
• The indicators
off.
and
are
10
www.aeg.com
• The indicator
still
flashes.
• The display shows the current
setting.
–
= rinse aid empty
notification activated.
= rinse aid empty
notification deactivated.
2. Press Start to change the setting.
3. Press on/off to confirm the setting.
–
6.3 AirDry
AirDry improves the drying results with
less energy consumption.
CAUTION!
Do not try to close the
appliance door within 2
minutes after automatic
opening. This can cause
damage to the appliance.
AirDry is automatically activated with all
programmes excluding
applicable).
(if
To improve the drying performance refer
to the XtraDry option or activate AirDry.
CAUTION!
If children have access to the
appliance, it is advised to
deactivate AirDry as opening
the door may pose a danger.
How to deactivate AirDry
Make sure the appliance is in user mode.
1. Press Delay.
• The indicators
and
are off.
still flashes.
• The indicator
• The display shows the current
During the drying phase, the
door opens automatically
and remains ajar.
setting:
= AirDry activated.
2. Press Delay to change the setting:
= AirDry deactivated.
3. Press on/off to confirm the setting.
7. OPTIONS
Desired options must be
activated every time before
you start a programme.
It is not possible to activate
or deactivate options while a
programme is running.
The Option button toggles
between the available
options and their possible
combinations.
Not all options are
compatible with each other.
If you select non compatible
options, the appliance
automatically deactivates
one or more of them. Only
the indicators of the still
active options are on.
If an option is not applicable
to a programme, the related
indicator is off or it flashes
quickly for a few seconds
and then goes out.
ENGLISH
Activating options can affect
the water and energy
consumption as well as the
programme duration.
7.1 XtraDry
Activate this option to boost the drying
performance. With XtraDry on, the
duration of some programmes, water
consumption and the last rinse
temperature can be affected.
XtraDry is a permanent option for all
programmes other than
and
need not to be selected at every cycle.
In the other programmes the setting of
XtraDry is permanent and it is
automatically used in next cycles. This
configuration can be changed at any
time.
11
How to activate XtraDry
Press Option until the indicator
The display shows the updated
programme duration.
is on.
7.2 ExtraHygiene
This option provides better hygiene
results by keeping the temperature at 70
°C for at least 10 minutes during the last
rinsing phase.
How to activate ExtraHygiene
Press Option until the indicator
The display shows the updated
programme duration.
is on.
Every time
is
activated, XtraDry is off and
needs to be chosen
manually.
8. BEFORE FIRST USE
1. Fill the rinse aid dispenser.
2. Open the water tap.
3. Start a program to remove any
processing residuals that can still be
inside the appliance. Do not use
detergent and do not load the
baskets.
8.1 How to fill the rinse aid
dispenser
A DB
4
1
3 2
1. Press the release button (D) to open
the lid (C).
2. Fill the dispenser (A) until the rinse
aid reaches the marking ''MAX''.
3. Remove the spilled rinse aid with an
absorbent cloth to prevent too much
foam.
4. Close the lid. Make sure that the
release button locks into position.
You can turn the selector of
the released quantity (B)
between position 1 (lowest
quantity) and position 4 or 6
(highest quantity).
M AX
+
CAUTION!
Only use rinse aid
specifically designed for
dishwashers.
-
C
12
www.aeg.com
9. DAILY USE
1. Open the water tap.
2. Press the on/off button to activate
the appliance.
Make sure that the appliance is in
programme selection mode.
• If the rinse aid empty message is
shown fill the rinse aid dispenser.
3. Load the baskets.
4. Add the detergent.
5. Set and start the correct programme
for the type of load and the degree
of soil.
9.1 Using the detergent
A
B
30
20
C
CAUTION!
Only use detergent
specifically designed for
dishwashers.
1. Press the release button (B) to open
the lid (C).
2. Put the detergent, in powder or
tablets, in the compartment (A).
3. If the programme has a prewash
phase, put a small quantity of
detergent on the inner part of the
appliance door.
4. Close the lid. Make sure that the
release button locks into position.
9.2 Setting and starting a
programme
The Auto Off function
This function decreases energy
consumption by deactivating
automatically the appliance when it is not
operating.
The function comes into operation:
• 5 minutes after the completion of the
programme.
• After 5 minutes if the programme has
not started.
Starting a programme
1. Press the on/off button to activate
the appliance. Make sure that the
appliance is in programme selection
mode and the door is closed.
2. Press Program again and again until
the indicator of the desired
programme is on.
The display shows the programme
duration.
3. Set the applicable options.
4. Press Start to start the programme.
• The indicator of the running
phase is on.
• The programme duration starts to
decrease with steps of 1 minute.
Starting a programme with
delay start
1. Set a programme.
2. Press Delay repeatedly until the
display shows the desired delay time
(from 1 to 24 hours).
3. Press Start to begin the countdown.
is on.
• The indicator
• The remaining time counts down
in hours. The final hour is
displayed in minutes.
When the countdown is completed, the
programme starts and the indicator of
the running phase is on. The indicator
is off.
Opening the door while the
appliance operates
Opening the door while a programme is
running stops the appliance. It may affect
the energy consumption and the
programme duration. After closing the
door, the appliance continues from the
point of interruption.
ENGLISH
Cancelling the delay start while
the countdown operates
When you cancel the delay start you
have to set the programme and options
again.
Press simultaneously Delay and Option
until the appliance is in programme
selection mode.
Cancelling the programme
Press and hold simultaneously Delay and
Option until the appliance is in
programme selection mode.
Make sure that there is detergent in the
detergent dispenser before you start a
new programme.
13
End of the programme
When the programme is completed the
display shows 0:00 and the end indicator
is on
All buttons are inactive except for the
on/off button.
1. Press the on/off button or wait for
the Auto Off function to
automatically deactivate the
appliance.
If you open the door before the
activation of Auto Off, the appliance
is automatically deactivated.
2. Close the water tap.
10. HINTS AND TIPS
10.1 General
The following hints will ensure optimal
cleaning and drying results in daily use
and also help to protect the
environment.
• Remove larger residues of food from
the dishes into the waste bin.
• Do not pre-rinse dishes by hand.
When needed, use the prewash
programme (if available) or select a
programme with a prewash phase.
• Always use the whole space of the
baskets.
• When loading the appliance, make
sure that the dishes can be
completely reached and washed by
the water released from the spray arm
nozzles. Make sure that items do not
touch or cover each other.
• You can use dishwasher detergent
and rinse aid separately or you can
use the multi-tablets. Follow the
instructions written on the packaging.
• Select the programme according to
the type of load and degree of soil.
With the ECO programme you have
the most efficient use of water and
energy consumption for crockery and
cutlery with normal soil.
10.2 Using rinse aid and
detergent
• Only use rinse aid and detergent for
dishwasher. Other products can cause
damage to the appliance.
• Detergent tablets do not fully dissolve
with short programs. To prevent
detergent residues on the tableware,
we recommend that you use the
tablets with long programs.
• Do not use more than the correct
quantity of detergent. Refer to the
instructions on the detergent
packaging.
10.3 What to do if you want to
stop using multi-tablets
Before you start to use separately
detergent and rinse aid do the following
procedure.
1. Make sure that the rinse aid
container is full.
2. Start the shortest program with a
rinsing phase. Do not add detergent
and do not load the baskets.
3. Adjust the released quantity of rinse
aid.
10.4 Loading the baskets
• Only use the appliance to wash items
that are dishwasher-safe.
14
www.aeg.com
• Do not put in the appliance items
made of wood, horn, aluminium,
pewter and copper.
• Do not put in the appliance items that
can absorb water (sponges,
household cloths).
• Remove remaining food from the
items.
• Make soft the remaining burned food
on the items.
• Put hollow items (cups, glasses and
pans) with the opening down.
• Make sure that cutlery and dishes do
not bond together. Mix spoons with
other cutlery.
• Make sure that glasses do not touch
other glasses.
• Put small items in the cutlery basket.
• Put light items in the upper basket.
Make sure that the items do not
move.
• Make sure that the spray arm can
move freely before you start a
programme.
• The filters are clean and correctly
installed.
• The spray arms are not clogged.
• There is dishwasher rinse aid (unless
you use multi- tablets).
• The position of the items in the
baskets is correct.
• The programme is applicable to the
type of load and for the degree of
soil.
• The correct quantity of detergent is
used.
10.6 Unloading the baskets
1. Let the tableware cool down before
you remove it from the appliance.
Hot items can be easily damaged.
2. First remove items from the lower
basket, then from the upper basket.
After the programme is
completed, water can still
remain on the inside
surfaces of the appliance.
10.5 Before starting a
programme
Make sure that:
11. CARE AND CLEANING
WARNING!
Before maintenance,
deactivate the appliance and
disconnect the mains plug
from the main socket.
C
Dirty filters and clogged
spray arms decrease the
washing results. Make a
check regularly and, if
necessary, clean them.
B
11.1 Cleaning the filters
A
The filter system is made of 3 parts.
1. Turn the filter (B) counterclockwise
and remove it.
ENGLISH
15
7. Reassemble the filters (B) and (C).
8. Put back the filter (B) in the flat filter
(A). Turn it clockwise until it locks.
2. Remove the filter (C) out of filter (B).
3. Remove the flat filter (A).
4. Wash the filters.
CAUTION!
An incorrect position of the
filters can cause bad
washing results and damage
to the appliance.
11.2 Cleaning the spray arms
Do not remove the spray arms. If the
holes in the spray arms are clogged,
remove remaining parts of soil with a thin
pointed object.
11.3 External cleaning
5. Make sure that there are no residues
of food or soil in or around the edge
of the sump.
6. Put back in place the flat filter (A).
Make sure that it is correctly
positioned under the 2 guides.
• Clean the appliance with a moist soft
cloth.
• Only use neutral detergents.
• Do not use abrasive products,
abrasive cleaning pads or solvents.
11.4 Internal cleaning
• Carefully clean the appliance,
including the rubber gasket of the
door, with a soft damp cloth.
16
www.aeg.com
• If you regularly use short duration
programmes, these can leave
deposits of grease and limescale
inside the appliance. To prevent this,
we recommend to run long duration
programmes at least 2 times per
month.
• To maintain the performance of your
appliance at its best, we recommend
to use monthly a specific cleaning
product for dishwashers. Follow
carefully the instructions on the
packaging of the product.
12. TROUBLESHOOTING
If the appliance does not start or it stops
during operation. Before you contact an
Authorised Service Centre, check if you
can solve the problem by yourself with
the help of the information in the table.
WARNING!
Repairs not properly done
may result in serious risk to
the safety of the user. Any
repairs must be performed
by qualified personnel.
With some problems, the display
shows an alarm code.
The majority of problems that can
occur can be solved without the need
to contact an Authorised Service
Centre.
Problem and alarm code
Possible solution
You cannot activate the appliance.
• Make sure that the mains plug is connected to the
mains socket.
• Make sure that there is no damaged fuse in the fuse
box.
The programme does not
start.
• Make sure that the appliance door is closed.
• Press Start.
• If the delay start is set, cancel the setting or wait for the
end of the countdown.
The appliance does not fill
with water.
• Make sure that the water tap is open.
• Make sure that the pressure of the water supply is not
too low. For this information, contact your local water
authority.
• Make sure that the water tap is not clogged.
• Make sure that the filter in the inlet hose is not clogged.
• Make sure that the inlet hose has no kinks or bends.
The display shows
or
.
The appliance does not
drain the water.
The display shows
.
The anti-flood device is on.
The display shows
• Make sure that the sink spigot is not clogged.
• Make sure that the drain hose has no kinks or bends.
.
• Close the water tap and contact an Authorised Service
Centre.
The appliance stops and
• It is normal. It provides optimal cleaning results and enstarts more times during opergy savings.
eration.
ENGLISH
17
Problem and alarm code
Possible solution
The program lasts too long.
• If the delayed start option is set, cancel the delay setting
or wait for the end of the countdown.
Small leak from the appliance door.
• The appliance is not levelled. Loosen or tighten the adjustable feet (if applicable).
• The appliance door is not centred on the tub. Adjust the
rear foot (if applicable).
The appliance door is difficult to close.
• The appliance is not levelled. Loosen or tighten the adjustable feet (if applicable).
• Parts of the tableware are protruding from the baskets.
Rattling/knocking sounds
from inside the appliance.
• The tableware is not properly arranged in the baskets.
Refer to basket loading leaflet.
• Make sure that the spray arms can rotate freely.
The appliance trips the circuit-beaker.
• The amperage is insufficient to supply simultaneously all
the appliances in use. Check the socket amperage and
the capacity of the meter or turn off one of the appliances in use.
• Internal electrical fault of the appliance. Contact an Authorised Service Centre.
Refer to "Before first use",
"Daily use", or "Hints and
tips" for other possible
causes.
Once you have checked the appliance,
deactivate and activate the appliance. If
the problem occurs again, contact an
Authorised Service Centre.
For alarm codes not described in the
table, contact an Authorised Service
Centre.
12.1 The washing and drying results are not satisfactory
Problem
Possible cause and solution
Poor washing results.
• Refer to "Daily use", "Hints and tips" and basket
loading leaflet.
• Use more intensive washing programmes.
• Clean spray arm jets and filter. Refer to "Care and
Cleaning".
Poor drying results.
• Tableware has been left for too long inside a closed
appliance.
• There is no rinse aid or the dosage of rinse aid is not
enough. Set the rinse aid dispenser to a higher level.
• Plastic items may need to be towel dried.
• For the best drying performance activate the option
XtraDry.
• We recommend to always use rinse aid, even in combination with multi-tablets.
18
www.aeg.com
Problem
Possible cause and solution
There are whitish streaks or
bluish layers on glasses and
dishes.
• The release quantity of rinse aid is too much. Adjust
the rinse aid level to a lower level.
• The quantity of detergent is too much.
There are stains and dry water
drops on glasses and dishes.
• The released quantity of rinse aid is not sufficient. Adjust the rinse aid level to a higher level.
• The quality of the rinse aid can be the cause.
The dishes are wet.
• For the best drying performance activate the option
XtraDry.
• The programme does not have a drying phase or has
a drying phase with low temperature.
• The rinse aid dispenser is empty.
• The quality of the rinse aid can be the cause.
• The quality of the multi-tablets can be the cause. Try a
different brand or activate the rinse aid dispenser and
use rinse aid and multi-tablets together.
• Keep the dishwasher door ajar for some time before
removing tableware.
The interior of the appliance is • This is not a defect of the appliance. it is caused by
wet.
the humidity in the air that condenses on the walls.
Unusual foam during washing. • Use the detergent for dishwashers only.
• There is a leak in the rinse aid dispenser. Contact an
Authorised Service Centre.
Traces of rust on cutlery.
• Silver and stainless steel cutlery were placed together.
Avoid to put silver and stainless steel items close together.
There are residues of detergent in the dispenser at the
end of the programme.
• The detergent tablet got stuck in the dispenser and
therefore was not completely washed away by water.
• Water cannot wash away the detergent from the dispenser. Make sure that the spray arm is not blocked or
clogged.
• Make sure that items in the baskets do not impede the
lid of the detergent dispenser from opening.
Odours inside the appliance.
• Refer to "Internal cleaning".
Limescale deposits on the tub
and on the inside of the door.
• Clean the appliance with appliance cleaners which are
particularly suitable for this purpose.
• Try different detergent.
• Contact the detergent manufacturer.
Dull, discoloured or chipped
tableware.
• Make sure that only dishwasher-safe items are washed
in the appliance.
• Load and unload the basket carefully. Refer to basket
loading leaflet.
• Place delicate items in the upper basket.
ENGLISH
19
Refer to "Before first use",
"Daily use" or "Hints and
tips" for other possible
causes.
13. TECHNICAL INFORMATION
Dimensions
Width / height / depth (mm) 600 / 850 / 625
Electrical connection 1)
Voltage (V)
220 - 240
Frequency (Hz)
50
Water supply pressure
Min. / max. bar (MPa)
0.5 (0.05) / 8 (0.8)
Water supply
Cold water or hot water 2)
max 60 °C
Capacity
Place settings
13
Power consumption
Left-on mode (W)
5.0
Off-mode (W)
0.50
1) Refer to the rating plate for other values.
2) If the hot water comes from alternative source of energy (e.g. solar panels), use the hot water supply to
decrease energy consumption.
14. WARRANTY
FOR SALES IN AUSTRALIA AND NEW
ZEALAND
ALL AEG BRANDED APPLIANCES
This document sets out the terms and
conditions of the product warranties
for AEG Appliances. It is an important
document. Please keep it with your
proof of purchase documents in a safe
place for future reference should there
be a manufacturing defect in your
Appliance. This warranty is in addition
to other rights you may have under
the Australian Consumer Law.
1. In this warranty:
a) ‘ACL’ or ‘Australian Consumer
Law’ means Schedule 2 to the
Competition and Consumer Act
2010;
b) ‘Appliance’ means any Electrolux
product purchased by you and
accompanied by this document;
c) ‘ASC’ means Electrolux’s
authorised serviced centres;
d) ‘AEG’ is the brand controlled by
Electrolux Home Products Pty
Ltd of 163 O’Riordan Street,
Mascot NSW 2020, ABN 51 004
762 341 in respect of Appliances
purchased in Australia and
Electrolux (NZ) Limited
(collectively “Electrolux”) of 3-5
Niall Burgess Road, Mount
Wellington, in respect of
Appliances purchased in New
Zealand;
e) ‘Warranty Period’ means the
period specified in clause 3 of
this warranty;
f) ‘you’ means the purchaser of the
Appliance not having purchased
the Appliance for re-sale, and
‘your’ has a corresponding
meaning.
2. Application: This warranty only
applies to new Appliances,
purchased and used in Australia or
New Zealand and is in addition to
(and does not exclude, restrict, or
modify in any way) other rights and
remedies under a law to which the
Appliances or services relate,
including any non-excludable
20
www.aeg.com
3.
4.
5.
6.
7.
statutory guarantees in Australia and
New Zealand.
Warranty Period: Subject to these
terms and conditions, this warranty
continues for in Australia for a period
of 60 months and in New Zealand for
a period of 60 months, following the
date of original purchase of the
Appliance.
Repair or replace warranty: During
the Warranty Period, Electrolux or its
ASC will, at no extra charge if your
Appliance is readily accessible for
service, without special equipment
and subject to these terms and
conditions, repair or replace any
parts which it considers to be
defective. Electrolux may, in its
absolute discretion, choose whether
the remedy offered for a valid
warranty claim is repair or
replacement. Electrolux or its ASC
may use refurbished parts to repair
your Appliance. You agree that any
replaced Appliances or parts
become the property of Electrolux.
Travel and transportation costs:
Subject to clause 7, Electrolux will
bear the reasonable cost of
transportation, travel and delivery of
the Appliance to and from Electrolux
or its ASC. Travel and transportation
will be arranged by Electrolux as part
of any valid warranty claim.
Proof of purchase is required before
you can make a claim under this
warranty.
Exclusions: You may not make a
claim under this warranty unless the
defect claimed is due to faulty or
defective parts or workmanship. This
warranty does not cover:
a) light globes, batteries, filters or
similar perishable parts;
b) parts and Appliances not
supplied by Electrolux;
c) cosmetic damage which does
not affect the operation of the
Appliance;
d) damage to the Appliance caused
by:
– negligence or accident;
– misuse or abuse, including
failure to properly maintain or
service;
– improper, negligent or faulty
servicing or repair works done
by anyone other than an
Electrolux authorised repairer
or ASC;
– normal wear and tear;
– power surges, electrical storm
damage or incorrect power
supply;
– incomplete or improper
installation;
– incorrect, improper or
inappropriate operation;
– insect or vermin infestation;
– failure to comply with any
additional instructions
supplied with the Appliance;
In addition, Electrolux is not
liable under this warranty if:
– the Appliance has been, or
Electrolux reasonably believes
that the Appliance has been,
used for purposes other than
those for which the Appliance
was intended, including
where the Appliance has
been used for any nondomestic purpose;
– the Appliance is modified
without authority from
Electrolux in writing;
– the Appliance’s serial number
or warranty seal has been
removed or defaced.
8. How to claim under this warranty:
To enquire about claiming under this
warranty, please follow these steps:
a. carefully check the operating
instructions, user manual and the
terms of this warranty;
b. have the model and serial
number of the Appliance
available;
c. have the proof of purchase (e.g.
an invoice) available;
d. telephone the numbers shown
below.
9. Australia: For Appliances and
services provided by Electrolux in
Australia: Electrolux goods come
with guarantees that cannot be
excluded under the Australian
Consumer Law. You are entitled to a
replacement or refund for a major
failure and for compensation for any
other reasonably foreseeable loss or
ENGLISH
damage. You are also entitled to
have the Appliance repaired or
replaced if the Appliance fails to be
of acceptable quality and the failure
does not amount to a major failure.
‘Acceptable quality’ and ‘major
failure’ have the same meaning as
referred to in the ACL.
10. New Zealand: For Appliances and
services provided by Electrolux in
New Zealand, the Appliances come
with a guarantee by Electrolux
pursuant to the provisions of the
21
Consumer Guarantees Act, the Sale
of Goods Act and the Fair Trading
Act. Where the Appliance was
purchased in New Zealand for
commercial purposes the Consumer
Guarantee Act does not apply.
11. Confidentiality: You accept that if
you make a warranty claim, Electrolux
and its agents including ASC may
exchange information in relation to
you to enable Electrolux to meet its
obligations under this warranty.
Important Notice
Before calling for service, please ensure that the steps listed in clause 8 above have been
followed.
SERVICE AUSTRALIA
aegaustralia.com.au
FOR SERVICE
or to find the address of your nearest state
service centre in Australia
PLEASE CALL 1300 363 664
OR EMAIL
customercare@aegaustralia.com.au
FOR SPARE PARTS
or to find the address of your nearest spare
parts centre in Australia
PLEASE CALL 13 13 50
OR EMAIL
customercare@aegaustralia.com.au
For the cost of a local call (Australia only)
For the cost of a local call (Australia only)
SERVICE NEW ZEALAND
aegnewzealand.co.nz
FOR SERVICE
or to find the address of your nearest authorised service centre in New Zealand
FREE CALL 0800 436 245
OR EMAIL
customercare@aegnewzealand.co.nz
FOR SPARE PARTS
or to find the address of your nearest spare
parts centre in New Zealand
PLEASE 0800 436 245
OR EMAIL
customercare@aegnewzealand.co.nz
(New Zealand only)
(New Zealand only)
15. ENVIRONMENTAL CONCERNS
Recycle materials with the symbol .
Put the packaging in relevant containers
to recycle it. Help protect the
environment and human health by
recycling waste of electrical and
electronic appliances. Do not dispose of
*
appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
22
www.aeg.com
ENGLISH
23
156930050-A-172018
www.aeg.com/au
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
