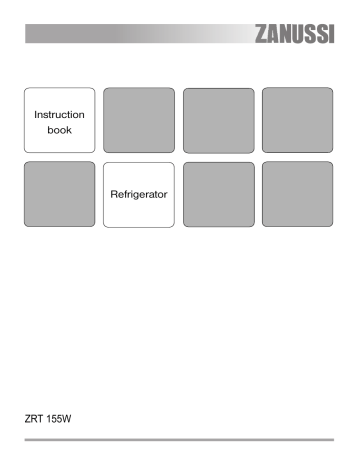

Instruction
book
Refrigerator
ZRT 155W
This instruction book contains safety precautions, information on use and helpful hints and tips.
To ensure you use this appliance effectively and safely, please read this instruction book carefully before
installing or using this appliance and retain for future reference.
The symbols below help you to find things more easily:
Safety precautions
Warnings and Safety information
Hints, useful information
Environmental information
From the Electrolux Group. The world’s No.1 choice.
The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing
machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD
14 billion in more than 150 countries around the world.
2
IMPOR TANT S AFET Y INS TR UCTIONS
These warnings are provided in the interests of your safety. Ensure that you understand them all before installing
or using this appliance. Your safety is of paramount importance. If you are unsure about any of the meanings or
these warnings contact the Customer Care Department.
edge, unless they have been given supervision or
Prior to installation
instruction concerning use of the appliance by a perCheck the appliance for transport damage. Under no
son responsible for their safety.
circumstances should a damaged appliance be
installed. In the event of damage please contact your
During Use
retailer.
This appliance is designed for domestic use only,
Installation
This appliance is heavy. Care should be taken when
moving it.
It is dangerous to alter the specifications or attempt
to modify this product in any way.
Ensure that the appliance does not stand on the
electrical supply cable. If the supply cable is damaged, it must be replaced by a cable available from
your local Service Force Centre.
Make sure that the power plug has not been
squashed or damaged during transit.
- A damaged power plug may overheat and cause a
fire.
As you unpack the appliance, check carefully for
any signs of transit damage.
Do not place heavy articles or the fridge/freezer
itself on the power cord.
- There is a risk of a short circuit and fire.
Do not remove the power cord by pulling on its
lead, particularly when the fridge/freezer is
being pulled out of its niche.
- Damage to the cord may cause a short-circuit, fire
and/or electric shock.
- If the power cord is damaged, it must be replaced
by a certified service agent or qualified service
personnel.
If the power plug socket is loose, do not insert
the power plug.
- There is a risk of electric shock or fire.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
Parts which heat up should not be exposed.
Whenever possible, the back of the appliance should
be close to a wall, but leaving the required distance
for ventilation, as stated in the installation instructions.
The appliance should be left for 2 hours after installation before it is turned on, in order to allow the
refrigerant to settle.
Child Safety
Do not allow children to tamper with the controls or
play with the product.
Keep packaging materials away from children, to prevent the risk of suffocation!
This appliance is not intended for use by persons
(including children) with reduced physical sensory or
mental capabilities, or lack of experience and knowl-
specifically for the storage of edible foodstuffs. It is
not intended for commercial or industrial use.
Containers with flammable gases or liquids can leak
at low temperatures. Do not store any containers with
flammable materials, such as spray cans, fire extinguisher refill cartridges etc. in the freezer.
Frozen food should not be refrozen once it has
thawed out.
Do not place carbonated or fizzy drinks in the freezer.
Ice lollies can cause 'frost/freezer burns' if consumed
straight from the freezer.
Do not remove items from the freezer if your hands
are damp/wet, as this could cause skin abrasions or
frost/freezer burns.
Bottles and cans must not be placed int the freezer
they can burst when the contents freeze.
Manufacturers' recommended storage times should be
adhered to. Refer to relevant instructions.
Maintenance and Cleaning
Before cleaning, always switch off the appliance and
disconnect from the electrical supply.
When unplugging always pull the plug from the mains
socket, do not pull on the cable.
Servicing
This product should be serviced by an authorised
engineer and only genuine spare parts should be
used.
Under no circumstances should you attempt to repair
the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre.
At the end of the Appliance Life
When disposing of your appliance use an authorised
disposal site.
The symbol
on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it should be taken to the
appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the environment
and human health, which could otherwise be caused
by inappropriate waste handling of this product. For
more detailed information about recycling of this
product, please contact your local council, your
household waste disposal service or the shop where
you purchased the product.
3
Remove the plug and ensure that any locks or catches are removed, to prevent young children being
trapped inside.
Safety precautions for isobutane
Warning
The refrigerant isobutane (R 600a) is contained within the refrigerant circuit of the appliance, a natural gas
with a high level of environmental compatibility, which
is nevertheless flammable.
Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartments of the appliance.
The Appliance and the Environment
This appliance does not contain gases which could
damage the ozone layer.
Avoid damaging the cooling unit.
The packaging used on this appliance marked with the
symbol is recyclable.
Keep this instruction book for future reference and
ensure it is passed on to any new owner.
4
Cont ents
Instructions for the Installer
Instructions for the User
Guide to use the instruction book
2
Technical Specifications
11
Important Safety Instructions
3
Instructions for the User
General Information
Description of the Appliance
6
6
6
Installing the Appliance
Transportation, Unpacking
Cleaning
Location
Ventilation Requirements
Levelling
Door Reversal
Door Reversal of Freezer Compartment
11
11
11
11
11
12
12
12
Electrical Connection
14
Storage Chart (1)
15
Storage Chart (2)
16
Using the Appliance
7
Before Use
To Start the Appliance
Thermostat Control
Hints for storage
Storage time and temperature of foods
How to use the four-star frozen food compartment
How to make ice cubes
Storage Shelves
7
7
7
7
7
7
7
7
Hints and Tips
Normal Operating Sounds
Food Storage
Energy Saving Advice
In the Event of a Power Failure
8
8
8
8
8
Maintenance and Cleaning
Internal cleaning
External cleaning
Defrosting
Changing the Light Bulb
When the appliance is not in use
9
9
9
9
9
9
Something Not Working
10
5
INS TR UCTIONS F OR THE USER
General information
This appliance is designed for the refrigeration of food in
a domestic home. It has a four-star frozen food compartment for ice making and frozen food storage.
To ensure correct operation, the appliance should be
located where the ambient temperature is between 16-32 °C.
Description of the Appliance
1.
2.
3.
4.
5.
6.
7.
8.
9.
6
Frozen food compartment
Glass shelf
Defrost water drain
Salad drawer
Rating plate
Adjustable feet
Ice tray
Butter compartment
Interior light/Thermostat control
10.
11.
12.
13.
14.
15.
16.
17.
18.
Door shelf
Door gasket
Bottle shelf
Egg tray
Air circulation
Air grid
Condenser
Evaporator tray
Compressor
Using the Appliance
Before Use
Remove all securing tapes.
Wash the inside of the appliance with lukewarm water
with a little bicarbonate of soda added (5 ml to 0,5 litre of
water). Do not use soap or detergent as the smell may
linger. Dry the appliance thoroughly.
8.
9.
10.
11.
12.
Cheese, butter
Eggs
Yoghurt, Cream
Small bottles, soft drinks
Large bottles, drinks
Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or
products containing alcohol.
) To Start the Appliance
1. Allow the appliance to stand for 2 hrs after installation.
2. Plug in the appliance and switch on at the mains supply.
3. Turn the thermostat control to the required setting. A
setting of 3 - 4 is usually suitable for normal operation
(see thermostat control).
4. Leave the appliance for approximately 4 hours for the
correct temperature to be reached before placing
food inside.
Thermostat Control
The thermostat control situated inside the refrigerator
regulates the temperature of the larder compartment.
Thermostat control is marked from 1-5 the higher the
number, the colder the setting.
Position 0
Position 1
Position 5
-
Off
minimum coldness
maximum coldness
Storage time and temperature of
foods
The enclosed charts at the end of the instruction book
give information about storage time in the frozen and the
fresh food compartment.
The storage times quoted are intended as a guide only.
How to use the four-star frozen food
compartment
The frozen food compartment is separated from the fresh
food compartment.
Place the food to be frozen into this compartment.
Depending on the position of the thermostatic control
knob and the temperature in the compartment
(-18 °C or lower), frozen food can be stored here.
Do not allow fresh food to come into contact with foods
that are already frozen.
How to make ice cubes
Hints for storage
Below is the recommended storage positions for various
food types:
1.
2.
3.
4.
5.
6.
7.
Frozen food storage & ice making
Ready-cooked foods
Foods in dishes
Opened cans
Milk, dairy products
Fresh meat, cold cuts, sausages, etc.
Fruits, vegetables, salads
Fill the supplied ice cube tray ¾ full with water and place
in the freezer compartment. Turning up the thermostat
control will speed up the freezing process, but remember
to turn the thermostat control back to its original position.
To release the ice cubes, twist the tray along its length.
Do not use sharp or pointed items to remove a frozen ice
cube tray from the freezer compartment.
Storage Shelves
The shelves in the refrigerator compartment are
adjustable to allow storage of large items.
The shelves can be re-arranged by opening the door to
90°.
The door shelves are also adjustable.
7
To allow the air to circulate within the fridge compartment do not cover the air circulation gaps
behind the shelves (e.g. with tray etc.)
Hints & Tips
Normal Operating Sounds
You may hear faint gurgling or bubbling sounds
when the refrigerant is pumped through the coils or
tubing.
When the compressor is on, the refrigerant is being
pumped round and you will hear a whirring sound or
pulsating noise from the compressor.
A thermostat controls the compressor and you will
hear a faint 'click' when the thermostat cuts in and
out.
Food Storage
To obtain the best performance from your appliance:
Avoid unnecessary frosting in the cabinet by packing
all foodstuffs into airtight packages before placing
them in the freezer compartment.
Food which is to be frozen (when cool) should be
placed in the fridge compartment before being transferred to the freezer compartment.
Try to avoid keeping the door open for long periods or
opening the door too frequently as warm air will enter
the cabinet and cause the compressor to often switch
on unnecessarily.
Ensure there are no obstructions preventing the door
from closing properly.
In the Event of a Power Failure
If there is a power failure during the storage of frozen
foods, keep the door closed. If the temperature within
your freezer compartment should rise, do not refreeze the
food without checking its condition. The following guidelines should assist you:
Ice Cream: Once thawed should be discarded.
Do not store warm food or evaporating liquid.
Fruits & Vegetables: If soft should be cooked and used
up.
Avoid buying frozen food if you cannot store it straight
away. The use of an insulated container is advisable.
When you arrive home, place the frozen food in the
freezer compartment immediately.
Breads & Cakes: Can be refrozen without danger.
Do not push food together too much.
Large Pieces of Meat: Can be refrozen providing there
are still ice crystals remaining within them.
Do not store uncovered food.
Ensure that food placed in the freezer compartment is
dated and labelled and used in date order to ensure
that food is consumed at its best.
Lean food keeps better and longer than fatty food,
salt reduces the storage time.
Wrap the food in polythene or aluminium freezing
bags or foil so that they adhere to the food and provide an airtight seal.
Packaging which is swollen or has traces of refrozen
water droplets on the pack could indicate that the
product has not been kept at a suitable temperature
and that it may have lost its original quality. Partially
thawed food must not be refrozen, it must be consumed within 24 hours. Never exceed the storage
times indicated by the manufacturer.
Energy Saving Advice
Do not install the appliance close to sources of heat,
such as a boiler or radiator.
Locate the appliance in a cool well ventilated room
and make sure that the air openings of the appliance
are not obstructed.
8
Shellfish: Should be refrigerated and used up quickly.
Cooked Dishes: i.e. casseroles should be refrigerated
and used up.
Small Joints: Should be cooked and can then be
refrozen as cooked dishes.
Chicken: Should also be cooked and refrozen as a fresh
dish.
Maintenance and Cleaning
Before any maintenance of cleaning work is carried out DISCONNECT the appliance from the
ELECTRICITY SUPPLY.
replace the previously removed food into the **** -star
compartment.
When defrosting it is not necessary to remove the
foods from the inner door and the refrigerator compartment.
Internal Cleaning
Clean the inside and accessories with warm water and
bicarbonate of soda (5 ml to 0.5 litre of water). Rinse and
dry thoroughly.
Do not use detergents, abrasive powders, highly
perfumed cleaning products, wax polishes or
cleaning products containing bleach or alcohol.
Regularly check the door seals and wipe clean to
ensure they are clean and free from debris.
External Cleaning
Wash the outer cabinet with warm soapy water.
Once or twice a year dust the condenser (black grill) and
the compressor at the back of the appliance with a brush
or vacuum cleaner, as an accumulation of dust will affect
the performance of the appliance and cause excessive
electricity consumption.
Defrosting
The refrigerator automatically defrosts every time the compressor stops. The water is discharged, via the pipe, into
a tray located below the appliance, where it evaporates.
Important
To avoid defrost water overflowing into the fridge, periodically clean the water discharge hole in the centre of
the V shaped drip collector at the back of the refrigerator compartment behind the salad drawer(s). Use the
special cleaner provided which you will find already
inserted into the discharge hole.
Important
A temperature rise of the frozen food packs during
defrosting may shorten their storage life.
Never use sharp metal tools to scrape off frost from the
evaporator as you could damage it beyond repair.
Changing the Light Bulb
Should the light fail to work you can change it as below:
Disconnect the appliance from the electricity supply.
Remove the lamp cover retaining screws, then take the
lamp cover off in the direction of the arrow and the bulb
can be changed. (Type of the bulb: 230 V, 15 W, E 14
thread)
After changing the bulb replace the lamp cover, and
retaining screws and reconnect the appliance to the electricity supply.
While in operation the ****-star compartment becomes
progressively covered with frost.
This frost, which acts as an insulator and thus prevents the
cold from reaching the food should be removed whenever the
thickness of the frost exceeds 6 mm (1/4”).
To carry out complete defrosting proceed as follows:
1.
Remove any food from inside the ****-star compartment, wrap it in several sheets of newspaper and
store in a cool dry place.
2.
Turn the thermostat knob to position << 0 >>. To
accelerate defrosting, place a bowl of hot water
inside the compartment (with a piece of cardboard
underneath the bowl as protection).
3.
Remove any loose pieces of ice as soon as possible.
4.
When defrosting is completed, clean and dry thoroughly.
Turn the thermostat knob to a medium position to
restart the appliance.
After letting the appliance run for at least half an hour
When the appliance is not in use
When the appliance is not in use for long periods disconnect from the electricity supply, empty all of the food and
clean the appliance, leaving the door ajar to prevent
unpleasant smells..
9
Something Not Working
If the appliance is not working correctly, please carry out the following checks before contacting your local Zanussi Service
Force Centre.
Problem
No power to the appliance
The temperature in the appliance is too high
Possible Cause
Solution
No power at the socket.
Check there is power at the socket.
There is a power cut.
Check there is not a power cut by
checking the household lights.
The fuse has blown.
Check the fuse has not blown.
Thermostat control is set at „0“.
Check the thermostat setting.
The appliance is located in an unsuitable Check the ambient temperature is withposition.
in the appliances operating limits of 16
°C to 32 °C.
The thermostat control is set too low.
Check that the thermostat control knob
is turned to the correct setting relative
to ambient conditions.
The temperature in the appliance is too low
The thermostat control is set too high.
Set the thermostat control knob to a
lower position.
Excessive frost and ice has
built up
The door has been left open.
Check the door has not been left open.
Something is obstructing the door.
Check nothing is preventing the door
from closing.
The door gasket is dirty.
Check the door gasket is intact and
clean.
The appliance is noisy.
The appliance is not level.
If after the above checks your appliance still does not
operate correctly, contact your local Zanussi Service
Force Centre.
Please note that it will be necessary to provide proof of
purchase for any in-guarantee service calls.
10
Check if the appliance stands stable
(all four feet should be on the floor).
In-guarantee customers should ensure that the
above checks have been made, as the engineer will
make a charge if the fault is not a mechanical or
electrical breakdown.
Ins tr uctions f or the Ins t aller
Technical Specifications
Model
ZRT 155W
Gross capacity (l)
Frozen food comp.: 19
Net capacity (l)
Frozen food comp.: 18
Fresh food com.: 125
Fresh food com.: 119
Width (mm)
595
Height (mm)
850
Depth (mm)
Energy consumption
635
(kWh/day)
0,638
(kWh/year)
233
Energy class, according to EU Standards
A
Star rating of frozen food compartment
****
Rated current (A)
0,5
Weight (kg)
39
Installing the appliance
Transportation, unpacking
The climate classification can be found on the rating plate.
The following table shows which ambient temperature is
correct for each climate classification:
The appliance and the interior fitting are protected for
transport.
Climate Classification
Remove all packaging and any adhesive tape.
Any remnants of adhesive can be removed using
white spirit.
After transportation the appliance must not be
switched on for 2 hours. This is to allow the refrigerant to settle.
Cleaning
Ambient Temperature
SN
+10 to +32 °C
N
+16 to +32 °C
ST
+18 to +38 °C
Ventilation Requirements
The appliance must have adequate ventilation to ensure
correct operation.
Clean the accessories and the inside of the appliance
with warm water and bicarbonate of soda (5 ml to 0.5
litres of water). Rinse and dry thoroughly.
Diagram shows the ventilation requirements when
installed:
Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or cleaning
products containing bleach or alcohol.
* The clearance space of 10 cm above the appliance may be reduced to 5 cm providing a clearance space 2,5 cm is left on either side of the
appliance.
A:*
Location
The appliance should be positioned in a well ventilated,
dry room.
B:
Under a worktop, or cupboard.
When freestanding
Energy use is affected by the ambient temperature.
The appliance should therefore:
not be installed next to radiators, cookers or other
sources of heat
only be installed at a location where the ambient temperature corresponds to the climate classification,
for which the appliance is designed.
11
Levelling
The appliance must be level. Level the appliance by
adjusting the two adjustable feet (1) at the front of the
appliance.
If required the washer (2) can be removed.
Put over the pin in the lower door holding plate in the
direction of the arrow.
Door Reversal
Fix the plate on the other side leaving the position of
the door unchanged.
If required the opening direction of the door can be
changed as follows:
To reverse the bottom hinge assembly proceed as follows:
Disconnect the appliance from the electricity supply.
Tilt the appliance backwards, resting the top edge of
the appliance on a stool or something similar.
Unscrew the adjustable feet situated on both sides (2
pieces), in addition the screws fixing the lower door
holders (2 pieces) respectively screw on the other
side.
Then screw in the one screw in the place set free on
the other side as well as the adjustable feet (2
pieces) and set up the box.
Put the handles on the other side and put the plastic
covering nails supplied in the plastic bag of this
instruction book into the holes set free.
Put the appliance into it’s place, set it level and plug it
into the mains socket.
Take off the freezer door by pulling it slightly downwards.
Unscrew the top door hinge pin of the refrigerator
then screw it back on the other side.
Fit the freezer door on the upper door hinge pin.
12
Door Reversal of Freezer
Compartment
After reversing the refrigerator door, it is necessary to
reverse the door of the frozen food compartment as well.
Proceed as follows.
Press the retaining lever inside the lower door hinge.
Tilt the lower doorhinge out together with the freezer
compartment door then remove it from the pin of the
freezer compartment door.
Remove the rectangular plug and put it into the opening set free on the other side.
Having the freezer compartment door turned by 180°
put the lower hinge onto the lower pin of the freezer
compartment door.
Put the upper hinge pin of the freezer compartment
door into the free opening, then push the lower hinge
into its place together with the freezer compartment
door.
This operation can be performed by your local Service
Force Centre, in which case a charge will be made.
13
Electrical Connection
Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
This appliance must be earthed.
The manufacturer declines any liability should these
safety measures not be observed.
Important!
The plug must still be accessible after the appliance
has been installed.
The appliance should not be connected to the electrical supply by means of an extension cable.
In case that the electrical cable has to be replaced,
please contact your local Service Force Centre.
Electrical Requirements
Warning!
Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliance rating
plate.
A cut off plug inserted into a 13 amp socket is a serious safety (shock) hazard. Ensure that it is disposed
of safely.
The appliance is supplied with a 13 amp plug fitted. In the
event of having to change the fuse in the plug supplied, a
13 amp ASTA approved (BS 1362) fuse must be used.
Should the plug need to be replaced for any reason. The
wires in the mains lead are coloured in accordance with
the following code:
This appliance complies with the following
E.E.C. Directives:
73/23 EEC of 19.02.73 (Low Voltage Directive) and
subsequent modifications,
Green and Yellow:
Earth
Blue:
Neutral
Brown:
Live
The wire coloured green and yellow must be connected
to the terminal marked with the letter “E“ or by the earth
symbol
or coloured green and yellow.
The wire coloured blue must be connected to the terminal “N“ or coloured black.
The wire coloured brown must be connected to the terminal marked “L“ or coloured red.
Upon completion there must be no cut, or stray
strands of wire present and the cord clamp must be
secure over the outer sheath.
14
89/336 EEC of 03.05.89 (Electromagnetic
Compatibility Directive) and subsequent modifications.
96/57 EEC - 96/09/03 (Energy Efficiency
Directive) and its subsequent amendments
Storage time chart (1)
Time and method of storage of fresh foods in the refrigerator
Foods
Raw meat
Cooked meat
Roasted meat
Raw minced meat
Cooked minced meat
Cold cuts
Fresh fish
Cooked fish
Tinned fish, open
Fresh chicken
Fried chicken
Fresh duck, goose
Roasted duck, goose
Butter unopened
Butter opened
Milk
Cream
Sour cream
Cheese (hard)
Cheese (soft)
Egg
Spinach, sorrel
Green peas, green beans
Mushroom
Carrot
Tomato
Cabbage
Fruits (Strawberries,
raspberries, etc.)
Tinned fruits opened
Cakes filled with cream
Storage time in days
3
4
5
x
x
x
X
x
x
X
x
x
Method of packaging
1
X
X
X
X
X
X
2
X
X
X
6
7
X
X
x
x
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
x
X
x
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
x
x
x
X
X
X
X
X
X
X
x
X
X
X
X
x
X
x
X
X
X
x
x
x
X
X
X
x
x
X
X
X
X
x
X
x
X
X
X
x
x
x
x
X
X
x
x
x
x
x
X
X
x
X
X
x
X
x
X
x
X
x
X
x
X
x
X
x
x
X
X
X
x
x
X
X
x
X
X
x
X
X
X
X
X
X
X
X
x
x
x
x
x
x
x
x
x
x
cling film, airtight
dish covered
dish covered
dish covered
dish covered
cling film, cellophane,
grease- proof paper
cling film, airtight
dish covered
dish covered
cling film, airtight
dish covered
cling film, airtight
dish covered
original packaging
original packaging
original packaging
plastic box
plastic box
aluminium foil
cling film
cling film
cling film
cling film
cling film
cling film
cling film
cling film
dish covered
dish covered
Notation:
X
x
recommended storage time
maximum recommended storage time
15
Storage time chart (2)
Storage time of deep-frozen and frozen products
Foods
Vegetables:
green beans, green peas, mixed vegetables, marrow, corn, etc.
Ready-cooked foods:
vegetable dish, trimmings, with meat, etc.
Ready-cooked foods:
sirloin steaks, stews
Soups:
Fruits:
cherries, gooseberries, fruit cream,
Meat:
chicken, duck, goose , tuna fish
Ice-cream, Ice-lollies
16
In the fresh food
compartment
+2 - +7°C
In the ****
frozen food
compartment
-18°C
1 day
12 months
1 day
12 months
1 day
1 day
6 months
6 months
1 day
12 months
1 day
1 day
5 months
3 weeks
17
18
19
www.electrolux.com
www.zanussi.co.uk
200381849-00-10032008
933 014 234
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
