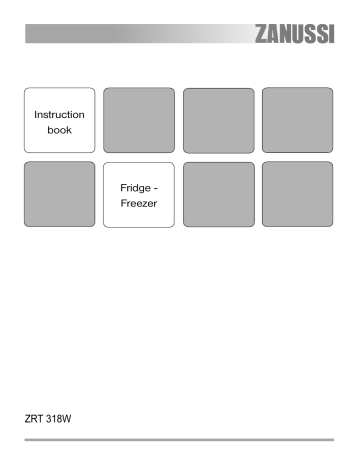

Instruction
book
Fridge Freezer
ZRT 318W
This instruction book contains safety precautions, information on use and helpful hints and tips.
To ensure you use this appliance effectively and safely, please read this instruction book carefully before
installing or using this appliance and retain for future reference.
The symbols below help you to find things more easily:
Safety precautions
Warnings and Safety information
Hints, useful information
Environmental information
2
IMPOR TANT S AFET Y INS TR UCTIONS
These warnings are provided in the interests of your safety. Ensure that you understand them all before installing
or using this appliance. Your safety is of paramount importance. If you are unsure about any of the meanings or
these warnings contact the Customer Care Department.
edge, unless they have been given supervision or
Prior to installation
instruction concerning use of the appliance by a perCheck the appliance for transport damage. Under no
son responsible for their safety.
circumstances should a damaged appliance be
installed. In the event of damage please contact your
During Use
retailer.
This appliance is designed for domestic use only,
Installation
This appliance is heavy. Care should be taken when
moving it.
It is dangerous to alter the specifications or attempt
to modify this product in any way.
Ensure that the appliance does not stand on the
electrical supply cable. If the supply cable is damaged, it must be replaced by a cable available from
your local Service Force Centre.
Make sure that the power plug has not been
squashed or damaged during transit.
- A damaged power plug may overheat and cause a
fire.
As you unpack the appliance, check carefully for
any signs of transit damage.
Do not place heavy articles or the fridge/freezer
itself on the power cord.
- There is a risk of a short circuit and fire.
Do not remove the power cord by pulling on its
lead, particularly when the fridge/freezer is
being pulled out of its niche.
- Damage to the cord may cause a short-circuit, fire
and/or electric shock.
- If the power cord is damaged, it must be replaced
by a certified service agent or qualified service
personnel.
If the power plug socket is loose, do not insert
the power plug.
- There is a risk of electric shock or fire.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
Parts which heat up should not be exposed.
Whenever possible, the back of the appliance should
be close to a wall, but leaving the required distance
for ventilation, as stated in the installation instructions.
The appliance should be left for 2 hours after installation before it is turned on, in order to allow the
refrigerant to settle.
Child Safety
Do not allow children to tamper with the controls or
play with the product.
Keep packaging materials away from children, to prevent the risk of suffocation!
This appliance is not intended for use by persons
(including children) with reduced physical sensory or
mental capabilities, or lack of experience and knowl-
specifically for the storage of edible foodstuffs. It is
not intended for commercial or industrial use.
Containers with flammable gases or liquids can leak
at low temperatures. Do not store any containers with
flammable materials, such as spray cans, fire extinguisher refill cartridges etc. in the freezer.
Frozen food should not be refrozen once it has
thawed out.
Do not place carbonated or fizzy drinks in the freezer.
Ice lollies can cause 'frost/freezer burns' if consumed
straight from the freezer.
Do not remove items from the freezer if your hands
are damp/wet, as this could cause skin abrasions or
frost/freezer burns.
Bottles and cans must not be placed int the freezer
they can burst when the contents freeze.
Manufacturers' recommended storage times should be
adhered to. Refer to relevant instructions.
Maintenance and Cleaning
Before cleaning, always switch off the appliance and
disconnect from the electrical supply.
When unplugging always pull the plug from the mains
socket, do not pull on the cable.
Servicing
This product should be serviced by an authorised
engineer and only genuine spare parts should be
used.
Under no circumstances should you attempt to repair
the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre.
At the end of the Appliance Life
When disposing of your appliance use an authorised
disposal site.
The symbol
on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it should be taken to the
appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the environment
and human health, which could otherwise be caused
by inappropriate waste handling of this product. For
more detailed information about recycling of this
product, please contact your local council, your
household waste disposal service or the shop where
you purchased the product.
3
Remove the plug and ensure that any locks or catches are removed, to prevent young children being
trapped inside.
Safety precautions for isobutane
Warning
The refrigerant isobutane (R 600a) is contained within the refrigerant circuit of the appliance, a natural gas
with a high level of environmental compatibility, which
is nevertheless flammable.
Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartments of the appliance.
The Appliance and the Environment
This appliance does not contain gases which could
damage the ozone layer.
Avoid damaging the cooling unit.
The packaging used on this appliance marked with the
symbol is recyclable.
Keep this instruction book for future reference and
ensure it is passed on to any new owner.
4
Cont ents
Instructions for the User
Instructions for the Installer
Important Safety Instructions . . . . . . . . . . . . . . . . . .3
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Instruction for theuser . . . . . . . . . . . . . . . . . . . . . . . .6
Installing the Appliance . . . . . . . . . . . . . . . . . . . . . .12
General Information . . . . . . . . . . . . . . . . . . . . . . . . . .6
Transportation, Unpacking . . . . . . . . . . . . . . . . . . . .12
Description of the Appliance . . . . . . . . . . . . . . . . . . .6
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Using the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . .7
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Before Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Levelling the Appliance . . . . . . . . . . . . . . . . . . . . . .13
To Start the Appliance . . . . . . . . . . . . . . . . . . . . . . . .7
Ventilation Requirements . . . . . . . . . . . . . . . . . . . . .13
Temperature Control . . . . . . . . . . . . . . . . . . . . . . . . .7
Door Reversal . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
The Refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Electrical Connections . . . . . . . . . . . . . . . . . . . . . . .15
Storage Shelves . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Storage Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Storage Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Freezing Fresh Food . . . . . . . . . . . . . . . . . . . . . . . . .8
Frozen Food Storage . . . . . . . . . . . . . . . . . . . . . . . . .8
Thawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
To Make Ice Cubes . . . . . . . . . . . . . . . . . . . . . . . . . .8
Hints and Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Normal Operating Sounds . . . . . . . . . . . . . . . . . . . . .9
Food Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Energy Saving Advice . . . . . . . . . . . . . . . . . . . . . . . .9
In the Event of a Power Failure . . . . . . . . . . . . . . . . . .9
Maintenance and Cleaning . . . . . . . . . . . . . . . . . . .10
Internal Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . .10
External Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . .10
When the Appliance is Not in Use . . . . . . . . . . . . . .10
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Freezer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
How to change the bulb . . . . . . . . . . . . . . . . . . . . . .10
Something Not Working . . . . . . . . . . . . . . . . . . . . . .11

5
INS TR UCTIONS F OR THE USER
General information
This appliance is designed for the storage of refrigerated
and frozen food in a domestic environment.
To ensure correct operation, the appliance should be
located where the ambient temperature is between 1032 °C.
Description of the Appliance
A - Freezer
11.
Dairy compartment
B - Refrigerator
12.
Egg tray
1.
Top Panel
13.
Door shelf
2.
Ice tray
14.
Door gasket
3.
Wire shelf in the Freezer
15.
Bottle shelf
4.
Thermostat control/light
16.
Condenser
5.
Glass shelves
17.
Defrost water outlet
6.
Defrost water drain
18.
Spacer
7.
Glass shelf
19.
Evaporator tray
8.
Salad drawer
20.
Compressor
9.
Rating plate
10.
6
Adjustable feet
Using the Appliance
This appliance is designed for domestic use
only, specifically for the storage of edible foodstuffs.
The appliance is designed to operate in ambient temperatures (surrounding air temperature) between 10 °C and
32 °C.
If these temperatures are exceeded i.e. colder or
warmer, the appliance will not operate correctly. Should
the ambient temperatures be exceeded for long periods,
the temperature in the freezer section will rise above -18
°C and food spoilage may occur.
In determining the correct temperature control setting, all
these factors have to be considered and some experimentation may be necessary.
Do not allow children to tamper with the controls or play with the product.
Before Use
Remove all packaging and securing tapes. Wash inside
the appliance with lukewarm water and bicarbonate of
soda (5 ml to 0,5 litre of water). Do not use soap or detergent as the smell may linger. Dry thoroughly.
Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or
products containing alcohol.
The Refrigerator
Below is the recommended storage positions for various
food types:
1. Cheese, butter.
2. Eggs.
3. Yoghurt, sour cream, small bottles, drinks.
)
To Start the Appliance
4. Large bottles, drinks.
1.
Allow the appliance to stand for 2 hrs after installation.
5. Fruits, vegetables, salads.
2.
Plug in the appliance and switch on at the mains
supply.
7. Milk, dairy products.
3.
Turn the thermostat control to the required setting. A
setting of 3 - 4 is usually suitable for normal operation (see thermostat control).
4.
Leave the appliance for approximately 2 hours for
the correct temperature to be reached before placing food inside.
6. Fresh meat, cold cuts, sausages etc.
8. Ready-cooked foods, fresh meat, cold cuts.
Temperature Control
The Refrigerator
The thermostat control situated inside the fridge compartment regulates the temperature of the fridge. The thermostat control is marked from 1-5, the higher the number, the colder the setting.
Position 0
-
Position 1
-
Off
minimum coldness
Position 6
-
maximum coldness
The temperature will be affected by:
Ambient temperature
How often the door is opened
How much food is stored
Position of the appliance
7
Storage Shelves
Frozen Food Storage
The shelves in the refrigerator compartment are
adjustable to allow for the storage of large items.
When first starting the freezer or if the freezer has been
out of use for some time, we advise you to run your appliance for at least 2 hours before storing frozen food.
To re-arrange the shelves, open the door to 90°.
Storage Times
The storage chart at the end of the instruction book gives
information on storage times in the refrigerator compartment. The storage times quoted are intended as a guide
only.
Do not cover the shelves with paper or trays etc. as
this will affect the air circulation within the refrigerator
compartment.
Do not exceed the storage period indicated by the manufacturer.
Do not open the door frequently or leave it open longer
than is necessary.
Important
Do not put carbonated liquids in the freezer.
Ice lollies, if consumed immediately after removal from
the freezer can cause a low temperature skin burn.
Do not put hot food products in the refrigerator, allow
hot foods to reach room temperature naturally before
placing in the refrigerator.
In the event of a power cut the food in the freezer will
not be affected if the power cut is short and the freezer is full. Do not open the door. Should the food begin
to thaw it must be consumed quickly and must not be
re-frozen. (See Hints and Tips)
Cover foods, or place in closed dishes before placing them in the refrigerator, this prevents any transference of food smells.
Do not remove items from the freezer if your hands are
damp/wet, as this could cause skin abrasions or
frost/freezer burns.
The Freezer
Thawing
Freezing fresh food
Deep frozen or frozen food, prior to being used, can be
thawed in the fridge or at room temperature, depending
on the time available. Small food items may even be
cooked from frozen, in this case cooking will take longer.
In the compartment various fresh food can be frozen at
home. Mind the following to get thorough result.
Freeze fresh and faultless food only.
Before starting freezing set the thermostatic control knob
to position „3-4” and put the wire shelf in the frozen food
compartment to the highest position. Then put in the
quantity to be frozen, directly on the wire shelf. Freezing
is completed in approx. 24 hours. After 24 hours set the
thermostatic control knob back to „Medium” (3-4) position, or leave that in position „4” which is usually adequate for everyday use. It is practical to store the frozen
food on the cooling plate or on each other under the wire
shelf in the frozen food compartment.
Avoid opening the door of frozen food compartment during freezing if possible.
It is not expedient to set the thermostat knob to
higher (e.g. „6”) position. Freezing time could be
reduced this way, but the temperature of the fresh
food compartment would go beyond 0 °C permanently,
which would cause freezing to foods and drinks stored
there.
Never freeze food in bigger quantity than
given in the „Technical data” at the same time,
otherwise freezing will not be thorough and
after dissolving various deterioration may take place
(losing taste and aroma, lysing, etc.).
Do not make ice during freezing preferably,
because making ice reduces freezing capacity.
8
Any frozen food which is allowed to thaw accidentally
should either be eaten as soon as possible, or thrown
away. Alternatively, if the food is uncooked and has not
been completely defrosted it can be cooked and then
refrozen.
Defrosted cooked food must never be
refrozen.
)To
Make Ice Cubes
1.
Fill the ice cube tray ¾ full with cold water, place in
the freezing compartment and leave to freeze.
2.
To remove the cubes twist the tray or hold it under
running water for a few seconds.
Never try to free an ice tray that is frozen to the
freezer compartment by using pointed or sharp
edged objects.
Hints & T ips
Normal Operating Sounds
You may hear faint gurgling or bubbling sounds when the refrigerant is
pumped through the coils or tubing.
When the compressor is on, the
refrigerant is being pumped round
and you will hear a whirring sound or
pulsating noise from the compressor.
A thermostat controls the compressor and you will hear a faint 'click'
when the thermostat cuts in and out.
Food Storage
To obtain the best performance from your freezer:
Do not store warm food or evaporating liquid.
Avoid buying frozen food if you cannot store it straight
away. The use of an insulated container is advisable.
When you arrive home, place the frozen food in the
freezer immediately.
Energy Saving Advice
Do not install the appliance close to sources of heat,
such as a boiler or radiator.
Locate the appliance in a cool well ventilated room
and make sure that the air openings of the appliance
are not obstructed.
Avoid unnecessary frosting in the cabinet by packing
all foodstuffs into airtight packages before placing
them in the freezer.
Food which is to be frozen (when cool) should be
placed in the fridge before being transferred to the
freezer.
Try to avoid keeping the door open for long periods or
opening the door too frequently as warm air will enter
the cabinet and cause the compressor to often switch
on unnecessarily.
Ensure there are no obstructions preventing the door
from closing properly.
In the Event of a Power Failure
Do not push food together too much, try to allow air
to circulate around each item.
If there is a power failure during the storage of frozen
foods, keep the door closed. If the temperature within
your freezer should rise, do not refreeze the food without
checking its condition. The following guidelines should
assist you:
Do not store uncovered food.
Ice Cream: Once thawed should be discarded.
Ensure that food placed in the freezer is dated and
labelled and used in date order to ensure that food is
consumed at its best.
Fruits & Vegetables: If soft should be cooked and used
up.
Lean food keeps better and longer than fatty food,
salt reduces the storage time.
Shellfish: Should be refrigerated and used up quickly.
Wrap the food in polythene or aluminium freezing
bags or foil so that they adhere to the food and provide an airtight seal.
Packaging which is swollen or has traces of refrozen
water droplets on the pack could indicate that the
product has not been kept at a suitable temperature
and that it may have lost its original quality. Partially
thawed food must not be refrozen, it must be consumed within 24 hours. Never exceed the storage
times indicated by the manufacturer.
Breads & Cakes: Can be refrozen without danger.
Cooked Dishes: i.e. casseroles should be refrigerated
and used up.
Large Pieces of Meat: Can be refrozen providing there
are still ice crystals remaining within them.
Small Joints: Should be cooked and can then be
refrozen as cooked dishes.
Chicken: Should also be cooked and refrozen as a fresh
dish.
9
Maint enance & Cleaning
Before any maintenance or cleaning is carried
out you must DISCONNECT the appliance from
the electricity supply.
Internal Cleaning
Important
To avoid defrost water overflowing into the fridge,
periodically clean the water discharge hole in the centre of
the V shaped drip collector at the back of the refrigerator
compartment, behind the salad drawers.
Clean the inside and accessories with warm water and
bicarbonate of soda (5 ml to 0.5 litre of water).
Use a piece of flexible curtain wire for this purpose.
Rinse and dry thoroughly.
Freezer
NEVER use detergents, abrasive powders,
highly perfumed cleaning products or wax
polishes to clean the interior as these will damage
the surface and leave a strong odour.
The freezer compartment will become progressively covered with frost. This should be removed with a plastic
scraper, whenever the thickness of the frost reaches 6
mm (¼”).
External Cleaning
During this operation it is not necessary to switch off the
power supply or to remove the foodstuffs.
Wash the outer cabinet with warm soapy water.
Once or twice a year dust the condenser (black grille)
and the compressor at the back of the appliance with a
brush or vacuum cleaner, as an accumulation of dust will
affect the performance of the appliance and cause
excessive electricity consumption.
However, when the ice becomes very thick on the inner
liner, complete defrosting should be carried out and it is
advisable to perform this operation when the appliance is
empty.
For complete defrosting (once or twice a year) proceed as
follows:
1.
Disconnect the appliance from the mains.
2.
Remove any food from inside the freezer, wrap it in
several sheets of newspaper and store in a cool, dry
place. Ensure that the fridge door is not opened to
protect the food in the refrigerator while defrosting
the freezer.
Defrosting
3.
When defrosting is complete, dry the interior thoroughly.
Refrigerator
4.
Reconnect the appliance to the mains, set the thermostat control knob to the maximum setting. Leave
the appliance to run for at least two hours.
5.
Replace the previously removed food.
6.
Return the thermostat control knob to a medium setting.
When the Appliance is not in Use
When the appliance is not in use for long periods, disconnect from the electricity supply, empty all foods and clean
the appliance, leaving the door open to prevent unpleasant smells.
The refrigerator defrosts every time the compressor
stops. The water is discharged, via the pipe, into a tray
located at the back of the appliance above the compressor, where it evaporates.
Important
A temperature rise of the frozen food packs during defrosting may shorten their safe storage life.
Never use sharp metal tools to scrape off frost from the
evaporator as this could damage the appliance beyond
repair.
) How to change the bulb
Should the light fail to work you can change it as below:
Break the circuit of the appliance.
Unscrew the screw holding the cover (1), press the rear
hook (2) and at the same time slide the cover in the direction indicated by arrow (3). So the bulb can be replaced.
(Bulb type: 230-240 V, 15 W, E 14 thread)
After changing the bulb replace the cover, snap it in place,
screw back the screw and apply voltage to the appliance.
10
Something Not Working
If the appliance is not working correctly, please carry out the following checks before contacting your local Zanussi Service
Force Centre.
Problem
No power to the appliance
The temperature in the fridge or
freezer is too high
Possible Cause
Solution
No power at the socket.
Check there is power at the socket.
There is a power cut.
Check there is not a power cut by checking the household lights.
The fuse has blown.
Check the fuse has not blown.
Thermostat control knob is set at „0”.
Check the thermostat setting.
The appliance is located in an unsuitable
position.
Check the ambient temperature is within
the appliances operating limits of 10 °C
to 32 °C.
The thermostat control knob is set too
low.
The compressor runs continuously
Check that the thermostat control knob is
turned to the correct setting relative to
ambient conditions.
The thermostat control knob is set at the
wrong temperature.
Adjust the thermostat control knob.
The door is open.
Close the door.
Large quantities of food have been
placed in the cabinet.
The door has been opened too frequently.
Do not leave the door open longer than
necessary.
The air ventilation is obstructed.
Check that the air ventilation is not
obstructed.
The temperature in the fridge or
freezer is too low
The thermostat control knob is set too
cold.
Set the thermostat control knob to a
warmer position.
Excessive frost and ice has
built up
The door has been left open.
Check the door has not been left open.
Something is obstructing the door.
Check nothing is preventing the door
from closing.
The door gasket is dirty.
Check the door gasket is intact and
clean.
The appliance is not level.
Check if the appliance stands stable on
the floor.
The appliance is noisy.
If after the above checks your appliance still does not
operate correctly, contact your local Service Force
Centre.
Please note that it will be necessary to provide proof of
purchase for any in-guarantee service calls.
In-guarantee customers should ensure that the
above checks have been made, as the engineer will
make a charge if the fault is not a mechanical or
electrical breakdown.
11
Ins tr uctions f or the Ins t aller
Technical Data
Model
ZRT 318 W
Gross capacity (l)
Freezer:
42
Refrigerator: 138
Net capacity (l)
Freezer:
42
Refrigerator: 136
Width (mm)
496
Height (mm)
1209
Depth (mm)
604
Energy consumption (kWh/24h)
(kWh/year)
0,721
263
Energy class, according to EU standards
A
Freezing capacity (kg/24h)
3
Rising time (h)
17
Rated current (A)
0,7
Weight (kg)
39,5
Number of compressors
Installing the appliance
Transportation, unpacking
The appliance and the interior fittings are protected for
transport.
1
The climate classification can be found on the rating
plate.
The following table shows which ambient temperature is
correct for each climate classification:
Remove all packaging and any adhesive tape.
Any remnants of adhesive can be removed using
white spirit.
After transportation the appliance must not be
switched on for 2 hours. This is to allow the refrigerant to settle.
Cleaning
Clean the accessories and the inside of the appliance
with warm water and bicarbonate of soda (5 ml
to 0.5 litres of water). Rinse and dry thoroughly.
Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or cleaning
products containing bleach or alcohol.
Location
The appliance should be positioned in a well ventilated,
dry room.
Energy use is affected by the ambient temperature.
The appliance should therefore:
not be installed next to radiators, cookers or other
sources of heat
only be installed at a location where the ambient temperature corresponds to the climate classification,
for which the appliance is designed.
12
Climate Classification
Ambient Temperature
SN
+10 to +32 °C
N
+16 to +32 °C
ST
+18 to +38 °C
Levelling the Appliance
Ventilation Requirements
When placing the appliance ensure that it stands level.
This can be achieved by adjusting either or both of the
feet (1) at the front of the appliance. If required the washers (2), that are accessories of the feet, can be removed.
The appliance must have adequate ventilation to ensure
correct operation.
Do not stand the appliance next to a source of heat such
as a radiator or cooker.
A
Under a cupboard.
B
When freestanding
Diagram shows the ventilation requirements when
installed:
The plastic bag of accessories also contains two
spacers to be fitted into special holes in the back of
the appliance. Fit the spacers into the holes, taking
care to ensure that the arrow (A) is positioned as
shown in Figure. Then turn them through 45° (arrow
(A) vertical) until they lock into place.
A
45°
PR60
13
Door Reversal
Disconnect from the electricity supply.
Remove all loose item, including food, store food in
a cool place;
Gently lay the fridge/freezer on its back with the top
held away from the floor by 5-8 cm (2-3 inches) of
packing;
Remove the feet (2-3).
Unscrew the bottom hinge (1).
Slide out the lower door from middle hinge (H) and
remove the latter.
Slide out the upper door from pin (G), unscrew the
latter and then screw it down into the hinge provided
on the opposite side, after having removed the small
plugs which should then be fitted on the opposite
side.
Refit the upper door and the middle hinge on the
opposite side.
Screw down the bottom hinge (1) on the opposite
side by using the screws previously removed.
Refit the feet (2-3) on the opposite side.
Unscrew the handle. Refit it on the opposite side
after having pierced the plugs with a punch. Cover
the holes left open with the plugs contained in the
documentation pack.
The doors can be aligned by adjusting the middle
hinge.
The middle hinge can be adjusted horizontally, with
the help of a tool, after having slackened the two
screws.
Attention
After completion of the door reversing operation, check
that the door gasket adheres to the cabinet. If the ambient temperature is cold (i.e. in Winter), the gasket may
not fit perfectly to the cabinet. In that case, wait for the
natural fitting of the gasket or accelerate this process by
heating the part involved with a normal hairdryer on a low
setting.
14
Electrical Connection
Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
This appliance must be earthed.
The manufacturer declines any liability should these
safety measures not be observed.
Important!
The plug must still be accessible after the appliance
has been installed.
The appliance should not be connected to the electrical supply by means of an extension cable.
In case that the electrical cable has to be replaced,
please contact your local Service Force Centre.
Electrical Requirements
Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliance rating
plate.
The appliance is supplied with a 13 amp plug fitted. In the
event of having to change the fuse in the plug supplied, a
13 amp ASTA approved (BS 1362) fuse must be used.
Should the plug need to be replaced for any reason. The
wires in the mains lead are coloured in accordance with
the following code:
Green and Yellow:
Earth
Blue:
Neutral
Brown:
Live
The wire coloured green and yellow must be connected
to the terminal marked with the letter “E“ or by the earth
symbol
or coloured green and yellow.
Warning!
A cut off plug inserted into a 13 amp socket is a serious safety (shock) hazard. Ensure that it is disposed
of safely.
This appliance complies with the following
E.E.C. Directives:
73/23 EEC of 19.02.73 (Low Voltage Directive) and
subsequent modifications,
89/336 EEC of 03.05.89 (Electromagnetic
Compatibility Directive) and subsequent modifications.
96/57 EEC - 96/09/03 (Energy Efficiency
Directive) and its subsequent amendments
The wire coloured blue must be connected to the terminal “N“ or coloured black.
The wire coloured brown must be connected to the terminal marked “L“ or coloured red.
Upon completion there must be no cut, or stray
strands of wire present and the cord clamp must be
secure over the outer sheath.
15
S t or age time char t
Time and method of storage of fresh foods in the refrigerator
Foods
Raw meat
Cooked meat
Roasted meat
Raw minced meat
Cooked minced meat
Cold cuts
Fresh fish
Cooked fish
Tinned fish, open
Fresh chicken
Fried chicken
Fresh duck, goose
Roasted duck, goose
Butter unopened
Butter opened
Milk
Cream
Sour cream
Cheese (hard)
Cheese (soft)
Egg
Spinach, sorrel
Green peas, green beans
Mushroom
Carrot
Tomato
Cabbage
Fruits (Strawberries,
raspberries, etc.)
Tinned fruits opened
Cakes filled with cream
Storage time in days
3
4
5
x
x
x
X
x
x
X
x
x
2
X
X
X
X
X
x
x
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
x
X
x
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
x
x
x
X
X
X
X
X
X
X
x
X
X
X
X
x
X
x
X
X
X
x
x
x
X
X
X
x
x
X
X
X
X
x
X
x
X
X
X
x
x
x
x
X
X
x
x
x
x
x
X
X
x
X
X
x
X
x
X
x
X
x
X
x
X
x
X
x
x
X
X
X
x
x
X
X
x
X
X
x
X
X
X
X
X
X
X
X
x
x
x
x
x
x
Notation:
X
x
16
Method of packaging
1
X
X
X
X
X
X
recommended storage time
maximum recommended storage time
6
7
x
x
x
x
cling film, airtight
dish covered
dish covered
dish covered
dish covered
cling film, cellophane,
proof paper
cling film, airtight
dish covered
dish covered
cling film, airtight
dish covered
cling film, airtight
dish covered
original packaging
original packaging
original packaging
plastic box
plastic box
aluminium foil
cling film
cling film
cling film
cling film
cling film
cling film
cling film
cling film
dish covered
dish covered
grease-
17
