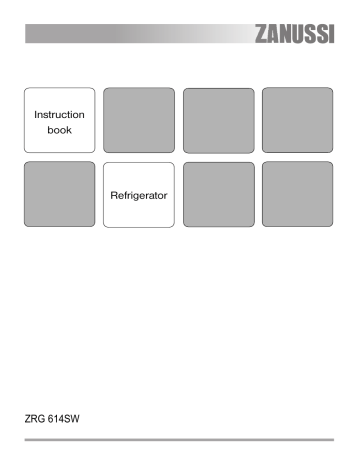

Instruction
book
Refrigerator
ZRG 614SW
This instruction book contains safety precautions, information on use and helpful hints and tips.
To ensure you use this appliance effectively and safely, please read this instruction book carefully before
installing or using this appliance and retain for future reference.
The symbols below help you to find things more easily:
Safety precautions
Warnings and Safety information
Hints, useful information
Environmental information
2
IMPOR TANT S AFET Y INS TR UCTIONS
These warnings are provided in the interests of your safety. Ensure that you understand them all before installing
or using this appliance. Your safety is of paramount importance. If you are unsure about any of the meanings or
these warnings contact the Customer Care Department.
Prior to installation
Check the appliance for transport damage. Under no
circumstances should a damaged appliance be
installed. In the event of damage please contact your
retailer.
Installation
This appliance is heavy. Care should be taken when
moving it.
It is dangerous to alter the specifications or attempt
to modify this product in any way.
Ensure that the appliance does not stand on the
electrical supply cable. If the supply cable is damaged, it must be replaced by a cable available from
your local Service Force Centre.
Make sure that the power plug has not been
squashed or damaged during transit.
- A damaged power plug may overheat and cause a
fire.
As you unpack the appliance, check carefully for
any signs of transit damage.
Do not place heavy articles or the fridge/freezer
itself on the power cord.
- There is a risk of a short circuit and fire.
Do not remove the power cord by pulling on its
lead, particularly when the fridge/freezer is
being pulled out of its niche.
- Damage to the cord may cause a short-circuit, fire
and/or electric shock.
- If the power cord is damaged, it must be replaced
by a certified service agent or qualified service
personnel.
If the power plug socket is loose, do not insert
the power plug.
- There is a risk of electric shock or fire.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
Parts which heat up should not be exposed.
Whenever possible, the back of the appliance should
be close to a wall, but leaving the required distance
for ventilation, as stated in the installation instructions.
The appliance should be left for 2 hours after installation before it is turned on, in order to allow the
refrigerant to settle.
Child Safety
Do not allow children to tamper with the controls or
play with the product.
Keep packaging materials away from children, to prevent the risk of suffocation!
This appliance is not intended for use by persons
(including children) with reduced physical sensory or
mental capabilities, or lack of experience and knowl-
edge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
During Use
This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs. It is
not intended for commercial or industrial use.
Containers with flammable gases or liquids can leak
at low temperatures. Do not store any containers with
flammable materials, such as spray cans, fire extinguisher refill cartridges etc. in the freezer.
Frozen food should not be refrozen once it has
thawed out.
Do not place carbonated or fizzy drinks in the freezer.
Ice lollies can cause 'frost/freezer burns' if consumed
straight from the freezer.
Do not remove items from the freezer if your hands
are damp/wet, as this could cause skin abrasions or
frost/freezer burns.
Bottles and cans must not be placed int the freezer
they can burst when the contents freeze.
Manufacturers' recommended storage times should be
adhered to. Refer to relevant instructions.
Maintenance and Cleaning
Before cleaning, always switch off the appliance and
disconnect from the electrical supply.
When unplugging always pull the plug from the mains
socket, do not pull on the cable.
Servicing
This product should be serviced by an authorised
engineer and only genuine spare parts should be
used.
Under no circumstances should you attempt to repair
the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre.
At the end of the Appliance Life
When disposing of your appliance use an authorised
disposal site.
The symbol
on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it should be taken to the
appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the environment
and human health, which could otherwise be caused
by inappropriate waste handling of this product. For
more detailed information about recycling of this
product, please contact your local council, your
household waste disposal service or the shop where
you purchased the product.
3
Remove the plug and ensure that any locks or catches are removed, to prevent young children being
trapped inside.
Safety precautions for isobutane
Warning
The refrigerant isobutane (R 600a) is contained within the refrigerant circuit of the appliance, a natural gas
with a high level of environmental compatibility, which
is nevertheless flammable.
Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartments of the appliance.
The Appliance and the Environment
This appliance does not contain gases which could
damage the ozone layer.
Avoid damaging the cooling unit.
The packaging used on this appliance marked with the
symbol is recyclable.
Keep this instruction book for future reference and
ensure it is passed on to any new owner.
4
Cont ents
Instructions for the User
Instructions for the Installer
Guide to use the instruction book
2
Technical Specifications
11
Important Safety Instructions
3
Installing the Appliance
11
Instructions for the User
6
Transportation, Unpacking
11
General Information
6
Cleaning
11
Description of the Appliance
6
Location
11
Using the Appliance
7
Ventilation Requirements
12
Before Use
7
Levelling
12
To Start the Appliance
7
Door Reversal
12
Thermostat Control
7
Door Reversal of Freezer Compartment
14
Hints for storage
7
Electrical Connection
15
Storage time and temperature of foods
7
Storage Chart (1)
16
How to use the four-star frozen food compartment
7
Storage Chart (2)
17
How to make ice cubes
7
Storage Shelves
7
Hints and Tips
8
Normal Operating Sounds
8
Food Storage
8
Energy Saving Advice
8
Inthe Event of a Power Failure
8
Maintenance and Cleaning
9
Internal cleaning
9
External cleaning
9
Defrosting
9
Changing the Light Bulb
9
When the appliance is not in use
9
Something Not Working
10
5
INS TR UCTIONS F OR THE USER
General information
This appliance is designed for the refrigeration of food in
a domestic home. It has a four-star frozen food compartment for ice making and frozen food storage.
To ensure correct operation, the appliance should be
located where the ambient temperature is between 1632 °C.
Description of the appliance
6
1.
Frozen food compartment
10.
Door shelf
2.
Glass shelf
11.
Gasket
3.
Defrost water drain
12.
Bottle shelf
4.
Salad drawer
13.
Egg tray
5.
Rating Plate
14.
Air circulation
6.
Adjustable feet
15.
Spacer
7.
Ice tray
16.
Condenser
8.
Butter compartment
17.
Evaporator tray
9.
Interior light/Thermostat control
18.
Compressor
Using the Appliance
Before Use
Remove all securing tapes.
Wash the inside of the appliance with lukewarm water
with a little bicarbonate of soda added (5 ml to 0,5 litre of
water). Do not use soap or detergent as the smell may
linger. Dry the appliance thoroughly.
Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or
products containing alcohol.
Storage time and temperature of
foods
) To Start the Appliance
1. Allow the appliance to stand for 2 hrs after installation.
The enclosed charts at the end of the instruction book
give information about storage time in the frozen and the
fresh food compartment.
2. Plug in the appliance and switch on at the mains supply.
The storage times quoted are intended as a guide only.
3. Turn the thermostat control to the required setting. A
setting of 3 - 4 is usually suitable for normal operation
(see thermostat control).
4. Leave the appliance for approximately 4 hours for the
correct temperature to be reached before placing
food inside.
Thermostat Control
The thermostat control situated inside the refrigerator
regulates the temperature of the larder compartment.
Thermostat control is marked from 1-5 the higher the
number, the colder the setting.
Position 0
Position 1
Position 5
-
Off
minimum coldness
maximum coldness
Hints for storage
Below is the recommended storage positions for various
food types:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
Frozen food storage & ice making
Ready-cooked foods
Foods in dishes
Opened cans
Milk, dairy products
Fresh meat, cold cuts, sausages, etc.
Fruits, vegetables, salads
Cheese, butter
Eggs
Yoghurt, Cream
Small bottles, soft drinks
Large bottles, drinks
How to use the four-star frozen food
compartment
The frozen food compartment is separated from the fresh
food compartment.
Place the food to be frozen into this compartment.
Depending on the position of the thermostatic control
knob and the temperature in the compartment
(-18 °C or lower), frozen food can be stored here.
Do not allow fresh food to come into contact with foods
that are already frozen.
How to make ice cubes
Fill the supplied ice cube tray ¾ full with water and place
in the freezer compartment. Turning up the thermostat
control will speed up the freezing process, but remember
to turn the thermostat control back to its original position.
To release the ice cubes, twist the tray along its length.
Do not use sharp or pointed items to remove a frozen ice
cube tray from the freezer compartment.
Storage Shelves
The shelves in the refrigerator compartment are
adjustable to allow storage of large items.
The shelves can be re-arranged by opening the door to
90°.
The door shelves are also adjustable.
To allow the air to circulate within the fridge compartment do not cover the glass shelves with
paper or trays.
7
Hints & T ips
Normal Operating Sounds
You may hear faint gurgling or bubbling sounds when
the refrigerant is pumped through the coils or tubing.
When the compressor is on, the refrigerant is being
pumped round and you will hear a whirring sound or
pulsating noise from the compressor.
A thermostat controls the compressor and you will
hear a faint 'click' when the thermostat cuts in and
out.
Food Storage
To obtain the best performance from your appliance:
Do not store warm food or evaporating liquid.
Avoid buying frozen food if you cannot store it straight
away. The use of an insulated container is advisable.
When you arrive home, place the frozen food in the
freezer compartment immediately.
Do not push food together too much.
Do not store uncovered food.
Ensure that food placed in the freezer compartment
is dated and labelled and used in date order to
ensure that food is consumed at its best.
Lean food keeps better and longer than fatty food,
salt reduces the storage time.
Wrap the food in polythene or aluminium freezing
bags or foil so that they adhere to the food and provide an airtight seal.
Packaging which is swollen or has traces of refrozen
water droplets on the pack could indicate that the
product has not been kept at a suitable temperature
and that it may have lost its original quality. Partially
thawed food must not be refrozen, it must be consumed within 24 hours. Never exceed the storage
times indicated by the manufacturer.
Energy Saving Advice
Do not install the appliance close to sources of heat,
such as a boiler or radiator.
Locate the appliance in a cool well ventilated room
and make sure that the air openings of the appliance
are not obstructed.
Avoid unnecessary frosting in the cabinet by packing
all foodstuffs into airtight packages before placing
them in the freezer compartment.
Food which is to be frozen (when cool) should be
placed in the fridge compartment before being transferred to the freezer compartment.
Try to avoid keeping the door open for long periods or
opening the door too frequently as warm air will enter
the cabinet and cause the compressor to often switch
on unnecessarily.
Ensure there are no obstructions preventing the door
from closing properly.
In the Event of a Power Failure
If there is a power failure during the storage of frozen
foods, keep the door closed. If the temperature within
your freezer compartment should rise, do not refreeze the
food without checking its condition. The following guidelines should assist you:
Ice Cream: Once thawed should be discarded.
Fruits & Vegetables: If soft should be cooked and used
up.
Breads & Cakes: Can be refrozen without danger.
Shellfish: Should be refrigerated and used up quickly.
Cooked Dishes: i.e. casseroles should be refrigerated
and used up.
Large Pieces of Meat: Can be refrozen providing there
are still ice crystals remaining within them.
Small Joints: Should be cooked and can then be
refrozen as cooked dishes.
Chicken: Should also be cooked and refrozen as a fresh
dish.
8
Maint enance & Cleaning
Before any maintenance of cleaning work is carried out DISCONNECT the appliance from the
ELECTRICITY SUPPLY.
4.
When defrosting is completed, clean and dry thoroughly.
Turn the thermostat knob to a medium position to
restart the appliance.
Internal Cleaning
Clean the inside and accessories with warm water and
bicarbonate of soda (5 ml to 0.5 litre of water). Rinse and
dry thoroughly.
Do not use detergents, abrasive powders, highly
perfumed cleaning products, wax polishes or
cleaning products containing bleach or alcohol.
Regularly check the door seals and wipe clean to
ensure they are clean and free from debris.
External Cleaning
Wash the outer cabinet with warm soapy water.
Once or twice a year dust the condenser (black grille)
and the compressor at the back of the appliance with a
brush or vacuum cleaner, as an accumulation of dust will
affect the performance of the appliance and cause
excessive electricity consumption.
After letting the appliance run for at least half an hour
replace the previously removed food into the **** -star
compartment.
Defrosting
When defrosting it is not necessary to remove the foods
from the inner door and the refrigerator compartment.
The refrigerator automatically defrosts every time the
compressor stops. The water is discharged, via the pipe,
into a tray located below the appliance, where it evaporates.
Important
To avoid defrost water overflowing into the fridge, periodically clean the water discharge hole in the centre of the V
shaped drip collector at the back of the refrigerator compartment behind the salad drawer(s). Use the special
cleaner provided which you will find already inserted into
the discharge hole.
While in operation the ****-star compartment becomes
progressively covered with frost.
This frost, which acts as an insulator and thus prevents the
cold from reaching the food should be removed whenever the
thickness of the frost exceeds 6 mm (1/4”).
To carry out complete defrosting proceed as follows:
1.
Remove any food from inside the ****-star compartment, wrap it in several sheets of newspaper and
store in a cool dry place.
2.
Turn the thermostat knob to position << 0 >>. To
accelerate defrosting, place a bowl of hot water
inside the compartment (with a piece of cardboard
underneath the bowl as protection).
3.
Remove any loose pieces of ice as soon as possible.
Important
A temperature rise of the frozen food packs during
defrosting may shorten their storage life.
Never use sharp metal tools to scrape off frost from the
evaporator as you could damage it beyond repair.
Changing the Light Bulb
Should the light fail to work you can change it as below:
Disconnect the appliance from the electricity supply.
Remove the lamp cover retaining screws, then take the
lamp cover off in the direction of the arrow and the bulb
can be changed. (Type of the bulb: 230 V, 15 W, E 14
thread)
After changing the bulb replace the lamp cover, and
retaining screws and reconnect the appliance to the electricity supply.
When the appliance is not in use
When the appliance is not in use for long periods disconnect from the electricity supply, empty all of the food and
clean the appliance, leaving the door ajar to prevent
unpleasant smells.
9
Something Not Working
If the appliance is not working correctly, please carry out the following checks before contacting your local Service Force
Centre.
Problem
Possible Cause
Solution
No power at the socket.
Check there is power at the socket.
There is a power cut.
Check there is not a power cut by checking the household lights.
The fuse has blown.
Check the fuse has not blown.
Thermostat control is set at „0“.
Check the thermostat control setting.
The appliance is located in an unsuitable
position.
Check the ambient temperature is within
the appliances operating limits of 16 °C to
32 °C.
The thermostat control is set too low.
Check that the thermostat control knob is
turned to the correct setting relative to
ambient conditions.
The temperature in the appliance is too low
The thermostat control is set too high.
Set the thermostat control knob to a lower
position.
Excessive frost and ice has
built up
The door has been left open.
Check the door has not been left open.
Something is obstructing the door.
Check nothing is preventing the door from
closing.
The door gasket is dirty.
Check the door gasket is intact and clean.
The appliance is not level.
Check if the appliance stands stable (all
four feet should be on the floor).
No power to the appliance
The temperature in the appliance is too high
The appliance is noisy.
If after the above checks your appliance still does not operate
correctly, contact your local Service Force Centre.
Please note that it will be necessary to provide proof of
purchase for any in-guarantee service calls.
10
In-guarantee customers should ensure that the
above checks have been made, as the engineer will
make a charge if the fault is not a mechanical or
electrical breakdown.
Ins tr uctions f or the Ins t aller
Technical Specifications
Model
ZRG 614 SW
Gross capacity (l)
Frozen food comp.: 18
Net capacity (l)
Frozen food comp.: 18
Fresh food com.: 128
Fresh food com.: 122
Width (mm)
550
Height (mm)
850
Depth (mm)
Energy consumption
612
(kWh/day)
0,64
(kWh/year)
234
Energy class, according to EU Standards
A
Star rating of frozen food compartment
****
Rated current (A)
0,7
Weight (kg)
39
Installing the appliance
Energy use is affected by the ambient temperature.
Transportation, unpacking
The appliance should therefore:
The appliance and the interior fitting are protected for
transport.
Remove all packaging and any adhesive tape.
Any remnants of adhesive can be removed using
white spirit.
After transportation the appliance must not be
switched on for 2 hours. This is to allow the refrigerant to settle.
Cleaning
Clean the accessories and the inside of the appliance
with warm water and bicarbonate of soda (5 ml to
0.5 litres of water). Rinse and try thoroughly.
Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or cleaning
products containing bleach or alcohol.
not be installed next to radiators, cookers or other
sources of heat
only be installed at a location where the ambient temperature corresponds to the climate classification,
for which the appliance is designed.
The climate classification can be found on the serial
plate.
The following table shows which ambient temperature is
correct for each climate classification:
Climate Classification
Ambient Temperature
SN
+10 to +32 °C
N
+16 to +32 °C
ST
+18 to +38 °C
Location
The appliance should be positioned in a well ventilated,
dry room.
11
Ventilation Requirements
Remove the hinge pin from the bottom of the door.
The appliance must have adequate ventilation to ensure
correct operation.
Slot the hinge pin into the hole in the hinge plate and
relocate the hinge assembly to the opposite location
and refit using the retaining screws.
Diagram shows the ventilation requirements when
installed:
A:*
Put the cabinet in the upright position.
Under a worktop, or cupboard.
* The clearance space of 10 cm above the appliance may be reduced to 5 cm providing a clearance space 2,5 cm is left on either side of the
appliance.
B:
When freestanding
To reverse the top hinge assembly proceed as follows:
Levelling
The appliance must be level. Level the appliance by
adjusting the two adjustable feet (1) at the front of the
appliance.
Remove the 2 worktop retaining screws from the
back of the appliance.
Slide the worktop towards the rear and lift clear of the
appliance.
If required the washer (2) can be removed.
Remove the 2 upper hinge plate retaining screws.
Door Reversal
If required the opening direction of the door can be
changed as follows:
To reverse the bottom hinge assembly proceed as follows:
Disconnect the appliance from the electricity supply.
Tilt the appliance backwards, resting the top edge of
the appliance on a stool or something similar.
Unscrew the adjustable feet situated on both sides at
the front (2 pieces). Remove the lower door hinge
plate by unscrewing the 2 retaining screws.
12
Remove the hinge plate from the top of the door.
Unscrew the hinge pin from the hinge plate and reinsert on the opposite side of the pate.
Rotate the hinge assembly 180° and insert the hinge
assembly into the opposite location.
Refit the 2 hinge plate retaining screws.
Relocate the worktop and refit the worktop retaining
screws.
To reverse the handle proceed as follows:
Remove screw covers (if fitted) and handle retaining
screws. Remove blanking plugs on the opposite side
using a punch.
Relocate the handle to the opposite side and refit
retaining screws (covers if fitted), and push the plastic plugs supplied with the instruction book into the
holes where the handle was previously fitted.
13
Door Reversal of Freezer Compartment
After reversing the refrigerator door, it is necessary to
reverse the door of the frozen food compartment as well.
Proceed as follows.
Press the retaining lever inside the lower doorhinge.
Tilt the lower doorhinge out together with the freezer
compartment door then remove it from the pin of the
freezer compartment door.
Remove the rectangular plug and put it into the opening which has been made free on the other side.
Having the freezer compartment door turned by
180° put the lower hinge onto the lower pin of the
freezer compartment door.
Put the upper hinge pin of the freezer compartment
door into the free opening, then push the lower hinge
into its place together with the freezer compartment
door.
This operation can be performed by your local Service
Force Centre, in which case a charge will be made.
14
Electrical Connection
Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
This appliance must be earthed.
The manufacturer declines any liability should these
safety measures not be observed.
Important!
The plug must still be accessible after the appliance
has been installed.
The appliance should not be connected to the electrical supply by means of an extension cable.
In case that the electrical cable has to be replaced,
please contact your local Service Force Centre.
Electrical Requirements
Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliance rating
plate.
The appliance is supplied with a 13 amp plug fitted. In the
event of having to change the fuse in the plug supplied, a
13 amp ASTA approved (BS 1362) fuse must be used.
Should the plug need to be replaced for any reason. The
wires in the mains lead are coloured in accordance with
the following code:
Green and Yellow:
Earth
Blue:
Neutral
Brown:
Live
The wire coloured green and yellow must be connected
to the terminal marked with the letter “E“ or by the earth
symbol
or coloured green and yellow.
Warning!
A cut off plug inserted into a 13 amp socket is a serious safety (shock) hazard. Ensure that it is disposed
of safely.
This appliance complies with the following
E.E.C. Directives:
73/23 EEC of 19.02.73 (Low Voltage Directive) and
subsequent modifications,
89/336 EEC of 03.05.89 (Electromagnetic
Compatibility Directive) and subsequent modifications.
96/57 EEC - 96/09/03 (Energy Efficiency
Directive) and its subsequent amendments
The wire coloured blue must be connected to the terminal “N“ or coloured black.
The wire coloured brown must be connected to the terminal marked “L“ or coloured red.
Upon completion there must be no cut, or stray
strands of wire present and the cord clamp must be
secure over the outer sheath.
15
S t or age time char t (1)
Time and method of storage of fresh foods in the refrigerator
Foods
Raw meat
Cooked meat
Roasted meat
Raw minced meat
Cooked minced meat
Cold cuts
Fresh fish
Cooked fish
Tinned fish, open
Fresh chicken
Fried chicken
Fresh duck, goose
Roasted duck, goose
Butter unopened
Butter opened
Milk
Cream
Sour cream
Cheese (hard)
Cheese (soft)
Egg
Spinach, sorrel
Green peas, green beans
Mushroom
Carrot
Tomato
Cabbage
Fruits (Strawberries,
raspberries, etc.)
Tinned fruits opened
Cakes filled with cream
Storage time in days
3
4
5
x
x
x
X
x
x
X
x
x
2
X
X
X
X
X
x
x
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
x
X
x
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
x
x
x
X
X
X
X
X
X
X
x
X
X
X
X
x
X
x
X
X
X
x
x
x
X
X
X
x
x
X
X
X
X
x
X
x
X
X
X
x
x
x
x
X
X
x
x
x
x
x
X
X
x
X
X
x
X
x
X
x
X
x
X
x
X
x
X
x
x
X
X
X
x
x
X
X
x
X
X
x
X
X
X
X
X
X
X
X
x
x
x
x
x
x
Notation:
X
x
16
Method of packaging
1
X
X
X
X
X
X
recommended storage time
maximum recommended storage time
6
7
x
x
x
x
cling film, airtight
dish covered
dish covered
dish covered
dish covered
cling film, cellophane,
proof paper
cling film, airtight
dish covered
dish covered
cling film, airtight
dish covered
cling film, airtight
dish covered
original packaging
original packaging
original packaging
plastic box
plastic box
aluminium foil
cling film
cling film
cling film
cling film
cling film
cling film
cling film
cling film
dish covered
dish covered
grease-
S t or age time char t (2)
Storage time of deep-frozen and frozen products
Foods
Vegetables:
green beans, green peas, mixed vegetables, marrow, corn, etc.
Ready-cooked foods:
vegetable dish, trimmings, with meat, etc.
1 day
Ready-cooked foods:
sirloin steaks, stews
Soups:
Fruits:
cherries, gooseberries, fruit cream,
1 day
Meat:
chicken, duck, goose , tuna fish
1 day
Ice-cream, Ice-lollies
In the fresh food
compartment
+2 - +7°C
In the ****
frozen food
compartment
-18°C
1 day
12 months
12 months
1 day
1 day
6 months
6 months
12 months
5 months
1 day
3 weeks
17
18
19
www.electrolux.com
www.zanussi.co.uk
200382213-00-01082008
933 012 160
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
