Electrolux ER5763C User manual

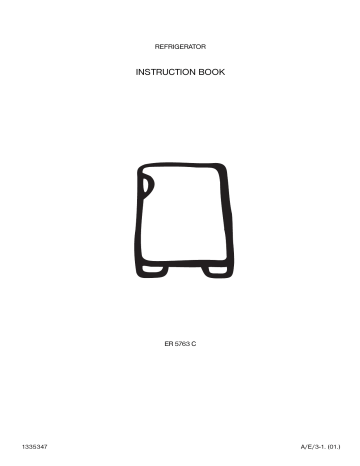

REFRIGERATOR INSTRUCTION BOOK ER 5763 C 1335347 A/E/3-1. (01.) This instruction book contains safety precautions, information on use and helpful hints and tips. To ensure you see this appliance effectively and safely, please read this instruction book carefully before installing or using this appliance and retain for future reference. The symbols below help you to find things more easily: Safety precautions Warnings and Safety information Hints, useful information Environmental information 2 IMPOR TANT S AFET Y INS TR UCTIONS These warnings are provided in the interests of your safety. Ensure that you understand them all before installing or using this appliance. Your safety is of paramount importance. If you are unsure about any of the meanings or these warnings contact the Customer Care Department. Prior to installation Check the appliance for transport damage. Under no circumstances should a damaged appliance be installed. In the event of damage please contact your retailer. Installation This appliance is heavy. Care should be taken when moving it. It is dangerous to alter the specifications or attempt to modify this product in any way. Ensure that the appliance does not stand on the electrical supply cable. If the supply cable is damaged, it must be replaced by a cable available from Expert Appliance Care. Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. Parts which heat up should not be exposed. Whenever possible, the back of the appliance should be close to a wall, but leaving the required distance for ventilation, as stated in the installation instructions. The appliance should be left for 2 hours after installation before it is turned on, in order to allow the refrigerant to settle. Servicing This product should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact Expert Appliance Care. At the end of the Appliance Life When disposing of your appliance use an authorised disposal site. Remove the plug and ensure that any locks or catches are removed, to prevent young children being trapped inside. The Appliance and the Environment This appliance does not contain gasses which could damage the ozone layer. Avoid damaging the cooling unit. The packaging used on this appliance marked with the symbol is recyclable. Child Safety Do not allow children to tamper with the controls or play with the product. There is a risk of suffocation! Keep packaging material away from children! During Use This appliance is designed for domestic use only, specifically for the storage of edible foodstuffs. It is not intended for commercial or industrial use. Maintenance and Cleaning Before cleaning, always switch off the appliance and disconnect from the electrical supply. When unplugging always pull the plug from the mains socket, do not pull on the cable. Keep this instruction book for future reference and ensure it is passed on to any new owner. 3 CONTENT S Instructions for the User Instructions for the Installer Guide to use the instruction book 2 Important Safety Instructions 3 Instructions for the User Description of the Appliance 5 5 Using the Appliance Before Use To Start the Appliance Thermostat Control Hints for storage Storage Shelf The Ice-making Compartment 6 6 6 6 6 7 7 Hints and Tips Food Storage Frozen food storage Energy Saving Advice 7 7 7 7 Storage time chart 8 Maintenance and Cleaning Internal cleaning External cleaning When the appliance is not in use 9 9 9 9 Something Not Working 10 Service and Spare Parts 10 4 Technical Data Location 11 11 Installing the Appliance Transportation, Unpacking Location Ventilation Requirements 11 11 11 12 Door Reversal 12 Electrical Connection 13 Ins tr uctions f or the User General information This appliance is desiged for the refrigeration of food in a domestic home. It also has an ice-making compartment. To ensure correct operation, this appliance should be located where the ambient temperature is between 12-32 °C Description of the appliance 1. 2. 3. 4. 5. 6. 7. Ice-making compartment Data plate Ice tray Wire shelf Drip tray Feet Door gasket 8. 9. 10. 11. 12. 13. Door compartment Thermostat with knob Condenser Air circulation Compressor Spacer 5 Using the Appliance Before Use Remove all securing tapes. Wash the inside of the appliance with lukewarm water with a little bicarbonate of soda added (5 ml to 0,5 litre of water). Do not use soap or detergent as the smell may linger. Dry the appliance thoroughly. Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or products containing alcohol. F To Start the Appliance 1. Allow the appliance to stand for 2 hrs after installation. 2. Plug in the appliance and switch on at the mains supply. 3. Turn the thermostat control knob to the required setting. A setting of 4 is usually suitable for normal operation (see thermostat control). 4. Leave the appliance for approximately 4 hours for the correct temperature to be reached before placing food inside. Thermostat Control The thermostat control knob situated inside the refrigerator regulates the temperature of the refrigerator and ice-making compartment. Thermostat control knob is marked from 1-7 the higher the number, the colder the setting. Position 0 Position 1 Position 7 - Off Cold Coldest Hints for storage Suggested storage locations for different types of food produce: 1. Storing frozen foods, making ice and ice-cream. 2. Confectionery, ready-cooked foods 3. Foods in dishes 4. Opened cans 5. Milk, dairy products 6. Fresh meat, cold cuts, sausages, etc. 7. Fruits, vegetables, salads 8. Cheese, butter 9. Eggs 10. Yoghurt, sour cream 11. 6 Bottles, drinks Storage Shelf The shelf inside the appliance has a flap on the left side that makes storing large sized bottles possible. The door shelves taken out of appliance can be used for serving foods (fruit, salads, etc.) The Ice-making Compartment This compartment is suitable for the storing of commercially frozen food and for making and storing ice cubes. Hints & Tips Food Storage To obtain the best results from your appliance neither hot foods nor liquids which may evaporate, should be placed in the refrigerator. Keep the time between buying chilled food and placing it in your fridge as short as possible. Do not push food together too much, try to allow air to circulate around each item. Do not store food uncovered. Remove suspect food from your refrigerator and clean, refer to Cleaning and Maintenance. Frozen food storage Storing ready-frozen foods is quite straightforward. The packs can be placed beside each other or on top of each other. You are strongly advised to place ready-frozen food in the compartment as quickly as possible after purchase and we therefore recommend that you buy them last. Also ensure that the external packaging is intact. Packaging which is swollen or has traces of refrozen water droplets on the pack could indicate that the product has not been kept at a suitable temperature and that it may have lost its original quality. Partially thawed food must not be refrozen, it must be consumed within 24 hours. Never exceed the storage times indicated. Do not open the ice-making compartment door too often and do not leave open longer than necessary. Important In the event of a power cut the food in the icemaking compartment will not be affected if the power cut is short and if the compartment is full. Do not open the door. Should the food begin to thaw, it must be consumed quickly and must not be refrozen. Energy Saving Advice Do not install the cabinet close to sources of heat, such as a cooker, dishwasher or radiator. Locate the appliance in a cool well ventilated room and make sure that the air openings of the cabinet are not obstructed. Always leave warm food to cool down to room temperature before placing in the fridge. Try to avoid keeping the door open for long periods, or opening the door too frequently as warm air will enter the cabinet, and cause the compressor to switch on unnecessarily often. Ensure there are no obstructions preventing the door from closing properly. It is advisable to periodically clean the refrigeration system at the back of the appliance with a duster or vacuum cleaner. 7 S t or age time char t Time and method of storage of fresh foods in the refrigerator Foods Storage time in days 3 4 5 6 x x x X x x x X x x Raw meat Cooked meat Roasted meat Raw minced meat Cooked minced meat Cold cuts 1 X X X X X X 2 X X X X X x x Fresh fish Cooked fish Tinned fish, open Fresh chicken Fried chicken Fresh duck, goose Roasted duck, goose Butter unopened Butter opened Milk Cream Sour cream Cheese (hard) Cheese (soft) Egg Spinach, sorrel Green peas, green beans Mushroom Carrot Tomato Cabbage Strawberry, raspberry, etc. Tinned fruits opened Cakes filled with cream X X X X X X X X X X X X X X X X X X X X X X X X x X x X X X X X X X X X X X X X X X X X X X X X x x x X X X X X x X x X X X X x X x X X X X X x Notation: X x 8 recommended storage time maximum recommended storage time 7 x x x x x x X X x x x X X X X x X x X X X x x x x x x x X x x x x x x X x x X x x X x X x X x X x X x X x x X X X x x x x X X x X X x Method of packaging cling film, airtight dish covered dish covered dish covered dish covered cling film, cellophane, greaseproof paper cling film, airtight dish covered dish covered cling film, airtight dish covered cling film, airtight dish covered original packaging original packaging original packaging plastic box plastic box aluminium foil cling film cling film cling film cling film cling film cling film cling film cling film dish covered dish covered Maint enance & Cleaning Before any maintenance of cleaning work is carried out DISCONNECT the appliance from the ELECTRICITY SUPPLY. Internal Cleaning Clean the inside and accessories with warm water and bicarbonate of soda (5 ml to 0.5 litre of water). Rinse and dry thoroughly. NEVER use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as these will damage the surface and leave a strong odour. External Cleaning Wash the outer cabinet with warm soapy water. When the appliance is not in use Defrosting While the appliance is in operation the ice-making compartment becomes progressively covered with frost. This frost, acts as an insulator and prevents the cold from reaching the insulator food. The frost should be removed whenever the thickness of the frost exceeds 1/4. To carry out complete defrosting proceed as follows. Pull out the plug from the wall socket or turn the thermostat control knob to the '0' position. Leave the fridge and ice-making compartment doors open, when defrosting is completed, dry the appliance thoroughly. Remove any defrost water collected in the tray. Replace the plug in the socket or return the thermostat to the initial position and, after letting the appliance run for at least an hour, place the food in the refrigerator. When the appliance is not in use for long periods, disconnect from the electricity supply, empty all foods and clean the appliance, leaving the door open to prevent unpleasant smells. 9 Some thing N o t Wor king If the appliance is not working correctly, please carry out the following checks before contacting Expert Appliance Care. Problem No power to the appliance Possible Cause No power at the socket. There is a power cut. The fuse has blown. Thermostat control is set at 0. The temperature in the appliance is too high The appliance is located in an unsuitable position. The thermostat control is set too low. The temperature in the appliance is too low Excessive frost and ice has built up The thermostat control is set too high. The appliance is noisy. The appliance is not level. The door has been left open. Something is obstructing the door. The door gasket is dirty. If after the above checks your appliance still does not operate correctly, contact Expert Appliance Care. Please note that it will be necessary to provide proof of purchase for any in-guarantee service calls. Solution Check there is power at the socket. Check there is not a power cut by checking the household lights. Check the fuse has not blown. Check the thermostat setting. Check the ambient temperature is within the appliances operating limits of 12 °C to 32 °C. Check that the thermostat control knob is turned to the correct setting relative to ambient conditions. Set the thermostat control knob to a lower position. Check the door has not been left open. Check nothing is preventing the door from closing. Check the door gasket is intact and clean. Check if the appliance stands stable (all four feet should be on the floor). In-guarantee customers should ensure that the above checks have been made, as the engineer will make a charge if the fault is not a mechanical or electrical breakdown. Ser vice and Spar e P ar ts If you require further information regarding the appliance, the terms and conditions of the guarantee, or wish to call out engineer, please contact Expert Appliance Care by telephoning: 0870 9099100 10 Ins tr uctions f or the Ins t aller Technical data Model Gross capacity (l) Net capacity (l) Width (mm) Height (mm) Depth (mm) Energy consumption (kWh/24h) (kWh/year) Energy class, according to EU standards Rated power (W) Weight (kg) ER 5763 C Ice-making comp.: 5 Fresh food comp.: 65 Ice-making comp.: 5 Fresh food comp.: 62 525 520 587 0,42 153 B 55 24 Location The appliance should be positioned in a well ventilated, dry room. Energy use is affected by the ambient temperature. The appliance should therefore: not be installed next to radiators, cookers or other sources of heat only be installed at a location where the ambient temperature corresponds to the climate classification, for which the appliance is designed. The climate classification can be found on the data plate. The following table shows which ambient temperature is correct for each climate classification: Climate Classification Ambient Temperature SN +10 to +32 °C N +16 to +32 °C ST +18 to +38 °C Installing the appliance Transportation, unpacking The appliance and the interior fitting are protected for transport. Remove all packaging and any adhesive tape. Any remnants of adhesive can be removed using white spirit. After transportation the appliance must not be switched on for 2 hours. This is to allow the refrigerant to settle. Cleaning Clean the accessories and the inside of the appliance with warm water and bicarbonate of soda (5 ml to 0.5 litres of water). Rinse and dry thoroughly. Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or cleaning products containing bleach or alcohol. 11 Ventilation Requirements The appliance must have adequate ventilation to ensure correct operation. Diagram shows the ventilation requirements when installed: A* Under a worktop, or cupboard. * The clearance space of 10 cm above the appliance may be reduced to 5 cm providing a clearance space 2.5 cm is left on either side of the appliance. B When freestanding Door Reversal If required the opening direction of the door can be changed as follows: To reverse the bottom hinge assembly proceed as follows: Disconnect the appliance from the electricity supply. Remove the top hinge cover. Unscrew the 2 retaining screws, and remove the hinge from the appliance. Take the door off. Unscrew the lower hinge retaining screws, and remove the hinge according to the diagram. Fit the lower hinge on the opposite side. Fix the door onto the lower hinge pin. To fit top door hinge, remove the plastic blanking plugs carefully, and refit them in the holes left by the hinge retaining screws. Refit the top hinge using the 2 retaining screws, taking care that the edge of the door is parallel with side of the cabinet. Replace the hinge cover. Remove screw covers (if fitted) and handle retaining screws. Remove blanking plugs on the opposite side. Relocate the handle to the opposite side and refit retaining screws (covers if fitted), and replace the blanking plugs. 12 Electrical connection Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. This appliance must be earthed. The manufacturer declines any liability should these safety measures not be observed. Electrical Requirements Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliance rating plate. The appliance is supplied with a 13 amp plug fitted. In the event of having to change the fuse in the plug supplied, a 13 amp ASTA approved (BS 1362) fuse must be used. Should the plug need to be replaced for any reason. The wires in the mains lead are coloured in accordance with the following code: Green and Yellow: Earth Blue: Neutral Brown: Live The wire coloured green and yellow must be connected to the terminal marked with the letter E or by the earth symbol or coloured green and yellow. The wire coloured blue must be connected to the terminal N or coloured black. The wire coloured brown must be connected to the terminal marked L or coloured red. Upon completion there must be no cut, or stray strands of wire present and the cord clamp must be secure over the outer sheath. This appliance complies with the following E.E.C. Directives: 73/23 EEC of 19.02.73 (Low Voltage Directive) and subsequent modifications, 89/336 EEC of 03.05.89 (Electromagnetic Compatibility Directive) and subsequent modifications. 13 Rev.: 2001. 09. 25. The Elecfrolux Group is the world's largest producer of powered appliances for kifchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerations, cookers, washing machines, vaccum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world. © Electrolux Household Appliances Limited 2001 Printed by Xerox Hungary Ltd. The Electrolux Group. The world's No.1 choice.
