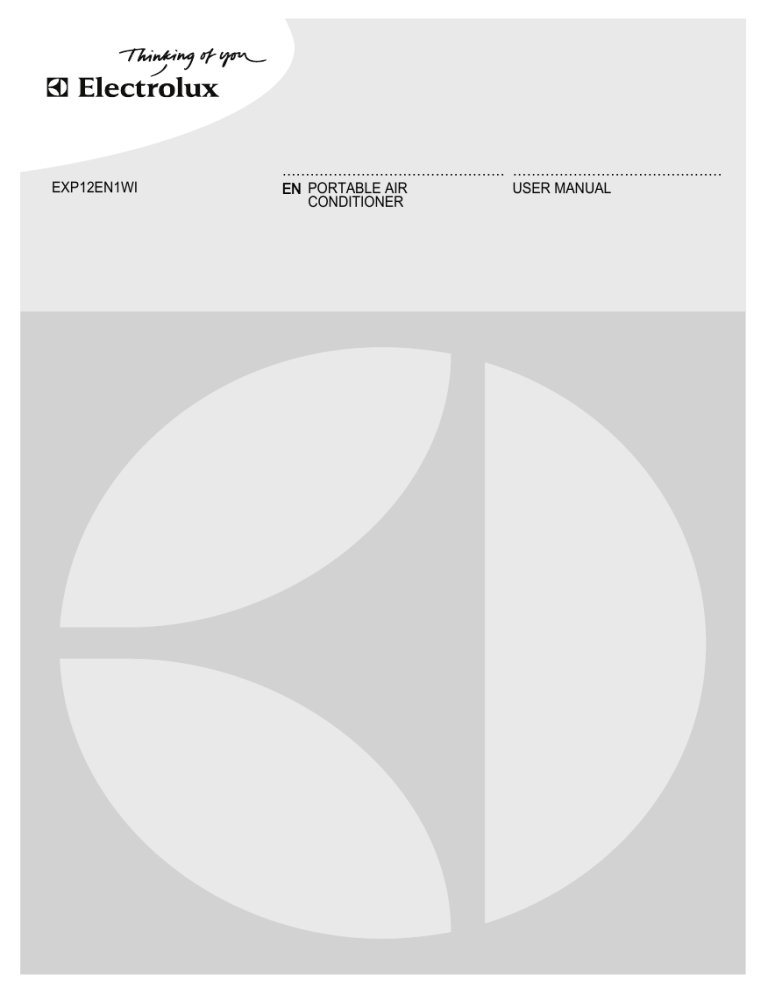

EXP12EN1WI
................................................ .............................................
EN PORTABLE AIR
USER MANUAL
CONDITIONER
2 electrolux
Electrolux. Thinking of you.
Share more of our thinking at www.electrolux.com
CONTENTS
Safety information
Product description
Accessories
Installation
Control panel
2
4
4
5
9
Operating instructions
Care and cleaning
What to do if…
Environment concerns
10
12
13
14
Subject to change without notice.
SAFETY INFORMATION
Before use, carefully read the supplied instructions. The manufacturer is not responsible if incorrect use causes injuries and
damages. Always keep the instructions for
future reference.
• Do not install the appliance where there
is direct sunlight.
• Be careful, when adjusting the horizontal
louvres. There is a risk of catching fingers
on the fan.
CHILDREN AND VULNERABLE
PEOPLE SAFETY
Electrical connection
Warning! Risk of suffocation, injury or
permanent disability.
• Do not let persons, children included,
with reduced physical sensory, reduced
mental functions or lack of experience
and knowledge use the appliance. They
must have supervision or instruction for
the operation of the appliance by a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
INSTALLATION
Warning! Risk of overheating, fire or
damage to the appliance.
• Only a qualified person must install this
appliance.
• The installation must be performed in accordance to the national wiring standards
(if applicable).
• Move or store the appliance in an upright
position.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Do not install or use the appliance where
the temperature is less than 0 °C.
• Obey the installation instruction supplied
with the appliance.
Warning! Risk of fire and electrical
shock.
• Make sure the appliance is installed correctly. Loose and incorrect plug and
socket connections can make the terminal become too hot.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the
electrical components. Contact the Service or an electrician to change the electrical components.
• The power cord must not touch hot surfaces of other appliances.
• Do not use the power cord near flammables gas or combustibles, such as gasoline, benzene, thinner, etc.
• Always install circuit breaker and a dedicated power circuit.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains
plug.
• Provide a residual current device (RCD).
• Make sure the power supply has an appropriate voltage rating. Only use 220V
electrolux 3
— 240V, 50Hz, 10A mains electricity
supply.
• The appliance must be earthed.
• The appliance is equipped with a cord
having an earth wire connected to a
grounding tab (A). The plug must be
plugged into an outlet that is properly installed and earthed.
A
• ONLY FOR UK: The appliance is equipped with a cord that has an earthed wire
connected to an earthed pin (B). The
plug must be plugged into a socket that
is properly installed and earthed. Do not
under any circumstances cut or remove
the square earthed pin(B). from the plug.
B
USE
Warning! Risk of injury, burns,
electrical shock or fire.
• Use this appliance in a household environment.
• Do not change the specification of this
appliance.
• Do not direct the airflow at room occupants, pets or hose plants.
• Ventilate the room before using the air
conditioner.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not operate the appliance without the
air filter.
• Always drain the condensate before storing the appliance.
• Make sure the drain hose is not above
the drain fitting.
• Do not place obstacles around the air-inlets or inside of air-outlets.
• Do not operate or stop the appliance by
pulling out the power cord.
• Do not operate the appliance near any
heat source or open fire.
• Do not cover the appliance when in operation or immediately after use.
• Do not drink water drained from the appliance.
• If a burning smell or any other abnormality occurs, deactivate the appliance immediately.
CARE AND CLEANING
Warning! Risk of injury or damage to
the appliance.
• Contact Service for maintenance or repair of this appliance.
• Deactivate the appliance before cleaning.
• Before maintenance, deactivate the appliance and disconnect the mains plug
from the mains socket.
• When the air filter is to be removed, do
not touch the metal parts of this appliance.
• Clean the filter once every two weeks. Always insert the filters securely.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal objects.
DISPOSAL
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• This appliance uses R410A refrigerant.
• If you wish to discard this product, please
contact your local authorities and ask for
the correct method of disposal.
4 electrolux
PRODUCT DESCRIPTION
UNIT DESCRIPTION
1
5
4
2
3
5
1
2
4
1
2
3
4
5
6
6
CONTROL PANEL
CARRYING HANDLE (BOTH SIDES)
REMOTE CONTROL STORAGE DOOR
REMOTE CONTROL
ROOM AIR DISCHARGE
CASTOR
6
3
1
2
3
4
5
6
EXHAUST AIR OUTLET
EXHAUST ADAPTOR A
BOTTOM TRAY DRAIN OUTLET
AIR INTAKE
DEHUMIDIFYING DRAIN OUTLET
EXHAUST HOSE (STORAGE WHEN
NOT IN USE)
ACCESSORIES
Check all the accessories are included
in the package and please refer to the
“Installation” chapter for their usage.
A
B
C
D
E
F
G
H
I
J
PART
PART NAME
QUANTITY
A
Exhaust hose
1 pc
B
Unit/Exhaust Adaptor A
1 pc
electrolux 5
PART
PART NAME
QUANTITY
C
Window/Exhaust Adaptor B
1 pc
D
Window Sliding Kit
1 pc
E
Foam Seal
3 pc
F
Remote Control
1 pc
G
Battery (for remote control)
2 pc
H
Wall Adaptor (for permanent duct mounting)
1 pc
I
Wall Plug
4 pc
J
Screws
4 pc
INSTALLATION
EXHAUSTING HOT AIR
WINDOW DISCHARGE
In the COOLING mode (COOL) the appliance must be placed close to a window so
that the warm exhaust air can be ducted
outside. First, place the unit on a flat floor
and make sure there’s a minimum of 30,5
cm clearance around the unit, and is within
the vicinity of a single circuit outlet power
source.
1. Take the hose out from back of the unit
2. Remove adaptor A from units by sliding
sideways.
3. Extend either side of the hose and
screw the hose to adaptor A.
6 electrolux
4. Extend the other side of the hose and
screw it to adaptor B.
6. Affix the adaptor B into the window
slider kit and seal.
• Window slider kit:
Minimum: 67,5 cm (26,6 inches)
Maximum: 123 cm (48,5 inches)
Vertical window
5. Slide the assembly onto unit.
Horizontal window
electrolux 7
INSTALLATION IN A DOUBLE-HUNG
SASH WINDOW
1. Cut the foam seals - adhesive type (A)
to the proper lengths and attach them
to the window and stool.
A
WALL DISCHARGE
Mount wall adaptor directly over correctly
installed duct to outside. (This usually includes aluminium wall ducting and an outside cover. See your hardware specialist for
correct installation.)
Use wall pluges and screws to secure. Attach hose duct to wall adaptor.
2. Attach the window slider kit to the window stool. Adjust the length of the window slider kit according to the width of
window. Cut the adjustable window
slider kit if the width of window is less
than 67,5 cm.
max 48”
min 12”
The hose can be extended from its original
length of 38,1 cm up to 139,7 cm, but it is
the best to keep the length to minimum required. Also make sure that the hose does
not have any sharp bends or sags.
3. Open the window sash and place the
window slider kit (B) on the window
stool (C).
B
675-1230
C
8 electrolux
4. Close the window sash securely
against the window slider kit.
3. Open the window sash and place the
window slider kit (B) on the window
stool (C).
B C
675-1230
5. Cut the foam seals to an appropriate
length and seal the open gap between
the top window sash and outer window
sash, as shown.
4. Close the sliding sash securely against
the window slider kit.
INSTALLATION IN A SLIDING SASH
WINDOW
1. Cut the foam seals-adhesive type (A) to
the proper lengths and attach them to
the window and stool.
A
2. Attach the window slider kit to the window stool. Adjust the length of the window slider kit according to the height of
window. Cut the adjustable window
slider kit if the height of window is less
than 67,5 cm.
5. Cut the foam seals to an appropriate
length and seal the open gap between
the sliding sash and outer window
sash, as shown.
electrolux 9
CONTROL PANEL
CONTROL PANEL
1
10
1
2
3
4
5
2
9
3
8
CHECK FILTER RESET BUTTON
DISPLAYS TEMPERATURE/TIME
TURNS UNIT ON OR OFF
REMOTE SIGNAL RECEIVER
SWING BUTTON (SWING)
4
5
7
6
7
8
9
10
6
ACTIVATES TIMER (TIMER)
SET MODE (MODE)
ADJUSTS TEMPERATURE OR TIME
SETS FAN SPEED (FAN SPEED)
SLEEP MODE (SLEEP)
REMOTE CONTROL
1
6
2
3
4
7
8
9
10
5
BATTERY SIZE: AAA
Warning! Do not mix old and new
batteries. Do not mix alkaline, standard
(carbon-zinc) or rechargeable (nickelcadmium) batteries.
1 MODE INDICATION
2 TEMPERATURE/TIMER CONTROL
BUTTONS
3 MODE SELECTOR (MODE)
4 SLEEP BUTTON
(SLEEP)
5 RESET+LOCK PIN BUTTONS (RESET/
LOCK)
6 FAN SPEED SELECTION
7 FAN SPEED SELECTOR (FAN SPEED)
8 TIMER BUTTONS (TIMER ON/TIMER
OFF)
9 SWING BUTTON (SWING)
10 ON/OFF BUTTON
The Reset button RESET is depressed
when you want to return to the initial factory
settings. The Lock button LOCK is depressed to lock the keypad so the settings
cannot be changed. The key symbol will
10 electrolux
appear in the display of the remote control;
depress the Lock button LOCK again to re-
lease. Use a small pin to depress these buttons.
OPERATING INSTRUCTIONS
Important! The following instructions
represent the Control Panel. The same
instructions can be used for the Remote
Control.
COOLING MODE (COOL)
In this mode the exhaust adaptor hose
MUST be used.
1. Press the Mode button (MODE) until
the Cooling (COOL) indicator lights.
2. Press Temperature buttons
for
desired setting.
3. Press the Fan button (FAN SPEED) for
desired fan speed.
HEATING MODE (HEAT) (ON SOME
MODELS)
In this mode you do not need to use the
exhaust adaptor hose.
1. Press the Mode button (MODE) until
the Heating (HEAT) indicator lights.
2. Press the Temperature buttons
for the desired heat setting.
DRY MODE (DRY)
In this mode you do not need to use the
exhaust adaptor hose, BUT the water
collected must be discharged. See
“Drainage” section.
1. Press the Mode button (MODE) until
the Dry (DRY) indicator lights.
2. The fan will run at low speed and the
display will show the room temperature.
3. Keep doors and windows closed for
best effect.
AUTO MODE (AUTO)
Always have the exhaust hose attached
in this mode.
When you set the air conditioner in Auto
mode (AUTO), it will automatically select
cooling, heating (inapplicable for cooling
only models) or fan only operation, depending on what temperature you have selected
and the room temperature. The air conditioner will control room temperature automatically round the temperature point set
by you. Under Auto mode (AUTO) you can
not select the fan speed.
FAN MODE (FAN)
In this mode there is no need to use the exhaust hose or drainage hose. However, if
you require stale or smoky air to be removed from the room, hook up the duct
accessories as described in the "Exhausting hot Air" section.
1. Press the Mode button (MODE) until
the Fan (FAN) indicator lights
2. Press the Fan (FAN SPEED) button to
choose the desired fan speed.
3. The fan will run at the selected speed
and the display will show the room
temperature.
TIMER OPERATION (TIMER)
You can set both delay stop and delay start
while unit is in ON position or OFF position.
When unit is in ON position, first press the
Timer button (TIMER) to go to delay stop
setting, then timer off (TIMER OFF) light will
or
illuminate. Tap or hold the up arrow
the down arrow
to change delay stop
timer at 0,5 hour increments up to 10
hours, then at 1 hour increments up to 24
hours. Then press the Timer button (TIMER)
to confirm the setting (the control will confirm the setting automatically after 5 seconds) and go to delay start setting.
Use the same way as above to set the delay start timing. If you don’t need to set delay start, press the Timer button (TIMER)
again to exit. After 5 second the control will
automatically change the display back to
previous temperature display. If you want to
check remain timing, press the Timer button(TIMER). The delay start operation automatically selects mode, temperature and
fan speed the same as last operation you
set.
When unit is in OFF position, press the Timer button (TIMER) to go to delay start setting, then timer on (TIMER ON) light will illuminate. Set the delay start and delay stop
timing the same way as above.
electrolux 11
To cancel the timer setting simply tap
button to change the timing to 0.0.
or
SLEEP OPERATION (SLEEP)
In this mode the selected temperature will
increase by 1゚C 30 minutes after the mode
is selected. The temperature will then increase by another 1゚C after an additional
30 minutes. This new temperature will be
maintained for 7 hours before it returns to
the originally selected temperature. This
ends the Sleep mode (SLEEP) and the unit
will continue to operate as originally programmed. The Sleep mode (SLEEP) program can be canceled at any time during
operation by again pressing Sleep button
(SLEEP).
Important! This feature is unavailable
under Fan (FAN) and Dry (DRY) modes.
REMOTE CONTROL STORAGE
The door on side of the unit is for storing
the remote. To open press it as shown below. To close, simply push it back into position.
SWING OPERATION (SWING)
When you turn on the unit, the louver will
swing and stop at a certain angle. You can
press the Swing button (SWING) to let the
louver swing automatically. Press the Swing
button (SWING) while you want the louver
stop at desired angle.
CHECK FILTER FEATURE (FILTER)
The feature is a reminder to clean the air filter (see “Care and Cleaning”) for more efficient operation. The LED light above the Filter button (FILTER) will illuminate after 250
hours of operation. To reset after cleaning
the filter, press the Filter button (FILTER)
and the light will go off.
DRAINAGE
During the dehumidifying mode, you will
need a garden hose (sold separately) to
drain the condensate from the unit. Remove the rubber stopper from the hose
connector, then screw on a garden hose to
the connector as shown.
The hose may then:
1. Discharge into a drain that is lower than
the unit.
2. Be connected to a condensate pump
(sold separately).
ADDITIONAL NOTES ON OPERATION
• The cooling circuit has an automatic 3
minutes delayed start if the unit is turned
off and on quickly. This prevents overheating the compressor and possible circuit breaker tripping. The fan will continue
to run during this time.
• The control will maintain the set temperature within 1゚C between 17゚C and 30゚C
(62゚F and 86゚F).
• The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius. To convert from one to the
other and back, press and hold the temand
together for
perature buttons
3 seconds.
• There is 2–second delay for the compressor shutting down when selecting
12 electrolux
Fan only (FAN) or Heat (HEAT). This is to
cover possibility of having to roll through
to select another mode.
• After a power outage, the unit will memorize the last setting and return the unit to
the same setting once power is restored.
CARE AND CLEANING
Important! Clean your air conditioner
occasionally to keep it looking new. Be sure
to unplug the unit before cleaning to
prevent shock or fire hazards.
C
AIR FILTER CLEANING
• The unit has three filters, they are filter A,
B and C. Grasp the upper panel tab and
take off the filter A, which is placed behind the grill of the back panel.
A
• Wash the filter using liquid dishwashing
detergent and warm water. Rinse filter
thoroughly. Gentle shake excess water
from the filter. Be sure filter is thoroughly
dry before replacing.
• Or, instead of washing you may vacuum
the filter clean.
CABINET CLEANING
• Remove the lower filter B and C by loosening the screws. Take down the air inlet
grill, then remove the air filter as shown.
Caution! Be sure to unplug the air
conditioner to prevent shock or fire
hazard.
• The cabinet front may be dusted with an
oil-free cloth or washed with cloth dampened in a solution of warm water and
mild liquid dishwashing detergent. Rinse
thoroughly and wipe dry.
• Never use harsh cleaners, wax or polish
on the cabinet front.
• Be sure to wring excess water from the
cloth before wiping around the controls.
Excess water in or around the controls
may cause damage to the air conditioner.
B
WINTER STORAGE
If you plan to store the appliance during the
winter, cover it with plastic or return it to its
carton.
electrolux 13
WHAT TO DO IF…
Problem
Air conditioner will not operate
Air from unit does not feel cold
enough.
Air conditioner cooling, but
room is too warm - NO ice
forming on cooling coil behind
decorative front.
Air conditioner cooling, but
room is too warm - ice forming
on cooling coil behind decorative front.
Possible cause
Remedy
Wall plug disconnected.
Push plug firmly into wall outlet.
Plug current device tipped.
Press the reset button (RESET).
House fuse blown or circuit
breaker tripped.
Replace fuse with time delay
type or reset circuit breaker.
Control is OFF.
Turn control ON and set to the
desired setting.
Shut off in Heating Mode
(HEAT). When the air outlet exceeds 70˚C (158˚F), the automatic heat protection engages.
Remove any blockages and let
appliance cool down.
Room temperature lower than
the set temperature (Cooling
Mode (COOL) ).
Reset the temperature.
Room temperature higher than
the set temperature (Heating
Mode (HEAT) ).
Reset the temperature.
Room temperature below 16˚C
(60˚F). Cooling may not occur
until room temperature rises
above 16˚C (60˚F).
Reset to a lower temperature.
Compressor shut-off by changing modes.
Wait approximately 3 minutes
and listen for compressor to restart when set in the Cooling
Mode (COOL).
Outdoor temperature below
16˚C (60˚F).
To defrost the coil, set the Fan
Mode (FAN).
Air filter may be dirty.
Clean filter. Refer to “Care and
Cleaning”. To defrost the coil,
set the Fan Mode (FAN).
Temperature is set too low for
night-time cooling.
To defrost the coil, set the Fan
Mode (FAN). Then, set temperature to a higher settings.
Exhaust duct not connected or
blocked.
See “Exhausting Hot Air”
Dirty air filter - air restricted.
Clean air filter. Refer to “Care
and Cleaning”.
Temperature is set too high.
Set temperature to a lower settings.
Air directional louvers positioned improperly.
Position louvers for better air
distribution.
Front of unit is blocked by
drapes, blinds or furniture, etc.restricts air distribution.
Clear blockage in front of unit.
14 electrolux
Problem
Possible cause
Remedy
Doors, windows, registers, etc.
open — cool air escapes.
Close doors, windows, registers, etc.
Unit recently turned on in hot
room.
Allow additional time to remove
“stored heat” from walls, ceiling,
floor and furniture.
Dirty air filter - air restricted.
Clean air filter.
Outside temperature extremely
hot.
Set Fan Speed (FAN SPEED) to
a faster setting to bring air
through cooling coils more frequently.
Air movement sound.
This is normal. If too loud, set to
lower Fan (FAN) setting.
Vibration from uneven floor.
Move or support appliance correctly or even surface.
Room too cold.
Set temperature too low.
Increase set temperature.
Room too hot.
Set temperature too high.
Lower setting.
The display shows error code
The room temperature sensor
has failed.
Call for service.
The display shows error code
The evaporator temperature
sensor has failed.
Call for service.
The display shows error code
The display panel communication has failed.
Call for service.
The display shows error code
Bottom tray is full.
Carefully move the unit to a
drain location, remove the bottom drain plug and let the water
drain away. Restart the ma-
Air conditioner turns on and off
rapidly.
Noise when unit is cooling.
disapchine until the
pears. If error repeats, call for
service.
ENVIRONMENT CONCERNS
The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it should be taken to the appropriate
collection point for the recycling of electrical
and electronic equipment. By ensuring this
product is disposed of correctly, you will
help prevent potential negative
consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling of
this product. For more detailed information
about recycling of this product, please
contact your local council, your household
waste disposal service or the shop where
you purchased the product.
Important! The battery supplied with this
product contains traces of lead.
FOR EU: The crossed-out wheeled bin implies that used batteries should not be put
to the general household waste! There is a
separate collection system for used battery
to allow proper treatment and recycling in
accordance with legislation. Please contact
your local authority for details on the collection and recycling schemes.
For Switzerland: The used battery is to be
returned to the selling point.
electrolux 15
For other non-EU countries: Please contact your local authorities for correct method of disposal of the used battery.
Battery, including those which is heavy
metal-free should not be disposed of
with household waste. Please dispose
of used battery in an environmentally
sound manner.
Find out about the legal regulations
which apply in your area.
www.electrolux.com/shop
2020252a0429-A-042012
Download PDF

advertising
