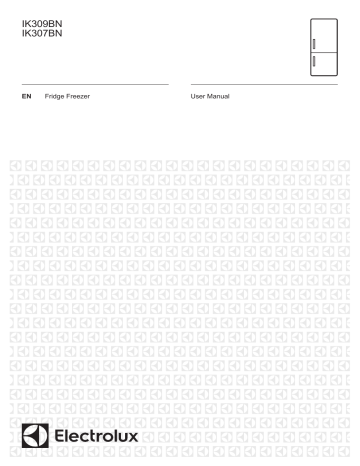

IK309BN
IK307BN
EN
Fridge Freezer
User Manual
2
www.electrolux.com
CONTENTS
1. SAFETY INFORMATION....................................................................................2
2. SAFETY INSTRUCTIONS..................................................................................4
3. OPERATION.......................................................................................................5
4. FIRST USE......................................................................................................... 8
5. DAILY USE......................................................................................................... 8
6. HINTS AND TIPS............................................................................................. 11
7. CARE AND CLEANING....................................................................................12
8. TROUBLESHOOTING......................................................................................13
9. INSTALLATION................................................................................................ 17
10. NOISES.......................................................................................................... 17
11. TECHNICAL INFORMATION......................................................................... 19
12. GUARANTEE ................................................................................................ 19
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1.
SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
ENGLISH
responsible if an incorrect installation and use causes
injuries and damages. Always keep the instructions with
the appliance for future reference.
1.1 Children and vulnerable people safety
•
•
•
•
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Do not let children play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Keep all packaging away from children.
1.2 General Safety
•
•
•
•
•
•
•
This appliance is intended to be used in household
and similar applications such as:
– Farm houses; staff kitchen areas in shops, offices
and other working environments
– By clients in hotels, motels, bed and breakfast and
other residential type environments
Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food
storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
Do not use water spray and steam to clean the
appliance.
Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
3
4
www.electrolux.com
•
•
Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
•
•
•
•
•
•
•
•
•
•
•
Remove all the packaging.
Do not install or use a damaged
appliance.
Obey the installation instruction
supplied with the appliance.
Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
Make sure the air can circulate
around the appliance.
Wait at least 4 hours before
connecting the appliance to the power
supply. This is to allow the oil to flow
back in the compressor.
Do not install the appliance close to
radiators or cookers, oven or hobs.
The rear of the appliance must stand
against the wall.
Do not install the appliance where
there is direct sunlight.
Do not install this appliance in areas
that are too humid or too colds, such
as the construction appendices,
garages or wine cellars.
When you move the appliance, lift it
by the front edge to avoid scratching
the floor.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
•
•
The appliance must be earthed.
Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
•
•
•
•
•
•
Always use a correctly installed
shockproof socket.
Do not use multi-plug adapters and
extension cables.
Make sure not to cause damage to
the electrical components (e.g. mains
plug, mains cable, compressor).
Contact the Authorised Service
Centre or an electrician to change the
electrical components.
The mains cable must stay below the
level of the mains plug.
Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
2.3 Use
WARNING!
Risk of injury, burns,
electrical shock or fire.
•
•
•
•
•
Do not change the specification of this
appliance.
Do not put electrical appliances (e.g.
ice cream makers) in the appliance
unless they are stated applicable by
the manufacturer.
Be careful not to cause damage to the
refrigerant circuit. It contains
isobutane (R600a), a natural gas with
a high level of environmental
compatibility. This gas is flammable.
If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
Do not let hot items to touch the
plastic parts of the appliance.
ENGLISH
•
•
•
•
•
•
•
Do not put soft drinks in the freezer
compartment. This will create
pressure on the drink container.
Do not store flammable gas and liquid
in the appliance.
Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
Do not touch the compressor or the
condenser. They are hot.
Do not remove or touch items from
the freezer compartment if your hands
are wet or damp.
Do not freeze again food that has
been thawed.
Obey the storage instructions on the
packaging of frozen food.
•
2.5 Disposal
WARNING!
Risk of injury or suffocation.
•
•
•
•
2.4 Care and cleaning
•
WARNING!
Risk of injury or damage to
the appliance.
•
•
5
Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the
appliance.
Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
This appliance contains hydrocarbons
in the cooling unit. Only a qualified
person must do the maintenance and
the recharging of the unit.
•
Disconnect the appliance from the
mains supply.
Cut off the mains cable and discard it.
Remove the door to prevent children
and pets to be closed inside of the
appliance.
The refrigerant circuit and the
insulation materials of this appliance
are ozone-friendly.
The insulation foam contains
flammable gas. Contact your
municipal authority for information on
how to discard the appliance
correctly.
Do not cause damage to the part of
the cooling unit that is near the heat
exchanger.
3. OPERATION
3.1 Control Panel
1
8
1
2
3
4
5
6
7
7
6
Display
Freezer Temperature warmer button
Freezer Temperature colder button
OK
Mode
Fridge Temperature warmer button
Fridge Temperature colder button
5
4
3
2
8 ON/OFF
It is possible to change predefined sound
of buttons to a loudly one by pressing
together Mode and temperature colder
button for some seconds. Change is
reversible.
6
www.electrolux.com
3.2 Display
A
B
C
D E F
G
Off
min
L
K J
I
H
3.3 Switching on
Connect the mains plug to the power
socket.
Press the appliance ON/OFF button if
the display is off.
The alarm buzzer could operate after few
seconds.
The temperature indicators show the set
default temperature.
To reset the alarm refer to "High
temperature alarm".
To select a different set temperature
refer to "Temperature regulation".
If DEMO appears on the display, refer to
"Troubleshooting".
If the door remains open for
some minutes, the light will
turn off automatically. The
light is reset by closing and
opening the door itself.
3.4 Switching off
Press the ON/OFF button for 5 seconds.
The display turns off.
To disconnect the appliance from the
power, disconnect the mains plug from
the power socket.
3.5 Switching on the fridge
To switch on the fridge it is enough to
press the fridge temperature regulator.
To switch on the fridge in the other way:
A. Fridge compartment indicator
B. Timer indicator
/Temperature indicator
C. ON/OFF indicator
D. Shopping function
E. Holiday function
F. FastFreeze function
G. Temperature indicator
H. Freezer compartment indicator
I. Alarm indicator
J. ChildLock function
K. DrinksChill function
L. FreeStore function
1. Press Mode until the corresponding
icon appears.
The Fridge OFF indicator flashes.
2. Press OK to confirm.
The fridge OFF indicator goes off.
To select a different set
temperature refer to
"Temperature regulation".
3.6 Switching off the fridge
1. Press Mode until the corresponding
icon appears.
The fridge OFF indicator and the fridge
compartment indicator flash.
The fridge temperature indicator shows
dashes.
2. Press OK to confirm.
The fridge OFF indicator is shown.
3.7 Temperature regulation
Set the temperature of the appliance by
pressing the temperature regulators.
Default set temperature:
• +5°C for the fridge ;
• -18°C for the freezer.
The temperature indicators show the set
temperature.
The set temperature will be
reached within 24 hours.
After a power failure the set
temperature remains stored.
ENGLISH
3.8 Shopping function
If you need to insert a large amount of
warm food, for example after doing the
grocery shopping, we suggest activating
the Shopping function to chill the
products more rapidly and to avoid
warming the other food which is already
in the refrigerator.
1. Press the Mode until the
corresponding icon appears.
The Shopping indicator flashes.
2. Press the OK to confirm.
The Shopping indicator is shown.
This function stops automatically after 52
hours.
To switch off the function before its
automatic end, repeat the procedure.
The function switches off by
selecting a different fridge
set temperature.
3.9 FastFreeze function
The FastFreeze function accelerates the
freezing of fresh food and, at the same
time, protects foodstuffs already stored
from undesirable warming.
1. Press the Mode button until the
corresponding icon appears.
The FastFreeze indicator flashes.
2. Press the OK button to confirm.
TheFastFreeze indicator is shown.
This function stops automatically after 52
hours.
To switch off the function before its
automatic end repeat the procedure until
the FastFreeze indicator goes off.
The function switches off by
selecting a different set
temperature.
3.10 ChildLock function
Activate the ChildLock function to lock
the buttons from unintentional operation.
1. Press Mode until the corresponding
icon appears.
The ChildLock indicator flashes.
2. Press OK to confirm.
7
The ChildLock indicator is shown.
To deactivate the ChildLock function,
repeat the procedure until the ChildLock
indicator goes off.
3.11 DrinksChill function
The DrinksChill function is to be used to
set an acoustic alarm at the preferred
time, useful for example when a recipe
requires to cool down food products for a
certain period of time.
It is also useful when a reminder is
needed in order not to forget the bottles
placed in the freezer for fast cooling.
1. Press Mode until the corresponding
icon appears.
The DrinksChill indicator flashes.
The Timer shows the set value (30
minutes) for a few seconds.
2. Press the Timer regulator to change
the Timer set value from 1 to 90
minutes.
3. Press OK to confirm.
TheDrinksChill indicator is shown.
The Timer start to flash (min).
At the end of the countdown the
DrinksChill indicator flashes and an
audible alarm sounds. Press OK to
switch off the sound and terminate the
function.
To switch off the function repeat the
procedure until the DrinksChill goes off.
It is possible to change the
time at any time during the
countdown and at the end by
pressing the Temperature
colder button and the
Temperature warmer button.
3.12 Holiday function
This function allows you to keep the
refrigerator closed and empty during a
long holiday period without the formation
of a bad smell.
8
www.electrolux.com
Empty the fridge
compartment before turning
the Holiday function on.
1. Press the Mode until the Holiday
indicator icon appears.
The Holiday icon flashes.
The fridge temperature indicator shows
the set temperature.
2. Press the OK to confirm.
The Holiday icon appears.
To turn off the Holiday function, repeat
the procedure until the Holiday indicator
icon goes off.
3.14 High temperature alarm
An increase in the temperature in the
freezer compartment (for example due to
an earlier power failure) is indicated by
flashing the alarm icon and freezer
temperature indicators, and sounding of
buzzer.
Press any button.
The buzzer switches off.
The freezer temperature indicator shows
the highest temperature reached for a
few seconds, then displays the set
temperature again.
The alarm indicator
continues to flash until the
normal conditions are
restored.
3.13 FreeStore function
To switch on the function:
1. Press the Mode button until the
corresponding icon appears.
The FreeStore indicator flashes.
2. Press the OK button to confirm.
The FreeStore indicator is shown.
To switch off the function repeat the
procedure until the FreeStore indicator
icon goes off.
If the function is activated
automatically the FreeStore
indicator is not shown (refer
to "Daily use").
The activation of the
FreeStore function increase
the energy consumption.
3.15 Door open alarm
An acoustic alarm will sound if the door is
left open for a few minutes. The door
open alarm conditions are indicated by:
•
•
a flashing Alarm indicator;
an acoustic buzzer.
When normal conditions are restored
(door closed), the alarm will stop. The
buzzer can also be switched off by
pressing any button.
4. FIRST USE
4.1 Cleaning the interior
Before using the appliance for the first
time, the interior and all internal
accessories should be washed with
lukewarm water and some neutral soap
to remove the typical smell of a brandnew product, then dried thoroughly.
CAUTION!
Do not use detergents or
abrasive powders, as these
will damage the finish.
5. DAILY USE
WARNING!
Refer to Safety chapters.
5.1 Movable shelves
The walls of the refrigerator are equipped
with a series of runners so that the
shelves can be positioned as desired.
ENGLISH
For better use of space, the front halfshelves (A) can be placed under the rear
ones. (B)
A
B
Do not move the glass shelf
above the vegetable drawer
and the bottle shelf to
ensure correct air circulation.
5.2 Positioning the door
shelves
To permit storage of food packages of
various sizes, the door shelves can be
placed at different heights.
1. Gradually pull the shelf in the
direction of the arrows until it comes
free.
2. Reposition as required.
5.3 Gastroshelf
Refer to the accessory
installation instruction.
Gastroshelf is a shelf support structure
for Gastronorm tray which can be
positioned instead of a glass shelf.
Gastronorm tray is an accessory 1)
which can be used for storing,
transporting and serving food.
CAUTION!
Do not put Gastronorm tray
into the refrigerator when it
is hot or when it contains hot
food (eg. right after taking it
out of the oven). Cool it
down first to ambient
temperature.
5.4 Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen
and deep-frozen food for a long time.
To freeze fresh food activate the
FastFreeze function and place the food
to be frozen in the freezer compartment.
1) Available from your authorized vendor.
9
10
www.electrolux.com
To freeze fresh food activate the
FastFreeze function at least 24 hours
before placing the food to be frozen in
the freezer compartment.
Place the fresh food to be frozen in the
top compartment.
The maximum amount of food that can
be frozen in 24 hours is specified on the
rating plate, a label located on the
inside of the appliance.
The freezing process lasts 24 hours:
during this period do not add other food
to be frozen.
When the freezing process is completed,
return to the required temperature (see
"FastFreeze Function").
Small pieces may even be cooked still
frozen, directly from the freezer: in this
case, cooking will take longer.
5.7 FreeStore
The refrigerator compartment is
equipped with a device that allows for
rapid cooling of foods and more uniform
temperature in the compartment.
This device activates by itself when
needed, for example for a quick
temperature recovering after door
opening or when the ambient
temperature is high.
In this condition, the
refrigerator compartment
temperature might drop
below 0°C. If this occurs
reset the temperature
regulator to a warmer
setting.
5.5 Storage of frozen food
When first starting-up or after a period
out of use, before putting the products in
the compartment let the appliance run at
least 2 hours on the higher settings.
In the event of accidental
defrosting, for example due
to a power failure, if the
power has been off for
longer than the value shown
in the technical
characteristics chart under
"rising time", the defrosted
food must be consumed
quickly or cooked
immediately and then refrozen (after cooling).
5.6 Thawing
Deep-frozen or frozen food, prior to
being used, can be thawed in the
refrigerator compartment or at room
temperature, depending on the time
available for this operation.
It is possible to switch on the
device manually when
needed (refer to "FreeStore
function").
The FreeStore device stops
when the door is open and
restarts immediately after
the door closing.
5.8 Ice-cube production
This appliance is equipped with one or
more trays for the production of icecubes.
Do not use metallic
instruments to remove the
trays from the freezer.
1. Fill these trays with water
2. Put the ice trays in the freezer
compartment.
ENGLISH
11
6. HINTS AND TIPS
6.1 Normal operating sounds
The following sounds are normal during
operation:
•
•
•
•
•
•
A faint gurgling and bubbling sound
from coils sound when refrigerant is
pumped.
A whirring and pulsating sound from
the compressor when refrigerant is
pumped.
A sudden cracking noise from inside
appliance caused by thermic dilatation
(a natural and not dangerous physical
phenomenon).
A faint click noise from the
temperature regulator when the
compressor switches on or off.
6.2 Hints for energy saving
•
•
Do not open the door frequently or
leave it open longer than absolutely
necessary.
If the ambient temperature is high and
the Temperature Regulator is set to
low temperature and the appliance is
fully loaded, the compressor may run
continuously, causing frost or ice on
the evaporator. If this happens, set
the Temperature Regulator toward
warmer settings to allow automatic
defrosting and so a saving in
electricity consumption.
•
•
6.5 Hints for freezing
To help you make the most of the
freezing process, here are some
important hints:
•
the maximum quantity of food which
can be frozen in 24 hours is shown on
the rating plate;
•
the freezing process takes 24 hours
no further food to be frozen should be
added during this period;
•
freeze only top quality, fresh and
thoroughly cleaned, foodstuffs;
•
prepare food in small portions to
enable it to be rapidly and completely
frozen and to make it possible
subsequently to thaw only the quantity
required;
•
wrap up the food in aluminium foil or
polythene and make sure that the
packages are airtight;
•
do not allow fresh, unfrozen food to
touch food which is already frozen,
thus avoiding a rise in temperature of
the latter;
•
lean foods store better and longer
than fatty ones; salt reduces the
storage life of food;
•
water ices, if consumed immediately
after removal from the freezer
compartment, can possibly cause the
skin to be freeze burnt;
6.3 Hints for fresh food
refrigeration
To obtain the best performance:
•
do not store warm food or evaporating
liquids in the refrigerator
•
do cover or wrap the food, particularly
if it has a strong flavour
•
position food so that air can circulate
freely around it
6.4 Hints for refrigeration
Useful hints:
•
Meat (all types): wrap in a suitable
packaging and place it on the glass
shelf above the vegetable drawer.
Store meat for at most 1-2 days.
Cooked foods, cold dishes: cover and
place on any shelf.
Fruit and vegetables: clean thoroughly
and place in a special drawer.
Bananas, potatoes, onions and garlic
must not be kept in the refrigerator if
not packed.
Butter and cheese: place in a special
airtight container or wrap in an
aluminium foil or a polythene bag to
exclude as much air as possible.
Bottles: close with a cap and place on
the door bottle shelf, or (if available)
on the bottle rack.
12
www.electrolux.com
•
it is advisable to show the freezing in
date on each individual pack to
enable you to keep tab of the storage
time.
6.6 Hints for storage of frozen
food
To obtain the best performance from this
appliance, you should:
•
make sure that the commercially
frozen foodstuffs were adequately
stored by the retailer;
•
be sure that frozen foodstuffs are
transferred from the foodstore to the
freezer in the shortest possible time;
•
not open the door frequently or leave
it open longer than absolutely
necessary;
•
once defrosted, food deteriorates
rapidly and cannot be refrozen;
•
do not exceed the storage period
indicated by the food manufacturer.
7. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
7.1 General warnings
CAUTION!
Unplug the appliance before
carrying out any
maintenance operation.
This appliance contains
hydrocarbons in its cooling
unit; maintenance and
recharging must therefore
only be carried out by
authorized technicians.
The accessories and parts of
the appliance are not
suitable for washing in a
dishwasher.
7.2 Periodic cleaning
CAUTION!
Do not pull, move or damage
any pipes and/or cables
inside the cabinet.
CAUTION!
Take care of not to damage
the cooling system.
CAUTION!
When moving the cabinet, lift
it by the front edge to avoid
scratching the floor.
The equipment has to be cleaned
regularly:
1. Clean the inside and accessories
with lukewarm water and some
neutral soap.
2. Regularly check the door seals and
wipe clean to ensure they are clean
and free from debris.
3. Rinse and dry thoroughly.
4. If accessible, clean the condenser
and the compressor at the back of
the appliance with a brush.
This operation will improve the
performance of the appliance and
save electricity consumption.
7.3 Defrosting of the
refrigerator
Frost is automatically eliminated from the
evaporator of the refrigerator
compartment every time the motor
compressor stops, during normal use.
The defrost water drains out through a
trough into a special container at the
back of the appliance, over the motor
compressor, where it evaporates.
It is important to periodically clean the
defrost water drain hole in the middle of
the refrigerator compartment channel to
prevent the water overflowing and
dripping onto the food inside.
ENGLISH
7.4 Defrosting the freezer
CAUTION!
Never use sharp metal tools
to scrape off frost from the
evaporator as you could
damage it. Do not use a
mechanical device or any
artificial means to speed up
the thawing process other
than those recommended by
the manufacturer. A
temperature rise of the
frozen food packs, during
defrosting, may shorten their
safe storage life.
About 12 hours prior to
defrosting, set a lower
temperature, in order to build
up sufficient chill reserve for
the interruption in operation.
A certain amount of frost will always form
on the freezer shelves and around the
top compartment.
Defrost the freezer when the frost layer
reaches a thickness of about 3-5 mm.
1. Switch off the appliance, or pull out
electrical plug from the wall socket.
2. Remove any stored food, wrap it in
several layers of newspaper and put
it in a cool place.
8. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
13
WARNING!
Do not touch frozen
goods with wet hands.
Hands can freeze to the
goods.
3. Leave the door open.
In order to speed up the defrosting
process, place a pot of warm water in
the freezer compartment. In addition,
remove pieces of ice that break away
before defrosting is complete.
4. When defrosting is completed, dry
the interior thoroughly.
5. Switch on the appliance.
After three hours reload the previously
removed food into the freezer
compartment.
7.5 Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
1. Disconnect the appliance from
electricity supply.
2. Remove all food.
3. Defrost (if necessary) and clean the
appliance and all accessories.
4. Clean the appliance and all
accessories.
5. Leave the door/doors open to
prevent unpleasant smells.
WARNING!
If you want to keep the
appliance switched on, ask
somebody to check it once
in a while to prevent the food
inside from spoiling in case
of a power failure.
We recommend activating
Holiday mode.
14
www.electrolux.com
8.1 What to do if...
Problem
Possible cause
Solution
The appliance does not
operate.
The appliance is switched
off.
Switch on the appliance.
The mains plug is not con‐ Connect the mains plug to
nected to the mains socket the mains socket correctly.
correctly.
There is no voltage in the
mains socket.
Connect a different electri‐
cal appliance to the mains
socket. Contact a qualified
electrician.
The appliance is noisy.
The appliance is not sup‐
ported properly.
Check if the appliance
stands stable.
Audible or visual alarm is
on.
The cabinet has been re‐
cently switched on or the
temperature is still too
high.
Refer to "Door Open
Alarm"or "High Tempera‐
ture Alarm".
The temperature in the ap‐ Refer to "Door Open
pliance is too high.
Alarm"or "High Tempera‐
ture Alarm".
The door is left open.
Close the door.
The temperature in the ap‐ Contact a qualified electri‐
pliance is too high.
cian or contact the nearest
Authorized Service Centre.
A square symbol is shown
instead of numbers on the
Temperature Display.
Temperature sensor prob‐
lem.
Contact the nearest Au‐
thorized Service Centre
(the cooling system will
continue to keep food
products cold, but temper‐
ature adjustment will not
be possible).
The lamp does not work.
The lamp is in stand-by.
Close and open the door.
The lamp is defective.
Contact the nearest Au‐
thorized Service Centre.
Temperature is set incor‐
rectly.
Refer to "Operation" chap‐
ter.
Many food products to be
frozen were put in at the
same time.
Wait some hours and then
check the temperature
again.
The room temperature is
too high.
Refer to climate class chart
on the rating plate.
The compressor operates
continually.
ENGLISH
Problem
15
Possible cause
Solution
Food products placed in
the appliance were too
warm.
Allow food products to cool
to room temperature be‐
fore storing.
The door is not closed cor‐ Refer to "Closing the door".
rectly.
The FastFreeze function is Refer to "FastFreeze func‐
switched on.
tion".
The Shopping function is
switched on.
There is too much frost
and ice.
Refer to "Shopping func‐
tion".
The door is not closed cor‐ Refer to "Closing the door".
rectly or the gasket is de‐
formed/dirty.
The water drainage plug is
not correctly positioned.
Position the water drain‐
age plug in the correct
way.
Food products are not
wrapped properly.
Wrap the food products
better.
Temperature is set incor‐
rectly.
Refer to "Operation" chap‐
ter.
The compressor does not
start immediately after
pressing the Fast‐
FreezeShopping, or after
changing the temperature.
This is normal, no error
has occurred.
The compressor starts af‐
ter a period of time.
Water flows on the rear
plate of the refrigerator.
During the automatic de‐
frosting process, frost
melts on the rear plate.
This is correct.
Water flows into the refrig‐
erator.
The water outlet is clog‐
ged.
Clean the water outlet.
Food products prevent that Make sure that food prod‐
water flows into the water
ucts do not touch the rear
collector.
plate.
Water flows on the floor.
The melting water outlet is Attach the melting water
not connected to the evap‐ outlet to the evaporative
orative tray above the com‐ tray.
pressor.
16
www.electrolux.com
Problem
Possible cause
Solution
Temperature cannot be
set.
The FastFreeze or Shop‐
ping function is switched
on.
Switch off FastFreeze or
Shopping manually, or wait
until the function resets au‐
tomatically to set the tem‐
perature. Refer to "Fast‐
Freeze or Shopping func‐
tion".
DEMO appears on the dis‐ The appliance is in demon‐ Keep the OK button press‐
play.
stration mode.
ed for approximately 10
seconds until a long sound
is heard and display shuts
off for a short time.
The temperature in the ap‐ The temperature regulator
pliance is too low/too high. is not set correctly.
Set a higher/lower temper‐
ature.
The door is not closed cor‐ Refer to "Closing the door".
rectly.
The food products' temper‐ Let the food products tem‐
ature is too high.
perature decrease to room
temperature before stor‐
age.
Many food products are
stored at the same time.
Store less food products at
the same time.
The thickness of the frost
is greater than 4-5 mm.
Defrost the appliance.
The door has been opened Open the door only if nec‐
often.
essary.
The FastFreeze function is Refer to "FastFreeze func‐
switched on.
tion".
The Shopping function is
switched on.
Refer to "Shopping func‐
tion".
There is no cold air circula‐ Make sure that there is
tion in the appliance.
cold air circulation in the
appliance.
If the advice does not lead to
the desired result, call the
nearest Authorized Service
Centre.
8.2 Replacing the lamp
The appliance is equipped with a longlife
LED interior light.
Only service is allowed to replace the
lighting device. Contact your Authorised
Service Centre.
8.3 Closing the door
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer
to "Installation".
3. If necessary, replace the defective
door gaskets. Contact the Authorised
Service Centre.
ENGLISH
17
9. INSTALLATION
WARNING!
Refer to Safety chapters.
9.1 Location
9.3 Ventilation requirements
The airflow behind the appliance must be
sufficient.
5 cm
Refer to the assembly
instructions for the
installation.
To ensure best performance, install the
appliance well away from sources of heat
such as radiators, boilers, direct sunlight
etc. Make sure that air can circulate
freely around the back of the cabinet.
min.
200 cm2
min.
200 cm2
9.2 Positioning
Install the appliance in a dry, well
ventilated indoors where the ambient
temperature corresponds to the climate
class indicated on the rating plate of the
appliance.
Climate Ambient temperature
class
SN
+10°C to + 32°C
N
+16°C to + 32°C
ST
+16°C to + 38°C
T
+16°C to + 43°C
Some functional problems
might occur for some types
of models when operating
outside of that range. The
correct operation can only
be guaranteed within the
specified temperature range.
If you have any doubts
regarding where to install the
appliance, please turn to the
vendor, to our customer
service or to the nearest
Authorised Service Centre.
9.4 Electrical connection
•
•
•
•
Before plugging in, ensure that the
voltage and frequency shown on the
rating plate correspond to your
domestic power supply.
The appliance must be earthed. The
power supply cable plug is provided
with a contact for this purpose. If the
domestic power supply socket is not
earthed, connect the appliance to a
separate earth in compliance with
current regulations, consulting a
qualified electrician.
The manufacturer declines all
responsibility if the above safety
precautions are not observed.
This appliance complies with the
E.E.C. Directives.
10. NOISES
There are some sounds during normal running (compressor, refrigerant circulation).
18
www.electrolux.com
SSS
RRR
!
HISSS!
OK
UB
BL
SSSRRR!
HISSS!
BLUBB!
SSSRRR!
HISSS!
BLUBB!
B!
CLICK!
BRRR!
CRACK!
ICK
CL
!
BRRR!
CR
AC
K!
CLICK!
BRRR!
CRACK!
ENGLISH
19
11. TECHNICAL INFORMATION
11.1 Technical data
Height
mm
1777
Width
mm
547
Depth
mm
575
Rising time
Hours
16
Voltage
Volts
230 - 240
Frequency
Hz
50
The technical information is situated in
the rating plate, on the external or
12.
CH
internal side of the appliance and in the
energy label.
GUARANTEE
Customer Service Centres
Point of Service
Industriestrasse 10
5506 Mägenwil
Le Trési 6
1028 Préverenges
Via Violino 11
6928 Manno
Morgenstrasse 131
3018 Bern
Zürcherstrasse 204E
9000 St. Gallen
Seetalstrasse 11
6020 Emmenbrücke
St. Jakob-Turm Birsstrasse 320B
4052 Basel
Comercialstrasse 19
7000 Chur
Spare parts service Industriestrasse 10,
5506 Mägenwil, Tel. 0848 848 111
Specialist advice/Sale Badenerstrasse
587, 8048 Zürich, Tel. 044 405 81 11
Warranty For each product we provide a
two-year guarantee from the date of
purchase or delivery to the consumer
(with a guarantee certificate, invoice or
sales receipt serving as proof). The
guarantee covers the costs of materials,
labour and travel. The guarantee will
lapse if the operating instructions and
conditions of use are not adhered to, if
the product is incorrectly installed, or in
the event of damage caused by external
influences, force majeure, intervention by
third parties or the use of non-genuine
components.
20
www.electrolux.com
13. ENVIRONMENT CONCERNS
Recycle the materials with the symbol
. Put the packaging in applicable
containers to recycle it. Help protect the
environment and human health and to
recycle waste of electrical and electronic
appliances. Do not dispose appliances
marked with the symbol with the
household waste. Return the product to
your local recycling facility or contact
your municipal office.
*
For Switzerland:
Where should you take your
old equipment?
Anywhere that sells new
equipment or hand it in to
official SENS collection
points or official SENS
recycling firms.
The list of official SENS
collection points can be
found at www.erecycling.ch
ENGLISH
21
22
www.electrolux.com
ENGLISH
23
211622667-A-282015
www.electrolux.com/shop
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
