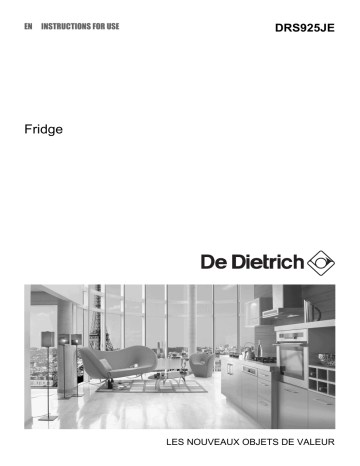

EN
INSTRUCTIONS FOR USE
DRS925JE
Fridge
LES NOUVEAUX OBJETS DE VALEUR
2
CONTENTS
Safety information
Control panel
First use
Daily use
Helpful hints and tips
2
4
5
5
7
Care and cleaning
8
What to do if…
9
Technical data
11
Installation
11
Environmental concerns
11
Subject to change without notice
SAFETY INFORMATION
In the interest of your safety and to ensure
the correct use, before installing and first using the appliance, read this user manual
carefully, including its hints and warnings.
To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features.
Save these instructions and make sure that
they remain with the appliance if it is moved
or sold, so that everyone using it through its
life will be properly informed on appliance
use and safety.
For the safety of life and property keep the
precautions of these user's instructions as
the manufacturer is not responsible for damages caused by omission.
Children and vulnerable people safety
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their
safety.
Children should be supervised to ensure
that they do not play with the appliance.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull
the plug out of the socket, cut the connection cable (as close to the appliance
as you can) and remove the door to prevent playing children to suffer electric
shock or to close themselves into it.
• If this appliance featuring magnetic door
seals is to replace an older appliance having a spring lock (latch) on the door or lid,
be sure to make that spring lock unusable before you discard the old appliance.
This will prevent it from becoming a
death trap for a child.
General safety
Caution! Keep ventilation openings
clear of obstruction.
• The appliance is intended for keeping
foodstuff and/or beverages in a normal
household as explained in this instruction
booklet.
• Do not use a mechanical device or any artificial means to speed up the thawing
process.
• Do not use other electrical appliances
(such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the
appliance, a natural gas with a high level
of environmental compatibility, which is
nevertheless flammable.
During transportation and installation of
the appliance, be certain that none of the
components of the refrigerant circuit become damaged.
If the refrigerant circuit should become
damaged:
– avoid open flames and sources of ignition
– thoroughly ventilate the room in which
the appliance is situated
• It is dangerous to alter the specifications
or modify this product in any way. Any
damage to the cord may cause a shortcircuit, fire and/or electric shock.
Warning! Any electrical component
(power cord, plug, compressor) must
be replaced by a certified service agent
or qualified service personnel.
3
•
•
•
•
1. Power cord must not be lengthened.
2. Make sure that the power plug is not
squashed or damaged by the back of
the appliance. A squashed or damaged power plug may overheat and
cause a fire.
3. Make sure that you can come to the
mains plug of the appliance.
4. Do not pull the mains cable.
5. If the power plug socket is loose, do
not insert the power plug. There is a
risk of electric shock or fire.
6. You must not operate the appliance
without the lamp cover1) of interior
lighting.
This appliance is heavy. Care should be
taken when moving it.
Do not remove nor touch items from the
freezer compartment if your hands are
damp/wet, as this could cause skin abrasions or frost/freezer burns.
Avoid prolonged exposure of the appliance to direct sunlight.
Bulb lamps2) used in this appliance are
special purpose lamps selected for household appliances use only. They are not
suitable for household room illumination.
Daily Use
• Do not put hot pot on the plastic parts in
the appliance.
• Do not store flammable gas and liquid in
the appliance, because they may explode.
• Do not place food products directly
against the air outlet on the rear wall.3)
• Frozen food must not be re-frozen once
it has been thawed out.
• Store pre-packed frozen food in accordance with the frozen food manufacturer's
instructions.
• Appliance's manufacturers storage recommendations should be strictly adhered
to. Refer to relevant instructions.
• Do not place carbonated or fizzy drinks in
the freezer compartment as it creates
pressure on the container, which may
cause it to explode, resulting in damage
to the appliance.
• Ice lollies can cause frost burns if consumed straight from the appliance.
1) If the lamp cover is foreseen
2) If the lamp is foreseen
3) If the appliance is Frost Free
4) If a water connection is foreseen
Care and cleaning
• Before maintenance, switch off the appliance and disconnect the mains plug from
the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost
from the appliance. Use a plastic scraper.
• Regularly examine the drain in the refrigerator for defrosted water. If necessary,
clean the drain. If the drain is blocked, water will collect in the bottom of the appliance.
Installation
Important! For electrical connection
carefully follow the instructions given in
specific paragraphs.
• Unpack the appliance and check if there
are damages on it. Do not connect the appliance if it is damaged. Report possible
damages immediately to the place you
bought it. In that case retain packing.
• It is advisable to wait at least four hours
before connecting the appliance to allow
the oil to flow back in the compressor.
• Adequate air circulation should be
around the appliance, lacking this leads
to overheating. To achieve sufficient ventilation follow the instructions relevant to
installation.
• Wherever possible the back of the product should be against a wall to avoid
touching or catching warm parts (compressor, condenser) to prevent possible
burn.
• The appliance must not be located close
to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
• Connect to potable water supply only.4)
Service
• Any electrical work required to do the servicing of the appliance should be carried
out by a qualified electrician or competent person.
4
• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.
Environment Protection
This appliance does not contain gasses
which could damage the ozone layer,
in either its refrigerant circuit or insulation materials. The appliance shall not
be discarded together with the urban re-
fuse and rubbish. The insulation foam
contains flammable gases: the appliance shall be disposed according to
the applicable regulations to obtain
from your local authorities. Avoid damaging the cooling unit, especially at the
rear near the heat exchanger. The materials used on this appliance marked
by the symbol
are recyclable.
CONTROL PANEL
Fridge Control panel
1 2
1
2
3
4
5
6
7
8
9
3
4
Pilot light
ON/OFF switch
Temperature regulator (warmest)
Temperature indicator
Temperature regulator (coldest)
Auto Freeze light
Auto Freeze button
Auto Fresh light
Auto Fresh button
Switching on
Insert the plug into the wall socket.
Press the ON/OFF switch .
The Pilot Light will light up.
Important! At start-up the displayed
temperature don't correspond with the set
temperature until stabilised (within 24 hours).
Switching off
Press ON/OFF switch until a countdown
from -3 -2 -1 is completed.
The temperature indicator switches off. The
Pilot light switches off.
Temperature regulation
The temperature can be adjusted between
+2°C and +8°C.
By pressing the Temperature regulators,
the current temperature setting flashes on
the Temperature indicator. It is possible to
modify the setting temperature only with
flashed indicator. To set a warmer tempera-
5 6 7 8 9
ture, press warmest Temperature regulator.
To set a colder temperature, press coldest
Temperature regulator. The Temperature indicator displays the newly selected temperature for a few seconds and then shows
again the inside compartment temperature.
The newly selected-temperature must be
reached after 24 hours.
Temperature indicator
During normal functioning the Temperature
indicator shows the temperature inside the
fridge.
Important! Difference between the
temperature displayed and temperature
setting is normal. Especially when:
• a new setting has recently been selected.
• the door has been left open for a long time.
• warm food has been placed in the compartment.
Auto Freeze function
You can activate the Auto Freeze function
by pressing the Auto Freeze button.
The Auto Freeze light will light up.
This function stops automatically after 52
hours.
It is possible to deactivate the function at
any time by pressingAuto Freeze button.
The Auto Freeze light will switch off.
5
Auto Fresh function
The maximum performance is obtained by
setting the Auto Fresh function. It’s recommended when loading large quantities of
food.
You can activate the Auto Fresh function by
pressing the Auto Fresh button.
The Auto Fresh light will light up.
Important! The internal temperature goes
down to +2°C.
After about 6 hours the Auto Fresh function
switches off automatically.
FIRST USE
Cleaning the interior
Before using the appliance for the first time,
wash the interior and all internal accessories with lukewarm water and some neutral
soap so as to remove the typical smell of a
brand-new product, then dry thoroughly.
Important! Do not use detergents or abrasive powders, as these will damage the finish.
DAILY USE
Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen and
deep-frozen food for a long time.
To freeze fresh food activate the Auto
Freeze function at least 24 hours before placing the food to be frozen in the freezer compartment.
The maximum amount of food that can be
frozen in 24 hours is specified on the rating
plate , a label located on the inside of the
appliance.
The freezing process lasts 24 hours: during
this period do not add other food to be frozen.
After 24 hours, when the freezing process
is completed, return to the required temperature (see "Temperature regulation").
Storage of frozen food
When first starting-up or after a period out
of use, before putting the products in the
compartment let the appliance run at least
2 hours on the higher settings.
Important! In the event of accidental
defrosting, for example due to a power
failure, if the power has been off for longer
than the value shown in the technical
characteristics chart under "rising time", the
defrosted food must be consumed quickly
or cooked immediately and then re-frozen
(after cooling).
Thawing
Deep-frozen or frozen food, prior to being
used, can be thawed in the refrigerator compartment or at room temperature, depending on the time available for this operation.
Small pieces may even be cooked still frozen, directly from the freezer: in this case,
cooking will take longer.
Ice-cube production
This appliance is equipped with one or
more trays for the production of ice-cubes.
Fill these trays with water, then put them in
the freezer compartment.
Important! Do not use metallic instruments
to remove the trays from the freezer.
Movable shelves
The walls of the refrigerator are equipped
with a series of runners so that the shelves
can be positioned as desired.
For better use of space, the front halfshelves can lie over the rear ones.
6
Positioning the door shelves
To permit storage of food packages of various sizes, the door shelves can be placed
at different heights.
To make these adjustments proceed as follows:
gradually pull the shelf in the direction of the
arrows until it comes free, then reposition
as required.
This bottle holder shelf can be tilted in order
to store previously opened bottles. To obtain this result, pull the shelf up so it can rotate upwards and be placed on the next
higher level.
Important! this appliance is sold in France.
In accordance with regulations valid in this
country it must be provided with a special
device (see figure) placed in the lower compartment of the fridge to indicate the coldest zone of it.
Bottle rack
Place the bottles (with the opening facing
front) in the pre-positioned shelf.
Important! If the shelf is positioned
horizontally, place only closed bottles.
7
HELPFUL HINTS AND TIPS
Hints for energy saving
• Do not open the door frequently or leave
it open longer than absolutely necessary.
• If the ambient temperature is high and
the Temperature Regulator is set to low
temperature and the appliance is fully loaded, the compressor may run continuously, causing frost or ice on the evaporator.
If this happens, set the Temperature Regulator toward warmer settings to allow automatic defrosting and so a saving in electricity consumption.
Hints for fresh food refrigeration
To obtain the best performance:
• do not store warm food or evaporating liquids in the refrigerator
• do cover or wrap the food, particularly if it
has a strong flavour
• position food so that air can circulate freely around it
Hints for refrigeration
Useful hints:
Meat (all types) : wrap in polythene bags
and place on the glass shelf above the vegetable drawer.
For safety, store in this way only one or two
days at the most.
Cooked foods, cold dishes, etc..: these
should be covered and may be placed on
any shelf.
Fruit and vegetables: these should be thoroughly cleaned and placed in the special
drawer(s) provided.
Butter and cheese: these should be placed
in special airtight containers or wrapped in
aluminium foil or polythene bags to exclude
as much air as possible.
Milk bottles: these should have a cap and
should be stored in the bottle rack on the
door.
Bananas, potatoes, onions and garlic, if not
packed, must not be kept in the refrigerator.
Hints for freezing
To help you make the most of the freezing
process, here are some important hints:
• the maximum quantity of food which can
be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No
further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it
to be rapidly and completely frozen and
to make it possible subsequently to thaw
only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages
are airtight;
• do not allow fresh, unfrozen food to
touch food which is already frozen, thus
avoiding a rise in temperature of the latter;
• lean foods store better and longer than
fatty ones; salt reduces the storage life of
food;
• water ices, if consumed immediately after
removal from the freezer compartment,
can possibly cause the skin to be freeze
burnt;
• it is advisable to show the freezing in date
on each individual pack to enable you to
keep tab of the storage time.
Hints for storage of frozen food
To obtain the best performance from this appliance, you should:
• make sure that the commercially frozen
foodstuffs were adequately stored by the
retailer;
• be sure that frozen foodstuffs are transferred from the foodstore to the freezer in
the shortest possible time;
• not open the door frequently or leave it
open longer than absolutely necessary.
• Once defrosted, food deteriorates rapidly
and cannot be refrozen.
• Do not exceed the storage period indicated by the food manufacturer.
8
CARE AND CLEANING
Caution! Unplug the appliance before
carrying out any maintenance operation.
This appliance contains hydrocarbons
in its cooling unit; maintenance and recharging must therefore only be carried
out by authorized technicians.
food inside. Use the special cleaner provided, which you will find already inserted into the drain hole.
Periodic cleaning
The equipment has to be cleaned regularly:
• clean the inside and accessories with lukewarm water and some neutral soap.
• regularly check the door seals and wipe
clean to ensure they are clean and free
from debris.
• rinse and dry thoroughly.
Important! Do not pull, move or damage
any pipes and/or cables inside the cabinet.
Never use detergents, abrasive powders,
highly perfumed cleaning products or wax
polishes to clean the interior as this will damage the surface and leave a strong odour.
Clean the condenser (black grill) and the
compressor at the back of the appliance
with a brush or a vacuum cleaner. This operation will improve the performance of the
appliance and save electricity consumption.
Important! Take care of not to damage the
cooling system.
Many proprietary kitchen surface cleaners
contain chemicals that can attack/damage
the plastics used in this appliance. For this
reason it is recommended that the outer casing of this appliance is only cleaned with
warm water with a little washing-up liquid
added.
After cleaning, reconnect the equipment to
the mains supply.
Defrosting of the refrigerator
Frost is automatically eliminated from the
evaporator of the refrigerator compartment
every time the motor compressor stops, during normal use. The defrost water drains
out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates.
It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent
the water overflowing and dripping onto the
Defrosting the freezer
A certain amount of frost will always
form around the top compartment.
Important! Defrost the freezer when the
frost layer reaches a thickness of about 3-5
mm.
To remove the frost, do these steps:
1. Switch off the appliance.
2. Remove any stored food, wrap it in several layers of newspaper and put it in a
cool place.
3. Open the door.
4. When defrosting is completed, dry the interior thoroughly.
5. Switch on the appliance.
6. Set the temperature regulator to obtain
the maximum coldness and run the appliance for two or three hours using this
setting.
7. Reload the previously removed food into
the compartment.
9
Warning! Never use sharp metal tools
to scrape off frost from the evaporator
as you could damage it. Do not use a
mechanical device or any artificial
means to speed up the thawing
process other than those
recommended by the manufacturer. A
temperature rise of the frozen food
packs, during defrosting, may shorten
their safe storage life.
Periods of non-operation
When the appliance is not in use for long periods, take the following precautions:
• disconnect the appliance from electricity supply
• remove all food
• defrost5) and clean the appliance and all
accessories
• leave the door/doors ajar to prevent unpleasant smells.
If the cabinet will be kept on, ask somebody to check it once in a while to prevent
the food inside from spoiling in case of a
power failure.
WHAT TO DO IF…
Warning! Before troubleshooting,
disconnect the mains plug from the
mains socket.
Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.
Problem
Important! There are some sounds during
normal use (compressor, refrigerant
circulation).
Possible cause
Solution
The appliance is noisy
The appliance is not supported
properly
Check if the appliance stands stable (all the four feet should be on
the floor)
The appliance does not
operate. The lamp does
not operate.
The appliance is switched off.
Switch on the appliance.
The mains plug is not connected
to the mains socket correctly.
Connect the mains plug to the
mains socket correctly.
The appliance has no power.
There is no voltage in the mains
socket.
Connect a different electrical appliance to the mains socket.
Contact a qualified electrician.
The lamp is in stand-by.
Close and open the door.
The lamp is defective.
Refer to "Replacing the lamp".
The temperature is not set correctly.
Set a higher temperature.
The door is not closed correctly.
Refer to "Closing the door".
The door has been opened too
frequently.
Do not keep the door open longer
than necessary.
The product temperature is too
high.
Let the product temperature decrease to room temperature before storage.
The room temperature is too
high.
Decrease the room temperature.
The lamp does not work.
The compressor operates continually.
5) If foreseen.
10
Problem
Possible cause
Solution
The compressor does
not start immediately after pressing the Auto
Freezeor Auto Fresh button, or after changing the
temperature.
This is normal, no error has occurred.
The compressor starts after a period of time.
Water flows on the rear
plate of the refrigerator.
During the automatic defrosting
process, frost defrosts on the
rear plate.
This is correct.
Water flows into the refrigerator.
The water outlet is clogged.
Clean the water outlet.
Products prevent that water
flows into the water collector.
Make sure that products do not
touch the rear plate.
Temperature cannot be
set .
Auto Freeze or Auto Fresh functions switched on.
Switch off Auto Freeze or Auto
Fresh manually, or wait to set the
temperature until the function has
reset automatically. Refer to "Auto
Freeze or Auto Fresh function"..
The temperature in the
appliance is too low/high.
The temperature regulator is not
set correctly.
Set a higher/lower temperature.
The door is not closed correctly.
Refer to "Closing the door".
The product temperature is too
high.
Let the product temperature decrease to room temperature before storage.
Many products are stored at the
same time.
Store less products at the same
time.
The temperature in the refrigerator is too high.
There is no cold air circulation in
the appliance.
Make sure that there is cold air circulation in the appliance.
The temperature in the
freezer is too high.
Products are too near to each
other.
Store products so that there is
cold air circulation.
There is too much frost.
Food is not wrapped correctly.
Wrap the food correctly.
The door is not closed correctly.
Refer to "Closing the door".
The temperature regulator is not
set correctly.
Set a higher temperature.
Replacing the lamp
1. Disconnect the mains plug from the
mains socket.
2. Press on the rear hook and at the same
time slide the lamp cover in the direction
of the arrow.
3. Replace the lamp with one of the same
power and specifically designed for
household appliances. (the maximum
power is shown on the light lamp cover)
4. Install the lamp cover by sliding it into its
original position.
5. Connect the mains plug to the mains
socket.
6. Open the door. Make sure that the lamp
comes on.
11
Closing the door
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to "Installation".
3. If necessary, replace the defective door
gaskets. Contact the Service Center.
TECHNICAL DATA
Dimension of the recess
Height
1225 mm
Width
560 mm
Depth
550 mm
Rising Time
12 h
The technical information are situated in the
rating plate on the internal left side of the appliance and in the energy label.
INSTALLATION
Read the "Safety Information" carefully
for your safety and correct operation of
the appliance before installing the
appliance.
Positioning
Install this appliance at a location where the
ambient temperature corresponds to the climate class indicated on the rating plate of
the appliance:
Climate
class
Ambient temperature
SN
+10°C to + 32°C
N
+16°C to + 32°C
ST
+16°C to + 38°C
T
+16°C to + 43°C
Electrical connection
Before plugging in, ensure that the voltage
and frequency shown on the rating plate correspond to your domestic power supply.
The appliance must be earthed. The power
supply cable plug is provided with a contact
for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with
current regulations, consulting a qualified
electrician.
The manufacturer declines all responsibility
if the above safety precautions are not observed.
This appliance complies with the E.E.C. Directives.
Ventilation requirements
The airflow behind the appliance must be
sufficient.
min.
200 cm2
min.
200 cm2
ENVIRONMENTAL CONCERNS
The symbol
on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it should be taken to the appropriate
12
collection point for the recycling of electrical
and electronic equipment. By ensuring this
product is disposed of correctly, you will
help prevent potential negative
consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling of
this product. For more detailed information
about recycling of this product, please
contact your local council, your household
waste disposal service or the shop where
you purchased the product.
13
14
Service Consommateurs De Dietrich
BP 9526
95069 CERGY PONTOISE CEDEX
Tel : +33 (0) 892 02 88 04
*0,34 Eur TTC / min à partir d’un poste fixe
• Service fourni par FagorBrandt SAS, locataire-gérant, Etablissement de Cergy,
• 5/7 avenue des Béthunes, 95 310 Saint Ouen L’Aumône
www.dedietrich-electromenager.com
FagorBrandt SAS, locataire-gérant - SAS au capital social de 20 000 000 euros RCS Nanterre 440 303 196.
212700112-00-15072010
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
