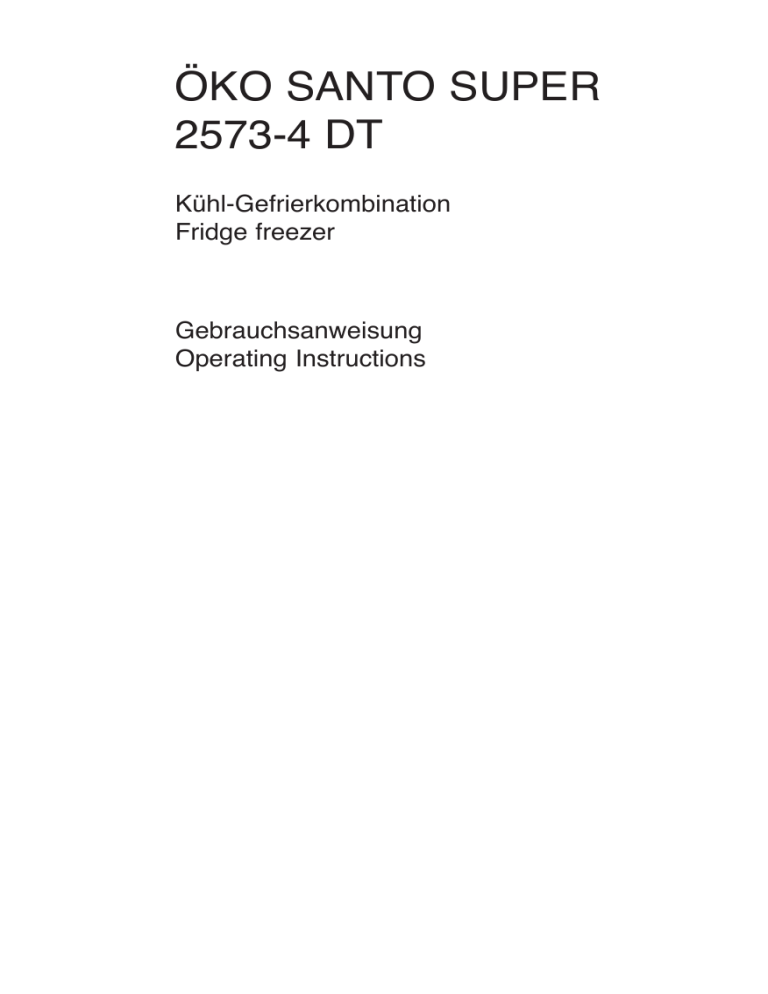

2573-4 DT
Fridge freezer
Operating Instructions
Dear customer,
Before placing your new refrigerator/freezer into operation please
read these operating instructions carefully. They contain important
information for safe use, for installation and for care of the appliance.
Please keep these operating instructions for future reference. Pass
them on to possible new owners of the appliance.
Notes which are important for your safety or for the proper functioning
of the appliance are stressed with a warning triangle and/or with
signal words (Warning!, Caution!, Attention!). Please observe the following carefully.
Supplementary information regarding operation and practical applications of the appliance appear after this symbol.
Tips and notes concerning economical and environmentally sound
use of the appliance are marked with the cloverleaf.
The operating instructions contain instructions for the correction of
possible malfunctions by the user in the section "What to do if ...". If
these instructions should not be sufficient, our customer service
department is always available to you.
Printed on paper manufactured with environmentally sound processes.
who thinks ecologically acts accordingly ...
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Appliance Packaging Information . . . . . . . . . . . . . . . . . . . . . . . . 25
Disposal of old Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Remove transport safeguard . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Installation Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Your refrigerator needs air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Rehingeing the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Prior to Initial StartÐUp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Starting up and temperature regulation . . . . . . . . . . . . . . . . . 29
Interior Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Storage shelves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Door rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Fresh food refrigeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Freezing and storing frozen food . . . . . . . . . . . . . . . . . . . . . . 32
Preparation of Ice Cubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Switching off the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Energy Saving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
What to do if . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Correcting Malfunctions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Changing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Customer Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Regulations, Standards, Guidelines . . . . . . . . . . . . . . . . . . . . 39
The safety aspects of our refrigerators/freezers comply with accepted
technical standards and the German Appliance Safety Law. Nevertheless, we consider it our obligation to make you aware of the following
safety information:
Intended use
¥ The refrigerator is intended for use in the home. It is suitable for the
cooling, freezing and storing of frozen food, as well as for making
ice. If the appliance is used for purposes other than those intended
or used incorrectly, no liability can be accepted by the manufacturer
for any damage that may be caused.
¥ Alterations or changes to the freezer are not permitted for reasons
of safety.
¥ If you use the refrigerator in a commercial application or forpurposes
other than the cooling, freezing or frozen storage of foods,please
observe all valid legal regulations for your application.
Prior to initial startÐup
¥ Check the refrigerator for transport damage. Under no circumstance
should a damaged appliance be plugged in! In the event of damage,
please contact the vendor.
The refrigerant isobutane (R600a) is contained within the refrigerant
circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
¥ During transportation and installation of the appliance, be certain
that none of the components of the refrigerant circuit become damaged.
¥ If the refrigerant circuit should become damaged:
Ð avoid open flames and sources of ignition;
Ð thoroughly ventilate the room in which the appliance is situated.
Safety of children
¥ Packaging (e.g. wraps, polystyrene) can be dangerous for children.
There is a risk of suffocation! Keep packaging material away from
¥ Please make old appliances unusable prior to disposal. Pull out the
mains plug, cut off the mains cable, break or remove spring or boltcatches, if fitted. By doing this you ensure that children cannot lock
themselves in the fridge when playing (there is risk of suffocation!)or
get themselves into other dangerous situations.
¥ Often children cannot recognise the hazards present in household
appliances. It is therefore important that you ensure adequate
supervision and never let children play with the appliance!
Daily Operation
¥ Containers with flammable gases or liquids can leak at low temperatures. There is a risk of an explosion! Do not store any containers
with flammable materials such as, for example, spray cans, fire
extinguisher refill cartridges etc in the refrigerator/freezer.
¥ Bottles and cans must not be placed in the freezer compartment.
They can burst when the contents freeze, high carbonate content
drinks can even explode! Never store lemonade, juices, beer, wine,
sparkling wine etc. in the freezer compartment. Exception: high
alcohol content spirits can be stored in the freezer compartment.
¥ Do not put ice creams or ice cubes in the mouth immediately after
removal from the freezer compartment. Very cold ice can freeze to
the lips or tongue and cause injury.
¥ Do not touch frozen food with wet hands. Your hands could freeze
to the food.
¥ Do not operate any electrical appliances in the refrigerator/freezer
(e.g. electric ice cream makers, mixers etc.).
¥ Before cleaning the appliance, always switch off the appliance and
unplug it, or pull the house fuse or switch off the circuit breaker.
¥ When unplugging always pull the plug from the mains socket, do not
pull on the cable.
In case of malfunction
¥ If the a malfunction occurs on the appliance, please look first in the
"What to do if ..." section of these instructions. If the information
given there does not help, please do not perform any further repairs
¥ Refrigerators/freezers may only be repaired by qualified service
engineers. Improper repairs can give rise to significant hazards. If
your appliance needs repairing, please contact your specialist dealer or our Customer Service.
Appliance Packaging Information
All materials are environmentally sound! They can be dumped or burned at an incinerating plant without danger!
About the materials: The plastics can be recycled and are identified
as follows:
>PE< for polyethylene, e.g. the outer covering and the bags in the
>PS< for polystyrene foam, e.g. the pads, which are all free of chlorofluorocarbon.
The carton parts are made from recycled paper and should be disposed of at a waste-paper recycling collection location.
Disposal of old Appliances
For environmental reasons, refrigeration appliances must be disposed of properly. This applies to your old appliance, and - at the end of
its service life - for your new appliance as well.
Warning! Before disposing of old appliances make them inoperable.
Remove plug from mains, sever the power cable, remove or destroy
any snap or latch closures. This eliminates the danger that playing
children lock themselves into the appliance (danger of suffocation!) or
place themselves into other life-endangering situations.
¥ The appliance may not be disposed of with domestic waste or bulky
¥ The refrigerant circuit, especially the heat exchanger at the back of
the appliance, may not be damaged.
¥ Information concerning collection schedules or locations can be
obtained from the local disposal authorities or town hall.
Remove transport safeguard
The appliance and the interior fittings are protected for transport.
¥ Remove all adhesive tape and packing pieces from the interior of
the appliance.
You can remove any remnants of adhesive using white spirit.
Installation Location
The appliance should be set up in a well ventilated, dry room.
Energy use is affected by the ambient temperature. The appliance
should therefore
Ð not be exposed to direct sunlight;
Ð not be installed next to radiators, cookers or other sources of heat;
Ð only be installed at a location whose ambient temperature corresponds to the climate classification, for which the appliance is designed.
The climate classification can be found on the serial plate, which is
located at the left on the inside of the appliance.
The following table shows which ambient temperature is correct for
each climate classification: each climate classification:
Climate classification
ffor an ambient temperature of
+10 bis +32 ¡C
+16 bis +32 ¡C
+18 bis +38 ¡C
+18 bis +43 ¡C
If installation next to a source of heat is unavoidable, the following
minimum clearances must be maintained at the sides of the appliance:
Ð for electric cookers 3 cm;
Ð for oil and coal fired ranges 30 cm.
If these clearances cannot be maintained a heat insulating pad is
required between the cooker and the refrigeration appliance.
If the refrigeration appliance is installed next to another refrigerator or
freezer a clearance of 5 cm at the sides is required, in order to prevent the formation of condensation on the outside of the appliance.
10 mm
10 mm
For safety reasons, minimum ventilationmust be as shown Fig.
Attention: keep ventilation openings clear of obstruction;
100 mm
Your appliance needs air
Rear spacers
In the bag with the documentation,
there are two spacers which must
be fitted.
slacken the screws and insert the
spacer under the screw head, then
re-tighten the screws.
Rehingeing the door
The side at which the door opens can be changed from the right side
(factory adjustment) to the left side, if the installation site requires.
Warning! When changing the side at which the door opens, the
appliance may not be connected to the mains. Remove plug from the
mains beforehand.
Procced as follow:
Remove the clip-in ventilation grille
Remove the bottom hinge (E) by
unscrewing the two fixing screws.
Slide the bottom door off the centre
hinge (B).
Remove the centre hinge and slide
the top door off pin (5); unscrew pin
(5) and refit it on the opposite side.
Remove the two plugs, to reveal
the holes for the hinge pivots, and
remount them on the other side.
Refit the top door and the centre
hinge (H) on the opposite side.
Refit the bottom door.
Refit bottom hinge (E) on the
opposite side, using the two
screws previously removed.
Remove blanking cover (F) from
ventilation grille (D) by pushing it in
the direction of the arrow and refit
it on the opposite side.
Refit ventilation grille (D), clipping
it into place.
Unscrew the handle. Refit it on
opposite side after having pierced
the plugs with a punch. Cover the
holes left open with the plugs contained in the documentation pack.
After having reversed the opening
direction of the doors check that all
the screws are properly tightened
and that the magnetic seal adheres to the cabinet. If the ambient
temperature is cold (i.e. in Winter),
the gasket may not fit perfectly to
the cabinet. in that case, wait for
the natural fitting of the gasket or
accelerate this process by heating
up the part involved with a normal
Prior to Initial StartÐUp
¥ Please clean the appliance interior and all accessories prior to initial
start-up (see section: ÒCleaning and CareÓ).
Electrical Connection
Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
The manufacturer declines any liability should these safety measures not be observed.
Before switching on, make sure the electricity supply voltage is the
same as that indicated on the appliance rating plate. The rating plate
is inside, on the left.
The appliance is supplied with a 13 amp plug fitted. In the event of
having to change the fuse in the plug supplied, a 13 amp ASTA approved (BS 1362) fuse must be used.
The wires in the mains lead are coloured in accordance with the following code:
Green and Yellow Earth
Blue Neutral
Brown Live
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings indentifying the terminals in
your plug, proceed as follows:
The wire coloured green and yellow must be connected to the terminal marked with the letter ãEÒ or by the earth symbol or coloured green
and yellow.
The wire coloured blue must be connected to the terminal ãNÒ or
coloured black.
The wire coloured brown must be connected to the terminal marked
ãLÒ or coloured red.
Upon completion there must be not cut, or stray strands of wire present and the cord clamp must be secure over the outer sheat.
Warning! A cut-off plug inserted into a 13 amp socket is a serious
safety (shock) hazard. Ensure that the cut-off plug is disposed of
Starting up and temperature regulation
¥ Insert the plug of the connection lead into the plug socket with protective earth contact. When the refrigerator compartment door is
opened, the internal lighting is switched on. The temperature selector knob is located on the RH side of the refrigerator compartment.
Setting ã0Ò means: Off.
Setting ã1Ò means: Hightest temperature, (warmest setting).
Setting ã6Ò (end-stop) means: Lowest temperature, (coldest setting).
However, the exact setting should be chosen keeping in the mind that
the temperature inside the refrigerator depends on:
-the quantity of food stored
-how often the door is opened
The temperatures in the refrigerator compartment and freezer co partment cannot be independently regulated.
If you want the freeze fresh food rapidly, select setting ã6Ò, ensuring
that the temperature in the refrigerator compartment does not drop
blow 0¡C. You should also promptly reset the temperature regulator to
setting ã3Ò or ã4Ò.
High ambient temperatures (e.g. on hot summer days) and a cold setting on the temperature regulator (position"5" to "6") can cause the
compressor to run continuously.
If this happens, turn the temperature regulator back to a warmer setting (position "3" to "4"). At this setting the compressor will be switched
on and off as usual and automatic defrosting recommenced.
Interior Accessories
Storage shelves
¥ You should always slide one of the full size glass storage shelf
into the lowest set of guides, above the fruit and the vegetable
containers, and keep it in this position.
¥ The height of the storage shelves can be adjusted:
¥ To do this pull the storage shelf forward until it can be swivelledupwards or downwards and removed.
¥ Please do the same in reverse to insert the shelf at a different
height.Slide the front half of the
Vario storage shelf in another
level to the rear. By this means
you will gain space to place tall
items on the storage shelf below.
Adjusting the upper door rack
¥ Depending on the food stored, the
upper door racks can be changed
to other holders or removed. Take
out the refrigerators food, press
the door racks digonally upwards
at their edges, reposition them,
and press them back into place.
Fresh food refrigeration
To obtain the best performance:
¥ do not store warm food or evaporating liquide in the refrigeator
¥ do cover or wrap the food, particularly if it has a strong flavour.
¥ Position food so that air can circuiate freely round it.
Useful hints:
Meat (all types): wrap in polythene bags and place on the glass shelf
above the vegetable drawer(s)For safety, store in this way only one
or two days at the most.
Cooked foods, cold dishes, etc: these should be covered and may
be placed on any shelf.
Fruit and vegetables: these should be thoroughly cleaned and
placed in the special drawer(s) provided.
Butter and cheese: these should be placed in special airtight containers or wapped in aluminium foil or polythene bags to exclude as
much air as possible.
Milk bootles: these should have a cap and should be stored in the
bottle rack on the door.
Bananas, potatoes, onions and garlic, if not
packed, must not be kept in the refrigerator.
Freezing and storing frozen food
You can use your freezer for freezing fresh food yourself.
¥ The temperature in the freezer compartment must be Ð18 ¡C or colder before freezing food.
¥ Please observe the freezing capacity given on the rating plate. The
freezing capacity is the maximum quantity of fresh food that can be
frozen within a period of 24 hours. If you wish to freeze food several days in a row, please observe a maximum capacity of only 2/3 to
3/4 of that on the rating plate. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible.
¥ Allow warm food to cool down before freezing. The warmth will cause increased ice formation and increase the power consumption.
¥ Please note the maximum storage times specified by the manufacturer.
¥ Thawed foods which have not been processed further (cooked into
meals) may not under any circumstances be frozen a second time.
¥ Containers with flammable gases or liquids can leak at low temperatures. There is a risk of an explosion! Do not store any containers
with flammable materials such as, for example, spray cans, fire
extinguisher refill cartridges etc in the refrigerator/freezer.
¥ Bottles and cans must not be placed in the freezer. They can burst
when the contents freeze, high carbonate content drinks can even
explode! Never store lemonade, juices, beer, wine, sparkling wine
etc. in the freezer. Exception: high alcohol content spirits can be stored in the freezer.
¥ All foods must be packed air tight prior to freezing, so that they do
not dry out or lose their flavour, and so that no flavour contamina33
tion of other frozen goods occurs.
Caution! Do not touch frozen food with wet hands. Your hands could
freeze to the food.
Place the packed food in the freezer compartment. Unfrozen food
must not touch items already frozen, otherwise the frozen food could
begin to defrost.
Not open the door frequently or leave it open longer than absolutely
Preparation of Ice Cubes
Fill the ice cube tray 3/4 full with cold water, place it in the freezer
compartment and leave to freeze.
To loosen the frozen cubes, either bend the ice cube tray or hold it
under running water for a few seconds.
Important! Never try to free an ice tray that is frozen to the freezer
compartment using pointed or sharp edged objects. Use the ice scraper supplied.
Frost is automatically eliminated
from the evaporator of the refrigerator compartment every time the
motor compressor stops, during
normal use. The defrost water
drains out through a trough into a
special container at the back of the
appliance, over the motor compressor, where it evaporates.
We particulary recommend that
you peridically clean the
defrost-water drainage outlet,
located in the center of the
drainage groove in the refrigerator compartment, to prevent the
defrost water form overflowing
on to foods stored in the compartment. Use a special cleaner
provided, which you will find already inserted into the discharge hole.
The freezer compartment, however, will become progrssively covered
with frost. This should be removed with the special plastic scraper
provided, whenever the tickness of the frost exceeds 4 mm. During
this operation it is not necessary to switch off the power supply or to
remove the foodstuffs.
However when the ice becomes very thick on the inner liner, complete defrosting should be carried out as follows:
pull out the plug from the wall socket or turn the thermostat knob to th
Ò0Ó setting.
remove any stored food, wrap it in
several layers newspaper and put
it in a coll place.
leave the door open, and place a
basin on the top shelf of the refrigerator compartment, under the
draun hole, lift the plug as shown in
when defrosting is completed, dry
the interior thoroughly
keep the scraper for future use;
turn the thermostat knob to the required setting or raplace the plug in
the power socket.
Never use sharp metal tools to scrape off frost from the evaporator as
you could damage it.
Do not use a maechanical device or any artificial means to speed up
the thawing process other than those recommended by the manufacturer.
A temperature rise of the frozen food packs, during defrosting , may
shorten their safe storage life.
Switching off the appliance
To switch off the appliance, turn the temperature regulator to position
If the appliance is not going to be used for an extended period:
Remove all refrigerated and deep-frozen packages as well as ice
Switch off the appliance by turning the temperature regulator to position "0".
Remove the mains plug or switch off or turn out the circuit breaker or
Defrost freezer compartment and clean thoroughly (see section:
ÒCleaning and CareÓ).
Leave the door open to avoid the build up of odours.
Cleaning and Care
For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.
¥ The appliance may not be connected to the mains during cleaning.
Danger of electrical shock! Before cleaning switch the appliance
offand rem ve the plug from the mains, or switch off or turn out the circuit breaker or fuse.
¥ Never clean the appliance with a steam cleaner. Moisture could
accumulate in electrical components, danger of electrical shock!
Hot vapours can lead to the damage of plastic parts.
¥ The appliance must be dry before it is placed back into service.
¥ Ethereal oils and organic solvents can attack plastic parts, e.g.
Ð lemon juice or the juice from orange peals;
Ð butyric acid;
Ð cleansers which contain acetic acid.
Do not allow such substances to come into contact with appliance
¥ Do not use any abrasive cleansers.
Remove frozen food and the food from the refrigerator. Wrap frozen
food in several layers of newspaper. Store it in a cool place, well covered.
Defrost the freezer compartment prior to cleaning (see "Defrosting"
Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse.
Clean the appliance and the interior accessories with a cloth and
lukewarm water. Commercially available dish washing detergents
may also be used.
After cleaning wipe with fresh water and rub dry.
Accumulation of dust at the condenser increases energy consumption. For this reason carefully clean the condenser at the back of the
appliance once a year with a soft brush or a vacuum cleaner.
Check the water drain hole on the rear wall of the fridge. Clear a
blocked drain hole with the aid of the green peg in the pack of accessories included with the appliance.
After everything is dry place appliance back into service.
Energy Saving Tips
¥ Do not install the appliance near cookers, radiators or other sources
of warmth. High ambient temperatures cause longer, more frequent
operation of the compressor.
¥ Ensure sufficient air circulation and exhaust at the appliance base
and at the back wall of the appliance. Never cover air vent openings.
¥ Do not place warm foods into the appliance. Allow warm foods to
cool first.
¥ Only leave door open as long as necessary.
¥ Do not set temperature any colder than necessary.
¥ Put frozen food in the fridge to defrost. The cold in the frozen food
will then be used to cool the fridge.
¥ Keep the heat emitting condenser, the metall grille on the rear wall
of your appliance, always clean.
What to do if ...
Correcting Malfunctions
A malfunction may be caused by only a minor fault that you can rectify yourself using the following instructions. Do not perform any other
work on the appliance if the following information does not provide
assistance in your specific case.
Warning! Repairs to refrigerators/freezers may only be performed by
qualified service engineers. Improper repairs can give rise to significant hazards for the user. If your appliance needs repairing, please
contact your specialist dealer or our Customer Service.
Possible Cause
Appliance is not switched on Switch on the appliance.
Mains plug is not plugged in Insert mains plug.
or is loose.
Appliance does not work.
Fuse has blown or is defec- Check fuse, replace if
Socket is defective.
Appliance cools too much.
Mains malfunctions are to
be corrected by an electrician.
Temperature is set too cold. Turn the temperature regulator to a warmer setting
Temperature is not properly Please look in the "Initial
Start Up" section.
Door was open for an exten- Open the door only as long
ded period.
as necessary.
The food is too warm.
A large quantity of warm
Turn the temperature regufood was placed in the
lator to a colder setting temappliance within the last 24 porarily.
The appliance is near a heat Please look in the "Installasource.
tion location" section.
Interior lighting does not
Light bulb is defective.
Please look in the "Changing the Light Bulb" section.
Heavy build up of frost, pos- Door seal is not air tight
sibly also on the door seal. (possibly after changing
over the hinges).
Carefully warm the leaking
sections of the door seal
with a hair dryer (not hotter
than approx. 50 ¡C). At the
same time shape the warmed door seal by hand such
that it sits correctly.
Unusual noises.
Appliance is not level.
Readjust the feet.
The appliance is touching
the wall or other objects.
Move the appliance slightly.
A component, e.g. a pipe,
If necessary, carefully bend
on the rear of the appliance the component out of the
is touching another part of way.
the appliance or the wall.
The compressor does not
This is normal, no error has The compressor starts after
start immediately after chan- occurred.
a period of time.
ging the temperature setting.
Water on the floor or on sto- Water drain hole is blocked. See the "Cleaning and
rage shelves.
Care" section.
Changing the light bulb
Warning! There is a risk of electric shocks! Before changing the light
bulb, switch off the appliance and unplug it, or pull the fuse or the circuit breaker. Light bulb data: 220-240 V, max. 15 W
To switch off the appliance, turn
the temperature regulator to position "0".
Unplug the mains plug.
To change the light bulb, undo the
Press the light bulb cover as
shown and slide it backwards.
Change the defective light bulb.
Refit the light bulb cover and the
Put the refrigerator back into operation.
Customer Service
If you cannot find the remedy for a malfunction in these operating
instructions, please contact your dealer or our customer service
department. Addresses and telephone numbers are listed in the
accompanying booklet "Guarantee Conditions/Customer Service
Selective ordering of replacement parts can save unnecessary travel
and costs. For this reason always provide the following appliance
This information can be found on the serial plate in the interior at the
left of the appliance.
¥ Model Name
¥ Model Number (PNC)
¥ Serial Number (S-No.)
We recommend that you enter this information here, so that it is handy
if needed.
Note: The customer bears the costs of unjustified customer service
calls even during the guarantee period.
Regulations, Standards, Guidelines
This appliance was designed for household use and was manufactured in accordance with the appropriate standards. The necessary
measures in accordance with appliance safety legislation regulations
(GSG), accident prevention regulations for refrigeration appliances
(VBG 20) and the regulations of the German Society of Electrical
Engineers (VDE) were observed in the manufacture of this appliance.
The refrigerant circuit has been checked for leaks.
This appliance is in accordance with the following EU guidelines:
Ð 73/23/EWG dated 19 February 1973 - low voltage guidelines.
Ð 89/336/EWG dated 3 May 1989
(including guideline change notice 92/31/EWG) - EMV guideline
AEG HausgerŠte GmbH
Postfach 1036
D-90327 NŸrnberg
2222 253-92
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
